IFP-8603 - Monitor AG Neovo - Free user manual and instructions

Product Type	Interactive Flat Panel Display
Model	IFP-8603
Brand	AG Neovo
Screen Size	86 inches (218.44 cm)
Resolution	3840 x 2160 (4K UHD)
Touch Technology	Infrared (IR) or capacitive, multi-touch up to 20 points
Brightness	350 cd/m² (typical)
Contrast Ratio	4000:1 (typical)
Viewing Angle	178° horizontal / 178° vertical
Response Time	8 ms
Built-in Speakers	2 x 10W
Connectivity	HDMI (x3), USB (x4), VGA, RJ45, RS232, Audio In/Out
Power Consumption (Typical)	250 W
Standby Power Consumption	0.5 W
Dimensions (W x H x D)	1957 x 1158 x 89 mm (without stand)
Weight	Approx. 60 kg (without stand)
VESA Mounting	800 x 600 mm
Operating Temperature	0°C to 40°C
Cleaning Instructions	Use a soft, lint-free cloth dampened with water or mild cleaner; avoid abrasive agents.
Safety Precautions	Place on stable surface, ensure ventilation, do not block air vents.
Spare Parts	Remote control, touch pen, power cord, VGA cable, user manual
Reparability	Professional repair only; contact AG Neovo support for service.

Frequently Asked Questions - IFP-8603 AG Neovo

What is the screen size of the AG Neovo IFP-8603?

The IFP-8603 features an 86-inch (diagonal) display, providing a large interactive surface for presentations and collaboration.

What is the resolution of this monitor?

It supports 4K UHD resolution (3840 x 2160 pixels) for crisp and detailed visuals.

Does the IFP-8603 have built-in speakers?

Yes, it includes two built-in 10W speakers for clear audio without external speakers.

How do I clean the touch screen?

Use a soft, lint-free cloth slightly dampened with water or a mild glass cleaner. Avoid spraying directly on the screen and never use abrasive cleaners.

What touch technology does it use?

It employs infrared (IR) touch technology, supporting up to 20 simultaneous touch points for smooth multi-touch interaction.

What connectivity options are available?

The monitor offers multiple HDMI ports, USB ports, VGA, RJ45 (Ethernet), RS232, and audio input/output, allowing connection to various devices.

Can it be mounted on a wall?

Yes, it is VESA mount compatible (800x600 mm pattern). Ensure the wall mount can support its weight (approx. 60 kg).

What is the power consumption?

Typical power consumption is around 250W, with a standby consumption of less than 0.5W for energy efficiency.

Does it come with a remote control or accessories?

Yes, it includes a remote control, touch pen, power cord, VGA cable, and a user manual. Additional accessories may be available separately.

How do I calibrate the touch screen?

Touch calibration can be done via the on-screen display (OSD) menu. Navigate to Settings > Touch > Calibration and follow the on-screen instructions.

USER MANUAL IFP-8603 AG Neovo

Abstract geometric pattern with diagonal black and white stripes (no text or symbols)

neovo

THE DISPLAY CHOICE OF PROFESSIONALS™

TABLE OF CONTENTS

SAFETY INFORMATION .... 1

Federal Communications Commission (FCC) Notice (U.S. Only)....1

Polish Center for Testing and Certification Notice 1

Electric, Magnetic and Electromagnetic Fields ("EMF") 2

Information for U.K. only....3

North Europe (Nordic Countries) Information....4

End-of-Life Disposal....5

Waste Electrical and Electronie Equipment-WEEE 5

Turkey RoHS 6

Ukraine RoHS 6

PRECAUTIONS 7

Cautions When Setting Up....7

Cautions When Using....8

Cleaning and Maintenance....8

Notice for the Interactive Display....9

Caring for the Touch Screen....9

CHAPTER 1: PRODUCT DESCRIPTION....10

1.1 Unpacking 10

1.2 Package Contents 10

1.3 Preparing for the Installation 11

1.4 Wall Mounting Installation.... 11

1.4.1 VESA Grid 12

1.4.2 Mounting the Interactive Display on the Wall....12

1.4.3 Ventilation Requirements for Enclosure Locating 14

1.5 Mounting the Interactive Display on the Stand 15

TABLE OF CONTENTS

2.5 Connecting to a Wired Network....35
2.6 Connecting Audio Equipment 36
2.7 Connecting USB Interface Devices 37
2.8 Attaching Touch Pens....37

CHAPTER 3: USING THE INTERACTIVE DISPLAY 38

3.1 Turning on the Power 38
3.2 Selecting the Input Source Signal 38
3.3 Adjusting the Volume 39
3.4 Using Freeze Function 39
3.5 Android Functions....40

3.5.1 Accessing the Home Screen 40
3.5.2 Returning to the Previous Screen 40
3.5.3 Blanking the Screen 41
3.5.4 Activating the Writing Mode 41

3.6 Using the Touchscreen....42
3.7 Using the On-Screen Keyboard 46

CHAPTER 4: USING THE SYSTEM....47

4.1 About the Home Screen 47
4.2 Using the Assistive Menu 48
4.3 On Screen Display (OSD) Menu 50

4.3.1 OSD Menu Tree 51

4.4 Adjusting the Interactive Display .... 52

4.4.1 Audio Menu 52
4.4.2 Screen Menu 53
4.4.3 Display Menu....55

TABLE OF CONTENTS

CHAPTER 7: SPECIFICATIONS....79

7.1 Display Specifications 79
7.2 Display Dimensions....80

SAFETY INFORMATION

Federal Communications Commission (FCC) Notice (U.S. Only)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Use only an RF shielded cable that was supplied with the display when connecting this display to a computer device.

To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture.

SAFETY INFORMATION

Information for U.K. only

WARNING - THIS APPLIANCE MUST BE EARTHED.

(A) (B)

Important:

This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows:

1 Remove fuse cover and fuse.
2 Fit new fuse which should be a BS 1362 5A,A.S.T.A. or BSI approved type.
3 Refit the fuse cover.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate 3-pin plug fitted in its place.

Note:

The severed plug must be

SAFETY INFORMATION

Diagram of a plug socket with colored wires (green, blue, red) and connectors (no text or labels)

How to connect a plug

The wires in the mains lead are coloured in accordance with the following code:

BLUE - "NEUTRAL" ("N")

BROWN - "LIVE" ("L")

GREEN & YELLOW - "EARTH" ("E")

• The GREEN & YELLOW wire must be connected to the terminal in the plug which is marked with the letter "E" or by the Earth symbol or coloured GREEN or GREEN & YELLOW.
• The BLUE wire must be connected to the terminal which is marked with the letter "N" or coloured BLACK.
• The BROWN wire must be connected to the terminal which marked with the letter "L" or coloured RED. Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the three wires.

SAFETY INFORMATION

End-of-Life Disposal

Your new Public Information Display contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of.

Please find out about the local regulations on how to dispose of your old display from your local dealer.

(For customers in Canada and U.S.A.)

This product may contain lead and/or mercury. Dispose of in accordance to local-state and federal regulations. For additional information on recycling contact www.eia.org (Consumer Education Initiative).

Waste Electrical and Electronie Equipment-WEEE

Attention users in European Union private households

Disposal of Waste Equipment by Users in Private Household in the European Union. This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

For Private Households in the European Union. To help conserve natural resources and ensure the product is recycled in a manner that protects human health and the environment, we would like to bring your attention to the following:

SAFETY INFORMATION

Restriction on Hazardous Substances statement (India)

This product complies with the "India E-waste Rule 2011" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

E-Waste Declaration for India

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

Batteries

For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation.

Please contact your local authority for details on the collection and recycling schemes.

For Switzerland: The used battery is to be returned to the selling point.

For other non-EU countries: Please contact your local authority for correct method of disposal of the used battery.

According to EU directive 2006/66/EC, the battery can't be disposed improperly. The battery shall be separated to collect by local service.

PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

Symbols used in this manual

	This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product.
	This icon indicates important operating and servicing information.

Notice

• Read this User Manual carefully before using the interactive display and keep it for future reference.
• The product specifications and other information provided in this User Manual are for reference only. All information is subject to change without notice. Updated content can be downloaded from our web site at www.agneovo.com.
• To protect your rights as a consumer, do not remove any stickers from the interactive display. Doing so may affect the determination of the warranty period.

Cautions When Setting Up

- Do not place the interactive display near heat sources, such as a heater, exhaust vent, or in direct sunlight.

PRECAUTIONS

Cautions When Using

• Use only the power cord supplied with the interactive display.
• The power outlet should be installed near the interactive display and be easily accessible.
• If an extension cord is used with the interactive display, ensure that the total current consumption plugged into the power outlet does not exceed the ampere rating.
• Do not allow anything to rest on the power cord. Do not place the interactive display where the power cord may be stepped on.
• If the interactive display will not be used for an indefinite period of time, unplug the power cord from the power outlet.
  • To disconnect the power cord, grasp and pull by the plug head. Do not tug on the cord; doing so may cause fire or electric shock.
• Do not unplug or touch the power cord with wet hands.
• When turning off the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for normal operation.
• Do not knock or drop the display during operation or transportation.

Cleaning and Maintenance

• To protect your display from possible damage, do not put excessive pressure on the LCD panel. When moving your

Warning:

Unplug the power cord from the power outlet and refer to qualified service

personnel under the following conditions:

• When the power cord is damaged.
• If the interactive display has been dropped or the housing has been damaged.
  ◆ If the interactive display emits smoke or a distinct odor.

PRECAUTIONS

Notice for the Interactive Display

• In order to maintain the stable luminous performance, it is recommended to use low brightness setting.
• Due to the lifespan of the lamp, it is normal that the brightness quality of the interactive display may decrease with time.
• When static images are displayed for long periods of time, the image may cause an imprint on the interactive display. This is called image retention or burn-in.

◆ To prevent image retention, do any of the following:

• Set the interactive display to turn off after a few minutes of being idle.
• Use a screen saver that has moving graphics or a blank white image.
• Switch desktop backgrounds regularly.
• Adjust the interactive display to low brightness settings.
• Turn off the interactive display when the system is not in use.

◆ Things to do when the interactive display shows image retention:

• Turn off the interactive display for extended periods of time. It can be several hours or several days.
• Use a screen saver and run it for extended periods of time.
• Use a black and white image and run it for extended periods of time.

- There are millions of micro transistors inside the interactive display. It is normal for a few transistors to be damaged and to produce spots. This is acceptable and is not considered a failure.

- IMPORTANT: Always activate a moving screen saver program when you leave your display unattended. Always activate a periodic screen refresh application if the unit will display unchanging static content. Uninterrupted display of still or static images over an extended period may cause "burn in", also known

CHAPTER 1: PRODUCT DESCRIPTION

1.1 Unpacking

• This product is packed in a packaging box which contains standard accessories.
• Any other optional accessories will be packed separately.
• Considering the size and weight of the display, it is recommended that this product is carried out by two persons.
  • After opening the packaging box, ensure that the included items are in good condition and complete.

1.2 Package Contents

When unpacking, check if the following items are included in the package. If any of them is missing or damaged, contact your dealer.

Interactive Display

Quick Start Guide

Remote Control

HDMI Cable

Note:

◆ Remote control is shipped with the supplied AAA batteries.
For all other regions, apply a power cord that conforms to the AC voltage of the power socket and has been approved by and complies with the safety regulations of the particular country (Type H05W-F, 2G or

PRODUCT DESCRIPTION

1.3 Preparing for the Installation

• Due to the high power consumption, always use the plug exclusively designed for this product. If an extended line is required, please consult your service agent.
• The product should be installed on a flat surface to avoid tipping. The distance between the back of the product and the wall should be maintained for proper ventilation. Avoid installing the product in the kitchen, bathroom or any other places with high humidity so as not to shorten the service life of the electronic components.
• The product can normally operate only under 3600m in altitude. In installations at altitudes above 3600m, some abnormalities may be experienced.

1.4 Wall Mounting Installation

To mount this display to a wall, you will have to obtain a standard wall-mounting kit (commercially available). We recommend using a mounting interface that complies with TUV-GS and/or UL1678 standard in North America.

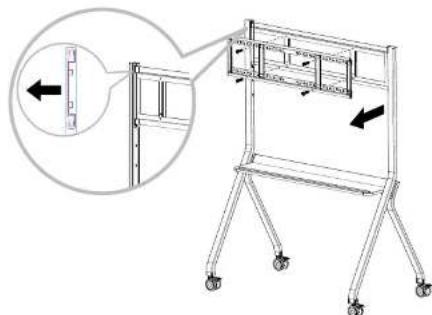

To wall-mount the interactive display, screw the mounting bracket to the VESA holes at the rear of the interactive display.

IFP-6503

Warning:

Do not press too hard on the LCD panel or edge of the frame, as this may cause the device to malfunction.

Note:

• Avoid the wall-mounting kit to block the ventilation holes on the back of the display.
  ◆ Secure the interactive display on a solid wall strong enough to bear its weight.
  ♦ Lay a protective sheet on a

PRODUCT DESCRIPTION

IFP-8603

800mm 800mm

1.4.1 VESA Grid

Model Name VESA Grid

IFP-6503 600(W) x 400(H)mm
IFP-7503 800(W) x 400(H)mm
IFP-8603 800(W) x 600(H)mm

Caution:

To prevent the display from falling:

For wall or ceiling installation, we recommend installing the display with metal brackets which are commercially available. For detailed installation instructions, see the guide received with

Note:

For the wall-mounting kit, use M6 mounting screws (having a length 10 mm longer than the thickness of the mounting bracket) and tighten them securely.
Unit without base weight: IFP-6503=39.4 kg /

PRODUCT DESCRIPTION

1 Mark the eight wall mount screw hole locations on the wall.

Diagram showing two hand-drawn panels with red arrows pointing to a grid, one magnified in an inset view.

2 Drill eight small holes on the mounting location with the length and width 55mm x 10mm respectively.

3 Insert a plastic anchor into each hole.

PRODUCT DESCRIPTION

5 Align and hook the dual wall mount on the interactive display to the wall mount.

Dual Wall Mount x 2

6 Secure the dual wall mount and the wall mount with the two screws.

Technical diagram showing a mechanical assembly with a magnified inset labeled 'x2' and an arrow indicating direction.

1.4.3 Ventilation Requirements for Enclosure Locating

Note:

• Keep clearances around the interactive display according to the minimum dimensions as illustrated.
• Never cover the ventilation holes or insert anything into the housing.
  Do not place the interactive display in a confined space, such as a cabinet or imbedded closet. Place the display on a sturdy, level surface and make sure an appropriate ventilation is provided.

Warning:

Make sure the power cord of the

PRODUCT DESCRIPTION

1.5 Mounting the Interactive Display on the Stand

To mount the interactive display on the stand, you need the following items:

Three technical line drawings of structural components or brackets, no text or symbols present

Left Leg x 1 Right Leg x 1 Wall Bracket x 1

Three technical line drawings of mechanical components: a vertical bar, a cylindrical component with a handle, and a elongated rod (no text or symbols)

Tray x 1 Wheel x 4 Wall Hanging Strip x 2

Bolts x 14 (M8×25) M12 Spring Pad x 4 Screws x 2 (M6×130) Phillips Screwdriver x1 (self-provided) Adjustable Wrench x1 (self-provided)

1 Attach the spring pad to the wheel. Then adjust the wheel to the brake state and rotate it into the leg. Repeat the step for the remaining wheels.

PRODUCT DESCRIPTION

2 Install and secure the wall bracket to the leg with the provided bolts. Make sure the wall bracket and the leg are properly aligned as indicated with black arrows in the below image.

Bracket holes 1 2 3 4 5 6

3 Install and secure the other leg to the wall bracket with the provided bolts.

Simple line drawing of a metal frame with a hammer and arrow indicating direction (no text or symbols)

Note:

• Wall bracket hole position suggestions:

Monitor Size Matching hole position
55" 3	^m and 6 ^h holes
65"- 70" 2	^m , 5 ^h hole
75"- 86" 1	^a and 4 ^h hole

PRODUCT DESCRIPTION

4 Assemble the tray between the two columns as follows:

a) Insert the tray into the positioning bolt on the column.
b) Snap the tray into the positioning bolt.
c) Tighten all bolts.

Technical diagram showing a mechanical setup with labeled components and a magnified detail view of the assembly.

5 Align and secure the wall hanging strip on both sides of the interactive display. Secure the wall hanging strips to the display with the provided bolts.

PRODUCT DESCRIPTION

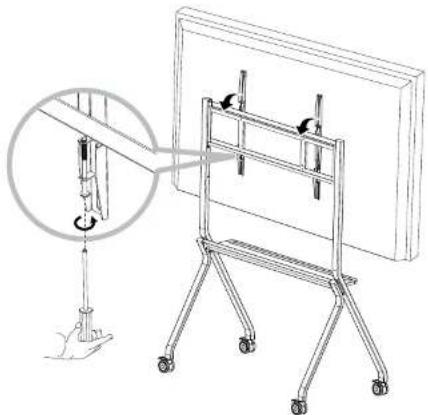

6 Hang the interactive display assembly to the wall bracket.

Then secure the safety bolts of the wall hanging strips to lock the interactive display to the stand.

Technical line drawing of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

Mounting the interactive display on the stand is complete.

Warning:

Make sure the wheel brakes are locked. This step requires at least 2 professionals to complete.

PRODUCT DESCRIPTION

If the interactive display's wall mounting bracket does not match with the wall mounting bracket of the stand, then do the following:

1 Secure the wall hanging board to the wall bracket. Make sure that the side of the wall hanging board with the locking hole is facing the front as indicated with black arrows in the below image.

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating movement or assembly.

2 Hang the interactive display assembly to the wall bracket. Then secure the safety bolts of the wall hanging strips to lock the interactive display to the stand.

PRODUCT DESCRIPTION

1.6 Installing the Wi-Fi Module

To use wireless connectivity, you need to install the Wi-Fi module to the interactive display.

1 Remove the two screws from the Wi-Fi module slot cover.

Illustration of a hand holding a cylindrical object with a ring, next to a flat electronic device (no text or symbols visible)

2 Remove the Wi-Fi module slot cover.

G G G

3 Insert the Wi-Fi module into its slot in the interactive display.

PRODUCT DESCRIPTION

1.7 Interactive Display Overview

1.7.1 Control Panel

Diagram showing a monitor setup with labeled components including a pen icon and three labeled buttons (1, 3, 4) pointing to the screen.

1 [+] POWER button with LED indicator

• Short press (<3 seconds) to turn the display on or off without shutting down the system.
• Long press (>3 seconds) to shut down the system.
  LED indicator:

PRODUCT DESCRIPTION

1.7.2 Input/Output Terminals

PRODUCT DESCRIPTION

1 3.0

Connects to a USB interface device.

2 AUDIO OUT

Connects audio signals output (3.5 mm Stereo Audio Jack).

3 RS232

Connects RS232 input from external equipment.

4 LAN

For internet connection with an Ethernet cable.

5 AUDIO IN

Connects audio signals input (3.5 mm Stereo Audio Jack).

6 VGA

Connects VGA signals input.

7 2.0

Connects to a USB interface device.

8 SPDIF

Connects digital audio signals output.

9 \~

AC power input.

10 Main Power

Switches the main power on/off.

11 HDMI OUT

Connects HDMI signals output.

12 TOUCH 1 (USB Type-B)

Connects USB for touch screen control.

Connects USB for touch screen control.

14 HDMI 1

Connects HDMI signals input.

15 HDMI 2

Connects HDMI signals input.

16 HDMI 3

Connects HDMI signals input.

17 3.1#(USB Type-C)

Connects to a USB interface device.

PRODUCT DESCRIPTION

1.8 Remote Control

1.8.1 General Functions

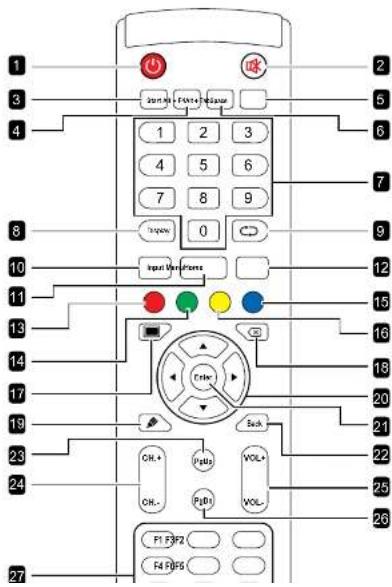

1 2 3 4 5 6 7 8 9 10 Input User Frames 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 F1 F3F2 F4 F5F5 Control Panel Interface Control Panel Interface Control Panel Interface Control Panel Interface Control Panel Interface Control Panel Interface Control Panel Interface Control Panel Interface Control Panel Interface Control Panel Interface Control Panel Interface

1 [●]Power button: Turns the system on or shuts down.
2 [OK] MUTE button: Turns the mute function on or off.
3 [START] Start button: Opens the Start menu (Windows OS).
4 [SPACE] Space button: Functions as "Space" keyboard key.
5 [Alt + F4] "Alt" + "F4" button: Functions as "Alt" + "F4" keyboard keys (Window OS).
6 [Alt + Tab] "Alt"+"Tab" button: Functions as "Alt"+"Tab" keyboard keys (Window OS).
7 [Number] Number buttons: Enters numbers.
8 [Display] Display button: Displays channel information.
9 [Φ Re-sync button: Not supported.
10 [Input] Source button: Opens TouchMenu > General settings.
11 [Home] Home button: Returns to the Home screen (Android OS).
12 [Menu] Menu button: Opens TouchMenu > OSD Menu.
13 [●] Red button:

PRODUCT DESCRIPTION

21 [Enter] Enter button:

Confirms your selection or saves the modifications.

22 [Back] Back button:

Returns to the previous screen (Android OS) or exits the OSD menu.

23 [PgUp] Page Up button:

Functions as "PageUp" keyboard key.

24 [CH.+] [CH.-] Channel button:

No function.

25 [VOL+] [VOL-] Volume button:

Adjusts volume on internal or external audio sources.

26 [PgDn] Page Down button:

Functions as "PageDown" keyboard key.

27 [F1-F12] F1-F12 buttons:

Function as "F1" to "F12" keyboard keys.

Note:

- While the interactive display is powered on and you press the keyboard button, the POWER button LED indicator blinks red once and then turns back white.

You need to press the Red button and the Yellow button at the same time to completely unlock the screen.

PRODUCT DESCRIPTION

1.8.2 Inserting the Batteries in the Remote Control

The remote control is powered by two 1.5V AAA batteries.

To install or replace batteries:

1 Unlatch and then remove the battery compartment cover.
2 Align the batteries according to the (+) and (-) indications inside the battery compartment.
3 Replace the battery compartment cover.

Three technical line drawings of a vehicle interior with arrows indicating movement or change, no text or symbols present.

1.8.3 Handling the Remote Control

• Do not subject to strong shock.
• Do not allow water or other liquid to splash the remote control. If the remote control gets wet, wipe it dry immediately.
• Avoid exposure to heat and steam.
• Other than to install the batteries, do not open the remote control.

Caution:

The incorrect use of batteries can result in leaks or bursting. Be sure to follow these instructions:

Place "AAA" batteries matching the (+) and (−) signs on each battery to the (+) and (−) signs of the battery compartment.

Do not mix battery types.

Do not combine new batteries with used ones. It causes shorter life or leakage of batteries.

Remove the dead batteries immediately to prevent them from liquid leaking in the battery compartment. Don't touch exposed battery acid, as it can damage your skin.

Note:

◆ If you do not intend to use

PRODUCT DESCRIPTION

1.8.4 Operating Range of the Remote Control

Point the top of the remote control toward the display's remote control sensor (on the left or right side) when pressing a button.

When using the remote control, the distance from the remote control to the sensor on the display should be less than 8m/26ft, and the horizontal and vertical angles should be less than 30°.

30°30°

CHAPTER 2: MAKING CONNECTIONS

2.1 Connecting the Power

Note:

To operate the interactive display, ensure to use the correct power cord that matches the power outlet in your region.

1 Connect one end of the power cord to the AC IN connector on the interactive display.
2 Connect the other end of the power cord to a power outlet or a power supply.
3 Set the Main Power switch to ON.

Architectural floor plan diagram with labeled equipment and a zoomed-in electrical outlet detail

MAKING CONNECTIONS

2.2 Connecting a Computer or Portable Device

2.2.1 Using VGA (D-Sub) Input

Connect one end of a VGA cable to the VGA connector of the interactive display and the other end of a VGA cable to the VGA OUT connector of the computer.

For audio input, connect one end of an audio cable to the AUDIO IN connector of the interactive display and the other end of an audio cable to the AUDIO OUT connector of the computer.

VGA AUDIO IN AudiO IN VGA Computer

MAKING CONNECTIONS

2.2.2 Using RS232 Input

Connect one end of a RS232 serial cable to the RS232 connector of the interactive display and the other end of an RS232 serial cable to the RS232 connector of the computer.

RS232 RS232 RS232 Computer

2.2.3 Using HDMI Input

MAKING CONNECTIONS

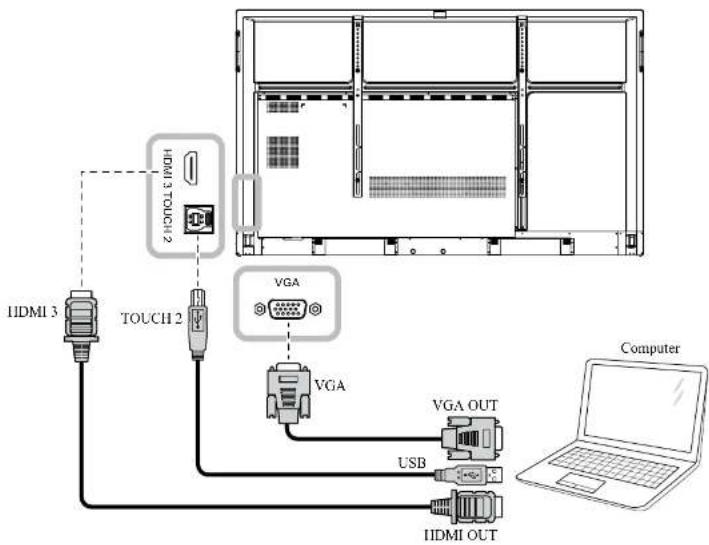

2.2.4 Using the Touch Module

Interactive display has touch screen functionality which allows you to connect a computer to the display and control the computer's interface via touch gestures on the display. To use this touch screen function, connect the USB cable to the TOUCH 1 or TOUCH 2 port of the display and a computer or USB cable to the 3.1# port of the display and a computer.

In addition, perform the following connection:

• For TOUCH 1, connect one end of the HDMI cable to the HDMI 1 or HDMI 2 port of the display and the other end of the HDMI cable to the HDMI OUT port of the computer.
• For TOUCH 2, connect one end of the HDMI cable or VGA cable to the HDMI 3 port or VGA port of the display and the other end of the HDMI cable or the VGA cable to the HDMI OUT port or VGA OUT port of the computer respectively.
• For USB type-C, connect one end of the USB cable to the 3.1 port of the display and the other end of the USB cable to the USB type-C port of the computer.

For compatibility options, refer to the following table:

	HDMI 1 HD	MI 2 HDMI 3 V	GA
TOUCH 1 O O	XX
TOUCH 2 XX	O O

TOUCH 1

MAKING CONNECTIONS

TOUCH 2

HDMI 3 TOUCH 2 IIDMI 3 TOUCH 2 VGA VGA VGA OUT USB IIDMI OUT Computer

USB Type-C

MAKING CONNECTIONS

Note:

◆ The touch driver will be installed automatically for the following operating systems:
- One-touch point for Windows 2000/XP/Vista/CE 6.0 and macOS.
- Multi-touch point Windows 7/8/10/11, Android/Linux (kernel version 3.5+) and Chrome OS (39 or above).
Certain touch gestures, such as zoom-in, zoom-out and rotate, may not work depending on the application or software your computer supports.
This Touch USB port works only for the touch screen functionality and does not support the external USB devices, such as MP3, printer, and hard drive, or other devices.

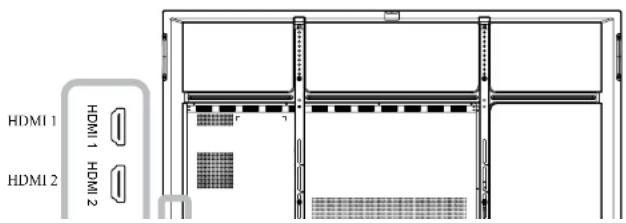

2.3 Connecting External Equipment (Video Player)

Connect one end of an HDMI cable to the HDMI 1, HDMI 2, or HDMI 3 connector of the interactive display and the other end of an HDMI cable to the HDMI OUT connector of the video player.

HDMI 1 HDMI 1 HDMI 2

MAKING CONNECTIONS

2.4 Connecting a Display Device

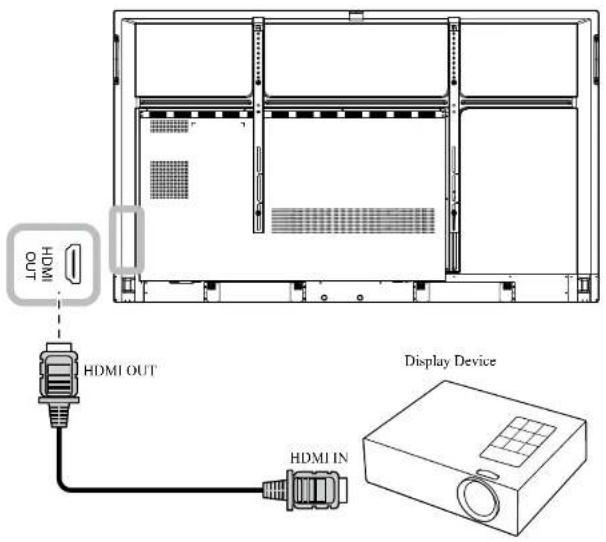

Connect one end of an HDMI cable to the HDMI OUT connector of the interactive display and the other end of an HDMI cable to the HDMI IN connector of the display device.

HDMI OUT HDMI IN Display Device

MAKING CONNECTIONS

2.5 Connecting to a Wired Network

Connect one end of a network cable (RJ45) to the LAN connector of the interactive display and the other end of a network cable to a network hub, switch, or router.

Architectural floor plan showing room layouts and structural elements (no text or labels)

Network Hub / Switch / Router

MAKING CONNECTIONS

2.6 Connecting Audio Equipment

Connect one end of an audio cable to the AUDIO OUT connector of the interactive display and the other end of an audio cable to the AUDIO IN connector of the audio device.

For digital audio output, connect one end of an audio cable to the SPDIF connector of the interactive display and the other end of an audio cable to the SPDIF IN connector of the audio device.

SPDIF AUDIO OUT AUDIO OUT SPDIF Audio Device SPDIF IN AUDIO IN

MAKING CONNECTIONS

2.7 Connecting USB Interface Devices

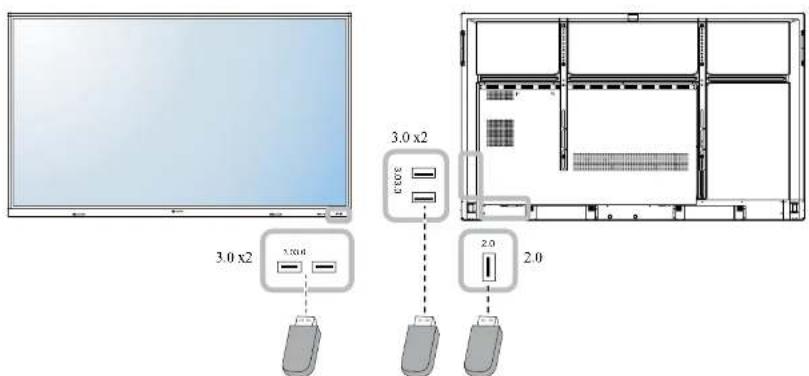

Connect a USB interface device to 2.0 or 3.0 ports of the interactive display.

3.0 x2 3.0x2 3.0x2 3.0x2 2.0 2.0

USB Interface Device (Keyboard/ Mouse/ USB Storage, and more)

2.8 Attaching Touch Pens

Attach the touch pen to the magnetic areas on the interactive display's front panel.

CHAPTER 3: USING THE INTERACTIVE DISPLAY

3.1 Turning on the Power

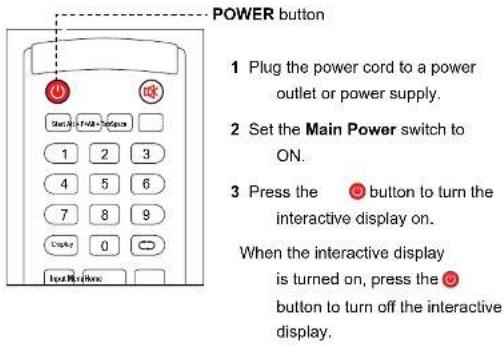

POWER button 1 Plug the power cord to a power outlet or power supply. 2 Set the Main Power switch to ON. 3 Press the button to turn the interactive display on. When the interactive display is turned on, press the button to turn off the interactive display.

3.2 Selecting the Input Source Signal

7 8 9 Input 0 Input Button Input Button 1 Press the Input button.

Note:

The interactive display still consumes power as long as the power cord is connected to the power outlet. Disconnect the power cord to completely cut off power.

Note:

◆ If the selected input source signal is not connected to the interactive display or is turned

USING THE INTERACTIVE DISPLAY

3.3 Adjusting the Volume

C3 Trial Fax CH+ F1Up VOL+ CH- F2Up VOL- F1=3/2 buttons

Press the VOL- or VOL+ button to adjust the volume level.

3.4 Using Freeze Function

1 2 3 4 5 6 7 8 9 Caser 0 Input/Resistone Blue button

Note:

After pressing the VOL- or VOL+ button, the volume menu is displayed on the screen automatically.

- Press the 🎧 button to mute the audio. When muted, the 🎧 icon appears on the screen.

USING THE INTERACTIVE DISPLAY

3.5 Android Functions

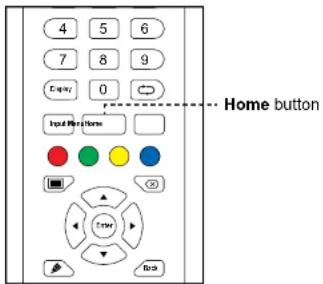

3.5.1 Accessing the Home Screen

4 5 6 7 8 9 Entry 0 Input Mode Home Home button

Press the Home button to access the Home screen of the system.

3.5.2 Returning to the Previous Screen

USING THE INTERACTIVE DISPLAY

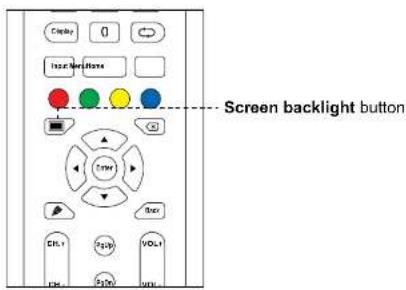

3.5.3 Blanking the Screen

Screen backlight button

Press the ☐ button to blank the screen. The screen turns black. Press the ☐ button again to turn on the screen backlight.

3.5.4 Activating the Writing Mode

USING THE INTERACTIVE DISPLAY

3.6 Using the Touchscreen

In addition to the remote control, you can also operate your interactive display using the touch gestures as described in the tables below.

For Android

Action Touch Gesture Function
Touch		Touch to open clickable items on the screen, such as apps, Assistive menu options, and more.Note:◆ Always touch the screen with your finger or with the supplied touch pen.◆ Do not touch the screen with sharp, metallic objects that could scratch the screen's coating.
Touch and hold		• Review and control the appa) On the Apps screen, touch and hold the app icon that you want to review.b) Drag the app onto the App info at the top of the screen and then release.The app's information screen opens.
Drag or swipe

USING THE INTERACTIVE DISPLAY

Action Touch Gesture Function
Touch and hold (continued)	-XG6H	• Touch and hold on the Home screen to add a widget or change the Home screen wallpaper.
Drag or swipe (continued)	-KKA3
Zoom Zoom in		• Zoom in and zoom out on the image. For example: Zoom in Zoom out
	Zoom out

USING THE INTERACTIVE DISPLAY

Function Touch Gesture Action
Tap		Touch the screen once.
Double-tap		Touch the screen twice.
Right-tap		Touch and hold on the target until a blue ring appears. Then release your finger.
Drag		Touch the screen and drag with one finger to the left or to the right.
Note:♦ For Windows Vista, Windows 7, Windows 8, Windows 10, and Windows 11.
Selection	[IMAGE]	Touch the screen and drag with one finger to the left or to the right.

USING THE INTERACTIVE DISPLAY

Function Touch Gesture Action
Primary action		Touch the target to invoke its primary action. For example, launch an app or execute a command.
Pan		Touch the screen and slide for panning interactions, moving items, drawing, or for writing. Slide can also be used to target small, densely packed elements by scrubbing (sliding the finger over related objects, such as radio buttons).
Select, command, and move		Touch the screen and swipe to select, command, and move. Sliding your finger a short distance, perpendicular to the panning direction, selects objects in a list or grid and displays the app bar with related commands when objects are selected.
Zoom Touch	the screen and pinch or stretch to	zoom out or zoom in respectively.The pinch and stretch gestures are more commonly used for resizing but also enable to move to the beginning, end, or anywhere within content with semantic

USING THE INTERACTIVE DISPLAY

Function Touch Gesture Action
Scrolling		Touch and drag the screen with one or two fingers up or down.
Zoom	Zoom inZoom out	Touch the target and move your two fingers apart or toward each other to zoom in or zoom out respectively.

3.7 Using the On-Screen Keyboard

CHAPTER 4: USING THE SYSTEM

4.1 About the Home Screen

After you power on the system, you will see the Home screen. On the Home screen, you can view the current date and time, access the Assistive menu and various apps, check system status, and remote code.

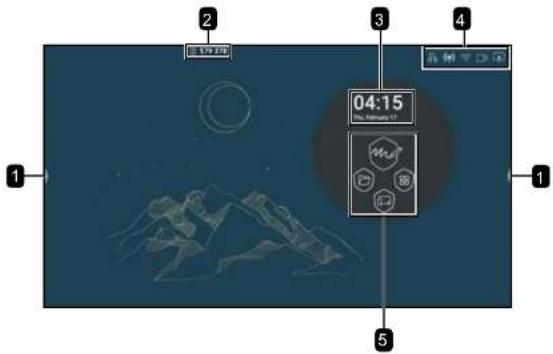

04:15 Time: 9:37 1 2 3 4 1 5

Item Description

1 Assistive menu Quick access for moving backwards, accessing the Home screen, managing recently used apps, opening various apps, enabling annotation function, and rearranging tools icons in the Assistive menu. Refer to pages 48-49.
	Note:◆ The Assistive menu icons / are visible on both sides of the interactive display.
2	Remote Code Wireless display verification passcode from Bytello Share.
3	Date and Time Displays the current date and time. Adjust the settings in Settings menu. Refer to page 58.

USING THE SYSTEM

4.2 Using the Assistive Menu

The Assistive menu can be accessed on either sides of the interactive display by touching /. For more convenient access, you can touch and hold on the Assistive menu icon to slide it up or down. Assistive menu icons are always visible on the screen regardless of your location in the user interface.

To use the Assistive menu, do the following:

1 Touch the / icon on either sides of the interactive display.

The Assistive menu opens.

2 Touch any of the following Assistive menu items:

- Back 📄: Returns to the previous screen.

Note:

◆ Back function is available only if the source is Android.

- Home 🔒: Accesses the Home screen.

- Recently Used Apps ●Manages recently used apps. Do any of the following:

- To reopen: Touch the app.

- To close: Swipe the app to the left or to the right or touch

- To close all apps: TouchClean All.

Note:

- Recently used apps function is available only if the source is Android.

USING THE SYSTEM

• App Shortcuts: Quick access for common apps. Touch any of the following icons: opens Meetboard, opens Finder, opens web browser, and opens cloud storage (requires user authentication at first log in). To access more apps, touch
• Tools: The interactive display features several tools, such as screen capture, screen recording, and more. Touch any of the following icons: Annotations to enter writing mode, Prop to open screen capture tool, Record to open screen recording tool, Menu to open General settings menu. To access more tools, touch Then touch any of the following icons: Stopwatch, AirClass to start online class, Spotlight to emphasize an area on the screen, Freeze to freeze the screen, Spotlight to count down time for events, or ScreenLock to prevent access to the interactive display.
• Annotation App ☐: Opens the Annotation app and enters writing mode.

Note:

The Annotation app cannot be accessed while using the Meetboard app.

To rearrange tool icons in the Assistive menu, touch > Edit. Touch next to the icon you want to remove and then touch next to the icon you want to add. You can add up to 4 tool shortcuts to the Assistive menu.

Windows Notepad Desktop AnClass Spring Freeze Email

To close the Assistive menu, touch anywhere on the screen outside the Assistive menu.

USING THE SYSTEM

4.3 On Screen Display (OSD) Menu

#	Menu Navigation	Operation
		Remote Control Touch	Gesture
1	Displays the Audio menu. Press the Menu button. Swipe the screen from		the bottom to up and then touch -...
2	Enters the submenu.	1 Press the ◀ or ▶ button to select the main menu item. 2 Press the ▼button to enter the submenu. 3 Press the ◀, ▶, ▶▼button to select the submenu item. 4 Press the Enter button to enter the adjustment mode.	1 Touch the main menu item. 2 Touch the submenu item to select it.

USING THE SYSTEM

When settings are modified, all changes are saved when the user does the following:

• Proceeds to the another menu.
- Exits the OSD menu.
- Waits for the OSD menu to disappear.

Note:

Availability of some menu items depend on the input source signal or selected setting. If the menu is not available, it is disabled and grayed out.

4.3.1 OSD Menu Tree

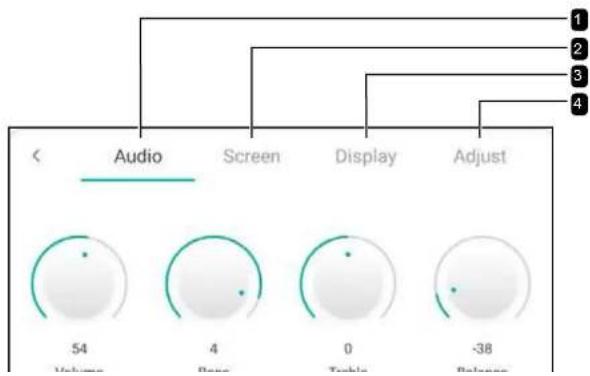

Audio Screen Display Adjust 54 Volume 4 Balance 0 -38

USING THE SYSTEM

Main Menu Submenu Remarks
2. Screen • 4:3		See page 53.
	• 16:9FullAnti-Burn-inTMEye CareAuto LightPower SavingDCR
3. Display • Brightness		See page 55.
	• ContrastHueSharpness
4. AdjustNote: This menu is only supported if the input source is VGA.	• H PositionV PositionClockPhaseAUTO	See page 56.

4.4 Adjusting the Interactive Display

4.4.1 Audio Menu

Press the Menu button.

The Audio menu opens automatically

USING THE SYSTEM

Item Function Operation Range
Volume	Adjusts the volume.	1 Press the Enter button to select the setting.2 Press the ◀ or ►button to adjust the value.	0 to 100
Bass Adjusts to increase or decrease lower-pitched sounds.Note: This item can be adjusted only if the Predefined Audio Mode is set to Custom.			-5 to 5
Treble Adjusts to increase or decrease higher-pitched sounds.Note: This item can be adjusted only if the Predefined Audio Mode is set to Custom.			-5 to 5
Balance Adjusts to emphasise the left (L) or right (R) audio output balance.			-50 to 50
Mute Mutes the volume.Note: If the sound is muted then all the Audio menu items become unavailable except for the Volume.		Press the Enter button. On	Off

4.4.2 Screen Menu

< Audio Screen Display Adjust

1 Press the Menu button.

USING THE SYSTEM

Item Function Operation Range
Anti-Burn-inTM Prevents image retention. Press the Enter button. On			Off
Eye Care Enable or disables the blue light filter function. When enabled, it decreases the amount of blue light displayed on the screen, ensuring users a comfortable viewing experience by reducing eyestrain after long periods of use.			On Off
Auto Light Adjusts the backlight of the interactive display automatically depending on the amount of ambient light.			On Off
Power Saving Enable or disables power saving mode. When the interactive display turns into power saving mode, the screen turns black and the Power button LED indicator starts to flash red and white alternatively. Note: The Power Saving function depends on standby settings configured in System Settings > Power Settings menu.			On Off
DCR (Dynamic)	Activates DCR. This feature provides automatic adjustment of	Press the Enter button. On	Off

USING THE SYSTEM

4.4.3 Display Menu

Audio Screen Display Adjust 88 Brightness 93 Contrast 50 Hue 50 Sharpness Standard Right Soft Custom Standard Cast Plan

1 Press the Menu button.
The Audio menu opens automatically.
2 Press the ◀ or ▶ button to select Display menu.
3 Press the button to enter submenu.
4 Press the ◀, ▶, ▲, or ▼ button to select the submenu item.

Item Function Operation Range
Predefined Display Modes	Selects the predefined display mode.	Press the Enter button. Standard	BrightSoftCustom
Predefined Colour Temperature Modes	Selects the predefined colour temperature mode.		StandardColdWarm
Brightness Adjust	is the luminance of the screen image.Note: This item can be adjusted only	1 Press the Enter button to select the setting.2 Press the ◀ or ► button to	0 to 100

USING THE SYSTEM

4.4.4 Adjust Menu

Note:

♦ Adjust menu items are only available if the input source is VGA.

1 Press the Menu button.

The Audio menu opens automatically.

2 Press the ◀ or ▶ button to select Adjust menu.
3 Press the ▼ button to enter submenu.
4 Press the ▲ or ▼ button to select the submenu item.

Item Function Operation Range
H Position Moves	the image to the right or to the left.	1 Press the Enter button to enter the adjustment mode.	0 to 100
V Position Moves	the image up or down. 0 to 100
Clock Adjusts the	width of the image. 0 to 100	2 Press the ◀ or ▶ button to adjust the value.
Phase Adjusts to	improve the focus, clarity, and stability of the image.		0 to 100
AUTO Adjusts the	screen image automatically.	Press the Enter button.	N/A

USING THE SYSTEM

4.5 Configuring System Settings

In Settings menu, you can configure various system settings.

To access the Settings menu, do the following:

1 On the Home screen, touch □ > ◯

The Settings menu opens.

Wireless & Network (NT) Services Provider Personal Input & Output Application System About Wireless & Network Wi-Fi Ethernet Hotspot Bluetooth VIPS On: 3 Off: 3 On: 3 On: 3 No VIPS unstandard: >

2 Configure any of the following settings:

Wireless & Network:

• Wi-Fi: Connects to an available wireless access point. Enter the access password if prompted
• Ethernet: Connects to LAN through a wired connection. Configures IP settings manually (Obtain IP Address Automatically is disabled) or automatically (Obtain IP Address Automatically is enabled).
• Hotspot: Shares interactive display's Internet connection to other devices through hotspot and configures hotspot DHCP settings (if necessary).
• Bluetooth: Connects to other Bluetooth devices.
• VPN: Sets up and manages virtual private networks for safe and secure online communication.

USING THE SYSTEM

Application:

- Manages apps that are installed to the interactive display. You can enable or disable the app, force stop it, enable or disable notifications from the app, mange storage, open the app by default, monitor memory usage, and modify advanced settings.

System:

• Date & Time: Configures date and time settings.
• Language & Keyboard: Sets system language and configures keyboard settings.
• Password: Sets lock screen password and advanced settings password.
• Power Settings: Configures power settings. Refer to 59.
• Anti-Burn-in™: Prevents the display from "burn-in" or "afterimage" symptoms when the display is not being in use for a period of time. Select the time interval for executing the Anti-Burn-in™ function.
• Email: Configures email settings. For example for sending drawings from Meetboard to your email.
• Storage: Manages the internal storage.
• System Update: Updates the system when a new version is available.
• Security: Configures credential storage settings.
• Advanced Settings: Configures advanced settings. To access the Advanced Settings, you need to set the Advanced Lock Password in the Security menu. Then enable or disable installing apps from third-party app stores, enable or disable accessing the USB drive, SAMBA service, and reset the settings to the factory defaults.

About:

USING THE SYSTEM

4.6 Power Settings

In the Power Setting menu, you can configure booting options, system power options, and schedule boot-time.

Windows & Network Personal Input & Output Application Options About Power Settings Startup Channel Startup Channel Sendry After (Startup/Back Screen) Sendry After 15 minutes Without Operation Power (Off After 15 minutes Without Operation) Switching Power (Off Extension) Add Root Task Add Off Task

4.6.1 Booting Options

In the Startup Channel menu, set the default source at boot up and configure system standby setting.

4.6.1.1 Startup channel

Select the default startup channel among:

• Last shutdown channel: Input source is the same as at last boot.
• Meetboard/HDMI1/HDMI2/HDMI3/Type-C/VGA: Startup channel is Meetboard, HDMI1, HDMI2, HDMI3, Type-C, or VGA respectively.

USING THE SYSTEM

Note:

In standby mode, the POWER button is flashing red and white alternatively.

4.6.2 Scheduling

In the Scheduling menu, enable or disable displaying power off reminder before shutting down the system and schedule boot and off tasks.

- Add Boot Task: Adds a boot schedule. Select the time and day.

Add Boot Task 12 56 1 : 57 AM 2 58 PM Sun Moit Tue Wed Thu Fri Sat Cancel

- Add Off Task: Adds a power off schedule. Select the time and day.

CHAPTER 5: USING THE APPS

5.1 Accessing Apps

Some apps, such as Meetboard, Finder, and Bytello Share are accessible directly from the Home screen. Other apps that are installed to the system can be accessed through the Apps screen.

To access the Apps screen, do the following:

1 On the Home screen, touch ☐.

The Apps screen opens.

Screenshot of a macOS desktop with app icons and status bar showing 'OK', 'Cancel', and 'Help'

2 On the Apps screen, touch any of the following apps:

- Browser: Opens the web browser for surfing the Internet.

Note:

◆ Make sure your interactive display is connected to the Internet.
- Bytello Share: Mirrors the screen of your portable device to the interactive display and more. Refer to 68.
- Cloud Drive: Configures cloud storage access settings. These settings may be prompted also in

USING THE APPS

- WPS Office: Views PDF files, opens and edits different files including Microsoft Word, PowerPoint, Excel, and text files. You can also create new spreadsheets, presentations, memos, and documents.

File Explorer Share Name File Edit View Help Import Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export Export export

5.2 Meetboard Apps

Meetboard is an interactive app that enables you to make drawings for demonstrating ideas on the display. The drawings can be saved to the device memory, connected portable disk, or cloud storage, or easily shared via QR code or email.

To use the Meetboard app, do the following:

1 Touch the ● icon on the Home screen or the ● icon on the Apps screen. The Meetboard app opens.

USING THE APPS

Note:

If the pen type is then the Meetboard tries to recognise your image automatically while you are drawing it on the writing board and provides image hints. If your image matches with the preset image, touch it to replace your image with the preset image. For example:

Simple line drawing of a horse head with nine abstract icons arranged in a grid (no text or symbols)

• Touch More: Adds an interactive ruler, 2D or 3D shape, customisable table, mind map, or preset grid to the writing board.
• Touch 📊 Sticky-Notes: Adds a note to the writing board.
• Touch ⚫ Menu > ☑ Theme: Adds a preset template, background colour/image to your drawing. To set a preset template or background colour, touch Template tab or Background tab respectively. Select the template or your preferred background colour and touch OK. To select an image, tap Background > Images > + and select your preferred image. To cancel editing the theme, touch Cancel.

Template selection Colour/image selection

USING THE APPS

3 To control the drawing on the board, use the following actions:

- Select: Selects objects on the writing board. After selecting the object or part of it, you can change its colour, detect a character (SmartWrite), search similar objects online, flip it, rearrange on the screen, clone, or delete it.

Simple line drawing of a smiling sun with rays (no text or symbols)

• Erase: Touch ◆ Eraser and select the eraser size. Then put your fist or palm on the board and move to the area that needs to be erased. To clear the entire writing board, touch ☒ Clean All.
• Preview: Provides a preview of the writing board.
• Undo: Reverses the most recent action on the writing board.
• Redo: Restores the most recent action on the writing board.
• Add: Adds a new page.
• < Previous: Moves to the previous page if there are multiple pages in the file.
  -> Next: Moves to the next page if there are multiple pages in the file.

Note:

◆ Touch on the page count ( ) to thumbnail all pages and remove unnecessary pages.

USING THE APPS

- Menu > ✗ Send Email: Emails the drawing. If you are sending the drawing by email for the first time, you are prompted to configure your email settings. Follow the on-screen instructions to complete the configuration.

After all settings are configured, return to the Meetboard app and send the drawing by email. The drawing is added as an attachment.

Note:

To send an email, make sure the interactive display is connected to the Internet.
Share: Displays a QR code on the screen that directs to the online location where the drawing can be downloaded to any portable device that is connected to the same Wi-Fi with the interactive display.

USING THE APPS

5.3 Annotation Tool

Annotation is an app that provides a more fluid discussion of visual images by annotating anywhere on the display.

Note:

The Annotation app cannot be accessed while using the Meetboard app.

To use the Annotation app, do the following:

1 In Assistive menu, touch

The system enters to the writing mode and displays the Annotation control bar on the screen.

2 Draw directly on the screen with the default pen thickness and colour. To change the thickness and colour, touch and hold the Pen or Brush icon and do the modifications.

3 After the drawing is finalised, touch any of the following:

• Clean: Erases the drawing. To erase part of the drawing, use your fist or palm.
• Save: Saves the drawing by default to the Storage > Meetboard > Annotations folder. You can access it using Finder. If you want to insert the drawing to the Meetboard, share by QR code, or save to the cloud storage, save the drawing first and then touch More > Insert/ Share/ Cloud respectively.
• Select: Select the location where to save the image in the More menu.

4 To exit the Annotation app, touch ✗ Close.

• • • •

USING THE APPS

To start using the Finder app, do the following:

1 On the Home screen, touch 📄 or on the Apps screen, touch

The Finder Home screen opens.

2 Touch any of the following:

- Storage that you want to manage.

- Grid/List: Displays the content as grid or as list.

- Sort: Sorts the content by name (ascending or descending), time, size, or type.

- Select: Selects items for copy (Copy), paste (Paste), cut (Cut), deletion (Delete), rename (Rename) (only available for individual item), or creating a shortcut/sending to another storage device Send. While in selection mode or paste mode, touch Close to close the selection or paste mode.

- Create: Adds a folder.

5.5 Cloud Drive

To access your cloud storage from various apps installed on the interactive display, you are prompted to enter user credentials at first log in.

To access your cloud storage from the interactive display, do the following:

1 On the Home screen, touch 📄 > or Assistive menu >

4 Enter your login credentials and follow the on-screen instructions to complete the authentication process.

Google Drive Login OneDrive Login

Create Account Microsoft Sign in Create options or Options Be accepted? I have been Get choices your own? OK Cancel Sign-in options.

5.6 Bytello Share App

With the Bytello Share app, you can mirror the display's screen on your portable device for hands-on annotation, mirror the screen of your device on the display, or use your device as a remote control for the display.

Bytello Share is accessible either by downloading the sender app to your portable device or by sharing the screen via Airplay, Chromecast, or Miracast.

Note:

To share the screen via Airplay, Chromecast, or Miracast, please refer to the "How to share screen without client?" section in the Bytello Share User Guide. The User Guide can be accessed from the launcher screen.

USING THE APPS

5 Open the Bytello Share app on your portable device and enter the remote code that is visible on the Home screen and launcher screen.

Launcher Screen Portable Device

扫码支付 316 978

After the connection is established, the following screen opens on your portable device:

6 Touch any of the following:

- Screen share > Start: Shares your portable device's screen to the interactive display. For example, in iOS touch Start Broadcast to start sharing the screen.

USING THE APPS

Note:

To configure Bytello Share settings, such as access permissions, screen sharing without client, general settings including device name, starting the app on boot, code refresh rate, and more, touch
Menu > Settings on the launcher screen.

To mange the connected devices, touch Devices (#) 📄 on the launcher screen. Then touch any of the following icons:

• Initiates the device to start screen casting.
• 📋: Sends files from the interactive display to the device.
• 8: Authorizes the device to manage other senders and approve requests from them.
• ☑ Disconnects the device.

CHAPTER 6: APPENDIX

6.1 Warning Messages

Warning Messages Cause Solution
	The resolution or the refresh rate of the graphics card of the computer is set too high.	· Change the resolution or the refresh rate of the graphics card.
	The interactive display cannot detect the input source signal.	· Check if the input source is turned ON.· Check if the signal cable is properly connected.· Check if any pin inside the cable connector is twisted or broken.

6.2 Supported Media Formats

Video Format

File Extensions	Codec
	Video Audio	Maximum Transmit Ratio
.3gp/3GP2 mpeg1/2 M	peg1/2 Layer1/2/3, A	ACLC, vorbis,LPCM, AMR-NB	Spec: Max Solution: 1920 x 108060 Fps, 80 Mbps
	Mpeg-4
	H.263
	H.264 Spec: Max Solution: 8192 x 4320		60 Fps, 200 Mbps

APPENDIX

File Extensions	Codec
	Video Audio	Maximum Transmit Ratio
.dat mpeg1/2 Mpeg1/2	Layer1/2/3, AACLC,	LPCM Spec: Max Solution: 1920 x 1080	60 Fps, 80 Mbps
	Mpeg-4
	H.264 Spec: Max Solution: 8192 x 4320		60 Fps, 200 Mbps
.flv H.265 Mpeg1/2 Layer1/2/3, AACLC,	Layer1/2/3, AACLC,	LPCM Spec: Max Solution: 8192 x 4320	60 Fps, 200 Mbps
	Mpeg-4 Spec: Max Solution: 1920 x 1080		60 Fps, 80 Mbps
	H.263
	H.264 Spec: Max Solution: 8192 x 4320		60 Fps, 200 Mbps
	Mjpeg Spec: Max Solution: 1920 x 1080		30 Fps, 30 Mbps
	vp8 Spec: Max Solution: 1920 x 1080		60 Fps, 60 Mbps
.mkv vp9 Mpeg1/2 Layer1/2/3, AACLC,	Layer1/2/3, AACLC,	LPCM, opus	Spec: Max Solution: 8192 x 432030 Fps, 60 Mbps
	H.265 Spec: Max Solution: 8192 x 4320		60 Fps, 200 Mbps
	mpeg1/2 Spec: Max Solution: 1920 x 1080		60 Fps, 80 Mbps
	Mpeg-4
	H.264 Spec: Max Solution: 3840 x 2160		30 Fps, 160 Mbps
	Mjpeg Spec: Max Solution: 1920 x 1080		30 Fps, 30 Mbps
	vp8 Spec: Max Solution: 1920 x 1080		60 Fps, 60 Mbps
.mov H.265 Mpeg1/2 Layer1/2/3, AACLC,	Layer1/2/3, AACLC,	Vorbis,LPCM, AMR-NB	Spec: Max Solution: 8192 x 432060 Fps, 200 Mbps
	mpeg1/2 Spec: Max Solution: 1920 x 1080

APPENDIX

File Extensions	Codec
	Video Audio	Maximum Transmit Ratio
.VOB mpeg1/2 Mpeg1/2	Layer1/2/3, AACLC	LPCM Spec: Max Solution: 1920 x 1080	60 Fps, 80 Mbps
	Mpeg-4 Spec: Max	Solution: 1920 x 1080	60 Fps, 80 Mbps
.mpg/.mpeg mpeg1/2	Mpeg1/2 Layer1/2/3,	AACLC, LPCM Spec: Max Solution: 1920 x 1080	60 Fps, 80 Mbps
	Mpeg-4	Solution: 8192 x 4320	60 Fps, 200 Mbps
	H.264 Spec: Max
.webm vp9 Mpeg1/2 L	Layer1/2/3, AACLC,	LPCM, opus	Spec: Max Solution: 8192 x 4320
			30 Fps, 60 Mbps
	H.265 Spec: Max	Solution: 8192 x 4320	60 Fps, 200 Mbps
	mpeg1/2 Spec: Max	Solution: 1920 x 1080	60 Fps, 80 Mbps
	Mpeg-4	Solution: 8192 x 4320	60 Fps, 200 Mbps
	H.264 Spec: Max
	Mjpeg Spec: Max	Solution: 1920 x 1080	30 Fps, 30 Mbps
	vp8 Spec: Max	Solution: 1920 x 1080	60 Fps, 60 Mbps
.ts H.265 Mpeg1/2 L	Layer1/2/3, AACLC,	LPCM Spec: Max Solution: 8192 x 4320	60 Fps, 200 Mbps
	mpeg1/2 Spec: Max	Solution: 1920 x 1080	60 Fps, 80 Mbps
	Mpeg-4	Solution: 8192 x 4320	60 Fps, 200 Mbps

Audio Format

APPENDIX

Image Format

File Extensions	Format Supported Range Remark
.bmp BMP 9600 x 6400	The limitation of max resolution depends on DRAM size
.gif GIF 6400 x 4800
.jpeg/jpg JPEG Base-line 15360	x 8640
	Progressive 1024 x 768
.png PNG 9600 x 6400

Note:

Sound or video may not work if the contents have a standard bit rate/frame rate above the compatible Frame/sec listed in the table above.

- Video content with a Bit rate or Frame rate larger than the rate specified in the table above can cause choppy video during playback.

6.3 Supported Resolution

Computer Mode

Standard Resolution	Resolution		Refresh Rate
	Horizontal Vertical
IBM VGA 720 400	70
IBM VGA 640 480	60
VESA	800 600	56
VESA	800 600	60
VESA	1024	768	60
VESA	1280	720	60
VESA	1280	800	60

APPENDIX

Video Mode

Standard Resolution	Resolution		Refresh Rate
	Horizontal Vertical
EDTV (16:9) 720 480	60i
EDTV (16:9) 720 480	60
EDTV (4:3) 720 480	50i
EDTV (4:3) 720 480	50
EDTV 720 576 50
EDTV 720 576 50
HDTV 1280 720 50
EDTV 1280 720 60
HDTV 1920 1080	50i
HDTV 1920 1080	50
HDTV 1920 1080	50i
HDTV 1920 1080	50
4K2K (HDMI, Type-C) 384	0 2160 60

General guidelines:

• The PC text quality is optimum in HD 1080 mode (1920 x 1080, 60 Hz).
• Your PC display screen might appear different depending on the manufacturer (and your particular version of Windows).
• Check your PC instruction book for information about connecting your PC to a display.
• When horizontal synchronous signals seem irregular in RGB mode, check PC standby mode or cable connections.
• The display settings table complies to the IBM/VESA standards, and based on the analog input.
• The best timing for the vertical frequency to each mode is 60 Hz.

APPENDIX

6.4 Troubleshooting

Symptom Possible Cause Remedy
No picture is displayed • The power cord has been disconnected.• The main power switch on the bottom of the display is not switched on.• The selected input has no connection.• The display is in standby mode.	1 Plug in the power cord.2 Make sure the power switch is switched on.3 Connect a signal connection to the display.
Interference displayed on the display or audible noise is heard	Caused by surrounding electrical appliances or fluorescent lights.	Move the display to another location to see if the interference is reduced or connect the display to another power outlet.
Colour is abnormal The signal cable is not connected properly.	Make sure that the signal cable is attached firmly to the display.
Picture is distorted with abnormal patterns	• The signal cable is not connected properly.• The input signal is beyond the capabilities of the display.	• Make sure that the signal cable is attached firmly.• Check the video signal source to see if it is beyond the range of the display. Please verify its specifications with this display's specification section.
Display image doesn't fill up the full size of the screen	The picture format is not set correctly.	Open the OSD menu > Screen and try the different formats. Refer to page 54.
Can hear sound, but no picture Improperly connected source signal cable.	Make sure that both video inputs and sound inputs are correctly connected.

APPENDIX

Symptom Possible Cause Remedy
The response of the system is slow or the system crashes	Too many apps are running in the background.The normal operation of the system is disturbed by the environmental conditions, for example thunderstorm.	Disconnect your interactive display from the power outlet and wait for 1-2 minutes. Then reconnect the power cable and restart the display.
The touch response is slow and not functioning	Too many apps are running in the background.	Close the apps that you are not using. Then touch ➔> Keeper ➔ to clear cache.Restart the system.
Cannot connect to Wi-Fi Wi-Fi module	is not installed to the interactive display or is not installed correctly.	(Re)install the Wi-Fi module to the interactive display. Refer to page 20.

7.5 Transporting the Interactive Display

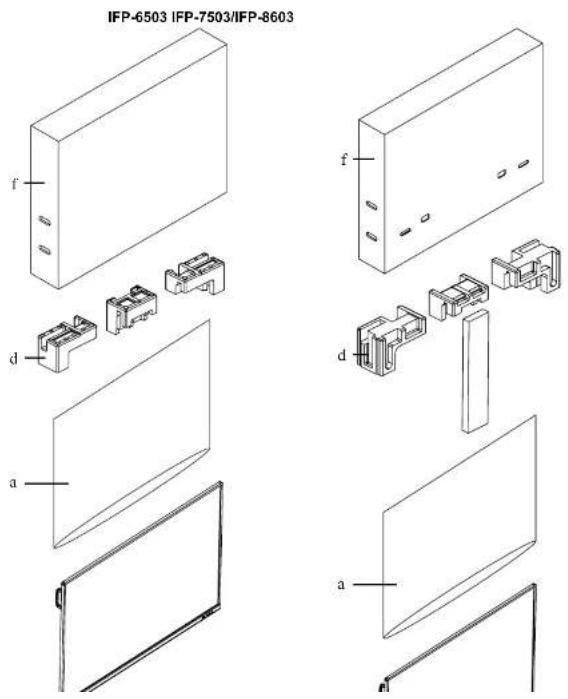

To transport the interactive display for repair or shipment, place the display in its original packaging carton.

1 Place the interactive display inside the supplied protective bag (a).
2 Place the lower foam cushion (b) into the lower box (c).
3 Place the interactive display inside the lower foam cushion (a).
4 Place the upper foam cushion (d) on top of the interactive display.
5 Place the accessories (e) on the designated area inside the lower foam cushion (b) (if necessary).
6 Place the upper box (f) on the interactive display.

APPENDIX

CHAPTER 7: SPECIFICATIONS

7.1 Display Specifications

IFP-6503 IFP-7503 IFP-8603
Panel Panel Type LED	Backlit TFT LCD	(IPS Technology)	LED-Backlit TFT LCD (IPS Technology)	LED-Backlit TFT LCD (IPS Technology)
	Panel Size 64.5" 74.5"	85.6"
	Max. Resolution UHD 3840 x 2160 UHD 3840 x 2160		UHD 3840 x 2160
	Pixel Pitch 0.373 mm 0.430 mm 0.494 mm
	Brightness	350 cd/m ^2	350 cd/m ^2	350 cd/m ^2
	Contrast Ratio	1200:1	1100:1	1200:1
	Viewing Angle (H/V)	178°/178°	178°/178°	178°/178°
	Display Colour	1.07B	1.07B	1.07B
	Response Time	5 ms	5 ms	5 ms
	Surface Treatment	Haze 25%, 3H, Anti-glare treatment	Haze 25%, 2H, Anti-glare treatment	Haze 28%, 2H, Anti-glare treatment
Frequency (H/V)	H Freq.	30 kHz-80 kHz	30 kHz-80 kHz	30 kHz-80 kHz
	V Freq.	50 Hz-76 Hz	50 Hz-76 Hz 50 Hz-76 Hz
Input	HDMI	2.0 x 3	2.0 x 3	2.0 x 3
	VGA	15-Pin D-Sub x 1	15-Pin D-Sub x 1	15-Pin D-Sub x 1
Output	HDMI	2.0 x 1	2.0 x 1	2.0 x 1
External Control	RS232 In	9-Pin D-Sub	9-Pin D-Sub	9-Pin D-Sub
	LAN (RJ45) RJ45 x 2	RJ45 x 2	RJ45 x 2
Embedded System	OS	Android 9.0	Android 9.0	Android 9.0
	CPU	Dual core A73	Dual core A73	Dual core A73
	Memory	4G	4G	4G
	Storage	32G	32G	32G
Other Connectivity	USB	2.0 x 1 / 3.0 x 4 / Type-C (DP 1.4 / Data 3.0 / PD:65W)	2.0 x 1 / 3.0 x 4 / Type-C (DP 1.4 / Data 3.0 / PD:65W)	2.0 x 1 / 3.0 x 4 / Type-C (DP 1.4 / Data 3.0 / PD:65W)
	OPS Slot	Yes	Yes	Yes
Audio	Audio In	Stereo Audio Jack (3.5 mm)	Stereo Audio Jack (3.5 mm)	Stereo Audio Jack (3.5 mm)
	Audio Out	Stereo Audio Jack (3.5 mm), S/PDIF	Stereo Audio Jack (3.5 mm), S/PDIF	Stereo Audio Jack (3.5 mm), S/PDIF
	Internal Speakers	16W x 2	16W x 2	16W x 2

SPECIFICATIONS

IFP-6503 IFP-7503 IFP-8603

Dimensions with Bracket(W x H x D)		1488.4 x 896.6 x 108.4 mm(58.6" x35.3" x4.3")	1709.4 x 1019.9 x 107.7 mm(67.3" x40.2" x4.2")	1957.0 x 1159.7 x 107.6 mm(77.1" x45.7" x4.2")
		Packaging (W x H x D)	628.0 x 1050.0 x 208.0 mm(64.1" x41.3" x8.2")	1863.0 x 1140.0 x 225.0 mm(73.4" x44.9" x8.9")
Weight w/o Bracket 38	0 kg (83.8 lb) 49.5 kg (1)	09.1 lb) 64.6 kg (142.4 lb)
	with Bracket 39.4 kg (86)	9 lb) 50.9 kg (112.2 lb) 66.0 kg (145.5 lb)
	Packaging 49.0 kg (108)	0 lb) 63.9 kg (140.9 lb) 82.9 kg (182.8 lb)

Note:

◆ All specifications are subject to change without prior notice.

7.2 Display Dimensions

IFP-6503

SPECIFICATIONS

IFP-7503

IFP-8603

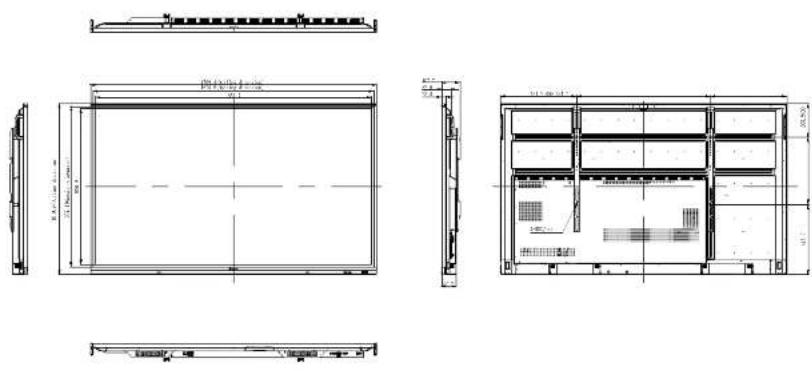

Technical drawing with dimensioned mechanical components and cross-sectional views
