Thank you for purchasing the Yamaha ELECTRONIC DRUM PAD XP105T-X, XP105T-M, XP125T-X, XP125T-M, XP125SD-X or XP125SD-M. This electronic drum pad can be used in your home or a studio, or onstage for live performances.

For proper assembly and safe use, read this manual carefully before using it. After you have read the manual, keep it in a safe and handy place for future reference.

The illustrations show the XP125SD-X electronic drum pad, but the information applies to the other electronic drum pads (except where indicated).

Contents

Package Contents....8

Specifications....8

Pad & Trigger Input Jacks 9

Setting Up 9

Connections....9

Rubber Rim Replacement.... 10

Head Tension Adjustment (mesh pad only).... 10

Head Replacement (mesh pad only)....11

Troubleshooting.... 12

Package Contents

To customers who purchased a Pads Set, refer to the attached "Assembly Manual" included with the Pads Set when confirming package contents.

YAMA TCS Rim Head YAMA TCS Rim

① Main unit × 1

TCS pad (XP105T-X, XP125T-X, XP125SD-X)

Mesh pad (XP105T-M, XP125T-M, XP125SD-M)

TCS pad and mesh pad can be distinguished by the logo mark on the head.

② Stereo phone cable × 2 (clear, black)

The two cables are identical in function. Simply choose the one you want to use and keep the unused one in a safe place.

③ Owner's Manual (this booklet) × 1

Specifications

■ XP105T-X, XP105T-M Tom Pad (10")
● Size: 297 (W) × 322 (D) × 117 (H) mm (Clamp bolt not included.)
● Sensor System: Head sensor (piezo), rim sensor (piezo)
● Output jack: Standard stereo phone jack

- UMACT II, UMACT III, ... 3.1 (2015)

Pad & Trigger Input Jacks

The function of the XP series pads varies according to which trigger input jack on the Drum Trigger Module the pad is connected. Refer to the owner's manual included with the drum trigger module and/or to the page for your specific product on the Yamaha website for information on the functions relevant to trigger input jacks.

Setting Up

- Tom-tom drum (XP105T-X, XP105T-M, XP125T-X, XP125T-M)

After setting up your rack system (Yamaha RS series, etc.) or a standard tom stand (Yamaha WS series, etc.), attach the pad as shown in the illustration. Insert the tom holder (hexagonal bar) ① on your rack or tom stand into the pad, and firmly tighten the wing bolt ② to secure.

Technical diagram of a mechanical device with labeled parts and directional arrow indicating motion

- Snare drum (XP125SD-X, XP125SD-M)

Before set up, make sure to prepare a snare stand ①

which fits your snare drum diameter (Yamaha SS662, etc.), and set the drum firmly onto the stand so that it does not wobble.

Technical diagram showing a mechanical assembly with a lid and a lever mechanism, labeled with number 3.

CAUTION

• Make sure that the pad is securely attached to the rack or stand. If the bolt is not tightened securely, the pad may slip or fall down, causing injury. Also, if the rack or stand is placed on an unstable surface, etc., the rack or stand may fall over, resulting in injury.

Connections

Use the supplied stereo phone cable to connect the output jack on the XP series pad to the input jack on the DTX Series

Rubber Rim Replacement

The rubber rim is made from consumable material, and may need to be replaced depending on normal wear and tear. For information on replacement parts, contact your dealer or qualified Yamaha service personnel.

When attaching the rubber rim, make sure that it covers from the outside to the inside of the hoop circumference. After attaching, make sure that the rubber rim fits all the way around.

Rubber rim Hoop

The rubber rim replacement is now complete.

Head Tension Adjustment (mesh pad only)

- The drum key bolts fixing the head can be loosened while using. Each time before you play, adjust the head tension to prevent rattling and loosening of the head. To adjust the head tension, tighten or loosen the six drum key bolts on the outside of the head in the order shown in the figure below. Make sure to tighten or loosen the drum key bolts evenly. If you tighten or loosen only one, the head tension will not be even.

4 6 2 Loosen 1 Tighten 5 3

Head Replacement (mesh pad only)

The mesh pad is made from consumable material, and may need to be replaced to prevent malfunction when partial discoloration, sagging, fraying, tearing, or scraping appears. For information on replacement parts, contact your dealer or qualified Yamaha service personnel.

- The head of the TCS pad (XP105T-X, XP125T-X, XP125SD-X) is not replaceable. When the head is damaged, consult your dealer or qualified Yamaha service personnel.

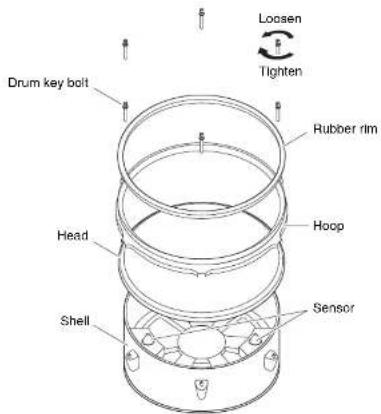

Drum key bolt Rubber rim Head Hoop Shell Sensor Loosen Tighten

1. Remove the rubber rim.
2. Remove all six drum key bolts using the drum key.

The drum key can be found in the pad set package.

1. Remove the hoop.

Troubleshooting

No Sound, Volume is Low, Sound output does not match your feeling

• Is the mesh pad head tension loose? Loose head tension may cause various problems. (See "Head Tension Adjustment (mesh pad only).")
• Are the drum key bolts loose? The drum key bolts fixing the head can be loosened while using. Tighten the bolts regularly.

NOTICE

- Do not use a long handle drum key (such as a high-torque drum key or high-tension drum key) to tighten the head. Over-tightening can damage your drum.

- Is the pad connected to the correct input number of the DTX Series Drum Trigger Module using the supplied stereo phone cable? Refer to the owner's manual included with the drum trigger module and/or to the page for your specific product on the Yamaha website for information on the functions relevant to trigger input jacks. When a pad is connected with a mono phone cable, the voices assigned to the rim sections are not produced.

Refer to the owner's manual Included with the drum trigger module and/or to the page for your specific product on the Yamaha website regarding the problems described above and any other problems that you may be experiencing. If a solution cannot be found to the problem after consulting the manuals, contact the dealer from whom you purchased the product.

MEMO
