safety precautions EN

#1

Safety

precautions.

OK 3.5 m

assembly instructions

Safety precautions.

Carefully read, understand, and follow all information in this user manual before installing and using the swimming pool. These warnings, instructions, and safety guidelines address some common risks of water recreation, but they cannot cover all risks and dangers in all cases.

Always use caution, common sense, and good judgment when enjoying any water activity. Retain this information for future use.

Non Swimmers safety

Continuous, active, and vigilant supervision of weak swimmers and non-swimmers by a competent adult is required at all times (remembering that children under five are at the highest risk of drowning).

→ Designate a competent adult to supervise the pool each time it is being used.

→ Weak swimmers or non-swimmers should wear personal protection equipment when using the pool.

→ When the pool is not in use, or unsupervised, remove all toys from the swimming pool and its surrounding to avoid attracting children to the pool.

Safety devices

→ It is recommended to install a barrier (and secure all doors and windows, where applicable) to prevent unauthorized access to the swimming pool.
→ Barriers, pool covers, pool alarms, or similar safety devices are helpful aids, but they are not substitutes for continuous and competent adult supervision.

Safety equipment

→ It is recommended to keep rescue equipment (e.g. a ring buoy) by the pool.
→ Keep a working phone and a list of emergency phone numbers near the pool.

Safe use of the pool

→ Encourage all users especially children to learn how to swim
→ Learn Basic Life Support (Cardiopulmonary Resuscitation - CPR) and refresh this knowledge regularly.

This can make a life-saving difference in the event of an emergency.

→ Instruct all pool users, including children, what to do in case of an emergency
→ Never dive into any shallow body of water. This can lead to serious injury or death.
→ Do not use the swimming pool when using alcohol or medication that may impair your ability to safely use the pool.
→ When pool covers are used, remove them completely from the water surface before entering the pool.
→ Protect pool occupants from water related illnesses by keeping the pool water treated and practicing good hygiene. Consult the water treatment guidelines in the user's manual.
→ Store chemicals (e.g. water treatment, cleaning or disinfection products) out of the reach of children.
→ Signage is to be displayed in a prominent position within 2 m of the pool.
→ Removable ladders shall be placed on a horizontal surface.

WARNING

Every electrical appliance fed in 220 V, has to be located at least at 3.50 m from the edge of the pool.

The equipment should be connected to a voltage, with earth connection, protected by a residual current device (RCD) having a rated residual operating current not exceeding 30 mA.

Read the instructions carefully and keep for future reference.

IF YOU HAVE ANY PROBLEM, CONTACT US!

www.grepool.com/en/after-sales

preparation of the site EN

#2

Preparation of the site.

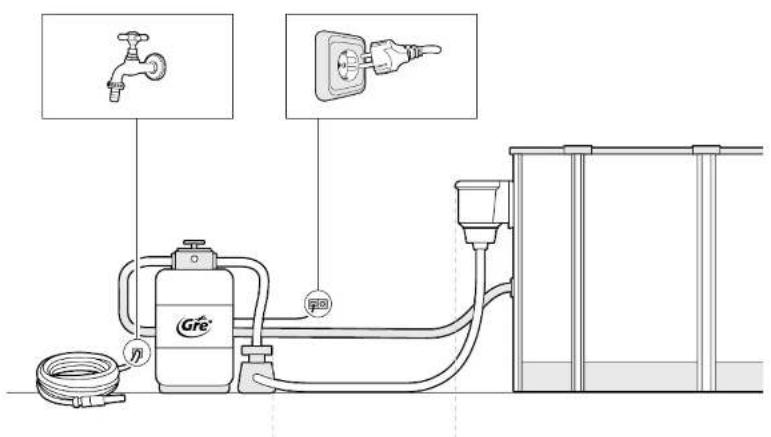

Diagram of a water spray system with labeled components including a faucet, outlet tube, and hose connection

assembly instructions

2.1

Tool necessary (not included) FLOUR

Simple line drawing of a funnel and a vertical rod aligned horizontally inside an oval shape (no text or symbols)

Mark the installation area:

Once the location area is chosen (which have to be perfectly levelled), we'll proceed at the marking.

You've got 2 options for that :

→ 1° To prepare a concrete platform (cement,...) with the necessary measure according to your swimming-pool size.
→ 2° Directly on the ground: To mark the ground using wood pickets, screwdriver, funnel (or plastic bottle), flour or lime and a rope.

P∅ 2,40m = ∅3m

PO 3m = ∅3,50m

P∅ 3,5m = ∅4m

2.2

Levelling:

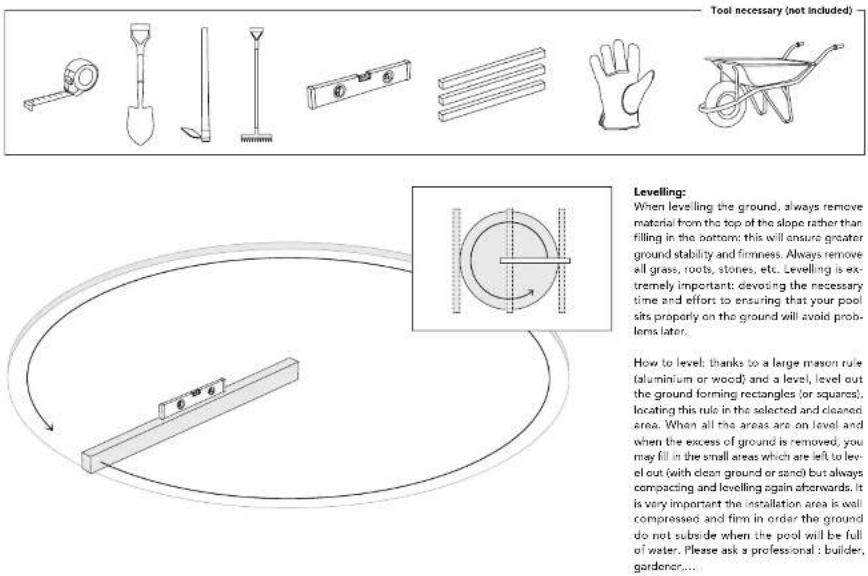

When levelling the ground, always remove material from the top of the slope rather than filling in the bottom: this will ensure greater ground stability and firmness. Always remove all grass, roots, stones, etc. Levelling is extremely important: devoting the necessary time and effort to ensuring that your pool sits properly on the ground will avoid problems later.

How to level: thanks to a large reason rule (aluminium or wood) and a level, level out the ground forming rectangles (or squares), locating this rule in the selected and cleaned area. When all the areas are on level and when the excess of ground is removed, you may fill in the small areas which are left to level out (with clean ground or sand) but always compacting and levelling again afterwards. It is very important the installation area is well compressed and firm in order the ground do not subside when the pool will be full of water. Please ask a professional : builder, gardener....

2.3

assembly instructions

#3

Components.

Draw and classify all components included before assembly.

It's time to assemble the ladder and the pump, follow the respective instructions. Kits with missing parts will be covered by the warranty only if reported to the after-sales service within 15 days as from the date of purchase of the swimming pool.

In order to avoid any possible injury all swimming pool walking entrance must be regularly checked.

components EN

Picture 1

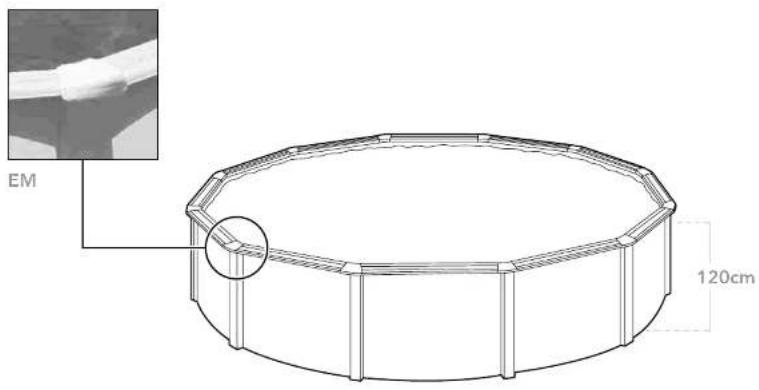

EM 120cm

Picture 2

TPL & TP

assembly instructions

Components.

CH

L LINER PVC

PCF PC-BAG

PI PC-BAG

PIPC PC-BAG

PV PLV

PLAYA PLY

TPVC (KITENV)

120 cm
+	∅ 6,40 ∅ 5,50 ∅ 4,60 ∅ 3,50 ∅ 3,00 ∅ 2,40 m m m m m m
CH	1 1 1 1 1 1
EM	14 12 10 10 8 8
UNER (L)	1 1 1 1 1 1
PCF	14 12 10 8 7 6
PI	14 12 10 8 8 8
PIPC	14 12 10 8 8 8
PLY	14 12 10 8 8 81400 mm 1400 mm 1400 mm 1330 mm 1145 mm 910 mm
PU	28.24.20.16.16.16

+	∅6,40m	∅5,50m	∅4,60m	∅3,50m	∅3,00m	∅2,40m
	2-3 2-3 2-3 2-3 2-3
	4h 3h 3h 2h 2h 2h

Diagram of a circular component with a close-up view of a wire labeled 'EM' (no text or symbols on the diagram itself)

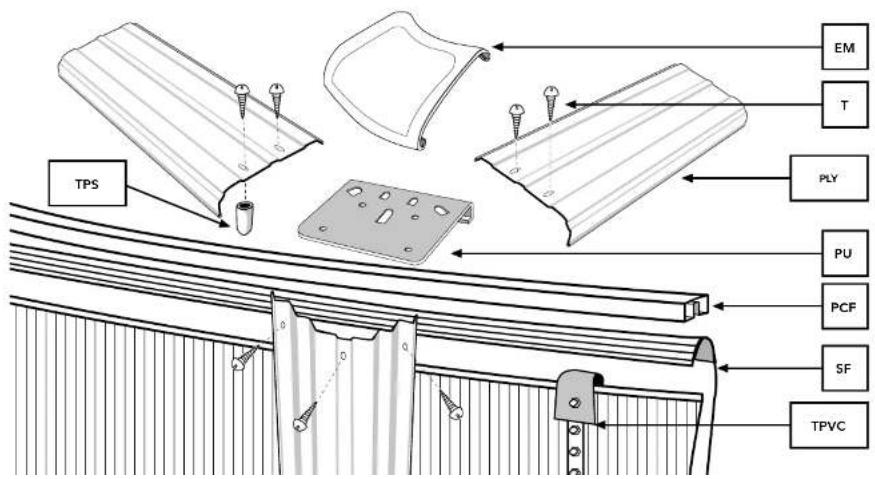

TPS EM T PLY PU PCF SF TPVC

components

EN

assembly instructions

Components.

CH

L LINER PVC

PCF PC-BAG

PI PC-BAG

PIPC PC-BAG

PV PLV

132 cm
+	∅ 6,40 ∅ 5,50 ∅ 4,60 ∅ 3,50 ∅ 3,00 ∅ 2,40 m m m m m m
CH	1 1 1 1 1 1
UNER(Ω)	1 1 1 1 1 1
PCF	14 12 10 8 7 6
PI	14 12 10 8 8 8
PIPC	14 12 10 8 8 8
PLY	14 12 10 8 8 81400 mm 1400 mm 1400 mm 1330 mm 1145 mm 910 mm
PU	28 24 20 16 16 16
PV	14 12 10 8 8 8
T	140 120 100 80 80 80

132 cm

		132 cm
CH	1 1 1 1 1 1
UNER(II)	1 1 1 1 1 1
PCF	14 12 10 8 7 6
PI	14 12 10 8 8 8
PIPC	14 12 10 8 8 8
PLY	14 12 10 8 8 81400 mm 1400 mm 1400 mm 1330 mm 1145 mm 910 mm
PU	28 24 20 16 16 16
PV	14 12 10 8 8 8
T	140 120 100 80 80 80

+	∅6,40m	∅5,50m	∅4,60m	∅3,50m	∅3,00m	∅2,40m
	2-3 2-3 2-3 2-3 2-3
	4h 3h 3h 2h 2h 2h

TPL & TP

TPL T PLY PU PCF SF TP TPUC

components

EN

assembly instructions

#4

Installation.

4.1

BOTTOM SECTION PIECES (PI) FOR ROUND SWIMMING POOLS

NOTE: These curved SECTION PIECES ARE FOR THE BOTTOMS OF ROUND SWIMMING POOLS. Take each bottom section piece (PI) and fit a drop-forged part (PU), in the middle (see photo A). Join the section pieces to one another with the joining pieces (PIPC), leaving a gap of about 1cm between them (see photo B). Complete the circle with all the section pieces. Begin fitting the wallplate in the middle of a drop-forged part (PU) previously positioned half way along each section piece. If on completing the wallplate installation the circle made by the section pieces is too small, open out the section pieces until you achieve the exact diameter. If, on the other hand, the circle of section pieces is too big, you will have to close them up until the circle matches the diameter of the wallplate. NOTE: (LO) If the ground is not firm (concrete, etc.), it is advisable to set a tile or slab into the ground under each part PU to prevent the upright supports PV from sinking under the weight of the water.

NOTE: Drop-forged parts PU under no circumstances shall be affixed to the ground by any means; in the event of doing so, you run the risk of swimming pool breakage and the automatic loss of the warranty.

* Use duct tape to cover parts PU and PIPC on the inside of the pool and thus avoid that may damage theliner.
* Place the top rails (PLY) to estimate the distance between (PU) pieces.

PIPC PI *

PI

4.2

* IMPORTANT! BEFORE ASSEMBLY, DEBURRING, USING A FILE AND SANDPAPER, THE EDGE OF THE CLOSING WALL (CH).

NOTE: REFERENCES: K300WET AND K350WET DO NIT HAVE PUNCH HOLES IN THE METAL SHEET (CH) OF THE POOL.

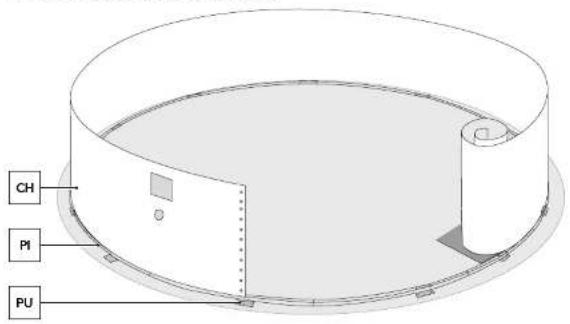

Fit the wall plating CH vertically on a piece of cardboard (to avoid damaging the area prepared for the installation). Make sure the square and perced piece is always located in the superior part and face to dominating winds. Fit the plating extremity and the first profile (PI) together and make the plating extremity correspond with the top of the joining-piece PU. Now, you can unfold it introducing it in the profiles PI working clockwise. Start to place the sheet at the middle of a pressed part

(PU) previously situated at the middle of each profile, see page 14. If when closing the sheet circle of the profiles it is small, all the profiles must be separated from each other until obtaining the exact diameter. On the other hand it is too bog, the profiles should be moved closer to each other until equaling the circle with the diameter of the sheet.

If the circumference of the profiles is too large to be able to close the steel wall even if the profiles are joined together, only then it is necessary to cut the steel wall.

Complete the circle and close the plating CH thanks to the screws TT. The screwhead has to stay in the interior part of the pool, the ring and the blind nut in the exterior part (Tighten the screws without distorting the material).

CH PI PU

Diagram showing a mechanical or structural setup with labeled components and a marked point 'TT'

Simple line drawing of a mechanical component with no text or symbols

4.3

assembly instructions

4.4

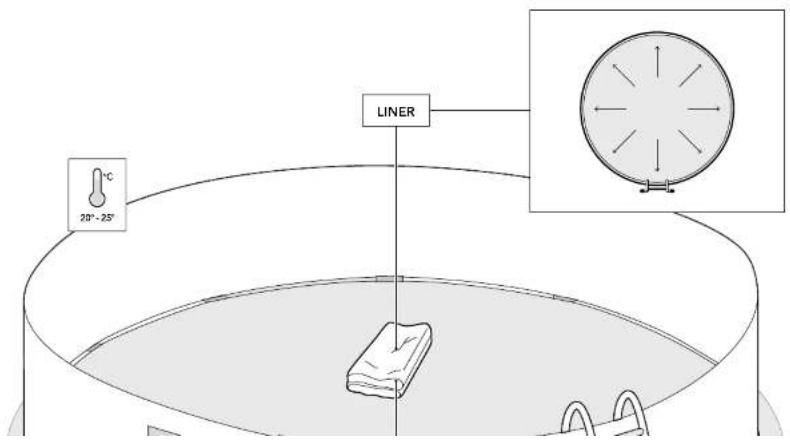

ASSEMBLY OF THE PVC LINER: EXTENDING THE LINER:

Important: The linear used in the manufacturing of all our pools, is developed for exposition to heat and ultraviolet rays during long periods. Therefore, under certain weather and usage conditions, the linear qualities can slightly vary. The interior liner of the pool is manufactured from flexible PVC (thermoplastic). Its properties allow optima installation conditions when the outside temperature is between 20°C and 25°C.

NOTE: Temperature too low; hard and rigid liner; later, too small. Temperature too high: flexible and elastic liner; later, too big. Pull and extend the liner (I) in the shade to recover its texture, at least 2 hours before installing it. Ideal temperature: To manipulate the liner better, try to do this at an outside temperature between 20–25°C. Situist the liner (I) at the center of the pool. Extend it at the bottom and fitted against the side towards the steel sheet. The welding that joins the bottom with the side must be perfectly fitted against the lower profiles of the entire

perimeter of pool bottom avoiding any folds. It is very important that the liner is well centered and extended.

NOTE: If there any folds in the bottom of the liner, this is no reason for it to be changed because it is NOT a factory defect.

SERIAL No: Locate it on the bottom or wall of the liner and write the serial No. in the box on the instruction sheet for possible claims.

LINER °C 20° - 25°

4.5

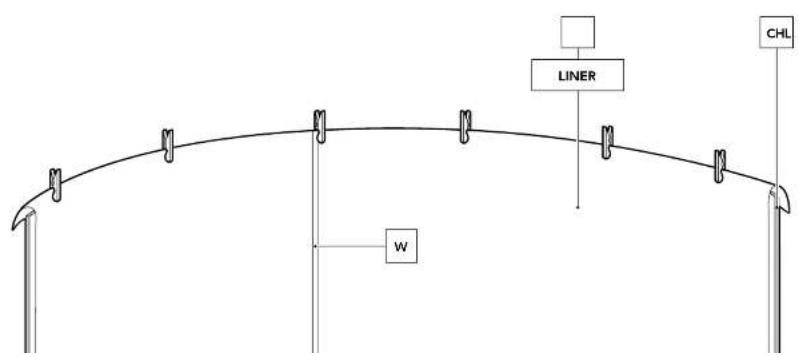

ATACHING THE LINER:

Locate the welded seam of the wall (W), which can be used as a guide for fitting the pool liner. Starting from that point, hang the top edge of the liner over the wall plating so that the weld (W) is perfectly straight and perpendicular to the ground, as you hang the liner, hold it in place provisionally with clothes pegs. Ensure there is a uniform overlap. Distribute any excess ob-

served in the liner wall on completing this operation evenly around the pool to prevent wrinkles. If the liner wall is too short, stretch it evenly all around the perimeter.

Simple line drawing of a pair of clothespins tied together (no text or symbols)

LINER CHL W

assembly instructions

4.6

Simple line drawing of a 3D object resembling a folded or layered structure, labeled 'PCF' (no other text or symbols)

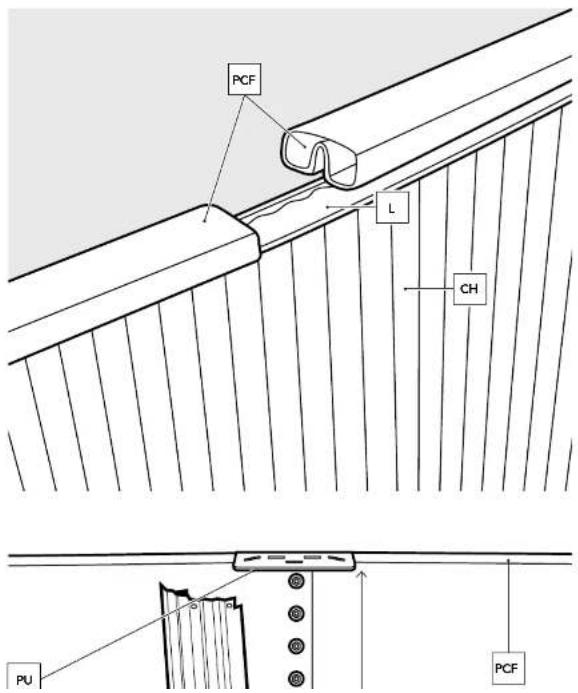

FLEXIBLE TOP SECTION PIECES (PCF) for Round Swimming Pools

NOTE: These FLEXIBLE SECTION PIECES ARE FOR THE TOPS OF ROUND SWIMMING POOLS.

They are fitted on top of the liner once this has been fitted over the pool wallplate and do not need to be joined together. They are positioned one after the other, and when the perimeter is completed, the extra length is cut off.

Place each PU piece over the top section pieces; they must be lined up with those located in the lower part.

PCF L CH PU PCF

4.7

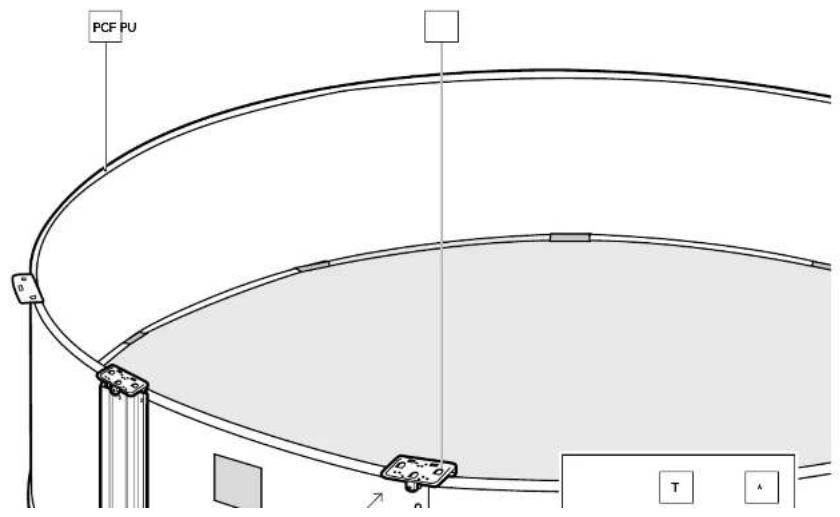

FITTING AND ATTACHING THE UPRIGHT SUPPORTS (PV) TO THE WALL PLATING:

With reference to the plating closure, place the first superior and inferior joining-pieces PU in that point (To plug all closure screws TT). Use a trim piece to calculate the distance between the joining pieces PU. Attach an upright support (PV) to the first bottom joining pieces by the central screw T. Then attach it in the same way to the top joining piece. Next, fit the rest of the screws T (3 + 3 per support). Proceed in this way until all the upright supports are attached at top and bottom. Take one PLY to calculate the distance between the pressed profiles PU.

NOTE: Upright supports should be perfectly vertical all around the pool (take the wall plate ribbing as a reference.

Line drawing of a screwdriver with a plus symbol nearby (no text or labels)

PCF PU T A

assembly instructions

4.8

INSTALLATION OF THE UPPER PROFILES (PLY):

Avoid that the PLY pieces fall into the pool during installation because they can damage the liner. Place each PLY supported by two consecutive PUs with round part outside. You will see that each PLY has four holes (two inside and two outside) for fixing to the joint pieces. Start by fixing each PLY to the joint pieces but only

finger tightening the land not fully tightening them so there is some play among them! the inside screws of each side (1°). After having placed all the PLYs, re-check that the vertical profiles are upright, if not, correct their position. Then continue positioning the outside screws (2") and tighten all the screws to the structure.

Put the plastic plugs TPS (only for pools of 120 cm) on the screws (for protection) at the outside of the pool.

ATTENTION: getting on, walking on, or sitting on the PLYs is firmly prohibited, as well as jumping or diving from the same.

PLY PLY 2° 1° T 2° PU PCF PV TPS

4.9

EM *

4.10

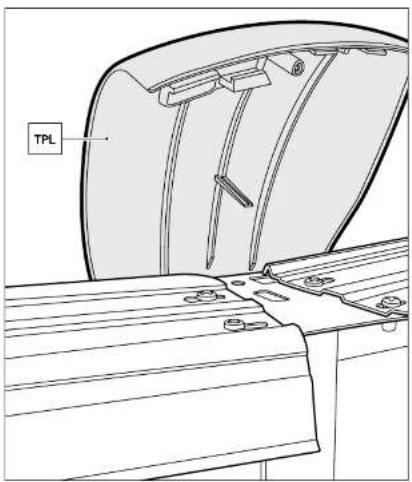

JOINT PROTECTORS: TPL and TP. (Only for 132 cm pools)

These pieces are to be fitted joining and protecting the trim pieces. Joint protectors are made up of 2 elements: Strim Piece protector (TPL) and Vertical Section protector (TP). First, the back side of TPL has to be

fixed to the back side of the 2-strim pieces. Then, it has to be tightened to the front side of the pool, fixing the TPL varge to the PV1 hold. Now, fix TP to TPL by the lower side using a screw T1 to join them. This process is to be repeated for all the joint protectors. ATTENTION: For the straight area, the TP notch must be removed so the part fits into the PV2.

TPL

TPL

assembly instructions

4.11

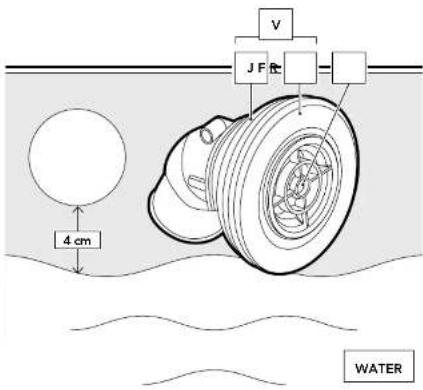

FITTING THE RETURN VALVE (V):

(IMPELLER NOZZLE: V)

This valve is located at the bottom of the pool wall, and water is returned to the pool through it after treatment in the treatment unit. Start pouring water into the pool through a garden hose, and stop 4 cm below the bottom of the valve hole (check the liner

is clean before filling the pool). Mark the position of the hole on the liner with a felt pen and make a cross-shaped cut in the centre of the mark with a stanley knife or similar. Do not cut beyond the edge of the hole. Place inside the pool through the cut, with a seal (J) and a friction ring (F). Cut the protruding part of the liner.

Fit the other seal (J) and the other friction ring (F) and tighten firmly with the nut (T). Insert the return hose (M) which goes from the outlet of the treatment unit to the return valve (V), and secure it with the clamp (A).

V J F R 4 cm WATER

CHF FL TEFLON T R A M 4 cm WATER

4.12

ATTACHING THE SKIMMER BODY (S) TO THE OUTSIDE OF THE POOL:

Fill the pool with water until the level is 4 cm from the bottom of the perforation for the skimmer. Using a Stoolen body, on the floor (1) inside the pool,

wall plate and liner are within the groove (X) made for this purpose and fit the two shorter screws into the larger centre holes from the inside of the pool through the double seal and the liner. Screw them into the center holes on the skimmer (S). Cover the

tightly to the skimmer, connect one end of the hose to the skimmer connecting bushing (C) using a clamp (A), and fit the other end to the treatment unit inlet. Clamp this end also.

AID FAT-80

4.13

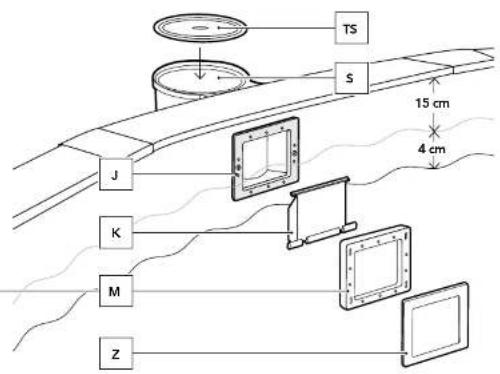

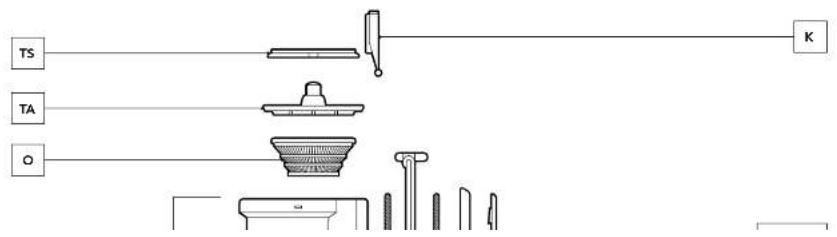

FITTING THE SKIMMER FRAME (M):

En sure that all holes are lined up properly (seal to wall plate perforation to skimmel). Screw 10 remaining screws loosely through the frame to check that the fit is correct. Then tighten the screws a little more one by one in the order indicated. Finally, tighten them fully in the same order.

LAST DETAILS: Pressure fit the trim part of the skimmer frame (Z). To finish, introduce the flap (K) through the rectangular gap (delicately press the two ends and fit the protrusions). Place the basket (O) into the skimmer and the skimmer body cover (TS).

FINISH FILLING THE POOL UP TO HALFWAY UP THE SIMMER DOOR, (10-15 cm below the pool edge) SO WATER ENTERS INTO IT AND FILLS THE FILTERING SYSTEM.

TS S 15 cm 4 cm J K M Z

TS TA Q K

assembly instructions

#5

Maintenance and use.

→ The pool water level must always be at least 15 cm from the edge of the upper edge of the same.
→ During the season for use of a pool kit, use the filtering system once a day to assure complete recycling of all the water and always when the pool is not used for bus-

→ The use of a pool kit involves respecting safety instructions defined in the maintenance and usage guide.
→ Never leave a pool kit for installation of the ground outside and empty.
→ Regularly clean the PVC liner and the water level line with non-abrasive products

RESPECT THE ENVIRONMENT DO NOT TAKE APART THE POOL UNLESS IT IS STRICTLY NECESSARY.

WINTER-SEASON:

A) If you choose not to dismount the pool:

1- Clean the liner bottom and sides with a non-abrasive product.

2- Treat the water with a chemical product for wintering. We recommend using LIQUID WINTERISER instead of floats with solid product to avoid discolouring the liner. 3- Leave the pool full of water considering:

a) For pools with skimmer and refulling pipe, reduce the water level 5 cm underneath the skimmer and close the refulling pipe with the screw tap which is included with the filter.

b) For pools with exhaustion and refulling pipes, reduce the water level 20 cm from the superior edge of the pool and close the pipes using the screw system incorporated.

4- Disconnect the pipes. Do not dismount the skimmer and the refulling and exhaustion pipes.

5- Protect the pool with a winter cover, and put a floating element between the cover and the water, in order to protect it from frost.

6- Filter: disconnect it from the pool. Clean it, empty the sand or remove the cartridge, dry it and keep it in a covered and sheltered from dampness place.

1. Accessories: remove every accessories (ladder, alarm, spotlight, pole...), rinse them with soft water and tidy them away.

TO RUN THE POOL AGAIN: Remove the winter cover, install the filter, change at least 1/3 of water and realize a chlorine treatment. Switch on the filter for at least 8 hours in an uninterrupted way, respecting the continuous working period indicated in the filter manuals.

B) If you choose to dismount the pool:

1- Empty the pool. Measures: Filter, Automatic pump for handling clean water or communicating vessels system. Communicating vessels system: Use the hose from your filter with the smallest cross-section. Fix a weight to one of its end and plunge it into the swimming pool. After this, sink the whole hose, until there is no air inside. With one hand, and under the water stop up hermetically the end of the hose and take it to the emptying point. Remove hand, and water will start running. Do not use this water for watering the plants, because it contains chemical products.

2- Clean every pool constituents with a sponge and a soap product with a neutral pH. Dry them and tidy them away in a dry and clean place.

That's normal that after having installed and dismounted the pool several times, the P.V.C liner dilate and loose its elasticity.

TO RUN THE POOL AGAIN: Read another time this manual instructions from the beginning.

CHEMICAL MEASURES:

Please read carefully the chemical product manufacturer instructions. WARNING: Keep chemical products in a clean, dry and out of children place. Important:

Every products used have to be compatible with the P.V.C liner.

→ First filling: Analyse the water pH and chlorine (Cl) and adjust them to the optimal levels: pH: 7.2–7.6; Chlorine: 0.5–2 ppm.

→ Chlorine treatments: Consist in increasing the chlorine level until approximately 20 ppm to eliminate gams and seawoods. This process has to be done only when the pool water comes from rivers or ponds, ... or if it stayed a long time without any treatments.

→ Checking: Check at least once a week the chlorine levels (use a chlorine and pH analyser). In the same way, we advise to add an algicid to prevent seaweeds appearance.

Never have a swim before the chlorine level stabilization. Do always use a floating dispenser for the chemical product (tablets) dissolution. The chemical product measuring out has to be done in accordance with: Your pool water volume, the bathe frequency, the climatic conditions, the water temperature and the location. Do always move the water and wait for the chemical product dissolution before adding another one. Wait approximately 12 hours between any pH, chlorine or algicid adjustment using the filter system.

MECHANICAL MEASURES:

Check the filter, the skimmer, the valves and the pipes are well connected to the pool. Do consider high water temperature will involve more time for the filtering. Theoretic filtering time = Water volume / Filter system discharge (generally 8h/day with water temperature of 21°C), (days: 2 h in the morning - 4 h around midday - 2 h in the afternoon). PLEASE RESPECT THE CONTINUOUS WORKING PERIOD INDICATED IN THE FILTER MANUALS.

VACUUM CLEANER (MANUAL OR AUTOMATIC):

Only for pools with skimmer. Connect an hose extremity to the brush head and immerse it into the water to make it fill in. Connect the other pipe extremity to the exhaustion adapter (TA) and place it above the skimmer basket. Switch on the filter in the FILTER position and begin to clean the bottom. Pay special attention to areas with folds where dirt accumulates.

BOTTOM CLEANER VENTURY STYLE:

Connect a garden hose to the bottom cleaner join and introduce it into the pool. Open the tap until a normal pressure to make the water flow out against the bottom of the pool, producing in that way an ascendant stream which leave the dirt into the filter (load) which is adjust on the bottom cleaner.

assembly instructions

#6

Accessories.

CLEANERS HEAT PUMPS HEATING SYSTEMS

Guarantee card

Keep your manual with the purchase justification (payment receipt) for any type of reclamation.

Any reclamation against guarantee should be made by an online declaration, via the www.service-gre.com website, together with receipt of purchase. You may be asked for photographs to justify the claim. No returns of material will be accepted without previous agreement. The client will support all costs of all returns of goods, (packaging and transport).

AFTER VERIFICATION AND CONFIRMATION OF A MANUFACTURING DEFECT

→ The products that coactively show defects will be repaired or will be replaced free of transport costs.

The guarantee is limited to the repair or replacement of the defective part. It does not include, under any circumstance, the payment of compensation for harm and damages.

THE GUARANTEE IS NOT APPLICABLE IN THE FOLLOWING SITUATIONS:

→ Use of materials that do not comply to our instructions.
→ Damages caused by mishandling or an installation not complying with the instructions.
→The maintenance instructions were not followed. →Inappropriate or wrong use of the chemical prod

IMPORTANT:

Manufacturas Gré interchanges components in exchange for others to be varied. If, after the verification no anomaly or dysfunction is detected, Manufacturas Gré reserves the right to invoice the client for the cost for transport and other diverse expenses.

Likewise, all plastic parts are excluded from the additional commercial guarantee, that is to say:

→Theliner

→ Any decorative part

To be able to be net from the guarantee, your pool should include this document.

Guarantee valid for pools sold after 1 January 2016.

→ Liner: 2 years for the seams and water tightness in normal conditions of use. The guarantee does not include: Ripping, tears, breakages, stains (caused by pouring treatment products directly into the water), stains linked to the growth of algae, stains related to the decomposition of foreign bodies in contact with the liner, stains and decouaring resulting from the action of oxidising products, colour maintenance and wear due to friction of the material over diverse surfaces. Deformation of the liner that has been left without water for 24 hours (never completely empty the pool). You should keep the label with the serial number of the liner that is on the product and on its packaging. This number and a sample of the liner will be required for any eventual redemption against the guarantee.

→ Filter group: The pump has 2 years guarantee (electrical problem ), in normal conditions of use. The guarantee does not cover breakage of parts (pump base/sand deposit, pre-liter cover, multi-directional trap...), wear due to a poor connection, use of the pump without water, wear due to abrasion or corrosion (the iter group should be located in a cool and dry position, kept protected from water splashing.).

→ Other components: 2 years.

THE FOLLOWING IS NOT INCLUDED IN THE GUARANTEE:

→ Cuts in the liner

→ The assembly and iter connection

MANUFACTURAS GRE S.A.

Aritz Bidea, 57 BELAKO INDUSTRIALDEA, APARTADO 69, 48.100 - MUNGUIA (MIZCAYA) ESPAÑA.
