LS1922s Wide Flat Panel Monitor User's Guide

Abstract grayscale illustration of flowing lines and a computer monitor icon (no text or symbols)

Contents

Safety information....iii

Chapter1. Getting started 1-1

Shipping contents 1-1 Attaching the basis and handling every monitor

Attaching the base and handling your monitor 1-1 Product overview 1-2

Types of adjustments 1-2

User controls 1-2

Cable lock slot 1-3

Setting up your monitor 1-3

Connecting and turning on your monitor 1-3

Chapter 2. Adjusting and using your monitor .... 2-1

Comfort and accessibility 2-1

Arranging your work area 2-1

Positioning and viewing your monitor....2-1 Quick tips for healthy work habits....2-2

Adjusting your monitor image 2-3

Using the direct access controls 2-3

Using the On-Screen Display (OSD) controls 2-3

Selecting a supported display mode 2-6 Understanding power management 2-7

Understanding power management ....2-8 Caring for your monitor ....2-8

Detaching the monitor stand 2-8

Chapter 3. Reference information .... 3-1

Monitor specifications 3-1

Troubleshooting 3-3 Mantelimierung 2-4

Manual image setup 3-4 Manually installing the monitor drives 3-5

Manually instaining the monitor driver....9-5

Installing the monitor driver in Windows / 3-5 Installing the monitor driver in Windows Vista 3-6

Service information 3-7

Product numbers 3-7

Customar racionciliitiae 27

Safety information

General Safety guidelines

For tips to help you use your computer safely, go to:

http://www.lenovo.com/safety

Before installing this product, read the Safety Information.

(safety information).

Chapter 1. Getting started

This User's Guide contains detailed information on your Flat Panel Monitor. For a quick overview, please see the Setup Poster that was shipped with your monitor.

Shipping contents

The product package should include the following items:

• Setup Poster
  • MonitorSafety, Troubleshooting, and Warranty Guide
  • Reference and Driver CD
  • Flat Panel Monitor
  • Power Cord
  • Analog Interface Cable - Attached to monitor

Illustration of a computer monitor with a cable and connector (no text or symbols)

Attaching the base and handling your monitor

Product overview

This section will provide information on adjusting monitor positions, setting user controls, and using the cable lock slot.

Types of adjustments

Please see the illustration below for an example of the tilt range.

-5° 20°

User controls

Your monitor has controls on the front which are used to adjust the display.

Cable lock slot

Your monitor is equipped with a cable lock slot located on the rear of your monitor (in the lower position). Please see the instructions that come with the cable lock to learn how to attach it.

Computer monitor with a close-up view showing a small inset of the right side (no text or symbols visible)

Setting up your monitor

This section provides information on how to set up your monitor.

Connecting and turning on your monitor

Note: Be sure to read the Safety information located in the Monitor Safety, Troubleshooting, and Warranty Guide before carrying out this procedure.

1. Power off your computer and all attached devices, and unplug the computer power cord.

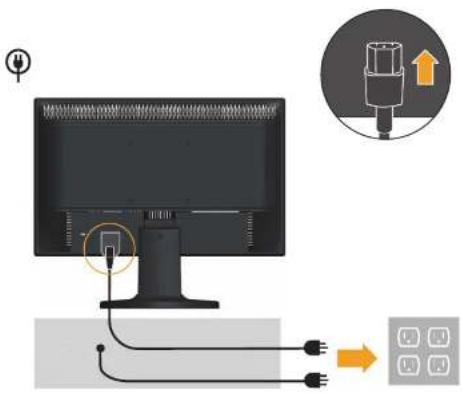

1. Plug the monitor power cord and the computer cord into grounded electrical outlets.

Diagram showing connection between a computer monitor and four socket switches, with an inset highlighting the switch's internal structure.

1. Power on the monitor and the computer.

Two abstract icons: a power button and a speedometer (no text or symbols)

1. To install the monitor driver, insert the Reference and Driver Click Install driver, and follow the on-screen instructions.

i

Computer monitor displaying a webpage with an icon of an open CD and an orange arrow indicating upload or download.

1. To optimize your monitor image, press the Automatic Image Setup key. Automatic image setup requires that the monitor is warmed up for at least 15 minutes. This is not required for normal operation.

Chapter 2. Adjusting and using your monitor

This section will give you information on adjusting and using your monitor.

Comfort and accessibility

Good ergonomic practice is important to get the most from your personal computer and to avoid discomfort. Arrange your workplace and the equipment you use to suit your individual needs and the kind of work that you perform. In addition, use healthy work habits to maximize your performance and comfort while using your computer. For more detailed information on any of these topics, visit the Healthy Computing Web site at: http://www.lenovo.com/healthycomputing/.

Arranging your work area

Use a work surface of appropriate height and available working area to allow you to work in comfort.

Organize your work area to match the way you use materials and equipment. Keep your work area clean and clear for the materials that you typically use and place the items that you use most frequently, such as the computer mouse or telephone, within the easiest reach.

Equipment layout and setup play a large role in your working posture. The following topics describe how to optimize equipment setup to achieve and maintain good working posture.

Positioning and viewing your monitor

Position and adjust your computer monitor for comfortable viewing by considering the following items:

- Viewing distance: Optimal viewing distances for monitors range from approximately 510mm to 760mm (20 in to 30 in) and can vary depending on ambient light and time of day. You can achieve different viewing distances by

• Use the monitor brightness, contrast, and image adjustment controls, if equipped, to optimize the image on your screen to meet your visual preferences.
• Keep your monitor screen clean so you can focus on the screen's contents.
• When monitor attach Tiny, Please ensure that the configuration/tabletop is stable and level.

Any concentrated and sustained visual activity can be tiring for your eyes. Be sure to periodically look away from your monitor screen and focus on a far object to allow your eye muscles to relax. If you have questions on eye fatigue or visual discomfort, consult a vision care specialist for advice.

Quick tips for healthy work habits

The following information is a summary of some important factors to consider to help you remain comfortable and productive while you use your computer.

• Good posture starts with equipment setup: The layout of your work area and the setup of your computer equipment have a large effect on your posture while using your computer. Be sure to optimize the position and orientation of your equipment by following the tips outlined in "Arranging your work area" on page 2-1 so you can maintain a comfortable and productive posture. Also, be sure to use the adjustment capabilities of your computer components and office furniture to best suit your preferences now and as your preferences change over time.
• Minor changes in posture can help avoid discomfort: The longer you sit and work with your computer, the more important it is to observe your working posture. Avoid assuming any one posture for an extended period of time. Periodically make minor modifications in your posture to help deter any discomforts that might arise. Make use of any adjustments that your office furniture or equipment provide to accommodate changes in posture
• Short, periodic breaks help ensure healthy computing: Because computing is primarily a static activity, it is particularly important to take short breaks from your work. Periodically, stand up from your work area, stretch, walk for a drink of water, or otherwise take a short break from using your computer. A short break from work gives your body a welcome change in posture and helps to ensure you remain comfortable and productive while you do work.

Adjusting your monitor image

This section describes the user control features for adjusting your monitor image.

Using the direct access controls

The direct access controls can be used when the On Screen Display (OSD) is not displayed.

Table 2-1. Direct access controls

Icon Control Description
∅	Image Setup Activates automatic image adjustment.
	Brightness	Direct access to Brightness adjustment.

Using the On-Screen Display (OSD) controls

To adjust the settings, the user controls can be viewed through the OSD.

Table 2-2. OSD functions

OSD Icon on Main Menu Submenu Description		Controls and Adjustments
Brightness/ Contrast	Brightness	Adjusts overall brightness
	Contrast	Adjusts difference between light and dark areas
Image Position	Horizontal Position	Moves the image left or right
	Vertical Position	Moves the image up or down
Image Setup	Automatic	Automatically optimizes the image
	Manual	Manually optimizes the image. See “Manual image setup” on page 3-4C I o c kP h a s eSave
Image Properties	Color	Adjusts intensity of red, green, and blue Preset modeNeutrals R G BR e d d i s hB l u i s h

Table 2-2. OSD functions

OSD Icon on Main Menu Submenu Description
Options	1Information Shows resolution, refresh rate, and product detailsNote: This screen does not allow any changes to the settings
	Menu Language Change language of menuNote: The language chosen only affects the language of the OSD. It has no effect on any software running on the computer
	Menu Position Adjusts menu locationDefault:Default returns the menu position to the default settingsCustom:Horizontal: Changes the horizontal position of the OSDVertical: Changes the vertical position of the OSDSave
	Factory default CancelReset monitor to the original settings
	Change button repeat rate and menu time-out setting

Selecting a supported display mode

The display mode the monitor uses is controlled by the computer. Therefore, refer to your computer documentation for details on how to change display modes.

The image size, position and shape might change when the display mode changes.

This is normal and the image can be readjusted using automatic image setup and the image controls.

Unlike CRT monitors, which require a high refresh rate to minimize flicker, LCD or Flat Panel technology is inherently flicker-free.

Note: If your system has previously been used with a CRT monitor and is currently configured to a display mode outside the range of this monitor, you may need to re-attach the CRT monitor temporarily until you have re-configured the system; preferably to 1366 x 768 at 60Hz , which is the Native Resolution Display mode.

The display modes shown below have been optimized at the factory.

Table 2-3. Factory set display modes

Addressability	Refresh rate
640 x 350 70Hz
640 x 480 60Hz, 72Hz, 75Hz
720 x 400 70Hz
800 x 600 60Hz, 72Hz, 75Hz
1024 x 768	60Hz, 70Hz, 75Hz
1280 x 720 60Hz
1280 x 768 60Hz
1360 x 768 60Hz
1366 x 768 60Hz

Understanding power management

Power management is invoked when the computer recognizes that you have not used your mouse or keyboard for a user-definable period. There are several states as described in the table below.

For optimal performance, switch off your monitor at the end of each working day, or whenever you expect to leave it unused for long periods during the day.

Table 2-4. Power indicator

State Power Indicator Screen			Restoring Operation
On green Normal
Standby/Suspend	Amber Blank Press a key or		move the mouseThere may be a slight delay before the image reappearsNote: Standby also occurs if there is no image output to the monitor
Off Off Blank

Caring for your monitor

Be sure to turn off the power before you perform any maintenance on the monitor. Do not:

• Apply water or liquid directly to your monitor.
• Use solvents or abrasives.
• Use flammable cleaning materials to clean your monitor or any other electrical equipment.

- Touch the screen area of your monitor with sharp or abrasive items. This type of contact may cause permanent damage to your screen.

- Use any cleaner which contains an anti-static solution or similar additives. This may harm the coating of the screen area.

Do:

- Lightly dampen a soft cloth with water and use this to gently wipe the covers and the screen.

- Remove grease or finger marks with a damp cloth and a little mild detergent.

Detaching the monitor stand

To detach the base by pressing the button.

Two views of a device rear panel showing front and side views with red arrows indicating ports (no text or symbols present)

Chapter 3. Reference information

This section contains monitor specifications, instructions to manually install the monitor driver, troubleshooting information, and service information.

Monitor specifications

Table 3-1. Monitor specifications for type-model60A7-AA*1-**

Dimensions Height	DepthWidth	370.1 mm (14.55 in)210.0 mm (8.25 in)442.2 mm (17.38 in)
Panel	SizeBacklightAspect ratio	18.5 in.LED16:9
Stand	Tilt	Range: -5°, +20°
VESA mount Supported 100 mm (3.94 in)		Make sure the AC jack is located downside when using VESA Mount setup
Image Viewable image size	Maximum heightMaximum width	470.1 mm (18.51 in)230.4 mm (9.07 in)409.8 mm (16.13 in)

Table 3-1. Monitor specifications for type-model 60A7-AA*1-**

Communications VESA DDC		DDC-Cl
Supported Display Modes(VESA Standard modesbetween noted ranges)	Horizontal frequency	30 kHz - 60 kHz
	Vertical frequency	50 Hz - 75 Hz
	Native Resolution 1366 x	768 at 60 Hz
Temperature Operating		0° to 40°C (32° to 104°F)
	Storage	-20° to 60°C (-4° to 140°F)
	Shipping	-20° to 60°C (-4° to 140°F)
Humidity Operating		8% to 80%
	Storage	5% to 95%
	Shipping	5% to 95%

Troubleshooting

If you have a problem setting up or using your monitor, you might be able to solve it yourself. Before calling your dealer or Lenovo, try the suggested actions that are appropriate to your problem.

Table 3-2. Troubleshooting

Problem Possible cause Suggested action Reference
The words "Out of Range" are shown on the screen, and the power indicator is flashing green	The system is set to a display mode which is not supported by the monitor	If you are replacing an old monitor, reconnect it and adjust the display mode to within the specified range for your new monitorIf using a Windows system, restart the system in safe mode, then select a supported display mode for your computerIf these options do not work, contact the Support Center	"Selecting a supported display mode" on page 2-6
The image quality is unacceptable	The video signal cable is not connected with the monitor or system completely	Be sure the signal cable is firmly plugged into the system and monitor	"Connecting and turning on your monitor" on page 1-3
	The color settings may be incorrect	Select another color setting from the OSD menu	"Adjusting your monitor image" on page 2-3
	The automatic image setup function was not performed	Perform automatic image setup	"Adjusting your monitor image" on page 2-3
The power	• The monitor's	• Be sure the power	"Connecting and

Table 3-2. Troubleshooting

Problem Possible cause Suggested action Reference
The power indicator is green, but there is no image	The video signal cable is loose or disconnected from the system or monitor	Be sure the video cable is connected with the system properly	"Connecting and turning on your monitor" on page 1-3
	The monitor brightness and contrast are at the lowest setting	Adjust the brightness and contrast setting on the OSD menu	"Adjusting your monitor image" on page 2-3
One or more of the pixels appear discolored	This is a characteristic of the LCD technology and is not an LCD defect	If there are more than five pixels missing, contact the Support Center	Appendix A, "Service and Support," on page A-1
• Fuzzy lines in text or a blurry image• Horizontal or vertical lines through the image	• Image setup has not been optimized• Y Our s Display Properties setting have not been optimized	Adjust the resolution settings on your system to match the native resolution for this monitor: 1366 × 768 at 60 Hz	"Adjusting your monitor image" on page 2-3"Manual image setup"
		Perform automatic image setup. If automatic image setup does not help, perform manual image setup	"Selecting a supported display mode" on page 2-6
		When working in the native resolution, you may find additional improvements by adjusting the Dots Per Inch (DPI) setting on your system	See the Advanced section of your system's display properties

Manually installing the monitor driver

Below are steps for manually installing the monitor driver in Microsoft ^9 Windows Vista Microsoft ^9 Windows 7. Please see the Install Driver section of the Reference and Driver CD for automatic installation.

Installing the monitor driver in Windows 7

To use the Plug and Play feature Microsoft Windows 7, do the following:

Note: You must download file from the Lenovo Monitor CD to use the Plug and Play feature in Windows 7.

1. Turn off the computer and all attached devices.
2. Ensure that the monitor is connected correctly.
3. Turn on the monitor and then the system unit. Allow your computer to start the Windows 7 operating system.

4. Open the Display Properties window by clicking Start, Control Panel and then double-clicking the Hardware and Sound icon.

5. Click the Personalization icon.

6. Click the Display Settings icon.

7. Click the Advanced Settings button.

8. Click the Monitor tab.

9. Click the Properties button.

10. Click the Driver tab.

11. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on Update Driver and then click the "Browse my computer for driver software" button.

12. Select "Let me pick from a list of device drivers on my computer".

13. Click the Have Disk button. Click on the Browse button and navigate to the following directory: X:\Monitor Drivers\Windows 7

Installing the monitor driver in Windows Vista

To use the Plug and Play feature in Windows Vista, files should be loaded from the Reference and Driver CD.

Note: This section must be completed before continuing with the Windows Vista automatic image setup.

1. Turn off the computer and all attached devices.
2. Ensure that the monitor is connected correctly.

3. Turn on the monitor and then the system unit. Allow the system to boot into Windows Vista.

4. Open the Display Properties window by clicking Start → Settings → Control Panel, and then double-clicking the Display icon.

5. Click the Settings tab.

6. Click the Advanced button.

7. Click the Monitor tab.

8. Click the Properties button.

9. Click the Drivers tab.

10. Open the Hardware Update Wizard window by clicking on Update Driver, and then click Next.

11. Select Install from a list or Specific location(Advanced), and then click Next.

12. Select "Don't search. I will choose the driver to install" option, and then click Next.

13. Click the Have Disk button. Click on the Browse button and navigate to the following directory: X:\Monitor Drivers\Windows Vista (where X is the drive letter designator for the CD-ROM drive).

14. Select the "lenls1922wa.inf" file and click the Open button. Click the OK button.

15. Select LEN LS1922wA and click Next. The files will be copied from the CD to your hard disk drive.

16. Close all open windows and remove the CD

Serviceinformation

Productnumbers

The prodcut number for your monitor is located on the rear cover as show below.

Computer monitor with a close-up of its screen showing a small electronic display (no visible text or symbols on the screen)

Customerresponsibilities

The warranty does not apply to a product which has been damaged due to accident, misuse, abuse, improper installation, usage not in accordance with product specifications and instructions, natural or personal disaster, or unauthorized alterations, repairs or modifications.

The following are examples of misuse or abuse and not covered by warranty:

- Images burned onto the screen of a CRT monitor. Burned image is preventable by utilizing a monitor exam format or nature transformation!

Serviceparts

The following parts are for use by Lenovo service, or Lenovo authorized dealers, to support the customer warranty. Parts are for service use only. The table below shows information for model 60A7-AAR1-WW.

Table 3-3. List of service parts

FRU(Field Replaceable unit) Part number	DESCRIPTION	Machine Type model (MTM)	COLOR
03X7951	LS1922s Wide-FRU Monitor	60A7-AAR1-WW	Black
30R5139	LS1922s Wide-Anal	60A7-AAR1-WW	cable
03X7952	LS1922s Wide-FRU Stand	60A7-AAR1-WW	Black

Appendix A. Service and Support

The following information describes the technical support that is available for your product, during the warranty period or throughout the life of your product. Refer to the Lenovo Limited Warranty for a full explanation of Lenovo warranty terms.

Registering your option

Register to receive product service and support updates, as well as free and discounted computer accessories and content. Go to: http://www.lenovo.com/register

Online technical support

Online technical support is available during the lifetime of a product at: http://www.lenovo.com/support

Product replacement assistance or exchange of defective components also is available during the warranty period. In addition, if your option is installed in a Lenovo computer, you might be entitled to service at your location. A Lenovo technical support representative can help you determine the best alternative.

Telephone technical support

Installation and configuration support through the Customer Support Center will be available until 90 days after the option has been withdrawn from marketing. After that time, the support is cancelled, or made available for a fee, at Lenovo's discretion. Additional support is also available for a nominal fee.

Before contacting a Lenovo technical support representative, please have the following information available: option name and number, proof of purchase, computer manufacturer, model, serial number and manual, the exact wording of any error message, description of the problem, and the hardware and software configuration information for your system.

Country or Region	Telephone Number
Brazil	Sao Paulo region: (11) 3889-8986Outside Sao Paulo region: 0800-701-4815(BrazilianPortuguese)
Brunei	801-1041 (English, Bahasa Melayu)
CanadaToronto:416-383-3344	Outside Toronto: 1-800-565-3344(English,French)
Chile	Toll Free: 188-800-442-488800-361-213(Spanish)
China86-10-58851110	800-990-8888(Mandarin)
China(HongKongS.A.R.)	ThinkCentre® CommercialPC:8205-0333Multimedia Home PC: 800-938-228(Cantoncsc,English,Mandarin)
China(MacauS.A.R.)	ThinkCentre Commercial PC: 795-9892MultimediaHomePC:0800-336(Cantonese,English,Mandarin)
Colombia	1-800-912-3021 (Spanish)
Costa Rica	0-800-011-1029 (Spanish)
Croatia0800-0426
Cyprus+357-22-841100
Czech Republic	800-353-637
Denmark	Warranty service and support: 7010-5150 (Danish)
Dominican Republic	1-866-434-2080 (Spanish)
Ecuador	1-800-426911 (Spanish)
Egypt-202-35362525
El Salvador	800-6264 (Spanish)
Estonia+3726776793
Indonesia	021 5238 823Local number only: 001-803-606-282DID (Direct Inward Dialing): [phone](English,BahasaIndonesia)
Ireland	Warranty service and support: 01-881-1444 (English)
Israel	Givat Shmuel Service Center: [phone](Hcbrew,English)
Italy	Warranty service and support: [phone] (Italian)
Japan	Toll Free: 0120-20-5550International:[phone]The above numbers will be answered with a Japanese language voice prompt. For telephone support in English, please wait for the Japanese voice prompt to end, and an operator will answer. Please say "English support please," and your call will be transferred to an English-speaking operator.PCsoftware:0120-558-695Overscas calls: [phone](Japanese)
Korca1588-6782(Korean)
Latvia+3717070360
Lithuania	-370 5 278 66 00
Luxembourg	[phone] (French)
Malaysia	Local number only: 1800-88-1889DID: [phone](English,BahasaMelayu)
Malta+35021445566
Mexico	001-866-434-2080 (Spanish)
Middle East	-44 (0)1475-555-055
Netherlands	-31-20-514-5770 (Dutch)
New Zealand	0800-733-222 (English)
Nicaragua	031-899-223-1820 (Spanish)

N
(1) 000 270 1020 (Cassick)

Country or Region	Telephone Number
Slovenia	[phone] (Slovenian)
Spain91-714-7983	0901-100-000(Spanish)
Sri Lanka	[phone]+94112493548(English)
Sweden	Warranty service and support: 077-117-1040 (Swedish)
Switzerland	Warranty service and support: 0800-55-54-54(German,French,Italian)
Taiwan886-2-8723-9799	0800-000-700(Mandarin)
Thailand	Local number only: 1-800-060-0666622734088DID: [phone] (Thai, English)
Turkey(Turkish)	0212 336 03 66, 00800 448 825 165
United Kingdom	Standard warranty support: 08705-500-900 (English)
United States	1-800-426-7378 (English)
Uruguay	000-411-005-6649 (Spanish)
Venezuela	0-800-100-2011 (Spanish)
Vietnam	For Northern Arca and Hanoi City:844 3 946 2000 or 844 3 942 6457For Southern Arca and Ho Chi Minh City:848 3 829 5160 or 844 3 942 6457(Victnamese,English)

AppendixB.Notices

Lenovo may not offer the products, services, or features discussed in this document in all countries. Consult your local Lenovo representative for information on the products and services currently available in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply that only that Lenovo product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any Lenovo intellectual property right may be used instead. However, it is the user's responsibility to evaluate and verify the operation of any other product, program, or service.

Lenovo may have patents or pending patent applications covering subject matter described in this document. The furnishing of this document does not give you any license to these patents. You can send license inquiries, in writing, to:

Lenovo (United States), Inc

1009 Think Place - Building One

Morrisville, NC27560

U.S.A.

Attention: Lenovo Director of Licensing

LENOVO PROVIDES THIS PUBLICATION "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you.

This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. Lenovo may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time without notice.

The products described in this document are not intended for use in implantation or other life support applications where malfunction may result in injury or death to persons. The information contained in this document does not affect or change Lenovo product specifications or warranties. Nothing in this

Recycling information

Lenovo encourages owners of information technology (IT) equipment to responsibly recycle their equipment when it is no longer needed. Lenovo offers a variety of programs and services to assist equipment owners in recycling their IT products. For information on recycling Lenovo products, go to: http://www.lenovo.com/lenovo/environment/recycling

環境配慮に関して

Collecting and recycling a disused Lenovo computer or monitor

If you are a company employee and need to dispose of a Lenovo computer or monitor that is the property of the company, you must do so in accordance with the Law for Promotion of Effective Utilization of Resources. Computers and monitors are categorized as industrial waste and should be properly disposed of by an industrial waste disposal contractor certified by a local government. In accordance with the Law for Promotion of Effective Utilization of Resources, Lenovo Japan provides, through its PC Collecting and Recycling Services, for the collecting, reuse, and recycling of disused computers and monitors. For details, visit the Lenovo Web site at www.ibm.com/jp/pc/service/recycle/pcrecycle/. Pursuant to the Law for Promotion of Effective Utilization of Resources, the collecting and recycling of home-used computers and monitors by the manufacturer was begun on October 1, 2003. This service is provided free of charge for home-used computers sold after October 1, 2003. For details, visit the Lenovo Web site at www.ibm.com/jp/pc/service/recycle/personal/.

Disposing of Lenovo computer components
