USER MANUAL Easypix MARTIN

Exterior view of a cylindrical industrial lamp with evenly spaced slots (no text or symbols visible)

Easypix™ user manual

Martin®

Dimensions

All dimensions are in millimeters

300 /1200 53 40

Easypix ^™ 300 / Easypix ^™ 1200

270

Easypix Power™

©2010 – 2011 Martin Professional™ A/S. Information subject to change without notice. Martin Professional A/S and all affiliated companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other loss occasioned by the use of, inability to use or reliance on the information contained in this manual. The Martin logo, the Martin name and all other trademarks in this document pertaining to services or products by Martin Professional A/S or its affiliates and subsidiaries are trademarks owned or licensed by Martin Professional A/S or its affiliates or subsidiaries. The use of certain patents in Martin Easypix products is licensed by Color Kinetics, Inc. (see details printed on product).

Safety Information

Warning! Read the safety precautions in this section before installing, powering, operating or servicing this product.

The following symbols are used to identify important safety information on the product and in this manual:

Safety hazard. Risk of severe injury or death.

Hazardous voltage. Risk of lethal or severe electric shock.

LED light emission. Risk of eye injury.

Burn hazard. Hot surface. Do not touch

Refer to user manual.

Warning! Class 1M LED product according to IEC/EN 60825-1. Do not view the light output with optical instruments or any device that may concentrate the beam.

This product is for professional use only. It is not for household use.

This product presents risks of severe injury or death due to fire hazards, electric shock and falls.

Read this manual before installing, powering or servicing the product, follow the safety precautions listed below and observe all warnings in this manual and printed on the luminaire. Install and operate the luminaire only as described in this manual and in accordance with local laws and regulations. Refer any operation not described in this manual to a qualified technician.

If you have questions about how to operate the luminaire safely, please contact your Martin dealer or call the Martin 24-hour service hotline at [phone], or in the USA on 1-888-tech-180.

PROTECTION FROM ELECTRIC SHOCK

• Disconnect the luminaire from AC power before removing or installing any cover or part and when not in use.
• The system does not support hot swap. Turn off AC power before adding any luminaire to the system.
• Connect the Easypix Power electrically to ground (earth).
• Use only a source of AC power that complies with local building and electrical codes and has both overload and ground-fault (earth-fault) protection.
• Connect a maximum of 24 Easypix 300 luminaires or 6 Easypix 1200 luminaires or any mixture of Easypix 300 and 1200 luminaires that is maximum 7.2 m long to one Easypix Power device.
• Before using the devices, check that all power distribution equipment and cables are in perfect condition and are rated for the current requirements of all connected devices.
• Isolate all devices from power immediately if any cable, seal, cover or other component is damaged, cracked or deformed. Do not reapply power until repairs have been completed.
  • The Easypix is for indoor use only.
• Refer any service operation not described in this manual to an authorized Martin Service partner.

PROTECTION FROM BURNS

• Do not operate the devices if the ambient temperature (Ta) exceeds 40^ ( 104^ ).
• The exterior of the luminaires and Easypix Power becomes hot, up to 65^ (149°F) during normal operation. Ensure that accidental physical contact with the devices is impossible.
• Allow the luminaire to cool for 5 minutes before servicing.
• Keep combustible materials (for example fabric, wood, paper) at least 20 cm (8 in.) away from the devices.
• Keep flammable materials well away from the devices.
• Do not modify the Easypix Power or luminaires in any way not described in this manual or install other than genuine Martin parts.
• Use only Martin approved accessories to mask or modify the light beam.
• Do not attempt to bypass fuses. Replace defective fuses with ones of the specified type and rating only.

PROTECTION FROM INJURY

• Do not look at LEDs with a magnifying glass or any other optical instrument that may concentrate the light output.
• Ensure that all external covers, components and installation fittings are securely fastened.
• Block access below the work area and work from a stable platform whenever installing, servicing or moving the devices.
• Ensure that all supporting structures, surfaces, fasteners and lifting equipment can bear the weight of all the devices they are intended to support plus an adequate safety margin, and that they conform to local building and safety regulations.
• Use a sufficient number of fasteners with sufficient corrosion resistance, dimensions and strength to mount the DIN rail safely. Any nuts used must be self-locking.
• If the Easypix Power or luminaires are to be installed in a location where injury or damage may be caused if a device falls, use a secondary means of attachment such as safety wires looped tightly around the devices and anchored securely to the mounting structure or in the mounting surface.

Disposing of this product

Martin™ products are supplied in compliance with Directive 2002/96/EC of the European Parliament and of the Council of the European Union on WEEE (Waste Electrical and Electronic Equipment), as amended by Directive 2003/108/EC, where applicable.

Help preserve the environment! Ensure that this product is recycled at the end of its life. Your supplier can give details of local arrangements for the disposal of Martin products.

Contents

Dimensions 2

Safety Information....3

Contents 7

Notes 8

Introduction....9

Unpacking 10

Using for the first time.... 10

Physical installation 11

Location and orientation 11

Mounting....12

Connections – general....16

System overview 16

AC power....17

Connecting to power.... 18

Control data link....19

System setup....21

Luminaire configuration 22

Setting up stand-alone operation.... 22

Setting synchronized master/slave mode 26

Setting RGB or HSI color control mode 29

Operation....30

Service and maintenance 32

Cleaning 32

Diffuser filters....33

Fuse replacement.... 35

Software installation 35

DMX protocols 37

RGB Mode 37

HSI Mode 37

Troubleshooting 28

Notes

Introduction

Thank you for selecting Easypix™, a compact LED-based color-changing lighting product from Martin™. The Easypix is available in short 300 mm (11.8 inch) and long 1200 mm (47.2 inch) models. Both luminaires are controlled by the Easypix Power™.

Diffuser filters that give wider beam angles are available.

This product features:

• RGB (red, green, blue) color mixing, with RGB and HSI (hue, saturation, intensity) color control options
• 32 W LED power and 400 lumens total output (at narrow beam angle) from Easypix 1200
• 8 W LED power and 100 lumens total output (at narrow beam angle) from Easypix 300
• The Easypix Power can drive up to twenty-four Easypix 300s, six Easypix 1200s, or any mixture of Easypix 300 and Easypix 1200 devices that does not exceed 7.2 meters (23 ft. 7 in.)
• Possibility of controlling all luminaires attached to an Easypix Power as one single RGB or HSI pixel
• All luminaires attached to an Easypix Power are controlled as one single RGB pixel

- DMX 512A control

- Clamp mounting system for standard 35 mm DIN rail

• 64 built-in stand-alone programs

- Master/slave functionality with 64 pre-programmed stand-alone shows available

For the latest firmware updates, documentation, product specifications and other information about this and all Martin Professional™ products, please visit the Martin website at http://www.martin.com.

Unpacking

The following items are included with the Easypix luminaire:

• 300 mm or 1200 mm strip light luminaire with narrow beam angle diffuser (installed).
• Safety leaflet
• Two short DIN rails
  The following items are included with the Easypix Power
• Easypix Power
  • This user manual
  • 3-pin male XLR to RJ45 adapter
• DMX termination plug
• Two AC mains power cables (EU with Schuko plug, US without plug)

Using for the first time

Before applying power to the luminaire:

• Carefully review "Safety Information" on page 3
• Check that the local AC power voltage is within the range listed on the Easypix Power serial number label
  • Install the Easypix Power and Easypix luminaires as described in this manual

Physical installation

Warning! Read "Safety Information" on page 3 before installing the devices.

The safety and suitability of lifting equipment, installation location, anchoring method, mounting hardware and electrical installation is the responsibility of the installer. All local safety regulations and legal requirements must be observed when installing and connecting the devices. Installation must be carried out by qualified professionals only.

The Easypix luminaires must be clamped onto a DIN top-hat rail that is securely anchored to a suitable flat surface. Ensure that the supporting structure can bear the weight of all installed devices plus an adequate safety margin.

Make sure that there will be at least 5 cm (2 in.) of free space and unrestricted airflow around both the Easypix Power and the Easypix luminaire.

Warning! Do not use the Easypix luminaire without the supplied diffuser filter.

Contact your Martin supplier for assistance if you have any questions about how to install this product safely.

Location and orientation

Easypix luminaires are for indoor installations with an IP rating of 20. The Easypix Power is for indoor use only;

The devices require free and unobstructed airflow around them to ensure adequate cooling:

• Do not bury the devices or locate them in an unventilated space
• Allow 5 cm (2 in.) free space around both the Easypix Power and the Easypix luminaires

Install the Easypix Power and the Easypix luminaires at least 20 cm (8 in.) away from any combustible materials (wood, paper, etc.) and well away from any flammable materials.

The housings of the Easypix luminaire and the Easypix Power reach temperatures up to 65°C (149°F). Restrict public access or locate the

Mounting

DIN rail

The Easypix luminaire is designed for mounting on standard 35 mm top-hat DIN rail.

90.1 80 80 75 2-3.6 20 40.15

Figure 1: Martin DIN rail dimensions (in mm)

Corrosion-resistant DIN rail can be ordered from Martin (see "Accessories" on page 41). Dimensions for the DIN rail supplied by Martin are given in Figure 1.

Note that you cannot fasten the Easypix luminaire mounting clamps directly over screws used to fasten DIN rail to the mounting surface. If a DIN rail mounting screw is in the way of a mounting clamp, move it to another slot in the DIN rail.

Note that you must install extra screws through the DIN rail into the mounting surface to secure luminaires in vertical installations (see "Mounting the Easypix luminaire vertically" on page 13).

Mounting the Easypix luminaire

Warning! The Easypix luminaire must be mounted on a top-hat profile 35 mm (1.4 inch) DIN rail that is securely anchored to a surface. The installation must conform to local electrical, building, safety and fire regulations. If there is a danger that the luminaire

To mount the luminaire on a surface using 35 mm DIN rail:

1. Fasten the DIN rail securely to the mounting surface.
2. See Figure 2. The luminaire mounting bracket has a hooked profile on one side (see A). Hook this profile over the top of the DIN rail and swing the bracket down. Use a 2.5 mm Allen key to tighten the mounting clamp screw (see B).

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Figure 2: Mounting on DIN rail

Mounting the Easypix luminaire vertically

The mounting clamp screws will not hold the product securely on the DIN rail if luminaire is installed vertically. You must therefore insert screws in the mounting surface through the DIN rail mounting holes (see Figure 3) so that the luminaire mounting clamps rest against these screws and secure the luminaire.

Figure 3: Vertical mounting on DIN rail

Safety attachment

When installing the luminaire in an area where it could fall and cause damage or injury, loop two safety cables or similar secondary attachments that can hold ten times the weight they secure tightly around each luminaire and fasten each safety attachment to a separate anchoring point in the mounting surface itself, not the DIN rail.

Adjusting tilt angle

The Easypix luminaire can be tilted through 95°.

Figure 4: Tilt angle

To adjust the tilt angle:

1. See Figure 5. Turn the locking knob clockwise until it releases the luminaire profile.

2. Rotate the locking knob counter-clockwise until it engages in the luminaire profile and locks it in position.

Diagram of a mechanical device with rotating components and padlock icons (no text or symbols)

Figure 5: Releasing and tighten the tilt locking lock

Mounting the Easypix Power

Fasten the Easypix Power securely to a flat surface in a location that is accessible for service. To mount it, use M5 screws in the four mounting holes. Respect all local safety, fire and building regulations governing the installation of electrical equipment in cavities or plenums. Allow free airflow and at least 5 cm (2 in.) of free space around the device. Allow sufficient ventilation to ensure that the ambient temperature will not exceed 40°C (104°F).

When choosing a location for the Easypix Power, bear in mind that access to the DIP switch is required if you need to change the DMX address or to change stand-alone programs.

Connections – general

This section lists some general principles that apply to Easypix installations. Read "Safety Information" on page 3, "AC power" on page 17 and "Control data link" on page 19 before starting installation work.

System overview

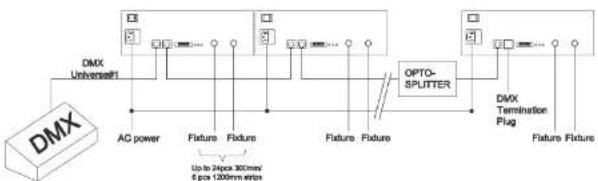

Figure 6 gives an overview of the system layout and the cable connections for the Easypix Power.

Figure 6: Schematic cable and device layout

Warning! Do not exceed the maximum permitted number of luminaires connected to one Easypix Power unit, i.e. 24 Easypix 300 luminaires or 6 Easypix 1200 luminaires or any mixture of Easypix 300 and Easypix 1200 luminalres that is maximum 7.2 meters in length.

The Easypix system consists of:

1. The Easypix Power that controls luminaires in response to a DMX signal from a controller such as the Martin Light Fox™. The Easypix Power also stores stand-alone programs that luminaires can display without the need for a DMX controller.

2. Easypix 300 and Easypix 1200 luminaires.

AC power

DANGER! Read "Safety Information" on page 3 before attempting to install this product. Lock out power to the entire installation before working on cables and connections or removing any cover.

Warning! Electrical installation must be carried out by qualified professionals only.

Warning! The electrical equipment and cable used to supply the Easypix system with power must be in perfect condition, be adequately dimensioned for current requirements and respect maximum cable run lengths.

Warning! For protection from dangerous electric shock, the Easypix Power must be grounded (earthed). The AC power distribution system must be fitted with current overload and ground-fault (earth-fault) circuit breakers as well as a means to isolate the Easypix Power from power and lock out power during service.

Important! Do not connect the Easypix system to an electrical dimmer system. Doing so can damage the electronics.

The Easypix lighting system is supplied with AC power via the Easypix Power.

If you require help in planning or dimensioning the power distribution system, please contact your Martin supplier for assistance.

If there is a break or cut at any point in a cable (for example at a connection point), and if this is exposed to water, moisture can be drawn up the inside of the cable due to the vacuum effect of temperature fluctuations during operation.

The Easypix Power adapts automatically to AC mains power at 100 – 240 V nominal, 50 or 60 Hz. Do not connect to power at any other voltage or frequency.

The Easypix Power is protected by a 5.0 amp slow-blow primary fuse located on the Easypix Power. See "Fuse replacement" on page 35 for details of changing fuses. See "Specifications" on page 39 for details of fuse rating and typical current.

The Easypix 300 and Easypix 1200 are protected by an electronic circuit-breaker in the extender/splitter. Incorrect system configuration will cause an automatic luminaire power off. The circuit-breaker will

Connecting to power

The Easypix Power is supplied with an IEC power cable ready for connection to a single-phase 3-wire (live, neutral, ground/earth) power distribution system at 100-120/200-240 VAC nominal, 50/60 Hz.

Details of standard US and EU conductor identification systems are given in Table 1.

Wire color (US system)	Wire color (EU system)	Conductor Symbol		Screw (US)
black	brown	live	L	yellow or brass
white	blue	neutral		N silver
green	yellow/green	ground(earth)		green

Table 1: Conductor identification

Important! Check that all installation work is completed and carry out appropriate tests and safety checks before applying power.

Power plug

If you decide to fit the supplied power cable tail with a plug that is suitable for your AC mains power outlets, install a grounding-type (earthed) plug that is rated 5 A minimum, following the plug manufacturer's instructions.

Table 1 shows some possible pin identification schemes; if pins are not clearly identified, or if you have any doubts about proper installation, consult a qualified electrician.

Control data link

The Easypix Power must be connected via a control data link for DMX controller or synchronized (master/slave) operation. The following considerations must be taken into account when planning the data link:

• Use RS-485 data cable for the data link. RS-485 cable has low capacitance and a characteristic impedance of 85 to 150 Ohms. It is electrically shielded and has at least 1 twisted pair of conductors.
• The minimum recommended data cable wire size is 0.25 mm ^2 (24 AWG) for runs up to 300 meters (1000 ft.) and 0.32 mm ^2 (22 AWG) for runs up 500 meters (1640 ft.) from the DMX controller to Easypix Power devices. An optically isolated amplifier-splitter such as the Martin ^TM RS-485 Opto-Splitter ^TM (P/N 90758060) must be used to extend a data link beyond these limits.
• CAT 5e network cable is suitable for the control data link in indoor installations. Installation-type cable is acceptable for fixed installations. Flexible patch-type cable with good bend and torsion recovery is required in movable installations (Martin patch cables are recommended). CAT 5e cable and RJ-45 connectors must be used for synchronized master/slave operation.
• Long parallel runs of AC power and control data cables may cause interference on the data link and must be avoided. Even if not required by law, use separate conduits for power and data cables.
• Easypix Powers can be daisy-chained, i.e. the data cable can be connected in one single chain of Easypix Powers as shown in Figure 6.
  • Each chain may connect a maximum of 32 Easypix Powers.
• Each chain on the link must be terminated by placing an RJ-45 DMX termination plug (available from Martin, P/N 91613028) in the DMX output socket of the last Easypix Power on the chain.

Data connection pinouts

RJ-45 connection

RJ-45 connectors are suitable if CAT 5e cable is used for the data link. RJ-45 cable connector pins are numbered from the left looking at the face of the connector with the locking clip on top (see Figure 7).

Figure 7: RJ-45 cable connector pins

Connectors must be wired according to the 568-B system using the standard RJ-45 pin-out for DMX applications:

• Pin 1 (White/orange): DMX data hot (+)
• Pin 2 (Orange): DMX data cold (-)
• Pins 7 (White/brown) and 8 (Brown): Common
Pins 3 and 6 are available for Data 2 connections in DMX 512-A or similar systems. They must be wired as follows:
• Pin 3 (White/green): Available for Data 2 hot (+)
• Pin 6 (Green): Available for Data 2 cold (-)
Pins 4 and 5 are not used in currently available lighting control systems but can be wired as follows:
- Pin 4 (Blue)
- Pin 5 (White/blue)

XLR 5-pin connection

Many DMX lighting controllers have XLR 5-pin output connectors. To connect these to the RJ-45 connectors on the Easypix Power, use an XLR 5-pin to RJ-45 adapter, (available from Martin, P/N 11840111). If you need to rewire XLR connectors, pin numbers are normally marked on connectors. Connectors must be wired using the standard XLR DMX pin-out:

- Pin 1: Cable shield

• Pin 2: DMX Data 1 - (cold)
• Pin 3: DMX Data 1 + (hot)

Important! To avoid ground/earth loop interference, ensure that the DMX cable shield does not come into contact with the shell or body of XLR connectors.

Luminaire connection

A custom 13-pin DIN cable system is used to carry power and data from the Easypix Power to Easypix luminaires and from one Easypix luminaire to the next. Cable connectors have a locking ring that must be turned fully clockwise until two clicks are heard once the connectors have been pushed together.

Extension cables are available from Martin if a gap is required between luminaires (see under 'Accessories' on page 41).

The maximum permitted power/data cable length from the Easypix Power to the last Easypix luminaire on the custom cable link is 100 m (328 ft.).

Important! The Easypix luminaire cable has identical connectors to the cable used in Martin Tripix™ luminaires, but do not connect Martin Tripix and Easypix luminaires to each other, as they use different data signals and you may cause damage that is not covered by product warranties.

System setup

Important! Read this description carefully before applying power. Incorrect configuration of the Easypix system may permanently damage the Easypix luminaire.

Important! The total length of the luminaires connected to one Easypix Power must not exceed 7.2 meters.

The Easypix Power has two output channels marked Output I and Output II. Each output channel can be controlled as one pixel. The two output channels added together can drive up to twenty-four Easypix 300s or six Easypix 1200s or any mixture that does not exceed 7.2 meters in total. You can distribute the Easypix luminaires as you like between the two output channels.

Luminaire configuration

The Easypix system is designed as a flexible modular system that can support up to 24 Easypix 300s or 6 Easypix 1200s per Easypix Power device. The Easypix Power must be configured to match the desired luminaire layout.

Setting up stand-alone operation

In stand-alone operation, no DMX controller is required. Instead, 64 pre-programmed static and dynamic lighting effects stored in the Easypix Power memory are sent to the Easypix luminaires for display when stand-alone operation is enabled.

If more complex effects are required than those available, you will need to add a DMX controller to the system and use DMX control.

The Easypix system is set up using the Easypix Power's DIP switch (see Figure 8).

Figure 8: DIP switch

Enabling stand-alone operation
See Table 2.

DIPs 1 2 3 4 5 6 7 8 9 10 11 12
DMX Modes
DMX Mode RGB		0 0 0
DMX Mode HSI					1	0	0
DMX Address 1-510	x	x	x	x	x	x	x	x	x	x
Standalone Modes														Type	Name
Standalone ON + Master			0	0	1
Standalone OFF + Save			0	0	0
Standalone Program 0-64	x	x	x	x	x	x	0	0	0	x	x	1
0	0	0	0	0	0	0	0	0	0	x	x	1		ALL OFF
1	1	0	0	0	0	0	0	0	0	x	x	1	SIMPLE COLORS	RED
2	0	1	0	0	0	0	0	0	0	x	x	1		GREEN
3	1	1	0	0	0	0	0	0	0	x	x	1		BLUE
4 Factory Default	0	0	1	0	0	0	0	0	0	0	0	1		ALL ON
5	1	0	1	0	0	0	0	0	0	x	x	1		CYAN
6	0	1	1	0	0	0	0	0	0	x	x	1		MAGENTA
7	1	1	1	0	0	0	0	0	0	x	x	1		YELLOW
8	0	0	0	1	0	0	0	0	0	x	x	1	WHITES	WARM WHITE
9	1	0	0	1	0	0	0	0	0	x	x	1		COOL WHITE
10	0	1	0	1	0	0	0	0	0	x	x	1		COLD WHITE
11	1	1	0	1	0	0	0	0	0	x	x	1		HOT WHITE
12	0	0	1	1	0	0	0	0	0	x	x	1	TRENDY COLORS	ORANGE
13	1	0	1	1	0	0	0	0	0	x	x	1		LIME GREEN
14	0	1	1	1	0	0	0	0	0	x	x	1		LEMON YELLOW
15	1	1	1	1	0	0	0	0	0	x	x	1		AQUA BLUE
16	0	0	0	0	1	0	0	0	0	x	x	1		BABY PINK
17	1	0	0	0	1	0	0	0	0	x	x	1		LILAC
18	0	1	0	0	1	0	0	0	0	x	x	1		BLOOD ORANGE
19	1	1	0	0	1	0	0	0	0	x	x	1		FLESH PINK
20	0	0	1	0	1	0	0	0	0	x	x	1		LEAF GREEN
DIPs	1	2	3	4	5	6	7	8	9	10	11	12
DMX Modes
DMX Mode RGB										0	0	0
DMX Mode HSI										1	0	0
DMX Address 1-510	x	x	x	x	x	x	x	x	x
Standalone Modes													Type	Name
Standalone ON + Master										0	0	1
Standalone CTF + Slave										0	0	0
Standalone Program 0-64	x	x	x	x	x	x	0	0	0	x	x	1
22	0	1	1	0	1	0	0	0	0	x	x		SIMPLE DYNAMICS	RGB 1
23	1	1	1	0	1	0	0	0	0	x	x	1		RGB 2
24	0	0	0	1	1	0	0	0	0	x	x	1		CMY
25	1	0	0	1	1	0	0	0	0	x	x	1		RAINBOW
26	0	1	0	1	1	0	0	0	0	x	x			W - R - W - G - W - B
27	1	1	0	1	1	0	0	0	0	x	x			W - C - W - M - W - Y
28	0	0	1	1	1	0	0	0	0	x	x		ALTER-NATES I	RED / ORANGE
29	1	0	1	1	1	0	0	0	0	x	x	1		RED / PINK
30	0	1	1	1	1	0	0	0	0	x	x	1		RED / AQUA
31	1	1	1	1	1	0	0	0	0	x	x			GREEN / YELLOW
32	0	0	0	0	0	1	0	0	0	x	x		ALTER-NATES II	GREEN / BLUE
33	1	0	0	0	0	1	0	0	0	x	x			GREEN / ORANGE
34	0	1	0	0	0	1	0	0	0	x	x	1		BLUE / PURPLE
35	1	1	0	0	0	1	0	0	0	x	x	1		BLUE / ORANGE
36	0	0	1	0	0	1	0	0	0	x	x	1		BLUE / YELLOW
37	1	0	1	0	0	1	0	0	0	x	x		FADES TO WHITE	RED
38	0	1	1	0	0	1	0	0	0	x	x	1		GREEN
39	1	1	1	0	0	1	0	0	0	x	x	1		BLUE
40	0	0	0	1	0	1	0	0	0	x	x	1		CYAN
41	1	0	0	1	0	1	0	0	0	x	x	1		MAGENTA
42	0	1	0	1	0	1	0	0	0	x	x	1		YELLOW
Standalone Modes													Type	Name
Standalone ON + Master										0	0	1
Standalone OFF + Slave										0	0	0
Standalone Program 9-64	x	x	x	x	x	x	0	0	0	x	x	1
43	1	1	0	1	0	1	0	0	0	x	x		PULSES	RED PULSE
44	0	0	1	1	0	1	0	0	0	x	x	1		GREEN PULSE
45	1	0	1	1	0	1	0	0	0	x	x	1		BLUE PULSE
46	0	1	1	1	0	1	0	0	0	x	x	1		CYAN PULSE
47	1	1	1	1	0	1	0	0	0	x	x			MAGENTA PULSE
48	0	0	0	0	1	1	0	0	0	x	x	1		YELLOW PULSE
49	1	0	0	0	1	1	0	0	0	x	x	1		WHITE PULSE
50	0	1	0	0	1	1	0	0	0	x	x	1		RGB PULSE
51	1	1	0	0	1	1	0	0	0	x	x	1		CMY PULSE
52	0	0	1	0	1	1	0	0	0	x	x		FLASHES	RED FLASH
53	1	0	1	0	1	1	0	0	0	x	x	1		GREEN FLASH
54	0	1	1	0	1	1	0	0	0	x	x	1		BLUE FLASH
55	1	1	1	0	1	1	0	0	0	x	x			CYAN FLASH
56	0	0	0	1	1	1	0	0	0	x	x			MAGENTA FLASH
57	1	0	0	1	1	1	0	0	0	x	x	1		YELLOW FLASH
58	0	1	0	1	1	1	0	0	0	x	x		NATURE	WINTER-SPRING-SUMMER-AUTUMN
59	1	1	0	1	1	1	0	0	0	x	x	1		DAY-NIGHT
60	0	0	1	1	1	1	0	0	0	x	x			SUNRISE-SUNSET
61	1	0	1	1	1	1	0	0	0	x	x			SUNNY AFTERNOON
62	0	1	1	1	1	1	0	0	0	x	x	1		CLOUDY NIGHT

Table 2: Stand-alone program DIP-switch settings

If the system is powered on when you select a stand-alone program on the DIP switch, allow several seconds for the selection to take effect.

If a DMX signal is sent to the Easypix Power, it overrides any standalone program that is currently running.

Setting synchronized master/slave mode

If you are running multiple Easypix Power devices on a data link, you can synchronize action so that all Easypix Powers and the connected Easypix luminaires run the same show simultaneously.

Setting master and slave

In synchronized (master/slave) mode, the first Easypix Power on a data link must be set as the master by setting pin 12 on the DIP switch to ON and the others set as slaves by setting pin 12 on the DIP switch to OFF. The stand-alone program selected on the master Easypix Power will be executed on all Easypix Power devices.

Important! Do not set more than one Easypix Power on a link as master.

When daisy-chaining Easypix Power devices in master/slave mode, use RJ-45 connectors and CAT 5e network cable only. Do not use RJ-45 to XLR adaptors.

Setting up DMX-controlled operation

The Easypix Power can be controlled by sending instructions from a DMX controller to the 3 DMX channels (out of the 512 channels available in one DMX universe) the Easypix Power uses.

The first of these 3 channels is the Easypix Power's DMX address. You must set the Easypix Power's DMX address as a binary number on the unit's DIP switch with the lowest value on pin 1 and the highest value on pin 9 (i.e. pin 1 sets 1, pin 2 sets 2, pin 3 sets 4, pin 4 sets 8, pin 5 sets 16, pin 6 sets 32, etc. in the binary number) and the controller must send instructions to that address and the next two channels.

To save time calculating binary numbers, use Table 3. To use this table, first find the DMX address in the main block in the table. Then read the settings for pins 1 - 5 to the left and read the settings for pins 6 - 9 above the address. "0" means "OFF" and "1" means "ON".

For example, to set the DMX address to 101, you need to set DIP switch pins 1, 3, 6 and 7 to ON, as highlighted in the table.

DIP switch pins setting						#50	0	0	0	0	0	0	0	1	1	1	1	1	1	1
						#60	0	0	0	0	1	1	1	0	0	0	0	1	1	1
						#70	0	0	1	1	0	0	1	0	0	1	1	0	0	1
						#80	0	1	0	1	0	1	0	1	0	1	0	1	0	1
#1	#2	#3	#4	#5
0	0	0	0	0				52	54	96	128	160	192	224	256	288	320	352	384	419
1	0	0	0	0			1	33	66	97	129	161	193	226	257	289	321	353	385	417
0	1	0	0	0			2	34	68	98	130	162	194	226	258	290	322	354	386	418
1	1	0	0	0			3	35	67	99	131	163	195	227	259	291	323	355	387	419
0	1	0	0	0			4	36	68	100	132	164	196	228	258	292	324	356	388	420
1	0	1	0	0			5	37	69	101	133	165	197	229	260	293	325	357	389	421
0	1	0	0	0			6	38	70	102	134	166	198	230	262	294	326	358	390	422
1	1	1	0	0			7	39	71	103	135	167	199	231	263	295	327	359	391	423
0	0	0	1	0			8	40	72	104	136	168	200	232	264	296	328	359	392	424
1	0	0	1	0			9	41	73	105	137	169	201	233	265	297	329	360	393	425
0	1	0	1	0			10	42	74	106	138	170	202	234	256	298	330	361	394	426
1	1	0	1	0			11	43	75	107	139	171	203	235	257	299	331	362	395	427
0	0	1	1	0			12	44	76	108	140	172	204	236	258	300	332	364	396	428
1	0	1	1	0			13	45	77	109	141	173	205	237	269	301	333	365	397	429
0	1	1	1	0			14	46	78	110	142	174	206	238	270	302	334	366	398	430
1	1	1	1	0			15	47	79	111	143	175	207	239	271	303	335	367	399	431
0	0	0	0	1			16	48	80	112	144	176	208	240	272	304	336	368	400	432
1	0	0	0	1			17	49	81	113	145	177	209	241	273	305	337	369	401	433
0	1	0	0	1			18	50	82	114	146	178	210	242	274	306	338	370	402	434
1	1	0	0	1			19	51	83	115	147	179	211	243	275	307	339	371	403	435
0	0	1	0	1			20	52	84	116	148	180	212	244	276	308	340	372	404	436
1	0	1	0	1			21	53	85	117	149	181	213	245	277	309	341	373	405	437
0	1	1	0	1			22	54	86	118	150	182	214	246	278	310	342	374	406	438
1	1	1	0	1			23	55	87	119	151	183	215	247	279	311	343	375	407	439
0	0	0	1	1			24	56	88	120	152	184	216	248	290	312	344	376	408	440
0	0	1	0	1			25	57	89	121	153	185	217	249	291	313	345	377	409	441
1	0	1	0	1			26	58	90	122	154	186	218	250	292	314	346	378	410	442
1	1	0	1	1			27	59	91	123	155	187	219	251	283	315	347	379	411	443
0	0	1	1	1			28	60	92	124	156	188	220	252	284	316	348	380	412	444
1	0	1	1	1			29	61	93	125	157	189	221	253	285	317	349	381	413	445
0	1	1	1	1			30	62	94	126	158	190	222	254	286	318	350	382	414	446
1	1	1	1	1			31	63	95	127	159	191	223	255	287	319	351	383	415	447

Table 3: DMX address DIP switch settings

Alternatively, use the Martin DIP Switch Calculator, available for use online and downloadable free of charge at http://www.martin.dk/service/dipswitchpopup.htm (see Figure 10).

The Martin DIP Switch Calculator Maxilla Firebox http://www.martin.dip switch calculator/index.html Martin DIP Switch Calculator 149 10.10.100.100 41 2 3 4 5 6 7 8 9 10 Settings

Figure 10: Martin™ DIP Switch Calculator

Setting RGB or HSI color control mode

To set the Easypix system to RGB mode, set DIP switch pin 10 to OFF. The three DMX channels will now control red, green and blue.

To set the Easypix system to HSI mode, set DIP switch pin 10 to ON. The three DMX channels will now control hue, saturation and intensity

Operation

Warning! Class 1M LED product according to IEC/EN 60825-1. Do not view the light output with optical instruments or any device that may concentrate the beam.

Ambient temperatures

The Easypix system can be operated at ambient temperatures from 5°C (41°F) to 40°C (104°F).

Status LEDs on the Easypix Power

Colored LEDs on the Easypix Power indicate current system status. See Table 4.

Indicator name Power ON DMX ON Program mode
LED color		Green	Green	Red
ON Power on DMX OK System error or high temperature
OFF No power	No DMX System OK
Blinking	Software

Table 4: Status LEDs

upload

* Do not turn power off during a software upload, or you will damage software on the Easypix Power.

DMX-controlled operation

When the Easypix Power is set up for DMX-controlled operation, faders on the DMX controller are used to control color and intensity. The control method depends on which color control mode the Easypix Power is set to:

In RGB mode, three channels on the controller are used to control the intensity of red, green and blue from 0% to 100%.

In HSI mode, three channels on the controller are used to control hue, saturation and intensity.

- Hue is controlled in the following order: Red → Orange → Amber → Yellow → Green → Cyan → Blue → Indigo → Violet

When the Easypix Power is receiving a valid DMX signal, the green DMX LED lights.

Stand-alone operation

When the Easypix Power is set up for stand-alone operation, Easypix luminaires begin displaying their stand-alone program as soon as power is applied to the Easypix Power.

Service and maintenance

DANGER! Read "Safety Information" on page 3 before carrying out service or maintenance work on the Easypix system. Lock out power to the entire distribution system before servicing or opening any cover.

Important! The Easypix system requires regular service and maintenance to maintain reliable operation and protect the investment it represents. Excessive dirt and particle build-up degrades performance, causes overheating and will damage the Easypix Power and Easypix luminaire. Damage caused by inadequate cleaning or maintenance is not covered by the product warranty.

The service and maintenance procedures described in this section must be carried out by qualified professionals only. Any service procedures not described in this section must be carried out by the Martin Service organization or its authorized agents.

It is Martin policy to use the best quality materials available to ensure optimum performance and the longest possible component lifetimes. However, optical components in all luminaires are subject to wear and tear over the life of the luminaire, resulting in gradual changes in color rendition, for example. The extent of wear and tear in the Easypix depends heavily on operating conditions and environment, so it is impossible to specify precise lifetimes for optical components.

Cleaning

Warning! Do not use a high-pressure water jet for cleaning.

Regular cleaning is essential for luminaire life and performance. Build up of dust and dirt degrades the luminaire's light output and cooling ability.

Cleaning schedules will vary greatly depending on the operating environment. It is therefore impossible to specify precise cleaning intervals for the Easypix system. Inspect luminaires within their first few weeks of operation to see whether cleaning is necessary. Check again at frequent intervals. This procedure will allow you to assess cleaning requirements in your particular situation. If in doubt, consult your Martin dealer about a suitable maintenance schedule.

Clean the Easypix Power and the Easypix luminaire housing and front

cleaning. Do not use products that contain solvents, abrasives or caustic agents for cleaning, as they can cause surface damage to the housing and the front cover.

Diffuser filters

Important! Install diffuser filter sheets with the matt, textured surface facing out towards the front cover and shiny, untextured surface facing in towards the LEDs.

The Easypix luminaire is supplied with a narrow beam angle diffuser filter installed. The diffuser filter softens the output from the LEDs and alters the beam angle.

See Figure 8. Diffuser filters are available in three different beam angles: narrow, medium and wide. The diffuser filters can be ordered from Martin (see "Accessories" on page 41).

The diffuser filters are marked with notches to identify them. See Figure 8:

Notch One notch - Narrow(20°) Two notch - Medium(60°) Three notch - Wide(120°)

Figure 8: Diffuser filter identification

To install a diffuser filter:

1. Isolate the Easypix luminaire from power. If the luminaire has been in use, allow it to cool for at least 5 minutes.
2. Remove the luminaire from the DIN rail by using a 2.5 mm Allen key to release the mounting clamp screw and then unhooking the mounting bracket from the DIN rail.
3. See Figure 9. Remove the side plate screws and the side plate at one end of the luminaire.

M3 Torx screw Side plate Diffuser Front cover Aluminum Profile Mounting clamp screw

Figure 9: Remove diffuser

1. See Figure 10. Install the diffuser filter by clipping one side of the diffuser filter into one groove in the front cover, then pushing the other side of diffuser filter down into the other groove in the front cover until it clips into place.
2. Slide the front cover back into the aluminum profile housing.
3. Replace the side plate and the screws. Drive all screws gradually to the bottom. Do not over-tighten, or you will damage the thread.
4. Reapply power.

Diffuser Front Cover

Fuse replacement

DANGER! Lock out power to the entire distribution system before servicing or opening any cover. Replace fuses with ones of the same type and rating only. Do not attempt to bypass a fuse.

The Easypix Power is protected by a 5.0 amp slow-blow primary fuse. If the Easypix Power is completely dead, the primary fuse may have blown.

To replace the fuse:

1. Disconnect the Easypix Power from power
2. See Figure 11. Open the fuseholder located next to the power cable entry with a flathead screwdriver and remove the fuse.
3. Replace the fuse with one of the same type and rating. Fuse ratings are listed on serial number labels and under "Electrical" on page 40.
4. Replace the fuseholder.
5. If fuses continue to blow, there is probably a fault. Disconnect the device from power and data and contact a Martin service technician for assistance.

Figure 11: Fuseholder

Software installation

It may be necessary to upload new software (i.e. firmware) to the Easypix Power if you believe that the product has a software-related fault or if you want to update to a newer version. Software updates are available from the Martin website (http://www.martin.com) and can be installed via the DMX data link with the following items:

• The Martin Uploader application, version 5.0 or later, downloadable

- The Easypix main software update file, downloadable free of charge from the "After-Sales" area of the Martin website (this file can be downloaded automatically from within the Martin Uploader application)

- A Martin Universal USB-DMX Interface or similar PC/luminaire hardware interface and a Windows PC.

Installing software

To install software in the Easypix Power:

1. Connect the uploader hardware to the Easypix Power data input connector.

2. Upload the software as described in the Martin Uploader help file or user documentation. The red "Service" LED will flash during the upload.

3. When the upload is completed, the red "Service" LED will extinguish. Disconnect the uploader hardware and reconnect the Easypix Power to the DMX link.

4. Software uploads can fail (most failures are caused by interference on the data link). Cycle power off and on and check that the Easypix Power resets correctly, i.e. no LED error warning appears. If an error appears, cycle power off and on again and check that the luminaire now resets correctly. If an error appears again, repeat the upload procedure. If the problem persists, contact the Martin Service organization or its authorized agents for assistance.

DMX protocols

RGB Mode
Start code = 0

Channel	Value	Percentage	Function
1	0-255	0-100%	RedIntensity 0-100%
2	0-255	0-100%	GreenIntensity 0-100%
3	0-255	0-100%	BlueIntensity 0-100%

HSI Mode
Start code = 0

Channel	Value	Percentage	Function
1	0-255	0-100%	HueRed Orange Amber Yellow Green Cyan Blue Indigo Violet Magenta Red
2	0-255	0-100%	SaturationZero (White) Full
3	0-255	0-100%	Intensity:0-100%

Troubleshooting

Problem	Probable	cause(s)	Remedy
Easypix Power and Easypix luminaire are completely dead	No power to Easypix Power.	Check power and connections.
	Primary fuse blown (located in fuseholder on front panel of Easypix Power).	Isolate luminaire from power.Check fuse and replace.
One or more Easypix luminaires responds incorrectly to control or does not respond at all.	Fault on DMX link.	Inspect connections and cables.Correct poor connections.Repair or replace damaged cables.
	Incorrect DMX addressing.	Check Easypix Power is set to correct DMX mode.Check Easypix Power's DMX address and channels assigned to it at controller.
	Defective Easypix Power.	Have faulty Easypix Power serviced by Martin service technician.
	Other device on DMX link defective.	Bypass devices on DMX link until the faulty device has been identified.Have faulty device tested and serviced by Martin service technician or device supplier.
LEDs cut out intermittently.	Incorrect luminaire configuration	Check the luminaire configuration (see "Luminaire configuration" on page 22).
	Easypix Power is too hot	Ensure free airflow around Easypix Power.Clean the Easypix Power.Check that ambient temperature does not exceed maximum permitted level.Contact Martin for service.

Specifications

Physical

Easypix Luminaire

Length....300 mm (11.8 in.) / 1200 mm (47.2 in.)

Width 40 mm (1.6 in.) including mounting brackets

Height 53 mm (1.8 in.) including mounting brackets and DIN rail

Weight ...... Easypix 300: 560 g (19.8 oz.)

.Easypix 1200: 1.9 kg (4.2 lb.)

Easypix Power

Length.... 325 mm (12.8 in.) including mounting plate

Width 113 mm (4.4 in.)

Height 94 mm (3.7 in.)

Weight 3 kg (6.6 lb.)

Dynamic Effects

Color mixing....RGB

Red 0 - 100%

Green....0 - 100%

Blue 0 - 100%

Control and Programming

Color control modes....RGB and HSI

Control options.....DMX, stand-alone, synchronized (master/slave)

DMX channels .... 3 channels per output channel

Stand-alone memory .... 64 pre-programmed static/dynamic scenes/sequences

DMX address setting ...... DIP-switch on Easypix Power device

Protocol USITT DMX512-A

Receiver RS-485

Firmware update....Serial upload via DMX link

Optics

Light source ......Osram G6SP LEDs

Total LED power....Easypix 300: 8W approx.

Easvpix 1200: 32W approx.

Construction

Luminaire

Housing ...... Aluminum

Finish ....Clear anodized

Front cover ...... PMMA

IP rating IP20

Easypix Power

Housing Steel

Finish.... Grey coated

IP rating For indoor use only

Installation

Orientation....Any

Vertical aiming +/- 95°

Mounting points ....Mounting brackets or 35 mm DIN top-hat rail

Maximum connected number of luminaires per Easypix Power

Easypix 300 luminaires 24

Easypix 1200 luminaires....6

Mixture of Easypix 300 and 1200 (max. length)....7.2 meters

Connections

Easypix Power mains input......Male (C14) IEC socket

Easypix Power data input and output RJ-45

Easypix luminaire connection 13-pin DIN power/data system

Electrical

AC power ...... Switch-selectable 100-120/200-240 VAC nominal, 50/60 Hz

Main fuse 5.0 AT (slow blow)

Thermal

Cooling All devices convection-cooled

Maximum ambient temperature (T _a max.).... 40° C (104° F)

Minimum ambient temperature (T _a min.) 5° C (41° F)

Max. surface temperature, steady state .....Luminaire, T_a=40^ C: 65° C (149° F)

Approvals

Easypix 300, Easypix 1200

EU safety ...... EN 60598-1, EN 60598-2-17, IEC/EN 60825-1

EU EMC......EN 55 015, EN 55 103, EN 61 000-3

US safety UL 1598, UL 8750

Canadian safety....CAN/CSA C.22.2 No. 250

Easypix Power

EU safety...... EN 61558-1, EN 61347-1, EN 61347-2-11,

EN 61558-2-6, EN 61558-2-17

EU EMC... EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3

US safety UL/CSA 60950-1, UL 244A

Canadian safety....CSA C22.2 No. 177

Included Items

Easypix 300 and Easypix 1200

1 x luminaire with combined power/data input and output cable tails

1 x safety leaflet

2 x short Martin DIN Rail

Easypix Power

1 x Easypix Power

1 x user manual

1 x Termination Plug

1 x 3-pin male XLR to RJ45 adapter

2 x power cables (EU plug/US plug)

Spare parts

5 AT main fuse....P/N 05020010

Accessories

Set of 8 Easypix 300 Diffusers, Narrow P/N 91611343

Set of 8 Easypix 300 Diffusers, Medium....P/N 91611344

Set of 8 Easypix 300 Diffusers, Wide P/N 91611345

Set of 8 Faecuniv 1200 Diffusere Narrow PIN 91611346

Set of 8 Easypix 1200 Diffusers, Wide....P/N 91611348

0.5 m 13-pin DIN Luminaire Power/Data Extension Cable ..... P/N 91611335

1.0 m 13-pin DIN Luminaire Power/Data Extension Cable ..... P/N 91611334

5.0 m 13-pin DIN Luminaire Power/Data Extension Cable ..... P/N 91611333

5-pin male XLR to male RJ-45 adapter....P/N 11840111

5-pin female XLR to male RJ-45 adapter....P/N 11840112

3-pin male XLR to male RJ-45 adapter....P/N 11840087

3-pin female XLR to male RJ-45 adapter....P/N 11840086

Related Items

Martin DABS1™ Hardware Interface (USB-XLR) P/N 91611144

Martin Universal USB DMX (Lightjockey/Maxxyz PC) P/N 90702055

Martin ColorFox VX01 P/N 90734500

Martin LightFox P/N 90734540

Ordering Information

Easypix 300™, Narrow P/N 90354170

Easypix 1200™, Narrow P/N 90354180

Easypix Power™ P/N 90704410

All luminaires include a Narrow diffuser (installed). Medium and Wide diffusers are orderable separately.

Custom colors are available by special order – please contact your Martin

distributor for details.

Specifications subject to change without notice. Please see www.martin.com

for latest product information and specifications including photometric data.

Martin®
