Please read this manual carefully before operating your washing machine and retain it for future reference.

T7508TDFP

TECOOTTER

roduct Features

Washer doesn't operate while the lid is open. If the lid is open during the wash, rinse or spin cycles, the operation stops for safety.

FUZZY logic control

A built-in load sensor automatically detects the laundry load and a microprocessor optimizes washing conditions such as ideal WATER LEVEL and washing time.

I Advanced technology is built into the Electronic Control System which ensures the best washing result.

Turbo drum washing(option)

When "Punch + 3" washing wings turn, the washing tub tums in the opposite direction. This makes the both sides current of water which improve wash-performance by rubbing clothes strongly.

3 Step washing

13 step washing makes the best washing performance with low tangling.

Rubbing

Rubbing and Shaking

Shaking and Disentangling

: Be sure to remove the unit from the carton base, otherwise the machine will not be able to operate properly.

ontents

READ THIS MANUAL

Inside you will find many helpful hints on how to use and maintain your washer properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your washer. You will find many answers to common problems in the Troubleshooting section. If you review our chart of Troubleshooting Tips first, you may not need to call for service at all.

Introduction	Safety Information 4
	Identification of Parts 7
	Function Information 8
Before Starting to Wash	Preparation Before Washing 9
	Use of Water, Detergent, Bleach and Softener	10
	Special Guide for Stain Removal 13

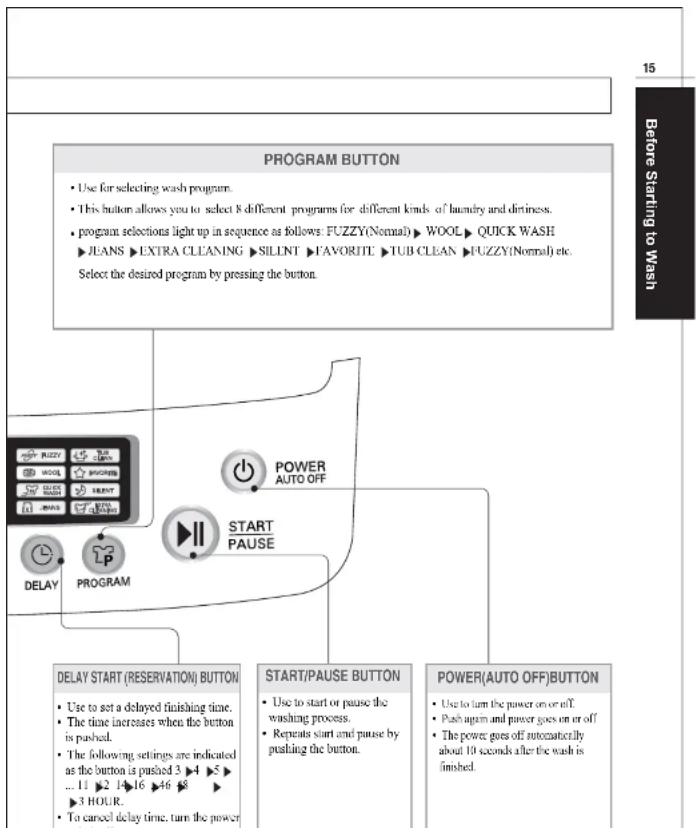

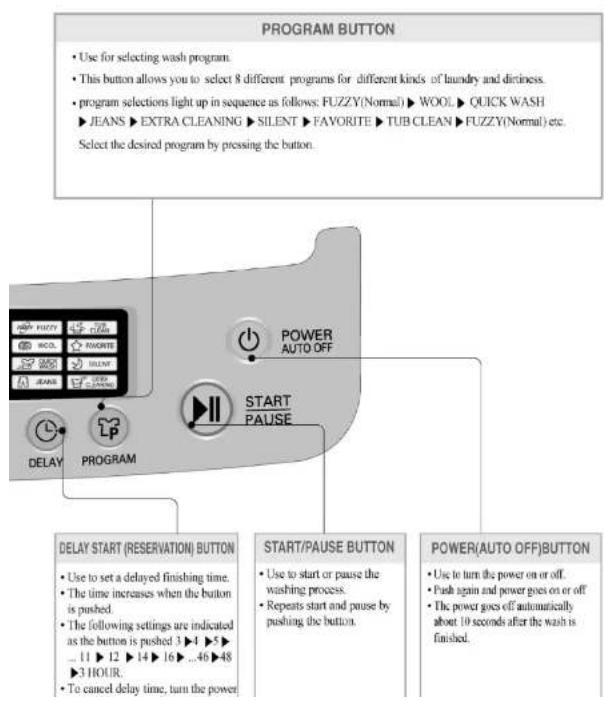

	Function of each Button 14
Washing Programs	FUZZY Wash (Normal Wash) 18
	WOOL Wash 18
	QUICK WASH 18
	JEANS Wash 18
	EXTRA CLEANING 18
	SOAK Wash 20
	FAVORITE Wash 21
	SILENT Wash 22
Additional Function Program	TUB CLEAN	23
	AIR DRY	24
	Option Washing	25
	DELAY START (RESERVATION) Wash	26
	Other Useful Functions	27
Installation	Placing and Leveling	28
	Connecting Water Supply Hose	29
	Connecting Drain Hose	32
Care and Maintenance	Grounding Method	33
	Cleaning and Maintenance 34

afety Information

Read carefully and thoroughly through this booklet as it contains important safety information that will protect the user from unexpected dangers and prevent potential damages to the product.

This booklet is divided into 2 parts: Warning and Caution.

: This is a warning sign specifying user's applications which might be dangerous.

: This is a sign specifying 'Strictly Forbidden' applications.

Warning: Failure to comply with the instructions under this sign may result in major physical injuries or death.

Caution : Failure to comply with the instructions under this sign may result in minor physical injuries or damages to the product.

WATER HEATER SAFETY	[5/107] Warning
	· Under certain conditions hydrogen gas may be produced in a water heater that has not been used for two weeks or more. Hydrogen gas can be explosive under these circumstances. If the HOT writer has not been used for two weeks or more, prevent the possibility of damage or injury by turning on all Hot water funcets and allowing them to run for several minutes. Do this before using any electrical appliance which is connected to the HOT water system. This simple procedure will allow any built up hydrogen gas in escape. Since the gas is flammable, do not smoke or use an open flame or appliance during this process.
PROPER INSTALLATION	[7/27] Caution
	· The base opening must not be observed by carpeting when the washing machine is installed on a carpeted floor.· Install or store where it will not be exposed to temperatures below freezing or exposed to the weather. If the product is exposed to such conditions, electric shock, fire, break down or deformation may occur.· Properly ground washer to conform with all governing codes and ordinances. Follow details in installation instructions.If not grounded properly, break down and leakage of electricity may occur, which may

Warning

Caution

afety Information

YOUR LAUND AREA

Warning

- Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags, chemical, etc.

Operating with such materials around the machine may trigger explosion or fire.

- Close supervision is necessary if this appliance is used by or near children. Do not allow children to play on, with, or inside this or any other appliance.

There is potential danger that children might drown in the tub.

Do not touch the power plug with a wet hand. It will cause electric shock

Do not put your hand, foot or anything under the washing machine while the washing machine is in operation.

There is a rotating mechanism under the machine, so you could be injured.

WHEN USING THE WASHER

Caution

- Use this appliance only for its intended purpose as described in this Owner's Manual. - The laundry process can reduce the flame retardancy of fabrics. To avoid such a result, carefully follow the garment manufacturer's wash and care instructions.

To minimize the possibility of electric shock, unplug this appliance from the power supply or disconnect the washer at the household distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning.

Pressing Power button to turn off does NOT disconnect the appliance from the power supply.

- Make sure that drainage is working properly. If water is not drained properly, your floor may get flooded. Flooded floors may induce electricity leakage, further resulting in electric shock or fire.

II, during spirming, opening the lid does not stop the tub within about 15 seconds, immediately discontinue operating the machine.

Call for repair. A machine that spins with its door open may cause injuries.

Never reach into washer while it is moving.

Wait until the machine has completely stopped before opening the lid. Even slow rotation can cause injury.

Safety Information

WHEN USING THE WASHER	Warning
	Do not use a plug socket and wiring equipment for more than their rated capacity.Exceeding the limit may lead to electric shock, fire, break down, and/or deformation of parts.Do not mix chlorine bench with ammonia or acids such as vinegar and/or dust remove.Mixing different chemicals can produce toxic gases which may cause death.Do not wash or dry articles that have been cleaned in, washed in, sealed in, or sported with combustible or explosive substances such as wax, oil, paint, pipeline, dry-cleaning solvents, kerosene, etc. Do not add these substances to the wash water.Do not use or place these substances around your washer or dryer during operation.It may ignite or explode.
WHEN NOT IN USE	Caution
	Turn off water finishes to relieve pressure on hoses and valves and to minimize leakage if it break or rupture should occur. Check the condition of the fill hose; they may need replacement after 5years.When the air temperature is high and the water temperature is low, condensation may occur and thus wet the floor.Wipe off dirt or dust on the contacts of the power plug.Using unclean power plug may cause fire.Before discarding a washer, or removing it from service, remove the washer lid to prevent children from hiding inside.Children may be trapped and suffocated if the lid is left intact.Do not attempt to repair or replace any part of this appliance unless specifically recommended in this Owner's Manual, or in published use-repair instructions that you understand and have the skills to carry out.Operating the machine with improperly replaced parts may be a cause for fire or electric shock.Do not tamper with controls.It may lead to electric shock, fire, break down, deformation.Do not yank the power cord in an attempt to disconnect the power plug.Securely hold the power ping to unpling the machine.Failure to observe these instructions may cause electric shock or fire

Warning

Caution

dentification of Parts

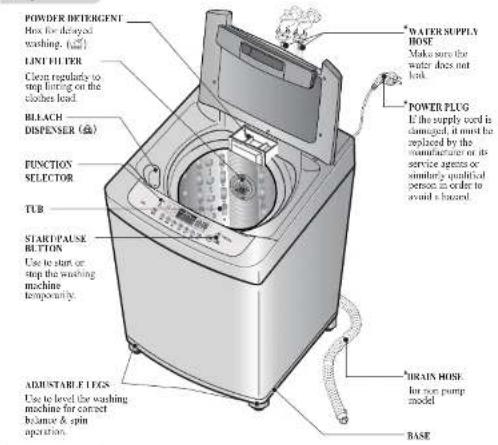

Body

POWDER DETERGENT Heat for delivery washing. (°C) LINE FILTER Clean regularly to stop lining on the clothes head. BLEACH DISPENSER (®) FUNCTION SELECTOR TUB START/PUASE BUTTON Use to start or stop the washing machine temporarily. ADJUSTABLE LEGS Use to level the washing machine for correct balance & spin operation. WATER SUPPLY HOSE Make sure the water does not lock. POWER PLUG If the supply used is damaged, it must be replaced by the manufacturer or its service agents or similarly qualified person in order to avoid a locked. DRAIN HOSE for one pump model. BASE

Accessories

Water supply hoses

Drain hose Anti-rat cover (option)

unction Information

Our machine provides various washing methods which suits various conditions and types of laundry.

Different types of laundry washing

FUZZY(Normal) Wash

Use this Program for everyday washing e.g. sheets, towels, T-shirts. (refer to page 18)

JEANS Wash

Use this Program for heavily soiled durable garments e.g. overalls, jeans.

Black and heavy clothes or those which are excessively dirty like jeans or working uniforms can be washed. (refer to page 18)

EXTRA CLEANING

Use this program to get better rising performance. (refer to page 18)

WOOL Wash

Wool clothes (lingerie, wool, etc.) which may be easily damaged can be washed. (refer to page 18)

The fibers of machine washable woolers have been specifically modified to prevent felting when they are machine washed.

Most handanitted garments are not made of machine washable wool and we recommend that you hand wash them.

- Before washing your woclens check the care label for the washing instructions.

- Hand watched wafers may be worn in a washing machine to produce this together take into the

• To dry workers lay down them flat on a towel and put into shops. Dry workers out of direct sunlight.

(The heat and tumble action of a dryer may cause shrinkage or felting of wooden garments.)

Some wool underlays and sheepskin products can be washed in a washing machine but may cause pump blockages.

[Ensure that the whole article is suitable for machine washing and not just the backing material]

For many of the following cases is not equal to those that are not equal to the case if you

FAVORITE Wash

This setting allows you to store your FAVORITE wash conditions in the normal cycle memory. (refer to page 2J)

SILENT Wash

Use this program to walk's quietly at right. (refer to page 22)

Washing according to the condition of laundry

QUICK WASH

QUICK WASH can be selected to wash lightly soiled clothes of less than 2.0 kg in a short time. (refer to page 18)

SOAK Wash

SOAK Wash can be selected to wash heavily soaked laundry by soaking in water for some time to remove dirt and juice. (refer to page 20)

Other washing method

TUB CLEAN

Use this program to clean the inside of washing machine especially Inner tub & Outer tub. (refer to page 23)

DEI AV START Mach

reparation Before Washing

Care Labels

* Look for a care label on your clothes. This will tell you about the freme content of your garden and how it should be washed. Sort clothes into loads that can be washed with the same wash cycle, Water Temperature and sp

Sorting

To get the best results, different fabrics need to be washed in different ways.

- SOIL (Heavy, Normal, Light) Separate clothes according to the type and amount of soil - COLOR (Whites, Lights, Darles) Separate white fabrics from colored fabrics. - LINT (Lint producers, Collectors) Separate lint producers and lint collectors.

Lint Producers Terry cloth, Chonille, Towels, Nappics, Diapers

Lint Collectors Syntheties, Conduroy, Permanent Press, Sacks

Check before Loading

- Check all pockets to make sure that they are empty. Things such as nails, barclips, matches, pens, coins, and keys can damage both your washer and your clothes.

- Mend any torn garments or loose buttons. Tears or holes may become larger during washing. - Remove belts, underwires, etc. to prevent damage to the machine in your clothes.

- Pretreat any dirt and stains.

• Make sure the clothes are washable in water.

- Check the washing instructions.

- Remove tissue in pockets.

Pretreatment on stains or heavy soil

- Pretreat shirt collars and cuffs with a pre-wash product or liquid Detergent when placing them in the washer. Before washing treat special stains with bar soaps, liquid Detergent or a paste of water and granular Detergent.

• Use a pretreat soil and stain remover.

Treat stairs AS SOON AS POSSIBLE. The kinger they are left the harder they are to remove. (For more detail refer to page13)

Loading

Do not wash fabrics containing flammable materials (waxes, cleaning fluids, etc.) Load Size

The WATER LEVEL should just cover the clothes. Adjust the load size accordingly. Lumsely load clothes no higher than the top row of holes in the washer tub. To add items after washer has started, press Start button and submerge additional items. Close the lid and press Start button again to restart.

Light and Large-sized clothing

▲WARNING

Fire Hazard

Never place items in the washer that are dampered with gasoline or other fammable Lakes. He washer can completely remove oil. Do not cry anything that has ever had any type of oil on it (including cooking oils). Doing so can result in death, explosion, or the.

Clother tiles domine and moollars are light mislight. Lorms and float airfly. Use a wistet, nat and

se of Water, Detergent, Bleach and Softener

Using Water

Amount of WATER LEVEL

• This machine detects the quantity of laundry automatically, then sets the WATER LEVEL and proper amount of Detergent.
• When you select a wash program, the WATER LEVEL, and amount of Detangent (to be used) will be shown on the control panel.
  • The following table shows the amount of water.
• When the WATER LEVEL is automatically detected, it may differ depending on the quantity of laundry even though the same WATER LEVEL is indicated on the control panel.

NOTE

| Minimum water amount |

It depends on laundry load and washer model. Or manually you can pour a certain amount water into tub directly to some height. That's because if water level reaches to the some height sensed by washer itself, washer automatically operates. In other words, it is needed to pour water to the point when washer starts operating.

Water Temperature

• The machine sets the appropriate temperature automatically according to the wash program.
- You can change the Water Temperature by pressing the WATER TEMP. button. (refer to page 14)
- The temperature of the water impacts the effectiveness of all laundry additives and therefore, the cleaning results. We recommend temperatures of:

• HOT 49-60°C... (120-140°F) White items, diapers, underclothing and heavily sealed, colorfast items.
• WARM 29-40°C...(85-105°F) Most items
• (COLD)* 18-24°C...(65-75°F) Only very bright colors with light soil.
• When washing in COLD water additional steps may be needed:
• Adjust Detergent amount and pre-dissolve Detergent in WARM water
• Pretrial spots and stains
• Sook heavily soiled items
• Use appropriate bleach
  * Temperature below 18°C...(65°F) will not activate laundry additives and may cause lint, residue, poor cleaning, etc. In addition, Detergent manufactures and cure labels define COLD water as 26-29°C...(80-85°F). If the temperature of the water in the tub is too cold for your hands, the Detergent will not activate and clean effectively.

NOTE

If iron is present in the water, the clothes may become an all-over yellow or they may be stained with brown or orange spots or streaks. Iron is not always visible. Installation of water softener or an iron filter may be necessary for severe cases.

Choosing the right Detergent

We recommend the use of domestic Detergent, (powder, liquid or concentrated). Soap flakes or granulated soap powders should not be used in your washing machine. When washing woolens remember to use Detergent suitable for washing woolens.

Using Detergent

How much Detergent

The correct amount of Detergent will vary depending on the amount of sail in your clothes (Jeans and work clothes may need more Detergent, while both towels usually need less).

For liquid and concentrated Detergents, follow the recommendations of the Detergent manufacturer.

Note: To check you are using the correct amount of Detergent, lift the lid of your machine about halfway through the wash. There should be a thin layer of foam over the surface of the water. Lots of foam may look good, but it does not contribute to cleaning your clothes. No foam means not enough Detergent has been used; soil and lint can settle back on the clothes or the washing machine.

If excess Detergent is used, the rinse will not be as clean and efficient. Also, it could cause environmental pollution, so use it accordingly.

Adding the detergent

Open the detergent dispenser and deposit the appropriate amount of detergent where you deposit the detergent Powder Detergent dispenser.

Some detergents MUST be fully dissolved before adding to your machine to get the best wash results.

Check the instructions on the detergent packet.

If you use powdered detergent it is essential that the required amount be fully dissolved in very hot water before being added to warm or hot water for the actual wash.

Pre-dissolving detergent in warm water when washing in cold water can improve its performance.

Powder Detergent Box

Using Liquid Bleach

- Check clothing care label for special instructions and separate the laundry to be bleached

• Dilute liquid chlorine bleach.

- Measure the recommended amount of liquid bleach carefully following instructions on the bottle.

• Before starting the washer, pour measured amount of bleach directly

Bleach dispenser (®)

se of Water, Detergent, Bleach and Softener

Using Fabric Softener

• Dilute fabric softener with water.

Undiluted fabric softener may result in spots that look like oil stains.

- Measure and add the recommended amount of fabric softener into the compartment marked with this symbol ( ). Follow manufacturer's direction.

Fabric softener is automatically dispensed in the final rinse with indication beep.

If you want extra rinse, you must add fabric softener manually when indication beep rings in the final rinse. This requires the fabric softener function.

Softener dispenser( 📋)

• Do not overfill. The dispenser hold max 35ml

Never add more than 32ml. Overfilling can cause early dispersing of the fabric safener which could result in stained clothes. A cup with a pouring spout will help you avoid spilling.

- The effect of adding fabric softener may vary according to its viscosity. The stickier fabric softener makes its effect the lower. For a sticky fabric softener it is recommended that it be diluted with water, then be manually correct time to dispense manually is optionally applied to some models. Please keep it in mind that fabric softener has to be diluted with water before dispensed and never poured directly on clothes.

Attention

• Do not mix with detergent or bleach.

- Never pour fabric softener directly on clothes. It may stain them.

- Do not stop the washer during the first spin for timely dispensing.

- Option washing is not designed to be used with fabric softener dispenser.

Scrud(Waxy Build up)

Send is the name given to the waxy build-up that can occur within any washer when the fabric softer comes into contact with Detergent. This build-up is not brought about by a fault in the machine.

If scrud is allowed to build-up in the machine it can result in stains on your clothes or an unpleasant smell in your washer.

If you wish to use fabric softener we recommend

• Using fabric softener sparingly.
- When filling the dispenser, do not splash or overfill.
- Clean disperser as soon as the cycle is finished.

pecial Guide for Stain Removal

WARNING

nDo not use or mix liquid chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acid or
products containing ammonia. These mixtures can produce dangerous fumes which can cause serious injury or death. To reduce the risk of fire or serious injury to persons or property, comply with the basic warnings listed below:
- Read and comply with all instructions on stain removal products.
- Keep stain removal products in their original labeled containers and out of children's reach.
• Thoroughly wash any utensil used.
• Do not oxidize stain removal products, especially ammonia and chlorine bleach. Dangerous fumes may result.
- Never wash items which have been previously cleaned in, washed in, soaked in or spotted with gasoline, dry cleaning solvents
or other thermable or explosive substances because they give off vapors that could ignite an explosion.
- Never use highly flammable solvents, such as gasoline, inside the home. Vipers can explode on contact with flames or sparks.

For successful stain removal:

• Remove stains promptly.
• Determine the kind of stain, then follow the recommended treatment in the stain removal chart below.
  • To pretreat stains, use a prewash product, liquid Detergent, or a paste made from granular Detergent and water.
  • Use COLD water on unknown stains because HOT water can set stains.
• Check care label instructions for treatments to avoid on specific fabrics.
• Check for colorfastness by testing stain remover on an inside seam.
• Rinse and wash items after stain removal

Follow fabric care label instructions

Stain Removal
STAIN	TREATMENT
Aplacate, dry water, dry water.	Apply ice. Scinge of copper. Place stain face down on paper towels. Saturite with prewash stain remover or nonflammable cry clearing fluid.
Cafe, factory, dry waste, egg	Use product containing enzymes to pretreat or sink stains.
Beverage, light water, and dark water	Prevent stain. Wash using COLD water and bleach safe for fabric.
Scal	Rinse with COIL water. Rub with bar stain. Or prevent or seal with product containing enzymes. Wash using bleach safe for fabric.
Crude water, coat	Scinge of surface coat. Place stain face down between page towels. Press with wash iron until wax is blocked. Replace paper towels frequently. Toxic remitting stain with prevent stain turnover or nonflammable cry clearing fluid. Head wash to remove solvent. Wash using bleach safe for fabric.
Chocolat	Prevent or seek to WARM water using produce containing enzymes. Wash using bleach safe for fabric.
Collovered oil, condens	Prevent with prewash stain remover or rub with bar soap.
Dye, inciner, etc.	The packaged odor remover. Wash using bleach safe for fabric.
Gas	Prevent or seek in WARM water using produce containing enzymes. Wash using bleach safe for fabric.
Grass, oil, bbligh, and solid drawing, white oil, or pure, cotton oil	Scingeaceous from blue. Pretreat. Wash using honest water safe for fabric. For heavy stains and dust, apply nonflammable cry clearing fluid to hack of stain. Revise towels under stain frequently. Rinse thoroughly. Wash using honest water safe for fabric.
Lid	Soilage ink may be impossible to remove. Wash using may not some ink. Use prewash stain remover, undulyd alcohol or nonflammable cry clearing fluid.
Milk, sand	Wash with blockie bleach if safe for fabric. Or, soak in oxygen, bleach and HOT water before washing. Badly malted above may be permanently damaged.
Mud	Brush off dry mud. Pretreat or seal with product containing enzymes.
Milo level	Prevent with prewash stain remover. Wash using bleach safe for fabric.

unction of each Button (T7508TDFP/T6507TEEP)

WATER TEMPERATURE BUTTON

• Use to select Water Temperature.

Pressing the button allows you to select COLD ▶ WARM (HOT&COLD) ▶ HOT ▶COLD

respectively.

Default setting is COLD

WATER LEVEL BUTTON

- Use to select the proper amount of water in relation to the weight and type of laundry.

- Automatically controlled, but can be selected manually by pressing the WATER Button. - WATER LEVEL is automatically selected for PUZZY(normal) program.

The following settings are indicated as the button is pushed

7▶8•9▶10▶1▶2•3▶4▶5•6▶7

TIME LEFT. DELAY START

(RESERVATION), ALARM INDICATION

• Time left - During operation, the remaining time is indicated.

- DELAY START INDICATION (RISERVATION) - When DELAY STAR (RISERVATION) program is selected, it includes the finishing time (RES-DELAY)

- Alarm indication -When an error occurs, an error message appears to induce the abnormality. For example, indicates that the lid is open

TurboDrum

(mǎn)

□ 120

□ 90

□60

TUB DRY

→→→→→→

1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 99.

AIR DRY

WATER TEMP.

WATER LEVEL

WASH

RINSE SPIN

AIR DRY

• This button is used for air-drying of your laundry.
  • Air dry selections light up in sequence as follows.

TLB DRY 60 90 120 ▶ TUB DRY as the button is pushed.

CHILD LOCK FUNCTION

- Use to lock or unlock the control buttons to prevent settings from being changed by a child. To lock, push the RINSE and SPIN buttons simultaneously and to unlock push them one more time during the washing process.

(refer to page 27)

WASH. RINSE. SPIN BUTTON

- Use when wash, rinse, spin time need to be adjusted.

• The time increases when the button is pressed.

- If adjustments are needed during the wash, press the [start/pause] button before making any changes.

- When the button is reserved

PROGRAM BUTTON • Use for selecting wash program. • This button allows you to select 8 different programs for different kinds of laundry and dirtiness. • program selections light up in sequence as follows: FUZZY(Normal) ▶ WOOL ▶ QUICK WASH ▶ JEANS ▶ EXTRA CLEANING ▶ SILINT ▶ FAVORITE ▶ TUB CLEAN ▶ FUZZY(Normal) etc. Select the desired program by pressing the button. POWER AUTO OFF DELAY START (RESERVATION) BUTTON • Use to set a delayed finishing time. • The time increases when the button is pushed. • The following settings are indicated as the button is pushed 3 ▶4 ▶5 ▶ ... 11 ▶2 14 16 ▶46 ▶8 ▶ ▶ 3 HOUR. • To cancel delay time, turn the power START/PAUSE BUTTON • Use to start or pause the washing process. • Repeats start and pause by pushing the button. POWER(AUTO OFF)BUTTON • Use to turn the power on or off. • Push again and power goes on or off • The power goes off automatically about 10 seconds after the wash is finished.

unction of each Button (WF-T756SPG)

BEEPER BUTTON

- use to select BEEPER. Pressing the button allows you to select HIGH→ OFF→LOW→HIGH respectively. Default setting is HIGH.

WATER LEVEL BUTTON

- Use to select the proper amount of water in relation to the weight and type of laundry. - Automatically controlled, but can be selected manually by pressing the WATER Bottle. - WATER LEVEL is automatically selected for FUZZY(normal) program. The following settings are indicated as the button is pushed

TIME LEFT, DELAY START (RESERVATION), ALARM INDICATION

- Time left - During operation, the remaining time is indicated. - DELAY START INDICATION (RESERVATION) - When DELAY START (RESERVATION) program is selected, it indicates the finishing time. (RES=DELAY) - Alarm indication - When an error occurs, an error message appears to indicate the abnormality. For example, dE indicates that the lid is open.

TurboDrum

- This button is used for air-drying of your laundry.

• Air dry selections light up in sequence as follows.

TUB DRY ▶ 60 ▶ 90 ▶ 120 ▶ TUB DRY as the button is pushed.

CHILD LOCK FUNCTION

- Use to lock or unlock the control buttons to prevent settings from being changed by a child. To lock, push the RINSE and SPIN buttons simultaneously and to unlock push them one more time during the washing process. (refer to page 27)

WASH. RINSE. SPIN BUTTON

- Use when wash, rinse, spin time need to be adjusted. - The time increases when the button is pressed. - If adjustments are needed during the wash, press the [start/pause] button before making any changes.

PROGRAM BUTTON • Use for selecting wash program. • This button allows you to select 8 different programs for different kinds of laundry and dirtiness. • program selections light up in sequence as follows: FUZZY(Normal) ▶ WOOL ▶ QUICK WASH ▶ JEANS ▶ EXTRA CLEANING ▶ SILENT ▶ FAVORITE ▶ TUB CLEAN ▶ FUZZY(Normal) etc. Select the desired program by pressing the button. POWER AUTO OFF START PAUSE DELAY START (RESERVATION) BUTTON • Use to set a delayed finishing time. • The time increases when the button is pushed. • The following settings are indicated as the button is pushed 3 ▶ 4 ▶ 5 ▶ ... 11 ▶ 12 ▶ 14 ▶ 16 ▶ ... 46 ▶ 48 ▶ 3 HOUR. • To cancel delay time, turn the power START/PAUSE BUTTON • Use to start or pause the washing process. • Repeats start and pause by pushing the button. POWER(AUTO OFF)BUTTON • Use to turn the power on or off. • Push again and power goes on or off • The power goes off automatically about 10 seconds after the wash is finished.

DELAY START (RESERVATION) BUTTON

• Use to set a delayed finishing time.
• The time increases when the button is pushed.
  • The following settings are indicated as the button is pushed 3 ▶4 ▶5 ▶
  ... 11 ▶ 12 ▶ 14 ▶ 16 ▶ ... 46 ▶ 48 ▶3 HOUR.
  • To cancel delay time, turn the power

START/PAUSE BUTTON

• Use to start or pause the washing process.
  • Repeats start and pause by pushing the button.

POWER(AUTO OFF)BUTTON

• Use to turn the power on or off.
• Push again and power goes on or off
  • The power goes off automatically about 10 seconds after the wash is finished.
• Use to turn the power on or off.
• Push again and power goes on or off
  • The power goes off automatically about 10 seconds after the wash is finished.

ashing Programs

START PULSE	Close the lid	Finish Caution & Note
3	5	6	• If water is already in the tub, or putting well laundry into the tub before starting will increase the WATER LEVEL.• Win lightweight bulky loads. WATER LEVEL can be set low.• Changes to Water Temperature (HOT/COLD) and wash level are possible during operation. (refer to page 14)
• The pulsator rotates for 8 seconds to detect the laundry load.• Then the WATER LEVEL and the amount of Detergent to be used will be shown and water will be supplied.	• Water will be supplied for 2 minutes after the start of the wash to supplement the water the laundry has absorbed.	• When the wash program ends, the buzzer will ring for 10 seconds before the Power goes off automatically.
4	6	7	• When setting the WATER LEVEL manually, do not set to Medium to prevent damage to laundry.• Washing with HOT water may damage the laundry (Water is set to cold automatically). Ensure that the load is under 2kg.• In order to avoid damage to laundry, the spin cycle may appear slow. This also avoids wrinkles and clothing may still contain some water. This is normal.
4	6	7	• When static pressure of water is more than 2kg/cm, the QUICK WASH course will be within 13mm.
4	6	7

OAK Wash

Use this mode to wash normal clothes or thick and heavy clothes which are excessively dirty. SOAK mode can be used with FUZZY or JEAN or SILENT or FAVORITE program.

Press the POWER (AUTO OFF) button to turn power on.

POWER AUTO OFF

Press the PROGRAM button to select the washing program.

PROGRAM

- SOAK will not work in WOOL and QUICK WASIL, TUB CLEAN Program.

Press the WASH button, to select SOAK program.

WASH

- Keep pressing the WASH button until the light turns on 'SOAK' and 'WASH' simultaneously as next image. - SOAK program only weeks when socking time is 40, 50 o 60 minutes.

Add the Detergent.

- The appropriate quantity of Detergent marked next to the WATER LEVEL, of WATER-DETERGENT.

Add the laundry and press the START/PAUSE button.

START PAUSE

- The WATER LEVEL will be shown and water will be supplied.

Close the lid.

- Water will be supplied for 2 minutes after the start of the wash to supplement the absorbed water by the laundry.

Finish

- When the wash program ends, the buzzer will ring for 10 seconds before the Power goes off automatically.

NOTE

• Order of Soak-Wash timing

Soak-Wash

AVORITE Wash

Pressing the FAVORITE button allows you to store your FAVORITE wash conditions in the normal cycle memory and then recall it for use at a later time.

Press the POWER (AUTO OFF) button to turn power on.

POWER AUDGET

Select the FAVORITE program.

PROGRAM

Select your FAVORITE wash conditions.

• Press the WATER TEMP. button to select wash Water Temperature.
• Press the WATER LEVEL button to select WATER LEVEL.
• Press the WASH button, the RINSIE button & the SPIN button to select wash time, rinse time & spin time respectively you want to store.

Press the START/PAUSE button to store & start your FAVORITE wash cycle. Power turns off automatically after wash.

START PAUSE

NOTE

To recall your FAVORITE cycle.

ILENT Wash

Use this program to wash quietly in SILENT especially during late night and dawn.

1 Press the POWER (AUTO OFF) button to turn power on.

2 Press the PROGRAM button to select SILENT program.

PROGRAM

3 Add the laundry into the washing tub.

4 Press the START/PAUSE button.

5 Add the Detergent and close the lid.

NOTE

• SILENT program takes longer washing time than FUZZY(Normal) program.
• To reduce noise in spinning, spin rpm is lower than normal spinning rpm. So the laundry has more moisture than normal.

UB CLEAN

If scruc is allowed to build-up in the machine it can result in stains on your clothes or unpleasant smell in your washer.

Scrud is the way build-up that can occur within any washer when the fabric softener comes into contact with Detergent, and according to particular degree of dirtiness or quality of water to be use, in these case, use this program to clean inner tub and outer tub.

Press the POWER (AUTO OFF) button to turn power on.

POWER AUTO OFF

Press the PROGRAM button to select the TUB CLEAN program.

Ex-Large WATER is set automatically.

Press the START/PAUSE button. • Left time is displayed.

START PAUSI

After 10 minutes of water supplement. Add the oxygenated bleach (about 300m l).

• Do not use Detergent box.
• Do not place any laundry inside tub.

Close the lid.

- When the lid is open the machine will not operate, and an alarm signal will remind you to close the lid.

NOTE

• Before using this program remove lint inside lint filter.
• When using this program, do not place any laundry inside tub.
  • This program takes about 3 hours to be completed.
  • After using this program, remove dirt inside filter.
  • After finishing this program, open the bid of wach to remove irritant odor

23

IR DRY

AIR DRY for your laundry.

Press the POWER (AUTO OFF) button to turn power on.

POWER SUG OFF

Press the AIR DRY button to select the desired timing.

AIR DRY

Press the START/PAUSE button.

START PAUSE

Closed the lid.

NOTE

n Select "Air Dry" 30min TUB DRY

-Use this mode to keep inner tub from getting moldy caused by remaining moisture.

- Do not place any laundry inside tub.

- Use this mode once a week.

Caution) For better performance, put drain hose down to the floor so that water inside will be completely drained out.

n Select "Air Dry" above 1 hour

- Use this mode to reduce the drying time by minimizing remaining moisture on the laundry.

- In general, this is very effective on synthetic items (100% polyester).

- Do place laundry which is evenly distributed(Under 2kg).

- For normal clothes : Select 1 hour

- For synthetic items(100% polyester): Select 2 hours or 3 hours (on some models)

ption Washing

When you only need the Wash, Wash/Rinse or Rinse cycles, these can be set manually.

Press the POWER (AUTO OFF) button to turn power on.

POWER AUTO OFF

Only Wash	Only Rinse	Only Spin
Press the WASH button to select the desired timing.WASH	Press the RINSE button to select the desired times of rinse.RINSE	Press the SPIN button to select the desired times of spin.SPIN
Only Wash,Rinse	Only Rinse,Spin	Only Drain
Press the WASH button to select the desired timing.WASHPress the RINSE button to select the desired times of rinse.RINSEYou can use this option for preventing wrinkles of laundry	Press the RINSE button to select the desired times of rinse.RINSEPress the SPIN button to select the desired times of spin.SPIN	When you want to only drain, wait until the water in the washing tub drains completely.

Press the WATER LEVEL button, to control the water level according to the amount of laundry. If you do not choose anything, it is set the middle water level automatically.

Add the laundry into the washing tub.

Press the START/PAUSE button.

START PAUSE

Add the detergent and close the lid.

25

Additional Function Program

DELAY START (RESERVATION) Wash

DELAY START (RESERVATION) Wash is used to delay the finishing time of the operation. The hours to be delayed can be set by the user accordingly. The time on the display is the finishing time, not the start time.

1 Press the POWER (AUTO OFF) button to turn power on.

2 Press the PROGRAM button to select the washing program.

Select the program for laundry on the Control panel. This program will not work in WOOL and TUB CLEAN Program.

3 Press the DELAY START (RESERVATION) button.

- The light will 'DELAY' turn on and -TIME LEFT 83 will be marked. - Press the button repeatedly to set the desired finishing time. For example, To finish washing in 9 hours from now, by make the number 9:00 pressing the DELAY START

4 Add the Detergent. The appropriate quantity of Detergent marked next to the

- When the lid is open the machine will not operate, and an alarm signal will remind you to close the lid

5 Add the laundry and press the START/PAUSE button.

- When you press the START/PAUSE button the light will blink.

6 Close the lid. • Water will be supplied for 2 minutes after the start of the wash to supplement the water the laundry has absorbed

• Water will be supplied for 2 minutes after the start of the wash to supplement the water the laundry has absorbed.

• The washing will be finished according to the delayed time.

NOTE

ther Useful Functions

Child Lock Function

If you want to lock all the keys to prevent settings from being changed by a child, you can use the child lock option.

How to Lock

Press the POWER (AUTO OFF) button.

POWER AUTOFT

• Turn Power on.

Press the START/PAUSE button to start washing.

START PAUSE

- After all washing conditions are set according to the manual.

Press both the RINSE button and the SPIN button simultaneously.

- During the wash program, all the buttons are locked until washing is completed or it is child-lock function is deactivated manually.

How to Unlock

If you want to unlock during wash, press both the RINSE and the SPIN button simultaneously again.

NOTE

• [L] & the remaining time are alternatively shown on the display while they are locked.

Mute Option

If you want to use the washing machine without alarm signal sounds, press both the WASH and SPIN buttons simultaneously.

To make buzzer work, press both the WASH and SPIN buttons simultaneously are more time.

27

lacing and Leveling

Please ensure that transit restraint has been removed before operating your machine.

Place the machine on a flat and firm surface which allows proper clearance.

We suggest a minimum clearance of 2 cm to the right side and left sides of the machine for ease of installation.

At the rear, a minimum clearance of 10 cm is suggested.

NOTE

If the washer is installed on a uneven, weak or tilted floor causing excessive vibration, spin failure or “UE” error can happen to it.

It must be placed on a firm and level floor to prevent spin failure.

Check that the machine is level

Open the lid and look from above to see if it is same as shown.

Top view of the machine

Leveling the machine

Lift the front of the washing machine and twist the Adjustable Leg until the washing machine is placed evenly.

- Installing the Anti-Rat Cover (option) Insert the anti-rat cover to be firmly fixed from the back or front of washing machine and screw it (1pcs)

BACK SETTING SCREW Anti-Rat Cover FRONT Anti-Rat Cover

connecting Water Supply Hose

Before connecting the Water Supply Hose to the water tap, check the hose type and then choose the correct instruction here under.

Note that the Water Supply Hose supplied may vary from country to country. Make sure to connect the blue inlet hose to the COLD water tap, and the orange inlet hose to the HOT water tap.

Connecting Water Supply Hose to water tap

Normal Type

(Normal tap without thread & screw type inlet hose.)

Untighten the screw

Entighten the screw of the connector so that the tap can be placed in the middle.

Rubber packing

Fixing the connector to the tap

Push the upper connector up till the rubber packing is in tight contact with the tap. Then tighten the 4 screws.

Attach the water supply hose securely to the connector

Push the water supply hose vertically upwards so that the rubber seal within the hose can adhere completely to the tap.

Fixing the connector to the water supply hose

Attach the water supply hose to the connector and then tighten it by screwing it to the right.

Check the connection of water supply hose and the connector

After connecting the hose, open the tap to check for any water leakage If the water leaks close the tan and start again

onnecting Water Supply Hose

Normal Type

(Normal tap without thread & one touch type inlet base.)

Separate Middle connector from Water Supply Hose

Separate Middle connector from the Water Supply Hose by pulling the Pressing Rod and the Pressing Handle that is attached to the Water Supply Hose.

Middle connector

Fixed Sticker Pressing Handle Pressing Rod

Water Supply Hose

Loosen the fixed nuts to connect the connector to the tap

Untighten the screw of the connector so that the tap can be placed in the middle.

NOTE

In case tap is too large. If the tap diameter is too large or is square, untighten the 4 screws and remove the guide plate. Then follow step1.

Fixing Connectors to the Tap Push the upper connector up till the rubber packing is in tight contact with the tap. Then tighten the 4 screws.

Fixing Upper Connector and Middle Connector

Remove the fixed sticker in between the Upper and Middle Connectors. Tighten the connectors by holding one connector and twist middle connector to the right.

Connecting Middle Connector and Water Supply Hose

Press down the pressing rod of the Water Supply Hose which was separated from middle connector (refer to Step1) and then join it to the middle connector.

Pressing rod

Water Supply Hose

Screw Type

1 Attach the water supply hose to the tap. Push the water supply hose up so that the rubber packing within the hose can adhere completely to the tap.

2 Connect the water supply hose to the tap. Connect the water supply hose to the tap and then tighten it by screwing it to the right.

3 Check water leakage. After connecting the hose, open the tap to check for any water leakage.

Connecting Water Supply Hose to the machine

- Connect the water supply hose to inlet valve of the washing machine, and then lock it by turning the hose connecting part.

- Check to see if there is a rubber seal inside the connector.

onnecting Drain Hose

Before connecting Drain Hose, check your Drain Hose model and choose the correct instructions.

Pump Model

1 Fit the end of the drain hose to the outlet of the drain pump and tighten the clamp.

2 Put the other end of the drain hose over the standpipe or wash tub.

Hose Guide Wain 50mg B 0.9-1.2m Drain Hose

NOTE

- To prevent siphoning, the drum hose should not extend more than 50 mm from the end of the hose guide. - The discharge height should be approximately 0.9 - 1.2 m from the floor.

Non-Pump Model

1 Before connecting

Ensure that the hose clip is set as indicated here.

2 Connect the Elbow Hose

Push the elbow hose toward the body of the washing machine.

rounding Method

Earth wire should be connected.

If the earth wire is not connected, there is possible a danger of electric shock caused by the current leakage.

Grounding Method with Ground Insert space Terminal

If the AC current outlet has a ground terminal, then separate grounding is not required. Note that AC power outlet configurations may differ from country to country

Ground

Terminal

Outlet with ground terminal.

Caution

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit: that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, trayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Particularly examine the cord of your appliance, and if its appearance indicates damage or deterioration, trapping it, continentate net of the appliance, and have the cord replaced with an exact replacement part by an authorized server. Protect the power cord from physical or mechanical abuse, such as being twisted, linked, pinched, closed in a door, or walked upon. Pay particular attention to plags, wall outlets, and the point where the cord exists the appliance.

Other Grounding Method

Burying Copper Plate

Connect the Ground Wire to a Ground Copper Plate and bury it more than 75cm in the ground.

Using Ground Wire

Connect the ground Wire to the socket provided exclusively for Grounding.

Using a Short Circuit Breaker

If grounding methods described above are not possible, a separate circuit breaker should be employed and installed by a qualified electrician

leaning and Maintenance

Cold water washing

- If you always use COLD water, we recommend that a WARM or HOT wash be used at a regular intervals e.g. every 5th wash should be at least a WARM one.

When you have finished

- Turn all taps to prevent the chance of flooding should a hesc burst.

When water supply into the tub is not clean or the filler is clogged with particles (such as sand), clean the filter in the inlet valve occasionally. (The figure of power cord and water tap may vary according to the country)

To Clean the Filter in the Inlet Valve

1 Close the tap before turning off the power. Select both HOT/COLD and then press the | START/PAUSE | button to remove water from the machine completely.

Turn off the power before pulling out the cord.

3 'lter removing the water supply hose pull out the filter. Then use a brush to clean the filter.

Replace the filter after cleaning it.

NOTE

- Before cleaning the filter, the impurities in the water supply hose should be removed.

To Clean the Lint Filter

To Clean the Pump casing (for pump model)

1 Excess water flow on the line above the chain pump cap. Excess water may flow out.

Turn the cap counter-clockwise and pull it out.

Remove any foreign objects and shelf inside pump casing and from the filter.

Replace the eay. Insert the filter along the guide ribs inside the pump casing. Filter must fix the guide ribs inside the open casing and secrete press the con

se of Handle Locker

You can use handle hold function if you like to use. Handle hold function is operated by holder under the handle.

• Slide holder to left/right side until you listen to "Click" sound to holding handle.
• Do opposite to loose the Handle handing.

Lock (☐)

Unlock ( ☐ )

Illustration of a hand holding a device with a handle (no text or symbols visible)

Illustration of a hand inserting a rectangular component into a mechanical housing (no text or symbols)

Nota

If you operate door like the below picture that, you can hurt so use after check locker was fixing or not.

35

Care and Maintenance

C leaning and Maintenance

When there is a fear of freezing

• Close the water taps and remove the Water Supply Hose.
• Remove the water which remains in the water supply.
• Lower the drain hose and drain the water in the bowl and the drain hose by spinning.

If frozen

• Remove the water supply hose, and immerse it in HOT water at approx. 40°C.
• Pour approx.. 2 liters of HOT water at approx.. 40°C, into the bowl and let it stand for 10 minutes.
• Connect the water supply hose to the water tap and confirm that the washing machine performs the supply and drainage of water.

Wash Inner-tub Leave the lid open after washing to allow moisture to evaporate. If you want to clean the inner-tub use a clean soft cloth dampened with liquid Detergent, then rinse. (Do not use harsh or gritty cleaners.)

Inlet Hoses Hoses connecting washer to faucet should be replaced every 5 years.

Exterior Immediately wipe off any spills. Wipe with damp cloth. Try not to hit surface with sharp objects.

Long Vacations Be sure water supply is shut off at faucets. Drain all water from hoses if weather will be below freezing.

Cleaning the Inside of your Washer

If you use fabric softener or in regular COLO water washing, it is very important that you occasionally clean the inside of your washer.

• Fill your washer with HOT water.
• Add about two cups of a powdered Detergent that contains phosphate.
• Let it operate for several minutes.
• Stop the washer, open the lid and leave it to soak overnight.
• After soaking, drain the washer and run it through a normal cycle.

Or use TUB CLEAN PROGRAM periodically.

We do not recommend that you wash clothes during this procedure.

Products that might damage your washing machine

• Concentrated bleaches and diaper sanitizer will cause damage to the paintwork and components of your washer.
• Hydrocarbon solvents i.e. petrol, paint thinners and lacquer thinners, etc. can dissolve plastic and blister paint (He careful when washing garments stained with these solvents as they are flammable DO NOT put them in

ommon washing problems

Many washing problems involve poor soil & stain removal, residues of lint and scum, and fabric damage. For satisfactory washing results, follow these instructions.

WASH PROBLEM

Problems	Possible Causes	Solutions & Preventive Measures
Poor soil removal	· Nol enough Detergent · Wash Water Temperature too low. · Overloading the washer · Inncost wash cycle · Incorrect sorting · Do not pretreat stain	· Use correct amount of Detergent for load size, amount of soil and water Hardness. · Use WARM or HOT water for normal soil. Different Water Temperature may be required according to soil type. refer to page 10) · Reduce load size. · Wash with JTANS or SOAK & JTANS wash cycle for heavy soiled laundry. · Separate heavily soiled items from lightly soiled ones. · Practical stain and heavy soil according to directions shown on page 9.
Blue Stains	· Undiluted fabric softener dispensed directly onto fabric	· Rub the stain with bar soap. Wash. · Do not overfill fabric softener dispenser and do not pour liquid fabric softener directly onto fabric. See page 12 for more instructions.
Black or gray marks on clothes	· A buildup caused by the interaction of fabric softener and Detergent can flake off and mark clothes · Not enough Detergent	· Keep the recommendations against Scrud(wary buildup),(prefer as serial page 12.) · Use correct amount of Detergent for load size, amount of soil and water Hardass.
Yellow or brown rust stains	· Iron or manganese in water supply, water pipes, or water heater	· To restore discolored load of whites, use rust turnover salt for fabric. · Install nonprecipitating water softener or an iron filter in your water supply system for an ongoing problem. · Before washing, run water for a few minutes to clear lines.
Lint	· Incorrect sorting · Tissues left in pocket · Overloading the washer	· Wash lint givers og towels, flannellete sheets, separately from lint collections og synthetic fabrics and remove tissues in packets before wash. See page 9 for sorting and ending before loading. · Do not overload the washer.
Residue or Detergent	· Overloading the washer · Undissolved Detergent · Use too much Detergent	· Do not overload the washer. · Some Detargens need to be pre- dissolved check the Detergent instructions. Try pre-disabling the Detargus. · Increase Water Temperature using HOT water safe for fabric. · Use proper amount of Detergent.

roubleshooting

Before calling for service, check the problem against the list bellows.

Symptom Error Message		Check up
Water SupplyFailure		• Is the water tap shut off?• Is the water supply cut off?• Is the tap or water supply hose frozen?• Is the water pressure low or is the filter of the inlet valve clogged with impurities?• Is the Hot hose connected to cold?• Is the Cold hose connected to hot?
Drainage Failure		• Is the drain hose positioned correctly?• Is the drain hose bent or placed too high?• Is the internal part of the hose or drain pump (only pump model) clogged with impurities?• Check if electric power has gone off.
Spin Failure		• Is the laundry evenly balanced?• Is the washing machine placed on a that surface?
Door[Lid] Open		• Is the lid closed?
Internal sensingfailurePower failure		• Please call your nearest LG Electronics service center for help.

erms of Warranty

What Is Not Covered:

• Service trips to your home to teach you how to use the product.
- If the product is connected to any voltage other than that shown on the rating plate.
- If the fault is caused by accident, neglect, misuse or Act of God.
- If the fault is caused by factors other than normal domestic use or use in accordance with the owner's manual.
- Provide instruction on use of product or change the set-up of the product.
- If the fault is caused by pests for example, rats or cockroaches etc.
- Noise or vibration that is considered normal for example water drain sound, spin sound, or warming beeps.
- Correcting the installation for example, levelling the product, adjustment of drain.
- Normal maintenance which recommended by the owner's manual.
- Removal of foreign objects / substances from the machine, including the pump and inlet hose filter for example, grit, nails, bra wires, buttons etc.
- Replace fuses in or correct house wiring or correct house plumbing.
• Correction of unauthorized repairs.
- Incidental or consequential damage to personal property caused by possible defects with this appliance.
• If this product is used for commercial purpose, it is not warranted.
(Example: Public places such as public bathroom, lodging house, training center, dormitory)

If the product is installed outside the normal service area, any cost of transportation involved in the repair of the product, or the replacement of a defective part, shall be borne by the owner.

39

Terms of Warranty

pecification

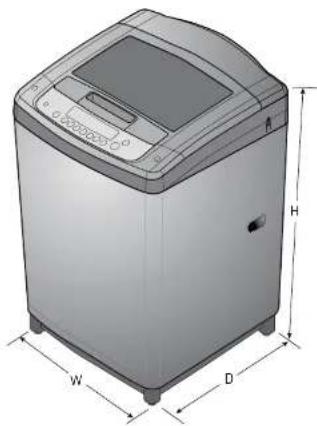

Illustration of a single water heater with labeled dimensions (W, D, H) and control panel (no text or symbols on the device itself)

Model	175081DFP	165071EEP WF-1756SPG
Size	540( W) × 540( D) × 850( II)	540( W) × 540( D) × 910( II)
Weight	33.5kg	33.5kg
Water tab pressure	30 - 800kPa( 0.3 - 8.0kgf/cm^2)	30 - 800kPa( 0.3 - 8.0kgf/cm^2)

* In our continuing effort to improve the quality of our appliances, it may be necessary to make changes

Memo

41

Memo

LG

Life's Good
