USER MANUAL WF-S5605PHZ LG

Please read this manual carefully before operating your set.

Retain it for future reference.

Record model name and serial number of the set.

Quote this information to your dealer when you require service.

roduct Features

Washer doesn't operate while the lid is open. If the lid is open during the wash, rinse or spin cycles, the operation stops for safety.

Fuzzy logic control

● A built-in load sensor automatically detects the laundry load and a microprocessor optimizes washing conditions such as ideal water level and washing time.

● Advanced technology is built into the Electronic Control System which ensures the best washing result.

3 Step washing

● 3 step washing makes the best washing performance with low tangling.

Rubbing

Rubbing and Shaking

Shaking and Disentangling

Turbo drum washing (option)

- When "Punch + 3" washing wings turn, the washing tub turns in the opposite direction. This makes the both sides current of water which improve wash-

ontents

READ THIS MANUAL

Inside you will find many helpful hints on how to use and maintain your washer properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your washer. You will find many answers to common problems in the Troubleshooting section. If you review our chart of Troubleshooting Tips first, you may not need to call for service at all.

Introduction	Safety Information	4
	Identification of Parts	5
	Function Information	6
Before Starting to Wash	Preparation Before Washing	7
	Use of Water, Detergent, Bleach and Softener	8
	Special Guide for Stain Removal	11
	Function of each Button	12
Washing Programs	Fuzzy Wash (Normal Wash)	14
	Jean Wash	14
	Wool Wash	14
	Speedy Soak Wash	14
	Economy Wash	14
Additional Function Options	Delay Start (Reservation) Wash	16
	Option Washing	17
	Other Useful Functions	18
Installation	Placing and Leveling	19

afety Information

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

For your better understanding, these precautions are separated into two categories.

We urge you to pay special attention to them in the interests of your own safety, and protection of your machine against damage:

Caution

Attention

Violation of these guidelines could result in serious or fatal injury.

Following these guidelines will protect your machine against damage.

	Caution	Attention
Installation	The appliance is not intended for use by young children or infirm persons without supervision.Do not install the washing machine in a damp place.Keep the washing machine away from fire or heat source.Young children should be supervised to ensure that they do not play with the appliance.The base opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.	Do not put your hands or feet under this machine.Do not place any rugs or heavy material over the power cord.Since the machine is heavy, a minimum of two persons should move it.Do not install the washer where it is exposed to sunlight, wind, rain, etc.The appliance must be positioned so that the plug is accessible
Power Supply cord	Make sure to ground the earth wire or connect it to a ground detector after you put the power cord into an outlet.When the power cord is loose, do not use it.Do not damage the power cords.Do not plug many cords into one outlet at the same time.If the power cord or fuse is damaged, it must be replaced by the manufacturer or its service agents or similarly qualified people in order to avoid a hazard.If the appliance is supplied from a cord extension set or electrical portable outlet device the cord extension set or electrical portable outlet device should be positioned so it is not subject to splashing or ingress of moisture.	Make sure the power cord is free of dust and plug it in properly so that the cord will not move.Do not touch the power cord with wet hands.

dentification of Parts

Body

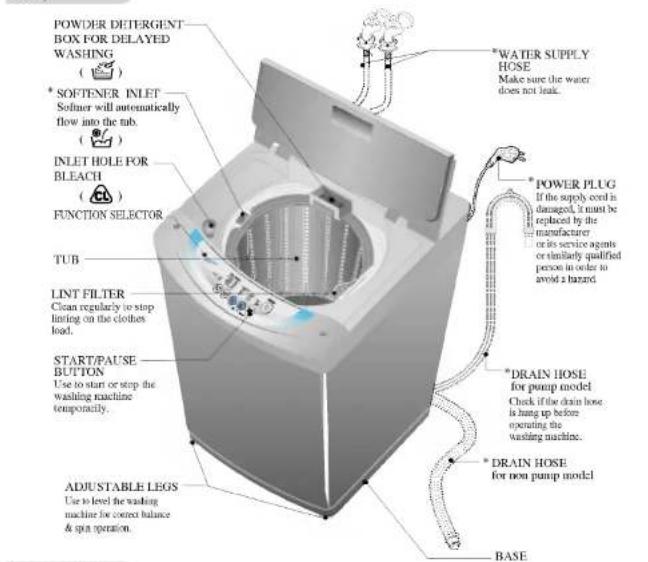

POWDER DETERGENT BOX FOR DELAYED WASHING (* SOFTENER INLET Soilmer will automatically flow into the tub. (* INLET HOLE FOR BLEACH (* FUNCTION SELECTOR TUB LINT FILTER Clean regularly to stop lining on the clothes lead. START/PAUSE BUTTON Use to start or step the washing machine temporarily. ADJUSTABLE LEGS Use to level the washing machine for correct balance & spin operation. * WATER SUPPLY HOSE Make sure the water does not leak. * POWER PLUG If the supply cord is damaged, it must be replaced by the manufacturer or its service agents or similarly qualified person in order to avoid a hazard. * DRAIN HOSE for pump model Check if the drain hose is hang up before operating the washing machine. * DRAIN HOSE for non pump model BASE

Accessories

Water supply hoses

Drain hose

Anti-rat cover (option)

Washing according to the condition of laundry

Economy Wash

Economy wash can be selected to wash lightly soiled clothes of less than 2.0 kg in a short time. (refer to page14)

Speedy Soak Wash

Different types of laundry washing

Fuzzy(Normal) Wash

Use this Program for everyday washing e.g. sheets, towels, T-shirts. (refer to page14)

Jean Wash

Use this Program for heavily soiled durable garments e.g. overalls, jeans.

Thick and heavy clothes or those which are excessively dirty like jeans or working uniforms can be washed. (refer to page14)

Wool Wash

Delicate clothes (lingerie, wool, etc.) which may be easily damaged can be washed. (refer to page14)

The fibers of machine washable woolens have been specifically modified to prevent felting when they are machine washed.

Most handknitted garments are not made of machine washable wool and we recommend that you hand wash them

- Before washing your woolens check the care label for the washing instructions.

- When washing woolens use a mild detergent recommended for washing wool.

- Hand washed woolens may be spun in a washing machine to reduce the time they take to dry.

• To dry woolens lay down them flat on a towel and pat into shape. Dry woolens out of direct sunlight. (The heat and tumble action of a dryer may cause shrinkage or felting of woolen garments.)

Some wool underlays and sheepskin products can be washed in a washing machine but may cause pump blockages. (Ensure that the whole article is suitable for machine washing and not just the backing material.) You may wish to handwash these articles and place them in the machine to spin dry.

reparation Before Washing

Care Labels

* Look for a care label on your clothes. This will tell you about the fabric content of your garment and how it should be washed.

Sort clothes into loads that can be washed with the same wash cycle, water temperature and spin speed.

Sorting

To get the best results, different fabrics need to be washed in different ways.

• SOIL (Heavy, Normal, Light)

Separate clothes according to the type and amount of soil.

• COLOR (Whites, Lights, Darks)

Separate white fabrics from colored fabrics.

• LINT (Lint producers, Collectors)

Separate lint producers and lint collectors.

Lint Producers

Terry cloth, Chenile, Towels, Nappies, Diapers

Lint Collectors

Synthetics, Corduroy, Permanent Press, Socks

Check before Loading

- Check all pockets to make sure that they are empty. Things such as nails, hairclips, matches,

pens, coins, and keys can damage both your washer and your clothes.

- Mend any torn garments or loose buttons. Tears or holes may become larger during washing.

- Remove belts, underwires, etc. to prevent damage to the machine or your clothes.

• Pretreat any dirt and stains.

• Make sure the clothes are washable in water.

- Check the washing instructions.

- Remove tissue in pockets.

Pretreatment on stains or heavy soil

- Pretreat shirt collars and cuffs with a pre-wash product or liquid detergent when placing them in the washer.

Before washing treat special stains with bar soaps, liquid detergent or a paste of water and granular detergent.

- Use a pretreat soil and stain remover.

Treat stains AS SOON AS POSSIBLE. The longer they are left the harder they are to remove.

(For more detail refer to page11)

Loading

se of Water, Detergent, Bleach and Softener

Using Water

Amount of Water Level

- This machine detects the quantity of laundry automatically, then sets the water level and proper amount of detergent.

- When you select a wash program, the water level and amount of detergent (to be used) will be shown on the control panel.

• The following table shows the amount of water.

- When the water level is automatically detected, it may differ depending on the quantity of laundry even though the same water level is indicated on the control panel.

- The amount of a cup in the diagram is about 40g for concentrated detergent.

NOTE

[ Minimum water amount ]

It depends on laundry load and washer model. Or manually you can pour a certain amount water into tub directly to some height. That's because if water level reaches to the some height sensed by washer itself, washer automatically operates. In other words, it is needed to pour water to the point when washer starts operating.

Water temperature

• The machine sets the appropriate temperature automatically according to the wash program.
- You can change the water temperature by pressing the WATER TEMP. button, (refer to page 12)
- The temperature of the water impacts the effectiveness of all laundry additives and therefore, the cleaning results. We recommend temperatures of:

• HOT 49\~60°C...(120-140°F) White items, diapers, underclothing and heavily soiled, colorfast items.
• WARM 29\~40°C...(85-105°F) Most items
• COLD* 18\~24°C...(65-75°F) Only very bright colors with light soil.

- When washing in cold water additional steps may be needed;

• Adjust detergent amount and pre-dissolve detergent in warm water
• Pretreat spots and stains
• Soak heavily soiled items
• Use appropriate bleach

* Temperature below 18°C...(65°F) will not activate laundry additives and may cause lint, residue, poor cleaning, etc.

Using Detergent

How much detergent

When you select a wash program the water level and the amount of detergent (to be used) will be shown on the control panel. The amount of a cup in the diagram is about 40g for concentrated detergent.

The correct amount of detergent will vary depending on the amount of soil in your clothes (Jeans and work clothes may need more detergent, while bath towels usually need less).

For liquid and concentrated detergents, follow the recommendations of the detergent manufacturer. Note: To check you are using the correct amount of detergent, lift the lid of your machine about half-way through the wash. There should be a thin layer of foam over the surface of the water. Lots of foam may look good, but it does not contribute to cleaning your clothes. No foam means not enough detergent has been used; soil and lint can settle back on the clothes or the washing machine.

If excess detergent is used, the rinse will not be as clean and efficient. Also, it could cause environmental pollution, so use it accordingly.

Adding the detergent

Open the detergent dispenser and deposit the appropriate amount of detergent

where you deposit the detergent

Powder Detergent dispenser.

Some detergents MUST be fully dissolved before adding to your machine to get the best wash results

Check the instructions on the detergent packet.

If you use powdered detergent it is essential that the required amount be fully dissolved in very hot water before being added to warm or hot water for the actual wash.

Pre-dissolving detergent in warm water when washing in cold water can improve its performance.

Powder Detergent Box

Using Liquid Bleach

se of Water, Detergent, Bleach and Softener

Using Fabric Softener

• Dilute fabric softener with water. Undiluted fabric softener may result in spots that look like oil stains.
• Measure and add the recommended amount of fabric softener into the compartment marked with this symbol( ). Follow manufacturer's direction.
  Fabric softener is automatically dispensed in the final rinse with indication beep.
  If you want extra rinse, you must add fabric softener manually when indication beep rings in the final rinse. This maximize the fabric softener function.
• Do not overfill. The dispenser hold max 35mL. Never add more than 35mL. Overfilling can cause early dispensing of the fabric softener which could result in stained clothes. A cup with a pouring spout will help you avoid spilling.
• The effect of adding fabric softener may vary according to its viscosity. The stickier fabric softener makes its effect the lower. For a sticky fabric softener it is recommended that it be diluted with water, then be manually put during the time when the washer beeps several times before the final rinse. This function informing correct time to dispense manually is optionally applied to some models. Please keep it in mind that fabric softener has to be diluted with water before dispensed and never poured directly on clothes.

Attention

■ Do not mix with detergent or bleach.
■ Never pour fabric softener directly on clothes. It may stain them.
■ Do not stop the washer during the first spin for timely dispensing.
■ Option washing is not designed to be used with fabric softener dispenser.

Scrud(Waxy Build up)

Scrud is the name given to the waxy build-up that can occur within any washer when the fabric softener comes into contact with detergent. This build-up is not brought about by a fault in the machine.

pecial Guide for Stain Removal

WARNING

■ Do not use or mix liquid chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acid or products containing ammonia. These mixtures can produce dangerous fumes which can cause serious injury or death.

■ To reduce the risk of fire or serious injury to persons or property, comply with the basic warnings listed below:

• Read and comply with all instructions on stain removal products.
• Keep stain removal products in their original labeled containers and out of children's reach.
  • Thoroughly wash any utensil used.
• Do not combine stain removal products, especially ammonia and chlorine bleach. Dangerous fumes may result.
• Never wash items which have been previously cleaned in, washed in, soaked in or spotted with gasoline, dry cleaning solvents
  or other flammable or explosive substances because they give off vapors that could ignite or explode.
• Never use highly flammable solvents, such as gasoline, inside the home. Vapors can explode on contact with flames or sparks.

For successful stain removal:

• Remove stains promptly.
• Determine the kind of stain, then follow the recommended treatment in the stain removal chart below.
• To pretreat stains, use a prewash product, liquid detergent, or a paste made from granular detergent and water.
• Use cold water on unknown stains because hot water can set stains.
• Check care label instructions for treatments to avoid on specific fabrics.
• Check for colorfastness by testing stain remover on an inside seam.
• Rinse and wash items after stain removal.

Follow fabric care label instructions

Stain Removal
STRAIN	TREATMENT
Adhesive tape, chewing gum, rubber cementBaby formula, dairy products, eggBeverages (coffee, tea, soda, juice, alcoholic beverages)Blood	Apply ice. Scrape off excess. Place stain face down on paper towels. Saturate with prewash stain remover or nonflammable dry cleaning fluid.Use product containing enzymes to pretreat or soak stains.Ripure with cold water. Rub with bar soap. Or pretreat or soak with product containing enzymes. Wash using bleach safe for fabric.
Candle wax, crayon	Scrape off surface wax. Place stain face down between paper towels. Press with warm iron until wax is absorbed.Replace paper towels frequently. Treat remaining stain with prewash stain remover or nonflammable dry cleaning fluid. Hand wash to remove solvent. Wash using bleach safe for fabric.
Chocolate	Pretreat or soak in warm water using product containing enzymes. Wash using bleach safe for fabric.
Collar or cuff soil, cosmetics	Pretreat with prewash stain remover or rub with bar soap.

unction of each Button

Water temperature button

- Use to select water temperature. Pressing the button allows you to select Cold → Warm (Hot&Cold) → Hot → Cold respectively. Default setting is Cold,

Water level button

(indication of detergent amount)

• Use to adjust the water level as required. The appropriate amount of detergent is shown next to the water level in the Water-Detergent diagram
• Water level is automatically selected for fuzzy (normal) program. The following settings are indicated as the button is pushed Large → Ex-Large → Small → Medium → Large

Water · Detergent Ex-Large Large Medium Small Warm □ Hot Cold WATER TEMP. WATER LEVEL Process button Child lock function

ashing Programs

Washing Programs		Add the laundry			Add the detergent
Fuzzy Washing(Normal Wash)Used for normal loads, this mode automatically selects the most appropriate conditions and completes the sequence in one operation. The built-in sensor detects the size of the load and the ideal wash power and wash, rinse and spin times are set accordingly
Economy WashUse this mode when washing lightly soiled clothes for a short time. The highly recommended laundry amount is under 2.0kg.
Jean WashUse lean program when washing jeans of different sizes
Wool WashUse this program for washing delicate fabrics such as tannate and wafers

	Close the lid	Finish	Caution & Note
The pulsator rotates for 8 seconds to detect the laundry load.Then the water level and the amount of detergent to be used will be shown and water will be supplied.	Water will be supplied for 2 minutes after the start of the wash to supplement the water the laundry has absorbed.	When the wash program ends, the buzzer will ring for 10 seconds before the Power goes off automatically.	If water is already in the tub, or putting wet laundry into the tub before starting will increase the water level.With lightweight bulky loads, water level can be set low.Changes to water temperature (hot/cold) and wash level are possible during operation.(refer to page 12)
			- When setting the water level manually, do not set to Medium to prevent damage to laundry.Washing with hot water may damage the

elay Start (Reservation) Wash

Delay Start (Reservation) Wash is used to delay the finishing time of the operation. The hours to be delayed can be set by the user accordingly. The time on the display is the finishing time, not the start time.

1 Press the POWER button to turn power on.

2 Press the PROGRAM button to select the washing program.

3 Press the PROGRAM button and the START/PAUSE button simultaneously.

- Select the program for laundry on the Control panel. This program will not work in Wool Program.

• The time changes as following order. [6 → 9 → 15(6+9) → 6Hours].

4 Add the detergent. • The appropriate quantity of detergent marked next to the water level of Water-Detergent.

- The appropriate quantity of detergent marked next to the water level of Water-Detergent. When the lid is open the machine will not operate, and an alarm signal will remind you to close the lid

5 Add the laundry and press the START/PAUSE button.

* When you press the START/PAUSE button the light will blink.

6 Close the lid. • Water will be supplied for 2 minutes after the start of the week to supplement the water level, but checked

ption Washing

When you only need the Wash, Wash/Rinse or Rinse cycles, these can be set manually

1 Press the AUTO OFF (Power) button to turn power on.

2 'Wash₁, 'Wash+Rinse₁, 'Rinse₁, 'Rinse+Spin₁, 'Spin₁ only options

• Press the PROCESS button until above Option Washing light is on. (refer to p13)
• When you want to only drain, wait until the water in the washing tub drains completely and then, turn off the power.

3 Press the WATER LEVEL button, to control the water level according to the amount of laundry. If you do not choose anything, it is set the Large water level automatically. (refer to page 12)

4 Add the laundry into the washing tub.

5 Press the START/PAUSE button.

6 Add the detergent and close the lid.

ther Useful Functions

Child Lock Function

If you want to lock all the keys to prevent settings from being changed by a child, you can use the child lock option.

How to Lock

Press the POWER button.

- Turn Power on.

Press the START/PAUSE button to start washing.

• After all washing conditions are set according to the manual,

Press both the PROCESS button and the PROGRAM button simultaneously.

- During the wash program, all the buttons are locked until washing is completed or until the child-lock function is deactivated manually.

How to Unlock

If you want to unlock during wash, press both the PROCESS and the PROGRAM button simultaneously again.

Note

lacing and Leveling

Please ensure that transit restraint has been removed before operating your machine.

Place the machine on a flat and firm surface which allows proper clearance.

We suggest a minimum clearance of 2 cm to the right side and left sides of the machine for ease of installation.

At the rear, a minimum clearance of 10 cm is suggested.

Caution

If the washer is installed on a uneven, weak or tilted floor causing excessive vibration, spin failure error can happen to it.

It must be placed on a firm and level floor to prevent spin failure.

Check that the machine is level

Open the lid and look from above to see if it is same as shown.

Top view of the machine

Leveling the machine

Lift the front of the washing machine and twist the Adjustable Leg until the washing machine is

onnecting Water Supply Hose

Before connecting the Water Supply Hose to the water tap, check the hose type and then choose the correct instruction here under. Note that the Water Supply Hose supplied may vary from country to country. Make sure to connect the blue inlet hose to the cold water tap, and the orange inlet hose to the hot water tap.

Connecting Water Supply Hose to water tap

Normal Type

(Normal tap without thread & screw type inlet hose.)

Untighten the screw

Untighten the screw of the connector so that the tap can be placed in the middle.

Fixing the connector to the tap

Push the upper connector up till the rubber packing is in tight contact with the tap. Then tighten the 4 screws.

Attach the water supply hose securely to the connector

Push the water supply hose vertically upwards so that the rubber seal within the hose can adhere completely to the tap.

Fixing the connector to the water supply hose

Normal Type

(Normal tap without thread & one touch type inlet hose.)

1

Separate Middle connector from Water Supply Hose

Separate Middle connector from the Water Supply Hose by pulling the Pressing Rod and the Pressing Handle that is attached to the Water Supply Hose.

Middle connector

Fixed Sticker Pressing Handle Pressing Rod

Water Supply Hose

2

Loosen the fixed nuts to connect the connector to the tap

Untighten the screw of the connector so that the tap can be placed in the middle.

Rubber packing screw Fixed sticker

Note

In case tap is too large. If the tap diameter is too large or is square, untighten the 4 screws and remove the guide plate. Then follow step1.

Guide plate

Rubber packing

3

Fixing Connectors to the Tap Push the upper connector up till the rubber packing is in tight contact with the tap. Then tighten the 4 screws.

4

Fixing Upper Connector and Middle Connector

Remove the fixed sticker in between the Upper and Middle Connectors. Tighten the connectors by holding one connector and twist middle connector to the right.

Connecto

五

Connecting Middle Connector and Water Supply Hoco

connecting Water Supply Hose

Screw Type

1 Attach the water supply hose to the tap.

Push the water supply hose up so that the rubber packing within the hose can adhere completely to the tap.

2 Connect the water supply hose to the tap.

Connect the water supply hose to the tap and then tighten it by screwing it to the right.

3 Check water leakage.

After connecting the hose, open the tap to check for any water leakage.

Connecting Water Supply Hose to the machine

- Connect the water supply hose to inlet valve of the washing machine, and then lock it by turning the hose connecting part.

onnecting Drain Hose

Before connecting Drain Hose, check your Drain Hose model and choose the correct instructions.

Pump Model

Fit the end of the drain hose to the outlet of the drain pump and tighten the clamp.

Put the other end of the drain hose over the standpipe or wash tub.

Hose Guide Within 50 mm 0.9~1.2 m Drain Hose

Note

• To prevent siphoning, the drain hose should not extend more than 50 mm from the end of the hose guide.
• The discharge height should be approximately 0.9 \~ 1.2 m from the floor.

Non-Pump Model

Before connecting

Encures that the hava alix is not an indicated hava

rounding Method

Earth wire should be connected.

If the earth wire is not connected, there is possible a danger of electric shock caused by the current leakage.

Grounding Method with Ground insert space Terminal

If the AC current outlet has a ground terminal, then separate grounding is not required. Note that AC power outlet configurations may differ from country to country

Ground Terminal Outlet with ground terminal.

Other Grounding Method

Burying Copper Plate

Connect the Ground Wire to a Ground Copper Plate and bury it more than 75cm in the ground.

Ground Wire 75cm Ground Copper Plate

Using Ground Wire

Connect the ground Wire to the socket provided exclusively for Grounding.

Using a Short Circuit Breaker

leaning

When water supply into the tub is not clean or the filter is clogged with particles (such as sand), clean the filter in the inlet valve occasionally.

(The figure of power cord and water tap may vary according to the country)

To Clean the Filter in the Inlet Valve

Close the tap before turning off the power. Select both hot/cold and then press the [START/PAUSE] button to remove water from the machine completely.

Turn off the power before pulling out the cord.

After removing the water supply hose pull out the filter. Then use a brush to clean the filter.

Replace the filter after cleaning it.

Caution

Before cleaning the filter, the impurities in the water supply hose should be removed.

To Clean the Lint Filter

Pull out the lint filter from the tub in the direction shown below.

Turn the net inside out to clean the filter and rinse it with water.

Replace- the filter to the original location. Push the lip of the filter until a pop sound is heard.

Note

If the lint filter is torn or damaged, purchase a new one from LG service center.

Cleaning and Maintenance

When there is a fear of freezing

• Close the water taps and remove the Water Supply Hose.
• Remove the water which remains in the water supply.
• Lower the drain hose and drain the water in the bowl and the drain hose by spinning.

If frozen

• Remove the water supply hose, and immerse it in hot water at approx.. 40°C.
• Pour approx.. 2 liters of hot water at approx.. 40^ , into the bowl and let it stand for 10 minutes.
• Connect the water supply hose to the water tap and confirm that the washing machine performs the supply and drainage of water.

Wash Inner-tub Leave the lid open after washing to allow moisture to evaporate. If you want to clean the inner-tub use a clean soft cloth dampened with liquid detergent, then rinse. (Do not use harsh or gritty cleaners.)

Inlet Hoses Hoses connecting washer to faucet should be replaced every 5 years.

Exterior Immediately wipe off any spills. Wipe with damp cloth. Try not to hit surface with sharp objects.

Long Vacations Be sure water supply is shut off at faucets. Drain all water from hoses if weather will be below freezing.

Cleaning the Inside of your Washer

If you use fabric softener or do regular cold water washing, it is very important that you occasionally clean the inside of your washer.

• Fill your washer with hot water.
- Add about two cups of a powdered detergent that contains phosphate,
- Let it operate for several minutes.

0.4.1.2.3.4.5.6.7.8.9.10.11.12.13.14.

ommon washing problems

Many washing problems involve poor soil & stain removal, residues of lint and scum, and fabric damage. For satisfactory washing results, follow these instructions.

WASH PROBLEM

Problems	Possible Causes	Solutions & Preventive Measures
Poor soil removal	Not enough detergentWash water temperature too low.Overloading the washerIncorrect wash cycleIncorrect sortingDo not pretreat stain	Use correct amount of detergent for load size, amount of soil and water hardness.Use warm or hot water for normal soil.Different water temperature may be required according to soil type. (refer to page 8).Reduce load size.Wash with Jean or Speedy Soak & Jean wash cycle for heavy soiled laundry.Separate heavily soiled items from lightly soiled ones.Pretreat stain and heavy soil according to directions shown on page 7.
Blue Stains	Undiluted fabric softener dispensed directly onto fabric	Rub the stain with bar soap. Wash.Do not overfill fabric softener dispenser and do not pour liquid fabric softener directly onto fabric.See page 10 for more instructions.
Black or gray marks on clothes	A buildup caused by the interaction of fabric softener and detergent can flake off and mark clothesNot enough detergent	Keep the recommendations against Scrud(waxy buildup). (refer to scrud page10.)Use correct amount of detergent for load size, amount of soil and water hardness.
Yellow or brown rust stains	Iron or manganese in water supply, water pipes, or water heater	To restore discolored load of whites, use rust remover safe for fabric.Install nonprecipitating water softener or an iron filter in your water supply system for an ongoing problem.Before washing, run water for a few minutes to clear lines.
Lint	Incorrect sortingTissues loft in pocketOverloading the washer	Wash lint givers eg towels, flannelette sheets, separately from lint collectors eg synthetic fabrics and remove tissues in pockets before wash. See page 7 for sorting and curing

Troubleshooting

Before calling for service, check the problem against the list bellows.

Symptom	Error Message	Check up
Water Supply Failure	Speedy SoakWashRinseSpin	• Is the water tap shut off?• Is the water supply cut off ?• Is the tap or water supply hose frozen ?• Is the water pressure low or is the filter of the inlet valve clogged with impurities?• Is the Hot hose connected to cold?• Is the Cold hose connected to Hot?
Drainage Failure	Speedy SoakWashRinseSpin	• Is the drain hose positioned correctly?• Is the drain hose bent or placed too high?• Is the internal part of the hose or drain pump (only pump model) clogged with impurities?• Check if electric power has gone off.
Spin Failure	Speedy SoakWashRinseSpin	• Is the laundry evenly balanced?• Is the washing machine placed on a flat surface?
Door(Lid) Open	Speedy SoakWashRinseSpin	• Is the lid closed?

erms of Warranty

What Is Not Covered:

• Service trips to your home to teach you how to use the product.
- If the product is connected to any voltage other than that shown on the rating plate.
- If the fault is caused by accident, neglect, misuse or Act of God.
- If the fault is caused by factors other than normal domestic use or use in accordance with the owner's manual.
- Provide instruction on use of product or change the set-up of the product.
- If the fault is caused by pests for example, rats or cockroaches etc..
- Noise or vibration that is considered normal for example water drain sound, spin sound, or warming beeps.
- Correcting the installation for example, levelling the product, adjustment of drain.
- Normal maintenance which recommended by the owner's manual.
- Removal of foreign objects / substances from the machine, including the pump and inlet hose filter for example, grit, nails, bra wires, buttons etc.
- Replace fuses in or correct house wiring or correct house plumbing.
• Correction of unauthorized repairs.
- Incidental or consequential damage to personal property caused by possible defects with this appliance.
- If this product is used for commercial purpose, it is not warranted.
(Example: Public places such as public bathroom, lodging house, training center, dormitory)

If the product is installed outside the normal service area, any cost of transportation involved in the repair of the product, or the replacement of a defective part, shall be borne by the owner.

Specification

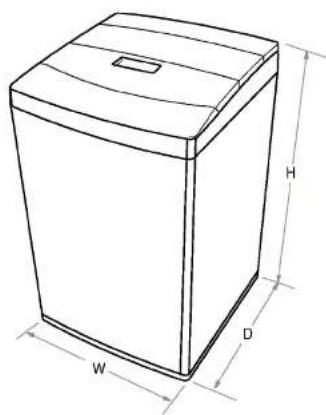

Line drawing of a rectangular box with labeled dimensions (W, D, H) and a top handle (no text or symbols beyond labels)

Model	WF-F5605PP/S5605PH/S5600PP/S5605PPZ/S5605PHZ/LWD-5605P
Size	540 W x 540(D)x850(H)
Water tab pressure	30 - 800 kPa (0.3 - 8 kgf /cm2)

LG Electronics Inc.
