USER MANUAL WT-R1171TPS LG

Please read this manual carefully before operating your washing machine.

Retain it for future reference.

Record model name and serial number of the washing machine.

Quote this information to your dealer if you require service.

roduct Features

The Turbo Drum DD washing machine does not operate with the lid open. If the lid is opened during wash, rinse and spin cycles, the machine will stop automatically.

Fuzzy Logic Control

● A built-in load sensor automatically detects and measures the laundry load and a microprocessor optimizes washing conditions such as ideal water consumption and washing time.
● Advanced technology is built into the Electronic Control System which ensures the best washing result.

Turbo Drum DD washing

Drum Rotate

Penetration wash from centrifugal wash

Drum rotates at high speed

Stains are removed by penetrating water from centrifugal force

Water pours down and circulates

Low Noise Direct Drive System

ontents

Read this manual

Inside you will find many helpful hints on how to use and maintain your washer properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your washer. You will find many answers to common problems in the Troubleshooting section. If you review our chart of Troubleshooting Tips first, you may not need to call for service at all.

Introduction	Important Safety Information	4
	Identification of Parts	5
Before Starting to Wash	Preparation Before Washing	6
	Water Level Temperature	7
	Use of Detergent, Bleach and Softener	8
	Function of each Button	10
Washing Programs	Delicate Wash	12
	Wool Wash	12
	Normal wash	12
	Speedy Wash	12
	Jean Wash	12
	Soak Wash	12
Additional Function Options	Option Washing Method	14
	Delay Start Wash	15
	Other Useful Functions	16

important Safety Information

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING! For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

WATER HEATER SAFETY

Under certain conditions hydrogen gas may be produced in a water heater that has not been used for two weeks or more. Hydrogen gas can be explosive under these circumstances.

If the hot water has not been used for two weeks or more, prevent the possibility of damage or injury by turning on all hot water faucets and allowing them to run for several minutes. Do this before using any electrical appliance which is connected to the hot water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or appliance during this process.

PROPER INSTALLATION

■ Install or store where it will not be exposed to temperatures below freezing or exposed to the
■ Properly ground washer to conform with all governing codes and ordinances.

■ The base opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.
■ The appliance must be positioned so that the plug is accessible.

YOUR LAUNDRY AREA

• Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags, chemicals, etc.

■ Close supervision is necessary if this appliance is used by or near children. Do not allow children to play on, with, or inside this or any other appliance.

- Keep the washing machine away from fire or heat source.

WHEN USING THE WASHER

■ Use this appliance only for its intended purpose as described in this Owner's Manual.
■ Never reach into washer while it is moving. Wait until the machine has completely stopped before opening the lid.
■ Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover. Mixing different chemicals can produce a toxic gas which may cause death.
■ Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) which may impede or explode. Do not add these substances to the

■ The laundry process can reduce the flame retardancy of fabrics. To avoid such a result, carefully follow the garment manufacturer's wash and care instructions.
■ To minimize the possibility of electric shock, unplug this appliance from the power supply or disconnect the washer at the household distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning.

NOTE Pressing Power button to turn off does NOT disconnect the appliance from the power supply.

■ Never attempt to operate this appliance if it is damaged, malfunctioning partially disaccomplant or has missing or

dentification of Parts

Body

• Water supply hose
- Feature Control panel
- Powder detergent Power bleach box/ Softener box
• Fully Stainless Steel Inner tub
- Multi Clean filter
- Adjustable leg

Illustration of a washing machine with internal components and piping (no text or symbols)

• Drain hose for pump model
• Power cord*
• Do not touch the power cord with wet hands
• If the power cord or fuse is damaged, it must be replaced by the manufacturer or its service agents or similarly qualified people in order to avoid a risk of fire or electric shock.
• Washing Wing * (unique with Inner Tub)

Accessories

Water supply hoses

Drain hose

reparation Before Washing

CARE LABELS.

* Look for a care label on your clothes. This will tell you about the fabric content of your garment and how it should be washed. Sort clothes into loads that can be washed with the same wash cycle, water temperature and spin speed.

SORTING

To get the best results, different fabrics need to be washed in different ways.

- SOIL (Heavy, Normal, Light) - COLOR (Whites, Lights, Darks) - LINT (Lint producers, Collectors)

Separate clothes according to the type and amount of Separate white fabrics from colored fabrics. Separate lint producers and lint collectors.

Lint Producers Lint Collectors

Terry cloth, Chenille, Towel, diaper Synthetics, Corduroy, Permanent Press, Socks

CHECK BEFORE LOADING

- Check all pockets to make sure that they are empty. Things such as nails, hairclips, matches, pens, coins and keys can damage both your washer and your clothes.

- Fasten zippers, hook and strings to make sure that these items don't snag on other clothes.

- Mend any torn garments or loose buttons. Tears or holes may become larger during washing.

- Remove any loose brassiere wires as they can damage your washer and clothes.

- Pretreat any dirt and stains.

• Make sure the clothes are washable in water.

- Check the washing instructions on your clothes.

LOADING

Do not wash fabrics containing flammable materials (waxes, cleaning fluids, etc.).

Load Size

The water level should just cover the clothes. Adjust the load size accordingly. Loosely load clothes no higher than the

ater Level Temperature

WATER LEVEL

• This machine detects the quantity of laundry automatically, then sets the water level and proper amount of detergent.
• When you select a wash program, the water level and amount of detergent (to be used) will be shown on the control panel.
• When the water level is automatically detected, it may differ depending on the quantity of laundry even though the same water level is indicated on the control panel.

Note

• When a Wash, Wash/Rinse or Rinse only option is selected, after the wash is completed the water will not be drained off.
• If you wish to drain the water, press the SPIN button and wait until the water in the tub has drained completely. Then press the START/PAUSE button.
• If you do not specify the water level, then Medium will be automatically selected.
• If Rinse only is selected, the process will start from Water Supply.
  • The washing machine may occasionally add water while pulsator is rotating. This is to maintain the water level due to the release of air trapped in the garments.

WATER TEMPERATURE

- You can change the water temperature by pressing the WATER TEMP button. (Option depending on model).

The temperature of the water impacts the effectiveness of all laundry additives and therefore, the cleaning results. We recommend temperatures of:

HOT 50\~60°C(120\~140°F)

White items, diapers, underclothing and heavily soiled, colorfast items.

WARM 30\~40°C(85\~105°F)

Most items.

COLD * 18\~24°C(65\~75°F)

se of Detergent

CHOOSING THE RIGHT DETERGENT

- We recommend the use of domestic detergent, (powder, liquid or concentrated), Soap flakes or granulated soap powders should not be used in your washing machine. When washing woolens remember to use a detergent suitable for washing woolens.

AMOUNT OF DETERGENT

Follow the detergent package directions. Using too little detergent is a common cause of laundry problems. Use more detergent if you have hard water, large loads, greasy or oily soils or lower water temperature.

The correct amount of detergent will vary depending on the amount of soil in your clothes (Jeans and work clothes may need more detergent, while bath towels usually need less).

For liquid and concentrated detergents, follow the recommendations of the detergent manufacturer.

Note

To check you are using the correct amount of detergent, lift the lid of your machine about half-way through the wash. There should be a thin layer of foam over the surface of the water. Lots of foam may look good, but it does not contribute to cleaning your clothes. No foam means not enough detergent has been used; soil and lint can settle back on the clothes or the washing machine.

Attention

If excessive detergent is used, the rinse will not be as clean and efficient. Also, it could cause environmental pollution, so use it accordingly.

ADDING THE DETERGENT

- Some detergents MUST be fully dissolved before adding to your machine to get the best wash

Use of Softener and Bleach

Using Softener

AVAILABLE FABRIC SOFTENER TYPE

• Do not use concentrated fabric softener. This may cause some problems in automatic dispensing.
• For more details refer to the softener products instructions for use.

DEPOSITING FABRIC SOFTENER

• Don't use softener with detergent. Use softener in last rinse water
• When using dispenser, dilute softener(30ml) with fresh water(30ml)
• When filling dispenser, do not splash or overfill. It may stain clothes.
• Never pour fabric softener directly on clothes. It may stain them
• If spotting occurs, wet and hand rub dishwashing liquid (or mild bar soap) and rewash.

- If the softener is over filled, it can overflow

Note

Fabric Softener will be dispensed automatically during the final rinse.

Using Bleach Check fabric care labels for special instructions.

AVAILABLE BLEACH TYPE

• Use oxygenated bleach.
• Do not use liquid bleach.
• For more details refer to the products instruction for use.

DEPOSITING BLEACH

unction of each Button
Available all cycle
Available during washing.]
    C["Water levels"] --> D["Use to select water levels.<br>Available during washing.<br>For appropriate quantity of detergent follow the detergent manufacturer's instruction."]
    E["Display Wash Process"] --> F["On : will do<br>Blink : doing<br>Off : Done"]
    G["Silent"] --> H["Use it at night to wash quietly.<br>When selected &quot;Silent&quot; lights are on and the other cycle's light are all off."]
    I["Display Wash Process"] --> J["STAIN LEVEL 21 15 10 5 MINI 4 3 2 1 (MINI) 7 5 3 1 MAX 60%"]
    J --> K["WASH"]
    K --> L["RINSE"]
    L --> M["7 5 3 1 MAX"]

Motor Speed Indicator • The light circulates according to motor speed. Display Delay Time, • Used to indicate the time left of all processes or delay. • In case of abnormal operation the following indications are displayed - PE : Abnormal water sensor (No Sensing Water Levels) - CE : Overload - LE : Abnormal motor (No Spin) - UE : Unbalanced load Start Pause Button • Use it to start or pause. By pressing the button [Start▶Pause] are repeated. Abnormal Operation Display • In case of abnormal operation problem will be light and a buzzer will sound. Power • Use it to turn on and off. By pressing the button [On ▶ Off] are repeated. • Electrical power automatically turns off 10sec, after the washing cycle finishes with "boo~" sound. • Electric power automatically turn off after 10min, in 'Pause' condition.

Washing Programs

Washing Programs	[CCAS]	Add the laundry	PROGVN	(H748)
DELICATE WashUse this program for washing delicate fabrics such as lingerie.Before washing your woolens check the care label for the washing instructions.(wash only "water washable" clothes)			Select the DELICATE program on the Control panel.
WOOLUse this program for washing woolens.(wash only "water washable" clothes)			Select the WOOL program on the Control panel.
Normal WashingUsed for normal loads, this mode automatically selects the most appropriate conditions and completes the sequence in one operation. The built-in sensor detects the size of the load and the ideal wash power and wash, rinse and spin times are set accordingly
SPEEDYUse this mode when washing lightly soiled clothes for a short time.			Select the SPEEDY program on the Control panel.

Add the detergent	Close the lid	Finish	Caution & Note
		- When the wash program ends, the buzzer will ring for 10 seconds before the Power goes off automatically.	- When setting the water level manually, do not set to MEDIUM to prevent damage to laundry.- Washing with hot water may damage the laundry (Water is set to cold automatically). Ensure that the load is under 2.5kg.- In order to avoid damage to laundry, the spin cycle may appear slow.This also avoids wrinkles and clothing may still contain some water. This is normal.- Sock Wash cannot be selected for the Wool and Delicate Wash program.

ption Washing Method

			-SeIendesgoum.	[XY8B]	By pressing button
Wash only			[S78B]	-Close the lid Press Start/ Pause button.
			[B32H]
Rinse only			[56K]	[IMAGE]-Close the lid Press Start/ Pause button.
Spin only			[215B]		(STCK)

elay Start Wash

Delay Start (Reservation) Wash is used to delay the finishing time of the operation.

The hours to be delayed can be set by the user accordingly.

The time on the display is the finishing time, not the start time.

1

Press the POWER button to turn power on.

2

Press the PROGRAM button to select the washing program.

- Select the program for laundry on the Control panel.

This method will not work in Wool Delicate Program.

3

Press the DELAY button to set the time when the delayed washing is to be completed.

• The time changes 3\~24 hours.

- The time on the display is the finishing time, not the start time.

4

Add the detergent.

• The appropriate quantity of detergent marked next to the water level of WATER-DETERGENT.

- When the lid is open the machine will not operate, and an alarm signal will remind you to close the lid

5

Add the laundry and press the START/PAUSE button.

* When you press the START/PAUSE button the light will blink.

6

Close the lid.

• Water will be supplied for 2 minutes after the start of the wash to supplement the water the laundry has absorbed.

r••1

ther Useful Functions

Child Lock Function

If you want to lock all the keys to prevent all settings from being changed by a child, you can use the child lock option.

How to Lock

1 Press the POWER button.

• Turn Power on.

2 Press the START/PAUSE button to start washing.

• After all washing conditions are set according to the manual.

3 Press both the RINSE button and the SPIN button simultaneously.

- During the wash program, all the buttons are locked until washing is completed or until the child-lock function is deactivated manually.

How to Unlock

If you want to unlock during wash, press both the RINSE and the SPIN button simultaneously again.

Note

Placing and Leveling

Please ensure that transit restraint has been removed before operating your machine.

1 Place the machine on a flat and firm surface which allows proper clearance.

We suggest a minimum clearance of 2cm right side and left sides of the machine for ease of installation.

At the rear, a minimum clearance of 10cm is suggested.

2 Check that the machine is level

Open the lid and look from above to see if the drum sits as shown.

Top view of the machine

©

©

3 Leveling the machine

Connecting Water Supply Hose to water tap

connecting Water Supply Hose

• Before connecting the Water Supply Hose to the water tap, check the hose type and then choose the correct instruction.
  Note that the Water Supply Hose supplied may vary from country to country, Make sure to connect the blue inlet hose to the cold water tap, and the orange inlet hose to the hot water tap.
• Washing machine is to be connected to the water mains using new hose sets and that old hose sets should not be reused.

Normal Type

(Normal tap without thread & screw type inlet hose.)

Untighten the screw (option)

Untighten the screw of the connector so that the tap can be placed in the middle.

Fixing the connector to the tap (option)

Push the upper connector up till the rubber packing is in tight contact with the tap. Then tighten the 4 screws.

Attach the water supply hose ensuring it connects securely to the connector or the water tap

Push the water supply hose vertically upwards so that the rubber seal within the hose can adhere completely to the tap.

Tighten the connection between the water supply hose

Attach the water supply hose to the connector and then tighten it by screwing it to the right.

Check the connection of water supply hose and the connector

onnecting Drain Hose

Before connecting Drain Hose, check your Drain Hose model and choose the correct instructions.

Pump Model

Fit the machine end of the drain hose to the outlet of the drain pump and tighten the clamp.

Put the other end of the drain hose over the standpipe or wash tub,

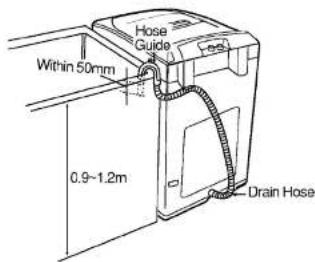

Hose Guide Within 50mm 0.9~1.2m Drain Hose

Note

• To prevent siphoning, the drain hose should not extend more than 50mm from the end of the hose guide.
  • The discharge height should be approximately 0.9 \~ 1.2m from the floor.

rounding Method

Earth wire should be connected.

If the earth wire is not connected, there is possible a danger of electric shock caused by the current leakage.

Grounding Instructions

This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinance.

Grounding Instruction with Ground insert space Terminal

If the AC current outlet has a ground terminal, then separate grounding is not required. Note that AC power outlet configurations may differ from country to country

Caution

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

Other Grounding Instructions

Burying Copper Plate

Connect the Ground Wire to a Ground Copper Plate and bury it more than 75cm in the ground.

Using Ground Wire

Connect the around Wire to the socket provided

Cleaning

To Clean the Filter in the Inlet Valve

When water supply into the tub is not clean or the filter is clogged with particles(Such as sand), clean the filter in the inlet valve occasionally.(The figure of power cord and water tap may vary according to the country)

1 Close the tap before turning off the power. Select both hot/cold and then press [START/PAUSE] button to remove water from the machine completely

2 Turn off the power before pulling out the cord.

3 After removing the water supply hose pull out the filter. Then use a brush to clean the filter.

4 Replace the filter after cleaning it.

Caution

- Before cleaning the filter, the impurities in the water supply hose should be removed.

How to clean Multi clean Filter

1 Push the upper part of multi-clean filter down and pull forward.

2 Open the lid and remove lint and then wash out.

3 Close the lid and at first get it back to tub. First insert the lower part of filter to washer tub and pull it down until a click sounds.

- Without multi clean filter, laundry may get damaged.

■ Clean multi clean filter as often as possible.( Foreign objects accumulation may cause smell and filtering performance will be worsened.
■ In order to reduce lint generation,
- laundry which creates lint easily should get turned inside out.
- Wash load sorted by color.

Cleaning

WHEN THERE IS A FEAR OF FREEZING

1 Close the water taps and remove the water supply hose.
2 Remove the water which remains in the water supply.
3 Lower the drain hose and drain the water in the bowl and the drain hose by spinning.

IF FROZEN

Remove the water supply hose, and immerse it in hot water at approx.. 40 °C.
Pour approx.. 2 litres of hot water at approx.. 40 °C, into the bowl and let it stand for 10 minutes.
3 Connect the water supply hose to the water tap and confirm that the washing machine performs the supply and drainage of water.

Wash Inner-tub Leave the lid open after washing to allow moisture to evaporate. If you want to clean the inner-tub use a clean soft cloth dampened with liquid detergent, then rinse. (Do not use harsh or gritty cleaners.)

Inlet Hoses Hoses connecting washer to faucet should be replaced every 5 years.

Exterior Immediately wipe off any spills. Wipe with damp cloth. Try not to hit surface with sharp objects.

Long Vacations Be sure water supply is shut off at faucets. Drain all water from hoses if weather will be below freezing.

SCRUD

Scrud is the name given to the waxy build-up that can occur within any washer when the fabric softener comes into contact with detergent. This build-up is not brought about by a fault in the machine.

If scrud is allowed to build-up in the machine it can result in stains on your clothes or an unpleasant smell in your washer.

If you wish to use this affinity we recommend

roubleshooting

Look for your problem below, then check the things we suggest. More often than not, this will give you the answer to your problem. And you'll be able to carry on without having to telephone your service center.

WASH PROBLEM

Problem	Possible Causes	What To Do
Lint or residue on clothes	Incorrect sorting	Separate lint producers from lint collectors.
	Washing too long	Wash small loads for a shorter time than larger loads.
	Natural By-product When Washing Certain Items	Some lint is normal. Using the dryer should remove any lint not removed by the washer.
Detergent on clothes	Detergent not dissolving	Use warmer water temperature.Try pre-dissolving the detergent in warm waterTry a liquid detergent.
Black spots on clothes	Incorrect use of fabric softener	When filling dispenser, do not splash or overfill.Never pour fabric softener directly on clothes.Pre-treat stain and rewash.
	Dye transfer	Sort whites or lightly colored items from dark colors.- Wash and dry non-colorfast clothes separately
	Not enough detergent used	Using insufficient detergent for the amount of soil on the clothes, can result in black marks on clothes
	A buildup caused by the interaction of fabric softener and detergent can flake off and marks clothes.	Cleaning the inside of your washing machine
Fabric damage (Snaps, holes)	Pins, snaps, hooks, sharp buttons, belt	Fasten snaps, hooks, buttons, and zippers.Remove any loose brassiere wires.

roubleshooting

WASH PROBLEM

Problem	Possible Causes	What To Do
The laundry comes out dirty	Water temperature is too cold.	• Use warmer water temperature
	Water temperature is not correct	• Select the wash temperature according to soil type, • For example, blood and mud are better washed in cold water, while oily soils wash better in warmer water.
	Stain is not pre-treated	• Brush a little detergent dissolved in water onto stains like cellars and cuffs to help shift dirt. • Wash stains as soon as possible. The longer they are left the harder they are to remove.
	Washer is overloaded	• Wash smaller loods at a time.
	Incorrect sorting	• White clothes are better washed separately. Separate light and heavily soiled items, as clothes can pick up soil from dirty wash water. • Loads made up of articles of varying sizes will wash better (e.g, full loads of sheets may not wash that well).
	Insufficient detergent	• Not enough detergent for load size or amount of soil. Hard water requires more detergent than soft water.
Pilling	Result of normal wear on poly-cotton blends and fuzzy fabrics	• While this is not caused by the washer, you can slow the pilling process by washing garments inside out.

roubleshooting

Before calling for service check the problem against the list belows.

Symptom	Error Message	Check up
Water Supply Failure		• Is the water tap shut off?• Is the water supply cut off ?• Is the tap or water supply hose frozen ?• Is the water pressure low or is the filter of the inlet valve clogged with impurities?• Is Hot/Cold selected to Hot when the hose connected is Cold?• Is the Cold hose connected to Hot?
Drain/Spir		• Is the drain hose positioned correctly?• Is the drain hose bent or placed too high?• Is the internal part of the hose or drain pump (only pump model) clogged with impurities?• Is the laundry evenly balanced?• Is the washing machine placed on a flat surface?
Drain Failure		• Is the drain hose positioned correctly?• Is the drain hose bent or placed too high?• Is the internal part of the hose or drain pump (only pump model) clogged with impurities?
Spin Failure		• Is the laundry evenly balanced?• Is the washing machine placed on a flat surface?

Specification

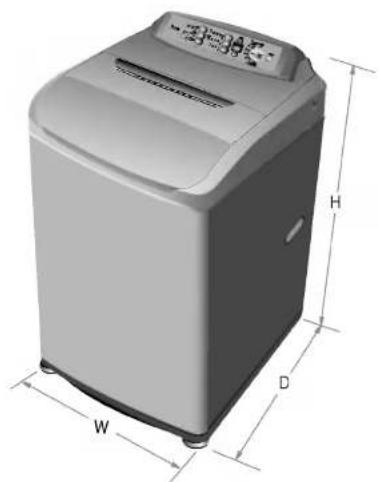

3D rendering of a gray washing machine with labeled dimensions (W, D, H) shown in both width and height indicators.

Model	WT-R1071TP/R1172TP	WT-R1371TP/R1372TP
Weight	48 kg	49 kg
Size	632(W) × 693(D) × 1039(H)
Water tab pressure	30 - 800kPa( 0.3 - 8.0kgf/cm^2)

17

التركيب والاستواء
