USER MANUAL J120VWWU SAMSUNG

seTTing up your washing

machine

11 Checking the parts

12 Meeting installation requirements

12 Flexible supply and grounding

12 Water Supply

13 Dan

13

13 Surrounding temperature

13 A close or closest insulation

13 Installing your washing machine

19 Washing for the first time

19Basicinstructions

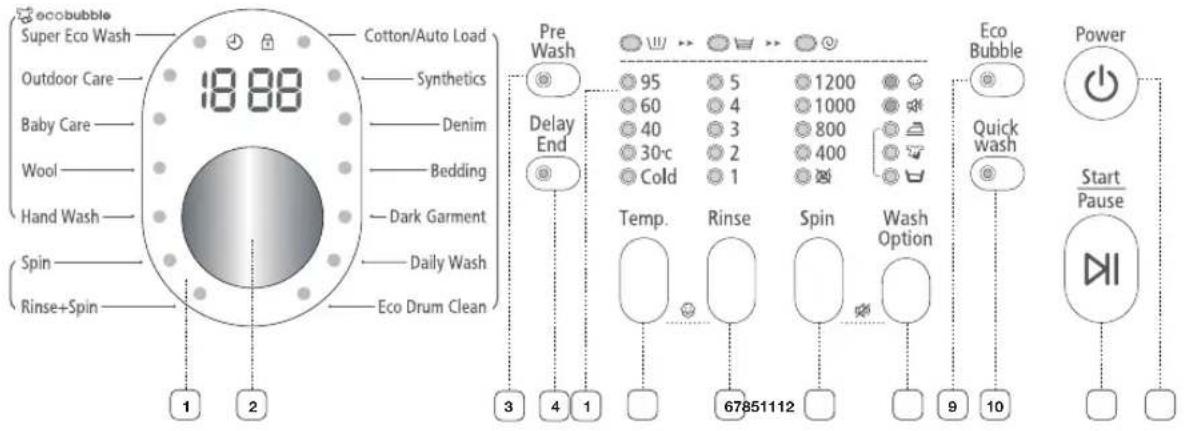

20 Using the control panel

23 Child box

23 Soundoff

23 [B8960]

24

25 Washing clothes using the cycle senator

26 washing clothes manually

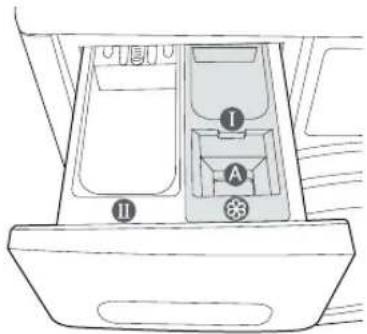

27 Detergent and additives information

27 which deement to use

28

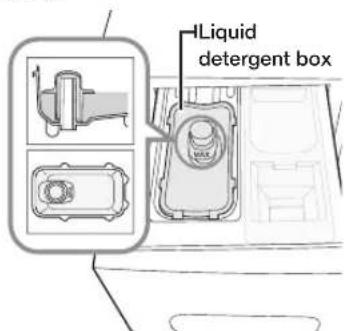

28 Liquid Deagen (Seated Models)

29 ECO DRUM CLEAN

30 Draining the washing machine in an emergency

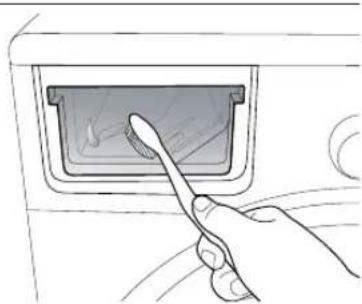

31 Clearing the detergent drawer and drawer

recess

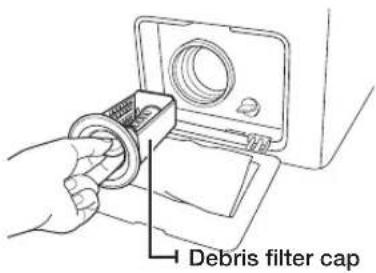

32 Cleaning the debris filter

32 Cleaning the exterior

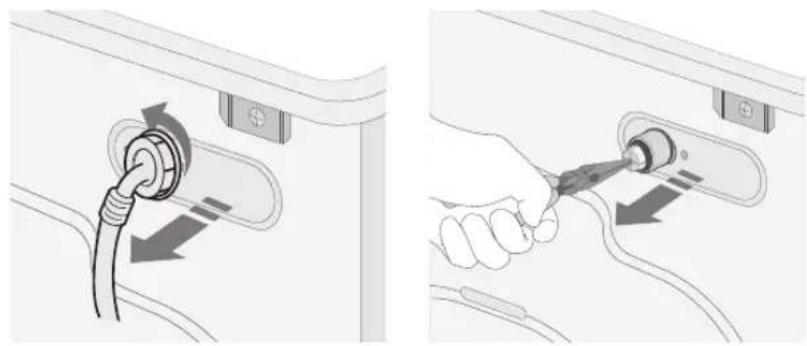

33 Cleaning the water hose mesh filter

33 Repairing a frozen washing machine

33 Storing your washing machine

34 Check these points if your washing machine...

35Informationcodes

safety information

Congratulations on your new Samsung ActivFresh™ washer. This manual contains important information on the installation, use and care of your appliance. Please take time to read this manual to take full advantage of your washer's many benefits and features.

WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS

Please read this manual thoroughly to ensure that you know how to safely and efficiently operate the extensive features and functions of your new appliance and retain it at a safe place near the appliance for your future reference. Use this appliance only for its intended purpose as described in this instruction manual.

Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your washer.

Because these following operating instructions cover various models, the characteristics of your washer may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service center or find help and information online at www.samsung.com.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

What the icons and signs in this user manual mean:

warning	Hazards or unsafe practices that may result in severe personal injury, death and/or property damage.
caution	Hazards or unsafe practices that may result in personal injury and/or property damage.
caution	To reduce the risk of fire, explosion, electric shock, or personal injury when using your washer, follow these basic safety precautions:
	Do NOT attempt.
	Do NOT disassemble.

safety information

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

Do not let children (or pets) play in or on your washing machine. The washing machine door does not open easily from the inside and children may be seriously injured if trapped inside.

This appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

For use in Europe: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

SeVere WarNiNG SiGNS for iNStallatioN

The installation of this appliance must be performed by a qualified technician or service company.

- Failure to do so may result in electric shock, fire, an explosion, problems with the product, or injury.

The appliance is heavy, take care upon lifting it

Plug the power cord into an AC 220V-240V/50Hz/15A wall socket or higher and use the socket for this appliance only. In addition, do not use an extension cord.

- Sharing a wall socket with other appliances using a power strip or extending the power cord may result in electric shock or fire.

- Ensure that the power voltage, frequency and current are the same as those of the product specifications. Failure to do so may result in electric shock or fire. Failure Plug the power plug into the wall socket firmly.

Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis.

- Unplug the power plug and clean it with a dry cloth. - Failure to do so may result in electric shock or fire.

Plug the power plug into the wall socket in the right direction so that the cord runs towards the floor.

- If you plug the power plug into the socket in the opposite direction, the electric wires within the cable may be damaged and this may result in electric shock or fire.

Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.

- If a child places a bag over its head, it may result in suffocation.

When the appliance or power plug or power cord is damaged, contact your nearest service contro.

This appliance must be properly grounded.

Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.

- This may result in electric shock, fire, an explosion, or problems with the product

- Never plug the power cord into a socket that is not grounded correctly and make sure that it is in accordance with local and national codes

safety information

Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.

This may result in electric shock or fire.

Do not pull the power cord, when unplugging the power plug.

- Unplug the power plug by holding the plug.

- Failure to do so may result in electric shock or fire.

Do not lay the power cord and tubes where you may fall over them.

CaUtioN SiGNS for iNStallatioN

This appliance should be positioned in such a way that it is accessible to the power plug. - Failure to do so may result in electric shock or fire due to electric leakage.

Install your appliance on a level and hard floor that can support its weight.

- Failure to do so may result in abnormal vibrations, moves, noise, or problems with the product.

SeVere WarNiNG SiGNS for USiNG

If the appliance is flooded, cut the water supply and power immediately and contact your nearest service centre.

- Do not touch the power plug with wet hands

- Failure to do so may cause electric shock

If the appliance generates a strange noise, a burning smell or smoke, unplug the power

plug immediately and contact your nearest service centre.

- Failure to do so may result in electric shock or fire.

In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power plug. Do not touch the appliance or power cord.

- Do not use a ventilating fan.

- A spark may result in an explosion or fire.

Do not let children play in or on the washer. In addition, when disposing of the appliance, remove the washer door lever.

Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or other flammable or explosive substances.

- This may result in electric shock, fire or an explosion.

Do not open the washer door by force while it is operating (high-temperature washing/drying/spinning).

- Water flowing out of the washer may result in burns or cause the floor to be slippery.

This may result in injury.

Opening the door by force may result in damage to the product or injury.

Do not insert your hand under the washer.

This may result in injury.

Do not touch the power plug with wet hands.

- This may result in electric shock.

Do not turn the appliance off by unplugging the power plug while an operation is in progress.

- Plugging the power plug into the wall socket again may cause a spark and result in electric shock or fire.

Do not let children or infirm persons use this washer unsupervised. Do not let children climb in the appliance

Failure to do so may result in electric shock, burns or injury.

Do not insert your hand or a metal object under the washer while it is operating.

- This may result in injury.

Do not unplug the appliance by pulling at the power cord, always grip plug firmly and pull straight out from the outlet.

- Damage to the cord may cause short-circuit, fire and/or electric shock

Do not attempt to repair, disassemble, or modify the appliance yourself.

Do not use any fuse(such as cooper, steel wire, etc.) other than the standard fuse.

- When repairing or reinstalling the appliance is required, contact your nearest service centre.

- Failure to do so may result in electric shock, fire, problems with the product, or injury.

safety information

CaUtioN SiGNS for USiNG

When the washer is contaminated by a foreign substance such as detergent, dirt, food waste, etc., unplug the power plug and clean the washer using a damp and soft cloth. - Failure to do so may result in discoloration, deformation, damage or rust.

The front glass may be broken by a strong impact. Take care when using the washer.

- When the glass is broken, it may result in injury.

After a water supply failure or when reconnecting the water supply hose, open the faucet slowly.

Open the faucet slowly after a long period of non-use.

- The air pressure in the water supply hose or the water pipe may result in damage to a part or in water leakage.

If a drain error occurs during an operation, check if there is a draining problem.

- If the washer is used when it is flooded because of a draining problem, it may result in electric shock or fire due to electric leakage.

Insert the laundry into the washer completely so that laundry does not get caught in the door.

- If laundry gets caught in the door, it may result in damage to the laundry or the washer, or result in water leakage.

Ensure that the faucet is turned off when the washer is not being used.

- Ensure that the screw on the water supply hose connector is properly tightened.

- Failure to do so may result in property damage or injury.

Check if the rubber seal is not contaminated by foreign substances (waste, thread, etc).

- If the door is not closed completely, it may result in water leakage.

Open the faucet and check if the water supply hose connector is firmly tightened and that there is no water leaking before using the product.

- If the screws or the water supply hose connector are loose, it may result in water leakage.

To reduce the risk of fire or explosion:

- Under certain conditions, hydrogen gas may be produced in a hot water system such as your hot water heater that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If your hot water system has not been used for two weeks or

Do not stand on top of the appliance or place objects (such as laundry, lightod candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.

- This may result in electric shock, fire, problems with the product, or injury.

Do not spray volatile material such as insecticide onto the surface of the appliance.

- As well as being harmful to humans, it may also result in electric shock, fire or problems with the product.

Do not place an object that generates a electromagnetic field near the washer.

- This may result in injury due to a malfunction.

Since the water drained during a high-temperature wash or drying cycle is hot, do not touch the water.

- This may result in bums or injury.

Do not wash, spin or dry water-proof seats, mats or clothing (*) unless your appliance has a special program for washing these items.

- Do not wash thick, hard mats even if the washer mark is on the care label.

- This may result in injury or damage to the washer, walls, floor or clothing due to abnormal vibrations.

* Woollen bedding, rain covers, fishing vests, ski pants, sleeping bags, diaper covers, sweat suits, and bicycle, motor cycle, car covers, etc.

Do not operate the washer when the detergent box is removed.

- This may result in electric shock or injury due to water leakage

Do not touch the inside of the tub during or just after drying as it is hot.

- This may result in bums.

Do not insert your hand into the detergent box after opening it.

- This may result in injury as your hand may be caught by the detergent input device. Do not place any objects (such as shoes, food waste, animals) other than laundry into the washer.

- This may result in damage to the washer, or injury and death in the case of pets due to the abnormal vibrations.

Do not press the buttons using sharp objects such as pins, knives, fingernails, etc.

- This may result in electric shock or injury.

Do not wash laundry contaminated by oils, creams or lotions usually found in skincare

safety information

Do not use natural hand-washing soap for the washer.

- If it hardens and accumulates inside the washer, it may result in problems with the product, discoloration, rust or bad odors.

Do not wash large laundry items such as bedding in the washing net.

- Place socks and brassieres into the washing net and wash them with the other laundry.

- Failure to do so may result in injury due to abnormal vibrations.

Do not use hardened detergent.

- If it accumulates inside the washer, it may result in water leakage.

For washing machines with ventilation openings in the base, ensure that the opening is not obstructed by carpet or any other obstacles.

Make sure that the pockets of all clothing to be washed are empty.

- Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause extensive damage to the appliance.

Do not wash clothing with large buckles, buttons, or other heavy metal.

SeVere WarNiNG SiGNS for CleaNiNG

Do not clean the appliance by spraying water directly onto it. Do not use the strong acid cleaning agent.

Do not use benzene, thinner or alcohol to clean the appliance.

- This may result in discoloration, deformation, damage, electric shock or fire.

Before cleaning or performing maintenance, unplug the appliance from the wall socket.

- Failure to do so may result in electric shock or fire.

setting up your washing machine

Be sure to have your installer follow these instructions closely so that your new washing machine works properly and so that you're not at risk of injury when doing laundry.

CHECKING THE PARTS

Carefully unpack your washing machine, and make sure you've received all of the parts shown below. If your washing machine was damaged during shipping, or if you do not have all of the parts, contact Samsung Customer Service or your Samsung dealer.

Release lever Detergent drawer Control panel Door Adjustable feet Tub Work top Plug Drain hose Debris filter Emergency drain tube

setting up your washing machine

MEETING INSTALLATION REQUIREMENTS

Electrical supply and grounding

To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No. 70 Latest Revision and local codes and ordinances. It is the personal responsibility of the appliance owner to provide adequate electrical service for this appliance.

Never use an extension cord.

WARNING Use only the power cord that comes with your washing machine.

When preparing for installation, ensure that your power supply offers:

• 220V-240V 50Hz 15 AMP fuse or circuit breaker

• Individual branch circuit serving only your washing machine

Your washing machine must be grounded. If your washing machine malfunctions or breaks down, grounding will reduce the risk of electric shock by providing a path of least resistance for the electric current.

Your washing machine comes with a power cord having a three-prong grounding plug for use in a properly installed and grounded outlet.

Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.

Improperly connecting the equipment-grounding conductor can result electrical shock. Check with a qualified electrician or serviceman if you are unsure if the washing machine is properly grounded. Do not modify the plug provided with the washing machine. If it does not fit the outlet, have a proper outlet installed by a qualified electrician.

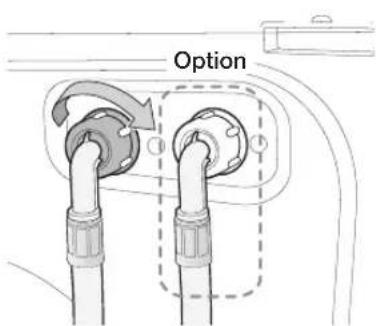

Water Supply

Your washing machine will fill properly when your water pressure is 50 kPa -- 800 kPa. Water pressure less than 50 kPa may cause water valve failure, not allowing the water valve to shut off completely. Or, it may take the washing machine longer to fill than what the controls allow, resulting in your washing machine turning off. (A fill-time limit, designed to prevent overflows/flooding if an internal hose becomes loose, is built into the controls.)

The water tank must be within 4 feet (100mm) of the book of your washing machine for the

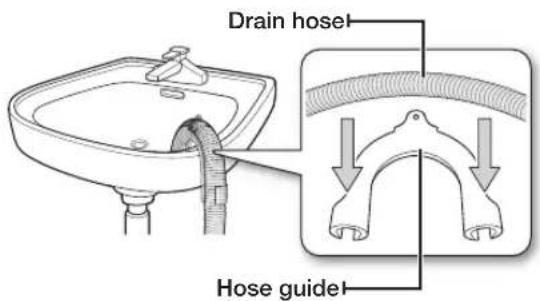

Drain

Samsung recommends a standpipe height of 65 cm. The drain hose must be routed through the drain hose clip to the standpipe. The standpipe must be large enough to accept the outside diameter of the drain hose. The drain hose is attached at the factory.

Flooring

For best performance, your washing machine must be installed on a solidly constructed floor. Wood floors may need to be reinforced to minimize vibration and/or unbalanced loads. Carpeting and soft tile surfaces are contributing factors to vibrations and the tendency for your washing machine to move slightly during the spin cycle.

Never install your washing machine on a platform or poorly supported structure.

Surrounding temperature

Do not install your washing machine in areas where water may freeze, since your washing machine always retains some water in its water valve, pump, and hose areas. Frozen water in the lines can cause damage to bolts, the pump, and other components.

Alcove or closet installation

To operate safely and properly, your new washing machine requires minimum clearances of:

Sides - 25 mm Rear - 51 mm

Top - 25 mm Front - 465 mm

If both the washing machine and a dryer are installed together, the front of the alcove or closet must have at least 465 mm unobstructed air opening. Your washing machine alone does not require a specific air opening.

INSTALLING YOUR WASHING MACHINE

sTep 1

Selecting a location

Before you install the washing machine, make sure the location:

- Has a hard, level surface without carpeting or flooring that may obstruct ventilation - Is away from direct sunlight

setting up your washing machine

sTep 2

Removing the shipping bolts

Before installing the washing machine, you must remove the five shipping bolts from the back of the unit.

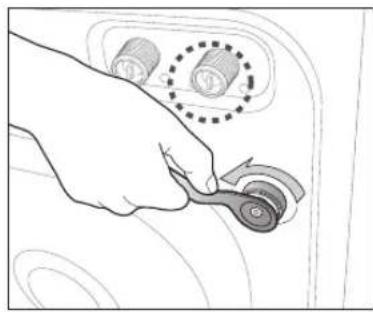

1. Loosen all the bolts with the supplied wrench.

Hand holding a rotary knob with three cylindrical components, no text or symbols visible

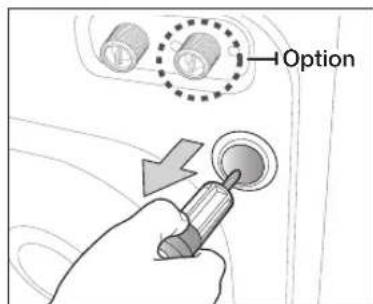

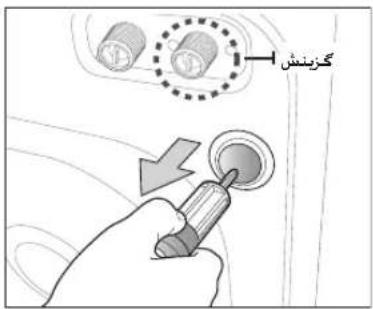

1. Hold the bolt with the spanner and pull it through the wide section of the hole. Repeat for each bolt.

Option

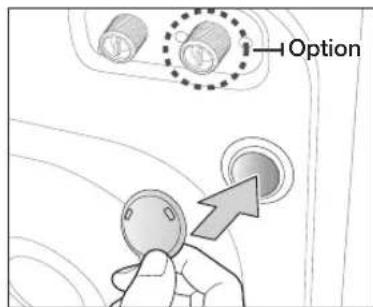

1. Fill the holes with the supplied plastic covers.

Option

1. Store the shipping bolts away safely in case you have to move the washing machine in the future.

Packaging materials can be dangerous to children; keep all packaging material (plastic bags, polystyrene, etc.) well out of the reach of children.

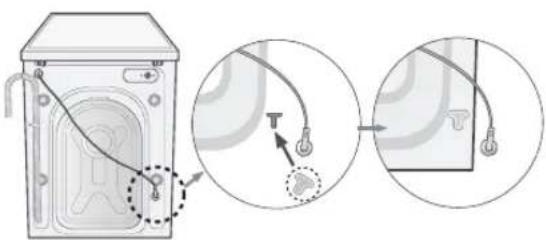

Insert the cap fixer, (one of the accessories in the vinyl pack), into the hole from which you removed the power cord at the back of the product.

Diagram showing a device with cable routing and a close-up of a component with a labeled part, likely illustrating a medical or electrical procedure.

sTep 3

Adjusting the levelling feet

When installing your washing machine, ensure that the power plug, the water supply and the drain are easily accessible.

1. Slide the washing machine into position.

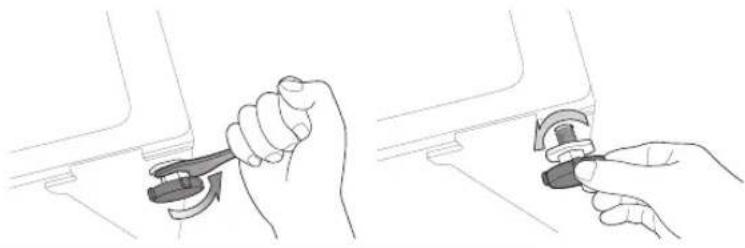

2. Level your washing machine by turning the leveling feet in and out as necessary by hand.

Line drawing showing two hands adjusting a tool on a mechanical component (no text or symbols)

1. When your washing machine is level, tighten the nuts using the wrench supplied with your washing machine.

Line drawing of a hand using a tool to adjust or install a component (no text or symbols present)

sTep 4

Connecting the water and drain

Connecting the water supply hose

1. Take the L-shaped arm fitting for the cold water supply hose and connect it to the cold water supply intake on the back of the machine. Tighten by hand.

The water supply hose must be connected to the washing machine at one end and to the water tap at the other. Do not stretch the water supply hose. If the hose is too short, replace the hose with a longer, high pressure hose.

1. Connect the other end of the cold water supply hose to your sink's cold water tap and tighten it by hand. If necessary, you can reposition the water supply hose at the washing machine end by loosening the fitting, rotating the hose, and retightening the fitting.

Option

For selected models with an additional hot water intake:

1. Take the red L-shaped arm fitting for the hot water supply hose and connect it to the hot water supply intake on the back of the machine. Tighten by hand.
2. Connect the other end of the hot water supply hose to your sink's hot water tap and tighten it by hand.
3. Use a Y-piece if you only want to use cold water.

setting up your washing machine

Connecting the water supply hose (selected models)

1. Remove the adaptor from the water supply hose.

Adaptor Water supply hose

1. First, using a '+' type screwdriver, loosen the four screws on the adaptor. Next, take the adaptor and turn part (2) following the arrow until there is a 5 mm gap.

1 2 5 mm

1. Connect the adaptor to the water tap by tightening the screws firmly while lifting the adaptor upwards. Turn part (2) following the arrow and connect (1) and (2).

Water tap 1 2

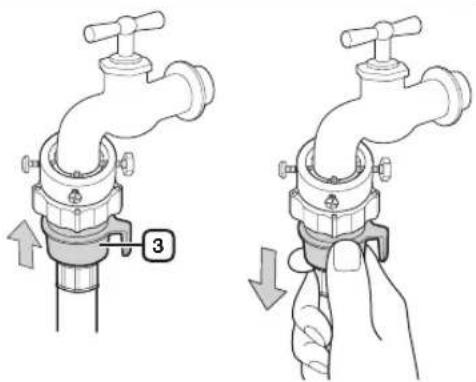

1. Connect the water supply hose to the adaptor. When you release part (3), the hose automatically connects to the adaptor making a 'click' sound.

After you have connected the water supply hose to the adaptor, ensure that it is connected correctly by pulling the water supply hose downwards.

Diagram showing two-step installation of a faucet with labeled parts and directional arrows indicating movement.

1. Connect the other end of the water supply hose to the inlet water valve at the rear of the washing machine. Screw the hose clockwise all the way in.

Option

1. Turn on the water supply and ensure that no water leaks from the water valve, tap or adaptor. If there is a water leaks, repeat the previous steps.

Do not use your washing machine if there is a water leak. This may cause electric shock or injury.

Two identical illustrations of a faucet with a valve, each marked with a black X symbol indicating no change or absence.

- If the water tap has a screw type tap, connect the water supply hose to the tap as shown.

Diagram of a faucet with a valve and central hub, showing fluid flow direction (no text or labels)

Use the most conventional type of tap for the water supply. In case the tap is square or too big, remove the spacing ring before inserting the tap into the adaptor.

Connecting the Aqua Hose (Selected models)

The Aqua Hose was invented for perfect leakage protection. It is attached to the water supply hose and automatically cuts off the water flow if the hose is damaged. It also displays a warning indicator.

- Connect the water supply hose to the tap as shown.

Technical line drawing of a faucet assembly with a rotating base (no text or symbols)

setting up your washing machine

Connecting the drain hose

The end of the drain hose can be positioned in three ways:

1. Over the edge of a wash basin: The drain hose must be placed at a height of between 60 and 90 cm. To keep the drain hose spout bent, use the supplied plastic hose guide. Secure the guide to the wall with a hook or to the tap with a piece of string to prevent the drain hose from moving.

Drain hose Hose guide

60 ~ 90 cm

1. In a sink drain pipe branch: The drain pipe branch must be above the sink siphon so that the end of the hose is at least 60 cm above the ground.

2. In a drain pipe: We recommend using a 65 cm high vertical pipe; it must be no shorter than 60 cm and no longer than 90 cm.

The standpipe drain requires;

• minimum diameter 5 cm.

• minimum carry-away capacity 60 liter per minute.

Line drawing of a washing machine with a 60–90 cm height measurement annotation (no text or symbols on the device itself)

STEP 5

Powering your washing machine

Plug the power cord into a wall sockets, an AC 220-240V / 50Hz approved electrical outlet protected by a fuse or circuit breaker. (For more information on electrical and grounding requirements, see page 12.)

Test run

Make sure that you install your washing machine correctly by running the Rinse+Spin cycle after the installation is complete.

washing a load of laundry

With your new Samsung washing machine, the hardest part of doing laundry will be deciding which load to wash first.

WASHING FOR THE FIRST TIME

Before washing laundry for the first time, you must run a complete empty cycle (i.e. no laundry).

1. Press the Power button.
2. Add a little detergent to the detergent compartment ⑪ in the detergent drawer.
3. Turn on the water supply to the washing machine.
4. Press the Start/Pause button.

This will remove any water that might be left over in the machine from the manufacturer's test run.

Diagram of a car interior showing labeled compartments and directional indicators

Compartment ① Detergent for prewash, or starch.

Compartment ⑪ Detergent for the main wash, water softener, pre-soaking agent, bleach and stain removal product.

Compartment Ⓞ Additives, e.g. fabric softener or former (fill no higher than lower edge (MAX) of "A")

BASIC INSTRUCTIONS

1. Load your laundry into the washing machine.

Do not overload the washing machine. To determine the load capacity for each type of laundry, refer to the chart on page 27.

• Make sure that laundry is not caught in the door, as this may cause a water leak.
- Washing detergent may remain in the front rubber part of the washer after a wash cycle. Remove any remaining detergent, as they may cause a water leak.
- Do not wash water-proofed items.

1. Close the door until it latches.
2. Turn the power on.
3. Add detergent and additives to the dispenser drawer.
4. Select the appropriate cycle and options for the load. The Wash Indicator light will illuminate and the estimated cycle time will appear in the display.
5. Press the Start/Pause button.

washing a load of laundry

USING THE CONTROL PANEL

ecobubble Super Eco Wash Outdoor Care Baby Care Wool Hand Wash Spin Rinse+Spin 1 2 18.88 Cotton/Auto Load Synthetics Denim Bedding Dark Garment Daily Wash Eco Drum Clean Pre Wash 95 5 1200 60 4 1000 40 3 800 30°C 2 400 Cold 1 Delay End Temp. Rinse Spin Wash Option Eco Bubble Quick wash Power Start Pause

digiTal graphic display

Displays the remaining wash cycle time, all cycle information, and error messages.

Select the tumble pattern and spin speed for the cycle.

For detailed information, refer to "Washing clothes using the cycle selector" (see page 25).

Cotton/Auto Load - For averagely or lightly soiled cotton, bed linen, table linen, underwear, towels, shirts, etc.

Synthetics - For averagely or lightly soiled blouses, shirts, etc., made of polyester (diolen, trevira), polyamide (perlon, nylon) or other similar blends.

Denim - A higher water level in the main wash and extra rinse ensure that no washing powder remains that may mark your clothing.

Bedding - For bed spread, bed sheet, duvet cover etc.

Wash under 2kg and only 1 kind of bedding to achieve the best result.

Dark Garment - Additional rinses and reduced spinning ensure that your favourite dark clothes are washed gently and rinsed thoroughly.

Daily Wash - Use for everyday items such as underwear and shirts.

Eco Drum Clean - Use for drum cleaning. It cleanses dirt and bacteria of drum. Regular use (after every 40 washes) is recommended. No detergent or bleach needed.

Super Eco Wash - Low temperature Eco Bubble ensures that you achieve perfect wash results while allowing effective energy saving.

Outdoor Care - Use for outdoor wear such as mountain clothes, skiwear, and sports wear. Fabrics include functional technology finishes and fibers such as spandex, stretch, and micro-fiber.

Baby Care - High temperature wash and extra rinses ensure that no washing powder remains to mark your thin clothes.

Wool - Only for machine-washable wool. A load should be less than 2.0 kg.

• The wool course washes the laundry using gentle cradling actions. During the wash, the gentle cradling and soaking actions are continued to protect the wool fibers from shrinkage / distortion and for a super gentle clean. This stop operation is not a problem.
• Neutral detergent is recommended for wool course, for improved washing results and for improved care of the wool fibers.

cycle selecTor

	Hand Wash - A very light wash cycle as gentle as a hand wash. Spin - Performs an additional spin cycle to remove more water. Rinse + Spin - Use for a load that needs rinsing only or to add rinse-added fabric softener to a load.
3 prewash selecTion buTTon	Press this button to select pre-wash. Pre-wash is only available with:Cotton/Auto Load, Synthetics, Denim, Bedding, Dark Garment, Daily Wash, Baby Care.
4 delay end selecTion buTTon	Press this button repeatedly to cycle through the available Delay End options (from 3 hours to 19 hours in one hour increments).The hour displayed indicates the time when the wash cycle will be finished.
5 TemperaTure selecTion buTTon	Press this button repeatedly to cycle through the available water temperature options: (Cold Water, 30°C, 40°C, 60°C and 95°C).
6 rinse selecTion buTTon	Press this button to add additional rinse cycles. The maximum number of rinse cycles is five.
7 spin selecTion buTTon	Press the button repeatedly to cycle through the available speeds for the spin cycle.
	J120 / J1245	400, 800, 1000, 1200 rpm
	“No spin ” - The laundry remains in the drum and no spin cycle is performed after the final drain.“Rinse Hold (All Lamps Turn Off) ”-The laundry remains soaking in the final rinse water. Before the laundry can be unloaded, either a Drain or Spin cycle must be performed.
8 wash opTion selecTion buTTon	Press this button repeatedly to cycle through the wash options: Soak → Intensive → Easy Iron → Soak + Intensive → Soak + Easy Iron → Intensive → Easy Iron → Soak + Intensive → Easy Iron → off“Intensive”: Press this button when the laundry is heavily soiled and needs to be washed intensively. The cycle time is increased for each cycle.“Soak Use this option to effectively remove stains from your laundry by soaking your laundry.The Soak function is performed 13 minutes into the wash cycle.The Soak function continues for 30 minutes with six cycles, where one cycle is a soak cycle that spins for 1 minute and stands still for 4 minutes.The Soak function is only available for the following wash programs: Cotton/Auto Load, Synthetics, Denim, Bedding, Baby care, Daily wash.“Easy Iron”: Use this option to prepare your laundry so that it can be easily ironed.

washing a load of laundry

9eco bubble selecTion buTTon	Eco Bubble selection is turned on as a default. Press the Eco Bubble option button once to deselect and the Bubble Generator OFF (shown on the panel), press it again to turn the function back ON.Some wash cycles must have Eco Bubble option ON (will show on the panel, and the Generator will turn on automatically).Other wash cycles do not need this option and automatically turn the Generator OFF.On many cycles, you can manually adjust this option, which will visibly affect wash time on the panel to achieve results (please see page 24 for more information).
10QuicK wash selecTion buTTon	For lightly soiled garments and less than 2kg laundry that you require quickly. It takes about minimum 15 minute, but can vary from the indicated values depending on water pressure, water hardness, water inlet temperature, room temperature, type and amount of washing and degree of soiling, utilized detergent unbalanced load, fluctuation in the electricity supply and extra options selected.Press this button repeatedly to choose cycle time: 15min → 20min → 30min → 40min → 50min → 60min → Off⚠️ Powdered/Liquid detergent should be under 20g(for 2kg load) or detergent may remain on the clothes.
11sTarT/pause selecTion buTTon	Press to pause and restart a cycle.
12power buTTon	Press it once to turn your washing machine on, press it again to turn your washing machine off.If the washing machine is left on for more than 10 minutes without any buttons being touched, the power automatically turns off.

Child lock

The Child Lock function allows you to lock the buttons so that the wash cycle you've chosen can't be changed.

Activating/Deactivating

If you want to activate or deactivate the Child Lock function, press the Temp. and Rinse buttons at the same time for 3 seconds. "Child Lock 😊" will be lit when this feature is activated.

When the Child Lock function is activated, only the Power button works. The Child Lock function remains on even after the power is turned on and off or after the disconnecting and reconnecting the power cord.

95 60 40 30°C Cold 5 4 3 2 1 1200 1000 800 400 OK Temp. Rinse Spin Wash Option 3 SEC.

Sound off

The Sound Off function can be selected during all courses. When this function is selected, sound is turned off for all courses. Even if the power is turned on and off repeatedly, the setting is retained.

Activating/Deactivating

If you want to activate or deactivate the Sound Off function, press the Spin and Wash Option button at the same time for 3 seconds. The "Sound Off will be lit when this feature is activated.

sh 95 60 40 30c Cold 5 4 3 2 1 1200 1000 800 400 Bubble Quick wash Temp. Rinse Spin Wash Option 3 SEC.

Delay end

You can set the washing machine to fi nish your wash automatically at a later time, choosing a delay of between 3 to 19 hours (in 1 hour increments). The hour displayed indicates the time at which the wash will be fi nished.

1. Manually or automatically set your washing machine according to the type of laundry you are washing.

2. Press the Delay End button repeatedly until the delay time is set.

3. Press the Start/Pause button. The "Delay End ⏻" indicator will be lit, and the clock will begin counting down until it reaches the set time.

4. To cancel a Delay End function, press the Power button and then turn the washing machine on again.

washing a load of laundry

Eco Bubble

Eco Bubble allows detergent to distribute evenly and penetrate fabrics faster and deeper.

The bubble function is available in all courses except for Eco Drum Clean course and the function availability is as follows.

Course Bubble function Canceling the bubble function
Cotton/Auto Load, Synthetics, Denim, Bedding, Dark Garment, Daily Wash	Available	Available
Super Eco Wash, Outdoor Care, Baby Care, Wool, Hand Wash		Not available
Eco Drum Clean Not available -

A different bubble function may be applied depending the course.

Eco Bubble selection is default. Press it once to deselect bubble option, press it again to select bubble option.

1. Open the door, place the laundry inside the wash tub and close the door.
2. Press the Power button.
3. Select a function.

4. Place the appropriate amount of detergent and fabric softener into the corresponding compartments depending on the amount of laundry and close the detergent drawer.

5. Add the appropriate amount of detergent into the detergent compartment ⑪, and add the fabric softener to softener compartment ⑨ just under the fiber softener base line (MAX) of "A")

6. When the Prewash course is selected, add detergent into the prewash compartment (as well.
7. To use liquid detergent, leave the liquid detergent box in the drawer(refer to "Liquid Detergent" section on page 28).

Do not add powdered detergent into the liquid detergent box.

Diagram of car air intake system with labeled components A and I, showing airflow direction and valve positions

1. Press the Start/Pause button.

2. Press the Start/Pause button to start the wash.
   • The amount of the laundry is automatically detected and the laundry is washed.

• Once a washing machine operation begins, you cannot add or select the bubble function.

• Enough bubbles are generated with the specified amount of detergent.
- Please clean the Debris filter frequently. Periodic cleaning helps generate sufficient bubbles.
- Depending on the detergent and the laundry, the bubbles may be absorbed and seem like a small quantity.
- Although bubbles are generated once the wash begins, it may take several minutes for users to see them.

Washing clothes using the cycle selector

Your new washing machine makes washing clothes easy, using Samsung's "Fuzzy Control" automatic control system. When you select a wash program, the machine will set the correct temperature, washing time, and washing speed.

1. Turn on your sink's water tap.
2. Press the Power button.
3. Open the door.
4. Load the articles one at a time loosely into the drum, without overfilling it.
5. Close the door.
6. Add detergent, softener, and pre-wash detergent (if necessary) into the appropriate compartments.

Pre-wash is only available when selecting the Cotton/Auto Load, Synthetics, Denim, Bedding, Dark Garment, Daily Wash and Baby Care cycles. It is only necessary if your clothing is heavily soiled.

1. Use the Cycle Selector to select the appropriate cycle according to the type of material: Cotton/Auto Load, Synthetics, Denim, Bedding, Dark Garment, Daily Wash, Eco Drum Clean, Super Eco Wash, Outdoor Care, Baby Care, Wool, Hand Wash. The relevant indicators will illuminate on the control panel.
2. At this time, you can control the wash temperature, the amount of rinses, the spinning speed, and the delay time by pressing the appropriate option button.
3. Press the Start/Pause button and the wash will begin. The process indicator will light up and the remaining time for the cycle will appear in the display.

Pause Option

Within 5 minutes of starting a wash, it is possible to add/remove laundry items.

1. Press the Start/Pause button to unlock the door.

The door cannot be opened when the water is too HOT or the water level is too HIGH.

1. After closing the door, press the Start/Pause button to restart the wash.

When the cycle is finished:

After the total cycle has finished, the power will turn off automatically.

1. Open the door.
2. Remove laundry.

washing a load of laundry

Washing clothes manually

You can wash clothes manually without using the Cycle Selector.

1. Turn the water supply on.
2. Press the Power button on the washing machine.
3. Open the door.
4. Load the articles loosely into the drum one at a time, without overfilling it.
5. Close the door.
6. Add detergent and, if necessary, softener or prewash detergent, into the appropriate compartments.
7. Press the Temp. button to select the temperature. (Cold water, 30 °C, 40 °C, 60 °C, 95 °C)
8. Press the Rinse button to select the required number of rinse cycles.

The maximum number of rinse cycles is five.

The wash duration is increased accordingly.

1. Press the Spin button to select the spin speed.

The rinse hold function allows you to remove items that are still wet from the washing machine. (☒: No Spin, All Lamps Turn Off: Rinse Hold)

1. Press the Delay End button repeatedly to cycle through the available Delay End options (from 3 hour to 19 hours in one hour increments). The hour displayed indicates the time at which the wash will be finished.

2. Press the Start/Pause button and the machine will begin the cycle.

LAUNDRY GUIDELINES

Follow these simple guidelines for the cleanest laundry and the most efficient wash.

Always check the Care label on clothing before washing.

Sort and wash your laundry according to the following criteria:

• Care Label: Sort laundry into cotton, mixed fibres, synthetics, silks, wool and rayons.
  • Colour: Divide whites and colours. Wash new colour items separately.
  • Size: Placing items of different sizes in the same load will improve the wash action.
• Sensitivity: Wash delicate items separately, using the Delicate wash cycle for pure, new woollen items, curtains and silk articles. Check the labels on the items you are washing or refer to the fabric care chart in the appendix.

Emptying pockets

Before each wash, empty all the pockets of your laundry. Small, irregularly shaped hard objects, such as coins, knives, pins, and paperclips could damage your washing machine. Do not wash clothing with large buckles, buttons, or other heavy metal objects.

Metal on clothing may damage your clothing as well as the tub. Turn clothing with buttons and embroidered clothes inside out before washing them. If zips of pants and jackets are open while washing, the spin basket may be damaged. Zips should be closed and fixed with a string before washing.

Clothing with long strings may become entangled with other clothes damaging them. Be sure to fix the strings before starting the wash.

Prewashing cotton

Your new washing machine, combined with modern detergents, will give perfect washing results, thus saving energy, time, water and detergent. However, if your cotton is particularly dirty, prewash with a protein-based detergent.

Determining the load capacity

Do not overload the washing machine or your laundry may not wash properly. Use the chart below to determine the load capacity for the type of laundry you are washing.

Fabric Type Load Capacity
Model	J120 / J1245
Cotton/Auto Load- average/lightly soiled- heavily soiled	7.0 kg
Synthetics 3.0 kg
Denim 3.0 kg
Bedding 2.0 kg
Outdoor Care 2.0 kg
Wool 2.0 kg

• When the laundry is unbalanced ("UE" lights up on the display), redistribute the load. If the laundry is unbalanced, the spin efficiency may be degraded.
• When washing Bedding or Duvets, the wash time may be lengthened or the spin efficiency may be degraded.
• For Bedding or Duvets, the recommended load capacity is 2.0(kg) or less.

Make sure to insert brassieres (water washable) into a laundry net (to be purchased additionally).

• The metal parts of the brassieres may break through the material and damage the laundry. Therefore make sure to place them inside a fine laundry net.
• Small, light clothing such as socks, gloves, stockings and handkerchiefs may become caught around the door. Place them inside a fine laundry net.

o not wash the laundry net by itself without other laundry. This may cause abnormal vibrations that could move the washing machine and cause an accident resulting in injury.

Illustration of a brached top being lifted into a woven basket (no text or symbols)

DETERGENT AND ADDITIVES INFORMATION

Which detergent to use

The type of detergent you should use is based on the type of fabric (Cotton/Auto Load, synthetics, items, Hand Wash For Wool), colour, wash temperature, and degree of soiling. Always use "low suds" laundry detergent, which is designed for automatic washing machines. Follow the detergent manufacturer's recommendations based on the weight of the laundry, the degree of soiling, and the hardness of the water in your area. If you do not know how hard your water is, enquire at your local water authority.

Do not use detergent that has hardened or solidified as the detergent may remain in the rinse cycle. It may cause your washing machine to not rinse properly or result in the overflow becoming blocked.

Please note the following when using the Wool course.

- Use a neutral liquid detergent for wool only. - When using a powder detergent, it may remain on the laundry and cause damage to the material (wool).

washing a load of laundry

Detergent drawer

Your washing machine has separate compartments for dispensing detergent and fabric softener. Add all laundry additives to the correct compartment before starting your washing machine.

Do NOT open the detergent drawer when your washing machine is running.

1. Pull out the detergent drawer on the left side of the control panel.
2. Add the recommended amount of laundry detergent directly into the detergent compartment ⑪ before starting your washing machine.
3. Add the recommended amount of fabric softener into the softener compartment required.

Do NOT add any powder/liquid detergent to the softener compartment (®).

Hand holding a bottle over a car interior, with a circular symbol containing a crossed-out 'No' sign (no text or symbols on the bottle itself)

Hand inserting a device into a drawer with a magnified inset showing internal components (no text or symbols)

Diagram of a car interior showing labeled compartments and directional indicators

1. When using the Prewash option, add the recommended amount of laundry detergent into the prewash compartment ①.

When washing large items do NOT use the following detergent types.

- Tablet and capsule type detergents - Detergents using a ball and net

Concentrated or thick fabric softener and conditioner must be diluted with a little water before being poured into the dispenser (prevents the overflow from becoming blocked.)

Be careful that the fabric softener does not overflow, when you close the detergent drawer after adding fabric softener into the rinse detergent compartment.

MAX

Liquid Detergent (Selected models)

To use liquid detergent, place the liquid detergent box into the main wash section of the detergent drawer and pour liquid detergent into the liquid detergent box.

• DO NOT fill above the MAX line.
- When using powdered detergent, remove the liquid detergent box from the detergent drawer. Powdered detergent will not dispense with liquid detergent box.
- After a wash, some liquid may remain in the detergent drawer.

Liquid detergent box

cleaning and maintaining your washing machine

Keeping your washing machine clean improves its performance, wards off unnecessary repairs, and lengthens its life.

eCo drUm CleaN

This course is a self-cleaning course that removes mold that may occur inside the washing machine.

1. Press the Power button.

2. Turn the Cycle Selector to the ECO Drum Clean course.

• You can only use the Delay End function.
- The water temperature during the ECO Drum Clean is set to 70 °C.

Dark Garment Daily Wash Eco Drum Clean

Due to the features of the washing machine, the water temperature is set to 70 °C during the Eco Drum Clean cycle, but the display can only show 60 °C on the control panel. You cannot change the temperature.

- It will auto set Cotton/Auto Load 30 °C middle water level program when cloth is put in.

1. Place the appropriate amount of cleansing agent into the detergent compartment ⑪ and close the detergent drawer (when cleaning the drum using a cleansing agent).

2. Be sure to use the recommended cleansing agent for cleaning the drum.

3. There are powder-type and liquid-type drum cleansing agents. The liquid-type cleaning agent is only available with liquid detergent box (option).

Line drawing of a drawer with internal compartments and a numbered label (II), no text or symbols present.

1. Press the Start/Pause button.

• If you press the Start/Pause button, the ECO Drum Clean course begins.

• Using the ECO Drum Clean course, you can clean the drum without using a cleansing agent.
- Never use the ECO Drum Clean course when laundry is in the washing machine. This may result in damage to the texture or a problem with the washing machine.
• In the ECO Drum Clean course, never use normal detergent.
- Use only 1/10 of the amount of the drum cleansing agent recommended by the cleansing agent manufacturer.
- Since using a chlorine bleaching agent may discolour the product, be sure to use only oxygen bleaching agents.
- Powder-type cleansing agent: Use a [powder-type bleaching agent] or a [cleansing agent for drum cleaning only].
- Liquid-type cleansing agent: Use a [liquid-type oxygen bleaching agent] or a [cleansing agent for drum cleaning only].

cleaning and maintaining your washing machine

DRAINING THE WASHING MACHINE IN AN EMERGENCY

1. Unplug the washing machine from the power supply.

2. Open the filter cover by using a key or coin.

3. Open the emergency drain cap by pulling it.

Filter cover

Emergency drain cap

1. Hold the cap on the end of the emergency drain tube and slowly pull it out about 15 cm.
2. Allow all the water to flow into a bowl.

Remain water maybe more than you expected. Prepare larger bowl.

1. Reinsert the emergency drain cap and the drain tube.
2. Replace the filter-cover.

Emergency drain tube

CLEANING THE DETERGENT DRAWER AND DRAWER RECESS

1. Press the release lever on the inside of the detergent drawer and pull the drawer out.
2. Remove the rinse divider and the liquid detergent box(option) from the detergent drawer.

Release lever Liquid detergent box(Option) Liquid detergent divider

1. Wash all parts under running water.

Illustration of a hand holding a smartphone with a magnified inset showing hand positioning (no text or symbols)

1. Clean the drawer recess with an old toothbrush.
2. Replace the rinse divider and the liquid detergent box (option) by pushing it firmly into the drawer.
3. Push the drawer back into place.
4. To remove any remaining detergent, perform a rinse cycle without any laundry in the drum.

Hand inserting a button into a device (no text or symbols visible)

cleaning and maintaining your washing machine

CLEANING THE DEBRIS FILTER

We recommend cleaning the debris filter 5 or 6 times a year, or when the error message of "5E" is displayed. (Refer to "Draining the washing machine in an emergency" in the previous page.)

Before cleaning the debris filter, make sure to unplug the power cord.

1. Remove the remaining water first (refer to "Draining the washing machine in an emergency" on page 30.)

If you separate the filter without draining the remaining water, the remaining water may trickle out.

1. Open the filter cover by using a key or coin.
2. Unscrew the emergency drain cap by turning it to the left and drain off all the water.
3. Unscrew the debris filter cap.
4. Wash any dirt or other material from the debris filter. Make sure the drain pump propeller behind the debris filter is not blocked.
5. Replace the debris filter cap.
6. Replace the filter cover.

Do not open the debris filter cap while the machine is running or hot water may flow out.

Debris filter cap

Illustration of hands using a tool to clean or wash the sink surface (no text or symbols)

• Make sure to replace the filter cap after the filter cleaning. If the filter is out of the machine, your washing machine may malfunction or leak water.
  • The filter should be fully assembled after the filter cleaning.

CLEANING THE EXTERIOR

1. Wipe the washing machine surfaces, including the control panel, with a soft cloth using a nonabrasive household detergent.
2. Use a soft cloth to dry the surfaces.
3. Do not pour water onto the washing machine.

CleaNiNG the Water hoSe meSh filter

You should clean the water hose mesh filter at least once a year, or when the error message of "4E" is displayed:

1. Turn off the water supply to the washing machine.
2. Unscrew the hose from the back of the washing machine. To prevent water from gushing out due to the air pressure in the hose, cover the hose with a cloth.
3. Gently pull out the mesh filter from the end of the hose using a pair of pliers and rinse it under water until clean. Also clean inside and outside the threaded connector.
4. Push the filter back into place.
5. Screw the hose back onto the washing machine.
6. Make sure the connections are watertight and turn on the tap.

Illustration showing two-step instructions for inserting a cable into a device (no text or symbols present)

repairiNG a froZeN WaShiNG maChiNe

If the temperature drops below freezing and your washing machine is frozen:

1. Unplug the washing machine.
2. Pour warm water over the tap to loosen the water supply hose.
3. Remove the water supply hose and soak it in warm water.
4. Pour warm water into the washing machine drum and let it sit for 10 minutes.
5. Reconnect the water supply hose to the water tap and check if the water supply and drain are operating normal.

StoriNG YoUr WaShiNG maChiNe

If you need to store your washing machine for an extended time, it's better to drain and disconnect it. Washing machines can be damaged if water is left in the hoses and internal components before storage.

1. Select the Quick Wash cycle and add bleach to the bleach compartment. Run your washing machine through the cycle without a load.
2. Turn the water taps off and disconnect the inlet hoses.
3. Unplug your washing machine from the electrical outlet, and leave your washing machine door open to allow air to circulate inside the tumbler.

If your washing machine has been stored in below-freezing temperatures, allow time for any leftover water in your washing machine to thaw out before using it.

troubleshooting and information codes

CHECK THESE POINTS IF YOUR WASHING MACHINE...

problem soluTion
Will not start • Make sure your washing machine is plugged in.Make sure the door is firmly closed.Make sure the water source tap(s) are turned on.Make sure to press the Start/Pause button.
Has no water or not enough water	Turn the water tap on fully.Make sure the water source hose is not frozen.Straighten the water intake hoses.Clean the filter on the water intake hose.
Has detergent remains in the detergent drawer after the wash cycle is complete	Make sure your washing machine is running with sufficient water pressure.Make sure the detergent is added to the center of the detergent drawer.
Vibrates or is too noisy	Make sure your washing machine is on a level surface. If the surface is not level, adjust the washing machine feet to level the appliance.Make sure that the shipping bolts are removed.Make sure your washing machine is not touching any other object.Make sure the laundry load is balanced.
The washing machine does not drain and/or spin	Straighten the drain hose. Eliminate kinked hoses.Make sure the debris filter is not clogged.
Door is locked shut or will not open.	Make sure all the water in your drum is drained out.Make sure the door lock light is off. Door lock light will off after drained.
The drain pump generates a strange noise.	Check if the drain pump is blocked by flocks or dirt . Clean the debris filter to abate noise.

If the problem persists, contact your local Samsung Customer Service.

iNformationN CodeS

When your washing machine malfunctions, you may see an information code on the display. If that happens, check this table and try the suggested solution before calling Customer Service.

CODE SYMBOL SOLUTION
dE	Make sure the door is firmly closed.Make sure that laundry is not caught in the door.
4E	Make sure the source water tap is turned on.Check the water pressure.When the washer displays the “4E” code, the washer do draining for 3 minutes. During this time, the Power button is inoperative.
5E	Clean the debris filter.Make sure the drainage hose is installed correctly.
UE	The laundry load is unbalanced. Redistribute the load. If only one item of clothing needs washing, such as a bathrobe or pair of denim, the final spin result might be unsatisfactory and an “UE” error message will be shown in the display window.
cE/3E	Call the after-sales service.
Sud	This occurs when too much foaming is detected. It is also displayed while foaming is removed. When the removal is finished, the normal cycle proceeds.(This is one of the normal operations. It is an error for preventing non-sensing faults.)
Uc	If the voltage of the supplied power is instable, the washing machine will be paused to protect its electric devices.If the correct voltage is supplied, the cycle will resume automatically.

For any codes not listed above, or if the suggested solution doesn't fix the problem, call your Samsung Service Centre or local Samsung dealer.

calibrating your washing machine

Calibration mode

Samsung washing machine detects the laundry weight automatically. For more accurate weight detection, please run Calibration Mode after the installation. Calibration mode is done by following the steps below.

1. Remove laundry or any contents in the machine and turn off the machine.
2. Press the Temp button and Delay End button simultaneously, and press the Power button in addition. Then the machine turns on.
3. Press the Start button to activate "Calibration Mode".
4. The drum rotates clockwise and counterclockwise approximately for 3 minutes.
5. When "Calibration Mode" is finished, "End(En)" appears on the display, and the machine automatically turns off. The washing machine is now ready for use.

CYCLE CHART

(● user option)

PROGRAM	Max load(kg) Detergent				Max Temp (C)	Spin Speed(MAX) rpm
	J120 / J1245 Pre-wash wash		Softener J120 / J1245
Cotton/Auto Load 7.0		●	yes	●	95 1200
Synthetics 3.0		●	yes	●	60 1200
Denim 3.0		●	yes	●	60 800
Bedding 2.0		●	yes	●	40 800
Dark Garment 3.0		●	yes	●	40 1200
Daily Wash 3.0		●	yes	●	60 1200
Eco Drum Clean - yes			70 400
Super Eco Wash	3.0	- yes		●	40 1200
Outdoor Care	2.0	- yes		●	40 1200
Baby Care 3.0		●	yes	●	95 1200
Wool	2.0	- yes		●	40 800
Hand Wash	2.0	- yes		●	40 400

PROGRAM	Eco Bubble	Delay End	Quick Wash	Easy Iron	Intensive	Soak
Cotton/Auto Load	●	●	●	●	●	●
Synthetics	●	●	-	●	●	●
Denim	●	●	-	●	●	●
Bedding	●	●	-	●	●	●
Dark Garment	●	●	-	●	●	-
Daily Wash	●	●	-	●	-	●
Eco Drum Clean	-	●	-	-	-	-
Super Eco Wash	●	●	-	●	●	-
Outdoor Care	●	●	-	-	-	-
Baby Care	●	●	-	●	●	●
Wool	●	●	-	-	-	-
Hand Wash	●	●	-	-	-	-

1. A cycle with a prewash takes approx. 15 minutes longer.

2. The cycle duration data has been measured under the conditions specified in Standard IEC 60456 / EN 60456.

3. Cotton/Auto Load 60°C+Intensive+Bubble are programs according to EN60456.

4. Course time in individual homes may differ from the values given in the table due to variations in the pressure and temperature of the water supply, the load and the type of laundry.

5. When the Intensive Wash function is selected, the cycle time is increased for each cycle.

fabriC Care Chart

The following symbols provide garment care directions. The care labels include four symbols in this order: washing, bleaching, drying and ironing, and dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow the care label directions to maximize garment life and reduce laundering problems.

		Resistant material Can be ironed at 100 °C max.
		Delicate fabric Do not iron
		Item may be washed at 95 °C	A Can be dry cleaned using any solvent
		Item may be washed at 60 °C	P Dry clean with perchloride, lighter fuel, pure alcohol or R113 only
		Item may be washed at 40 °C	F Dry clean with aviation fuel, pure alcohol or R113 only
		Item may be washed at 30 °C	⊗ Do not dry clean
		Item may be hand washed	- Dry flat
		Dry clean only Can be hung to dry	III
		Can be bleached in cold water Dry on clothes hanger
		Do not bleach Tumble dry, normal heat
	[A8DS]	Can be ironed at 200 °C max Tumble dry, reduced heat
		Can be ironed at 150 °C max Do not tumble dry

proteCtiNG the eNViroNmeNt

• This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance, please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected to a power source. Remove the door so that animals and small children cannot get trapped inside the appliance.
• Do not exceed the detergent quantities recommended in the detergent manu-facturers' instructions.
• Use stain removal products and bleaches before the wash cycle only when strictly necessary.
• Save water and electricity by only washing full loads (the exact amount depends upon the program used).

deClaratioN of CoNformitY

This appliance complies with European safety standards, EC directive 93/68 and EN Standard 60335.

SpeCifiCatioNS

Type fronT loading washer
dimeNSioNS			J120 / J1245
			W598mm X D670mm X H850mm
Water preSSUre			50 kPa ~ 800 kPa
Water VolUme			49 l
Net WeiGht			J120 / J1245
			65 kg
WaSh aNd SpiN CapaCitY			7.0 kg
poWer CoNSUmptioN	MODEL		J120 / J1245
	WASHING		220 V 150 W
			240 V 150 W
	WASH AND HEATING		220 V 2000 W
			240 V 2400 W
	SPIN	MODEL	J120 / J1245
		230V	550 W
	PUMPING		34 W
SpiN reVolUtioNS	MODEL		J120 / J1245
	rpm		1200

The appearance and specifications of the product are subject to change without prior notice for purposes of product enhancement.

memo

QUESTIONS OR COMMENTS?

Country CALL OR VISIT US ONLINE AT
IRAN 021-8255 www.samsung.com/iran/support

J120VW(C/N/Q/S/U/V/W/Y)

J120VS(C/N/Q/S/U/V/W/Y)

J1245VW(C/N/Q/S/U/V/W/Y)

J1245VS(C/N/Q/S/U/V/W/Y)

ماشین لباسشويى

( youth) Child lock 17

Hand holding a rotary knob with three cylindrical buttons inside a control panel (no text or symbols visible)

گزینش

Diagram showing a device with cable routing and a close-up of its cable attachment detail, labeled in Chinese.

Line drawing showing two hands operating a device with a tool (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a component (no text or symbols present)

Diagram showing pipe connection to a device with labeled components and Chinese annotations

Diagram showing two-step installation of a faucet with valve mechanism and hand gesture, indicating change from left to right.

Two identical illustrations of a faucet with a valve, each marked with a black X symbol (no text or labels present)

Diagram of a faucet with a valve and central hub, showing fluid flow direction (no text or labels)

Technical line drawing of a faucet with a central valve and circular base (no text or symbols)

Line drawing of a washing machine with a 60–90 cm height measurement annotation (no text or symbols on the device itself)

• حداقل قطره سانتى متر.

Diagram of a car air intake system with labeled components A and II

The image is too blurry to recognize any text content.

Diagram of car air intake system with labeled components I, A, and II

Illustration of a brached top being lifted into a woven basket (no text or symbols)

Diagram of car air intake system with labeled components I, A, and II

Hand holding a car seatbelt with a prohibition symbol (no text or labels)

Hand inserting a device into a folder, showing a circular arrow pointing to the internal portion (no text or symbols visible)

MAX

minutes minutes

— Dark Garment — Daily Wash — Eco Drum Clean

Line drawing of a car interior drawer with internal compartments and a labeled component (no text or symbols)

User to go to the back User to go to the back

The image is too blurry to recognize any text content.

Diagram of a device with a coiled cable and directional arrow indicating flow or movement (no text or symbols)

Hand inserting a plug into a device panel (no text or symbols visible)
