Product Type	Telecommunication DC UPS
Model Number	CPLI72D48V
Input Nominal Voltage	54 Vdc
Input Voltage Range	46 ~ 56 Vdc
Output Voltage	52 Vdc
Continuous Output Power (Line Mode)	72 W
Continuous Output Power (Battery Mode)	40 W
Efficiency	>80%
Transfer Time	<1 ms
Typical Backup Time (40W Load)	30 minutes
Battery Type	Lithium-Ion Rechargeable
Number of Cells	4
Battery Replaceable	Yes
Standby Power Consumption	<1.5 W
Dimensions (W x D x H)	6.50 x 3.78 x 1.85 in (165 x 96 x 47 mm)
Weight	1.28 lb (approx. 0.58 kg)
Operating Temperature	23°F to 131°F (-5°C to 55°C)
Operating Humidity	0 to 95% non-condensing within enclosure
Max Operating Elevation	10,000 ft (3,000 m)
Compliance	UL60950-1 2nd Edition, FCC Part 15 Class B
Communication Interface	On Battery, Replace Battery, Battery Missing, Low Battery
Indicators	Output, On Battery, Fault
Auto-Charge	Yes
Emergency Cold Start	Yes (for "last gasp" 911 availability)
Mounting Bracket (Optional)	Model CPLI72MNT

Frequently Asked Questions - CPLI72D48V CyberPower

What is the typical backup time of the CPLI72D48V UPS?

At a 40W load, the typical backup time is 30 minutes.

Can I replace the battery myself?

Yes, the battery is user-replaceable. The model number is LI2200S4P1BTRP.

What is the input voltage range?

The input voltage range is 46 to 56 Vdc with a nominal voltage of 54 Vdc.

Does the UPS provide power during a blackout for emergency calls?

Yes, the emergency cold start function allows "last gasp" 911 availability even when the input power is lost.

What kind of battery does the CPLI72D48V use?

It uses a Lithium-Ion rechargeable battery with 4 cells, each 3.6V nominal.

What is the physical size of this UPS?

The dimensions are 6.50 x 3.78 x 1.85 inches (165 x 96 x 47 mm).

Is the UPS compliant with safety standards?

Yes, it is compliant with UL60950-1 2nd Edition and FCC Part 15 Class B.

What indicators are on the front panel?

There are indicators for Output, On Battery, and Fault.

Can the UPS be mounted on a wall?

Yes, an optional mounting bracket (model CPLI72MNT) is available for wall mounting.

How to dispose of the lithium-ion battery?

When worn out, insulate the terminals with adhesive tape and dispose of separately from other batteries according to local regulations.

USER MANUAL CPLI72D48V CyberPower

CyberPower®

CyberShield™ Telecommunication DC UPS

Telecommunication DC UPS

LOCAL POWERING SOLUTION FOR:

• Cable Telephony
• Wireless Local Loop
  • VoIP and VoDSL
• Fiber to the Home
  • SOHO Network Communication

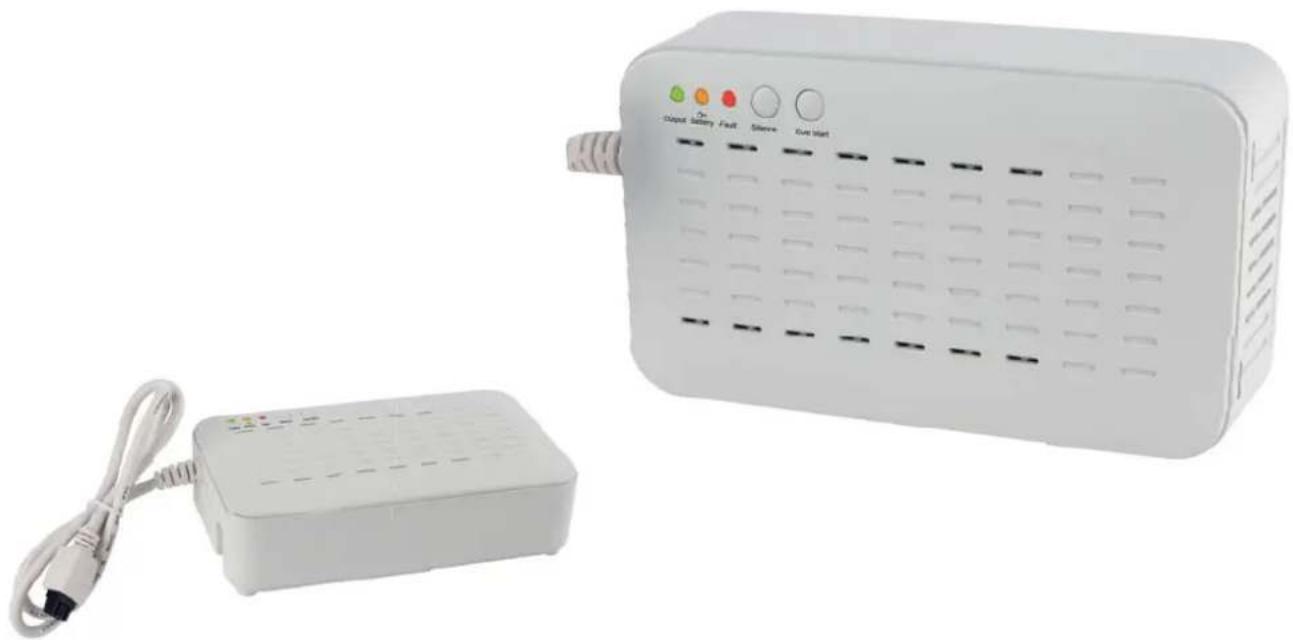

White wireless device with attached cable and power cord, no visible text or symbols on the device body

PRODUCT FEATURES:

• Leading-edge lithium-ion BBU solution to achieve extremely compact size
• Microprocessor based intelligent control
• Communication interface to provide status updates to the ONT and customer
  • Audible Alarm signals utility failure and low battery
• Easy user-replaceable batteries
  • Emergency cold start function allows for "last gasp" 911 availability

CyberShield™

Telecommunication DC UPS

Local Power Source with Battery Backup for Broadband and Telecom Applications

The CyberPower CyberShield solution provides cable telephony, wireless local loop (WLL) and fiber to the home (FTTH) providers with a dependable, cost effective local power supply for customer premise(s) equipment (CPE). CyberShield provides the Multiple Service Operator (MSO) with a local powering solution that has lower installation costs, lower operational costs and lower service costs than competing power technologies.

CyberShield keeps network communications, including telephone, up and running during power outages. The unit functions as a battery backup supplying continuous 48VDC to locally power network interface units, cable telephony modems, wireless base stations and fiber to the premise interface modules or integrated access devices.

Lithium-Ion Battery Disposal Guidelines:

When the cell is worn out, insulate the terminals with adhesive tape or similar materials before disposal. When disposing of secondary cells or batteries, keep cells or batteries of different electrochemical systems separate from each other.

Front view of a white electronic device with multiple ports and indicator lights (no visible text or symbols)

Model Number CPLI72D48V
Input
Nominal Voltage 54Vdc
Input Voltage Range 46 ~ 56Vdc
Output
Output Voltage 52Vdc
Continuous Output Power (Line Mode) 72W
Continuous Output Power (Battery Mode) 40W
Efficiency >80%
Standby Power Consumption <1.5W
Transfer Time <1ms
Typical Back up Time	30mins @ 40W Load
Battery
Battery Type	Lithium-Ion Rechargeable Battery
Numbers of Cell	4
Nominal Voltage Per Cell	3.6Vdc
Replaceable	Yes
Warning Diagnostics
Indicators	Output, On Battery, Fault
Management
Auto-Charge	Yes
Communication Interface	On Battery, Replace Battery, Battery Missing, Low Battery
Physical
Maximum Dimensions (W*D*H)	6.50in x 3.78in x 1.85in (165mm x 96mm x 47mm)
Weight	1.28lb
Environmental Specifications
Operating Temperature	23°F to 131°F (-5°C to 55°C)
Operating Humidity	0 to 95% non-condensing within enclosure
Max Operating Elevation	10,000ft (3,000m)
Max Storage Elevation	50,000ft (15,000m)
Storage Temperature	23°F to 131°F (-5°C to 55°C)
Compliance	UL60950-1 2nd Edition, FCC Part 15 Class B

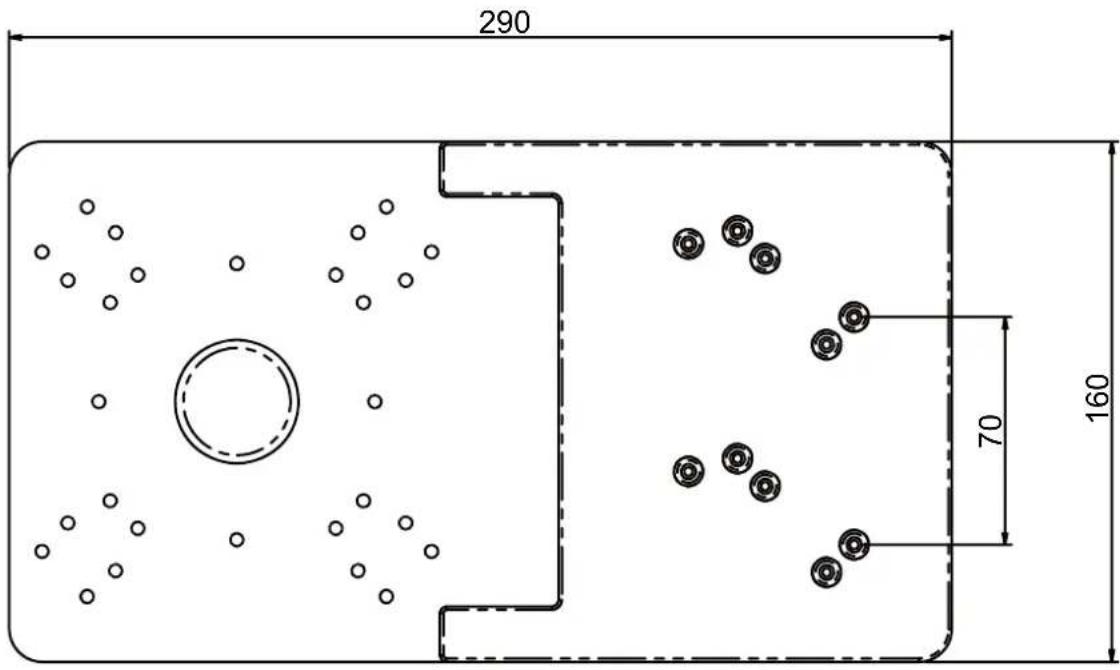

Mounting Bracket - CPLI72MNT

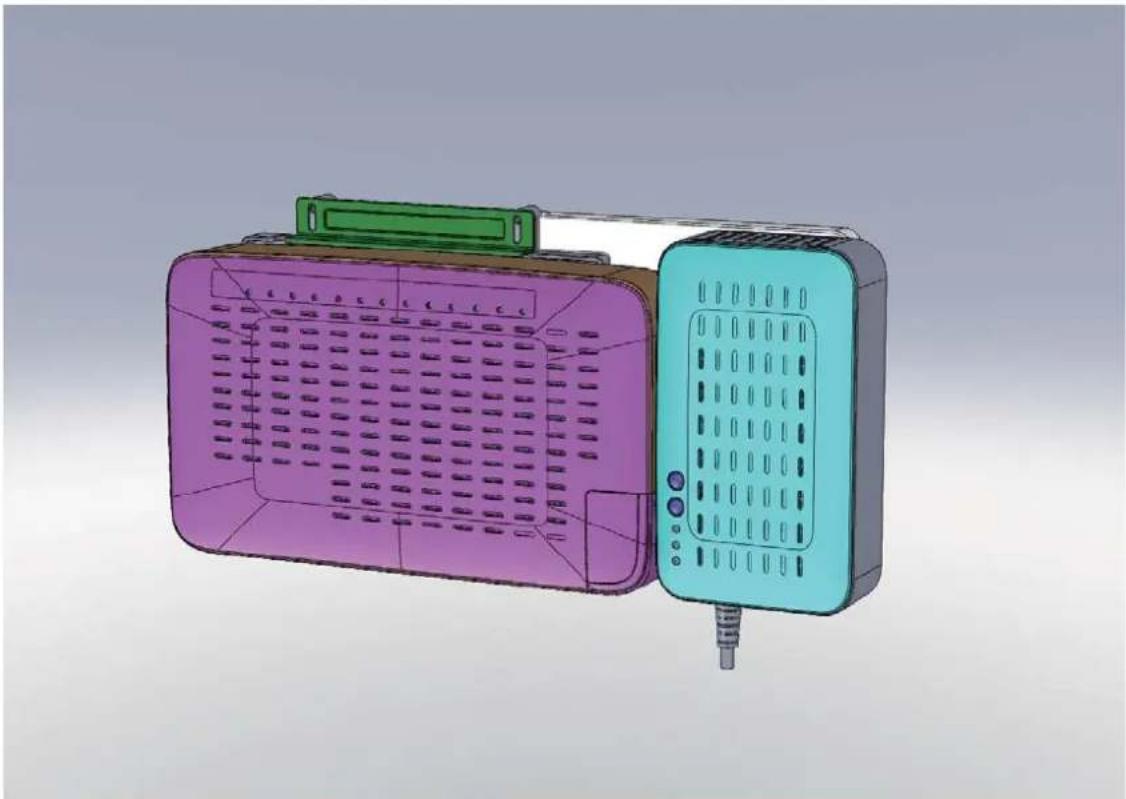

3D rendering of a portable electronic device with purple and cyan casing, showing front panel and side panel (no text or symbols)

CyberShield™

Telecommunication DC UPS

Lithium-ion Battery Pack - LI2200S4P1BTRP

Model Number LI2200S4P1BTRP
Basic Characteristics
Battery Type	Lithium-Ion Rechargeable Battery
Numbers of Cell	4
Nominal Voltage (per cell)	3.6Vdc
Rated Charge	1A and constant 4.2V charge for 3h or 44mA at 23°C
Rated Discharge	Constant 0.4A discharge to 2.8V at 23°C
Rated Capacity	2.2Ah (Typical)
End of Charge Voltage	4.20 ± 0.05V
End of Discharge Voltage	2.8V
Charging Time	3 Hours
Maximum Charging Current	2A
Physical

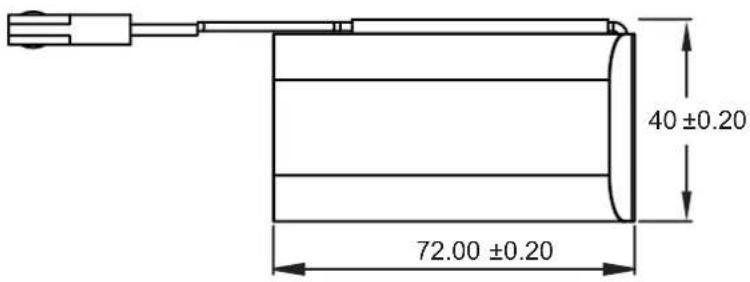

Body Dimensions (L*W*H)	2.83in x 1.48in x 1.57in (72mm x 37.6mm x 40mm)
Weight	0.42lb (192g)
Battery Connection
BBU Inlet	Plastic Housing H7625P1-03
	Contact 56T(LF)
Battery Wiring Connector	Plastic Housing H7625R1-03
	Contact 55T(LF)
Environmental Specifications
Operating Temperature	23°F to 131°F (-5°C to 55°C)
Storage Temperature	<35°C (12 Months)
Shelf Life	1 Year

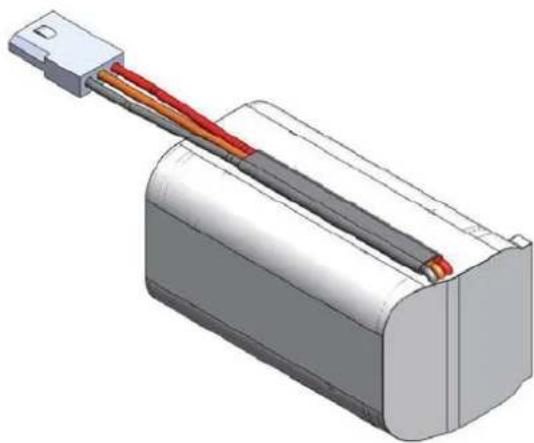

3D illustration of a battery pack with red and gray wires inserted into the core (no text or symbols)
