USE AND CARE MANUAL FOR

PERFORMER RANGETOP

MODEL NUMBERS:

AROBSCT-424, AROBSCT-242GD, AROBSCT-24X2GR, AROBSCT-430, AROBSCT-636, AROBSCT436GD,

AROBSCT-436GR, AROBSCT-848, AROBSCT-648GD, AROBSCT-648GR, AROBSCT-4842GD,

AROBSCT-448X2GR, AROBSCT-448GDGR, AROBSCT-660GR, AROBSCT-6602GD, AROBSCT-660X2GR,

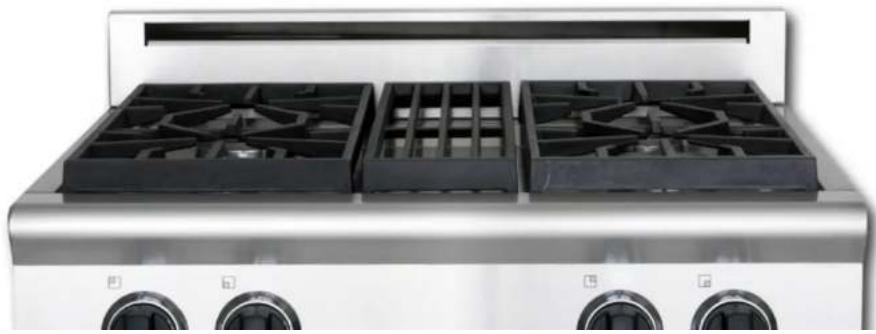

Exterior view of a stainless steel electric stove with four panes and control knobs (no text or symbols visible)

Use & Care Manual

RANGETOP

FOR YOUR SAFETY

FOR YOUR SAFETY!

Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

FOR YOUR SAFETY

WARNING!

Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death and will void warranty. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment

WARNING

IMPROPER INSTALLATION

IMPORTANT SERVICE NOTICE!

Using any part other than genuine American Range factory supplied parts relieves the manufacturer of all liability.

American Range reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for the previously purchased equipment.

Instruction to be followed in the event the user smells gas should be posted in a prominent location. This information should be obtained by consulting the local gas supplier.

RETAIN THIS MANUAL FOR FUTURE REFERENCE.

AMERICAN & RANGE QUALITY COOKING EQUIPMENT

PROFESSIONAL QUALITY COOKING EQUIPMENT

To Our Most Valued Customer:

Congratulations on your purchase of an American Range product. We hope you will enjoy the design, manufactured quality, innovative features and cooking performance of this product – it represents our continuing dedication to satisfying the most demanding needs of customers like you.

Please read this manual and become familiar with important safety information about how to install and set-up the unit, basic operating instructions, and how to maintain that just-like-brand-new appearance and performance - over years of day-to-day and special holiday use.

If you should encounter any sort of problem, turn to the section of the manual entitled, "Troubleshooting" — for a quick solution or guidance regarding the next step required to get back to tip-top condition.

Thank you for choosing an American Range product for your home. As you can expect, this appliance is designed for years of reliable service. If you have any questions or comments, please contact the dealer from whom you purchased the unit, or contact American Range

Use & Care Manual

RANGETOP

Table of Contents

GENERAL 1-5

General Information......

About This Manual 2

Shipping Damage Information....3

Precautions....3-5

INSTALLATION....6-16

Cabinet Preparation....6

Electrical Connection 6

Gas Connection 6

Pressure Regulator....7

Gas Requirements....7

Flexible Couplings, Connectors, Casters....7

Rating Plate 8

Installation Diagrams....9-12

Installation Checklist....13

Model & Parts Identification Table 14

Typical Model and Parts Identification....15

PREPARING FOR OPERATION 16

BEFORE USING RANGETOP 17-20

BURNER OPERATION....17

AUTO RE-IGNITION 17

COOKWARE 18

SUGGESTED BURNER SETTINGS.... 18

CDIII 10

WARNING

If the information in this manual is not followed exactly, a fire or explosion may result causing damage, personal injury or death.

• INSTALLATION AND SERVICE MUST BE PERFORMED BY A
CERTIFIED / LICENSED INSTALLER, SERVICE AGENCY OR THE GAS SUPPLIER
- Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

• WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.
• Do not touch any electrical switch, do not use any phone in your building.
• Immediately call your gas company. Follow the gas supplier instructions.
• If you cannot reach your gas supplier, call the Fire Department.

WARRANTY REQUIREMENT

For reliable operation and for your own safety, this professional cooking equipment must be installed by a certified/licensed contractor.

Failure to comply will void any written or implied warranty.

Should the equipment require service during the standard warranty period, the receipt proving certified installation must be made available to American Range for verification.

Use & Care Manual

RANGETOP

ABOUT THIS MANUAL

The Use and Care Manual is divided into several sections:

The Safety Section informs you about significant safety precautions when installing and operating your new rangetop. This is a must read section of the manual.

Quick Start and Installation Section describes how to unpack the unit, what to save and what to discard, installation dimensions, gas and electrical connections and how to identify the primary parts of the product so you can better understand what's going on "under the hood".

How to Use Your Product shows you how to light the burners and set cooking temperatures.

The Care and Maintenance and Troubleshooting and Service Sections discuss how to keep your product in good operating condition, how to identify what might be going wrong with the unit, and how to communicate your observations with authorized field service technicians.

Before using your appliance, please read this manual paying special attention to the important safety instructions located in the next several pages.

This is the SAFETY ALERT SYMBOL. This symbol alerts you to hazards which will result in severe injury or death.

DANGER

Hazards or unsafe practices which will result in severe personal injury or death.

Hazards or unsafe practices which may result in severe personal injury or death.

PRECAUTIONS

SHIPPING DAMAGE CLAIM PROCEDURE

The equipment is crafted and inspected carefully by skilled personnel before leaving the factory. The transportation company assumes full responsibility for the safe delivery upon acceptance of the equipment.

If you receive a damaged product, immediately contact your delivery company, your dealer, your builder or installer. Do not install or attempt to operate a damaged appliance.

I. Note on the freight bill or express delivery any visible loss or damage and have the note signed by the person making the delivery.
2. File claim for damages immediately regardless of the extent of damages.
3. For damage noticed after unpacking (concealed loss or damage), notify the transportation company immediately and file a "Concealed Damage" claim with them. This should be done within fifteen (15) days from the date that delivery is made to you. Retain the shipping container for inspection.

CAUTION

Check your local building codes for proper installation methods. In the absence of local codes, this appliance should be installed in accordance with the National Fuel Gas Code No. Z223.1 current issue, and the National Electrical Code ANSI/NFPA No. 70 current issue, or the CAN - B149 Installation Codes for Gas Burning Appliances, and C22.1 Canadian Electrical Code Part I. Verify the type of gas supplied to the location, being sure that the appliance is connected to the type of gas for which it is certified. Models come from the factory certified for use with Natural Gas (NG) or Liquid Propane (LP) gas. Your product, shown on the rating label and the supplied gas type must be the same. Upon opening your product, the rating label can be located on the front panel if it is a range or oven. If it is a rangetop it can be found on the side panel underneath the left burner.

If connecting this appliance to propane gas, make certain the propane gas tank is equipped with its own high-pressure regulator - in addition to the pressure regulator supplied with this product when applicable. The maximum propane gas pressure

Use & Care Manual

RANGETOP

DANGER

To avoid the possibility of explosion or fire, do not store or use combustible, flammable or explosive liquids (such as gasoline) or vapors inside or in the vicinity of this or any other appliance. Keep items that could explode, such as aerosol cans, away from the product. Do not store explosive or flammable materials in nearby cabinets or areas.

DANGER

Do not store items of interest to children above or near the appliance. Children, as well as adults, should never be allowed to sit, stand or climb on any part of the appliance. Serious personal injury may occur.

WARNING

Always disconnect the electrical plug from the wall outlet before servicing the unit. It is recommended that a dedicated electrical circuit be used for this appliance. Always turn gas shut-off valve to OFF position before servicing unit.

WARNING

POWER FAILURE WARNING

Due to safety considerations and the possibility of personal injury, do not attempt to light or operate range burners, grills or griddles during a power failure. Safety systems which detect the presence of an ignition source and operate the gas safety valve do not function during a power failure. Be sure all gas valve knobs are turned to and remain in the OFF position during a power failure.

IMPORTANT SAFETY NOTICE AND WARNING

The California Safe Drinking Water and Toxic Enforcement Act of 1986 (Proposition 65) requires the Governor of California to publish a list of substances known to the State of California to cause cancer or reproductive harm, and requires businesses to warn customers of potential exposures to such substances. Users of this appliance are hereby warned that when the oven is operated, there may be some low-level exposure to some of the listed substances including carbon monoxide. Exposure to these substances can be minimized by properly venting the oven to the outdoors using approved overhead ventilation equipment or by opening the windows and/or doors in the room where the appliance is located.

Use & Care Manual

RANGETOP

CAUTION

Purchase a kitchen fire extinguisher for your home and store it in close proximity to your appliance. Should an uncontrolled fire occur, never use water on grease fires. Never pick up a flaming pan. The exterior can get hot during operation.

The push-to-turn gas valve knobs on the appliance are designed to be child-safe, however, they are not a guarantee of operation. Children should not be left alone or unattended in the kitchen while the appliance is in use. Never leave the appliance unattended during use. Boil-overs may occur, causing spills which may ignite.

Never wear loose fitting or long sleeved apparel while cooking. Never wear garments made of flammable materials. Clothing may ignite or catch utensil handles. DO NOT drape towels or other items on the appliance. These items could ignite and cause burns.

If your product is a range or rangetop located near a window, be certain window curtains or other flammable objects do not blow over or near the range burners; the items could catch on fire.

If operating the surface burners, the flame should be adjusted to just cover the bottom of the pan or pot. Excessive high flame settings may cause scorching of the nearby counter-top surface, as well as the outside of the utensil and handles.

ALWAYS turn the appliance off at the end of cooking.

When dehydrating food items, periodically check during the process to ensure that they do not catch on fire.

If you are "flaming" liquor or other spirits under an exhaust, TURN THE FAN OFF. The draft from the fan could cause the flames to spread out of control.

Care should be exercised if your appliance is equipped with a high-shelf. During heavy or continuous use, this shelf may be come hot. Do not place combustible materials or plastic items on the shelf.

Turn the knobs to the OFF position prior to removing them from the valve stems for cleaning.

WARNING

INSTALLATION INSTRUCTIONS

The location selected for the rangetop must meet the following criteria. If any of these criteria are not met, select another location.

CABINET PREPARATION

• This rangetop is a free standing unit.
- The rangetop can be placed in various positions with respect to the cabinet front, with the front either flush or projecting, depending on the countertop width.
- The rangetop is zero-clearance safe against non-combustible surfaces.
- The maximum depth of overhead cabinets installed on either side of the hood is 13".
• Any openings in the wall behind the rangetop and in the floor under the rangetop must be sealed.
- When there is less than 12" clearance between combustible material and the back edge of the rangetop above the cooking surface, a backguard must be installed.
- When clearance to combustible material is over 12" no backguard is necessary.
- Back guards must be ordered separately. To order, measure the space that the back guard must have and order accordingly.

ELECTRICAL CONNECTION

The rangetop must be electrically grounded in compliance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA70.
This rangetop requires a 120 volt supply to operate the ignition system. The supply cord provided on the rangetop is equipped with a three-prong (grounding) plug for protection against electrical shock.
☐ The electrical service in the building must be equipped with a properly grounded three-prong receptacle.
☐ Do not cut or remove grounding prong from this plug.

POWER REQUIREMENTS FOR THIS RANGETOP

120 VAC, 60 Hz, single phase, 15 AMP Max

INSTALLATION INSTRUCTIONS

PRESSURE REGULATOR

The regulator installed in the rangetop is adjusted at the factory for 5"WC (natural gas) or 10"WC (I.P.) depending on the customer's request. Regulators must not be removed.

☐ The regulator can withstand a maximum pressure of 1/2 PSIG (14"WC). If the line pressure is beyond this limit, a step-down regulator will be required.

Any adjustment to regulators must be made ONLY BY QUALIFIED service personnel with proper test equipment.

GAS REQUIREMENTS

√ Ensure supplied gas matches the rangetop's gas type.

Natural gas connection is 1/2" N.P.T. minimum 1/2" diameter flex line.

Natural gas inlet pressure to measure 7" to 10" W.C.

Propane gas connection is 1/2" N.P.T. minimum 1/2" diameter flex line.

LP gas inlet pressure to measure 11" to 14"W.C.

A step-down regulator in addition to the regulator provided with the LP rangetop is required at the LP (Propane) source to limit pressure to a maximum of 14" W.C.

Check that all gas connections are properly sealed with a suitable gas joint compound.

TEST ALL JOINTS WITH A SOAPY WATER SOLUTION BEFORE LIGHTING THE BURNERS.

1. Turn ON the manual gas valve at the inlet side of the gas supply line.
2. Check for gas leaks at the flexible coupling or gas connector fitting using a solution of one part soap and three parts water.
3. Sparingly spray or brush the soapy solution at the gas fittings; active bubbling indicates location of gas leak.
4. If a gas leak is detected turn off the manual gas valve at the inlet side of the gas line. Call your certified service technician.

FLEXIBLE COUPLINGS CONNECTORS AND CASTERS

Use & Care Manual

RANGETOP

INSTALLATION INSTRUCTIONS

• Do not remove protective packaging until you are ready to perform the installation.
• Do not remove the protective wrapping from the product control panel until the product is installed.
• Caution - the appliance is heavy. Use extreme care when handling!
• Use proper equipment to move products.
• Any openings in the wall and in the floor behind or under the oven must be sealed.
• Do not use an extension cord with this appliance. Such use may result in fire, electrical shock or other personal injury.
  • Installation of this appliance should be performed by qualified, licensed contractors.
  • To remove the packaging, first remove the staples located at the bottom perimeter of the corrugated cardboard cover:
• Remove the corrugated cardboard carton by lifting it off the product and remove the inner packing.
• Detach the product from the metal anchor strip by removing the attachment screw.
• Confirm access to adequate power and gas. See specifications & electrical requirements table.
• Fill out the inside cover of this installation manual with the requested data. Model Number and Serial Number can be found on the plate located underneath the control panel on the front of the appliance.

WARNING

For optimal performance, the rangetop should be installed away from drafts that may be caused by doors, windows, and heating and air conditioning outlets.

RATING PLATE - The information on the rating plate defines the model, serial number, gas type (natural or liquid propane), operating pressures and burner BTU ratings. Keep this information for future reference. It is essential for proper identification of the unit when requesting additional information or factory support.

AMERICAN FSystematic Design SINEMA TECHNOLOGY MODEL NO: ARSCT-304 SERIAL NO: XXXXXXX-XXX COOK TOP Lamps 17,000 Nidium 13,500 Small 9,000 GRILL VOLTS 120 9 OVEN BK 18 BRIOL & SAMS CYCLES 6902 30.36 1 28,000 BR 24.30.36 CHASE ANS Z21.10 - 2001 HOUSEHOLD COOKING APPLIANCES GRIDLE

Rating Plate

OVERALL DEPTH 29" 28" 27" 11 3/4" With 20" riser With 4" riser Island 28" 12" 24"

Overall Dimensions RANGETOP

9" 8" 8" 9" ELECTRIC CORD

Installations Specifications RANGETOP

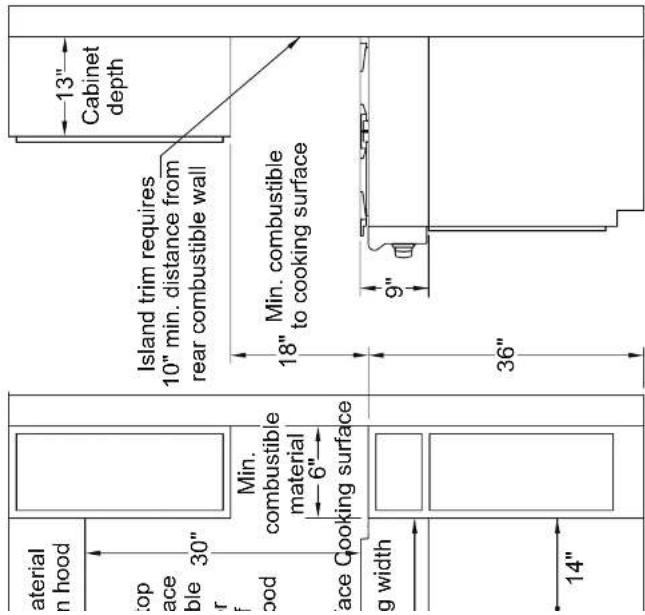

Cabinet depth 13" Island trim requires 10" min. distance from rear combustible wall Min. combustible to cooking surface 18" 9" 36" material n hood top ace ble r f ood min. combustible material 6" ace Cooking surface g width 14"

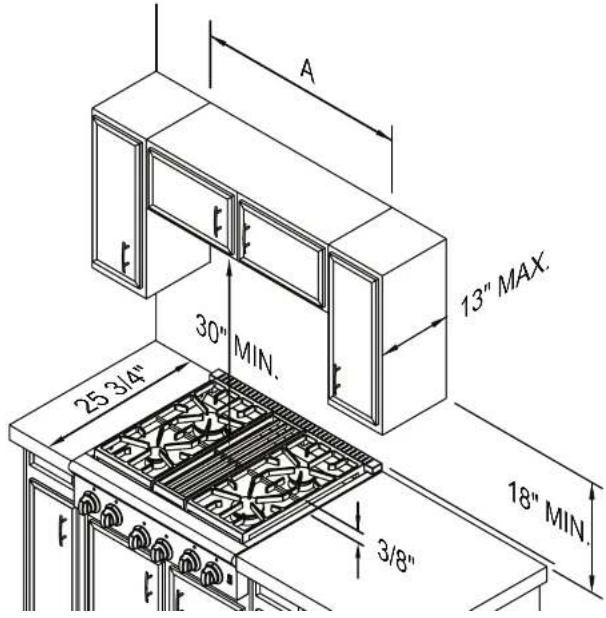

OVERALL DIMENSIONS PERFORMER RANGETOP

A 30" MIN. 13" MAX. 25 3/4" 3/8" 18" MIN.

VENT HOOD CLEARANCE DIMENSIONS

66° min. to 72° max. 24° MIN. or 27° 24° 30° min.

WARNING

This is a vented appliance. The appliance should not be installed with a ventilation system that blows air downward towards the range. This type of ventilation system may cause ignition and combustion problems with the gas cooking appliance resulting in personal injury or

Use & Care Manual

RANGETOP

INSTALLATION CHECKLIST

This checklist has been developed to assure proper installation of your oven.

To validate warranty, you must mail, e-mail or fax this form and a copy of your receipt to:

AMERICAN RANGE CUSTOMER SERVICE, 13592 DESMOND STREET, PACOIMA, CA 91331

[e-mail]

818.897.8839 FAX

Street:

Purchase Date:

City, State, Zip Code: ____

Installation Date:

E-mail:

Installer's Name:

Telephone:

Company:

Dealer:

Telephone:

CHECK ALL THAT APPLY

Appearance and Aesthetics

□ Exterior

Top section

Installation

Read User Manual
Review Safety Instructions
□ Proximity to cabinets
Backguard in place
□ Level
11 Ventilation system

Electrical Connection

□ Correct voltage
□ Grounded outlet
☐ Polarized outlet
□ No GFCI

Gas Connection

☐ Verify fuel: ☐ Natural -or- ☐ LP
Gas shut-off present and accessible
☐ Gas Supply line properly sized
☐ Gas Supply pressure checked

Use & Care Manual

RANGETOP

MODEL AND PARTS IDENTIFICATION

		PERFORMER SERIES - RANGETOP
DESCRIPTION		ARCHECT 14		ARCHECT 24GD		ARCHECT 30CS		ARCHECT 43D		ARCHECT 58		ARCHECT 63GD		ARCHECT 73CSR		ARCHECT 84BD		ARCHECT 94RGD		ARCHECT 104GD		ARCHECT 114XGF		ARCHECT 124DSA		ARCHECT 134GD		ARCHECT 144XGR
		AROBJECT 14		AROBJECT 24GD		AROBJECT 30CS		AROBJECT 43D		AROBJECT 58		AROBJECT 63GD		AROBJECT 73CSR		AROBJECT 84BD		AROBJECT 94RGD		AROBJECT 104GD		AROBJECT 114XGF		AROBJECT 124DSA		AROBJECT 134GD		AROBJECT 144XGR
Total Control Knobs		4	2	2	4	5	5	8	7	6	6	8	8	5
Open Burners 4		4	6	4	8	6	6	4	4	6	6	6
Griddle 1 1 2		1	2
Backyard Grill 1		1	2	1	1	2
Burner Grates 2		2	3	2	2	4	3	3	2	2	1	3	3
Center Crate
Island back 1 1 1		1	1		1	1	1	1	1	1	1	1
4" Stub back
Regis. Card		1	1	1	1		1	1	1	1	1	1	1
U&C Manual		1	1	1	1	1	1	1	1	1	1	1	1

Use & Care Manual

RANGETOP

TYPICAL MODEL & PARTS IDENTIFICATION

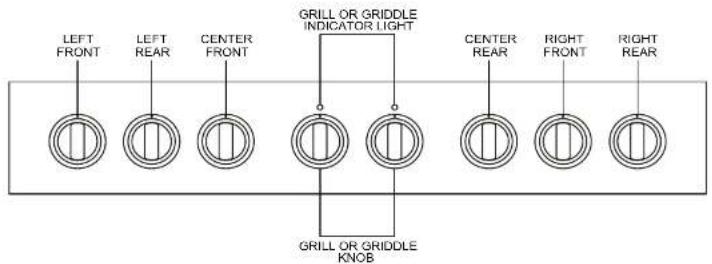

LEFT FRONT LEFT REAR CENTER FRONT GRILL OR GRIDDLE INDICATOR LIGHT CENTER REAR RIGHT FRONT RIGHT REAR GRILL OR GRIDDLE KNOB

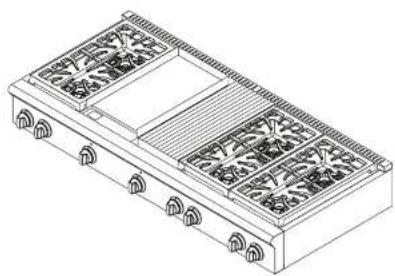

Isometric line drawing of a multi-tiered industrial or kitchen appliance with heat sinks and ventilation grilles (no text or symbols)

AROBSCT-242GD AROBSCT-24X2GR

ARDBSCT-636

AROBSCT-636GR

AROBSCT-636GD

RANGETOP PREPARATION PERFORMER RANGETOP

Step 1

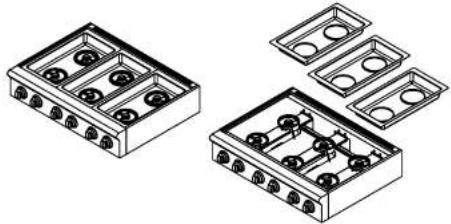

Technical line drawings of two mechanical housing compartments with mounting holes and internal components (no text or symbols)

Remove the burner pans, then cut and discard the shipping ties on the burner base. Confirm that burner base is flat on the burner support and that the air shutter is positioned over the gas orifice. Replace the burner pans.

Step 2

Isometric diagram of a heating unit with multiple fans and cooling elements (no text or labels)

The open burner heads are packed in a separate box. Unpack and place the burner heads on the burner base. Align holes in the top burner with pins on the base of burner for proper capacity & operation. For locations of burner heads, see the diagram below.

Step 3

BURNER BASE PIN LARGE MEDIUM MEDIUM LARGE LARGE

Use & Care Manual

RANGETOP

BEFORE USING THE NEW RANGETOP

• Before using the rangelop for the first time, wash the outside area with soap and water to remove any shipping & factory residue.
• The burner grates are designed in sections and are easy to remove and clean. They are made of cast iron with a porcelain coating and will remain hot after the burner is turned-off creating a residual heat for continued cooking. Use caution when handling.
• Your new professional rangetop is equipped with burners that are similar to those used in restaurants.
• The burner heads are large and designed to ensure even heat distribution for better cooking. They must be in place and properly seated before lighting.
  • The rangetop must not be operated without the burner heads.
• There are no continuously burning pilot lights. An electronic spark ignition system is used to light the burner. If the flame should go out from a boil-over or a strong draft, the burner will automatically re-ignite.

1. Use the front panel graphic to confirm your selection until you become familiar with the rangetop. Press in on the knob that corresponds to the burner that you would like to light. Turn the knob counter-clockwise to the "American Flame" icon located on the knob – this is the light position of the burner valve.

2. The igniter for all the surface burners will begin sparking – however, gas will flow to only the selected burner.

3. After the burner lights, the igniter clicking will stop – indicating that the flame sensing and re-ignition system is active on the selected burner.

4. Rotate the knob to any flame setting that you desire between MAX and SIMMER. The blue panel light will remain lit until the valve is returned to the OFF position.

The surface burners are rated at different power levels:

BURNER TYPE SMALL MEDIUM LARGE

Open Burners 12,000 BTU/hr. 18,000 BTU/hr. 25,000 BTU/hr.

When you are using the surface burners, select the burner power and location depending on the heating or cooking function you would like to perform.

A normal flame is blue in color and steady. Foreign materials in the kitchen air or the gas line especially in new construction.

Use & Care Manual

RANGETOP

COOKWARE RECOMMENDATIONS

To avoid the risk of serious injury, damage to the rangelop or cookware, please observe the following guidelines.

Bakeware, such as large casserole pans, cookie sheets, etc., should never be used on the rangetop.

Placement of large stock pots should be staggered when used on the rangelop. Select the base diameter of the pot to match the diameter of the flame. The diameter of the flame and the diameter of the pan bottom should match or be slightly smaller. Too large or too small pots on a burner will compromise cooking performance.

Do not place food packaged or wrapped in aluminum foil directly on the burner grate above the burner. Aluminum foil can melt during cooking.

Be careful to not let plastic, paper or cloth come in contact with a hot burner grate. These materials can catch fire or melt.

Never let a pan boil dry and if it occurs remember it can be extremely hot and very dangerous. If this should occur, turn off the bumer immediately. Wait a while, until the pot cools down enough to handle this could be several minutes, but could save you from burns or other serious injury.

The pan bottom should be flat, the heavier the better—and well balanced on the rangetop grate—sitting flat without rocking preferably with tight fitting lids. Try not to slide the pot across the grates while it is very handy to do so you may end up scratching the pot or the grate.

Always be careful when using high flames, as in wok cooking, as they may ignite nearby flammable materials or make the handles of the wok very hot. Use the wok ring (optional) to stabilize the wok.

SUGGESTED BURNER SETTINGS

HEAT SETTINGS USE

Simmer Melting small quantities of butter, simmer grains, rice, oatmeal

Use & Care Manual

RANGETOP

GRILL OPERATION

To turn on the grill, make sure there is nothing on the grilling surface, push in and turn the control counter clockwise to the HIGH position. The power ON indicator light will glow indicating the grill valve is on. The grill is equipped with a flame-sensing ignition system – that automatically detects the presence of flame on the grill burner – and relights it in the event it should go out. Adjust the flame to the desired height.

After cooking, allow the module to cool completely and remove the drip tray slowly, discarding grease and other food particles. The grill grate may be removed - exposing the radiants - which may be lifted out and placed in the dishwasher along with the drip tray for cleaning. The grate is porcelain coated and may be washed with hot soapy water and a soft brush.

USING YOUR GRILL

• Tum on the exhaust fan above your rangetop.
- Before starting to cook, check that Stainless Steel radiant, grease collector and grill grates are in place.
• This gas grill may cook slightly faster, so adjust preheat and grilling times to allow for less cooking time than expected.
- Push in the control knob and turn to ON. Rotate the knob counter-clockwise. You will hear a puffing
sound as the burner ignites and a blue light will indicate that the burner is lit.
• Preheat the grill for two to five minutes. The longer preheat time ensures darker grill marks on the food.
- Fatty foods or any excess fat used to marinate can cause minor flare-ups or puffs of flame. A small amount of flare-up is normal.

BEST COOKING RESULTS WHEN USING YOUR GRILL

The intense radiant heat from the grill vaporizes the surface of your food, locking in flavor.

• Add any barbecue sauces during the last few minutes of cooking, long enough to caramelize the sauce.
• For best results, turn food with tongs or a flat spatula to avoid piercing meat or poultry.
  • Tum meat once when juices rise to the surface. Turning meat more than once results in the loss of meat juices.
  • Never squeeze juices out of meat.
• Before cooking steaks or chops, trim most of the outside fat to prevent excessive flare-ups. Slash into the edges of steaks or chops to keep meat flat on the grill.
• Fish should be cooked at the lowest setting eight to ten minutes for every inch of thickness, measured at the thickest part of the fish.

USING THE GRIDDLE

The built-in griddle is made of polished steel to provide a smooth cooking surface. A griddle drip pan is included.

SEASON THE GRIDDLE

1. The griddle has a factory applied coating that must be washed off before using for the first time. (See Cleaning the Griddle below).
2. Pour one Tablespoon of vegetable oil or canola oil and rub on the entire surface of the griddle using a rough cloth.
3. Push the griddle control knob in and turn to a medium setting (350°)
4. Heat until griddle begins to smoke. Turn off griddle and allow to cool.
5. Repeat the process one more time.

CLEANING THE GRIDDLE

1. The griddle is not to be removed for cleaning,
2. First, clean griddle after use by scraping with a flat spatula to remove food particles.
3. Clean the griddle thoroughly with hot soapy water and a rough towel.
4. Rinse with a mixture of one quart water and one cup of vinegar.
5. To clean further pour one teaspoon vegetable oil in center of the griddle and rub the entire surface with a clean rough towel or scrub with a nylon scrubbing pad. Wipe with a damp paper towel.
6. Clean the griddle drip pan and trough after each use with hot soapy water and a sponge.
7. It is normal for the griddle to darken with age and use.

CLEANING THE CHROME GRIDDLE

To clean the chrome griddle, you need: Two soft scrub cloths, Mild degreaser dish soap. Instructions below:
1. Scrape the chrome griddle with a flexible nylon spatula. While the griddle is still warm, remove any left-on food particles. Pull the spatula forward toward the front and push into a garbage can.
2. Moisten one of the soft scrub cloths. Add a drop of mild degreaser dish soap on the cloth. Put two sides of the cloth together and rub to create soap lather.
3. Wipe the griddle from left to right. Clean in rows, top to bottom. Wash the entire griddle, including the sides. Rinse all the soap from the cloth and wipe away any suds from the chrome griddle.
4. Remove all moisture from the griddle with the second, clean soft cloth. Wipe the area in rows again as well as the sides and front. Repeat to ensure the chrome griddle is dry.

TO START COOKING

1. Push the knob in and turn the knob counter clockwise to the MAX setting.

TO CLEAN THE RANGETOP

The rangetop is constructed from brushed Stainless Steel with cast iron burners.

1. Wash all surfaces with hot water and dish detergent such as ivory liquid or joy.
2. Rub stubborn spots with baking soda or liquid cleaner such as Windex All Surface Cleaner or 409. For stubborn plugged up holes in the burner head, place it upside-down on an installed burner head and burn out the stoppage.
3. Do not use abrasives on Stainless Steel. Use rough towels, sponges or soft plastic scrubbers. RUB ONLY WITH THE "GRAIN".
4. Grates and burner caps can be soaked in hot soapy water.
5. Mild scouring cleaners can be used, such as Boni Ami or Cameo.
6. Do not use steel wool pads or green rough Scrubees.

TROUBLESHOOTING GUIDE

RANGETOP
PROBLEM POSSIBLE CAUSE WHAT TO DO
Rangetop will not heat	No electrical power to the rangetopGas service is turned offGas supply has been interrupted	Check circuit breakers in houseTry to light a surface burnerContact the gas company
	Mis-wired high voltage connections

WARRANTY REQUIREMENT

For reliable operation and for your own safety, this professional cooking equipment must be installed by a certified/licensed contractor.

Failure to comply will void any written or implied warranty.

Should the equipment require service during the standard warranty period, the receipt proving certified installation must be made available to American Range for verification.

If installation was not performed by a certified/licensed contractor be prepared to submit a major credit card for payment for proper installation prior to service.
