USER MANUAL DirectNET CDI5510VIFWH Costar

Before reading this manual

This is a basic operation manual for use of a network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product. Safety warnings and precautions contained in this operation manual are intended to promote proper use of the product and thereby prevent accidents and property damage and must be followed at all times. Once you have read this operation manual, keep it at an easily accessible location for future reference.

The manufacturer will not be held responsible for any product damage resulting from the use of unauthorized parts and accessories or from the user's failure to comply with the instructions contained in this manual.

• The information in this document is believed to be accurate as of the date of publication even though explanation about some functions may not be incorporated. The manufacturer is not responsible for any problems resulting from the use thereof. The information contained herein is subject to change without notice. Revisions or new editions to this publication may be issued to Incorporate such changes.
• It is recommended that first-time users of this network camera and individuals who are not familiar with its use seek technical assistance from their retailer regarding product installation and use.
• If you need to disassemble the product for functionality expansion or repair purposes, you must contact your retailer and seek professional assistance.
• Both retailers and users should be aware that this product has been certified as being electromagnetically compatible for commercial use. If you have sold or purchased this product unintentionally, please replace with a consumer version.

Safety Symbols

Symbol	Publication Description
---	IEC60417, No.5031	Direct current

In-Text

Symbol	Type Description
	Caution	Important information concerning a specific function.
	Note	Useful information concerning a specific function.

Before reading this manual

Safety Precautions

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Important Safeguards

1. Read Instructions

All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions

The safety and operating instructions should be retained for future reference.

3. Cleaning

Unplug this equipment from the wall outlet before cleaning it. Do not use liquid aerosol cleaners. Use a damp soft cloth for cleaning.

4. Attachments

Never add any attachments and/or equipment without the approval of the manufacturer as such additions may result in the risk of fire, electric shock or other personal injury.

5. Water and/or Moisture

Do not use this equipment near water or in contact with water.

6. Placing and Accessories

Do not place this equipment on an wall or ceiling that is not strong enough to sustain the camera. The equipment may fall, causing serious injury to a child or adult, and serious damage to the equipment. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturer.

This equipment and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the equipment and cart combination to overturn. Do not place this equipment in an enclosed space. Sufficient ventilation is required to prevent an increase in ambient temperature

10. Overloading

Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock.

11. Objects and Liquids

Never push objects of any kind through openings of this equipment as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the equipment.

12. Servicing

Do not attempt to service this equipment yourself. Refer all servicing to qualified service personnel.

13. Damage requiring Service

Unplug this equipment from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. When the power-supply cord or the plug has been damaged.

B. If liquid is spilled, or objects have hit the equipment.

C. If the equipment has been exposed to rain or water.

D. If the equipment does not operate normally by following the operating instructions, adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the equipment to its normal operation.

E. If the equipment has been dropped, or the cabinet damaged.

F. When the equipment exhibits a distinct change in performance — this indicates a need for service.

14. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may permit five different shares as they depend on

Before reading this manual

FCC Compliance Statement

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE, IN WHICH CASE USERS WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT THEIR OWN EXPENSE.

WARNING: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. THIS CLASS OF DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE CAUSING EQUIPMENT REGULATIONS.

WEEE (Waste Electrical & Electronic Equipment)

Correct Disposal of This Product

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Table of Contents

1

Part 1 - Remote Setup....7

Camera Protocol....7

Switching Protocols 7

Remote Setup....8

Quick Setup....9

System....9

General 9

Date/Time 10

User/Group 11

Network 12

IP Address 12

FEN....13

Port/QoS....14

Bandwidth Control....15

Security....16

IEEE 802.1X....17

Video 17

Camera 18

Streaming 22

Webcasting....24

MAT 25

Privacy Masking....26

Audio 26

In/Out 27

Table of Contents

Tampering 37

System Event 38

2

Part 1 - Remote Setup

Configure basic network camera settings and all other system settings.

Screen images may vary depending on the model.

Camera Protocol

Camera supports DirectNET™ and iNEX protocols.

- DirectNET™ protocol:

- Using with a DirectNET ^™ NVR enables camera use without the need to configure network settings.

- The DirectNET™ NVR also allows you to control all camera settings directly from the NVR, without the need for a computer.

For more information on configuring camera settings from a DirectNET® NVR, refer to the DirectNET®'s operation manual.

- iNEX protocol:

- Control the camera over the network from software installed on a computer or a separate NVR.

- Ideal for using the camera over the network from a remote location.

Switching Protocols

NAT - Integrated Network Installation Tool Setup Setup P Address Setup Name Name 1 2 3 4 Remote Setup MultiBound Apply Setup File Make Setup File Test Reset P Address 10.0.17.199 10.0.17.199 10.0.17.199 10.0.17.199 10.0.17.199 10.0.17.199 10.0.17.199

1 Launch the INIT program and from the list, select a camera whose protocol you wish to change.

2 Click on the Setup 📄 icon and then select Setup → Protocol Setup.

• Alternatively, you can right-click on the mouse and select Protocol Setup.

3 From the Protocol Setup screen, select the desired protocol and then click OK.

4 This will activate the selected protocol. You can check each camera's protocol on the INIT program.

Part 1 - Remote Setup

Remote Setup

1 Launch the INIT program and then from the main screen, select a network camera whose settings you wish to change.
2 Click on the Setup Icon.
3 Select Remote Setup from the Setup menu to load the Remote Setup screen. Alternatively, you can select Network Camera from the main screen and then right-click to access the Remote Setup screen.

- System settings can also be changed using a remote program.

- Remote Setup works with the following web browsers when the web browsers support HTML5: Microsoft Internet Explorer version 10 or later, Google Chrome, Mozilla Firefox, or Apple Safari. It may not work properly with Microsoft Internet Explorer version 9.0 or earlier. It is recommended that you update the web browser to the latest version. When you launch Remote Setup on a Microsoft Internet Explorer version 10 or later, supporting HTML5 and the Remote Setup screen does not appear, check if the web browser's document mode is set to 9 or higher or Edge. You can check the document mode as follows: Press the F12 key on the keyboard → click the Document mode 🎨 iron.

NET - Integrated Network Installation Tool Setup Subsector Name 1 2 3 4 Setup Setup IP Address 10.6.17.138 Apply Setup File 10.6.17.138 Make Setup File 10.6.17.132 10.6.17.132 Test Reset

Screenshot of a software interface showing a dropdown menu with options like 'Open', 'Close', and 'Help', alongside a grid of numerical data entries.

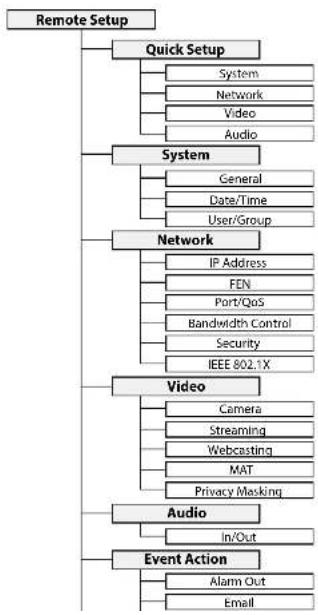

From the Remote Setup screen, select the menu on the left to display the current settings. Select an option under the menu to change the corresponding settings. Once you have changed the settings, click Save to apply the settings.

Part 1 - Remote Setup

Quick Setup

Screenshot of a software interface showing a dropdown menu with options like 'Save As' and 'Delete As', alongside a table with numerical values and keyboard shortcuts.

Quick Setup allows you to set up System, Network, Video, Audio, and other basic settings needed for camera use.

System

Quick Setup System System1 System2 System3 System4 System5 System6 System7 System8 System9 System10 System11 System12 System13 System14 System15 System16 System17 System18 System19 System20 System21 System22 System23 System24 System25 System26 System27 System28 System29 System30 System31 System32 System33 System34 System35 System36 System37 System38 System39 System40 System41 System42 System43 System44 System45 System46 System47 System48 System49 System50 System51 System52 System53 System54 System55 System56 System57 System58 System59 System60 System61 System62 System63 System64 System65 System66 System67 System68 System69 System70 System71 System72 System73 System74 System75 System76 System77 System78 System79 System80 System81 System82 System83 System84 System85 System86 System87 System88 System89 System90 System91 System92 System93 System94 System95 System96 System97 System98 System99 System100

Change the camera's system information, add users/ groups and/or impact/support settings

General

Source / Dataset Source Category Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value Export Value

• Language: Select the language you wish to use for remote setup.
• Name: Enter a name for the camera. (Up to 31 alphanumeric characters, including spaces)
  • Note: Enter a description for the camera.
• HW Version/SW Version: Indicates the camera's hardware and software versions.

- Miscellaneous

• ONVIF Protocol: Select to enable ONVIF protocol use. However, ONVIF Protocol is available only to users belonging to the standard user groups (Administrator, Operator, and User) and when video compression is set to H.264 or JPEG under Video > Streaming menu. When you have connected to the camera by using the ONVIF protocol, only the currently enabled streams or events are supported and you cannot change it. There may be some more settings that cannot be changed, too. If you want to change those settings, connect to the camera by using the INIT program.
• Opensource Licenses: Click View to see the

Part 1 - Remote Setup

- Setup

- Load Default Setup: Restores all settings other than Date/Time to their factory defaults. Select Include Network Setup to load default network settings as well. For more information on network setup, refer to the Network on page 12.

- Import Setup: Open a setup file and apply its settings to the camera. Click on the button and then select a setup file. Select Include Network Setup to apply the file's network setup settings (exc. FEN). For more information on network setup, refer to the Network on page 12.

- Export Setup: Export the current settings as a file. Click on the button and then enter a file name.

• Load Default Setup and Import Setup options are available only to users belonging to the Administrator group.
• When applying the settings of a setup file, do not select the Include Network Setup option if the network settings contained in the selected file is currently being used by a different camera. Doing so can interfere with establishing a connection with the other camera.
• If IP Address, Port, and/or SSL settings have been changed, click Save to apply the current settings, and then restart Remote Setup. If you do not restart Remote Setup, the changes afterwards will not be applied.

Date/Time

Open Sheet Format Name: Size: Width: Height: Spread: Spread Type: Spread Color: Spread Angle: Spread Angle: 120 degrees Spread Angle: 120 degrees Spread Angle: 120 degrees Spread Angle: 120 degrees Spread Angle: 120 degrees Spread Angle: 120 degrees Spread Angle: 120 degrees Spread Angle: 120 degrees Spread Angle: 120 degrees Spread Angle: 120 degrees Spread Angle: 120 degrees Spread Angle: 120 degrees Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trade Date: Trades: Trades Trades Trades Trades Trades Trades Trades Trades Trades Trades Trades Trades Trades Trades Trades Trades Trades Trades Trades Trades Trades Trades Trades Trades Trades Trades Trades Trades Trades Trades Trades Trades Trades Trades Tiree Tiree Tiree Tiree Tiree Tiree Tiree Tiree Tiree Tiree Tiree Tiree Tiree Tiree Tiree Tiree Tiree Tiree Tiree Tiree Tiree Tiree Tiree Tiree Tiree Tirei Tirei Tirei Tirei Tirei Tirei Tirei Tirei Tirei Tirei Tirei Tirei Tirei Tirei Tirei Tirei Tirei Tirei Tirei Tirei

- Date/Time: Change the camera's date/time settings and display formats and configure the time zone and daylight saving time settings. Click Save to apply the changes right away.

• Time Sync

• Automatic Sync: Select to synchronize the system's time with the time server at a specified interval. Enter the time server's IP address or domain name and then specify the interval. If the time server is FEN-enabled, select the Use FEN option and then enter the time server's name instead of its IP address or domain name.
• Run as Server: Select to run the camera as a time server. Other devices will then be able to synchronize its time setting with this camera's time setting.

If you wish to enter a domain name instead of an IP address for the Time Server setting, DNS server must be configured during Network setup. If you wish to enter a server name instead of an IP address or a domain name, the Use FEN option must be

User/Group

Data View Settings Name: Data Name: Data Type: Data Source: Network Value: Value Event Action Event Data View Settings Name: Data Name: Data Type: Data Source: Data Value: Data Source: Data Type: Data Source: Data Value:

• User/Group: Change remote camera control permission settings for users and user groups.
• Add Group: Add a new user group. Designate a name for the group and then specify control authorities.
• Add User: Add a new user. Designate a name for the user, select which group to add the user to, and then enter a connection password.
• Edit: Edit group authorities and/or user passwords. Select a group or user and then click on the button.
• Remove: Delete groups or users. Select a group of user you wish to delete and then click on the button.

- Allow Anonymous Login: Select if you are using Webcasting. For more information on webcasting, refer to the Webcasting on page 24.

- Allow Anonymous PTZ Control: Select to control the pan/tilt driver remotely from a website using webcasting.

Part 1 - Remote Setup

User/Group settings can only be configured by users belonging to the Administrator group.

• There is no default password for the Administrator group's admin user.
• Standard groups (Administrator, Operator, and User) cannot be edited or deleted. Authorities assigned here apply identically to ONVIF protocol user groups.
• Group authorities that can be assigned are as follows:

- Upgrade: Upgrade the system.

- Setup: Configure the system's settings.

- Color Control: Adjust the camera's brightness, contrast, saturation, and hue settings.

- PTZ Control: Authority to control pan/tilt driver's pan/tilt functions.

- Alarm-Out Control: Reset alarm outs.

- Search: Search video recordings saved on the SD memory card from a remote program.

- Clip-Copy: Search video recordings saved on the SD memory card and save them as video files from a remote program.

Part 1 - Remote Setup
Network

File Edit View Format Name Size View Mode View Color View Style View Color View Style View Color View Style View Color View Color View Color View Color View Color View Color View Color View Color View Color View Color View Color View Color View Color View Color View Color View Color View Color View Color View Color View Color View Color View Color View Color View Color View Color View Color View Color View Color View Color View Color View Color View Color View Color View Color

Change the network settings, enable FEN and security features, and control network bandwidth use.

IP Address

Network IP settings Type: 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500 2600 2700 2800 2900 3000 3100 3200 3300 3400 3500 3600 3700 3800 3900 4000 4100 4200 4300 4400 4500 4600 4700 4800 4900 5000 5100 5200 5300 5400 5500 5600 5700 5800 5900 6000 6100 6200 6300 6400 6500 6600 6700 6800 6900 7000 7100 7200 7300 7400 7500 7600 7700 7800 7900 8000 8100 8200 8300 8400 8500 8600 8700 8800 8900 9000 9100 9200 9300 9400 9500 9600 9700 9800 9900 100

- Type: Select the type of network you are using. If this option has been changed, click Save to apply the current settings, and then restart Remote Setup. If you do not restart Remote Setup, the changes afterwards will not be applied.

- Manual: Select if using a static IP. You will then be able to configure the related settings manually.

- DHCP: Select if connected to the network using DHCP. Click Save to retrieve IP address and other network settings automatically from the DHCP server.

- DNS Server: Enter the DNS server's IP address. By using the DNS server, you will be able to use domain names instead of IP addresses when configuring the FEN, time, or SMTP server. If the camera is connected to the network via DHCP, select the From DHCP option to retrieve the DNS server's IP address from the DHCP server automatically. The updated address will be displayed upon the subsequent connection.

- Contact your network administrator for more information on the camera's network connection type, the DNS server's IP address, and other related information.

- If using DHCP, the camera's IP address may change from time to time. We therefore recommend that you use the FEN feature.

FEN

Select Use FEN to enable the FEN feature.

System Log System File Path New Add Delete New Add Delete New Add Delete New Add Delete New Add Delete New Add Delete New Add Delete New Add Delete New Add Delete New Add Delete New Add Delete New Add Delete New Add Delete New Add Delete New Add Delete New Add Delete New Add Delete New Edit

• FEN Server: Enter the FEN Server's IP address or domain name.
• Port: Enter the FEN Server's port number.
• FEN Name: Enter a camera name you wish to register to the FEN Server. Click OK to check the name's availability.

Part 1 - Remote Setup

Use FEN is a feature that allows you to register a unique name for a camera that utilizes a dynamic IP address to the FEN Server and connect to the camera using the registered name instead of an IP address, which can change from time to time. Moreover, you can access the camera without having to configure NAT (Network Address Translation) device settings even when the camera uses a NAT device. In order to use this feature, you must first register a FEN name to the FEN Server.

• If network settings have been changed, click Save at the bottom of the setup window to save the changes and then setup the FEN.
• Inquire with your network administrator for the FEN Server's IP address or domain name. If a DNS server has been configured under Network setup, you can enter the FEN Server's domain name instead of its IP address for the FEN Server setting.
• DNS server must be configured under network setup to ensure normal operation.
• You will not be able to save FEN settings unless you click on the OK button next to the FEN name field and check the entered name's availability. In addition, you will be prompted with an error message if you do not enter a FEN name or enter a name already registered to the FEN Server. If the FEN name contains the 12% and/or 12% symbol, it might not be able to connect to the camera from the WebGuard program.

The FEN Server may go offline without notice for server update purposes or due to an unexpected failure.

Part 1 - Remote Setup

Port/QoS Network Name: PortQoS Name: 100 Address: 0 Contact: 0 Connection Status: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to: Connect to:

- Use/Port: Enable/disable ports and designate corresponding port numbers. Remote Port and WebGuard / HTTP ports are enabled by default and cannot be disabled. By enabling WebGuard and RTSP ports, you will be able to use the WebGuard program or a media player that supports RTSP (Real-Time Streaming Protocol) service to connect to the camera. When the HTTP port is enabled, you can run the camera's Remote Setup. If this option has been changed, click Save to apply the current settings, and then restart Remote Setup. If you do not restart Remote Setup, the changes afterwards will not be applied.

- DSCP: Designate each port's QoS (Quality of Service) level using DSCP values. Assigning QoS levels prioritizes the ports for network bandwidth use. Higher the DSCP value, higher the QoS level and thus higher on the network bandwidth allocation priority list. Use 0 if you do not want to assign a QoS level. The network environment must support DSCP in order for this feature to function properly. Contact your network administrator for more details.

• Use HTTPS: Select this option to apply https protocol-based security on WebGuard.
• Use UPnP: If the camera is connected to the network via an IP router (or NAT), select this option to connect to the camera without setting up port forwarding. The IP router (or NAT) must be enabled with UPnP in order for this feature to function properly. For more information enabling UPnP on your IP router (or NAT), refer to the IP router or NAT's operation manual.

Click Check to test the current port settings. A confirmation message will appear if all the selected ports are available for use. If not, a list of recommended port numbers will be shown.

Notify Recommended Port Numbers Remote Port : 8016 => 8017 WebGuard : 80 => 81 OK Cancel

Click Apply to use the recommended port numbers.

Part 1 - Remote Setup

- In a WAN environment, it is recommended that you use the UPnP function if you record video by using the FEN function or FEN connection is not smooth. Otherwise, monitoring or recording might not be smooth depending on the network environment.

- Each port number must be unique. - It is not allowed to use the same port number for more than one function. - You can connect to the camera using a media player that supports RTSP service and monitor its video feed. If the camera is connected to the network via an IP router (or NAT) or is behind a firewall, you must open the ports. (All ports if using UDP protocol and RTSP ports if using TCP protocol). This feature may not be supported by al media player. In addition, video display on certain media players may not be smooth depending on the network status, video streaming compression method used, and/or the resolution setting. Connection methods are as follows:

Via PC: Launch the media player (such as VLC) and then enter rtsp//ID:Password@IP Address: RTSP Port Number/trackID="Stream Number" (Stream Number: 1 if Primary, 2 if Secondary, and 3 if Tertiary). (e.g.: rtsp//admin@10.0.152.35:554/trackID=1 (User: admin, Password: None, Camera IP Address: 10.0.152.35, RTSP Port Number: 554, Stream: Primary))

- Via Mobile Device: Launch the web browser and then enter http://IP Address:WebGuard Port Number/ (If Use HTTPS has been enabled, enter https instead of http). Camera's WebGuard port number and RTSP port number must be configured correctly in order to establish a connection this way.

- Port numbers of the remote program must be updated whenever the camera's port numbers are

Bandwidth Control

Regulates the camera's network bandwidth use based on network traffic fluctuations.

Speed Setup Speed Speed Control Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set Speed Set

Select Network Bandwidth limit and then specify the maximum bandwidth. The camera will not be able to use more than the specified limit in the event of network traffic.

It may not be possible to produce the frame rate specified under Video > Streaming if a network bandwidth limit has been set.

Part 1 - Remote Setup

Security Security Group System Report F1 Security U3 Data Carbon Storage Security C2 Security Data Auto Social Address System

- IP Filtering: Select this option to enable IP Filtering. IP Filtering allows camera access from certain IP addresses and blocks access from others.

- Add: Add new IP addresses to Allow List or Deny List. Select the Host option to add one IP address at a time. Select the Group option to define a range of IP addresses you wish to add.

- Remove/Remove All: Remove individual or all IP addresses from Allow List or Deny List.

- SSL: Select this option to enable SSL (Secure Sockets Layer). Enabling this option applies SSL protocol protection on data transmitted out. However, programs and systems that do not support SSL will not be able to connect to the camera. If this option has been changed, click Save to apply the current settings, and then restart Remote Setup. If you do not restart Remote Setup, the changes afterwards will not be applied.

- Time server, FEN Server, and SMTP server's IP addresses must be added to Allow List under IP Filtering in order to use Time Sync, FEN, and Send Email features. No connection to the camera will be permitted whatsoever from IP addresses added to Deny List.

• Enabling the SSL option may place a greater load on the system, depending on the level of security being used.
• This product contains software developed by Open SSL Project for use in Open SSL Toolkit. (http://www.openssl.org/)

Part 1 - Remote Setup

IEEE 802.1X

Select the IEEE 802.1X option to enable IEEE 802.1X network connection authentication.

Network - 100 KBU Network Name: 100 KBU Network Address: 100 KBU Network Address: 100 KBU Network Address: 100 KBU Network Address: 100 KBU Network Address: 100 KBU Network Address: 100 KBU Network Address: 100 KBU Network Address: 100 KBU Network Address: 100 KBU Network Address: 100 KBU Network Account: 100 KBU Network Account: 100 KBU Network Account: 100 KBU Network Account: 100 KBU Network Account: 100 KBU Network Account: 100 KBU Network Account: 100 KBU Network Account: 100 KBU Network Account: 100 KBU Network Account: 100 KBU Network Accounts: 100 KBU Network Accounts: 100 KBU Network Accounts: 100 KBU Network Accounts: 100 KBU Network Accounts: 100 KBU Network Accounts: 100 KBU Network Accounts: 100 KBU Network Accounts: 100 KBU Network Accounts: 100 KBU Network Accounts: 100 KBU Network Account: 100 KBU Network Account: 100 KBU Network Account: 100 KBU Network Account: 100 KBU Network Account: 100 KBU Network Account: 100 KBU Network Account: 100 KBU Network Account: 100 KBU Network Account: 100 KBU Network Accounting: 100 KBU Network Accounting: 100 KBU Network Accounting: 100 KBU Network Accounting: 100 KBU Network Accounting: 100 KBU Network Accounting: 100 KBU Network Accounting: 100 KBU Network Accounting: 100 KBU Network Accounting: 100 KBU Network Accounting: 100 KBU Network Advertising: 100 KBU Network Advertising: 100 KBU Network Advertising: 100 KBU Network Advertising: 100 KBU Network Advertising: 100 KBU Network Advertising: 100 KBU Network Advertising: 100 KBU Network Advertising: 100 KBU Network Advertising: 100 KBU Network Advertising: 100 KBU Network Admissions: 100 KBU Network Admissions: 100 KBU Network Admissions: 100 KBU Network Admissions: 100 KBU Network Admissions: 100 KBU Network Admissions: 100 KBU Network Admissions: 100 KBU Network Admissions: 100 KBU Network Admissions: 100 KBU Network Admissions: 5.2.2.3.4.5.6.7.8.9.1.1.2.3.4.5.6.7.8.9.1.2.3.4.5.6.7.8.9.1.2.3.4.5.6.7.8.9.1.2.3.4.5.6.7.8.9.1.2.3.4.5.6.7.8.9.1.2.3.4.5.6.7.8.9.1.2.3.4.6. 5.2.2.3.4.5.6.7.8.9.1.2.3.4.5.6.7.8.9.1.2.3.4.5.6.7.8.9.1.2.3.4.5.6.7.8.9.1.2.3.4.5.6.7.8.9.1.2.3.4.6. 6.2.2.3.4.5.6.7.8.9.1.2.3.4.5.6.7.8.9.1.2.3.4.5.6.7.8.9.1.2.3.4.5.6.7.8.9.1.2.3.4.6. 6.2.2.3-4-5-6-7-8-9-1-2-3-4-5-6-7-8-9-1-2-3-4-5-6-7-8-9-1-2-3-4-5-6-7-8-9-1-2-3-4-5-6. 6.2.2-4-5-6-7-8-9-1-2-3-4-5-6-7-8-9-1-2-3-4-5-6-7-8-9-1-2-3-4-5-6-7-8-9-1-2-3-4-5-6. 6.2.2-4-5-6-7-8-9-1-3-4-5-6-7-8-9-1-3-4-5-6-7-8-9-1-3-4-5-6-7- 6.2.2-4-5-6-7-8-9-3-4-5-6-7-8-9-3-4-5-6-7-8-9-3-4-5-6-7- 6.2.2-4-5-6-7-8-9-3-4-5-6-7-8-9 -3 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 - | Systematic Network Data: Systematic Network Data: Systematic Network Data: Systematic Network Data: Systematic Network Data: Systematic Network Data: Systematic Network Data: Systematic Network Data: Systematic Network Data: Systematic Network Data: Systematic Network Data: Systematic Network Data: Systematic Network Data: Systematic Network Data: Systematic Network Data: Systematic Network Data: Systematic Network Data: Systematic Network Data: Systematic Network Data: Systematic Network Data: Systematic Network Data:

• Certificates: Upload a certificate or a private key. You may be prompted to enter a password for the private key.
• Settings: Configure EAP (Extensible Authentication Protocol) settings.

EAP Type: Choose a network connection authentication method. Selected method must be identical to the authentication method used on the authentication server.

• EAPOL Version: Choose EAP authentication's version.
• EAP Identity/EAP Password: Enter authentication ID and password.

The authentication server and AP must support IEEE 802.1X authentication in order for the IEEE 802.1X network connection authentication feature to function properly.

Video

Edit Edit Group Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date Edit Date

Configure Camera, Streaming, Webcasting, MAT, and Privacy Masking options.

Part 1 - Remote Setup

Camera

Image Sensor

Configure Image Sensor settings.

Add Delete Paste Add Delete Paste Paste to Add Delete Paste Add Delete Paste Add Delete Paste Add Delete Paste Add Delete Paste Add Delete Paste Add Delete Paste Add Delete Paste Add Delete Paste Add Delete Paste Add Delete Paste Add Delete Paste Add Delete Paste Add Delete Paste Add Delete Paste Add Delete Paste Add Delete Paste Add Paste Paste Add Delete

- Mirroring: Select Horizontal Reverse or Vertical Reverse to flip the image horizontally or vertically.

- Pivot: Select a direction to rotate images 90 degrees clockwise or counterclockwise. If vertical resolution is less than 320, this function is not supported. If you enable this function, you can monitor more efficiently long and narrow space such as hallways, corridors, etc. If both Mirroring and Pivot functions are enabled, Mirroring functions first, then Pivot. - Defog: Disables or enables the Defog feature. When it is enabled, image with a fog is adjusted.

Part 1 - Remote Setup

White Balance

Configure White Balance settings.

Quick Design Volume Parameters Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Cash

- Preset: Use preconfigured white balance settings.

- Auto: Allow the system to adjust the white balance automatically. The system will assess the lighting conditions and adjust the white balance automatically.

- INCANDESCENT - FLUORESCENT COLD: Select a lighting type to apply the appropriate white balance.

- Manual: Adjust the white balance manually. Adjust Red and Blue gain values. Greater the value, greater the intensity of the corresponding color.

Exposure

Configure Exposure settings.

Value / Currency Currency Currency Value Currency Amount Currency Value Currency Amount Currency Value Currency Amount Currency Value Currency Amount Currency Value Currency Amount Currency Value Currency Amount Currency Value Currency Amount Currency Value Currency Amount Currency Value Currency Amount Currency Value Currency Amount Currency Value Currency Amount Currency Value Currency Amount Currency Value Currency Amount Currency Value Currency Amount Currency Value Currency Amount Currency Value Currency Amount Currency Value Currency Amount Currency Value

• IRIS: Adjust the openness of lens IRIS.

- P-IRIS (Auto): The system will assess the lighting conditions and adjust the openness of IRIS automatically.

- P-IRIS (Fix): Use the slider to select the desired openness of IRIS. Select the most suitable value for the lighting conditions in the area where the camera is located.

- AE Target Gain: Specify exposure compensation's target gain. Exposure is compensated automatically based on the specified target gain. Higher the gain, brighter the images.

- Anti-Flicker: If the lights in the area where the camera is located use alternating current, specify the frequency of the lights to minimize flickering. Matching the frequencies can reduce flickering. (NTSC: 60Hz, PAL: 50Hz) When using WDR, it can flicker on the bad flickering environment even if Anti-Flicker is turned on.

Part 1 - Remote Setup

• Slow Shutter: Activate Slow Shutter. The electronic shutter's speed will decrease to the specified level under low-lighting conditions to allow more light in and therefore produce brighter images.
• WDR: Disables or enables the WDR(Wide Dynamic Range). When the very dark and very bright areas exist simultaneously on the screen, WDR allows you to recognize the both areas.
• Backlight Compensation: Enable/disable the Backlight Compensation feature. If using WDR, Backlight Compensation OFF does not work.

- ON: When images are too bright overall due to backlight, objects are exposed brighter under backlight circumstances.

- HSBLC (High Suppress Backlight Compensation): When a certain area of images is too bright due to backlight under low lighting conditions and it causes the other area to be too dark, this function provides the other area of images brightly and clearly by blocking the backlight in the certain area. Dark parking lot entrances and gas station entrances at night, for example (HSBLC compensates for the bright light coming from incoming vehicle headlights and makes it possible to see the license plates).

- Exposure Control: Adjust Shutter Speed and gain. This option is available only when Anti-Flicker and Slow Shutter are both set to Off.

• Auto: The system will assess the lighting conditions and adjust the shutter speed and gain automatically.
• Manual: Use the slider to select the desired shutter speed and gain. Select the most suitable minimum and maximum shutter speeds and gains for the lighting conditions in the area where the camera is located.

With certain features, selecting Auto automatically loads settings suitable for the camera's installation environment.

Part 1 - Remote Setup

Day & Night

Configure Day & Night settings.

Meta Forms Model Name: 100% Color: Green Size: 5 px Opacity: 75% Quality: 90% Balance: 100% Balance Settings: Name: Balance Style: Balance Color: OK Cancel OK OK OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel

- B&W Mode: Display the images in greyscale for greater clarity in low-lighting conditions.

- On/Off: Enable/disable B&W Mode.

- Auto: Allow the system to enable/disable B&W Mode automatically.

- Schedule: Set up a B&W Mode schedule. B&W Mode is enabled on days and times designated as Nighttime and disabled at all other times. Select On or Off at the bottom of the schedule table and then click or drag on the dates and times to select/unselect as Nighttime. Select On or Off and then click Select All/Clear All to select/unselect all dates and times as Nighttime.

- IR Cut Filter: IR Cut Filter blocks out the infrared spectrum. You can ensure clear images at all times by blocking out the infrared spectrum in high-lighting conditions and allowing the infrared spectrum to pass through in low-lighting conditions.

- Nighttime Mode/Daytime Mode: Disables or enables the IR cut filter.

- Auto: Allow the system to enable/disable IR Cut Filter automatically.

- Schedule: Sets up the IR cut filter schedule. The IR cut filter is disabled during the date and time scheduled as Nighttime and enabled during the rest. Set up or release Nighttime by selecting On or Off in the bottom and clicking or dragging the date and time area in the table. Selecting On or Off and clicking the Select All/Clear All button sets up or releases Nighttime for all dates and time.

- Switching Level: Sets up the switching level between the daytime mode and nighttime mode. For example, if the darkness level is set to 3 and brightness level to 5, the system switches to nighttime mode when in the lighting condition of level 3 or below and to daytime mode when in the lighting condition of level 5 or over. It is recommended that you do not set up the darkness level and brightness level identically otherwise, this function may not work properly. This functions only when B&W Mode or IR Cut Filter is set to Auto.

Part 1 - Remote Setup

Miscellaneous

Configure Miscellaneous settings.

Quick Setup Balance Environment Balance Background Name: Name: 0 Size: 100% Width: 25% Distance: 0% Source: Source Name: Source ID: 0

• Video Output: Select a video output signal format.
- IR Strength: Set the brightness of the IR LED. The higher the value is set, the brighter it is.
- Smart IR: Prevent the object from being saturated by IR light. Select On to always control saturation and select Auto to control saturation only when the zone is over-saturated.

Streaming

Layer Style Form1 Format1 Name Color Style Style Color Style Value Layer 1 Layer 2 Layer 3 Layer 4 Layer 5 Layer 6 Layer 7 Layer 8 Layer 9 Layer 10 Layer 11 Layer 12 Layer 13 Layer 14 Layer 15 Layer 16 Layer 17 Layer 18 Layer 19 Layer 20 Layer 21 Layer 22 Layer 23 Layer 24 Layer 25 Layer 26 Layer 27 Layer 28 Layer 29 Layer 30 Layer 31 Layer 32 Layer 33 Layer 34 Layer 35 Layer 36 Layer 37 Layer 38 Layer 39 Layer 40 Layer 41 Layer 42 Layer 43 Layer 44 Layer 45 Layer 46 Layer 47 Layer 48 Layer 49 Layer 50 Layer 51 Layer 52 Layer 53 Layer 54 Layer 55 Layer 56 Layer 57 Layer 58 Layer 59 Layer 60 Layer 61 Layer 62 Layer 63 Layer 64 Layer 65 Layer 66 Layer 67 Layer 68 Layer 69 Layer 70 Layer 71 Layer 72 Layer 73 Layer 74 Layer 75 Layer 76 Layer 77 Layer 78 Layer 79 Layer 80

• Primary/Secondary/Tertiary/Quaternary:

Multistreaming is supported (priority: Primary > Secondary > Tertiary > Quaternary). Enable/disable streaming use. The lower stream settings may change depending on higher stream settings. The tertiary and quaternary streams may not be available depending on higher stream settings. (refer to the table below).

The table below is an example of H.265 and H.264 compression. It can be more limit if it is JPEG compression.

Primary Secondary Tertiary Quarterly
Resolution	Ips Resolution	Ips Resolution	Resolution	Ips Resolution	Ips
2590x1946 38	2592x1344 1			1260x060	3	640x480 1
						320x240 5
					2	1260x060 1
						640x480 5
						320x240 15
					1	1260x060 1
						640x480 5
				640x480	10	640x480 3
						320x240 10

Part 1 - Remote Setup

- Compression: Choose the streaming compression method. The H.265 compression does not support ONVIF Protocol.

When using H.265 compression, the device that does not support H.265 compression can prevent the screen from being displayed.

• Resolution: Choose a resolution setting for video streaming. The resolution varies depending on the camera model. The current stream resolution cannot be higher than the higher stream resolution.
  • Quality: Choose a quality setting for video streaming.
• Target Bitrate(Kbps): Set the target bitrate. When Quality is set to Manual, you can configure the value of target bitrate. If not, it appears the set value of the target bitrate for each Quality.
• Bitrate Control: Choose a bitrate control mode for video compression.

- CBR (Fixed Bitrate): Maintains the current bitrate regardless of motion change in the video.

- VBR (Variable Bitrate): Bitrate varies depending on motion changes in the video. Less movement places less load on the network and takes up less storage space.

• Frame Rate: Choose a frame rate setting for video streaming. The fame rate of the current stream cannot be higher than the fame rate of the higher stream if those stream resolutions are same.
• Default Record Stream: Choose a stream to use for recording. This setting, however, may not apply if a recording stream has been designated from the remote program or the SD memory card recording feature has been enabled.
• Intelligent Codec: Analyze real-time video intelligently to minimize bitrate while maintaining frame rate and image quality.

- Multi-View Streaming: Designate a specific area of the screen and stream images from that area only. (not supported for the primary stream) Click Setup to designate a streaming area.

Select On and then specify the streaming area's resolution.

Multi View Streaming Secondary Temporary Customary ■ On Isolation Level Uniscale/Off Resolution Uniscale/Off Current Isolation off OK Cancel

Part 1 - Remote Setup

- Resolution Limit: Indicates the maximum resolution that can be set for the streaming area.

Resolution: Designate a streaming area. Designated area is marked in red on the screen. You can adjust the resolution of the area or reposition the area by dragging and dropping using the mouse.

- Current Resolution: Displays the resolution of the designated streaming area.

If multiple users are connected to the camera, the increase in bandwidth use can lower the frame rate.

Webcasting

Use the webcasting service to view live images from the camera on a web site.

Quick Show Options Microsoft Help Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Search Research List is well known to be selected as an output file. Browse the results for this specific data.

• HTML Code: Copy and paste the html code shown on the screen within the code of the web page you want the video to be displayed.
• Stream: Choose a stream to use for webcasting. Only a stream currently in use can be selected.

In order to use the webcasting service, the Allow Anonymous Login option under System > User/Group must be selected.

Part 1 - Remote Setup

MAT

Select the MAT option to use the MAT (Motion Adaptive Transmission) feature during video transmission and recording.

Screenshot of a software interface with menu options and a data input field for filtering or filtering settings.

- Sensitivity: Set the motion detection sensitivity. Higher values will result in more sensitive motion detection.

- Inactivity Period: Set the Inactivity Period. If motion is not detected for the duration of time specified, video is transmitted and recorded using the frame rate designated below until movement is detected again.

- Frame Rate: Designate the frame rate to be used between the end of the Inactivity Period and the next motion detection. When the slow shutter mode is enabled under Video > Camera menu, the fame rate may change. Video is transmitted and recorded at the designated frame rate between then end of the Inactivity Period and the next motion detection. Once motion is detected again, the frame rate designated under Streaming is restored immediately.

√ MAT (Motion Adaptive Transmission) is a feature that lowers the frame rate when motion is not detected to reduce the load on the network and save on storage space. Based on the specified sensitivity setting, no movement will be assumed if there is no change between two consecutive images.

Part 1 - Remote Setup

Privacy Masking

Select Privacy Masking to set up a privacy mask over a specific area. The section on which a privacy mask is applied will appear as black when monitoring video.

Auto Tools New New Delete New Delete Auto Tools New Delete

- Privacy Masking Setup: Set up privacy masks. (Up to 8)

Primary Meeting No. Cancel OK Cancel

(Select)/(Unselect): Set or remove a privacy mask. Click on the button and drag & drop using the mouse to set up a privacy mask.

No./Name: Displays a list of active privacy masks. The numbers indicate privacy mask numbers. Select the empty space next to a number to assign a name to the corresponding privacy mask. Click Delete to

Audio

Configure audio in/out settings.

Show Show Mode Show Paste Delete Show Mode Paste Delete

Part 1 - Remote Setup

In/Out

Screenshot of a software interface showing a settings panel with dropdowns and input fields, likely for configuration or data entry.

• Audio Codec: Select an audio codec.

• Input: Select an option and then adjust the volume. Noise Filter reduces the environmental noise and enhances the voice. If you turn on the noise filter, the sound may be distorted somewhat. We recommend that you do not use this function in a place with a lot of songs because it may degrade performance.
  • Output: Select an option and then adjust the volume.

Cameras do not feature built-in audio amplifier units and therefore require the user to purchase a speaker system with a built-in amplifier separately.

Event Action

Designate event detection alert actions.

File Setup Name: 10 Format: Normal Size: 250 px (100 px - 50 px) Color: Name: Normal Size: 250 px (100 px - 50 px) Color: Normal Size: 250 px (100 px - 50 px) Color: Normal Size: Normal Size: Normal Size: Normal Size: Normal Size: Normal Size: Normal Size: Normal Size: Normal Size: Normal Size: Normal Size: Normal Size: Normal Size: Normal Size: Normal Size: Normal Size: Normal Size: Normal Size: Normal Size: Normal Size: Normal Size: Normal Size: Normal Size: Normal Size: Normal Size: Normal Sides: Normal Normal Large Small Medium Large Small Medium Large Small Medium Large Small Medium Large Small Medium Large Small Medium Large Small Medium Large Small Medium Large Small Medium Large Small Medium Large Small Medium Large Small Medium Large Small Medium Large Small Medium Large Small Medium Large Small Medium Large Small Medium Large Total: Normal: Normal: Normal: Normal: Normal: Normal: Normal: Normal: Normal: Normal:

Part 1 - Remote Setup

Alarm out Select Alarm Out to enable alarm out.

- Dwell Time: Designate the alarm out duration. When an event occurs, alarm out will be generated for the specified duration.

- Schedule: Specify the alarm out schedule. Alarm out is generated during the specified period only.

Email Select Email to send out emails.

- SMTP Server/Port: Enter the SMTP server's IP address (or domain name) and port number you received from the network administrator. If a DNS server has been set up during network configuration, you can enter a domain name instead of an IP address.

- Use SSL/STARTTLS: If using an SMTP server requiring an SSL or STARTTLS connection, select SSL or STARTTLS option.

- Authentication: Enter a user ID and password if user authentication is required by the SMTP server.

- Sender/Recipient(s): Enter the sender and recipients' addresses. (Up to 10) The addresses must be properly formatted and include the @ symbol.

Part 1 - Remote Setup

Remote Callback

Select Remote Callback to send callback messages to a remote system.

• Not supported from the WebGuard program.
- The camera must be registered to the remote system in order to use the Remote Callback feature.

Event Settings - Eventset Options Event Set: 10.0000 Time: 0.0000 Duration: 0.0000 Time: 0.0000 Time: 0.0000 Time: 0.0000 Time: 0.0000 Time: 0.0000 Time: 0.0000 Time: 0.0000 Time: 0.0000 Time: 0.0000 Time: 0.0000 OK Cancel

• IP Address: Enter the IP address and port number of the remote system that will receive the messages.
• Retry: Designate how many reattempts to make if message delivery fails.

Audio Alarm

Select Audio Alarm to generate audio.

Add Options Remove Save As Edit Paste Paste to Add Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type Paste Type

- List: Displays a list of audio files to playback. Click Add or Remove to add/remove audio (.wav) files. (supports 16-bit, 16KHz encoded files only) Select an audio file from the list and then click Play to listen to the file.

Part 1 - Remote Setup

FTP Upload

Select FTP Upload to upload jpg image of the event detected to an FTP server.

File export: FTP export File type: FTP export Size: 100 mm Format: Normal Spread: Normal Export: Normal Export: Normal Export: Normal Export: Normal Export: Normal Export: Normal Export: Normal Export: Normal Export: Normal Export: Normal Export: Normal Export: Normal Export: Normal Export: Normal Export: Normal Export: Normal Export: Normal Export: Normal Export: Normal Export: Normal Export: Normal Export: Normal Export: Normal Export: Normal Export: Normal export

- FTP Server: Click Add to register a new FTP server. Click Remove to remove a registered FTP server. When an event is detected, a .jpg image of the event detected image is uploaded to the Primary Server. If the upload to the Primary Server fails, the file will be uploaded to the Secondary Server. Upload to the Secondary Server will continue to be attempted until successful. Fill out the fields below and click Test to test the FTP server connection settings. Once the test is complete, click OK.

Add FTP Server FTP Server Upload Path Port 21 User ID Password Text OK Cancel

- FTP Server: Enter the FTP server's IP address (or domain name).

- Upload Path: Designate the file upload path.

- Port: Enter the FTP server's port number.

- User ID, Password: Enter the user ID and password

needed for connecting to the FTP server.

- Settings: Configure image and upload settings.

• Upload Type: Choose an upload type. Select Always to upload images using the settings below, irrespective of event detection. Select Event to upload images using the settings below when an event is detected.
• Upload Frequency: Activated only when Upload Type has been set to Always. Designate the upload speed. The specified number of images will be uploaded to the FTP server during the specified period of time.
• Upload 1 image per: Activated only when Upload Type has been set to Event. Designate the upload speed. Select Upload for and specify a duration. Images will be uploaded for the specified duration at the specified upload speed. Select Upload while event status is active to upload images at the specified speed only while event status is active.

Part 1 - Remote Setup

• Resolution/Quality: Choose the resolution and quality of the images to upload to the FTP server. Range of resolution settings you can use here can vary depending on the resolution setting applied under Video > Streaming.
• Base File Name: Enter a name for the files to be uploaded to the FTP server and then choose file identification options. Select Add Date/Time Suffix to add event detection date and time information to each image file. Select Add Sequence Number Suffix - max. Count to number the image files based on the order of event detection. Select

Overwrite to overwrite the previous image with the new image. Event type is automatically added to the file names.

When specifying the Upload Path or Base File Name, you cannot use special characters such as ./, v, °, |.; ", <, >, and ?.

• The resolution of FTP upload image can change depending on the resolution setting applied under Video > Streaming.
• Set speed settings for Upload Frequency and Upload 1 image per options in consideration of the FTP server's performance. FTP uploads can fail if the configured speed is higher than what the FTP server can handle.

Record

Select Record to record video on the SD memory card. First, make sure that an SD memory card (Class 6 or higher) has been properly inserted.

Image Image Symbol Network Video Audio Color Mode Noise Level Noise Ratio Noise Speed Noise Value Noise Range Noise Intensity Noise Level Noise Value Noise Intensity Noise Level Noise Value Noise Intensity Noise Level Noise Value Noise Intensity Noise Level Noise Value Noise Intensity Noise Level Noise Value Noise Intensity Noise Level Noise Value Noise Intensity Noise Level Noise Value Noise Intensity Noise Level Noise Value Noise Intensity Noise Level Noise Value Noise Intensity Noise Level Noise Value Noise Intensity Noise Level NoiseValue

• Total Capacity: Indicates the SD memory card's total capacity if it has been inserted properly.
• Format SD Card: Click on this button to format the inserted SD memory card. Formatting the SD memory card erases all data saved on the card.

This function is only supported for users in Administrator group.

- Record Audio: Enable/disable audio recording.

Part 1 - Remote Setup

Schedule

Select the Schedule tab and set up a recording schedule.

• Mode: Choose a recording mode.

- Always - Event: Records video in event mode. In event recording mode, video is recorded when an event is detected.

- Always - Time-Lapse: Records video in time lapse mode. In time lapse recording mode, video is recorded continuously, irrespective of event detection.

- Always - Time-Lapse/Event: Records video in time lapse mode when event has not been detected and in event mode when one is detected.

- Date/Time: Video is recorded in the specified mode according to the dates and times selected in the schedule. Select On or Off at the bottom of the schedule table and then choose a recording mode. Click on dates and times on the schedule table or drag to enable/disable recording mode. Select On or Off and then click Select All/Clear All to enable/disable recording mode on all dates and times.

• Duration: Specify the event recording duration.

- Pre-Event: Select the pre-event recording duration. You can record up to 60MB of video. Using high resolution, quality, and frame rate settings can cause the recording to exceed the 60MB limit and stop before the end of the specified recording duration.

- Post-Event: Select the post-event recording duration.

Settings

Select the Settings tab and configure recording settings.

Event Name (Event) Event Address Event Date Event Name Event Address Event Date Event Name Event Address Event Date Event Name Event Address Event Date Event Name Event Address Event Date Event Name Event Address Event Date Event Name Event Address Event Date Event Name Event Address Event Date Event Name Event Address Event Date Event Name Event Address Event Date Event Name Event Address Event Date Event Name Event Address Event Date Event Name Ent 100% Ent 101% Ent 102% Ent 103% Ent 104% Ent 105% Ent 106% Ent 107% Ent 108% Ent 109% Ent 110% Ent 111% Ent 112% Ent 113% Ent 114% Ent 115% Ent 116% Ent 117% Ent 118% Ent 119% Ent 120% Ent 121% Ent 122% Ent 123% Ent 124% Ent 125% Ent 126% Ent 127% Ent 128% Ent 129% Ent 130% Ent 131% Ent 132% Ent 133% Ent 134% Ent 135% Ent 136% Ent 137% Ent 138% Ent 139% Ent 140% Ent 141% Ent 142% Ent 143% Ent 144% Ent 145% Ent 146% Ent 147% Ent 148% Ent 149% Ent 150% Ent 151% Ent 152% Ent 153% Ent 154% Ent 155% Ent 156% Ent 157% Ent 158% Ent 159% Ent 160% Ent 161% Ent 162% Ent 163% Ent 164% Ent 165% Ent 166% Ent 167% Ent 168% Ent 169% Ent 170% Ent 171% Ent 172% Ent 173% Ent 174% Ent 175% Ent 176% Ent 177% Ent 178% Ent 179% Ent 180% Ent 181% Ent 182% Ent 183% Ent 184% Ent 185% Ent 186% Ent 187% Ent 188% Ent 189% Ent 190% Ent 191% Ent 192% Ent 193% Ent 194% Ent 195% Ent 196% Ent 197% Ent 198% Ent 199% Ent 200%

- Recording Stream: Choose a stream to use for recording. It's possible to designate different streams for different recording modes.

- Time-Lapse/Pre-Event: Designate the stream to use for recording in time lapse mode or event mode (pre-event).

- Event: Designate the stream to use for recording in event mode (post-event).

- Recordings saved on the SD memory card can be searched and played back from the INEX Basic program or remotely from the remote program. For more information, refer to each program's operation manual.

• Video search and playback may not function properly on the remote program while video is being recorded on to the SD memory card.

To remove the SD memory card, unselect the Record option and wait 30 seconds before doing so. Removing the SD memory card while recording is in progress of

Event

Configure event detection settings.

Add Remove Change Help Save As Add/Remove Add As Type: All Remove/Remove Add/Remove Add/Remove Add/Remove Add/Remove Add/Remove Add/Remove Add/Remove Add/Remove Add/Remove Add/Remove Add/Remove Add/Remove Add/Remove Add/Remove Add/Remove Add/Remove Add/Remove Add/Remove Add/Remove Add/Remove Add/Remove Add/Remove Add/Remove Add/Remove Add/Remove End Subs End Subs End Subs End Subs End Subs End Subs End Subs End Subs End Subs End Subs End Subs End Subs End Subs End Subs End Subs End Subs End Subs End Subs End Subs End Subs End Subs End Subs End Subs End Subs End Subs End SubS

Alarm In

Select Alarm In to enable alarm in event. With alarm in event enabled, alarm in detections by the alarm in connector will be assumed as events.

Event Name Name: Name: Type: Event Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address Event Address

Part 1 - Remote Setup

• Title: Enter the alarm-in device's name.
- Type: Select the alarm in type.
• Event Action: Select an alarm in event alert action.

- Alarm Out: Select if you wish to generate an alarm out.

• Send Email: Select if you wish to send an email. Select the Image Attachment option to attach a .jpg Image of the event detected to the email.
• Remote Callback: Select this option to send a message to a remote system and then select which system to send the message to.

- Not supported from the WebGuard program. - The camera must be registered to the remote system in order to use the Remote Callback feature.

• Audio Alarm: Select this option to generate an audio alert and then choose an audio file (.wav).
• FTP Upload: Select this option if you wish to upload images to the FTP server.
• Record: Select this option to record video.

Event Action settings must be configured correctly in order to perform event actions.

Part 1 - Remote Setup

Motion Detection

Select Motion Detection to configure motion detection event settings. With motion detection event enabled, motion detections within the designated area will be assumed as events.

Data: Metric Summary Data Value Range Height Width Size Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Density Densification Densification Densification Densification Densification Densification Densification Densification Densification Densification Densification Densification Densification Densification Densification Densification Densification

• Sensitivity: Select daytime and nighttime motion detection sensitivity levels. Higher values will result in more sensitive motion detection.
• Minimum Blocks for Detection: Select minimum blocks for daytime and nighttime motion detection. Motion must take place over the selected number of blocks in order for it to be considered as a motion detection event.

• Motion Zone: Click Setup and define the motion zone using blocks.

• (Select)/(Unselect): Enable/disable motion detection.

• □ (Single Block): Select/unselect motion detection blocks individually.
• (Zone): Select/unselect multiple motion detection blocks.

A. (AIII) Select/unselect all motion detection blocks

• Motion Ignoring Interval: With Motion Ignoring Interval configured, no event log or notification is generated for motions detected during a period of time following a motion detection event.

• Daytime: Specify when daytime starts and ends. All other times will be assumed as nighttime.
  • Event Action: Select a motion detection event alert action.

• Alarm Out: Select if you wish to generate an alarm out.

• Send Email: Select if you wish to send an email. Select the Image Attachment option to attach a .jpg image of the event detected to the email.
• Remote Callback: Select this option to send a message to a remote system and then select which system to send the message to.

- Not supported from the WebGuard program. - The camera must be registered to the remote system in order to use the Remote Callback feature.

• Audio Alarm: Select this option to generate an audio alert and then choose an audio file (.wav).
• FTP Upload: Select this option if you wish to upload images to the FTP server.
• Record: Select this option to record video.

Event Action settings must be configured correctly in order to perform event actions.

Trip-Zone

Select Trip-Zone to configure trip zone event settings. With trip zone event enabled, motion detected inside/outside the selected area will be assumed as an event.

Map View Map View Name Name of View Name of View Name of View Name of View Name of View Name of View Name of View Name of View Name of View Name of View Name of View Name of View Name of View Name of View Name of View Name of View Name of View Name of View Name of View Name of View Name of View Name of View Name of View Name of View Name of View Name of Name Name of Name Name of Name Name of Name Name of Name Name of Name Name of Name Name of Name Name of Name Name of Name Name of Name Name of Name Name of Name Name of Name Name of Name Name of Name Name of Name Name of Name Name of Name Name of Name Name of Name Name of Name Name of Name Name of Name Name of Name Name of N

• Sensitivity: Select daytime and nighttime motion detection sensitivity levels. Higher values will result in more sensitive motion detection.
• Trip-Zone: Click Setup and define the trip zone using blocks.

○ (Select)/○(Unselect): Enable/disable trip zone.

• □ (Single Block): Select/unselect trip zone blocks individually.
• (Zone): Select/unselect multiple trip zone blocks.
• (All): Select/unselect all trip zone blocks.
• Trip Direction: Define in which direction the motion has to occur in order for it to be considered as an event. Select In for movement occurring from outside the trip zone in and Out for movement occurring from inside the trip zone out.

Part 1 - Remote Setup

• Motion Ignoring Interval: With Motion Ignoring Interval configured, no event log or notification is generated for motions detected during a period of time following a motion detection event.
• Daytime: Specify when daytime starts and ends. All other times will be assumed as nighttime.
  • Event Action: Select a trip zone event alert action.

- Alarm Out: Select if you wish to generate an alarm out.

• Send Email: Select if you wish to send an email. Select the Image Attachment option to attach a .jpg image of the event detected to the email.
• Remote Callback: Select this option to send a message to a remote system and then select which system to send the message to.

• Not supported from the WebGuard program.
- The camera must be registered to the remote system in order to use the Remote Callback feature.

• Audio Alarm: Select this option to generate an audio alert and then choose an audio file (.wav).
• FTP Upload: Select this option if you wish to upload images to the FTP server.
• Record: Select this option to record video.

Event Action settings must be configured correctly in order to perform event actions.

Part 1 - Remote Setup

Audio Detection

Select Audio Detection to configure audio detection event settings. With audio detection enabled, an audio detection taking place during the specified activation period will be assumed as an event.

Audio Settings Audio Parameters Time Voltage Power Audio Audio Options Audio Mode: Audio Audio Mode: 100% Audio Mode: 100% Audio Mode: 100% Audio Mode: 100% Audio Mode: 100% Audio Mode: 100% Audio Mode: 100% Audio Mode: 100% Audio Mode: 100% Audio Mode: 100% Audio Mode: 100% Audio Mode: 100% Audio Mode: 100% Audio Mode: Audio Mode: Audio Mode: Audio Mode: Audio Mode: Audio Mode: Audio Mode: Audio Mode: Audio Mode: Audio Mode: Audio Mode: Audio Mode: Audio Mode: Audio Mode: Audio Mode: Audio Mode: Audio Mode: Audio Mode: Audio Mode: Audio Mode: Audio Mode: Audio Mode: Audio Mode: Audio Mode: Audio Mode: Audio Mode: Audio Mode: 100% (RGB) 200% (RGB) 300% (RGB) 400% (RGB) 500% (RGB) 600% (RGB) 700% (RGB) 800% (RGB) 900% (RGB) 1000% (RGB) 1100% (RGB) 1200% (RGB) 1300% (RGB) 1400% (RGB) 1500% (RGB) 1600% (RGB) 1700% (RGB) 1800% (RGB) 1900% (RGB) 2000% (RGB) 2100% (RGB) 2200% (RGB) 2300% (RGB) 2400% (RGB) 2500% (RGB) 2600% (RGB) 2700% (RGB) 2800% (RGB) 2900% (RGB) 3000% (RGB) 3100% (RGB) 3200% (RGB) 3300% (RGB) 3400% (RGB) 3500% (RGB) 3600% (RGB) 3700% (RGB) 3800% (RGB) 3900% (RGB) 4000% (RGB) 4100% (RGB) 4200% (RGB) 4300% (RGB) 4400% (RGB) 4500% (RGB) 4600% (RGB) 4700% (RGB) 4800% (RGB) 4900% (RGB) 5000% (RGB) Audio Mode: 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. Audio Mode: 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 2. Audio Mode: 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. 2. Audio Mode: 3. Noise Level: - High Level - Medium Level - Low Level - High Level - High Level - High Level - High Level - High Level - High Level - High Level - High Level - High Level - High Level - High Level - High Level - High Level - High Level - High Level - High Level - High Level - High Level - High Level - High Level - High Level - High Level - High Level - High Level - High Level - Low Level: - Low Level: - Low Level: - Low Level: - Low Level: - Low Level: - Low Level: - Low Level: - Low Level: - Low Level: - Low Level: - Low Level: - Low Level: - Low Level: - Low Level: - Low Level: - Low Level: - Low Level: - Low Level: - Low Level: - Low Level: - Low Level: - Low Level: - Low Level: - Low Level: - Low Level:

• Sensitivity: Define the audio detection sensitivity. Higher values will result in more sensitive detection.
• Activation Time: Specify how long audio has to be detected for it to be considered as an event. Audio detections that do not last for the specified duration of time will not be considered as events.

• Use Ignoring Time: Define the event ignoring time. Audio detections taking place during the defined time range will not be assumed as events.

• Audio Ignore Interval: With Audio Ignoring Time configured, no event log or notification is generated for audio detections taking place during a period of time following an audio detection event.
  • Event Action: Select an audio detection event alert action.

• Alarm Out: Select if you wish to generate an alarm out.

• Send Email: Select if you wish to send an email. Select the Image Attachment option to attach a .jpg image of the event detected to the email.

- Remote Callback: Select this option to send a message to a remote system and then select which system to send the message to.

- Not supported from the WebGuard program. - The camera must be registered to the remote system in order to use the Remote Callback feature.

• FTP Upload: Select this option if you wish to upload images to the FTP server.
• Record: Select this option to record video.

Event Action settings must be configured correctly in order to perform event actions.

Part 1 - Remote Setup

Tampering

Select Tampering to configure tampering detection event settings. With tampering detection event enabled, a sudden change in the video, such as due to movement of the camera or covering up of the lens, will be assumed as an event.

Stock Price Options Settle Market Equity Shareholder Name Stock Price Stock Price Range Stock Price Range Stock Price Range Stock Price Range Stock Price Range Stock Price Range Stock Price Range Stock Price Range Stock Price Range Stock Price Range Stock Price Range Stock Price Range Stock Price Range Stock Price Range Stock Price Range Stock Price Range Stock Price Range Stock Price Range Stock Price Range Stock Price Range Stock Price Range Stock Price Range Stock Price Range Stock Price Range Stock Price Range Stock Price Ranges Stock Price Ranges Stock Price Ranges Stock Price Ranges Stock Price Ranges Stock Price Ranges Stock Price Ranges Stock Price Ranges Stock Price Ranges Stock Price Ranges Stock Price Ranges Stock Price Ranges Stock Price Ranges Stock Price Ranges Stock Price Ranges Stock Price Ranges Stock Price Ranges Stock Price Ranges Stock Price Ranges Stock Price Ranges Stock Price RANGES

• Sensitivity: Define the tampering detection sensitivity. Higher values will result in more sensitive detection.
• Activation time: Specify how long tampering has to be detected for it to be considered as an event. Tampering detections that do not last for the specified duration of time will not be considered as events.
• Use Ignoring Time: Define the event ignoring time. Tampering detections taking place during the defined time range will not be assumed as events.

- Event Action: Select a tampering detection event alert action.

• Alarm Out: Select if you wish to generate an alarm out.
• Send Email: Select if you wish to send an email. Select the Image Attachment option to attach a .jpg image of the event detected to the email.
• Remote Callback: Select this option to send a message to a remote system and then select which system to send the message to.

- Not supported from the WebGuard program. - The camera must be registered to the remote system in order to use the Remote Callback feature.

• Audio Alarm: Select this option to generate an audio alert and then choose an audio file (.wav).
• FTP Upload: Select this option if you wish to upload images to the FTP server.
• Record: Select this option to record video.

Event Action settings must be configured correctly in order to perform event actions.

Part 1 - Remote Setup

System Event

Select System Event and configure system event settings. With system event enabled, system status, alarm in status, and disk status will be checked periodically and corresponding alerts will be generated.

Quick Sort Appearance Elements Help Action Text Patterns Balance Balance to 100% Balance to 100% Balance to 100% Balance to 100% Balance to 100% Balance to 100%

- System Alive: Select to check the system status and then set up a schedule.

- Send Email: Select to send out an email when the system comes on line.

- Remote Callback: Select this option to send a message to a remote system when the system comes on line and then select which system to send the message to.

- Alarm In Bad: Select to check the alarm in status and then set up a schedule.

- Send Email: Select to send out an email if no change is detected in the alarm in status.

- Remote Callback: Select this option to send a message to a remote system when the SD memory card is inserted/removed and then select which system to send the message to.

- Disk In/Out: Select to check if the SD memory card has been inserted/removed.

- Send Email: Select to send out an email when the SD memory card is inserted/removed.

- Remote Callback: Select this option to send a message to a remote system when the SD memory card is inserted/removed and then select which system to send the message to.

Email and Remote Callback settings under Event Action must be configured correctly in order to send out emails and messages.

• Remote Callback is not supported on WebGuard.
• The camera must be registered to the remote system in order to use the Remote Callback feature.

Part 2 - WebGuard

WebGuard is a program that allows you to view and search video from remote locations over the Internet and can be accessed on a Microsoft Internet Explorer.

System requirements for running WebGuard are as follows:

• OS: Microsoft Windows XP (Service Pack 3), Microsoft Windows Vista (Service Pack 1), Microsoft Windows 7
  (Home Premium, Professional, Ultimate), Microsoft Windows 8 (Pro, Enterprise)
  • CPU: Intel Pentium III (Celeron) 600MHz or faster (Core 2 Duo E4600 recommended)
  • RAM: 128MB or more (2GB recommended)
  • VGA: 8MB or more (128MB recommended) (1024x768, 24bpp or higher)
  • Internet Explorer: Version 10 or later 32-bit

1 Launch Internet Explorer and then enter the following information in the address bar.

• http://IP Address:Port Number (WebGuard connection port number selected during camera IP address and port number setup)
• Or http://FEN Server Address/FEN name (FEN Server address and FEN name registered to the FEN Server)

If the Use HTTPS option has been selected during WebGuard port number setup, enter https Instead of http. If prompted with a security certificate warning, select "Continue to this website (not recommended)," If the WebGuard login page fails to load, configure Internet Explorer's settings as follows:

• Tools → Internet Options → Security → Custom Level... → Medium-high (default) or Medium.
• Tools → Internet Options → Advanced → Security → Use TLS 1.0 (select)
• If connecting by entering an IP address and a port number, you can connect by entering just the IP address if WebGuard connection port number has been set to 80 (443 when entering https).
• Contact your network administrator for the IP address of the camera you wish to connect to the WebGuard pot number.

Part 2 - WebGuard
2 Enter the ID and password and click LOGIN.

BEGIN NOTED WORK NO PASSING [BEGIN] [EXIT]

WebGuard supports Microsoft Internet Explorer only and no other type of web browser.

- WebGuard does not work with Microsoft Windows' 8 metro UI.

• Do not close the login window while WebGuard is running. Switching over to Web Live or Web Search mode can cause a script error, requiring you to restart the WebGuard program.
  • To use WebGuard on Microsoft Windows Vista or above, launch Internet Explorer by right-clicking on the icon and selecting the Run as administrator option. Otherwise, certain WebGuard functions might not be available.
• When running WebGuard, the bottom section of the screen may get cut off if the address bar or the status bar is shown. In this case, change Internet Options so that the address bar or the status bar is hidden. (Tools → Internet Options → Security → Custom level... → Allow websites to open windows without address or status bars (Enable))
• Launching a new version of WebGuard for the first time can cause Internet Explorer to load information from the previous version. In this case, navigate to Tools → Internet Options → General, delete temporary Internet files, and then restart WebGuard.
• On Microsoft Windows Vista or above, lowered image transmission rate can prevent the screen from being displayed or updated. In this case, we recommend that you disable the computer's auto tuning function. Open the command prompt as an administrator. (Start → Accessories → Command Prompt → Right-Click and then select Run as administrator) Type in "netsh Int tcp set global autotuninglevel=disable" and then press Enter. Restart the computer to apply the change. To enable auto tuning again, launch the command prompt as an administrator and then type in "netsh Int tcp set global autotuninglevel=normal". Restart the computer to apply the change.

Part 2 - WebGuard

Web Live Mode

A remote web monitoring program that allows you to monitor images from remote locales in real-time.

Web Watch - Windows Internet Explorer http://18.17.45/view.html 12 2009-11-12 19:30:03 10:30:45 00:00:00 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

1	Log Out: Click ☑ to log out of the WebGuard program.
2	Search: Click ☑ to access to the web search mode.
3	Version: Position the mouse pointer on the logo to see the WebGuard program version.

Part 2 - WebGuard

7	Image Adjustment: Click to adjust the brightness, contrast, saturation and hue of monitored image. Contrast Brightness Saturation Hue Undo
8	PTZ Control: Click to control zoom and focus at a remote location. One push button - Press this button to find the optimum focus automatically. - It is recommended to get an approximate focus using the manual focusing button before pressing the one push button for fast and efficient focusing. - This button is not supported in the ONVIF protocol. Zoom buttons Focusing buttons
9	Alarm-Out Control: Click to control an alarm out device remotely.
10	Setup: Click to set up the image drawing mode and OSD display. You can adjust the display speed by changing the image drawing mode, and select OSD information to be displayed on the screen.
11	Save Image: Click to save the current image as a bitmap or JPEG file format.
12	Remote Setup: Click to change the settings of the camera by using the Remote Setup screen.
13	Event Status Window: The event status window at the bottom displays a list of events that were detected in the camera.
	Enable/Disable Alarm In Tampering

Part 2 - WebGuard

Right-click on the screen to display the pop-up menu. Click to enable or disable each function. Change Camera Title: Used to change the camera's name. ✓ Renaming the camera in Web Live mode does not affect the camera's name on the remote system. If no name is entered for the camera, the name used at the remote locale is shown on the screen.

Enable Audio: Enables audio transmission with remote locales. Select to display buttons. ✓ Enables transmission of audio to the remote locale via microphone. ✓ Enables playback of audio from the remote locale on speakers. ✓ / Enables two-way audio communication with the remote locale. ✗ Disables audio transmission. ✓ If the remote locale connected to supports audio transmission, icon appears on the corresponding camera screen. - Aspect Ratio: Change the aspect ratio of the video displayed on the screen. - Fit to Screen: Fit the video to the size of the camera screen. - Fit to Aspect Ratio: Resizes camera screen to original aspect ratio of the video. - Half Size (x0.5) - 4 Times Bigger (x4): Displays the camera videos in the selected size based on the original size of the video. For example, original size (x1) displays the video in its original size. Half size (x0.5) through 4 times larger (x4) options are only available if there is enough space on the camera screen to accommodate the selected size. - MultiStream: If the camera is running on multi-stream mode, you can choose between the streams. - Anti-Aliasing Screen: Removes stair step effect (blocks) that are caused when zooming a video to improve overall quality of video output. - Mouse PTZ Control: Scrolling the mouse wheel zooms in or out.

Part 2 - WebGuard

Web Search Mode

A remote web search program that allows you to search for recordings from remote locales in real-time.

While in Web Search mode, connection to remote locales will terminate automatically after 30 minutes of inactivity.

Web Search - Windows Internet Explorer http://10.3.17.45/search.htm 2008.11.26 15:27:05 10:17:45 00:00:00 (2008.11) E:\TWF\FS 16:27:45 15:27:05 16:17:45 15:27:05 16:00:00 15:27:05 16:00:00 15:27:05 16:00:00 15:27:05 16:00:00 15:27:05 16:00:00 15:27:05 16:00:00 15:27:05

Log Out: Click ☐ to log out of the WebGuard program.

Watch: Click to access to the web monitoring mode.

Part 2 - WebGuard

5	Playback Image Control: Click ☑ to blur, sharpen, equalize and interpolate playback images. Click ☑ to zoom out or zoom in the recorded image.Click ☑ to adjust the brightness of the recorded images.√ Image processing works only in the pause mode.
6	Playback Control: Click the desired button to play recorded video. The following functions are supported: fast backward, pause, play, fast forward, go to the first image, go to the previous image, go to the next image, and got to the last image.
7	Time-Lapse Search: Click ☑ to enter the time-lapse search mode which allows you to search for recorded data by time and then play back images found within the time parameters. The Timetable window located at the bottom displays the time information for the image of the date selected on the calendar. If the camera has more than one video segment in the same time range, you can select the video segment you want to search. Clicking a specific time displays the image recorded at that time on the screen.Selecting ☑ allows you to display an image from a specific time.
8	Event Search: Click ☑ to enter the event search mode which allows you to search for event log entries using specific conditions and play back the images associated with those event entries.
9	Setup: Click ☑ to set up the image drawing mode and OSD display. You can adjust the display speed by changing the image drawing mode, and select OSD information to be displayed on the screen.
10	Save Video: Click ☑ to save any video clip of recorded data as a video file.
11	Save Image: Click ☑ to save the current image in a bitmap or JPEG file format.
12	Print: Click ☑ to print the current image on a printer connected to your computer.
13	Reload: Click ☑ to reload the recording data.
14	Timetable: Displays recorded data of the camera by time (in hour segments). If the camera's time and date have been reset to a time that is earlier than some recorded video and more than one video segment exists in the same time range, select the video segment you want to search from the SEGMENT

Part 2 - WebGuard

15	Screen Popup Menu: Clicking the right mouse button on the screen displays the screen popup menu. Click to enable or disable each function.
	Change Camera Title Enable Audio Aspect Ratio Anti-Allasing Screen	- Change Camera Title: Select to change the camera title.- Enable Audio: Plays audio while playing back recorded video that has recorded audio.- Aspect Ratio: Changes the image aspect ratio.- Anti- Allasing Screen: Select to enhance image display quality by eliminating stair stepping (aliasing) effects in the enlarged image.
	A camera name change in the Web Search mode does not affect the camera name set up on the camera. Leaving the Camera Title blank causes the camera name set up on the camera to display.

Part 3 - Appendix

Setup Menu Tree (Remote Setup)

Part 3 - Appendix

Index

0

ONVIF Protocol 9

B

Bitrate Control 23

Q

Quality 23

C

Camera Name 9

23

R

Remote Port 14

Resolution 23

D

Date/Time

10

14

s

SSL 16

F

FEN Name 13

T

Time Sync 10

FEN Server 13

Frame Rate 23

U

Use FEN 13

Use HTTPS 14

1

IPFiltering

16

User/Group 11

Use UPnP 14

M

MAT 25
