USER MANUAL AR18BY5ACWK SAMSUNG

• Thank you for purchasing this Samsung air conditioner.
• Before operating this unit, please read this manual carefully and retain it for future reference.

SAMSUNG

Contents

Safety Information 4

Safety Information 4

At a Glance 11

Indoor Unit Overview 11

Display 12

Remote Control Overview 13

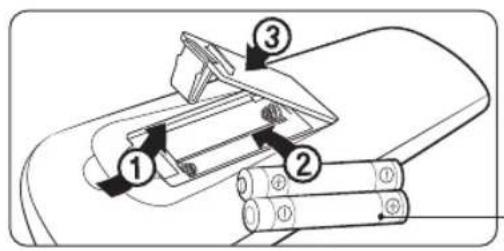

Replacing the remote control batteries 13

Remote Control Operation 14

Selecting an operation mode 14

To set the temperature • To adjust the fan speed • To adjust the airflow direction 15

Smart Features 16

Power Smart Features 16

WindFree Cooling function 16

AI Auto mode 17

Auto mode • Cool mode 18

Dry mode • Fan mode 19

Variety Smart Features 20

Fast function 20

5 Step Cooling function 21

Quiet function • Purify function 22

Motion detect function 24

Electricity consumption check • Beep function 26

Auto clean function 27

Freeze Wash function 29

Display lighting function • Wi-Fi function (SmartThings app) 30

Time Scheduling 31

Timed on/ Timed off function 31

good'sleep function 32

2 English

Cleaning and Maintenance 33

Schedule	33
Cleaning	34

Appendix

39

Troubleshooting

39

SmartThings app 42

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

For more information on safe disposal and recycling, visit our website www.samsung.com/in/support or contact our Helpline numbers - 1800 40 SAMSUNG (1800 40 7267864)

1800 5 SAMSUNG (1800 5 7267864).

Correct disposal of batteries in this product

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.

English 3

Safety Information

WARNING: Read This Manual

Read and follow all safety information and instructions before installation, use, or maintenance of this appliance. Incorrect installation, use, or maintenance of this appliance can result in death, serious injury, or property damage. Keep these instructions with this appliance. This manual is subject to change. For the latest version, visit www.samsung.com.

Because the instructions in this manual cover various models, the characteristics of your air conditioner may differ slightly from those described. If you have any questions, please contact your service provider or visit www.samsung.com.

Notices and notes

To make you aware of safety messages and highlighted information, we use the following notices and notes throughout this manual:

WARNING

Hazards or unsafe practices that may result in severe personal injury or death.

CAUTION

Hazards or unsafe practices that may result in minor personal injury or property damage.

IMPORTANT

Information of special interest

NOTE

Supplementary information that may be useful

4 English

Five black-and-white line drawings: warning triangle, open book with 'i', open book, and open book with a pen (no text or symbols)

WARNING: Low burning velocity material (This appliance is filled with R-32.)

The user and installer guides should be read carefully.

The user and installer guides should be read carefully.

The service guide should be read carefully.

FOR GENERAL

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

FOR INSTALLATION

WARNING

Use a power cord with this product's power specifications or higher and use the power cord for this appliance only. In addition, do not use an extension cord.

• Extending the power cord may result in electric shock or fire.
• Do not use an electric transformer. This may result in electric shock or fire.
• If the voltage/frequency/rated current condition is different, it may cause fire.

The installation of this appliance must be performed by a qualified technician or service company. Do not attempt to install the air conditioner yourself.

- Failing to do so may result in electric shock, fire, explosion, problems with the product, or injury and may also void warranty on the installed product.

Install an Isolation Switch next to the Air Conditioner (but not on the panels of the Air Conditioner) and circuit breaker dedicated to the air conditioner.

- Failing to do so may result in electric shock or fire.

English 5

Safety Information

Fix the outdoor unit firmly so that the electric part of the outdoor unit is not exposed.

- Failing to do so may result in electric shock, fire, explosion, or problems with the product.

Do not install this appliance near a heater, or inflammable material. Do not install this appliance in a humid, oily or dusty location, in a location exposed to direct sunlight and water (or rain). Do not install this appliance in a location where gas may leak.

• This may result in electric shock or fire.

Never install the outdoor unit in a location such as on a high external wall where it could fall.

- If the outdoor unit falls, it may result in injury, death or property damage.

This appliance must be properly grounded. Do not ground the appliance to a gas pipe, plastic, water pipe, or telephone line.

- Failing to do so may result in electric shock, fire, and explosion.

- Make sure to use a socket-outlet with ground.

The product shall be stored in a room with no ignition sources (e.g. open flames, gas appliance, electric heater, etc.).

• Note that the refrigerant has no odour.

CAUTION

Install your appliance on a level and hard floor that can support its weight.

- Failing to do so may result in abnormal vibrations, noise, or problems with the product.

Install the drain hose properly so that water drains correctly.

- Failing to do so may result in water overflowing and property damage. Avoid adding drain to waste pipes as odours may arise in the future.

When installing the outdoor unit, make sure to connect the drain hose so that draining is performed correctly.

- The water generated during heating by the outdoor unit may overflow and result in property damage. In particular, in winter, if a block of ice falls, it may result in injury, death or property damage

Do not install the product in a place where thermo-hygrostat is needed (such as server room, machinery room, computer room, etc.)

- Those places do not provide guaranteed operation condition of the product therefore performance can be poor in these places.

FOR POWER SUPPLY

WARNING

When the circuit breaker is damaged, contact your nearest service centre.

Do not pull or excessively bend the power line. Do not twist or tie the power line. Do not hook the power line over a metal object, place a heavy object on the power line, insert the power line between objects, or push the power line into the space behind the appliance.

• This may result in electric shock or fire.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

CAUTION

When not using the air conditioner for a long period of time or during a thunder/lightning storm, cut the power at the circuit breaker.

- Failing to do so may result in electric shock or fire.

FOR USING

WARNING

If the appliance is flooded, please contact your nearest service centre.

- Failing to do so may result in electric shock or fire.

If the appliance generates a strange noise, a burning smell or smoke, cut off the power supply immediately and contact the nearest service centre.

- Failing to do so may result in electric shock or fire.

If the air conditioner malfunctions or requires repair, immediately stop its operation and disconnect the entire power system. Then consult the authorized service personnel.

In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power line. Do not touch the appliance or power line.

• Do not use a ventilating fan.
• A spark may result in an explosion or fire.

English 7

Safety Information

To reinstall the air conditioner, please contact your nearest service centre.

• Failing to do so may result in problems with the product, water leakage, electric shock, or fire.
• Delivery service for the product is not provided. If you reinstall the product in another location, additional construction expenses and an installation fee will be charged.
• Especially, when you wish to install the product in an unusual location such as in an industrial area or near the seaside where it is exposed to salt in the air, please contact your nearest service centre.

Do not touch the circuit breaker with wet hands.

• This may result in electric shock.

Do not turn the air conditioner off with the circuit breaker while it is operating.

- Turning the air conditioner off and then on again with the circuit breaker may cause a spark and result in electric shock or fire.

After unpacking the air conditioner, keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.

- If a child places a bag over its head, it may result in suffocation.

Do not touch the airflow blade with your hands or fingers during heating.

• This may result in electric shock or burns.

Do not insert your fingers or foreign substances into the air inlet/outlet of the air conditioner.

• Take special care that children do not injure themselves by inserting their fingers into the product.

Do not strike or pull the air conditioner with excessive force.

- This may result in fire, injury, or problems with the product.

Do not place an object near the outdoor unit that allows children to climb onto the machine.

• This may result in children seriously injuring themselves.

Do not use this air conditioner for long periods of time in badly ventilated locations or near infirm people.

- Since this may be dangerous due to a lack of oxygen, open a window at least once an hour.

Do not use means to accelerate the defrost operation or to clean, other than those recommended by Samsung.

Do not pierce or burn.

Be aware that refrigerants may not contain an odour.

If any foreign substance such as water has entered the appliance, cut off the power supply and contact the nearest service centre.

- Failing to do so may result in electric shock or fire.

Do not attempt to repair, disassemble, or modify the appliance yourself.

- Do not use any fuse (such as copper, steel wire, etc.) other than the standard fuse.

- Failing to do so may result in electric shock, fire, problems with the product, or injury.

8 English

CAUTION

Do not place objects or devices under the indoor unit.

• Water dripping from the indoor unit may result in fire or property damage.

Check that the installation frame of the outdoor unit is not broken at least once a year.

- Failing to do so may result in injury, death or property damage.

To prevent personal injury, make sure that you change the directions of the horizontal airflowblades after stopping the movements of the vertical airflowblade. (In case of adjusting the horizontal airflow manually)

When the air conditioner does not operate properly for cooling or heating, there is a possibility of refrigerant leakage. If any leakage, stop operation, ventilate the room, and consult your dealer immediately for recharging refrigerant.

The refrigerant is not harmful. However, if it comes in contact with fire, it may generate harmful gases and there is risk of fire.

During transportation of the indoor unit, the pipe lines shall be covered with brackets for protection. Do not move the product with holding the pipe lines.

- It may cause gas leakage.

Do not install the product in a ship or a vehicle (such as a campervan).

- Salt, vibration or other environmental factor may cause the product malfunction, electric shock or fire.

Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.

- This may result in electric shock, fire, problems with the product, or injury.

Do not operate the appliance with wet hands.

• This may result in electric shock.

Do not spray volatile material such as insecticide onto the surface of the appliance.

- As well as being harmful to humans, it may also result in electric shock, fire or problems with the product.

Do not drink the water from the air conditioner.

• The water may be harmful to humans.

Do not hit, shake, drop, or attempt to disassemble the remote control.

When replacing the remote control batteries, keep them out of the reach of infants.

- If an infant eats batteries, contact a doctor immediately.

When replacing the remote control batteries, be careful not to get the battery fluid on your skin.

- Battery fluid is harmful to humans.

English 9

Safety Information

Do not touch the pipes connected with the product.

• This may result in burns or injury.

Do not cut or burn the refrigerant container or pipings.

Do not point the air direction to the fireplace or heater.

Do not use this air conditioner to preserve precision equipment, food, animals, plants or cosmetics, or for any other unusual purposes.

• This may result in property damage.

Avoid directly exposing humans, animals or plants to the airflow from the air conditioner for long periods of time.

- This may result in harm to humans, animals or plants.

FOR CLEANING

WARNING

Do not clean the appliance by spraying water directly onto it. Do not use benzene, thinner or alcohol to clean the appliance.

- This may result in discolouration, deformation, damage, electric shock or fire.

Before cleaning, servicing, or performing maintenance, make sure to disconnect the product from its power source and wait until the fan stops.

- Failing to do so may result in electric shock or fire.

CAUTION

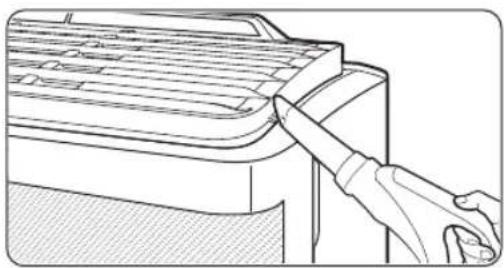

Take care when cleaning the surface of the heat exchanger of the outdoor unit since it has sharp edges.

- This should be done by a qualified technician. Please contact your installer or service centre.

Do not clean the inside of the air conditioner by yourself.

• For cleaning inside the appliance, contact your nearest service centre.

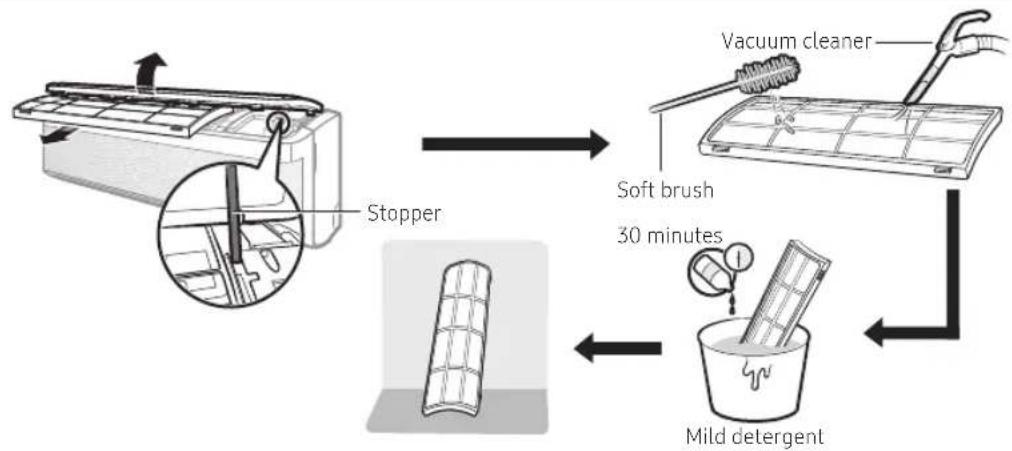

• When cleaning the filter, refer to the descriptions in the 'Cleaning' section.
• Failing to do so may result in damage, electric shock or fire.
• Make sure to prevent any injury from sharp edges of the surface when handling the heat exchanger.

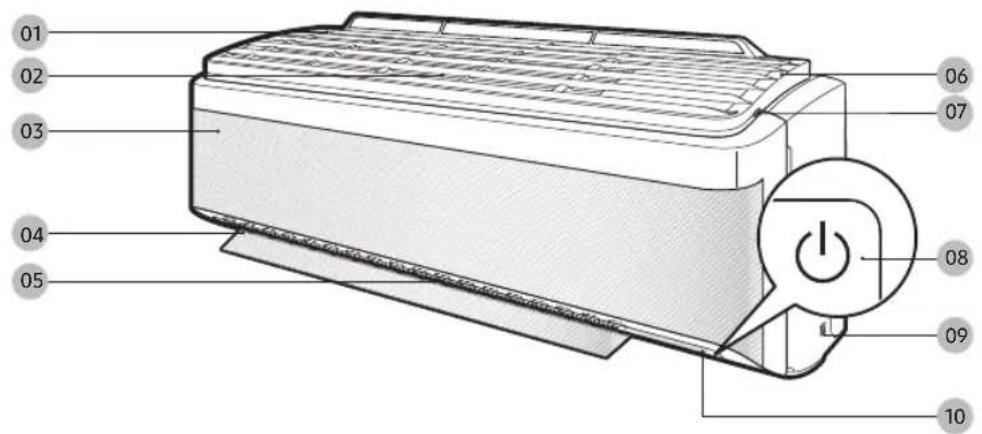

Indoor Unit Overview

The appearance of the actual product may differ slightly from the image below.

01 02 03 04 05 06 07 08 09 10

01 Air intake
02 Air filter
03 WindFree panel
04 Airflow blade (up and down)
05 Airflow blade (left and right)
06 PM1.0 Filter

07 PM 10 sensor/

PM 2.5 sensor/

PM 1.0 sensor

08 Power button/Remote control receiver
09 Room temperature sensor
10 Display

English 11

Indoor Unit Overview

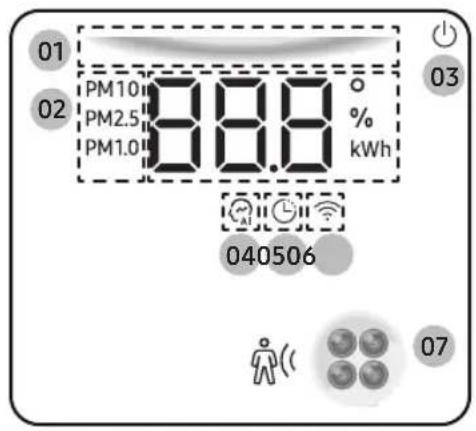

Display

At a Glance

01 02 PM10 PM2.5 PM1.0 8.8.8 % kWh 03 040506 07

01 Lighting

NOTE

• The product status is distinguished in color.

02 PM10/PM2.5/PM1.0 identification display

03 Temperature indicator (numeric)/ Filter reset indicator QF Electricity consumption indicator (numeric)/ Auto clean indicator Q/A PM10/PM2.5/PM1.0 concentration display

04 Al Auto indicator

05 Timer indicator good'sleep indicator

06 Wi-Fi indicator

NOTE

- When the Wi-Fi is turned on, the indicator blinks three times and then turn on.

07 Motion detect sensor

NOTE

• If the Wi-Fi indicator blinks for 10 seconds when operation starts, it means that the air conditioner is not connected to Wi-Fi. See "SmartThings app" on page 42 and connect the air conditioner to Wi-Fi.
• When connected to Wi-Fi, the air conditioner can gather and learn your user patterns so that it can run in AI Auto mode.

12 English

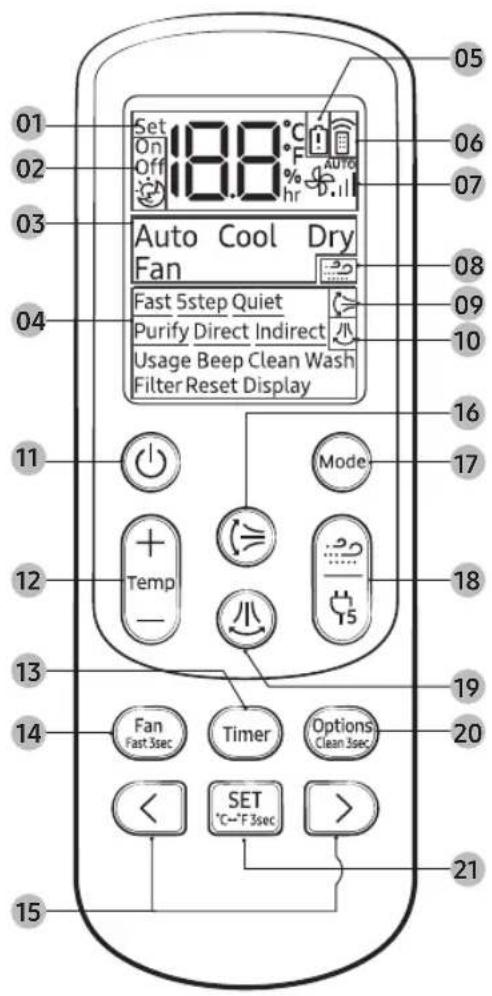

Remote Control Overview

Most operating instructions in this manual require using the remote control.

01 02 03 04 11 12 13 14 15 Set On Off 18.8 °C % hr Auto Cool Dry Fan Fast 5step Quiet Purify Direct Indirect Usage Beep Clean Wash Filter Reset Display Mode Temp — 小 15 Fan Fast 3sec Timer Options Clean 3sec SET °C~F 3sec > 21

01 Set temperature indicator
02 Timer option indicator
03 Operation mode indicator
04 Options indicator
05 Low battery indicator
06 Transmit indicator
07 Fan speed indicator
08 WindFree indicator
09 Vertical air swing indicator
10 Horizontal air swing indicator
11 Power button
12 Temperature button
13 Timer button
14 Fan speed/Fast button
15 Direction button/Selection button
16 Vertical air swing button
17 Mode button
18 WindFree/5 Step Cooling button
19 Horizontal air swing button
20 Options/Clean button
21 SET button/Temperature type button(°C↔°F)

Replacing the remote control batteries

Diagram showing a mechanical assembly with numbered components, likely illustrating a turning or disassembly process.

Two 1.5V AAA batteries

English 13

Remote Control Operation

You can use the air conditioner easily by selecting a mode and then by controlling the temperature, fan speed, and air direction.

Set 24°C Auto Cool Dry Fan Mode Temp Fan Fast 3sec Timer Options Clean 3sec SET -°C~°F 3sec > At a Glance

Selecting an operation mode

To change the current mode between Auto, Cool, Dry, and Fan, press the (Mode) button.

You can use AI Auto mode after Wi-Fi is connected.

NOTE

- You can use the Cool, Dry modes in the following operation range.

Mode Cool Dry
Indoor temperature	16 °C to 32 °C	18 °C to 32 °C
Outdoor temperature	16 °C to 46 °C	16 °C to 46 °C
Indoor humidity	Relative humidity of 80 % or less 1 ^1	-

1) If the air conditioner operates in Cool mode in a high-humidity environment for an extended period of time, condensation may occur.

You can switch between Celsius and Fahrenheit indications on the remote control.

▶ Press and hold for 3 or more seconds.

NOTE

• The temperature indications on the indoor unit are not switched.
• This function is canceled when the remote control batteries are replaced. In this case, run this function again.

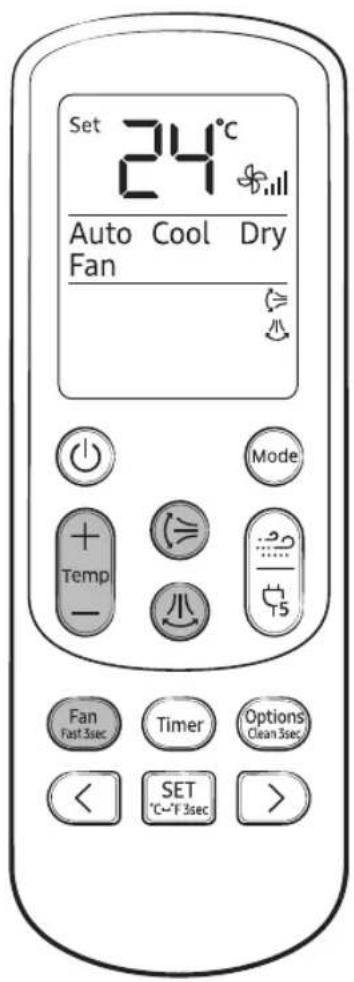

Set 24°C Auto Cool Dry Fan Mode + Temp - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

To set the temperature

To control the temperature in each mode, press the (+)(Temperature) button:

Mode Temperature control
Al Auto/Auto/Cool	Adjust by 1 °C from 16 °C to 30 °C.
Dry Adjust by 1 °C from 18 °C to 30 °C.
Fan No temperature control.

Select from the following fan speeds in each mode:

Mode Available fan speeds
Al Auto/Auto/Dry	(Auto)
Cool	(Auto), (Low), (Med), (High), (Turbo)
Fan	(Low), (Med), (High), (Turbo)

To adjust the airflow direction

Keep the airflow in a constant direction by stopping the movements of the vertical and horizontal airflow blades.

In operation ▶

or

NOTE

• If you adjust the vertical airflow blade manually, it may not close completely when you turn off the air conditioner.
  • Always use the remote control to adjust the airflow blades. Do not move the blades by hand. They may not operate normally.
• You cannot control the vertical airflow direction in Cool mode when the good'sleep function is on.

English 15

Power Smart Features

Set 18°C AUTO Cool ∞

WindFree Cooling function

Use the WindFree Cooling function to enjoy a mild breeze coming through fine holes in the WindFree panel instead of air coming directly through the airflow blades.

In Cool/Dry/Fan mode ▶

NOTE

• To cancel this function, press the (WindFree) button again.
• When the WindFree Cooling function is on, the air conditioner automatically controls the temperature and fan speed to keep your room mild and comfortable.
• When the WindFree Cooling function is canceled, the air conditioner returns to the original fan speed and air comes out of the airflow blades.
• In Cool mode, the recommended set temperature during the WindFree Cooling operation is 24 °C to 26 °C.
• You can use the WindFree Cooling function in Cool, Dry, or Fan mode.
• You cannot select the Quiet function during the WindFree Cooling operation.
• Selecting the WindFree Cooling function cancels the Fast, 5 Step Cooling, and airflow direction ( ≥slant , VIFunctions.

Set Au AUTO Auto

AI Auto mode

Use AI Auto mode to automatically operate any of Cool, Dry, and WindFree Cooling modes depending on the learned user patterns gathered from an external server via Wi-Fi module. The favourite temperature and operation mode are also set based on the current temperatures (indoor/outdoor) and the gathered user patterns.

ect Auto.

NOTE

• You can use this mode after Wi-Fi is connected. Otherwise, Auto mode is activated.
• In AI Auto mode, the AI (AI Auto) and Wi-Fi indicators appears on the display of the indoor unit.
• If the gathered user patterns are not sufficient, the set temperature is set to 24 °C.
• The set temperature is controlled within the range of 16 °C to 30 °C in Al Auto mode. You can also change it manually.
• When you press Mode (Mode) in AI Auto mode, the mode is cancelled.
• If you change the set temperature in AI Auto mode, it automatically changes back to the AI comfort temperature after 1 hour.

English 17

Power Smart Features

Set Au AUTO Auto

Auto mode

Use Auto mode to perform the powerful cooling function to automatically reach the desired temperature. When the difference between the room temperature and the set temperature decreases, the air conditioner controls the fan speed and airflow direction.

NOTE

• If Wi-Fi cannot be connected or the Wi-Fi function is not supported, this Auto mode is automatically activated instead of AI Auto mode.
• When the room temperature is higher than the set temperature, the air conditioner automatically produces cool air.

Smart Features

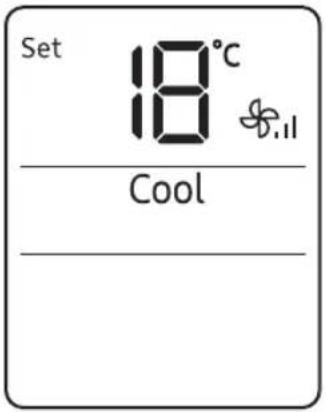

Set 18°C Cool

Cool mode

Use Cool mode to stay cool in hot weather.

NOTE

• For comfort, keep the temperature difference between the indoor and outdoor air within 5 °C.
  • After selecting Cool mode, select the desired function, temperature, and fan speed.
• To cool more quickly, select a lower temperature and a faster fan speed.
• To save energy, select a higher temperature and a slower fan speed.
• As the room temperature nears the set temperature, the compressor motor will slow down to save energy.

Set 24°C AUTO Dry

Dry mode

Use Dry mode in rainy or humid weather.

NOTE

- The proper set temperature range for dehumidifying operation is 24 to 26 °C. If you feel that the current humidity seems high, use a lower set temperature.

Fan

Fan mode

Use Fan mode to run the air conditioner like a floor fan, providing a breeze without cooling.

NOTE

• If the air conditioner will not be used for an extended period of time, run it in Fan mode for 3 to 4 hours to dry the internal components.
• The outdoor unit does not operate in Fan mode. This is normal and not a fault with the air conditioner.

English 19

Variety Smart Features

Cool Fast

Fast function

Use the Fast function to quickly cool your room. This function is the most powerful cooling function provided by the air conditioner. You can select this function in Cool mode.

In Cool mode ▶

▶ Press and hold for 3 or more seconds.

NOTE

• You can change the airflow direction, but you cannot change the set temperature and the fan speed.
• Selecting the Fast function cancels the WindFree Cooling, 5 Step Cooling, good'sleep, and Quiet functions.
• You can also start the Fast function from the Options menu:

In Cool mode ▶ Options Clean 3sec ▶ < > ▶ Select Fast. ▶ SET "C--"F 3sec

Set 80% Cool 5step

5 Step Cooling function

Use the 5 Step Cooling function to adjust the cooling speed by changing the operation rate of the outdoor unit.

In Cool mode

NOTE

- Each time you press the ⏻ button in Cool mode, you can adjust the operation rate of the outdoor unit in 5 steps.

• It switches in the following order: 80% → 60% → 40% → 120% → Cool mode.
• The remote control display shows:

- When it is switched to Cool mode, the air conditioner starts running for the preset temperature.

• In the entry to the 5 Step Cooling function, the outdoor unit operates at 80% of operation rate and the vertical air swing of the indoor unit starts.
• You can adjust the desired temperature, fan speed, and airflow direction.
• When the operation rate of the outdoor unit is set to any of 80%, 60%, and 40%, you can save energy in cooling.
• When there are many people at the room in hot weather, select 120% of operation rate for strong cooling.
• When using the 5 Step Cooling function, the operating rate displayed on the remote controller and the actual power consumption ratio of the product maybe different depending on the indoor/outdoor temperature environment.

English 21

Variety Smart Features

Set 18°C AUTO Cool Quiet

Quiet function

Use the Quiet function to reduce the unit's operating noise. You can select this function in Cool mode.

NOTE

• You can change the set temperature and the airflow direction, but you cannot change the fan speed.
• Selecting the Quiet function cancels the WindFree Cooling, 5 Step Cooling, good'sleep, and Fast functions.

Smart Features

Set 24°C AUTO Auto Purify

Purify function

Use the Purify function to filter out dust and fine dust from the indoor air to create clean, comfortable, and safe air to breathe.

In operation ▶ Options Clean 3sec Select Purify. ▶ SET °C~°F 3sec

CAUTION

• Do not touch the PM1.0 filter on the top of the indoor unit while the Purify function is on.
  Failing to do so may result in electric shock.

NOTE

• Of the PM10, PM2.5 and PM1.0 cleanliness, the wort value is displayed on the indoor unit display.
• When the Purify function is additionally selected, there is little difference in electricity consumption and operating noise.
• To start or cancel the Purify function, follow the procedure above again.

22 English

NOTE

- When the Purify function is selected, the PM10, PM2.5, or PM1.0 concentration is displayed on the indoor unit display.

- The ranges of PM10, PM2.5, and PM1.0 concentration values displayed on the display are from 05 to 999, and the concentration values are displayed in units of 1.

- Indoor air is clean. [5 ↔ 999] Indoor air is contaminated.

Cleanliness	PM10 PM2.5/PM1.0
	Colour	Concentration (μg/m3)	Colour	Concentration (μg/m3)
Very poor Red 151 or more Red 76 or more
poor Yellow 81 to 150 Yellow 36 to 75
Moderate Green 31 to 80 Green 16 to 35
Good Blue 30 or less Blue 15 or less

- PM1.0 cleanliness levels comply with Samsung's own guidelines.

• The dust concentration may vary depending on the environmental conditions (for example, when the product is near a construction site, road, or fabric sofa, or when a vacuum cleaner is used or bedding and clothes are arranged near the product, etc.).
• The dust concentration may be high when the product is used in an environment with shag carpet, an animal hospital, a clothing store, a place with high humidity, smoke, or a lot of insects, etc.
• The dust concentration may increase when the product is used in an environment with a humidifier, an electric pressure cooker or a sprayer, etc. in operation.
• The dust concentration may be high continuously when the product is used in a place where yellow dust is present, or outside air is introduced (for example, near a building air conditioner, an apartment ventilation system, or a window with a draft).
• Because the dust concentration values may differ in the same environment depending on measurement method, use the displayed values as a reference.
• The PM10, PM2.5 and PM1.0 concentration values displayed may differ from those measured by other company's instrument or product.
• The PM10, PM2.5 and PM1.0 concentration values displayed may be temporarily elevated in an environment affected by electromagnetic waves or electrical noises.

English 23

Variety Smart Features

Set 24 Cool Direct

Motion detect function

Use the motion detect function to make the air conditioner detect human motions and blow air directly or indirectly. With no detect, energy-saving mode is operated.

In Cool mode ▶

Select Direct or Indirect.

- When Direct wind is selected - When Indirect wind is selected

Set 24 Cool Indirect

Illustration of a person sitting on a chair with an air conditioner emitting vapor, next to a bench (no text or symbols)

- Wind is sent in the detected direction.

Simple line drawing of a person sitting on a bench with a chair nearby and an air conditioner in the background (no text or symbols)

- Wind is sent in the opposite direction of detect.

- When human motions are detected everywhere

- When human motions are not detected

Illustration of a person seated on a chair receiving air conditioner from a wall, with another person sitting on a bench and teddy bear nearby (no text or symbols)

- In case of Direct wind, the air conditioner blows left and right swing airflow. In case of Indirect wind, centre airflow.

Simple line drawing of a room with a wall-mounted air conditioner, a chair, and a sofa (no text or symbols)

- When no human motions are detected for about 20 minutes, Energy-saving mode starts and the set temperature can change to up to 28^ .

- When human motions are detected in Energy-saving mode, the previous operation restarts.

NOTE

• The motion detect function operates only in Cool mode.
• The motion detect sensor can detect human motions within 5 m. It may not detect human motions outside the range.
• If any obstacle exists in front of the sensor or the site is subject to direct sunlight or wind, the sensor may not operate properly.
• The motion detect sensor can more easily detect the side to side motions of a person than the back and forth motions.
• The motion detect sensor is located at the bottom right of the product. Therefore, when a person is located around the center of the product, the sensor recognizes that the person is located at the left and the product blows air accordingly.
• Some areas around the center of the sensor may not be detected.
• The motions of a warm-blooded pet, swinging heater, or robot cleaner can be recognized as human motions.
• When a person stops movement within the detectable range, it may not be detected.
• Because the motion detect sensor can recognize movement of heats, it may not operate when a person turns backwards, exposes the skin less or is blocked by obstacles such as laundry.
• The sensor's sensitivity may be lowered depending on the thickness of clothes.
• If you change the current mode, airflow direction, or optional function, the motion detect function is canceled.
• If a person takes body motions in the same place or there is no movement for a long time, it is recognized as an absence.
• If there are little motions such as in cases of infants and patients, or if little motions continue such as in cases of sleeping and movie watching, it can be recognized as an absence.
• Do not place a large object, heating appliance, or humidifier near the product.
• Do not touch the sensor. Failing to do so may result in product damage or malfunction.

English 25

Variety Smart Features

Set 18°C AUTO Cool Usage

Electricity consumption check

Use the Usage function to check the amount of electricity consumed by using the air conditioner. The amount consumed is displayed on the indoor unit display for a few seconds, and the set temperature appears.

The value range displayed is between 0.1 kWh and 99 kWh. Electricity consumption is calculated from the moment the air conditioner turns on. The value is reset when the air conditioner turns off.

NOTE

• The usage shown on the indoor unit display may slightly differ from the amount of electricity actually consumed.
• You can view electricity consumption only when the air conditioner is operating.

Beep function

Use the Beep function to turn on or off the beep that sounds when you press a button on the remote control.

Auto clean function

Use the Auto clean function if the indoor unit produces odors.

Activating Auto clean

To activate Auto clean, press the (Options) button for at least 3 seconds.

The indoor unit display shows:

PM1.0 PM2.5 PM1.07 8.0 A % kWh

If the air conditioner is off, Auto clean starts immediately. If the air conditioner is running, Auto clean starts as soon as the air conditioner turns off.

NOTE

- You can also activate Auto clean from the Options menu:

• Once Auto clean is selected, it is always activated whenever the air conditioner turns off.
• Auto clean runs for 10 to up to 30 minutes depending on internal dry conditions. The indoor unit display shows the cleaning progress from 1% to 99% .
• If you start another function while Auto clean is progressing, Auto clean pauses and will resume when the other function stops.
• When Auto clean completes, the air conditioner turns off.
• Auto clean does not run after Fan mode.

English 27

Variety Smart Features

Canceling Auto clean

To cancel Auto clean while it is running, follow the procedure below:

▶ Press and hold for 3 or more seconds.

or

NOTE

- Canceling Auto clean does not deactivate it.

Deactivating Auto clean

To deactivate Auto clean, follow the procedure below while the air conditioner is in operation or turned off:

Wash

Freeze Wash function

Use the Freeze Wash function to wash away microorganisms or dust on the surface of the indoor heat exchanger by freezing and thawing operation.

In operation stop condition,

NOTE

• The Freeze Wash function runs from 30 to 80 minutes (running the outdoor unit) depending on either temperature or humidity in the room, through the following cycle: freezing → defrosting → drying of the indoor unit heat exchanger.
  • The indoor unit display shows the cleaning progress (1-99 %).
• To use another function while in Wash operation, press the (Power) button on the remote control to stop operation.
• When the room temperature is low or its humidity is high, the Freeze Wash function may not work.
• Before finishing the Freeze Wash function, the airflow blade is closed and then the drying operation starts.
• During the Freeze Wash cycle, when you hear a creaking noise from the indoor unit: DON'T worry because it is normal and it can happen! it will disappear at the end of the cycle.
• The area around the indoor unit may appear blurred or condensation may form while the Freeze Wash function is in operation.
• You may see frost or water on the surface of the outdoor unit's valve while the Freeze Wash function is in operation.
• It is recommended to use the Wash function once every 2 weeks. Otherwise, dust or dirt that is difficult to be removed may accumulate in the heat exchanger.

English 29

Variety Smart Features

Set 18°C AUTO Cool Display

Display lighting function

Use the Display lighting function to turn on or off the lighting of the indoor unit display.

NOTE

• If you change the current mode or function when the Display lighting function is on, the display lighting turns on for 5 seconds and then turns off again.
• To turn off the Display lighting function, run the method above again or turn the product off and on.

Wi-Fi function (SmartThings app)

Turn on the Wi-Fi function to pair your smartphone with the air conditioner.

NOTE

• When you turn on the Wi-Fi function, your smartphone pairs with the air conditioner, the Transmit) indicator blinks, and AP appears on the remote control display for a few seconds.
• Once your smartphone is connected with the air conditioner, you can control it via the wireless Internet using the SmartThings app installed on your smartphone.
• For more information about how to prepare your smartphone for connection and how to control the air conditioner using the SmartThings app, see "SmartThings app" on page 42.
• To turn on or off the Wi-Fi, press and hold Mode (Mode) and < for 5 seconds.

- In order to launch the SmartThings app, press and hold the Timer (Timer) button for 5 seconds, which enables to connect the air conditioner.

Time Scheduling

On Off 0.0 hr _______________________________

Timed on/ Timed off function

Use the Timed on/off function to turn the air conditioner on or off after a duration. Scheduling durations before the air conditioner turns on or off helps use the air conditioner economically.

Timer ▶ Select On or Off ▶ ◀ ▶ (Set the duration.) ▶ SET °C~°F 3sec

NOTE

• To cancel the Timed on/off function, set the duration to 0.0.
• When you start the Timed on/off function, the Ⓗ (Timer) indicator appears on the indoor unit display.
• You can set the duration to from 0.5 hours to 24 hours.
• You cannot set the same duration for both Timed on and Timed off functions.

Combining Timed on and Timed off
When the air conditioner is off	Example: Timed on 3 hours, Timed off 5 hoursThe air conditioner turns on 3 hours after the last time you press the SET (SET) button to start the Timed on/off function, remains on for 2 hours, then turns off again.
When the air conditioner is on	Example: Timed on 3 hours, Timed off 1 hourThe air conditioner turns off 1 hour after the last time you press the SET (SET) button to start the Timed on/off function, remains off for 2 hours, then turns on again.

English 31

Time Scheduling

8.0 hr AUTO Cool /---

good'sleep function

Use the good'sleep function to save energy while you are sleeping. You can select this function in Cool mode.

In Cool mode ▶ Timer (Select ▶ ◀ > (Set the duration.) ▶ SET °C~F 3sec

NOTE

• To cancel the good'sleep function, set the duration to 0.0.
• When you start the good'sleep function, the ⏻ (Timer) indicator appears on the indoor unit display.
• You can set the duration to from 0.5 hours to 12 hours.
• The recommended set temperatures while the good'sleep function is on are:

Mode	Recommended set temperature	Optimal set temperature
Cool 25 °C to 27 °C 26 °C

• The good'sleep function can operate while the WindFree Cooling function is on.
• Selecting the good'sleep function cancels 5 Step Cooling, Fast, and Quiet functions.

Schedule

Task How often By whom Instruction
Run the Auto clean function.	As needed Owner		"Auto clean function" on page 27.
Run the Freeze Wash function.	Once every two weeks Owner		"Freeze Wash function" on page 29.
Clean the filter. Once every two weeks Owner			"Cleaning the filter" on page 36.
Cleaning the PM 1.0 filter	Once every 3 months Owner		"Cleaning the PM 1.0 filter" on page 37.
Clean the WindFree panel At least once a month Owner			"Cleaning the WindFree panel" on page 38.
Clean the exterior of the indoor unit.	As needed Owner		"Cleaning the outside of the indoor unit" on page 34.
Clean the exterior of the outdoor unit.	At least once a year Owner		"Cleaning the heat exchanger on the outdoor unit" on page 34.
Replace the remote control batteries	As needed Owner		"Replacing the remote control batteries" on page 13.
Apply corrosion inhibitor on outdoor unit. (Only if installed near salt water such as an ocean)	At least once a year Qualified technician		Contact your service provider.
Clean inside the indoor or outdoor unit.	Once a year	Qualified technician	Contact your service provider.
Inspect the units, electrical connections, refrigerant tubes, and protections.	Once a year	Qualified technician	Contact your service provider.

English 33

Cleaning

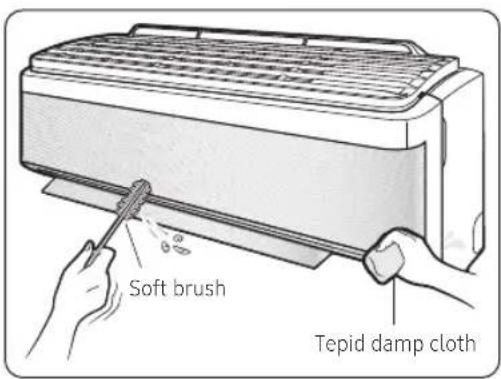

Soft brush Tepid damp cloth

Cleaning the outside of the indoor unit

1 Turn off the air conditioner and wait until the fan stops.
2 Disconnect the power supply.
3 Use a soft brush or tepid damp cloth to clean the exterior.

WARNING

- Do not clean the appliance by spraying water directly onto it. Water entering the unit may result in electric shock or fire that could cause death, serious injury, or property damage:

CAUTION

• Do not use an alkaline detergent to clean the indoor unit display.
• Do not use sulphuric acid, hydrochloric acid, or organic solvents such as paint thinner, kerosene, acetone, benzene, or alcohol to clean the unit surfaces.

Cleaning the heat exchanger on the outdoor unit

1 Turn off the air conditioner and wait until the fan stops.
2 Disconnect the power supply.
3 Spray water on the heat exchanger to remove dust and other debris.

CAUTION

• Do not use sulphuric acid, hydrochloric acid, or organic solvents such as paint thinner, kerosene, acetone, benzene, or alcohol to clean the unit surfaces.
• If you need to inspect or clean the inside of the heat exchanger on the outdoor unit, contact a local service centre for help.

Line drawing of a hand holding a tool interacting with a device (no text or symbols present)

Line drawing of a hand inserting a component into a device (no text or symbols)

Cleaning the sensors

If dust or foreign substances develop on a sensor, it may detect high dust concentration. Use a vacuum cleaner to clean the sensor and its surrounding area.

CAUTION

• Do not put any dust into the sensor openings.
• Open the indoor unit cover, fix the support, and wipe the sensors with a cotton swab.

English 35

Cleaning

Cleaning the filter

Clean the air filter every two weeks or when the (filter-cleaning reminder) appears on the indoor unit display. The time between cleanings may vary, depending on the usage and environmental conditions.

1 Slide the filter off of the unit.
2 Use a soft brush or vacuum cleaner to remove any dust or debris on the filter.
3 Soak the filter in a solution of water and mild detergent for 30 minutes.
4 Rinse the filter and let it air dry in a well-ventilated area that is out of direct sunlight.
5 Reinstall the filter.
6 Reset the filter-cleaning reminder:

In operation ▶

er Reset.

CAUTION

• Take care not to damage the filter during cleaning.
- Do not scrub the air filter with a hard-bristle brush or another cleaning utensil.
- Do not expose the air filter to direct sunlight when drying it

Cleaning the PM 1.0 filter

Clean the PM 1.0 filter every 3 months. The time between cleanings may vary, depending on the usage and environmental conditions.

CAUTION

• Unplug the power plug for safety when cleaning PM 1.0 filter.
• The inside surface of the PM 1.0 filter is sharp. Be careful not to cut your hand.
• When cleaning the PM 1.0 filter, do not disassemble it.

NOTE

• If the filter is very dirty, immerse the filter in the water in which a neutral detergent is dissolved for 30 minutes, then rinse the filter until it is not dirty.
• Dry the PM 1.0 filter completely by leaning vertically against the wall avoiding the direct sunlight in the shade for 12 hours.

Diagram of a printer's front panel showing internal components and a magnified view of the cable (no text or symbols present)

- To close the cover, pull stopper frontward.

English 37

Cleaning

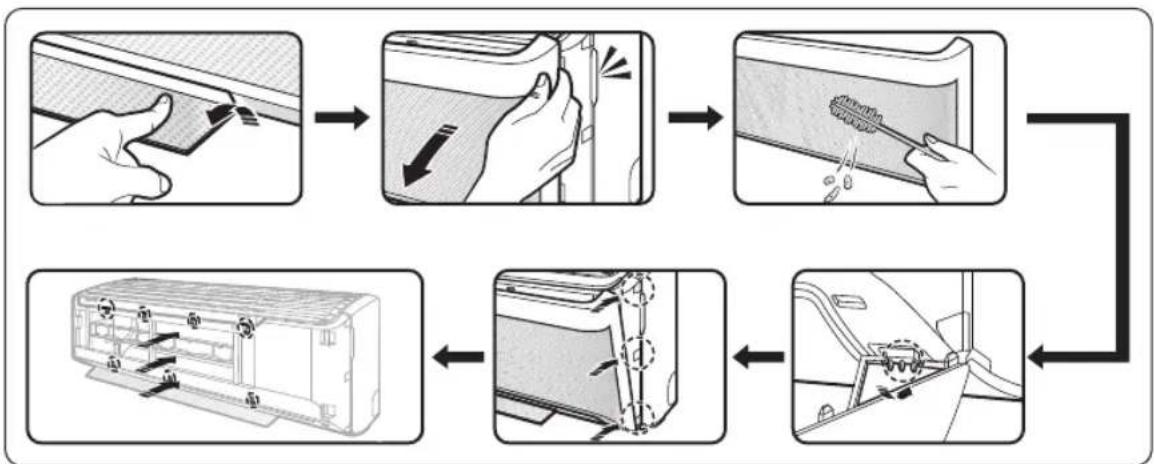

Cleaning the WindFree panel

Clean the WindFree panel at least once a month.

1 Pull the airflow blade open.
2 Hold and pull both sides of the WindFree panel until it comes free from the air conditioner.
3 Use a soft brush or vacuum cleaner to remove any dust.
4 Hang the WindFree panel in the grooves at the bottom left and right.
5 Align the projections of the WindFree panel with the grooves at the top, middle, and bottom of the front panel.
6 After inserting the WindFree panel, press the top 4 places and the bottom 3 places by hand so that there is no gap to the panel.

CAUTION

- If you attach the WindFree panel without the airflow blade being open, it may become obstructed by the WindFree panel and may not open properly.

Troubleshooting

If the air conditioner is not operating normally, refer to the troubleshooting guide below.

Problem Solution
The air conditioner stops working.	Make sure the unit is receiving power.Check the circuit breaker. If it is flipped off, flip it on again and restart the unit. If the problem persists, contact your service provider.The Timed off function may have turned off the unit. Turn on the unit again.
Cannot change the temperature.	Check if the unit is in Fan or Fast mode. If so, you cannot change the set temperature; the unit automatically controls the set temperature.
Improper airflow temperature.	Check the set temperature. In Cool mode, cooling occurs only when the set temperature is lower than the current temperature.Use the (Temperature) button on the remote control to change the set temperature.Check if the air filter is blocked with dirt or debris. If the air filter is blocked, the cooling performance may decrease. Clean the air filter regularly (page 36).Check if the outdoor unit is covered or is installed near obstacles. Remove the coverings and obstacles.Check if doors or windows are open. This may cause poor circulation or performance. Close all doors and windows.Check if the pipe length between the units exceeds the maximum pipe length (see “Typical installation” in the Installation manual). If so, the cooling performance may decrease.
Cannot change the airflow direction.	Check if the good'sleep function is on in Cool mode. If so, you cannot control the airflow direction.
Cannot change the fan speed.	Check if the unit is in Auto, Dry, or Fast mode or the good'sleep function is on in Cool mode. In these conditions, you cannot control the fan speed; the unit automatically controls the fan speed.

English 39

Troubleshooting

Problem Solution
The remote control does not work.	Replace the batteries in the remote control.Make sure the remote control can send an unobstructed signal to the unit.Keep bright lights away from the unit. Light from fluorescent bulbs or neon signs may interrupt the signal from the remote control.
The Timed on/off function does not work.	Make sure to press the SET (SET) button on the remote control when setting the timer.
The indicator on the remote control blinks continuously.	Press the (Power) button to turn off the unit, or disconnect the power plug.If the indicator light on the remote control continues blinking, contact your service provider.
Odors are coming from the unit during regular operation.	If the unit is operating in a smoky area, ventilate the room or operate the unit in Fan mode for 3 to 4 hours. There are no components in the unit that produce a strong odor.Check if the drain lines are clean. Clean them regularly.
The remote control display shows an error message.	If the indoor unit indicator blinks, write down the error code. Contact your service provider and provide them with the error code.
The unit is generating noise.	It is normal for the unit to generate some noise while operating. If the pipe length between the units is less than 3 m and no coil was used (see “Typical installation” in the Installation manual), additional noise may be transmitted from the outdoor unit to the indoor unit via the piping.
Water drips from the pipe connections on the outdoor unit.	Condensation may develop when the ambient temperature or humidity changes significantly. This is normal.
Condensation forms on the surface of the indoor unit.	If the humidity is higher in the room in Cool mode, or the difference between the desired temperature and indoor temperature is great, condensation may form on the surface of the indoor unit.
The cleanliness colour indicator continuously lights up in red.(The cleanliness indications are strange.)	Check the sensors for any foreign substances and clean them if necessary.If you have followed all the solutions presented in this section and the cleanliness colour indicator lights up in red for a long time, it might be a problem with the sensor. Contact a Samsung Service Centre.When the product is used in a place where a humidifier, an electric pressure cooker, a sprayer, etc. is operating, the cleanliness may be indicated as Poor.
The fan speed does not change according to cleanliness.	Set the fan speed to Auto. The fan speed does not change automatically when it is set to Turbo, Low, Med, or High.
The PM10, PM2.5, PM1.0 concentration values do not change from the Good (05) level.	The dust concentration may continue to be at the Good level in an enclosed space.
During the operation of the airconditioner, "L" can be displayed in the indoor unit.	This situation occurs when the in-house input voltage is excessively high or low. (If it is out of AC 290V ~ 120V range, it may occur.) During the "L" indicated, the outdoor unit is not operated and also the cooling operation is interrupted. When the indoor voltage enters the outdoor unit operation range again, the "L" mark is turned off, and the outdoor unit is operated after 3 minutes. If "L" occurs frequently while using the air conditioner, check whether there is any problem in the power supply system of your house.

English 41

SmartThings app

The SmartThings app may change without prior notice to improve product usability and performance. Use the SmartThings app on your smartphone to control the air conditioner via the wireless Internet. To remotely control the air conditioner, you need to connect your smartphone to the air conditioner. If already connected, skip to "Step 6. Controlling the air conditioner with your smartphone" on page 43.

Step 1. Checking the requirements for connection

Before connecting your smartphone with the air conditioner, make sure that the following requirements are met:

• Wi-Fi access point: 2.4 GHz Wi-Fi access point only
• The air conditioner and you smartphone must be within the coverage of the same Wi-Fi access point and connected to it. After the connection, you can control the air conditioner from any place via various wireless networks such as Wi-Fi, 3G, LTE and 5G.
• The SmartThings app supports Android OS 7.0 or later (with at least 2 GB RAM) and iOS 12.0 or later. The app is optimized for iPhone 6s or later and Samsung smartphones (Galaxy S and Note series).
  The updates of the SmartThings app or the functions supported by it may be discontinued for the previously supported OS versions due to the reasons such as usability and security.

Step 2. Connecting your smartphone to the Wi-Fi network

1 Turn on the Wi-Fi access point.
2 Tap Settings → Wi-Fi on your smartphone.
3 Tap the Wi-Fi switch to activate it, and then select the 2.4 GHz Wi-Fi access point to connect to.
4 If needed, enter the password for the access point.
5 Tap Advanced.
6 Top the Switch to mobile data switch to deactivate it.

Step3. Installing the SmartThings app

If the SmartThings app is not installed on your smartphone, follow the procedure below. If installed, skip to "Step 4. Configuring the SmartThings app" on page 42.

1 Launch Play Store or App Store.
2 Tap the search field, and then search for "SmartThings".
3 Tap INSTALL for the found SmartThings app item.
4 Select Agree.

Step 4. Configuring the SmartThings app

After the SmartThings app is installed, follow the procedure below to configure it. If already configured, skip to "Step 5. Connecting your smartphone to the air conditioner" on page 43.

1 Launch the SmartThings app.
2 When you see pop-up windows asking for location, Wi-Fi, Bluetooth permissions, tap Start.
3 Tap Log In.
4 If you have no Samsung account, tap Add account to create your Samsung account.
5 Log in to your Samsung account.
6 Consent to TERMS AND CONDITIONS.
7 When you see a pop-up window asking for access permission to location information, tap ALLOW.

Step 5. Connecting your smartphone to the air conditioner

1 Plug in the power cord of the air conditioner, and then turn on the power.
2 Launch the SmartThings app.
3 Tap Add device on the home screen of the SmartThings app.
4 Tap ADD DEVICE MANUALLY.
5 Tap Air conditioner > Room air conditioner.
6 Press the Timer (Timer) button on the remote control for at least 4 seconds.

To notify that registration of the selected air conditioner to your Samsung account is in progress, the (Transmit) indicator blinks for several seconds and appears on the remote control display. When the connection is finished, the (Transmit) indicator turns off and disappears.

A new device card for the selected air conditioner is added to the home screen of the SmartThings app.

Step 6. Controlling the air conditioner with your smartphone

1 Launch the SmartThings app.
2 On the home screen of the SmartThings app, tap the device card for the air conditioner, which was added when you proceeded with "Step 5. Connecting your smartphone to the air conditioner" on page 43.
3 Refer to the table on the next page and remotely control the air conditioner with your smartphone.

WARNING

• RF exposure warning statement – for keeping 20cm distance when installing this module.

• Warning that this module should not be installed and operating simultaneously with other radio without additional evaluation or FCC filing.

• Instruction for host system labeling, the host system should have proper label showing that it "Contains FCC ID : A3LSWL-B70F"

• Your device uses non-harmonised frequency and is intended for use in all European countries. The WLAN can be operated in the EU without restriction indoors, but cannot be operated outdoors in France.

Specifications

Wi-Fi

Frequency Range Transmitter Power(Max)

2412 - 2472 MHz 20 dBm

Open Source Announcement

The software included in this product contains open source software. You may obtain the complete corresponding source code for a period of three years after the last shipment of this product by sending an email to mailto:[e-mail].

It is also possible to obtain the complete corresponding source code in a physical medium such as a CD-ROM; a minimal charge will be required.

The following URL http://opensource.samsung.com/ opensource/SMART_AT_051/seq/0 leads to the download page of the source code made available and open source license information as related to this product. This offer is valid to anyone in receipt of this information.

QR code image containing encoded data, no visible human-readable text

English 43

SmartThings app

Category Function		Description
Monitoring	Set temperature	Displays the set temperature.
	Current temperature	Displays the current temperature.
Control	Power	Turns the air conditioner on or off.
	Mode	Selects the desired operation.
	Temperature	Adjusts the indoor set temperature.
	Fan Speed	Sets the fan speed of operation mode.
	Wind direction	Sets the fan directions of operation mode.
	WindFree Cooling	Turns the WindFree Cooling function on or off.
	Schedule	Sets the Timed on/off function.The maximum number of schedules you can set using the Timed on/off function is 10.The set times for the Timed on and Timed off functions must be different.Once the Timed on/off function is set, the setting remains even if you unplug the air conditioner and plug in it again.
	Options	Selects an option function of operation mode.The available options might be different depending on the air conditioner model.The fan speed and airflow direction are set automatically according to the selected options.For detailed information on the options of the product, see page 16 ~ 30.
	Settings	Sets additional functions.Press the Settings button on the control screen to check or set detailed information of air conditioner.The functions of Clean, Filter, and Beep can be set.When the Beep function is off, the beep sound from the device will be mute.

44 English

Color palette bar with grayscale shades and a crosshair symbol (no text or labels)

Memo

Appendix

English 45

Memo

Appendix

46 English

Appendix

English 47

SAMSUNG

QUESTIONS OR COMMENTS?

COUNTRY CALL OR VISIT US ONLINE AT
INDIA	1800 40 SAMSUNG (1800 40 7267864) (Toll-Free)1800 5 SAMSUNG (1800 5 7267864) (Toll-Free)	www.samsung.com/in/support

This product is RoHS compliant
