2.5V/3.3V Low-Jitter, Low-Skew 1:12 LVPECL Fanout Buffer with 2:1 MUX Input and Internal Termination

Features

• Selects Between 1 of 2 Inputs and Provides 12 Precision, Low-Skew LVPECL Output Copies

• Ensured AC Performance over Temperature and Voltage:

• DC to >2 GHz Throughput

• <550 ps Propagation Delay CLK-to-Q
• <220 ps Rise/Fall Time
• <25 ps Output-to-Output Skew

- Ultra-Low Jitter Design:

• 50 fs RMS Typical Phase Jitter
• <0.7 ps RMS Crosstalk-Induced Jitter

- Unique, Patent-Pending Input Termination and VT Pin Accepts DC-Coupled and AC-Coupled Differential Pins

- Unique, Patent-Pending 2:1 Input MUX Provides Superior Isolation to Minimize Channel-to-Channel Crosstalk

• 800 mV, 100K LVPECL Output Swing

• Power Supply: 2.5V ±5% or 3.3V ±10%

- Industrial Temperature Range: -40^ to +85^

• Available in 44-Lead (7 mm x 7 mm) VQFN Package

Applications

• Multi-Processor Server
  • SONET/SDH Clock/Data Distribution
  • Fibre Channel Distribution
  • Gigabit Ethernet Clock Distribution

General Description

The SY89112U is a low-jitter, low-skew, high-speed LVPECL 1:12 differential fanout buffer optimized for precision telecom and enterprise server distribution applications. The input includes a 2:1 MUX for clock switchover applications. Unlike other multiplexers, this input includes a unique isolation design to minimize channel-to-channel crosstalk. The SY89112U distributes clock frequencies from DC to >2 GHz ensured over temperature and voltage. The SY89112U incorporates a synchronous output enable (EN) so that the outputs will only be enabled/disabled when they are already in the LOW state. This reduces the chance of generating "runt" clock pulses.

The SY89112U differential input includes Microchip's unique, patent-pending 3-pin input termination architecture that directly interfaces to any differential signal (AC- or DC-coupled) as small as 100 mV (200 mV _PP ) without any level shifting or termination resistor networks in the signal path. For AC-coupled input interface, an on-board output reference voltage (VREF-AC) is provided to bias the center-tap (VT) pin. The outputs are 800 mV, 100K compatible LVPECL with fast rise/fall times ensured to be less than 220 ps.

The SY89112U operates from a 2.5V ±5% or 3.3V ±10% supply and is ensured over the full industrial temperature range of -40°C to +85°C. The SY89112U is part of Microchip's high-speed, Precision Edge® product line.

Package Type

Functional Block Diagram

1.0 ELECTRICAL CHARACTERISTICS

Absolute Maximum Ratings †

Supply Voltage ( V_CC )	-0.5V to +4V
Input Voltage ( V_IN )	-0.5V to V_CC
LVPECL Continuous Output Current ( I_OUT )	50 mA
LVPECL Surge Output Current ( I_OUT )	100 mA
Source or Sink Current on VT Pin	±100 mA
Source or Sink Current on CLK, /CLK	±50 mA
Source or Sink Current on VREF-AC Pin	±2 mA

Operating Ratings ‡

Supply Voltage (VCC)	+2.375V to +2.625V
Supply Voltage (VCC)	+3.0V to +3.6V

† Notice: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operational sections of this specification is not intended. Exposure to maximum rating conditions for extended periods may affect device reliability.

‡ Notice: The device is not guaranteed to function outside its operating ratings.

DC ELECTRICAL CHARACTERISTICS

T_A = -40^ to +85^ , unless otherwise stated. Note 1

Parameter Symbol Min.	Typ. Max.	Units	Conditions
Power Supply Voltage	V_CC	2.375	—	2.625	V	—
		3.0	—	3.6		—
Power Supply Current	I_CC	—	95	130	mA No	load, V_CC = maximum
Input Resistance (CLK-to-VT)	R_IN	45	50	55	Ω	—
Differential Input Resistance (CLK-to-/CLK)	R_DIFF\_IN	90	100	110	Ω	—
Input High Voltage (CLK-to-/CLK)	V_IH	1.2	—	V_CC	V	—
Input Low Voltage (CLK-to-/CLK)	V_IL	0	—	V_IH-0.1	V	—
Input Voltage Swing (CLK-to-/CLK)	V_IN	0.1	—	1.7	V	See Figure 1-1
Differential Input Voltage Swing |CLK-/CLK|	V_DIFF\_IN	0.2	—	—	V	See Figure 1-2
CLK-to-VT (/CLK-to-VT)	V_T\_IN	—	—	1.28	V	—
Output Reference Voltage	V_REF-AC	V_CC-1.3	V_CC-1.2	V_CC-1.1	V	—

Note 1: The circuit is designed to meet the DC specifications shown in the table above after thermal equilibrium has been established.

V_IN, V_OUT 800mV (TYPICAL)

FIGURE 1-1: Single-Ended Voltage Swing.

VDIFF_IN' VDIFF_OUT 1600mV (TYPICAL)

FIGURE 1-2: Differential Voltage Swing.

LVPECL OUTPUTS DC ELECTRICAL CHARACTERISTICS

V_CC = 2.5V ± 5% or 3.3V ± 10% ; R_L = 50 to V_CC - 2V ; T_A = -40^ to +85^ , unless otherwise stated. Note 1

Parameter Symbol Min.	Typ. Max.	Units Conditions
Output High Voltage (Q, /Q) V	_OH	V_CC - 1.145 — V		_CC - 0.895 V —
Output Low Voltage (Q, /Q)	V_OL	V_CC - 1.945 — V		_CC - 1.695 V —
Output Voltage Swing (Q, /Q)	V_OUT	550	800	—	mV	See Figure 1-1
Differential Output Voltage Swing (Q, /Q)	V_DIFF\_OUT	1.1	1.6	—	V	See Figure 1-2

Note 1: The circuit is designed to meet the DC specifications shown in the table above after thermal equilibrium has been established.

LVTTL/CMOS DC ELECTRICAL CHARACTERISTICS

V_CC = 2.5V ± 5% or 3.3V ± 10% ; T_A = -40^ C to +85^ C , unless otherwise stated. Note 1

Parameter	Symbol	Min.	Typ.	Max.	Units	Conditions
Input High Voltage	V_IH	2.0	—	V_CC	V	—
Input Low Voltage	V_IL	—	—	0.8	V —
Input High Current	I_IH	-125	—	40	μA —
Input Low Current	I_IL	-300	—	—	μA	—

Note 1: The circuit is designed to meet the DC specifications shown in the table above after thermal equilibrium has been established.

AC ELECTRICAL CHARACTERISTICS

V_CC = 2.5V ± 5% or 3.3 ± 10% ; R_L = 50 to V_CC - 2V ; T_A = -40^ to +85^ , unless otherwise stated. Note 1

Parameter	Symbol	Min.	Typ.	Max.	Units	Conditions
Maximum Operating Frequency	f_MAX	2	3 —	GHz V		OUT ≥ 400 mV
Propagation Delay (CLK-to-Q)	t_PD	300	400	550	ps	V_IN ≥ 100 mV
Propagation Delay (CLK_SEL-to-Q)		200	350	600	ps	—
Differential Propagation Delay Temperature Coefficient	t_PD	— 150	—	fs/°C	—
Set-Up Time (EN-to-CLK)	t_S	0 —	—	ps Note 2
Hold Time (CLK-to-EN)	t_H	500	—	—	ps	Note 2
Output-to-Output Skew	t_SKEW	—	—	25	ps	Note 3
Part-to-Part Skew		—	—	200	ps	Note 4
RMS Phase Jitter	t_JITTER	—	50	—	fs_RMS	Output = 622 MHz, Integration Range: 12 kHz to 20 MHz
Adjacent Channel Crosstalk-Induced Jitter		—	—	0.7 ps	RMS	Note 5
Output Rise/Fall Time (20% to 80%)	t_r,t_f	70	140	220	ps	At full output swing.

Note 1: High frequency AC parameters are ensured by design and characterization.
2: Set-up and hold times apply to synchronous applications that intend to enable/disable before the next clock cycle. For asynchronous applications, set-up and hold do not apply.
3: Output-to-output skew is measured between two different outputs under identical transitions.
4: Part-to-part skew is defined for two parts with identical power supply voltages at the same temperature and with no skew of the edges at the respective inputs.
5: Crosstalk is measured at the output while applying two similar differential clock frequencies that are asynchronous with respect to each other at the inputs.

TEMPERATURE SPECIFICATIONS

Parameters Sym. Min. Typ. Max. Units Conditions
Temperature Ranges
Storage Temperature Range T	S	-65 —	+150 °C	—
Lead Temperature	T_LEAD	—	— +260 °C	Soldering, 20 sec.
Ambient Temperature Range	T_A	-40 —	+85 °C	—
Package Thermal Resistances (Note 1)
Thermal Resistance, VQFN 44-Ld	_JA	—	42	— °C/W	Still-Air
	_JB	—	20	— °C/W	Junction-to-Board

Note 1: Thermal performance assumes exposed pad is soldered (or equivalent) to the device's most negative potential on the PCB. _JB and _JA are shown for a 4-layer PCB in a still air environment, unless otherwise stated.

/CLK CLK /Q Q tPD

FIGURE 1-3: Differential In-to-Differential Out Propagation Delay.

CLK_SEL VCC/2 tPD Q VCC/2 tPD

FIGURE 1-4: CLK_SEL-to-Differential Output Propagation Delay.

EN Vcc/2 Vcc/2 /CLK ts tH CLK /Q Q

FIGURE 1-5: Set-Up and Hold Times EN-to-Differential Output Propagation Delay.

2.0 TYPICAL PERFORMANCE CURVES

Note: The graphs and tables provided following this note are a statistical summary based on a limited number of samples and are provided for informational purposes only. The performance characteristics listed herein are not tested or guaranteed. In some graphs or tables, the data presented may be outside the specified operating range (e.g., outside specified power supply range) and therefore outside the warranted range.

V_CC = 3.3V , GND = 0V, V_IN = 100 mV, R_L = 50 to V_CC - 2V , T_A = +25^ , unless otherwise stated.

FIGURE 2-1: Output Swing vs. Frequency.

FIGURE 2-4: 200 MHz Output.

FIGURE 2-2: Propagation Delay vs. Input Voltage Swing.

FIGURE 2-5: 1 GHz Output.

FIGURE 2-3: Propagation Delay vs. Temperature.

FIGURE 2-6: 2 GHz Output.

FIGURE 2-7: Additive Phase Noise Plot.

3.0 PIN DESCRIPTIONS

The descriptions of the pins are listed in Table 3-1.

TABLE 3-1: PIN FUNCTION TABLE

Pin Number	Pin Name Description
2, 57, 10	CLK0, /CLK0CLK1, /CLK1	Differential Inputs: These input pairs are the differential signal inputs to the device. Inputs accept AC- or DC-coupled differential signals as small as 100 mV. Each pin of a pair internally terminates to a VT pin through 50Ω. Note that these inputs will default to an indeterminate state if left open. Please refer to the “Input Interface Applications” section for more details.
3, 8 VT0,	VT1	Input Termination Center-Tap: Each side of the differential input pair terminates to a VT pin. The VT pins provide a center-tap to a termination network for maximum interface flexibility. See “Input Interface Applications” section for more details.
4, 9	VREF-AC0,VREF-AC1	Reference Voltage: These outputs bias to V_CC - 1.2V . They are used when AC-coupling the inputs (CLK, /CLK). For AC-coupled applications, connect VREF-AC to the VT pin and bypass with a 0.01 μF low ESR capacitor to VCC. See “Input Interface Applications” section for more details. Maximum sink/source current is ±1.5 mA. Due to the limited drive capability, each VREF-AC pin is only intended to drive its respective VT pin.
44 CLK_SEL		This single-ended TTL/CMOS-compatible input selects the inputs to the multiplexer. Note that this input is internally connected to a 25 kΩ pull-up resistor and will default to a logic HIGH state if left open.
12 EN		This single-ended TTL/CMOS-compatible input functions as a synchronous output enable. The synchronous enable ensures that enable/disable will only occur when the outputs are in a logic LOW state. Note that this input is internally connected to a 25 kΩ pull-up resistor and will default to logic HIGH state (enabled) if left open.
13, 22, 23, 28,33, 34, 43	VCC	Positive power supply. Bypass with 0.1 μF//0.01 μF low-ESR capacitors and place as close to each VCC pin as possible.
42, 4140, 3938, 3736, 3532, 3130, 2927, 2625, 2421, 2019, 1817, 1615, 14	Q0, /Q0Q1, /Q1Q2, /Q2Q3, /Q3Q4, /Q4Q5, /Q5Q6, /Q6Q7, /Q7Q8, /Q8Q9, /Q9Q10, /Q10Q11, /Q11	Differential 100K LVPECL Outputs: These LVPECL outputs are the precision, low skew copies of the inputs. Please refer to the Truth Table below for details.Unused output pairs may be left open. Terminate with 50Ω to V_CC - 2V . See “LVPECL Output Interface Applications” section for more details.
1, 6, 11	GND,Exposed Pad	Ground. GND pins and exposed pad must both be connected to the most negative potential of chip the ground.

TABLE 3-2: TRUTH TABLE

EN CLK_SEL Q	/Q
H	L	CLK0	/CLK0
H	H	CLK1	/CLK1
L	X	L (Note 1)	H (Note 1)

Note 1: Transition occurs on the next negative transition of the non-inverted input.

4.0 INPUT AND OUTPUT STAGES

VCC CLK 50Ω VT 50Ω /CLK GND

FIGURE 4-1: Simplified Differential Input Stage.

Vcc /Q Q

FIGURE 4-2: Simplified LVPECL Output Stage.

5.0 INPUT INTERFACE APPLICATIONS

VCC LVPECL GND VCC 0.01μF RP NC CLK /CLK VT VREF-AC SY89112U NOTE: For 3.3V, Rp = 50Ω For 2.5V, Rp = 19Ω

FIGURE 5-1: DC-Coupled LVPECL Interface.

VCC CML GND VCC CLK /CLK 0.01μF VT VREF-AC SY89112U

FIGURE 5-4: AC-Coupled CML Interface.

VCC LVPECI CLK /CLK GND RP Rp VCC 0.01μF VTC VREF-AC NOTE: For 3.3V, RP = 100Ω For 2.5V, RP = 50Ω SY89112U

FIGURE 5-2: AC-Coupled LVPECL Interface.

VCC LVDS CLK /CLK GND SY89112U NC □ VT NC □ VREF-AC

FIGURE 5-5: LVDS Interface.

VCC CML CLK /CLK GND SY89112U NC □ VT NC □ VREF-AC OPTION: May Connect VT to VCC

FIGURE 5-3: DC-Coupled CML Interface.

6.0 LVPECL OUTPUT INTERFACE APPLICATIONS

LVPECL has high-input impedance, very-low output (open emitter) impedance, and small signal swing, which result in low EMI. LVPECL is ideal for driving 50Ω and 100Ω controlled impedance transmission lines. There are several techniques for terminating the LVPECL output: Parallel-Thevenin Equivalent, Parallel Termination (3-Resistor), and AC-Coupled Termination. Unused output pairs may be left floating. However, single-ended outputs must be terminated or balanced.

+3.3V Z₀ = 50Ω Z₀ = 50Ω +3.3V R1 130Ω R1 130Ω +3.3V R2 82Ω R2 82Ω GND GND NOTE: For 2.5V systems, R1 = 250Ω, R2 = 62.5Ω

FIGURE 6-1: Parallel Termination: Thevenin Equivalent.

+3.3V Z₀ = 50Ω Z₀ = 50Ω +3.3V GND C1 (Optional) 0.01μF 50Ω 50Ω 50Ω Rp +3.3V GND NOTE: For 2.5V systems, Rₚ = 19Ω

FIGURE 6-2: Parallel Termination: Three-Resistor.

7.0 PACKAGING INFORMATION

7.1 Package Marking Information

Example44-Lea

mXXXXXX-XXXXXXXXX YYWWNNN YYWW XX

MICREL- SY89112UMY 2319PF8 2321 VU

Legend: XX...X Product code or customer-specific informationY Year code (last digit of calendar year)YY Year code (last 2 digits of calendar year)WW Week code (week of January 1 is week '01')NNN Alphanumeric traceability codee3 Pb-free JEDEC® designator for Matte Tin (Sn)* This package is Pb-free. The Pb-free JEDEC designator (e3) can be found on the outer packaging for this package.•, ▲, ▼ Pin one index is identified by a dot, delta up, or delta down (triangle mark).

Note: In the event the full Microchip part number cannot be marked on one line, it will be carried over to the next line, thus limiting the number of available characters for customer-specific information. Package may or may not include the corporate logo.Underbar(_) and/or Overbar(−) symbol may not be to scale.

Note: If the full seven-character YYWWNNN code cannot fit on the package, the following truncated codes are used based on the available marking space: 6 Characters = YWWNNN; 5 Characters = WWNNN; 4 Characters = WNNN; 3 Characters = NNN; 2 Characters = NN; 1 Character = N

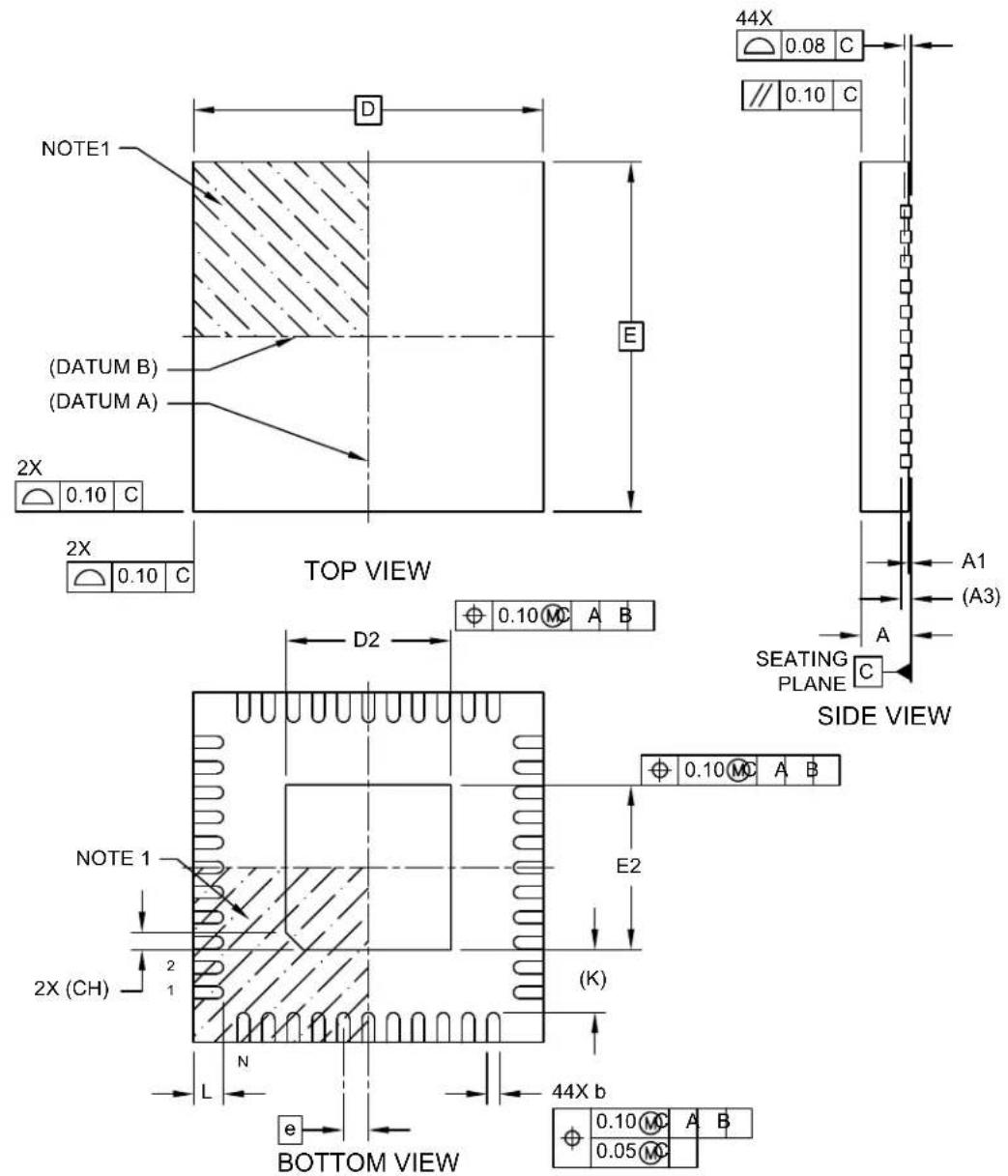

44-Lead Very Thin Quad Flat, No Lead Package (QPA) - 7x7x1.0 mm Body [VQFN] With 3.3 mm Exposed Pad

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

Microchip Technology Drawing C04-1291 Rev A Sheet 1 of 2

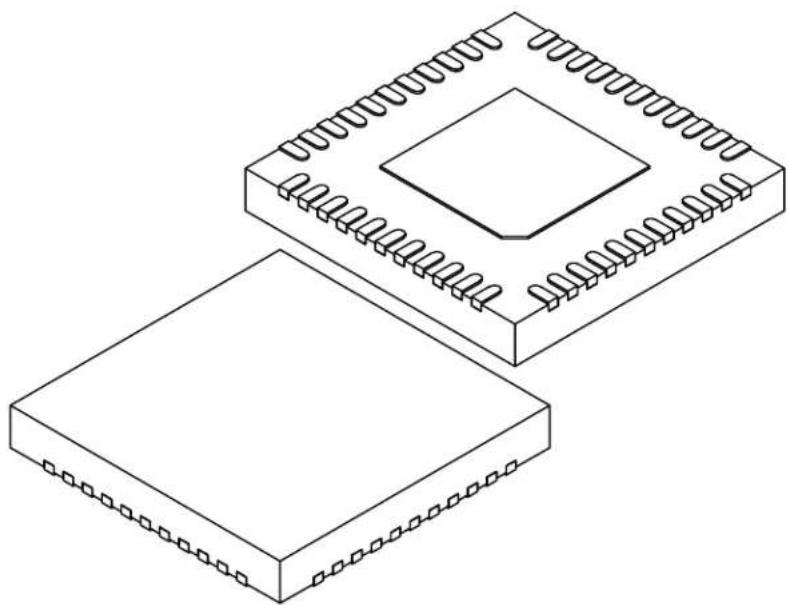

44-Lead Very Thin Quad Flat, No Lead Package (QPA) - 7x7x1.0 mm Body [VQFN] With 3.3 mm Exposed Pad

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

Technical line drawing of two integrated circuit chips with visible pins (no text or symbols)

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Number of Terminals	N	44
Pitch	e	0.50 BSC
Overall Height	A	0.80	0.90	1.00
Standoff	A1	0.00	0.02	0.05
Terminal Thickness	A3	0.20 REF
Overall Length	D	7.00 BSC
Exposed Pad Length	D2 3.20		3.30 3.40
Overall Width	E	7.00 BSC
Exposed Pad Width	E2	3.20	3.30	3.40
Terminal Width	b	0.20	0.25	0.30
Terminal Length	L	0.50	0.60	0.70
	K 0.20 REFTerminal-to-Exposed-Pad
	CH 0.35 REFExposed Pad Corner Cham

Notes:
1. Pin 1 visual index feature may vary, but must be located within the hatched area.
2. Package is saw singulated
3. Dimensioning and tolerancing per ASME Y14.5M BSC: Basic Dimension. Theoretically exact value shown without tolerances. REF: Reference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing C04-1291 Rev A Sheet 2 of 2

44-Lead Very Thin Quad Flat, No Lead Package (QPA) - 7x7x1.0 mm Body [VQFN] With 3.3 mm Exposed Pad

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

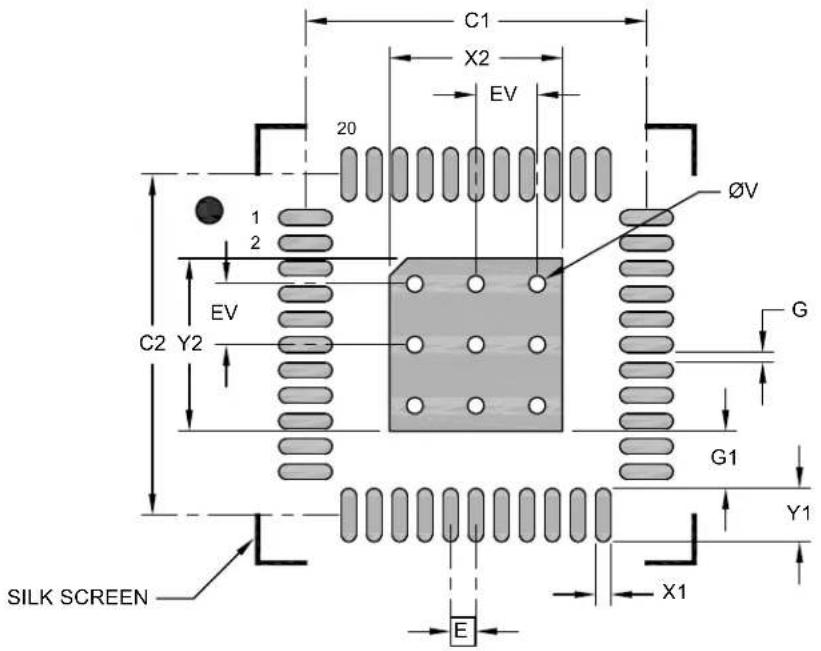

C1 X2 EV 20 ØV 1 2 EV C2 Y2 G G1 Y1 X1 E SILK SCREEN

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.50 BSC
Center Pad Width	X2			3.40
Center Pad Length	Y2			3.40
	C1Contact Pad Spacing 6.70
Contact Pad Spacing	C2		6.70
Contact Pad Width (Xnn)	X1			0.30
Contact Pad Length (Xnn)	Y1			1.05
Contact Pad to Center Pad (Xnn)	G1 1.13
Contact Pad to Contact Pad (Xnn)	G2 0.20
Thermal Via Diameter V			0.33
Thermal Via Pitch EV			1.20

Notes:

1. Dimensioning and tolerancing per ASME Y14.5M

BSC: Basic Dimension. Theoretically exact value shown without tolerances.

1. For best soldering results, thermal vias, if used, should be filled or tented to avoid solder loss during reflow process

Microchip Technology Drawing C04-3291 Rev A

APPENDIX A: REVISION HISTORY

Revision A (November 2023)

• Converted Micrel document SY89112U to Microchip data sheet template DS20006829A.
• Minor text changes throughout.

PRODUCT IDENTIFICATION SYSTEM

To order or obtain information, e.g., on pricing or delivery, contact your local Microchip representative or sales office.

Part No.

Device

X

Supply Voltage

X

Package

X

Temperature Range

[-XX]

Media Type

Device:

2.5V/3.3V Low-Jitter, Low-Skew 1:12 LVPECL SY89112: Fanout Buffer with 2:1 MUX Input and Internal Termination

Supply Voltage: U = 2.5V/3.3V

Package: M = 44-Lead 7 mm x 7 mm VQFN

Temperature

Y = -40°C to +85°C

Range:

Media Type:

=

260/Tray

TR

=

1,000/Reel

Examples:

a) SY89112UMY:

SY89112, 2.5V/3.3V Supply Voltage,

44-Lead VQFN, -40°C to +85°C Temperature Range, 260/Tray

b) SY89112UMY-TR:

SY89112, 2.5V/3.3V Supply Voltage,

44-Lead VQFN, -40^ to +85^ Temperature Range, 1,000/Reel

Note 1: Tape and Reel identifier only appears in the catalog part number description. This identifier is used for ordering purposes and is not printed on the device package. Check with your Microchip Sales Office for package availability with the Tape and Reel option.

NOTES:

Note the following details of the code protection feature on Microchip products:

• Microchip products meet the specifications contained in their particular Microchip Data Sheet.
- Microchip believes that its family of products is secure when used in the intended manner, within operating specifications, and under normal conditions.
- Microchip values and aggressively protects its intellectual property rights. Attempts to breach the code protection features of Microchip product is strictly prohibited and may violate the Digital Millennium Copyright Act.
- Neither Microchip nor any other semiconductor manufacturer can guarantee the security of its code. Code protection does not mean that we are guaranteeing the product is "unbreakable" Code protection is constantly evolving. Microchip is committed to continuously improving the code protection features of our products.

This publication and the information herein may be used only with Microchip products, including to design, test, and integrate Microchip products with your application. Use of this information in any other manner violates these terms. Information regarding device applications is provided only for your convenience and may be superseded by updates. It is your responsibility to ensure that your application meets with your specifications. Contact your local Microchip sales office for additional support or, obtain additional support at https://www.microchip.com/en-us/support/design-help/client-support-services.

THIS INFORMATION IS PROVIDED BY MICROCHIP "AS IS". MICROCHIP MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL, STATUTORY OR OTHERWISE, RELATED TO THE INFORMATION INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE, OR WARRANTIES RELATED TO ITS CONDITION, QUALITY, OR PERFORMANCE.

IN NO EVENT WILL MICROCHIP BE LIABLE FOR ANY INDIRECT, SPECIAL, PUNITIVE, INCIDENTAL, OR CONSEQUENTIAL LOSS, DAMAGE, COST, OR EXPENSE OF ANY KIND WHATSOEVER RELATED TO THE INFORMATION OR ITS USE, HOWEVER CAUSED, EVEN IF MICROCHIP HAS BEEN ADVISED OF THE POSSIBILITY OR THE DAMAGES ARE FORESEEABLE. TO THE FULLEST EXTENT ALLOWED BY LAW, MICROCHIP'S TOTAL LIABILITY ON ALL CLAIMS IN ANY WAY RELATED TO THE INFORMATION OR ITS USE WILL NOT EXCEED THE AMOUNT OF FEES, IF ANY, THAT YOU HAVE PAID DIRECTLY TO MICROCHIP FOR THE INFORMATION.

Use of Microchip devices in life support and/or safety applications is entirely at the buyer's risk, and the buyer agrees to defend, indemnify and hold harmless Microchip from any and all damages, claims, suits, or expenses resulting from such use. No licenses are conveyed, implicitly or otherwise, under any Microchip intellectual property rights unless otherwise stated.

Trademarks

The Microchip name and logo, the Microchip logo, Adaptec, AVR, AVR logo, AVR Freaks, BesTime, BitCloud, CryptoMemory, CryptoRF, dsPIC, flexPWR, HELDO, IGLOO, JukeBlox, KeeLoq, Kleer, LANCheck, LinkMD, maXStylus, maXTouch, MediaLB, megaAVR, Microsemi, Microsemi logo, MOST, MOST logo, MPLAB, OptoLyzer, PIC, picoPower, PICSTART, PIC32 logo, PolarFire, Prochip Designer, QTouch, SAM-BA, SenGenuity, SpyNIC, SST, SST Logo, SuperFlash, Symmetricom, SyncServer, Tachyon, TimeSource, tinyAVR, UNI/O, Vectron, and XMEGA are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

AgileSwitch, ClockWorks, The Embedded Control Solutions Company, EtherSynch, Flashtec, Hyper Speed Control, HyperLight Load, Libero, motorBench, mTouch, Powermite 3, Precision Edge, ProASIC, ProASIC Plus, ProASIC Plus logo, Quiet-Wire, SmartFusion, SyncWorld, TimeCesium, TimeHub, TimePictra, TimeProvider, and ZL are registered trademarks of Microchip Technology Incorporated in the U.S.A.

Adjacent Key Suppression, AKS, Analog-for-the-Digital Age, Any Capacitor, AnyIn, AnyOut, Augmented Switching, BlueSky, BodyCom, Clockstudio, CodeGuard, CryptoAuthentication, CryptoAutomotive, CryptoCompanion, CryptoController, dsPICDEM, dsPICDEM.net, Dynamic Average Matching, DAM, ECAN, Espresso T1S, EtherGREEN, EyeOpen, GridTime, IdealBridge, IGAT, In-Circuit Serial Programming, ICSP, INICnet, Intelligent Paralleling, IntelliMOS, InterChip Connectivity, JitterBlocker, Knob-on-Display, MarginLink, maxCrypto, maxView, memBrain, Mindi, MiWi, MPASM, MPF, MPLAB Certified logo, MPLIB, MPLINK, mSiC, MultiTRAK, NetDetach, Omniscient Code Generation, PICDEM, PICDEM.net, PICkit, PICtail, Power MOS IV, Power MOS 7, PowerSmart, PureSilicon, QMatrix, REAL ICE, Ripple Blocker, RTAX, RTG4, SAM-ICE, Serial Quad I/O, simpleMAP, SimpliPHY, SmartBuffer, SmartHLS, SMART-I.S., storClad, SQI, SuperSwitcher, SuperSwitcher II, Switchtec, SynchroPHY, Total Endurance, Trusted Time, TSHARC, Turing, USBCheck, VariSense, VectorBlox, VeriPHY, ViewSpan, WiperLock, XpressConnect, and ZENA are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

SQTP is a service mark of Microchip Technology Incorporated in the U.S.A.

The Adaptec logo, Frequency on Demand, Silicon Storage Technology, and Symmcom are registered trademarks of Microchip Technology Inc. in other countries.

GestIC is a registered trademark of Microchip Technology Germany II GmbH & Co. KG, a subsidiary of Microchip Technology Inc., in other countries.

All other trademarks mentioned herein are property of their respective companies. © 2023, Microchip Technology Incorporated and its subsidiaries.

All Rights Reserved.

ISBN: 978-1-6683-3525-3

For information regarding Microchip's Quality Management Systems, please visit www.microchip.com/quality.

Worldwide Sales and Service

AMERICAS

Corporate Office

2355 West Chandler Blvd.

Chandler, AZ 85224-6199

Tel: [phone]

Fax: [phone]

Technical Support:

http://www.microchip.com/

support

Web Address:

www.microchip.com

Atlanta

Duluth, GA

Tel: [phone]

Fax: [phone]

Austin, TX

Tel: [phone]

Boston

Westborough, MA

Tel: [phone]

Fax: [phone]

Chicago

Itasca, IL

Tel: [phone]

Fax: [phone]

Dallas

Addison, TX

Tel: [phone]

Fax: [phone]

Detroit

Novi, MI

Tel: [phone]

Houston, TX

Tel: [phone]

Indianapolis

Noblesville, IN

Tel: [phone]

Fax: [phone]

Tel: [phone]

Los Angeles

Mission Viejo, CA

Tel: [phone]

Fax: [phone]

Tel: [phone]

Raleigh, NC

Tel: [phone]

New York, NY

Tel: [phone]

San Jose, CA

Tel: [phone]

Tel: [phone]

Canada - Toronto

Tel: [phone]

Fax: [phone]

ASIA/PACIFIC

Australia - Sydney

Tel: [phone]

China - Beijing

Tel: [phone]

China - Chengdu

Tel: [phone]

China - Chongqing

Tel: [phone]

China - Dongguan

Tel: [phone]

China - Guangzhou

Tel: [phone]

China - Hangzhou

Tel: [phone]

China - Hong Kong SAR

Tel: [phone]

China - Nanjing

Tel: [phone]

China - Qingdao

Tel: [phone]

China - Shanghai

Tel: [phone]

China - Shenyang

Tel: [phone]

China - Shenzhen

Tel: [phone]

China - Suzhou

Tel: [phone]

China - Wuhan

Tel: [phone]

China - Xian

Tel: [phone]

China - Xiamen

Tel: [phone]

China - Zhuhai

Tel: [phone]

ASIA/PACIFIC

India - Bangalore

Tel: [phone]

India - New Delhi

Tel: [phone]

India - Pune

Tel: [phone]

Japan - Osaka

Tel: [phone]

Japan - Tokyo

Tel: [phone]

Korea - Daegu

Tel: [phone]

Korea - Seoul

Tel: [phone]

Malaysia - Kuala Lumpur

Tel: [phone]

Malaysia - Penang

Tel: [phone]

Philippines - Manila

Tel: [phone]

Singapore

Tel: [phone]

Taiwan - Hsin Chu

Tel: [phone]

Taiwan - Kaohsiung

Tel: [phone]

Taiwan - Taipei

Tel: [phone]

Thailand - Bangkok

Tel: [phone]

Tel: [phone]

Fax: [phone]

Denmark - Copenhagen

Tel: [phone]

Fax: [phone]

Finland - Espoo

Tel: [phone]

France - Paris

Tel: [phone]

Fax: [phone]

Germany - Garching

Tel: [phone]

Germany - Haan

Tel: [phone]

Germany - Heilbronn

Tel: [phone]

Germany - Karlsruhe

Tel: [phone]

Germany - Munich

Tel: [phone]

Fax: [phone]

Germany - Rosenheim

Tel: [phone]

Israel - Ra'anana

Tel: [phone]

Italy - Milan

Tel: [phone]

Fax: [phone]

Italy - Padova

Tel: [phone]

Netherlands - Drunen

Tel: [phone]

Fax: [phone]

Norway - Trondheim

Tel: [phone]

Poland - Warsaw

Tel: [phone]

Romania - Bucharest

Tel: [phone]

Spain - Madrid

Tel: [phone]

Fax: [phone]

Sweden - Gothenberg

Tel: [phone]

Sweden - Stockholm

Tel: [phone]

UK - Wokingham

Tel: [phone]

Fax: [phone]
