USER MANUAL SY89113U Microchip

2.5V Low Jitter, Low Skew 1:12 LVDS Fanout Buffer

with 2:1 Input MUX and Internal Termination

Features

• Selects between 1 of 2 Inputs, and Provides 12 Precision, Low Skew LVDS Output Copies

• Guaranteed AC Performance Overtemperature and Voltage:

• DC to >1 GHz Throughput

• <975 ps Propagation Delay CLK0-to-Q
• <250 ps Rise/Fall Time
• <25 ps Output-to-Output Skew

- Ultra-low Jitter Design:

• 130 fs RMS Phase Jitter (Typ)

• 0 . 7 _RMS Crosstalk Induced Jitter

• Unique, Patent-pending 2:1 Input MUX Provides Superior Isolation to Minimize Channel-to-Channel Crosstalk

• CLK0 Input Features a Unique, Patent-pending Input Termination and VT Pin that Accepts AC-and DC-coupled Inputs (CML, LVPECL, LVDS)
• CLK1 Accepts Virtually Any Logic Standard:

- Single-ended: TTL/CMOS (Including 3.3V Logic), LVPECL

- Differential: LVPECL, LVDS, CML, HSTL

• 325 mV LVDS-compatible Output Swing
• Power Supply: 2.5V ±5%
- Industrial Temperature Range -40^ to +85^
• Available in 44-lead (7 mm × 7 mm) VQFN Package

Applications

• Multi-processor Server
  • SONET/SDH Clock/Data Distribution
  • Fibre Channel Distribution
  • Gigabit Ethernet Clock Distribution

General Description

The SY89113U is a 2.5V low jitter, low skew, 1:12 LVDS fanout buffer optimized for precision telecom and enterprise server distribution applications. The input includes a 2:1 MUX for clock switchover applications. Unlike other multiplexers, this input includes a unique isolation design that minimizes channel-to-channel crosstalk. The SY89113U distributes clock frequencies from DC to >1 GHz guaranteed over temperature and voltage.

The SY89113U incorporates a synchronous output enable (EN) so that the outputs will only be enabled/disabled when they are already in the LOW state. CLK0 differential input includes Microchip's unique, 3-pin input termination architecture that directly interfaces to any differential signal (AC- or DC-coupled) as small as 100 mV (200 mV) without any level shifting or termination resistor networks in the signal path.

CLK1 differential input includes a new version of Microchip's unique, Any-Input architecture that directly interfaces with single-ended TTL/CMOS logic (including 3.3V logic), single-ended LVPECL, differential (AC- or DC-coupled) LVDS, HSTL, CML, and LVPECL logic levels as small as 200 mV (400 mV _PP ). CLK1 input requires external termination. LVDS output swing 325 mV into 100Ω with extremely fast rise/fall time guaranteed to be less than 250 ps.

The SY89113U operates from a 2.5V±5% supply and is guaranteed over the full industrial temperature range of -40°C to +85°C. The SY89113U is part of Microchip's high-speed, Precision Edge® product line.

Package Type

Functional Block Diagram

1.0 ELECTRICAL CHARACTERISTICS

Absolute Maximum Ratings ^†

Supply Voltage (VCC)	-0.5V to +4.0V
Input Voltage (Differential Input CLK0, CLK1)	-0.5V to VCC
Current on Reference Voltage Outputs, source or sink current on VREF-AC0/VBB1	±2 mA
Termination Current, source or sink current on VT0	±100 mA
Input Current, source or sink current on CLK0, /CLK0	±50 mA

Operating Ratings ^††

Supply Voltage ( V_CC )....+2.375V to +2.625V

^ Notice: Permanent device damage may occur if absolute maximum ratings are exceeded. This is a stress rating only and functional operation is not implied at conditions other than those detailed in the operational sections of this data sheet. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
^†† Notice: The data sheet limits are not guaranteed if the device is operated beyond the operating ratings.

TABLE 1-1: DC ELECTRICAL CHARACTERISTICS

T_A=-40°C to +85°C unless otherwise stated. (Note 1)
Parameter Symbol Min. Typ. Max. Units Conditions
Power Supply	V_CC	2.375	—	2.625	V	—
Power Supply Current	I_CC	—	240	330	mA	No load, max. V_CC
Input Resistance(CLK0-to-VT)	R_IN	45	50	55	Ω	—
Differential Input Resistance(CLK0-to-/CLK0)	R_DIFF\_IN	90	100	110	Ω	—
Input High Voltage(CLK0, /CLK0)	V_IH	1.2	—	V_CC	V	—
Input High Voltage(CLK1, /CLK1)		0.2	—	V_CC	V	Note 2
		1.2	—	3.6	V	Note 3
Input Low Voltage(CLK0, /CLK0)	V_IL	0.1	—	V_CC	V	—
Input Low Voltage(CLK1, /CLK1)		0.2	—	—	V	Note 2
		0	—	—	V	Note 3
Input Voltage Swing(CLK0, /CLK0)	V_IN	0.1	—	V_CC	V	See Figure 8-1
Input Voltage Swing(CLK1, /CLK1)		0.2	—	—	V	See Figure 8-1
Differential Input Voltage Swing|CLK0-to-/CLK0|	V_DIFF\_IN	0.2	—	—	V	See Figure 8-2
Differential Input Voltage Swing|CLK1-to-/CLK1|		0.4	—	—	V	See Figure 8-2
CLK0-to-VT0 (CLK0, /CLK0)	V_T0	—	—	1.28	V	—
Output Reference Voltage	V_REF-AC0	V_CC-1.3 V	cc-1.2 V	cc-1.1	V	—
	V_BB1	V_CC-1.525	V_CC-1.425	V_CC-1.325	V	—

Note 1: The circuit is designed to meet the DC specifications shown in the above table after thermal equilibrium has been established.
2: SE-TERM not connected.
3: Using single-ended TTL/CMOS input signals, SE-TERM connects to GND. See Figure 11-6.

TABLE 1-2: LVDS OUTPUTS DC ELECTRICAL CHARACTERISTICS

V_CC = +2.5V ± 5% ; R_L = 100 across the outputs pair; and T_A = -40°C to +85°C , unless otherwise stated. (Note 1)
Parameter Symbol Min.	Typ. Max. Units Conditions
Output Voltage Swing (Q, /Q) V	OUT	250 325	— mV See Figure 8-1
Differential Output Voltage Swing (Q, /Q)	V_DIFF-OUT	500 650	— mV See Figure 8-2
Output Common Mode Voltage	V_OCM	1.125	—	1.275	V	—
Change in V_OS between complementary output states	V_OS	—	—	25	mV	—

Note 1: The circuit is designed to meet the DC specifications, shown in the above table, after thermal equilibrium has been established.

TABLE 1-3: LVTTL/CMOS DC ELECTRICAL CHARACTERISTICS

V_CC = +2.5V ± 5% ; T_A = -40°C to +85°C , unless otherwise stated. (Note 1)
Parameter	Symbol	Min.	Typ.	Max.	Units	Conditions
Input HIGH Voltage	V_IH	2.0	— —	V	—
Input LOW Voltage	V_IL	—	—	0.8	V	—
Input HIGH Current	I_IH	-125	—	30	μA	—
Input LOW Current	I_IL	-300	—	—	μA	—

Note 1: The circuit is designed to meet the DC specifications, shown in the above table, after thermal equilibrium has been established.

TABLE 1-4: AC ELECTRICAL CHARACTERISTICS

V_CC = +2.5V ± 5% ; R_L = 100 across the outputs; and T_A = -40°C to +85°C , unless otherwise stated. (Note 1)
Parameter Symbol Min.	Typ. Max. Units Conditions
Maximum Operating Frequency f	MAX	1	—	—	G	H_OUT ≥ 200 mV V
Propagation Delay, CLK0-to-Q	t_PD	625 750	975	ps V		I_N ≥ 100 mV
Propagation Delay, CLK1-to-Q		700 900	1200	ps V		I_N ≥ 200 mV
Propagation Delay, CLK_SEL-to-Q		500 700		900	ps	—
Differential Propagation Delay Temperature	t_PD Tempco	—	90	—	fs/°C	—
Set-up Time, EN-to-CLK0	t_S	100	—	—	ps	Note 2
Set-up Time, EN-to-CLK1		0	—	—	ps	Note 2
Hold Time, CLK0-to-EN	t_H	500	—	—	ps	Note 2
Hold Time, CLK1-to-EN		600	—	—	ps	Note 2
Output-to-output Skew	t_SKEW	—	—	25	ps	Note 3
Part-to-part Skew CLK0		—	—	200	ps	Note 4
Part-to-part Skew CLK1		—	—	250	ps	Note 4
RMS Phase Jitter		—	130	—	fs	Output = 622 MHz, Integration Range 12 kHz – 20 MHz (Note 5)
Adjacent Channel Crosstalk-induced Jitter		—	—	0.7	ps_RMS
Output Rise/Fall Time (20% to 80%)	t_r, t_f	80	150	250	ps At full output swing

Note 1: High-frequency AC-parameters are guaranteed by design and characterization.
2: Set-up and hold times apply to synchronous applications that intend to enable/disable before the next clock cycle. For asynchronous applications, set-up and hold do not apply.
3: Output-to-output skew is measured between two different outputs under identical input transitions.
4: Part-to-part skew is defined for two parts with identical power supply voltages at the same temperature and with no skew of the edges at the respective inputs.
5: Crosstalk-induced jitter is defined as: the added jitter that results from signals applied to two adjacent channels. It is measured at the output while applying two similar, differential clock frequencies that are asynchronous with respect to each other at the inputs.

TABLE 1-5: TEMPERATURE SPECIFICATIONS

Parameter	Symbol	Min.	Typ.	Max.	Units	Conditions
Temperature Range
Operating Ambient Temperature	T_A	-40	—	+85	°C —
Lead Temperature	T_LEAD	—	+260	—	°C	Soldering, 20 sec.
Storage Temperature	T_S	-65	—	+150	°C	—
Package Thermal Resistance (Note 1)
VQFN, Still Air	_JA	—	+24	—	°C/W	—
VQFN, Junction-to-Board	_JB	—	+8	—	°C/W	—

Note 1: Package thermal resistance assumes exposed pad is soldered (or equivalent) to the device's most negative potential on the PCB. _JB and _JA values are determined for a 4-layer board in still-air, unless otherwise stated.

2.0 PIN DESCRIPTIONS

The descriptions of the pins are listed in Table 2-1.

TABLE 2-1: PIN FUNCTION TABLE

Pin Number Pin Name Description
1, 6, 11, 22, 34	GND, Exposed Pad	Ground: GND pins and exposed pad must both be connected to the most negative potential of chip the ground.
2, 5	CLK0, /CLK0	Differential Inputs: This input pair is a differential signal input to the device. Input accepts AC- or DC-coupled signals as small as 100 mV (200 mV PP). Each pin of the pair internally terminates to a VT pin through 50Ω. Note that this input defaults to an indeterminate state if left open. Please refer to Section 10.0, CLK0 Input Interface Applications for more details.
3	VT0	Input Termination Center-Tap: Each side of the differential input pair CLK0, /CLK0 terminates to the VT pin. The VT pin provides a center-tap to a termination network for maximum interface flexibility. See Section 10.0, CLK0 Input Interface Applications for more details. For DC-coupled CML or LVDS inputs, the VT pin is left floating.
4	V	Reference Voltage: This output biases to VCC-1.2V. It is used when AC-coupling the input CLK0. For AC-coupled applications, connect VREF-AC0 to the VT0 pin and bypass with 0.01μF low ESR capacitor to VCC. See Section 10.0, CLK0 Input Interface Applications for more details. Maximum sink/source current is ±1.5mA. Due to the limited drive capability, the VREF-AC0 pin is only intended to drive its respective input pin.
7 SE-TERM		Input Termination Pin: When CLK1 is driven by a single-ended TTL/CMOS signal, tie this pin to GND. In all other modes, let this pin float. See Section 11.0, CLK1 Input Interface Applications for more details.
8, 10	CLK1, /CLK1	Differential Inputs: This input pair is a differential signal input to the device. This input accepts Any-Logic standard as small as 200 mV (400 mV PP). Note that this input defaults to an indeterminate state if left open. Tie either the true or the complement input to ground while the other input is floating. This input can be used for single-ended signals (including TTL/CMOS signals from a 3.3V driver). See Section 11.0, CLK1 Input Interface Applications for more details.
9 VBB1		Reference Voltage: This output biases to VCC-1.425V. VBB1 is designed to act as a switching reference for the CLK1 and /CLK1 inputs when configured in single-ended PECL input mode. VBB1 can be used for AC-coupling of CLK1, see Figure 11-4 for details. Maximum sink/source current is ±1.5mA. Due to the limited drive capability, the VBB1 pin is only intended to drive its respective input pin.
12	EN	Synchronous Output Enable: This single-ended, TTL/CMOS-compatible input functions as a synchronous output enable. The synchronous enable ensures that enable/disable will only occur when the outputs are in a logic LOW state. Note that this input is internally connected to a 25 kΩ pull-up resistor and will default to logic HIGH state (enable) if left open.
13, 23, 28, 33, 43	VCC	Positive Power Supply: Bypass with 0.1 μF || 0.01 μF low ESR capacitors and place as close to the VCC pins as possible.
44	CLK_SEL	Multiplexer Inputs Selector: This single-ended, TTL/CMOS-compatible input selects the inputs to the multiplexer. Note that this input is internally connected to a 25kΩ pull-up resistor and will default to logic HIGH state if open.
Pin Number	Pin Name	Description
42, 41	Q0, /Q0
40, 39	Q1, /Q1
38, 37	Q2, /Q2
36, 35	Q3, /Q3	Differential LVDS Outputs: These LVDS output pairs are the precision, low skew copies of the selected input. Please refer to Table 2-2 below for details. Unused output pairs should be terminated with 100Ω across the pair. Each output is designed to drive 325 mV into 100Ω. See Section 6.0, LVDS Output Interface Applications for more details.
32, 31	Q4, /Q4
30, 29	Q5, /Q5
27, 26	Q6, /Q6
25, 24	Q7, /Q7
21, 20	Q8, /Q8
19, 18	Q9, /Q9
17, 16	Q10, /Q10
15, 14	Q11, /Q11

TABLE 2-2: TRUTH TABLE

EN CLK_SEL	Q /Q
H	L	C	L
H	H	C	L
L	X	L (Note 1)	H (Note 1)
Note 1: Transition occurs on next negative transition of the non-inverted input.

3.0 TYPICAL PERFORMANCE CHARACTERISTICS

V_CC = 2.5V; GND = 0V; V_IN = 400 mV; R_L = 100 across the outputs; and T_A = 25^ , unless otherwise stated.

FIGURE 3-1: OUTPUT SWING VS. FREQUENCY.

FIGURE 3-3: PROPAGATION DELAY VS. TEMPERATURE.

FIGURE 3-2: PROPAGATION DELAY VS. INPUT VOLTAGE SWING.

4.0 TYPICAL FUNCTIONAL CHARACTERISTICS

V_CC = 2.5V; GND = 0V; V_IN = 400 mV; R_L = 100 across the outputs; and T_A = 25^ , unless otherwise stated.

FIGURE 4-1: 200 MHZ OUTPUT.

FIGURE 4-2: 1 GHZ OUTPUT.

5.0 SINGLE-ENDED TTL/CMOS RECOMMENDED RESISTOR VALUE

The SY89113U can be driven by a TTL/CMOS input signal. See Figure 11-6. The resistor R, in Table 5-1 below, is calculated according to the following equation:

EQUATION 5-1:

$$ R1.594\left(\frac{1}{\left[\frac{5.057V_{CC}}{2V_{CC} + V_{IH} + V_{IL}}\right]_{X} - 1}\right)\Omega \times = $$

Equation 5-1 is used to determine the optimum value of R for best duty cycle.

TABLE 5-1: SINGLE-ENDED TTL/CMOS RECOMMENDED RESISTORS

input Signal Recommended R (Ω)
1.8V CMOS 261
2.5V CMOS 732
3.3V CMOS	1470

6.0 LVDS OUTPUT INTERFACE APPLICATIONS

LVDS specifies a small swing of 325 mV typical on a nominal 1.2V common mode above ground. The common mode voltage has tight limits to permit large variations in ground between an LVDS driver and receiver. Also, change in common mode voltage, as a function of data input, is kept to a minimum to keep EMI low.

VOUT 100Ω VOH, VOL VOH, VOL GND

FIGURE 6-1: LVDS DIFFERENTIAL MEASUREMENT.

50Ω 50Ω VOCM GND

FIGURE 6-2: LVDS COMMON MODE MEASUREMENT.

7.0 TIMING DIAGRAMS

/CLK CLK /Q tPD Q

FIGURE 7-1: TIMING DIAGRAM: DIFFERENTIAL IN-TO-DIFFERENTIAL OUT.

CLK_SEL Vcc/2 Vcc/2 tPD /Q Q tPD

FIGURE 7-2: TIMING DIAGRAM: CLK_SEL-TO-DIFFERENTIAL OUT.

EN Vcc/2 Vcc/2 /CLK ts th CLK /Q Q

FIGURE 7-3: TIMING DIAGRAM: SETUP AND HOLD TIME EN-TO-DIFFERENTIAL IN.

8.0 SINGLE-ENDED AND DIFFERENTIAL SWINGS

V_{IN}, V_{OUT} 325mV (typical)

FIGURE 8-1: SINGLE-ENDED VOLTAGE SWING CLK0.

FIGURE 8-2: DIFFERENTIAL VOLTAGE SWING CLK0.

9.0 INPUT AND OUTPUT STAGES

VCC R2 R2 CLK1 R1 SE-TERM R3 /CLK1 R1 GND R1 = R2 = 1.6kΩ. R3 = 3kΩ.

FIGURE 9-1: CLK1 DIFFERENTIAL INPUT BUFFER.

VCC CLK0 50Ω VT0 50Ω /CLK0 GND

FIGURE 9-2: CLK0 DIFFERENTIAL INPUT STRUCTURE.

10.0 CLK0 INPUT INTERFACE APPLICATIONS

VCC LVPECL GND VCC 0.01μF 19Ω CLK0 /CLK0 SY89113U VT0 NC VREF-AC0

FIGURE 10-1: DC-COUPLED LVPECL INPUT INTERFACE.

VCC CML GND VCC 0.01μF CLK0 /CLK0 SY89113U VT0 VREF-AC0

FIGURE 10-4: AC-COUPLED CML INPUT INTERFACE.

VCC LVPECL GND 50Ω 50Ω GND VCC 0.01μF CLK0 /CLK0 SY89113U VT0 VREF-AC0

FIGURE 10-2: AC-COUPLED LVPECL INPUT INTERFACE.

Vcc LVDS CLK0 /CLK0 SY89113U GND NC □ VT0 NC □ VREF-AC0

FIGURE 10-5: DC-COUPLED LVDS INPUT INTERFACE.

VCC CML CLK0 /CLK0 SY89113U GND NC □ VT0 NC □ VREF-AC0 option: may connect VT to VCC

FIGURE 10-3: DC-COUPLED CML INPUT INTERFACE.

11.0 CLK1 INPUT INTERFACE APPLICATIONS

2.5V CML DC 2.5V LVDS DC 100Ω CLK1 /CLK1 SY89113U NC □ VBB1 NC □ SE-TERM

FIGURE 11-1: DC-COUPLED CML, LVDS INPUT INTERFACE.

Vcc LVPECL 50Ω 50Ω 50Ω 50Ω GND GND CLK1 /CLK1 SY89113U VBB1 SE-TERM NC

FIGURE 11-4: AC-COUPLED PECL INPUT INTERFACE.

VCC VCC 50Ω 50Ω CML CLK1 /CLK1 SY89113U GND NC VBB1 NC SE-TERM

FIGURE 11-2: DC-COUPLED CML INPUT INTERFACE.

VCC LVPECL 50Ω 50Ω VCC-2V CLK1 /CLK1 SY89113U VBB1 SE-TERM VCC-2V

FIGURE 11-5: SINGLE-ENDED PECL INPUT INTERFACE.

Vcc LVPECL 50Ω 50Ω GND Vcc-2V CLK1 /CLK1 NC VBB1 NC SE-TERM SY89113U

FIGURE 11-3: DC-COUPLED PECL INPUT INTERFACE.

Single-Ended 1.8V CMOS DC 2.5V TTL/CMOS DC 3.3V TTL/CMOS DC R NC CLK1 /CLK1 SY89113U VBB1 SE-TERM GND (See Single-Ended TTL/CMOS Recommended Resistor Table for Recommended Resistor Value R)

FIGURE 11-6: SINGLE-ENDED TTL/CMOS INPUT INTERFACE.

12.0 PACKAGING INFORMATION

12.1 Package Marking Information

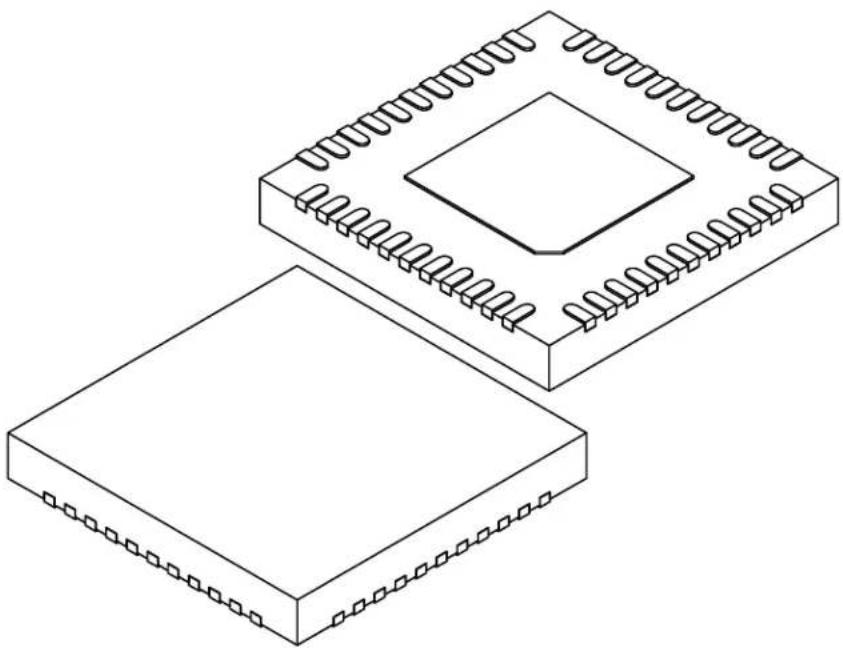

44-Lead VQFN* MICREL- XXXXXXXXX YYWWNNN YYWW XX

Example* MICREL- SY89113UMY 2414028 2414 US

Legend:	XX...X Product code or customer-specific information
	W W e e k c o d e
	NNN Alphanumeric traceability code (week)
	* This package is Pb-free. The Pb-free JEDEC designator can be found on the outer packaging for this package.
	• Pin one index is identified by a dot

Note:

In the event the full Microchip part number cannot be marked on one line, it will be carried over to the next line, thus limiting the number of available characters for customer-specific information. Package may or may not include the corporate logo.Underbar (_) and/or Overbar (−) symbol may not be to scale.

44-Lead 7 mm × 7 mm VQFN [QPA] Package Outline and Recommended Land Pattern

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

NOTE1 (DATUM B) (DATUM A) 2X 0.10 C 2X 0.10 C TOP VIEW 44X 0.08 C // 0.10 C A1 (A3) SEATING PLANE C SIDE VIEW D2 0.10 MC A B E2 K NOTE 1 2X (CH) 2 1 L N e 44X b BOTTOM VIEW 0.10 MC A B 0.05 MC

Microchip Technology Drawing C04-1291 Rev A Sheet 1 of 2

44-Lead 7 mm × 7 mm VQFN [QPA] Package Outline and Recommended Land Pattern

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

Isometric line drawing of two integrated circuit chips with pins, one rectangular and one square (no text or symbols)

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Number of Terminals	N	44
Pitch	e	0.50 BSC
Overall Height	A	0.80	0.90	1.00
Standoff	A1	0.00	0.02	0.05
Terminal Thickness	A3	0.20 REF
Overall Length	D	7.00 BSC
Exposed Pad Length	D2	3.20	3.30 3.40
Overall Width	E	7.00 BSC
Exposed Pad Width	E2	3.20	3.30	3.40
Terminal Width	b	0.20	0.25	0.30
Terminal Length	L	0.50	0.60	0.70
	K	0.20 REFTerminal-to-Exposed-Pad
	CH	0.35 REFExposed Pad Corner Cham

Notes:

1. Pin 1 visual index feature may vary, but must be located within the hatched area.
2. Package is saw singulated
3. Dimensioning and tolerancing per ASME Y14.5M BSC: Basic Dimension. Theoretically exact value shown without tolerances. REF: Reference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing C04-1291 Rev A Sheet 2 of 2

44-Lead 7 mm × 7 mm VQFN [QPA] Package Outline and Recommended Land Pattern

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

C1 X2 EV 20 ØV 1 2 EV C2 Y2 G G1 Y1 X1 E SILK SCREEN

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.50 BSC
Center Pad Width	X2			3.40
Center Pad Length	Y2			3.40
	C1Contact Pad Spacing 6.70
Contact Pad Spacing	C2		6.70
Contact Pad Width (Xnn)	X1			0.30
Contact Pad Length (Xnn)	Y1			1.05
Contact Pad to Center Pad (Xnn)	G1 1.13
Contact Pad to Contact Pad (Xnn)	G2 0.20
Thermal Via Diameter V			0.33
Thermal Via Pitch EV			1.20

Notes:
1. Dimensioning and tolerancing per ASME Y14.5M BSC: Basic Dimension. Theoretically exact value shown without tolerances.
2. For best soldering results, thermal vias, if used, should be filled or tented to avoid solder loss during reflow process

Microchip Technology Drawing C04-3291 Rev A

NOTES:

APPENDIX A: REVISION HISTORY

Revision A (February 2024)

• Converted Micrel data sheet for SY89113U to Microchip format as DS20006881A.
• Minor text changes throughout.

NOTES:

PRODUCT IDENTIFICATION SYSTEM

To order or obtain information, e.g., on pricing or delivery, contact your local Microchip representative or sales office.

Voltage Range	non	T Range	amom Sf (2770) (Temperature Processing)	Examples: SY89113UMY 2.5V, 44-Lead VQFN, -40°C to 85°C, 260/Tray b) SY89113UMY-TR 2.5V, 44-Lead VQFN, -40°C to 85°C, 1,000/Reel
Device: SY89113 = 2.5V Low Jitter, Low Skew 1:12 LVDS Fanout Buffer with 2:1 Input MUX and Internal Termination
Voltage Option: U = 2.5V
Package: M = 44-Lead VQFN
Temperature Range: Y = -40°C to 85°C
Special Processing: <blank> = 260/Tray TR = 1,000/Reel

NOTES:

Note the following details of the code protection feature on Microchip products:

• Microchip products meet the specifications contained in their particular Microchip Data Sheet.
- Microchip believes that its family of products is secure when used in the intended manner, within operating specifications, and under normal conditions.
- Microchip values and aggressively protects its intellectual property rights. Attempts to breach the code protection features of Microchip product is strictly prohibited and may violate the Digital Millennium Copyright Act.
- Neither Microchip nor any other semiconductor manufacturer can guarantee the security of its code. Code protection does not mean that we are guaranteeing the product is "unbreakable" Code protection is constantly evolving. Microchip is committed to continuously improving the code protection features of our products.

This publication and the information herein may be used only with Microchip products, including to design, test, and integrate Microchip products with your application. Use of this information in any other manner violates these terms. Information regarding device applications is provided only for your convenience and may be superseded by updates. It is your responsibility to ensure that your application meets with your specifications. Contact your local Microchip sales office for additional support or, obtain additional support at https://www.microchip.com/en-us/support/design-help/client-support-services.

THIS INFORMATION IS PROVIDED BY MICROCHIP "AS IS". MICROCHIP MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL, STATUTORY OR OTHERWISE, RELATED TO THE INFORMATION INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE, OR WARRANTIES RELATED TO ITS CONDITION, QUALITY, OR PERFORMANCE.

IN NO EVENT WILL MICROCHIP BE LIABLE FOR ANY INDIRECT, SPECIAL, PUNITIVE, INCIDENTAL, OR CONSEQUENTIAL LOSS, DAMAGE, COST, OR EXPENSE OF ANY KIND WHATSOEVER RELATED TO THE INFORMATION OR ITS USE, HOWEVER CAUSED, EVEN IF MICROCHIP HAS BEEN ADVISED OF THE POSSIBILITY OR THE DAMAGES ARE FORESEEABLE. TO THE FULLEST EXTENT ALLOWED BY LAW, MICROCHIP'S TOTAL LIABILITY ON ALL CLAIMS IN ANY WAY RELATED TO THE INFORMATION OR ITS USE WILL NOT EXCEED THE AMOUNT OF FEES, IF ANY, THAT YOU HAVE PAID DIRECTLY TO MICROCHIP FOR THE INFORMATION.

Use of Microchip devices in life support and/or safety applications is entirely at the buyer's risk, and the buyer agrees to defend, indemnify and hold harmless Microchip from any and all damages, claims, suits, or expenses resulting from such use. No licenses are conveyed, implicitly or otherwise, under any Microchip intellectual property rights unless otherwise stated.

Trademarks

The Microchip name and logo, the Microchip logo, Adaptec, AVR, AVR logo, AVR Freaks, BesTime, BitCloud, CryptoMemory, CryptoRF, dsPIC, flexPWR, HELDO, IGLOO, JukeBlox, KeeLoq, Kleer, LANCheck, LinkMD, maXStylus, maXTouch, MediaLB, megaAVR, Microsemi, Microsemi logo, MOST, MOST logo, MPLAB, OptoLyzer, PIC, picoPower, PICSTART, PIC32 logo, PolarFire, Prochip Designer, QTouch, SAM-BA, SenGenuity, SpyNIC, SST, SST Logo, SuperFlash, Symmetricom, SyncServer, Tachyon, TimeSource, tinyAVR, UNI/O, Vectron, and XMEGA are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

AgileSwitch, ClockWorks, The Embedded Control Solutions Company, EtherSynch, Flashtec, Hyper Speed Control, HyperLight Load, Libero, motorBench, mTouch, Powermite 3, Precision Edge, ProASIC, ProASIC Plus, ProASIC Plus logo, Quiet-Wire, SmartFusion, SyncWorld, TimeCesium, TimeHub, TimePictra, TimeProvider, and ZL are registered trademarks of Microchip Technology Incorporated in the U.S.A.

Adjacent Key Suppression, AKS, Analog-for-the-Digital Age, Any Capacitor, AnyIn, AnyOut, Augmented Switching, BlueSky, BodyCom, Clockstudio, CodeGuard, CryptoAuthentication, CryptoAutomotive, CryptoCompanion, CryptoController, dsPICDEM, dsPICDEM.net, Dynamic Average Matching, DAM, ECAN, Espresso T1S, EtherGREEN, EyeOpen, GridTime, IdealBridge, IGAT, In-Circuit Serial Programming, ICSP, INICnet, Intelligent Paralleling, IntelliMOS, InterChip Connectivity, JitterBlocker, Knob-on-Display, MarginLink, maxCrypto, maxView, memBrain, Mindi, MiWi, MPASM, MPF, MPLAB Certified logo, MPLIB, MPLINK, mSiC, MultiTRAK, NetDetach, Omniscient Code Generation, PICDEM, PICDEM.net, PICkit, PICtail, Power MOS IV, Power MOS 7, PowerSmart, PureSilicon, QMatrix, REAL ICE, Ripple Blocker, RTAX, RTG4, SAM-ICE, Serial Quad I/O, simpleMAP, SimpliPHY, SmartBuffer, SmartHLS, SMART-I.S., storClad, SQI, SuperSwitcher, SuperSwitcher II, Switchtec, SynchroPHY, Total Endurance, Trusted Time, TSHARC, Turing, USBCheck, VariSense, VectorBlox, VeriPHY, ViewSpan, WiperLock, XpressConnect, and ZENA are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

SQTP is a service mark of Microchip Technology Incorporated in the U.S.A.

The Adaptec logo, Frequency on Demand, Silicon Storage Technology, and Symmcom are registered trademarks of Microchip Technology Inc. in other countries.

GestIC is a registered trademark of Microchip Technology Germany II GmbH & Co. KG, a subsidiary of Microchip Technology Inc., in other countries.

All other trademarks mentioned herein are property of their respective companies.

© 2024, Microchip Technology Incorporated and its subsidiaries.

All Rights Reserved.

ISBN: 978-1-6683-4100-1

For information regarding Microchip's Quality Management Systems, please visit www.microchip.com/quality.

Worldwide Sales and Service

AMERICAS

Corporate Office

2355 West Chandler Blvd.

Chandler, AZ 85224-6199

Tel: [phone]

Fax: [phone]

Technical Support:

http://www.microchip.com/

support

Web Address:

www.microchip.com

Atlanta

Duluth, GA

Tel: [phone]

Fax: [phone]

Austin, TX

Tel: [phone]

Boston

Westborough, MA

Tel: [phone]

Fax: [phone]

Chicago

Itasca, IL

Tel: [phone]

Fax: [phone]

Dallas

Addison, TX

Tel: [phone]

Fax: [phone]

Detroit

Novi, MI

Tel: [phone]

Houston, TX

Tel: [phone]

Indianapolis

Noblesville, IN

Tel: [phone]

Fax: [phone]

Tel: [phone]

Los Angeles

Mission Viejo, CA

Tel: [phone]

Fax: [phone]

Tel: [phone]

Raleigh, NC

Tel: [phone]

New York, NY

Tel: [phone]

San Jose, CA

Tel: [phone]

Tel: [phone]

Canada - Toronto

Tel: [phone]

Fax: [phone]

ASIA/PACIFIC

Australia - Sydney

Tel: [phone]

China - Beijing

Tel: [phone]

China - Chengdu

Tel: [phone]

China - Chongqing

Tel: [phone]

China - Dongguan

Tel: [phone]

China - Guangzhou

Tel: [phone]

China - Hangzhou

Tel: [phone]

China - Hong Kong SAR

Tel: [phone]

China - Nanjing

Tel: [phone]

China - Qingdao

Tel: [phone]

China - Shanghai

Tel: [phone]

China - Shenyang

Tel: [phone]

China - Shenzhen

Tel: [phone]

China - Suzhou

Tel: [phone]

China - Wuhan

Tel: [phone]

China - Xian

Tel: [phone]

China - Xiamen

Tel: [phone]

China - Zhuhai

Tel: [phone]

ASIA/PACIFIC

India - Bangalore

Tel: [phone]

India - New Delhi

Tel: [phone]

India - Pune

Tel: [phone]

Japan - Osaka

Tel: [phone]

Japan - Tokyo

Tel: [phone]

Korea - Daegu

Tel: [phone]

Korea - Seoul

Tel: [phone]

Malaysia - Kuala Lumpur

Tel: [phone]

Malaysia - Penang

Tel: [phone]

Philippines - Manila

Tel: [phone]

Singapore

Tel: [phone]

Taiwan - Hsin Chu

Tel: [phone]

Taiwan - Kaohsiung

Tel: [phone]

Taiwan - Taipei

Tel: [phone]

Thailand - Bangkok

Tel: [phone]

Tel: [phone]

Fax: [phone]

Denmark - Copenhagen

Tel: [phone]

Fax: [phone]

Finland - Espoo

Tel: [phone]

France - Paris

Tel: [phone]

Fax: [phone]

Germany - Garching

Tel: [phone]

Germany - Haan

Tel: [phone]

Germany - Heilbronn

Tel: [phone]

Germany - Karlsruhe

Tel: [phone]

Germany - Munich

Tel: [phone]

Fax: [phone]

Germany - Rosenheim

Tel: [phone]

Israel - Ra'anana

Tel: [phone]

Italy - Milan

Tel: [phone]

Fax: [phone]

Italy - Padova

Tel: [phone]

Netherlands - Drunen

Tel: [phone]

Fax: [phone]

Norway - Trondheim

Tel: [phone]

Poland - Warsaw

Tel: [phone]

Romania - Bucharest

Tel: [phone]

Spain - Madrid

Tel: [phone]

Fax: [phone]

Sweden - Gothenberg

Tel: [phone]

Sweden - Stockholm

Tel: [phone]

UK - Wokingham

Tel: [phone]

Fax: [phone]
