Chapter 1. Product Overview

1.1 INTRODUCTION

The MCP7381X Li-Ion Battery Charger Evaluation Board demonstrates the features and abilities for Microchip's MCP7381X Li-Ion Battery Charger Evaluation Board Simple, Miniature Single-Cell, Fully Integrated Li-Ion / Li-Polymer Charge Management Controllers. The MCP73811/2 are standalone highly integrated linear Li-Ion battery chargers that employ a constant current/constant voltage (CCCV) charge algorithm for cost sensitive and space limited applications.

The MCP7381X Li-Ion Battery Charger Evaluation Board has two independent circuits that are available to evaluate an USB port powered Li-Ion / Li-Polymer battery charger and an ac-dc wall adapter powered Li-Ion / Li-Polymer battery charger. For an ac-dc wall adapter powered battery charger, an external resistor ( R_PROG ) sets the magnitude of the charge current up to 500 mA. When the USB port provides power to the battery charger, the MCP73811 specifically adheres to the current limits governed by the USB specification. The PROG pin selects two preset charge current rates of typical 85 mA (Low) or 450 mA (High) and does not exceed 100 mA (Low) or 500 mA (High) maximum charge current. As for USB regulation, a device may draw either low-power at one unit load or high-power at 5 unit loads. A unit load is defined to be 100 mA. The drawn current per unit load is an absolute maximum value, not an average over time.

This chapter covers the following topics:

• "What is the MCP7381X Li-Ion Battery Charger Evaluation Board?"
• "What the MCP7381X Li-Ion Battery Charger Evaluation Board Kit includes."

Li-Ion Battery Charger REGULATED WALL CUBE VDD VBAT PROG CE VSS MCP73812 CIN 4 3 5 2 RPROG COUT + Single Li-Ion Cell -

FIGURE 1-1: MCP73812 Typical Application.

FIGURE 1-2: Typical MCP73812 Charge Profile (950 mAh Li-Ion Battery Pack).

500 mA Li-Ion Battery Charger VIN 1 µF 4 VDD VBAT 3 PROG 1 µF CE VSS MCP73811 2 Single Li-Ion Cell -

FIGURE 1-3: Typical MCP73811 Applications.

1.2 WHAT IS THE MCP7381X LI-ION BATTERY CHARGER EVALUATION BOARD?

The MCP7381X Li-Ion Battery Charger Evaluation Board demonstrates the use of the MCP73811/2 Simple, Miniature Single-Cell, Fully Integrated Li-Ion / Li-Polymer Charger Management Controllers.

The MCP7381X Li-Ion Battery Charger Evaluation Board is setup to evaluate low cost single-cell Li-Ion / Li-Polymer battery chargers. This board utilizes Microchip's MCP7381X Li-Ion Battery Charger Evaluation Board that efficiently charge Li-Ion / Li-Polymer batteries with a preset ±1% voltage accuracy regulation at 4.2V. The MCP7381X Li-Ion Battery Charger Evaluation Board comes with two pre-installed circuits: An ac-dc adapter powered Li-Ion /Li-Polymer battery charger and an USB port powered Li-Ion / Li-Polymer battery charger.

The MCP73811 is available for the USB port powered circuit while the MCP73812 is designed for the ac-dc wall adapter powered circuit. A SOT-23-5 MCP73811 is pre-installed on the evaluation board with a mechanical dip switch which selects charge current High (450 mA) or Low (85 mA) for the USB port powered battery charger system. A SOT23-5 MCP73812 is pre-installed on the evaluation board with a programming resistor R_PROG which delivers 500 mA from the ac-dc wall adapter source. When the Chip Enable (CE) pin is in “High” condition, that particular circuit is ready to charge single-cell Li-Ion batteries.

Note: The systems are designed in operation mode with CE pin High and can be disabled when driving CE pin Low.

The two dashed silk screen areas on the evaluation board show the required circuit size for the printed circuit board (PCB) layout and provide system / product designers a visual aid prior design the system.

The MCP7381X Li-Ion Battery Charger Evaluation Board is designed to observe the performance and features via multiple test points that are available on the circuits. Users are able to discover the compact size of the layout in addition to the device itself. The circuit can also be implemented into suitable applications without any additional works.

1.3 WHAT THE MCP7381X LI-ION BATTERY CHARGER EVALUATION BOARD KIT INCLUDES

The MCP7381X Li-Ion Battery Charger Evaluation Board kit includes:

• MCP7381X Li-Ion Battery Charger Evaluation Board, 102-00172
- Pre-installed 5-Lead SOT-23 MCP73811, 5-Lead SOT-23 MCP73812 and required components.
- Analog and Interface Products Demonstration Boards CD-ROM (DS21912)

- MCP7381X Li-Ion Battery Charger Evaluation Board User's Guide, (DS51729)

- MCP73811/2 Data Sheet, "Simple, Miniature Single-Cell, Fully Integrated Li-Ion / Li-Polymer Charge Management Controllers", (DS22036)

NOTES:

Chapter 2. Installation and Operation

2.1 INTRODUCTION

The MCP7381X Low-Cost Li-Ion Battery Charger Evaluation Board demonstrates Microchip's Simple, Miniature Single-Cell, Fully Integrated Li-Ion / Li-Polymer Charge Management Controllers, MCP73811 and MCP73812. The MCP73811 is powered from USB port to charge Li-Ion / Li-Polymer batteries. The charge current is logic selectable between High (500 mA) and Low (100 mA). The MCP73812 is designed to charge Li-Ion / Li-Polymer batteries with programmable charging current up to 500 mA by a single resistor from a regulated 5V ac-dc wall adapter.

The MCP73811/2 require only minimum components to implement a completed circuit of Li-Ion / Li-Polymer battery charge management in any systems. The development of MCP73811/2 meets the challenges of today's cost-sensitive and space-limited applications.

The MCP7381X Low-Cost Li-Ion Battery Charger Evaluation Board comes with a pre-installed 5-Lead SOT-23 MCP73811 and a pre-installed 5-Lead SOT-23 MCP73812.

Typical applications for MCP73811/2 are Rechargeable Toys, Low-Cost Lithium-Ion / Lithium-Polymer Battery Chargers, Electronic Cigarettes, Rechargeable Portable Electronic Devices, Bluetooth Headsets or USB Chargers.

2.2 FEATURES

The MCP7381X Low-Cost Li-Ion Battery Charger Evaluation Board has the following features:

• Color coded test points ensuring the proper connections: Red for V_DD and V_BAT+ ; Black for GND & V_BAT- ; White for CE (Chip Enable).
• 2-position Dip Switch for charge current selections between USB_Low and USB_High.
• Chip Enable (CE) Pin to disable the system when drive Low.
• Evaluating different charge current rates by changing R_PROG (Programming Resistor) values. See Figure 2-1

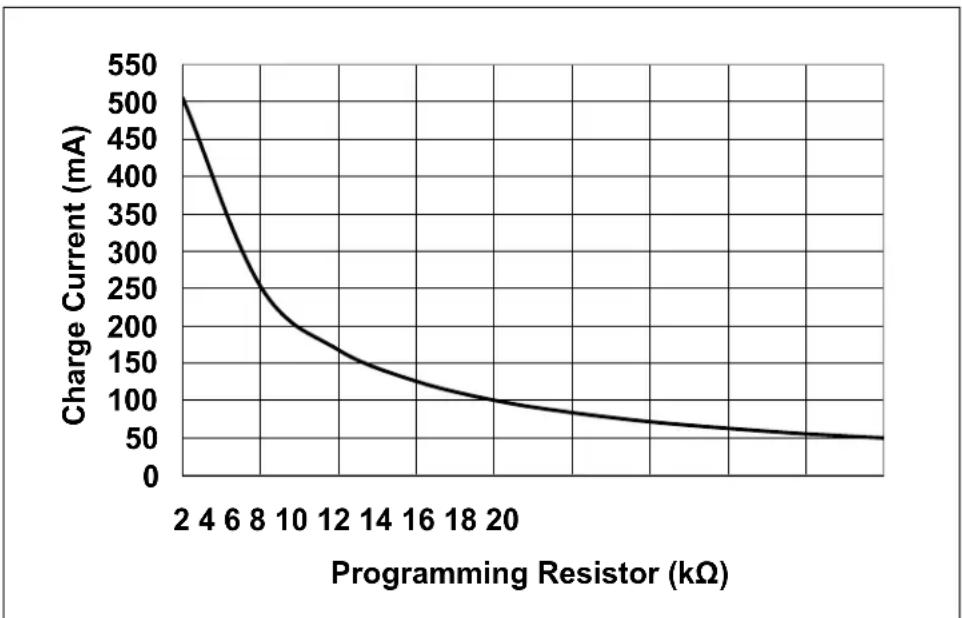

FIGURE 2-1: Charge Current (I OUT) vs. Programming Resistor ( R_PROG ).

2.3 GETTING STARTED

The MCP7381X Low-Cost Li-Ion Battery Charger Evaluation Board is fully assembled and tested for charging single-cell Li-Ion / Li-Polymer batteries with a regulated 5V DC source or USB port.

2.3.1 Power Input and Output Connection

2.3.1.1 POWERING THE MCP7381X LOW-COST LI-ION BATTERY CHARGER EVALUATION BOARD

1. Connect the negative battery terminal to V_BAT- pin on the evaluation board and positive battery terminal to V_BAT+ pin on the evaluation board.
2. Connect 5V DC power supply negative terminal to GND pin on the evaluation board.
3. Connect 5V DC power supply positive terminal to V_DD pin on the evaluation board. Slowly increase the supply voltage to 5V.

Note: Make sure the current limit of the DC power supply is not set below the charge current.

1. The battery charge cycle initiates when minimum supply voltage is present. The charge current can be measured by placing a current meter in series between V_BAT+ pin on the evaluation board and positive battery terminal.
2. Position the DIP Switch to USB_Hi for a maximum charge rate up to 500 mA and USB_Low for maximum charge rate up to 100 mA.

Note: Remove protection film before using the DIP Switch. This may be done by the manufacturer prior shipping.

1. Fast Charge Current for MCP73812 can be programmed with various resistors that based on the Figure 2-1. R_PROG is represented as R1 on the evaluation board.

Note: The battery can be replaced with test circuit or electronic load that can sink current with DC power supply.

1. Pull CE pin on the evaluation board Low to disable the system or terminate the charge.

AC/DC Adapter MicroCHIP CE R2 Actual Circuit R1 VBAT- C2 C1 GND VDD CE R3 USB_Hi USB_Low Actual Circuit SW1 VBAT- C4 C3 GND VDD USB Input MCP7381X Low Cost Li-Ion Battery Charger Evaluation Board MCP7381XEV 102-00172

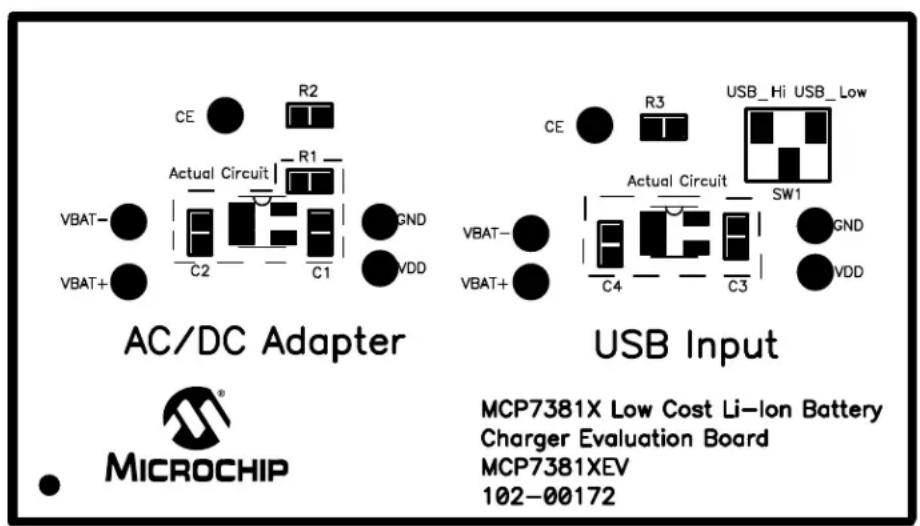

FIGURE 2-2: MCP7831X Low Cost Li-Ion Battery Charger Evaluation Board Top Silk Layout.

NOTES:

Appendix A. Schematic and Layouts

A.1 INTRODUCTION

This appendix contains the following schematics and layouts for the MCP7381X Low Cost Li-Ion Battery Charger Evaluation Board:

• Board – Schematic
• Board – Top Layer
• Board – Top Metal Layer
• Board – Bottom Layer

A.2 BOARD - SCHEMATIC

REV Revision Notes Date 1 Initial Design 7/18/2007 2 Update Design 8/20/2007 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100k U2 SW1 USB Input CE PROG 5 VDD1 2 VDD1 1 UF TP_V7 1 uF TP_V7 1 uF C3 2 1 uF TP_V7 1 uF C4 2 1 uF TP_V5 1 uF 100k R3 1 2 3 4 VSS VBAT VDD1 5 CE PROG 5 VSS VBAT VDD1 6 AC/DC Adapter 7 R2 1 2 3 4 VDD2 5 6 R1 1 2 3 4 VSS VBAT VDD1 5 CE PROG 5 VSS VBAT VDD1 6 AC/DC Adapter 7 R2 1 2 3 4 VDD2 5 6 R1 1 2 3 4 VSS VBAT VDD1 6 AC/DC Adapter 7 R2 1 2 3 4 VDD2 5 6 R1 1 2 3 4 VSS VBAT VDD1 6 AC/DC Adapter 7 R2 1 2 3 4 VDD2 5 6 R1 1 2 3 4 VSS VBAT VDD1 6 AC/DC Adapter 7 A B C D MCP7381X Eval. Board Size MicroCHIP Rev A Engineer: B. Chu Date: B/20/2007 Drawn by: Brian Chu Filename: 103-00172-R1.SCH Sheet 1 of 1 A B C D

A.3 BOARD - TOP LAYER

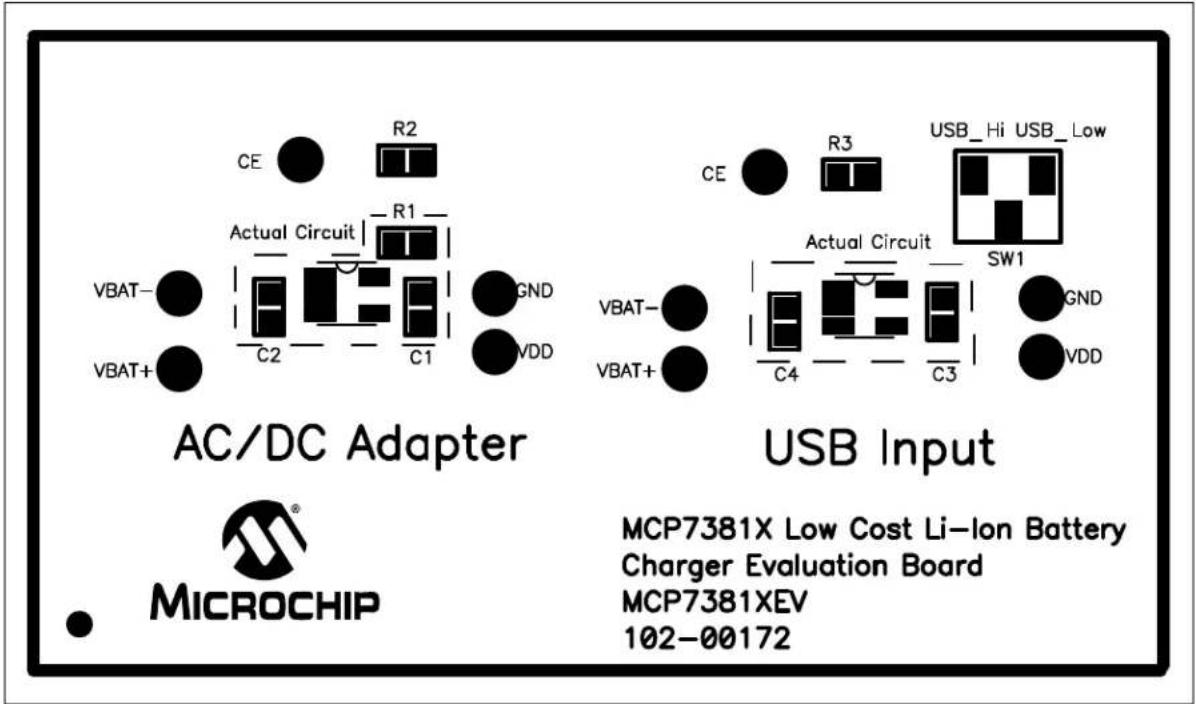

AC/DC Adapter MicroCHIP USB Input MCP7381X Low Cost Li-Ion Battery Charger Evaluation Board MCP7381XEV 102-00172

A.4 BOARD - TOP METAL LAYER

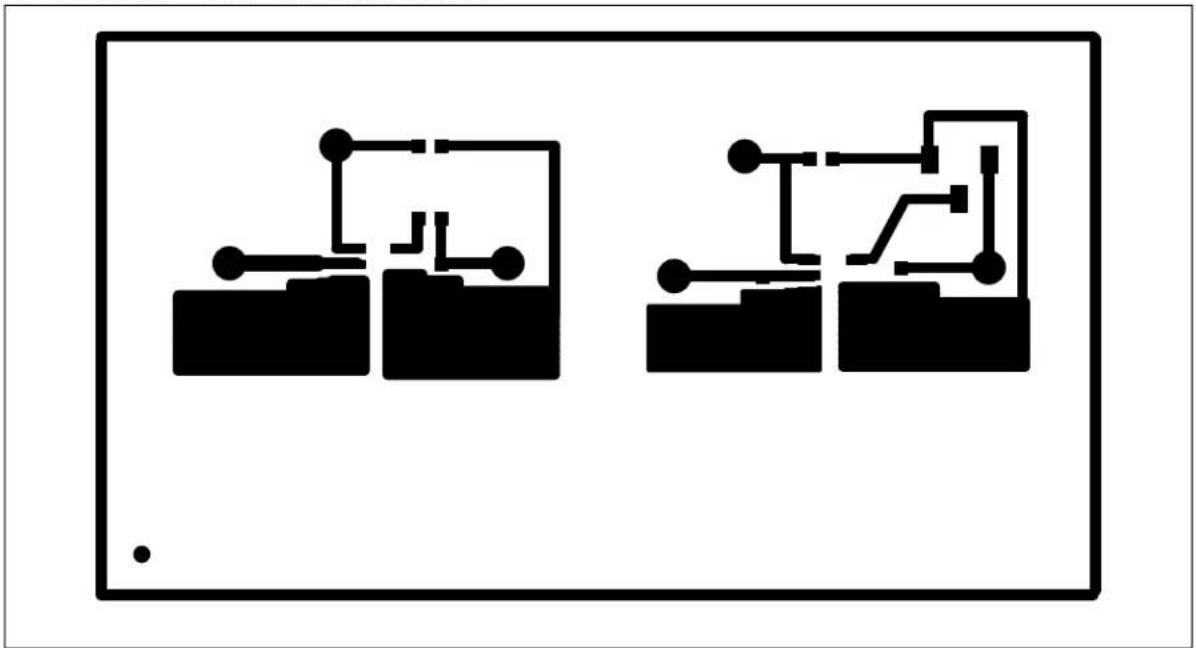

Pure electrical circuit lines without any symbols

A.5 BOARD - BOTTOM LAYER

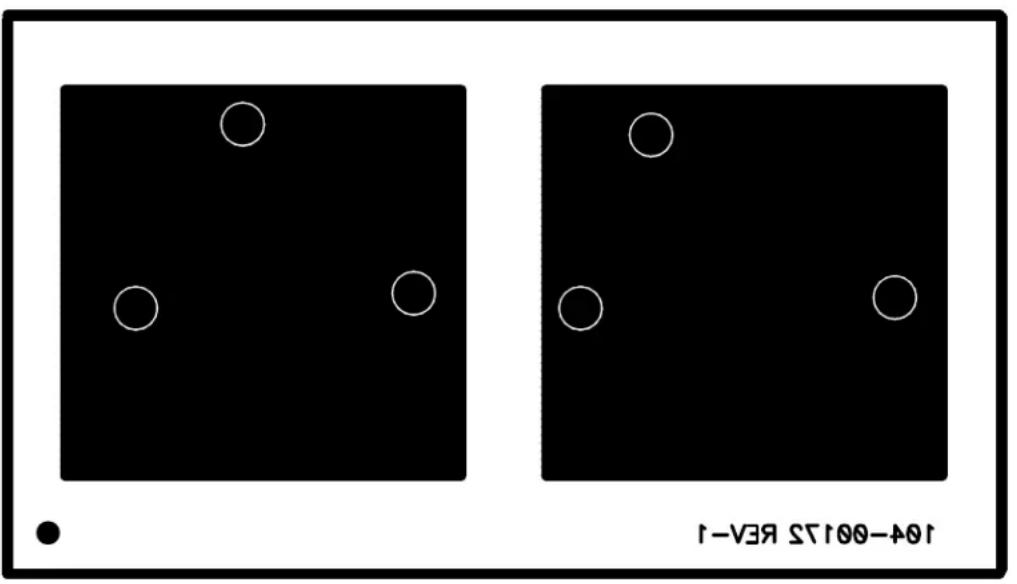

104-00125 REA-1 1-V3R ST100-401

Appendix B. Bill Of Materials (BOM)

TABLE B-1: BILL OF MATERIALS (BOM)

QTY	Reference	Description	Manufacture	MFG	PART #
4 C1,	C2, C3, C4 CAP C	ERAMIC 2.2 μF 10V X5R 0603 SMD			Taiyo Yuden LMK107BJ22	5KA-T
1 R1	RES 2K OHM 1/10	W 1% 0603 SMD Yageo Corp. RC0603			FR-072KL
2 R2,	R3	RES 100K OHM 1/10W 1% 0603 SMD			Panasonic - ECG	ERJ-3EKF1003V
1 SW1	SWITCH SLIDE SPDT SMD J-LEAD COPAL ELECTRONICS INC					CJS-1200TA
4 Bump	BUMPON HEMISPHERE.44X.20 WHITE				3M	SJ5003-9-ND
1 U1	Simple, Miniature Single-Cell, Fully Integrated Li-Ion / Li-Polymer Charge Management controllers: Programmable Charge Current				Microchip Technology, Inc	MCP73812T-420I/OT
1 U2	Simple, Miniature Single-Cell, Fully Integrated Li-Ion / Li-Polymer Charge Management controllers: Selectable Charge Current				Microchip Technology, Inc	MCP73811T-420I/OT
1	PCB	Printed Circuit Board			—	104-00172-R1

Note 1: The components listed in this Bill of Materials are representative of the PCB assembly. The released BOM used in manufacturing uses all RoHS-compliant components.
