USER MANUAL MCP73113 Microchip

Li-Ion Battery Charger

Evaluation Board

User's Guide

Note the following details of the code protection feature on Microchip devices:

• Microchip products meet the specification contained in their particular Microchip Data Sheet.
- Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the intended manner and under normal conditions.
- There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip's Data Sheets. Most likely, the person doing so is engaged in theft of intellectual property.
• Microchip is willing to work with the customer who is concerned about the integrity of their code.
- Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not mean that we are guaranteeing the product as “unbreakable.”

Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our products. Attempts to break Microchip's code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.

Information contained in this publication regarding device applications and the like is provided only for your convenience and may be superseded by updates. It is your responsibility to ensure that your application meets with your specifications. MICROCHIP MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL, STATUTORY OR OTHERWISE, RELATED TO THE INFORMATION, INCLUDING BUT NOT LIMITED TO ITS CONDITION, QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR PURPOSE. Microchip disclaims all liability arising from this information and its use. Use of Microchip devices in life support and/or safety applications is entirely at the buyer's risk, and the buyer agrees to defend, indemnify and hold harmless Microchip from any and all damages, claims, suits, or expenses resulting from such use. No licenses are conveyed, implicitly or otherwise, under any Microchip intellectual property rights.

Trademarks

The Microchip name and logo, the Microchip logo, dsPIC, KEELOQ, KEELOQ logo, MPLAB, PIC, PICmicro, PICSTART, rfPIC and UNI/O are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

FilterLab, Hampshire, HI-TECH C, Linear Active Thermistor, MXDEV, MXLAB, SEEVAL and The Embedded Control Solutions Company are registered trademarks of Microchip Technology Incorporated in the U.S.A.

Analog-for-the-Digital Age, Application Maestro, CodeGuard, dsPICDEM, dsPICDEM.net, dsPICworks, dsSPEAK, ECAN, ECONOMONITOR, FanSense, HI-TIDE, In-Circuit Serial Programming, ICSP, ICEPIC, Mindi, MiWi, MPASM, MPLAB Certified logo, MPLIB, MPLINK, mTouch, Omniscient Code Generation, PICC, PICC-18, PICkit, PICDEM, PICDEM.net, PICtail, PIC ^32 logo, REAL ICE, rfLAB, Select Mode, Total Endurance, TSHARC, WiperLock and ZENA are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

SQTP is a service mark of Microchip Technology Incorporated in the U.S.A.

All other trademarks mentioned herein are property of their respective companies.

© 2009, Microchip Technology Incorporated, Printed in the U.S.A., All Rights Reserved.

Printed on recycled paper.

QUALITY MANAGEMENT SYSTEM CERTIFIED BY DNV

=ISO/TS 16949:2002=

Microchip received ISO/TS-16949:2002 certification for its worldwide headquarters, design and wafer fabrication facilities in Chandler and Tempe, Arizona; Gresham, Oregon and design centers in California and India. The Company's quality system processes and procedures are for its PIC® MCUs and dsPIC® DSCs, KEELOQ® code hopping devices, Serial EEPROMs, microperipherals, nonvolatile memory and analog products. In addition, Microchip's quality system for the design and manufacture of development systems is ISO 9001:2000 certified.

Table of Contents

Preface ....1

Introduction....1

Document Layout .... 1

Conventions Used in this Guide.... 2

Recommended Reading.... 2

The Microchip Web Site 3

Customer Support 3

Document Revision History.... 3

Chapter 1. Product Overview

1.1 Introduction 5

1.2 What is the MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board? 6

1.3 What the MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board Kit Includes: 6

Chapter 2. Installation and Operation

2.1 Introduction 7

2.2 Features 7

2.3 Getting Started 8

Appendix A. Schematic and Layouts

A.1 Introduction 11

A.2 Board – Schematic 12

A.3 Board – Assembly Drawing 13

A.4 Board – Top Layer 14

A.5 Board – Top Metal Layer 15

A.6 Board – Bottom Layer 16

Appendix B. Bill Of Materials (BOM)

Worldwide Sales and Service 18

NOTES:

Preface

NOTICE TO CUSTOMERS

All documentation becomes dated, and this manual is no exception. Microchip tools and documentation are constantly evolving to meet customer needs, so some actual dialogs and/or tool descriptions may differ from those in this document. Please refer to our web site (www.microchip.com) to obtain the latest documentation available.

Documents are identified with a "DS" number. This number is located on the bottom of each page, in front of the page number. The numbering convention for the DS number is "DSXXXXXA", where "XXXXX" is the document number and "A" is the revision level of the document.

For the most up-to-date information on development tools, see the MPLAB ^® IDE on-line help. Select the Help menu, and then Topics to open a list of available on-line help files.

INTRODUCTION

This chapter contains general information that will be useful to know before using the MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board. Items discussed in this chapter include:

• Document Layout
• Conventions Used in this Guide
• Recommended Reading
  • The Microchip Web Site
• Customer Support
  • Document Revision History

DOCUMENT LAYOUT

This document describes how to use the MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board. The manual layout is as follows:

• Chapter 1. "Product Overview" – Important information about the MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board.
• Chapter 2. “Installation and Operation” – Includes instructions on how to get started with this user’s guide and a description of the user’s guide.
• Appendix A. "Schematic and Layouts" – Shows the schematic and layout diagrams for the MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board.
• Appendix B. "Bill Of Materials (BOM)" – Lists the parts used to build the MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board.

CONVENTIONS USED IN THIS GUIDE

This manual uses the following documentation conventions:

DOCUMENTATION CONVENTIONS

Description Represents Examples
Arial font:
Italic characters Referenced books	oks MPLAB	^ IDE User's Guide
	Emphasized text ...is the only compiler...
Initial caps A window the Output	window
	A dialog the Settings dialog
	A menu selection select Enable Programmer
Quotes A field name in a window or dialog		"Save project before build"
Underlined, italic text with right angle bracket	A menu path File>Save	——
Bold characters A dialog button	Click OK
	A tab	Click the Power tab
'bnnnn	A binary number where n is a digit	'b00100, 'b10
Text in angle brackets <>	A key on the keyboard	Press,,
Courier font:
Plain Courier	Sample source code	#define START
	Filenames	autoexec.bat
	File paths	c:\mcc18\h
	Keywords	_asm, _endasm, static
	Command-line options	-Opa+, -Opa-
	Bit values	0, 1
Italic Courier	A variable argument	file.o, where file can be any valid filename
0xnnnnA hexadecimal number	where n is a hexadecimal digit	0xFFFF, 0x007A
Square brackets []	Optional arguments	mcc18 [options] file [options]
Curly brackets and pipe character: { | }	Choice of mutually exclusive arguments; an OR selection	errorlevel {0|1}
Ellipses... Replaces repeated text	var_name [,	var_name...]
	Represents code supplied by user	void main (void) { ... }

RECOMMENDED READING

This user's guide describes how to use MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board. The following Microchip document is recommended as supplemental reference resources.

MCP73113 Data Sheet, "Single-Cell Li-Ion / Li-Polymer Battery Charge Management Controller with Input Overvoltage Protection", DS22183

This data sheet provides detailed information regarding the MCP73113 product family.

Microchip provides online support via our web site at www.microchip.com. This web site is used as a means to make files and information easily available to customers. Accessible by using your favorite Internet browser, the web site contains the following information:

• Product Support – Data sheets and errata, application notes and sample programs, design resources, user's guides and hardware support documents, latest software releases and archived software
• General Technical Support – Frequently Asked Questions (FAQs), technical support requests, online discussion groups, Microchip consultant program member listing
• Business of Microchip – Product selector and ordering guides, latest Microchip press releases, listing of seminars and events, listings of Microchip sales offices, distributors and factory representatives

CUSTOMER SUPPORT

Users of Microchip products can receive assistance through several channels:

• Distributor or Representative
- Local Sales Office
• Field Application Engineer (FAE)
- Technical Support
• Development Systems Information Line

Customers should contact their distributor, representative or field application engineer (FAE) for support. Local sales offices are also available to help customers. A listing of sales offices and locations is included in the back of this document.

Technical support is available through the web site at: http://support.microchip.com.

DOCUMENT REVISION HISTORY

Revision A (July 2009)

- Initial Release of this Document.

NOTES:

Chapter 1. Product Overview

1.1 INTRODUCTION

The MCP73113 product family is highly integrated linear charge management controllers for single-cell Li-Ion and Li-Polymer batteries. The MCP73113 product family operates with minimum external components, which is ideal for use in space-limited and cost-effective applications. The input over voltage protection and battery short circuit protection offer designers a secondary protection in addition to the Li-Ion battery protection circuit.

This chapter provides an overview of the MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board and covers the following topics:

• "What is the MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board?"
• "What the MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board Kit includes:"

REGULATED WALL CUBE CIN 1 VDD 2 VDD STAT 5 NC 6 NC VBAT VBAT PROG VSS MCP73113 3 4 COUT 10 9 8 RPROG + - 1-Cell Li-Ion Battery

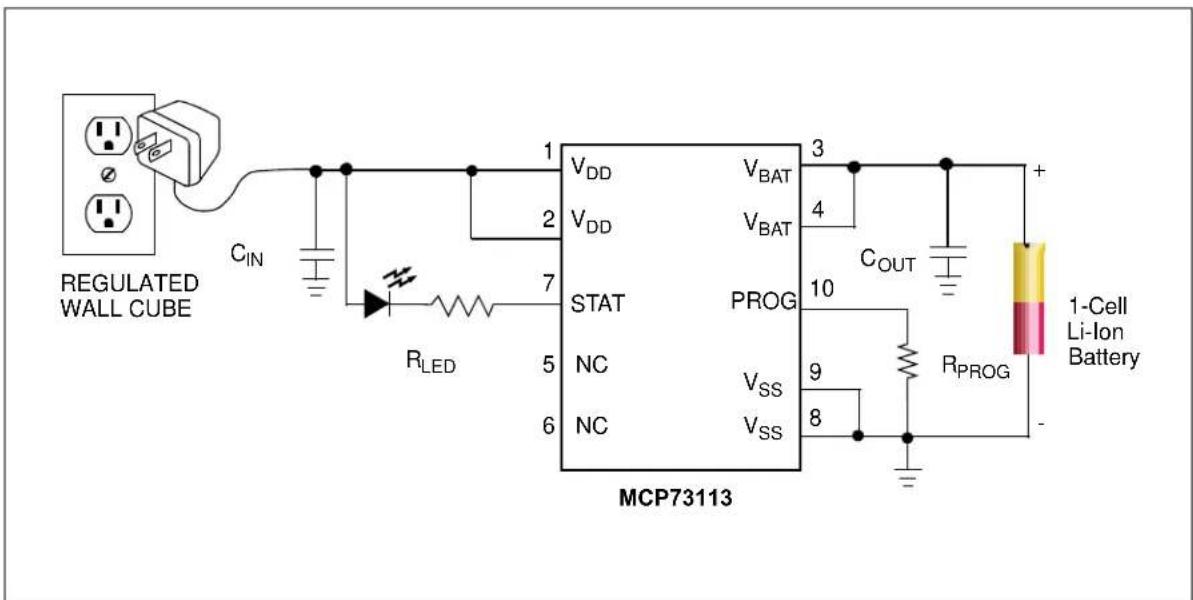

FIGURE 1-1: MCP73113 Typical Application.

1.2 WHAT IS THE MCP73113 OVP SINGLE-CELL LI-ION BATTERY CHARGER EVALUATION BOARD?

The MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board demonstrates the features of Microchip's MCP73113 "Single-Cell Li-Ion / Li-Polymer Battery Charge Management Controller with Input Overvoltage Protection".

The MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board is designed with two charging current. The default value is 500 mA and when PROG via is tied to ground, the two parallel resistors output 1000 mA charging current to a Li-Ion battery. One blue LED status output allows the user to learn if the MCP73113 is in charging state or not.

Note: Please refer to Table 2-1 for Charge Status Outputs and Table 2-2 for Charge Current Setups.

The MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board comes with an installed MCP73113 device in 3mm x 3mm DFN package. The factory preset battery regulation voltage is 4.20V with precondition, termination and auto recharge features.

The MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board is designed to observe the performance and features on the circuits via multiple test points. Circuits can also be implemented into suitable applications without additional work.

1.3 WHAT THE MCP73113 OVP SINGLE-CELL LI-ION BATTERY CHARGER EVALUATION BOARD KIT INCLUDES:

This MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board kit includes:

• MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board, 102-00260
- Important Information Sheet

Chapter 2. Installation and Operation

2.1 INTRODUCTION

The MCP73113 is a highly integrated Li-Ion battery charge management controller for use in space-limited and cost-sensitive applications. The MCP73113 provides specific charge algorithms for Li-Ion / Li-Polymer batteries to achieve optimal capacity and safety in the shortest charging time possible. Along with its small physical size, the low number of external components makes the MCP73113 ideally suitable for portable applications.

The absolute maximum voltage, up to 18V, allows the use of MCP73113 in harsh environments, such as low cost wall wart.

The MCP73113 employs a constant current / constant voltage charge algorithm. The various charging voltage regulations provide design engineers flexibility to use in different applications. The fast charge, constant current value is set with one external resistor from 130 mA to 1100 mA. The MCP73113 limits the charge current based on die temperature during high power or high ambient conditions. This thermal regulation optimizes the charge cycle time while maintaining device reliability.

The PROG pin of the MCP73113 also serves as enable pin. When high impedance is applied, the MCP73113 will be in standby mode.

Typical applications for the reference design are Smart Phones, PDA, Portable Media Players, MP3 Players, Digital Cameras, Handheld Medical devices, Bluetooth headsets and Portable Communicators.

2.2 FEATURES

The MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board has the following features:

• 6.5V Input Over Voltage Protection
• 10% Preconditioning of deeply depleted cells
• 32-Minute Preconditioning Timer
- 6-Hour Safety Timer
• 10% Automatic Charge Termination
- 500 mA and 1000 mA Preset Fast Charge Current
• Automatic Recharge
- Thermal Regulation
• One Blue LED indicates charge status
- Small DFN packages with Exposed Pad as additional heat sink

2.3 GETTING STARTED

The MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board is fully assembled and tested for charging a single-cell Li-Ion or Li-Polymer battery.

2.3.1 Power Input and Output Connection

2.3.1.1 POWERING THE MCP73113 OVP SINGLE-CELL LI-ION BATTERY CHARGER EVALUATION BOARD

1. Connect the positive battery terminal to V_BAT+ and negative battery terminal to V_BAT- .
2. Connect the 5V DC power supply Negative Terminal to V _ss .
3. Connect the 5V DC power supply Positive Terminal to V DD.
4. It should initiate the battery charging cycle when the power source is present and V_BAT is below recharge threshold. For example, when V_REG is 4.2V, V_BAT needs to be lower than 3.99V to initiate the charge cycle.

Note: The Li-Ion battery pack can be replaced with test circuit or electronic load that can sink current with DC power supply. Refer to Figure 2-3.

1. The charging status table is available in Table 2-2.
2. The fast charge current is preset at 500 mA and can be increased to 1A by connecting PROG via to ground.

Note: Fast Charge Current can be programmed with various resistors based on Figure 2-2 and Table 2-1.

5V DC SUPPLY TP3 VSS TP1 VDD MICROCHIP R3 PROG C2 D1 C1 U1 R1 STAT TP4 VBAT- TP2 VBAT+ 1-CELL LI-ION BATTERY 102-00260 MCP73113EV-1SOVP

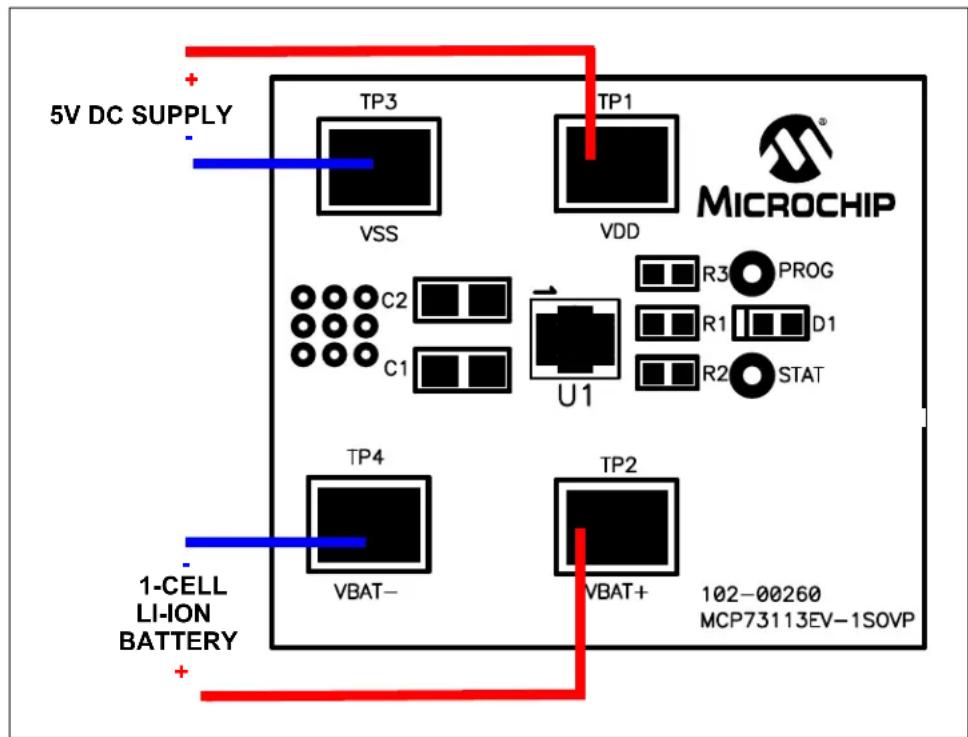

FIGURE 2-1: Board Top Assembly.

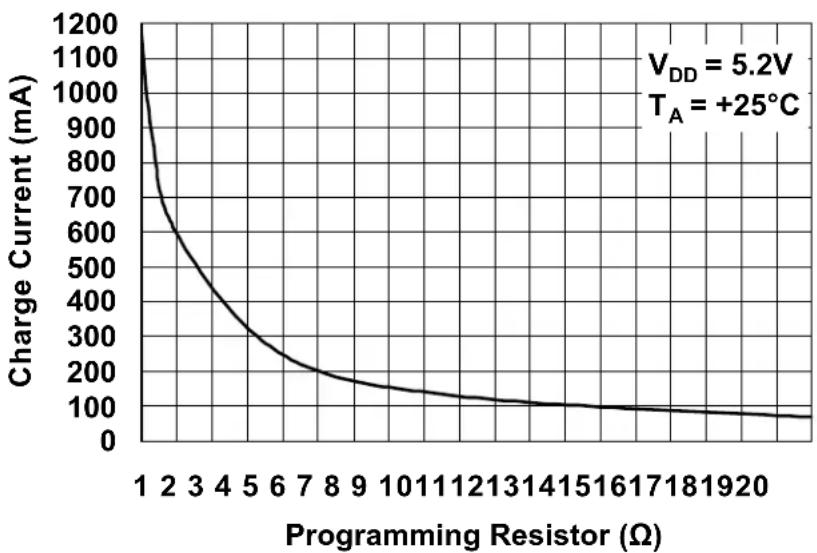

FIGURE 2-2: MCP73113 Charge Current ( I_OUT ) vs. Programming Resistor ( R_PROG ).

TABLE 2-1: MCP73113 RESISTOR LOOKUP TABLE

Charge Current (mA)	Recommended E96 Resistor (Ω)	Recommended E24 Resistor (Ω)
130 10k 10k
150 8.45k 8.20k
200 6.20k 6.20k
250 4.99k 5.10k
300 4.02k 3.90k
350 3.40k 3.30k
400 3.00k 3.00k
450 2.61k 2.70k
500 2.32k 2.37k
550 2.10k 2.20k
600 1.91k 2.00k
650 1.78k 1.80k
700 1.62k 1.60k
750 1.50k 1.50k
800 1.40k 1.50k
850 1.33k 1.30k
900 1.24k 1.20k
950 1.18k 1.20k
1000 1.10k 1.10k
1100 1.00k 1.00k


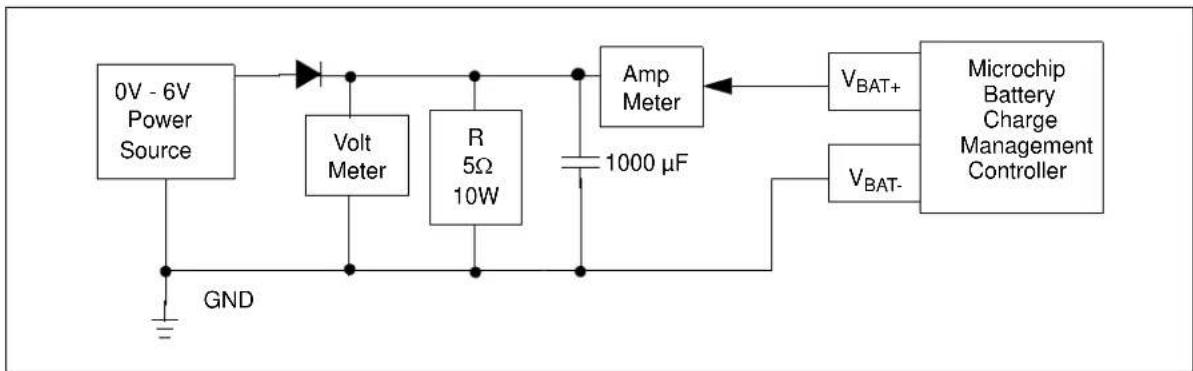

FIGURE 2-3: Simulated Battery Load.

TABLE 2-2: MCP73113 CHARGE STATUS OUTPUTS

CHARGE CYCLE STATE STAT
Shutdown Hi-Z
Standby Hi-Z
Preconditioning L
Constant Current Fast Charge L
Constant Voltage L
Charge Complete - Standby Hi-Z
Temperature Fault 1.6 second	50% D.C. Flashing (Type 1)Hi-Z (Type 2)
Timer Fault 1.6 second 50%	D.C. Flashing (Type 1)Hi-Z (Type 2)
Preconditioning Timer Fault 1.6 second	50% D.C. Flashing (Type 1)Hi-Z (Type 2)

Appendix A. Schematic and Layouts

A.1 INTRODUCTION

This appendix contains the following schematics and layouts for the MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board:

• Board – Schematic
• Board – Top Layer
• Board – Top Metal Layer
• Board – Bottom Layer

A.2 BOARD - SCHEMATIC

A B C D Rev Description Data 1 Initial Design 1/20/09 1 1 VDD PROG TP1 2 18 VDD PROG VDD VSS VBAT VSS VBAT STAT NC NC EP VBAT- TP4 STAT R3 2 1 R1 2 1 VSS TP3 D1 2 3 4 A B C D Title MCP73113EV-1S0VP Size B M 103-00260 Rev B 103-00260 1 Eng:B. Chu Date: 1/28/2009 Drawn by:s. Chu Sheet 1 of 1 U1 MCP73113 VDD VDD VSS VBAT VSS VBAT STAT NC NC C2 VBAT+ TP2 C1 A B C D

A.3 BOARD - TOP LAYER

TP3 VSS TP1 VDD MICROCHIP® C2 C1 U1 R3 PROG R1 D1 R2 STAT TP4 VBAT- TP2 VBAT+ 102-00260 MCP73113EV-1SOVP

A.4 BOARD - TOP METAL LAYER

Abstract diagram with red and blue geometric shapes and a central circuit-like component (no text or symbols)

A.5 BOARD - BOTTOM LAYER

NOTES:

Appendix B. Bill Of Materials (BOM)

TABLE B-1: BILL OF MATERIALS

Qty	Reference Description	Manufacturer Part Number
4 Bump BUMPON HE		EMISPHERE .44X.20WHITE	3M SJ5003-9-ND
2 C1,	C2 CAP CERA	MIC 4.7 μF 25V X5R 1206 TDK C2012X5R1E475M
1	D1	Blue Water Clear 0603 SMD LED	Para Light USA	L-C191LBCT-U1
1 PCB	RoH	HS Compliant Bare PCB, MCP73113Evaluation Board	Microchip Technology Inc.	104-00260
3 R1,	R3 RES 2.37K	OHM 1/10W 1% 0603 SMD Panasonic	® - ECG	ERJ-3EKF2371V
1 R2	RES 1K OHM 1	/10W 1% 0603 SMD Panasonic - ECG	ERJ-3EKF1001V
4	TP1, TP2,TP3, TP4	PC Test Point Compact SMT	Keystone Electronics®	5016
1 U1	Single-Cell Li-Ion	n/Li-Poly Battery Chargerwith OVP	Microchip Technology Inc.	MCP73113-06S/MF

Note 1: The components listed in this Bill of Materials are representative of the PCB assembly. The released BOM used in manufacturing uses all RoHS-compliant components.

WORLDWIDE SALES AND SERVICE

AMERICAS

Corporate Office

2355 West Chandler Blvd.

Chandler, AZ 85224-6199

Tel: [phone]

Fax: [phone]

Technical Support:

http://support.microchip.com

Web Address:

www.microchip.com

Atlanta

Duluth, GA

Tel: [phone]

Fax: [phone]

Boston

Westborough, MA

Tel: [phone]

Fax: [phone]

Chicago

Itasca, IL

Tel: [phone]

Fax: [phone]

Cleveland

Independence, OH

Tel: [phone]

Fax: [phone]

Dallas

Addison, TX

Tel: [phone]

Fax: [phone]

Detroit

Farmington Hills, MI

Tel: [phone]

Fax: [phone]

Kokomo

Kokomo, IN

Tel: [phone]

Fax: [phone]

Los Angeles

Mission Viejo, CA

Tel: [phone]

Fax: [phone]

Santa Clara

Santa Clara, CA

Tel: [phone]

Fax: [phone]

Toronto

Mississauga, Ontario,

Canada

Tel: [phone]

Fax: [phone]

ASIA/PACIFIC

Asia Pacific Office

Suites 3707-14, 37th Floor

Tower 6, The Gateway

Harbour City, Kowloon

Hong Kong

Tel: [phone]

Fax: [phone]

Australia - Sydney

Tel: [phone]

Fax: [phone]

China - Beijing

Tel: [phone]

Fax: [phone]

China - Chengdu

Tel: [phone]

Fax: [phone]

China - Hong Kong SAR

Tel: [phone]

Fax: [phone]

China - Nanjing

Tel: [phone]

Fax: [phone]

China - Qingdao

Tel: [phone]

Fax: [phone]

China - Shanghai

Tel: [phone]

Fax: [phone]

China - Shenyang

Tel: [phone]

Fax: [phone]

China - Shenzhen

Tel: [phone]

Fax: [phone]

China - Wuhan

Tel: [phone]

Fax: [phone]

China - Xiamen

Tel: [phone]

Fax: [phone]

China - Xian

Tel: [phone]

Fax: [phone]

China - Zhuhai

Tel: [phone]

Fax: [phone]

ASIA/PACIFIC

India - Bangalore

Tel: [phone]

Fax: [phone]

India - New Delhi

Tel: [phone]

Fax: [phone]

India - Pune

Tel: [phone]

Fax: [phone]

Japan - Yokohama

Tel: [phone]

Fax: [phone]

Korea - Daegu

Tel: [phone]

Fax: [phone]

Korea - Seoul

Tel: [phone]

Fax: [phone] or

82-2-558-5934

Malaysia - Kuala Lumpur

Tel: [phone]

Fax: [phone]

Malaysia - Penang

Tel: [phone]

Fax: [phone]

Philippines - Manila

Tel: [phone]

Fax: [phone]

Singapore

Tel: [phone]

Fax: [phone]

Taiwan - Hsin Chu

Tel: [phone]

Fax: [phone]

Taiwan - Kaohsiung

Tel: [phone]

Fax: [phone]

Taiwan - Taipei

Tel: [phone]

Fax: [phone]

Thailand - Bangkok

Tel: [phone]

Fax: [phone]

EUROPE

Austria - Wels

Tel: [phone]

Fax: [phone]

Denmark - Copenhagen

Tel: [phone]

Fax: [phone]

France - Paris

Tel: [phone]

Fax: [phone]

Germany - Munich

Tel: [phone]

Fax: [phone]

Italy - Milan

Tel: [phone]

Fax: [phone]

Netherlands - Drunen

Tel: [phone]

Fax: [phone]

Spain - Madrid

Tel: [phone]

Fax: [phone]

UK - Wokingham

Tel: [phone]

Fax: [phone]
