USER MANUAL L20 VIZIO

A couple in a modern living room, one smiling while seated on a sofa, the other holding a wine glass (no visible text or symbols)

Completely blank or uniformly gray image with no visible content, text, or symbols.

Two people relaxing together in a living room, no visible text or symbols

VIZIO L2O

20 Inch LCD Television

User's Guide

Front view of a Vizio computer monitor with visible front panel and base (no text or symbols on screen)

Woman lying on the floor in a cluttered room with bookshelves and a TV stand (no visible text or symbols)

Interior scene with a woman sitting on a sofa and a man lying on a couch in the background (no visible text or symbols)

Table of Contents

Chapter 1 - Introduction ......2

1.1 - Before Use 2

1.2 - Specifications 2

1.3 - Opening the Package.... 3

1.4 - Installation.... 3

1.5 - Important Safety Guidelines.... 4

1.6 - Television Antenna Connection Protection 5

1.7 - Package Contents....6

1.8 - Basic Controls....7

1.8.1 - Front Panel 7

1.8.2 - Top Panel Controls....7

1.9 - Rear Panel Connections 8

1.10 - VIZIO Universal Remote Control 9

1.10.1 - Key Remote Control Functions....10

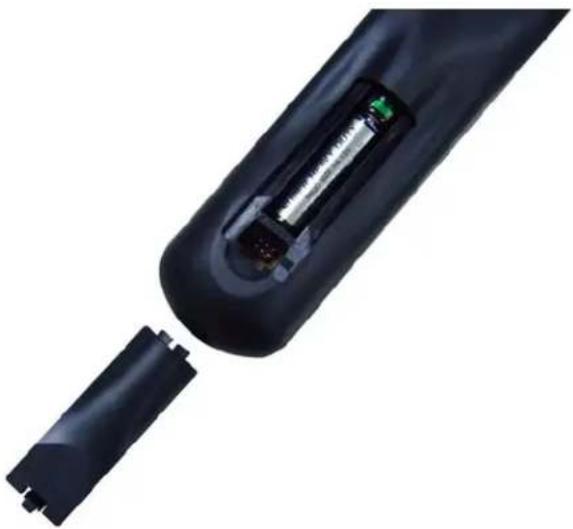

1.10.2 - Insertion of Batteries in the Remote Control 12

1.10.3 - Remote Control Range 13

1.10.4 - Precautions for the VIZIO Universal Remote Control 13

Chapter 2 - Connecting Components....14

2.1 - Which Video Connection Should I Use? 14

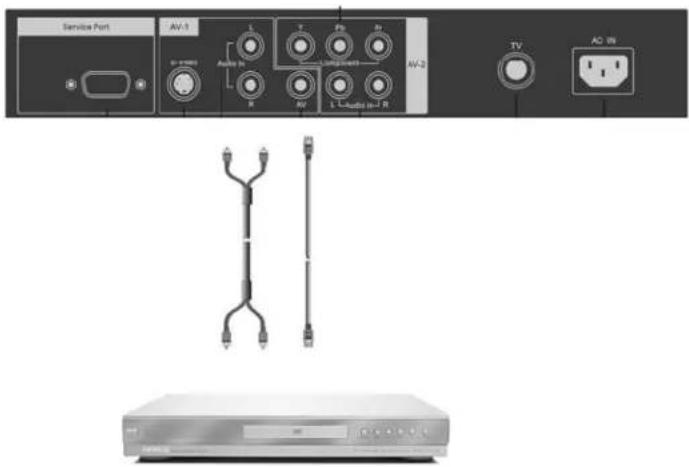

2.2 - Connecting Your DVD Player....15

2.2.1 - Using Component Video 15

2.2.2 - Using S-Video 16

2.2.3 - Using Composite Video....17

2.3 - Connecting Your HDTV Set-Top Box....18

2.4 - Connecting Your VCR or Video Camera....19

2.5 - Connecting Coaxial (RF)....19

2.5.1 - Using Your Antenna or Cable TV 19

2.5.2 - Using the Antenna through Your VCR....20

Chapter 3 - Getting Started ....21

3.1 - Turning your LCD TV On and Off 21

3.2 - Installation of Wall Mount (Optional) 21

3.3 - Adjusting Basic LCD TV Settings....22

3.4 - Using the On-Screen Display (OSD)....23

3.4.1 - Menu Operations....23

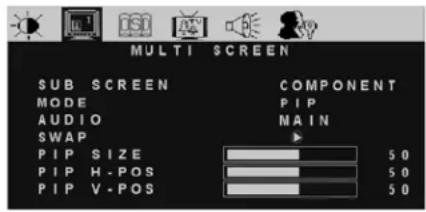

3.4.2 - OSD Menus and Options 24

3.4.3 - Using the Parental Controls .....27

3.4.4 - Setting a Password 28

3.5 - Remote Control Operation 29

3.5.1 - Programming the VIZIO Universal Remote Control....29

3.5.2 - Searching for Component Codes .... 31

3.5.3 - Reassigning Component Buttons 31

3.5.4 - Changing Volume Lock 31

Chapter 4 - Maintenance and Troubleshooting....32

4.1 - Maintenance....32

4.2 - Troubleshooting Guide 32

4.3 - Telephone & Technical Support 33

4.4 - Compliance 34

4.5 - FCC Class B Radio Frequency Interference Statement 34

Appendix A: Limited Product Warranty 35

Appendix B: Component Program Codes 36

Chapter 1 - Introduction

1.1 - Before Use

Congratulations on your VIZIO L20 20" LCD Television purchase. Thank you for your support of V, Inc. and its LCD Television product line. The L20 is a precise electronic product and you should read the following instructions carefully to maximize the performance of the product. It has passed the Class-B EMC test and the UL and CSA safety certifications and you can be assured of the highest quality display with the utmost reliability. After you have finished reading the instructions, put them away in a safe place for future reference.

Note: In some countries or regions, the shape of the power plug and power outlet may sometimes differ from that shown in the explanatory drawings. However the method of connecting and operating the unit is the same.

1.2 - Specifications

Panel 20.1" Diagonal, TFT, Active	Matrix VGA LCD, 4:3 Aspect Ratio
Resolution 640 x 480 pixels
Display Compatibility EDTV (480p) native
Signal Compatibility 480i, 480p, 720p, 1080i
Response Time 16 ms typical
Brightness	450 ^2
Contrast Ratio 500:1
Surface treatment Anti-reflective coating + Anti-glare coating
Viewing angles 160° (H) / 140° (V)
Inputs	1 x RF (1 x F connector for internal NTSC tuner), 1 x Composite Video, 1 x S-Video, 1 x Component Video (YPbPr), 2 x Audio RCA (L/R) Stereo
Features	PiP, POP, CC, V-Chip, Comb Filter, Scalar and De-interlacer, NTSC Video decoding via RF (Antenna, cable or satellite [set top box may be required]) or Video (CVBS, S-Video or Component YCbCr), Progressive Scan Video via Component YPbPr, HDTV via Component YPbPr (set top box may be required)
Speakers Built-in 2 x 5 W
Power
Voltage 100-240 VAC at 50/60 Hz (auto switch), 1.5A
Consumption On - <73 W (Green LED), Standby - <1W (LED off)
Operating conditions
Temperature	32°F to + 95°F (0°C to + 35°C)
Humidity	10% to 90% (no condensation)
Altitude	To 2,000 Meter, 6,500 ft.
Storage conditions
Temperature	-4°F to + 140°F (-20°C to + 60°C)
Humidity	10% to 90% (no condensation)
Altitude	To 12,000 Meter, 39,000 ft.
Dimensions (w x h x d)	22.76" x 18.58" x 8.96" with stand (573 mm x 472 mm x 227.5mm with stand)
Net Weight	19.8lb (9.0 kg)
Regulations	FCC-B, UL, c-UL, BSMI

*Products are subject to change without notice or obligation.

1.3 - Opening the Package

• The VIZIO L20 is packaged in a carton together with other standard accessories. Any optional accessories are packed separately in another carton.
• The protective glass and the glass substrate are installed on the front of the product. Since both glasses can be easily scratched or broken, please handle the product gently. Never place the unit on a surface with the glass facing downwards unless it is on protective padding.
• When opening the carton, check that the product is in good condition and that all standard accessories and items are included.
• Save the original box and all packing materials for future shipping needs.

1.4 - Installation

• Please read the user manual carefully before performing the installation.
• The power consumption of the display is approximately 75 Watts. Please use the power cord designated for the product. When an extension cord is required, use one with the correct power rating. The cord must be grounded and the grounding feature must not be defeated.
• The product should be installed on a flat surface to avoid tipping. Space should be maintained between the back of the product and the wall for proper ventilation. See Section 3.2 - Installation of Wall Mount, p. 21, for additional information.
• Avoid installing the product in the kitchen, bathroom or other places with high humidity dust or smoke, so as not to shorten the service life of the electronic components.
• Please ensure the product is installed with the screen in landscape orientation. Any 90° clockwise or counterclockwise installation may induce poor ventilation and subsequent component damage.

1.5 - Important Safety Guidelines

This product is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To prevent the product from being damaged, the following rules should be observed for the installation, use and maintenance of the product. Read the following safety instructions before operating the display. Keep these instructions in a safe place for future reference.

• To avoid the risk of electric shock or component damage, switch off the power before connecting other components to the L20 LCD TV.
• Unplug the power cord before cleaning the L20 LCD TV. A damp cloth is sufficient for cleaning the L20 LCD TV. Do not use a liquid or a spray cleaner for cleaning the product. Do not use abrasive cleaners.
  • Always use the accessories recommended by the manufacturer to insure compatibility.
• When moving the L20 LCD TV from an area of low temperature to an area of high temperature, condensation may form on the housing. Do not turn on the L20 LCD TV immediately after this to avoid causing fire, electric shock or component damage.
• Do not place the L20 LCD TV on an unstable cart, stand, or table. If the L20 LCD TV falls, it can injure a person and cause serious damage to the appliance.
• A distance of at least 3 feet should be maintained between the L20 LCD and any heat source, i.e. radiator, heater, oven, amplifier etc. Do not install the product close to smoke. Operating the product close to smoke or moisture may cause fire or electric shock.
• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of the L20 LCD TV and to protect it from overheating, be sure these openings are not blocked or covered. Do not place the L20 LCD TV in a bookcase or cabinet unless proper ventilation is provided.
• Never push any object into the slot on the L20 LCD TV cabinet. Do not place any objects on the top of the product. It could short circuit parts causing a fire or electric shock. Never spill liquids on the L20 LCD TV.
• The L20 LCD TV should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.
• The power cable must be replaced when using different voltage from that specified in the User Manual. For more information, contact your dealer.
• The L20 LCD TV is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.
  • Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
  • The wall socket shall be installed near the equipment and shall be easily accessible.
• Only the marked power source can be used for the product. Any power source other than the specified one may cause fire or electric shock.
  • Do not touch the power cord during lightning. To avoid electric shock, avoid handling the power cord during electrical storms.
• Unplug the unit during a lightening storm or when it will not be used for long period of time. This will protect the L20 LCD TV from damage due to power surges.
• Do not attempt to repair or service the product yourself. Opening or removing the back cover may expose you to high voltages, the risk of electric shock, and other hazards. If repair is required, please contact your dealer and refer all servicing to qualified service personnel.
• Keep the product away from moisture. Do not expose this appliance to rain or moisture. If water penetrates into the product, unplug the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock.
• Do not use the product if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately. Do not try to repair the product yourself.
• Avoid using dropped or damaged appliances. If the product is dropped and the housing is damaged, the internal components may function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of the product may cause fire or electric shock.
• Do not install the product in an area with heavy dust or high humidity. Operating the product in environments with heavy dust or high humidity may cause fire or electric shock.
• Follow instructions for moving the product. Ensure that the power connector and any other cables are unplugged before moving the product.
• Hold the power connector when removing the power cable. Pulling the power cable itself may damage the wires inside the cable and cause fire or electric shock. When the product will not be used for an extended period of time, unplug the power connector.
  • To avoid risk of electric shock, do not touch the connector with wet hands.
• Insert batteries in accordance with instructions. Incorrect polarities may cause damage and leakage of the batteries, operator injury and contamination the remote controller.
• If any of the following occurs please contact the dealer:
• The power connector fails or frays.
• Liquid sprays or any object drops into the L20 LCD TV.
• The Display is exposed to rain or other moisture.
• The Display is dropped or damaged in any way.
• The performance of the Display changes substantially.
• Operating environment: Temperature: -4°F\~104°F (-20°C \~ 60°C), Humidity: 10% to 90% non-condensing

1.6 - Television Antenna Connection Protection

External Television Antenna Grounding

If an outside antenna or cable system is to be connected to the LCD TV, make sure that the antenna or cable system is electrically grounded to provide some protection against voltage surges and static charges.

Article 810 of the National Electrical Code, ANSI/NFPSA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of the grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements of the grounding electrode.

Lightning Protection

For added protection of the LCD TV during a lightning storm or when it is left unattended or unused for long periods of time, unplug the LCD TV from the wall outlet and disconnect the antenna or cable system.

Power Lines

Do not locate the antenna near overhead light or power circuits, or where it could fall into such power lines or circuits.

1.7 - Package Contents

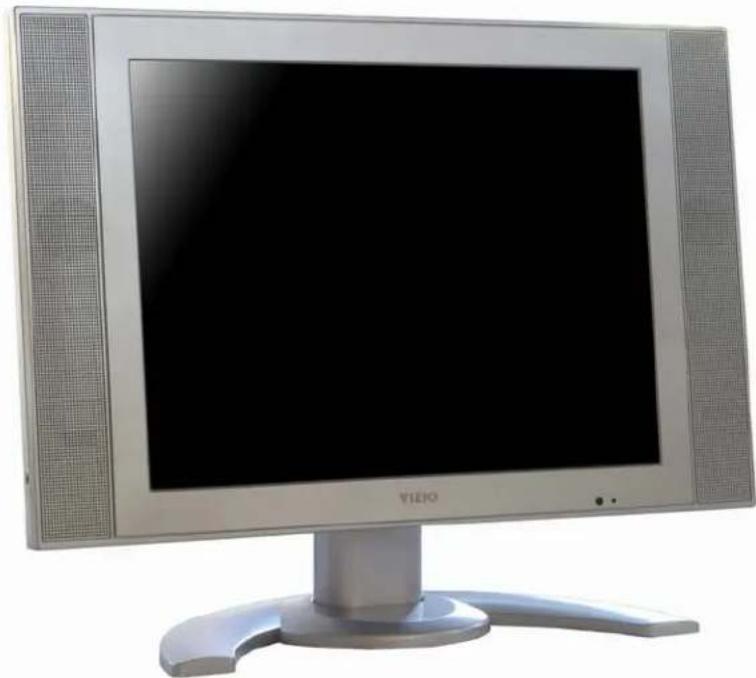

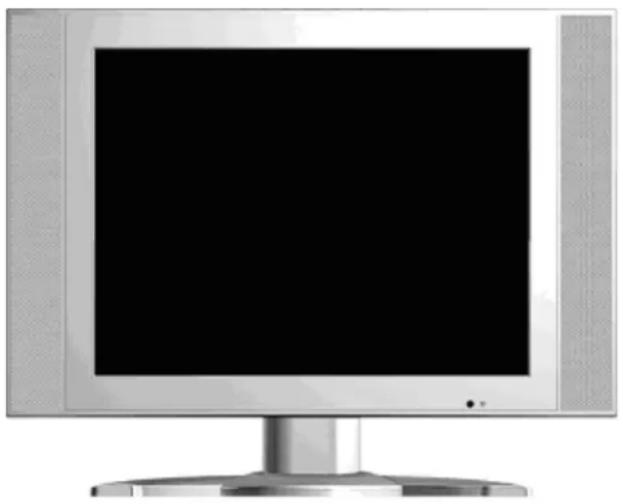

Front view of a silver CRT computer monitor with blank screen and stand (no text or symbols visible)

V, Inc. VIZIO L20 LCD TV

V, Inc. VIZIO Universal Remote Control

Power Cord

AV Cable

This User Guide

IMPORTANT: Save the original box and all the packing material for future shipping needs.

Note: Your product may also include various other accessories depending on region of purchase.

1.8 - Basic Controls

Use the buttons on the front panel control and top panel buttons to display and adjust the On Screen Display (OSD).

1.8.1 - Front Panel

Remote Control Sensor – This is the window that passes all of the remote signals to the sensor. Point the remote control directly at this window for the best response to the remote signal.

Power LED - Lights green when powered on.

Computer monitor with a black screen and a red circle highlighting a small dot (no text or symbols present)

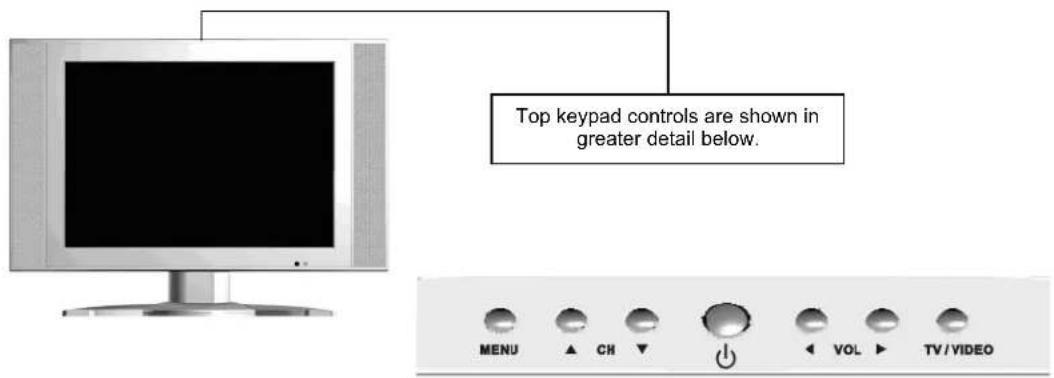

1.8.2 - Top Panel Controls

Top keypad controls are shown in greater detail below. MENU ▲ CH ▼ ⏻ VOL ▶ TV/VIDEO

Menu – When this button is pressed, the OSD main menu will appear on the screen. If it is pressed while the main menu is displayed, the main menu will disappear. If pressed while an OSD sub menu is displayed, it will exit the sub menu and go back to the last menu.

Channel ▼/▲ – These buttons are used to increase or decrease the selected channels. While the OSD is active, these buttons function as select controls in the OSD menus.

Power - Switch the TV on by pressing the button once. Press the button again to turn the TV off.

Volume ◀/▶ - These buttons are used to increase or decrease the speaker volume. While the OSD is active, these buttons function as adjustment controls in the OSD menus.

TV/VIDEO - Repeated pressing of this button steps through the input sources in the following sequence: Component (YPbPr/YCbCr), AV (Composite video), S-Video and TV (tuner). Once you have stepped through the entire sequence, you will return to the beginning.

Note: In all submenus, the cursor movement is circulatory. For example, if the ▼ Ch button is pressed when the cursor is on the last item in the submenu, the cursor will move to the main icon.

1.9 - Rear Panel Connections

To access the rear panel connections, first you will need to remove the back panel cover. Gently push up on the bottom of the panel and lift off the cover.

Service Port AV-1 S-Video Audio In L Y Pb Pr Component R AV L Audio In-R AV-2 TV AC IN 2 3 4 5 6 7 8

1. Component (YPbPr) Input - Connect the external video devices with component output, such as a DVD player or set-top box.

2. Service Port – To be used for factory service.

3. S-Video – Connect the S-Video to external video device such as VCR, DVD and video games.

4. Audio In, Right and Left (R/L) – Connect the external audio from the S-Video or composite video source such as a VCR or DVD player.

5. AV - Connect the composite video to external video device such as VCR, DVD and video games.

6. Audio In, Right and Left (R/L) – Connect the external audio from the component video source such as a DVD player or set-top box.

7. RF (TV Input) – Connect to the antenna, satellite or cable service.

8. AC In - Connect one end of the power cord here and connect the other end of the power cord to a wall socket.

1.10 - VIZIO Universal Remote Control

The VIZIO Universal Remote Control is a comprehensive remote that can be used to control up to four different components. The remote control button functions are explained on the following pages.

VIZIO Universal Remote Control Button Description

SETUA PWR AUX CBL VCB TV 1 2 3 4 5 6 7 8 9 MUTE 0 ENTER 100 11 12 13 VOL LAST CH INPUT GUIDE FAV OUT SELECT AV 1 SVid 1 YPbPr AV 2 DVI YCbCr Zoom Swap -Sub Ch+ PIP Freeze POP MTS CC Sleep VGA TV 22 25 26 27 28 29 30 31 32 33 34 35 36 Version - 2/21/2005 www.vizioce.com

1.10.1 - Key Remote Control Functions

1. SETUP - This button starts all programming sequences.
2. Remote LED - Blinks when the remote is being programmed or is sending a signal to your LCD Display.

3. POWER - Press this key to turn the LCD Display On from Standby mode. Press it again to return to the Standby mode.

4. AUX – This button selects a programmed component.

5. CBL – This button selects a programmed cable TV set-top box or selects a programmed satellite TV set-top box.

6. VCR – This button selects a programmed VCR.

7. TV – This button selects a programmed TV. Pre-programmed for the VIZIO L20 LCD TV.

8. Number Button Pad – These buttons select a channel or password.

9. MUTE – This button turns the sound on and off.

10. 100/Enter - This button enters a channel number greater than 100 in TV mode. Additionally, it works as an ENTER button in other video modes.

11. VOL (+ or -) – These buttons turn volume up or down.

12. LAST – This button recalls the previously viewed channel.

13. INPUT - This button changes the input source in the following sequence: Component, AV, S-Video and TV.

14. CH (+ or -) – These buttons change the channels up or down.

SETUP AUX PWR CBL VCR TV

1. WIDE/GUIDE – This button cycles through standard and widescreen viewing modes or accesses programming guides, such as the one that comes with a satellite dish. GUIDE does not work in TV mode.

2. FAV/EXIT – This button exits the component, guide or OSD menus. Additionally, it retrieves your favorite channels in TV mode. Note: This button is not available on the L20.

▼▲▶◀ - These buttons navigate the on-screen display (OSD) menus.

1 2 3 4 5 6 7 8 9 MUTE 0 ENTER 100 VOL LAST CH INPUT

1. SELECT - This button works to select your chosen options in on-screen display (OSD) menus.

2. INFO – This button turns the image and system information display On or Off.

3. MENU – This button is used to select the OSD menu pages in the following sequence: Main Picture → Multi Screen → OSD → TV → Audio → Parental Control

Side Wide FAV Off SELECT Off MOSO

1. Reverse/AV1 - This button selects previous on the CD and DVD or reverses the VCR when the component is activated with the remote control. Additionally, this button will select the AV1 component in TV mode.

2. Play/SVid1 - This button plays the CD, DVD or VCR when the component is activated with the remote control. Additionally, this button will select the SVid1 component in TV mode.

3. Forward/YPbPr - This button forwards the CD, DVD or VCR when the component is activated with the remote control. Additionally, this button will select the YPbPr component in TV mode.

4. Record/AV2 - This button functions as a VCR Record when the component is activated with the remote control. Additionally, this button will select the AV2 component in TV mode. Note: This button is not available on the L20.

5. Stop/DVI – This button stops the CD, DVD or VCR when the component is activated with the remote control. Additionally, this button will select the DVI component in TV mode. Note: this button will only be applicable for TVs that are equipped with a DVI port. It is not available on the L20.

6. Pause/YCbCr - This button pauses the CD, DVD or VCR when the component is activated with the remote control. Additionally, this button will select the YCbCr component in TV mode. Note: This button is not available on the L20.

7. ZOOM - Use this key to zoom the image in or out. Note: This button is not available on the L20.

8. Swap – Used to swap the inputs from the main and PiP or POP picture mode.

9. • SubCh + - These buttons are used to select the channels within the PIP. Note: This button is not available on the L20.

10. PIP – Use this key to activate the picture-in-picture mode.

11. FREEZE – Press this key to "Freeze-Frame", the current screen. You may press this key again to continue playing or play will resume automatically after one minute.

12. POP – Use this key to activate the picture-on-picture mode.

13. MTS - Press this key to select Stereo, SAP (separate audio program) or Mono audio. This function is available in the TV mode.

14. CC - Press this key to select closed caption options.

15. Sleep – Press this key to select the sleep options. User can adjust the sleep timer in 30 minutes increments.

16. VGA – This button selects a programmed VGA display. Note: This button is not available on the L20.

17. TV - This button selects a programmed TV. Pre-programmed for the VIZIO L20 LCD TV.

AV 1 SVId 1 YPbPr AV 2 DVI YCbCr

Zoom Swap -Sub Ch+ PIP Freeze POP MTS CC Sleep VGA TV

Note: The remote control layout is for reference only.

1.10.2 - Insertion of Batteries in the Remote Control

Insert two AA batteries into the remote control. Make sure that you match the (+) and (-) symbols on the batteries with the (+) and (-) symbols inside the battery compartment. Re-attach the battery cover.

Precautionary Tips for Inserting the Batteries:

• Only use the specified AA batteries.
• Do not mix new and old batteries. This may result in cracking or leakage that may pose a fire risk or lead to personal injury.
• Inserting the batteries incorrectly may result in cracking or leakage that may pose a fire risk or lead to personal injury.
• Dispose of the batteries in accordance with local laws and regulations.
• Keep the batteries away from children and pets.

Close-up of a black handheld electronic device with internal components and a separate connector (no visible text or symbols)

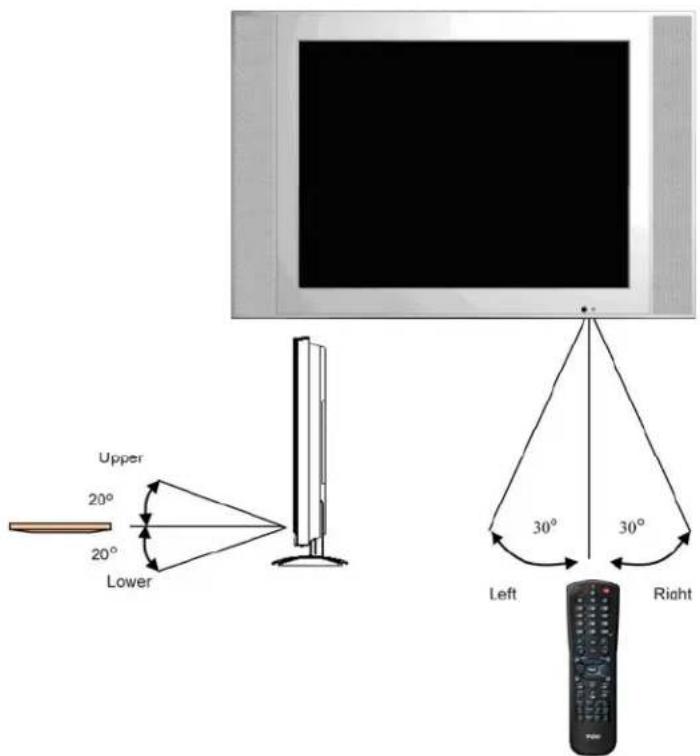

1.10.3 - Remote Control Range

Upper 20° 20° Lower 30° Left 30° Right

• Point the remote control at the remote control sensor to transmit the commands.
• Do not place any obstacles between the remote control and the receiver window.
  • The effective range of the remote control is approximately 32 feet (10 meters) from the front of the receiver window, 30^ to the left and right, 20^ up and down.

1.10.4 - Precautions for the VIZIO Universal Remote Control

• Remote control should be kept dry and away from heat sources. Avoid humidity.
• If the display responds erratically to the remote control or does not respond at all, check the batteries. If the batteries are low or exhausted, replace them with fresh batteries.
- When not using the remote control for a long period of time, remove the batteries.
• Do not take apart the batteries, heat them, or throw them into a fire.
• Do not subject the remote control to undue physical stress, such as striking or dropping it.
- Do not attempt to clean the remote control with a volatile solvent. Wipe it with a clean, damp cloth.

Chapter 2 - Connecting Components

2.1 - Which Video Connection Should I Use?

The VIZIO L20 LCD TV has four different ways to connect your video equipment from a basic one to the most advanced for digital displays.

Connection Quality	Cable and Connector	Description
OK		Coaxial RF. This is the only connection that has the audio and the video in one cable. If you have an antenna or cable, this is the only way you can connect it to the LCD TV. If you have a VCR, you can connect your antenna/cable to the VCR RF Input and connect the VCR RF Output to this connector.
Basic		Composite. The complete video signal is carried through this single pin connector. This is the most commonly used video connection.
Good		S-Video. The video signal is separated into two signals, one containing the black-and-white information and the other containing the color information. Separating the color in this way avoids ‘cross color’ effects where closely spaced black and white lines are erroneously displayed in color. It also enables text to be displayed more sharply.
Better		Component. The video signal is separated into three signals, one containing the black-and-white information and the other two containing the color information. This enhancement over S-Video takes advantage of the superior picture provided by progressive scan DVD players and HDTV formats.

2.2 - Connecting Your DVD Player

You have several options for connecting your DVD player to your new L20 LCD TV - Component, S-Video and Composite inputs. Based on your home theater configuration, you can decide which option is the right one for you.

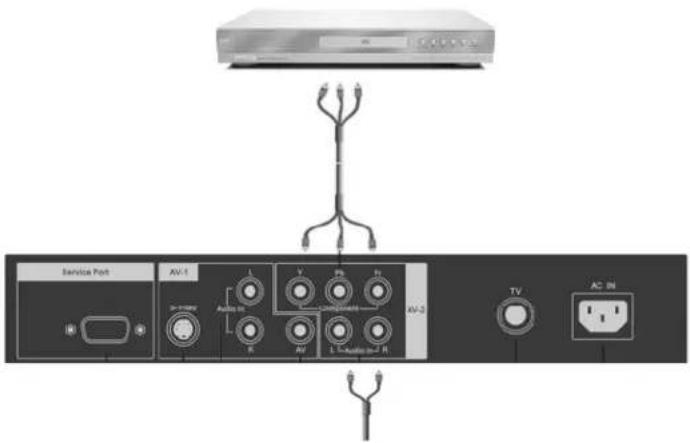

2.2.1 - Using Component Video

Installation:

Service Port AV-1 Audio PC V PS R1 L Audio/R AV-2 TV AC IN

1. Turn off the power to the LCD TV and DVD player.
2. Connect the Y (green color) connector on the rear of your DVD player to the corresponding Y (green color) connector in the AV2 connections in the rear of your LCD TV.
3. Connect the Pb (blue color) connector on the rear of your DVD player to the corresponding Pb (blue color) connector in the AV2 connections in the rear of your LCD TV.
4. Connect the Pr (red color) connector on the rear of your DVD player to the corresponding Pr (red color) connector in the AV2 connections in the rear of your LCD TV.
5. Connect the R (red color) and L (white color) audio connectors on the rear of your DVD player to the R (red color) and L (white color) audio input connectors in the AV2 connections on the rear of your LCD TV.
6. Turn on the power to the LCD TV and DVD player.
7. Select Component using the TV/VIDEO button on the top of the LCD TV.

Note: Refer to your DVD player user manual for more information about the video output requirements of the product.

2.2.2 - Using S-Video

Installation:

Service Port AV-1 In-Drive Auction in- Power V R DC L Audio In-J R AV-2 TV AC IN

1. Turn off the power to the LCD TV and DVD player.
2. Connect the S-Video jack on the rear of your DVD player to the S-Video jack in the AV1 connections in the rear of your LCD TV.
3. Connect the R (red color) and L (white color) audio connectors on the rear of your DVD player to the R (red color) and L (white color) audio input connectors in the AV1 connections in the rear of your LCD TV.
4. Turn on the power to the LCD TV and DVD player.
5. Select S-Video using the TV/VIDEO button on the top of the LCD TV.

Note: Refer to your DVD player user manual for more information about the video output requirements of the product.

2.2.3 - Using Composite Video

Installation:

Service Port AV-1 AV-2 TV AC IN Audio In Audio In-J R Audio In Audio In-J R Audio In-J R Audio In-J R Audio In-J R Audio In-J R Audio In-J R Audio In-J R Audio In-J R Audio In-J R Audio In-J R Audio In-J R Audio In-J R Audio In-J R Audio In-J R Audio In-J R Audio In-J R Audio In-J R Audio In-J R Audio In-J R Audio In-J R Audio In-JR AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInj AudioInj AudioInj AudioInj AudioInj AudioInj AudioInj AudioInj AudioInj AudioInj AudioInj AudioInj AudioInj AudioInj AudioInj AudioInj AudioInj AudioInj AudioInj AudioInj AudioInj AudioInj AudioInj AudioInj AudioInj AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioInJ AudioinJ

1. Turn off the power to the LCD TV and DVD player.
2. Connect the Video/Composite (yellow color) connector on the rear of your DVD player to the AV connector in the AV1 connections in the rear of your LCD TV.
3. Connect the R (red color) and L (white color) audio connectors on the rear of your DVD player to the R (red color) and L (white color) audio input connectors in the AV1 connections in the rear of your LCD TV.
4. Turn on the power to the LCD TV and DVD player.
5. Select AV using the TV/VIDEO button on the top of the LCD TV.

Note: Refer to your DVD player user manual for more information about the video output requirements of the product.

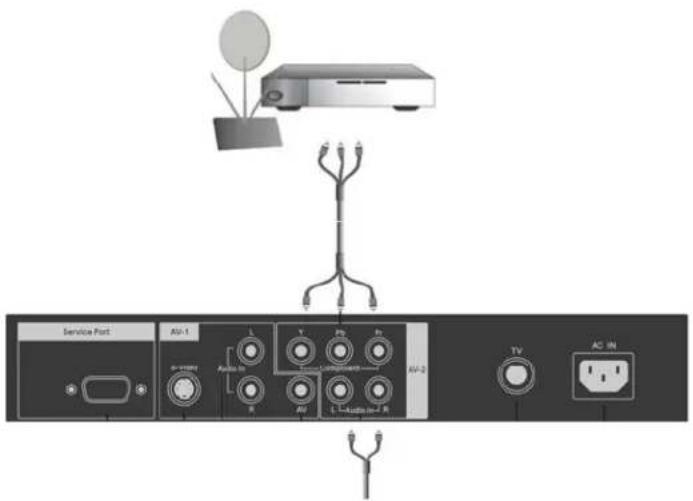

2.3 - Connecting Your HDTV Set-Top Box

You have the option for connecting your HDTV Set-Top Box to your new L20 LCD TV through the Component connection.

Installation:

Service Port AV-1 In-Internet Power In L Y P2 P1 LV L-Latin In-J R AV-2 TV AC IN

1. Connect the Y (green color) connector on the rear of your HDTV Set-Top Box to the corresponding Y (green color) connector in the AV2 connections in the rear of your LCD TV.
2. Connect the Pb (blue color) connector on the rear of your HDTV Set-Top Box to the corresponding Pb (blue color) connector in the AV2 connections in the rear of your LCD TV.
3. Connect the Pr (red color) connector on the rear of your HDTV Set-Top Box to the corresponding Pr (red color) connector in the AV2 connections in the rear of your LCD TV.
4. Connect the R (red color) and L (white color) audio connectors on the rear of your HDTV Set-Top Box to the R (red color) and L (white color) audio input connectors in the AV2 connections on the rear of your LCD TV.
5. Turn on the power to the LCD TV and HDTV Set-Top Box.
6. Select Component using the TV/VIDEO button on the top of the LCD TV.

Note: Refer to your HDTV Set-Top Box user manual for more information about the video output requirements of the product.

2.4 - Connecting Your VCR or Video Camera

Installation:

1. Turn off the power to the LCD TV and VCR or video camera.
2. Connect the S-Video jack on your VCR or video camera to the S-Video jack in the AV1 connections in the rear of your LCD TV.
3. Connect the R (red color) and L (white color) audio connectors on your VCR or video camera to the R (red color) and L (white color) audio input connectors in the AV1 connections in the rear of your LCD TV.
4. Turn on the power to the LCD TV and VCR or video camera.
5. Select S-Video using the TV/VIDEO button on the top of the LCD TV.

Note: Refer to your VCR or video camera user manual for more information about the video output requirements of the product.

2.5 - Connecting Coaxial (RF)

There are several options for connecting your antenna or cable to your new L20 LCD TV - directly to the TV or through your VCR. Based on your home theater configuration, you can decide which option is the right one for you.

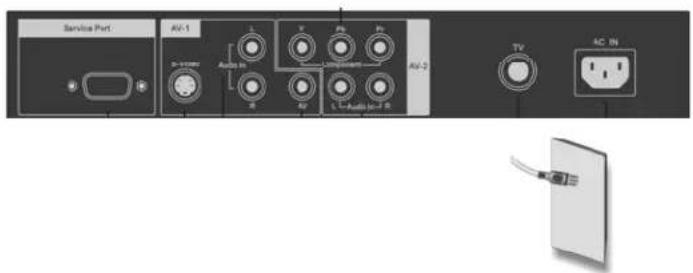

2.5.1 - Using Your Antenna or Cable TV

Installation:

Service Port AV-1 D-Server Audio in R V Pb Pt Aurition AV-2 TV AC IN

1. Turn off the power to the LCD TV.
2. Connect the coaxial (RF) connector from your antenna or cable box to the TV connector on the rear of your LCD TV.
3. Turn on the power to the LCD TV
4. Select TV using the TV/VIDEO button on the top of the LCD TV.

Note:

a) Make sure the antenna or cable TV is correctly grounded.
b) See page 25 for selecting the TV source within the OSD menus (standard cable, HRC cable, IRC cable, air (antenna)).

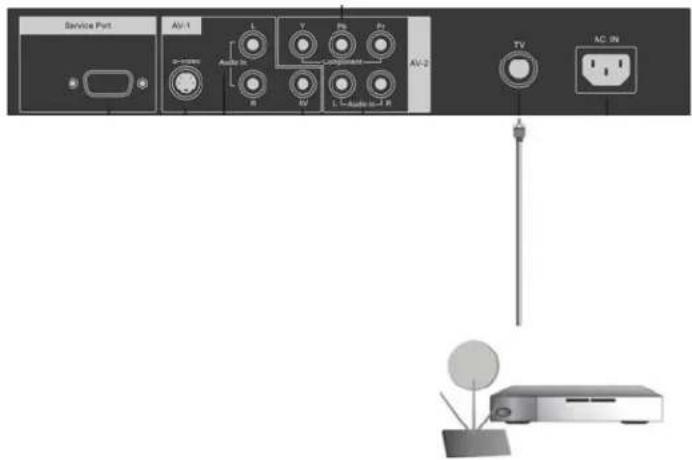

2.5.2 - Using the Antenna through Your VCR

Installation:

Service Port AV-1 L V Ps Ps Audio In A B C TV AC IN AV-2 A B C A B A A

1. Turn off the power to the LCD TV and VCR.
2. Connect the "Output to TV" (RF Out or Antenna Out) connector on the rear of your VCR to the TV connector on the rear of your LCD TV.
3. Turn on the power to the LCD TV and VCR.
4. Select TV using the TV/VIDEO button on the top of the LCD TV.
5. Select Channel 3 or 4 to match the channel selected on the rear of your VCR.

Note:

a) If you have an off-air antenna or cable TV, connect the off-air antenna or TV cable to the RF connector on the rear of your VCR.

b) Make sure the antenna or cable TV is correctly grounded.

Chapter 3 - Getting Started

3.1 - Turning your LCD TV On and Off

1. Plug the power cord into an AC wall socket.

2. Press the POWER button on the front panel or the POWER button on the remote control to power on the LCD TV. The POWER indicator on the front panel will light green.

3. Select input source for the LCD TV, via either OSD menu or remote control.

4. If connecting to antenna, cable or other RF source on TV inputs, see page 25 to configure the product to receive all available channels.

RV-1 RV-2 TV AC IN Power cord Antenna Cable

3.2 - Installation of Wall Mount (Optional)

If you would like to mount your L20 LCD TV to the wall, you can contact V, Inc. directly or your local dealer to obtain the appropriate wall mounting kit. To convert your LCD TV from a desk-mounted to a wall-mounted display, follow the instructions below:

1. Disconnect Power.

2. Lay the LCD TV face down on a towel or blanket to protect the screen from damage.

3. Remove the 6 screws from the hinge of stand and remove the stand.

4. Attach the mounting bracket from the VESA compatible wall mounting kit (100 mm x 100 mm size) through the 4 holes in the center of the back panel.

5. Attach the LCD TV to the wall, following the instructions with the wall-mounting kit.

Four screws for the wall mount

Cross-sectional diagram of a mechanical or electrical component with no visible text or symbols

3.3 - Adjusting Basic LCD TV Settings

Volume

To increase the volume, press and hold the VOL + button on the front panel or remote control until the desired level is reached.

To decrease the volume, press and hold the - VOL button on the front panel or remote control until the desired level is reached.

TV Channels

To step up through the available TV channels, press the CH + button on the front panel or remote control once for the next channel or hold it depressed until the desired channel is reached.

To step down through the available TV channels, press the - CH button on the front panel or remote control once for the previous channel or hold it depressed until the desired channel is reached.

Mute

Press the MUTE button on the remote control to turn off the sound; press the button again to cancel the MUTE feature and turn the sound on.

3.4 - Using the On-Screen Display (OSD)

The remote control or the control keys on the top panel of the LCD TV can control all the function settings. The on-screen display (OSD) allows you to adjust and save contrast, brightness and other settings. The LCD TV will save changes made to the settings even if the LCD TV is turned off.

The OSD consists of a Main Menu of items and each of these items has a Sub Menu associated with it that the OSD will switch to when the item is selected.

1. Press the MENU button on the remote control and the Main Menu will be displayed on the screen, as shown opposite.
2. Use the ◀/▶ buttons on the remote control to highlight the feature you wish to select within the OSD menu (Main Picture → Multi Screen → OSD → TV → Audio → Parental Controls).

Row of five grayscale icons representing sun, computer, DVD, TV, speaker, and speech bubble (no text or symbols)

Note: The TV and Parental Controls menus will not be available when Component is selected as the input source.

1. Press the SELECT button on the remote control to select the feature. The Main Menu will now change to the Sub Menu of the feature selected, as shown opposite.

2. Use the ▲ /▼ buttons on the remote control to highlight the option you wish to adjust.

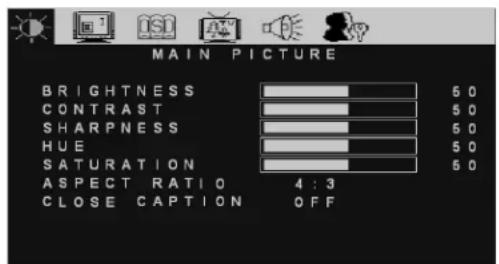

MAIN PICTURE BRIGHTNESS 50 CONTRAST 50 SHARPNESS 50 HUE 50 SATURATION 50 ASPECT RATIO 4:3 CLOSE CAPTION OFF

1. Adjust the level or change the setting of the selected option by pressing ◀/▶ buttons on the remote control.

2. Press the SELECT button to confirm the desired selection.

3. Repeat steps 4 and 5 to adjust additional options.

4. Once the adjustment is completed, press the Menu button on the remote control repeatedly to return to the Main Menu or to exit the OSD.

NOTE: The OSD menu display will disappear automatically after 30 seconds if no action is taken.

3.4.2 - OSD Menus and Options

The OSD Menu includes six sub menus: Main Picture, Multi Screen, OSD, TV, Audio and Parental Controls. With each input source, there will be a corresponding change in the OSD menu.

3.4.2.1 - Source Input OSD Options with TV, AV and S-Video

(see section 3.4.2.2 for OSD options with Component as the source input)

Brightness – Adjusts the black levels of the picture. Users may need to readjust the brightness after the LCD TV warms up.

Contrast - Adjusts the white levels of the picture.

Sharpness – Adjust the amount of detail enhancement.

HUE – Adjusts the color of flesh tones.

Saturation - Adjusts the color saturation making colors more intense.

Aspect Ratio – Selects the TV display for 4:3 or 16:9.

Close Caption – Turns the closed caption either on or of. Options include OFF, CC1, CC2, CC3, CC4, TT1, TT2, TT3 or TT4. Note: this option will not be available if Component is selected as the input source.

MAIN PICTURE BRIGHTNESS 50 CONTRAST 60 SHARPNESS 50 HUE 50 SATURATION 50 ASPECT RATIO 4:3 CLOSE CAPTION OFF

When PiP and POP functions are disabled, the menu will appear with only the Sub Screen and Mode options available.

Sub Screen – Choose the sub screen source.

If main screen (input) is shown with TV, AV or S-Video, then the sub screen can show the input as Component.

If main screen (input) is shown with Component, then sub screen can show the input selection as TV or AV or S-Video.

Mode – Selects multi-screen to be OFF, PIP or POP.

MULTI SCREEN SUB SCREEN MODE COMPONENT OFF

When PIP function is enabled, the following options will be available: Sub Screen, Mode, Audio, Swap, PIP Size, PIP H-Pos and PIP V-Pos.

Audio - Selects audio output source (Main or Sub)

Swap – Swaps the input of the main screen and sub screen.

PiP Size – Adjusts PIP sub screen size.

PiP H-Pos – Adjusts PIP sub screen horizontal position.

PiP V-Pos - Adjusts PIP sub screen vertical position.

When the POP function is enabled, only the following options will appear: Sub Screen, Mode, Audio and Swap. Please see above for a description of each option.

MULTI SCREEN SUB SCREEN MODE AUDIO SWAP PIP SIZE PIP H-POS PIP V-POS COMPONENT PIP MAIN 50 50 50

MULTI SCREEN SUB SCREEN MODE AUDIO SWAP COMPONENT POP MAIN

H – Position - Adjusts OSD on horizontal position. V – Position - Adjusts OSD on vertical position. Transparency - Adjusts OSD on transparency level. Language - Choose from the following languages: English, Spanish, French or Chinese. Default - Recalls factory default setting.

H-POSITION V-POSITION TRANSPARENCY LANGUAGE DEFAULT 50 50 50 ENGLISH

When this function is executed, the screen will show the message "DEFAULT".

DEFAULT

3.4.2.1.4 - TV Menu

MTS – Select from one of the following: Stereo, Sap, Mono or Dual.

Input Signal – Selects the TV input signal from one of the following: STD (standard cable), HRC (HRC cable), IRC (IRC cable) or Air (Antenna).

Auto Scan – Scans the channels automatically (press the right arrow key to execute).

Set Channel – Channel selection to be added or deleted.

Channel – Adds or deletes the selected channel.

Sleep Time (mins) - Sets the sleep timer on TV from 00, 30, 60, 90, 120 minutes.

MT S STERED INPUT SIGNAL AIR AUTO SCAN SET CHANNEL 02 CHANNEL ADD SLEEP TIME (MINS) 00

Note: The TV menu is not an option when the following inputs are selected: Component, AV or S-Video.

3.4.2.1.5 - AUDIO

Volume – Adjusts the volume level.

Bass – Adjusts the bass level.

Treble - Adjust the treble level.

Balance – Adjusts the left and right speaker balance.

AUDIO VOLUME BASS TREBLE BALANCE 50 50 50 50

3.4.2.1.6 - PARENTAL CONTROL

TV Rating – Options include the following:

• TV-Y (all children)
• TV-Y7 (older children)
• TV-G (general audience)
• TV-PG (guidance suggested)
• TV-14 (strongly cautioned)
• TV-MA (mature audience)

You can also customize the TV PG, PG-14 and MA by using the following:

• D (sexual dialog)
• L (adult language)
• S (sexual situations)
• V (violence)

PARENTAL CONTROL TV RATING TV Y: ○ TV Y 7: ○ FVO TV G: ○ TV PG: ● D ● L ● S ● V ● TV 1 4: ● D ● L ● S ● V ● TV MA: ● L ● S ● V ●

For additional information, see "Using the Parental Controls", page 27.

Movie Rating - Options include the following:

• G (General audience)
• PG (Parental guidance suggested)
• PG-13 (Recommended for children 13 years of age and older)
• R (mature audience)
• NC-17 (no one under 17 years of age)
• X (Adult audience only)

PARENTAL CONTROL MOVIE RATING G : ○ PG : ○ PG 1 3 : ○ R : ● NC 1 7 : ● X : ●

For additional information, see "Using the Parental Controls", page 27.

3.4.2.2 - Source Input OSD Options with Component

Brightness – Adjusts the brightness of the picture. Users may need to readjust the brightness after the LCD TV warms up.

Contrast - Adjusts the contrast of the picture.

Sharpness – Adjust the amount of detail enhancement.

HUE – Adjusts the color of flesh tones.

Saturation – Adjusts the color saturation making colors more intense.

Aspect Ratio – Selects the TV display for 4:3 or 16:9.

MAIN PICTURE BRIGHTNESS 50 CONTRAST 50 SHARPNESS 50 HUE 60 SATURATION 50 ASPECT RATIO 4:3 720X480 H+16.7 V-59.9

Note:

a) Please refer back to pages 24-26 for a description of the Multi Screen, OSD, Audio and Parental Controls menus.
b) The Component input video settings can be adjusted and saved separately from TV, Video and S-Video inputs.

3.4.3 - Using the Parental Controls

The Parental Controls feature prevents viewers from watching programs that are not age-appropriate, such as programs containing violence or adult language.

1. Press the TV component button on the remote control or select TV by using the TV/Video button on the top of the TV.
2. Press the MENU button on the remote control and the Main Menu will be displayed on the screen.

3. Press ▶ on the remote control until the Parental Controls menu is highlighted. Then press SELECT.

4. To access the Parental Control Menu, you must first enter in the default password.

a) Press "0 0 0 0" on the remote control as the default password.

b) Then press SELECT to confirm the selection.

PARENTAL CONTROL PASSWORD TV RATING MOVIE RATING

PARENTAL CONTROL KEY - IN PASSWORD . . . .

If the wrong password is entered, you will see the following warning.

For more information about setting a password, see "Setting a Password", page 28.

1. Press ▼ button on the remote control until TV Rating is highlighted.
2. Press the SELECT button to open the TV RATINGS menu.
3. Press the ▲ and ▼ buttons on the remote control to navigate through each area. Press the ◀ and ▶ buttons on the remote control to select which rating you want to block (filled circle) or unblock (empty circle). You can select from the following ratings:

• TV-Y (all children)

• TV-Y7 (older children)

• TV-G (general audience)

• TV-PG (guidance suggested)

• TV-14 (strongly cautioned)

• TV-MA (mature audience)

You can also customize these ratings for:

• V (violence)

• L (adult language)

• S (sexual situations)

• D (sexual dialog)

PARENTAL CONTROL TV RATING TV Y: ○ TV Y 7: ○ FVO TV G: ○ TV PG: ● D ● L ● S ● V ● TV 14: ● D ● L ● S ● V ● TV MA: ● L ● S ● V ●

1. Press the MENU button again to back out of the menu.

2. Press ▼ button on the remote control once again to highlight the Movie Rating menu.

3. Press the SELECT button to open the Movie Rating menu.

4. Press the ▲ and ▼ buttons on the remote control to navigate through each area. Press the

◀ and ▶ buttons on the remote control to select which rating you want to block (filled circle) or unblock (empty circle). You can select from the following ratings:

• G (General audience)
• PG (Parental guidance suggested)
- PG-13 (Recommended for children 13 years of age and older)
• R (mature audience)
• NC-17 (no one under 17 years of age)
• X (no one under 17 years of age)

1. Press the Menu button repeatedly to exit the OSD.

PARENTAL CONTROL MOVIE RATING G : Ⓥ ○ PG : ○ PG 13 : ○ R : ● NC 17 : ● X : ●

3.4.4 - Setting a Password

You control access to the Parental Control features with a password. The default password is "0 0 0 0". You can change the password to any four-digit number.

To change the password:

1. Press the TV component button on the remote control or select TV by using the TV/Video button on the top of the TV.
2. Press the MENU button on the remote control and the Main Menu will be displayed on the screen, as shown opposite.
3. Press ▶ button on the remote control until the Parental Control menu is highlighted. Then press SELECT.
4. Press "0 0 0 0" on the remote control as the default password.
5. Then press SELECT to confirm the selection.
6. Press the ▶ button on the remote control to open the PASSWORD sub menu.
7. Enter your old password. Then press SELECT.
8. Enter your new password. Then press SELECT.
9. Enter the new password again in the Confirm area.
10. Press the MENU button repeatedly to exit the OSD.

PARENTAL CONTROL PASSWORD EDIT OLD: . . . NEW: . . . CONFIRM: . . . .

PARENTAL CONTROL PASSWORD TV RATING MOVIE RATING

Note: Please make sure to write down and store the new password in a secured place. The default option in the OSD menu (see section 3.4.2.1.3 - OSD Menu, p. 25) does not reset the password.

3.5 - Remote Control Operation

3.5.1 - Programming the VIZIO Universal Remote Control

You can program the remote control to work with up to four different components. Listed below are the steps for programming your TV, VCR, Cable Box and DVD Player.

3.5.1.1 - Programming for TV

For your convenience, the TV button on the remote has already been preprogrammed for the L20. If you would like to program a second TV as the primary TV, please follow the instructions below.

1. Manually turn on the TV.
2. Press the TV button on the remote control.
3. Press and hold the SETUP button until the LED LIGHT flashes twice.
4. Find the programming code for your TV in the code list in the back of this book and enter it using the Number Buttons. If the code is accepted, the LED flashes twice after the last digit is entered.

If the LED does not flash twice, repeat Steps 2 through 4 with the next code listed for the component and manufacturer.

1. Point the remote control at the TV and press the POWER button. The TV will turn off.

Note:

a) If your TV does not respond, try all the codes for your brand. If the codes do not work, or your brand is not listed, see "Searching for Component Codes", page 36.
b) Sometimes a code listed will only include limited functions. Try other codes that may include more functionality.

3.5.1.2 - Programming for VCR

1. Manually turn on the VCR.
2. Press the VCR button on the remote control.
3. Press and hold the SETUP button until the LED LIGHT flashes twice.
4. Find the programming code for your VCR in the code list in the back of this book and enter it using the Number Buttons. If the code is accepted, the LED flashes twice after the last digit is entered.

If the LED does not flash twice, repeat Steps 2 through 4 with the next code listed for the component and manufacturer.

1. Point the remote control at the VCR and press the POWER button. The VCR will turn off.

Note:

a) If your VCR does not respond, try all the codes for your brand. If the codes do not work, or your brand is not listed, see "Searching for Component Codes", page 36.
b) Sometimes a code listed will only include limited functions. Try other codes that may include more functionality.

3.5.1.3 - Programming for Cable Box

1. Manually turn on the Cable Box.
2. Press the CBL button on the remote control.
3. Press and hold the SETUP button until the LED LIGHT flashes twice.
4. Find the programming code for your Cable Box in the code list in the back of this book and enter it using the Number Buttons. If the code is accepted, the LED flashes twice after the last digit is entered.

If the LED does not flash twice, repeat Steps 2 through 4 with the next code listed for the component and manufacturer.

1. Point the remote control at the Cable Box and press the POWER button. The Cable Box will turn off.

Note:

a) If your Cable Box does not respond, try all the codes for your brand. If the codes do not work, or your brand is not listed, see "Searching for Component Codes", page 36.
b) Sometimes a code listed will only include limited functions. Try other codes that may include more functionality.

3.5.1.4 - Programming for AUX (DVD Player)

1. Manually turn on the DVD Player.
2. Press the AUX button on the remote control.
3. Press and hold the SETUP button until the LED LIGHT flashes twice.
4. Find the programming code for your DVD player in the code list in the back of this book and enter it using the Number Buttons. If the code is accepted, the LED flashes twice after the last digit is entered.

If the LED does not flash twice, repeat Steps 2 through 4 with the next code listed for the component and manufacturer.

1. Point the remote control at the DVD Player and press the POWER button. The DVD Player will turn off.

Note:

a) If your DVD Player does not respond, try all the codes for your brand. If the codes do not work, or your brand is not listed, see "Searching for Component Codes", page 36.
b) Sometimes a code listed will only include limited functions. Try other codes that may include more functionality.

3.5.2 - Searching for Component Codes

If the user cannot find the manufacturer in the component list or the program code does not work, the user can use the remote control to search for the correct component code.

To search for a component code:

1. Turn on the component.
2. Press the matching component button on the remote control.
3. Press and hold the SETUP button until the LED flashes twice.

4. Press 9 9 1. The LED flashes twice.

5. Point the remote control at the component and then alternate between pressing the POWER button and the component button on the remote control until the component turns off.

If the component still does not respond, clear the component button, then repeat the search procedure.

To clear the component button:

1. Make sure that the component is turned on.
2. Press and hold the SETUP button on the remote control until the LED flashes twice.
3. Press 9 9 2, then press the component button on the remote control twice.

3.5.3 - Reassigning Component Buttons

You can reassign the component buttons on the remote control if you have more than one of the same types of component. For example, if you are using the remote to control the cable (CBL), CD, DVD, TV and two VCRs, you can reassign the AV2 button as a second VCR button.

To reassign component buttons:

1. Press and hold the SETUP button until the LED flashes twice.
2. Press 9 9 2. The LED flashes twice.
3. Press the component button that you want (VCR) once, and then press the component button that you are reassigning (AV2) once. The AV2 button is now reassigned and can be programmed as a VCR component button. See "Programming the VIZIO Universal Remote Control", page 34.

3.5.4 - Changing Volume Lock

The remote control is set to control volume through your TV while in cable (CBL), DVD, satellite (SAT) and VCR component modes. Use the volume lock if you want to control the volume for all components through a specific component. For example, you want to control volume for all components through the tuner (TNR).

To change the volume lock:

1. Press and hold the SETUP button until the LED flashes twice.
2. Press 9 9 3. The LED flashes twice.
3. Press the component button that you want (TNR) once. The LED flashes twice. Volume will now be controlled through the tuner for all components.

Chapter 4 - Maintenance and Troubleshooting

4.1 - Maintenance

Important

1. Make sure that the power cable is removed from the socket before cleaning the display.
2. Do not use volatile solvent (such as toluene, rosin and alcohol) to clean the display. Such chemicals may damage the housing, screen glass and remote control, and cause the paint to peel.

Cleaning the Housing and the Remote Control

1. Use a soft cotton cloth for cleaning.
2. If the housing or remote control is seriously contaminated, use a soft cloth moistened with diluted neutral cleaner to clean the display. Wring water out of the cloth before cleaning to prevent water from penetrating into the housing. Wipe the display with a dry cloth after cleaning.

Cleaning the Screen

1. Use a soft cotton cloth to gently clean the screen.
2. The screen glass is very fragile. Do not scrape it with any sharp object. Do not press or tap the screen to avoid cracking. When the screen is seriously contaminated, use a soft cloth moistened with diluted neutral cleaner to clean the display. Wring water out of the cloth before cleaning to prevent water from penetrating into the housing. Wipe the display with a dry cloth after cleaning.

4.2 - Troubleshooting Guide

If the display fails or the performance changes dramatically, check the display in accordance with the following instructions. Remember to check the peripherals to pinpoint the source of the failure. If the display still fails to perform as expected, contact the dealer for assistance.

Problem Solution
There is not any power. Make sure	the DC power button is ON (green LED).Make sure the AC power cord is securely connected to the AC socket.Plug another electrical device to the power outlet to verify that the outlet is working properly.
Power is ON, but there is not any screen image.	Make sure the video cable supplied with the LCD display is tightly secured to the video output port on the back of the DVD player or VCR. If the other end of the video cable is not attached permanently to the LCD display, tightly secure it to the LCD display.Adjust brightness and contrast.Check Source settings.
The image on the screen has incorrect or abnormal colors.	If any colors (red, green, or blue) are missing, check the video cable (YPbPr) to make sure it is securely connected. Loose or broken pins in the cable connector could cause an improper connection.Connect the LCD display to another DVD Player or VCR.
Control buttons do not work Press only one button at one time.
Snow appears on screen	Check your antenna connection.Check TV / CATV selection.
There is not any sound, Check your audio connection.Press MUTE on the remote control again, so that MUTE disappeared from the screen.Check your audio settings, your TV audio may be set to SAP or minimum.Press the Volume + (Up) key on your remote control.Make sure that headphones are not connected.
Remote control does not work.	Make sure batteries are inserted correctly.Batteries could be weak.

4.3 - Telephone & Technical Support

Products are often returned due to a technical problem rather than a defective product that may result in unnecessary shipping charges billed to you. Our trained support personnel can often resolve the problem over the phone. For more information on warranty service or repair, after the warranty period, please contact our Support Department at the number below.

Quality service and consistent technical support are integral parts of V's commitment to service excellence. V's service representatives are dedicated to assist you with the utmost in customer satisfaction. To better assist you, please call toll free or contact us via email.

Tel: [phone], 7am-4pm PST Mon - Fri

Or E-mail: [e-mail]

Corporate Contact Information

V, Inc.

320A Kalmus Drive

Costa Mesa, CA 92626

Tel: [phone] Fax: [phone]

Web: www.VINC.com

4.4 - Compliance

Caution: Always use a power cable that is properly grounded. Please use the AC cords listed below for each area.

USA

Canada

Germany

Britain

UL

CSA

VDE

BASE/BS

Japan Electric Appliance Control Act

4.5 - FCC Class B Radio Frequency Interference Statement

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference.

Appendix A: Limited Product Warranty

Please read this warranty information carefully, it is a "ONE-YEAR LIMITED WARRANTY" on parts and labor.

VIZIO's Responsibility

VIZIO Displays purchased in the United States are warranted to be free from defects in materials or workmanship for a period of one (1) year from the date of their original retail purchase. If the unit fails to conform to this warranty, we will service the monitor using new or refurbished parts.

Service Labor

During a period of one (1) year from the effective warranty date, VIZIO will provide, when needed, service labor to repair a manufacturing defect at its designated Service Center. To obtain warranty service in the Untied States, you must first call our Customer Support at [phone], 7:30 am – 5:30 pm PST. The determination of service will be made by VIZIO Customer Support. PLEASE DO NOT RETURN YOUR UNIT TO VIZIO WITHOUT PRIOR AUTHORIZATION.

Parts

New or remanufactured replacements for defective parts will be used for repairs by VIZIO at its designated Service Center for one (1) year from the effective warranty date. Such replacement parts are warranted for the remaining portion of the original warranty period.

Service

During the one (1) year warranty period, VIZIO will, at its option and sole discretion, repair or replace defective parts, including replacement of the entire Panel. The Customer will be required to ship the unit to the Service Center indicated at the time Customer Support is contacted to make the necessary repairs, you are responsible for all transportation charges to and from the service facility. VIZIO is not responsible for the de-installation or re-installation of the unit.

Packaging and Shipping Instruction

When you send the product to an authorized VIZIO service facility you must use the original carton box and packing material or an equivalent as designated by VIZIO

Not Covered

This warranty does not cover defects, malfunctions or failures resulting from shipping or transit accidents, abuse, misuse, operation contrary to furnished instructions, operation on incorrect power supplies, operation with faulty associated equipment, modification, alteration, improper servicing, tampering or normal wear and tear or TVs on which the serial number has been removed or defaced. Image Sticking caused by operating at excessive brightness levels for extended periods or mishandling are not covered by this warranty.

ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE SHALL BE LIMITED IN DURATION TO THE PERIOD OF TIME SET FORTH ABOVE. OUR LIABILITY FOR ANY AND ALL LOSSES AND DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER, INCLUDING OUR NEGLIGENCE, ALLEGED DAMAGE OR DEFECTIVE GOODS, WHETHER SUCH DEFECTS ARE DISCOVERABLE OR LATENT, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE DISPLAY. WE SHALL NOT BE RESPONSIBLE FOR LOSS OF USE, COMMERCIAL LOSS OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. This is the only warranty applicable; no one is authorized to extend or modify it or to grant any other warranty.

VIZIO retains the right to assess all warranty claims and to determine if damages are covered by the warranty. In case of a claim that is not covered by the warranty, you will be contacted to determine whether VIZIO should repair the damage for a fee or whether the product should be returned to you as received by the repair center.

Owner's Responsibility

Effective Warranty Date

Warranty begins on the date of sale to the end user. To ensure warranty service, keep the dated bill or sale receipt as evidence of the purchase date.

Warranty Service

For warranty service information, contact VIZIO Customer Support at [phone], 7:30 am to 5:30 pm PST or visit www.vizioce.com. Parts and service labor that are VIZIO's responsibility (see above) will be provided without charge. Other service is at the owner's expense. You must provide the model, serial number and date of purchase. Before you ask for warranty service, read your User Manual. You might avoid a service call.

For additional information regarding your warranty, please contact us via phone, e-mail or online.

Tel: [phone], 7:30 am- 5:30 pm PST Mon - Fri

E-mail: [e-mail]

www.vizioce.com

Appendix B: Component Program Codes

SETUP CODES FOR CURRENT VIZIO PRODUCTS

*Note: Please use these codes to program the VIZIO products to existing Universal remote controls for products such as cable and satellite boxes.
VIZIO L13 0864		VIZIO P46 1756
VIZIO L6 0885		VIZIO RP56 1756
VIZIO L20 1756		VIZIO HDX 20L 1756
VIZIO L30 1756		VIZIO HDX 42P 1756
VIZIO L30WGU 1756		Bravo D1 1064
VIZIO P42 1756		Bravo D2 0123
VIZIO P42HD 1756		Bravo HD1 0122
SETUP CODES FOR AMPLIFIERS
Alwa	0406	Optimus	0300
Carver	0269	Panasonic	0308
CurtisMathes	0300	Philips	0269, 0892
Denon	0160	Pioneer	0013, 0300
Harman/Kardon	0892	Sony	0220, 0689
JVC	0331	Technics	0308
Linn	0269	Victor	0331
Magnavox	0269	Wards	0013
Marantz	0269	Yamaha	0354
SETUP CODES FOR CABLE
ABC 0003, 0008, 0014, 0017,		Pioneer	0144, 0533, 0877
	0007, 0011, 0013	Popular Mechanics	0400
Allegro	0153, 0315	Pulsar	0000
Archer	0153, 0797	Quasar	0000
Bell&Howell	0014	RCA	0021
Century	0153	RadioShack 0015, 0315, 0797, 0883
Citizen	0153,	Reconst	0400
Comtronics	0040	Regal	0020, 0259
Contec	0019	Regency	0002
Eastern	0002	Rembrandt	0011
Emerson	0797	Runco	0000
Everquest	0015, 0040	SLMarx	0040
Focus	0400	Samsung	0144, 0040
Garrard	0153	Scientific Atlanta	0008, 0477, 0017, 0877
Gemini	0015, 0797	Signal	0015, 0040
General Instrument	0476, 0276, 0011, 0810	Signature	0011
GoldStar	0144, 0040	Sprucor	0021
Goodmind	0797	Starcom	0003, 0015
Hamlin	0020, 0259, 0009, 0034	Stargate	0015, 0040, 0797
Hitachi	0011	Starquest	0015
Hylex	0007	TV86	0063
Jasco	0015, 0153, 0315	Teleview	0040
Jerold	0003,0012,0476,0276,	Tocom	0012, 0013
	0014, 0015, 0011, 0810	Toshiba	0000
Memorex	0000	Tusa	0015
MovieTime	0063	Unika	0153
NSC	0063	UnitedArtists	0007
Oak	0019, 0007	Universal	0153, 0191
Optimus	0021	Viewstar	0063
Panasonic 0000, 0107, 0021		Zenith	0000, 0525
Paragon	0000	Zentek	0400
Philips	0153
SETUP CODES FOR CD PLAYERS
Alwa	0157,0124	Proton	0157
Burmester	0420	QED	0157
California Audio Labs	0029, 0303	Quasar	0029
Carver	0157, 0179, 0437	RCA	0179,0305, 0053,0764
DKK	0000	Realistic	0179,0420, 0180
Denon	0003, 0873	Rotel	0157, 0420
Emerson	0305	SAE	0157
Fisher	0179, 0174	Sansui	0157, 0305
Garrard	0420, 0393	Sanyo	0179
Genexxa	0032, 0305	Scott	0305
Harman/Kardon	0157, 0173	Sears	0305
Hitachi	0032	Sharp	0037, 0180, 0861
JVC	0072	Sherwood	0180
Kenwood 0028, 0037, 0190, 0626,		Sony	0000, 0185, 0490
	0826, 0681	Soundesign	0145
Krell	0157	Tascam	0420
LXI	0305	Teac	0420, 0393, 0174, 0180
Linn	0157	Technics	0029, 0303
MCS	0029	Victor	0072
MTC	0420	Wards	0157, 0053
Magnavox	0157, 0305	Yamaha	0036, 0187
Marantz	0029, 0157, 0180	Yorx	0461
Mission	0157
NSM	0157
Nikko	0174
Onkyo	0101, 0868
Optimus	0000, 0032, 0179, 0305,
	0037, 0420, 0145, 0468,
	0437
Panasonic	0029, 0303
Parasound	0420
Philips	0157,	0626
Pioneer	0032,0305, 0468, 0244

SETUP CODES FOR LASER DISK

Denon	0059
Mitsubishi	0059
NAD	0059
Optimus	0059
Pioneer	0059
Sony	0193,

SETUP CODES FOR MISC. AUDIO

Jerrold	0459
Scientific Atlanta 0460
Starcom	0459

SETUP CODES FOR RECEIVERS

ADC	0531
Aiwa 0158, 0189, 0121, 0405
Capetronic	0531
Carver 0189, 0042, 0360
Casio	0195
Clarinette	0195
Curtis Mathes 0080
Denon	0004
Emerson	0424
Fisher 0042, 0219, 0360
Garrard	0463,
Harman/Kardon 0110, 0189, 0891
JBL	0110
JVC	0074
Kenwood 0027, 0186, 0042
Koss	0424
LXI	0181
Linn	0189
Lloyd's	0195
MCS	0039
Magnavox 0531, 0189, 0195, 0391
Marantz	0039,
Modulaire	0195
NAD	0320
Nakamichi	0097
Onkyo	0135

SETUP CODES FOR SATELLITE

AlphaStar	0772
Echostar	0775
Expressvu	0775
General Instrument	0627,0361,0869
HTS	0775
Hitachi	0819
Hughes Network Systems	0749
JVC	0775
Jørrold	0627,
Magnavox	0724,0722
Memorex	0724

Optimus 0531, 0670, 0186, 0080,
	0042, 0181, 0219, 0738, 0801, 1023
Panasonic	0039, 0309
Penney	0195
Philips	0189, 0391
Pioneer	0531, 0014, 0150, 0630, 0080, 1023
Quasar	0039
RCA 0531, 0054, 0360
Realtek	0195, 0181
Sansui	0189
Sanyo	0219, 0801
Sharp	0186
Sherwood	0491, 0502
Sony	0158,
Soundesign	0670
Teac	0463
Technics	0039, 0309
Victor	0074
Wards	0158, 0014, 0189, 0080, 0189
Yamaha	0176, 0186
Yorx	0195
Zenith	0857

Next Level	0869
Panasonic	0701
Philips	0724, 0722
Primestar	0627, 0361
RCA 0566, 0143, 0392, 0855
Radio Shack	0869
Sony	0639
Star Choice	0869
Toshiba61	0749, 0790
Uniden	0724, 0722
Zenith	0856

SETUP CODES FOR TELEVISION

AOC	0030,	Mitsubishi 019	0093, 0150, 0178, 0019
Admiral	0093,	Motorola 03	0093
Aiko	0092	Multitech	0180
Akai	0030	NAD	0156, 0178, 0166
Alaron	0179	NEC	0030, 0019, 0056
America Action 0180		NTC	0092
Ampro	0751	Nikko	0030, 0178, 0092
Anam	0180	Onwa	0180
Audiovox 0451, 0180, 0092, 0623		Optimus	0154, 0250, 0166
Baysonic	0180	Optonica	0093, 0165
Belcor	0019	Orion	0236, 0463, 0179
Bell & Howell 0154, 0016		Panasonic	0051, 0250
Bradford	0180	Penney	0047, 0156, 0051, 0060,
Brockwood	0019		0030, 0178, 0021, 0019,
Broksonic	0236,	0463	0056, 0039, 1347
CXC	0180	Philco	0054, 0463, 0030, 0145,
Candle	0030,	0056	0019
Carnivale	0030	Philips	0054
Carver	0054	Pilot	0030, 0019, 0039
Celebrity	0000	Pioneer	0166
Cineral	0451,	Portland 009, 0019, 0039, 0092
Citizen 0060, 0030, 0056, 0039,		Prism	0051
	0092	Proscan	0047
Concerto	0056	Proton	0178, 0466
Contec	0180	Pulsar	0017, 0019
Craig	0180	Quasar	0051, 0250, 0165
Crosley	0054	RCA	0047, 0051, 0093, 0019,
Crown	0180,	0039	0090, 1047, 1147, 1247, 134
Curtis Mathes 0047, 0054, 0154, 0051,			7
	0451, 0093, 0060, 0030,	RadioShack	0047, 0154, 0165, 0180,
	0145, 0056, 0016, 0039,		0030, 0178, 0019, 0056, 003
	0166, 0466, 1147, 1347		9
Daewoo 0451, 0019, 0039, 0092,		Realistic	0154, 0165, 0180, 0030,
	0623, 0624		0178, 0019, 0056, 0039
Daytron	0019	Runco	0017, 0030, 0603
Denon	0145	SSS	0180, 0019
Dumont	0017,	Sambo19	0030, 0039
Dwin	0720, 0774	Samsung	0060, 0030, 0178, 0019,
Electroband	0000		0056
Emerson	0154, 0236, 0463, 0180,	Samsux	0039
	0282, 0178, 0019, 0179,	Sansel	0451
	0039, 0623, 0624	Sansui	0463
Envision	0030	Sanyo	0154
Fisher	0154	Scimitsu	0019
Fujitsu	0179	Scotch	0178
Funai	0180, 0179, 0171	Scott	0236, 0180, 0178, 0019,
Futuretech	0180		0179
GEO	0047, 0051, 0451, 0093,	Sears	0047, 0054, 0154, 0156,
	0282, 0178, 0021, 1147,		0178, 0179, 0056, 0171
	1347	Semivox	0180
Gibraltar	0017, 0030, 0019	Semp	0156
Gold Star	0030, 0178, 0019, 0056	Sharp	0093, 0165, 0039
Gradiente	0053,	Shoosa	0019
Grunpy	0180, 0179	Signature	0016
Hallmark	0178	Sony	0000
Harley Davidson	0179	Soundesign	0180, 0178, 0179
Harman/Kardon	0054	Squareview	0171
Harvard	0180	Starlite	0180
Hilachl	0145, 0056, 0016	Supreme	0000
Infinity	0054	Sylvania	0054, 0030
Inteq	0017	Symphonic	0171
JBL	0054	TMK	0178, 0056
JCB	0000	Tandy	0093
JVC	0053	Technics	0051, 0250
KEC	0180	Technol Ace	0179
KTV	0180, 0030, 0039	Techwood	0051, 0056
Kenwood	0030, 0019	Teknika	0054, 0180, 0150, 0060,
LG0	056		0019, 0179, 0056, 0016,
LXI	0047, 0054, 0154, 0156,		0039, 0092
	0178	Telefunken	0056
Logik	0016	Toshiba	0154, 0156, 0060
Luxman	0056	Totevision	0039
MGA	0150, 0030, 0178, 0019	Vector Research	0030
MTC	0060, 0030, 0019, 0056	Victor	0053
Magnavox	0054, 0030, 0179	Vidikron	0054
Majestic	0016	Vidtech	0178, 0019
Marantz	0054, 0030	Wards	0054, 0165, 0030, 0178,
Matsushita	0250		0021, 0019, 0179, 0056,
Megatron	0178, 0145		0016
Memorex 0154, 0250, 0463, 0150,		While Westinghouse	0463, 0623, 0624
	0178, 0056, 0016	Yamaha	0030, 0019
Midland	0047, 0017, 0051, 0039	Zenith	0017, 0463, 0016, 0092,
Minutz	0021		0624

SETUP CODES FOR VCR

Admiral	0048,0209	Mitsubishi	0048,0067,0043
Adventura	0000	Motorola	0035,0048
Aiko	0278	Multitech	0000,0072
Aiwa	0037,	NEC 0000	0104,0067,0041,0038
Akai	0041	Nikko	0037
America Action 0278		Noblex	0240
American High 0035		Olympus	0035
Asha	0240	Optimus	0037,0048,0104,0162,
Audiovox	0037		0454,1062,1162,1262
Beaumark	0240	Orion	0184,0209,0002
Bell & Howell 0104		Panasonic	0035,0162,0225,0454,
Broksonic 0184,0121,0209,0002			1062,1162,1262
CCE	0072,	Penney0278	0035,0037,0240,0042,
Calix	0037		0038
Canon	0035	Pentax	0042
Carver	0081	Philco	0035,0209
Cineral	0278	Philips	0035,
Citizen	0037,	Pilot 0278	0037
Colt	0072	Pioneer	0067
Craig	0037,0047,0240,0072,	Profitronic	0240
	0271	Proscan	0060
Curtis Mathes 0060,0035,0041,0162		Protec	0072
Cybernex	0240	Pulsar	0039
Daewoo	0045,0278	Quarte	0046
Denon	0042	Quartz	0046
Dynatech	0000	Quasar	0035,0162,0454,1162
Electrohome	0037	RCA	0060,0035,0048,0240,
Electrophonic	0037		0042,0149
Emerex	0032	RadioShack	0000
Emerson 0037,0184,0000,0121,		Radix	0037
	0043,0209,0002,0278	Randex	0037
Fisher	0047,	Realist004	0035,0037,0048,0047,
Fuji	0035,	0033	0000,0104,0046
Funai	0000	Runco	0039
GE 0060,0035,0048,0240		STS	0042
Garrard	0000	Samsung	0240,0045
GoVideo	0526	Sanky	0048,
GoldStar	0037,	Sargio8	0000,0067,0209,0041,
Gradiente	0000		0271
HI-Q	0047	Sanyo	0047,0240,0104,0046
Harley Davidson	0000	Scott	0184,0045,0121,0043
Harman/Kardon	0081,0038	Sears	0035,0037,0047,0000,
Harwood	0072		0042,0104,0046
Headquarter	0046	Semp	0045
Hitachi	0000,0042,0041	Sharp	0048
Hughes Network Systems	0042	Shintom	0072
JVC	0067,0041	Shogun	0240
Jensen	0041	Singer	0072
KEC	0037,0278	Sony	0035,0032,0000,0033
KLH	0072	Sylvania	0035,0081,0000,0043
Kenwood	0067,0041,0038	Symphonic	0000
Kodak	0035,0037	TMK	0240
LXI	0037	Tatung	0041
Lloyd's	0000	Teac	0000,0041
Logik	0072	Technics	0035,0162
MEI	0035	Teknika	0035,0037,0000
MGA	0240,0043	Thomas	0000
MGN Technology	0240	Toshiba	0045,0043
MTC	0240,	Totevisio000	0037,0240
Magnasonic	0278	Unitech	0240
Magnavox	0035,0039,0081,0000,	Vector	0045
	0149	Vector Research	0038
Magnin	0240	Video Concepts	0045
Marantz	0035,0081	Videosonic	0240
Marta	0037	Wards	0060,0035,0048,0047,
Matsushita	0035,0162,0454,		0081,0240,0000,0042,
Memorex	0035,0037,0048,0039,		0072,0149
	0047,0240,0000,0104,	White Westinghouse	0209,0278
	0209,0046,0454,1162,	XR-1000 0035,0000,0072
	1262	Yamaha	0038
Minolta	0042	Zenith	0039,0000,0209,0033
SETUP CODES FOR DIGITAL VIDEO DISC
Denon	0490	ThetaDigital	0571
GE	0522	Toshiba	0503
Harman/Kardon	0582	Yamaha	0490,0545
JVC	0558	Zenith	0503,
Kenwood	0534
Magnavox	0503
Marantz	0521
Onkyo	0503
Optimus	0571
Panasonic	0490
Philips	0503,	0539
Pioneer	0525,0571
Proscan	0522
RCA	0522
Samsung	0573
Sony	0533
Technics	0490

Questions? Comments? NEED ACCESSORIES?

www.VINC.com

Visit today for the latest support & troubleshooting information, and a full line of accessories for your VIZIO Plasma TV including...

Exterior view of a gray electronic device with control buttons and indicator lights (no visible text or symbols)

BRAVO D2

Give your High Definition home entertainment system the spark of life with this DVI enabled, HD DVD player!

Exterior view of a silver computer drive (no visible text or labels)

BRAVO HD1

Experience the enhanced clarity and detail that high definition digital television offers with this state-of-the-art ATSC HDTV Terrestrial Receiver!

Exterior view of a silver remote control with black buttons and a small triangular icon (no text or symbols visible)

Universal Remote Control

This remote control powerhouse features large back-lit controls for up to 8 devices including TV's, Cable or Satellite set top boxes, & DVD players.

PLUS...

LCD TV Wall Mounts, DVI HDTV Cables, Extended Warranties, and more!

Or Call Toll Free (877) 668-VINC

Where Vision Meets Value.

VINC
