USER MANUAL VTD-M30FR3NP Vitek

Exterior view of multiple VITEK security cameras with visible lens and camera modules (no text or symbols)

FEATURES:

• Sony® 1/2.8" Progressive Scan CMOS Sensor
• Up to 30fps live view @ 2048 x 1536 (3.15 MegaPixel)
• MegaPixel IR Corrected Fixed, Varifocal, and Motorized Zoom Lens Options
• Optional Infrared LEDs enable viewing in total darkness up to 150 feet
• XD-DNR (2D-DNR + 3D-DNR) Noise Reduction
  • True Day/Night by ICR - Dual Filter Switch
• Triple Streaming (H.264/MJPEG) offering Extensive Integration Possibilities
  • Real-time Lens Distortion Correction (LDC) for an optically correct picture
  • Compliance with the latest Onvif Profile S
• On-board network security with IP address filtering
• Advanced OSD Features including Image Stabilization & Corridor Mode
• MicroSD memory card slot for Local recording supporting up to 128GB MicroSDXC cards
• Low Voltage & PoE (Power over Ethernet) Operation

Table of Contents

1. OVERVIEW ......2

1.1. System Requirements.... 2
1.2. Accessing the IP camera 2

2. LIVE....3

3. Quick Setup....4

3.1. Information......4
3.2. Users 4
3.3. Network 6
3.4. Date & Time 6

4. Video....7

4.1. Image-Basic 8
4.2. Image-WDR 11
4.3. Image-BLC 12
4.4. Digital Zoom.... 14

5. Events ......15

5.1. Motion Detection.... 15
5.2. Trigger-Alarm In (future use).... 16
5.3. Action-Alarm Out (future use) 18
5.4. Tamper 22

6. System ......23

6.1. Security-Users.... 23
6.2. Security-HTTPS 24
6.3. Security-IP Filter 25
6.4. Security-Onvif 26
6.5. Day & Time...... 26
6.6. Network-TCP/IP 27
6.7. Network-RTP 30

7. Audio (VTC-IR403 Only) 34

7.1. Audio Stream.... 34
7.2. Audio Input 35
7.3. Audio Output 35

8. Troubleshooting....35

8.1. Upgrading the Firmware 35

1. OVERVIEW

This camera is a Full-HD network camera with a built-in web based

This camera supports dual compression formats and triple streaming simultaneously. The two standard compression formats include, H.264 and MJPEG. The triple streams can be configured to a variety of resolutions, bit rates and frame rates.

1.1. System Requirements

1. Operating System

• Windows Vista (32 bit) Ultimate, Business Edition
  • Windows 7, 8 (32/64 bit) Ultimate, Professional Edition

2. Processor

• Intel Core 2 Duo 2.4 GHz or higher (for using 1920*1080 30 fps)
• Intel Core i7 2.8 GHz or higher (for using 2048*1536 30fps)

3. Memory

- 2 GB or more

4. Resolution

• 1280X1024 pixels or higher (32 bit color)

5. Web Browser

• Microsoft Internet Explorer Ver. 9.0, 10.0 or Higher
• Safari Ver. 4.0 (Plug-in free viewer only)
• Google Chrome Ver. 4.0 (Plug-in free viewer only)

1.2. Accessing the IP camera

1. Open Web browser

2. Type IP address

• Enter the camera's IP address in the Internet Explorer® address bar.
  • The default IP address is 192.168.0.10
• The default User ID and Password is admin / admin

User name Password Login

2. LIVE

VITEK 3MP Network Camera Stream 14 1 Wave Ratio 16.8 Event Action 12 1 1 1 PTZ Control 17 Mode: Manual Play AT 200% Focus:

1. Enter live View mode
2. Enter Playback (from SD card)
3. Enter Setup Mode
4. Logout of camera
5. Pause live view
6. Return to live view after pausing
7. Save Snapshot to computer
8. Zoom on live view
9. Full Screen
10. Turn on/off speaker (Camera Dependent)

11. Turn on/off microphone

12. Record to Micro SD card

13. Information (system info)
14. Stream: choose which stream is live view 1, 2, or 3
15. Screen Ratio: choose either 16:9 or 4:3
16. Event Action: Manually start Event according to Event settings
17. PTZ Control: Control PTZ cameras or cameras with Motorized lens

3. Quick Setup

3.1. Information

Information

Model	VTD-MV30VR
MAC Address	AC DE:48.04.02.4F
IP Address	192.168.1.151
Zeroconf IP Address	169.254.2.125
Firmware Version	2.7.31

The Information screen shows the camera basic information such as Model name, MAC address, IP address, Zeroconf IP address and Firmware version.

3.2. Users

Users

Name	Group	Authority
admin	administrator	live, setup, system

User List: User accounts can be added, modified or removed. The authority level depends upon user group and shows the permission status to access menus. The default user name / password are admin.

Name: Shows the name which is registered to access the camera.

Group: Shows the assigned permission given to users.

Authority: Shows what can be accessed by user.

- Click the Add, Edit, or Delete button for managing user account.

Users-Add

Add User Name Password Confirm Password Group guest OK Cancel

To add a new user:

1. Click the Add tab, and then a new pop-up window appears.
2. Add user Name and Password
3. Select Group for this user
4. Click the OK button to save the settings.

Users-Edit page

Edit User Name admin Password Confirm Password Group administrator OK Cancel

NOTE

The user name can't be modified.

To delete a user:

1. Select the User Name in the User List you want to remove.
2. Click the Delete tab. A dialog box appears with confirmation message.
3. Click the OK button. The user profile is removed from the User List profile.

NOTE

The admin user name can not be modified.

3.3. Network

Network

IP Address Obtain IP address via DHCP server Use the following IP address IP address 192 . 168 . 0 . 10 Subnet mask 255 . 255 . 255 . 0 Gateway 192 . 168 . 0 . 1 Sams Cancel

IP Address:

Obtain IP address via DHCP: Select this if you want to assign the IP address from DHCP server/router automatically, and then the remaining settings are read-only text.

Use the following IP address: Select this if you want to assign the IP address manually.

IP address: The address of the camera connected to the network. Specify a unique IP address for this network camera.

Subnet mask: The address that determines the IP network that the camera is connected to (relative to its address). Specify the mask for the subnet the network camera is located on.

Gateway: The Gateway that accesses other networks. Specify the IP address of the default router (Gateway) used for connecting devices attached to different networks and network segments.

3.4. Date & Time

Current Time: Shows the current date and time.

New Time: Select one.

Synchronize with computer time: Sets the time according to the clock on your computer. Set manually: Using this option allows you to manually enter the date and time.

Synchronize with NTP Server: This option will obtain the correct time from an NTP server every 1, 2, 3,6,12, or 24 hours. The NTP server's IP address or host name is specified in the time server.

Time Zone: Select the time zone where your camera is located.

Click the "Automatically adjust for daylight saving changes" checkbox to automatically update the time changes caused by daylight saving.

Time zone: The default setting is GMT.

Date & Time Display: Select one of the Date and Time format.

Date Format: The default setting is YYYY-MM-DD.

Time Format: The default setting is 24 hours.

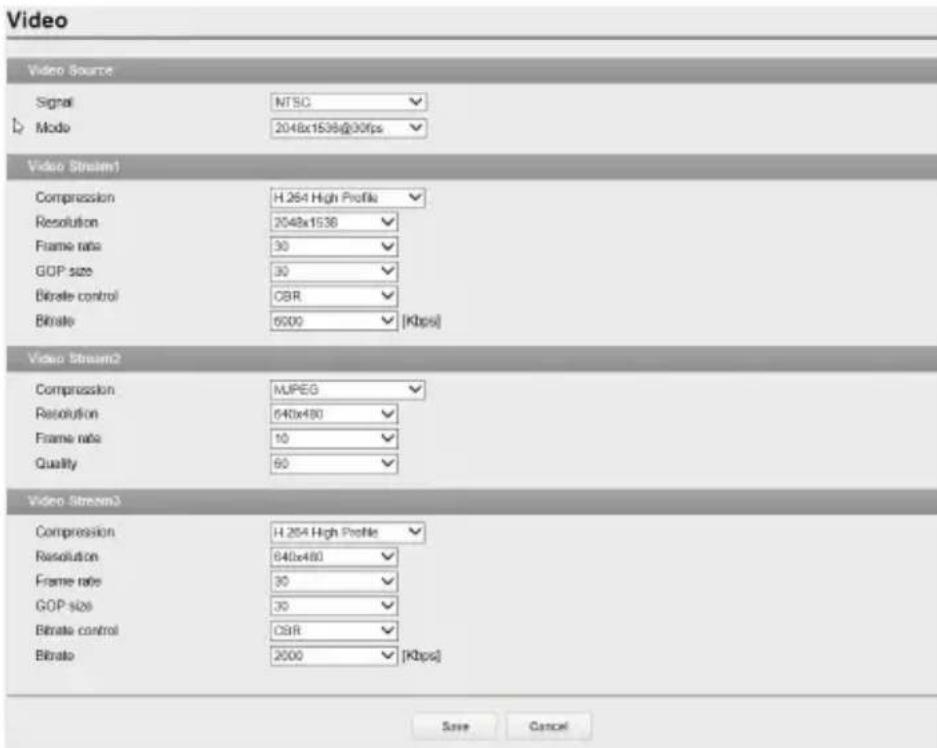

4. Video

Video Video Source Signal NTSC Mode 2048x1536@30fps Video Stream1 Compression H.264 High Profile Resolution 2048x1536 Frame rate 30 GOP size 30 Bitrate control OSR Bitrate 6000 [Kbps] Video Stream2 Compression MUPEG Resolution 640x480 Frame rate 10 Quality 60 Video Stream3 Compression H.264 High Profile Resolution 640x480 Frame rate 30 GOP size 30 Bitrate control OSR Bitrate 2000 [Kbps] Save Cancel

Video Source: Specify the system performance. Depending on video source mode, each stream configuration will be affected and the streaming will be adjusted under system performance automatically.

Mode: The default mode is 1920x1080@30fps (NTSC) or 25fps (PAL) at 2MP mode, and 2048x1536@30fps (NTSC) or 25fps (PAL) at 3MP mode.

Video Stream1: Configures the H.264 setting value for stream1.

Compression: Selects the stream profile that is to be used for transmissions.

Resolution: Specified as the number of pixel-columns (width) by the number of pixel-rows (height). The Resolution can be adjusted in the range from 320x240 to 2048x1536.

Frame rate: Indicates the number of fps (frame per second) available for the video stream configuration.

GOP size: Describes the composition of the video stream. Please consult with your network administrator before changing.

Bitrate control: The bit rate can be set as VBR (Variable Bit Rate) or CBR (Constant Bit Rate).

Bitrate: Indicates the quality of the video stream (rendered in kilobits per second). The higher value means higher video quality and higher bandwidth required.

Video Stream2: Configures the MJPEG or H.264 setting value for stream2.

Compression: The default setting is MJPEG.

Resolution: Specified as the number of pixel-columns (width) by the number of pixel-rows (height). The Resolution can be adjusted in the range from 320x240 to 640x480.

Video Stream3: Configures the H.264 setting value for stream3.

Compression: Selects the stream profile that is to be used for transmissions.

Resolution: Specified as the number of pixel-columns (width) by the number of pixel-rows (height). The Resolution can be adjusted in the range from 320x240 to 640x480.

4.1. Image-Basic

Image Viewer Basic OSD AE AWB AF Day/Night WDR ELC DNR Corridor LDC Appearance Control Brightness 9 [Default] ✓ Contrast 9 [Default] ✓ Saturation 5 [Default] ✓ Hue 4 [Default] ✓ Sharpness 5 [Default] ✓ Enable flip image Enable mirror image Save Cancel

Appearance Control: The image appearance allows you to adjust the camera setting parameters and change the camera orientation. All parameters are recommended to be modified for best image quality suitable for installation place.

Brightness: Controls the brightness of the scene.

Contrast: Controls the contrast of the scene.

Saturation: Controls the saturation in the scene.

Hue: Controls the hue in the scene.

Sharpness: Controls the sharpness in the scene.

Enable flip image: Rotate the camera image 180 degrees vertically.

Enable mirror image: Rotate the camera image 180 degrees horizontally.

Image-OSD

Basic OSD AE AWB AF Day/Night WDR BLC DNR Corridor LDC OSD Control Enable text OSD Text CAM1 Enable date&time OSD Enable zoom&locus OSD Mode On push Save Cancel

Enable text OSD: Enter camera name and check box to display

Enable date & time OSD: Check box to display Date & Time

Enable zoom & focus OSD

Mode: On Push displays zoom ratio while zooming, Always will display the zoom ratio all the time

Image-AE

Basic OSD AE AWB AF Dry/Night WDR BLC DNR Corridor LOC Exposure Control Mode Automatic Shutter 1/1000 [Default] [sec] Min. Shutter 1/10000 [Default] [sec] Max. Shutter 1/30 [Default] [sec] Gain 10.0 [Default] [dB] Min. Gain 0.6 [Default] [dB] Max. Gain 40.0 [Default] [dB] Auto Iris On Auto Flicker-less Off Save Cancel

Exposure Control: Configure the exposure control to suit the image quality requirements in relation to the lighting considerations. This camera features automatic and manual exposure control mode.

Mode: The automatic mode supports the automatic exposure function for automatically adjusting the sensor's gain, shutter time and diaphragm so that the images achieve the appropriate brightness. The manual mode supports the manual exposure control function for manually adjusting the gain and shutter time.

Shutter: When Mode is set to manual you can fix the shutter speed to a set value

Gain: Gain is the amount of amplification applied to the image. A high gain may provide a better image in

low light situations but will increase the amount of image noise. The gain can be adjusted in the range 1.2\~54 dB

Auto Iris: When auto iris lens is used set to ON

Auto Flicker-less: when turned on it helps eliminate flicker do to florescent lighting

Image-AWB

Basic OSD AE AWD AF Day/Night WDR BLC DNR Corridor LDC White Balance Control Mode ATW - Indoor Cb Gain 20 Cr Gain 20 Save Cancel

White Balance Control: White balance control is used to make colors in the image appear the same regardless of the color temperature of the light source

Mode: Configure the options for White Balance. The default setting is ATW-Indoor.

Image-AF:

Basic OSO AF AWB AF Dry/Night WDR BLC DNR Corridor LDC Focus Control Mode Manual Speed 3 Lens Calibration Start Enable Day & Night sync focus Enable lens locking Save Cancel

Mode: Select between Manual and Automatic, in manual mode the lens will only focus when the lens has been moved. In auto mode the lens is always focusing

Speed: the speed in which the lens will focus

Lens Calibration: checks the positions for zoom and focus at both end positions and saves them for references.

Enable Day & Night sync focus: check this box to refocus lens after switching from day to night and from night to day

Enable lens locking: Checking this will lock the lens and zoom feature will not work

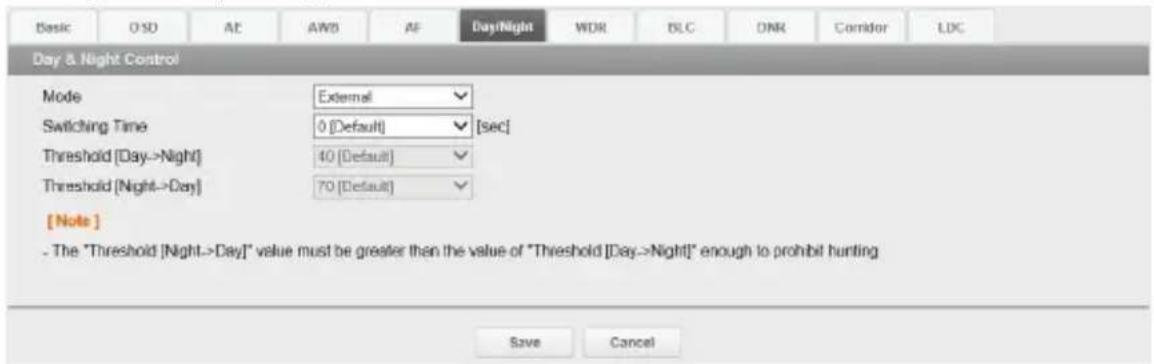

Image-Day/Night

Basic OSD AF AWB AF Day/Night WDR BLC ONR Corridor LDC Day & Night Control Mode External ✓ Switching Time 0 [Default] ✓ [sec] Threshold [Day->Night] 40 [Default] ✓ Threshold [Night->Day] 70 [Default] ✓ [ Note ] - The "Threshold [Night->Day]" value must be greater than the value of "Threshold [Day->Night]" enough to prohibit hunting Save Cancel

Mode: Configure one of Automatic, Day, Night or External mode to transit the IR cut filter. The default setting is External for IR cameras and Automatic for non IR cameras.

Switching Time: Configure the switching time(1\~60sec) of the IR cut filter transition delay

4.2. Image-WDR

Basic OSO AE AWB AF Day/Right WDR BLC DNR Corridor LDC Digital WDR Control Mode Off Level Level3 Delog Control Mode Off Save Cancel

Digital WDR Control

In high-contrast scenes such as against a bright backlight, this function reduces overexposure and underexposure

Mode: On/Off

Level: 1\~4 Caution, to high of level my cause ghosting

Defog Control

Mode: ON, OFF and Automatic.

4.3. Image-BLC

Basic OSD AE AWG AF Day/Night WDR BLC DNR Corridor LDC BLC Control Mode Off Level Level3 HLC Control Mode On Save Cancel

BLC Control

Mode: On/Off

Level: 1\~4

HLC Control

Mode: On/Off, Blacks out extreme bright light form the scene

Image-DNR

Basic OSD AE AWB AF Day/Night WDR BLC DNR Corridor IDC 2D-NR Control Mode Cn Level Level2 3D-NR Control Mode Cn Level Level2 Save Cancel

Level: 1\~4, the higher the level the less noise but image may not look as sharp (hazy)

Image-Corridor

Basic OSD AE AWB AF Day/Night WDR BLC DWR Corridor LDC Corridor Control Enable corridor Rotation 90 degree [ Note ] - The corridor function is valid on "1920x1080(0/30(25)fps" video mode. - The corridor function is valid on "H.264" video compression. Save Cancel

Corridor Control: The corridor format allows you to get a vertically oriented video stream from the camera. The video is adapted perfectly to the monitored area, maximizing image quality while eliminating bandwidth and storage waste. The Corridor Format is even more useful for modern HDTV network cameras that deliver a 16:9 aspect ratio since the resulting image will have a 9:16 aspect ratio – just the right thing for narrow corridors, hallways or aisles.

To set the Corridor format

1. Check the Enable corridor check box.
2. Rotate the camera position compare to normal positioning.
3. Select the Rotation degrees.

LDC LDC helps straiten lens warping in wide angle mode

Mode: On/Off

Level: 1\~92

Exterior view of a modern office building with parked cars and greenery (no signage or text visible)

LDC OFF

Exterior view of a modern office building with parked cars and greenery (no visible text or signage)

LDC ON

Privacy Mask

Privacy Mask

Viewer New(1) New Privacy Mask ✓ Enable privacy mask Color Black ✓ ID Name Delete 1 New % 2 New(1) % Save Cancel

Privacy Mask:

To set the privacy mask

1. Check the Enable privacy mask check box.
2. Right click mouse button on the screen and then specify the area.
3. Enter the name and then click Save.
4. If you want to delete a masked area in the list, click the □ icon

4.4. Digital Zoom

Digital Zoom Enable digital zoom Level X1.0 X1.2 X1.4 X1.8 X1.8 X2.0 X3.0 X4.0 X5.0 X6.0 X7.0 X8.0 X9.0 X10.0 X11.0 X12.0 X13.0 X14.0 X15.0 X16.0 Save Cancel

To permanently have the Digital Zoom on, check "Enable digital zoom" then choose from the dropdown box the zoom ratio and click Save

5. Events

5.1. Motion Detection

Motion Detection Viewer Motion Detection Enable motion detection Sensitivity 60 [Default] ID Name Type Dwell Delete 1 New Include 3 X 2 New(1) Include 3 X Save Cancel

Motion Detection: Motion detection is used to generate an alarm whenever movement occurs (or stops) in the viewer. A total of 8 Motion and/or Mask windows can be created and configured.

Sensitivity: Configure the sensitivity for the motion detection.

Once motion detection windows are configured, this camera can be configured to perform actions when motion is detected.

Possible actions include uploading images, alarm out and E-mailing.

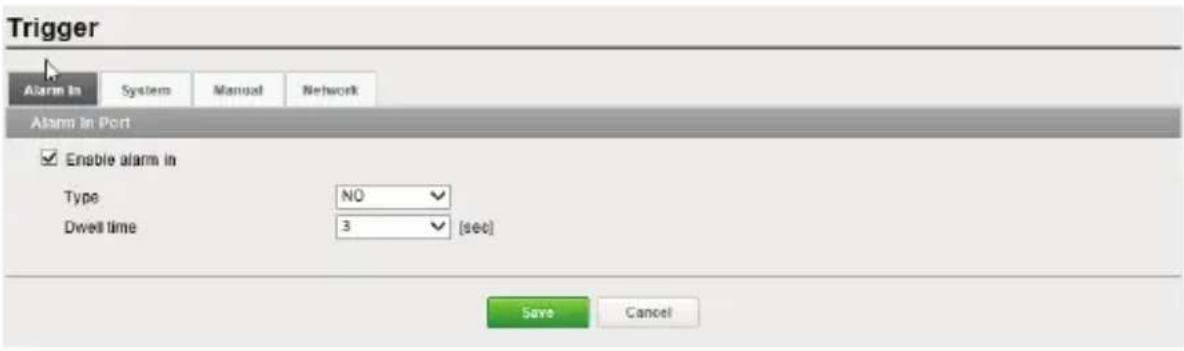

5.2. Trigger-Alarm In (future use)

Trigger Alarm In System Manual Network Alarm In Port Enable alarm in Type NO Dwell time 3 [sec] Save Cancel

Type: The default setting is NO.

• NO: Normally Open
- NC: Normally Close

Dwell time: The default setting is 3 seconds.

NOTE

Dwell Time is the duration of the input time before executing an event.

Trigger-System

Trigger Alarm in System Manual Network System Booting Enable system booting trigger Dwell time 3 [sec] Save Cancel

System Booting: This is used to trigger an event every time the Network Camera is started. Dwell time: The default setting is 3 seconds.

Trigger-Manual

Trigger Alarm In System Manual Network Manual Trigger Enable manual trigger 1 Dwell time 3 ✓ [sec] Enable manual trigger 2 Dwell time 3 ✓ [sec] Enable manual trigger 3 Dwell time 3 ✓ [sec] Enable manual trigger 4 Dwell time 3 ✓ [sec] Save Cancel

Manual Trigger: The Manual Trigger features an alarm out signaling, JPEG file transfer to FTP server, and sends email to SMTP server whenever operator clicks Manual Trigger button in the Live View window.

NOTE

Dwell Time is the duration of the input time before executing an event.

Trigger-Network

Trigger Alarm In System Manual Network Network Loss Enable network loss trigger Dwell time 3 (sec) Save Reset

Network Loss: This is used to trigger an event every time the network connection fails.

Click the checkbox to activate the Network Loss event.

Dwell time: The default setting is 3 seconds.

5.3. Action-Alarm Out (future use)

Action Alarm Out E-Mail FTP Record Alarm Out Port Setting Enable alarm out Type NO Save Cancel

Alarm Out Port Setting: This page allows you to configure the alarm output supported by the camera. Port can be given as Normally Open or Normally Close state, and its Normal state can be configured.

Type: The default setting is NO.

Action-E-Mail

E-Mail(SMTP): Use the Simple Mail Transfer Protocol (SMTP) server to send an email notification when an event server is activated. The camera can be configured to send event and email messages via SMTP.

Sender: Click in the Sender box and enter the Email address as the sender.

Interval: Enter the Email sending time interval after event occurred.

Aggregate events: Enter the number of events for Email sending. If the event numbers are reached the setting value, Email sending is available.

Use Email server: Click the Use Email server checkbox and provide the following information for Email server.

Mail Server: Enter the host names or IP addresses for your mail servers in the fields provided.

NOTE

If a host name is used, a valid DNS server must be specified in the Network-Basic settings.

Port: Enter the SMTP server port number for the SMTP Server. The Port number can be adjusted in the range 1-65535. The default setting is 25.

NOTES

- If your mail server requires authentication, click the Use (SMTP) authentication checkbox for use authentication to log in to this server.

- Please consult with your network administrator, if you want to change the port number.

Use (SMTP) authentication: If your mail server requires authentication, click the Use (SMTP) authentication checkbox for use authentication to log in to this server.

User name: Enter the User name as provided by your network administrator.

Password: Enter the Password as provided by your network administrator.

Login method: Select one for SMTP authentication method allowed.

NOTES

• If a PLAIN or LOGIN mechanism is negotiated, the camera sends user name and password to the SMTP server.
• The LOGIN mechanism is supported by Microsoft, as well as by some other clients. Most other clients support the PLAIN authentication mechanism.
• Since the vast majority of Email clients support only PLAIN or LOGIN, mail server administrators will probably want to consider using STARTTLS to provide an encryption "tunnel" between the client and server, to protect the user name and password.

Receiver List: Enter the recipient's email address as the receivers.

Receiver1\~8: Enter the recipient's email address as the receiver to test.

E-Mail(SMTP) Test: Enter the recipient's email address and click the Test button to test that the mail servers are functioning and that the email address is valid. When the setup is complete, the connection can be tested by clicking the Test button.

Receiver: Enter the recipient's email address as the receiver to test.

Action-FTP

Action

Alarm Out E-Mail FTP Record FTP Setting Enable FTP Server Passive mode Port 21 Remote directory User name Anonymous login Password JPEG Setting Pre-event Time: 5 [0...30] sec FPS: 1 [1...2] fps Post-event Time: 5 [0...30] sec FPS: 1 [1...2] fps Prefix file name elevated_ Additional suffix None Date&Time Sequence number Save Cancel

FTP Setting: FTP notification will save a file on the specified FTP server. Click the Enable FTP checkbox and provide the following information for FTP notification.

Server: Enter the IP address or host name of the target FTP server.

- Passive Mode: Under normal circumstances the network camera simply requests the target FTP server to open the data connection. Checking this box issues a PASV command to the FTP server and establishes a passive FTP connection; whereby the network camera actively initiates both the FTP control and data connections to the target server. This is normally desirable if there is a firewall between the network camera and the target FTP server.

Port: Enter the port number used by the FTP server. The Port number can be adjusted in the range 1-65535. The default setting is 21.

Remote directory: Specify the path to the directory where the uploaded images will be stored. If this directory does not already exist on the FTP server, there will be an error message when uploading.

User name: Enter the User name as provided by your network administrator.

- Anonymous login: Click the Anonymous login checkbox to permit anyone to access FTP server.

Password: Enter the Password as provided by your network administrator.

JPEG Setting: Configure the JPEG to send the FTP server.

Pre-event: Defines how many JPEG file will be made during 0-3 seconds before the event is generated.

Post-event: Defines how many JPEG file will be made during 0-3 seconds after the event is generated.

Prefix file name: Click in the Prefix file name box and type a name for JPEG image file (1 to 32 alphanumeric characters).

Additional suffix: Provide additional information for JPEG image file.

Action-Video

Action Alarms Out E-Mail FTP Video Project Record Video Boost Setting Enable video1 boost Normal State Event State Frame rate 30 30 Bitrate 4000 4000 Enable video2 boost Normal State Event State Quality 60 60 Enable video3 boost Normal State Event State Frame rate 30 30 Bitrate 3000 3000 [ Note ] -The boost of bitrate come into action only if VBR control mode Save Cancel

Video Boost Setting: When this camera detects an event according to event rule setting,

camera will boost the streaming performance dependent on each video stream setting.

Rule

Rule Event Rule List Name Trigger Action Add Edit Delete

This page shows current configuration status when event is activated.

The common event actions will upload images to a specified destination or send an email or active an output port

Event Rule List: An event type is a set of parameters describing how the camera will perform certain actions. Event type may be set up as Triggered according to requirements.

Name: Shows the descriptive name provided by the user.

Trigger: Shows the source of event type as Alarm-In-1, Alarm-In-2, and VMD configured by the user.

Action: Shows the destination of event output as SMTP server, FTP server, Alarm-out port, Audio alert and SD record.

NOTE

To add new event, click the Add button. This button opens new dialog window, which are used to make all the necessary settings for the new event map.

Add: To add a new event map list, select it and click the Add button.

Edit: To modify an existing event map list, select it and click the Modify button.

Delete: To delete an event map list, select it and click the Delete button.

Rule-Add

Event Rule-Add page provides how to configure the event action if there is event triggering such as Alarm-In and Manual trigger.

General: Enter the user favorite event name.

Name: Click in the Name box and type a user favorite event name (1 to 31 alphanumeric characters).

Trigger: Shows the Event source type to be configured.

Type: Selects the Event source type.

Action: The Event Out provides that the camera will perform certain actions.

Active output: Click the Active output port checkbox to enable the Alarm out port.

E-mail: Click the Email checkbox to enable the emailing below each email address.

- To email address: Click the each email addresses checkbox.

FTP: Click the FTP checkbox to enable the image uploading to FTP server using JPEG image.

Video Boost: Click the Video Boost checkbox to enable the video boost streaming.

5.4. Tamper

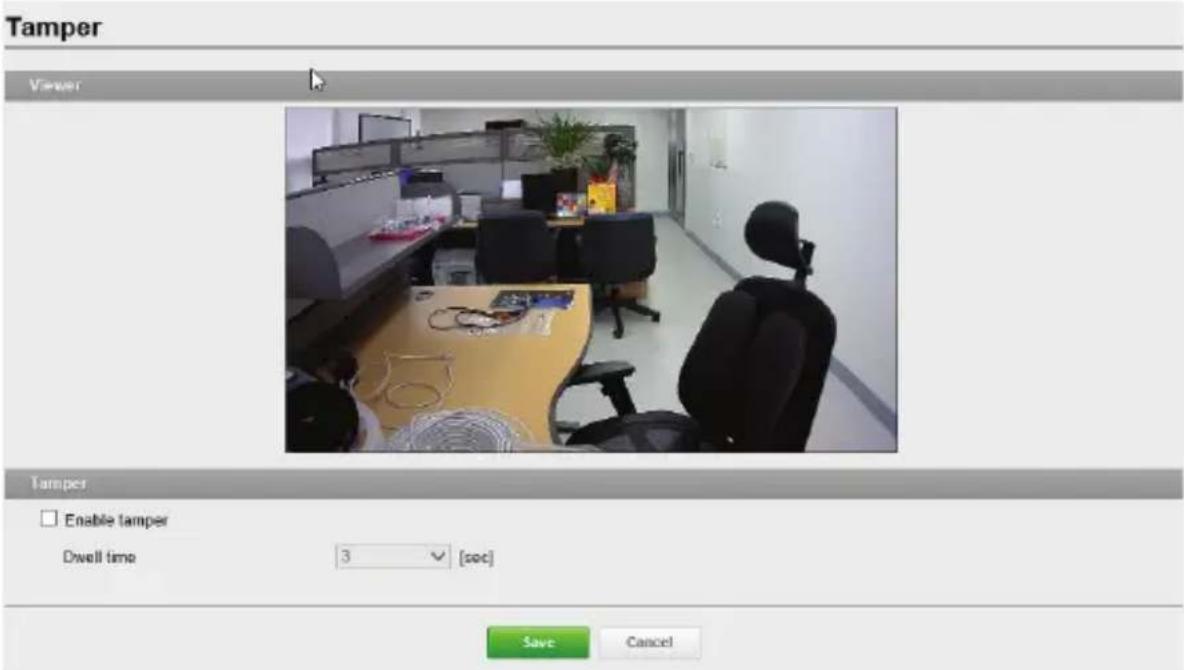

Tamper Viewer Tamper Enable tamper Dwell time 3 [sec] Save Cancel

Tamper: Camera Tampering can generate an alarm whenever the camera is repositioned or severely defocused. To send an alarm, for example an email, an event map must be set up.

Dwell time: The default setting is 3 seconds.

NOTE

The Dwell time that must elapse before an alarm is generated. This can help prevent false alarms for known conditions that affect the image.

To configure the camera to send an alarm when tampering occurs:

1. Go to Add Rule > Add.

2. Select Event In Type.

3. Set Event Out for notification of an image changing if the lens is repositioned or severely out of focus.

6. System

6.1. Security-Users

Security Users HTTPS IP Filter ORVIF User List Name Group Authority admin administrator live, setup, system Add Edit Delete

Users List: User accounts can be added or modified or removed. The authority depends upon user group automatically and shows the permission status to access the menus. The default user name / password are admin.

Name: Shows the name which registered to access the camera.

Group: Shows the assigned permission given to users.

Authority: Shows the permission status to access the menus.

- Click the Add, Edit, or Delete button for managing user account.

Users-Add

Add User Name Password Confirm Password Group guest OK Cancel

To add a new user:

1. Click the Add tab, and then new pop-up window appears.
2. Click in the User name box and type a new user name (1 to 14 alphanumeric characters). User names are not case sensitive.
3. Click in the Password box and type a password (1 to 8 alphanumeric characters).
4. Passwords are case sensitive.
5. Click in the Confirm password box and retype a password.
6. Click in the User group box and select one of the groups you wish to assign to the user.
7. Click the OK button to save the settings and add a new user.

Users-Edit

Edit User Name admin Password Confirm Password Group administrator OK Cancel

To edit a user:

1. Select one of the User Name in the User List you want to modify.
2. Click the Edit tab, and then new pop-up window appears.
3. Click in the Password box and type a password (1 to 8 alphanumeric characters).
4. Passwords are case sensitive.
5. Click in the Confirm password box and retype a password.
6. Click in the User group box and select one of the groups you wish to assign to the user.
7. Click the OK button to save the settings and modify a user.

NOTE

The user name can't be modified.

To delete a user:

1. Select one of the User Name in the User List you want to remove.
2. Click the Delete tab. A dialog box appears with confirmation message.
3. Click the OK button. The user profile is removed from the User List profile.

NOTE

The admin user name can't be modified.

6.2. Security-HTTPS

Security Users HTTPS IP Filter ONVIF HTTPS Connection Policy Connection mode HTTP&HTTPS Save Cancel

HTTPS Connection Policy: Provides the connection policy when user accesses the camera using a web browser.

Connection mode: The default setting is HTTP&HTTPS.

- HTTP: Sensitive data will be transfer without encryption during transmission.

Supports a URL that only starts with "HTTP:"

• HTTPS: HTTPS (Hypertext Transfer Protocol over SSL) is a protocol used to provide encrypted transmission. Supports a URL that only starts with "HTTPS:"
• HTTP&HTTPS: Supports both HTTP and HTTPS simultaneously. You can access the camera using a standard "HTTP:" URL, but sensitive data is not encrypted during transmission. To ensure that sensitive data is encrypted, you must use a secure "HTTPS:" URL.

NOTES

• To ensure security on the internet, all web browsers provide several security levels that can be adjusted for sites that use SSL (Secure Socket Layer) technology to transfer data. SSL encrypts communications, making it difficult for unauthorized users to intercept and view user names and passwords.
• SSL requires signed certificates to determine if the web browser accessing the camera has a required authentication. This camera can generate a self-signed certificate using Open SSL.
• If you select the HTTP connection policy, you cannot access the camera using a URL beginning with "HTTPS:"
• Self-signed certificates are valid for 10 years.

6.3. Security-IP Filter

Security Users HTTPS IP Filter ONMF IP Filter Setting Enable IP address filtering On/Off Priority Policy Start IP End IP 1 ALLOW 0 . 0 . 0 . 0 0 . 0 . 0 . 0 2 ALLOW 0 . 0 . 0 . 0 0 . 0 . 0 . 0 3 ALLOW 0 . 0 . 0 . 0 0 . 0 . 0 . 0 4 ALLOW 0 . 0 . 0 . 0 0 . 0 . 0 . 0 5 ALLOW 0 . 0 . 0 . 0 0 . 0 . 0 . 0 Save Cancel

IP Filter Setting: Provides IP filtering elements such as On/Off, Priority, Policy and IP Ranges. The default setting is disabled.

Enable IP filtering: Click the Enable IP filtering checkbox to enable the IP address filtering function. This dialog allows you to add new allowed/denied IP addresses. These can be added in whole ranges (subnets) of IP address.

On/Off: Click the checkbox to active the settings (Priority, Policy, and IP ranges).

Priority: The number means a priority if there are duplicated IP addresses in IP ranges.

Policy: Determines the filtering attribute of the IP address selected.

Start IP: Enters the starting IP address to ALLOW/ DENY in the IP range selected.

End IP: Enters the end IP address to ALLOW/ DENY in the IP range selected.

NOTES

To add a subnet of network addresses, these must be added in CIDR (Classless Inter-Domain Routing) notation. For example: entering 192.168.1.0/24 will add all the addresses in the range 192.168.1.1 to 192.168.1.254. Please contact your network administrator for more detail.

- If you are accessing the network camera via a proxy server, the IP address for the proxy server must be added as an allowed address.

6.4. Security-Onvif

Security Users HTTPS IP Filter ONVIF ONVIF Authentication Enable WS security Save Cancel

Onvif: When connecting to an Onvif server check "Enable WS security" for Onvif connection

6.5. Day & Time

Date & Time Current Time Date 07-22-2015 Time 08:56:49 AM New Time ● Synchronize with computer time Date 07-22-2015 Time 08:56:51 AM ○ Set manually Date 07-22-2015 Time 08:56:41 ○ Synchronize with NTP server Server time not gov interval 12 [Hour] Time Zone (OMT-08.00) Pacific Time (US & Canada); Tijuana □ Automatically adjustment for daylight saving time changes Date & Time Display Date Format MM-DD.YYYY Time Format 12 Hour AM/PM Save Cancel

Current Time: Shows the current date and time.

Date: The default setting is 1970-01-01.

Time: The default setting is 00:00:00.

New Time: Select one of the server times.

Synchronize with computer time: Sets the time according to the clock on your computer.

Set manually: Using this option allows you to manually enter the date and time.

Synchronize with NTP Server: This option will obtain the correct time from an NTP server every 1\~24 hours. The NTP server's IP address or host name is specified in the time server. (Note: IP Camera needs to be connected to the internet for this function)

Time Zone: Select the time zone where your camera is located.

Click the "Automatically adjust for daylight saving changes" checkbox to automatically update the time changes caused by daylight saving.

Time zone: The default setting is GMT.

Date & Time Display

Date Format: Choose between YYYY-MM-DD, MM-DD-YYYY or DD-MM-YYYY

Time Format: Choose between 24 Hour and 12 Hour (AM/PM)

6.6. Network-TCP/IP

Network

TCP/IP DONS RTP UPnP Zanocnd Benjour IP Address Obtain IP address via DHCP server Use the following IP address IP address 182 . 168 . 1 . 151 Subnet mask 255 . 255 . 256 . 0 Gateway 182 . 168 . 1 . 1 IPv6 Address Enable IPv6 IPv6 address fe80::aede:48ff:fe04:24064 DNS Obtain DNS address via DHCP server Use the following DNS address Domain name Primary DNS server 168 . 126 . 63 . 1 Secondary DNS server 0 . 0 . 0 . 0 Hostname Hostname VTD-MV30VRACDE4804K24F Port HTTP port 8151 HTTPS port 443 RTSP port 554 Save Cancel

IP Address:

Obtain IP address via DHCP server: Select the choice box if you want to assign the IP address from DHCP server automatically, and then the remaining setting are read-only text.

Use the following IP address: Select the choice box if you want to assign the IP address manually.

IP address: The address of the camera connected to the network. Specify a unique IP address for this network camera.

Subnet mask: Specify the mask for the subnet the network camera is located on.

Gateway: The gateway that accesses other networks. Specify the IP address of the default router (Gateway) used for connecting devices attached to different networks and network segments.

IPv6 Address: Check this box to enable IPv6 address configuration. Other settings for IPv6 are configured in the network router.

DNS: DNS (Domain Name Service) provides the translation of host names to IP addresses on your network.

Obtain DNS server via DHCP server: Select the choice box if you want to use the DNS server settings provided by the DHCP server automatically, and then the remaining settings are read-only text.

Use the following DNS server address: Select the choice box if you want to use the desired DNS server manually.

Domain name: Enter the domain to search for the host name used by the network camera.

Primary DNS server: Enter the IP address of the primary DNS server.

Secondary DNS server: Enter the IP address of the secondary DNS server.

Hostname: This camera can be accessed using a host name instead of an IP address. The host name is usually the same as the assigned DNS name.

Port: Allows the user to access the camera using web browser encrypted communication.

HTTP port: The default HTTP (Hypertext Transfer Protocol) port number is 80.

HTTPS port: The default port number is 443

RTSP port: RTSP (Real Time Streaming Protocol) allows a connecting client to start a video stream. The default setting is 554

Network-DDNS

Network TCP/IP DUNS RTP UPsP ZanocoeF Bonjour Internet DDNS(Dynamic Domain Name Server) Enable DDNS DDNS server dymdns.org Registered host User name Password Confirm password Interval 1 hour Save Cancel

The DDNS (Dynamic DNS) service can provide the camera with its own URL (web address), which can then be used to access it over the Internet. Use the DDNS service to assign a host name for easy access to your network camera.

NOTES

• If the camera has not previously been registered at a Dynamic DNS Service, you need to registration it first.
• If the camera is already registered to a Dynamic DNS Service and its IP address changes, the DNS service must be updated with this new IP address.
• These regular updates will always occur at the set interval, with no regard to whether automatic updates have been configured or not.

Internet DDNS (Dynamic Domain Naming Service): Provides user with host name to access the camera.

Enable DDNS: Click the Enable DDNS checkbox to active DDNS service.

DDNS server: Enter the DDNS server name. The default DDNS server is dyndns.org

Registered host: Enter the registered host name.

User name: Enter the registered user name to be used for accessing the DDNS server.

Password: Enter user password to be used for accessing the DDNS server.

Confirm password: Enter user password again to confirm.

Interval: Set the interval at which to regularly update the Dynamic DNS service. The default setting is 1 hour.

6.7. Network-RTP

Network TOPIP DONS RTP UPnP Zeroconf Bonjour Port Range Start port 30000 [30000...30800; Only even values are available] End port 30189 Multicast - Stream1 Destination IP 231 . 1 . 128 . 20 [224.0.0.0...239.255.255.255] Port 40000 [1024...65530; Only even values are available] TTL 1 [1...255] Enable always multicast Multicast - Stream2 Destination IP 231 . 1 . 128 . 21 [224.0.0.0...239.255.255.255] Port 40000 [1024...65530; Only even values are available] TTL 1 [1...255] Enable always multicast Multicast - Stream3 Destination IP 231 . 1 . 128 . 22 [224.0.0.0...239.255.255.255] Port 40000 [1024...65530; Only even values are available] TTL 1 [1...255] Enable always multicast Save Cancel

Port Range: The RTP Port range defines the range of ports from which the video/audio ports are automatically selected. This feature is useful if the camera is connected to a NAT router with manually configured port mapping.

NOTE

Limit the range of ports permitted for RTP unicast/multicast by entering the Start port and End port in the provided fields.

Start port: The Start port can be entered in the range 30000-39800. The default setting is 30000. Note: Only even numbers are available

End port: The End port can be entered in the range 1024-65532. The default setting is 50999.

NOTE

The video/audio ports entered here must be even values.

Multicast-Stream1\~3:

Only IP addresses within certain ranges can be used for multicasting. The camera has been pre-configured with addresses from these ranges, and does not normally need to be reconfigured. If an address does need to be changed, please contact your network administrator.

Destination IP: Click in the destination IP box and type IP address.

NOTES

• Multicast addresses are allocated according to these IANA policies.
  • The default setting IP address is 231.1.128.20

RTP port: The RTP port can be entered in the range 1024-65532. The default setting is 40000.

NOTE

The RTP port entered here must be even values.

TTL: The TTL can be entered in the range 1-255. The default setting is 1.

NOTES

• TTL (Time To Live) If IP packets (i.e. data) fail to be delivered to their destination within a reasonable length of time (which could be for various reasons), this setting tells network routers when to discard the packet.
• The value is usually measured in 'hops', i.e. the number of network routers that can be passed before the packet arrives at its destination or is dropped.

Network-UPnP

Network TCP/IP CONS RTP UPnP Zeroconf Boajour UPnP(Universal Plug & Play) Enable UPnP Friendly name VTD-MV30VR-ACDE4804024F Save Cancel

UPnP is enabled by default, and the network camera then is automatically detected by operating systems and clients that support this protocol.

UPnP (Universal Plug & Play): Click the Enable UPnP checkbox to disable the UPnP.

The default setting is enabling.

Friendly name: Click in the Friendly name box and type a name for the camera (1 to 32 alphanumeric characters). If your computer is also enabled, the camera is automatically detected and a new icon is added. Default is "Model Name-MAC address".

NOTE

UPnP must also be enabled on your Windows computer. To do this, open the Control Panel from the Start Menu and select Add/Remove programs. Select Add/Remove Windows Components and open the Networking Services section. Click Details and then select UPnP as the service to add.

Network-Zeroconf

Network TCP/IP DDNS RTP UPnP Zenocost Bonjour Zeroconf Enable zeroconf IP Address 169.254.2:125 Save Cancel

Zero configuration networking (zeoconf) is a set of techniques that automatically creates a usable Internet Protocol (IP) network without manual operator intervention or special configuration servers.

Zero configuration networking allows devices such as computers and printers to connect to a network automatically. Without zeroconf, a network administrator must set up services, such as Dynamic Host Configuration Protocol(DHCP) and Domain Name System(DNS), or configure each computer's network settings manually, which may be difficult and time-consuming.

Zeroconf: The default setting is enabling.

IP Address: The default zeroconf ip is 169.254.xxx.xxx

Bonjour: Apples "Zero-Configuration protocol

Language

Language Language Setting Language English 한국어 русский 日本語 Save Cancel

Language: choose which language to display in

Maintenance

Maintenance Maintain Restart Restart the unit. Reset Resets all parameters to the original factory settings, except the IP address and PTZ configurations. Default Resets all parameters to the original factory settings. Upgrade Upgrade the unit with the new firmware. Specify the firmware to upgrade to : Browse... and click Upgrade [ Note ] Do not disconnect power during the upgrade. The unit restarts automatically after the upgrade has completed (3-4) minutes. Setup Export Save all parameters and user-defined script to a export file. Export Setup Import Import configurations from exported file. Specify the file to import : Browse... and click Import

Maintain: Provides software reset of the camera when troubleshooting.

Restart: The camera is restarted without changing any of the setting. Use this method if the unit is not behaving as expected.

Reset: The unit is restarted and most current settings are reset to factory default values, but the following settings does not reset.

• The boot protocol (DHCP or static)
- The static IP address
- The default router
- The subnet mask
- The system time

Default: The Default button should be used with caution. Pressing this returns the camera's settings to the factory default values including the IP address.

Upgrade: Provides the latest firmware into this camera. When you upgrade the firmware with a file, your camera receives the latest available functionality and unparalleled reliability.

Upgrades the new firmware as following steps;

1. Click Browse button.
2. Browse to the desired firmware file on your computer.
3. Click Upgrade button. (Upgrade will start in approximately 30 seconds after clicking upgrade button)

NOTE

Do not disconnect power to the unit during the upgrade. The unit restarts automatically after the upgrade has completed. (2\~3 minutes)

Setup Export: Save all parameters and user-defined scripts to a backup file. Click the Backup button to take a backup of all the parameters, and any user-defined script.

Setup Import: Use a saved backup file to return the unit to a previous configuration. Click the Browse button to locate the saved backup file and then click the Restore button.

NOTE

Setup Export and Import function can only be used on the same unit with running the same firmware. This feature is not intended for the configuration of multiple units or for firmware upgrades.

Logs & Report

Logs & Report

Logs System Log System log information Event Log Event log information Report Server Report Important information about the server's status.

Log & Report: The log files records event in the unit since the last system restart and can be a useful diagnostic tool when troubleshooting. The Report contains important information about the system.

System Log: Provides the system log information.

Event Log: Provides the events log information.

Server Report: Provides the information about the server status and should be included when requesting report. Information be found here includes the camera's firmware version, MAC address, system information, IP address and network connections.

7. Audio (VTC-IR403 Only)

7.1. Audio Stream

Click the Enable audio checkbox to enable audio. This page describes how to configure the basic audio settings for the camera. This camera supports full duplex audio that can transmit and receive audio in both directions at the same time.

Audio Audio Stream Enable audio Compression 0.711 u-law Sample rate 8 [KHz] Bitrate 84 [Kbps] Audio Input Volume 0.0 [Default] [dB] mute Audio Output Enable full duplex Volume 0.0 [Default] [dB] mute Save Cancel

• Compression type: G.711 is the international standard for encoding wired-telephone audio on 64kBit/s channel. It is a PCM (Pulse Code Modulation) scheme operating at 8 kHz sample rate. The default setting is G.711 μ-law.
• Sample rate: Indicates the number of times per second the sound is sampled. The default setting is 8 kHz.

[ NOTE ]

• G.711, also known as Pulse Code Modulation (PCM), is a very commonly used waveform codec. G.711 uses a sampling rate of 8,000 samples per second.
• Non-uniform quantization (logarithmic) with 8 bits is used to represent each sample, resulting in a 64 kbit/s bit rate. There are two slightly different versions; -law, which is used primarily in North America, and A-law, which is in use in most other countries outside North America.
• G.711 μ-law tends to give more resolution to higher range signals while G.711 A-law provides more quantization levels at lower signal levels.

7.2. Audio Input

• The Input volume can be adjusted in the range from -12.00 to 12.00 dB.
- The default setting is 0 dB. Click the Mute box if you do not want the audio input.

7.3. Audio Output

• The output volume can be adjusted in the range from -12.00 to 12.00 dB.
- The default setting is 0 dB. Click the Mute box if you do not want the audio output.

8. Troubleshooting

8.1. Upgrading the Firmware

Firmware is software that determines the functionality of the network camera. One of your first actions when troubleshooting a problem should be to check the current firmware. The latest version may contain a correction that fixes your particular problem. The current firmware version in your camera is displayed on the Basic Configuration or About. For the latest firmware of the camera, please contact with your product administrator.

Detailed instructions on how to perform the upgrade process are provided with each new release. See also the Maintenance / Upgrade for more information.
