USER MANUAL VTD-13FN Vitek

Three VITEK surveillance cameras with black and white lenses, shown from different angles (no text or symbols visible on the devices themselves)

- 1/3" 1.3 & 2.0 Megapixel Progressive Scan CMOS image sensors

- Up to 30fps live view @ 1920x1080p (2.0 MegaPixel Models) / 1280x1024 (1.3 MegaPixel Models)

• 3.8mm Fixed / 2.8-10mm Varifocal Auto Iris Lens options

• 2D-DNR Noise Reduction

• 16:9 (2.0 MegaPixel Models) / 4:3 (1.3 MegaPixel Models) Video format

• Secondary video output for installation & maintenance

• H.264/MJPEG Dual Streaming

- Minimal Latency with up to 16 simultaneous user connections

- Onvif Compliance

- EDGE recording with onboard MicroSD memory card slot (supports up to 32GB of local storage)

- Optional Wall Mount available

• 12VDC Operation / Optional PoE (Power over Ethernet)

Table of Contents

1. Box Contents......6
2. Included Accessories 6
3. Available Accessories 6

3.1. Wall Mount (VT-AP/WMT) 6

1. VTD-13FN Installation....7
   4.1. Connections....7
2. VTD-13VN / VTD-20VN Installation....9
   5.1. Connections....9
3. Camera Software Installation ....13
4. VTD-13FN / VTD-13VN / VTD-20VN Features 16
5. IP Installer: Introduction....17
6. Installing and Uninstalling ....17

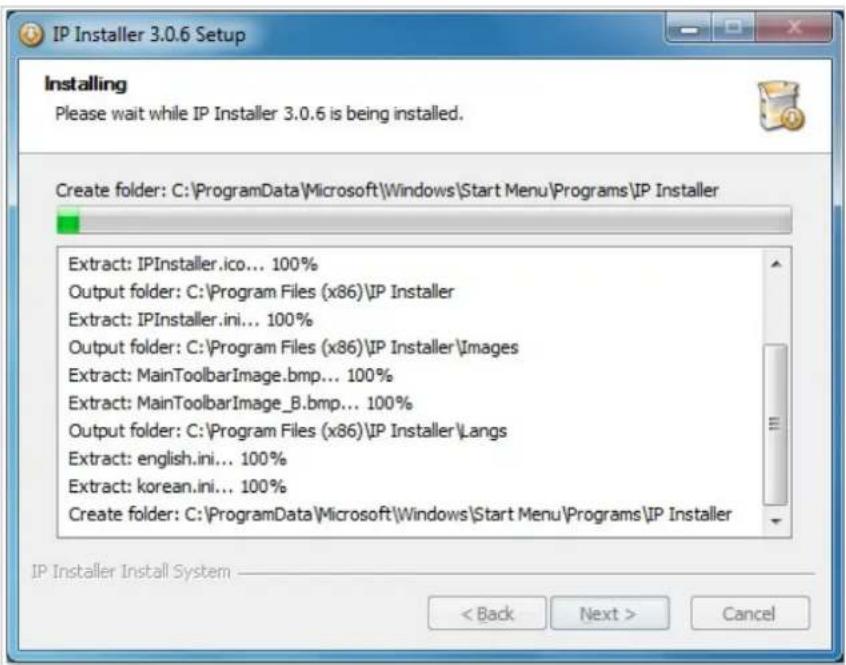

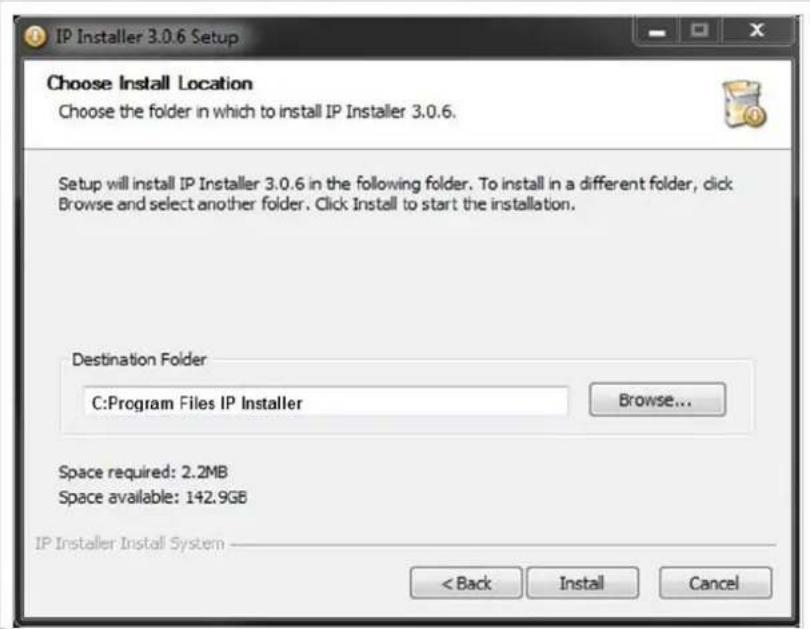

9.1. Installing IP Installer .... 17

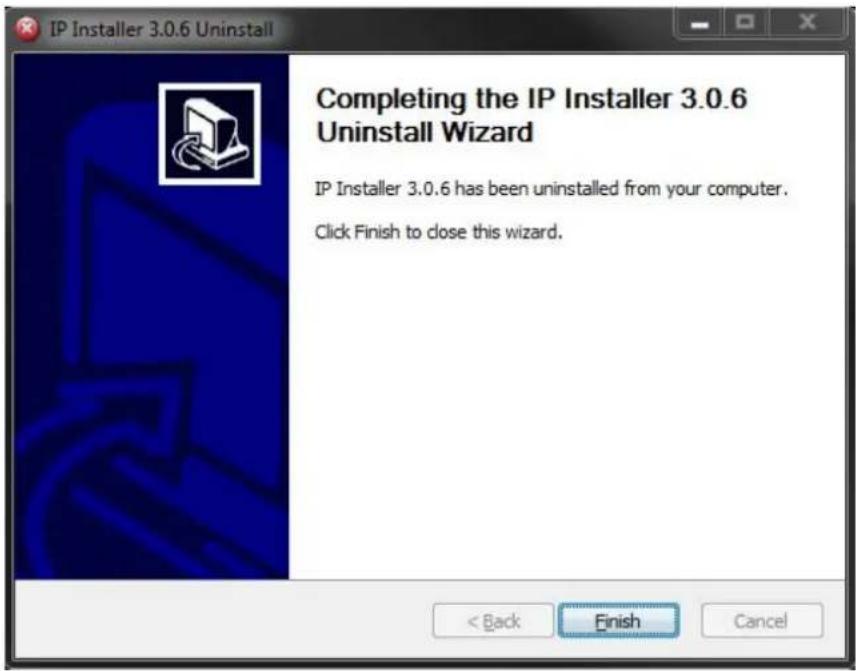

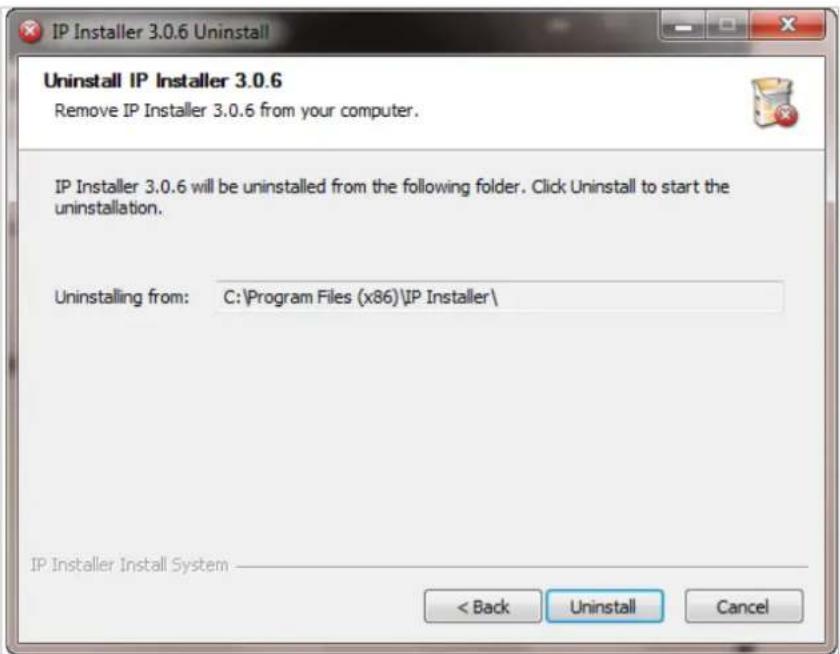

9.2. Uninstalling IP Installer....20

1. Using IP Installer ....23

10.1. Starting the Program 23
10.2. Search Product....24
10.3. Manual Network Setup....25
10.4. Automatic Network Setup....27
10.5. Using DHCP Server 30
10.6. Using PPPoE....30

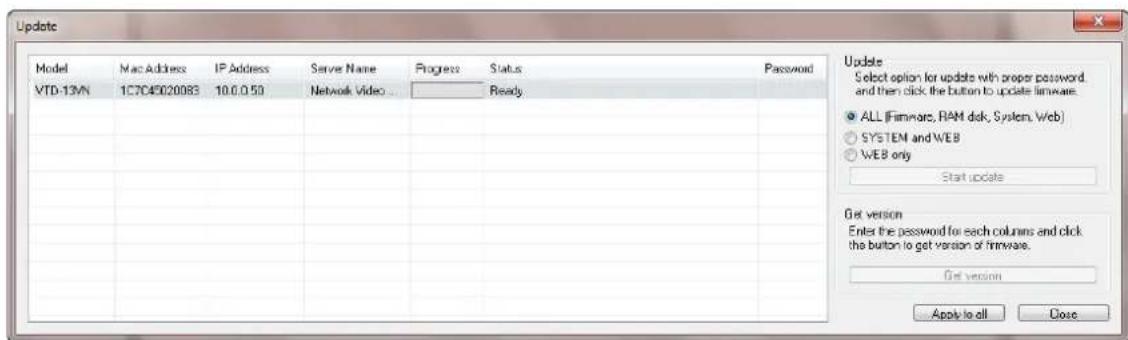

10.7. Updating Firmware 32
10.8. Filter Configuration....34
10.9. Live View 35

1. Admin Menu of VITEK VTD-13/VTD-20 Series 37

11.1. Entering Admin Menu .... 37
11.2. Admin Menu Structure 38

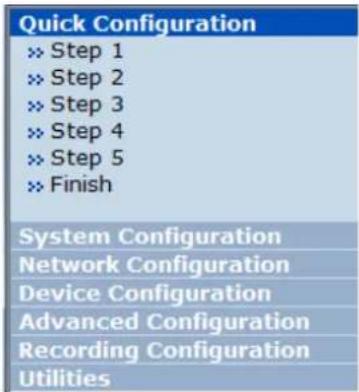

1. Quick Configuration....38

12.1. Step 1: Changing Server Name....38
12.2. Step 2: Time Setup....38
12.3. Step 3: Network Setup....38
12.4. Step 4: IPCCTVDNS.COM....39
12.5. Step 5: Recording Configuration....39
12.6. Finish....39

1. System Configuration Menu 39

13.1. Server Name Setup....39
13.2. Date & Time....40

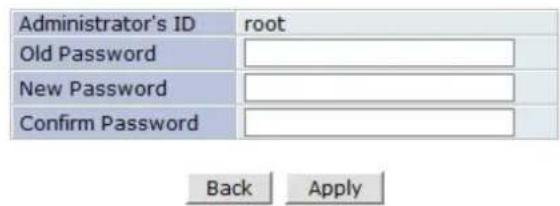

13.3. Admin Password....41
13.4. Access Control....41
13.5.User Registration....41
13.5.1.Add....41
13.5.2. Edit 43
13.5.3. Delete 43

1. Network Configuration....43

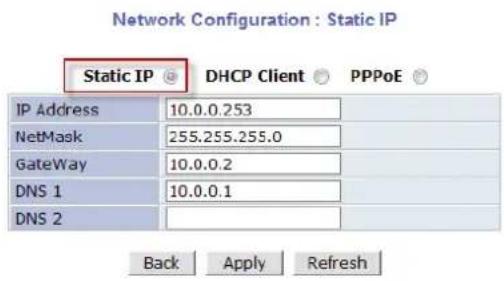

14.1. Static IP Configuration 44
14.2. DHCP Client Configuration....44

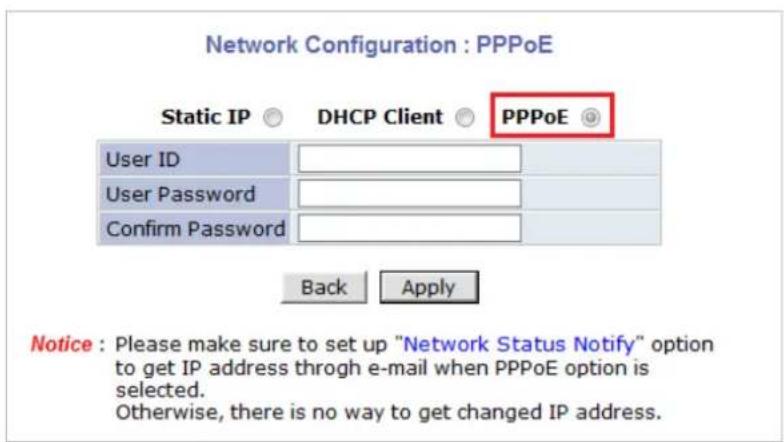

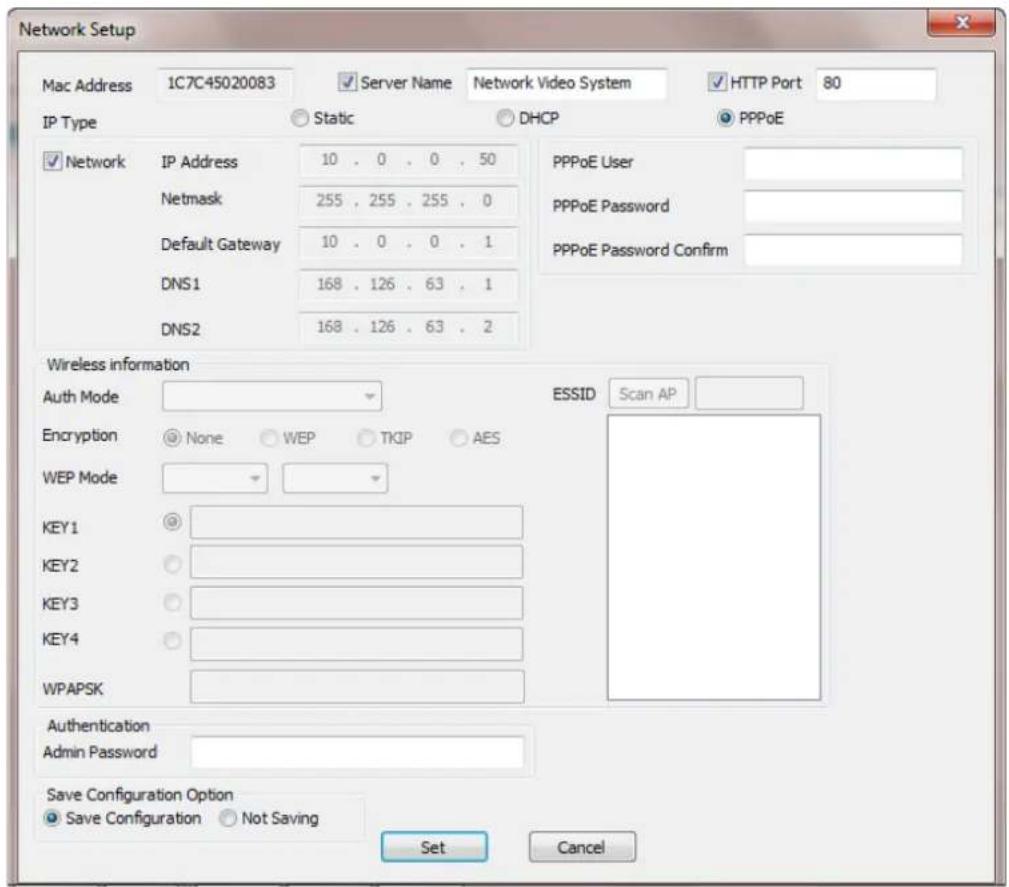

14.3. PPPoE Configuration 45

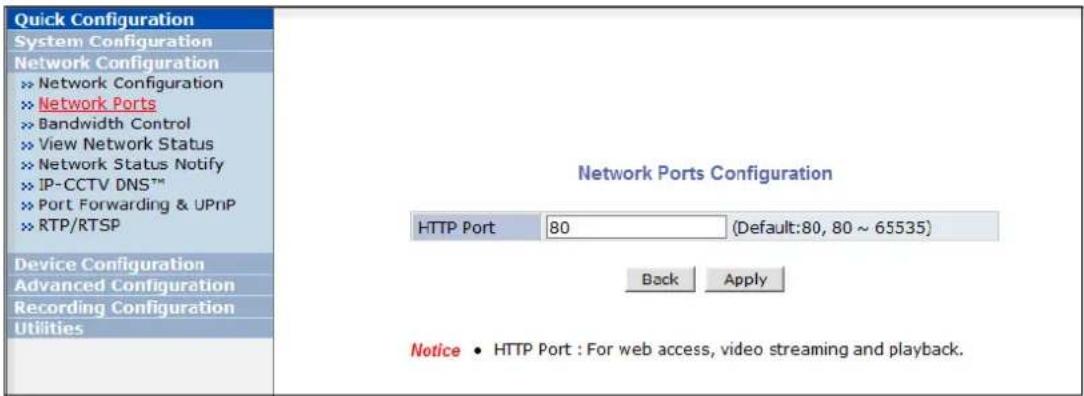

14.4. Network Ports 45
14.5. Bandwidth Control Configuration 46
14.6.View Network Status 47
14.7. Network Status Notify 47

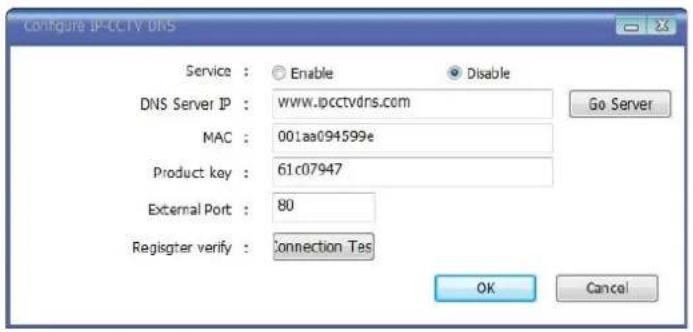

14.8. IP-CCTV DNS Setup 48
14.9. Port Forwarding & UPnP 49
14.10.RTP/RTSP Setup....50

1. Device Configuration 52

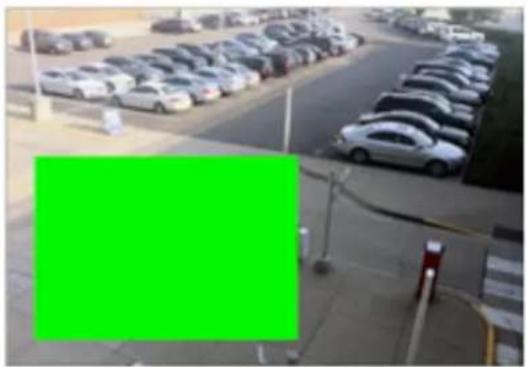

15.1. Privacy Zone 52

15.2. Camera & Motion 54

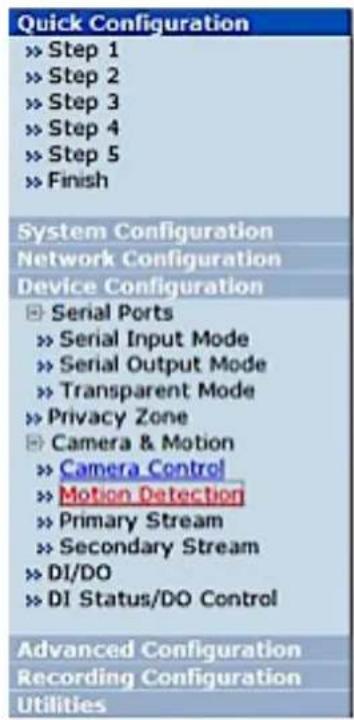

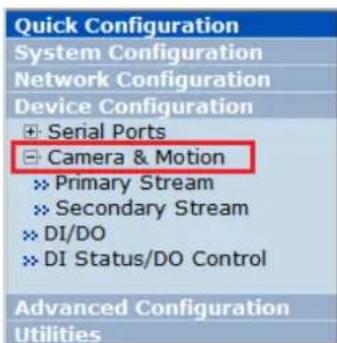

15.2.1. Camera Configuration....56

1. Advanced Configuration....60

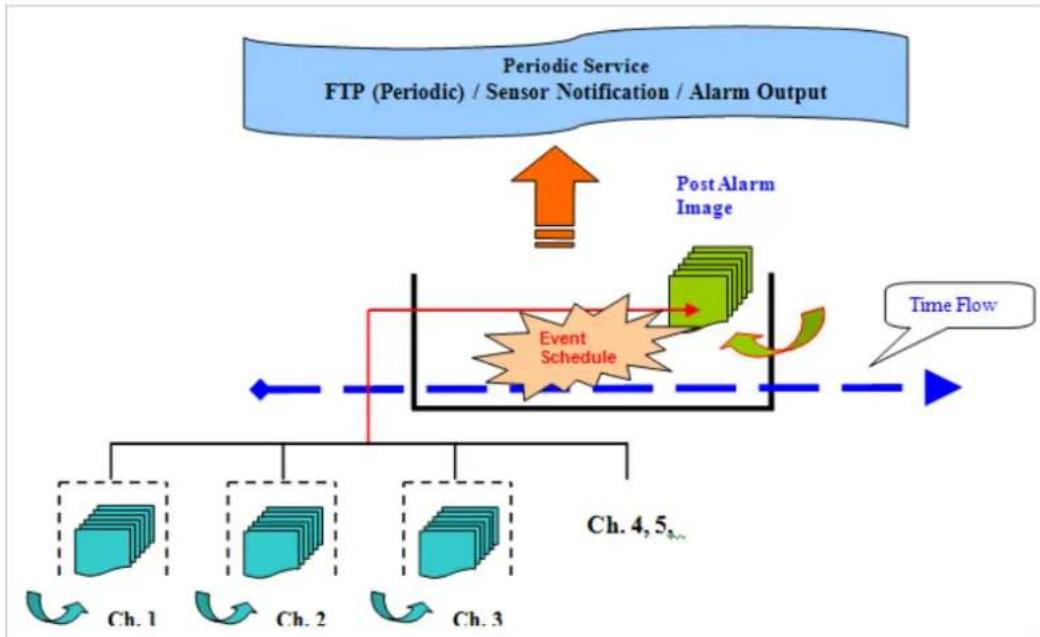

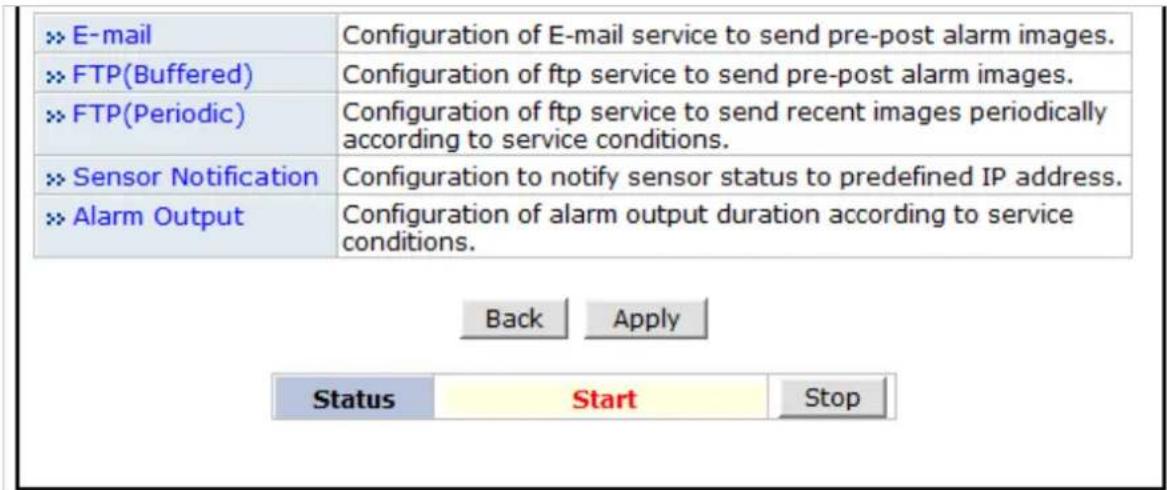

16.1. Advanced Services....61

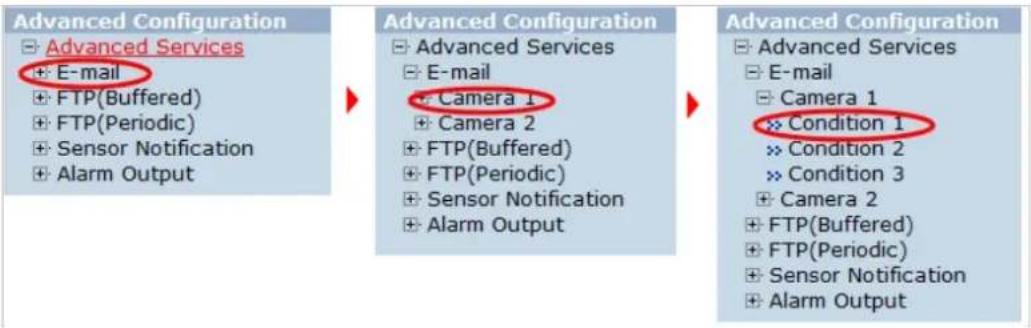

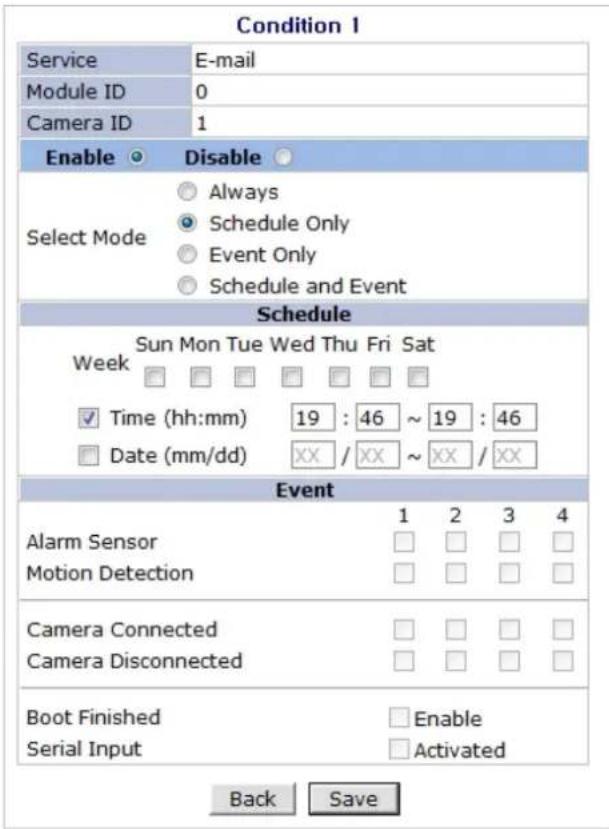

16.1.1. E-mail Service Configuration 62
16.1.2. FTP (Buffered) Service Configuration....65
16.1.3. FTP (Periodic) Service Configuration....67

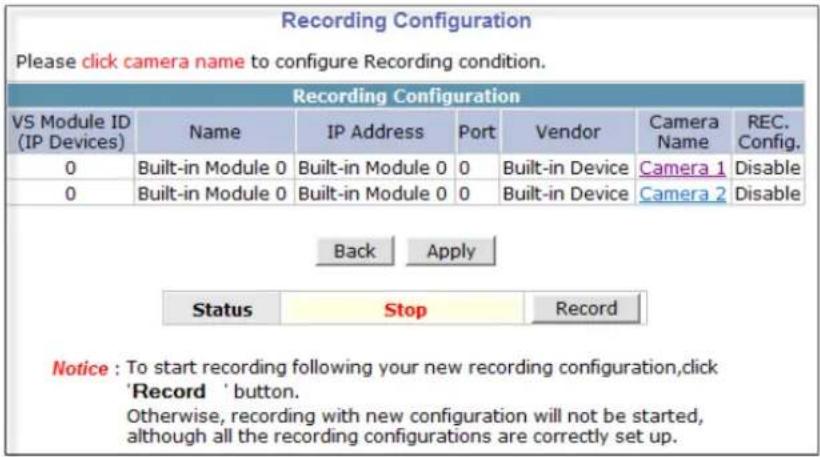

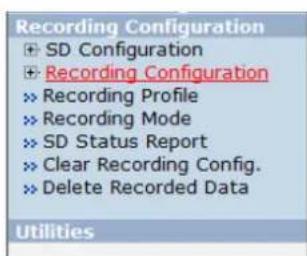

1. Recording Configuration for Cameras with microSD card 69

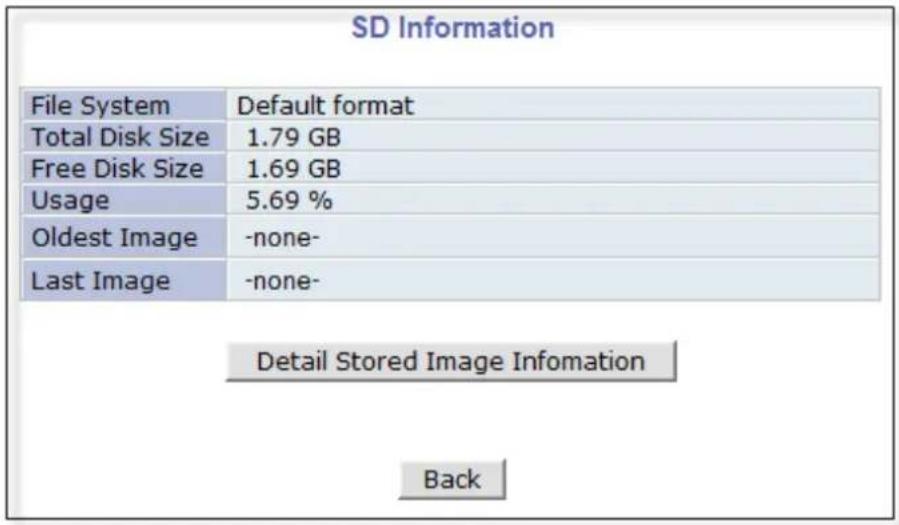

17.1. MicroSD Configuration 69

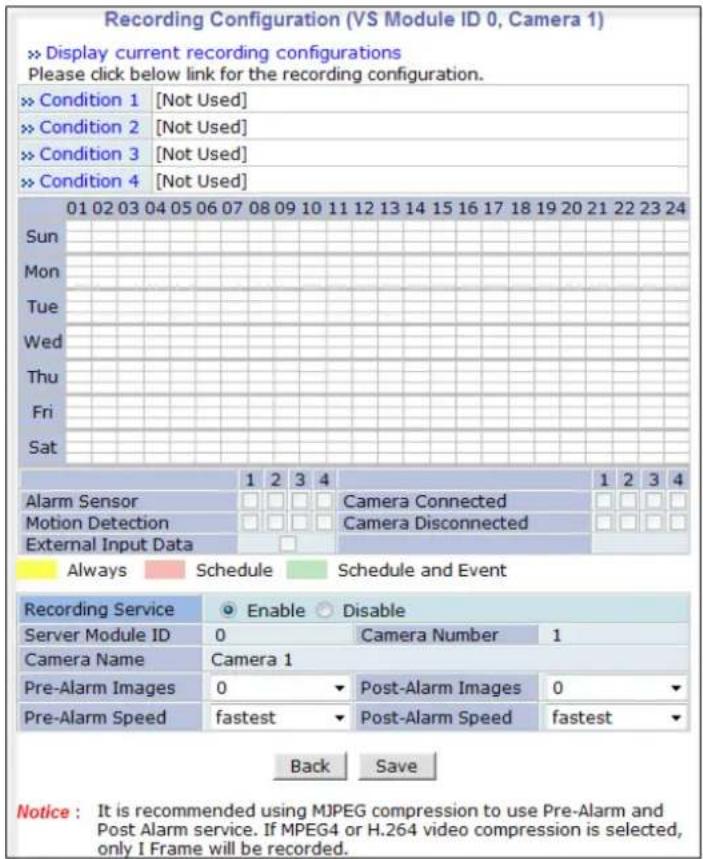

17.2. Recording Configuration with microSD card....72

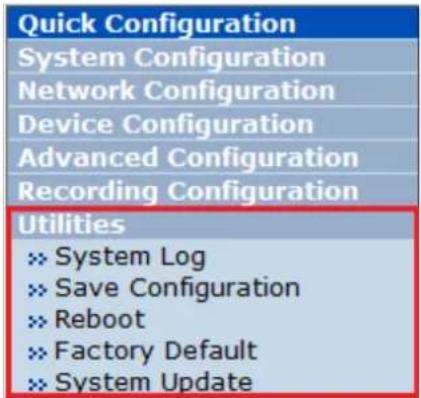

1. Utilities....75

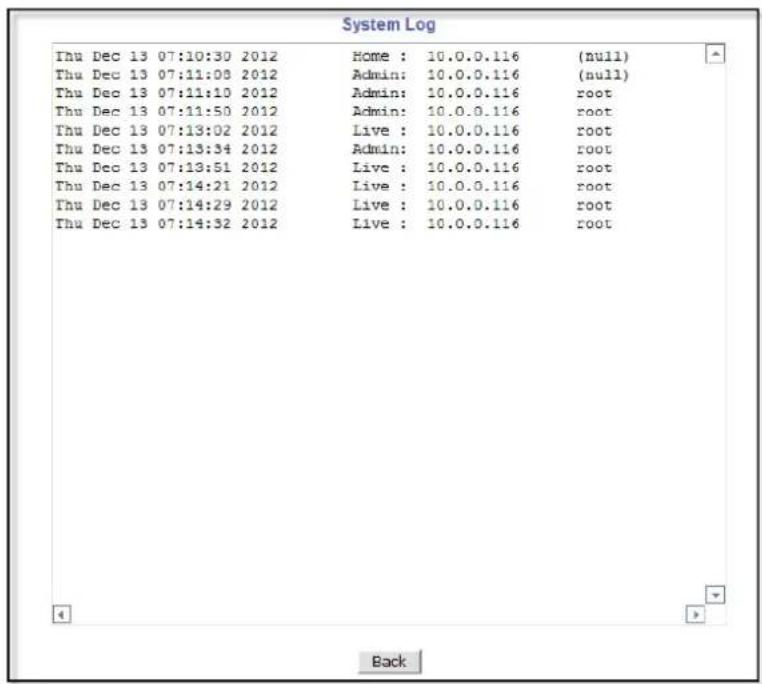

18.1. System Log....76
18.2. Save Configuration 76
18.3. Reboot....76
18.4. Factory Default....77

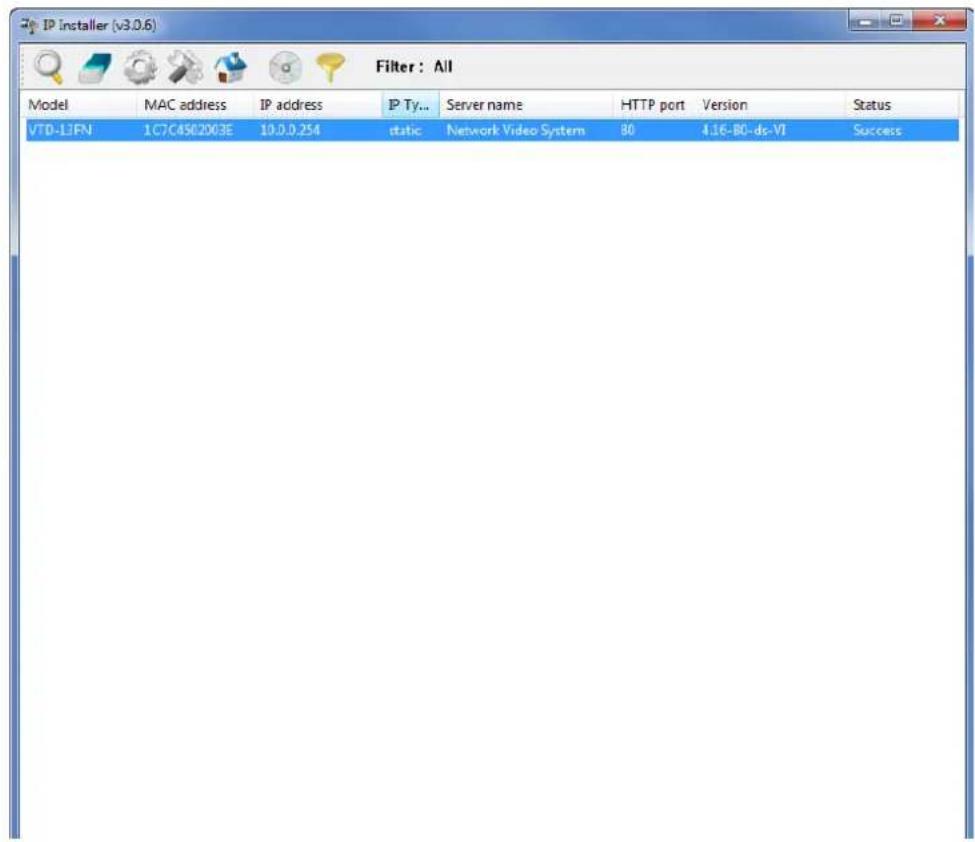

18.5. System Update....77

1. ENVI Series Viewer....80

19.1. Introduction 80
19.2.Key Features 80

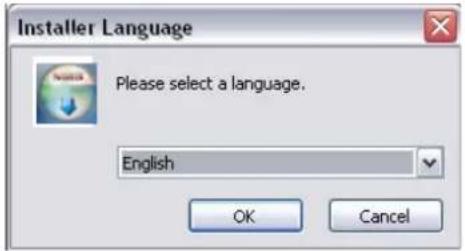

19.3. System Requirement for PC....80

1. Installing and Uninstalling....81

20.1. Installing ENVI Series Viewer 81

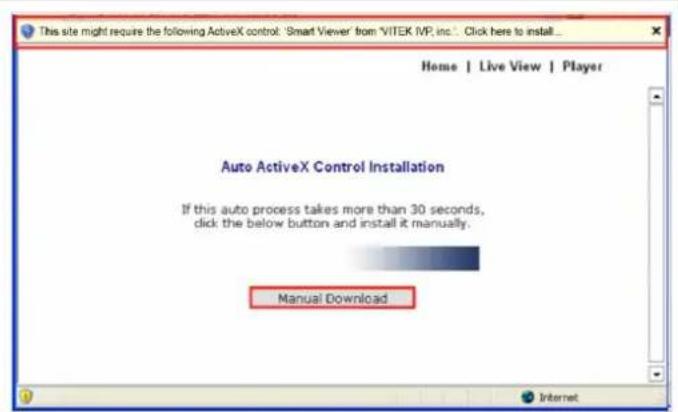

20.1.1. Installing on Web Browser 81
20.1.2. Manual Installation....83

20.2. Uninstalling ENVI Series Viewer 84

20.2.1. Uninstalling with Program Menu....84
20.2.2. Uninstalling on Control Panel 85

1. Starting ENVI Series Viewer 86

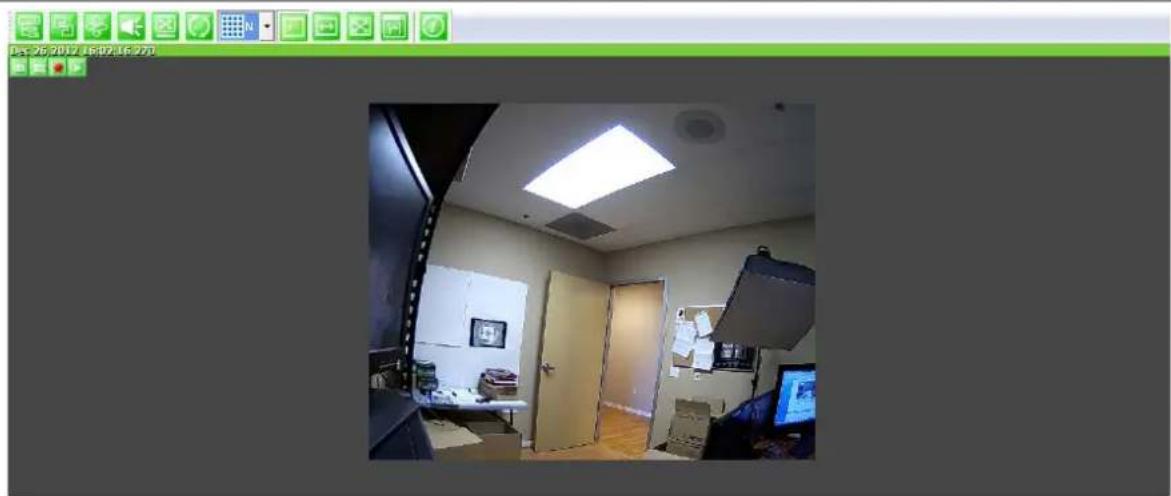

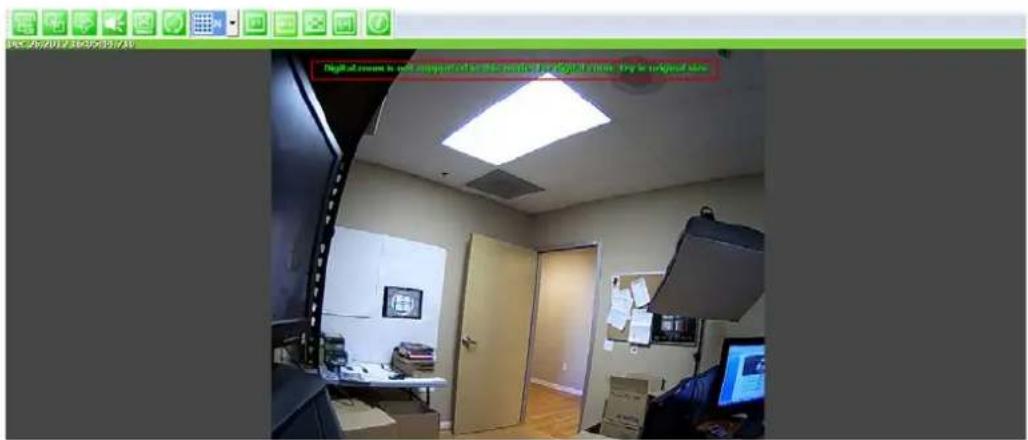

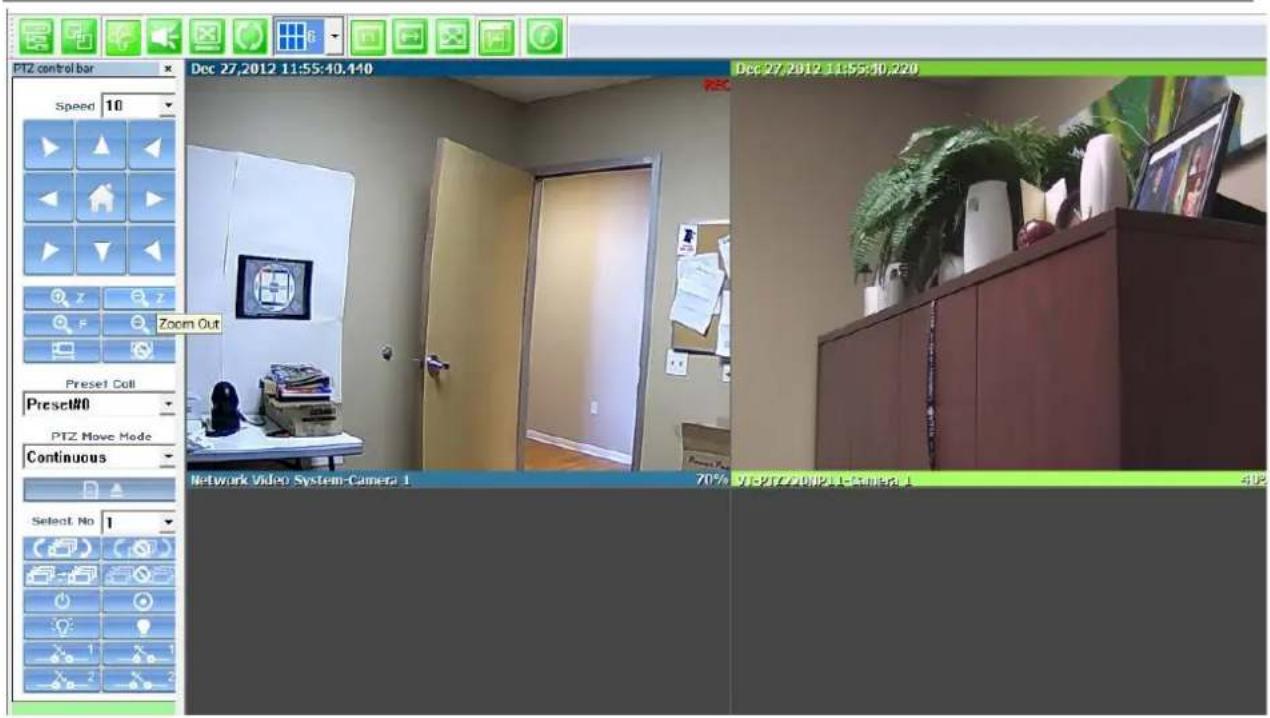

21.1. Control Bar 87
21.2. Channel Control Bar 88
21.3. OSD Channels Buttons....88

21.3.1. Saving as Image File 88
21.3.2. Saving as Video File 89

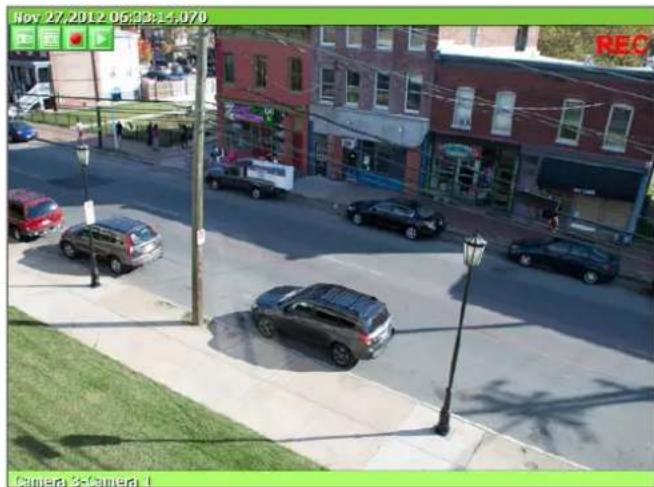

21.3.3. Manual Recording 89

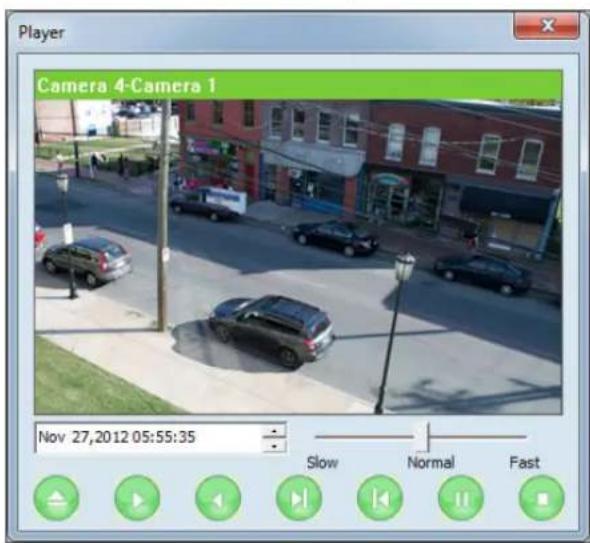

21.3.4. Instant Playback 90

21.4. Extended Features....91

21.4.1. Pausing Live Video 91
21.4.2. FPS Control 91
21.4.3. Flip Control....92

1. EN-V-R: Introduction....93
2. Requirements for Installation 94

23.1. EN-V-R Versions 94
23.2. System Requirement for PC....94

1. Installing EN-V-R....95
2. Uninstalling EN-V-R 97

25.1. Closing Active EN-V-R 97
25.1. Closing Active EN-V-R 97

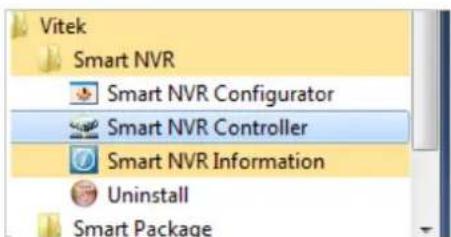

25.2. Executing Uninstaller 98

1. Components of EN-V-R Program 99

26.1. EN-V-R Configurator 99
26.2. EN-V-R Service....99
26.3. EN-V-R Controller 99

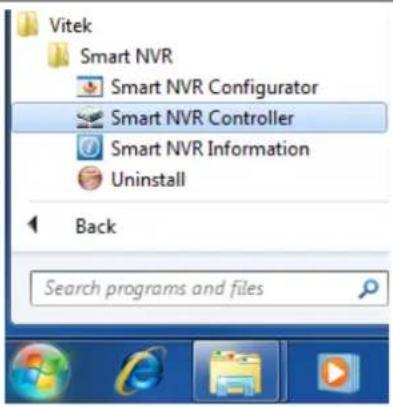

26.4. EN-V-R System Tray Menu 100

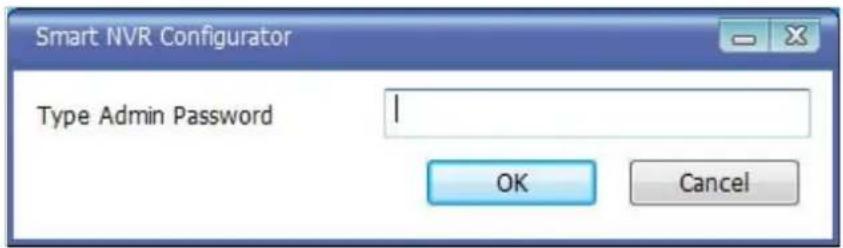

1. Starting EN-V-R Configurator 100

2. Quick Start Guide....102

28.1. EN-V-R Configurator User Interface 102
28.2. Searching for IP Devices 103

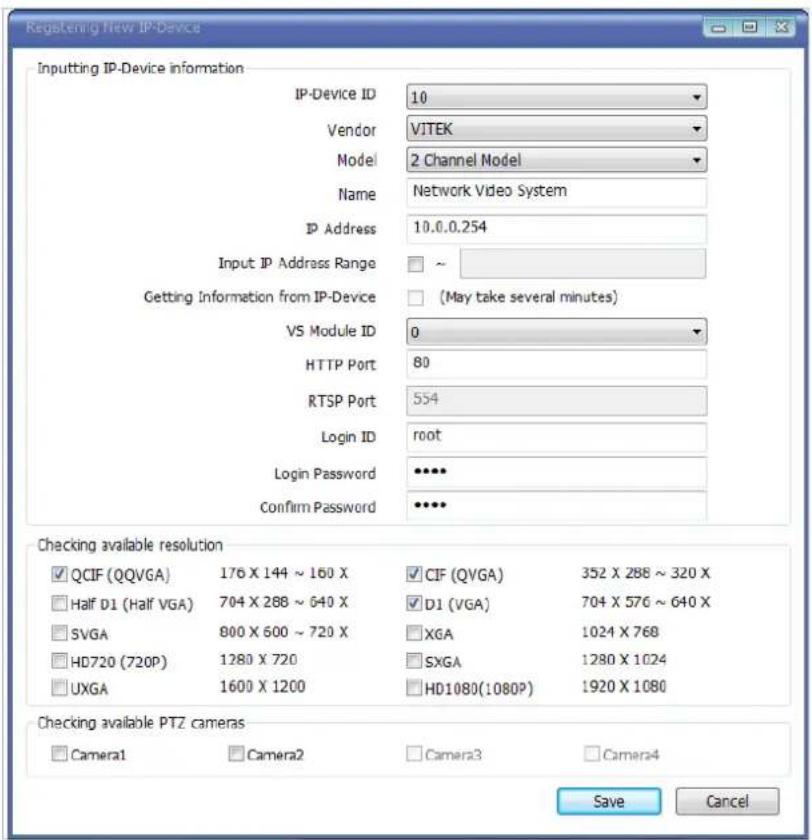

28.3. Registering IP Devices 104
28.4. Viewing Live Video 107
28.5. Recording Video 108

1. ENVI Smart Player....113

29.1. Introduction.... 113
29.2.Key Features....113
29.3. System Requirement for PC....113

1. Installing and Uninstalling....114

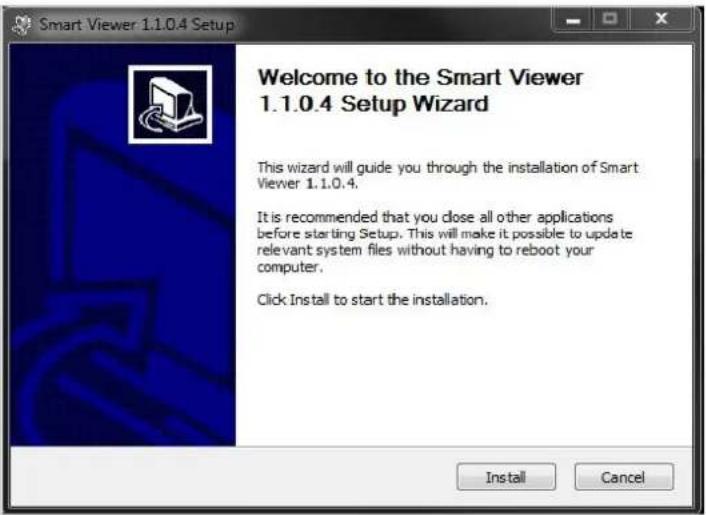

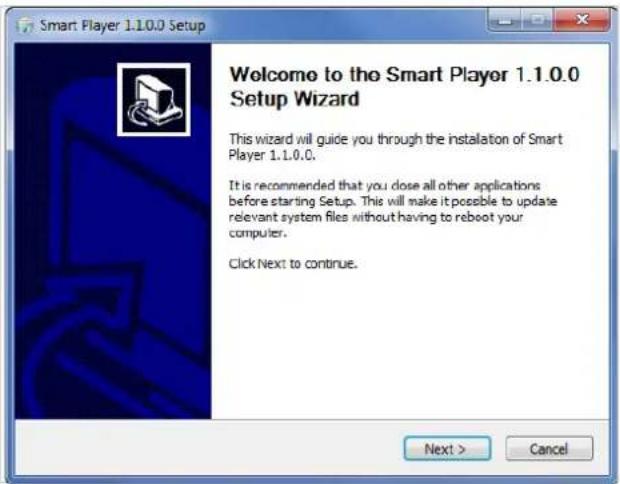

30.1. Installing Smart Player.... 114

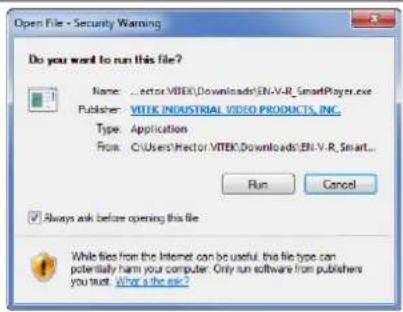

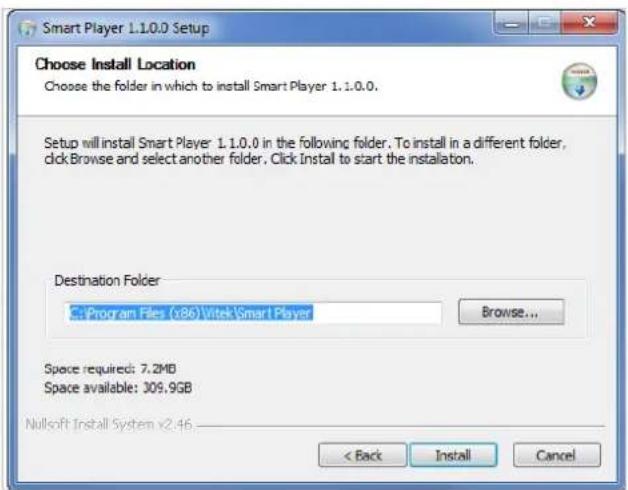

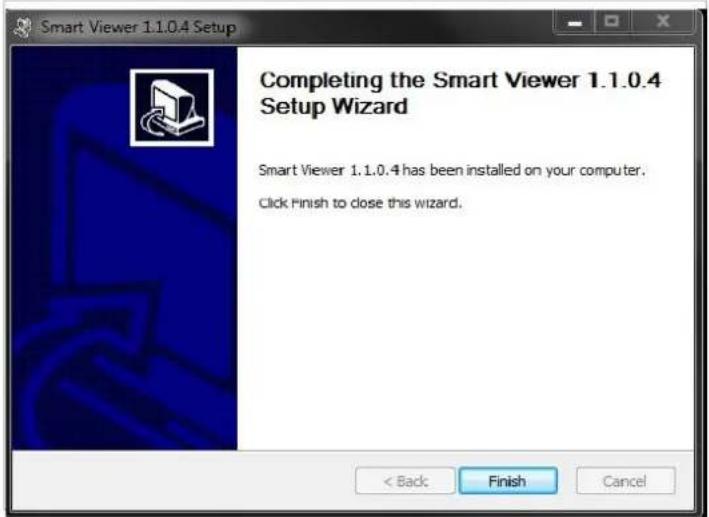

30.1.1. Manual Installation.... 114

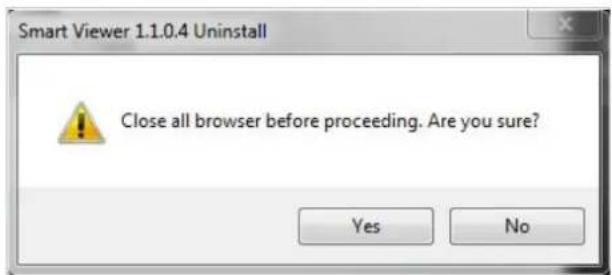

30.2. Uninstalling Smart Player 116
30.2.1. Uninstalling on Program Menu 116

1. Configuring & Viewing Player 126

31.1.Main Window View 127

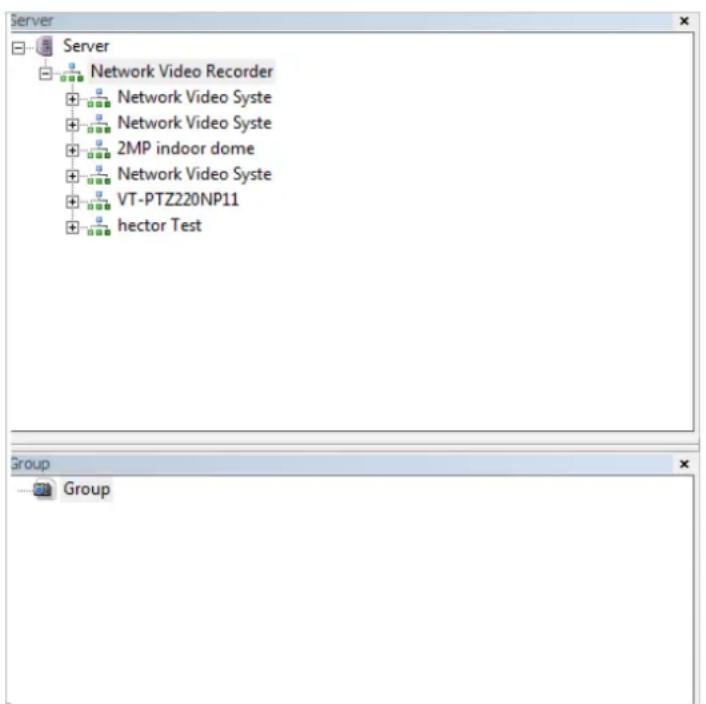

31.2. Connecting to NVR Player 128

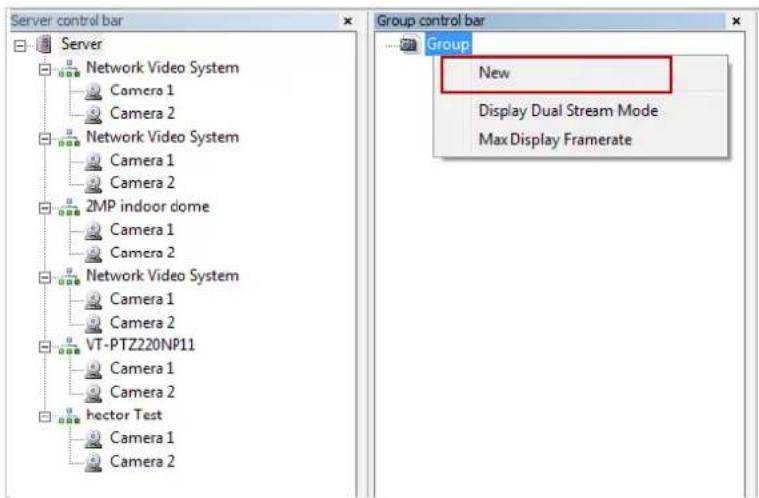

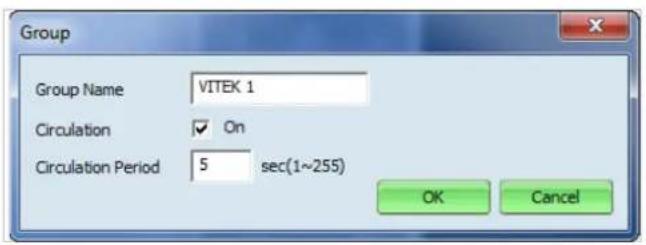

31.3. Creating a Group.... 128

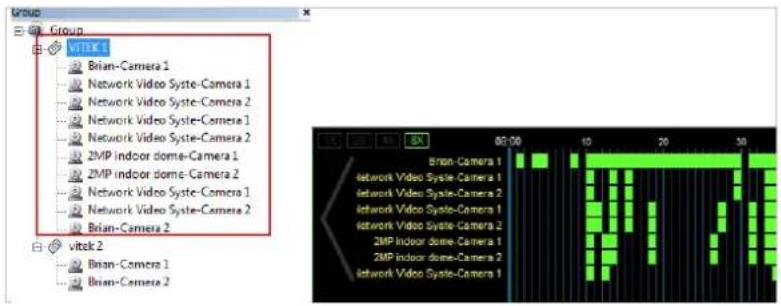

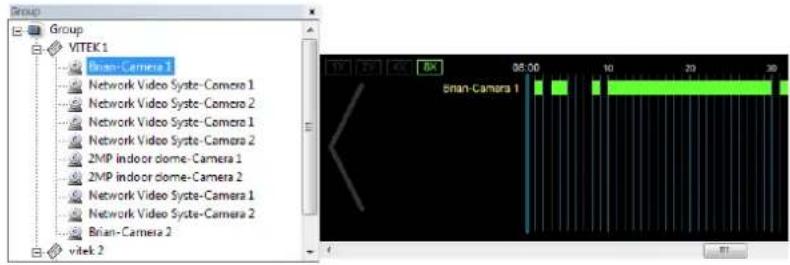

1. Searching Video 130

32.1. Searching Video 130
32.2. Daily Search....130

32.2.1. Search Mode.... 131
32.2.2. GO to Time Position 131

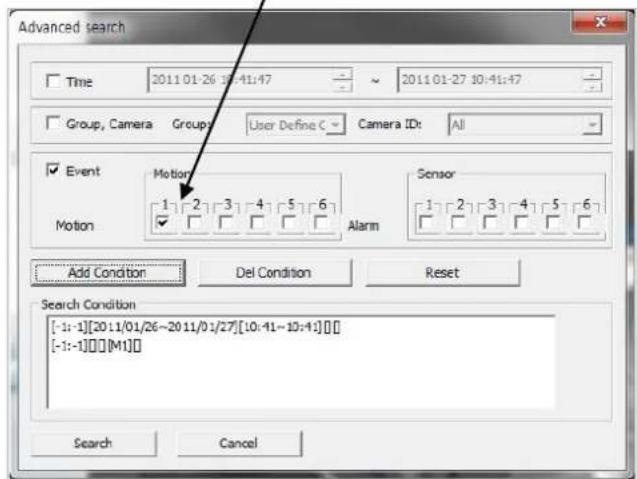

32.3. Condition Search Mode 131

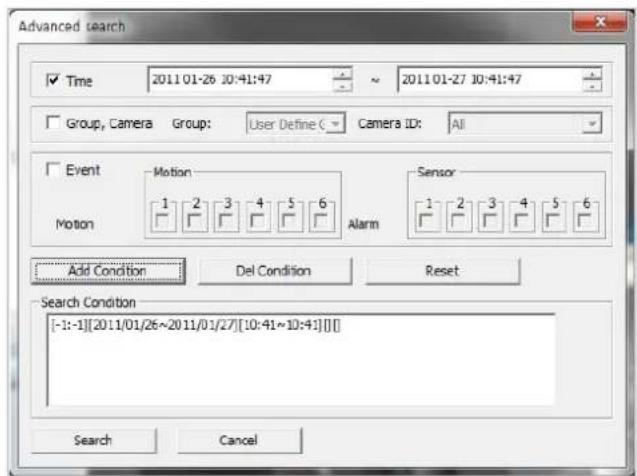

32.3.1. Advanced Search Mode 132

1. Video Playback Controls....133
2. Extra Features 134

34.1. Window Control.... 134
34.2. Recording Period 134

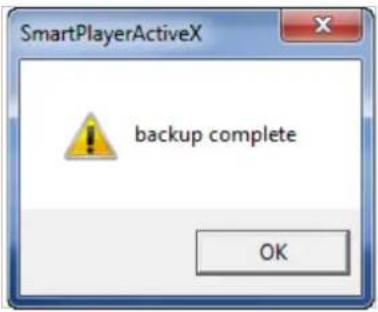

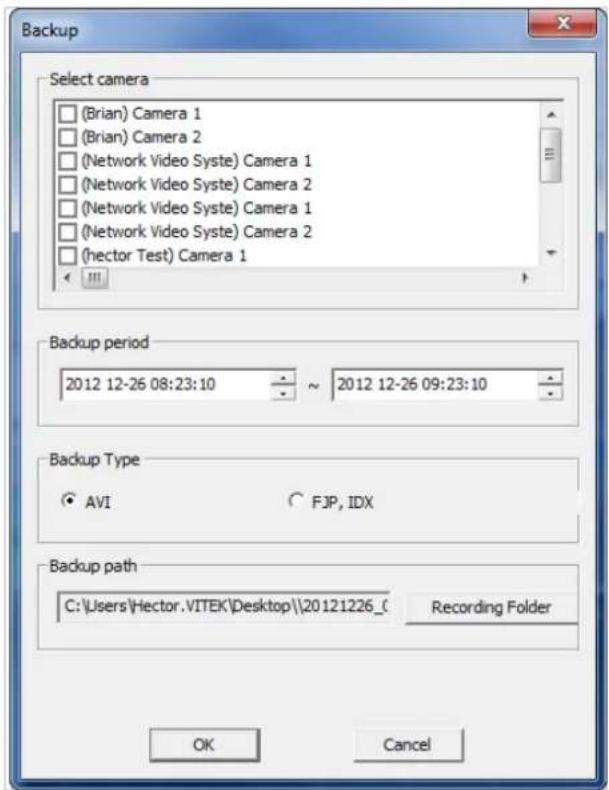

34.3. Backup 135
34.4. Snapshot 136
34.5. Print 137
34.6. Ratio Display 137

1. EN-V-R Configuration 139

35.1. System, Network Configuration 139

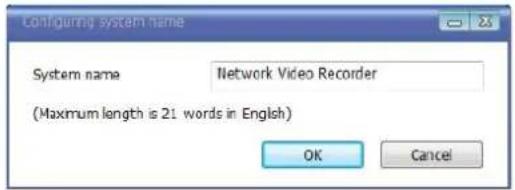

35.1.1. Configuring System name....139

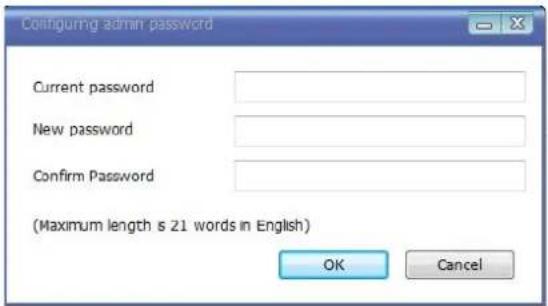

35.1.2. System, Network Configuration - Admin password 140
35.1.3. System, Network Configuration - Access Control 140
35.1.4. System, Network Configuration - HTTP Port.... 141
35.1.5. System, Network Configuration—IP CCTV-DNS 141

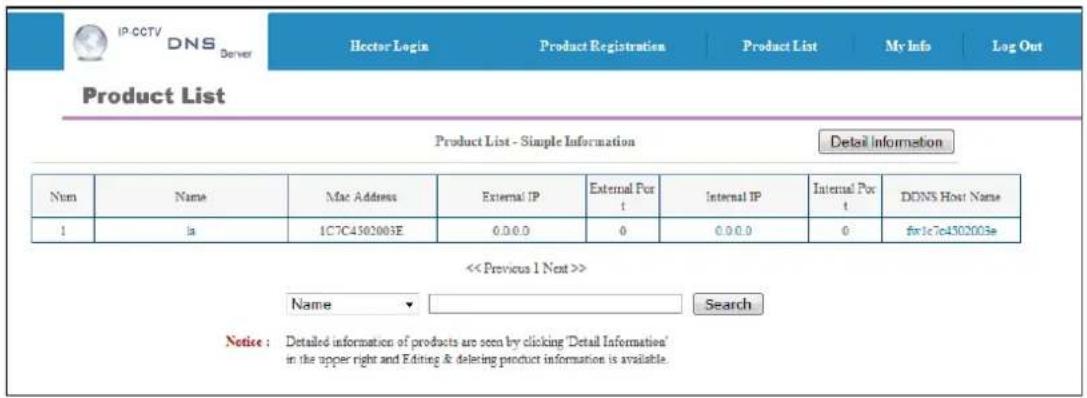

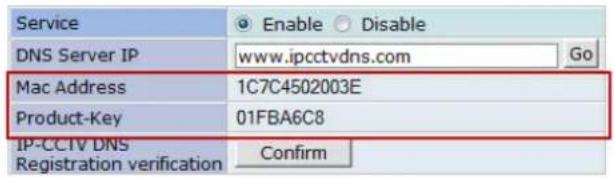

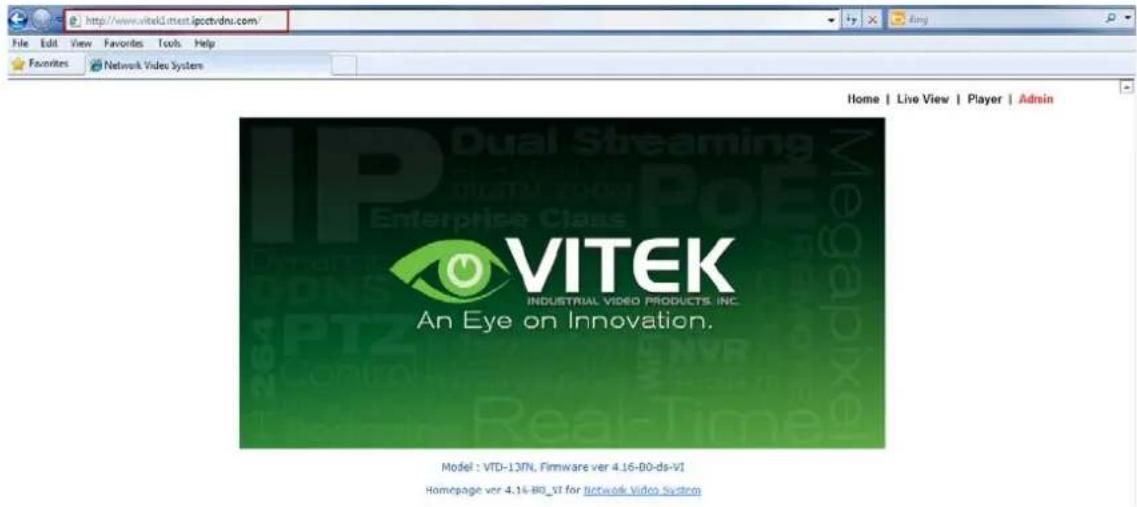

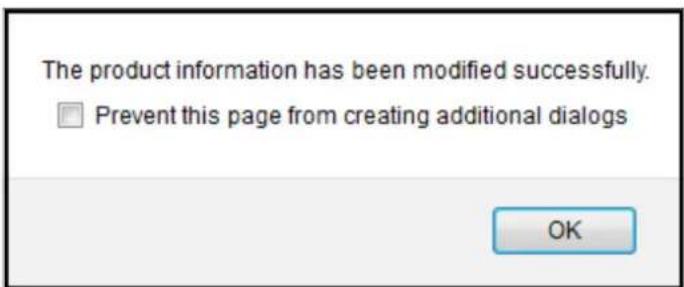

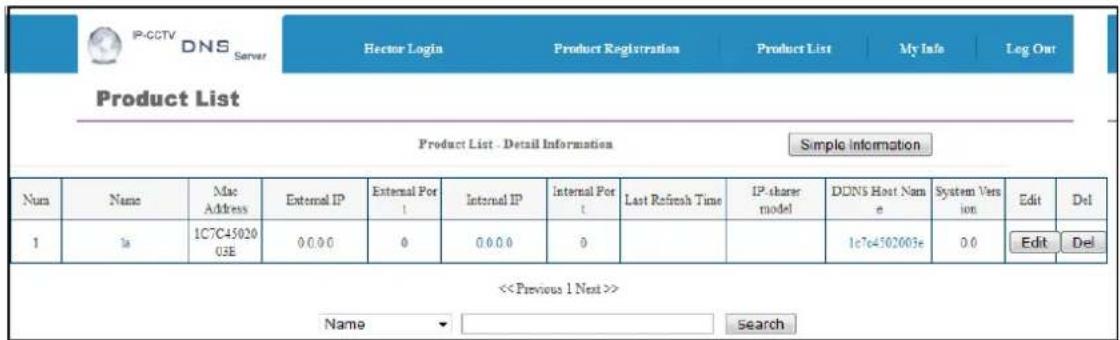

1. IPCCTVDNS Registration....142

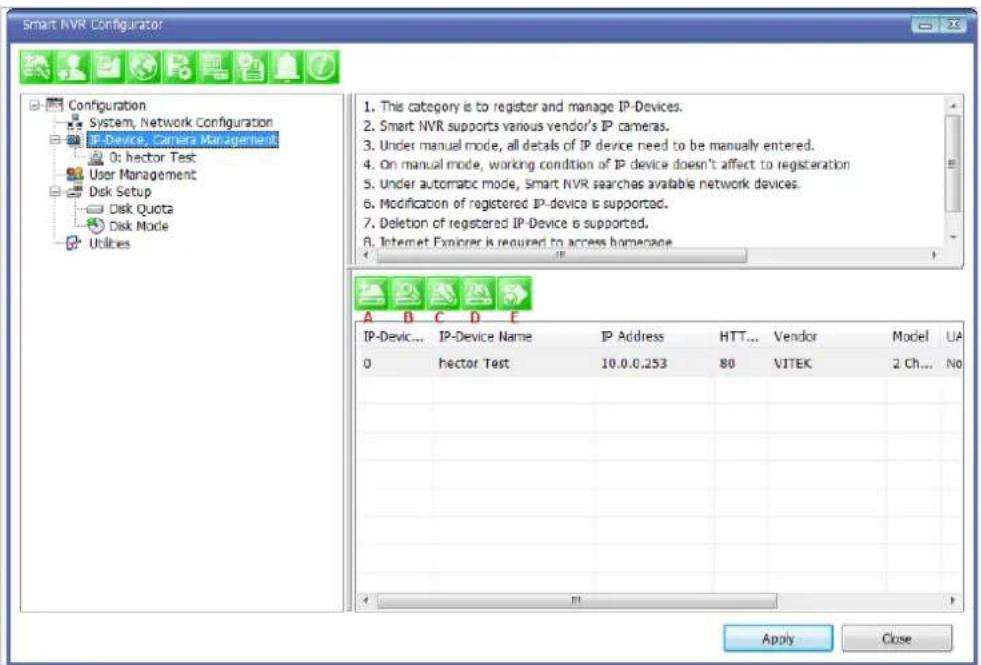

2. IP-Device Registration 148

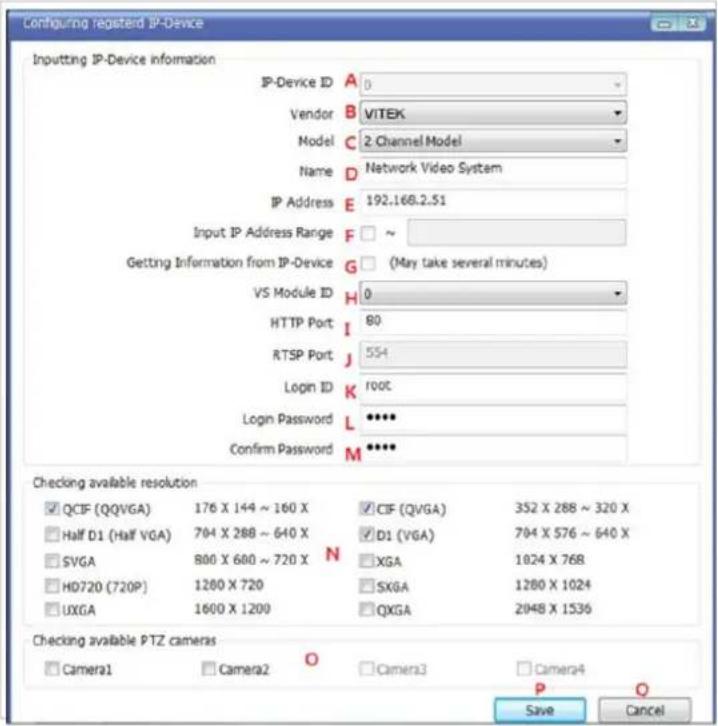

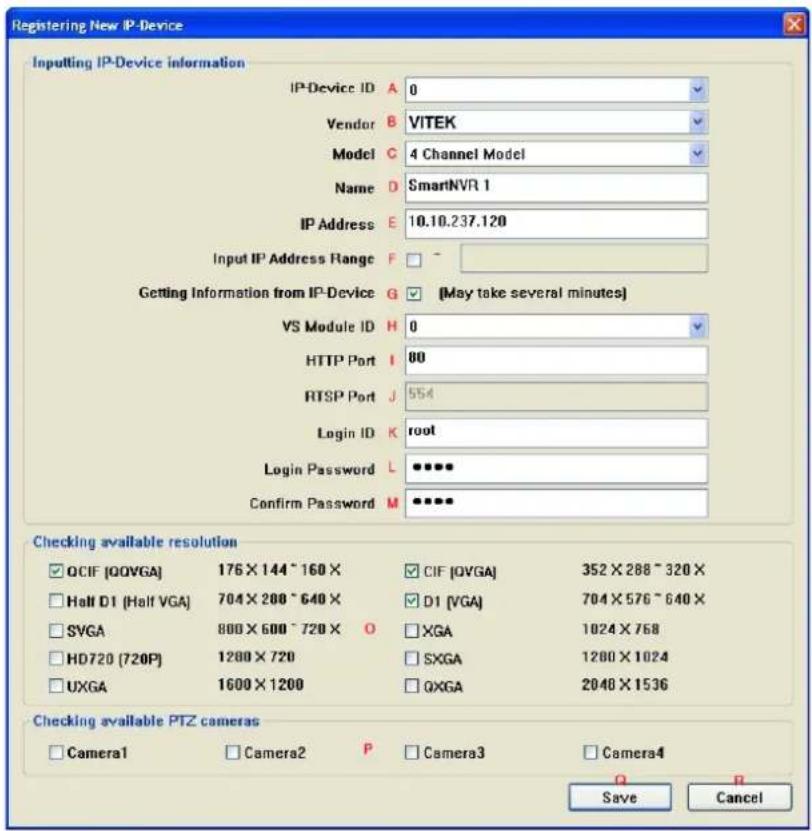

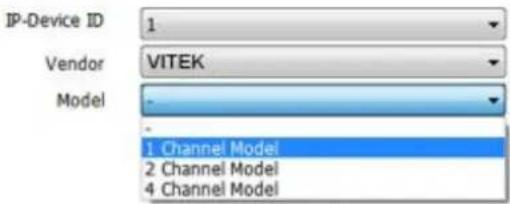

37.1. IP-Device Registration (Manual) 148

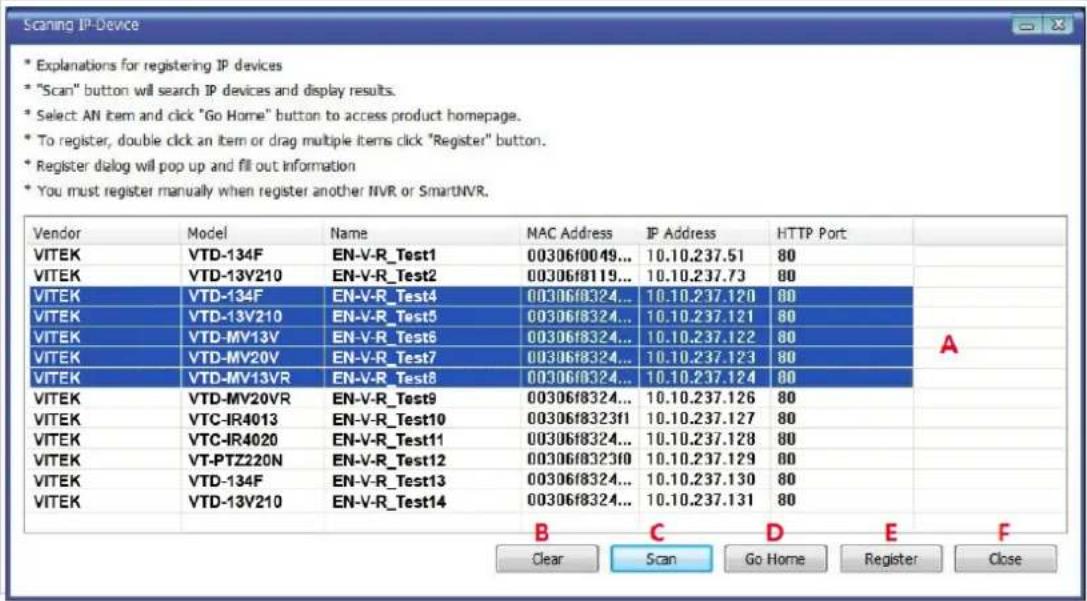

37.2. IP-Device Registration (Automatic) 150

IP-Device Modification....152

37.3. IP-DeviceDeletion....154

37.4. IP-Device Homepage 154
37.5. Camera Management.... 154

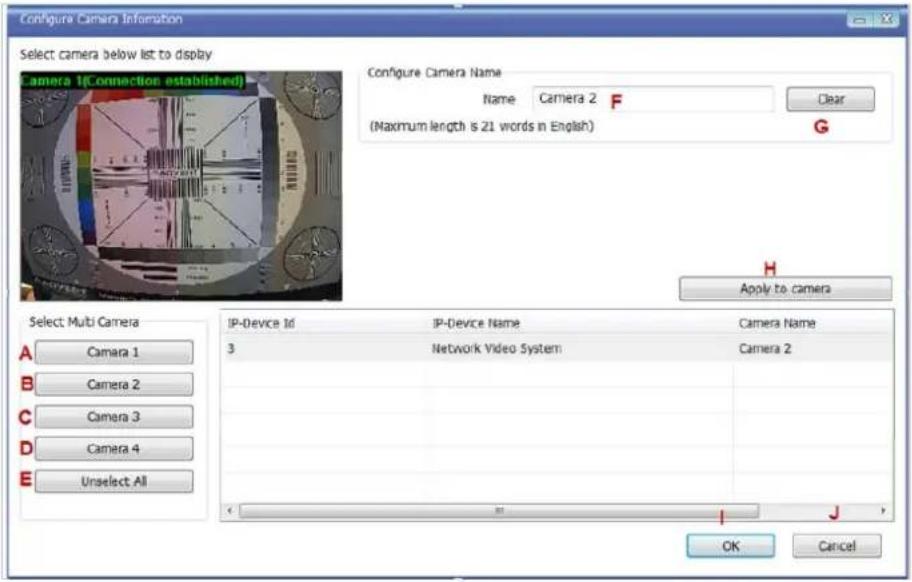

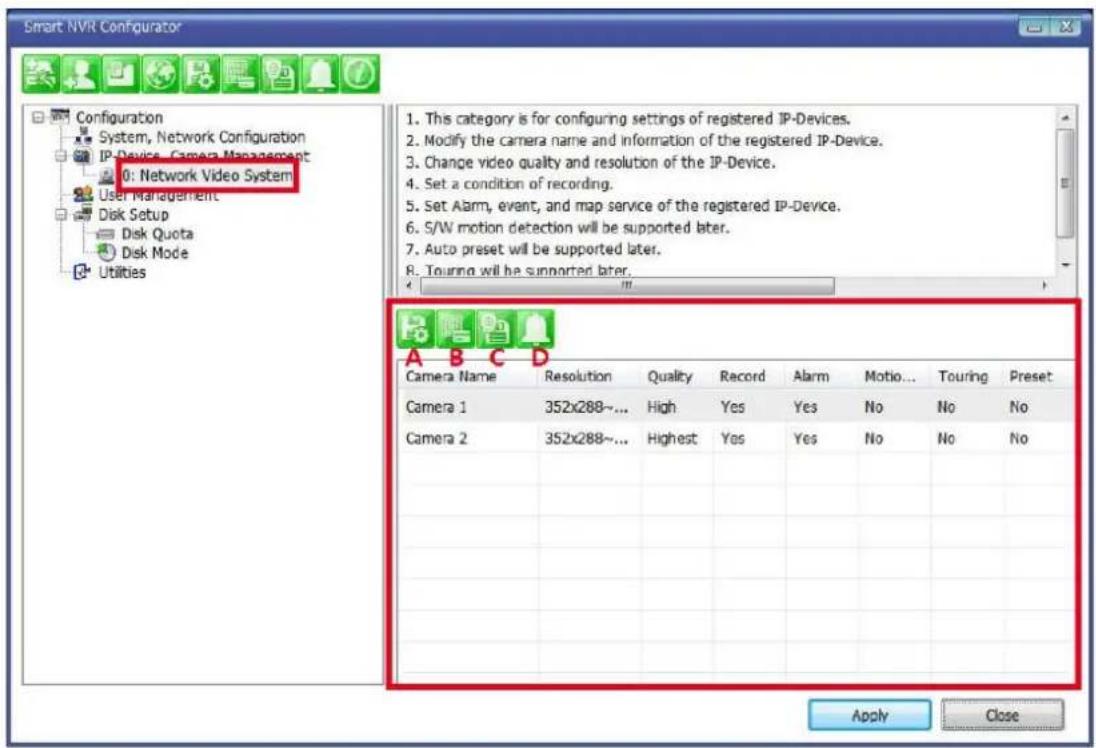

37.5.1. Configure Camera Name and Information.... 155

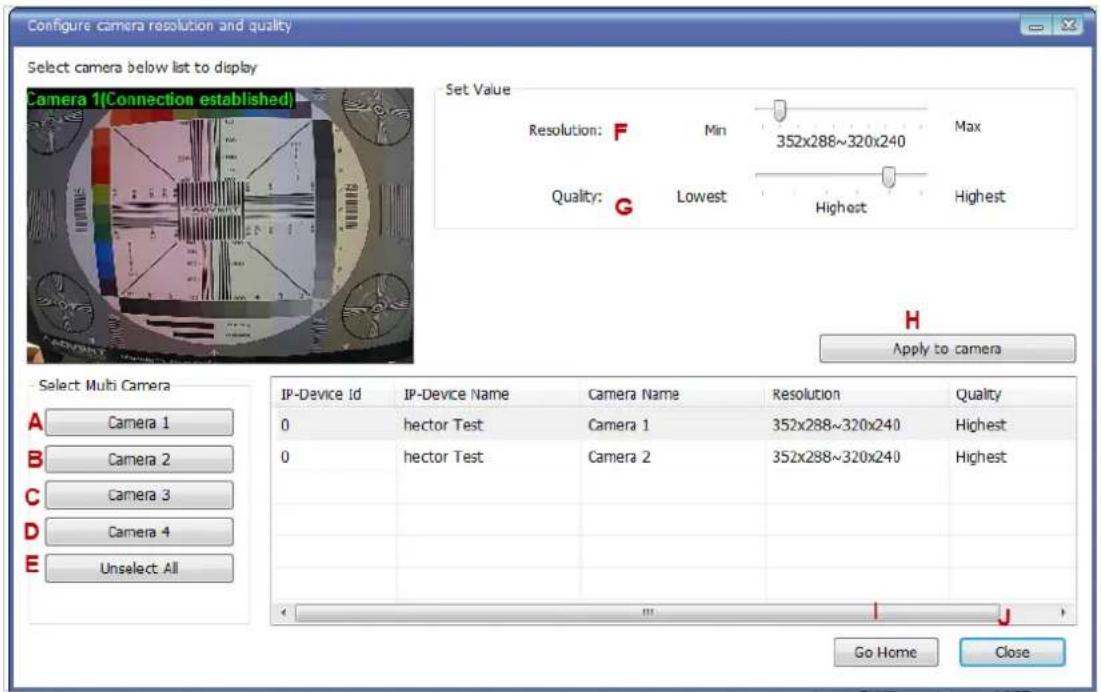

37.5.2. Camera Resolution, Quality....156

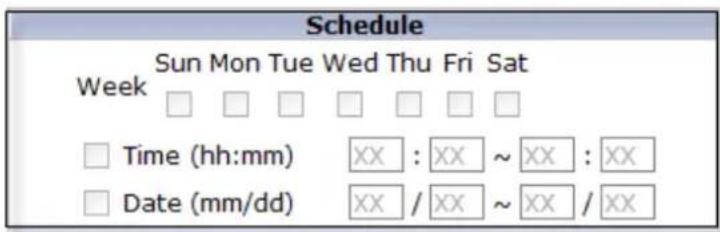

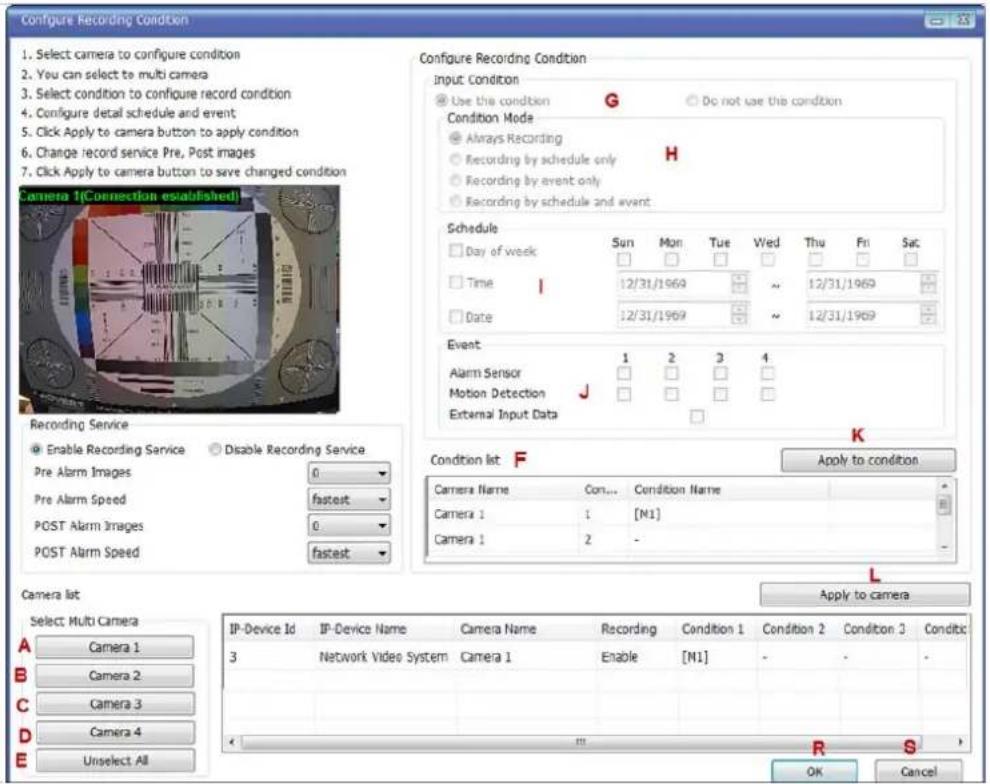

37.5.3. Configure Camera Recording Condition 157

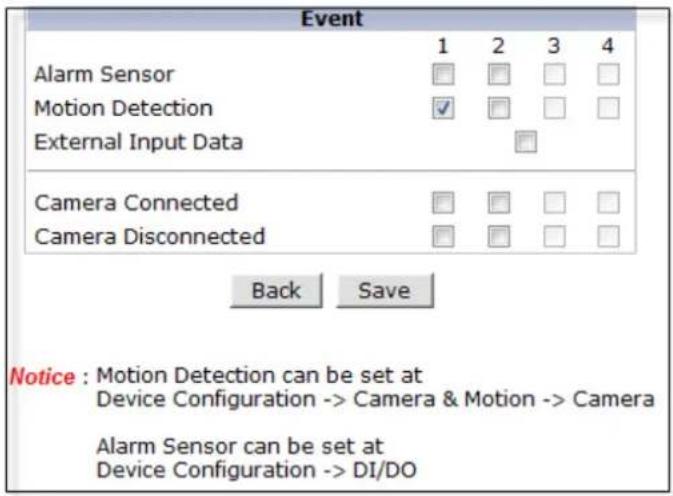

37.5.4. Alarm, Event Configuration 160

37.6.User Management 161

37.6.1.User Registration 162
37.6.2.User Modification 162
37.6.3.User Deletion....163

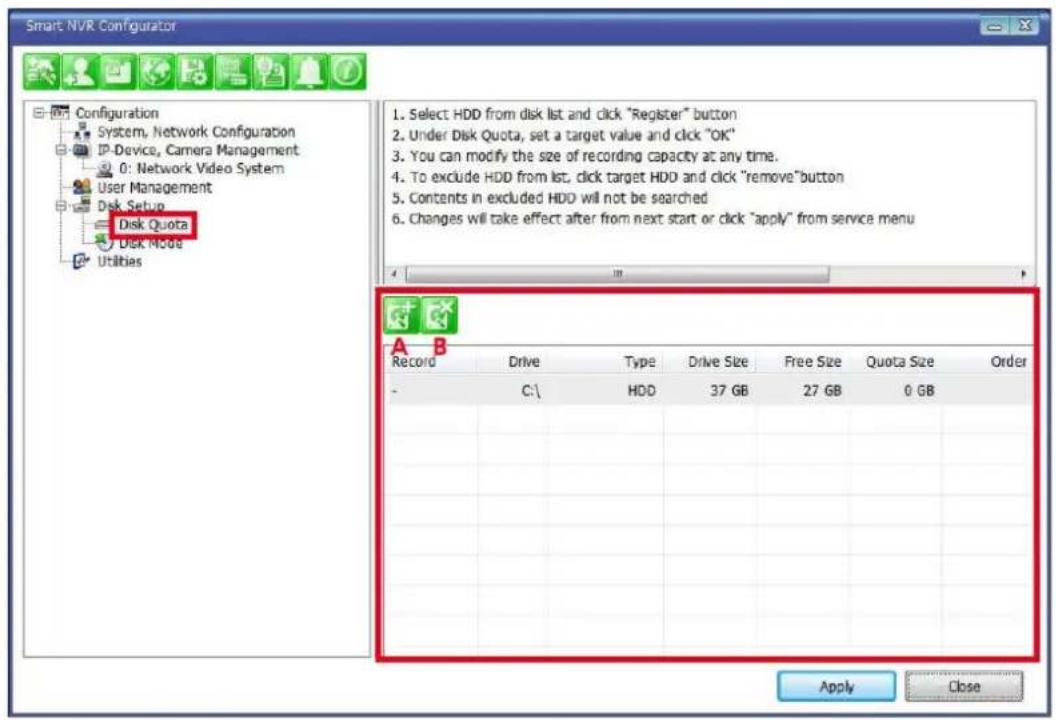

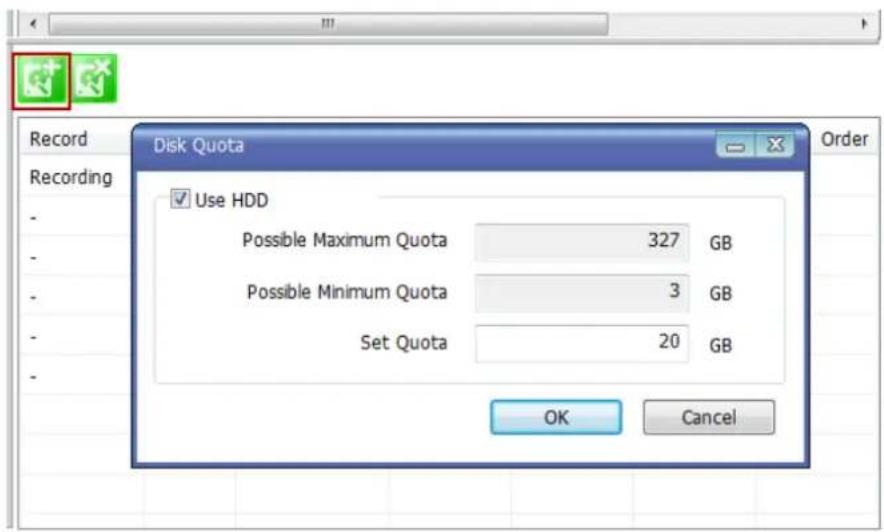

37.7. Disk Setup 163

37.7.1. Disk Setup.... 163
37.7.2. Disk Quota Modification and Deletion 163

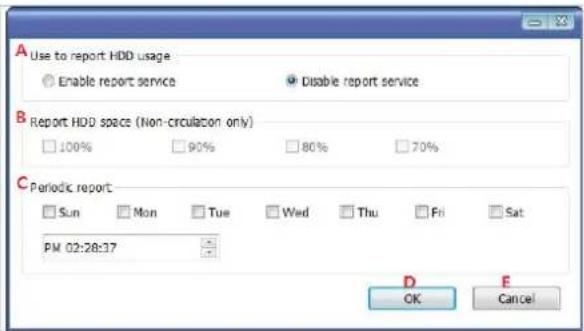

37.7.3. Disk Mode Change 164

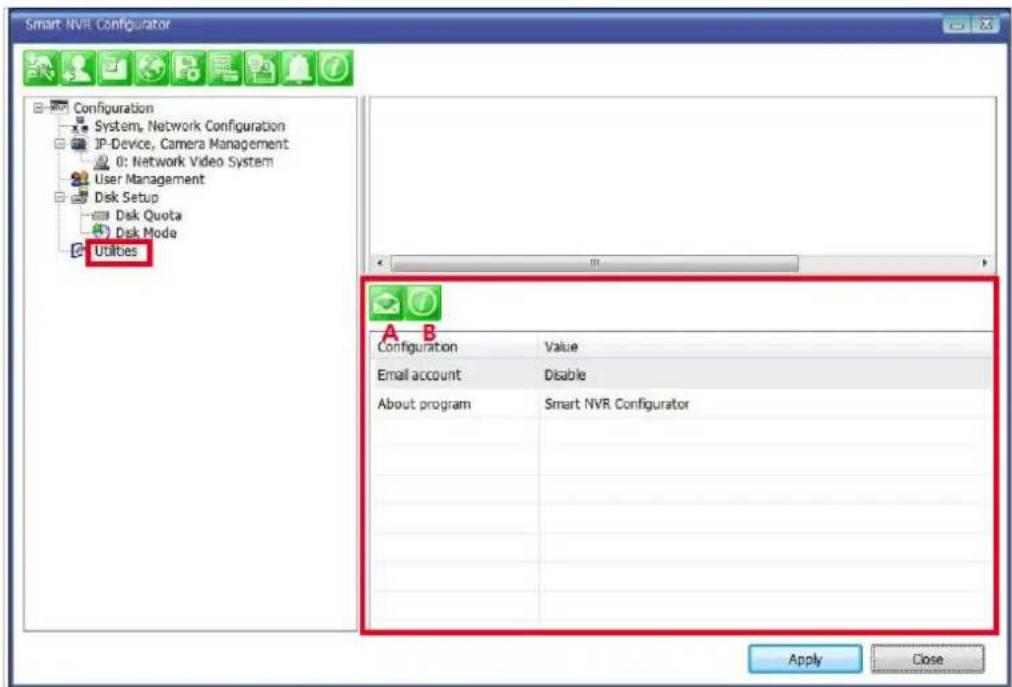

37.8. Utilities 166

37.8.1. Email account Configuration 166

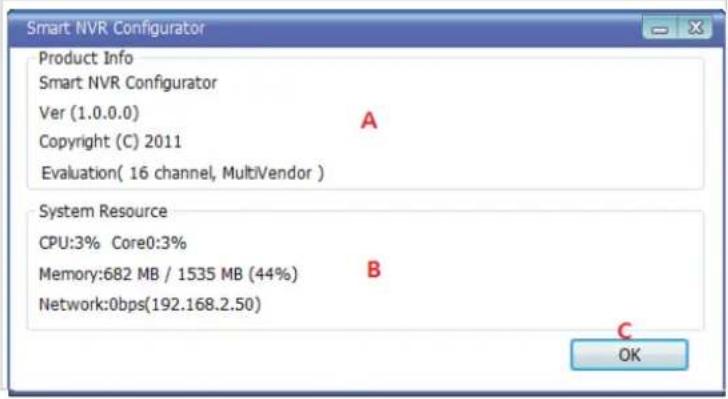

37.8.2. About Program 167

1. Using EN-V-R Controller 168
2. Connecting to EN-V-R....169

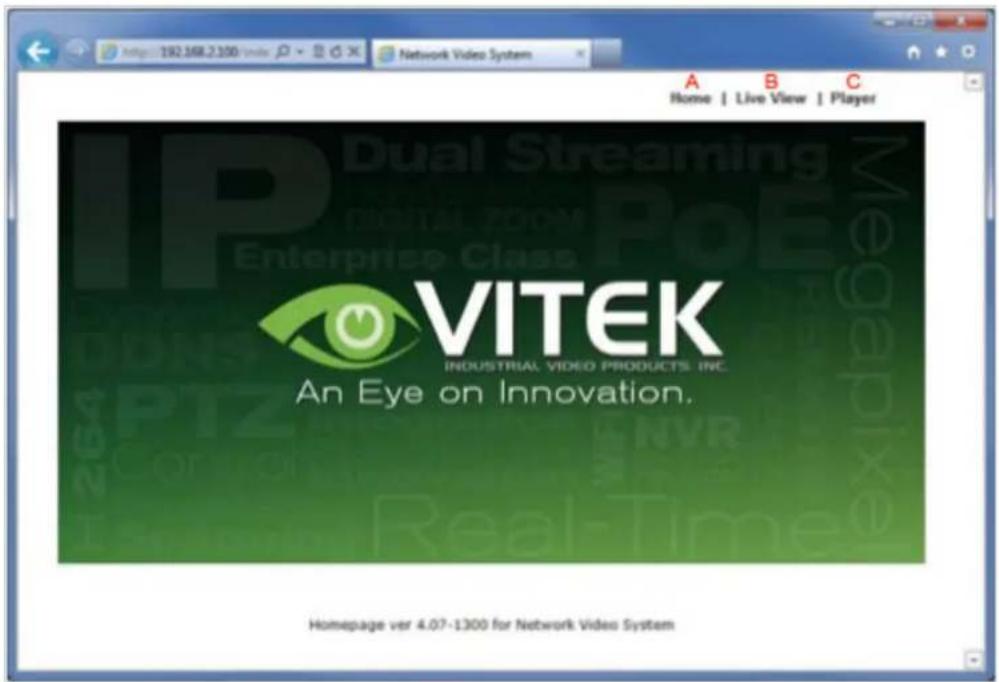

39.1. PC with EN-V-R installed 169

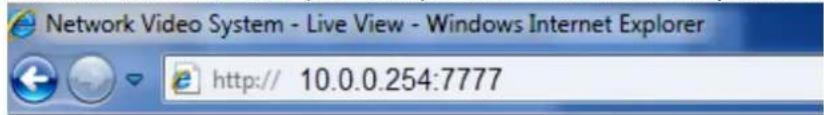

39.2. PC without EN-V-R....170

1. Box Contents

1) Dome Camera
2) Mounting Accessories
3) ENVI Series CD

2. Included Accessories

Self Tapping Screws

For mounting dome to ceiling, wall etc.

Type #: Phillips head ST4x30

Qty: 2

Secondary Video Output Cable

To be used with a service monitor for adjusting the angle, focus and zoom.

Qty: 1

3. Available Accessories

Optional Wall Mount:

3.1. Wall Mount (VT-AP/WMT)

Two white and black electronic wall-mounted devices with circular tops, one open showing internal components (no visible text or symbols)

4. VTD-13FN Installation

4.1. Connections

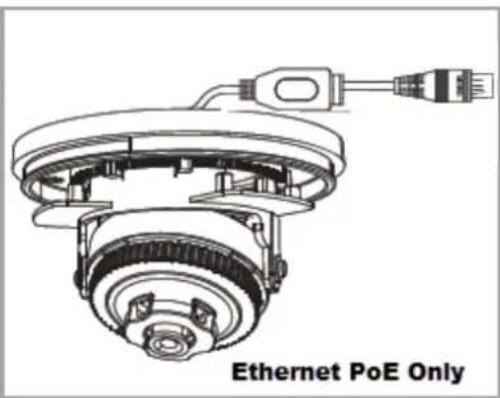

1. Power

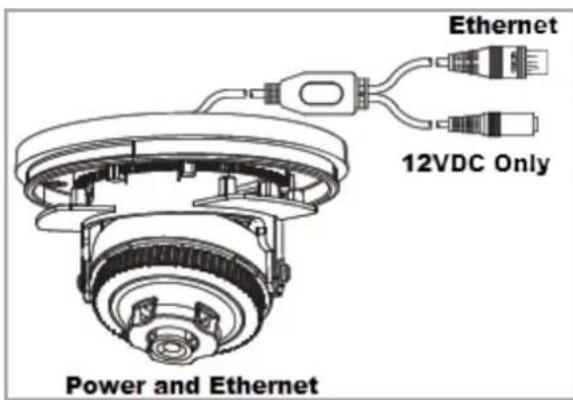

Depending on the type of installations, apply power to the camera by one of the options below.

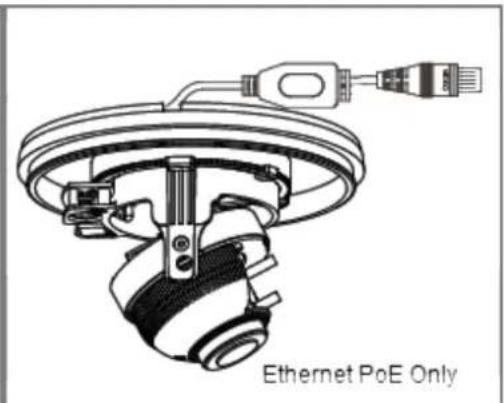

a) Via Ethernet – Use only with POE switch (100 Meters max distance)
b) 12VDC - Use with 12VDC 500mA

Ethernet 12VDC Only Power and Ethernet

Ethernet PoE Only

NOTE: If your camera is PoE you do not need to apply separate power

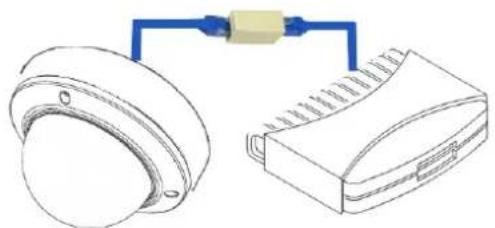

2. Ethernet connection

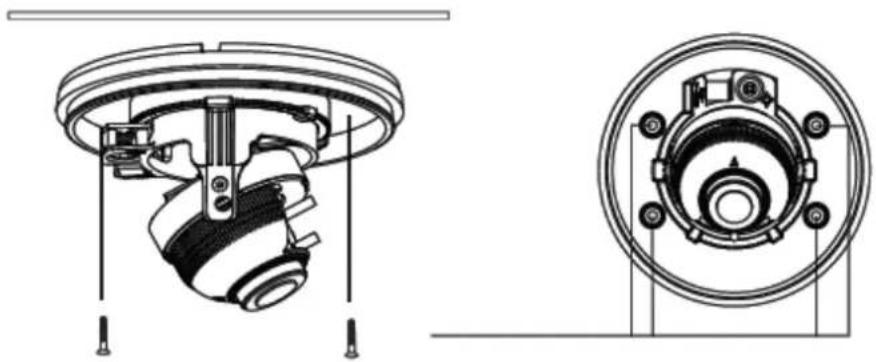

a) Insert one end of the Ethernet cable into the network jack of your camera, and insert the other end into the data port (sample: switch, router, etc)

Technical line drawing of a mechanical assembly with two components connected by a blue wire (no text or symbols)

1. Remove the dome cover from the camera using a coin

Technical illustration of a mechanical component with a magnified inset showing internal detail (no text or symbols)

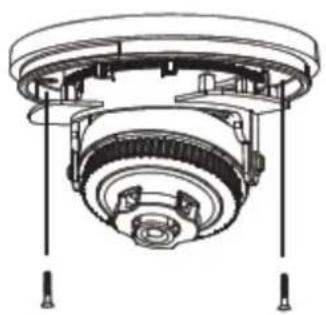

1. Place the camera in the desired location and install usingsupplied screws.

Technical line drawing of a mechanical assembly with gears and mounting feet (no text or symbols)

Technical line drawing of a mechanical assembly with concentric circular components and mounting brackets (no text or symbols)

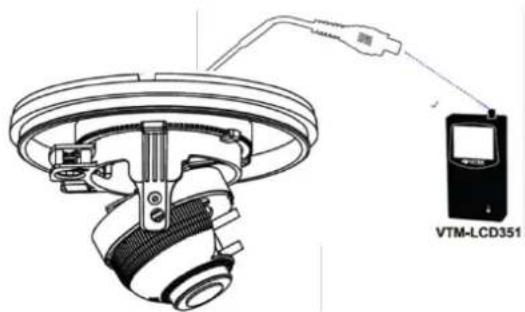

1. With the help of a hand held monitor (VTM-LCD351 not included) you can adjust the field of view and focus the camera.

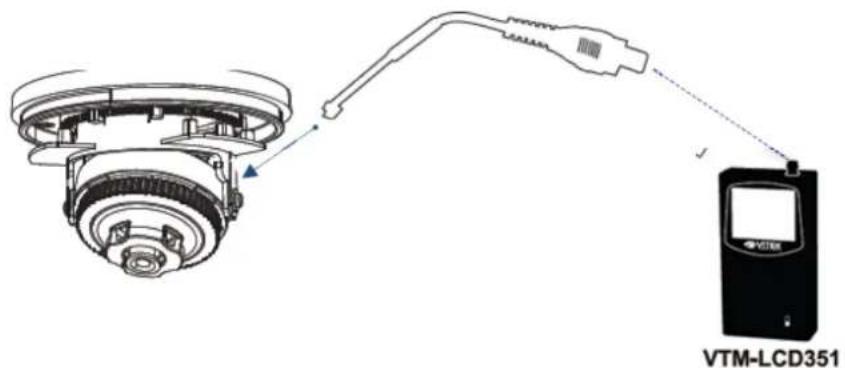

a) Connect the secondary video cable between the camera and the monitor BNC as shown below.

VTM-LCD351

1. Adjusting Camera View

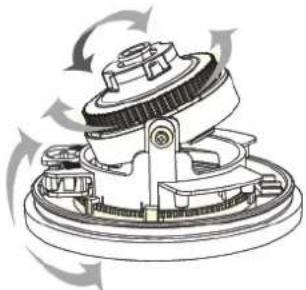

You can adjust the camera's Pan / Tilt

Mechanical assembly diagram showing a rotating component with no visible text or symbols

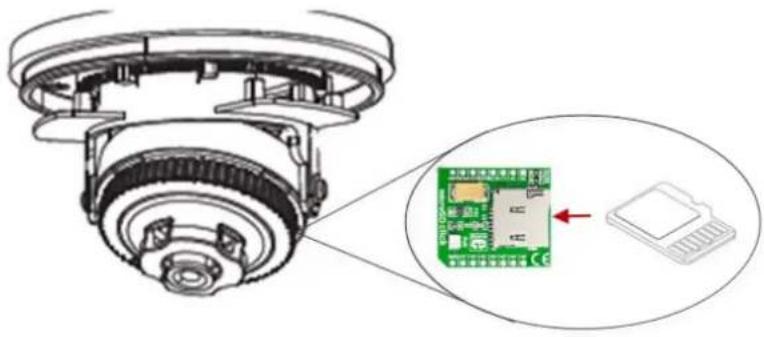

1. Removable Storage

For recording directly on the camera you will need to install a MicroSD card, this will allow you to play video directly from the camera. The MicroSD card will need to be formatted.

(refer to Section 17.1 MicroSD Configuration on page 69 for instructions on Formatting)

Note: (Please use only class 10 MicroSD cards)

Technical diagram of a mechanical assembly with an inset showing a green circuit board and a component (no text or symbols present)

1. After the camera adjustments are completed, place the dome cover back on to the camera base.

Cross-sectional diagram of a mechanical component or housing with internal components, no text or symbols present

5. VTD-13VN / VTD-20VN Installation

5.1. Connections

1. Power

Depending on the type of installations, apply power to the camera by one of the options below.

a) Via Ethernet – Use only with POE switch (100 Meters max distance)
b) 12VDC - Use with 12VDC 500mA

Ethernet 12VDC Only Power and Ethernet

Technical line drawing of a mechanical device with Ethernet PoE Only label (no technical symbols or text on the diagram itself)

NOTE: If your camera is PoE you do not need to apply separate power

1. Ethernet connection

b) Insert one end of the Ethernet cable into the network jack of your camera, and insert the other end into the data port (sample: switch, router, etc)

Technical line drawing of a mechanical assembly with two components connected by a blue wire (no text or symbols)

1. Remove the dome cover from the camera using a coin

Technical line drawing of a mechanical component with a magnified inset showing internal structure (no text or symbols)

1. Place the camera in the desired location and install usingsupplied screws.

Technical line drawing of a mechanical assembly showing front and side views (no text or symbols)

1. With the help of a hand held monitor (VTM-LCD351 not included) you can adjust the field of view and focus the camera.

b) Connect the secondary video cable between the camera and the monitor BNC as shown below.

VTM-LCD351

5. Lens Adjustment

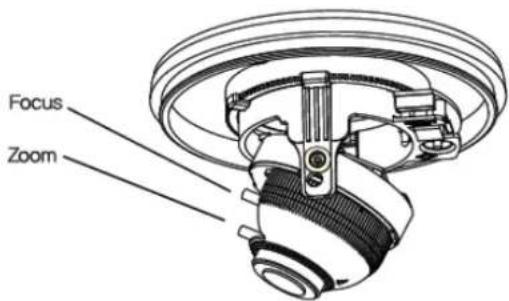

a) Loosen Zoom & Focus screw and make necessary adjustments as shown.

Field of view: Telephoto(T) to Wide(W)

Focus: Near(N) to infinity ( )

Focus Zoom

6. Adjusting Camera View

You can adjust the camera's Pan / Tilt

Technical line drawing of a mechanical component with circular motion arrows (no text or symbols)

7. Removable Storage

a) For recording directly on the camera you will need to install a microSD card, this will allow you to play video directly from the camera. The MicroSD card will need to be formatted. (refer to Section 17.1 MicroSD Configuration on page 69 for instructions on Formatting)

Diagram of a mechanical component with a close-up view showing internal components and a separate circuit board (no text or symbols present)

1. After the camera adjustments are completed, place the dome cover back on to the camera base.

Technical line drawing of a mechanical component with no visible text or symbols

6. Camera Software Installation

1. Run IP Installer Software from the CD program on a computer that is on the same network as the IP camera.

1. StartIP Installer, by double clicking the icon "IP Installer"

1. After the program has started, the main window of IP Installer program will appear on the screen as shown below.

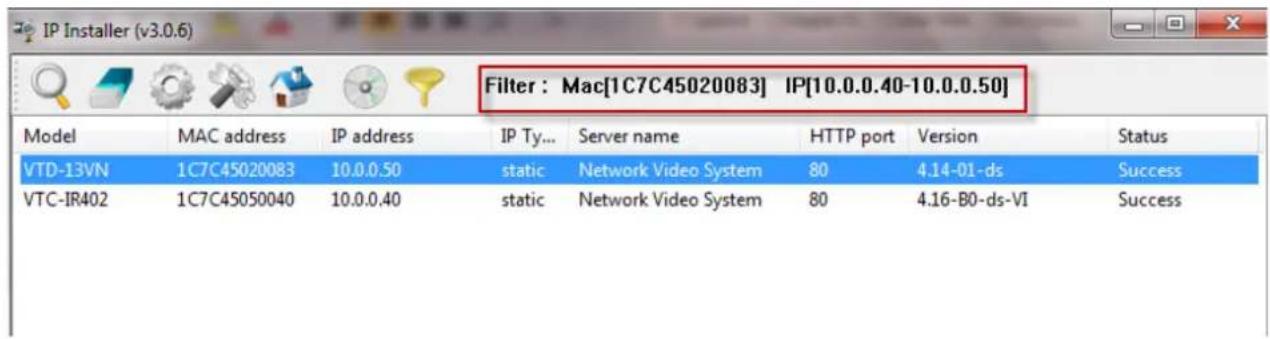

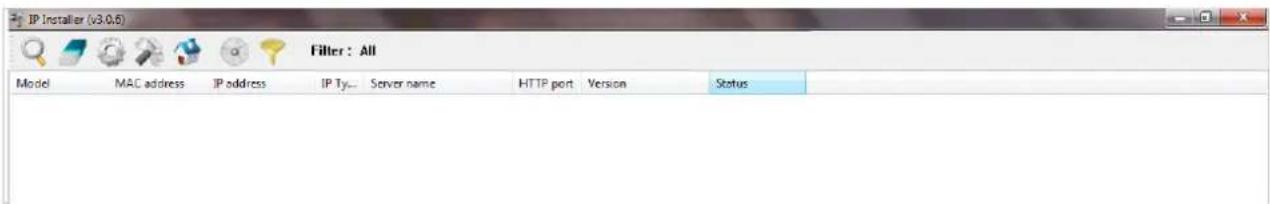

Filter: All Model MAC address IP address IP Ty... Server name HTTP port Version Status

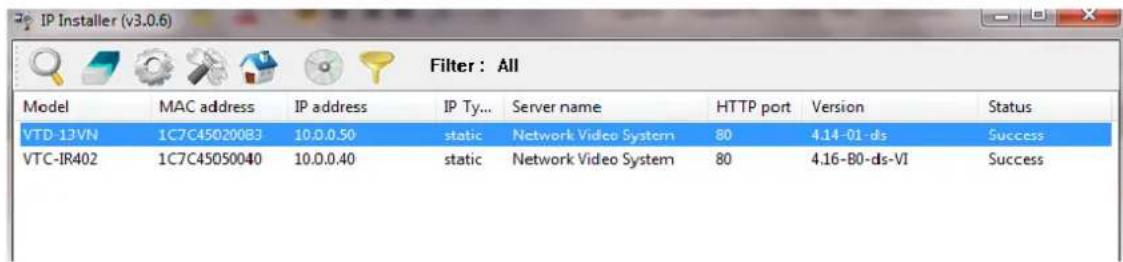

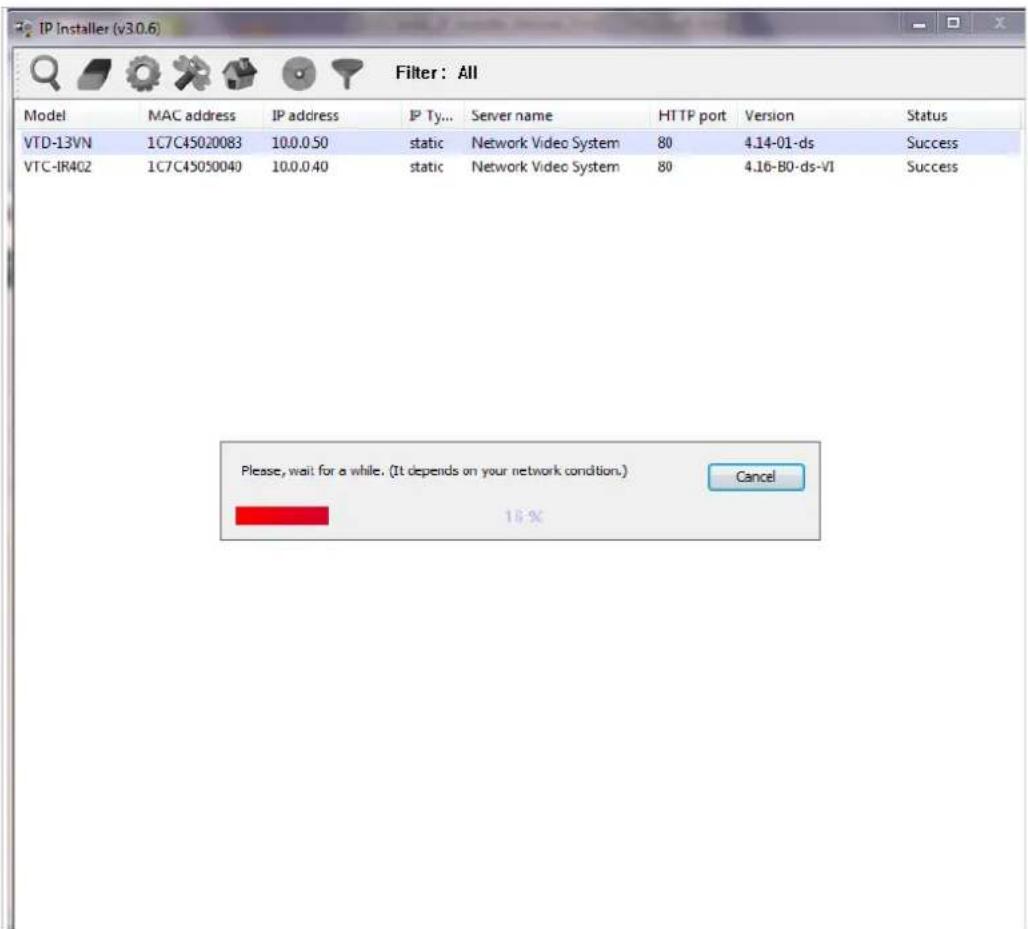

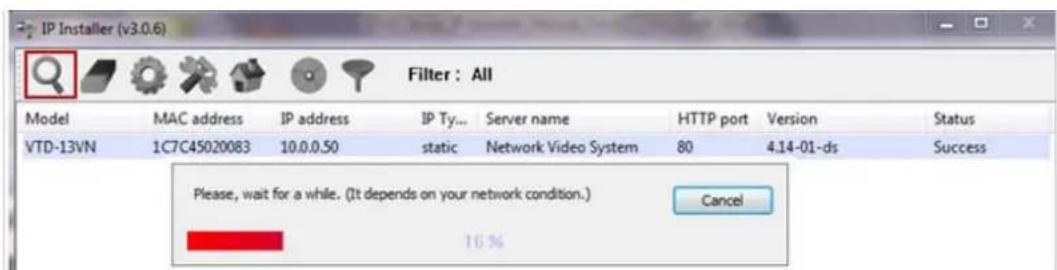

1. Search for the installed camera on the network by clicking the search product icon, the camera should appear as the image below. The default IP address is 10.20.30.40

IP Installer (v3.0.6) Filter : All Model MAC address IP address IP Ty... Server name HTTP port Version Status VTD-13VN 1C7C45020083 10.0.0.50 static Network Video System 80 4.14-01-ds Success Please, wait for a while. (It depends on your network condition.) 16 % Cancel

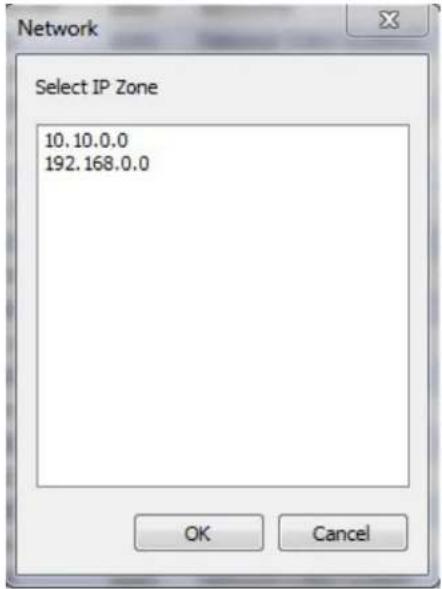

1. To assign an automatic IP address to this camera within the network, click the "Automatic IP Setup" icon

IP Installer (v3.0.6) Filter : All Model MAC address IP address IP Ty... Server name HTTP port Version Status VTD-13VN 1C7C45020083 10.0.0.50 static Network Video System 80 4.14-01-ds Success

1. Verify the Automatic IP address provided, enter the default password root and then click Set as shown below.

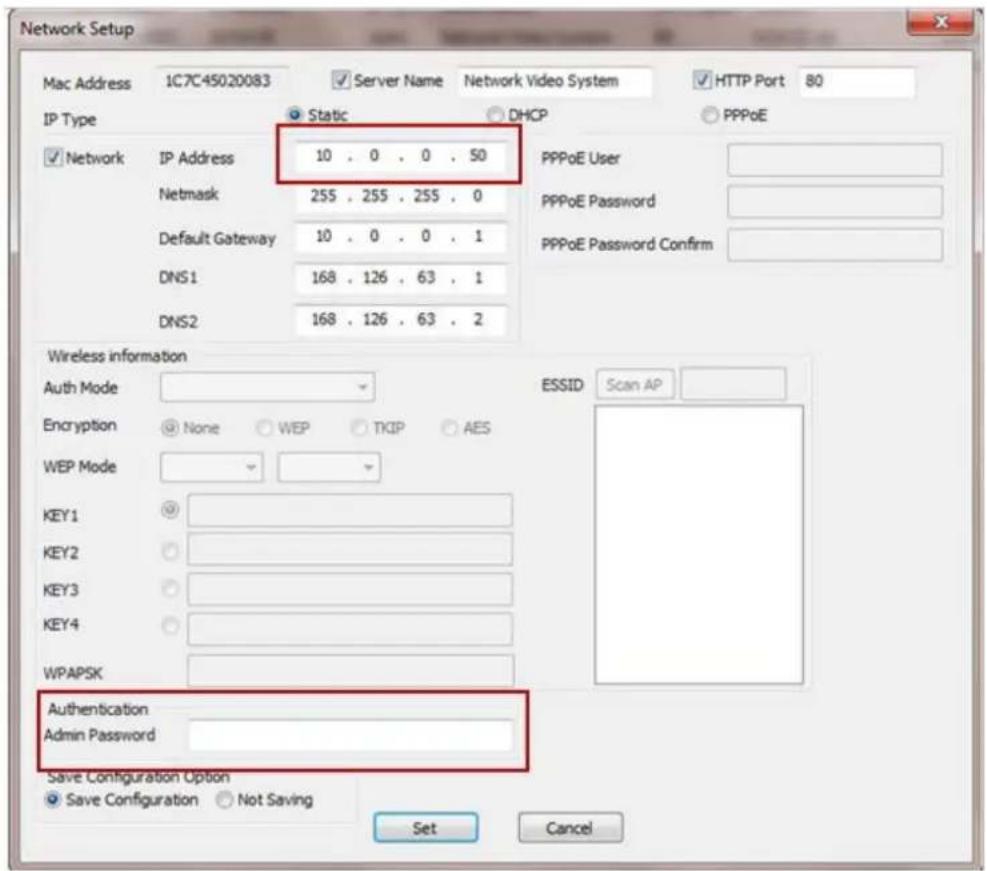

Network Setup Mac Address 1C7C45020083 Server Name Network Video System HTTP Port 80 IP Type Static DHCP PPPoE Network IP Address 10 . 0 . 0 . 50 PPPoE User Netmask 255 . 255 . 255 . 0 PPPoE Password Default Gateway 10 . 0 . 0 . 1 PPPoE Password Confirm DNS1 168 . 126 . 63 . 1 DNS2 168 . 126 . 63 . 2 Wireless information Auth Mode Encryption None WEP TKIP AES WEP Mode KEY1 KEY2 KEY3 KEY4 WPAPSK Authentication Admin Password Save Configuration Option Save Configuration Not Saving Set Cancel

1. After the camera was configured by the program automatically, you will be able to get access by

a) Right click over the camera information, "Go Product Homepage"

IP Installer (v3.0.6) Filter : All Model MAC address IP address IP Ty... Server name VTD-13VN 1C7C45020083 10.0.0. Go Product Homepage Setup Product IP A

b) Click over the icon "Connect Product Homepage"

Filter : All B

1. From the Home Page, you can "Live View" or administrate "Admin" the camera.

Home | Live View | Admin IP Dual Streaming Digital zoom Enterprise Class VITEK INDUSTRIAL VIDEO PRODUCTS INC An Eye on Innovation.

Model : VT-20VN-M, Firmware ver 4.16-B2-ds-VI Homepage ver 4.16-B2_VI for Network Video System

On Live View you will be able to see live video from your camera.

VITEK Menu 1 Menu 2 View Window New Window Session 10 Preview Edit PVD: Real Estate Commissions Edit

NOTE: For more information, refer to Section 11 Admin Menu of VITEK VTD-13/VTD-20 Series on page 37.

7. VTD-13FN / VTD-13VN / VTD-20VN Features

VTD-13FN

ENVI Indoor 1.3 MegaPixel IP Dome Camera Series

1/3" 1.3 Megapixel Progressive Scan CMOS imager

Up to 30fps live view @ 1280x1024

3.8mm Fixed Lens Included

2D-DNR Noise Reduction

4:3 Video format

Secondary video output for installation & maintenance

H.264/MJPEG Dual Streaming

Minimal Latency with up to 16 simultaneous user connections

Onvif Compliance

SD memory card slot for Local recording

12VDC Operation / Optional PoE (Power over Ethernet)

Available in Ivory or Black

VTD-13VN / VTD-20VN

ENVI Indoor 1.3 / 2.0 MegaPixel IP Dome Camera Series

1/3" 1.3 / 2.0 Megapixel Progressive Scan CMOS imager

Up to 30fps live view @ 1280x1024 / 1920x1080

2.8-10mm Varifocal Auto Iris Lens

2D-DNR Noise Reduction

4:3 Video format(1.3) 16:9 Video format(2.0)

Secondary video output for installation & maintenance

H.264/MJPEG Dual Streaming

Minimal Latency with up to 16 simultaneous user connections

Onvif Compliance

12VDC Operation / Optional PoE (Power over Ethernet)

Available in Ivory or Black

8. IP Installer: Introduction

IP Installer is a proprietary utility program for VitekIP products. It enables users of Vitek products to search their network for any Vitek network camera, video server, or network video recorder no matter what IP address it has. By using IP Installer, users will be able to facilitate network setup process for Vitek products deployment.

• Runs on Microsoft Windows operating system (XP, Vista, 7, 8)
• Search for Network Cameras, Video Servers, and Network Video Recorders
• Capable of firmware updating
• Support automatic and manual IP setup

9. Installing and Uninstalling

** It's recommended to install this program as an administrator **

IP-Installer_Setup_3.0.6 pedkey Open Open in new window Extract All... Open with... Send to Cut Copy Create shortcut Delete Rename Properties IP Installer_Setup_3.0.6 IP-Installer_Setup_3.0.6 pedkey Open Run as administrator Troubleshoot compatibility Send to Cut Copy Create shortcut Delete Rename Properties Step 2

Step 1
Step 2

9.1. Installing IP Installer

If the program is started from the CD supplied with Vitek products, insert the CD in to CD/DVD tray and check the installation file. If it is download or copied from the Internet or any other media, locate the file from the PC's hard drive. You will see the icon as shown with the file name IP Installer_Setup_x.x.x.exe. The actual file name in your case may vary as the version changes. Double click the icon to start installation.

You may be prompted to continue running the installation program.

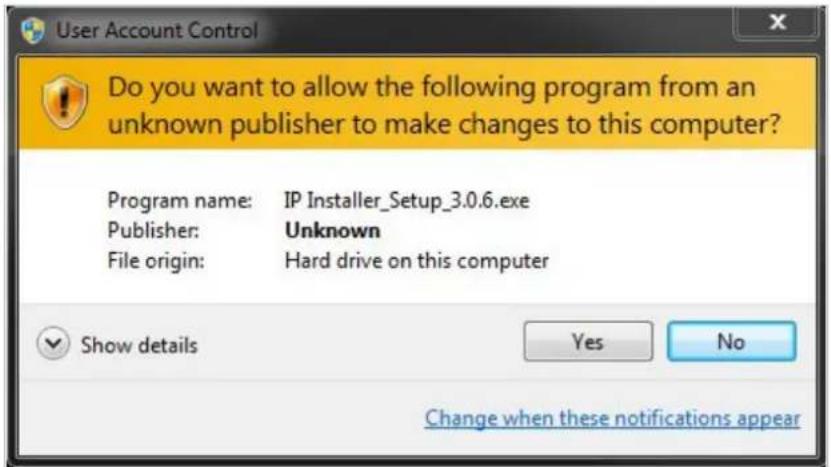

User Account Control Do you want to allow the following program from an unknown publisher to make changes to this computer? Program name: IP Installer_Setup_3.0.6.exe Publisher: Unknown File origin: Hard drive on this computer Show details Yes No Change when these notifications appear

Click Yes button, then the following window will be shown on the screen.

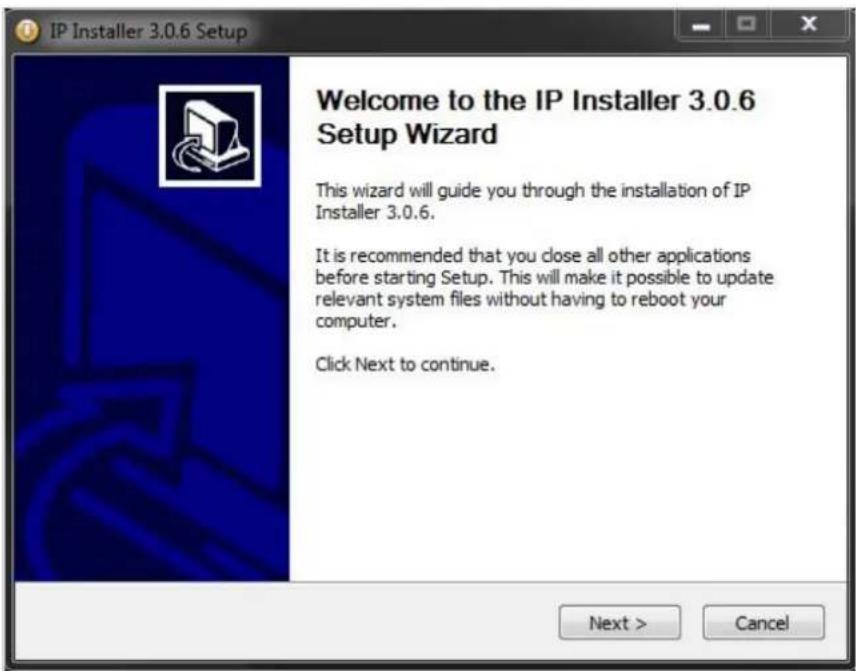

IP Installer 3.0.6 Setup Welcome to the IP Installer 3.0.6 Setup Wizard This wizard will guide you through the installation of IP Installer 3.0.6. It is recommended that you close all other applications before starting Setup. This will make it possible to update relevant system files without having to reboot your computer. Click Next to continue. Next > Cancel

To continue the installation, click Next. The following window will be displayed for location to install.

IP Installer 3.0.6 Setup Choose Install Location Choose the folder in which to install IP Installer 3.0.6. Setup will install IP Installer 3.0.6 in the following folder. To install in a different folder, click Browse and select another folder. Click Install to start the installation. Destination Folder C:Program Files IP Installer Browse... Space required: 2.2MB Space available: 142.9GB IP Installer Install System < Back Install Cancel

The default location for installation is C:\Program Files\IP Installer. It is recommended to install in this folder, if you want to change it to a different location, click the Browse button to choose location. Now click the Install button. You will see the progress of the install as shown below.

IP Installer 3.0.6 Setup Installing Please wait while IP Installer 3.0.6 is being installed. Create folder: C:\ProgramData\Microsoft\Windows\Start Menu\Programs\IP Installer Extract: IPInstaller.ico... 100% Output folder: C:\Program Files (x86)\IP Installer Extract: IPInstaller.ini... 100% Output folder: C:\Program Files (x86)\IP Installer\Images Extract: MainToolbarImage.bmp... 100% Extract: MainToolbarImage_B.bmp... 100% Output folder: C:\Program Files (x86)\IP Installer\Langs Extract: english.ini... 100% Extract: korean.ini... 100% Create folder: C:\ProgramData\Microsoft\Windows\Start Menu\Programs\IP Installer IP Installer Install System < Back Next > Cancel

When the files are done copying, the following window will be shown. Click the Finish button to complete the installation.

IP Installer 3.0.6 Setup Completing the IP Installer 3.0.6 Setup Wizard IP Installer 3.0.6 has been installed on your computer. Click Finish to close this wizard.

9.2. Uninstalling IPI installer

If you want to remove the IP Installer program from your PC, click Start > All Programs > IP Installer > Uninstall.

IP Installer IP Installer Uninstall

You may be prompt to continue running the uninstall program.

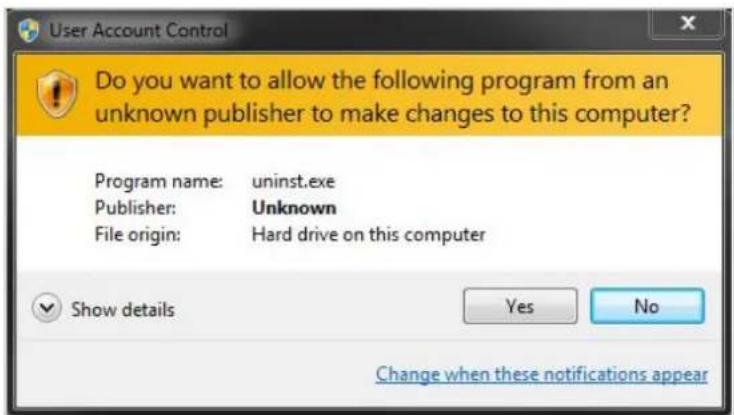

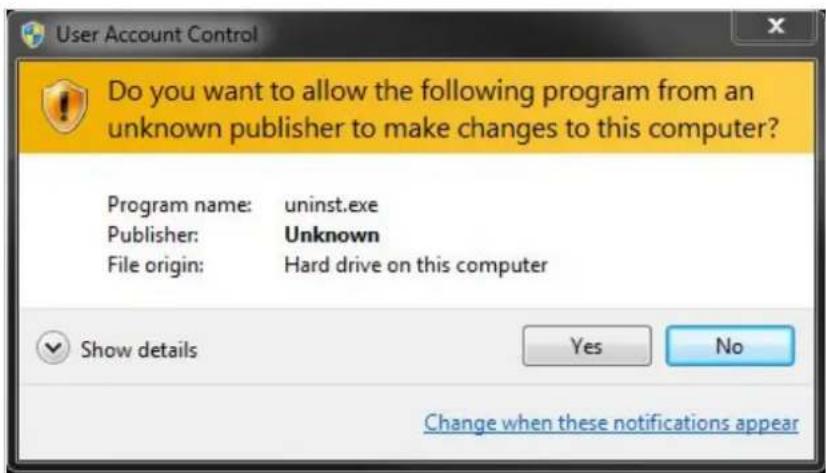

User Account Control Do you want to allow the following program from an unknown publisher to make changes to this computer? Program name: uninst.exe Publisher: Unknown File origin: Hard drive on this computer Show details Yes No Change when these notifications appear

Click on the Yes button, then the following window will be shown on the screen.

IP Installer 3.0.6 Uninstall Welcome to the IP Installer 3.0.6 Uninstall Wizard This wizard will guide you through the uninstallation of IP Installer 3.0.6. Before starting the uninstallation, make sure IP Installer 3.0.6 is not running. Click Next to continue. Next > Cancel

Click on the Next button and you will see the following window.

IP Installer 3.0.6 Uninstall Uninstall IP Installer 3.0.6 Remove IP Installer 3.0.6 from your computer. IP Installer 3.0.6 will be uninstalled from the following folder. Click Uninstall to start the uninstallation. Uninstalling from: C:\Program Files (x86)\IP Installer\ IP Installer Install System < Back Uninstall Cancel

Click on the Uninstall button to start removing the IP Installer program from your computer. The following window will be displayed.

IP Installer 3.0.6 Setup Installing Please wait while IP Installer 3.0.6 is being installed. Create folder: C:\ProgramData\Microsoft\Windows\Start Menu\Programs\IP Installer Extract: IPInstaller.ico... 100% Output folder: C:\Program Files (x86)\IP Installer Extract: IPInstaller.ini... 100% Output folder: C:\Program Files (x86)\IP Installer\Images Extract: MainToolbarImage.bmp... 100% Extract: MainToolbarImage_B.bmp... 100% Output folder: C:\Program Files (x86)\IP Installer\Langs Extract: english.ini... 100% Extract: korean.ini... 100% Create folder: C:\ProgramData\Microsoft\Windows\Start Menu\Programs\IP Installer IP Installer Install System < Back Next > Cancel

Click on the Finish button to close the window

IP Installer 3.0.6 Uninstall Completing the IP Installer 3.0.6 Uninstall Wizard IP Installer 3.0.6 has been uninstalled from your computer. Click Finish to close this wizard.

10. Using IP Installer

10.1. Starting the Program

Once IP Installer program has been installed on your computer, a shortcut icon should be created on the desktop of your computer. You can start IP Installer by double clicking the icon.

Or you can also start the program by clicking Start > All Programs > IP Installer > IP Installer as shown below.

IP Installer IP Installer Uninstall

After the program has started, the main window of IP Installer program will appear on the screen as shown below. There are no network devices shown, as it is the first time running the program and nothing has been registered.

IP Installer (v3.0.6) Filter : All Model MAC address IP address IP Ty... Server name HTTP port Version Status

	Search Product	Scan the network and shows the list of all the Vitek products that IP Installer program found.
	Clear Product List	Clear the Vitek products list created by searching the network.
	Automatic IP Setup	Configure the network setting of selected IP device in Automatic mode.
	Manual IP Setup	Configure the network setting of selected IP device in Manual mode.
	Connect Product Homepage	Connect to the server homepage of the selected IP device.
	Update Firmware	Update the firmware of the selected IP device.
	Filter Configuration	Define the range of MAC and IP addresses to search.

10.2. Search Product

Make sure that your Vitek products are powered and connected to the network, and then click the Search Product button. A status window will pop up to show the progress of the search. Wait until it reaches 100%, or you may press the Cancel button to stop the at any given time and proceed with the results made until that moment.

IP Installer (v3.0.6) Filter : All Model MAC address IP address P Ty... Server name HITTP port Version Status VTD-13VN 1C7C45020083 10.0.0.50 static Network Video System 80 4.14-01-ds Success VTC-IR402 1C7C45050040 10.0.0.40 static Network Video System 80 4.16-B0-ds-VI Success Please, wait for a while. (It depends on your network condition.) 18% Cancel

After searching is completed 100%, the IP Installer program will display the IP devices found.

If you want to clear the list of the IP Devices from the window, click Clear Product List button from the Main Toolbar.

10.3. Manual Network Setup

Configuring the network parameters of the devices in the list can be started either by highlighting and right clickingmouse button or by clicking Manual IP Setupbutton on the main Toolbar.

IP Installer (v3.0.6) Filter : All Model MAC address IP address IP Ty... Server name HTTP port Version Status VTD-13VN 1C7C45020083 10.0.0.50 Go Product Homepage 80 4.14-01-ds Success VTC-IR402 1C7C45050040 Setup Product IP 80 4.16-B0-ds-VI Success

When one IP device is selected, the following screen will appear

Network Setup Mac Address 1C7C45020083 Server Name Network Video System HTTP Port 80 IP Type Static DHCP PPPoE Network IP Address 10 . 0 . 0 . 50 PPPoE User Netmask 255 . 255 . 255 . 0 PPPoE Password Default Gateway 10 . 0 . 0 . 1 PPPoE Password Confirm DNS1 158 . 126 . 63 . 1 DNS2 158 . 126 . 63 . 2 Wireless information Auth Mode Encryption None WEP TKIP AES ESSID Scan AP WEP Mode KEY1 KEY2 KEY3 KEY4 WPAPSK Authentication Admin Password Save Configuration Option Save Configuration Not Saving Set Cancel

MAC Address	MAC address of the selected device is shown.
Server Name	Input desired name of camera i.e. Lunch Room
HTTP Port	Input port number to access IP devices homepage via web. Default port is 80
IP Type	Select the type of address (Static / DHCP / PPPoE) Use STATIC for manual IP setup
Network	General network parameters are required in this part. Please contact your network administrator for detail.(IP Address, Netmask, Default Gateway, DNS1, DNS2)
Authentication (Admin Password)	Password for the IP device.(Default password for Vitek products is “root” unless already changed)
Save Configuration Option	Select whether the configured contents is to be saved in the Camera memory or not.Save Configuration: Changed values will be saved in the Camera memory of the device, which means the changes are permanent.Not Saving: Changed values will not be saved in the Camera memory, which means if the IP device is turned off the changes are lost and the previous setting will be applied back.

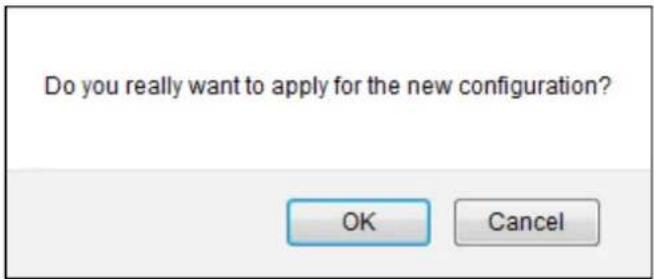

Click Set button to apply the changed values to IP device. If you don't want it, click Cancel button.

When two or more IP devices are selected

You can select two or more IP devices at the same time by clicking one after another while CTRL key is pressed. The result is shown as below.

To configure the network parameters of those devices, click the right mouse button or click

Manual IP Setup icon on the main Toolbar with multiple IP devices selected as shown above.

Then the following window will show up.

Network Setup You can change Server name, IP Type, IP Address, Netmask, Gateway, DNS1, DNS2, Port by clicking, and input password. IP Address Server Name Password Model MAC Address Server Name IP Type IP Address Netmask Gateway DNS1 DNS2 HTTP Port Password VTD-13VN 1C7C45020083 Network Vide... Static 10.0.0.50 255.255.255.0 10.0.0.1 168.126.63.1 168.126.63.2 80 VTC-IR402 1C7C45050040 Network Vide... Static 10.0.0.40 255.255.255.0 10.0.0.1 169.126.63.1 169.126.63.2 80 Apply to all Save Close Cancel

You can modify the value of each changeable field by clicking it. The following shows an example of entering a new value to a field.

Network Setup You can change Server name, IP Type, IP Address, Netmask, Gateway, DNS1, DNS2, Port by clicking, and input password IP Address Server Name Password Model MAC Address Server Name IP Type IP Address Netmask Gateway DNS1 DNS2 HTTP Port Password VTD-13VN 1C7C45020083 Network Vide... Static 10.0.0.50 255.255.255.0 10.0.0.1 168.126.63.1 168.126.63.2 80 VTC-IR402 1C7C45050040 Network Vide... Static 10.0.0.40 255.255.255.0 10.0.0.1 168.126.63.1 168.126.63.2 80 Apply to all Save Close Cancel

Model	Model Numbers of the IP devices that you selected.
MAC Address MAC address of the selected device is shown.
Server Name Name of the selected IP device.
IP Type	How to assign IP address to the device (Select Static here for Manual IP Setup)
IP address, Netmask, Gateway, DNS1, DNS2	General network parameters are required in this part. Please contact your network administrator for detail.
HTTP Port	HTTP port number of the IP device for web access to homepage.
Password	Password for the IP device.(Default password for Vitek products is “root”)

If you click Apply to all button after changing just a field of one IP device, the remaining IP devices will have the same value for that parameter. In this case, each device's Server name and IP Address field will have +1 incremented value added to the original value. For example, if the first IP device has been given the server name of NetCam and Apply to all button is pressed, it will be automatically changed to NetCam1 and the next IP device will have NetCam2 and so on. The same applies to the IP address field.

For Password field, the entered information doesn't increment but will use the same data.

In using Apply to all, you can choose which field is affected. Put check marks only on the field you want to use this automatic action as below.

IP Address

Server Name

Password

Click Save & Close button to save the changed values in the camera memory of all the IP devices and close the Network setup window.

10.4. Automatic Network Setup

Configuring the network parameters of the devices in the list can be started either by clicking right mouse button or by clicking Automatic IP Setupbutton on the main

Toolbar. Before starting the setup, you first need to choose the one to be configured. In this setup mode, IP Installer program checks your local network and assigns available IP addresses to the IP devices. You have a choice of using those automatically assigned IP addresses, or you can just enter other IP addresses as you desire.

Network Setup Mac Address 1C7C+5020083 Server Name Network Video System HTTP Part 80 IP Type Static DHCP PPPoE Network IP Address 10 . 0 . 0 . 50 Netmask 255 . 255 . 255 . 0 Default Gateway 10 . 0 . 0 . 1 DNS1 168 . 126 . 63 . 1 DNS2 168 . 126 . 63 . 2 Wireless information Auth Mode Encryption None WEP TKIP AES WEP Mode KEY1 KEY2 KEY3 KEY4 WPAPSK Authentication Admin Password Save Configuration Option Save Configuration Not Saving Set Cancel

Server Name Name of the selected IP device.
HTTP Port	HTTP port number of the IP device for web access to homepage.
IP Type	How to assign IP address to the device (Select Static here for Manual IP Setup)
Network	General network parameters are required in this part. Please contact your network administrator for detail. (IP Address, Netmask, Default Gateway, DNS1, DNS2)
Authentication (Admin Password)	Password for the IP device. (Default password for Vitek products is “root”)
Save Configuration Option	Select whether the configured contents is to be saved in the Camera memory or not.Save Configuration: Changed values will be saved in the Camera memory of the device, which means the changes are permanent.Not Saving: Changed values will not be saved in the Camera memory, which means if the IP device is turned off the changes are lost and the previous setting will be applied back.

Click Set button to apply the changed values to IP device. If you don't want it, click Cancel button to restore the previous values.

Note: If your network has more than one IP address Zone at the same time, the confirmation window will be displayed as below. You need to choose the one you are going to use for your IP devices.

Network Select IP Zone 10.10.0.0 192.168.0.0 OK Cancel

10.5. Using DHCP Server

If your network has a DHCP server running for assigning IP addresses, you may choose to let it assign IP addresses to the IP devices on the list. To do that, first open the Network Setup window either by Manual IP Setup or Automatic IP Setup procedure. Choose DHCP in "IP Type" selection, then IP Address, Netmask, Default Gateway field in Network setup area on the window will be disabled to input as shown below.

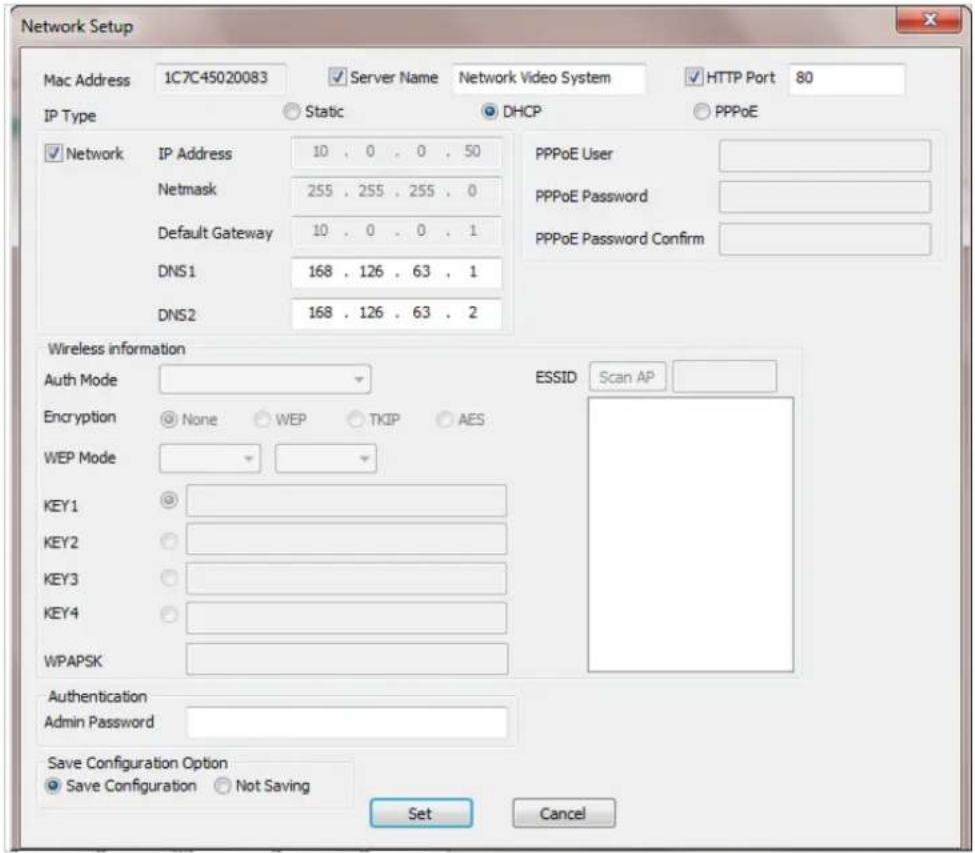

Network Setup Mac Address 1C7C45020083 Server Name Network Video System HTTP Port 80 IP Type Static DHCP PPPoE Network IP Address 10 . 0 . 0 . 50 PPPoE User Netmask 255 . 255 . 255 . 0 PPPoE Password Default Gateway 10 . 0 . 0 . 1 PPPoE Password Confirm DNS1 168 . 126 . 63 . 1 DNS2 168 . 126 . 63 . 2 Wireless information Auth Mode Encryption None WEP TKIP AES ESSID Scan AP WEP Mode KEY1 KEY2 KEY3 KEY4 WPAPSK Authentication Admin Password Save Configuration Option Save Configuration Not Saving Set Cancel

For setting up other fields on the setup window, refer to Section 10.3 Manual Network Setup on page 25. After filling the fields with appropriate values, click Set button to apply the changed values to IP device. If you don't want it, click Cancel button to restore the previous values.

10.6. Using PPPoE

If your network environment is based on PPPoE connection, you'll need to choose PPPoE on IP Type selection. First open the Network Setup window either by Manual IP Setup or Automatic IP Setup procedure. Choose PPPoE in IP Type selection, and then all the fields in Network setup area on the window will be disabled. The network settings such as IP Address, Netmask, Default Gateway and DNS are no longer available to enter. You only need to enter the Server Name, HTTP Port number, and login authentication for your PPPoE connection.

Network Setup Mac Address 1C7C45020083 Server Name Network Video System HTTP Port 80 IP Type Static DHCP PPPoE Network IP Address 10 . 0 . 0 . 50 PPPoE User Netmask 255 . 255 . 255 . 0 PPPoE Password Default Gateway 10 . 0 . 0 . 1 PPPoE Password Confirm DNS1 168 . 126 . 63 . 1 DNS2 168 . 126 . 63 . 2 Wireless information Auth Mode Encryption None WEP TKIP AES ESSID Scan AP WEP Mode KEY1 KEY2 KEY3 KEY4 WPAPSK Authentication Admin Password Save Configuration Option Save Configuration Not Saving Set Cancel

MAC Address MAC address of the selected device is shown.

Server Name Name of the selected IP device.

HTTP Port	HTTP port number of the IP device for web access to homepage.
IP Type	How to assign IP address to the device (Select PPPoE in this mode)
PPPoE	User Authentication for PPPoE Connection.PPPoE User: Enter User ID.PPPoE Password: Enter Password for the User ID.PPPoE Password Confirm: Enter the same Password again.
Authentication (Admin Password)	Password for the IP device.(Default password for Vitek products is “root” unless already changed)
Save Configuration Option	Select whether the configured contents is to be saved in the Camera memory or not.Save Configuration: Changed values will be saved in the Camera memory of the device, which means the changes are permanent.Not Saving: Changed values will not be saved in the Camera memory, which means if the IP device is turned off the changes are lost and the previous setting will be applied back.

Note: After setting up the network for the IP devices, make sure the IP devices are accessible on the network from your computer. It can be done by running Live View function of the homepage of the IP device's built-in server. Refer to Section 10.9Live View on page35for how to do it.

10.7. Updating Firmware

Once IP devices are searched and shown on the screen as functioning successfully, you can update the firmware of them in IP Installer program. To do that, first check the firmware version of the device, which you can find on the IP Installer window.

IP Installer (v3.0.6) Filter: All Model MAC address IP address IP Ty... Server name HTTP portväss Status VTD-13VN 1C7C45020083 10.0.0.50 static Network Video System 80 4.14-01-ds Success VTC-JR402 1C7C45050040 10.0.0.40 static Network Video System 80 4.16-B0-ds-VI Success

In the above picture, the firmware version of this product is 4.14-01-ds while the latest firmware version available is 4.16-B0-ds-VI as you could see at Vitek's homepage (http://www.vitekcctv.com/Downloads.asp). If you decide to update the firmware, first

create a folder on your computer for the update firmware, than download the latest firmware to that folder.

Then select the IP device to be updated on IP Installer window, then click Update Firmware button from the toolbar. The following window will be displayed.

Update Model Mac Address IP Address Server Name Progress Status Password VTD-13M 1C7045020083 10.0.0.50 Network Video Ready Update Select option for update with proper password and then click the button to update lineware. ● ALL (Firmware, RAM disk, System, Web) ○ SYSTEM and WEB ○ WEB only Start update Get version Enter the password for each columns and click the button to get version of firmware. Get version Apply to all Close

You may find the Password field is empty on the window shown above. If so, click the Password field of the IP device and enter the proper password for the device. You are not allowed to update the firmware if the correct password is not provided.

After the password is entered, the Start Update button will be enabled now. Click the button to see the following window for selecting the folder where the file has been saved. Highlight the folder than clickOK.

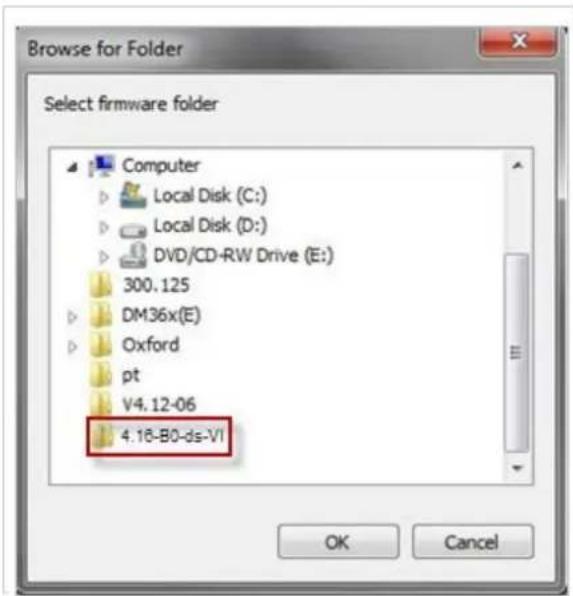

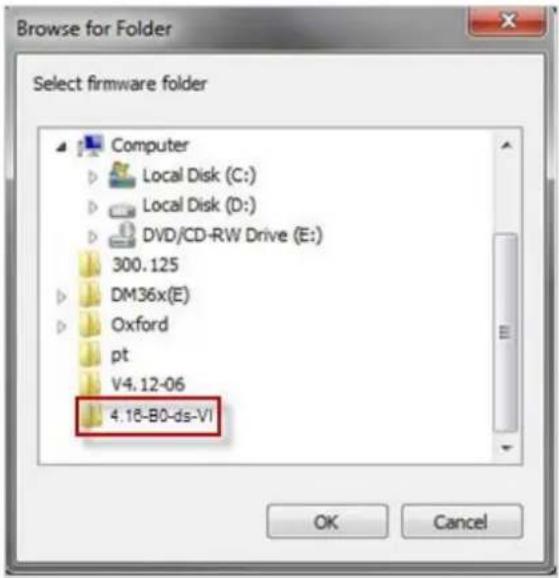

Browse for Folder Select firmware folder Computer Local Disk (C:) Local Disk (D:) DVD/CD-RW Drive (E:) 300.125 DM36x(E) Oxford pt V4.12-06 4.16-B0-ds-VI OK Cancel

After clicking OK the following window will be displayed.

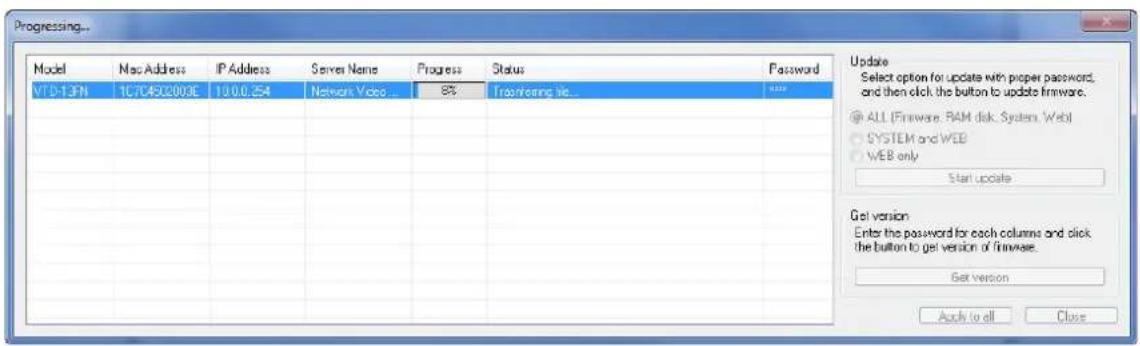

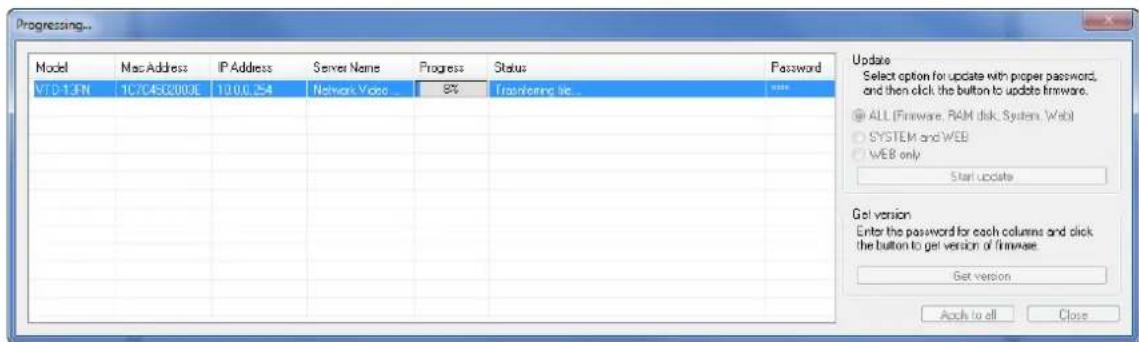

Progressing... Model Mac Address IP Address Server Name Progress Status Password VTO-1.FN 107045C000E 10.0.0.254 Network Video 8% Forwarding lid **** Update Select option for update with proper password, and then click the button to update firmware. ALL (Firmware, RAM disk, System, Web) SYSTEM and WEB WEB only Start update Get version Enter the password for each columns and click the button to get version of firmware. Get version Apply to all Close

Note: Do not CLOSE window until completed, to avoid permanent damage to the camera.

You can also select multiple IP devices at the same time, and have them start firmware updating in a single step. Select the files to update by holding CTRL key and selecting which IP devices to update

Click Start Update button. You will see the update window brought up with multiple IP devices listed.

Update Model Mac Address IP Address Server Name Progress Status Password VTD-13VN 1C7C45020083 192.168.250.2... demo(MS) Ready VTC-IR402 1C7C45050040 192.168.250.2 demo(FS) Ready Update Select option for update with proper password, and then click the button to update firmware. ALL (Firmware, RAM disk, System, Web) SYSTEM and WEB WEB only Start update Get version Enter the password for each columns and click the button to get version of firmware. Get version Apply to all Close

The rest of the procedure is the same as in the firmware update case for a single IP device.

10.8. Filter Configuration

When you need to search only for the IP device having a specific range of MAC or IP addresses, you can do it by using this feature. To set the search condition, click Filter Configuration button on the Toolbar, then the following window will show up on the

screen.

Search filter Mac Address 1C 7C 45 | IP Range 0 . 0 . 0 . 0 ~ 0 . 0 . 0 . 0 OK Cancel

The first six HEX characters are already filled in with 1C:7C:45, which is the MAC prefix for Vitekproducts. Put a checkmark inMAC Address or IP Range to set the range for searching. You can set the range of IP addresses to scan as shown below. In this example, all the IP devices having MAC address starting with 1C:7C:45 will be listed on the result window after scanning.

Or you can look for a single IP device having a specific IP address as below.

Search filter Mac Address 1C 7C 45 02 00 83 IP Range 0 . 0 . 0 . 0 ~ 0 . 0 . 0 . 0 OK Cancel

IP Address range for searching can be entered as follows.

You may even set both MAC Address and IP Range together at the same time.

Search filter ✓ Mac Address 1C 7C 45 02 00 83 ✓ IP Range 10 . 0 . 0 . 40 ~ 10 . 0 . 0 . 50 OK Cancel

After setting the searching range as explained above, click OK button. Then IP Installer program window will show the searching range on the top right portion of the window as shown below.

IP Installer (v3.0.6) Filter : Mac[1C7C45020083] IP[10.0.0.40-10.0.0.50] Model MAC address IP address IP Ty... Server name HTTP port Version Status VTD-13VN 1C7C45020083 10.0.0.50 static Network Video System 80 4.14-01-ds Success VTC-IR402 1C7C45050040 10.0.0.40 static Network Video System 80 4.16-B0-ds-VI Success

To start searching with this condition now, click Search Product button on the toolbar. The program will start searching and show the result after a moment.

10.9. Live View

Once searching and configuration on IP devices are done, you should make sure that the IP devices are accessible with the new settings. The best way to do it is by connecting to the homepage of each IP device's built-in server, and starting Live View feature.

Select Go Product Homepage when you click the rightmouse button on the IP device to test.

IP Installer (v3.0.6) Filter : Mac[1C7C45020083] IP[10.0.0.40-10.0.0.50] Model MAC address IP address IP Ty... Server name HTTP port Version Status VTD-13VN 1C7C45020083 10.0.0.50 static Network Video System 80 4.14-01-ds Success VTC-IR402 1C7C45050040 10.0.0.40 Go Product Homepage 80 4.16-B0-ds-VI Success Setup Product IP

If you select Go Product Homepage, the homepage of that device's built-in server will be opened on a new Web browser window as shown below. This is the same result when you click Connect Product Homepage button from the Main Toolbar.

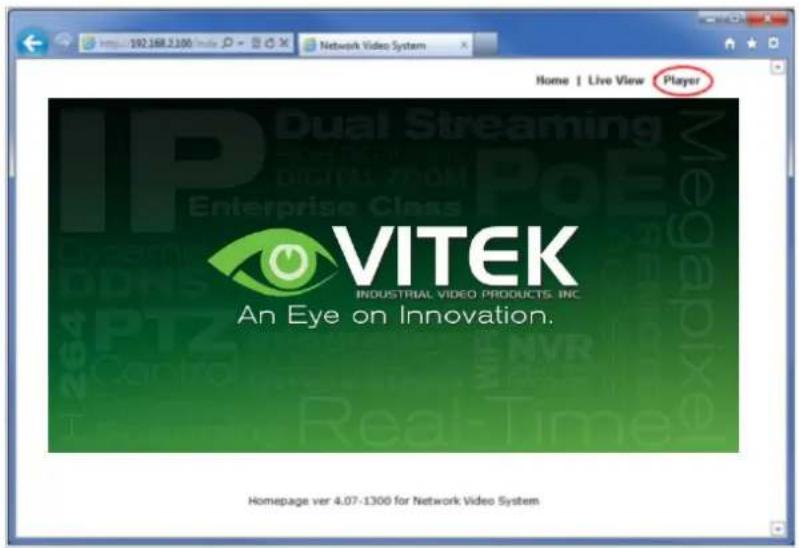

Home | Live View | Admin

VITEK INDUSTRIAL VIDEO PRODUCTS, INC. An Eye on Innovation.

Model : VTD-13VN, Firmware ver 4.14-01-ds

Homepage ver 4.14-01_VI for Network Video System

Click Live View on the top right of the window, then ENVI Series Viewer ActiveX program will be started. If you have not installed the ENVI Series Viewer program before, it will ask for a confirmation to install it. Allow it and you will be able to find out whether the configuration by IP Installer program is properly done.

Note: Refer to Section 19 ENVI Series Viewer on page 80 for detailed information about the ENVI Series Viewer ActiveX program.

11. Admin Menu of VI TEK VTD-13/ VTD-20 Series

After connecting to a VITEKVTD-13/VTD-20 Series camera via web browser, you'll find the web page as shown below. The upper rightmost item of the menu is Admin; this is where you can set up most of the features in the VITEK camera you're connected to.

Home | Live View | Admin

IP Dual Streaming HIGH DESTRUCTION DIGITAL ZOOM Enterprise Class VITEK INDUSTRIAL VIDEO PRODUCTS, INC. An Eye on Innovation.

Model : VTD-13FN, Firmware ver 4.14-01-ds

Homepage ver 4.14-01_VI for Network Video System

11.1. EnteringAdmin Menu

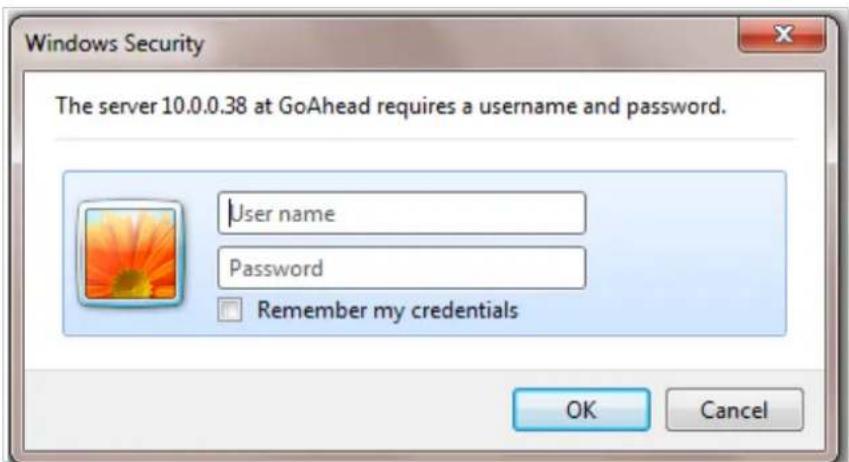

Click Admin then you'll see a login window. In the login window, enter root for both ID and password as they are the factory defaults. Press Enter key or click OK.

Windows Security The server 10.0.0.38 at GoAhead requires a username and password. User name Password Remember my credentials OK Cancel

Now the Admin Menu will be displayed as shown below. This will guide you to the top level menu items, which are Quick, System, Network, Device, Advanced, Recording, and Utilities. Clicking any of these top level menu items will display submenu items and brief descriptions.

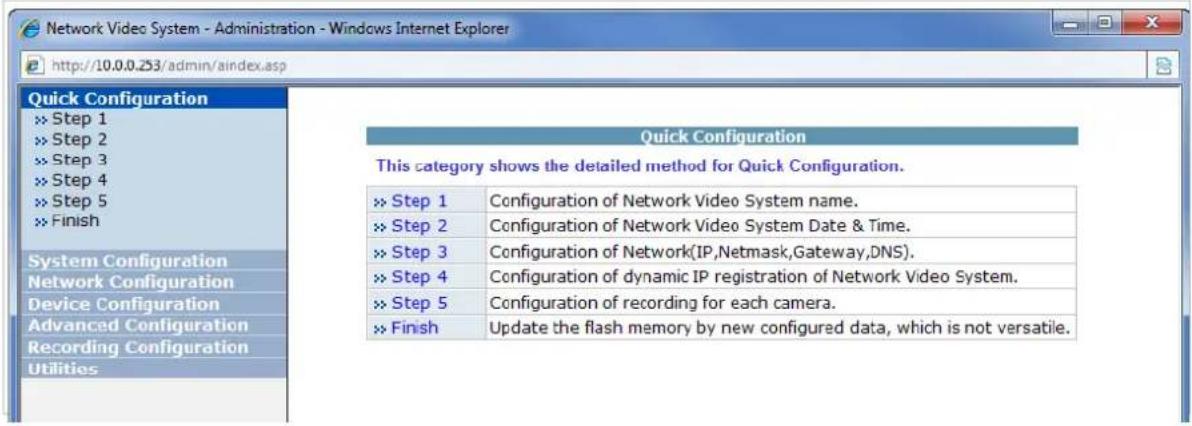

Network Video System - Administration - Windows Internet Explorer http://10.0.0.253/admin/aindex.asp Quick Configuration Step 1 Step 2 Step 3 Step 4 Step 5 Finish System Configuration Network Configuration Device Configuration Advanced Configuration Recording Configuration Utilities Quick Configuration This category shows the detailed method for Quick Configuration. Step 1 Configuration of Network Video System name. Step 2 Configuration of Network Video System Date & Time. Step 3 Configuration of Network(IP,Netmask,Gateway,DNS). Step 4 Configuration of dynamic IP registration of Network Video System. Step 5 Configuration of recording for each camera. Finish Update the flash memory by new configured data, which is not versatile.

11.2. Admin Menu Structure

The following table shows the hierarchy of the Admin menu structure that we're going to deal with in this manual.

12. QuickConfiguration

In Quick Configuration, you will be able to set up many of the essential parts of the configuration in a simple manner without going into details. Selecting Quick Configuration gives you the menu as seen below. You can perform each setup by clicking the one you would like to configure.

Quick Configuration » Step 1 » Step 2 » Step 3 » Step 4 » Step 5 » Finish System Configuration Network Configuration Device Configuration Advanced Configuration Recording Configuration Utilities

12.1. Step 1: Changing Server Name

Click Server Name on System Configuration menu, then Server Name Setup windows will be displayed. Refer to Section 13.1 Server Name Setup page 39 to see how to change the server name.

12.2. Step 2: Time Setup

Click Date & Time on System Configuration menu, then theLocal Date & Time Configuration window will be displayed. Refer to Section 13.2Date & Timeon page 40 to see how to set up.

12.3. Step 3: Network Setup

To make a connection to the Internet, it is required to figure out the type of the Internet service you're using. Refer to Section 14. Network Configuration on page 43 to see how to set up.

12.4. Step 4: IPCCTVDNS.COM

When VITEK Server is used in a Dynamic IP environment, it is required to utilize IP-CCTVDNS feature. Refer to Section 36 IPCCTVDNS Registration on page 142 see how to set up.

12.5. Step 5: Recording Configuration

Vitek cameras with MicroSD card can be configured for recording options in this section. Refer to Section 17.2 Recording Configuration with microSD card on page 72 to see how to set up

12.6. Finish

After clicking Finish on the VTD-13/VTD-20 Series all changes will be saved automatically to the camera/server

Save Configuration

- Changes to configuration will be saved automatically for this model.

Back

13. System Configuration Menu

When you click on System Configuration item on Admin Menu, the following sub menu will be displayed.

Quick Configuration » Step 1 » Step 2 » Step 3 » Step 4 » Step 5 » Finish System Configuration This category shows the detailed method for System configuration. » Server Name Configuration of Network Video System name. » Date & Time Configuration of Network Video System Date & Time. » Admin. Password Change administrator's password. » Access Control Configuration to allow other users. » User Registration Add, Edit, Delete User ID & Password. » IP Devices Registration IP Devices Registration.

13.1. Server Name Setup

Click Step 1 on Quick Configuration or Server Name under System Configuration then the following will be displayed and you will find out the system information such as model number of the VITEK camera, server name (camera name), MAC address (serial number), firmware version, and Web image version.

Server Name Setup

Product model name	VTD-13VN
Server name	Network Video System
Mac Address (S/N)	1C:7C:45:02:00:83
Firmware version	4.14-01-ds
Webimage version	4.14-01_VI

Notice : The server name can be 21 alphanumeric or 10 unicode.

As an administrator, you can change the name of the camera/ server, but other values are not allowed to be changed. To change the camera/ servername, enter a new name in the Server Name field. You may use up to 21 alphanumeric or up to 10 Unicode characters. Tab or any other special characters are not allowed. Click Apply button to save the setting and it will take effect immediately.

13.2. Date & Time

Click Step 2 on Quick Configuration. Or Date & Time under System ConfigurationFill the Date and Time fields with your local time and date information. If you're in a different time zone, put a checkmark on Change Time Zone, then select the correct region from the dropdown list to make the time zone change, you need to click Apply button and reboot the system.

Local Date & Time Configuration

Date (yyyy/mm/dd) 2012 / 11 / 9 Time (hh:mm:ss) 05 : 39 : 57 Time Zone Change Time Zone US/Pacific Service Enable Disable NTP server address pool.ntp.org NTP sever time Get NTP server time Back Apply Refresh

Notice : If you change the 'Time Zone' and click 'Apply' button, we strongly recommend to reboot this Network Video System.

If you want to retrieve the exact current time from a NTP server on the network, click Get NTP Server Time button. Clicking Refresh button will display the date and time retrieved from thecamera. Then click Apply button to save it.

Note: In order to retrieve Time and Date information from a NTP server, you need to put NTP server address in advance of setting up, such as pool.ntp.org.

13.3. Admin Password

To change the password for the administrator, click Admin Password in System Configuration menu.

Administrator's Password Configuration

Administrator's ID root Old Password New Password Confirm Password Back Apply

Notice : The password must be alphanumeric, within 4 \~ 23 characters.

Default ID for admin account is fixed as "root" and is not allowed to change. In Old Password field, enter the current password. In both New Password and Confirm Password fields, enter the same new password. The password must be between 4 and 23 alphanumeric characters.Click Apply button to put it into effect.

Because you have replaced the password with a new one, the existing network connection made with the old password is lost now. You will have to reconnect to the VITEK camera using the new password.

13.4. Access Control

Click Access Control on System Configuration menu. The following windows will be displayed.

Access Control Configuration

Access Permission

Full Access (View and control camera & audio without permission)
Limited Access (In accordance with an user's permission)

Back Apply

From the Access Permission window, select either one you would like to use. Click Apply button to save the change.

• Full Access: Any user can access the camera/server and use all the features without limits.
- Limited Access: Only registered users can access the camera/server and have limited privileges.

13.5. User Registration

You can add, modify, or delete users for your VITEKcamera/server here. Once registered as Limited Access setting, the user can access the VITEKcamera/server with some limited privileges.

13.5.1. Add

To add a user, click User Registration on System Configuration menu. When Add is selected, you can add users and define their passwords, names, and access permission levels respectively.

User Registration (Add) Add Edit Delete User ID Password Confirm password Name Notice : User ID & Password must be alphanumeric within 23 characters.

Enter aUser ID between 4 and 23 alphanumeric characters. In bothPassword and Confirm Password fields, enter the identical password respectively. The password must be between 4 and 23 alphanumeric characters. In Name filed, enter the user's name up to 23 alphanumeric characters.

Now select one of the four items from System Resource Access Permission, which defines the permission level for registered users to the VITEKcamera.

System Resource Access Permission
○	All Channels Access
○	General Access (only live viewing access)
○	No Access
○	Selective Access

• All Channels Access: User can use all the features except for Configuration in Admin Page.
• General Access (only live viewing access): User can only useLive View feature.
• No Access: User is not permitted any of the features.
• Selective Access: User is allowed to use only the selected features. With this item selected, you can now configure the details under this menu for the user.

VITEKcamerasmay have multiple VS Modules registered in it. When you click on any of theEnablecheckboxes, other fields in that row are now enabled to select.

System Resource Access Permission ○ All Channels Access ○ General Access (only live viewing access) ○ No Access ● Selective Access Enable VS Module ID Camera No. Alarm Control Audio Control ✓ Built-in Module 0 ▼ All ▼ ✓ ✓ ✓ Built-in Module 0 ▼ All ▼ ☐ ☐ ✓ Built-in Module 0 ▼ All ▼ ☐ ☐ ✓ Built-in Module 0 ▼ All ▼ ☐ ☐ ✓ Built-in Module 0 ▼ All ▼ ☐ ☐ ✓ Built-in Module 0 ▼ All ▼ ☐ ☐ ✓ Built-in Module 0 ▼ All ▼ ☐ ☐ ✓ Built-in Module 0 ▼ All ▼ ☐ ☐ Back Apply

• VS Module ID: VS Module is a network device that has been registered in the VITEKcamera
- Camera No.: Among the cameras of the VS Module select one to set up. (between all,1or2)
• Alarm Control: Determine if Alarm control is to be allowed. (Feature not available on this model)
- Audio Control: Determine if Audio Control is to be allowed. (Feature not available on this model) After finishing the registration process, click Applybutton to add the user.

13.5.2. Edit

To edit a user account, select Edit. In this part, you can modify the existing user's name, password, and access permission. User ID is not allowed to change. Once selecting a user ID to edit, the procedure is the same as in Add section.

User Registration (Edit) Add Edit Delete User ID Select UserID Password Confirm password Name Notice : User ID & Password must be alphanumeric within 23 characters.

To see existing users, click SelectUserId, and select a user to be edited from the dropdown box. Then you can change the password, name, or access permission, and clickApply button to save the setting. Setup of Access Permission can be done the same way as in theAdd section.

13.5.3. Delete

To delete an existing user, select Delete.

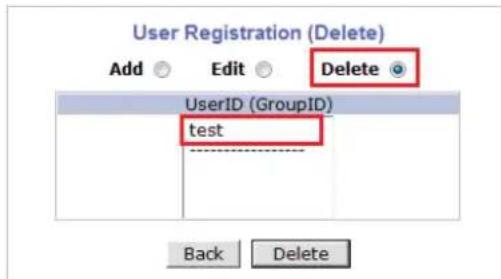

User Registration (Delete) Add Edit Delete UserID (GroupID) test Back Delete

From the list of the users, select a user to delete. Click Delete button to confirm the deletion.

14. Network Configuration

Configuring the network is dependent on how an IP address is assigned in Ethernet-based environment, which is static IP, dynamic IP (DHCP), or PPPoE.

Quick Configuration

Step 1

Step 2

Step 3

Step 4

Step 5

Finish

System Configuration

Server Name

Date & Time

Admin. Password

Access Control

User Registration

Network Configuration

Network Configuration

Network Ports

Bandwidth Control

View Network Status

Network Status Notify

IP-CCTV DNSTM

Port Forwarding & UPnP

RTP/RTSP

Device Configuration

Advanced Configuration

Recording Configuration

Utilities

Network Configuration
This category shows the detailed method for network system.
» Network Configuration	Configuration of Network(IP,Netmask,DNS).
» Network Ports	Modification of HTTP and other application network port numbers.
» Bandwidth Control	Configuration of bandwidth control.
» View Network Status	View of Network Status.
» Network Status Notify	It sends IP address by e-mail when IP address is allocated by DHCP(or PPPoE).
» IP-CCTV DNSTM	Configuration of dynamic IP registration of Network Video System.
» Port Forwarding & UPnP	Configuration of Port Forwarding & UPnP(Universal Plug and Play).
» RTP/RTSP	Configuration of RTP/RTSP.

14.1. Static IP Configuration

Select Network Configuration under Network configuration

Quick Configuration System Configuration Network Configuration » Network Configuration » Network Ports » Bandwidth Control » View Network Status » Network Status Notify » IP-CCTV DNS™ » Port Forwarding & UPnP » RTP/RTSP Device Configuration Advanced Configuration Recording Configuration Utilities

Network Configuration : Static IP Static IP ○ DHCP Client ○ PPPoE ○ IP Address 10.0.0.253 NetMask 255.255.255.0 GateWay 10.0.0.2 DNS 1 10.0.0.1 DNS 2 Back Apply Refresh

For static IP, select Static IP and input IP address, NetMask, Gateway, DNS1, DNS2 and click apply to save settings. After apply, program will ask to close web browser for updates, which will take 20\~30 seconds. If Back button is clicked all values will be discarded. If Refresh button is clicked, the program will load previous values.

14.2. DHCP ClientConfiguration

To use DHCP a DHCP server must exist in the network environment. Select DHCP Client from NetworkConfiguration, click Apply. And all information needed will be filled in automatically

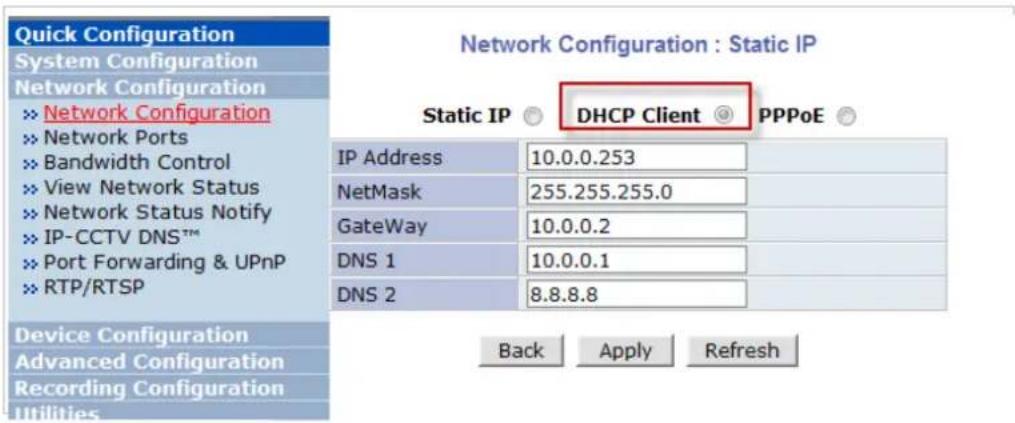

Quick Configuration System Configuration Network Configuration » Network Configuration » Network Ports » Bandwidth Control » View Network Status » Network Status Notify » IP-CCTV DNS™ » Port Forwarding & UPnP » RTP/RTSP Device Configuration Advanced Configuration Recording Configuration Utilities Network Configuration : Static IP Static IP ○ DHCP Client ● PPPoE ○ IP Address 10.0.0.253 NetMask 255.255.255.0 GateWay 10.0.0.2 DNS 1 10.0.0.1 DNS 2 8.8.8.8 Back Apply Refresh

14.3. PPPoE Configuration

PPPoE is used to connect VITEK products to a PPPoE modem provided by the ISP. Since PPPoE needs verification, ID and a password are necessary to access the network. Type in PPPoE user ID and password

Network Configuration : PPPoE Static IP ○ DHCP Client ○ PPPoE ○ User ID User Password Confirm Password Back Apply Notice : Please make sure to set up "Network Status Notify" option to get IP address through e-mail when PPPoE option is selected. Otherwise, there is no way to get changed IP address.

14.4. Network Ports

In this configuration, you set up the HTTP port for VITEKcameras to communicate with the Client PC. HTTP Port is the network port that is used when a Client PC connects to the VITEKcamera Web page. It can be assigned between 80 and 65535. The default value is 80.

Note: If the HTTP port number is changed to a different value than default (80), make sure the new HTTP port number goes together with the VITEK camerasIP address. For example, when a VITEK cameras IP address is 192.168.1.100 and the HTTP portis 8080, you will have to enter http://192.168.1.100:8080 to connect to the camera.

Quick Configuration System Configuration Network Configuration » Network Configuration » Network Ports » Bandwidth Control » View Network Status » Network Status Notify » IP-CCTV DNS™ » Port Forwarding & UPnP » RTP/RTSP Device Configuration Advanced Configuration Recording Configuration Utilities Network Ports Configuration HTTP Port 80 (Default:80, 80 ~ 65535) Back Apply Notice • HTTP Port : For web access, video streaming and playback.

14.5. Bandwidth Control Configuration

Bandwidth control is for limiting maximum network traffic. If it is enabled with Bandwidth limits, maximum data size transferred from VITEKcameras won't exceed bandwidth limits set by users. If transferred data is exceeded, part of the data will be randomly lost.

If multiple users try to access a VITEKcamera when bandwidth control is enabled, users connected to the VITEKcamera will share network bandwidth limit.

Bandwidth Control Configuration

Service Enable Disable Bandwidth Limit 0 Kbps Back Apply

Notice The bandwidth limit should be over 32. MPEG-4 or H.264 streaming can be affected by this setting.

Note: This bandwidth control feature works well in M-JPEG video transmission. But, for H.264, dropping data packets may cause low quality of video, so it is recommended to utilize CBR and frame rate control instead of bandwidth control for H.264 video. Refer to Section 15.2 Camera & Motion on page 54 for more info on CBR and Frame rate

Note: Network Bandwidth control is managed by the VITEK camera and it drops any data packets if required, thus you may experience slow connection when this feature is enabled.

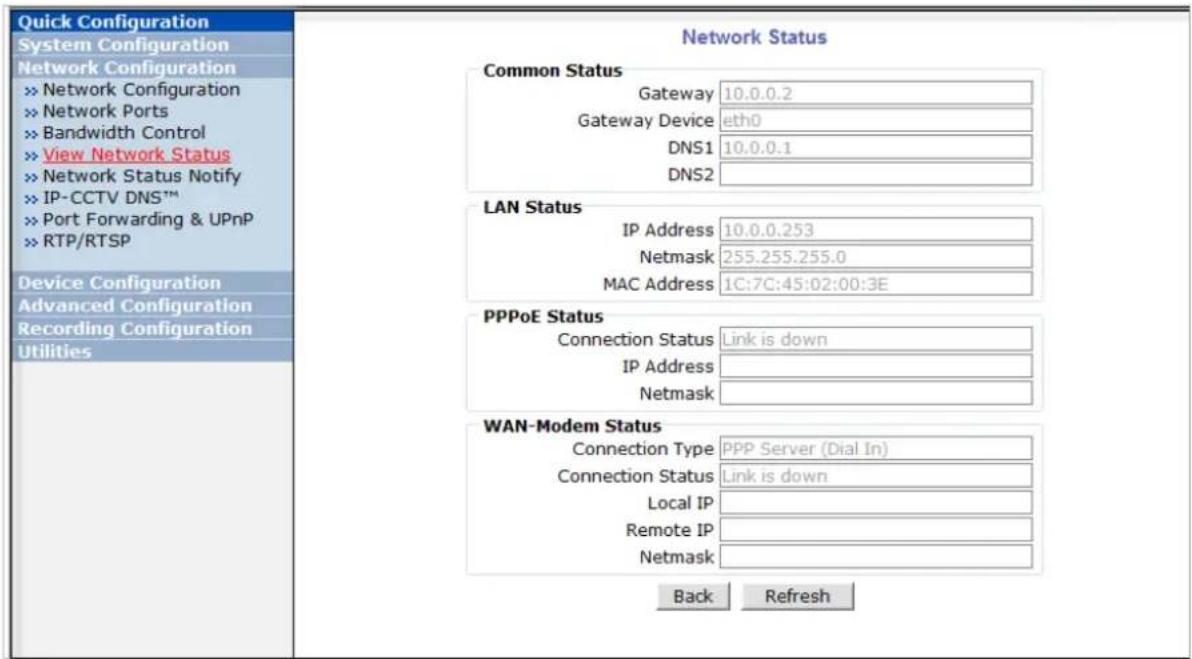

14.6. View Network Status

This menu shows network status of VITEKcameras.

Quick Configuration System Configuration Network Configuration » Network Configuration » Network Ports » Bandwidth Control » View Network Status » Network Status Notify » IP-CCTV DNS™ » Port Forwarding & UPnP » RTP/RTSP Device Configuration Advanced Configuration Recording Configuration Utilities Network Status Common Status Gateway 10.0.0.2 Gateway Device eth0 DNS1 10.0.0.1 DNS2 LAN Status IP Address 10.0.0.253 Netmask 255.255.255.0 MAC Address 1C:7C:45:02:00:3E PPPoE Status Connection Status Link is down IP Address Netmask WAN-Modem Status Connection Type PPP Server (Dial In) Connection Status Link is down Local IP Remote IP Netmask Back Refresh

14.7. Network Status Notify

This feature helps to send updated network status information to registered email address if any changes happen. This function will work under DHCP or PPPoE.

If Network Status Notify is set to Enable, VITEKcameras network status will be emailed to a specific person in case of the following events:

• When it is set to Dynamic IP in theNetwork Configuration menu, and the VITEKcamera has been given a new dynamic IP address and connects to the network. Or,
• When it is set to PPP Client on WAN-Modem menu, and the VITEKcamera has been connected to the network with ISP or PPP server.

To configure, click Network Status Notify on Network Configuration menu. The following window will be shown.

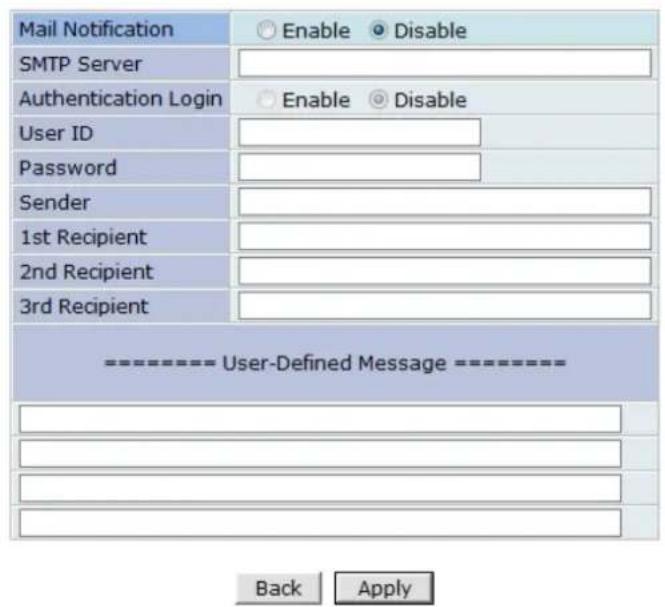

Network Status Notification

Mail Notification Enable Disable SMTP Server Authentication Login Enable Disable User ID Password Sender 1st Recipient 2nd Recipient 3rd Recipient ================User-Defined Message ================== Back Apply

Notice : It sends IP address by e-mail when IP address is allocated by DHCP(or PPPoE).

First, select Enable to use the feature. Then enter the address of the SMTP server which is needed for email service. If your SMTP server requires a user ID and a password for authentication, you will have to Enable Authentication Login and enter the user ID and Password.

In Sender field, enter your email address or other meaningful words that will show the message was sent from the VITEKcamera as a notification. Now enter the email addresses of the recipients in the Recipient fields, up to 3 addresses. In the User-Defined Message box, you may enter a message to explain why the message was sent. After finishing the setup, click Apply to save settings.

Mail Notification	Enable: Send emailDisable: Do not send email
SMTP Server	SMTP Server address for email service
Authentication Login	Enable: user ID and password are required for SMTP serverDisable: user ID and password are not required
User ID User ID for SMTP server
Password Password for SMTP server
Sender	Email address of Sender or Name
1st / 2nd / 3rd Recipient	Email Addresses of the Recipients (up to 3 addresses)
User Defined Message	Message to be included in the Notification email

14.8. IP-CCTV DNS Setup

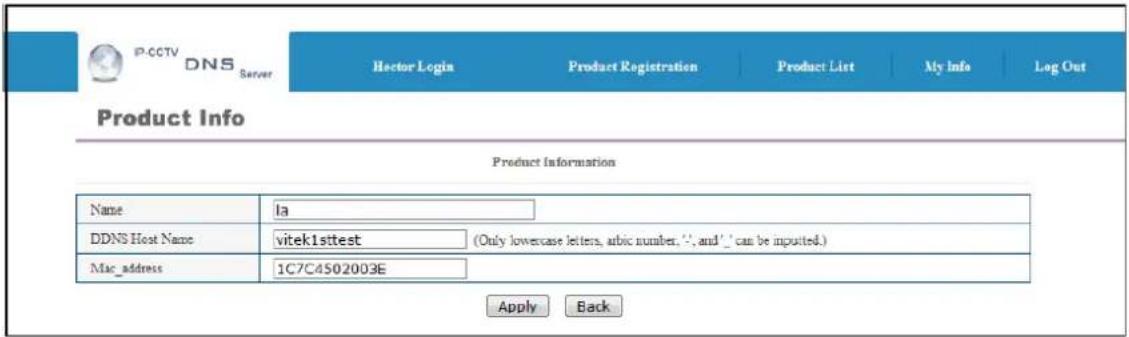

Note: Refer Section 36. IPCCTVDNS Registration on page 142 for further details on configuration.

IP-CCTV DNS service provides a static & public domain name to help user's access VITEKcameraseven though their IP address has changed or they are used in a local network. For

proper function of IP-CCTV DNS service, products need to be accessible through the internet.

Quick Configuration System Configuration Network Configuration » Network Configuration » Network Ports » Bandwidth Control » View Network Status » Network Status Notify » IP-CCTV DNS™ » Port Forwarding & UPnP » RTP/RTSP Device Configuration Advanced Configuration Recording Configuration Utilities IP-CCTV DNS™ Setup Service Enable Disable DNS Server IP www.ipcctvdns.com Go Mac Address 1C7C4502003E Product-Key 01FBA6C8 IP-CCTV DNS Registration verification Confirm Back Apply Notice : If you do not use public dynamic IP address for the remote access. please skip this step. This is related with www.ipcctvdns.com. Different IP address or URL must follow the same protocol of www.ipcctvdns.com If you click Confirm button, you can verify registered URL on IP-CCTV DNS. If product is not registered on IP-CCTV DNS, you can not verify registered URL.

14.9. Port Forwarding & UPnP

UPnP(Universal Plug and Play) is a kind of network protocol to help users to find and configure network products in the same local network area. Port forwarding is to assign a certain network port to a network product so users can access it from outside of the Local Area Network. Generally, port forwarding can be configured from the network router.

UPnP port forwarding is made up with finding an available network port, assigning it to a VITEKcamera and reporting overall network configuration of a VITEKcamera to IP-CCTV DNS server. Users have to register products into IPCCTVDNS server and IP-CCTV DNS service should be enabled.

There are 3 options in UPnP Port Forwarding.

• Manual: User Assigned Portissued when users can access network router(hub) and manually assign available network ports to VITEKcameras. In this case, users have to type already-assigned network ports under User Assigned port.
• UPnP: User Assigned Port is used when users want VITEKcameras to configure port forwarding of network hub with user-assigned network port. If it fails, try to change user-assigned port
• UPnP: Auto Selected Portis used to let VITEKcameras deal with all network configurations automatically.

Please note that the network router needs to support UPnP Port Forwarding. There is a limit for the maximum number of UPnP devices. If it is properly configured, results will be displayed under UPnP status.

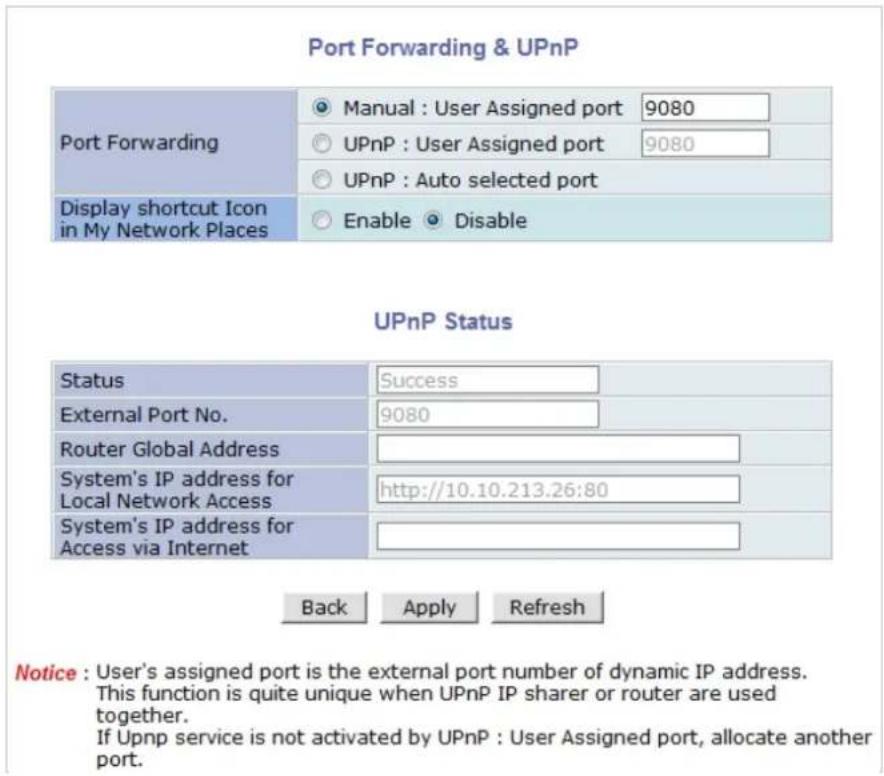

Port Forwarding & UPnP Port Forwarding ● Manual : User Assigned port 9080 ○ UPnP : User Assigned port 9080 ○ UPnP : Auto selected port Display shortcut Icon in My Network Places ○ Enable ● Disable UPnP Status Status Success External Port No. 9080 Router Global Address System's IP address for Local Network Access http://10.10.213.26:80 System's IP address for Access via Internet Back Apply Refresh Notice : User's assigned port is the external port number of dynamic IP address. This function is quite unique when UPnP IP sharer or router are used together. If UpnP service is not activated by UPnP : User Assigned port, allocate another port.

14.10. RTP/ RTSP Setup

Factory default is Enable to be used with other manufactures VMS software's

RTSP (Real-Time Streaming Protocol) is a protocol to transfer video and audio streams over the network. Any application supporting Standard RTSP can be used for VITEKcameras. Quick Time Player or VLC program can be used with this; it may not be supported in the environment within a firewall. There are two types of usage; one for Unicast address condition and the other for Multicast address condition.

For Unicast Address:

Use"rtsp://network video server ip address/cam0_0". If there are multiple channels, use cam0_x, x (0\~3) with each number applied. If there are multiple modules, use camx_0 x (0 \~ 3) with each module number applied.

For Multicast Address:

Use "rtsp:/ / network video server ip address/ mcam0_0". If there are multiple channels, use mcam0_x, x (0\~3) with each channel number applied. If there are multiple modules, use mcamx_0 x (0 \~ 3) with each module number applied.

RTP/RTSP Setup

Service		● Enable ○ Disable
RTSP Port		554	(Default:554, 554 ~ 65534)
RTP Start Port		5000	(Default:5000, 2048 ~ 65534)
Camera 1	Multicast Address	0.0.0.0	Disable:0.0.0.0(225.0.0.0 ~ 239.255.255.255)
	Multicast Port	0	(Disable:0, 2048 ~ 65534)
Camera 2	Multicast Address	0.0.0.0	Disable:0.0.0.0(225.0.0.0 ~ 239.255.255.255)
	Multicast Port	0	(Disable:0, 2048 ~ 65534)

Back | Apply

Notice : This function is only for built in module. IP devices (added VS module) does not support this function.

RTSP URL for Camera 1 rtsp://(Network Video Server IP Address)/cam0_0 -> cam(0 : VS Module number)_ (0:Port number)

RTSP URL for Camera1 for Multicast address (Multicast address and Port should be configured.) rtsp://(Network Video Server IP Address)/mcam0_0 -> mcam(0 : VS Module number)_(0:Port number)

Service	Enable: Start RTSP serviceDisable: Stop RTSP service
RTSP Port	In normal case, use default port number 554 to connect to RTSP service. If not using port 554, enter the port number you want to use.e.g.) port number 445==>rtsp:// network video server ip address:445/cam0_0
RTP Start Port	The starting number of the port for video transfer. Each time video transfer connection is made, the port number also increases.
Multicast Address	Address for multicast video transfer.The multicast address 0.0.0.0 is for stopping multicast.
Multicast Port	Port number for viewing the video with a multicast address

15. Device Configuration

15.1. Privacy Zone

Users can set a privacy zone if a certain part of the screen needs to be unmonitored.

To set the region, click Privacy Zone from Device Configuration category.

Quick Configuration System Configuration Network Configuration Device Configuration + Serial Ports + Privacy Zone + Camera & Motion + DI/DO + DI Status/DO Control Advanced Configuration Recording Configuration Utilities Device Configuration This category shows the detailed method for Device Configuration. > Serial Ports Configuration of serial ports(RS-232, RS-422, RS-485 ports) > Privacy Zone Configuration of Privacy Zone. > Camera & Motion Configuration of video mode and the details. > DI/DO Configuration of DI(Sensor Input)/DO(Alarm Output). > DI Status/DO Control Enable or Disable each DO(Alarm Output) port.

Privacy Zone Configuration

New Delete Apply

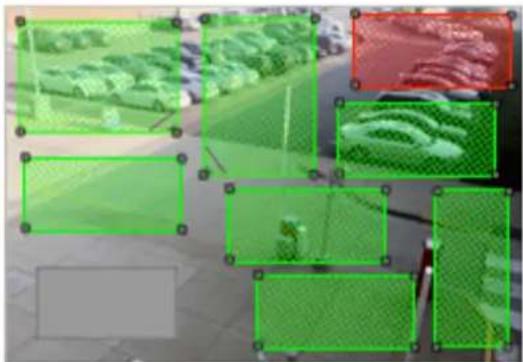

To Add a Privacy zone click Newbutton, aGreen-colored box will appear, click on the Green box and it will turn Red, at this point you can resize it by clicking and holding any corner and drag to desired size. To relocate box click and hold anywhere inside the box and drag to desired location. Click Apply when done

Privacy Zone Configuration

Exterior view of a parking lot with rows of parked cars and a red overlayed area showing a fence structure (no visible text or symbols)

Apply

Privacy Zone Configuration

Exterior view of a parking lot with rows of parked cars and a green area highlighting the front (no visible text or symbols)

Apply

Privacy Zone Configuration

Abstract collage of green rectangular frames with pixelated textures, no visible text or symbols

Apply

Message from webpage It is not possible to add privacy zone any more.

Users can add up to 8 Privacy Zones per screen by repeating above steps. If you add more than 8, an error message will display on the screen.

To delete a privacy zone, click the zone and click Delete button followed by Apply button.

Privacy Zone Configuration

Outdoor scene with green mesh overlays and a small robot, no visible text or symbols

New

Delete

Apply

15.2. Camera & Motion

This menu is used to set up the selection of video format, data added to video data, encoding speed, audio control, image resolution, video quality, motion detection, etc.

Click Camera & Motion on Device Configuration menu. The configuration menu will be displayed, and it may be different between VITEKcameras.

Quick Configuration System Configuration Network Configuration Device Configuration Serial Ports Camera & Motion Primary Stream Secondary Stream DI/DO DI Status/DO Control Advanced Configuration Utilities

• M-JPEG: This format requires much higher network bandwidth than H.264 compression. But because of its higher quality of still image, it is adequate for detailed reviewing of stored video.
• H.264: In this format, each frame data is related to other nearby frames. For this reason, it provides much higher compression ratio than M-JPEG and is adequate for video transfer. However, if network conditions are limited dropped frames in video data is possible, the video quality can be relatively low. With VITEKCameras, you can set the number of P-frames in the video which is independent still images between I-frames.

Note: For Dual Stream products, most of the parameters are dependent on primary stream value.

You can configure the video data format and other information to be contained in it.

Camera & Motion Configuration

Video with Flexible Extra System data		Enable
Video with user defined message		Enable
Video with PPP status		Enable
Video with camera name		Enable
Video with server name		Enable
Video with IP address		Enable
Audio		Enable Disable
Primary Stream	Frame Rate	30 fps
	Image Size	1280 x 1024
	Encoding Standard	M-JPEG H.264
Secondary Stream	Frame Rate	Primary fps
	Image Size	704 x 480
	Encoding Standard	M-JPEG H.264

Back

Apply

» Camera Control

» Motion Detection

» Primary Stream

» Secondary Stream

• Video with Flexible Extra System data: If Enabled, video data will contain UART sensor data from COM port.. (Feature not available on this model)
• Video with user defined message: If Enabled, video data will contain the user-defined data. (Reserved Field). (Feature not available on this model)
• Video with PPP status: If Enabled, video data will contain PPP connection status.. (Feature not available on this model)
• Video with camera name: If Enabled, video data will contain the camera name.. (Feature not available on this model)
• Video with server name: If Enabled, video data will contain the server name that you defined.. (Feature not available on this model)
• Video with IP address: If Enabled, video data will contain the IP address of the video server..(Feature not available on this model)
• Audio: (not available on all models) Select if Audio function is to be used (applies to Primary Stream only). VITEK Cameras provides 2-way audio streaming by combining microphone input with video data. Users can listen to the streamed audio through a PC and speakers.
• Frame Rate: For Primary Stream, this is the number of frames compressed in every second. You can control the network traffic with this parameter. For Secondary Stream, it can be set to a manner of 1/2, 1/4, 1/8... of the primary stream.
• Image Size: Select the resolution of each channel's video
• Encoding Standard: Select the compression method of each video, either M-JPEG or H.264 format. It is not allowed to set both channels to M-JPEG.
  Below is the table of images sizes. To save the setting, click Apply button

Video Format	SXGA	D1	CIF	QCIF
NTSC	-	704 x 480	352 x 240	160 x 112
PAL	-	704 x 576	352 x 288	160 x 144
VGA	-	640 x 480	320 x 240	160 x 112
1.3M Pixel	1280 x 1024	640 x 480	320 x 240	160 x 112
2.0M Pixel	1920 x 1080	640 x 480	320 x 240	160 x 112

15.2.1. Camera Configuration

On the lower part of Camera & Motion Configuration menu, select a channel to configure.

> Camera Control >> Motion Detection >> Primary Stream >> Secondary Stream

In the example shown below, Primary Stream is set to H.264 for compression format.Enter detailed parameters of the camera selected here.

Camera Configuration (Primary Stream) Camera Name Camera 1 Rate Control Mode VBR Mode Image Quality Highest GOP Structure 16 [1~64] Back Apply Default Primary Stream of (H.264)

- Camera Name: Enter the name of the channel up to 21 alphanumeric or up to 10 Unicode characters.

Rate Control Mode

H.264	Rate Control Mode:VBR (Variable Bit Rate)Video frames are encoded with selected image quality and GOP. Encoded frames have different data size from each other.	Image Quality:one of 6 quality levels (Low Compression / Highest /High Normal / Low / Lowest)
		GOP Structure:Distance between I-Frames. That is filled with P-frames.
	Rate Control Mode: CBR (Constant Bit Rate)Video frames are encoded with selected image quality and GOP.Encoded frames have the same data size as other frames. Due to the constant bit rate, ithas better stable transmission performance.	Bit Rate Control:Total number of Bits encoded per second. The higher Bit Rate, the better image quality. Can be set between 32kbps and 2Mbps.
		GOP:Distance between I-Frames. That is filled with P-frames.
M-JPEG	-	Image Quality:one of 6 quality levels (Low Compression / Highest / High Normal / Low / Lowest)

Image Quality Setup

In Image Quality level setup, select "Low Compression" for higher image quality, but it requires higher network bandwidth. Selecting the "Lowest" requires lower network bandwidth, but gives decreased image quality.

After configuration is finished, click Apply button to save the setting. If you click Default button, the entire configuration will be reset to the original values.

Camera Control (Select Models)

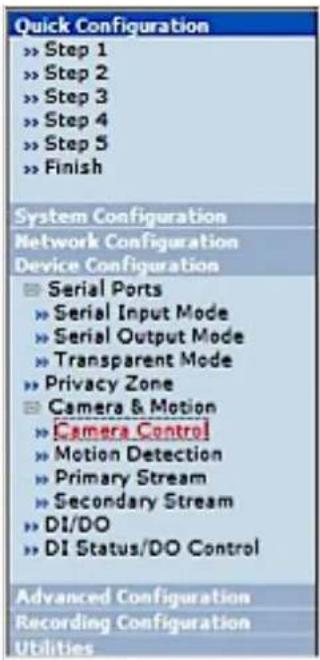

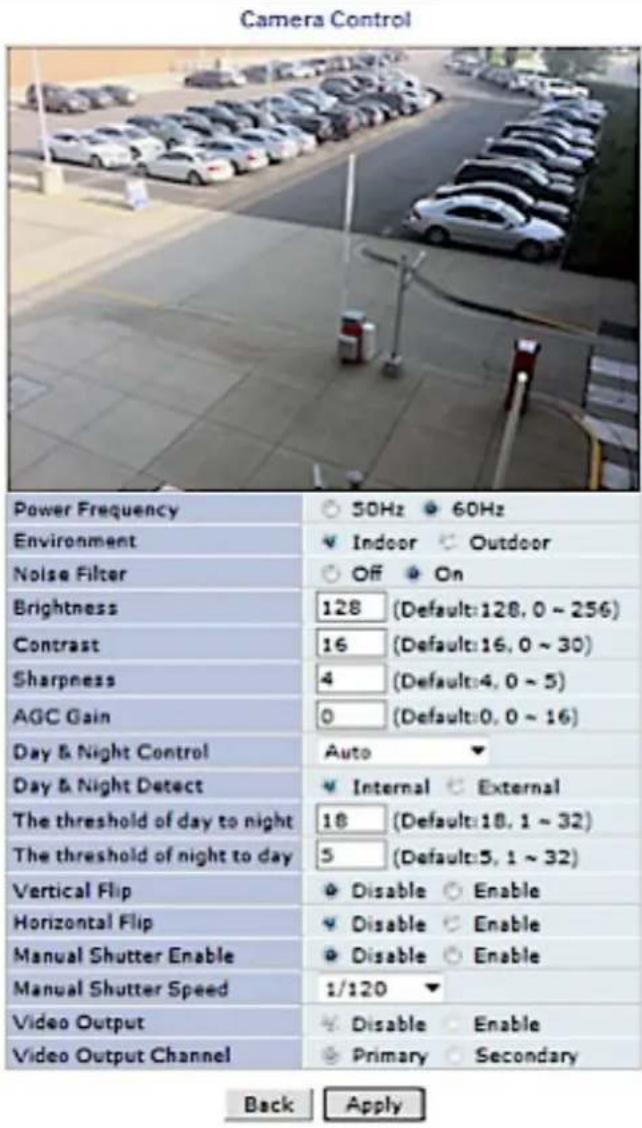

Select Camera Control on the bottom of Camera & Motion Configuration menu.

Quick Configuration >> Step 1 >> Step 2 >> Step 3 >> Step 4 >> Step 5 >> Finish System Configuration Network Configuration Device Configuration ■ Serial Ports » Serial Input Mode » Serial Output Mode » Transparent Mode » Privacy Zone ■ Camera & Motion » Camera Control » Motion Detection » Primary Stream » Secondary Stream >> DI/DO >> DI Status/DO Control Advanced Configuration Recording Configuration Utilities

Camera Control Power Frequency Environment Noise Filter Brightness Contrast Sharpness AGC Gain Day & Night Control Day & Night Detect The threshold of day to night The threshold of night to day Vertical Flip Horizontal Flip Manual Shutter Enable Manual Shutter Speed Video Output Video Output Channel 50Hz 60Hz Indoor Outdoor Off On 128 (Default:128, 0 ~ 256) 16 (Default:16, 0 ~ 30) 4 (Default:4, 0 ~ 5) 0 (Default:0, 0 ~ 16) Auto Internal External 18 (Default:18, 1 ~ 32) 5 (Default:5, 1 ~ 32) Disable Enable Disable Enable Disable Enable 1/120 Disable Enable Primary Secondary Back Apply

• Power Frequency: Select NTSC (60Hz) or PAL (50Hz) according to the region.
• Environment: (VTD-13/ VTD-20 Series Indoor Only)
- Noise Filter: To reduce static on image

Environment Noise Filter Indoor Outdoor Off On

• Brightness: Select the brightness of image between 0 and 256.

• Contrast: Select the contrast of image between 0 and 30.

• Sharpness: select the sharpness of image between 0 and 5.

• Day & Night Control: If used, the image will be in Color mode during daytime and Black&White mode during night time.

Day & Night Control Description
Disable (No Image Conversion)
Black & White Black & White mode
Auto	Daytime: Color ModeNight time: Black & White mode

• Day & Night Detect:

Day & Night Detect Description
Internal	Use Built-in Day & Night feature (Default)
External	Not Available on VTD-13/VTD-20 Series

• The threshold of day to night: This is the point of transition from Day to Night mode. Select between 1 and 32, and lower the value the earlier the transition point.
• The threshold of night to day: This is the point of transition from night to day mode. Select between 1 and 32, and lower the value the earlier the transition point.
  • Vertical Flip: this is to rotate the image 180° Vertically
  • Horizontal Flip: this is to rotate the image 180° Horizontally
• Manual Shutter Enable: If enabled, the shutter speed will be selected manually. If disabled, it is controlled automatically.
• Manual shutter Speed: available only when Manual Shutter is Enable Select the shutter speed of camera between 1/30 and 1/24000.
  • Video Output: Video output (NTSC/PAL) is enabled.

After all the settings are done, click Apply button to save it. If Default button is clicked, all the fields return back to original value.

Motion Detection

Quick Configuration » Step 1 » Step 2 » Step 3 » Step 4 » Step 5 » Finish System Configuration Network Configuration Device Configuration Serial Ports Serial Input Mode Serial Output Mode Transparent Mode Privacy Zone Camera & Motion Camera Control Motion Detection Primary Stream Secondary Stream DI/DO DI Status/DO Control Advanced Configuration Recording Configuration Utilities

Motion Detection Motion Detection Enable Disable Camera & Motion Detection Area Check All UnCheck All Motion Sensitivity Back Apply Default

• Motion Detection:(this is only available in Primary Stream) If enabled, Motion Detection feature is activated and user can configure the areas where motion detection function will work. Click Check All button for whole scene to be active (grid will turn Green) then click on any box inside scene to take out that area from Motion Detection (box will turn Red) then clickApply to save
• Motion Sensitivity: Set the sensitivity of motion defined in Motion Detection Area. Select between -100 and 100. 100 is the most sensitive.

After all the settings are done, click Apply button to save it. If Default button is clicked, all the fields return back to original value.

DI / DO Control

Not Available on VTD-13/VTD-20 Series.

16. Advanced Configuration

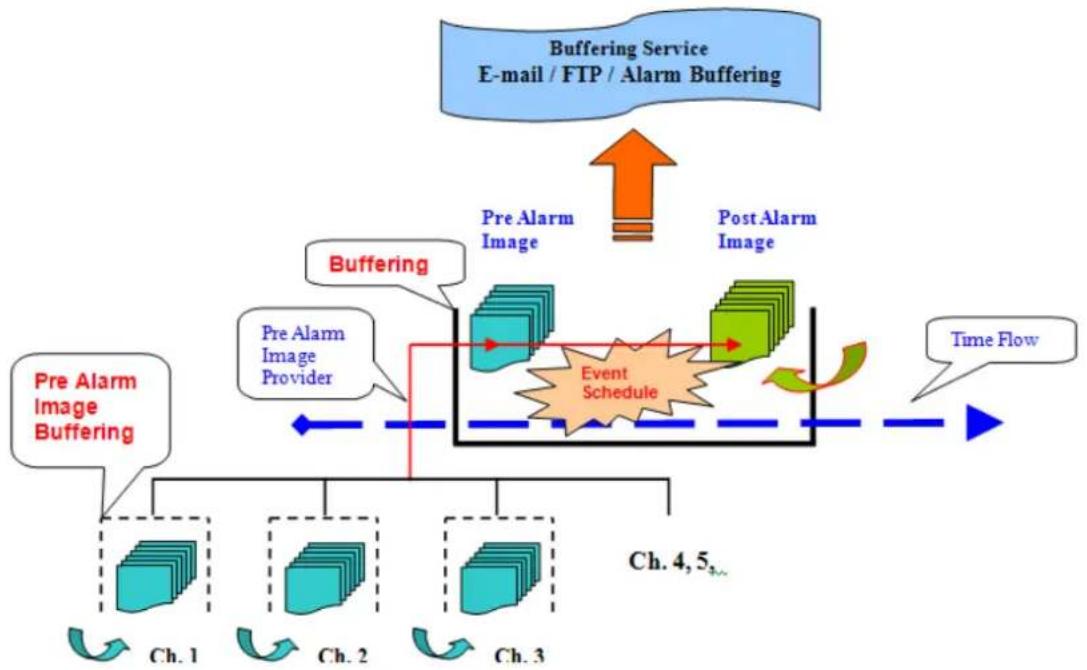

There are two types of advanced service, one is Buffered Service and the other is Periodic Service. In Buffering Service, a series of images are continuously being stored in a buffer memory of the camera/server for a certain period of time. When the camera/server is triggered by an event or schedule, the images or alarm status just before and after the event/schedule are reported to you by email or buffered FTP services.

In Periodic Service, only the image, alarm/sensor status after an event/schedule is reported to you upon the server being triggered.

16.1. Advanced Services

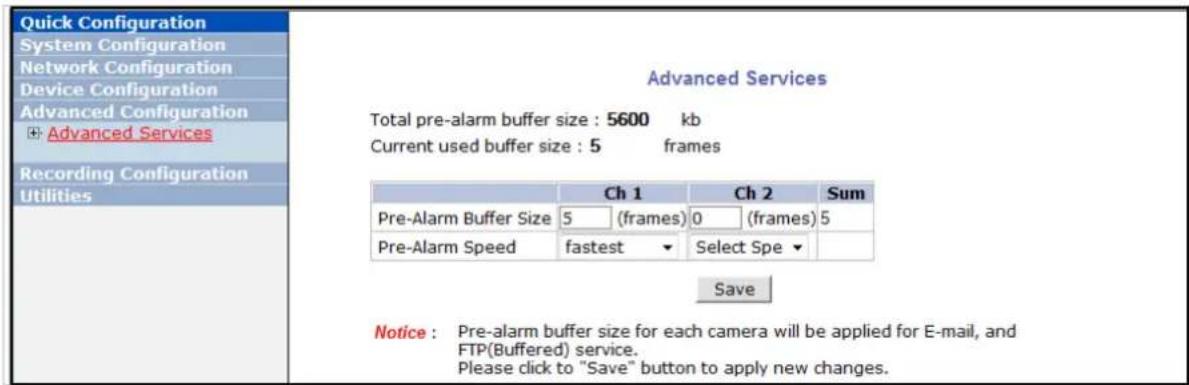

Pre-Alarm buffer size and buffering speed can be defined here.

- Pre-Alarm Buffer Size: You can set the buffer size which will store the images before event. The unit is in frame, and each channel can be set with different values. The total number of frames for Pre-Alarm Buffer and Post-Alarm Buffer is limited to 10 frames.

Quick Configuration System Configuration Network Configuration Device Configuration Advanced Configuration + Advanced Services Recording Configuration Utilities Advanced Services Total pre-alarm buffer size : 5600 kb Current used buffer size : 5 frames Pre-Alarm Buffer Size Ch 1 Ch 2 Sum 5 (frames) 0 (frames) 5 Pre-Alarm Speed.fastest Select Spe Save Notice: Pre-alarm buffer size for each camera will be applied for E-mail, and FTP(Buffered) service. Please click to "Save" button to apply new changes.

- Pre-Alarm Speed: You can set the buffering speed. If it's set to Fastest, the server will store images as fast as it can. Each cannel can be set with different values.

This configuration applies to E-mail and FTP(Buffered), and click Save button to apply changes.

E-mail Configuration of E-mail service to send pre-post alarm images. FTP(Buffered) Configuration of ftp service to send pre-post alarm images. FTP(Periodic) Configuration of ftp service to send recent images periodically according to service conditions. Sensor Notification Configuration to notify sensor status to predefined IP address. Alarm Output Configuration of alarm output duration according to service conditions. Back Apply Status Start Stop

• E-mail: Set up Email Service configuration
- FTP (Buffered): Set up FTP (Buffered) Service configuration
- FTP (Periodic): Set up FTP (Periodic) Service configuration

16.1.1. E-mail Service Configuration

Email configuration is set up here for Alarm in case any event occurs.

E-mail Service Configuration

Please click the below link to configure E-mail service for each camera.

Service SMTP server address smtp.gmail.com SMTP Port 465 (Default:25, 0 ~ 65535) Authentication Login Enable Disable User ID [e-mail] Password ************ Sender [e-mail] 1st Recipient [e-mail] 2nd Recipient [e-mail] 3rd Recipient [e-mail]

Back Save

Notice : This service is valid for M-JPEG only.

Item	Description
Camera 1~2	Select a channel to be configured for email notification
Service	Select Enable in order to use this service
SMTP server address	Enter SMTP server's address for sending email.
Authentication Login	Select Enable if SMTP server requires ID and password
User ID Enter User ID to log in to SMTP server
Password Enter Password to log in to SMTP server
Sender	Enter email address of the sender
1st Recipient Enter the email address of the first recipient
2nd Recipient	Enter the email address of the second recipient
3rd Recipient Enter the email address of the third recipient

Click Save button to apply the change. If you don't want to change, click Back button.

E-mail Service Setup for Each Channel

For each channel, the following items can be configured for email service: Condition, Post-Alarm Buffer Size, and Post-Alarm speed. The content of text message and display style of DI value can be configured as well.

E-mail Service Configuration at Camera 1

Please click below link to configure the service condition.

» Condition 1	[Not Used]
» Condition 2	[Not Used]
» Condition 3	[Not Used]

Maximum 10 pre-post alarm images can be transmitted.

Pre-Alarm Buffer Size	0 (frames)	×× Check video buffer
Pre-Alarm Images	0	Post-Alarm Images	0
Pre-Alarm Speed	Select Speec	Post-Alarm Speed	Select Speec
Subject	Message From IP Device![0,0]

?

Message		Value Format
		NONE	INT	HEX	BIN	IPA	EVT
1
2
3
4

Back

Save

Item Description

Condition 1 ~ Condition 3	Select a condition for Email service to be activated.
Pre-Alarm Buffer Size	The Buffer size assigned for Pre-Alarm.
Check Video buffer	Click this link to go to Advanced Services for buffer setup.
Pre-Alarm Images	The number of image frames to store before Alarm
Post-Alarm Images	The number of image frames to store after Alarm
Pre-Alarm Speed	This field shows the speed of Pre-Alarm. Configuration can be done in Advances Services page.
Post-Alarm Speed	Select the speed of Post-Alarm.Fastestis the highest value.
Subject	Subject of the E-mail message to send.
1	Content of the first line in the email message.
2	Content of the second line in the email message.
3 Content of the third line in the email message.
4	Content of the fourth line in the email message
Value Format	Select the format for the Event or DI data to email.NONE: Don't Send, INT: Decimal, HEX: Hexadecimal,BIN: Binary, IPA: IP Address, EVT: Name of Event

After finishing setup, click Save button to apply. If you don't want to change, click Back button.

Condition, Schedule & Event Configuration

Condition 1 Service E-mail Module ID 0 Camera ID 1 Enable Disable Select Mode Always Schedule Only Event Only Schedule and Event Schedule Sun Mon Tue Wed Thu Fri Sat Week Time (hh:mm) 19 : 46 ~ 19 : 46 Date (mm/dd) XX / XX ~ XX / XX Event Alarm Sensor 1 2 3 4 Motion Detection Camera Connected Camera Disconnected Boot Finished Enable Serial Input Activated Back Save

If you click on a Condition link, the Advanced Service windows is displayed as shown below. Alarm Service is activated only when the conditions in Advanced Services are met.

Item	Description
Service This shows what service this condition is for.
Module ID Module ID for current setup
Camera ID	Channel ID for current setup

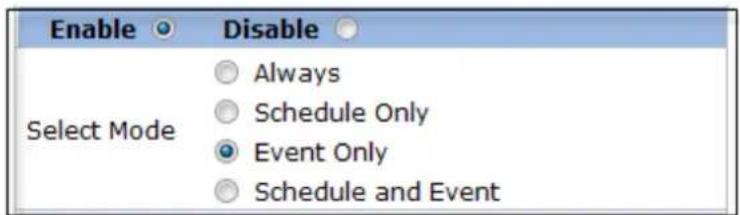

Enable / Disable	Select Enable to use Condition, otherwise select Disable.
Always	This Condition applies all the time. (Schedule or Event is not usable)
Schedule Only	Use Week, Time, and Date in Condition parameter. If none of the weekdays are checked, it is activated every day.
Event Only	It is activated only when any of the following events occurs. (Sensor, Motion Detection, Camera Connection, Server Booting)

To save the setting, click Save button. If you want to cancel it, click Back.

16.1.2. FTP (Buffered) Service Configuration

FTP(Buffered) Service Configuration

Please click the below link to configure FTP(Buffered) service for each camera.

» Camera 1		» Camera 2
Service	○ Enable ○ Disable
Server Address
Base Directory Name
Base File Name
User ID
Password
FTP Control Port	| (Default:21, 0 ~ 65535)
Date Description Mode	American Style ▼
Connection Mode	○ Active ○ Passive

?

Option	Directory Name	File Name
Server Name
Weekday
Year
Month
Day
Hour
Minute
Sec
Sequence
Camera Number

Back

Save

Make Directory

Notice : • This service is valid for M-JPEG only.

• If the value of the FTP Control Port is 0, it will be set using by system configuration. It is usually same as port number 21.
  • The following are values of Date Descrtion Mode.

American Style -> Feb28th2009

European Style -> 28thFeb2009

ISO Standard -> 20090228

Item	Description
Camera 1 - Camera 2	Select which channel to set up for FTP (Buffered).
Service	Select Enable to use the FTP (Buffered) service. Otherwise select Disable.
Server Address	FTP Server Address.
Base Directory Name	The directory in FTP server where the data will be uploaded.(You should make the directory in the FTP server before using the service.)
Base File Name	The base file name of the data to be uploaded in FTP server.
User ID Enter a User ID to log in to FTP server.
Password Enter the Password for the user ID to log in to FTP server
FTP Control Port	Port number for FTP server (Normally 21 is used)
Date Description Mode	Select Date Display Style:American, European or ISO Standard
Connection Mode	Select connection mode for FTP server
Server Name	If Directory Name is checked, new directory is created with server name.If File Name is checked, new file is created with server name.
Weekday	If Directory Name is checked, new directory name is created with weekday.If File Name is checked, new file name is created with weekday.
Year	If Directory Name is checked, new directory name is created with Year.If File Name is checked, new file name is created with Year.
Month	If Directory Name is checked, new directory name is created with month.If File Name is checked, new file name is created with month.
Day	If Directory Name is checked, new directory name is created with day.If File Name is checked, new file name is created with day.
Hour	If Directory Name is checked, new directory name is created with hour.If File Name is checked, new file name is created with hour.
Minute	If checked, new file name is created with minute.
Sec	If checked, new file name is created with second.
Sequence	If checked, new files are created starting from 0, with increment of 1.
Camera Number	If Directory Name is checked, new directory is created with camera number.If File Name is checked, new file is created with camera number.

To create a directory with the options shown above, click Make Directory button. After finishing the configuration, click Save button to apply the change and continue to the next page. Clicking Back button will cancel the changes and go back to the previous page. (This service is available only in M-JPEG mode.)

FTP (Buffered) Service Configuration at Camera 1

FTP(Buffered) Service Configuration at Camera 1

Please click below link to configure the service condition.

» Condition 1	[M1][]
» Condition 2	[Not Used]
» Condition 3	[Not Used]

Maximum 256 pre-post alarm images can be transmitted.

Pre-Alarm Buffer Size	5 (frames)		» Check video buffer
Pre-Alarm Images	0	frames	Post-Alarm Images	0	frames
Pre-Alarm Speed	fastest		Post-Alarm Speed	Select Speec

Notice : If pre-alarm buffer size is not configured, pre-alarm is not served. Number of pre-alarm images must be less than pre-alarm buffer size.

Item Description
Condition 1 ~ Condition 3	Select a condition for FTP (Buffered) service to be activated. Up to 3 conditions can be set.
Pre-Alarm Buffer Size	The Buffer size assigned for Pre-Alarm.
Check Video buffer	Click this link to go to Advanced Services for video buffer setup.
Pre-Alarm Images	The number of image frames to store before Alarm.
Post-Alarm Images	The number of image frames to store after Alarm.
Pre-Alarm Speed	This field shows the speed of Pre-Alarm. Configuration can be done in Advances Services page.
Post-Alarm Speed	Select the speed of Post-Alarm.Fastestis the highest value.

After finishing setup, click Save button to apply. If you don't want to change, click Back button.

16.1.3. FTP (Periodic) Service Configuration

Advanced Configuration ► Advanced Services ► E-mail ► FTP(Buffered) ► FTP(Periodic) ► Sensor Notification ► Alarm Output FTP(Periodic) Service Configuration Please click the below link to configure FTP(Periodic) service for each camera. ► > Camera 1 ► > Camera 2 Service ○ Enable ○ Disable Server Address Base Directory Name Base File Name User ID Password Sequence Modulo 1 FTP Control Port 0 (Default:21, 0 ~ 65535) Date Description Mode-American Style Connection Mode ○ Active ○ Passive Option Directory Name File Name Overwrite Server Name Weekday Year Month Day Hour Minute Sec Sequence Camera Number Back Save Make Directory

Notice : • This service is valid for M-JPEG only.

• If the value of the FTP Control Port is 0, it will be set using by system configuration. It is usually same as port number 21.
  • The following are values of Date Descrtion Mode.

American Style -> Feb28th2009

European Style -> 28thFeb2009

ISO Standard -> 20090228

Item Description
Camera 1 - Camera 2		Select which channel to set up for FTP (Periodic) service
Service		Select Enable to use the FTP (Periodic) service. Otherwise select Disable.
Server Address FTP Server Address.
Base Directory Name		The directory in FTP server where the data will be uploaded.(You should make the directory in the FTP server before using the service.)
Base File Name		The base file name of the data to be uploaded in FTP server.
User ID		Enter a User ID to log in to FTP server.
Password Enter the Password for the user ID to log in to FTP server
Sequence Modulo		Maximum number used in sequential file name
FTP Control Port		Port number for FTP server (Normally 21 is used)
Date Description Mode		Select Date Display Style: American, European or ISO Standard
Connection Mode		Select connection mode for FTP server
Overwrite		If checked, new file overwrites the existing file with the same name.
Server Name		If Directory Name is checked, new directory is created with server name.If File Name is checked, new file is created with server name.
Weekday		If Directory Name is checked, new directory name is created with weekday.If File Name is checked, new file name is created with weekday.
Year		If Directory Name is checked, new directory name is created with year.If File Name is checked, new file name is created with year.
Month		If Directory Name is checked, new directory name is created with month.If File Name is checked, new file name is created with month.
Day		If Directory Name is checked, new directory name is created with day.If File Name is checked, new file name is created with day.
Hour		If Directory Name is checked, new directory name is created with hour.If File Name is checked, new file name is created with hour.
Minute		If checked, new file name is created with minute.
Sec		If checked, new file name is created with second.
Sequence		If checked, new files are created starting from 0, with increment of 1.
Camera Number		If Directory Name is checked, new directory is created with camera number.If File Name is checked, new file is created with camera number.

To create a directory with the options shown above, click Make Directory button. After finishing the configuration, click Save button to apply the change and continue to the next page. Clicking Back button will cancel the changes and go back to the previous page. (This service is available only in M-JPEG mode.)

FTP (Periodic) Service Configuration for each channel

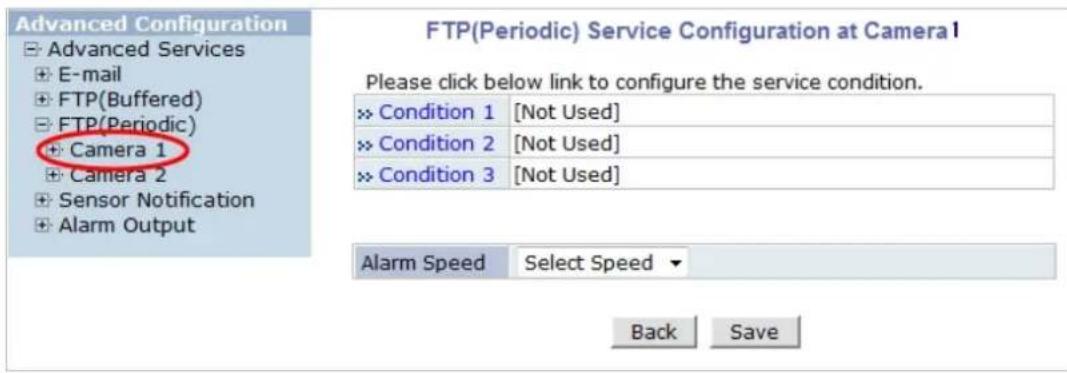

Advanced Configuration ► Advanced Services ► E-mail ► FTP(Buffered) ► FTP(Periodic) ► Camera 1 ► Camera 2 ► Sensor Notification ► Alarm Output FTP(Periodic) Service Configuration at Camera1 Please click below link to configure the service condition. ► Condition 1 [Not Used] ► Condition 2 [Not Used] ► Condition 3 [Not Used] Alarm Speed Select Speed ▼ Back Save

Notice : FTP interval is the time interval between each image upload service. If you put the number, the last numeric digit will be truncated to zero. For example, if you type 154 or 17, it becomes 150msec and 10msec. If the number is lower than 10, FTP interval becomes zero and FTP service is executed without any time interval.

Item	Description
Condition 1 ~ Condition 3	Select a condition for FTP (Periodic) service to be activated. Up to 3 conditions can be set respectively.
FTP interval (msec)	Select the speed of images to send in FTP(Periodic) service

After finishing setup, click Save button to apply. If you don't want to change, click Back button.

17. Recording Configuration for Cameras with microSD card

Some versions of VITEK IP cameras will have a microSD card slots on the back.

Those models can record and playback video from the microSD card if installed. Vitek IP cameras can

Support cards up to a 32GB. (Only use quality class 10 microSD cards)

17.1. MicroSD Configuration

If a microSD card (SD card) is not present in the slot already, power down the VITEK IP camera before inserting an SD card. Make sure to turn the power on after inserting the SD card. Open a webbrowser, type in the IP address of the VITEK camera. Log in as Admin, Enter Recording Configuration menu, and then click on SD Configuration then click on SD Information, the card's format information will be displayed

SD Information

File System	-None-
Total Disk Size	-None-
Free Disk Size	-None-
Usage	-None-
Oldest Image	-none-
Last Image	-none-

Detail Stored Image Information

If entire SD information is showing “-NONE-” this means SD card is not formatted, in this case click

Note: Be sure to turn off the device before installing a SD card. Otherwise, the SD card may become defective. Always check the recommended type of SD card because non-conforming SD cards can cause abnormal behavior of the system.

back button followed by clicking SD Status & Format

SD Status & Format (Normal)

SD	Status
1st SD	Unformatted

Notice : Be careful! The system could be broken. If you inserted the SD memory with the power on, turn the power off and on again to format. If you select a SD to format, you will be automatically guided to the format menu. Once SD format is completed, you need to reset system. Once format starts, recording stops automatically. After reset system, recording starts automatically.

Click on "1 ^st SD" and the following screen will be displayed

SD Format

Format Option

Check Bad Block

- Format Option

When you enable the "Check Bad Block" option, the Network Video System check the surface of the HDD for detecting bad blocks.

Do not run other tasks, until format is completed. If this option is enabled, the format time may be several hours depend on the size of the HDD.

Back

Partition and Format

Read format option on screen and then click Partition and Formata pop up screen will display asking if you want to do a "Partition and formatting" click OK to continue or Cancel to stop. After clicking OK the following screen will be displayed

SD Format Status

Partition

STEP 1

Format

STEP 3

Complete

STEP 4

Description

Formatting SD.

73.3%

Notice : Do not run other tasks, until format is completed. Once SD format is completed, you will be guided to Format Complete page, automatically.

Note: if program is terminated during the "Format" process SD Card might be damaged

After formatting is completed the following screen will be displayed

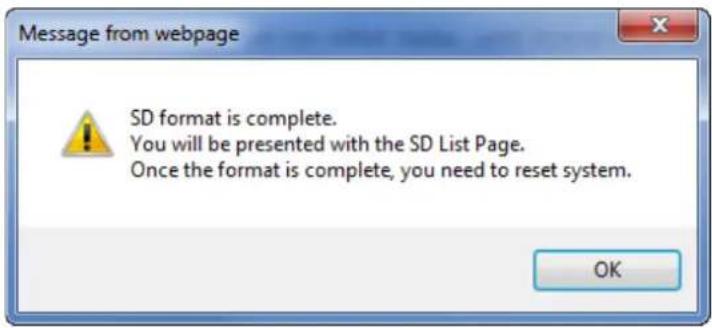

Message from webpage SD format is complete. You will be presented with the SD List Page. Once the format is complete, you need to reset system. OK

Click OK and you will be brought back to the "SD Status & Format screen" click on "Reboot" wait approximately 30 seconds and log back into the Admin screen. Open up "Recording Configuration" menu and click on "SD Configuration" then click on "SD Information" and the following screen will be displayed showing SD card info

SD Information File System Default format Total Disk Size 1.79 GB Free Disk Size 1.69 GB Usage 5.69 % Oldest Image -none- Last Image -none- Detail Stored Image Infomation Back

17.2. Recording Configuration with microSD card

Each camera has 2 streams (referred as Camera 1 / Camera 2 (see image below)) which can be configured for recording options in this section. Configuration items include motion detection recording, 24-hour continuous recording, event-driven recording, etc.

You can find out the list of streams (camera 1 / camera 2) with recording capability by clicking Recording Configuration on the left side of your screen. For example, you will see 2streams (camera 1 / camera 2) from the list of VS Module ID (IP Devices).

Recording Configuration + SD Configuration + Recording Configuration -> Recording Profile -> Recording Mode -> SD Status Report -> Clear Recording Config. -> Delete Recorded Data Utilities

Recording Configuration Please click camera name to configure Recording condition. Recording Configuration VS Module ID (IP Devices) Name IP Address Port Vendor Camera Name REC. Config. 0 Built-in Module 0 Built-in Module 0 0 Built-in Device Camera 1 Disable 0 Built-in Module 0 Built-in Module 0 0 Built-in Device Camera 2 Disable Back Apply Status Stop Record Notice : To start recording following your new recording configuration,click 'Record' button. Otherwise, recording with new configuration will not be started, although all the recording configurations are correctly set up.

Below is an example of configuring the motion detection-triggered recording. It starts by clicking Recording Configuration and clicking on Camera1, the following screen will be display.

Recording Configuration (VS Module ID 0, Camera 1) » Display current recording configurations Please click below link for the recording configuration. » Condition 1 [Not Used] » Condition 2 [Not Used] » Condition 3 [Not Used] » Condition 4 [Not Used] 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Sun Mon Tue Wed Thu Fri Sat 1 2 3 4 Alarm Sensor Motion Detection External Input Data Camera Connected Camera Disconnected Always Schedule Schedule and Event 1 2 3 4 1 2 3 4 Server Module ID 0 Camera Number 1 Camera Name Camera 1 Pre-Alarm Images 0 ▼ Post-Alarm Images 0 ▼ Pre-Alarm Speed fastest ▼ Post-Alarm Speed fastest ▼ Back Save Notice : It is recommended using MJPEG compression to use Pre-Alarm and Post Alarm service. If MPEG4 or H.264 video compression is selected, only I Frame will be recorded.

Select Condition 1 and the following window will be display.

Condition 1 Service Recording Module ID 0 Camera ID 1 Enable Disable Select Mode Always Schedule Only Event Only Schedule and Event Schedule Sun Mon Tue Wed Thu Fri Sat Week □ □ □ □ □ □ □ □ Time (hh:mm) XX : XX ~ XX : XX □ Date (mm/dd) XX / XX ~ XX / XX Event 1 2 3 4 Alarm Sensor Motion Detection External Input Data □ Camera Connected Camera Disconnected □ □ □ □ Back Save Notice: Motion Detection can be set at Device Configuration -> Camera & Motion -> Motion Detection Alarm Sensor can be set at Device Configuration -> DI/DO

Enable / Disable

By clicking on Enable you will be able to select your mode (Always, Schedule only etc). in this example we will be selecting "Event Only".

Enable Disable Select Mode Always Schedule Only Event Only Schedule and Event

Schedule

Under Scheduleyou can select time and date for motion recording if left blank motion recording will be 24hrs, 7 days a week. In this example we will be leaving it blank (24/7).

Schedule Sun Mon Tue Wed Thu Fri Sat Week □ □ □ □ □ □ □ □ Time (hh:mm) XX : XX ~ XX : XX □ Date (mm/dd) XX / XX ~ XX / XX

Event

Under Event click Motion Detection (stream 1 / stream 2). Click on Save to finish.

Event 1 2 3 4 Alarm Sensor Motion Detection External Input Data Camera Connected Camera Disconnected Back Save Notice : Motion Detection can be set at Device Configuration -> Camera & Motion -> Camera Alarm Sensor can be set at Device Configuration -> DI/DO

18. Utilities

In Utilities part of the Admin menu, you can view the System Log file, Save Configuration, Reboot, FactoryDefault and System Update.

Quick Configuration System Configuration Network Configuration Device Configuration Advanced Configuration Recording Configuration Utilities » System Log » Save Configuration » Reboot » Factory Default » System Update

18.1. System Log

System log file provides you the information about when and who access' the contents of VITEKCameras such as HTTP file or CGI programs. In each line, log data consists of date, time, category, IP address, user ID.

System Log Thu Dec 13 07:10:30 2012 Home : 10.0.0.116 (null) Thu Dec 13 07:11:08 2012 Admin: 10.0.0.116 (null) Thu Dec 13 07:11:10 2012 Admin: 10.0.0.116 root Thu Dec 13 07:11:50 2012 Admin: 10.0.0.116 root Thu Dec 13 07:13:02 2012 Live : 10.0.0.116 root Thu Dec 13 07:13:34 2012 Admin: 10.0.0.116 root Thu Dec 13 07:13:51 2012 Live : 10.0.0.116 root Thu Dec 13 07:14:21 2012 Live : 10.0.0.116 root Thu Dec 13 07:14:29 2012 Live : 10.0.0.116 root Thu Dec 13 07:14:32 2012 Live : 10.0.0.116 root Back

18.2. Save Configuration

VITEK cameras save the configurations after every step.

Save Configuration

- Changes to configuration will be saved automatically for this model.

Back

18.3. Reboot

It is recommended to reboot the system after making changes to the configuration. To reboot, click Reboot on Utilities menu. A screen will display to confirm a system reboot, click ok to continue.

Windows Internet Explorer will ask to close the webpage, click Yes.

Reboot System reboot is strongly recommended to apply all new configurations properly to the Network Video System. Reboot!! Microsoft Internet Explorer Are you sure to reboot this system? OK Cancel

18.4. Factory Default

When required to restore the configuration of a Camera to factory default conditions, Network configuration is not affected by this action.

Click Factory Default on Utilities menu. A confirmation screen will be displayed as shown Click Factory Default button, otherwise click Back button to cancel it. The second confirmation screen will appear. Click OK button to restore the factory default condition right away. If you click Cancel, web browser will go back to the previous screen without any change made.

Factory Default All of setting will be revert back to factory default except IP address, if you press "Factory Default" button. Back Factory Default Message from webpage Are you sure to Factory Default? OK Cancel

18.5. System Update

** Is Highly Recommended to Use the IP Installer Program for This Process **

IP Installer (v3.0.6) Filter: All Model MAC address IP address P Ty... Server name HTTP port Version Status VTD-LIFN 1C7C45020X3E 10.0.0.254 s static Network Video System 80 4.16-B0-ds-VI Success

Once IP devices are searched and shown on the screen as functioning successfully, you can update the firmware of them using the "IP Installer" program. To do that, first check the firmware version of the device, which you can find on the IP Installer window.

IP Installer (v3.0.6) Filter: All Model MAC address IP address IP Ty... Server name HTTP port Version Status VTD-13VN 1C7C450200B3 10.0.0.50LI static Network Video System 80 4.14-01-ds Success VTC-IR402 1C7C45050040 10.0.0.40LI static Network Video System 80 4.16-B0-ds-VI Success

In the above picture, the firmware version of this product is 4.14-01-ds while the latest firmware version available is 4.16-B0-ds-VI as you can see at Vitek's homepage

(http://www.vitekcctv.com/Downloads.asp). If you decide to update the firmware, first create a folder on your computer for the update firmware, than download the latest firmware to that folder.

Then select the IP device to be updated on IP Installer window, then click Update Firmware button from the toolbar. The following window will be displayed.

Update Model Mac Address IP Address Server Name Progress Status Password YTD-13N 1C7C45020083 10.0.0.50 Network Video... Ready Update Select option for update with proper password and then click the button to update firmware. ● ALL (Firmware, RAM disk, System, Web) ○ SYSTEM and WEB ○ WEB only Get version Enter the password for each columns and click the button to get version of firmware. Get version Apply to all Close

You may find the Password field is empty on the window shown above. If so, click the Password field of the IP device and enter the proper password for the device. You are not allowed to update the firmware if the correct password is not provided.

After the password is entered, the Start Update button will be enabled now. Click the button to see the following window for selecting the folder where the file has been saved. Highlight the folder than clickOK.

Browse for Folder Select firmware folder Computer Local Disk (C:) Local Disk (D:) DVD/CD-RW Drive (E:) 300.125 DM36x(E) Oxford pt V4.12-06 4.16-B0-ds-VI OK Cancel

After clicking OK the following window will be displayed.

Progressing... Model Nas Address IP Address Server Name Progress Status Password WTD-13PN 10704502003E 19.0.0.254 Network Video... 8% Transferring file... Update Select option for update with proper passwords, and then click the button to update firmware. ALL (Firmware, RAM disk, System, Web) SYSTEM and WEB WEB only Start update Get version Enter the password for each column and click the button to get version of firmware. Get version Apply to all Close

Note: Do not CLOSE window until completed, to avoid permanent damage to the camera.

19. ENVI Series Viewer

19.1. Introduction

ENVI Series Viewer is an ActiveX program for Internet Explorer web browser, which enable users to control video and audiofunctions of network video devices over the TCP/IP network. ENVI Series Viewer works with EN-V-R network video software, Vitek Network Video Servers, Network Video Recorders, and Network Cameras to show real-time live video images and enables users to control audio, Relay Output, and PTZ functions. (Supported cameras)

19.2. Key Features

• Displays live video streams transmitted from Vitek Cameras / Servers
- Plays audio transmitted from VitekCameras / Servers (supported cameras)
• Transmits audio from PC with ENVI Series Viewer to VitekCamera / Servers
• Stores live video screen as image files
- Stores live video streams as video files
• Controls Relay Output of VitekCameras / Servers (supported cameras)
• PTZ Controls (supported cameras)
• Supports the group mode to see specific channels (for Network Video Recorders only)
• Displays live videos in full screen mode
• Supports Flexible Extra System

19.3. System Requirement for PC

For best quality and performance, your computer needs to meet the minimum requirement as below.

• OS: Microsoft Windows XP Pro, Windows 7
• CPU: Intel Pentium 4, 2 GHz (Dual-Core or faster is recommended)
- System RAM: 2GB
• Video Card: 256MB Ram, 1024x768 Resolution
• 100 Mbps Network Adaptor

20. Installing and Uninstalling

20.1. Installing ENVI Series Viewer

Connect to the Vitek Camera/Server using Internet Explorer, and click Live View on the main page. Then ENVI Series Viewer will be automatically downloaded and installed. If an Internet connection is not available, it's possible to manually install the program file in advance (from supplied CD) and connect to the Vitek Camera / Server later.

20.1.1. Installing on Web Browser

Click 'Live View' after access to Vitek® Server on Internet Explorer.

Home | Live View | Admin VITEK INDUSTRIAL VIDEO PRODUCTS, INC. An Eye on Innovation. Model: VTD-13VRN, Firmware ver 4.14-01-ds Homepage ver 4.14-01_VI for Network Video System

If you're using Windows XP Service Pack 2 or later, the Information message will show up as seen below. Click the Information message.

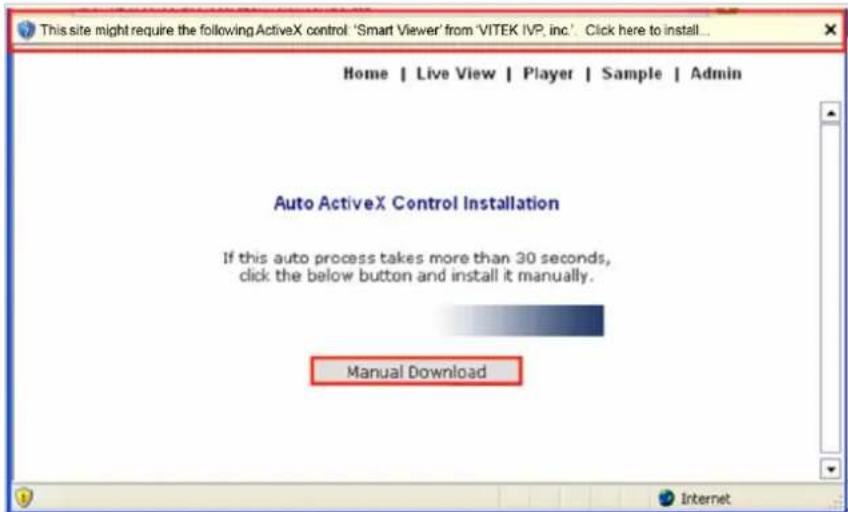

This site might require the following ActiveX control 'Smart Viewer' from 'VITEK IVP, inc'. Click here to install... Home | Live View | Player | Sample | Admin Auto ActiveX Control Installation If this auto process takes more than 30 seconds, click the below button and install it manually. Manual Download

If the Information message doesn't come up due to the problems like network failure, you can start the manual installation as shown in the next section.

This site might require the following ActiveX Control - IVP, Inc. 1/ATEK IVP, Inc. 1 Click here to install... Install ActiveX Control... What's the Risk? Information Bar Help Player | Sample | Admin Auto ActiveX Control Installation If this auto process takes more than 30 seconds, click the below button and install it manually. Manual Download

Click the Install ActiveX Control, and the pop-up window will be displayed as above. Click the Install button.

User Account Control Do you want to allow the following program to make changes to this computer? Program name: SmartViewer (1).exc Verified publisher: VITEK INDUSTRIAL VIDEO PRODUCTS, INC. File origin: Downloaded from the Internet Show details Yes No Change when these notifications appear

Click "YES" to allow program to run.

After the installation is successfully completed, ENVI Series Viewer window will be displayed.

Home | Live View | Admin

IP Dual Streaming Digital Zoom Enterprise Class POE VITEK INDUSTRIAL VIDEO PRODUCTS, INC An Eye on Innovation.

Model : VT-PTZ220NP, Firmware ver 4.16-B0-ds-VI

Homepage ver 4.16-80_VT for Network Video System

20.1.2. Manual Installation

When an Internet connection is not available or having some difficulties, you can manually install from the supplied CD using ENVI Series Viewer program file. Execute the downloaded file, and you will see the ENVI Series Viewer Setup Wizard window as shown below. Click the Install button to start installing.

Smart Viewer 1.1.0.4 Setup Welcome to the Smart Viewer 1.1.0.4 Setup Wizard This wizard will guide you through the installation of Smart Viewer 1.1.0.4. It is recommended that you close all other applications before starting Setup. This will make it possible to update relevant system files without having to reboot your computer. Click Install to start the installation. Install Cancel

The following window will be displayed during the installation.

Smart Viewer 1.1.0.4 Setup Installing Please wait while Smart Viewer 1.1.0.4 is being installed. Extract: italian.ini... 100% Show details FlexWATCH < Back Next > Cancel

After installation is successfully completed, the following window will be displayed. Click the Finish button.

Smart Viewer 1.1.0.4 Setup Completing the Smart Viewer 1.1.0.4 Setup Wizard Smart Viewer 1.1.0.4 has been installed on your computer. Click Finish to close this wizard.

20.2. Uninstalling ENVI Series Viewer

There are two ways to uninstall ENVI Series Viewer program from your computer. Before uninstalling, close all the Internet Explorer windows.

20.2.1. Uninstalling with Program Menu

Vitek Smart NVR Smart Package Smart Viewer Uninstall

Click Uninstall and the following window will be shown. Click the Yes button.

Smart Viewer 1.1.0.4 Uninstall Close all browser before proceeding. Are you sure? Yes No

If the uninstall is successful, the following window will be displayed. Click CLOSE to finish.

Smart Viewer 1.1.0.4 Uninstall Uninstallation Complete Uninstall was completed successfully. Completed Show details < Back Close Cancel FlexWATCH

20.2.2. Uninstalling on Control Panel

Click Start button on the screen, then select the Control Panel.

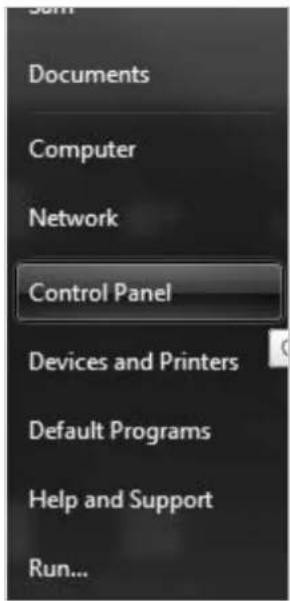

Control Panel Documents Computer Network Devices and Printers Default Programs Help and Support Run...

In the Control Panel window, double-click the Add or Remove Programs icon.

Adjust your computer's settings View by: Small icons Action Center Backup and Restore Date and Time Device Manager Ease of Access Center Fonts iCloud Java Mouse NVIDIA Control Panel Personal action Programs and Features Region and Language Speech Recognition Taskbar and Start Menu Windows Anytime Upgrade Windows Firewall 메일 Administrative Tools Color Management Default Programs Devices and Printers Flash Player Getting Started Indexing Options Keyboard Network and Sharing Center Parental Controls Phone and Modem QuickTime RemoteApp and Desktop Connections Sync Center Troublashooting Windows CardSpace Windows Live Language Setting AutoPlay Credential Manager Desktop Gadgets Display Folder Options HomeGroup Internet Options Location and Other Sensors Notification Area Icons Performance Information and Tools Power Options Recovery Sound System User Accounts Windows Defender Windows Update

You will see the Currently installed programs list. Click ENVI Series / (Smart Viewer) button,

Uninstall or change a program To uninstall a program, select it from the list and then click Uninstall, Change, or Repair. Organize Name Publisher Installed On Size Version Windows Live Essentials 2011 Microsoft Corporation 8/26/2011 15.4.3538.0513 Smart Viewer 11/9/2012 Uninstall/Change Currently installed programs: Total size: 5.06 GB 85 programs installed

You will see the Uninstall or change a program list. Click ENVI Series / (Smart Viewer) button, and then right click Uninstall / Changebutton. Then, it will start uninstalling the program.

21. Starting ENVI Series Viewer

Once ENVI Series Viewer is installed in your computer, you can start it by connecting to the Vitek

Camera / Server using Internet Explorer and select Live View on the main menu.

The appearance of ENVI Series Viewer window varies depending on what type of Vitek Server is connected (Network Video Server, Network Camera, or Network Video Recorder).

• ENVI Series Viewer window for Network Video Server or Network Camera

Control Bar Channel Control Channel 1 Channel 2 All Channels None Channel Channel Control Bar Audio control bar Disconnected Connect Audio Control Bar PTZ control bar Speed 10 Preset Call Preset #1 PTZ Move Mode Continuous PTZ Control Bar Home | Live View | Admin Opens the Instant Playback Viewer. Start or finish manual recording to the built-in MicroSD card in (1 minute max). Configure prior to recording. Save currently displayed Live video as an AVI file to your local computer (10 minute max). Create a Snapshot of the currently displayed Live Video.

21.1. Control Bar

Displays and hides Channel control bar

Displays and hides PTZ control bar

Displays and hides Audio control bar

Display image by aspect ratio

Displays image normal screen

Display Enhancer on/off (uses more CPU)

splay Full / Normal screen

Displays image in original size

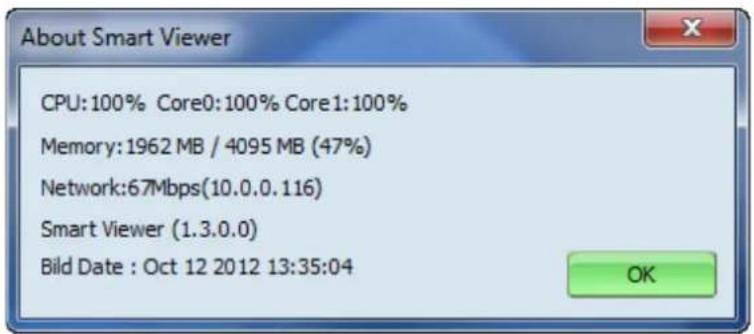

System Information Display

21.2. Channel Control Bar

Channel 1 Channel 2 All Channels None Channel

Displays or hides live view video from channel 1

Displays or hides live view video from channel 2

Displays or hides live view video from ALL channels

No Display

21.3. OSD Channels Buttons

21.3.1. Saving as Image File

Nov 27,2012 06:33, 4:070

In ENVI Series Viewer, Live video currently displayed can be captured and saved as an image file either in JPEG or BMP format. Select the live view video you want saved, and click Snapshot button on OSD Channel Buttons. The following window will be displayed.

Save As Save in: OS (C:) Name Date modified Type AIPG_STORAGE 2011-04-10 8:36 AM File fol AppsUtils 2011-01-14 7:10 PM File fol DELL 2011-04-13 9:11 PM File fol Drivers 2010-10-14 8:08 AM File fol Hangeme 2010-12-08 6:46 AM File fol Intel 2011-06-07 6:14 PM File fol KBStar 2010-12-08 6:46 AM File fol log 2011-02-19 3:39 PM File fol NPKI 2010-12-08 6:24 AM File fol PerfLogs 2011-06-09 10:02 ... File fol PFiles 2011-03-12 10:18 ... File fol Pics-Archive 2011-05-02 4:02 PM File fol oki.nts 2010-12-08 6:24 AM File fol File name: 2011/07/23_13h/23m/10s_Camera 1.jpg Save Save as type: Jpeg Files (*.jpg) Cancel

In this dialog box, you see the captured image to be saved. Enter the folder and file name, and click the Save button, then the image will be saved with the name you entered.

Note: If live view video is in MJPEG format, the image will be saved as a JPEG file. If the video is in MPEG-4 or H.264 format, it will be saved in BMP format.

21.3.2. Saving as Video File

In ENVI Series Viewer, Live video currently displayed can be captured and recorded as a video file in AVI format. Select a live view you want to save, and click RecAvi button on OSD

ChannelButtons. Clicking it again will stop recording. Max duration is 10 minutes and recording will be stopped after 10 min if left un-clicked.

Save As ► Computer ► OS (C:) ► Search OS (C:) Organize ▶ New folder Documents My Documents Public Documents Music Pictures Videos Homegroup Computer OS (C:) CD Drive (K:) Name Date modified Type AIPG_STORAGE 2011-04-10 8:36 AM File folder AppsUtils 2011-01-14 7:10 PM File folder DELL 2011-04-13 9:11 PM File folder Drivers 2010-10-14 8:08 AM File folder Hangame 2010-12-08 6:46 AM File folder Intel 2011-06-07 5:14 PM File folder KBStar 2010-12-08 6:46 AM File folder log 2011-02-19 3:39 PM File folder NPKI 2010-12-08 6:24 AM File folder PerfLogs 2011-06-09 10:02 ... File name: 2010/23_13h34m26s_Camera 1.avi Save as type: AVI Files (*.avi) Hide Folders Save Cancel

In video files recorded from M-JPEG format video, the time information file will be generated in SMI subtitle format, which puts time stamp every second. When you play back the recorded video, the time stamp will be displayed as a subtitle on the video screen as shown in the picture below. (upper left)

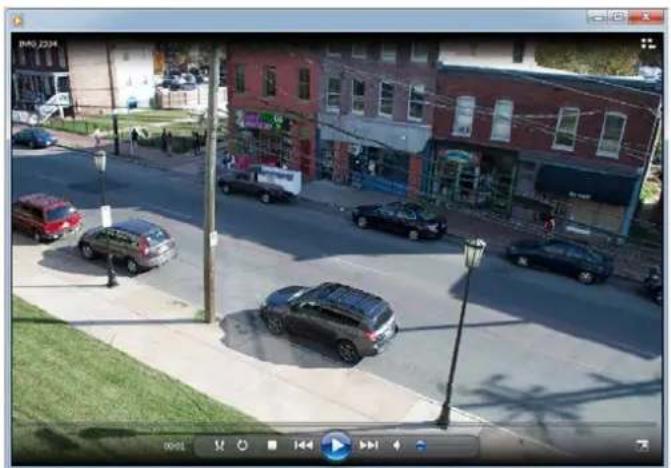

Street scene with parked cars and storefronts, no visible text or symbols

Note: When you play back videos recorded from MPEG-4 or H.264, proper CODEC's may be required.

21.3.3. Manual Recording

To manual record from networkcameras with built-in local storage (microSD), live video

can be recorded to the microSD card by clicking this button. The recorded video can be viewed by Instant Playback feature of OSD Channel Buttons or by running ENVI Series Player program. To finish, click the icon again. Max duration is 1 minute and recording will be stopped after 1 minute.

Nov 27,2012 06:33:14,070 Camera 5-Camera 1

21.3.4. Instant Playback

For network cameras with local storage (microSD), Instant Playback is supported. Clicking tant Playback button from the OSD menu will open the window below.

Player Camera 4-Camera 1 Nov 27,2012 05:55:35 Slow Normal Fast

Instant playback will scan the video data up to 1 min before it was executed. And scanned data will be played automatically

1 05,2011 15:08:11			Set the beginning of video data. Instant playback will scan 1 min after this.
			Se the playback speed.
			Begin searching data
			Playback
			Reverse playback.
			1 frame playback
			1 frame reverse playback
			Pause
			Stop

21.4. Extended Features

When you click the right mouse button on the Live View Window, a pop-up menu will appear for extended features as shown below.

Pause FPS Flip Mute Audio Do 1 Navigation

21.4.1. Pausing Live Video

Click the Pause button to stop and resume live view video.

Pause FPS Flip Mute Audio Do 1 Navigation

21.4.2. FPS Control

FPS (Frame per Second) can be controlled only in MJPEG mode. In MPEG4 and H.264 video mode, FPS control is not supported.

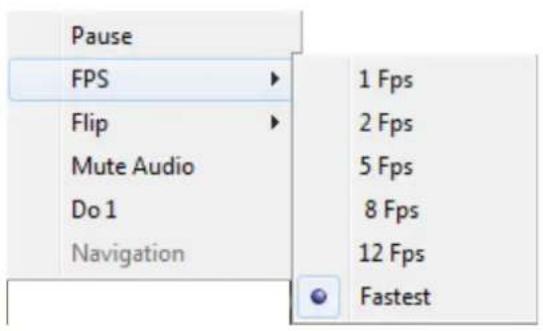

Pause FPS Flip Mute Audio Do 1 Navigation 1 Fps 2 Fps 5 Fps 8 Fps 12 Fps Fastest

21.4.3. Flip Control

Flip Control: The horizontal view of the image can be changed using the (mirror) function. The vertical view of the image can be changed using the (flip) function.

Pause FPS Flip Mute Audio Do 1 Navigation Mirror Flip

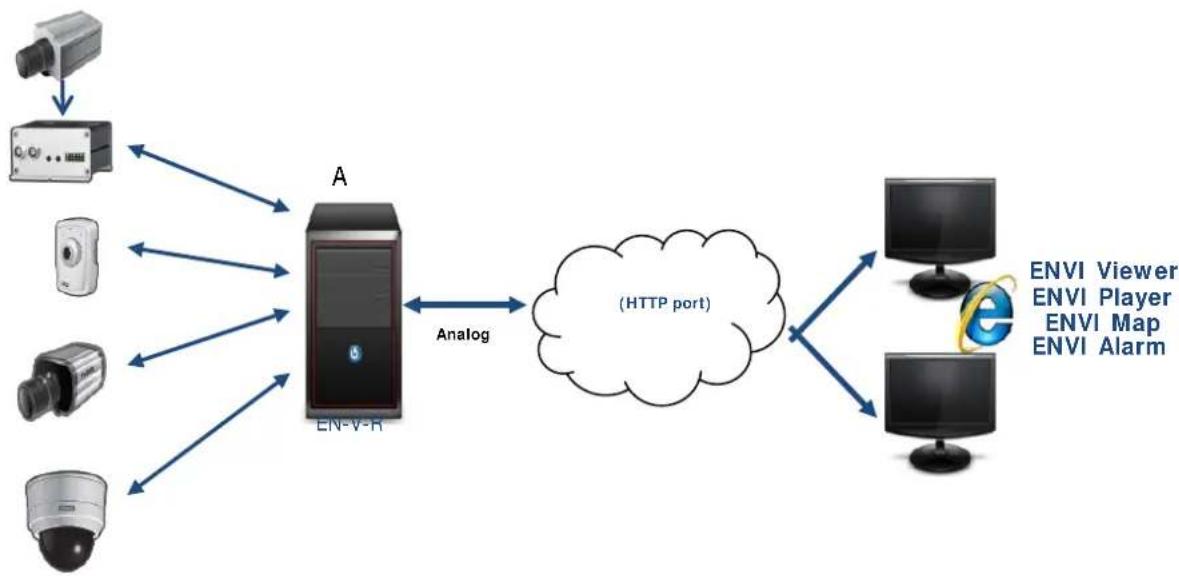

This User's manual explains how to set up EN-V-R software in your PC. EN-V-R is the integrated system software for video security applications, which runs on Microsoft's Windows-based computers. Some of major features of EN-V-Rare listed below.

• Provides main features of Liveview, Playback, Record, Backup
  • Event, motion, scheduled recording & conditional playback
  • Motion-JPEG, MPEG-4, H.264 stream supported
• Supports various vendors' IP devices (Multi Vendor Version only) for recording and retransmission of video, voice, and data
  • Supports Megapixel cameras (up to 3M pixels)
• Users can connect to EN-V-Rvia web browsers to access live video, Audio, and data, and search for video to play back
  • Up to 128 channels supported for cameras

Note: A product-key is required for proper installation of EN-V-R program. You can still install EN-V-R in 10-working day trial mode if a product-key is not entered during installation. (Multivendor software only)

23. Requirements for Installation

23.1. EN-V-R Versions

EN-V-R is supplied to customers in different versions for each appropriate application. Users will need to choose the right versions for their needs.

Version Types	Register Channels	Time Restriction	Recording Channels	Retransmission Streams	Support Other vendors	Max Recoding Capacity
Evaluation	128	10 days	128	256	Yes	160 TB
Free	16	N/A	16	64	No	160 TB
Multivendor	9	N/A	9	36	Yes	160 TB
	16	N/A	16	64	Yes	160 TB
	32	N/A	32	128	Yes	160 TB
	64	N/A	64	256	Yes	160 TB
	128	N/A	128	512	Yes	160 TB

23.2. System Requirement for PC

For best quality and performance, your computer needs to meet the minimum requirement as below.

• Microsoft Windows XP Pro, Windows 7 Pro or higher, Video Card(256MB Ram, 1024x768 or higher)

Compression	# of Channels	Resolution	Recommended CPU	Memory
H.264	16 Channels	D1	Intel Core2Duo T5200	1.0GB
		720P	Intel Core2Duo E7550	1.5GB
		1080P	Intel Core i-5-2500S	2.0GB
	32 channels	D1	Intel Core2Duo E6700	1.0GB
		720P	Intel Core i-5 750	2.0GB
		1080P	Intel Core i-7 970	4.0GB
	64 channels	D1	Intel Core i-5 661	1.5GB
		720P	Intel Xeon X5660	4.0GB
		1080P	Intel Xeon X5680 Dual CPU	4.0GB
	128 channels	D1	Intel Xeon X5507 Dual CPU	4.0GB
		720P	Intel Xeon X5670 Dual CPU	6.0GB
		1080P	Intel Xeon E7-4850 Dual CPU	6.0GB
Motion-JPEG	16 Channels	D1	Intel Core2Duo E6700	1.0GB
		720P	Intel Core i-5 460M	1.5GB
		1080P	Intel Core i-5 -2500	3.0GB
	32 channels	D1	Intel Core i-5 661	1.5GB
		720P	Intel Core i-5 -2400S	2.0GB
		1080P	Intel Xeon X5590 Dual CPU	4.0GB
	64 channels	D1	Intel Core i-5 -2500	3.0GB
		720P	Intel Xeon X5550 Dual CPU	4.0GB
		1080P	Intel Xeon E7-4850 Dual CPU	6.0GB
	128 channels	D1	Intel Xeon X5687 Dual CPU	4.0GB
		720P	Intel Xeon X5690 Dual CPU	6.0GB
		1080P	Intel Xeon E7-4850 Dual CPU	6.0GB

Note: Above PC requirements are based on running EN-V-R program only. If other software needs to run along with EN-V-R at the same time, you may need additional performance level for your PC. It is recommended to check actual performance and disk capacity before selecting a PC for EN-V-R.

After downloading EN-V-R, double click EN-V-R Setup icon to start installation. The following window will be displayed on the screen. Before installing, check the version of the EN-V-R which is shown on the window.

You may encounter the following security warning. To continue installing the program, click Yes button.

User Account Control Do you want to allow the following program to make changes to this computer? Program name: SmartNVRSetup_VT_v1.2.0.6_SV_Lite_16Ch Verified publishers: File origin: Network drive Show details Yes No Change when these notifications appear

Then select language for installation.

Installer Language Please select a language. English OK Cancel

You will see the below window, then click Next button.

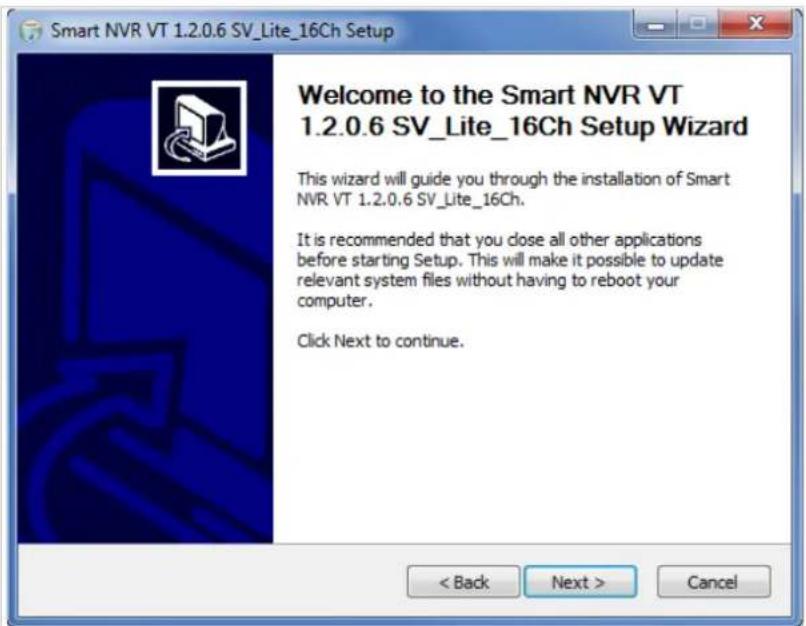

Smart NVR VT 1.2.0.6 SV_Lite_16Ch Setup Welcome to the Smart NVR VT 1.2.0.6 SV_Lite_16Ch Setup Wizard This wizard will guide you through the installation of Smart NVR VT 1.2.0.6 SV_Lite_16Ch. It is recommended that you close all other applications before starting Setup. This will make it possible to update relevant system files without having to reboot your computer. Click Next to continue. < Back Next > Cancel

The default location for installation is C:\Program Files\Vitek. It is recommended to install in this folder,

but if you want to change it to another location, click Browse button to choose a proper path.

Now click Install button.

Smart NVR VT 1.2.0.6 SV_Lite_16Ch Setup Choose Install Location Choose the folder in which to install SmartNVR VT 1.2.0.6 SV_Lite_16Ch. Setup will install Smart NVR VT 1.2.0.6 SV_Lite_16Ch in the following folder. To install in a different folder, click Browse and select another folder. Click Install to start the installation. Destination Folder Program Files (*.v85) /WTEC\Smart NVR Browse... Space required: 33.3MB Space available: 299.0GB Microsoft Install System v2.46 < Back Install Cancel

You will see the progress of copying install files to the hard drive as shown below, once is completed click on NEXT.

Smart NVR VT 1.2.0.6 SV_Lite_16Ch Setup Installing Please wait while Smart NVR VT 1.2.0.6 SV_Lite_16Ch is being installed. MetaControl service install... < Back Next > Cancel

Click Finish to complete the Installation.

Smart NVR VT 1.2.0.6 SV_Lite_16Ch Setup Completing the Smart NVR VT 1.2.0.6 SV_Lite_16Ch Setup Wizard Smart NVR VT 1.2.0.6 SV_Lite_16Ch has been installed on your computer. Click Finish to close this wizard. < Back Finish Cancel

After installing EN-V-R program for the first time, it needs to be configured before use, so it automatically executes the configuration program, which is called EN-V-R Configurator.

Smart NVR Configurator Type Admin Password OK Cancel

Enter the proper Admin Password. The default password is root.

The following screen will be displayed, click OK to continue.

SmartNvrCfg This program must be closed after configuration is complete for security. OK

Now you will see EN-V-R Configurator window on the screen.

Smart NVR Configurator Configuration System, Network Configuration IP-Device, Camera Management User Management Disk Setup Disk Quota Disk Mode Utilities Description 1. To receive video and other data, register IP-Device. 2. The video and other data is used to re-transmit, record, search, and playback. 3. To manage, register user and allow authority. 4. Setup disk space to manage recording data. 5. Supports Management toll such as Log. Apply Close

To use EN-V-R Configurator program, refer to Section 27 Starting EN-V-R Configurator on page 100.

If you need to uninstall EN-V-R, first you need to make sure EN-V-R program is not running on your computer by checking the system icon. As you see on the following picture, you can easily find out if EN-V-R service running.

Customize... EN 4:45 PM 12/17/2012

If EN-V-R is not running, you can go ahead to the next section of uninstalling the program. If EN-V-R is active, place the mouse pointer on the EN-V-R icon, and click the right mouse button. You'll see the pop-up menu. Select Exit.

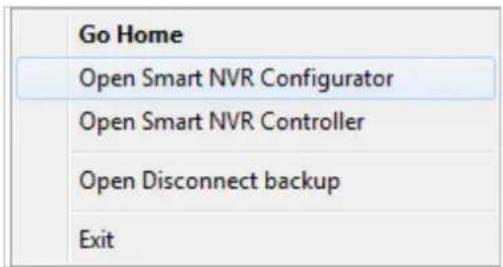

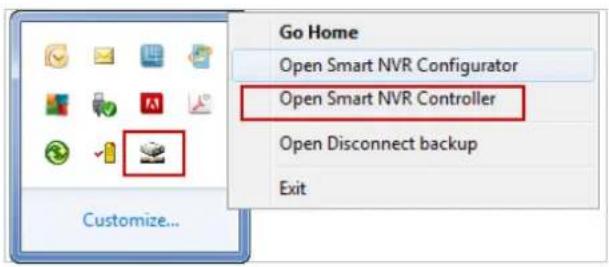

Go Home Open Smart NVR Configurator Open Smart NVR Controller Open Disconnect backup Exit

Then the EN-V-R icon disappears, and you know that EN-V-R is no longer running on your computer. Now you're ready to start uninstalling.

25.2. Executing Uninstaller

To start uninstalling, click Start > All Programs > Vitek> EN-V-R> Uninstall.

Vitek Smart NVR Smart NVR Configurator Smart NVR Controller Smart NVR Information Uninstall Smart Package

When the following window appears, click YES button.

Smart NVR VT 1.2.0.6 SV_Lite_16Ch Uninstall Are you sure you want to completely remove Smart NVR VT 1.2.0.6 SV_Lite_16Ch and all of its components? Yes No

The progress of uninstalling is displayed.

Smart NVR VT 1.2.0.6 SV_Lite_16Ch Uninstall Uninstalling Please wait while Smart NVR VT 1.2.0.6 SV_Lite_16Ch is being uninstalled. Smart NVR service stop... Nullsoft Install System v2.46 Close Cancel

After all the install files are deleted, the following window will be displayed. Click OK button on the following window to complete the uninstalling.

Smart NVR VT 1.2.0.6 SV_Lite_16Ch Uninstall Smart NVR VT 1.2.0.6 SV_Lite_16Ch was successfully removed from your computer. OK

26. Components of EN-V-R Program

EN-V-R consists of three programs, (EN-V-R Service, EN-V-R Configurator, and EN-V-R Controller).

26.1. EN-V-R Configurator

EN-V-R Configurator is used to set up various parameters and conditions of EN-V-R Service. Users can register, modify, and delete IP devices and users with this program. It also provides configuring tools for recording, alarm, event, and other functions.

26.2. EN-V-R Service

EN-V-R program is a Windows service and runs in a background mode, which means that it is not shown on the Windows desktop. EN-V-R receives video, audio, alarm, even data from IP devices over the network, and then it can record the data on the hard drive or retransmit to users. Starting, terminating and restarting of EN-V-R program can be done by using EN-V-R Configuration or EN-V-R Controller.

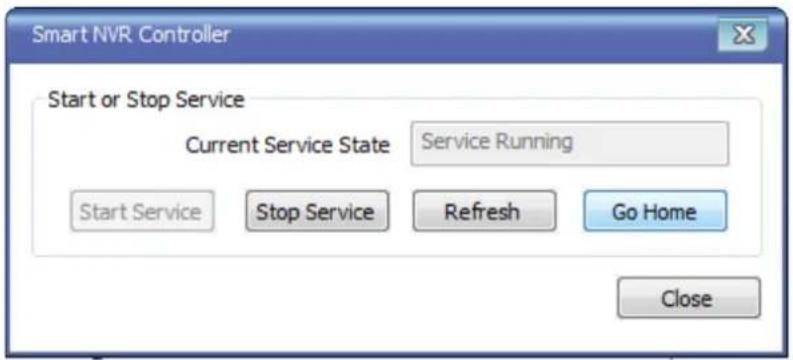

26.3. EN-V-R Controller

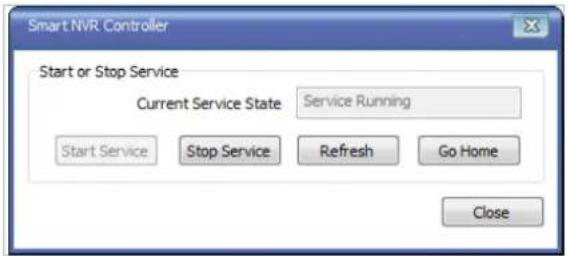

EN-V-R Controller program is used to start or stop the EN-V-R service.

26.4. EN-V-R System Tray Menu

After you finish installing EN-V-R, you will find the EN-V-R icon on the system tray, which is located right, bottom part of the Windows desktop.

Customize... EN 4:45 PM 12/17/2012

Move the cursor over the icon, and right click. The following pop-up menu will show. You can open EN-V-R Configurator or EN-V-R Controller program from this menu, or you can go to the Home page of the EN-V-R program for live view or playback.

Go Home Open Smart NVR Configurator Open Smart NVR Controller Open Disconnect backup Exit Customize... 4:45 PM 12/17/2012

27. Starting EN-V-R Configurator

EN-V-R Configurator starts automatically right after installation is completed; you may also click the EN-V-R icon on the Windows desktop.

Vitek Smart NVR Smart NVR Configurator Smart NVR Controller Smart NVR Information Uninstall Smart Package

If EN-V-R program is already running in background, you may also select the EN-V-R icon on the system tray by clicking right button of the mouse.

Go Home Open Smart NVR Configurator Open Smart NVR Controller Open Disconnect backup Exit

You may encounter the security window as below. Click Yes button to continue.

User Account Control Do you want to allow the following program to make changes to this computer? Program name: SmartNvrCfg.exe Verified publishe. Unknown File origin: Network drive Show details Yes No Change when these notifications appear

Once EN-V-R program starts, a log-in window will be displayed as below. Type in the proper admin password and click the OK button. The default admin / password is root.

Smart NVR Configurator Type Admin Password OK Cancel

Now EN-V-R Configurator window will be displayed.

Smart NVR Configurator Configuration System, Network Configuration IP-Device, Camera Management User Management Disk Setup Disk Quota Disk Mode Utilities Description 1. To receive video and other data, register IP-Device. 2. The video and other data is used to re-transmit, record, search, and playback. 3. To manage, register user and allow authority. 4. Setup disk space to manage recording data. 5. Supports Management toll such as Log. Apply Close

28. Quick Start Guide

EN-V-R is full-functioning Network Video Recorder software that runs on your PC. When started for the first time after EN-V-R is installed, there is no IP devices connected.

To add a camera to the EN-V-R you must register the camera first. Then EN-V-R knows what IP devices they are, how to connect to them, and how to use them. That way, you will be able to control EN-V-R for recording, live viewing, etc.

28.1. EN-V-R Configurator User Interface

The following picture shows the main window of EN-V-R Configurator program.

Smart NVR Configurator A Configuration System, Network Configuration IP-Device, Camera Management User Management Disk Setup Disk Quota Disk Mode Utilities B 1. This category is to register and manage IP-Devices. 2. Smart NVR supports various vendor's IP cameras. 3. Under manual mode, all details of IP device need to be manually entered. 4. On manual mode, working condition of IP device doesn't affect to registration 5. Under automatic mode, Smart NVR searches available network devices. 6. Modification of registered IP-device is supported. 7. Deletion of registered IP-Device is supported. 8. Internet Explorer is required to access homepage C D IP-Device Id IP-Device Name IP Address HTTP Port Vendor_Model UAR... User... Cam... E F Apply G Close

Items Descriptions
A	Main Toolbar	Frequently-used menu items are shown on this toolbar.
B	Configuration Menu tree	Configurable categories are shown as a menu tree style.
C	Configuration Menu Description	Descriptions and usages of the selected category are displayed.
D	Sub-Menu Toolbar	Menu items for the selected category are shown.(Note: This toolbar is displayed only when any top menu item is selected from the menu tree.)
E	Device List	IP cameras Information
F	Apply Button	Click this button to apply the changed values.

G Close Button

Click this button to exit EN-V-R Configurator program.

28.2. Searching for IP Devices

Click the first button on the Main Toolbar.

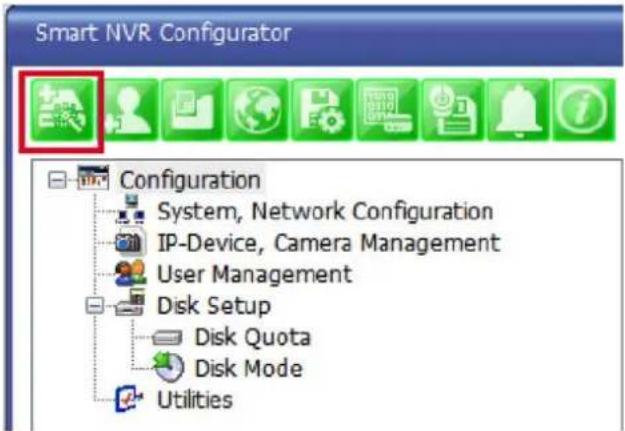

Smart NVR Configurator Configuration System, Network Configuration IP-Device, Camera Management User Management Disk Setup Disk Quota Disk Mode Utilities

You are now given a choice to register the IP devices by "search and register or manually". To make it easy, choose Search and register IP-Device in this stage, and click Next button.

IP-Device Register Wizard Search and register IP-Device Register IP-Device manually Next Cancel

On the following window, click Scan button.

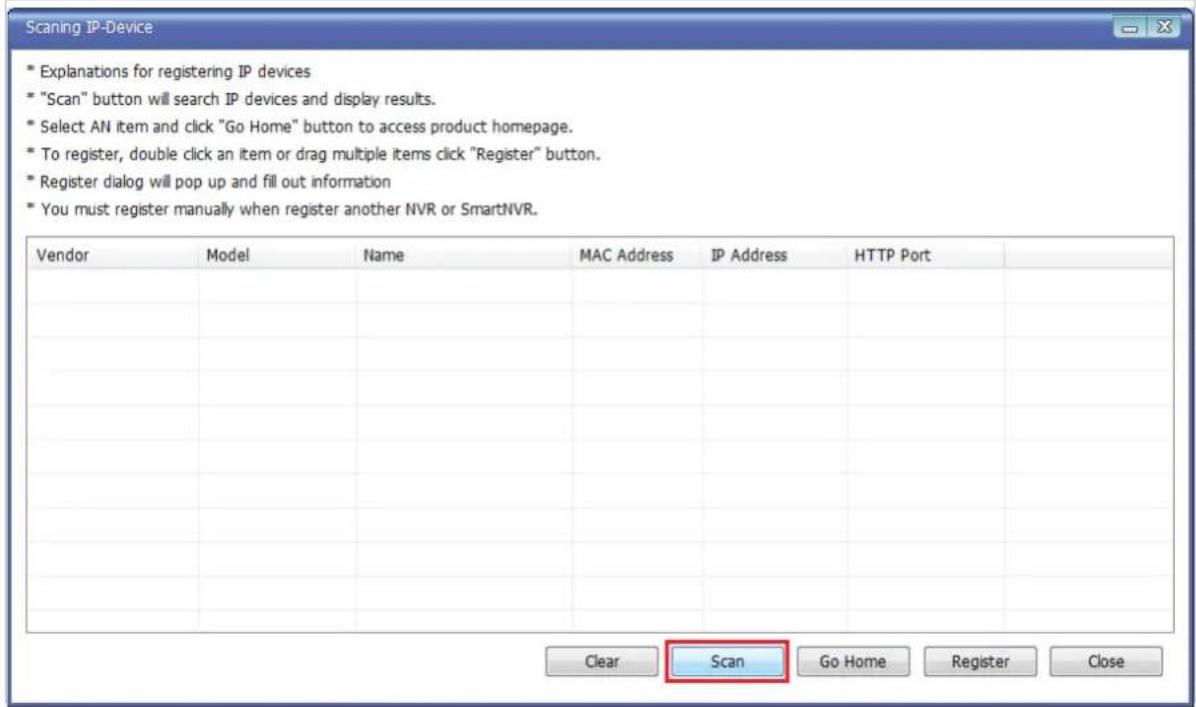

Scanning IP-Device * Explanations for registering IP devices * "Scan" button will search IP devices and display results. * Select AN item and click "Go Home" button to access product homepage. * To register, double click an item or drag multiple items click "Register" button. * Register dialog will pop up and fill out information * You must register manually when register another NVR or SmartNVR. Vendor Model Name MAC Address IP Address HTTP Port Clear Scan Go HomemasnRegister Close

The searching for IP devices is started. As the detected IP devices are being listed. Wait until searching is finished. If you click Cancel button in the middle of searching, the EN-V-R will retain only the IP devices found until that moment.

Scanning IP-Device * Explanations for registering IP devices * "Scan" button will search IP devices and display results. * Select AN item and click "Go Home" button to access product homepage. * To register, double click an item or drag multiple items click "Register" button. * Register dialog will pop up and fill out information * You must register manually when register another NVR or SmartNVR. Vendor Model Name MAC Address IP Address HTTP Port VITEK VTD-13FN VITEK VTD-13FN Search Count : 2 Cancel Clear Scan Go Home Register Close

28.3. Registering IP Devices

After scanning is finished, you have a list of IP devices found on your network. Next step is registering them. Double click the IP device you want to register or you may highlight it and then click Register button. In this example, the first one is chosen to register.

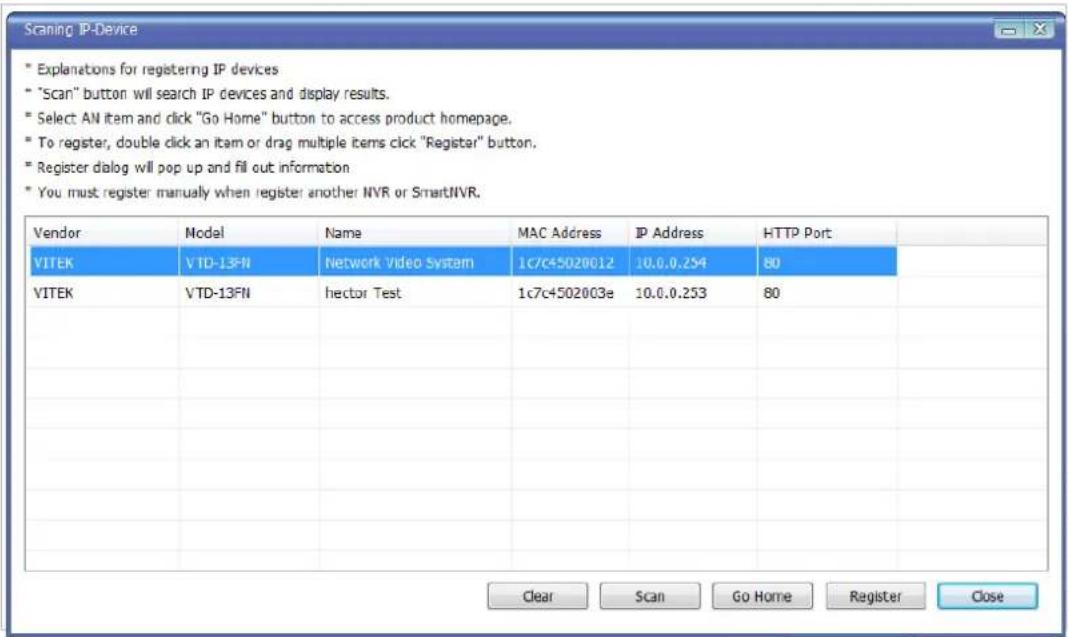

Scanning IP-Device * Explanations for registering IP devices * "Scan" button will search IP devices and display results. * Select AN item and click "Go Home" button to access product homepage. * To register, double click an item or drag multiple items click "Register" button. * Register dialog will pop up and fill out information * You must register manually when register another NVR or SmartNVR. Vendor Model Name MAC Address IP Address HTTP Port VITEK VTD-13FN Network Video System 1c7c45020012 10.0.0.254 80 VITEK VTD-13FN hector Test 1c7c4502003e 10.0.0.253 80 Clear Scan Go Home_Register Close

The next window shows up and it's for entering the network parameters and camera resolutions of the IP device you've chosen. You may need to enter the Login ID and Password here. Click Save to finish registering it.

Regatening New IP-Device Inputting IP-Device information IP-Device ID 10 Vendor VITEK Model 2 Channel Model Name Network Video System IP Address 10.0.0.254 Input IP Address Range ~ Getting Information from IP-Device (May take several minutes) VS Module ID 0 HTTP Port 80 RTSP Port 554 Login ID root Login Password ****** Confirm Password ****** Checking available resolution ✓ QCIF (QQVGA) 176 X 144 ~ 160 X ✓ CIF (QVGA) 352 X 288 ~ 320 X □ Half D1 (Half VGA) 704 X 288 ~ 640 X ✓ D1 (VGA) 704 X 576 ~ 640 X □ SVGA 800 X 600 ~ 720 X □ XGA 1024 X 768 □ HD720 (720P) 1280 X 720 □ SXGA 1280 X 1024 □ UXGA 1600 X 1200 □ HD1080(1080P) 1920 X 1080 Checking available PTZ cameras □ Camera1 □ Camera2 □ Camera3 □ Camera4 Save Cancel

Click on Save after configuring IP device (camera)

Registering New IP-Device Inputting IP-Device information IP-Device ID 10 Vendor VITEK Model 2 Channel Model Name Network Video System IP Address 10.0.0.254 Input IP Address Range ~ Getting Information from IP-Device (May take several minutes) VS Module ID 0 HTTP Port 80 RTSP Port 554 Login ID root Login Password ***** Confirm Password ***** Checking available resolution QCIF (QQVGA) 176 X 144 ~ 160 X CIF (QVGA) 352 X 288 ~ 320 X Half D1 (Half VGA) 704 X 288 ~ 640 X D1 (VGA) 764 X 576 ~ 640 X SVGA 800 X 600 ~ 720 X XGA 1024 X 768 HD720 (720P) 1280 X 720 SXGA 1280 X 1024 UXGA 1600 X 1200 HD:080(1080P) 1920 X 1080 Checking available PTZ cameras Camera1 Camera2 Camera3 Camera4 Save Cancel

Click Apply after registering one or more IP devices (cameras). The image below represents the configurator with multiple IP devices registered.

Smart NVR Configurator Configuration System, Network Configuration IP-Device, Camera Management 0: Brian 1: hector Test User Management Disk Setup Disk Quota Disk Mode Utilities 1. This category is to register and manage IP-Devices. 2. Smart NVR supports various vendor's IP cameras. 3. Under manual mode, all details of IP device need to be manually entered. 4. On manual mode, working condition of IP device doesn't affect to registration 5. Under automatic mode, Smart NVR searches available network devices. 6. Modification of registered IP-device is supported. 7. Deletion of registered IP-Device is supported. 8. Internet Explorer is required to access homepage IP-Device... IP-Device Name IP Address HTT... Vendor-model UA 0 Brian 10.0.0.254 80 VITEK 2 Ch... Nc 1 hector Test 10.0.0.253 80 VITEK 2 Ch... Nc Apply Close

After clicking Apply, the program will ask you to confirm it. Then click OK

Smart NVR Configurator Apply configuration? Service will be restarted. OK Cancel

EN-V-R service is being stopped momentarily, and then it will start running again.

Processing Service Status: : Stop Service.

28.4. Viewing Live Video

Once the network and cameras are set up, it is necessary to check if EN-V-R is functioning by viewing the live video from those devices.

To view the EN-V-R home page, click the Go NVR Home button on the main toolbar.

Row of green icons representing various functions or services, including computer, data, globe, and alarm clock.

Below is an image of the EN-V-R home page.

Home | Live View | Player

VITEK INDUSTRIAL VIDEO PRODUCTS, INC. An Eye on Innovation.

Click Live View on top right part of the window to see the live video from registered IP devices (cameras)

If this is the first time you are using VitekLive View feature, the web browser may ask you to allow installing of an ActiveX program. Click Install to continue.

This site might require the following ActiveX control: 'Smart Viewer' from VITEK IMP, inc.: Click here to install._ Home | Live View | Player Auto ActiveX Control Installation If this auto process takes more than 30 seconds, click the below button and install it manually. Manual Download

In some cases there is no response from the web browser, you may need to install the ActiveX manually by clickingManualDownload.

When you see the following security warning, click Install.

Internet Explorer - Security Warning Do you want to install this software? Name: SmartViewer.cab Publisher: VITEK NVP, Inc. More options Install Don't Install While files from the Internet can be useful, this file type can potentially harm your computer. Only install software from publishers you trust. What's the risk?

28.5. Recording Video

The essential feature of EN-V-R is recording the video from IP devices.

Before starting the recording, it is required to prepare the hard drive of your PC where EN-V-R program is running.

Click Disk Quota on the Menu tree.

Configuration System, Network Configuration IP-Device, Camera Management 0: hector Test User Management Disk Setup Disk Quota Disk Mode Utilities

The hard drive will be ready to start recording video after the progress window is done counting drives. It shows the target drive (s), total capacity, available size and quota for recording.

Smart NVR Configurator Configuration System, Network Configuration IP-Device, Camera Management 0: hector Test User Management Disk Setup Disk Quota Disk Node Utilities 1. Select HDD from disk list and click "Register" button 2. Under Disk Quota, set a target value and click "OK" 3. You can modify the size of recording capacity at any time. 4. To exclude HDD from list, click target HDD and click "remove" button 5. Contents in excuded HDD will not be searched 6. Changes will take effect after from next start or click "apply" from service menu Record Drive Type Drive Size Free Size Quota Size Order Recording C:\ HDD 466 GB 331 GB 20 GB - D:\ HDD 466 GB 327 GB 0 GB - F:\ REMOTE 465 GB 69 GB 0 GB - G:\ REMOTE 465 GB 69 GB 0 GB Processing Disk count : G:\ Apply Close

You are able to change the setting by highlighting the drive then clicking the first icon of the sub-menu Toolbar.

Use HDD (to use this HDD for recording)

Possible Maximum Quota (the available of free space on your HDD)

Possible Minimum Quota (the minimum amount required)

Set Quota (desired amount of HDD to be use for recording)

Record Recording Disk Quota Use HDD Possible Maximum Quota 327 GB Possible Minimum Quota 3 GB Set Quota 20 GB OK Cancel

To set up the recording feature, select an IP device from the Menu tree on the left pane. The device information will be shown on the right pane. Click the button for recording configuration on the sub-menu Toolbar as shown below.

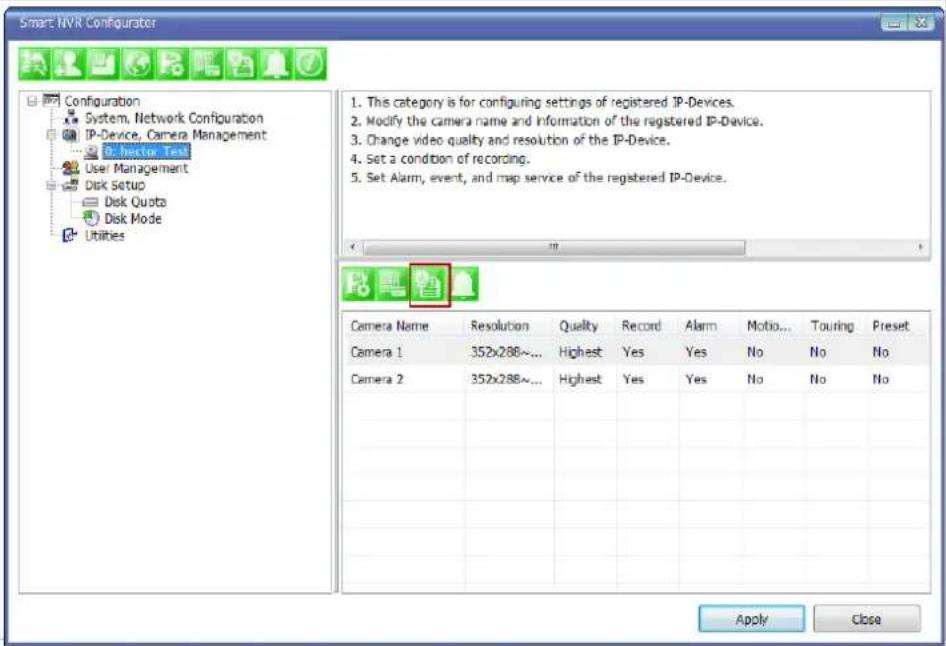

Smart NVR Configurator Configuration System, Network Configuration IP-Device, Camera Management 0: hector Test User Management Disk Setup Disk Quota Disk Mode Utilities 1. This category is for configuring settings of registered IP-Devices. 2. Modify the camera name and information of the registered IP-Device. 3. Change video quality and resolution of the IP-Device. 4. Set a condition of recording. 5. Set Alarm, event, and map service of the registered IP-Device. Camera Name Resolution Quality Record Alarm Motion... Touring Preset Camera 1 352x288~... Highest Yes Yes No No No Camera 2 352x288~... Highest Yes Yes No No No Apply Close

Now you will see Configure Recording Condition window as below.

Configure Recording Condition 1. Select camera to configure condition 2. You can select to multi camera 3. Select condition to configure record condition 4. Configure detail schedule and event 5. Click Apply to camera button to apply condition 6. Change record service Pre, Post images 7. Click Apply to camera button to save changed condition Camera 1(Connection established) Recording Service Enable Recording Service Disable Recording Service Pre Alarm Images 0 Pre Alarm Speed fastest POST Alarm Images 0 POST Alarm Speed fastest Configure Recording Condition Input Condition Use this condition Do not use this condition Condition Mode Always Recording Recording by schedule only Recording by event only Recording by schedule and event Schedule Day of week Sun Mon Tue Wed Thu Fri Sat Time 12/31/1969 ~ 12/31/1969 Date 12/31/1969 ~ 12/31/1969 Event Alarm Sensor 1 2 3 4 Motion Detection External Input Data Condition list Apply to condition Camera Name Con... Condition Name Camera 1 1 [M1] Camera 1 2 - Apply to camera Camera list Select Multi Camera IP-Device Id IP-Device Name Camera Name Recording Condition 1 Condition 2 Condition 3 Condtic Camera 1 hector Test Camera 1 Enable [M1] - - - Camera 2 Camera 3 Camera 4 Unselect All OK Cancel

The recording feature is already enabled and recording conditions are configured in default settings. In the example shown above, you can see that Camera 1 of Device 0 will record video only when motion is

detected. ClickOK to use this Recording Conditioned.

To change recording condition high light camera 1 under condition list (A)

Select the type of Recording under Condition Mode (B)

If schedule recording is enabled, the schedule section will be available to configure (C)

If Event is selected the event section will be available to configure (D)

After conditions are selected click Apply to condition(E)

After apply to condition click Apply to camera(F)

Click OK when done.

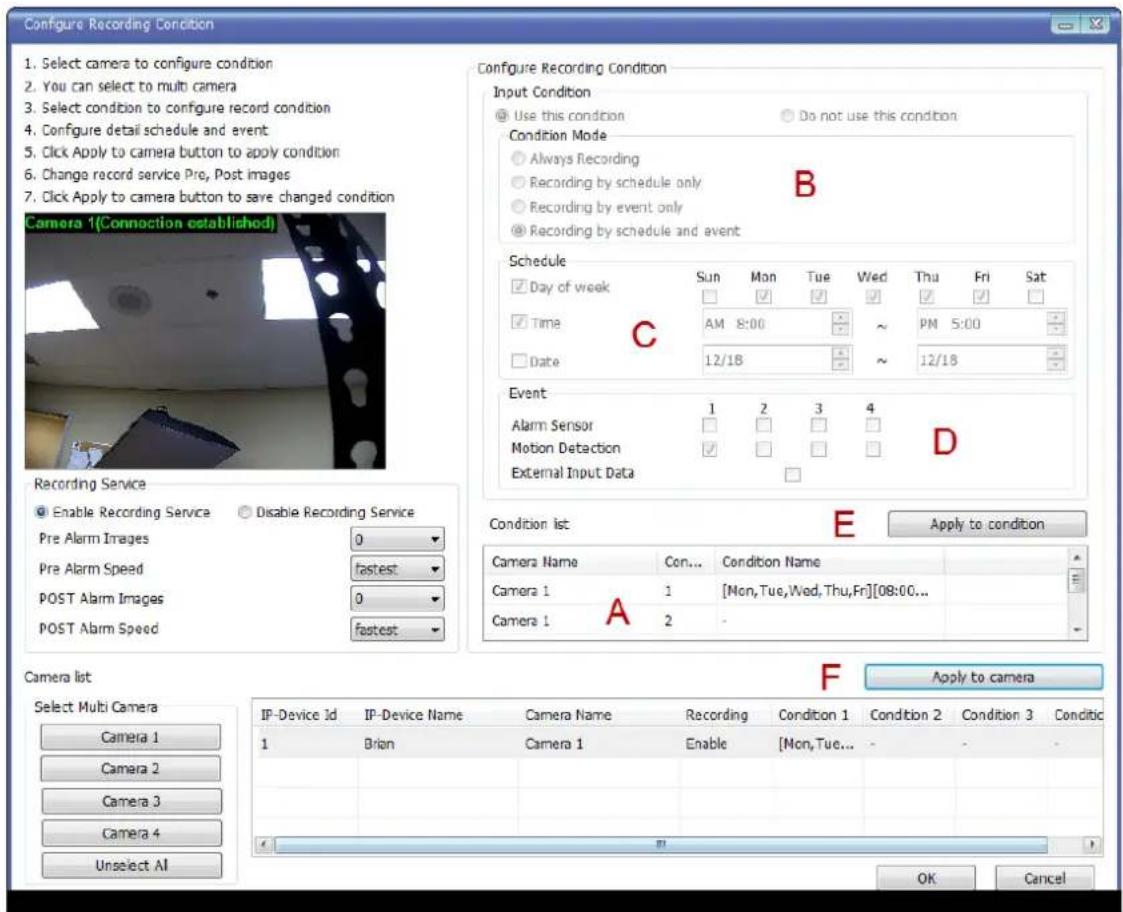

Configure Recording Condition 1. Select camera to configure condition 2. You can select to multi camera 3. Select condition to configure record condition 4. Configure detail schedule and event 5. Click Apply to camera button to apply condition 6. Change record service Pre, Post images 7. Click Apply to camera button to save changed condition Camera 1(Connection established) Recording Service Enable Recording Service Disable Recording Service Pre Alarm Images 0 Pre Alarm Speed fastest POST Alarm Images 0 POST Alarm Speed fastest Configure Recording Condition Input Condition Use this condition Do not use this condition Condition Mode Always Recording Recording by schedule only B Recording by event only Recording by schedule and event Schedule Day of week Sun Mon Tue Wed Thu Fri Sat Time C AM 8:00 ~ PM 5:00 Date 12/18 ~ 12/18 Event Alarm Sensor 1 2 3 4 D Motion Detection ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓✓ Condition list Apply to condition Camera Name Con... Condition Name Camera 1 1 [Non, Tue, Wed, Thu, Fri][08:00... Camera 1 A 2 - Camera 1 Apply to camera Camera list Select Multi Camera IP-Device Id IP-Device Name Camera Name Recording Condition 1 Condition 2 Condition 3 Condition Camera 1 Brian Camera 1 Enable [Non, Tue... - - - - Camera 2 Camera 3 Camera 4 Unselect AI OK Cancel

Now that the configuration is done, you need to start the EN-V-R service program. Select Start > All Programs > Vitek>smart NVR>Smart NVR controller.

You will find the EN-V-R icon on the system tray, which is located right, bottom part of the Windows desktop.

Customize... EN 4:45 PM 12/17/2012

Move the cursor over the icon, and right click. The following pop-up menu will show. You can open EN-V-R Configurator or EN-V-R Controller program from this menu, or you can go to the Home page of the EN-V-R program for live view or playback.

Smart NVR Controller Start or Stop Service Current Service State Service Running Start Service Stop Service Refresh Go Home Close

You can find out from this window that the service is running at that moment. If not, click Start Service button to run. Once EN-V-R service is started, the video sent from the configured camera will be recorded according to the recording condition.

29. ENVI Smart Player

29.1. Introduction

Smart Player is and ActiveX program for Internet Explorer Web browser, which enables users to search and play back recorded video in Network Video Servers and other devices with built-in recording capabilities. The Searching and playback of video is refined by condition, schedule, and event.

Smart Player can be run in SmartNVR network video software for PC and network cameras equipped with microSD card as well as standalone NVR (Network Video Recorder) devices.

29.2. Key Features

• Transformingrecorded video into AVI, FJP&IDX, formats
• Supports Printing of video
- Playing Audio from recorded video
• Group Searching from recorded video
• SupportsFull Screen Mode

29.3. System Requirement for PC

For best quality and performance, your computer needs to meet the minimum requirement.

• OS: Microsoft Windows XP Pro, Windows 7 Pro, Windows 8 PC
• CPU: Intel Pentium 4, 2 GHz (Dual-Core or faster is recommended)
- System RAM: 2GB
• Video Card: 256MB Ram, 1024x768 Resolution
• 100 Mbps Network Adaptor

30. Installing and Uninstalling

30.1. Installing Smart Player

Connect to the Vitek Camera / Server / NVR on Internet Explorer, and click Player on the main page.

192.368.2.100 Network Video System Home | Live View Player IP Dual Streaming Digital 750M Enterprise Class VITEK INDUSTRIAL VIDEO PRODUCTS INC. An Eye on Innovation. Homepage ver 4.07-1300 for Network Video System

If you're using Windows XP Service Pack 2 or later, it may asked you to install ActiveX click the massage bar than click on the Install ActiveX control...

Network Video System - Smart Player - Windows Internet Explorer File Edit View Favorites Tools Help Favorites Network Video System - Smart Player This website wants to install the following add-on: 'Smart Player install' from VITEX NVP, inc. If you trust the website and the add-on and want to install it. Click here... Home | Live View | Player | Sample | Admin Auto ActiveX Control Installation If this auto process takes more than 30 seconds, click the below button and install it manually. Manual Download Internet © 100%

After the installation is successfully completed, Smart Player window will be displayed.

30.1.1. Manual Installation

When an Internet connection is not available or having some difficulties, you can manually download and install the Smart Player program file prior to setup, visit http://www.vitekcctv.com/Downloads.asp. You may also install from the provided CD. Execute the downloaded file, and you will see the Smart Player Setup Wizard window.

Click Run to start installing.

Open File - Security Warning Do you want to run this file? Name: ...ector.VITEK.Downloads\EN-V-R_SmartPlayer.exe Publisher: VITEK INDUSTRIAL VIDEO PRODUCTS, INC. Type: Application Flow: CVUsers\Factor.VITEK.Downloads\EN-V-R_Smart... Run Cancel ✓ Always ask before opening this file While files from the Internet can be useful, this file type can potentially harm your computer. Only run software from publishers you trust. What is the eye?

The following window will appear. Click Next.

Smart Player 1.1.0.0 Setup Welcome to the Smart Player 1.1.0.0 Setup Wizard This wizard will guide you through the installation of Smart Player 1.1.0.0. It is recommended that you close all other applications before starting Setup. This will make it possible to update relevant system files without having to reboot your computer. Click Next to continue. Next > Cancel

The following window will be displayed. Click Install

Smart Player 1.1.0.0 Setup Choose Install Location Choose the folder in which to install Smart Player 1.1.0.0. Setup will install Smart Player 1.1.0.0 in the following folder. To install in a different folder, clickBrowse and select another folder. Click Install to start the installation. Destination Folder C:\Program Files (x86)\Vitek\Smart Player Browse... Space required: 7.2MB Space available: 309.9GB Nullsoft Install System x2.46 < Back Install Cancel

After installation is successfully completed, the following window will be displayed. Click Finish.

Smart Player 1.0.1.2 Setup Completing the Smart Player 1.1.0.0 Setup Wizard Smart Player 1.1.0.0. has been installed on your computer. Click Finish to close this wizard.

30.2. Uninstalling Smart Player

Before uninstalling, close all the Internet Explorer windows.

30.2.1. Uninstalling on Program Menu

Vitek Smart NVR Smart Package Smart Viewer Uninstall

Click Uninstall and the following window will be shown. Click the Yes button.

User Account Control Do you want to allow the following program from an unknown publisher to make changes to this computer? Program name: uninst.exe Publisher: Unknown File origin: Hard drive on this computer Show details Yes No Change when these notifications appear

Live View & Play Back

To live view and play back your cameras, go to Start menu, All Programs, Vitek Folder, Click on Smart NVR Controller, as shown below.

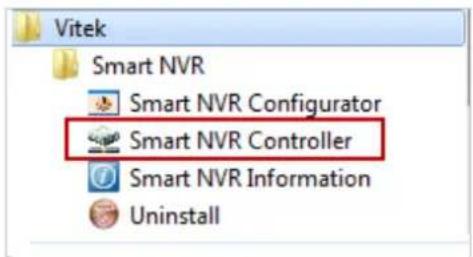

Vitek Smart NVR Smart NVR Configurator Smart NVR Controller Smart NVR Information Uninstall Back Search programs and files

Look for icon on right side of taskbar as shown below (windows XP and windows 8 might show it different). Right click icon.

Customize...

The following window will display. Click on Open Smart NVR Controller.

Go Home Open Smart NVR Configurator Open Smart NVR Controller Open Disconnect backup Exit

Click on Start Service to run the program.

Smart NVR Controller Start or Stop Service Current Service State Service Stopped Start Service Stop Service Refresh Go Home Close

Click on Go Home to view Smart Player Home Page

Smart NVR Controller Start or Stop Service Current Service State Service Running Start Service Stop Service Refresh Go Home Close

Click on Live View

Home | Live View | Player

IP Dual Streaming Digital Zoom Enterprise Class Dynamics VITEK INDUSTRIAL VIDEO PRODUCTS, INC An Eye on Innovation.

The following screen will be display were you can configure your live view.

Home | Live View | Player Server Control bar Server Brian Camera 1 Camera 2 Network Video System Camera 1 Camera 2 Network Video System Camera 1 Camera 2 hector Test Camera 1 Camera 2 2MP indoor dome Camera 1 Camera 2 Network Video System Camera 1 Camera 2 Dec 26,2012 15:42:50.780 Dec 26,2012 15:42:53.040 Dec 26,2012 15:42:51.420 Brian Camera 2 100% Network Video System00%/ Dec 26,2012 15:42:52.820 Dec 26,2012 15:42:52.740 Brian Camera 1 100% Network Video System00%/ Dec 26,2012 15:42:53.260 Dec 26,2012 15:42:52.420 Dec 26,2012 15:42:54.400 Dec 26,2012 15:42:52.780 Network Video System00%/ Dec 26,2012 15:42:53.560 hector Test Camera 1 100% Dec 26,2012 15:42:52.070 hector Test Camera 2 100% Dec 26,2012 15:42:54.160 2MP indoor dome-Can400% Network Video System00%/ Network Video System00%

Server Control Bar

Allows you to view cameras / servers that are registered in the system. Toggle On/Off

Row of green icons with a red square highlighting the first icon, likely representing a software toolbar or application.

Server control bar Server Brian Camera1 Camera2 Network Video System Camera1 Camera2 Network Video System Camera1 Camera2 hector Test Camera1 Camera2 2MP indoor dome Camera1 Camera2 Network Video System Camera1 Camera2 Server Dec 26,2012 15:47:34.990 Dec 26,2012 15:47:49.850 REC Brian Camera 1 100% Brian Camera 2 100% Dec 26,2012 15:47:35.870 Dec 26,2012 15:47:50.090 Network Video System-Camera 1 100% Network Video System-Camera 2 100% Dec 26,2012 15:47:24.910 Dec 26,2012 15:47:47.720

Group Control Bar

Toolbar with green icons representing functions like email, phone, radio, and grid control

In order to view video, cameras must be assigned to a group, in this section you create groups with cameras you want to view.

Create Group

In order to create a group in Group Control Bar, right click on Group, another window will appear then select New.

Server control bar Server Network Video System Camera 1 Camera 2 Network Video System Camera 1 Camera 2 2MP indoor dome Camera 1 Camera 2 Network Video System Camera 1 Camera 2 VT-PTZ220NP11 Camera 1 Camera 2 hector Test Camera 1 Camera 2 Group control bar Group New Display Dual Stream Mode Max Display Framerate

The following window will be displayed. Type in the group name, check "Circulation" to allow sequencing, input dwell time for "Circulation" and click OK.

Group Group Name VITEK 1 Circulation ✓ On Circulation Period 5 sec(1~255) OK Cancel

A new group with the assigned name will be created as shown below.

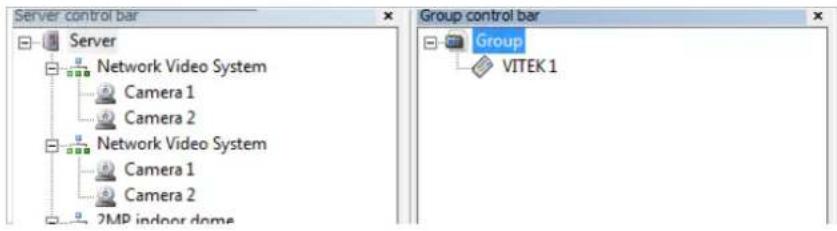

Server control bar Server Network Video System Camera 1 Camera 2 Network Video System Camera 1 Camera 2 2MP indoor dome Group control bar Group VITEK 1

To add cameras to the new group, drag from server control bar and drop on newly created group. You can create multiple groups and add multiple cameras in each group.

PTZ control Bar

Screenshot of a software toolbar with icons and labels, including speech bubbles, radio buttons, and a grid with 'N' tab.

In this section you will be able to control PTZ's connected to the system.

PTZ control bar Speed 10 Zoom Out Preset Call Preset#0 PTZ Move Mode Continuous Select No 1 Network Video System-Camera 1 70% 91-PTZ/4HPPT-Camera 1 Dec 27,2012 11:55:40,440 Dec 27,2012 11:55:40,220 402

Audio Control Bar

Row of green icons with a red square highlighting a speaker symbol, likely representing a media or messaging app interface.

Controls Speaker and Mic volume.

When audio is available click on Connect and adjust speaker and mic levels, when done click Disconnect.

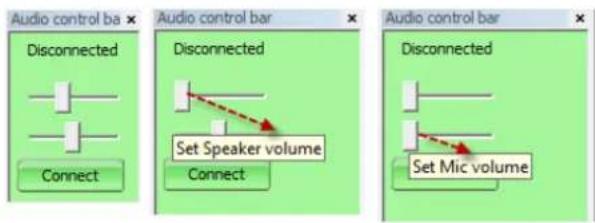

Audio control bar Disconnected Connect Audio control bar Disconnected Set Speaker volume Connect Audio control bar Disconnected Set Mic volume

Full/Normal Screen

Screenshot of a software toolbar with icons for file operations, settings, and navigation controls

Select full screen as seen below, to return to normal press Escon your keyboard.

Dec 26,2012 15:52:49.280 Brian Camera 1 Dec 26,2012 15:52:47.590 100% Brian Camera 2 Dec 26,2012 15:53:03.180 100% Network Video System-Camera 1 Dec 26,2012 15:52:38.090 100% Network Video System-Camera 2 Dec 26,2012 15:53:00.910 100% ZMP indoor dome-Camera 1 100% ZMP indoor dome-Camera 2 100%

Group Circulation

Screenshot of a software toolbar with icons for file operations, navigation, and editing tools

Start sequencing between groups.

Show/Hide PTZ Control Bal Dec 26,2012 15:57:38.660 Dec 26,2012 15:57:45.040 Dec 26,2012 15:57:38.970 Dec 26,2012 15:57:44.490 Brian Camera 1 100% Brian Camera 7 100% Network Video System Camera 1 100% Network Video System Camera 2 100% Dec 26,2012 15:57:39.300 Dec 26,2012 15:57:45.470 Dec 26,2012 15:57:40.230 Dec 26,2012 15:57:46.610 ABC Camera Network Video System Camera 1 100% Network Video System Camera 7 100% Festor Test Camera 1 100% Festor Test Camera 2 100% Dec 26,2012 15:57:39.460 Dec 26,2012 15:57:44.580 Dec 26,2012 15:57:40.250 Dec 26,2012 15:57:45.270 2MP indoor dome Camera 1 100% JMP indoor dome Camera 7 100% Network Video System Camera 1 100% Network Video System Camera 2 100%

Group control be Group All channels Brian Camera 1 Brian Camera 2 Network Video System Camera 1 Network Video System Camera 2 Network Video System Camera 1 Network Video System Camera 2 hector Test Camera 1 hector Test Camera 2 2MP indoor dome Camera 1 2MP indoor dome Camera 2 Network Video System Camera 1 Network Video System Camera 2 NUPNA1 Brian Camera 1 Network Video System Camera 1 Network Video System Camera 1 Network Video System Camera 2 Dec 26,2012 15:57:14.340 Dec 26,2012 15:57:15.650 Brian Camera 1 Dec 26,2012 15:57:15.970 100% Network Video System Camera 1 Dec 26,2012 15:57:16.300 100% Network Video System Camera 1 Dec 26,2012 15:57:16.300

Layout settings

Row of green icons with Chinese text, including a grid and directional arrow, likely representing UI elements or functions.

You can change the screen layout between 1,2,4, etc.

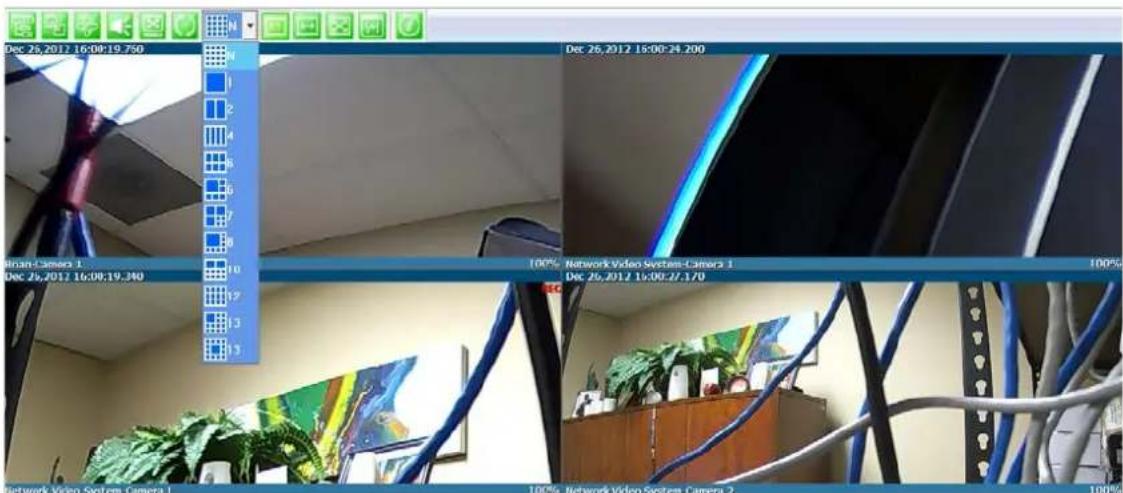

Dec 26, 2017 16:00:19.750 N N 1 2 4 6 8 10 12 14 16 18 20 22 24 26 Dec 26, 2012 18:00:24.200 Satellite Camera 1 10 10 10 10 10 10 Dec 26, 2012 16:00:19.340 Network Video System Camera 1 100% Dec 26, 2012 16:00:27.170 Network Video System Camera 1 100% Network Video System Camera 2 100%

Image in Original Size

Toolbar with green icons representing functions like email, phone, audio, and grid control

This allows for digital zoom.

Interior view of a modern office or studio space with ceiling lights, doors, and equipment (no visible text or symbols)

Draw Image by Maintaining Aspect Ratio

Screenshot of a software toolbar with icons for file operations, settings, and navigation functions

Maintains the aspect ratio of the camera

Digital camera is soft support of the static image. It uses, they are original size.

Draw Image by Filling the Screen

Screenshot of a software toolbar with icons for file operations, settings, and navigation controls

Home | Live View | Player

Group control bar Group VITEK1 VT-PTZJ20NP11-Camera 1 Network Video System-Camera 1 Dec 27, 2012.12.23:38:450 Network Video System-Camera 1

Enhanced Draw Mode On/Off.

Enhance image for a better reproduction.

Toolbar with green icons representing functions like email, phone, audio, and navigation controls

Exterior view of a beige door with a red rectangular highlight on the right side (no text or symbols visible)

Exterior view of a beige door with a red rectangular highlight on the right side (no text or symbols visible)

About Smart Viewer

Row of green and white icons representing software functions or system elements, including speech bubbles, radio, and grid control.

You can see the status of the Smart Viewer

About Smart Viewer CPU:100% Core0:100% Core1:100% Memory: 1962 MB / 4095 MB (47%) Network:67Mbps(10.0.0.116) Smart Viewer (1.3.0.0) Bild Date : Oct 12 2012 13:35:04 OK

31. Configuring& Viewing Player

From the Home Screen click on Player

192.168.2100 Network Video System Home | Live View Player IP Dual Streaming Digital Zone Enterprise Class VITEK INDUSTRIAL VIDEO PRODUCTS, INC. An Eye on Innovation. Homepage ver 4.07-1300 for Network Video System

31.1. Main Window View

Network Video System - Smart Player - Windows Internet Explorer File Edit View Favorites Tools Help Favorites Network Video System - Smart Player Home | Live Viewer | Player D F Brian Camera 1 Dec 21,2012 0 Network Video Syste-Dec 21,2012 09:06:31:00 Network Video Syste-Dec 21,2012 09:06:01:00 Network Video Syste-Dec 21,2012 09:06:01:00 Network Video Syste-Dec 21,2012 09:06:01:00 Network Video Syste-Dec 21,2012 09:06:01:00 Network Video Syste-Dec 21,2017 0 ZMP indoor dome-CaDec 21,2012 09:06:31:00 ZMP indoor dome-CaDec 21,2012 09:06:01:00 Network Video Syste-Dec 21,2017 0 Brian Camera 2 Dec 21,2012 0 Network Video Syste-Dec 21,2012 09:06:31:00 Network Video Syste-Dec 21,2012 09:06:01:00 Network Video Syste-Dec 21,2017 0 Brian Camera 1 network Video Syste-Camera 1 network Video Syste-Camera 2 network Video Syste-Camera 3 network Video Syste-Camera 4 5MP indoor dome-Camera 5 5MP indoor dome-Camera 6 5MP indoor dome-Camera 7 5MP indoor dome-Camera 8 5MP indoor dome-Camera 9 5MP indoor dome-Camera 10 5MP indoor dome-Camera 11 5MP indoor dome-Camera 12 5MP indoor dome-Camera 13 5MP indoor dome-Camera 14 5MP indoor dome-Camera 15 5MP indoor dome-Camera 16 5MP indoor dome-Camera 17 5MP indoor dome-Camera 18 5MP indoor dome-Camera 19 5MP indoor dome-Camera 20 5MP indoor dome-Camera 21 5MP indoor dome-Camera 22 5MP indoor dome-Camera 23 5MP indoor dome-Camera 24 5MP indoor dome-Camera 25 5MP indoor dome-Camera 26 5MP indoor dome-Camera 27 5MP indoor dome-Camera 28 5MP indoor dome-Camera 29 5MP indoor dome-Camera 30 5MP indoor dome-Camera 31 5MP indoor dome-Camera 32 5MP indoor dome-Camera 33 5MP indoor dome-Camera 34 5MP indoor dome-Camera 35 5MP indoor dome-Camera 36 5MP indoor dome-Camera 37 5MP indoor dome-Camera 38 5MP indoor dome-Camera 39 5MP indoor dome-Camera 40 5MP indoor dome-Camera 41 5MP indoor dome-Camera 42 5MP indoor dome-Camera 43 5MP indoor dome-Camera 44 5MP indoor dome-Camera 45 5MP indoor dome-Camera 46 5MP indoor dome-Camera 47 5MP indoor dome-Camera 48 5MP indoor dome-Camera 49 5MP indoor dome-Camera 50 5MP indoor dome-Camera 51 5MP indoor dome-Camera 52 5MP indoor dome-Camera 53 5MP indoor dome-Camera 54 5MP indoor dome-Camera 55 5MP indoor dome-Camera 56 5MP indoor dome-Camera 57 5MP indoor dome-Camera 58 5MP indoor dome-Camera 59 5MP indoor dome-Camera 60 5MP indoor dome-Camera 61 5MP indoor dome-Camera 62 5MP indoor dome-Camera 63 5MP indoor dome-Camera 64 5MP indoor dome-Camera 65 5MP indoor dome-Camera 66 5MP indoor dome-Camera 67 5MP indoor dome-Camera 68 5MP indoor dome-Camera 69 5MP indoor dome-Camera 70 5MP indoor dome-Camera 71 5MP indoor dome-Camera 72 5MP indoor dome-Camera 73 5MP indoor dome-Camera 74 5MP indoor dome-Camera 75 5MP indoor dome-Camera 76 5MP indoor dome-Camera 77 5MP indoor dome-Camera 78 5MP indoor dome-Camera 79 5MP indoor dome-Camera 80 5MP indoor dome-Camera 81 5MP indoor dome-Camera 82 5MP indoor dome-Camera 83 5MP indoor dome-Camera 84 5MP indoor dome-Camera 85 5MP indoor dome-Camera 86 5MP indoor dome-Camera 87 5MP indoor dome-Camera 88 5MP indoor dome-Camera 89 5MP indoor dome-Camera 90 5MP indoor dome-Camera 91 5MP indoor dome-Camera 92 5MP indoor dome-Camera 93 5MP indoor dome-Camera 94 5MP indoor dome-Camera 95 5MP indoor dome-Camera 96 5MP indoor dome-Camera 97 5MP indoor dome-Camera 98 5MP indoor dome-Camera 99 5MP indoor dome-Camera 100

Note: The appearance of Smart Player window may vary depending on version and type of Vitek device you're using. This user's manual is based on general display screen.

Server Control BarA

Allows you to view cameras / servers that are registered in the system.

Group ControlBarB	You can compose a new group by dragging&dropping servers, modules, and cameras into a group.Grouping provides search function of recorded video from cameras.
Playback Control Bar C	Users can use this bar for functions such as forward/reverse play, previous frame, next frame, pause, stop, playback speed.
Control Tool BarD	Users can change search modebetween calendar, condition, and data. It also provides additional features such as backup and snapshot.
Time Line Control BarE	Search condition (calendar, condition, and data) can be refined in this bar.
Display screenF	This screen shows multiple numbers of recorded videos.

31.2. Connecting to NVR Player

In order to playback video, cameras must be assigned to a Group, in this section you create groups with cameras you want to playback. Playback directly from cameras with SD card installed will have "Group" automatically created and the camera assigned to that "Group"

Server Server Network Video Recorder Network Video Syste Network Video Syste 2MP indoor dome Network Video Syste VT-PTZ220NP11 hector Test Group Group

31.3. Creatinga Group

In order to generate a group in Group Control Bar, right click on Group, another window will appear then select New.

Server Server Network Video Recorder Network Video Syste Network Video Syste 2MP indoor dome Network Video Syste VT-PTZ220NP11 hector Test Group New

The following window will be displayed. Type in the group name and click OK.

Group vitek 2 OK Cancel

A new group with the assigned name will be created as shown below.

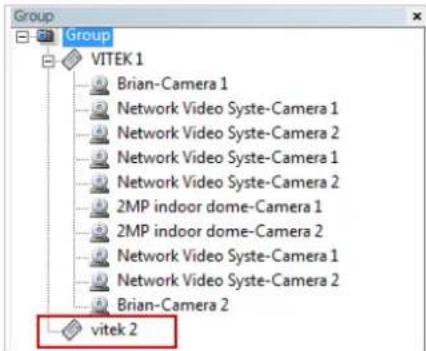

Group Group VITEK 1 Brian-Camera 1 Network Video Syste-Camera 1 Network Video Syste-Camera 2 Network Video Syste-Camera 1 Network Video Syste-Camera 2 2MP indoor dome-Camera 1 2MP indoor dome-Camera 2 Network Video Syste-Camera 1 Network Video Syste-Camera 2 Brian-Camera 2 vitek 2

To add a camera to the new group, drag and drop from the server tree to the newly created group.

Server Network Video Recorder Brian Network Video Syste Network Video Syste hector Test 2MP indoor dome Network Video Syste Group Group VITEK 1 Brian Camera 1 Network Video Syste-Camera 1 Network Video Syste-Camera 2 Network Video Syste-Camera 1 Network Video Syste-Camera 2 2MP indoor dome-Camera 1 2MP indoor dome-Camera 2 Network Video Syste-Camera 1 Network Video Syste-Camera 2 Brian Camera 2 vitek 2 Group Group VITEK 1 Brian Camera 1 Network Video Syste-Camera 1 Network Video Syste-Camera 2 Network Video Syste-Camera 1 Network Video Syste-Camera 2 2MP indoor dome-Camera 1 2MP indoor dome-Camera 2 Network Video Syste-Camera 1 Network Video Syste-Camera 2 Brian Camera 2 Vitek 2 Brian Camera 1 Brian Camera 2

32. Searching Video

Make sure you have recorded video on the calendar (recorded video shows in red).

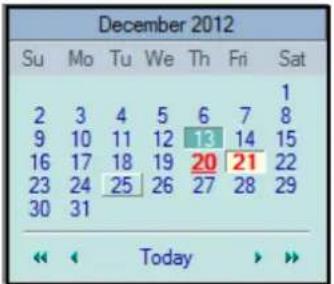

December 2012 Su Mo Tu We Th Fri Sat 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 Today

There are three choices in searching recorded video - Day Search, Condition Search, and Data Search.

Make sure that Camera / Server Connection and Creating Group have been performed before you search recorded video.

32.1. Searching Video

To search and playback video, Smart Player requires one or more groups to exist. If a search is executed on the basis of a selected group, a search will be performed on all the cameras in that group. If a search is executed on the basis of a single camera, the search will be performed only from that camera.

For example, if you select a group and start searching; the searchfrom that group will be displayed

Group Group VITEK 1 Brian-Camera 1 Network Video Syste-Camera 1 Network Video Syste-Camera 2 Network Video Syste-Camera 1 Network Video Syste-Camera 2 2MP Indoor dome-Camera 1 2MP Indoor dome-Camera 2 Network Video Syste-Camera 1 Network Video Syste-Camera 2 Brian-Camera 2 VITEK 2 Brian-Camera 1 Brian-Camera 2 00:00 10 20 30 Brist Camera 1 Ietwork Video Syste-Camera 1 Ietwork Video Syste-Camera 2 Ietwork Video Syste-Camera 1 Ietwork Video Syste-Camera 2 2MP Indoor dome-Camera 1 2MP Indoor dome-Camera 2 Ietwork Video Syste-Camera 1

If you only select "Brian-Camera 1", the searching will be performed only on the video from that.

Group VITEK1 Brian-Camera 1 Network Video Syte-Comero 1 Network Video Syte-Comero 2 Network Video Syte-Comero 1 Network Video Syte-Comero 2 2MP indoor dome-Camera 1 2MP indoor dome-Camera 2 Network Video Syte-Camera 1 Network Video Syte-Camera 2 Brian-Camera 2 vitek 2 8X 05:00 10 20 30 Brian-Camera 1

32.2. Daily Search

Green square icon grid with white document, pie chart, film strip, camera, printer, email, speaker, and folder (no text or symbols)

Select date from calendar than select time from the time bar.

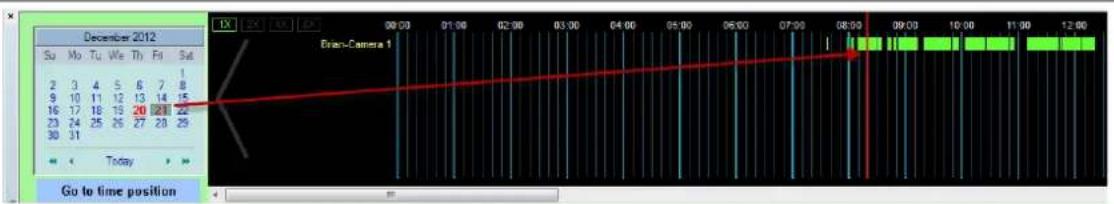

December 2012 Su Mo Tu We Th Fri Sat 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 Today Go to time position Eraer-Camera 1

32.2.1. Search Mode

By clicking a date in red on the calendar, the time frame recorded is shown.

32.2.2. GO to Time Position

To go to specific time click on "Go to time position" than input time and click search.

December 2012 Su Mo Tu We Th Fri Sat 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 Today Go to time position DetailSearch 12:48:31 PM Search Cancel

32.3. Condition Search Mode

Green square icon grid with white document, pie chart, camera, printer, email, speaker, and folder symbols (no text or numbers)

In this mode, you can search for video on the basis of combination of 3 different conditions, which are Time, Motion, and Sensor. Initially only Time condition is available for searching, and you need to enter Advance Search mode to utilize Motion and Sensor state if necessary.

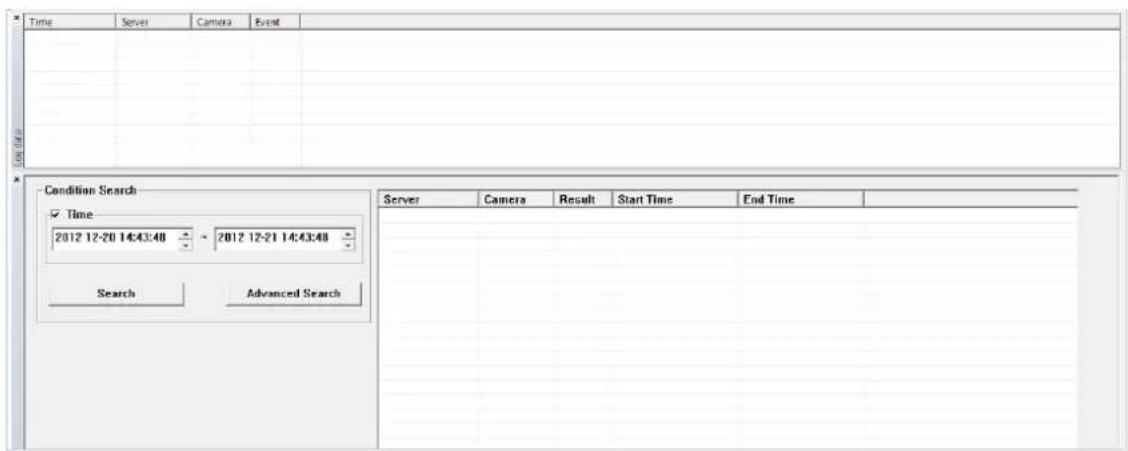

Time Server Camera Event Condition Search ✓ Time 2012 12-20 14:43:48 2012 12-21 14:43:48 Search Advanced Search Server Camera Result Start Time End Time

Search

Select time and date from beginning to end of search criteria. Then click Search.

The following window will be displayed to inform you of the search progress. If any results are found, the

video will start playing back right after searching is completed.

[106500] frame searched Cancel

32.3.1. Advanced Search Mode

In Advance Search Mode you can select which conditions to search from (Time, Event, etc)

First, select Time checkbox, and choose the desired time frame (Start date and time \~ End date and time), and then click Add Condition button to add to Search Condition.

Advanced search ✓ Time 2011 01-26 30:41:47 2011 01-27 30:41:47 ✓ Group, Camera Group: User Define C Camera ID: All ✓ Event Motion Sensor Motion 1 2 3 4 5 6 Alarm 1 2 3 4 5 6 Add Condition Del Condition Reset Search Condition [-1:-1][2011/01/26~2011/01/27][10:41~10:41]] Search Cancel

Now select Event checkbox, and choose Camera 1 from Motion, and then click Add Condition button to add to Search Condition.

Advanced search Time 2011 01-26 10:41:47 2011 01-27 10:41:47 Group, Camera Groups User Define C Camera ID: All Event Motion Sensor Motion 1 2 3 4 5 6 Alarm Add Condition Del Condition Reset Search Condition [-1:-1][20:11/01/26~20:11/01/27][10:41~10:41]] [-1:-1][M1] Search Cancel

Next, select Event checkbox, choose Sensor 1, and then click Add Condition button to add the Sensor condition to Search Condition.

Advanced search Time 2011 01-36 10:41:47 ~ 2011 01-27 10:41:47 Group, Camera Group: User Define C Camera ID: AI Event Motion Sensor Motion 1 2 3 4 5 6 Alarm 1 2 3 4 5 6 Add Condition Del Condition Reset Search Condition [-1:-1][2011/01/26~2011/01/27][10:41~10:41]] [-1:-1][M1] [-1:-1][oD1] Search Cancel

Now that all the conditions have been configured, click Search button to start searching. Any video data which meets at least one of the conditions in Search Condition list will be shown as the results.

33. Video Playback Controls

Home | Live View | Player Server Server: Network Video Recorder Brian Network Video Syste Network Video Syste Hector Test 2MP Indoor dome Network Video Syste Group VITEC1 Brian-Camera1 Network Video Syste- Network Video Syste- Network Video Syste- Network Video Syste- 2MP Indoor dome-Cz 2MP Indoor dome-Cz Network Video Syste- Network Video Syste- Brian-Camera 2 vitek 2 Network Video Syste- Network Video Syste- Network Video Syste- Network Video Syste- Network Video Syste- Network Video Dec 21,2012 11:51:02.320 Network VideoDec 21,2012 11:51:02.320 hector Test Dec 21,2012 11:54:43.930 hector Test Dec 21,2012 11:54:43.820 2MP Indoor cDec 21,2012 11:53:54.450 2MP Indoor cDec 21,2012 11:53:54.470 Saw Normal Fast December 2012 Sx Mo Tu We Th Fe Sat 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 Today Go to time position Network Video System-Camera 1 network Video System-Camera 2 hector Test-Camera 1 hector Test-Camera 2 2MP Indoor dome-Camera 1 2MP Indoor dome-Camera 2 11:00 10 30 40 50 12:00 10 20 30 80cm Inoffsets

		Play Reverse
		Play Forward
		Pause
		Stop

	Back to Previous Frame
	Go to Next Frame
	Playback Speed Control
	Player Path Control (only for condition search mode)

34. Extra Features

34.1. Window Control

Users can open or close control windows.

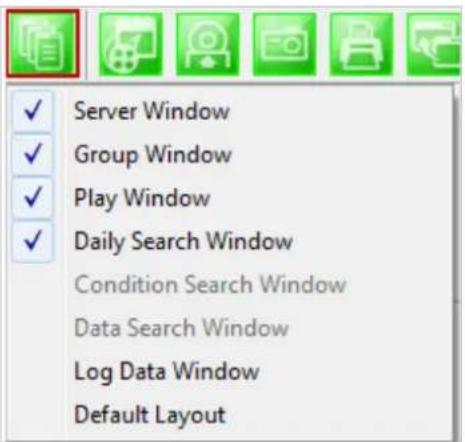

Server Window Group Window Play Window Daily Search Window Condition Search Window Data Search Window Log Data Window Default Layout

34.2. Recording Period

You can view the starting and ending date of a recorded channel.

Row of green square icons with white text, including speech bubbles, document, and a red circle highlighting a document icon.

Record time is displayed as shown below.

Total Record Time Server Camera Start Time End Time Brian Camera 1 12/21 12/26 Brian Camera 2 12/21 12/26 Network Video Syste Camera 1 12/21 12/26 Network Video Syste Camera 2 12/21 12/26 Network Video Syste Camera 1 12/21 12/26 Network Video Syste Camera 2 12/21 12/26 hector Test Camera 1 12/21 12/26 OK

34.3. Backup

There are two backup formats IDX and AVI.

.IDX Default video file format used by Vitek .AVI Video file format supported by Microsoft Windows

Row of green square icons with white content and a red square highlight (no text or symbols)

When the Backup button is clicked, the following window is displayed as below.

Backup Select camera (Brian) Camera 1 (Brian) Camera 2 (Network Video Syste) Camera 1 (Network Video Syste) Camera 2 (Network Video Syste) Camera 1 (Network Video Syste) Camera 2 (hector Test) Camera 1 Backup period 2012 12-26 08:23:10 ~ 2012 12-26 09:23:10 Backup Type AVI FJP, IDX Backup path C:\Users\Hector.VITEK\Desktop\20121226_ Recording Folder OK Cancel

Select Camera	Check the camera to backup. For AVI backup, only one camera is permitted. For FJP, IDX, multiple backup is allowed.
Backup Period	Select the time frame (Start date and time ~ End date and time) to backup.
Backup Type	Select either AVI or FJP, IDX format.
Backup Path	Select the HDD path where the backup file will be saved.

After selecting the parameters, click OK then the following window will display.

[16833] frame searched Cancel

After searching is finished, backup operation will start.

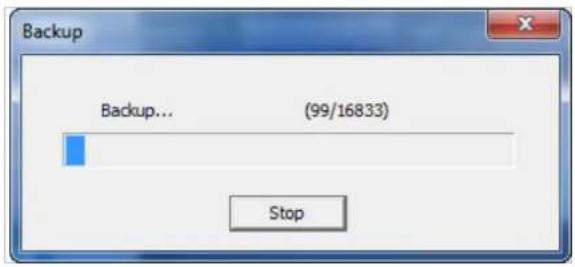

Backup Backup... (99/16833) Stop

When backup is completed, the following window will appear. Click OK button.

SmartPlayerActiveX backup complete OK

Note: For AVI file backup, only one camera is allowed. For IDX backup, multiple cameras are allowed.

34.4. Snapshot

Choose the camera currently being played or paused, click Snapshot button. Then a snapshot file will be saved in a designated path.

Network VideDec 26,2012 09:53:46.350 Network VideDec 26,2012 09:53:46.360 hector Test-Dec 26,2012 09:53:46.020 sector Test-Dec 26,2012 09:53:46.360 2MP indoor dDec 26,2012 09:53:46.380 2MP indoor dDec 26,2012 09:53:46.380

The below picture is a result of snapshot from the above window.

20121228_10h25in23n_Network Video System-Camera 2 - Windows Photo View File Print E-mail Sum Open http://www.10h25in23n_10h25in23n

34.5. Print

Choose the camera currently being played or paused, then click Print button. Then the image of the selected camera will be sent to your default printer.

Row of green square icons representing media and information-related functions (no text or symbols)

34.6. Ratio Display

You have three options to view videos, which are Original, Ratio, and Stretch.

Green square icon grid with white document, folder, photo, and file icons (no text or symbols)

Network Video System Camera 1 Original Ratio Stretch Dec 26, 2017 1

Original Ratio Stretch Network Video System-Camera 1 Dec 26,2012 10:41:19.930 Original Ratio Stretch Network Video System-Camera 1 Dec 26,2012 10:41:44.540

35. EN-V-R Configuration

35.1. System, Network Configuration

General system and network properties of EN-V-R program can be set up in this section. To start, select System, Network Configuration from the menu list.

Smart NVR Configurator Configuration System, Network Configuration IP-Device, Camera Management User Management Disk Setup Disk Quota Disk Mode Utilities 1. System name is for identification in IP Surveillance System. 2. Admin password will be asked when executing configurator. 3. Full Access means all connected users can use full functions. 4. Limited Access means only registered users can use authorized functions 5. HTTP port is to be used to communicate Smartviewer and Smartplayer. 6. You can connect to see Liveview and Playback through IPCCTVDNS. Configuration Value System Name Network Video Recorder Admin Password ****** Access Control Full Access HTTP Port 80 IP CCTV DNS Disable Service (www.ipcctvdns.com) Apply Close

Items Descriptions

System Name Setting Enter the system's name.

Set up Admin password Modify the password for Admin.

Access Control Configure the access privileges of users.

HTTP Port Assign Assign an HTTP Port for EN-V-R Service.

Configure IP-CCTV DNS Configure IP-CCTV DNS for EN-V-R Service

35.1.1. Configuring System name

To name the system, click configuring system name, the following window will be displayed. Change the name as desired.

Configuring system name System name Network Video Recorder (Maximum length is 21 words in English) OK Cancel

Items Descriptions

System name Type in a System name.
OK	Click this button to apply the entered System Name.
Cancel	Click this button to discard the configured System name.

35.1.2. System, Network Configuration - Admin password

To assign Password for the admin, click System, Network Configuration on the menu tree. Click configure admin password

Configuring admin password Current password New password Confirm Password (Maximum length is 21 words in English) OK Cancel

Items Descriptions

Current password	Enter the Current password.
New password	Enter a new password to use.
Confirm Password	Enter the new password again to confirm.
OK	Click this button to apply the changed password.
Cancel	Click this button to discard the change.

35.1.3. System, Network Configuration - Access Control

To configure User Access Control, click System, Network Configuration on the menu tree. Click configure access control

Configuring User authentication ● Full Access (View and control camera audio without limitation) ○ Limited Access (In accordance with user's permission) OK Cancel

Items Descriptions

Full Access	Set Full Access for the user. Anyone can connect to the EN-V-R without authentication, and be allowed live view, audio, PTZ, playback.
Limited Access	Set Limited Access for the user. Only the users with proper permission to the camera can access it.
OK Click this button to apply the change.
Cancel	Click this button to discard the change.

35.1.4. System, Network Configuration - HTTP Port

To configure HTTP port to use, click System, Network Configuration on the menu tree. Then click Change HTTP Port

Configuring HTTP Port HTTP Port 80 (Default:80, 80 ~ 65535) For web access, video streaming and playback OK Cancel

Items Descriptions

HTTP Port	Enter a HTTP Port to use in the EN-V-R Service. (Default is 80)
OK Click this button to apply the changed HTTP port number.
Cancel	Click this button to apply discard the changed port number.

Note: If a firewall is enabled in your Windows, you should set the above HTTP port number to be allowed in your computer.

35.1.5. System, Network Configuration-I P CCTV-DNS

To configure IP CCTV-DNS, click System, Network Configuration on the menu tree. Click

Configure IP-CCTV-DNS

Configure IP-CCTV DNS Service : Enable Disable DNS Server IP : www.ipcctvdns.com MAC : 001aa094599e Product key : 61c07947 External Port : 80 Register verify : Connection Tes Go Server OK Cancel

Items Descriptions

Service	Set to use IP CCT DNS or not.
DNS Server IP Vitek IP CCTV DNS address already entered.
Go Server Directs to Vitek IP CCTV DNS server
MAC	MAC address of EN-V-R already entered
Product Key	Product Key of EN-V-R already entered
External Port	Enter an external HTTP Port to use for IP CCTV DNS service. (Default is 80)
Register verify	Click to test the connection with IP CCTV DNS server after setting is done in IP CCTV DNS server.
OK	Click this button to apply the changed IP CCTV DNS settings.
Cancel	Click this button to discard the changed IP CCTV DNS settings

36. IPCCTVDNS Registration

To register your camera / server please visit http://www.ipcctvdns.com

IP-CCTV DNS Server IP-CCTV DNS is designed for Dynamic-IP users specially with - IP Camera - NVR (Network Video Recorder) - NVS (Network Video Server) User Group ID: Password: Login Sign Up Forgot Your Password? Field Test

If this is your first visit your need to Sign Up if you abide by the Agreement, click on "I Agree" than

on the NEXT button as shown below.

IP-CCTV DNS Server Sign Up Agreement IP-CCTV DNS Service Agreement 1. If no access more than three months, IP-CCTV DNS's administrator may delete or edit the registered information at discretion. 2. By the extension of any new value-added features at IP-CCTV DNS, a few of them may become pay services. ● 1 Agree ○ I do not Agree Next

Fill out the requested information as shown below and click on Apply.

IP-CCTV DNS Server Sign Up Membership ID [E-Mail] * [e-mail] check Password * ************ Confirm Password * ************ Name * VITEK Company VITEK Telephone * 6612948043 Mobile Phone [phone] Address 28492 Coentellation Rd Valancia CA 91355 Country * Los Angeles (USA) Description Apply Reset

The following screen will confirm that your Membership has been completed successfully, that click OK.

It has been completed successfully. OK

You will be brought back to the main page of the IPCCTVDNS website; in this case you need to Login with the information previously created.

IP-CCTV DNS Server IP-CCTV DNS is designed for Dynamic-IP users specially with - IP Camera - NVR (Network Video Recorder) - NVS (Network Video Server) User Group ID: Password: Login Sign Up Forgot Your Password? Field Test

To register your first product, click on Product Registrationas shown below.

IP:OCTV DNS Server Hector Login Product Registration Product List My Info Log Out Product List Product List - Simple Information Detail Information Num Name Mac Address External IP External Port Internal IP Internal Port DDNS Host Name There is no result. Name Search Notice : Detailed information of products are seen by clicking 'Detail Information' in the upper right and Editing & deleting product information is available.

Enter the requested information (The name of your camera, the Mac Address and product Key) as shown below.

IP-CCTV DNS Server Hector Login Product Registration Product List My Info Log Out Product Registration Product Registration Name Mac Address * Product-Key * Notice * Input Product Name up to 30 characters that you prefer. (If skip, it will be automatically filled with the default model name of the product.) * Mac Address & Product-Key are mandatory to input. Find the information from - Admin-menu <> IP-CCTV DNS™ Setup, OR - Label attached to products with Serial No. & Product key No. Apply Reset

Note that the Mac Address and the product Key will be available under the Network Configuration>> IP-CCTV DNS setup in the camera menu. Please see image below.

IP-CCTV DNS™ Setup

Service Enable Disable DNS Server IP www.ipcctvdns.com Go Mac Address 1C7C4502003E Product-Key 01FBA6C8 IP-CCIV DNS Registration verification Confirm

A window will pop up confirming that your product has been registered successfully, click on OK.

The product has been registered successfully. OK

You will be directed to the Product List page where you will be able to see your recent camera registration.

IP CCTV DNS Denver Hector Login Product Registration Product List My Info Log Out Product List Product List - Simple Information Detail Information Num Name Mac Address External IP External Port t Internal IP Internal Port t DONS Host Name 1 la 1C7C4502003E 0.0.0.0 0 0.0.0.0 0 fw1c7c4502003e << Previous 1 Next >> Name Search Notice : Detailed information of products are seen by clicking 'Detail Information' in the upper right and Editing & deleting product information is available.

By clicking the Detail Information tab you will be allow edit DDNS Host Name

IP-CCTV DNS Server Hector Login Product Registration Product List My Info Log Out Product List Product List - Simple Information Detail Information

Click Edit to change the DDNS Host Name.

P-CCTV DNS Server Hector Login Product Registration Product List My Info Log Out Product List Product List - Detail Information Simple Information Num Name Mac Address External IP External Port Internal IP Internal Port Last Refresh Time IP-sharer model DDNS Host Nam e System Vers ion Edit Del 1 la 1C7C45020 GSE 0.0.0 0 0.0.0 0 1c7e4502003e 0.0 Edit Del <> Name search

Type in desired host name than click Apply.

P-CCTV DNS Server Hector Login Product Registration Product List My Info Log Out Product Info Product Information Name la DDNS Host Name vitek1sttest (Only lowercase letters, arabic number, '', and ' _ can be inputted.) Mac_address 1C7C4502003E Apply Back

A window will pop up asking if you really want to apply the new configurations, to continue click OK.

Do you really want to apply for the new configuration? OK Cancel

A window will pop up confirming that the product information has been modified successfully, click OK.

The product information has been modified successfully. □ Prevent this page from creating additional dialogs OK

Click under Product List to view your changes

F-OCTV DNS Server Hector Login Product Registration Product List My Info Log Out Product Info Product Information Name Ja DONS Host Name vitek1sttest (Only lowercase letters, arabic number, "", and _ can be inputted.) Mac_address 1C7C4502003E Apply Back

Your camera with the new DDNS Host name will be displayed.

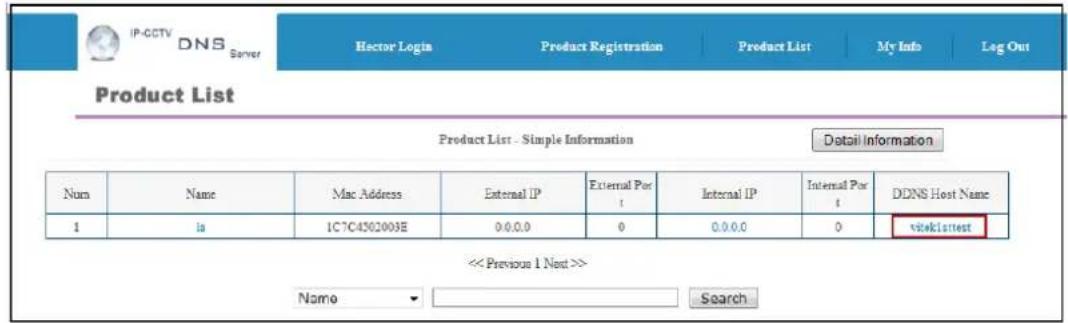

IP-CCTV DNS Server Hector Login Product Registration Product List My Info Leg Out Product List Product List - Simple Information Detail Information Num Name Mac Address External IP External Port Internal IP Internal Port DDNS Host Name 1 la 1C7C4502003E 0.0.0.0 0 0.0.0.0 0 viseklattest << Previous 1 Next >> Name Search

Your camera is now registered and ready for use.

http://www.vitek1sttest.igcctv.dni.com/ File Edit View Favorites Tools Help Favorites Network Video System Home | Live View | Player | Admin IP VITEK INDUSTRIAL VIDEO PRODUCTS INC. An Eye on Innovation. Model : VTD-137N, Firmware ver 4.16-B0-ds-VI Homepage ver 4.14-B0_VI for Network Video System

37. IP-Device Registration

You will see how to manage IP devices in this section, which includes registering, modifying, and deleting IP devices. To start managing IP devices, select IP-Device, Camera Management from the menu list.

Smart NVR Configurator Configuration System, Network Configuration IP-Device, Camera Management 0: hector Test User Management Disk Setup Disk Quota Disk Mode Utilities 1. This category is to register and manage IP-Devices. 2. Smart NVR supports various vendor's IP cameras. 3. Under manual mode, all details of IP device need to be manually entered. 4. On manual mode, working condition of IP device doesn't affect to registration 5. Under automatic mode, Smart NVR searches available network devices. 6. Modification of registered IP-device is supported. 7. Deletion of registered IP-Device is supported. 8. Internet Explorer is required to access homepage A B C D E IP-Device... IP-Device Name IP Address HTT... Vendor-model UA 0 hector Test 10.0.0.253 80 VITEK 2 Ch... No Apply Close

Items Descriptions
	A	IP-Device Manual Registration	Register IP-Devices manually by users.
	B	IP-Device Automatic Registration	Scan and register IP-Devices automatically by the program.
	C	IP-Device Modification	Modify the information of registered IP-Devices.
	D	IP-Device Deletion	Delete IP-Devices previously registered.
	E	IP-Device Homepage	Go to the homepage of the IP-Device.

37.1. IP-Device Registration (Manual)

To manually register an IP-Device, click IP-Device, Camera Management on the menu tree. Click Register IP device manually.

Registering New IP-Device Inputting IP-Device information IP-Device ID A 0 Vendor B VITEK Model C 4 Channel Model Name D SmartNVR 1 IP Address E 10.10.237.120 Input IP Address Range F - Getting Information from IP-Device G (May take several minutes) VS Module ID H 0 HTTP Port I 80 RTSP Port J 554 Login ID K root Login Password L ••••• Confirm Password M •••••• Checking available resolution QCIF [QQVGA] 176 X 144 ~ 160 X CIF [QVGA] 352 X 288 ~ 320 X Half D1 [Half VGA] 704 X 288 ~ 640 X D1 [VGA] 704 X 576 ~ 640 X SVGA 800 X 600 ~ 720 X O XGA 1024 X 768 HD720 (720P) 1200 X 720 S XGA 1200 X 1024 UXGA 1600 X 1200 QXGA 2040 X 1536 Checking available PTZ cameras Camera1 Camera2 P Camera3 Camera4 Save Cancel

Item Description

A IP-Device ID

Select the IP-Device ID to register.

Select the Vendor name of the IP-Device to register. Click the pull-down list, and choose a proper vendor name from the list.

B Vendor

None VITEK Panasonic MJPG Axis MJPG Mobotix MJPG Vivotek MJPG IQinVision MJPG Arecont MJPG Appro MJPG Axis MPEG4 Acti Truen H264 Arecont H264 Vivotek MPEG4 Vivotek H264 AVTech MJPG AVTech MPEG4 AVTech H264 Axis H264 3S MJPG 3S H264

C Model

Select the total number of channels (streams) the IP device has. Click the pull-down list, and choose proper one from the list.

IP-Device ID 1 Vendor VITEK Model - - 1 Channel Model 2 Channel Model 4 Channel Model

D	Name	Type in the name of the IP-Device.
E	IP Address	Type in the IP Address to use with the IP-Device. IPCCTVDNS or URL addresses are also supported. (If Input IP Address Range box is checked, then the starting address of the range will be selected.)
F	Input IP Address Range	Enter the last IP address of the range.
G	Getting Information from IP-Device	Check this box if the information from IP-Device needs to be acquired.
H	VS Module ID	Select the VS Module ID. Enter 0 for non-Vitek IP devices. Vitek products can be set to 0 to 15, and default is 0.
I	HTTP Port	Enter the HTTP Port to use with the IP-Device. (Default is 80)
J	RTSP Port	Enter the RTSP Port (Default is 554)
K	Login ID	Type in the Login ID to use. (Default is root)
L	Login Password	Type in the Login Password to use for the Login ID. (Default is root)
M	Confirm Password	Type in the same password to confirm. (Default is root)
O	Checking available resolution	Select the Video Resolution for the device. Not used, all resolution is done at camera level
P	Checking available PTZ camera	Checkboxes to choose if PTZ is supported on the IP device.
Q	OK	Click this button to apply the configured values.
R	Cancel	Click this button to discard the configured values.

37.2. IP-DeviceRegistration (Automatic)

To register an IP-Device by automatic scanning, click IP-Device, Camera Management on the menu tree. Then Click Scan available IP devices and register

Scanning IP-Device * Explanations for registering IP devices * "Scan" button will search IP devices and display results. * Select AN item and click "Go Home" button to access product homepage. * To register, double click an item or drag multiple items click "Register" button. * Register dialog will pop up and fill out information * You must register manually when register another NVR or SmartNVR. Vendor Model Name NAC Address IP Address HTTP Port VITEK VTD-134F EN-V-R_Test1 00306f0049... 10.10.237.51 80 VITEK VTD-13V210 EN-V-R_Test2 00306f8119... 10.10.237.73 80 VITEK VTD-134F EN-V-R_Test4 00306f8324... 10.10.237.120 80 VITEK VTD-13V210 EN-V-R_Test5 00306f8324... 10.10.237.121 80 VITEK VTD-MV13V EN-V-R_Test6 00306f8324... 10.10.237.122 80 VITEK VTD-MV20V EN-V-R_Test7 00306f8324... 10.10.237.123 80 VITEK VTD-MV13VR EN-V-R_Test8 00306f8324... 10.10.237.124 80 VITEK VTD-MV20VR EN-V-R_Test9 00306f8324... 10.10.237.126 80 VITEK VTC-IR4013 EN-V-R_Test10 00306f8323#1 10.10.237.127 80 VITEK VTC-IR4020 EN-V-R_Test11 00306f8324... 10.10.237.128 80 VITEK VT-PTZ220N EN-V-R_Test12 00306f8323#0 10.10.237.129 80 VITEK VTD-134F EN-V-R_Test13 00306f8324... 10.10.237.130 80 VITEK VTD-13V210 EN-V-R_Test14 00306f8324... 10.10.237.131 80 A B C D E F Clear Scan Go HomemasnRegistelClose

Items Descriptions

A IP-Device list		This list shows the IP devices found during the scan process. If you need to select multiple IP devices at the same time, drag your mouse over the devices or keep pressing CTRL or SHIFT key while clicking the IP devices.
B	Clear Clear the scanned IP Devices from the list.
C	Scan	Start scanning for IP Devices on the network.
D	Go Home	Go to the home page of the IP device selected from the list.
E	Register	Go to the registration window for the IP Device selected.
F	Close	Cancel the registration of the IP device and exit the window.

When you click the Register button after selecting more than one IP devices on the scanned device list, the following window will be displayed. You can register those IP devices to your EN-V-R in this window.

Registering New IP-Device 1. Currently registered devices will not appear. 2. Please configure model, resolution and ptz setting with mouse Resolution Description R1: 175X144~ 160X112 R2: 352X288 ~ 320X240 A R3: 704X288 ~ 640X240 R4: 704X576 ~ 640X480 R5: 800X600 ~720X480 R6: 1024X768 R7: 1280X720 R8: 1280X1024 R9: 1600X1200 R10: 2048X1536 PT2 Install Description P1: PTZ1 P2: PTZ 2 B P3: PTZ 3 P4: PTZ 4 IP-D. Name MAC Address IP Address Model Login. Login. R1 R2 R3 R4 R5 R6 R7 R8 0 EN-V-R_Test1 00306832439 10.10.237.120 4Channel M.. root **** O O X O X X X X 1 EN-V-R_Test2 00306832403 10.10.237.121 4Channel M.. root **** O O X O X X X X 2 EN-V-R_Test4 00306832429 10.10.237.122 4Channel M.. root **** O O X O X X X X 3 EN-V-R_Test5 00306832424 10.10.237.123 4Channel M.. root **** O O X O X X X X 4 EN-V-R_Test6 0030683240p 10.10.237.124 4Channel M.. root **** O O X O X X X X C Apply to All Register Close

Items Descriptions
A Resolution Description	Descriptions of the image resolution modes in the IP-Device list.(R1, R2, R3, R4, R5, R6, R7, R8, R9, R10)
B PTZ Install Description	Descriptions of the PTZ numbers in the IP-Device list.(P1, P2, P3, P4)
C IP-Device list	IP-Device list to select from.
D Apply to All	Click this button to copy the information of a selected IP-Device to all other devices.(Only Model, Login ID, and Login Password will be copied.)
E Register	Click this button to confirm and save the registered IP-Device added.
F Cancel	Click this button to cancel IP-Device registration.

IP-DeviceModification

To modify an IP-Device registration, Click Modify registered IP-Device

Configuring registered IP-Device Inputting IP-Device information IP-Device ID A 0 Vendor B VITEK Model C 2 Channel Model Name D Network Video System IP Address E 192.168.2.51 Input IP Address Range F ~ Getting Information from IP-Device G (May take several minutes) VS Module ID H 0 HTTP Port I 80 RTSP Port J 554 Login ID K root Login Password L ***** Confirm Password M ***** Checking available resolution ✓ QCIF (QQVGA) 176 X 144 ~ 160 X ✓ CIF (QVGA) 352 X 288 ~ 320 X ✓ Half D1 (Half VGA) 704 X 288 ~ 640 X ✓ D1 (VGA) 704 X 576 ~ 640 X ✓ SVGA 800 X 600 ~ 720 X N ✓ XGA 1024 X 768 ✓ HD720 (720P) 1280 X 720 ✓ SXGA 1280 X 1024 ✓ UXGA 1600 X 1200 ✓ QXGA 2948 X 1536 Checking available PTZ cameras ✓ Camera1 ✓ Camera2 O ✓ Camera3 ✓ Camera4 Save Cancel

	Items	Descriptions
A	IP-Device ID	IP-Device ID is displayed. (not allowed to modify)
B	Vendor	Select the Vendor of the device.
C	Model	Select how many channels the device support.
D	Name	Change the Name as required.
E	IP Address	Enter the IP Address to use with the selected device.
F	Input IP Address Range	(not allowed to modify)
G	Getting Information from IP-Device	(not allowed to modify)
H VS Module ID		Select the VS Module ID. Enter 0 for non-Vitek IP devices. Vitek products can be set to 0 to 15, and default is 0.
I	HTTP Port	Enter the HTTP Port to use with the IP-Device. (Default is 80)
J	RTSP Port	Enter the RTSP Port (Default is 554)
K	Login ID	Type in the Login ID to use. (Default is root)
L Login Password		Type in the Login Password to use for the Login ID. (Default is root)
M	Confirm Password	Type in the same password to confirm. (Default is root)
N	Checking available resolution	Select the Video Resolution for the device. Not used, all resolution is done at camera level
O	Checking available PTZ camera	Checkboxes to choose if PTZ is supported.
P	OK	Click this button to apply the changed values.

Cancel

Click this button to discard the changed values.

37.3. IP-DeviceDeletion

To delete a registered IP-Device, click IP-Device, Camera Management on the menu tree in the left pane. Then select an IP device to be deleted from the list. Click Remove IP-Device registration

To go to the home page of an IP-Device, click the IP-Device, Camera Management on the menu tree. Then select the IP device. Click Go to IP-Device homepage

37.5. Camera Management

In this section, you will see how to manage the device information, video resolutions, recording configuration, and alarm event configuration. Firstly, select a camera name under IP-Device, Camera Management on the menu tree.

When you select IP-Device, Camera Management on the menu tree, it will show theCamera Management sub-menu. You can configure cameras here. The following picture shows when you selected an IP-device in the menu tree. The sub-menu toolbar changes accordingly to your selection.

Smart NVR Configurator Configuration System, Network Configuration IP Device - Camera Management 0: Network Video System User Management Disk Setup Disk Quota Disk Mode Utilities 1. This category is for configuring settings of registered IP-Devices. 2. Modify the camera name and information of the registered IP-Device. 3. Change video quality and resolution of the IP-Device. 4. Set a condition of recording. 5. Set Alarm, event, and map service of the registered IP-Device. 6. S/W motion detection will be supported later. 7. Auto preset will be supported later. 8. Touring will be supported later. Camera Name Resolution Quality Record Alarm Motion... Touring Preset Camera 1 352x288~... High Yes Yes No No No Camera 2 352x288~... Highest Yes Yes No No No Apply Close

Items Descriptions

	A	Camera Information	Configure Information of the selected camera.
	B	Resolution and Quality	Choose the resolution and quality of cameras.
	C	Recording Conditions	Set up recording conditions.
	D	Alarm and Map service settings	Configure Alarm and Map service functions.

37.5.1. Configure Camera Name and Information

From the configuration list, select a camera to be assigned with a name.

Smart HVR Configurator Configuration System, Network Configuration IP-Device, Camera Management 0: Network Video System 1: Network Video System 2: 2MP indoor dome 3: Network Video System 4: VT-PTZ220NP11 5: hector Test 6: Network Video System User Management Disk Setup Disk Quota Disk Mode Utilities 1. This category is for configuring settings of registered IP-Devices. 2. Modify the camera name and information of the registered IP-Device. 3. Change video quality and resolution of the IP-Device. 4. Set a condition of recording. 5. Set Alarm, event, and map service of the registered IP-Device. Camera Name Resolution Quality Record Alarm Motion... Touring Preset Camera 1 352x288~... High Yes Yes No No No Camera 2 704X576~... High Yes Yes No No No Apply Close

Then click on camera1 or camera 2, and then click Configure Camera Name and Information

Camera Name	Resolution	Quality	Record	Alarm	Motio...	Touring	Preset
Camera 2	704X576~...	High	Yes	Yes	No	No	No
Camera 1	352x288~...	High	Yes	Yes	No	No	No

The below image will be display, enter name (F), then click Apply to camera(H), then OK.

Configure Camera Information Select camera below list to display Camera 1(Connection established) Configure Camera Name Name Camera 2 F Clear (Maximum length is 21 words in English) G Apply to camera Select Multi Camera IP-Device Id IP-Device Name Camera Name 3 Network Video System Camera 2 Unselect All OK Cancel

	Items Descriptions
A,B,C,D	Camera Selection	Select one or more cameras for name assignment by clicking buttons.
E	Unselect All	Clear the device list which shows the selected cameras.
F Name	Type in a camera name.
G	Clear	Clear the camera name field.
H	Apply to Camera	Apply the changed camera name to the system.
I	OK	Click this button to confirm the change and close the window.
J	Cancel	Click this button to cancel the change and close the window.

37.5.2. Camera Resolution, Quality

To configure a camera's resolution and video quality, select a camera to configure and click Configure camera resolution and quality

Camera Name	Configure camera resolution and quality			Alarm	Motio...	Touring	Preset
Camera 1	352x288~...	High	Yes	Yes	No	No	No
Camera 2	704X576~...	High	Yes	Yes	No	No	No

The below image will be display, adjust resolution (F), then click Apply to camera(H), then OK

Configure camera resolution and quality Select camera below list to display Camera 1(Connection established) Set Value Resolution: F Min 352x288~320x240 Max Quality: G Lowest Highest Highest Apply to camera Select Multi Camera IP-Device Id IP-Device Name Camera Name Resolution Quality 0 hector Test Camera 1 352x288~320x240 Highest 0 hector Test Camera 2 352x288~320x240 Highest Go Home Close

Items Descriptions
A,B,C,D	Camera Selection	Select one or more cameras by clicking buttons.
E	Unselect All	Clear the device list which shows the selected cameras.
F Resolution Select the video resolution.
G Quality Select the video quality.
H	Apply to Camera	Apply the selected video resolution and quality to the system.
I	Go Home	Go to the homepage of the product.
J	Close	Close and exit the window.

37.5.3. Configure Camera Recording Condition

To configure recording conditions, select a camera to configure, then click Configure camera recording condition

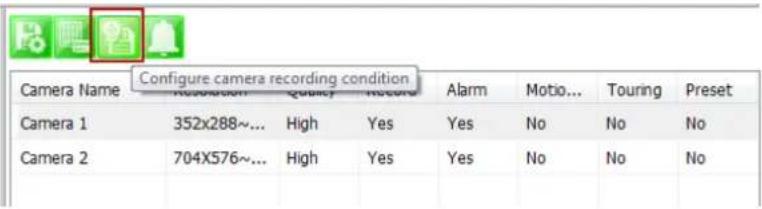

Configure camera recording condition Camera Name Resolution Quality Record Alarm Motio... Touring Preset Camera 1 352x288~... High Yes Yes No No No Camera 2 704X576~... High Yes Yes No No No

The below image is where you adjust the recording parameters.

Configure Recording Condition 1. Select camera to configure condition 2. You can select to multi camera 3. Select condition to configure record condition 4. Configure detail schedule and event 5. Click Apply to camera button to apply condition 6. Change record service Pre, Post images 7. Click Apply to camera button to save changed condition Camera 1(Connection established) Recording Service Enable Recording Service Disable Recording Service Pre Alarm Images 0 Pre Alarm Speed fastest POST Alarm Images 0 POST Alarm Speed fastest Camera list Select Multi Camera A B C D E Configure Recording Condition Input Condition Use the condition G Do not use this condition Condition Mode Always Recording H Recording by schedule only Recording by event only Recording by schedule and event Schedule Day of week Sun Mon Tue Wed Thu Fri Sat. Time 1 12/31/1969 ~ 12/31/1969 Date 12/31/1969 ~ 12/31/1969 Event: Alarm Sensor 1 2 3 4 Motion Detection J External Input Data K Condition list F Apply to condition Camera Name Con... Condition Name Camera 1 1 [N1] Camera 1 2 - Apply to camera L IP-Device Id IP-Device Name Camera Name Recording Condition 1 Condition 2 Condition 3 Conditc 3 Network Video System Camera 1 Enable [N1] - - - OK Cancel

Item Description

A,B,C,D	Camera Selection	Select one or more cameras by clicking buttons.
E	Unselect All	Clear the device list which shows the selected cameras.
F	Condition List	Define the condition for recording to be started.
G	Condition to use	Decide whether to use the defined condition or not.
H	Condition Mode	Select the condition mode for recording.
I	Scheduling	Set up the schedule for recording.
J	Event setup	Set up the event to initiate recording.
K	Apply to Condition	Apply the configured schedule and event data to condition list.
L	Apply to Camera	Apply the condition to camera.
M	Enable Recording Service	Enable this to activate the recording. When this is not enabled, it won't be saved if a recording condition is set.
N	Pre Alarm Images	Select pre-alarm images.
O	Pre Alarm Speed	Select pre-alarm speed.
P	Post Alarm Images	Select post-alarm images.
Q	Post Alarm Speed	Select post-alarm speed
R	OK	Click this button to confirm the change and exit the window.
S	Cancel	Click this button to cancel the all the changed made in this session.

To setup recording, first click camera under Condition list(F). This enables the Configure Recording Condition (G, H, I and J)

Camera Name	Con...	Condition Name
Camera 1	1	[M1]
Camera 1	2	-

Now you can select your condition mode(H). Under condition mode you have four choices always, schedule, event and schedule and event. (In this example we will record by event only)

Condition Mode ○ Always Recording ○ Recording by schedule only ● Recording by event only ○ Recording by schedule and event

Schedule: To schedule time and date of recording (1). (When schedule is activated in condition mode)

Schedule □ Day of week □ Time □ Date Sun Mon Tue Wed Thu Fri Sat □ □ □ □ □ □ □ □ □ □ AM 8:43 ~ AM 8:43 12/28 ~ 12/28

Event: Here you can select Alarm or Motion (J)

Event 1 2 3 4 Alarm Sensor Motion Detection External Input Data

After completing your conditions selection click Apply to condition(K)

After apply to condition click Apply to camera (L), and then click OK(R)

When that screen closes click Apply

Camera Name Resolution Quality Record Alarm Moto... Touring Preset Camera 1 352x288~... High Yes Yes No No No Camera 2 704X576~... High Yes Yes No No No Apply Close

37.5.4. Alarm, Event Configuration

To configure the Alarm and Event features, select a camera to configure, and then click Configure alarm, map service

Configure Alarm, Event service Camera 1(Connection established) Please select camera Check desired alarm Enable alarm service Start recording Enable DO Disable DO Operating Preset mode Popup Window Touring Start Touring Stop F Check event want to service Enable Event Service Start recording Stop recording Motion Start Motion Stop DI On DI Off Video Normal Video Lose IP-Device Network Connected IP-Device Network Disconnected Touring Start Touring Stop Enable DO Disable DO G Apply to camera Select Multi Camera A C B C D E Camera 1 Camera 1 Camera 2 Camera 2 Camera 3 Camera 4 Unselect All IP-Device Id IP-Device Name Camera Name 0 hector Test Camera 1 0 hector Test Camera 2 I J OK Cancel

Item Description

A,B,C,D	Camera Selection	Select one or more cameras by clicking buttons.
E	Unselect All	Clear the device list which shows the selected cameras.
F	Alarm Service Setup	Put check marks on alarm types to use.
G	Event Service Setup	Put check marks on event types to use.
H	Apply to Camera	Click this button to apply the changes to the camera.
I	OK	Click this button to confirm the change and exit the window.
J	Cancel	Click this button to cancel the Alarm, Event configuration.

37.6. User Management

In this section, you will see how to manage user information. To start managing users, select User Management from the menu tree.

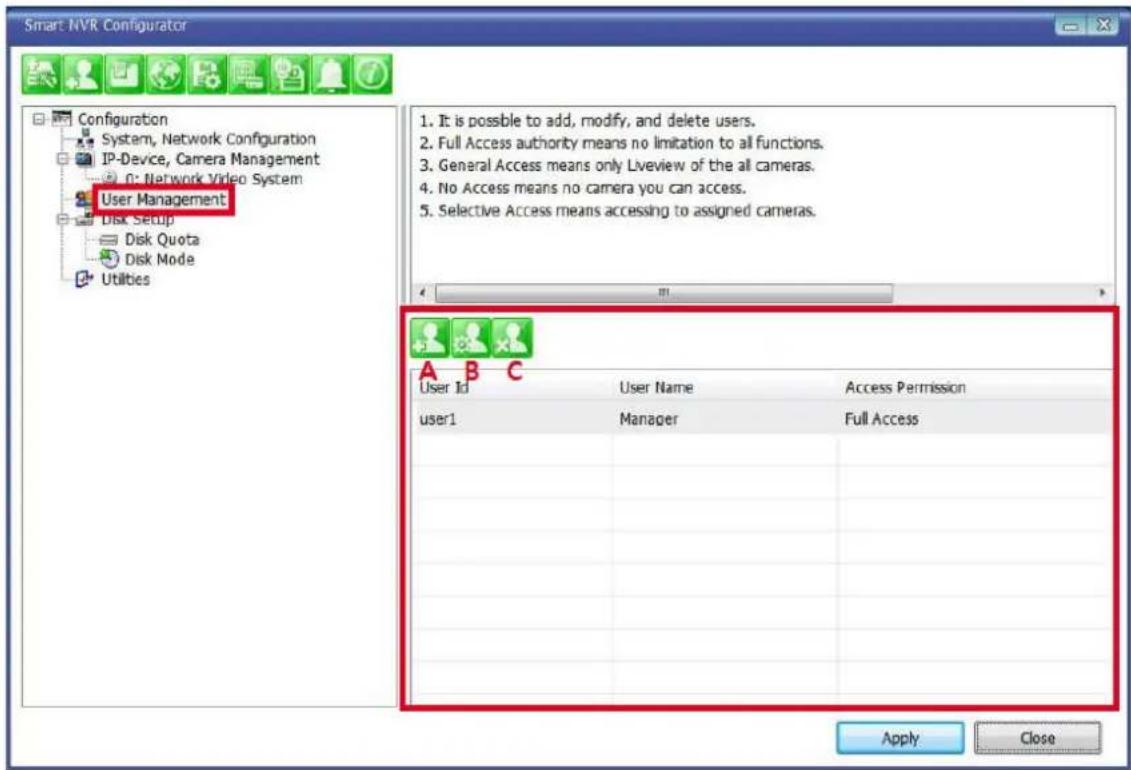

Smart NVR Configurator Configuration System, Network Configuration IP-Device, Camera Management 0: Network Video System User Management Disk Setup Disk Quota Disk Mode Utilities 1. It is possible to add, modify, and delete users. 2. Full Access authority means no limitation to all functions. 3. General Access means only Liveview of the all cameras. 4. No Access means no camera you can access. 5. Selective Access means accessing to assigned cameras. A B C User Id User Name Access Permission user1 Manager Full Access Apply Close

		Items	Descriptions
	A	User Registration	Register new users to the system.
	B	User Modification	Change the information of existing users.
	C	User Deletion	Remove the account of existing users.

37.6.1. User Registration

To register a new user, click the 1'st button on the tool bar in the sub-menu toolbar.

User Registration User Account A User ID B Password C Confirm password D Name Notice: User ID Password must be alphanumeric within 23 characters. System Resource Access Permission ● All Channels Access ○ General Access(Only View) ● No Access ○ Selective Access System F Enable Module Port Alarm Control PTZ Control Audio Control Playback □ Network Video Sy ▼ All Port ▼ □ □ □ □ □ Network Video Sy ▼ All Port ▼ □ □ □ □ □ □ Network Video Sy ▼ All Port ▼ □ □ □ □ □ □ Network Video Sy ▼ All Port ▼ □ □ □ □ □ □ Network Video Sy ▼ All Port ▼ □ □ □ □ □ □ Network Video Sy ▼ All Port ▼ □ □ □ □ □ □ Network Video Sy ▼ all port ▼ □ □ □ □ □ G H OK Cancel

Items Descriptions
A	User ID	Enter a new User ID to register.
B	Password Enter the Password for the new user.
C	Confirm password	Enter the same Password for confirmation.
D	Name	Enter the name of the new user to be registered.
E	System resource access permission	Choose the level of permission for System resource access.All channels access: Viewing all cameras, Alarm, PTZ, Audio, SearchingGeneral access: Viewing all cameras onlyNo access: An user account without any access to camerasSelective access: Access to only selected cameras and privileges.
F	System Permission	Eight different modules can be set. The setup can be made on Module, camera, alarm, PTZ, Audio, and Search respectively. Enabling each module gives accesspermission to it.
G	OK	Click this button to apply the registration of the new user.
H	Cancel	Click this button to cancel the registration process.

37.6.2. User Modification

To modify a user's information, select the users name than click the second button on the submenutoolbar. The User Registration window will come up on the screen, make the necessary changes and click OK.

37.6.3. UserDeletion

To delete an existing user, select the user name than click Remove Registered user account, another screen will pop up confirming to proceed with deletion, click OK to proceed.

37.7. Disk Setup

37.7.1. Disk Setup

When you click Disk Setup on the menu tree, it will show two sub-menu items. One is Disk Quota, and the other is Disk Mode. The following window shows the Disk Quota mode.

Smart NVR Configurator Configuration System, Network Configuration IP-Device, Camera Management 0: Network Video System User Management Disk Setup Disk Quota Disk Node Utilities 1. Select HDD from disk list and click "Register" button 2. Under Disk Quota, set a target value and click "OK" 3. You can modify the size of recording capacity at any time. 4. To exclude HDD from list, click target HDD and click "remove" button 5. Contents in excluded HDD will not be searched 6. Changes will take effect after from next start or click "apply" from service menu Record Drive Type Drive Size Free Size Quota Size Order C:\ HDD 37 GB 27 GB 0 GB Apply Close

Items Descriptions

A Disk Quota Setup

Define the HDD for recording and configure the size of quota.

B Disk Quota Deletion

Delete previously assigned disk quota.

37.7.2. Disk Quota Modification and Deletion

When EN-V-R program is installed, all local drives are assigned as recording devices. To modify the disk quota for recording, click Disk Quota on the menu list, and select the drive to be modified.

To change the disk quota size, click the 1'st button on the sub tool bar, or double click the drive on the

device list. The following window will be displayed.

Disk Quota A Use HDD B Possible Maximum Quota 23 GB C Possible Minimum Quota 3 GB D Set Quota 23 GB E OK Cancel

Item Description
A	Use HDD	Decide whether this HDD is to be used.
B	Possible Maximum Quota	Display Possible maximum quota on this HDD.
C	Possible Minimum Quota	Display Possible minimum quota on this HDD.
D	Set Quota	Enter the desired size of disk quota for recording.
E	OK	Click to apply the configured disk quota.
F	Cancel	Click to cancel the disk quota configuration.

To delete the existing disk quota, click Disk Quota on the menu list. Then choose the drive quota to be deleted. Click the 2'nd button on the sub tool bar.

37.7.3. Disk Mode Change

To modify the disk circulation style, click Disk Setup, and then Disk Mode on the menu tree.

Smart NVR Configurator Configuration System, Network Configuration IP-Device, Camera Management 0: Network Video System User Management Disk Setup Disk Quota Disk Mode Utils 1. Click icon to configure disk circulation. 2. If circulation is enabled, oldest data will be removed for new data 3. If circulation is disabled, recording will be stooped when there is no space 4. Limiting recording duration can be configured by daily basis 5. If you set recording duration, data over configured period will be erased 6. For system stability, data over configured period can be erased A B Configuration Value Disk Circulation Use circulation (Record new data remove oldest data) Expired Duration Not use expired duration Email report No Apply Close

		Items Descriptions
	A	Disk Circulation Setup	Configure disk circulation type.
	B	Disk Usage Report Setup	Configure email address for reporting.

Click the Disk Circulation in the list. The following window will be displayed.

Configure Disk Circulation A Use circulation (Record now data remove oldest data) C Use expired duration D 0 Expirad days (Default:90, 1~3650) B Not use circulation (Stop record when full disk quota) E F OK Cancel

Item	Description
A	Use circulation	Select this if disk circulation will be used.
B	Not use circulation	Select this if disk circulation will not be used.
C	Use expired duration	Decide whether the expiration will be used for recording. (This can be seen when “Use circulation” is selected.)
D	Expired days	Enter the date when the recorded content will expire.
E	OK	Click this to apply the Disk circulation settings.
F	Cancel	Click this to Cancel Disk circulation settings.

Configure email reporting for disk usage

To modify the email notification behavior for hard disk recording.

A Use to report HDD usage Enable report service Disable report service B Report HDD space (Non-circulation only) 100% 90% 80% 70% C Periodic report Sun Mon Tue Wed Thu Fri Sat PM 02:28:37 D E OK Cancel

	Item	Description
A	Use to report HDD usage	Choose whether to Enable or Disable the report service.
B	Report HDD space	When disk circulation is not used, select the HDD size when it will be reported by email.
C	Periodic report	Define when Periodic reports will be sent.
D	OK	Click to apply the Email report settings.
E	Cancel	Click to cancel Email report configuration.

37.8. Utilities

Select Utilities from the menu tree. You can perform two functions in Utilities, one is Email Account Configuration and the other is About Program.

Smart NVR Configurator Configuration System, Network Configuration JP-Device, Camera Management 0: Network Video System User Management Disk Setup Disk Quota Disk Mode Utilities A B Configuration Value Email accountDisable About program Smart NVR Configurator Apply Close

Items Descriptions

	A	Email Account	Configure email account.
	B	About Program	Display the information of EN-V-R program.

37.8.1. Email accountConfiguration

Once an email account is registered here, you can receive email notification from theEN-V-R program upon certain events. To configure an email accounts, click Utilities on the menu tree. Click Configure

email account for mail service

Configure email account A Service : Enable Disable B SMTP Server : C Authentication : Enable Disable D Email user id : E Email user password : F Sender email : G Recipient email #1 : H Recipient email #2 : I Recipient email #3 : J Email Subject : Mail from SmartNVR K L OK Cancel

Item	Description
A	Service	Decide whether to report HDD usage by email or not.
B	SMTP server	Enter the address of SMTP server for sending email.
C	Authentication	Decide whether to use Authentication.
D	Email user id	Enter the sender's id for email account.
E	Email user password	Enter the password of the sender's email account.
F	Sender email	Enter the Sender's email address.
G,H,I	Recipient email #1,2,3	The email addresses of three Recipients to be notified.
J	Email subject	Enter the title of the Email when it's sent.
K	OK	Click to apply the Email account registration.
L	Cancel	Click to cancel this configuration.

37.8.2. About Program

To displays the information of this program on the screen, Click Information of this program.

Smart NVR Configurator Product Info Smart NVR Configurator Ver (1.0.0.0) A Copyright (C) 2011 Evaluation( 16 channel, MultiVendor ) System Resource CPU:3% Core0:3% Memory:682 MB / 1535 MB (44%) B Network:0bps(192.168.2.50) OK

	Items Descriptions
A	About program	Show the information about the EN-V-R running.
B	System Resource	Displays the PC's system resource information.
C	OK	Click this button to close the Window.

38. Using EN-V-R Controller

To open EN-V-R controller, click Start > All Programs> Vitek> SMART NVR Controller.

Vitek Smart NVR Smart NVR Configurator Smart NVR Controller Smart NVR Information Uninstall

Smart NRV controller will be on the lower right part of the system tray. Then right click the icon a sub-window will display, click on Open Smart NVR Controller.

Go Home Open Smart NVR Configurator Open Smart NVR Controller Open Disconnect backup Exit

The following window will open

Smart NVR Controller Start or Stop Service Current Service State Service Stopped Start Service Stop Service Refresh Go Home Close

	Items Descriptions
A	Current Service State	Shows whether EN-V-R Service is running or stopped.
B	Start Service	Click this button to start EN-V-R Service when it's stopped.
C	Stop Service	Click this button to stop EN-V-R Service when it's running.
D	Refresh	Refresh the Screen.
E	Go Home	Go to the EN-V-R's built-in webpage.
F	Close	Close the EN-V-R Controller window.

39. Connecting to EN-V-R

39.1. PC with EN-V-R installed

You can connect to EN-V-R in various ways as explained below.

- Click Go Home in EN-V-R Configurator

Green square icon set with eight white icons including books, people, globe, gear, documents, alarm, bell, and information (no text or symbols)

• EN-V-R Controller window.

Smart NVR Controller Start or Stop Service Current Service State Service Running Start Service Stop Service Refresh Go Home Close

- Click Go Home from the pop-up menu on the System Tray.

Go Home Open Smart NVR Configurator Open Smart NVR Controller Open Disconnect backup Exit

• In Internet Explorer, enter the IP address of the computer that EN-V-R is running on.

Network Video System - Live View - Windows Internet Explorer http://10.0.0.116/app/live/sim/single.asp

- In case that the HTTP port for EN-V-R is not 80 (default), the port number should be entered together with the IP address. (the example below assumes HTTP port of 7777)

Network Video System - Live View - Windows Internet Explorer http:// 10.0.0.254:7777

After you successfully connecting to the EN-V-R homepage, you will see the following window.

192.168.2.100 Network Video System A B C Home | Live View | Player VITEK INDUSTRIAL VIDEO PRODUCTS INC. An Eye on Innovation. Homepage ver 4.07-1300 for Network Video System

Items Descriptions
A	Home	Go to EN-V-R's homepage.
B	Live View	Click this button to execute Live View program. You can use various features such as live view, audio transmission, PTZ control, unconditional recording, etc.
C	Player	Click this button to search, record, and back up the video data sent from IP devices registered in EN-V-R.

39.2. PC without EN-V-R

- If your PC doesn't have EN-V-R program installed, type in the IP address of the PC where EN-V-R is running.

Note: Refer to Section 19. ENVI Series Viewer on page 80 for details on how to use ENVI Viewer program. Refer to Section 29. ENVI Smart Player on page 113 for details on how to use ENVI Smart Player program.

Network Video System - Live View - Windows Internet Explorer http://10.0.0.116/app/live/sim/single.asp

- In case that the HTTP port for EN-V-R is not 80 (default), the port number should be entered together with the IP address. (the example below assumes HTTP port of 7777)

Network Video System - Live View - Windows Internet Explorer http:// 10.0.0.254:7777

VITEK LIMITED PRODUCT WARRANTY

VITEK products carry a three (3) year limited warranty. Digital recording and storage products are also warranted for 3 years except for the hard drives which carry their own independent factory warranty from the hard drive manufacturer. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is non-transferable and extends only to the original buyer or end user customer of a Vitek Authorized Reseller.

"Alpha Series by VITEK" products carry a three (3) year limited warranty. All other factors of the standard VITEK warranty will apply as stated above. ** Three Year "Alpha Series by VITEK" Warranty effective September 1st 2010. "Alpha Series by VITEK" products purchased prior to September 1st 2010 carry a one (1) year warranty.

** Three Year Warranty on all products except Alpha Series became effective on April 1st 2009. Legacy Products purchased prior to April 1st 2009 carry a two (2) year warranty.

This warranty shall not apply to repairs or replacements necessitated by any cause beyond the control of VITEK, including but not limited to, acts of nature, improper installation, excess moisture, misuse, lack of proper maintenance, accident, voltage fluctuations, or any unauthorized tampering, repairs or modifications. This warranty becomes VOID in the event of alteration, defacement, or removal of serial numbers.

Within the first 6 months of purchase, VITEK will replace or credit any defective product at the request of the customer (subject to availability) with a new product that equals or exceeds the performance of the original product purchased.

Within the first 6 months of purchase, at its sole discretion, VITEK may issue an advance replacement for a defective product; however, all related costs including, but not limited to shipping and/or delivery charges will be the responsibility of the customer. If upon return inspection a product is determined to be in good working order or shows evidence of misuse, the customer will be responsible for full payment of the original product purchased as well as the replacement product.

Beyond the first 6 month period for the remainder of the warranty, VITEK'S responsibility shall be limited to repairing the defective product, including all necessary parts and related labor costs. At its sole discretion, VITEK may choose to either exchange a defective product or issue a merchandise credit towards future product purchases. Any replacement parts furnished in connection with this warranty shall be warranted for a period not to exceed the remaining balance of the original equipment warranty.

A Return Authorization number or "RA" number must be obtained prior to the return of any item for repair, replacement, or credit. VITEK requires that this "RA" number be clearly printed on the outside of the shipping carton to avoid refusal of said shipment. The Return Authorization number expires after 30 days. Products returned after the 30 day period will be subject to refusal. Shipping charges, if any, must be prepaid. A copy of the bill of sale (or invoice of purchase), together with a complete written explanation of the problem must accompany all returns.

Vitek makes no warranty or guarantee whatsoever with respect to products sold or purchased through unauthorized sales channels. Warranty support is available only if product is purchased through a Vitek Authorized Reseller.

CLASS A DIGITAL DEVICE (INDUSTRIAL & COMMERCIAL ENVIRONMENT)

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to CE and FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
