FURBDFKNGA11SG - Child bed Kingston Slumber - Free user manual and instructions

USER MANUAL FURBDFKNGA11SG Kingston Slumber

KINGSTONSLUMBER SINGLE BED FRAME

Mattress and bedding accessories not included

Assembly Guide

[Revision 2.0 July 2022]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY

VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance,

assembly, inclusions, specifications, description, and packaging.

CHILD CHOKING HAZARD:

WARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT SUPERVISION REQUIRED.

• Carefully inspect anything a baby or child could gain access to, including this product & packaging.
  • Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.
• Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts, hard lollies, and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys, buttons, keys and coins. But there are also many more.
• Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces of packaging, staples, tape etc.
• In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

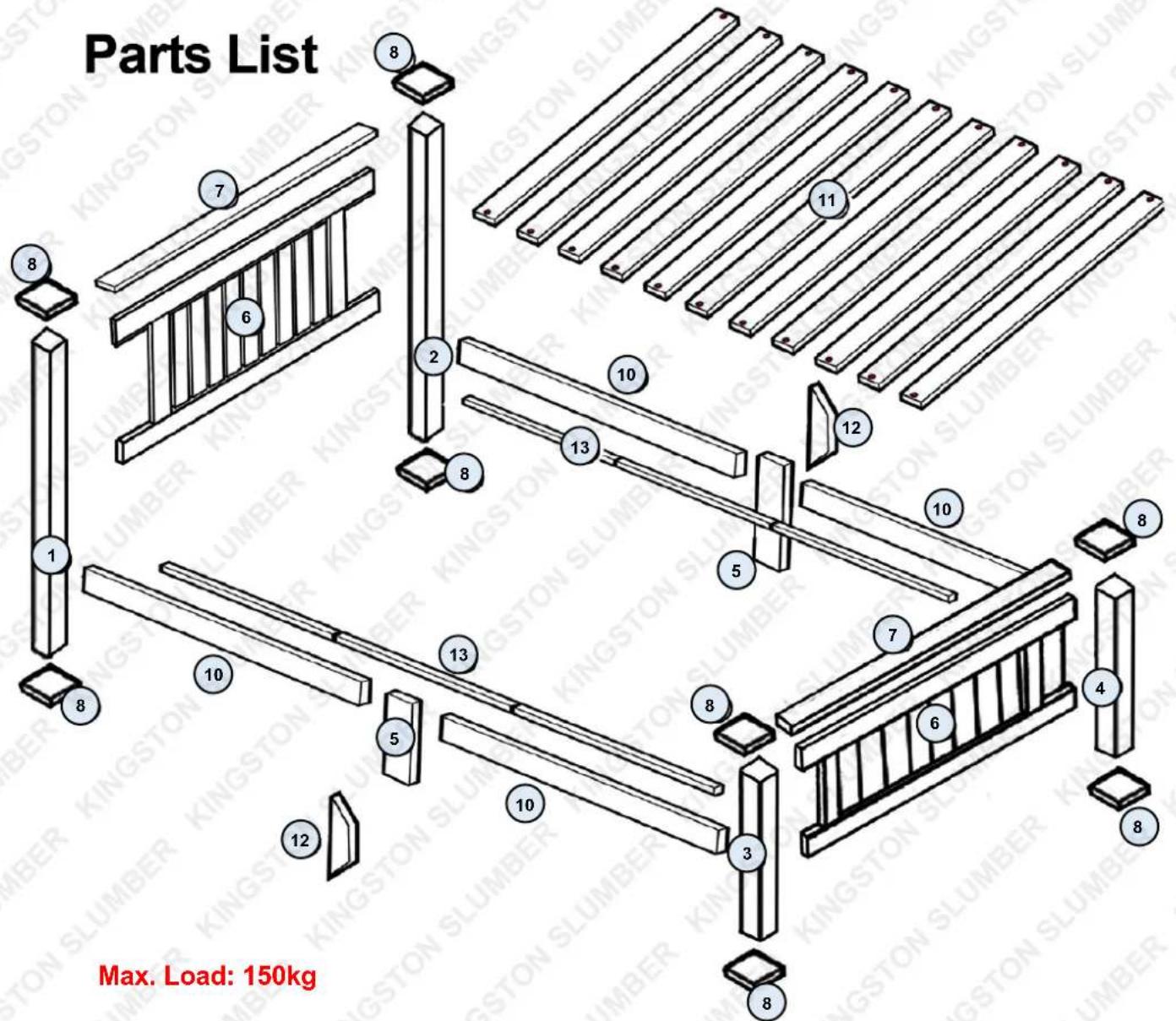

Parts List 8 7 6 2 13 12 10 10 10 5 7 4 6 3 8 12 10 8 10 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 Max. Load: 150kg

A	15mm M6x90mm	16
B		16
C	∅8x30mm	44
D		2
E		4
F		4

WARNING!

Do not let children eat the glue!

G		4
H		2
I		1
J		1
K	8mmø4x30mm	60
L		1
M		16

1

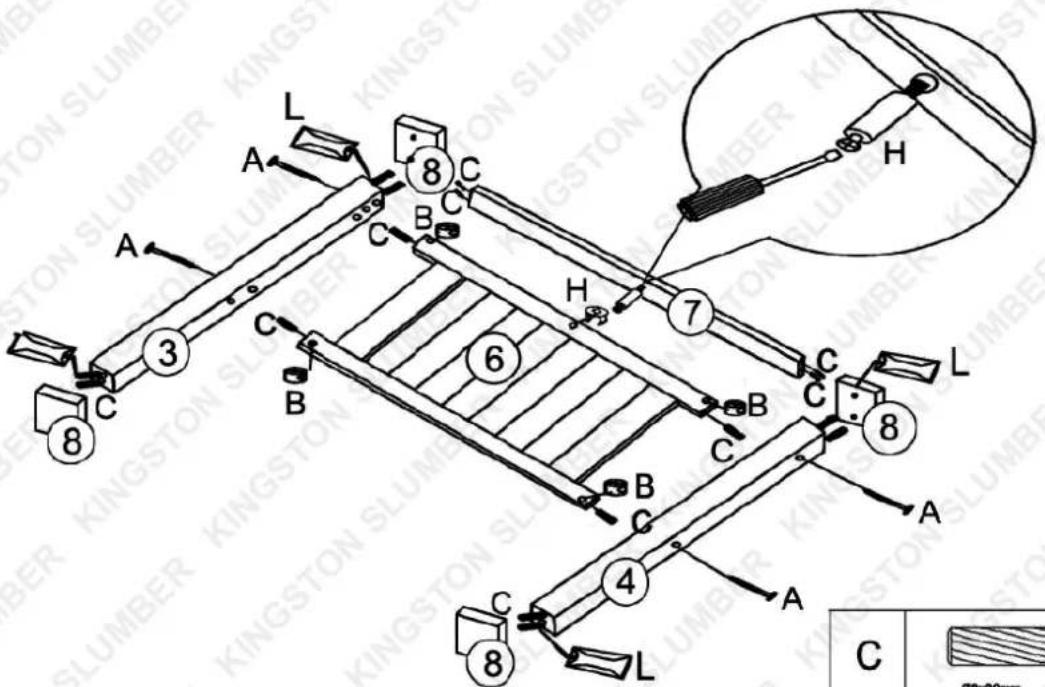

L A C B H H 7 3 6 C B C C L 8 4 C 8 A C L 8 KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLOMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KIN STUNSLUMBER KIN STUNSLUMBER KIN STUNSLUMBER KIN STUNSLUMBER KIN STUNSLUMBER KIN STUNSLUMBER KIN STUNSLUMBER KIN STUNSLUMBER KIN STUNSLUMBER KIN STUNSLUMBER KIN STUNSLUMBER KIN STUNSLUMBER KIN STUNSLUMBER KIN STUNSLUMBER KIN STUNSLUMPER KIN STUNSLUMPER KIN STUNSLUMPER KIN STUNSLUMPER KIN STUNSLUMPER KIN STUNSLUMPER KIN STUNSLUMPER KIN STUNSLUMPER KIN STUNSLUMPER KIN STUNSLUMPER KIN STUNSLUMPER KIN STUNSLUMPER KIN STUNSLUMPER KIN STUNSLUMPER KIN STUNSLUMPER KI N C

A		4	H		1
B		4	L		1

2

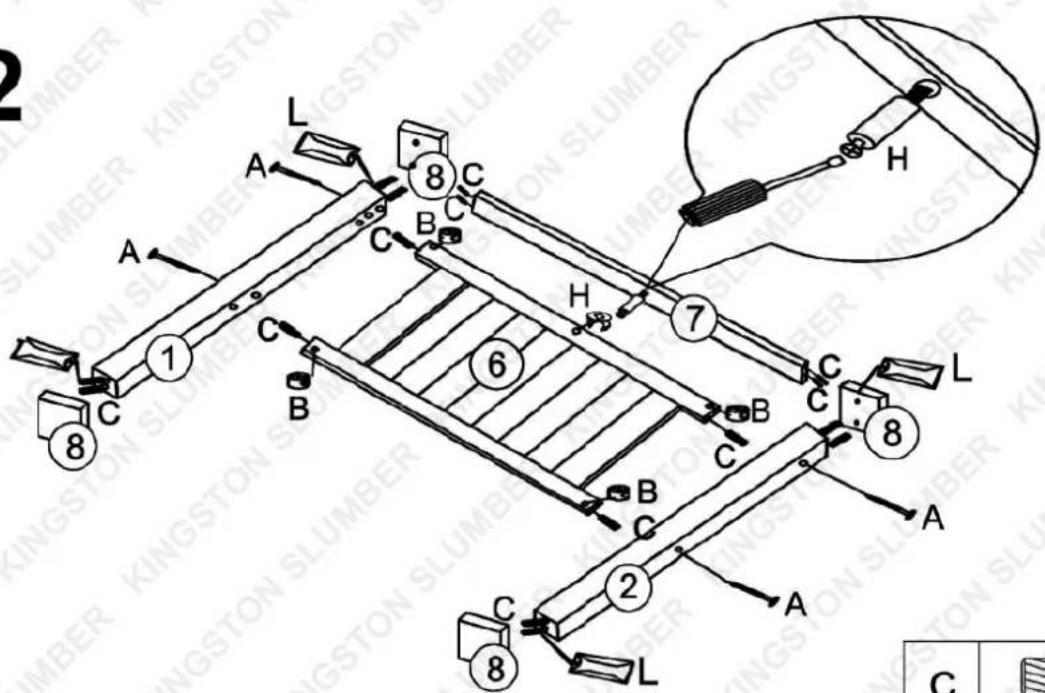

2 L A C 8 C B C H 7 H 1 C 6 B C B C L 8 C 2 A C 8 L KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON S LUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUM BER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KIN G 8

A	15mm M6x90mm	4	H		1
B		4	L		1

3

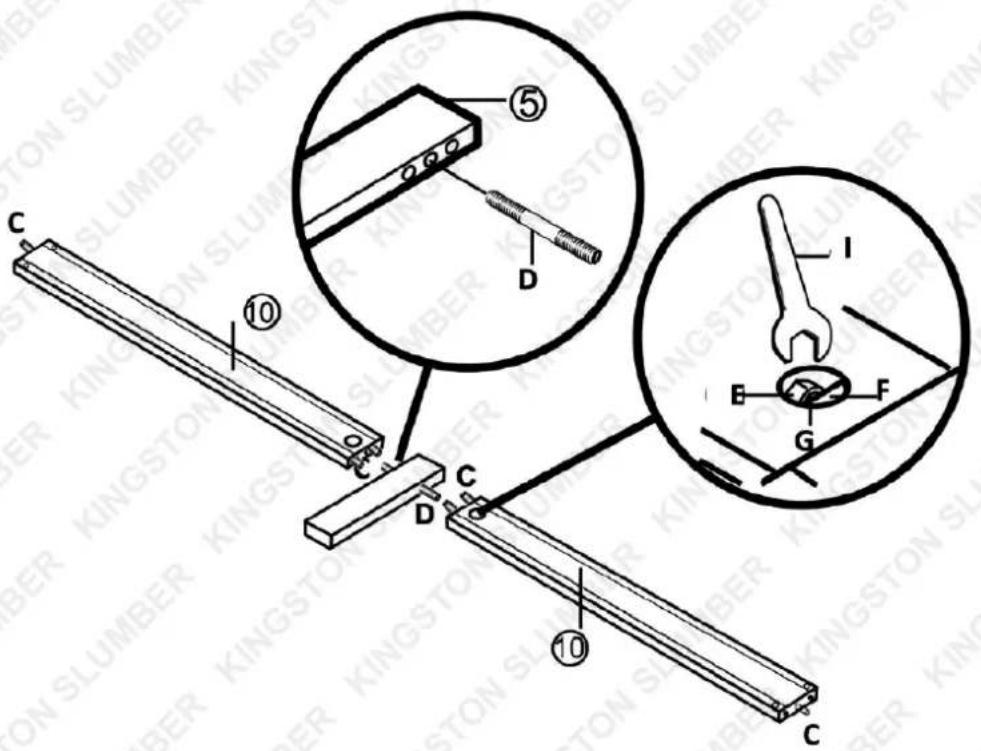

Technical diagram of a mechanical assembly with labeled parts and circular annotations for identification.

4

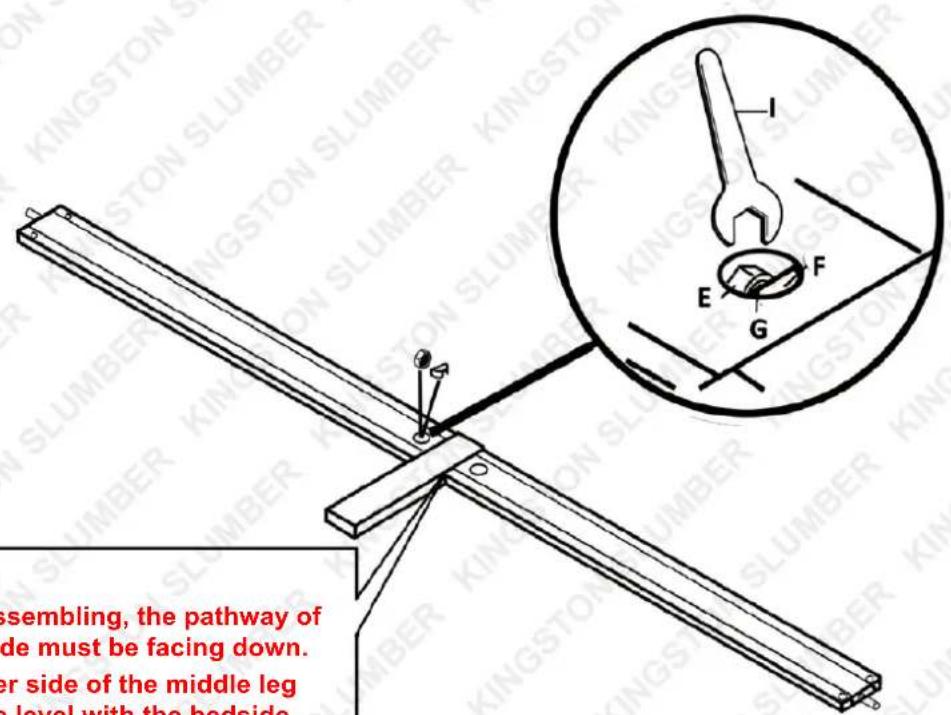

Assembling, the pathway of side must be facing down. er side of the middle leg a level with the bedside

Attention:

• When assembling, the pathway of the bedside must be facing down.
• The inner side of the middle leg should be level with the bedside rail.
• The outer side of the middle leg should be positioned on the outside of the bedside rail.

C	∅6x30mm	12	F		4
D		2	G		4
E		4	I		1

5 ⑬ K 13

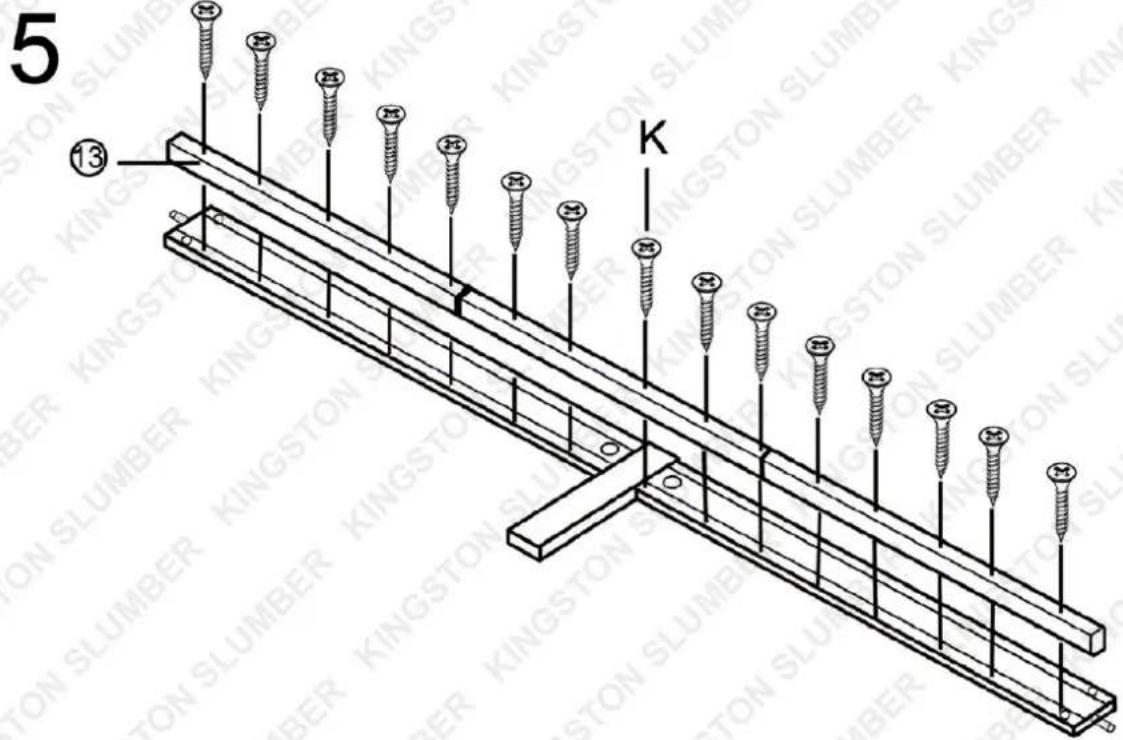

6 A B A B B A A KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STONSLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMDER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KIN A B A B A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A 1

A		8
B		8
K		30

7

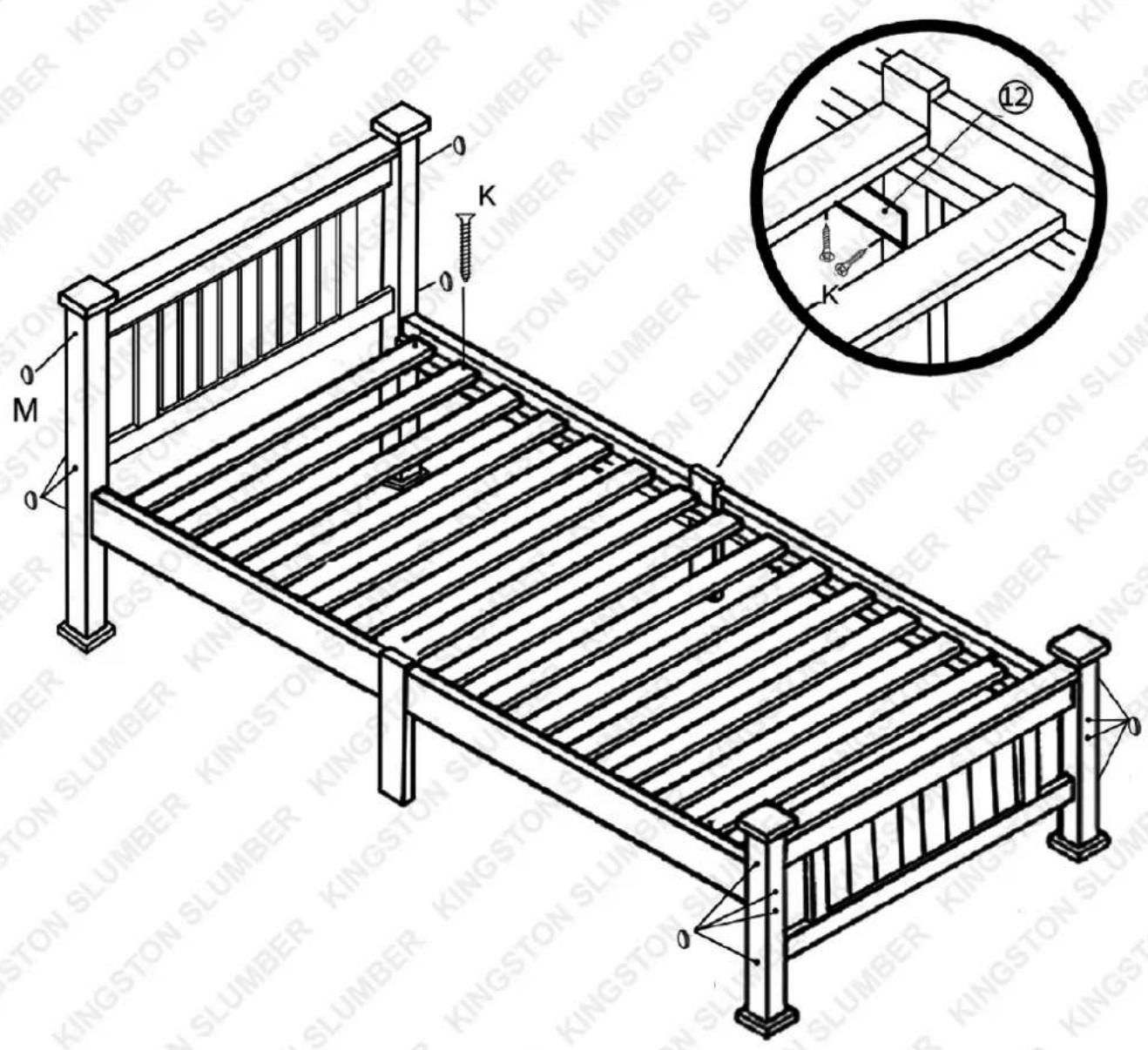

Technical diagram of a wooden slumber bed with labeled components and an inset showing internal structure details.

K		30
M		16

Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety

• Consult all documentation, packaging, and product labelling before use. Note that some products feature documentation available online. It is recommended to print and retain the documentation.
  ■ Before each use, check the product for loose/broken/damaged/missing parts, wear, or leaks (if applicable). Never use a product with loose/broken/damaged/missing parts, wear, or leaks.
  ■ Products must be inspected and serviced (if applicable) by a qualified technician every 6 months. This is based on average residential use by persons of average size and strength, and on a property of average metropolitan size. Use beyond these recommendations may require more frequent inspections/servicing.
  ■ Ensure that all users of the product have completed a suitable industry recognised training course before being allowed access to the product.

The product has been supplied by a general merchandise retailer that may not be familiar with your specific application or description of application. Be sure to attain third-party approval from a qualified specialist for your application before use, regardless of any assurances from the retailer or its representatives.
This product is not intended for use where fail-safe operation is required. As with any product (for example, automobile, computer, toaster), there is the possibility of technical issues that may require the repair or replacement of parts, or the product itself. If the possibility of such failure and the associated time it may take to rectify could in any way inconvenience the user, business, or employee, or financially affect the user, business, or employee, then the product is not suitable for your requirements. This product is not intended for use where incorrect operation or a failure of any kind, including but not limited to, a condition requiring product return, replacement, parts replacement, or service by a technician may cause financial loss, loss of employee time or an inconvenience requiring compensation.
If this product has been purchased in error when considering the information presented here, contact the retailer directly for details of their returns policy, if required.
