CDx4HC240, CDx4HCT240, CD74HC241, CDx4HCT241, CDx4HC244, CDx4HCT244 High-Speed CMOS Logic Octal Buffer/Line Drivers, Three-State

1 Features

• HC/HCT240 Inverting
• HC/HCT241 Non-inverting
• HC/HCT244 Non-inverting
• Typical propagation delay = 8ns at V CC = 5 V, C_L = 15 pF, T_A = 25°C for HC240
- Three-state outputs
- Buffered inputs
• High-current bus driver outputs
• Fanout (over temperature range)
- Standard outputs: 10 LSTTL loads - Bus driver outputs: 15 LSTTL loads
- Wide operating temperature range: -55^ to 125^
• Balanced propagation delay and transition times
• Significant power reduction compared to LSTTL Logic ICs
- HC types:
- 2 V to 6 V operation
- High noise immunity: N_IL = 30% , N_IH = 30% of V_CC at V_CC = 5V
• HCT types:
- 4.5 V to 5.5 V operation
- Direct LSTTL input logic compatibility, V_IL = 0.8V (max), V_IH = 2V (min)
- CMOS input compatibility, I_1 ≤ 1 A at V_OL , V_OH

2 Description

The 'HC240 and 'HCT240 are inverting three-state buffers having two active-low output enables.

The CD74HC241, 'HCT241, 'HC244 and 'HCT244 are non-inverting three-state buffers that differ only in that the 241 has one active-high and one active-low output enable, and the 244 has two active-low output enables. All three types have identical pinouts.

Device Information

PART NUMBER PAC	KAGE (1)	BODY SIZE (NOM)
CD74HC240	M (SOIC, 20) 12.80	mm × 7.50 mm
	E (PDIP, 20) 25.40	mm × 6.35 mm
CD54HC240 F (CDIP	20) 26.92 mm × 6.92 mm
CD74HCT240	M (SOIC, 20) 12.80	mm × 7.50 mm
	E (PDIP, 20) 25.40	mm × 6.35 mm
	PW (TSSOP, 20) 6.50 mm × 4.40 mm
CD54HCT240 F (CDIP, 20) 26.92 mm × 6.92 mm
CD74HC241	M (SOIC, 20) 12.80	mm × 7.50 mm
	E (PDIP, 20) 25.40	mm × 6.35 mm
CD74HCT241	M (SOIC, 20) 12.80	mm × 7.50 mm
	E (PDIP, 20) 25.40	mm × 6.35 mm
CD54HCT241 F (CDIP, 20) 26.92 mm × 6.92 mm
CD74HC244	M (SOIC, 20) 12.80	mm × 7.50 mm
	E (PDIP, 20) 25.40	mm × 6.35 mm
CD54HC244 F (CDIP	20) 26.92 mm × 6.92 mm
CD74HCT244	M (SOIC, 20) 12.80	mm × 7.50 mm
	E (PDIP, 20) 25.40	mm × 6.35 mm
CD54HCT244 F (CDIP, 20) 26.92 mm × 6.92 mm

(1) For all available packages, see the orderable addendum at the end of the data sheet.

240 241 240 244 1OE 1OE 1 1A0 1A0 2 2Y3 2Y3 3 1A1 1A1 4 2Y2 2Y2 5 1A2 1A2 6 2Y1 2Y1 7 1A3 1A3 8 2Y0 2Y0 9 GND GND 10 20 Vcc Vcc 19 2OE (241) 2OE (240, 244) 18 1Y0 1Y0 17 2A3 2A3 16 1Y1 1Y1 15 2A2 2A2 14 1Y2 1Y2 13 2A1 2A1 12 1Y3 1Y3 11 2A0 2A0

Pinout Diagram

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA.

Table of Contents

1 Features....1
2 Description....1
3 Revision History......2
4 Pin Configuration and Functions....3
5 Specifications....4

5.1 Absolute Maximum Ratings ^(1) ....4
5.2 Recommended Operating Conditions......4
5.3 Thermal Information....4
5.4 Electrical Characteristics '240....5
5.5 Electrical Characteristics '241....6
5.6 Electrical Characteristics '244....7
5.7 Switching Characteristics '240....8
5.8 Switching Characteristics '241....8
5.9 Switching Characteristics '244....9

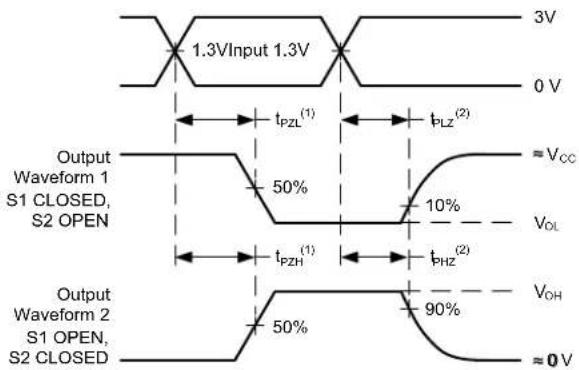

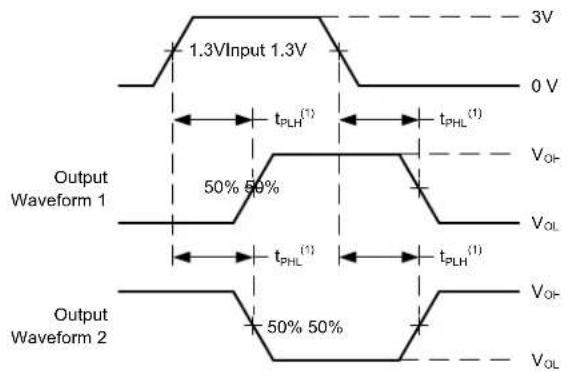

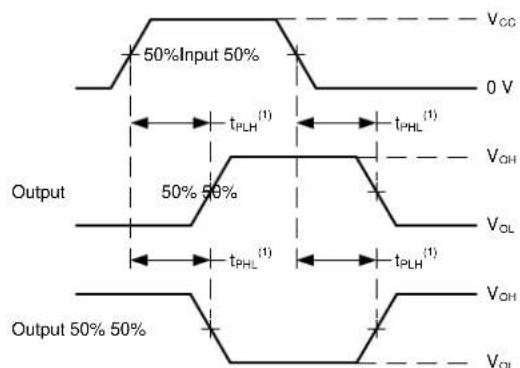

6 Parameter Measurement Information.... 11

7 Detailed Description....13

7.1 Overview.... 13

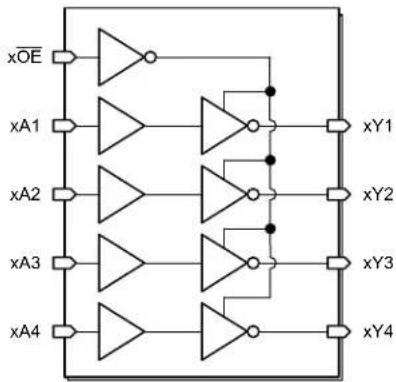

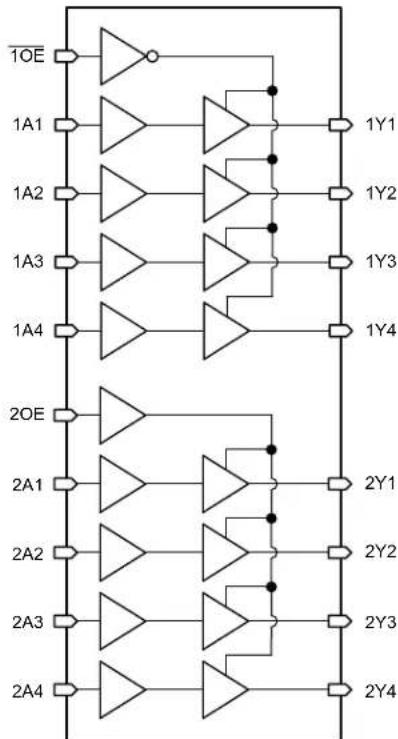

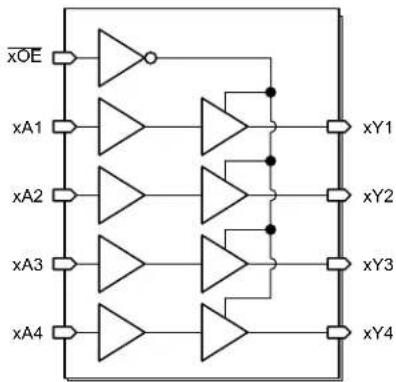

7.2 Functional Block Diagram.... 13

8 Power Supply Recommendations....15

9 Layout....15

9.1 Layout Guidelines.... 15

10 Device and Documentation Support....16

10.1 Receiving Notification of Documentation Updates..16
10.2 Support Resources.... 16
10.3 Trademarks.... 16
10.4 Electrostatic Discharge Caution....16
10.5 Glossary....16

11 Mechanical, Packaging, and Orderable

Information....16

3 Revision History

NOTE: Page numbers for previous revisions may differ from page numbers in the current version.

Changes from Revision E (October 2004) to Revision F (February 2022) Page

- Updated the numbering, formatting, tables, figures, and cross-references throughout the document to reflect modern data sheet standards....1

4 Pin Configuration and Functions

240 241 240 244 1OE 1OE 1 1A0 1A0 2 2Y3 2Y3 3 1A1 1A1 4 2Y2 2Y2 5 1A2 1A2 6 2Y1 2Y1 7 1A3 1A3 8 2Y0 2Y0 9 GND GND 10 20 Vcc Vcc 19 2OE (241) 2OE (240, 244) 18 1Y0 1Y0 17 2A3 2A3 16 1Y1 1Y1 15 2A2 2A2 14 1Y2 1Y2 13 2A1 2A1 12 1Y3 1Y3 11 2A0 2A0

J, N, DW, or PW package 20-Pin CDIP, PDIP, SOIC, or TSSOP Top View

5 Specifications

5.1 Absolute Maximum Ratings ^(1)

			MIN MAX UNIT
V_CC	Supply voltage -0.5 7 V
I_IK	Input clamp diode current For V	_I < -0.5 V or V_I > V_CC + 0.5 V ± 20 mA
I_OK	Output clamp diode current For V	_O < -0.5 V or V_O > V_CC + 0.5 V ± 20 mA
I_O	Drain current, per output For -0.5 V < V	_O < V_CC + 0.5 V ± 35 mA
I_O	Output source or sink current per output pin For V	_O > -0.5 V or V_O < V_CC + 0.5 V ± 25 mA
I_CC	Continuous current through V_CC or GND ±70 mA
T_J	Junction temperature 150 °C
T_stg	Storage temperature range		-65 150	°C
	Lead temperature (Soldering 10s) (SOIC - lead tips only)		300	°C

(1) Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under recommended operating conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

5.2 Recommended Operating Conditions

			MIN	MAX	UNIT
V_CC	Supply voltage range	HC types	2	6	V
		HCT types	4.5	5.5
V_I, V_O	Input or output voltage		0	V_CC	V
t_t	Input rise and fall time	2 V	1000		ns
		4.5 V	500
		6 V	400
T_A	Temperature range		-55	125	°C

5.3 Thermal Information

THERMAL METRIC		D (SOIC)	DB (SSOP)	N (PDIP)	NS (SO)	PW (TSSOP)	UNIT
		16 PINS	16 PINS	16 PINS	16 PINS	16 PINS
R_ JA	Junction-to-ambient thermal resistance(1)	73	82	67	64	108	°C/W

(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC package thermal metrics application report.

5.4 Electrical Characteristics '240

PARAMETER		TEST CONDITIONS(2)	V_CC (V)	25°C	-40°C to 85°C	-55°C to 125°C	UNIT
				MIN TYP MAX MIN MAX	MIN MAX
HC TYPES
V_IH	High level input voltage		2 1.5	1.5 1.5			V4.5 3.15 3.15 3.15
			6 4.2	4.2 4.2
V_IL	Low level input voltage		2 0.5	0.5 0.5			V4.5 1.35 1.35 1.35
			6 1.8	1.8 1.8
V_OH	High level output voltage	I_OH=-20μA 2 1.9 1.9 1.9					V
		I_OH=-20μA	4.5	4.4 4.4 4.4
		I_OH=-20μA 6 5.9 5.9 5.9
	High level output voltage	I_OH=-6mA	4.5 3.9	8 3.84 3.7
		I_OH=-7.8 mA	6	5.48 5.34 5.2
V_OL	Low level output voltage	I_OL=20μA	2 0.1	0.1 0.1			V
		I_OL=20μA 4.5		0.1 0.1 0.1
		I_OL=20μA	6 0.1	0.1 0.1
	Low level output voltage	I_OL=6mA	4.5 0.2	6 0.33 0.4
		I_OL=7.8 mA	6	0.26	0.33 0.4
I_I	Input leakage current	V_I=V_CC or GND	6	±0.1	±1	±1	μA
I_CC	Supply current	V_I=V_CC or GND	6	8	80	160	μA
I_OZ	Three-state leakage current		6	±0.5	±0.5	±10 μA
HCT TYPES
V_IH	High level input voltage		4.5 to 5.5	2	2	2	V
V_IL	Low level input voltage		4.5 to 5.5	0.8	0.8 0.8 V
V_OH	High level output voltage	V_OH=-20μA	4.5	4.4 4.4 4.4			V
	High level output voltage	V_OH=-6mA	4.5 3.9	8 3.84 3.7
V_OL	Low level output voltage	V_OL=20μA	4.5	0.1	0.1 0.1		V
	Low level output voltage	V_OL=6mA 4.5 0.26 0.33 0.4
I_I	Input leakage current	V_I=V_CC or GND	5.5	±0.1	±1	±1	μA
I_CC	Supply current	V_I=V_CC or GND	5.5	8	80	160	μA
I_OZ	Three-state leakage current		5.5 ±0.5	±5	±10 μA
I_CC ^(1)	Additional supply current per input pin	nA0 - A3 inputs held at V_CC-2.1	4.5 to 5.5	100 540	675	735	μA
		1OE inputs held at V_CC-2.1	4.5 to 5.5	100 252	315	343	μA
		2OE inputs held at V_CC-2.1	4.5 to 5.5	100 252	315	343	μA

(1) For dual-supply systems theoretical worst case ( V_I = 2.4 V , V_CC = 5.5 V ) specification is 1.8 mA.
(2) V_I = V_IH or V_IL , unless otherwise noted.

5.5 Electrical Characteristics '241

PARAMETER		TEST CONDITIONS(2)	V_CC (V)	25°C	-40°C to 85°C	-55°C to 125°C	UNIT
				MIN TYP MAX MIN MAX	MIN MAX
HC TYPES
V_IH	High level input voltage		2 1.5	1.5 1.5			V4.5
			6 4.2	4.2 4.2
V_IL	Low level input voltage		2 0.5	0.5 0.5			V4.5
			6 1.8	1.8 1.8
V_OH	High level output voltage	I_OH=-20μA 2 1.9 1.9 1.9					V
		I_OH=-20μA	4.5	4.4 4.4 4.4
		I_OH=-20μA 6 5.9 5.9 5.9
	High level output voltage	I_OH=-6mA	4.5 3.9	8 3.84 3.7
		I_OH=-7.8 mA	6	5.48 5.34 5.2
V_OL	Low level output voltage	I_OL=20μA	2 0.1	0.1 0.1			V
		I_OL=20μA 4.5		0.1 0.1 0.1
		I_OL=20μA	6 0.1	0.1 0.1
	Low level output voltage	I_OL=6mA	4.5 0.2	6 0.33 0.4
		I_OL=7.8 mA	6	0.26	0.33 0.4
I_I	Input leakage current	V_I=V_CC or GND	6	±0.1	±1	±1	μA
I_CC	Supply current	V_I=V_CC or GND	6	8	80	160	μA
I_OZ	Three-state leakage current		6	±0.5	±0.5	±10 μA
HCT TYPES
V_IH	High level input voltage		4.5 to 5.5	2	2	2	V
V_IL	Low level input voltage		4.5 to 5.5	0.8	0.8 0.8 V
V_OH	High level output voltage	V_OH=-20μA	4.5	4.4 4.4 4.4			V
	High level output voltage	V_OH=-6mA	4.5 3.9	8 3.84 3.7
V_OL	Low level output voltage	V_OL=20μA	4.5	0.1	0.1 0.1		V
	Low level output voltage	V_OL=6mA 4.5 0.26 0.33 0.4
I_I	Input leakage current	V_I=V_CC or GND	5.5	±0.1	±1	±1	μA
I_CC	Supply current	V_I=V_CC or GND	5.5	8	80	160	μA
I_OZ	Three-state leakage current		5.5 ±0.5	±5	±10 μA
I_CC ^(1)	Additional supply current per input pin	nA0 - A3 inputs held at V_CC-2.1	4.5 to 5.5	100 252	315	343	μA
		1OE inputs held at V_CC-2.1	4.5 to 5.5	100 252	315	343	μA
		2OE inputs held at V_CC-2.1	4.5 to 5.5	100 540	675	735	μA

(1) For dual-supply systems theoretical worst case ( V_I=2.4 V , V_CC=5.5 V ) specification is 1.8 mA.
(2) V_I = V_IH or V_IL , unless otherwise noted.

5.6 Electrical Characteristics '244

PARAMETER		TEST CONDITIONS(2)	V_CC (V)	25°C	-40°C to 85°C	-55°C to 125°C	UNIT
				MIN TYP MAX MIN MAX	MIN MAX
HC TYPES
V_IH	High level input voltage		2 1.5	1.5 1.5			V4.5 3.15 3.15 3.15
			6 4.2	4.2 4.2
V_IL	Low level input voltage		2 0.5	0.5 0.5			V4.5 1.35 1.35 1.35
			6 1.8	1.8 1.8
V_OH	High level output voltage	I_OH=-20μA 2 1.9 1.9 1.9					V
		I_OH=-20μA	4.5	4.4 4.4 4.4
		I_OH=-20μA 6 5.9 5.9 5.9
	High level output voltage	I_OH=-6mA	4.5 3.9	8 3.84 3.7
		I_OH=-7.8 mA	6	5.48 5.34 5.2
V_OL	Low level output voltage	I_OL=20μA	2 0.1	0.1 0.1			V
		I_OL=20μA 4.5		0.1 0.1 0.1
		I_OL=20μA	6 0.1	0.1 0.1
	Low level output voltage	I_OL=6mA	4.5 0.2	6 0.33 0.4
		I_OL=7.8 mA	6	0.26	0.33 0.4
I_I	Input leakage current	V_I=V_CC or GND	6	±0.1	±1	±1	μA
I_CC	Supply current	V_I=V_CC or GND	6	8	80	160	μA
I_OZ	Three-state leakage current		6	±0.5	±0.5	±10 μA
HCT TYPES
V_IH	High level input voltage		4.5 to 5.5	2	2	2	V
V_IL	Low level input voltage		4.5 to 5.5	0.8	0.8 0.8 V
V_OH	High level output voltage	V_OH=-20μA	4.5	4.4 4.4 4.4			V
	High level output voltage	V_OH=-6mA	4.5 3.9	8 3.84 3.7
V_OL	Low level output voltage	V_OL=20μA	4.5	0.1	0.1 0.1		V
	Low level output voltage	V_OL=6mA 4.5 0.26 0.33 0.4
I_I	Input leakage current	V_I=V_CC or GND	5.5	±0.1	±1	±1	μA
I_CC	Supply current	V_I=V_CC or GND	5.5	8	80	160	μA
I_OZ	Three-state leakage current		5.5 ±0.5	±5	±10 μA
I_CC ^(1)	Additional supply current per input pin	nA0 - A3 inputs held at V_CC-2.1	4.5 to 5.5	100 252	315	343	μA
		1OE inputs held at V_CC-2.1	4.5 to 5.5	100 252	315	343	μA
		2OE inputs held at V_CC-2.1	4.5 to 5.5	100 252	315	343	μA

(1) For dual-supply systems theoretical worst case ( V_I = 2.4 V , V_CC = 5.5 V ) specification is 1.8 mA.
(2) V_I = V_IH or V_IL , unless otherwise noted.

5.7 Switching Characteristics '240

C_L=50 pF, Input t, t_f=6 ns

PARAMETER V		cc (V)	25°C	-40°C to 85°C	-55°C to 125°C	UNIT
			MIN TYP MAX MIN TYP	MAX MIN TYP MAX
HC TYPES
t_PLH, t_PHL	Propagation delay Data to outputs	2 100	125 150			ns4.5 8
			(3) 20	25 30
		6 17	21 26
t_THL, t_TLH	Output enable and disable time	2 150	190 225			ns
		4.5 30	38 45
		5	12
		6 26	33 38
t_TLH, t_THL	Output transition time	2 60	75 90			ns4.5 12 15 18
		6 10	13 15
C_I	Input capacitance 10	10	10 10 pF
C_O	Three-state output capacitance		20	20 20 pF
C_PD	Power dissipation capacitance ^(1) (2)	5	38 ^(3)			pF
HCT TYPES
t_PHL, t_PLH	Data to outputs	4.5 9	(3) 22	28 33 ns
t_TLH, t_THL	Output enable and disable times	4.5 30	38 45 ns
t_THL, t_TLH	Output transition time	4.5 12	15 18 ns
C_I	Input capacitance 10	10	10 10 pF
C_PD	Power dissipation capacitance ^(1) (2)	5 40			pF

(1) C_PD is used to determine the dynamic power consumption, per channel.

(2) P_D = V_CC^2 f_i (C_PD + C_L) where f_i = input frequency, f_o = output frequency, C_L = output load capacitance, V_CC = supply voltage.

(3) C_L = 15 pF and V_CC = 5 V .

5.8 Switching Characteristics '241

C_L=50 pF, Input t_f,t_f=6 ns

PARAMETER V		cc (V)	25°C		-40°C to 85°C		-55°C to 125°C		UNIT
			MIN TYP MAX MIN TYP		MAX MIN TYP MAX
HC TYPES
t_PLH, t_PHL	Propagation delay Data to outputs	2 110	140 165						ns4.5 9
			(3) 22		28 33
		6 19	24 28
t_THL, t_TLH	Output enable and disable time	2 150	190 225						ns
		4.5 30	38 45
		5	12
		6 26	33 38
t_TLH, t_THL	Output transition time	2 60	75 90						ns4.5 12 15 18
		6 10	13 15
C_I	Input capacitance		10	10	10 10	pF
C_O	Three-state output capacitance			20	20 20	pF
C_PD	Power dissipation capacitance^(1) (2)	5	34^(3)						pF
HCT TYPES
t_PHL, t_PLH	Data to outputs	4.5	10^(3)	25	31 38	ns
t_TLH, t_THL	Output enable and disable times	4.5 30	38 45 ns
t_THL, t_TLH	Output transition time	4.5 12	15 18 ns
C_I	Input capacitance		10	10	10 10	pF
C_PD	Power dissipation capacitance^(1) (2)	5 38					pF

(1) C_PD is used to determine the dynamic power consumption, per channel.

(2) P_D = V_CC^2f_i(C_PD + C_L) where f_i = input frequency, f_0 = output frequency, C_L = output load capacitance, V_CC = supply voltage.

(3) C_L = 15 pF and V_CC = 5 V .

5.9 Switching Characteristics '244

C_L=50 pF, Input t_f,t_f=6 ns

PARAMETER V		cc (V)	25°C		-40°C to 85°C		-55°C to 125°C		UNIT
			MIN TYP MAX MIN TYP		MAX MIN TYP MAX
HC TYPES
t_PLH, t_PHL	Propagation delay Data to outputs	2 110	140 165						ns4.5 9
			(3) 22		28 33
		6 19	24 28
t_THL, t_TLH	Output enable and disable time	2 150	190 225						ns
		4.5 30	38 45
		5	12
		6 26	33 38
t_TLH, t_THL	Output transition time	2 60	75 90						ns4.5 12 15 18
		6 10	13 15
C_I	Input capacitance		10	10	10 10	pF
C_O	Three-state output capacitance			20	20 20	pF
C_PD	Power dissipation capacitance^(1) (2)	5	46^(3)						pF
HCT TYPES
t_PHL, t_PLH	Data to outputs	4.5	10^(3)	25	31 38	ns
t_TLH, t_THL	Output enable and disable times	4.5 30	38 45 ns
t_THL, t_TLH	Output transition time	4.5 12	15 18 ns
C_I	Input capacitance		10	10	10 10	pF
C_PD	Power dissipation capacitance^(1) (2)	5 40					pF

(1) C_PD is used to determine the dynamic power consumption, per channel.

(2) P_D = V_CC^2f_i(C_PD + C_L) where f_i = input frequency, f_0 = output frequency, C_L = output load capacitance, V_CC = supply voltage.

(3) C_L = 15 pF and V_CC = 5 V .

6 Parameter Measurement Information

Phase relationships between waveforms were chosen arbitrarily. All input pulses are supplied by generators having the following characteristics: PRR ≤ 1 MHz, Z_O = 50 , t_t < 6 ns.

For clock inputs, f_max is measured when the input duty cycle is 50%.

The outputs are measured one at a time with one input transition per measurement.

From Output Under Test Test Point Vcc RL CL(1) S1 S2

(1) C_L includes probe and test-fixture capacitance.

Figure 6-1. Load Circuit for 3-State Outputs

50%Input 50% Output 50% 50% tPLH(1) tPHL(1) VCC 0 V VOH VOL tPHL(1) tPLH(1) VOH Output 50% 50% VOL

(1) The greater between t_PLH and t_PHL is the same as t_pd .

Figure 6-2. Voltage Waveforms, Standard CMOS Inputs Setup Propagation Delays

(1) t_PLZ and t_PHZ are the same as t_dis .
(2) t_PZL and t_PZH are the same as t_en .

Figure 6-3. Voltage Waveforms, Standard CMOS Inputs Propagation Delays

Input 90% 90% VCC 10% t_r^(1) 10% t_f^(1) 0 V Output 90% 90% VCH 10% t_r^(1) 10% t_f^(1) VOL

(1) The greater between t_r and t_f is the same as t_t .

Figure 6-4. Voltage Waveforms, Input and Output Transition Times for Standard CMOS Input Devices

(1) The greater between t_PLH and t_PHL is the same as t_pd .
Figure 6-5. Voltage Waveforms, TTL-Compatible CMOS Inputs Propagation Delays

(1) t_PLZ and t_PHZ are the same as t_dis .

(2) t_PZL and t_PZH are the same as t_en .

Figure 6-6. Voltage Waveforms, TTL-Compatible CMOS Inputs Propagation Delays

7 Detailed Description

7.1 Overview

The 'HC240 and 'HCT240 are inverting three-state buffers having two active-low output enables. The CD74HC241, 'HCT241, 'HC244 and 'HCT244 are non-inverting three-state buffers that differ only in that the 241 has one activehigh and one active-low output enable, and the 244 has two active-low output enables. All three types have identical pinouts.

7.2 Functional Block Diagram

Figure 7-1. Functional Block Diagram '240

Figure 7-2. Functional Block Diagram '241

Figure 7-3. Functional Block Diagram '244

8 Power Supply Recommendations

The power supply can be any voltage between the minimum and maximum supply voltage rating located in the Recommended Operating Conditions. Each V_CC terminal should have a good bypass capacitor to prevent power disturbance. A 0.1- F capacitor is recommended for this device. It is acceptable to parallel multiple bypass caps to reject different frequencies of noise. The 0.1- F and 1- F capacitors are commonly used in parallel. The bypass capacitor should be installed as close to the power terminal as possible for best results.

9 Layout

9.1 Layout Guidelines

When using multiple-input and multiple-channel logic devices inputs must not ever be left floating. In many cases, functions or parts of functions of digital logic devices are unused; for example, when only two inputs of a triple-input AND gate are used or only 3 of the 4 buffer gates are used. Such unused input pins must not be left unconnected because the undefined voltages at the outside connections result in undefined operational states. All unused inputs of digital logic devices must be connected to a logic high or logic low voltage, as defined by the input voltage specifications, to prevent them from floating. The logic level that must be applied to any particular unused input depends on the function of the device. Generally, the inputs are tied to GND or V CC, whichever makes more sense for the logic function or is more convenient.

10 Device and Documentation Support

TI offers an extensive line of development tools. Tools and software to evaluate the performance of the device, generate code, and develop solutions are listed below.

10.1 Receiving Notification of Documentation Updates

To receive notification of documentation updates, navigate to the device product folder on ti.com. Click on Subscribe to updates to register and receive a weekly digest of any product information that has changed. For change details, review the revision history included in any revised document.

10.2 Support Resources

TI E2E™ support forums are an engineer's go-to source for fast, verified answers and design help — straight from the experts. Search existing answers or ask your own question to get the quick design help you need.

Linked content is provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use.

10.3 Trademarks

TI E2E ^TM is a trademark of Texas Instruments.

All trademarks are the property of their respective owners.

10.4 Electrostatic Discharge Caution

This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.

ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications.

10.5 Glossary

TI Glossary This glossary lists and explains terms, acronyms, and definitions.

11 Mechanical, Packaging, and Orderable Information

The following pages include mechanical, packaging, and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser-based versions of this data sheet, refer to the left-hand navigation.

PACKAGING INFORMATION

Orderable Device Status(1)		Package Type	Package Drawing	Pins	Package Qty	Eco Plan(2)	Lead finish/ Ball material(6)	MSL Peak Temp(3)	Op Temp (°C)	Device Marking(4/5)	Samples
CD54HC240F3A ACTIVE CDIP J 20 1 Non-RoHS						& Green	SNPB N / A for Pkg Type -55 to 125 8407401RA			CD54HC240F3A	Samples
CD54HC244F ACTIVE CDIP J 20 1 Non-RoHS						& Green	SNPB N / A for Pkg Type -55 to 125 CD54HC244F				Samples
CD54HC244F3A ACTIVE CDIP J 20 1 Non-RoHS						& Green	SNPB N / A for Pkg Type -55 to 125 8409601RA			CD54HC244F3A	Samples
CD54HCT240F3A ACTIVE CDIP J 20 1 Non-RoHS						& Green	SNPB N / A for Pkg Type -55 to 125 8550501RA			CD54HCT240F3A	Samples
CD54HCT241F3A ACTIVE CDIP J 20 1 Non-RoHS						& Green	SNPB N / A for Pkg Type -55 to 125 CD54HCT241F3A				Samples
CD54HCT244F ACTIVE CDIP J 20 1 Non-RoHS						& Green	SNPB N / A for Pkg Type -55 to 125 CD54HCT244F				Samples
CD54HCT244F3A ACTIVE CDIP J 20 1 Non-RoHS						& Green	SNPB N / A for Pkg Type -55 to 125 8513001RA			CD54HCT244F3A	Samples
CD74HC240E ACTIVE PDIP N 20 20 RoHS &						Non-Green	NIPDAU	N / A for Pkg Type -55 to 125 CD74HC240E			Samples
CD74HC240M	ACTIVE	SOIC	DW	20	25	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	-55 to 125	HC240M	Samples
CD74HC240M96	ACTIVE	SOIC	DW	20	2000	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	-55 to 125	HC240M	Samples
CD74HC241E ACTIVE PDIP N 20 20 RoHS &						Non-Green	NIPDAU	N / A for Pkg Type -55 to 125 CD74HC241E			Samples
CD74HC241M	ACTIVE	SOIC	DW	20	25	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	-55 to 125	HC241M	Samples
CD74HC241M96	ACTIVE	SOIC	DW	20	2000	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	-55 to 125	HC241M	Samples
CD74HC241M96E4	ACTIVE	SOIC	DW	20	2000	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	-55 to 125	HC241M	Samples
CD74HC241MG4	ACTIVE	SOIC	DW	20	25	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	-55 to 125	HC241M	Samples
CD74HC244E ACTIVE PDIP N 20 20 RoHS &						Non-Green	NIPDAU	N / A for Pkg Type -55 to 125 CD74HC244E			Samples
CD74HC244EE4 ACTIVE PDIP N 20 20 RoHS &						Non-Green	NIPDAU	N / A for Pkg Type -55 to 125 CD74HC244E			Samples
CD74HC244M	ACTIVE	SOIC	DW	20	25	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	-55 to 125	HC244M	Samples

Addendum-Page 1

Orderable Device Status(1)	Package Type	Package Drawing	Pins	Package Qty	Eco Plan(2)	Lead finish/ Ball material(6)	MSL Peak Temp(3)	Op Temp (°C)	Device Marking(4/5)	Samples
CD74HC244M96 ACTIVE SOIC DW 20 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -55 to 125 HC244M										Samples
CD74HC244M96E4 ACTIVE SOIC DW 20 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -55 to 125 HC244M										Samples
CD74HC244M96G4 ACTIVE SOIC DW 20 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -55 to 125 HC244M										Samples
CD74HCT240E	ACTIVE	PDIP	N	20	20	RoHS & Non-Green	NIPDAU	N / A for Pkg Type	-55 to 125 CD74HCT240E
CD74HCT240EE4	ACTIVE	PDIP	N	20	20	RoHS & Non-Green	NIPDAU	N / A for Pkg Type	-55 to 125 CD74HCT240E
CD74HCT240M	ACTIVE	SOIC	DW	20	25	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	-55 to 125	HCT240M
CD74HCT240M96	ACTIVE	SOIC	DW	20	2000	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	-55 to 125	HCT240M
CD74HCT240MG4	ACTIVE	SOIC	DW	20	25	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	-55 to 125	HCT240M
CD74HCT240PW	ACTIVE	TSSOP	PW	20	70	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	-55 to 125	HK240
CD74HCT240PWR	ACTIVE	TSSOP	PW	20	2000	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	-55 to 125	HK240
CD74HCT240PWT	ACTIVE	TSSOP	PW	20	250	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	-55 to 125	HK240
CD74HCT241E	ACTIVE	PDIP	N	20	20	RoHS & Non-Green	NIPDAU	N / A for Pkg Type	-55 to 125 CD74HCT241E
CD74HCT241EE4	ACTIVE	PDIP	N	20	20	RoHS & Non-Green	NIPDAU	N / A for Pkg Type	-55 to 125 CD74HCT241E
CD74HCT241M	ACTIVE	SOIC	DW	20	25	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	-55 to 125	HCT241M
CD74HCT241M96	ACTIVE	SOIC	DW	20	2000	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	-55 to 125	HCT241M
CD74HCT244E	ACTIVE	PDIP	N	20	20	RoHS & Non-Green	NIPDAU	N / A for Pkg Type	-55 to 125 CD74HCT244E
CD74HCT244M	ACTIVE	SOIC	DW	20	25	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	-55 to 125	HCT244M
CD74HCT244M96	ACTIVE	SOIC	DW	20	2000	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	-55 to 125	HCT244M
CD74HCT244ME4	ACTIVE	SOIC	DW	20	25	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	-55 to 125	HCT244M

(1) The marketing status values are defined as follows:

TEXAS

INSTRUMENTS

www.ti.com

PACKAGE OPTION ADDENDUM

4-Feb-2022

ACTIVE: Product device recommended for new designs.

LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.

NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.

PREVIEW: Device has been announced but is not in production. Samples may or may not be available.

OBSOLETE: TI has discontinued the production of the device.

(2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free".

RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.

Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of <=1000ppm threshold. Antimony trioxide based flame retardants must also meet the <=1000ppm threshold requirement.

(3) MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.

(4) There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.

(5) Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "\~" will appear on a device. If a line is indented then it is a continuation of the previous line and the two combined represent the entire Device Marking for that device.

(6) Lead finish/Ball material - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead finish/Ball material values may wrap to two lines If the finish value exceeds the maximum column width.

Important Information and Disclaimer: The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.

OTHER QUALIFIED VERSIONS OF CD54HC240, CD54HC244, CD54HCT240, CD54HCT241, CD54HCT244, CD74HC240, CD74HC244, CD74HCT240, CD74HCT241, CD74HCT244 :

• Catalog : CD74HC240, CD74HC244, CD74HCT240, CD74HCT241, CD74HCT244

• Military : CD54HC240, CD54HC244, CD54HCT240, CD54HCT241, CD54HCT244

NOTE: Qualified Version Definitions:

• Catalog - TI's standard catalog product
• Military - QML certified for Military and Defense Applications

TAPE AND REEL INFORMATION

*All dimensions are nominal

Device Package	Type	Package Drawing	Pins	SPQ Reel	Diameter (mm)	Reel Width W1 (mm)	A0 (mm)	B0 (mm)	K0 (mm)	P1 (mm)	W (mm)	Pin1 Quadrant
CD74HC240M96 SOIC	DW 20	2000 330.0	24.4	10.8 13.3	2.7 12.0 24	0 Q1
CD74HC241M96 SOIC	DW 20	2000 330.0	24.4	10.8 13.3	2.7 12.0 24	0 Q1
CD74HC244M96 SOIC	DW 20	2000 330.0	24.4	10.8 13.3	2.7 12.0 24	0 Q1
CD74HCT240M96 SOIC	DW 20	2000 330.0	24.4	10.8 13.3	2.7 12.0 24	0 Q1
CD74HCT240PWR TS	SOP PW	20 2000 330.0	16	4 6.95 7.1	1.6 8.0 16	0 Q1
CD74HCT240PWT TS	SOP PW	20 250 330	16.4	6.95 7.1	1.6 8.0 16	0 Q1
CD74HCT241M96 SOIC	DW 20	2000 330.0	24.4	10.8 13.3	2.7 12.0 24	0 Q1
CD74HCT244M96 SOIC	DW 20	2000 330.0	24.4	10.8 13.3	2.7 12.0 24	0 Q1

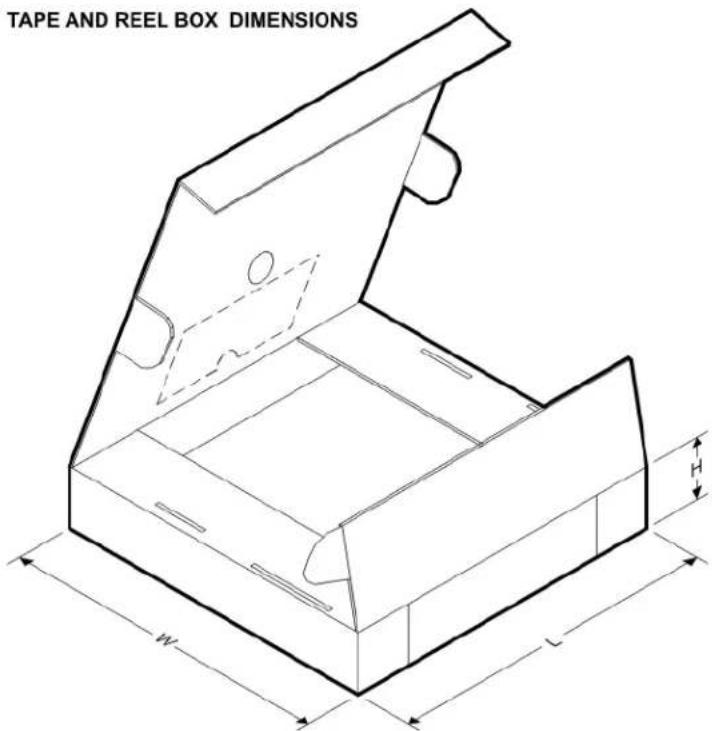

TAPE AND REEL BOX DIMENSIONS W L

*All dimensions are nominal

Device	Package Type	Package Drawing	Pins	SPQ	Length (mm)	Width (mm)	Height (mm)
CD74HC240M96 SOIC	DW 20 2000 367.0	367.0 45.0
CD74HC241M96 SOIC	DW 20 2000 367.0	367.0 45.0
CD74HC244M96 SOIC	DW 20 2000 367.0	367.0 45.0
CD74HCT240M96 SOIC	DW 20 2000 367.0	367.0 45.0
CD74HCT240PWR TS$OP	PW 20 2000 85	3.0 449.0 35.0
CD74HCT240PWT TSS	OP PW 20 250	853.0 449.0 35.0
CD74HCT241M96 SOIC	DW 20 2000 367.0	367.0 45.0
CD74HCT244M96 SOIC	DW 20 2000 367.0	367.0 45.0

TUBE

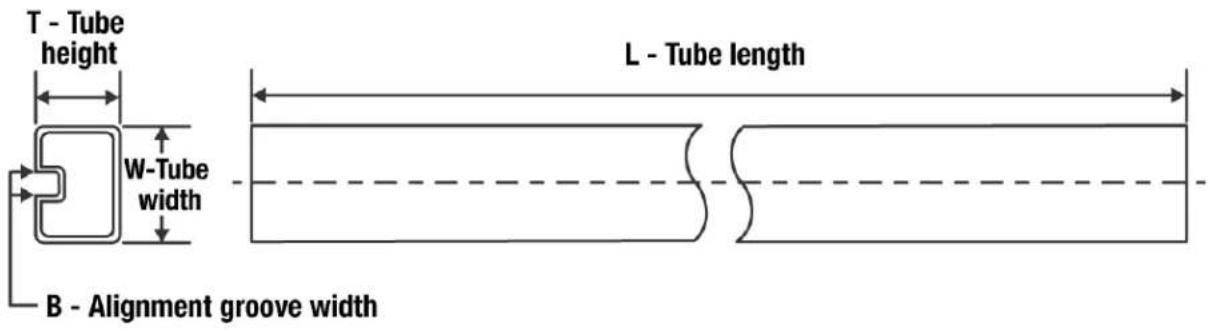

T - Tube height L - Tube length W-Tube width B - Alignment groove width

*All dimensions are nominal

Device	Package Name	Package Type	Pins	SPQ	L (mm)	W (mm)	T (μm)	B (mm)
CD74HC240E N PDIP	20 20 506 13.97 1	1230 4.32
CD74HC240M DW SOIC	20 25 507 12.8	5080	6.6
CD74HC241E N PDIP	20 20 506 13.97 1	1230 4.32
CD74HC241M DW SOIC	20 25 507 12.8	5080	6.6
CD74HC241MG4	DW	SOIC	20	25	507	12.83	5080	6.6
CD74HC244E N PDIP	20 20 506 13.97 1	1230 4.32
CD74HC244EE4	N PDIP 20	20 506 13.97 1	1230 4.32
CD74HC244M DW SOIC	20 25 507 12.8	5080	6.6
CD74HCT240E	N PDIP 20	20 506 13.97 1	1230 4.32
CD74HCT240EE4	N PDIP 20	20 506 13.97 1	1230 4.32
CD74HCT240M	DW	SOIC	20	25	507	12.83	5080	6.6
CD74HCT240MG4	DW	SOIC	20	25	507	12.83	5080	6.6
CD74HCT240PW	PW	TSSOP	20	70	530	10.2	3600	3.5
CD74HCT241E	N PDIP 20	20 506 13.97 1	1230 4.32
CD74HCT241EE4	N PDIP 20	20 506 13.97 1	1230 4.32
CD74HCT241M	DW	SOIC	20	25	507	12.83	5080	6.6
CD74HCT244E	N PDIP 20	20 506 13.97 1	1230 4.32
CD74HCT244M	DW	SOIC	20	25	507	12.83	5080	6.6
CD74HCT244ME4	DW	SOIC	20	25	507	12.83	5080	6.6

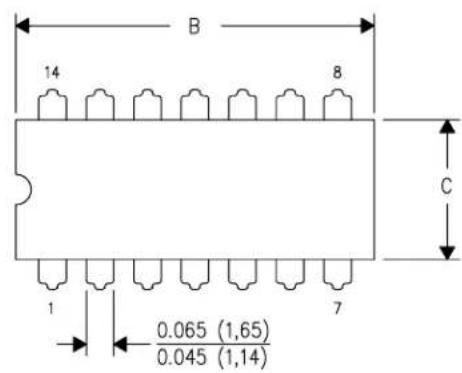

B 14 8 C 1 0.065 (1,65) 0.045 (1,14)

PINS **DIM	14	16	18	20
A	0.300(7,62)BSC	0.300(7,62)BSC	0.300(7,62)BSC	0.300(7,62)BSC
B MAX	0.785(19,94)	.840(21,34)	0.960(24,38)	1.060(26,92)
B MIN	—	—	—	—
C MAX	0.300(7,62)	0.300(7,62)	0.310(7,87)	0.300(7,62)
C MIN	0.245(6,22)	0.245(6,22)	0.220(5,59)	0.245(6,22)

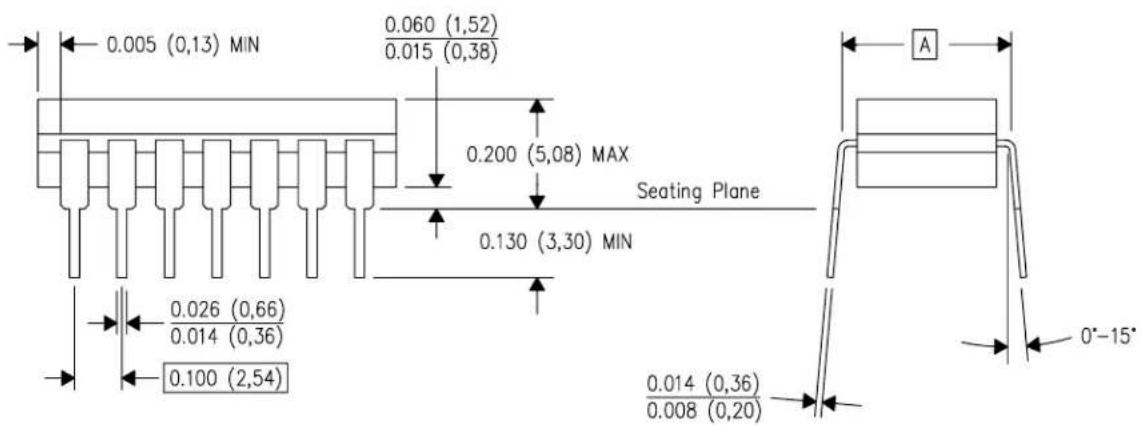

0.005 (0,13) MIN 0.060 (1,52) 0.015 (0,38) 0.200 (5,08) MAX Seating Plane 0.130 (3,30) MIN 0.026 (0,66) 0.014 (0,36) 0.100 (2,54) 0.014 (0,36) 0.008 (0,20) A 0°-15°

4040083/F 03/03

NOTES:

A. All linear dimensions are in inches (millimeters).
B. This drawing is subject to change without notice.
C. This package is hermetically sealed with a ceramic lid using glass frit.
D. Index point is provided on cap for terminal identification only on press ceramic glass frit seal only.
E. Falls within MIL STD 1835 GDIP1-T14, GDIP1-T16, GDIP1-T18 and GDIP1-T20.

N (R-PDIP-T\*\*)

16 PINS SHOWN

PLASTIC DUAL-IN-LINE PACKAGE

A 16 9 0.260 (6,60) 0.240 (6,10) 1 8 0.070 (1,78) 0.045 (1,14)

C

DIM\PINS **	14	16	18	20
A MAX	0.775(19,69)	0.775(19,69)	0.920(23,37)	1.060(26,92)
A MIN	0.745(18,92)	0.745(18,92)	0.850(21,59)	0.940(23,88)
MS-001VARIATION	AA	BB	AC	AD

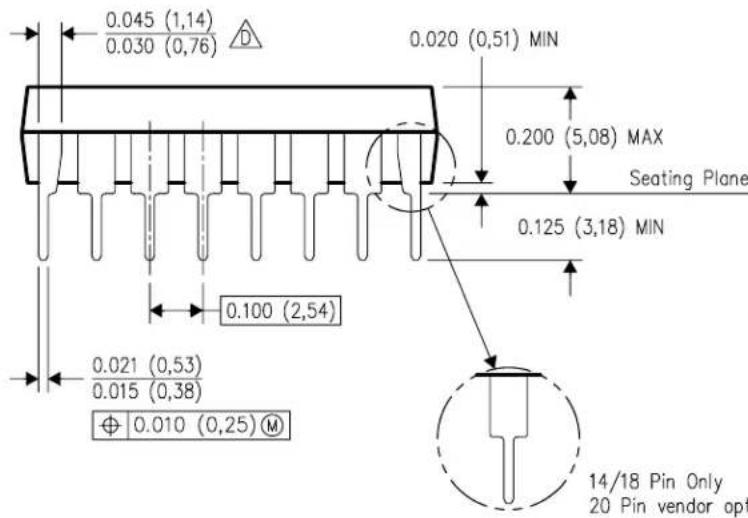

0.045 (1,14) 0.030 (0,76) D 0.020 (0,51) MIN 0.200 (5,08) MAX Seating Plane 0.125 (3,18) MIN 0.100 (2,54) 0.021 (0,53) 0.015 (0,38) ⊕ 0.010 (0,25) M 14/18 Pin Only 20 Pin vendor opt

0.325 (8,26) 0.300 (7,62) 0.015 (0,38) Gauge Plane 0.010 (0,25) NOM 0.430 (10,92) MAX

4040049/E 12/2002

NOTES: A. All linear dimensions are in inches (millimeters).

B. This drawing is subject to change without notice.

C Falls within JEDEC MS-001, except 18 and 20 pin minimum body length (Dim A).

The 20 pin end lead shoulder width is a vendor option, either half or full width.

SOIC

4220724/A 05/2016

NOTES:

1. All linear dimensions are in millimeters. Dimensions in parenthesis are for reference only. Dimensioning and tolerancing per ASME Y14.5M.
2. This drawing is subject to change without notice.
3. This dimension does not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not exceed 0.15 mm per side.
4. This dimension does not include interlead flash. Interlead flash shall not exceed 0.43 mm per side.
5. Reference JEDEC registration MS-013.

SOIC

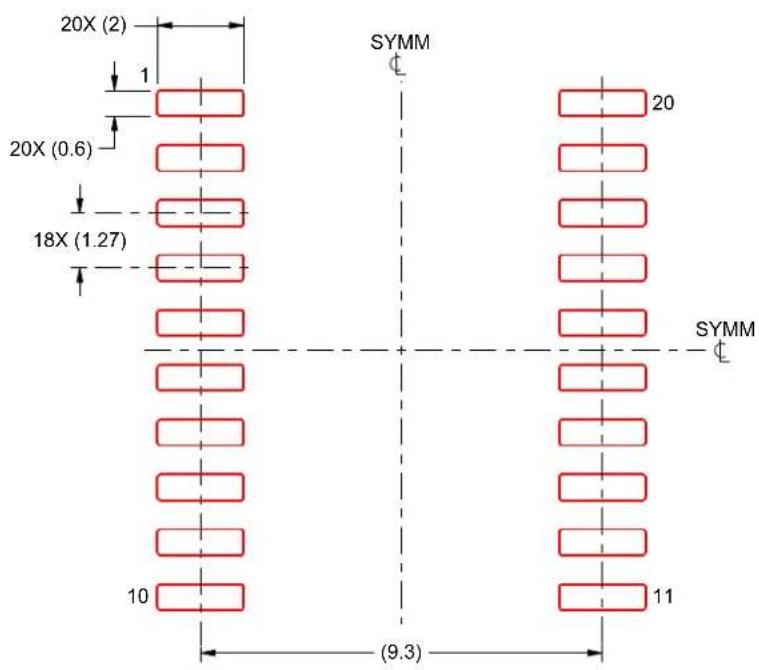

20X (2) 1 20X (0.6) 18X (1.27) (R0.05) TYP 10 SYMM 20 SYMM 11 (9.3)

LAND PATTERN EXAMPLE SCALE:6X

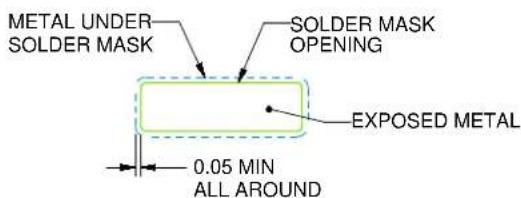

SOLDER MASK OPENING METAL 0.07 MAX ALL AROUND

NON SOLDER MASK DEFINED

METAL UNDER SOLDER MASK SOLDER MASK OPENING 0.07 MIN ALL AROUND

SOLDER MASK DEFINED
SOLDER MASK DETAILS

4220724/A 05/2016

NOTES: (continued)

1. Publication IPC-7351 may have alternate designs.
2. Solder mask tolerances between and around signal pads can vary based on board fabrication site.

SOIC

20X (2) 1 20X (0.6) 18X (1.27) 10 (9.3) SYMM 20 SYMM 11

SOLDER PASTE EXAMPLE
BASED ON 0.125 mm THICK STENCIL SCALE:6X

4220724/A 05/2016

NOTES: (continued)

1. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate design recommendations.
2. Board assembly site may have different recommendations for stencil design.

SMALL OUTLINE PACKAGE

A 6.6 TYP 6.2 PIN 1 INDEX AREA 1 20 18X 0.65 6.6 6.4 NOTE 3 2X 5.85 10 11 20X 0.30 0.19 B 4.5 4.3 NOTE 4 ⊕ 0.1@ A B

C SEATING PLANE 0.1 C 1.2 MAX

SEE DETAIL A (0.15) TYP

GAGE PLANE 0.25 0.15 0.05 0°-8° 0.75 0.50 DETAIL A TYPICAL

4220206/A 02/2017

NOTES:

1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing per ASME Y14.5M.
2. This drawing is subject to change without notice.
3. This dimension does not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not exceed 0.15 mm per side.
4. This dimension does not include interlead flash. Interlead flash shall not exceed 0.25 mm per side.
5. Reference JEDEC registration MO-153.

SMALL OUTLINE PACKAGE

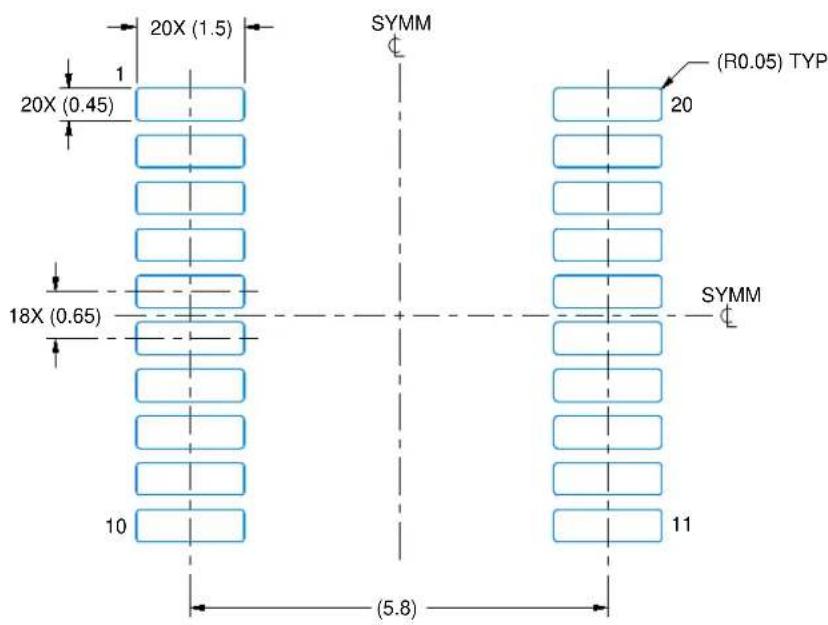

20X (1.5) 1 20X (0.45) 18X (0.65) 10 (5.8) SYMM (R0.05) TYP 20 SYMM 11

LAND PATTERN EXAMPLE
EXPOSED METAL SHOWN SCALE: 10X

SOLDER MASK OPENING METAL EXPOSED METAL 0.05 MAX ALL AROUND

NON-SOLDER MASK DEFINED (PREFERRED)

METAL UNDER SOLDER MASK SOLDER MASK OPENING EXPOSED METAL 0.05 MIN ALL AROUND

SOLDER MASK DETAILS

4220206/A 02/2017

NOTES: (continued)

1. Publication IPC-7351 may have alternate designs.
2. Solder mask tolerances between and around signal pads can vary based on board fabrication site.

SMALL OUTLINE PACKAGE

20X (1.5) 1 20X (0.45) SYMM (R0.05) TYP 20 18X (0.65) SYMM 10 (5.8) 11

SOLDER PASTE EXAMPLE
BASED ON 0.125 mm THICK STENCIL
SCALE: 10X

4220206/A 02/2017

NOTES: (continued)

1. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate design recommendations.
2. Board assembly site may have different recommendations for stencil design.

PW (R-PDSO-G20)

Example Board Layout

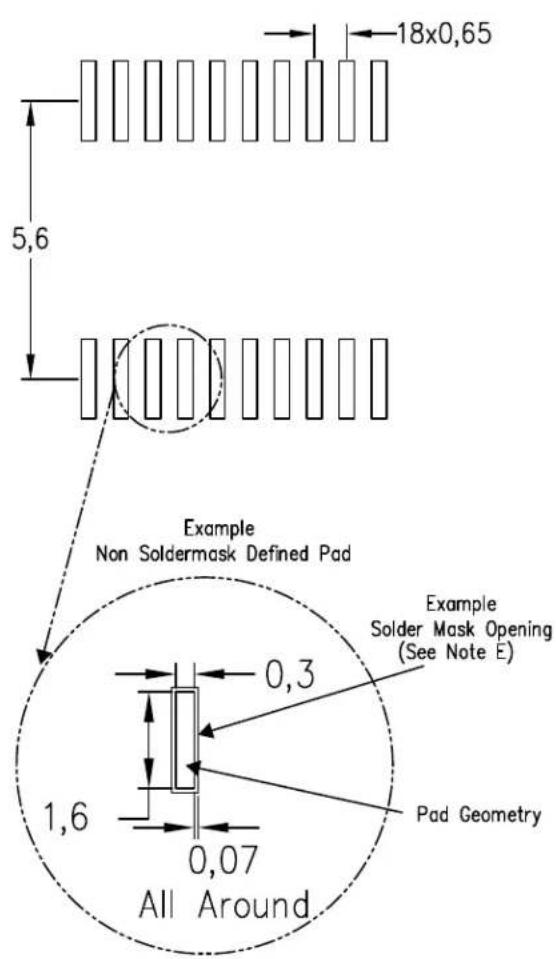

18x0,65 5,6 Example Non Soldermask Defined Pad Example Solder Mask Opening (See Note E) 0,3 1,6 0,07 Pad Geometry All Around

Based on a stencil thickness of .127mm (.005inch).

20x0,25 1,55 5,6 18x0,65

4211284-5/G 08/15

NOTES:

A. All linear dimensions are in millimeters.
B. This drawing is subject to change without notice.
C. Publication IPC-7351 is recommended for alternate design.
D. Laser cutting apertures with trapezoidal walls and also rounding corners will offer better paste release. Customers should contact their board assembly site for stencil design recommendations. Refer to IPC-7525 for other stencil recommendations.
E. Customers should contact their board fabrication site for solder mask tolerances between and around signal pads.

IMPORTANT NOTICE AND DISCLAIMER

TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATA SHEETS), DESIGN RESOURCES (INCLUDING REFERENCE DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES "AS IS" AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD PARTY INTELLECTUAL PROPERTY RIGHTS.

These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable standards, and any other safety, security, regulatory or other requirements.

These resources are subject to change without notice. TI grants you permission to use these resources only for development of an application that uses the TI products described in the resource. Other reproduction and display of these resources is prohibited. No license is granted to any other TI intellectual property right or to any third party intellectual property right. TI disclaims responsibility for, and you will fully indemnify TI and its representatives against, any claims, damages, costs, losses, and liabilities arising out of your use of these resources.

TI's products are provided subject to TI's Terms of Sale or other applicable terms available either on ti.com or provided in conjunction with such TI products. TI's provision of these resources does not expand or otherwise alter TI's applicable warranties or warranty disclaimers for TI products.

TI objects to and rejects any additional or different terms you may have proposed.

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Copyright © 2022, Texas Instruments Incorporated
