● 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
● Choice of True or Inverting Outputs
- Package Options Include Plastic "Small Outline" Packages, Ceramic Chip Carriers and Flat Packages, and Plastic and Ceramic DIPs
● Dependable Texas Instruments Quality and Reliability

'365A, '367A, 'LS365A, 'LS367A True Outputs '366A, '368A, 'LS366A, 'LS368A Inverting Outputs

description

These Hex buffers and line drivers are designed specifically to improve both the performance and density of three-state memory address drivers, clock drivers, and bus oriented receivers and transmitters. The designer has choice of selected combinations of inverting and noninverting outputs, symmetrical (active-low control) inputs.

These devices feature high fan-out, improved fan-in, and can be used to drive terminated lines down to 133 ohms.

The SN54365A thru SN54368A and SN54LS365A thru SN54LS368A are characterized for operation over the full military temperature range of -55^ to 125^ . The SN74365A thru SN74368A and SN74LS365A thru SN74LS368A are characterized for operation from 0^ to 70^ .

SN54365A, 366A, SN54LS365A, 366A ... J PACKAGE SN74365A, 366A ... N PACKAGE

SN74LS365A, SN74LS366A . . . D OR N PACKAGE (TOP VIEW)

G1 1 16 VCC A1 2 15 G2 Y1 3 14 A6 A2 4 13 Y6 Y2 5 12 A5 A3 6 11 Y5 Y3 7 10 A4 GND 8 9 Y4

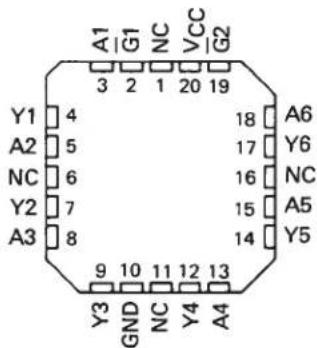

SN54LS365A, SN54LS366A ... FK PACKAGE (TOP VIEW)

A1 G1 NC VCC G2 3 2 1 20 19 Y1 4 18 A6 A2 5 17 Y6 NC 6 16 NC Y2 7 15 A5 A3 8 14 Y5 9 10 11 12 13 Y3 GND NC Y4 A4

SN54367A, 368A, SN54LS367A, 368A ... J PACKAGE SN74367A, 368A ... N PACKAGE SN74LS367A, SN74LS368A ... D OR N PACKAGE (TOP VIEW)

1G 1 16 VCC 1A1 2 15 2G 1Y1 3 14 2A2 1A2 4 13 2Y2 1Y2 5 12 2A1 1A3 6 11 2Y1 1Y3 7 10 1A4 GND 8 9 1Y4

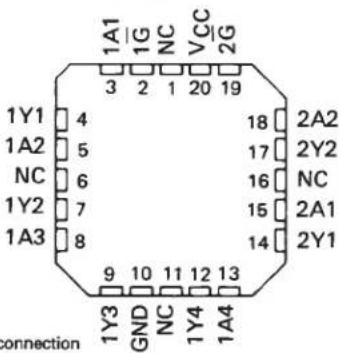

SN54LS367A, SN54LS368A ... FK PACKAGE (TOP VIEW)

1A1 1G NC VCC 2G 3 2 1 20 19 1Y1 4 1A2 5 NC 6 1Y2 7 1A3 8 18 2A2 17 2Y2 16 NC 15 2A1 14 2Y1 9 10 11 12 13 GND NC 1Y4 1A4 connection

NC - No internal connection

schematics of inputs and outputs

'365A thru '368A

EQUIVALENT OF ALL INPUTS VCC 4 kΩ NOM INPUT TYPICAL OF ALL OUTPUTS 40 Ω NOM VCC OUTPUT

'LS365A thru 'LS368A

EQUIVALENT OF ALL DATA INPUTS

EQUIVALENT OF ALL G INPUTS

VCC 13 kΩ NOM INPUT

TYPICAL OF ALL OUTPUTS

50 Ω NOM VCC OUTPUT

logic diagrams (positive logic)

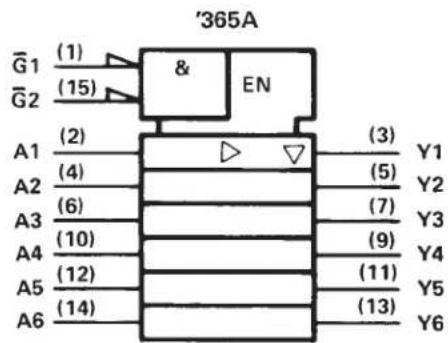

'365A, 'LS365A G1 (1) G2 (15) A1 (2) (3) Y1 (4) (5) Y2 A3 (6) (7) Y3 A4 (10) (9) Y4 A5 (12) (11) Y5 A6 (14) (13) Y6 '366A, 'LS366A G1 (1) G2 (15) A1 (2) (3) Y1 (4) (5) Y2 A2 (4) (5) Y2 A3 (6) (7) Y3 A4 (10) (9) Y4 A5 (12) (11) Y5 A6 (14) (13) Y6 '367A, 'LS367A 1G (1) 1A1 (2) (3) 1Y1 1A2 (4) (5) 1Y2 1A3 (6) (7) 1Y3 1A4 (10) (9) 1Y4 2G (15) 2A1 (12) (11) 2Y1 2A2 (14) (13) 2Y2 '368A, 'LS368A 1G (1) 1A1 (2) (3) 1Y1 1A2 (4) (5) 1Y2 1A3 (6) (7) 1Y3 1A4 (10) (9) 1Y4 2G (15) 2A1 (12) (11) 2Y1 2A2 (14) (13) 2y2 Pin numbers shown are for D, J, and N packages.

Pin numbers shown are for D, J, and N packages.

logic symbols ^†

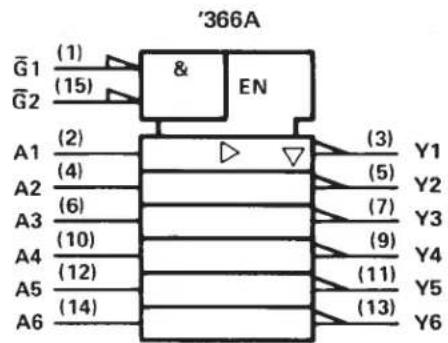

'365A G1 (1) & EN G2 (15) A1 (2) ▷ (3) Y1 A2 (4) (5) Y2 A3 (6) (7) Y3 A4 (10) (9) Y4 A5 (12) (11) Y5 A6 (14) (13) Y6


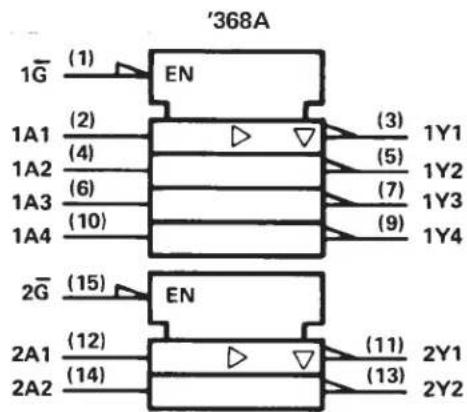

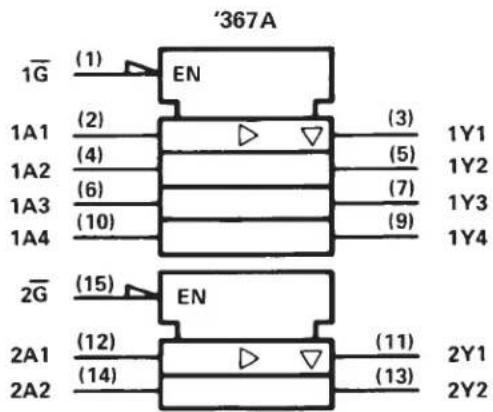

'367A 1G (1) EN 1A1 (2) ▷ ▽ (3) 1Y1 1A2 (4) ▼ ▽ (5) 1Y2 1A3 (6) ▼ ▽ (7) 1Y3 1A4 (10) ▼ ▽ (9) 1Y4 2G (15) EN 2A1 (12) ▷ ▽ (11) 2Y1 2A2 (14) ▼ ▽ (13) 2Y2

'368A 1G (1) EN 1A1 (2) ▷ (3) 1Y1 1A2 (4) ▷ (5) 1Y2 1A3 (6) ▷ (7) 1Y3 1A4 (10) ▷ (9) 1Y4 2G (15) EN 2A1 (12) ▷ (11) 2Y1 2A2 (14) ▷ (13) 2Y2

^ These symbols are in accordance with ANSI/IEEE Std 91-1984 and IEC Publication 617-12. Pin numbers shown are for D, J, and N packages.

absolute maximum ratings over operating free-air temperature range (unless otherwise noted)

Supply voltage, V_CC (see Note 1) 7 V

Input voltage: '365A, '366A, '367A, '368A 5.5 V

'LS365A, 'LS366A, 'LS367A, 'LS368A 7 V

Voltage applied to a disabled 3-state output 5.5 V

Operating free-air temperature: SN54' - 55°C to 125°C

SN74' 0°C to 70°C

Storage temperature range -65°C to 150°C

NOTE 1: Voltage values are with respect to network ground terminal.

recommended operating conditions

		SN54365ASN54367A			SN74365ASN74367A			UNIT
		MIN	NOM	MAX	MIN	NOM	MAX
V_CC	Supply voltage	4.5	5	5.5	4.75	5	5.25	V
V_IH	High-level input voltage	2			2			V
V_IL	Low-level input voltage			0.8			0.8	V
I_OH	High-level output current			-2			-5.2	mA
I_OL	Low-level output current			32			32	mA
T_A	Operating free-air temperature	-55		125	0		70	°C

electrical characteristics over recommended operating free-air temperature range (unless otherwise noted)

PARAMETER		TEST CONDITIONS†			SN54365ASN54367A		SN74365ASN74367A		UNIT
					MIN	TYP‡ MAX	MIN	TYP‡ MAX
V_IK		V_CC=MIN, I_I=-12mA			-1.5		-1.5		V
V_OH		V_CC=MIN, V_IH=2V, V_IL=0.8V, I_OH=MAX			2.4	3.3	2.4	3.1	V
V_OL		V_CC=MIN, V_IH=2V, V_IL=0.8V, I_OL=32mA			0.4		0.4		V
I_OZ		V_CC=MAX, V_IH=2V, V_IL=0.8V, V_O=2.4V			40		40		μA
		V_CC=MAX, V_IH=2V V_IL=0.8V, V_O=0.4V			-40		-40
I_I		V_CC=MAX, V_I=5.5V			1		1		mA
I_IH		V_CC=MAX, V_I=2.4V			40		40		μA
I_IL	A Inputs	V_CC=MAX, V_I=0.5V, Either input at 2V			-40		-40		μA
		V_CC=MAX, V_I=0.4V, Both inputs at 0.4V			-1.6		-1.6		mA
	Inputs	V_CC=MAX, V_I=0.4V			-1.6		-1.6
I_OS §		V_CC=MAX			-40	-130	-40	-130	mA
I_CC		V_CC=MAX, Data inputs = 0V, Output controls = 4.5V			65	85	65	85	mA

† For conditions shown as MIN or MAX, use the appropriate value specified under recommended operating conditions.
‡ All typical values are at V_CC = 5 V, T_A = 25^ .
§ Not more than one output should be shorted at a time.

switching characteristics, V_CC = 5 V, T_A = 25^ C (see note 2)

PARAMETER	FROM(INPUT)	TO(OUTPUT)	TEST CONDITIONS	MIN TYP MAX	UNIT
t_PLH	Any	Y	R_L = 400 , C_L = 50 pF	16	ns
t_PHL				22	ns
t_PZH				35	ns
t_PZL				37	ns
t_PHZ			R_L = 400 , C_L = 5 pF	11	ns
t_PLZ				27	ns

NOTE 2: Load circuits and voltage waveforms are shown in Section 1.

recommended operating conditions

		SN54366A SN54368A			SN74366A SN74368A			UNIT
		MIN	NOM	MAX	MIN	NOM	MAX
V_CC	Supply voltage	4.5	5	5.5	4.75	5	5.25	V
V_IH	High-level input voltage	2			2			V
V_IL	Low-level input voltage			0.8			0.8	V
I_OH	High-level output current			-2			-5.2	mA
I_OL	Low-level output current			32			32	mA
T_A	Operating free-air temperature	-55		125	0		70	°C

electrical characteristics over recommended operating free-air temperature range (unless otherwise noted)

PARAMETER		TEST CONDITIONS†			SN54366A SN54368A		SN74366A SN74368A		UNIT
					MIN	TYP‡ MAX	MIN	TYP‡ MAX
V_IK		V_CC=MIN, I_I=-12mA			-1.5		-1.5		V
V_OH		V_CC=MIN, V_IH=2V, V_IL=0.8V, I_OH=MAX			2.4	3.3	2.4	3.1	V
V_OL		V_CC=MIN, V_IH=2V, V_IL=0.8V, I_OL=32mA			0.4		0.4		V
I_OZ		V_CC=MAX, V_IH=2V, V_IL=0.8V, V_O=2.4V			40		40		μA
		V_CC=MAX, V_IH=2V V_IL=0.8V, V_O=0.4V			-40		-40
I_I		V_CC=MAX, V_I=5.5V			1		1		mA
I_IH		V_CC=MAX, V_I=2.4V			40		40		μA
I_IL	A Inputs	V_CC=MAX, V_I=0.5V, Either input at 2V			-40		-40		μA
		V_CC=MAX, V_I=0.4V, Both inputs at 0.4V			-1.6		-1.6		mA
	Inputs	V_CC=MAX, V_I=0.4V			-1.6		-1.6
I_OS\}		V_{CC}=MAX			-40	-130	-40	-130	mA
I_{CC}		V_{CC}=MAX, \quad Data inputs = 0V, \quad Output controls = 4.5V,$			59	77	59	77	mA

† For conditions shown as MIN or MAX, use the appropriate value specified under recommended operating conditions.
‡ All typical values are at V_CC = 5 V, T_A = 25^ .
\$ Not more than one output should be shorted at a time.

switching characteristics, V_CC = 5 V, T_A = 25^ C (see note 2)

PARAMETER	FROM(INPUT)	TO(OUTPUT)	TEST CONDITIONS	MIN TYP MAX	UNIT
^tPLH	Any	Y	R_L=400 , C_L=50 pF	17	ns
^tPHL				16	ns
^tPZH				35	ns
^tPZL				37	ns
^tPHZ			R_L=400 , C_L=5 pF	11	ns
^tPLZ				27	ns

NOTE 2: Load circuits and voltage waveforms are shown in Section 1.

recommended operating conditions

		SN54LS365ASN54LS367A			SN74LS365ASN74LS367A			UNIT
		MIN	NOM	MAX	MIN	NOM	MAX
V_CC	Supply voltage	4.5	5	5.5	4.75	5	5.25	V
V_IH	High-level input voltage	2			2			V
V_IL	Low-level input voltage			0.7			0.8	V
I_OH	High-level output current			-1			-2.6	mA
I_OL	Low-level output current			12			24	mA
T_A	Operating free-air temperature	-55		125	0		70	°C

electrical characteristics over recommended operating free-air temperature range (unless otherwise noted)

PARAMETER		TEST CONDITIONS†			SN54LS365A SN54LS367A			SN74LS365A SN74LS367A			UNIT
					MIN	TYP‡	MAX	MIN	TYP‡	MAX
V_IK		V_CC=MIN, I_I=-18mA					-1.5			-1.5	V
V_OH		V_CC=MIN, V_IH=2V, V_IL=MAX, I_OH=MAX			2.4	3.3		2.4	3.1		V
V_OL		V_CC=MIN, V_IH=2V, V_IL=MAX, I_OL=12mA				0.25	0.4		0.25	0.4	V
		V_CC=MIN, V_IH=2V, V_IL=0.8V, I_OL=24mA							0.35	0.5
I_OZ		V_CC=MAX, V_IH=2V, V_IL=MAX, V_O=2.4V					20			20	μA
		V_CC=MAX, V_IH=2V, V_IL=MAX, V_O=0.4V					-20			-20
I_I		V_CC=MAX, V_I=7V					0.1			0.1	mA
I_IH		V_CC=MAX, V_I=2.7V					20			20	μA
I_IL	A Inputs	V_CC=MAX, V_I=0.5V, Either input at 2V					-20			-20	μA
		V_CC=MAX, V_I=0.4V, Both inputs at 0.4V					-0.4			-0.4	mA
	Inputs	V_CC=MAX, V_I=0.4V					-0.2			-0.2
I_OS §		V_CC=MAX			-40		-225	-40		-225	mA
I_CC		V_CC=MAX, Data inputs = 0V, Output controls = 4.5V,				14	24		14	24	mA

† For conditions shown as MIN or MAX, use the appropriate value specified under recommended operating conditions.
All typical values are at V_CC = 5V, T_A = 25^ .
§ Not more than one output should be shorted at a time, and the duration of the short circuit should not exceed one second.

switching characteristics, V_CC = 5 V , T_A = 25^ C (see note 2)

PARAMETER	FROM(INPUT)	TO(OUTPUT)	TEST CONDITIONS	MIN	TYP	MAX	UNIT
t_PLH	Any	Y	R_L = 667 , C_L = 45 pF		10	16	ns
t_PHL					9	22	ns
t_PZH					19	35	ns
t_PZL					24	40	ns
t_PHZ			R_L = 667 , C_L = 5 pF			30	ns
t_PLZ						35	ns

NOTE 2: Load circuits and voltage waveforms are shown in Section 1.

recommended operating conditions

		SN54LS366A SN54LS368A			SN74LS366A SN74LS368A			UNIT
		MIN	NOM	MAX	MIN	NOM	MAX
V_CC	Supply voltage	4.5	5	5.5	4.75	5	5.25	V
V_IH	High-level input voltage	2			2			V
V_IL	Low-level input voltage			0.7			0.8	V
I_OH	High-level output current			-1			-2.6	mA
I_OL	Low-level output current			12			24	mA
T_A	Operating free-air temperature	-55		125	0		70	°C

electrical characteristics over recommended operating free-air temperature range (unless otherwise noted)

PARAMETER		TEST CONDITIONS†			SN54LS366A SN54LS368A			SN74LS366A SN74LS368A			UNIT
					MIN	TYP‡	MAX	MIN	TYP‡	MAX
V_IK		V_CC=MIN, I_I=-18mA					-1.5			-1.5	V
V_OH		V_CC=MIN, V_IH=2V, V_IL=MAX, I_OH=MAX			2.4	3.3		2.4	3.1		V
V_OL		V_CC=MIN, V_IH=2V, V_IL=MAX, I_OL=12mA				0.25	0.4		0.25	0.4	V
		V_CC=MIN, V_IH=2V, V_IL=0.8V, I_OL=24mA							0.35	0.5
I_OZ		V_CC=MAX, V_IH=2V, V_IL=MAX, V_O=2.4V					20			20	μA
		V_CC=MAX, V_IH=2V, V_IL=MAX, V_O=0.4V					-20			-20
I_I		V_CC=MAX, V_I=7V					0.1			0.1	mA
I_IH		V_CC=MAX, V_I=2.7V					20			20	μA
I_IL	A Inputs	V_CC=MAX, V_I=0.5V, Either at 2V					-20			-20	uA
		V_CC=MAX, V_I=0.4V, Both at 0.4V					-0.4			-0.4	mA
	Inputs	V_CC=MAX, V_I=0.4V					-0.2			-0.2
I_OS\}		V_{CC}=MAX			-40		-225	-40		-225	mA
I_{CC}		V_{CC}=MAX, \quad Data inputs = 0V, \quad Output controls = 4.5V,$				12	21		12	21	mA

† For conditions shown as MIN or MAX, use the appropriate value specified under recommended operating conditions.
‡ All typical values are at V_CC = 5 V , T_A = 25^
§ Not more than one output should be shorted at a time, and the duration of the short circuit should not exceed one second.

switching characteristics, V_CC = 5 V, T_A = 25^ C (see note 2)

PARAMETER	FROM(INPUT)	TO(OUTPUT)	TEST CONDITIONS	MIN	TYP	MAX	UNIT
tPLH	Any	Y	R_L = 667 , C_L = 45 pF	7		15	ns
tPHL				12		18	ns
tPZH				18		35	ns
tPZL				28		45	ns
tPHZ			R_L = 667 , C_L = 5 pF	32			ns
tPLZ				35			ns

NOTE 2: Load circuits and voltage waveforms are shown in Section 1.

PACKAGING INFORMATION

Orderable Device Status(1)	Package Type Package Drawing	Pins Package Qty	Eco Plan(2)	Lead finish/ Ball material(6)	MSL Peak Temp(3)	Op Temp (°C)	Device Marking(4/5)	Samples
JM38510/32201B2A ACTIVE LCCC FK 20 1 Non-RoHS			& Green	SNPB N / A for Pkg Type -55 to 125 JM38510/			32201B2A	Samples
JM38510/32201BEA ACTIVE CDIP J 16 1 Non-RoHS			& Green	SNPB N / A for Pkg Type -55 to 125 JM38510/			32201BEA	Samples
JM38510/32201BEA ACTIVE CDIP J 16 1 Non-RoHS			& Green	SNPB N / A for Pkg Type -55 to 125 JM38510/			32201BEA	Samples
JM38510/32203B2A ACTIVE LCCC FK 20 1 Non-RoHS			& Green	SNPB N / A for Pkg Type -55 to 125 JM38510/			32203B2A	Samples
JM38510/32203B2A ACTIVE LCCC FK 20 1 Non-RoHS			& Green	SNPB N / A for Pkg Type -55 to 125 JM38510/			32203B2A	Samples
JM38510/32203BEA ACTIVE CDIP J 16 1 Non-RoHS			& Green	SNPB N / A for Pkg Type -55 to 125 JM38510/			32203BEA	Samples
JM38510/32203BEA ACTIVE CDIP J 16 1 Non-RoHS			& Green	SNPB N / A for Pkg Type -55 to 125 JM38510/			32203BEA	Samples
JM38510/32203BFA ACTIVE CFP W 16 1 Non-RoHS			& Green	SNPB N / A for Pkg Type -55 to 125 JM38510/			32203BFA	Samples
JM38510/32203BFA ACTIVE CFP W 16 1 Non-RoHS			& Green	SNPB N / A for Pkg Type -55 to 125 JM38510/			32203BFA	Samples
M38510/32201B2A ACTIVE LCCC FK 20 1 Non-RoHS			& Green	SNPB N / A for Pkg Type -55 to 125 JM38510/			32201B2A	Samples
M38510/32201B2A ACTIVE LCCC FK 20 1 Non-RoHS			& Green	SNPB N / A for Pkg Type -55 to 125 JM38510/			32201B2A	Samples
M38510/32201BEA ACTIVE CDIP J 16 1 Non-RoHS			& Green	SNPB N / A for Pkg Type -55 to 125 JM38510/			32201BEA	Samples
M38510/32201BEA ACTIVE CDIP J 16 1 Non-RoHS			& Green	SNPB N / A for Pkg Type -55 to 125 JM38510/			32201BEA	Samples
M38510/32203B2A ACTIVE LCCC FK 20 1 Non-RoHS			& Green	SNPB N / A for Pkg Type -55 to 125 JM38510/			32203B2A	Samples
M38510/32203B2A ACTIVE LCCC FK 20 1 Non-RoHS			& Green	SNPB N / A for Pkg Type -55 to 125 JM38510/			32203B2A	Samples
M38510/32203BEA ACTIVE CDIP J 16 1 Non-RoHS			& Green	SNPB N / A for Pkg Type -55 to 125 JM38510/			32203BEA	Samples

Orderable Device Status(1)		Package Type	Package Drawing	Pins	Package Qty	Eco Plan(2)	Lead finish/ Ball material(6)	MSL Peak Temp(3)	Op Temp (°C)	Device Marking(4-5)	Samples
M38510/32203BEA ACTIVE CDIP J 16 1 Non-RoHS						& Green	SNPB N / A for Pkg Type -55 to 125 JM38510/			32203BEA	Samples
M38510/32203BFA ACTIVE CFP W 16 1 Non-RoHS						& Green	SNPB N / A for Pkg Type -55 to 125 JM38510/			32203BFA	Samples
M38510/32203BFA ACTIVE CFP W 16 1 Non-RoHS						& Green	SNPB N / A for Pkg Type -55 to 125 JM38510/			32203BFA	Samples
SN54LS365AJ ACTIVE CDIP J 16 1 Non-RoHS						& Green	SNPB N / A for Pkg Type -55 to 125 SN54LS365AJ				Samples
SN54LS365AJ ACTIVE CDIP J 16 1 Non-RoHS						& Green	SNPB N / A for Pkg Type -55 to 125 SN54LS365AJ				Samples
SN54LS366AJ ACTIVE CDIP J 16 1 Non-RoHS						& Green	SNPB N / A for Pkg Type -55 to 125 SN54LS366AJ				Samples
SN54LS366AJ ACTIVE CDIP J 16 1 Non-RoHS						& Green	SNPB N / A for Pkg Type -55 to 125 SN54LS366AJ				Samples
SN54LS367AJ ACTIVE CDIP J 16 25 Non-RoHS						& Green	SNPB N / A for Pkg Type -55 to 125 SN54LS367AJ				Samples
SN54LS367AJ ACTIVE CDIP J 16 25 Non-RoHS						& Green	SNPB N / A for Pkg Type -55 to 125 SN54LS367AJ				Samples
SN54LS368AJ ACTIVE CDIP J 16 1 Non-RoHS						& Green	SNPB N / A for Pkg Type -55 to 125 SN54LS368AJ				Samples
SN54LS368AJ ACTIVE CDIP J 16 1 Non-RoHS						& Green	SNPB N / A for Pkg Type -55 to 125 SN54LS368AJ				Samples
SN74LS365AD	ACTIVE	SOIC	D	16	40	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	0 to 70	LS365A	Samples
SN74LS365AD	ACTIVE	SOIC	D	16	40	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	0 to 70	LS365A	Samples
SN74LS365ADR	ACTIVE	SOIC	D	16	2500	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	0 to 70	LS365A	Samples
SN74LS365ADR	ACTIVE	SOIC	D	16	2500	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	0 to 70	LS365A.	Samples
SN74LS365AN	ACTIVE	PDIP	N	16	25	RoHS & Green	NIPDAU	N / A for Pkg Type	0 to 70	SN74LS365AN	Samples
SN74LS365AN	ACTIVE	PDIP	N	16	25	RoHS & Green	NIPDAU	N / A for Pkg Type	0 to 70	SN74LS365AN	Samples
SN74LS365ANSR	ACTIVE	SO	NS	16	2000	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	0 to 70	74LS365A	Samples
SN74LS365ANSR	ACTIVE	SO	NS	16	2000	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	0 to 70	74LS365A	Samples

Addendum-Page 2

Orderable Device Status(1)		Package Type Package Drawing		Pins Package Qty		Eco Plan(2)	Lead finish/ Ball material(6)	MSL Peak Temp(3)	Op Temp (°C)	Device Marking(4-5)	Samples
SN74LS367AD ACTIVE SOIC D 16 40 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 LS367A											Samples
SN74LS367AD ACTIVE SOIC D 16 40 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 LS367A											Samples
SN74LS367ADR ACTIVE SOIC D 16 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 LS367A											Samples
SN74LS367ADR ACTIVE SOIC D 16 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 LS367A											Samples
SN74LS367AN	ACTIVE	PDIP	N	16	25	RoHS & Green	NIPDAU	N / A for Pkg Type	0 to 70	SN74LS367AN	Samples
SN74LS367AN	ACTIVE	PDIP	N	16	25	RoHS & Green	NIPDAU	N / A for Pkg Type	0 to 70	SN74LS367AN	Samples
SN74LS367ANE4	ACTIVE	PDIP	N	16	25	RoHS & Green	NIPDAU	N / A for Pkg Type	0 to 70	SN74LS367AN	Samples
SN74LS367ANE4	ACTIVE	PDIP	N	16	25	RoHS & Green	NIPDAU	N / A for Pkg Type	0 to 70	SNT4LS367AN	Samples
SN74LS367ANSR	ACTIVE	SO	NS	16	2000	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	0 to 70	74LS367A	Samples
SN74LS367ANSR	ACTIVE	SO	NS	16	2000	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	0 to 70	74LS367A	Samples
SN74LS368AD ACTIVE SOIC D 16 40 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 LS368A											Samples
SN74LS368AD ACTIVE SOIC D 16 40 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 LS368A											Samples
SN74LS368AN	ACTIVE	PDIP	N	16	25	RoHS & Green	NIPDAU	N / A for Pkg Type	0 to 70	SN74LS368AN	Samples
SN74LS368AN	ACTIVE	PDIP	N	16	25	RoHS & Green	NIPDAU	N / A for Pkg Type	0 to 70	SN74LS368AN	Samples
SN74LS368ANSR	ACTIVE	SO	NS	16	2000	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	0 to 70	74LS368A	Samples
SN74LS368ANSR	ACTIVE	SO	NS	16	2000	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	0 to 70	74LS368A	Samples
SNJ54LS365AFK	ACTIVE	LCCC	FK	20	1	Non-RoHS & Green	SNPB N / A for Pkg Type	-55 to 125	SNJ54LS365AFK	365AFK	Samples
SNJ54LS365AFK	ACTIVE	LCCC	FK	20	1	Non-RoHS & Green	SNPB N / A for Pkg Type	-55 to 125	SNJ54LS365AFK	365AFK	Samples
SNJ54LS365AJ	ACTIVE	CDIP	J	16	1	Non-RoHS & Green	SNPB N / A for Pkg Type	-55 to 125	SNJ54LS365AJ	365AFK	Samples
SNJ54LS365AJ	ACTIVE	CDIP	J	16	1	Non-RoHS & Green	SNPB N / A for Pkg Type	-55 to 125	SNJ54LS365AJ	365AFK	Samples

Orderable Device Status(1)	Package Type Package Drawing	Pins Package Qty	Eco Plan(2)	Lead finish/ Ball material(6)	MSL Peak Temp(3)	Op Temp (°C)	Device Marking(4-5)	Samples
SNJ54LS366AFK ACTIVE LCCC FK 20 1 Non-RoHS			& Green	SNPB N / A for Pkg Type -55 to 125 SNJ54LS			366AFK	Samples
SNJ54LS366AFK ACTIVE LCCC FK 20 1 Non-RoHS			& Green	SNPB N / A for Pkg Type -55 to 125 SNJ54LS			366AFK	Samples
SNJ54LS366AJ ACTIVE CDIP J 16 1 Non-RoHS			& Green	SNPB N / A for Pkg Type -55 to 125 SNJ54LS366AJ				Samples
SNJ54LS366AJ ACTIVE CDIP J 16 1 Non-RoHS			& Green	SNPB N / A for Pkg Type -55 to 125 SNJ54LS366AJ				Samples
SNJ54LS367AJ ACTIVE CDIP J 16 1 Non-RoHS			& Green	SNPB N / A for Pkg Type -55 to 125 SNJ54LS367AJ				Samples
SNJ54LS367AJ ACTIVE CDIP J 16 1 Non-RoHS			& Green	SNPB N / A for Pkg Type -55 to 125 SNJ54LS367AJ				Samples
SNJ54LS368AJ ACTIVE CDIP J 16 1 Non-RoHS			& Green	SNPB N / A for Pkg Type -55 to 125 SNJ54LS368AJ				Samples
SNJ54LS368AJ ACTIVE CDIP J 16 1 Non-RoHS			& Green	SNPB N / A for Pkg Type -55 to 125 SNJ54LS368AJ				Samples
SNJ54LS368AW ACTIVE CFP W	16 1 Non-RoHS		& Green	SNPB N / A for Pkg Type -55 to 125 SNJ54LS368AW				Samples
SNJ54LS368AW ACTIVE CFP W	16 1 Non-RoHS		& Green	SNPB N / A for Pkg Type -55 to 125 SNJ54LS368AW				Samples

(1) The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of <=1000ppm threshold. Antimony trioxide based flame retardants must also meet the <=1000ppm threshold requirement.
(3) MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.

(4) There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.
(5) Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "\~" will appear on a device. If a line is indented then it is a continuation of the previous line and the two combined represent the entire Device Marking for that device.
(6) Lead finish/Ball material - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead finish/Ball material values may wrap to two lines if the finish value exceeds the maximum column width.

Important Information and Disclaimer: The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.

OTHER QUALIFIED VERSIONS OF SN54LS365A, SN54LS367A, SN54LS368A, SN74LS365A, SN74LS367A, SN74LS368A :

• Catalog : SN74LS365A, SN74LS367A, SN74LS368A
• Military : SN54LS365A, SN54LS367A, SN54LS368A

NOTE: Qualified Version Definitions:

• Catalog - TI's standard catalog product
• Military - QML certified for Military and Defense Applications

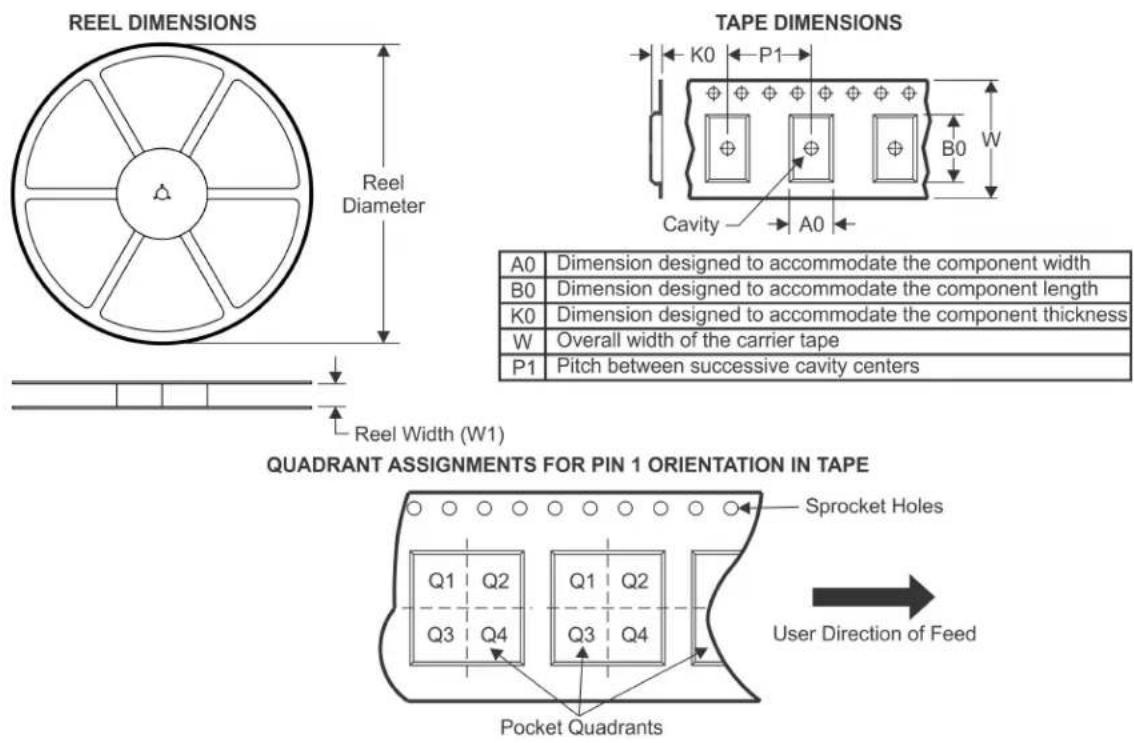

TAPE AND REEL INFORMATION

*All dimensions are nominal

Device Package

Type

Package Drawing

Pins

SPQ Reel

Diameter (mm)

Reel Width W1 (mm)

A0 (mm)

B0 (mm)

K0 (mm)

P1 (mm)

W (mm)

Pin1 Quadrant

SN74LS365ADR SOIC

D 16 2500

330.0 16.4 6.5

10.3 2.1 8.0

16.0 Q1

SN74LS365ANSR SO

NS 16 2000

330.0 16.4 8.2

10.5 2.5 12.0

16.0 C1

SN74LS367ADR SOIC

D 16 2500

330.0 16.4 6.5

10.3 2.1

8.0 16.0 Q1

SN74LS367ANSR SO

NS 16 2000

330.0 16.4 8.2

10.5 2.5 12.0

16.0 C1

SN74LS368ANSR SO

NS 16 2000

330.0 16.4 8.2

10.5 2.5 12.0

16.0 C1

TAPE AND REEL BOX DIMENSIONS W L

*All dimensions are nominal

Device	Package Type	Package Drawing	Pins	SPQ	Length (mm)	Width (mm)	Height (mm)
SN74LS365ADR SOIC	D 16 2500 340.5 386.1 32.0
SN74LS365ANSR SO	NS 16 2000 853.0 449.0 35.0
SN74LS367ADR SOIC	D 16 2500 340.5 386.1 32.0
SN74LS367ANSR SO	NS 16 2000 853.0 449.0 35.0
SN74LS368ANSR SO	NS 16 2000 853.0 449.0 35.0

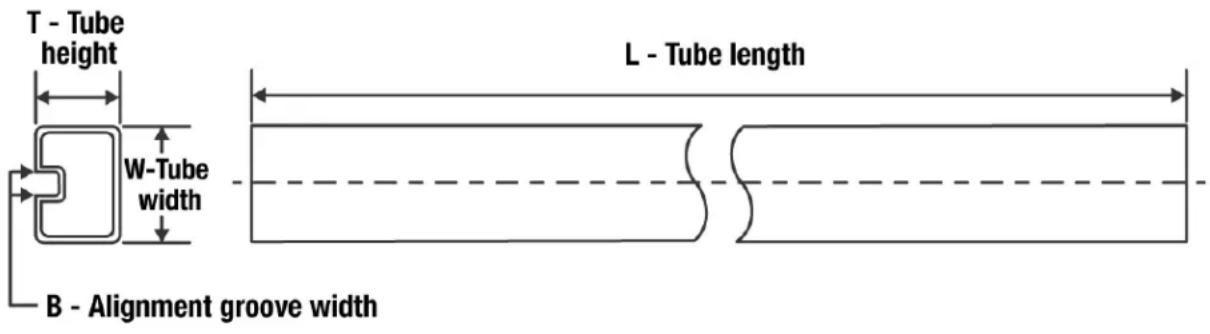

TUBE

T - Tube height L - Tube length W-Tube width B - Alignment groove width

*All dimensions are nominal

Device	Package Name	Package Type	Pins	SPQ	L (mm)	W (mm)	T (μm)	B (mm)
JM38510/32201B2A FK	LCCC 20 1 506.98	12.06 2030 NA
JM38510/32203B2A FK	LCCC 20 1 506.98	12.06 2030 NA
M38510/32201B2A FK	LCCC 20 1 506.98	12.06 2030 NA
M38510/32203B2A FK	LCCC 20 1 506.98	12.06 2030 NA
SN74LS365AD	D	SOIC	16	40	507	8	3940	4.32
SN74LS365AN	N	PDIP	16	25	506	13.97	11230	4.32
SN74LS365AN	N	PDIP	16	25	506	13.97	11230	4.32
SN74LS367AD	D	SOIC	16	40	507	8	3940	4.32
SN74LS367AN	N	PDIP	16	25	506	13.97	11230	4.32
SN74LS367AN	N	PDIP	16	25	506	13.97	11230	4.32
SN74LS367ANE4	N	PDIP	16	25	506	13.97	11230	4.32
SN74LS367ANE4	N	PDIP	16	25	506	13.97	11230	4.32
SN74LS368AD	D	SOIC	16	40	507	8	3940	4.32
SN74LS368AN	N	PDIP	16	25	506	13.97	11230	4.32
SN74LS368AN	N	PDIP	16	25	506	13.97	11230	4.32
SNJ54LS365AFK	FK LCCC 20 1 506.98 12.06 2030 NA
SNJ54LS366AFK	FK LCCC 20 1 506.98 12.06 2030 NA

FK (S-CQCC-N**)

28 TERMINAL SHOWN

LEADLESS CERAMIC CHIP CARRIER

NO. OF TERMINALS**	A		B
	MIN	MAX	MIN	MAX
20	0.342(8,69)	0.358(9,09)	0.307(7,80)	0.358(9,09)
28	0.442(11,23)	0.458(11,63)	0.406(10,31)	0.458(11,63)
44	0.640(16,26)	0.660(16,76)	0.495(12,58)	0.560(14,22)
52	0.740(18,78)	0.761(19,32)	0.495(12,58)	0.560(14,22)
68	0.938(23,83)	0.962(24,43)	0.850(21,6)	0.858(21,8)
84	1.141(28,99)	1.165(29,59)	1.047(26,6)	1.063(27,0)

4040140/D 01/11
NOTES: A. All linear dimensions are in inches (millimeters).
B. This drawing is subject to change without notice.
C. This package can be hermetically sealed with a metal lid.
D. Falls within JEDEC MS-004

D (R-PDSO-G16)
PLASTIC SMALL OUTLINE

0.394 (10,00) 0.386 (9,80) 16 9 0.244 (6,20) 0.228 (5,80) 0.157 (4,00) 0.150 (3,80) Pin 1 Index Area 1 8 0.050 (1,27) 0.020 (0,51) 0.012 (0,31) ⊕ 0.010 (0,25) M 0.069 (1,75) Max 0.010 (0,25) 0.004 (0,10) Gcuge Plane 0.010 (0,25) 0.005 (0,13) 0'-8" Seating Plane 0.010 (0,25) 0.050 (1,27) 0.016 (0,40) 4040047-6/M 06/11

NOTES: A. All linear dimensions are in inches (millimeters).
B. This drawing is subject to change without notice.
Body length does not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not exceed 0.006 (0,15) each side.
Body width does not include interlead flash. Interlead flash shall not exceed 0.017 (0,43) each side.
E. Reference JEDEC MS-012 variation AC.

D (R-PDSO-G16)

NOTES: A. All linear dimensions are in millimeters.

B. This drawing is subject to change without notice.
C. Publication IPC-7351 is recommended for alternate designs.
D. Laser cutting apertures with trapezoidal walls and also rounding corners will offer better paste release. Customers should contact their board assembly site for stencil design recommendations. Refer to IPC-7525 for other stencil recommendations.
E. Customers should contact their board fabrication site for solder mask tolerances between and around signal pads.

MECHANICAL DATA

NS (R-PDSO-G\*\*)

PLASTIC SMALL-OUTLINE PACKAGE

14-PINS SHOWN

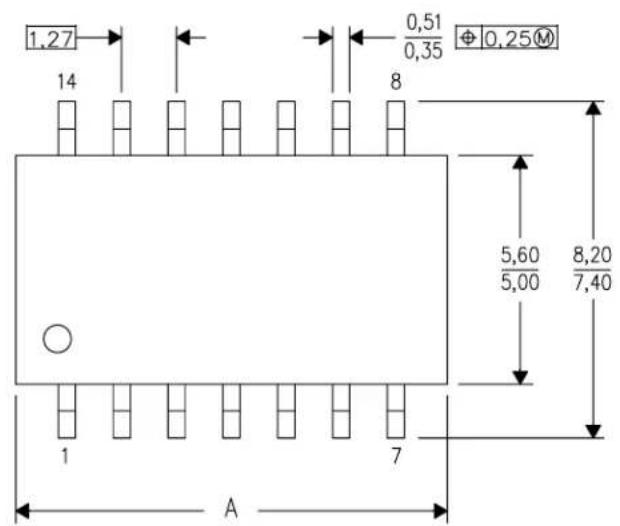

1,27 14 0,51 0,35 Ø 0,25① 8 5,60 5,00 8,20 7,40 1 7 A

0,15 NOM Gage Plane 0,25 0°-10° 1,05 0,55

2,00 MAX 0,15 0,05

Seating Plane 0.10

DIM\PINS **	14	16	20	24
A MAX	10,50	10,50	12,90	15,30
A MIN	9,90	9,90	12,30	14,70

4040062/C 03/03

NOTES: A. All linear dimensions are in millimeters.

B. This drawing is subject to change without notice.
C. Body dimensions do not include mold flash or protrusion, not to exceed 0,15.

W (R-GDFP-F16)

CERAMIC DUAL FLATPACK

NOTES: A. All linear dimensions are in inches (millimeters).

B. This drawing is subject to change without notice.

C. This package can be hermetically sealed with a ceramic lid using glass frit.

D. Index point is provided on cap for terminal identification only.

E. Falls within MIL STD 1835 GDFP2-F16

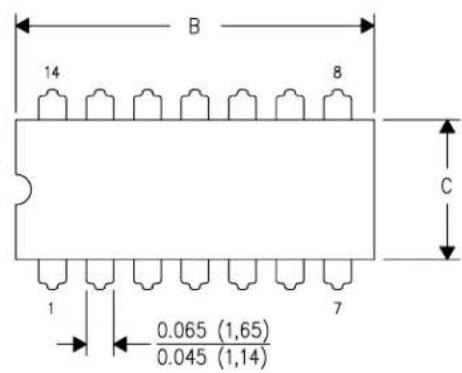

B 14 8 C 1 0.065 (1,65) 0.045 (1,14)

DIM\PINS **	14	16	18	20
A	0.300(7,62)BSC	0.300(7,62)BSC	0.300(7,62)BSC	0.300(7,62)BSC
B MAX	0.785(19,94)	.840(21,34)	0.960(24,38)	1.060(26,92)
B MIN	—	—	—	—
C MAX	0.300(7,62)	0.300(7,62)	0.310(7,87)	0.300(7,62)
C MIN	0.245(6,22)	0.245(6,22)	0.220(5,59)	0.245(6,22)

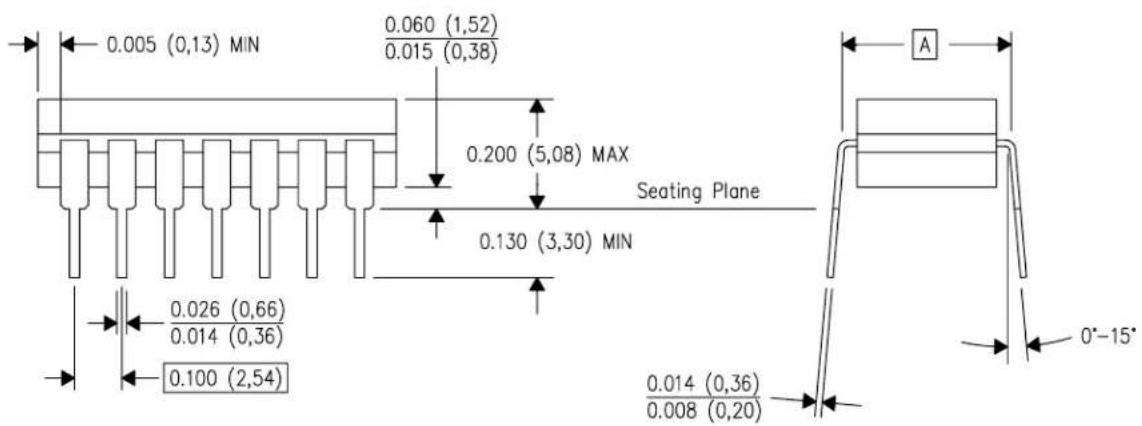

0.005 (0,13) MIN 0.060 (1,52) 0.015 (0,38) 0.200 (5,08) MAX Seating Plane 0.130 (3,30) MIN 0.026 (0,66) 0.014 (0,36) 0.100 (2,54) 0.014 (0,36) 0.008 (0,20) A 0°-15°

4040083/F 03/03

NOTES:

A. All linear dimensions are in inches (millimeters).
B. This drawing is subject to change without notice.
C. This package is hermetically sealed with a ceramic lid using glass frit.
D. Index point is provided on cap for terminal identification only on press ceramic glass frit seal only.
E. Falls within MIL STD 1835 GDIP1-T14, GDIP1-T16, GDIP1-T18 and GDIP1-T20.

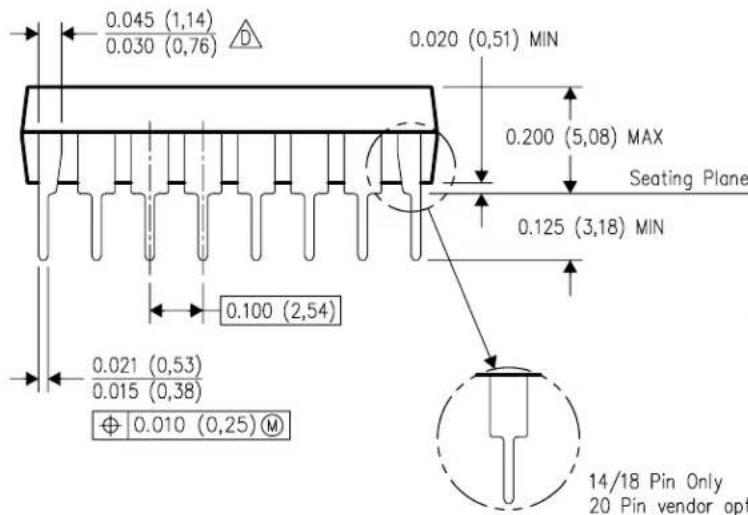

N (R-PDIP-T\*\*)

16 PINS SHOWN

PLASTIC DUAL-IN-LINE PACKAGE

A 16 9 0.260 (6,60) 0.240 (6,10) 1 8 0.070 (1,78) 0.045 (1,14)

C

DIM\PINS **	14	16	18	20
A MAX	0.775(19,69)	0.775(19,69)	0.920(23,37)	1.060(26,92)
A MIN	0.745(18,92)	0.745(18,92)	0.850(21,59)	0.940(23,88)
MS-001VARIATION	AA	BB	AC	AD

0.045 (1,14) 0.030 (0,76) D 0.020 (0,51) MIN 0.200 (5,08) MAX Seating Plane 0.125 (3,18) MIN 0.100 (2,54) 0.021 (0,53) 0.015 (0,38) ⊕ 0.010 (0,25) M 14/18 Pin Only 20 Pin vendor opt

0.325 (8,26) 0.300 (7,62) 0.015 (0,38) Gauge Plane 0.010 (0,25) NOM 0.430 (10,92) MAX

4040049/E 12/2002

NOTES: A. All linear dimensions are in inches (millimeters).

B. This drawing is subject to change without notice.

C Falls within JEDEC MS-001, except 18 and 20 pin minimum body length (Dim A).

The 20 pin end lead shoulder width is a vendor option, either half or full width.

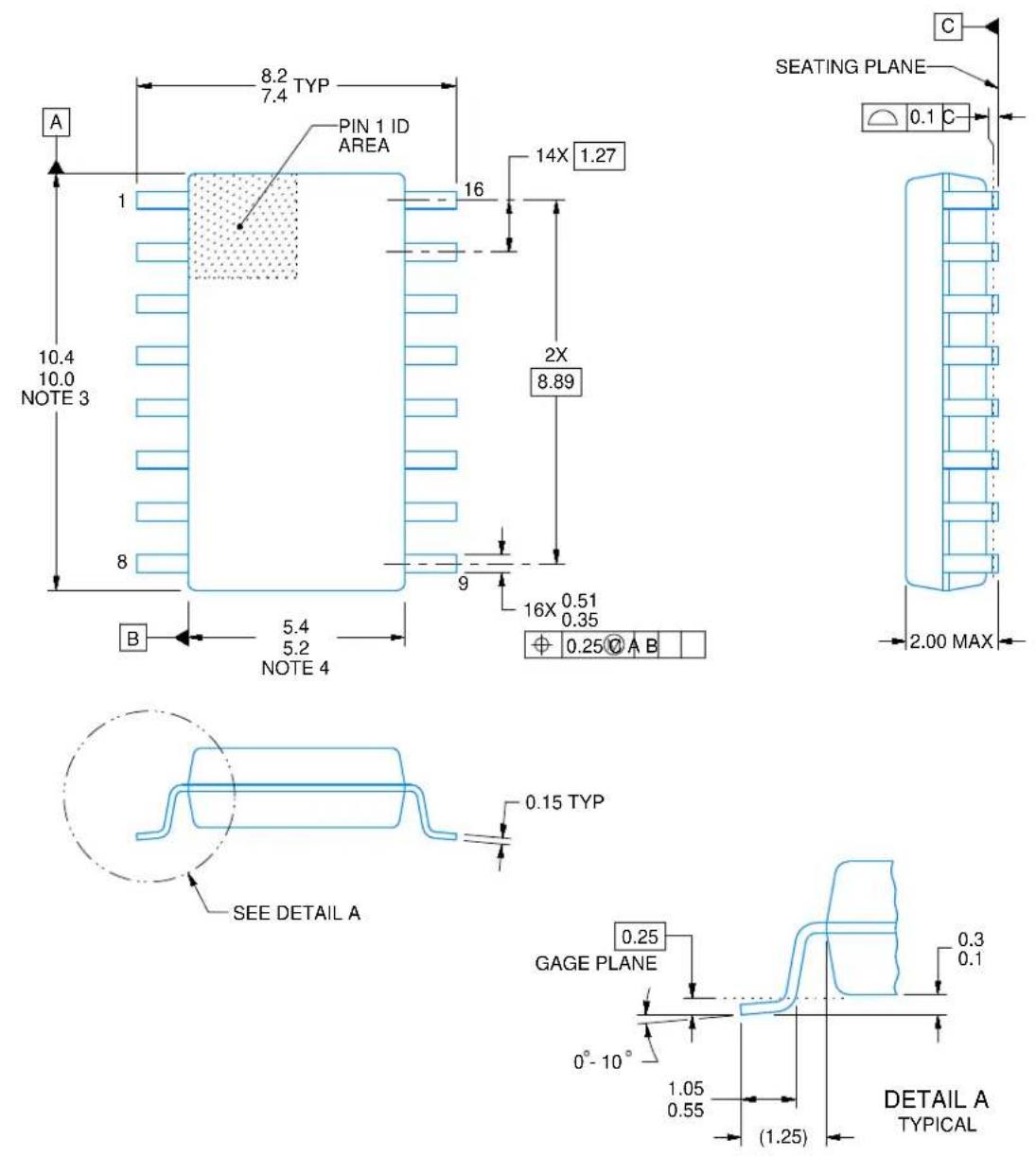

SOP

4220735/A 12/2021

NOTES:

1. All linear dimensions are in millimeters. Dimensions in parenthesis are for reference only. Dimensioning and tolerancing per ASME Y14.5M.
2. This drawing is subject to change without notice.
3. This dimension does not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not exceed 0.15 mm, per side.
4. This dimension does not include interlead flash. Interlead flash shall not exceed 0.25 mm, per side.

SOP

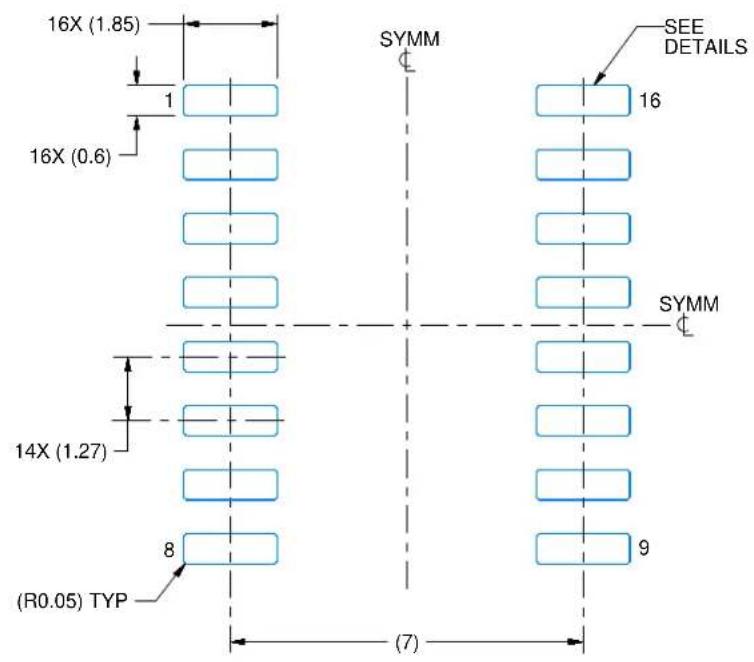

16X (1.85) 1 16X (0.6) SYMM SEE DETAILS 16 SYMM 14X (1.27) 8 (R0.05) TYP 9 (7)

LAND PATTERN EXAMPLE SCALE:7X

METAL SOLDER MASK OPENING 0.07 MAX ALL AROUND

NON SOLDER MASK DEFINED

SOLDER MASK OPENING METAL 0.07 MIN ALL AROUND

SOLDER MASK DEFINED
SOLDER MASK DETAILS

4220735/A 12/2021

NOTES: (continued)

1. Publication IPC-7351 may have alternate designs.
2. Solder mask tolerances between and around signal pads can vary based on board fabrication site.

EXAMPLE STENCIL DESIGN

SOP - 2.00 mm max heightNS0016.

SOP

16X (1.85)

SYMM

1

16

16X (0.6)

SYMM

14X (1.27)

8

9

(R0.05) TYP

(7)

SOLDER PASTE EXAMPLE

BASED ON 0.125 mm THICK STENCIL

SCALE:7X

4220735/A 12/2021

NOTES: (continued)

1. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate design recommendations.
2. Board assembly site may have different recommendations for stencil design.

IMPORTANT NOTICE AND DISCLAIMER

TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATA SHEETS), DESIGN RESOURCES (INCLUDING REFERENCE DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES "AS IS" AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD PARTY INTELLECTUAL PROPERTY RIGHTS.

These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable standards, and any other safety, security, regulatory or other requirements.

These resources are subject to change without notice. TI grants you permission to use these resources only for development of an application that uses the TI products described in the resource. Other reproduction and display of these resources is prohibited. No license is granted to any other TI intellectual property right or to any third party intellectual property right. TI disclaims responsibility for, and you will fully indemnify TI and its representatives against, any claims, damages, costs, losses, and liabilities arising out of your use of these resources.

TI's products are provided subject to TI's Terms of Sale or other applicable terms available either on ti.com or provided in conjunction with such TI products. TI's provision of these resources does not expand or otherwise alter TI's applicable warranties or warranty disclaimers for TI products.

TI objects to and rejects any additional or different terms you may have proposed.

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Copyright © 2022, Texas Instruments Incorporated
