- 8-Line to 1-Line Multiplexers Can Perform as:

Boolean Function Generators Parallel-to-Serial Converters Data Source Selectors

• Input Clamping Diodes Simplify System Design
• Package Options Include Plastic Small-Outline (D) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) 300-mil DIPs

description

These data selectors/multiplexers provide full binary decoding to select one-of-eight data sources. The strobe (G) input must be at a low logic level to enable the inputs. A high level at the strobe terminal forces the W output high and the Y output low.

The SN54ALS151 is characterized for operation over the full military temperature range of -55^ to 125^ . The SN74ALS151 and SN74AS151 are characterized for operation from 0^ to 70^ .

SN54ALS151 ... J PACKAGE SN74ALS151, SN74AS151 ... D OR N PACKAGE (TOP VIEW)

D3 1 16 VCC D2 2 15 D4 D1 3 14 D5 D0 4 13 D6 Y 5 12 D7 W 6 11 A G̅ 7 10 B GND 8 9 C

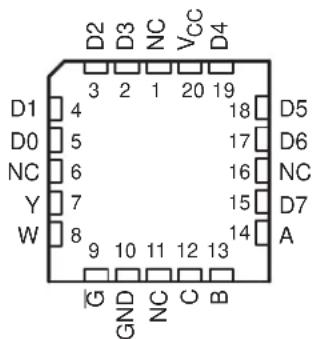

SN54ALS151 ... FK PACKAGE (TOP VIEW)

D2 D3 NC VCC D4 3 2 1 20 19 D1 4 18 D5 D0 5 17 D6 NC 6 16 NC Y 7 15 D7 W 8 14 A 9 10 11 12 13 GND C O B GND GND N Z C B

NC – No internal connection

FUNCTION TABLE

INPUTS				OUTPUTS
SELECT		STROBE
C B A		G		Y	W
X X X H L H
L L	L	L		D0 D0
L L	H	L		D1 D1
L H	L	L		D2 D2	—
L H	H	L		D3 D3	—
H L	L	L		D4 D4	—
H L	H	L	D5	D5	—
H H	L	L		D6	D6
H H H	L	D7	D7	—

H = high level, L = low level, X = irrelevant D0, D1, ... D7 = the level of the respective D input

SDAS205A - APRIL 1982 - REVISED DECEMBER 1994

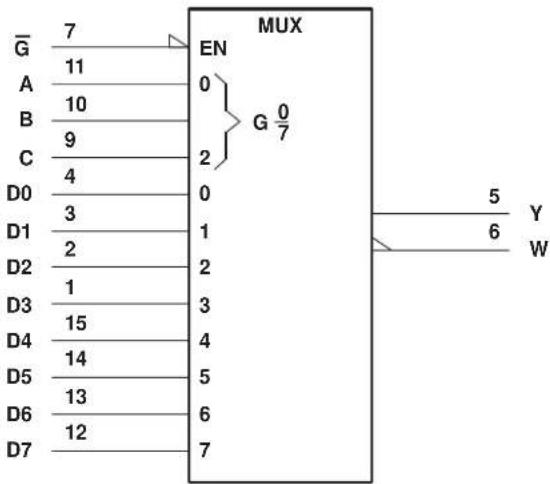

logic symbol†

G̅ 7 A 11 B 10 C 9 D0 4 D1 3 D2 2 D3 1 D4 15 D5 14 D6 13 D7 12 EN 0 2 G 0/7 MUX 5 Y 6 W

† This symbol is in accordance with ANSI/IEEE Std 91-1984 and IEC Publication 617-12. Pin numbers shown are for the D, J, and N packages.

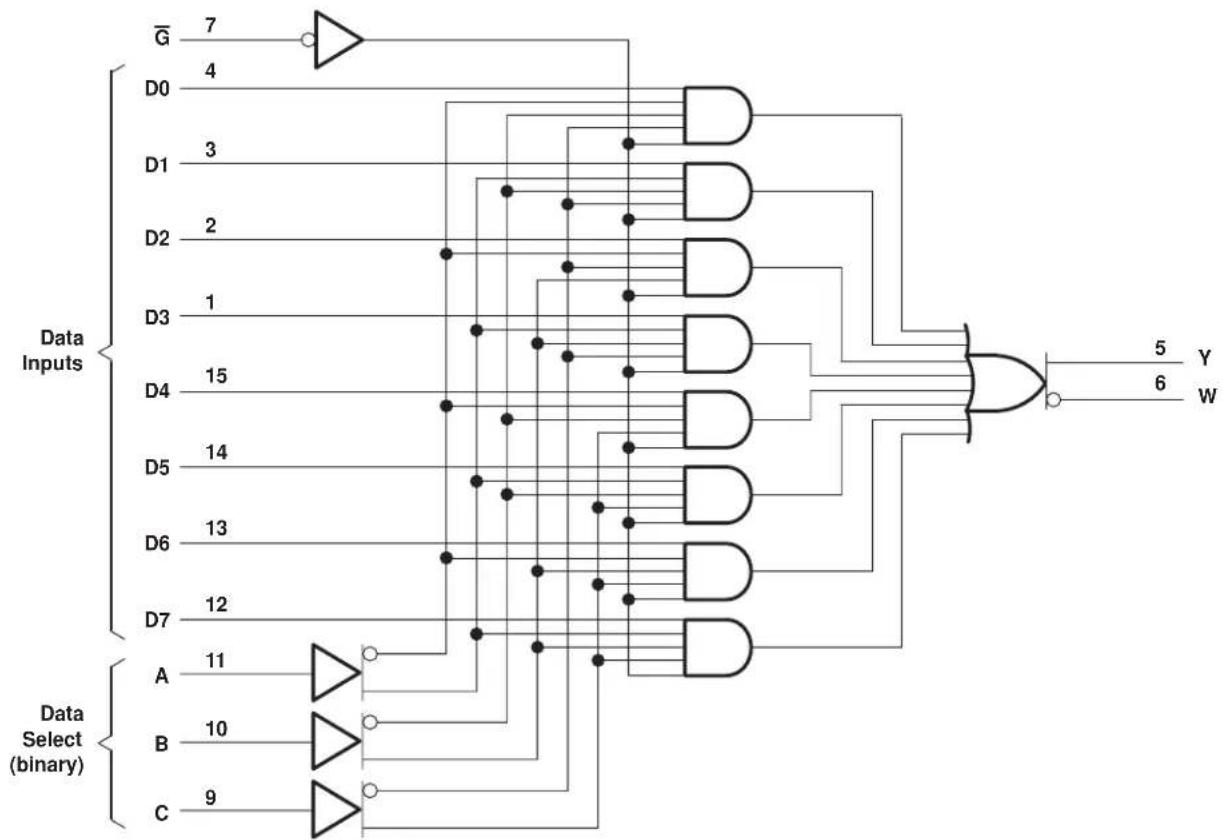

logic diagram (positive logic)

Pin numbers shown are for the D, J, and N packages.

absolute maximum ratings over operating free-air temperature range (unless otherwise noted)†

Supply voltage, V_CC 7 V

Input voltage, V_I 7 V

Operating free-air temperature range, T_A : SN54ALS151 -55°C to 125°C

SN74ALS151 0°C to 70°C

Storage temperature range -65°C to 150°C

Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

recommended operating conditions

		SN54ALS151			SN74ALS151			UNIT
		MIN	NOM	MAX	MIN	NOM	MAX
V_CC	Supply voltage	4.5	5	5.5	4.5	5	5.5	V
V_IH	High-level input voltage	2			2			V
V_IL	Low-level input voltage			0.7			0.8	V
I_OH	High-level output current			-1			-2.6	mA
I_OL	Low-level output current			12			24	mA
T_A	Operating free-air temperature	-55		125	0		70	°C

electrical characteristics over recommended operating free-air temperature range (unless otherwise noted)

PARAMETER	TEST CONDITIONS		SN54ALS151			SN74ALS151			UNIT
			MIN	TYP‡	MAX	MIN	TYP‡	MAX
V_IK	V_CC=4.5 V, I_I=-18 mA				-1.5			-1.5	V
V_OH	V_CC=4.5 V to 5.5 V, I_OH=-0.4 mA		V_CC-2			V_CC-2			V
	V_CC=4.5 V	I_OH=-1 mA	2.4	3.3
		I_OH=-2.6 mA				2.4	3.2
V_OL	V_CC=4.5 V	I_OL=12 mA		0.25	0.4		0.25	0.4	V
		I_OL=24 mA					0.35	0.5
I_I	V_CC=5.5 V, V_I=7 V				0.1			0.1	mA
I_IH	V_CC=5.5 V, V_I=2.7 V				20			20	μA
I_IL	V_CC=5.5 V, V_I=0.4 V				-0.1			-0.1	mA
I_O^S	V_CC=5.5 V, V_O=2.25 V		-20		-112	-30		-112	mA
I_CC	V_CC=5.5 V, Inputs at 4.5 V			7.5	12		7.5	12	mA

All typical values are at V_CC=5V, T_A=25^ .
§ The output conditions have been chosen to produce a current that closely approximates one half of the true short-circuit output current, IOS.

SDAS205A - APRIL 1982 - REVISED DECEMBER 1994

switching characteristics (see Figure 1)

PARAMETER	FROM(INPUT)	TO(OUTPUT)	V_CC = 4.5 V to 5.5 V, C_L = 50 pF, R_L = 500 , T_A = MIN to MAX^†		UNIT
			SN54ALS151	SN74ALS151
			MIN MAX MIN MAX
tPLH	A, B, or C Y	Y	4 21 4 18		ns
tPHL			7 35 8 24
tPLH	A, B, or C W	W	5 36 7 24		ns
tPHL			7 26 7 23
tPLH	Any D	Y	3 14 3 10		ns
tPHL			5 21 5 15
tPLH	Any D	W	3 23 3 15		ns
tPHL			4 20 4 15
tPLH		Y	4 21 4 18		ns
tPHL			4 25 4 19
tPLH		W	5 27 5 19		ns
tPHL			5 26 5 23

† For conditions shown as MIN or MAX, use the appropriate value specified under recommended operating conditions.

absolute maximum ratings over operating free-air temperature range (unless otherwise noted)‡

Supply voltage, V_CC 7 V

Input voltage, V_1 7 V

Operating free-air temperature range, T_A : SN74AS151 0°C to 70°C

Storage temperature range -65°C to 150°C

Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

recommended operating conditions

		SN74AS151			UNIT
		MIN	NOM MAX
V_CC	Supply voltage	4.5	5	5.5	V
V_IH	High-level input voltage	2			V
V_IL	Low-level input voltage			0.8	V
I_OH	High-level output current			-15	mA
I_OL	Low-level output current			48	mA
T_A	Operating free-air temperature	0		70	°C

electrical characteristics over recommended operating free-air temperature range (unless otherwise noted)

PARAMETER		TEST CONDITIONS		SN74AS151		UNIT
				MIN TYP † MAX
V_IK		V_CC=4.5 V, I	I=-18 mA -1.2 V
V_OH		V_CC=4.5 V to 5.5 V, I	OH=-2 mA V	CC-2		V
		V_CC=4.5 V, I	OH=-15 mA 2.4 3.2
V_OL		V_CC=4.5 V, I	OL=48 mA 0.35 0.5 V
I_I	A, B, or C	V_CC=5.5 V, V	‘ I=7 V	0.2		mA
	All others			0.1
I_IH	A, B, or C	V_CC=5.5 V, V	‘ I=2.7 V	40		μA
	All others			20
I_IL	A, B, or C	V_CC=5.5 V, V	‘ I=0.4 V	-1		mA
	All others			-0.5
I_O^		V_CC=5.5 V, V	O=2.25 V	-30	-112	mA
I_CC		V_CC=5.5 V		18.6	30	mA

All typical values are at V_CC = 5V, T_A = 25^ C .
‡The output conditions have been chosen to produce a current that closely approximates one half of the true short-circuit output current, IOS.

switching characteristics (see Figure 1)

PARAMETER	FROM(INPUT)	TO(OUTPUT)	V_CC = 4.5 V to 5.5 V, C_L = 50 pF, R_L = 500 , T_A = MIN to MAX		UNIT
			SN74AS151
			MIN	MAX
tPLH	A, B, or C	Y	4.5	14.5	ns
tPHL			4.5	15
tPLH	A, B, or C	W	4	12	ns
tPHL			4	12
tPLH	Any D	Y	3	10.5	ns
tPHL			3	11
tPLH	Any D	W	2	6.5	ns
tPHL			1	4.5
tPLH		Y	4.5	14	ns
tPHL			3	11
tPLH		W	1.5	6	ns
tPHL			3	10

§ For conditions shown as MIN or MAX, use the appropriate value specified under recommended operating conditions.

PARAMETER MEASUREMENT INFORMATION SERIES 54ALS/74ALS AND 54AS/74AS DEVICES

NOTES: A. C L includes probe and jig capacitance.
B. Waveform 1 is for an output with internal conditions such that the output is low except when disabled by the output control. Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the output control.
C. When measuring propagation delay items of 3-state outputs, switch S1 is open.
D. All input pulses have the following characteristics: PRR ≤ 1 MHz, t_r = t_f = 2 ns, duty cycle = 50%.
E. The outputs are measured one at a time with one transition per measurement.

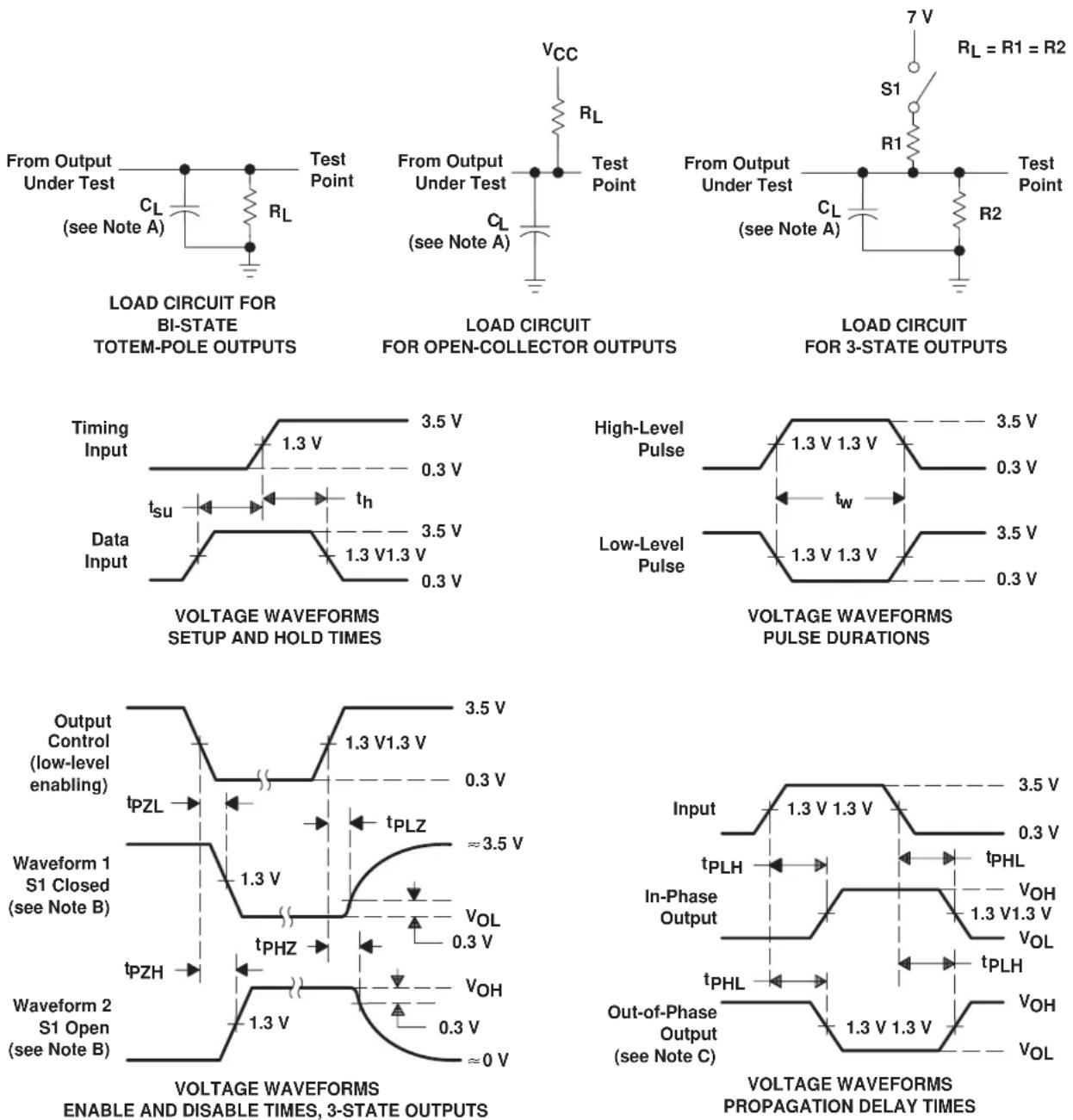

Figure 1. Load Circuits and Voltage Waveforms

PACKAGING INFORMATION

Orderable Device Status(1)		Package Type	Package Drawing	Pins	Package Qty	Eco Plan(2)	Lead finish/ Ball material(6)	MSL Peak Temp(3)	Op Temp (°C)	Device Marking(4-5)	Samples
8414101EA ACTIVE CDIP J 16 1 Non-RoHS						SNPB N / A for Pkg Type -55 to 125 8414101EA& Green				SNJ54ALS151J	Samples
SN74ALS151D ACTIVE SOIC D 16 40 RoHS & Green NIPDAU Level-1-260C-UNLIM 0 to 70 ALS151											Samples
SN74ALS151DR	ACTIVE	SOIC	D	16	2500	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	0 to 70	ALS151	Samples
SN74ALS151DRE4	ACTIVE	SOIC	D	16	2500	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	0 to 70	ALS151	Samples
SN74ALS151N	ACTIVE	PDIP	N	16	25	RoHS & Green	NIPDAU	N / A for Pkg Type	0 to 70	SN74ALS151N	Samples
SN74ALS151NSR	ACTIVE	SO	NS	16	2000	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	0 to 70	ALS151	Samples
SN74AS151D	ACTIVE	SOIC	D	16	40	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	0 to 70	AS151	Samples
SN74AS151N	ACTIVE	PDIP	N	16	25	RoHS & Green	NIPDAU	N / A for Pkg Type	0 to 70	SN74AS151N	Samples
SN74AS151NSR	ACTIVE	SO	NS	16	2000	RoHS & Green	NIPDAU	Level-1-260C-UNLIM	0 to 70	74AS151	Samples
SNJ54ALS151J	ACTIVE CDIP J 16 1 Non-RoHS					SNPB N / A for Pkg Type -55 to 125 8414101EA& Green				SNJ54ALS151J	Samples

(1) The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of <=1000ppm threshold. Antimony trioxide based flame retardants must also meet the <=1000ppm threshold requirement.
(3) MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.

(4) There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.
(5) Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "\~" will appear on a device. If a line is indented then it is a continuation of the previous line and the two combined represent the entire Device Marking for that device.
(6) Lead finish/Ball material - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead finish/Ball material values may wrap to two lines if the finish value exceeds the maximum column width.

Important Information and Disclaimer: The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.

OTHER QUALIFIED VERSIONS OF SN54ALS151, SN74ALS151 :

• Catalog : SN74ALS151
• Military : SN54ALS151

NOTE: Qualified Version Definitions:

• Catalog - TI's standard catalog product
• Military - QML certified for Military and Defense Applications

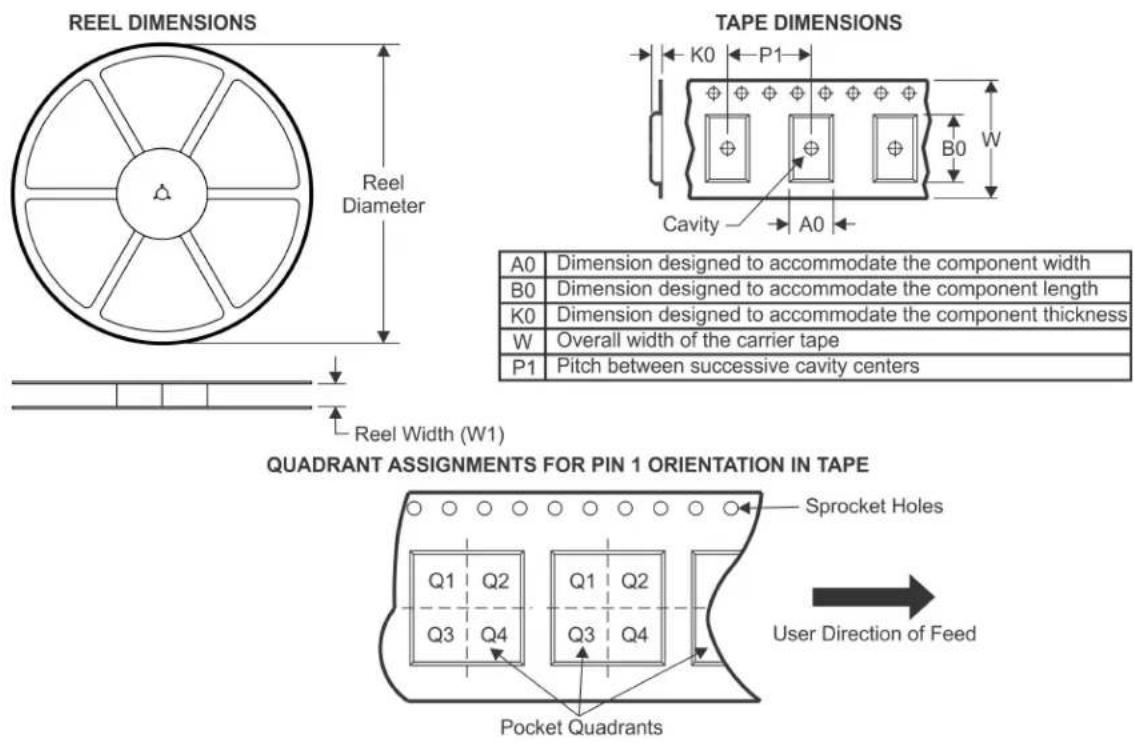

TAPE AND REEL INFORMATION

*All dimensions are nominal

Device Package

Type

Package Drawing

Pins

SPQ Reel

Diameter (mm)

Reel Width W1 (mm)

A0 (mm)

B0 (mm)

K0 (mm)

P1 (mm)

W (mm)

Pin1 Quadrant

SN74ALS151DR SOIC

D 16 250

0 330.0

16.4 6.5

10.3 2.1 8

0 16.0 Q1

SN74ALS151NSR SO

NS 16 200

0 330.0

16.4 8.2

10.5 2.5 1

2.0 16.0 Q1

SN74AS151NSR

SO NS

16 2000

330.0

6.4 8.2 10

5 2.5 12.0

16.0 Q1

TAPE AND REEL BOX DIMENSIONS W L

*All dimensions are nominal

Device	Package Type	Package Drawing	Pins	SPQ	Length (mm)	Width (mm)	Height (mm)
SN74ALS151DR SOIC	D 16 2500 340.5 3	36.1 32.0
SN74ALS151NSR SO	NS 16 2000 853.0 4	49.0 35.0
SN74AS151NSR SO	NS 16 2000 853.0 4	49.0 35.0

TUBE

T - Tube height L - Tube length W - Tube width B - Alignment groove width

*All dimensions are nominal

Device	Package Name	Package Type	Pins	SPQ	L (mm)	W (mm)	T (μm)	B (mm)
SN74ALS151D D SO	C 16 40 507 8 3940	4.32
SN74ALS151N N PD	P 16 25 506 13.97	1230 4.32
SN74ALS151N N PD	P 16 25 506 13.97	1230 4.32
SN74AS151D	D SOIC 16	40 507 8 3940	4.32
SN74AS151N	N PDIP 16	25 506 13.97	1230 4.32
SN74AS151N	N PDIP 16	25 506 13.97	1230 4.32

SOP

4220735/A 12/2021

NOTES:

1. All linear dimensions are in millimeters. Dimensions in parenthesis are for reference only. Dimensioning and tolerancing per ASME Y14.5M.
2. This drawing is subject to change without notice.
3. This dimension does not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not exceed 0.15 mm, per side.
4. This dimension does not include interlead flash. Interlead flash shall not exceed 0.25 mm, per side.

SOP

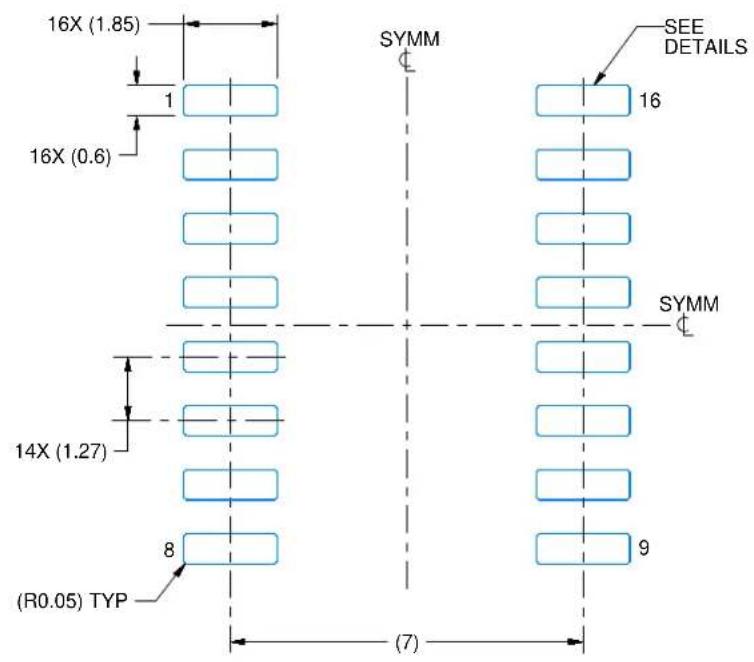

16X (1.85) 1 16X (0.6) SYMM SEE DETAILS 16 SYMM 14X (1.27) 8 (R0.05) TYP 9 (7)

LAND PATTERN EXAMPLE SCALE:7X

METAL SOLDER MASK OPENING 0.07 MAX ALL AROUND

NON SOLDER MASK DEFINED

SOLDER MASK OPENING METAL 0.07 MIN ALL AROUND

SOLDER MASK DEFINED
SOLDER MASK DETAILS

4220735/A 12/2021

NOTES: (continued)

1. Publication IPC-7351 may have alternate designs.
2. Solder mask tolerances between and around signal pads can vary based on board fabrication site.

SOP

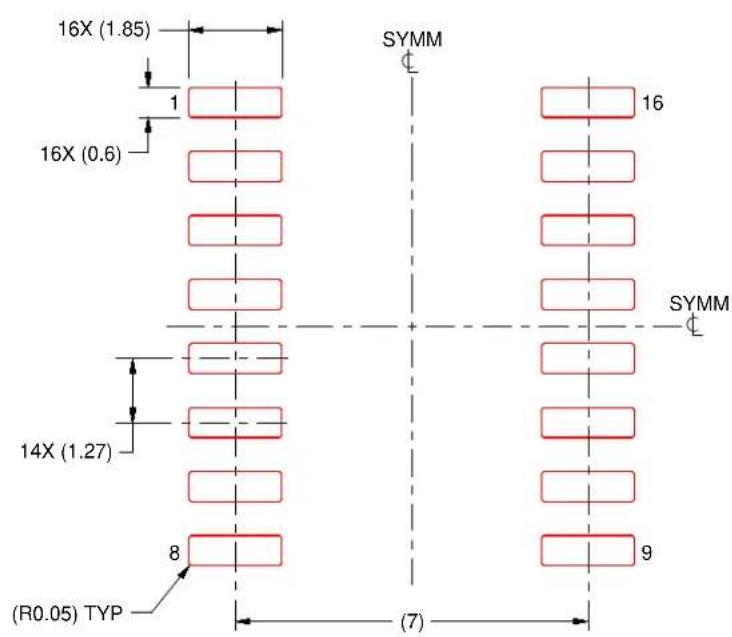

16X (1.85) 1 16X (0.6) 14X (1.27) 8 (R0.05) TYP SYMM 16 SYMM 9 (7)

SOLDER PASTE EXAMPLE BASED ON 0.125 mm THICK STENCIL SCALE:7X

4220735/A 12/2021

NOTES: (continued)

1. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate design recommendations.
2. Board assembly site may have different recommendations for stencil design.

B 14 8 C 1 0.065 (1,65) 0.045 (1,14)

DIM\PINS **	14	16	18	20
A	0.300(7,62)BSC	0.300(7,62)BSC	0.300(7,62)BSC	0.300(7,62)BSC
B MAX	0.785(19,94)	.840(21,34)	0.960(24,38)	1.060(26,92)
B MIN	—	—	—	—
C MAX	0.300(7,62)	0.300(7,62)	0.310(7,87)	0.300(7,62)
C MIN	0.245(6,22)	0.245(6,22)	0.220(5,59)	0.245(6,22)

0.005 (0,13) MIN 0.060 (1,52) 0.015 (0,38) 0.200 (5,08) MAX Seating Plane 0.130 (3,30) MIN 0.026 (0,66) 0.014 (0,36) 0.100 (2,54) 0.014 (0,36) 0.008 (0,20) A 0°-15°

4040083/F 03/03

NOTES:

A. All linear dimensions are in inches (millimeters).
B. This drawing is subject to change without notice.
C. This package is hermetically sealed with a ceramic lid using glass frit.
D. Index point is provided on cap for terminal identification only on press ceramic glass frit seal only.
E. Falls within MIL STD 1835 GDIP1-T14, GDIP1-T16, GDIP1-T18 and GDIP1-T20.

N (R-PDIP-T\*\*)

16 PINS SHOWN

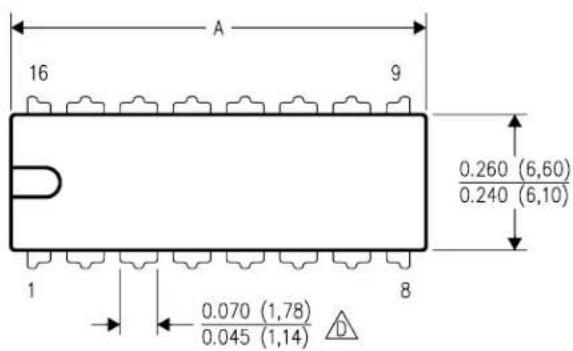

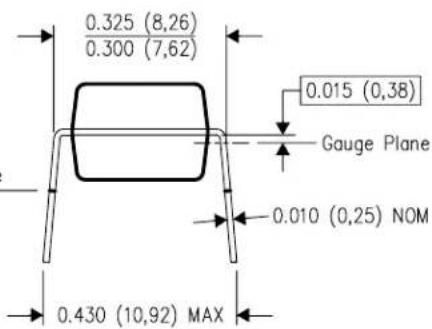

PLASTIC DUAL-IN-LINE PACKAGE

A 16 9 0.260 (6,60) 0.240 (6,10) 1 8 0.070 (1,78) 0.045 (1,14)

C

DIM\PINS **	14	16	18	20
A MAX	0.775(19,69)	0.775(19,69)	0.920(23,37)	1.060(26,92)
A MIN	0.745(18,92)	0.745(18,92)	0.850(21,59)	0.940(23,88)
MS-001VARIATION	AA	BB	AC	AD

0.045 (1,14) 0.030 (0,76) D 0.020 (0,51) MIN 0.200 (5,08) MAX Seating Plane 0.125 (3,18) MIN 0.100 (2,54) 0.021 (0,53) 0.015 (0,38) ⊕ 0.010 (0,25) M 14/18 Pin Only 20 Pin vendor opt

0.325 (8,26) 0.300 (7,62) 0.015 (0,38) Gauge Plane 0.010 (0,25) NOM 0.430 (10,92) MAX

4040049/E 12/2002

NOTES: A. All linear dimensions are in inches (millimeters).

B. This drawing is subject to change without notice.

C Falls within JEDEC MS-001, except 18 and 20 pin minimum body length (Dim A).

The 20 pin end lead shoulder width is a vendor option, either half or full width.

D (R-PDSO-G16)
PLASTIC SMALL OUTLINE

0.394 (10,00) 0.386 (9,80) 16 9 0.244 (6,20) 0.228 (5,80) 0.157 (4,00) 0.150 (3,80) Pin 1 Index Area 1 0.050 (1,27) 8 0.020 (0,51) 0.012 (0,31) ⊕ 0.010 (0,25) M 0.069 (1,75) Max 0.010 (0,25) 0.004 (0,10) Gcuge Plane 0.010 (0,25) 0.005 (0,13) 0'-8" Seating Plane 0.010 (0,25) 0.050 (1,27) 0.016 (0,40) 4040047-6/M 06/11

NOTES: A. All linear dimensions are in inches (millimeters).
B. This drawing is subject to change without notice.
Body length does not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not exceed 0.006 (0,15) each side.
Body width does not include interlead flash. Interlead flash shall not exceed 0.017 (0,43) each side.
E. Reference JEDEC MS-012 variation AC.

D (R-PDSO-G16)

NOTES: A. All linear dimensions are in millimeters.

B. This drawing is subject to change without notice.
C. Publication IPC-7351 is recommended for alternate designs.
D. Laser cutting apertures with trapezoidal walls and also rounding corners will offer better paste release. Customers should contact their board assembly site for stencil design recommendations. Refer to IPC-7525 for other stencil recommendations.
E. Customers should contact their board fabrication site for solder mask tolerances between and around signal pads.

MECHANICAL DATA

NS (R-PDSO-G\*\*)

PLASTIC SMALL-OUTLINE PACKAGE

14-PINS SHOWN

1,27 14 0,51 0,35 Ø 0,25① 8 5,60 5,00 8,20 7,40 1 7 A

0,15 NOM Gage Plane 0,25 0°-10° 1,05 0,55

2,00 MAX 0,15 0,05

Seating Plane 0.10

DIM\PINS **	14	16	20	24
A MAX	10,50	10,50	12,90	15,30
A MIN	9,90	9,90	12,30	14,70

4040062/C 03/03

NOTES: A. All linear dimensions are in millimeters.

B. This drawing is subject to change without notice.
C. Body dimensions do not include mold flash or protrusion, not to exceed 0,15.

IMPORTANT NOTICE AND DISCLAIMER

TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATA SHEETS), DESIGN RESOURCES (INCLUDING REFERENCE DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES "AS IS" AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD PARTY INTELLECTUAL PROPERTY RIGHTS.

These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable standards, and any other safety, security, regulatory or other requirements.

These resources are subject to change without notice. TI grants you permission to use these resources only for development of an application that uses the TI products described in the resource. Other reproduction and display of these resources is prohibited. No license is granted to any other TI intellectual property right or to any third party intellectual property right. TI disclaims responsibility for, and you will fully indemnify TI and its representatives against, any claims, damages, costs, losses, and liabilities arising out of your use of these resources.

TI's products are provided subject to TI's Terms of Sale or other applicable terms available either on ti.com or provided in conjunction with such TI products. TI's provision of these resources does not expand or otherwise alter TI's applicable warranties or warranty disclaimers for TI products.

TI objects to and rejects any additional or different terms you may have proposed.

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Copyright © 2022, Texas Instruments Incorporated
