Product Type	Bagless Canister Vacuum Cleaner
Brand	LG
Model	VK7320NHTS
Voltage	220-240 V ~ 50/60 Hz
Power Consumption	1600 W (typical)
Dust Tank Capacity	1.5 L
Cord Length	7 m (approx.)
Weight	5.5 kg (approx.)
Dimensions (W x D x H)	400 x 260 x 300 mm (approx.)
Filtration System	Washable Air Filter, Motor Safety Filter, Exhaust Filter
Nozzles Included	Carpet & Floor Nozzle, Hard Floor Nozzle, 2-in-1 Nozzle (Crevice, Dusting, Upholstery), Sani Punch Nozzle
Cord Rewind	Automatic
Suction Control	Variable on handle
Safety Features	Thermal Protector, Auto Shut-off on Overheating
Noise Level	78 dB(A) (typical)
Accessories	Telescopic Pipe, Flexible Hose, Park Mode
Maintenance	Empty dust tank when full; wash filters monthly; dry 24 hours; clean exhaust filter annually

Frequently Asked Questions - VK7320NHTS LG

How do I assemble the vacuum cleaner?

Connect the telescopic pipe to the nozzle, then attach the flexible hose to the pipe. Finally, push the fitting pipe on the hose into the attachment point on the vacuum cleaner.

How do I empty the dust tank?

Turn off and unplug the vacuum cleaner. Press the tank separation button, grasp the tank handle, and pull out the dust tank. Empty it and reassemble.

Why does suction power decrease?

Check for blockages in the hose, pipe, or nozzles. Ensure the dust tank is not full. Clean the air filter, motor safety filter, and exhaust filter if clogged.

How do I clean the filters?

Open the vacuum cleaner cover, remove the dust separator, and take out the air filter and motor safety filter. Wash them with cool water, dry fully in shade for at least 24 hours before replacing.

Can I wash the exhaust filter?

No, do not wash the exhaust filter with water. Instead, dust it off. It should be cleaned at least once a year.

How to use the Sani Punch nozzle?

Attach the Sani Punch nozzle to the telescopic pipe. Set suction power to MAX, then vacuum beds and blankets. For light blankets, push in the direction of the arrow. Do not use on floors.

What should I do if the vacuum cleaner overheats?

If the vacuum cleaner suddenly shuts off, turn off the switch and unplug it. Check for a full dust tank, blocked hose, or clogged filter. Fix the issue, wait 30 minutes, then plug in and turn on. If it still doesn't run, contact service.

Is the vacuum cleaner suitable for pet hair?

Yes, the 2-in-1 nozzle includes an upholstery nozzle with thread collectors to pick up pet hair and fluff. The Sani Punch nozzle is also effective for removing mites and dust from beds.

How do I rewind the cord?

The vacuum cleaner has an automatic cord rewind. To rewind, hold the plug and press the rewind button (or simply step on the button if present). Keep children away and watch for obstructions.

Where can I find the model number?

The model number is listed on the bottom of the vacuum cleaner. It is also shown on the rating plate near the power cord.

USER MANUAL VK7320NHTS LG

This information contains important instructions for the safe use and maintenance of the vacuum cleaner. Especially, please read all of the information on page 4, 5, 6 for your safety. Please keep this manual in an easily accessible place and refer to it anytime.

Important safety instructions 4\~6

Assembling vacuum cleaner 10\~11

Operating vacuum cleaner 12

Using carpet and floor nozzle/ hard floor nozzle 13

Using 2 in 1 nozzle 15

Using accessory nozzles 16

Cleaning dust tank 23

Cleaning exhaust filter 25

What to do if your vacuum cleaner does not work 26

What to do when suction power decreases 26

IMPORTANT SAFETY INSTRUCTIONS

Read and follow all instructions before using your vacuum cleaner to prevent the risk of fire, electric shock, personal injury, or damage when using the vacuum cleaner. This guide do not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand. This appliance complies with the following EC Directives :-2006/95/EC Low Voltage Directive -2004/108/EC EMC Directive.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "WARNING" or "CAUTION."

These words mean:

WARNING

This symbol will alert you to hazards or unsafe practices which could cause serious bodily harm or death.

CAUTION

This symbol will alert you to hazards or unsafe practices which could cause bodily injury or property damage.

WARNING

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. If the supply cord is damaged, it must be replaced by LG Electronics Service Agent in order to avoid a hazard
4. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

• Do not plug in if control knob is not in OFF position. Personal injury or product damage could result.
• Keep children away and beware of obstructions when rewinding the cord to prevent personal injury The cord moves rapidly when rewinding.
• Disconnect electrical supply before servicing or cleaning the unit or when cleaner is not in use. Failure to do so could result in electrical shock or personal injury.
• Do not use vacuum cleaner to pick up anything that is burning or smoking such as cigarettes, or hot ashes. Doing so could result in death, fire or electrical shock.
• Do not vacuum flammable or explosive substances such as gasoline, benzene, thinners, propane (liquids or gases).

The fumes from these substances can create a fire hazard or explosion. Doing so could result in death or personal injury.

• Do not handle plug or vacuum cleaner with wet hands.
  Doing so could result in death or electrical shock.
• Do not unplug by pulling on cord. Doing so could result in product damage or electrical shock. To unplug, grasp the plug, not the cord.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.

Failure to do so could result in electrical shock or personal injury.

- Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.

Failure to do so could result in electrical shock or personal injury or fire or product damage.

- The hose contains electrical wires. Do not use it if it is damaged, ccut or punctured.

Failure to do so could result in death, or electrical shock.

- Do not allow to be used as toy. Close attention is necessary when used by or near children.

Personal injury or product damage could result.

• Do not use the vacuum cleaner if the power cord or plug is damaged or faulty.
  Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.
• Do not use vacuum cleaner if it has been under water. Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.
• Do not continue to vacuum if any parts appear missing or damaged.

Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

- Do not use an extension cord with this vacuum cleaner.

Fire hazard or product damage could result.

• Using proper voltage.

Using improper voltage may result in damage to the motor and possible injury to the user. Proper voltage is listed on the bottom of vacuum cleaner.

- Turn off all controls before unplugging.

Failure to do so could result in electrical shock or personal injury.

- Do not change the plug in any way.

Failure to do so could result in electrical shock or personal injury or product damage. Doing so result in death. If plug does not fit, contact a qualified electrician to install the proper outlet.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Repairs to electrical appliances may only be performed by qualified service engineers.

Improper repairs may lead to serious hazards for the user.

- Do not put fingers near the gear.

Failure to do so could result in personal injury.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

• Do not put any objects into openings.
  Failure to do so could result in product damage.
• Do not use with any opening blocked: keep free of dust, lint, hair, and anything that may reduce air flow. Failure to do so could result in product damage.
• Do not use vacuum cleaner without the dust tank and/or filters in place.
  Failure to do so could result in product damage.
  • Always clean the dust bin after vacuuming carpet cleaners or fresheners, powders and fine dust. These products clog the filters, reduce airflow and can cause damage to the cleaner. Failure to clean the dust bin could cause permanent damage to the cleaner.
• Do not use vacuum cleaner to pick up sharp hard objects, small toys, pins, paper clips, etc. They may damage the cleaner or dust bin.
• Store the vacuum cleaner indoors. Put the vacuum cleaner away after use to prevent tripping over it.
• The vacuum cleaner is not intended to use by young children or infirm people without supervision.
  Failure to do so could result in personal injury or product damage.
• Only use parts produced or recommended by LG Electronics Service Agents.
  Failure to do so could result in product damage.
• Use only as described in this manual. Use only with LG recommended or approved attachments and accessories.
  Failure to do so could result in personal injury or product damage.

• To avoid personal injury and to prevent the machine from falling when cleaning stairs, always place it at the bottom of stairs.
  Failure to do so could result in personal injury or product damage.

• Use accessory nozzles in sofa mode.
  Failure to do so could result in product damage.

• Don't grasp the tank handle when you are moving the vacuum cleaner.
  The vacuum cleaner's body may fall when separating tank and body. Personal injury or product damage could result. You should grasp the carrier handle when you are moving the vacuum cleaner. (Page 22)
• Make sure the filters (exhaust filter and motor safety filter) are completely dry before replacing in the machine.
  Failure to do so could result in product damage.
• Do not dry the filter in an oven or microwave. Failure to do so could result in fire hazard.
• Do not dry the filter in a clothes dryer. Failure to do so could result in fire hazard.
• Do not dry near an open flame. Failure to do so could result in fire hazard.
• Do not use filters that is not dried.
• If the power cord is damaged, it must be replaced by an approved LG Electronics Service Agent to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

Thermal protector :

This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor overheating. If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner.

Check the vacuum cleaner for possible source of overheating such as a full dust tank, a blocked hose or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum cleaner. After the 30 minute period, plug the vacuum cleaner back in and turn on the switch. If the vacuum cleaner still does not run, contact a qualified electrician.

How to save Energy

For power saving, please turn the switch off on the body.

Push the telescopic pipe into the nozzle.

Push the fitting pipe on the flexible hose into the attachment point on the vacuum cleaner. To remove the flexible hose from the vacuum cleaner, press the button situated on the fitting pipe, then pull the fitting pipe out of the vacuum cleaner.

How to use Operating vacuum cleaner

③ Park mode Park modu

No liquid suction. Liquid suction can cause defects.

! UYARI

How to use Using carpet and floor nozzle/ hard floor nozzle

Simple line drawing of a Y-shaped tool or bracket inside a dashed circular border (no text or symbols)

① Carpet and floor nozzle(depend on model) Carpet & Floor / Halı ve Sert Zemin Başlığı (modele göre)

How to use Using 2 in 1 nozzle

Upholstery nozzle is for vacuuming upholstery, mattresses etc.

Illustration of hands using a handheld electric vehicle to handle a plug, with arrows indicating direction (no text or symbols)

Illustration of an open box being placed into a larger paper airplane (no text or symbols present)

Dusting brush is for vacuuming picture frames, furniture frames, books and other irregular surfaces.

Crevice tool is for vacuuming in those normally hard-to-reach place such as reaching cobwebs or between the cushions of sofa.

Upholstery nozzle is for vacuuming upholstery, mattresses etc. The thread collectors help to pick up the threads and fluff.

Dusting brush is for vacuuming picture frames, furniture frames, books and other irregular surfaces.

Use accessory in the sofa mode.

Uyari

This nozzle picks up even dust inside through beating.

The bottom part can be separated to be cleaned.

Since the bottom does not stick to the surface, vacuuming is easy.

Özellikler

Follow the directions below for properuse.

Kullanımı

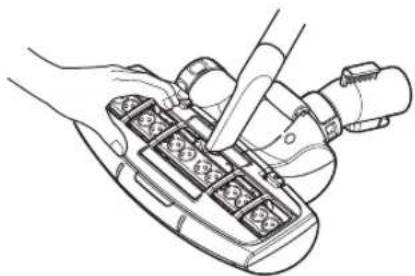

Connect the nozzle to the telescopic pipe.

Kurulum

Set the suction power control switch to MAX POWER before vacuuming.

Depending on the type of bedding, handling may be awkward or it may cause a lot of noise.

If this is the case, adjust the suction power control switch to a lower setting.

This Sani Punch nozzle is for effective cleaning of beds and blankets to remove mites and dust.

Bulky & heavy blanket Kabarık ve ağır battaniye

Diagram showing two mechanical components with directional arrows, no text or symbols present

Sani-punch is used for carpet.

It is easier to clean a light blanket or sheetby pushing the nozzle in the direction of the arrow. To increase cleaning efficiency for light blankets, lay on top of a bulky blanket and then clean.

For simple cleaning of the vacuum nozzle, detach the Sani Punch nozzle from the telescopic pipe and attach the crevice tool to vacuum dust.

Line drawing of a hand holding a cylindrical device with two tubes, no text or symbols present

Bottom Alt

Line drawing of a hand using a tool to press or install a device with a grid of buttons (no text or symbols visible)

Inside iç kısım

Technical line drawing of a mechanical component with a magnified inset showing a hand operating a gear mechanism (no text or symbols present)

You can remove dust by hand, if you can't remove dust which is inside of nozzle by crevice tool.

Since the vibrator inside is composed of precision parts, never disassemble the body.

Be careful not to let foreign objects clog the air suction part on top of the vacuum nozzle.

Since removal of the punch bar may cause performance problems, do not warp or remove it.

Attach the bottom plate properly before using. Without this bottom plate, it may not function.

Since this vacuum nozzle has been made exclusively for cleaning beds, blankets and upholstery, use it only for these cleaning purposes.

(Using it to clean the floor may result soiling it or a drop in performance, do not use it for such purposes.)

Follow the instruction below for through washing.

(Do not soak the entire body of the vacuum nozzle in water, it may cause the vibrator to malfunction)

How to use Emptying dust tank

The dust tank needs emptying when the dust tank level reaches the MAX line.

• Turn off the vacuum cleaner and unplug it.
• Grasp the handle of the tank and then press the tank separation button.
• Pull out the dust tank.
• Empty the tank and then assemble the dust tank as shown.

NOTICE

• If suction power decreases after emptying the dust tank, clean the dust tank → next page

Uyari

Moving the vacuum cleaner

- Don't grasp the tank handle when you are moving the vacuum cleaner. The vacuum cleaner's body may fall when separating tank and body. You should grasp the carrier handle when you are moving the vacuum cleaner.

Illustration of a person holding a device with a thought bubble (no text or symbols)

Carrier handle Taşıma kolu

How to use Cleaning dust tank

If suction power decreases after cleaning the dust tank, clean the air filter and the motor safety filter.

→ Next page

Uyari

- Inside of dust separator, air filter, motor safety filter

Kullanım

If suction power decreases after cleaning the dust tank, clean the air filter and the motor safety filter.

The air filter and the motor safety filter are located on the top of the vacuum cleaner as above the figure.

• Open the vacuum cleaner cover by pushing the button.
• Grasp the handle of the dust separator and take out it.
• Open the guide cover by pulling the guide cover lever and remove the dust.
• Open the air filter cover by pushing the air filter cover lever and take out the air filter.
• Separate the motor safety filter from the dust separator.
• Wash the air filter and the motor safety filter.
• Do not wash filters with hot water.
• Dry fully in shade so that moisture is entirely removed.
• The air filter and the motor safety filter should be cleaned as above the figure.

Dry fully for more than 24 hours in shade.

UYARI

If filters are damaged, do not use them. In this cases, contact LG Electronics Service Agent.

Wash filters at least Once a month.

Uyari

How to use Cleaning exhaust filter

• The exhaust filter is a reusable filter.
• To clean the exhaust filter, open the exhaust filter cover by pushing the button.
- Separate the exhaust filter by pushing the lever.
- Dust off the exhaust filter.(Do not wash the exhaust filter with water.)
- Insert the exhaust filter lugs into the grooves of the motor housing and push the exhaust filter.
• The exhaust filter should be cleaned at least a year.

What to do when suction power decreases

• Turn off the vacuum cleaner and unplug it.
• Check the telescopic pipe, flexible hose and cleaning tool for blockages or obstructions.
• Check that the dust tank is not full. Empty if necessary.
• Check that the exhaust filter is not clogged. Clean the exhaust filter if necessary.
• Check that the air filter and the motor safety filter are not clogged. Clean the them if necessary.
• Check the inside of the dust separator. Clean the inside of the dust separator if necessary.

Simple line drawing of a trash bin with crossed x and y axes, no text or symbols present

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.
5. Comply with the EEE Directive

Decorative border frame with leaf motifs and dotted lines, no text or symbols present

LG

Life's Good

İTHALATÇI FİRMA

LG Electronics Tic. A.S.

170, Seongsanpaechong-ro,

Seongsan-gu, Changwon-si,

Gyeongsangnam-do, Korea 642-711

TEL:[phone]
