SR48SIDE4PHD - Computer accessory Tripp Lite - Free user manual and instructions

Product Type	Heavy-Duty Open Frame Rack
Brand	Tripp Lite
Model	SR48SIDE4PHD
Form Factor	4-Post Open Frame
Material	Steel
Color	Black
Rack Units (Height)	48U
Maximum Load Capacity	2000 lbs
Included Hardware	Mounting brackets, screws, nuts, washers
Optional Accessories	Caster kit (SRCASTER), side panels (sold separately)
Warranty	5-Year Limited
Assembly Required	Yes
Safety Warning	Extremely heavy; require assistance for assembly
Manufacturer	Tripp Lite, Chicago, IL USA

Frequently Asked Questions - SR48SIDE4PHD Tripp Lite

What tools are needed to assemble the rack?

You will need a Phillips head screwdriver and a 16mm open end wrench (user-supplied).

What is the weight capacity of this rack?

The rack is rated for a maximum load of 2000 lbs when properly assembled and stabilized.

Can I install casters on this rack?

Yes, casters can be added using the optional SRCASTER kit (sold separately). Do not install casters while equipment is mounted.

Are side panels included?

Side panels are sold separately. They can be attached as an optional step.

How do I ensure the rack is stable?

After assembly, place the rack on a level surface and tighten all acorn nuts firmly. Confirm stability before installing equipment.

What is the warranty period?

Tripp Lite offers a 5-year limited warranty covering defects in material and workmanship.

Can I register my product?

Yes, register at www.tripplite.com/warranty for quicker service and a chance to win a free surge protector.

What equipment is compatible with this rack?

The rack is designed for standard EIA-310 compliant equipment up to 48U height.

How should I clean the rack?

Use a dry cloth to wipe down the frame. Avoid using liquids or abrasive cleaners.

Is assembly assistance required?

Yes, due to the extreme weight, do not attempt to unpack, move, or assemble without assistance to prevent tipping or injury.

USER MANUAL SR48SIDE4PHD Tripp Lite

Assembly Instructions

SmartRack® 4-Post

Heavy-Duty Open Frame Racks

Models: SR4POST48HD, SR4POST50HD, SR4POST52HD, SR4POST58HD

Technical line drawing of a rectangular metal frame structure with bolt holes and internal ribs (no text or symbols)

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind.

You could also win an ISOBAR6ULTRA surge protector—a \$50 value!

www.tripplite.com/warranty

Manufacturing Excellence.

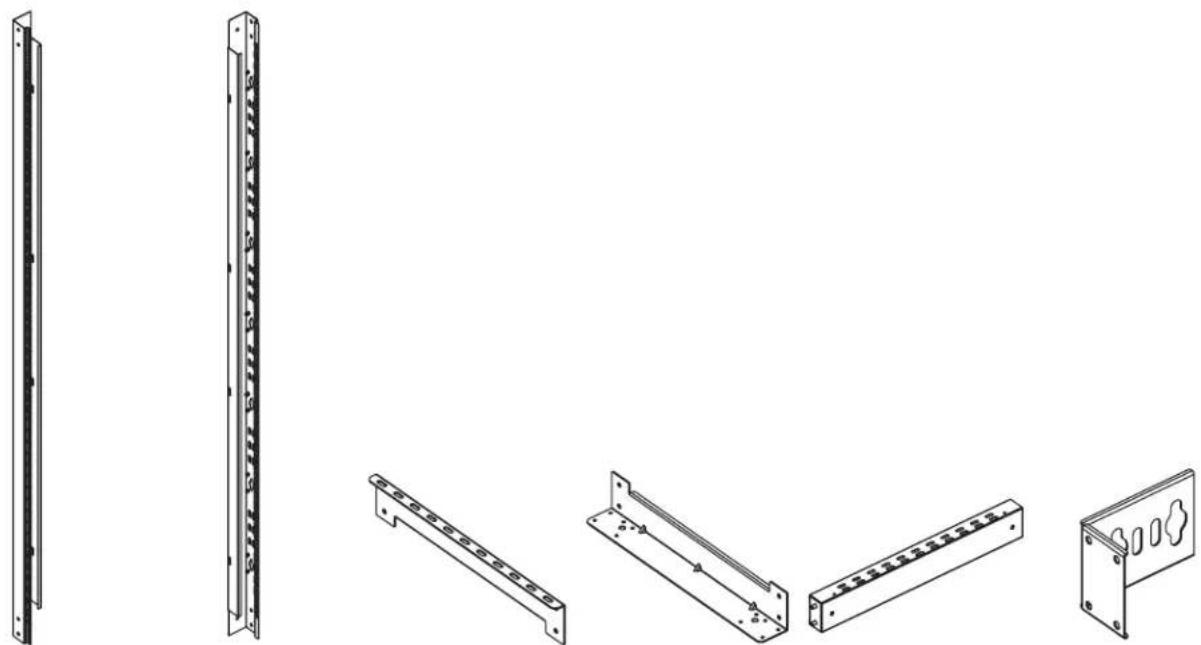

Parts List

Technical line drawings of five different mechanical or electrical components, including vertical and rectangular panels with mounting holes (no text or symbols)

ABCDEF

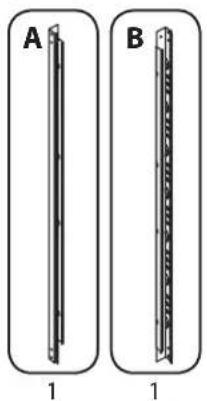

Front Upright Rear Upright Top Flange Base Flange Horizontal Beam PDU Bracket

x2

x2

x2

x2

x4

x2

GHI

M10 Acorn Nut M10 Flat Washer M6x12 Phillips Head Screw

x16

x16

x4

SRCASTER Kit (Optional, Sold Separately)

JKL

M6x16mm Hex Head Screw

M

M6 Hex Nut M6 Flat Washer Caster

x16

x16

x32

x4

Required tools (User Supplied):

• Phillips Head Screwdriver
• 16 mm Open End Wrench

WARNING: The rack enclosure is extremely heavy. Do not attempt to unpack, move, assemble or install the enclosure without assistance. Until it has been properly assembled and stabilized, the enclosure is prone to tipping and could cause property damage and/or personal injury. Use extreme caution when assembling the enclosure. Do not attempt to install equipment without first stabilizing the enclosure.

step

1

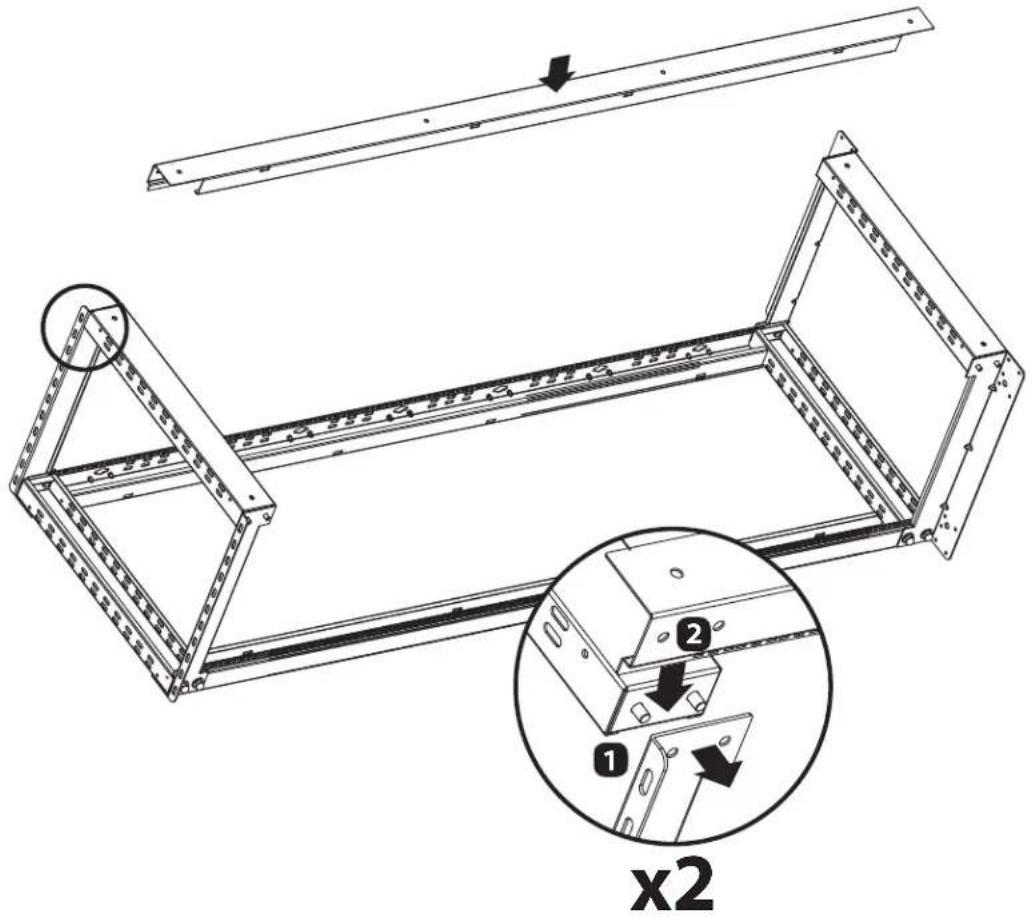

Lay out parts on the floor or a stable work surface and assemble as shown.

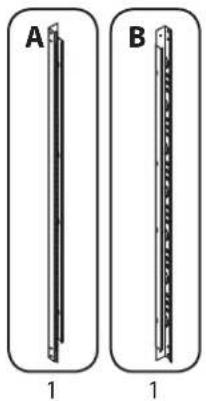

Two vertical cylindrical objects labeled A and B, each with a textured surface and a numbered label 1 below (no text or symbols on the objects themselves)

Technical line drawing of a rectangular frame with internal components and an inset close-up showing a detail (no text or symbols)

step

2

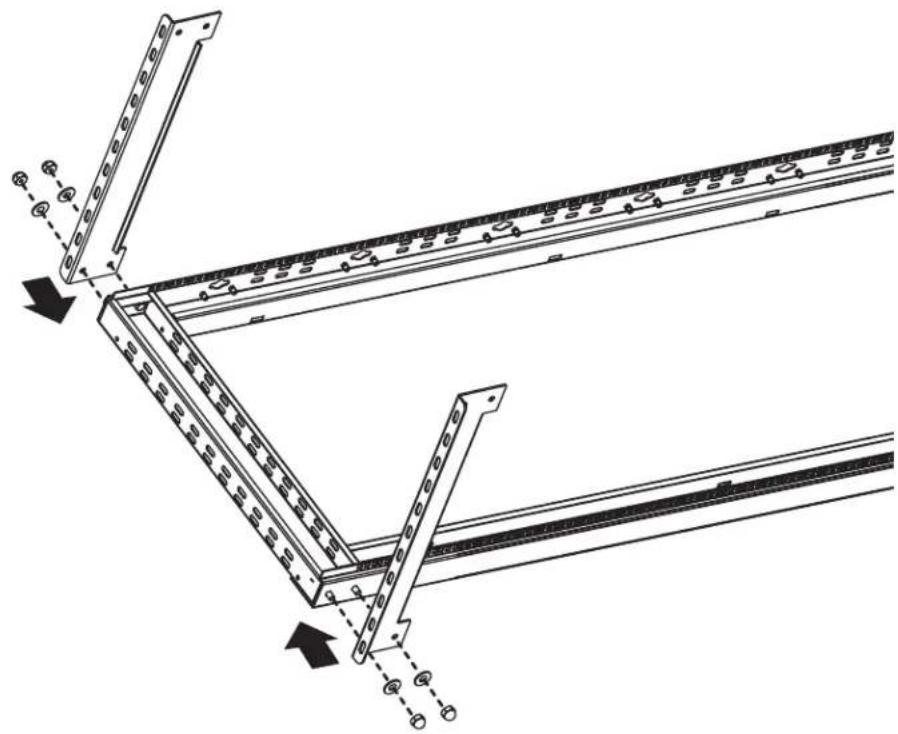

Attach the washers and acorn nuts, but leave them loose. This will allow the unit to flex later in the assembly process.

Technical line drawing of a structural frame with mounting brackets and bolt holes (no text or symbols)

step

Attach the washers and acorn nuts, but leave them loose.

2

4

4

Technical line drawing of a structural frame with two vertical supports and a central support beam, showing alignment and assembly details (no text or symbols)

step

2

Technical line drawing of a structural frame assembly with mounting brackets and a magnified inset showing internal components (no text or symbols)

step

5

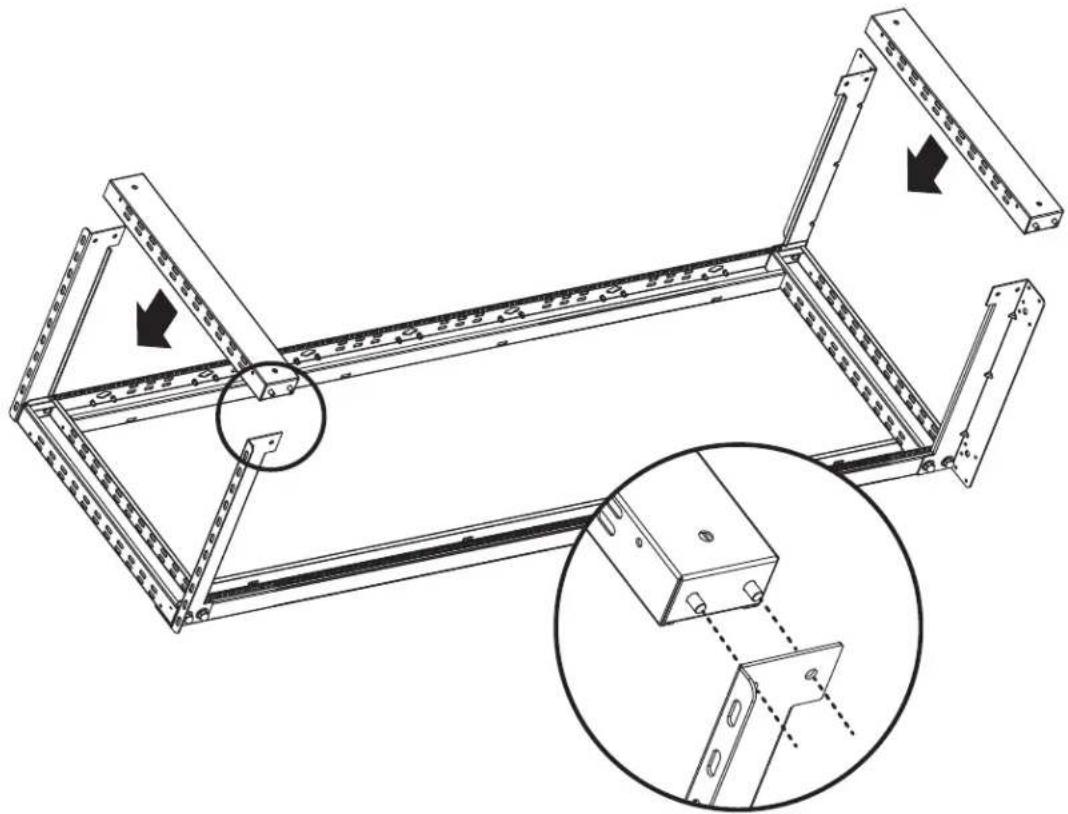

Lay rear upright on the unit. Pull apart the base flange and horizontal beam 1. Align the holes at the end of the upright with the studs in the horizontal beam and push the upright onto the beam 2. Push the base flange and horizontal beam back together.

Two vertical cylindrical objects labeled A and B, each with a textured surface and a numbered label 1 below (no text or symbols on the objects themselves)

Repeat this process for the other end of the upright.

step

6

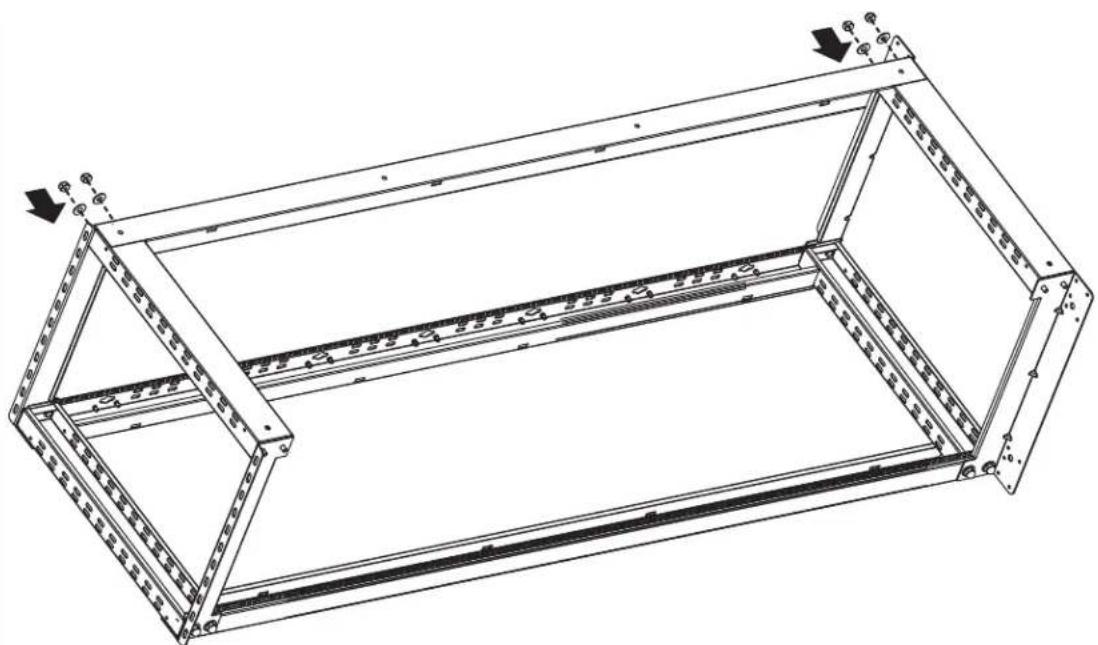

Attach the washers and acorn nuts, but leave them loose.

4

4

Technical line drawing of a structural frame with mounting holes and internal ribs (no text or symbols)

Repeat steps 5 & 6 to attach front upright.

step

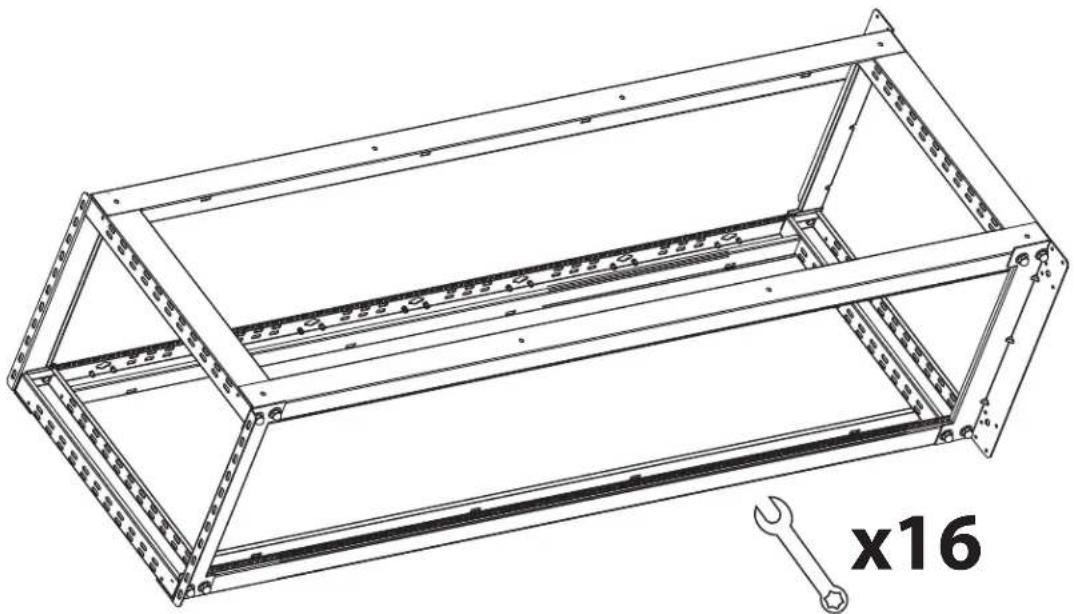

Using an open end wrench (user-supplied), tighten all acorn nuts firmly. Place the rack upright on a level surface and confirm it's stable.

Technical line drawing of a mechanical frame structure with a wrench and dimension label 'x16' (no text or symbols on the diagram itself)

step

(Optional)

Attach PDU Brackets

2

4

step

(Optional)

Attach Casters

Warning: Do not attempt to install casters while equipment is installed in the rack.

Note:

Installation requires

Tripp Lite's Heavy-

Duty Rolling Caster

Kit (model SRCASTER, sold separately)

16

16

32

4

Technical line drawing of a mechanical assembly with mounting brackets and fasteners (no text or symbols)

Configuration 1 Configuration 2

Technical line drawing of a mechanical assembly with circular components and a base mount (no text or symbols)

Simple line drawing of a door with wheels and a small structure, no text or symbols present

step

(Optional)

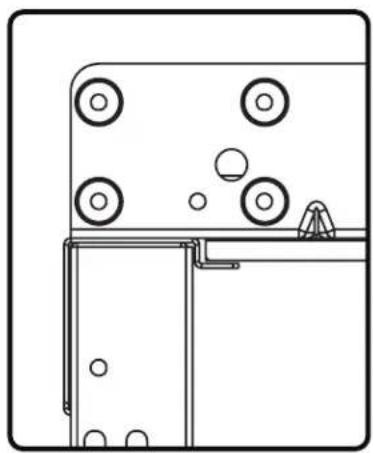

Attach Side Panels (sold separately)

Warranty and Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Product Registration

Visit www.tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!* * No purchase necessary. Void where prohibited. Some restrictions apply. See Web site for details.

Tripp Lite follows a policy of continuous improvement. Product specifications are subject to change without notice.
