Product Type	Open Frame Rack
Model	SR52SIDE4PHD
Brand	Tripp Lite
Rack Height	52U (91 inches / 231.14 cm)
Rack Width	19 inches (standard)
Rack Depth	Adjustable (up to 42 inches typical)
Load Capacity	Heavy-duty, up to 2000 lbs (907 kg) static load
Construction	Heavy-duty steel
Mounting	4-post open frame, adjustable mounting depths
Included Hardware	Acorn nuts, flat washers, screws, brackets
Optional Accessories	SRCASTER caster kit (sold separately), side panels (sold separately)
Compliance	EIA/ECA-310-E
Warranty	5-year limited warranty
Product Registration	Available at www.tripplite.com/warranty
Assembly Required	Yes, detailed instructions included
Tools Required	Phillips screwdriver, 16mm open end wrench (user-supplied)
Safety Warning	Heavy enclosure; require assistance to avoid tipping
Maintenance	Periodically check and tighten all hardware
Repairability	Contact Tripp Lite support for replacement parts
Environmental	Indoor use only

Frequently Asked Questions - SR52SIDE4PHD Tripp Lite

How do I assemble the Tripp Lite SR52SIDE4PHD rack?

Follow the step-by-step instructions in the manual. Lay out parts, attach the front and rear uprights using acorn nuts and washers, leaving them loose initially. Then tighten all nuts firmly with a 16mm open end wrench.

What tools are required for assembly?

You will need a Phillips head screwdriver and a 16mm open end wrench (user-supplied).

Can I install casters on this rack?

Yes, you can install the optional SRCASTER caster kit (sold separately). However, do not attempt to install casters while equipment is already installed in the rack.

What is the weight capacity of the rack?

The rack is heavy-duty with a static load capacity of up to 2000 lbs (907 kg). Actual capacity may vary based on installation and equipment distribution.

How long is the warranty?

Tripp Lite offers a 5-year limited warranty covering defects in material and workmanship.

Where can I register my product?

Register your product at www.tripplite.com/warranty to receive quicker service and be entered into a drawing for a free Tripp Lite product.

Is the rack compatible with standard 19-inch equipment?

Yes, the rack is designed for standard 19-inch EIA/ECA-310-E compliant equipment. It features adjustable mounting depths to fit various devices.

Are side panels available?

Yes, side panels are available as an optional accessory, sold separately. They can be attached to enclose the rack.

How do I maintain the rack?

Periodically check all hardware (acorn nuts, screws, etc.) and tighten them if necessary. Keep the rack on a level surface and avoid overloading.

What safety precautions should I take?

The rack is extremely heavy. Always have assistance during unpacking, moving, assembly, and installation. Ensure the rack is on a level surface and stable before mounting equipment to prevent tipping.

USER MANUAL SR52SIDE4PHD Tripp Lite

Assembly Instructions

SmartRack® 4-Post

Heavy-Duty Open Frame Racks

Models: SR4POST48HD, SR4POST50HD, SR4POST52HD, SR4POST58HD

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind.

You could also win an ISOBAR6ULTRA surge protector—a \$50 value!

www.tripplite.com/warranty

Manufacturing Excellence.

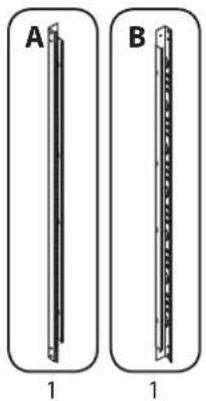

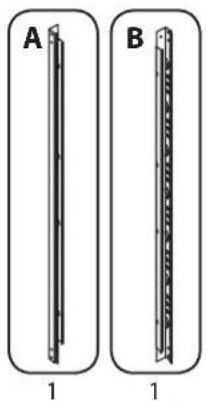

Parts List

ABCDEF

Front Upright Rear Upright Top Flange Base Flange Horizontal Beam PDU Bracket

x2

x2

x2

x2

x4

x2

GHI

M10 Acorn Nut M10 Flat Washer M6x12 Phillips Head Screw

x16

x16

x4

SRCASTER Kit (Optional, Sold Separately)

JKL

M6x16mm Hex Head Screw

M

M6 Hex Nut M6 Flat Washer Caster

x16

x16

x32

x4

Required tools (User Supplied):

• Phillips Head Screwdriver
• 16 mm Open End Wrench

WARNING: The rack enclosure is extremely heavy. Do not attempt to unpack, move, assemble or install the enclosure without assistance. Until it has been properly assembled and stabilized, the enclosure is prone to tipping and could cause property damage and/or personal injury. Use extreme caution when assembling the enclosure. Do not attempt to install equipment without first stabilizing the enclosure.

step

1

Lay out parts on the floor or a stable work surface and assemble as shown.

step

2

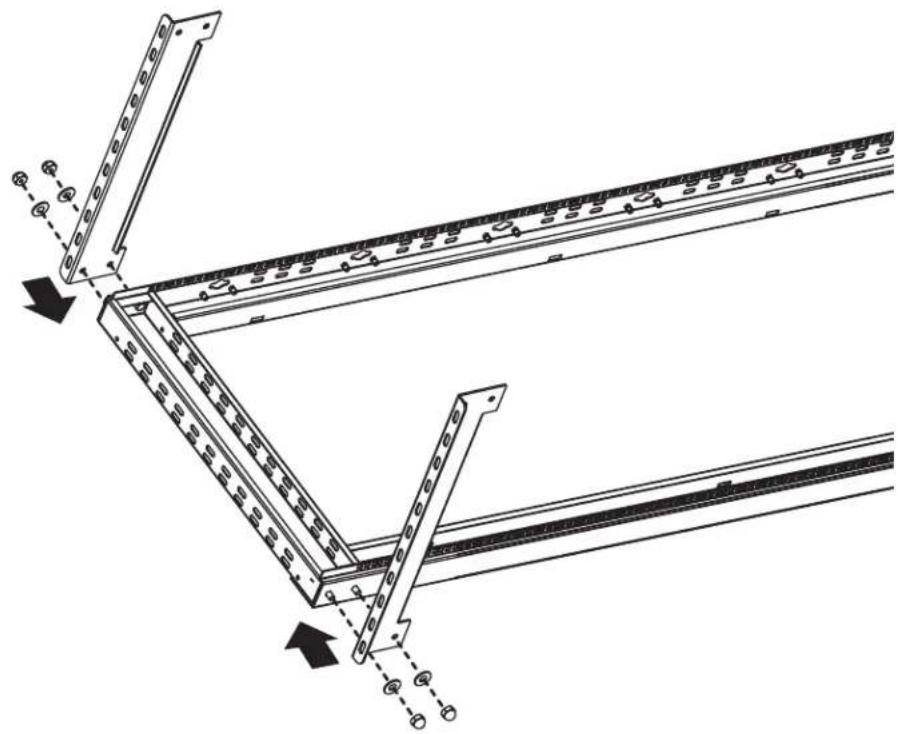

Attach the washers and acorn nuts, but leave them loose. This will allow the unit to flex later in the assembly process.

step

Attach the washers and acorn nuts, but leave them loose.

2

4

4

step

2

step

5

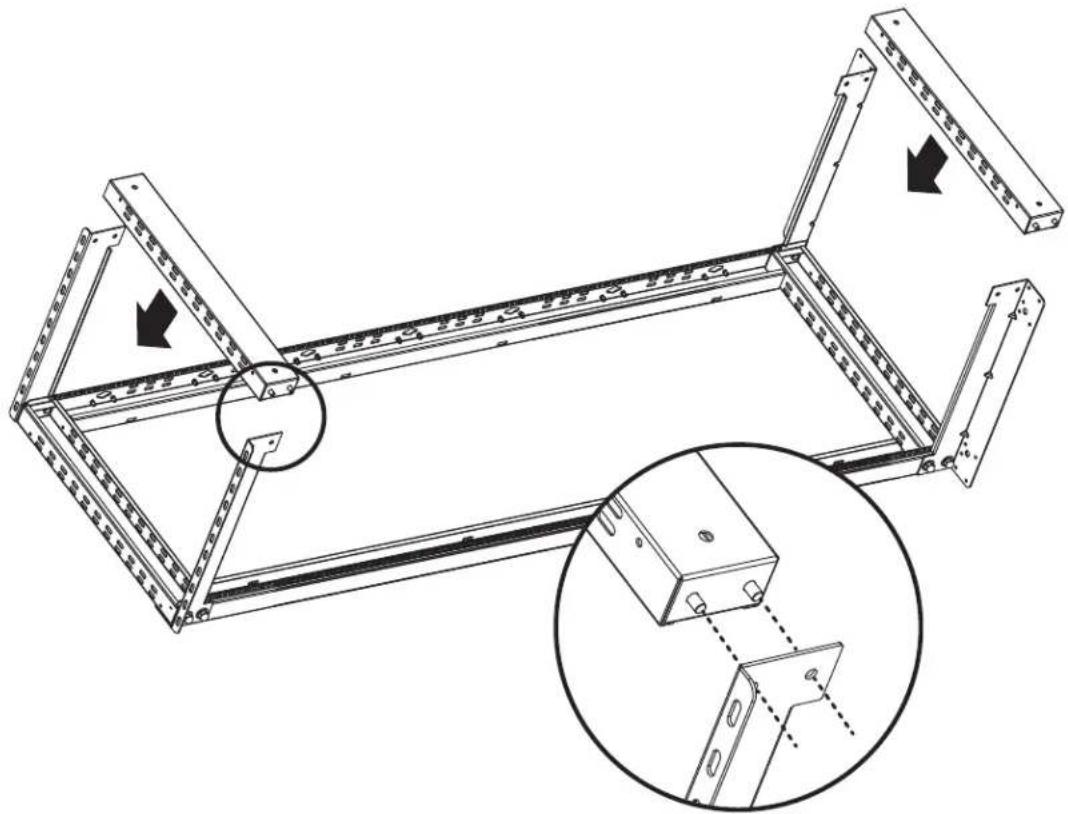

Lay rear upright on the unit. Pull apart the base flange and horizontal beam 1. Align the holes at the end of the upright with the studs in the horizontal beam and push the upright onto the beam 2. Push the base flange and horizontal beam back together.

Repeat this process for the other end of the upright.

step

6

Attach the washers and acorn nuts, but leave them loose.

4

4

Repeat steps 5 & 6 to attach front upright.

step

Using an open end wrench (user-supplied), tighten all acorn nuts firmly. Place the rack upright on a level surface and confirm it's stable.

step

(Optional)

Attach PDU Brackets

2

4

step

(Optional)

Attach Casters

Warning: Do not attempt to install casters while equipment is installed in the rack.

Note:

Installation requires

Tripp Lite's Heavy-

Duty Rolling Caster

Kit (model SRCASTER, sold separately)

16

16

32

4

Configuration 1 Configuration 2

step

(Optional)

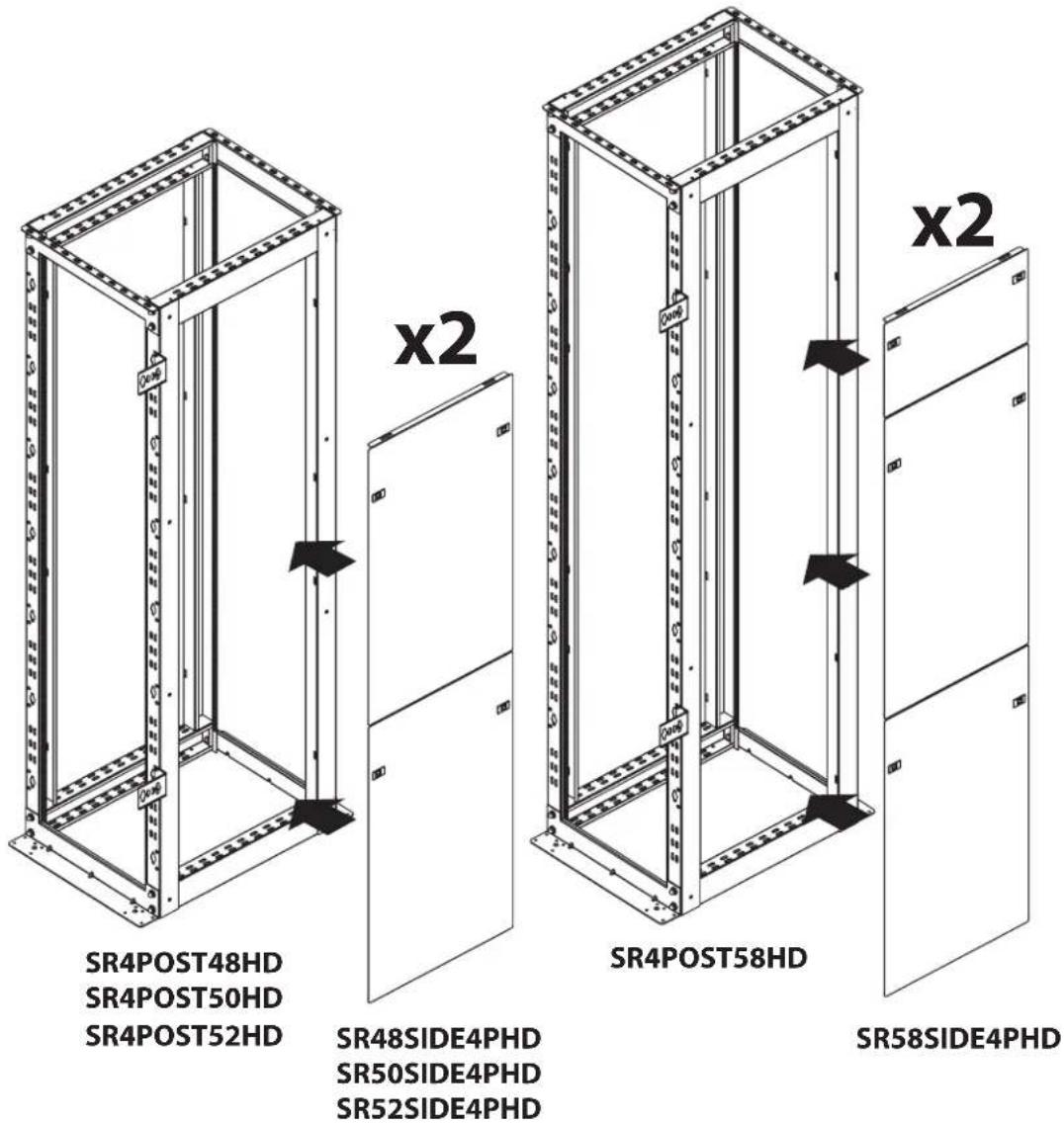

Attach Side Panels (sold separately)

Warranty and Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Product Registration

Visit www.tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!* * No purchase necessary. Void where prohibited. Some restrictions apply. See Web site for details.

Tripp Lite follows a policy of continuous improvement. Product specifications are subject to change without notice.
