N080-C25-OC-WH - Computer Accessories and Peripherals Tripp Lite - Free user manual and instructions

Product Type	Outside Corner Connector for Raceway Wiring Duct
Model	N080-C25-OC-WH
Brand	Tripp Lite
Color	White
Material	PVC (Polyvinyl Chloride)
Compatibility	Tripp Lite N080-D25-2M-WH 2-Piece Raceway Duct
Function	Joins two raceway duct strips to make a turn around an outside corner
Installation	Snap-fit or screw-mount (no tools required for snap-fit)
Warranty	Limited Lifetime Warranty
Country of Origin	USA
Included Accessories	1 outside corner connector
Maintenance	Wipe clean with a damp cloth; do not use abrasive cleaners
Safety	No electrical current; safe for use with low-voltage cables
Repairability	Non-repairable; replace if damaged
Environmental	Indoor use only; operating temperature 0-60°C (32-140°F)

Frequently Asked Questions - N080-C25-OC-WH Tripp Lite

What is the Tripp Lite N080-C25-OC-WH used for?

It is an outside corner connector used to join two sections of Tripp Lite N080-D25-2M-WH raceway duct to create a 90-degree turn around an outside corner.

Is the N080-C25-OC-WH compatible with other raceway brands?

It is specifically designed for Tripp Lite's 2-piece raceway system. Compatibility with other brands is not guaranteed.

What tools are needed for installation?

No tools are required for snap-fit installation. The connector clicks onto the duct. If using screws, a small Phillips screwdriver may be needed.

Can the connector be painted?

Yes, it can be painted with standard latex paint to match wall color. Ensure the surface is clean and dry before painting.

What is the warranty for this product?

Tripp Lite offers a Limited Lifetime Warranty against defects in material and workmanship. See the manual for details.

How do I clean the connector?

Wipe with a damp cloth and mild soap if needed. Avoid abrasive cleaners that may scratch the surface.

Is the connector suitable for outdoor use?

No, it is designed for indoor use only. Exposure to moisture or UV may cause damage.

Does the connector come with screws?

The connector typically uses snap-fit installation. Screws are not included but can be used if desired.

What is the maximum cable capacity through the connector?

The connector maintains the same internal dimensions as the duct, allowing for cables up to 1.5 inches in diameter, depending on the duct size.

How do I register my product?

Visit www.tripplite.com/warranty to register for faster service and a chance to win a free product.

USER MANUAL N080-C25-OC-WH Tripp Lite

Wiring Duct Raceway Products

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind.

You could also win an ISOBAR6ULTRA surge protector—a \$100 value!

www.tripplite.com/warranty

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA www.tripplite.com/support

Copyright © 2016 Tripp Lite. All rights reserved.

Raceway Components

Sample Raceway System Layout

A Raceway Wiring Duct (N080-D25-2M-WH): 2-piece raceway wiring duct.

2

Raceway Components

B Raceway End Cap Connector (N080-C25-EC-WH): Caps off the end of the raceway wiring duct.

Simple line drawing of a rectangular frame with two corner cutouts (no text or symbols)

Simple line drawing of a 3D rectangular prism (no text or symbols)

C Raceway Straight Connector (N080-C25-ST-WH): Joins two raceway wiring duct strips together in a straight line.

Simple line drawing of a structural frame or bracket (no text or symbols)

Isometric line drawing of a simple 3D rectangular box or frame structure (no text or symbols)

Raceway Components

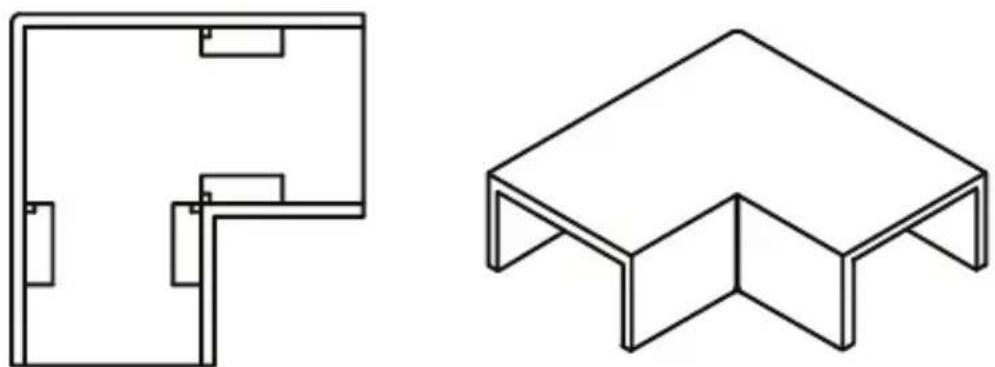

Outside Corner Connector (N080-C25-OC-WH): Joins two raceway wiring duct strips to make a turn around an outside corner.

Two technical line drawings of 3D mechanical parts: a stepped L-shaped block and a stepped U-shaped housing (no text or symbols)

E T Connector (N080-C25-T-WH): Joins three raceway wiring duct strips together to make a right-angle raceway branch.

Two architectural floor plan diagrams showing room layouts and structural supports (no text or labels)

Raceway Components

F Inside Corner Connector (N080-C25-IC-WH): Joins two raceway wiring duct strips to make a turn around an inside corner.

Technical line drawings of two mechanical bracket assemblies (no text or symbols)

G L Connector (N080-C25-L-WH): Joins two raceway wiring duct strips to make a right-angle turn.

Two simple line drawings of furniture or furniture arrangements: one with a rectangular floor plan and two with a triangular roof structure (no text or symbols)

Raceway Components

Single Gang Junction Box (N080-SMB1-WH): Deep-back box for mounting a wall plate as part of a raceway system. Ideal for multiple audio/video, voice and Ethernet in-wall applications using any type of keystone jack, including Cat5e/6/6a, USB, HDMI, DisplayPort™ and RCA.

Technical line drawing of a rectangular electronic device with internal components and mounting holes (no text or symbols)
