N080-C25-IC-WH - Computer Accessories and Peripherals Tripp Lite - Free user manual and instructions

Product Type	Inside Corner Connector for Raceway Wiring Duct
Brand	Tripp Lite
Model	N080-C25-IC-WH
Category	Computer Accessories & Peripherals
Color	White
Material	PVC (Polyvinyl Chloride)
Dimensions (approx.)	3.0 x 2.5 x 1.0 inches (76 x 64 x 25 mm)
Weight	0.1 lb (45 g)
Compatible Duct	Tripp Lite Raceway Wiring Duct (N080-D25-2M-WH)
Application	Joins two raceway duct strips to make a turn around an inside corner
Installation Method	Snap-fit into raceway channel; optional adhesive
Warranty	Limited Lifetime Warranty
Certifications	UL Listed (when used in compliant system)
Operation Temperature	32°F to 140°F (0°C to 60°C)
Flammability Rating	UL 94 V-0
Package Quantity	1 connector
Cleaning Instructions	Wipe with a damp cloth; do not use harsh chemicals
Repairability	Not user-serviceable; replace if damaged

Frequently Asked Questions - N080-C25-IC-WH Tripp Lite

What is the N080-C25-IC-WH used for?

The N080-C25-IC-WH is an inside corner connector designed to join two pieces of Tripp Lite raceway wiring duct at an inside corner, allowing cables to be routed smoothly around corners.

What type of duct is this connector compatible with?

It is compatible with Tripp Lite N080-D25-2M-WH raceway wiring duct and other similar 2-piece raceway systems.

What tools are needed for installation?

No special tools are required. The connector snaps into place; however, an adhesive may be used for a more permanent installation (sold separately).

Is the connector paintable?

Yes, the white PVC material can be painted with a suitable latex or acrylic paint to match your walls.

Can this connector be used with other brands of raceway?

It is specifically designed for Tripp Lite raceway duct. Compatibility with other brands is not guaranteed.

How do I clean the connector?

Clean with a soft, damp cloth. Avoid abrasive cleaners or solvents that may damage the plastic.

Does this connector come with a warranty?

Yes, Tripp Lite offers a Limited Lifetime Warranty against defects in materials and workmanship.

What is the maximum number of cables it can accommodate?

The capacity depends on the duct size; the connector itself does not restrict cable capacity beyond the duct's rating.

Can I use this connector outdoors?

The connector is intended for indoor use only. Exposure to UV or moisture may degrade the material.

How do I remove the connector if needed?

Gently pry it loose with a flathead screwdriver or similar tool. If adhesive was used, you may need to cut it loose.

USER MANUAL N080-C25-IC-WH Tripp Lite

Wiring Duct Raceway Products

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind.

You could also win an ISOBAR6ULTRA surge protector—a \$100 value!

www.tripplite.com/warranty

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA www.tripplite.com/support

Copyright © 2016 Tripp Lite. All rights reserved.

Raceway Components

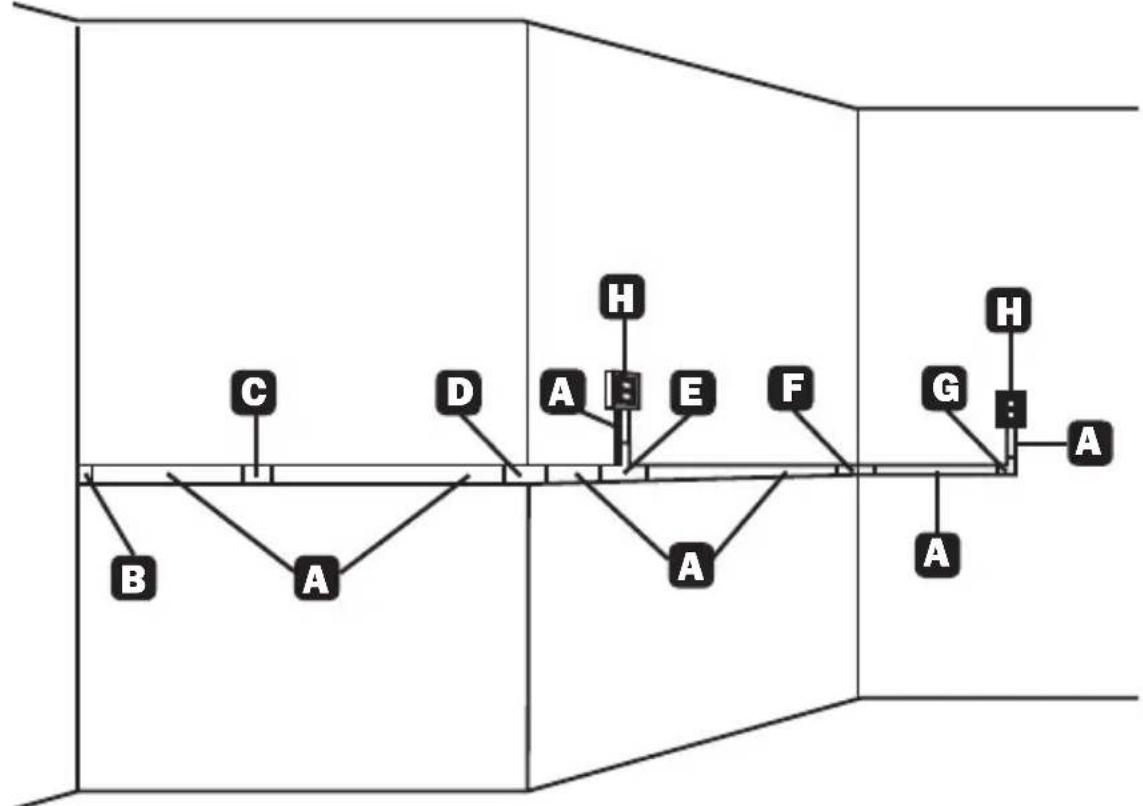

Sample Raceway System Layout

A Raceway Wiring Duct (N080-D25-2M-WH): 2-piece raceway wiring duct.

2

Raceway Components

B Raceway End Cap Connector (N080-C25-EC-WH): Caps off the end of the raceway wiring duct.

Simple line drawing of a rectangular frame with two corner cutouts (no text or symbols)

Simple line drawing of a 3D rectangular prism (no text or symbols)

C Raceway Straight Connector (N080-C25-ST-WH): Joins two raceway wiring duct strips together in a straight line.

Simple line drawing of a structural frame with two corner supports (no text or symbols)

Isometric line drawing of a simple 3D rectangular box or frame structure (no text or symbols)

Raceway Components

Outside Corner Connector (N080-C25-OC-WH): Joins two raceway wiring duct strips to make a turn around an outside corner.

Two technical line drawings of 3D mechanical parts: a stepped L-shaped block and a stepped U-shaped housing (no text or symbols)

E T Connector (N080-C25-T-WH): Joins three raceway wiring duct strips together to make a right-angle raceway branch.

Two architectural floor plan diagrams showing room layouts and structural supports (no text or labels)

Raceway Components

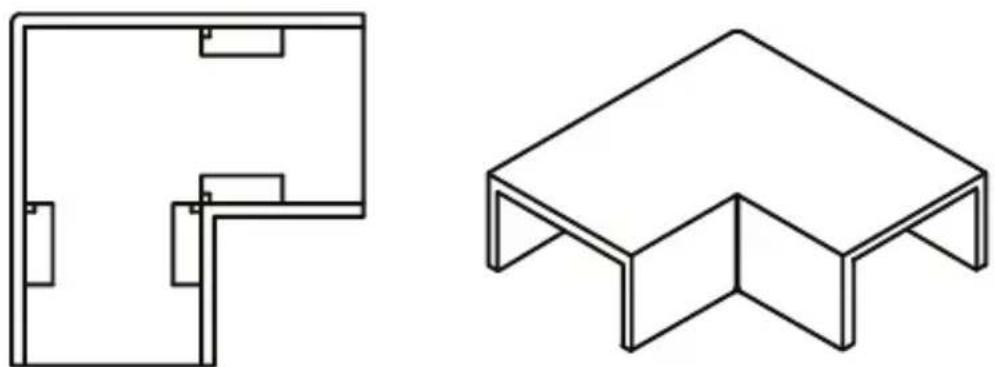

F Inside Corner Connector (N080-C25-IC-WH): Joins two raceway wiring duct strips to make a turn around an inside corner.

Technical line drawings of two mechanical bracket components (no text or symbols)

G L Connector (N080-C25-L-WH): Joins two raceway wiring duct strips to make a right-angle turn.

Two simple line drawings of furniture or furniture arrangements: one with a rectangular floor plan and two with a triangular roof structure (no text or symbols)

Raceway Components

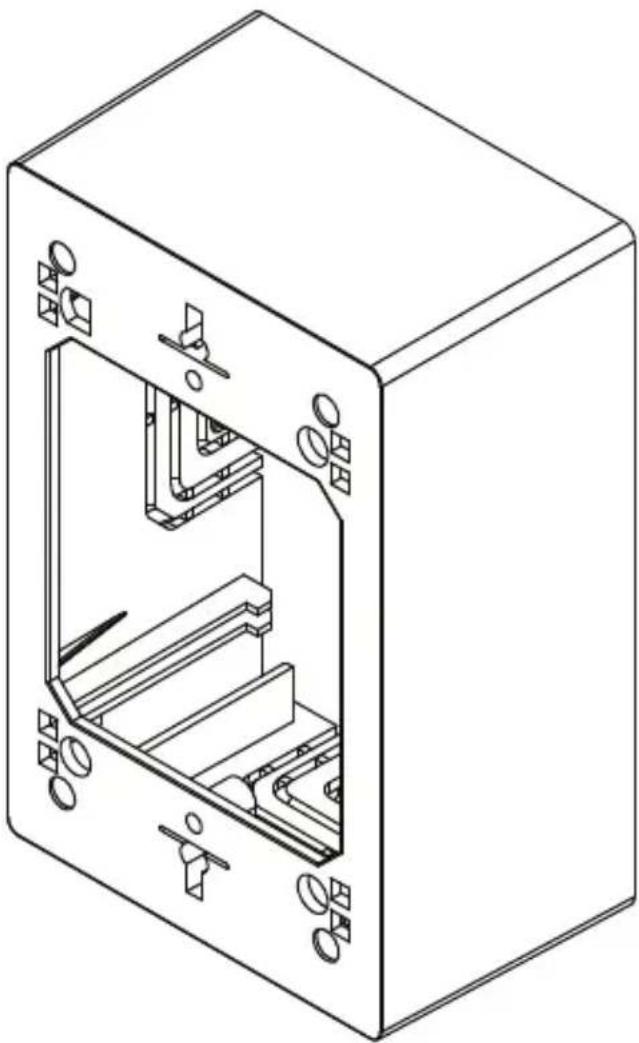

Single Gang Junction Box (N080-SMB1-WH): Deep-back box for mounting a wall plate as part of a raceway system. Ideal for multiple audio/video, voice and Ethernet in-wall applications using any type of keystone jack, including Cat5e/6/6a, USB, HDMI, DisplayPort™ and RCA.

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

Limited Lifetime Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for its lifetime. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion. Service under this Warranty can only be obtained by Buyer delivering or shipping the product (with all shipping or delivery charges prepaid) to: Tripp Lite, 1111 W. 35th Street, Chicago, IL 60609. Seller will pay return shipping charges. Visit www.tripplite.com/support before sending any equipment back for repair.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Product Registration

Visit www.triplite.com/warranty today to register your new Tripp Lite product.

You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
