SmartRack SRCABLEDUCT1UHD - Rack Accessory Tripp Lite - Free user manual and instructions

Product Type	Horizontal Cable Manager
Brand	Tripp Lite
Model	SmartRack SRCABLEDUCT1UHD
Rack Height	1U (1.75 in / 44.45 mm)
Rack Compatibility	Standard 19-inch racks, 2-post and 4-post
Material	Plastic fingers and steel frame
Color	Black
Cable Management Method	Plastic fingers for organizing patch cables horizontally
Included Hardware for 4-Post Rack	4 x M6 Cage Nuts, 4 x M6 Cup Washers, 4 x M6 Screws
Included Hardware for 2-Post Rack	4 x #12 Cup Washers, 4 x #12-24 Screws
Maximum Cable Capacity	High capacity (specific number not specified)
Weight	Approximately 1.5 lb (0.68 kg)
Depth	Approximately 3.5 in (8.89 cm)
Width	Standard 19-inch rack mount (17.3 in / 43.94 cm)
Installation	Requires cage nut tool (user-supplied) for cage nuts; attaches with screws and washers
Warranty	5-Year Limited Warranty
Warranty Registration	Available online at www.tripplite.com/warranty
Country of Origin	China (typical)
Package Contents	Cable Manager, Mounting Hardware, Instruction Manual

Frequently Asked Questions - SmartRack SRCABLEDUCT1UHD Tripp Lite

What is the SmartRack SRCABLEDUCT1UHD used for?

The SRCABLEDUCT1UHD is a horizontal cable manager designed to route and organize patch cables horizontally at the front or rear of a standard 19-inch rack, using plastic fingers for neat cable entry and exit.

What rack types is this cable manager compatible with?

It is compatible with standard 19-inch racks, both 2-post and 4-post configurations, and includes appropriate mounting hardware for each.

What hardware is included for mounting in a 4-post rack?

For a 4-post rack, the package includes 4 x M6 Cage Nuts, 4 x M6 Cup Washers, and 4 x M6 Screws.

What hardware is included for mounting in a 2-post rack?

For a 2-post rack, the package includes 4 x #12 Cup Washers and 4 x #12-24 Screws.

How do I install the SRCABLEDUCT1UHD?

First, install the cage nuts (or use provided screws for 2-post) in the rack at the desired 1U position using a cage nut tool (not included). Then attach the cable manager by tightening the screws and washers into the cage nuts.

What is the height of this cable manager?

It occupies 1U (1.75 inches) of rack space.

Does the SRCABLEDUCT1UHD require power?

No, it is a passive device that does not require any power source.

What is the warranty period for this product?

Tripp Lite offers a 5-Year Limited Warranty covering defects in material and workmanship from the date of initial purchase.

How can I register the warranty?

You can register your warranty online at www.tripplite.com/warranty. Registration also enters you into a drawing for a free Tripp Lite product.

What materials is the SRCABLEDUCT1UHD made of?

It is constructed with a steel frame and plastic fingers that provide flexibility while maintaining durability.

USER MANUAL SmartRack SRCABLEDUCT1UHD Tripp Lite

SmartRack™ High-Capacity Horizontal Cable Manager

Models: SRCABLEDUCT1UHD & SRCABLEDUCT2UHD

Introduction

SRCABLEDUCT Horizontal Cable Managers route patch cables horizontally at the front or the rear of a standard 19-in. rack. Their plastic fingers allow patch cords to enter and exit in an organized manner.

Included Hardware

Rack Enclosure & 4-Post Rack Mounting:

• 4 x M6 Cage Nuts
  • 4 x M6 Cup Washers
• 4 x M6 Screws

2-Post Rack Mounting:

• 4 x #12 Cup Washers
• 4 x #12-24 Screws

1111 W. 35th Street, Chicago, IL 60609 USA

www.tripplite.com/support

Copyright © 2011 Tripp Lite. All rights reserved. SmartRack is a trademark of Tripp Lite.

Installation

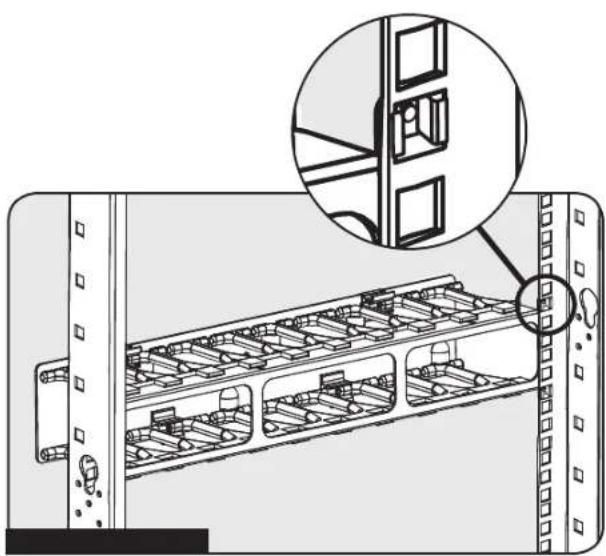

Note: The following diagrams show the SRCABLEDUCT2UHD being installed in a rack enclosure. SRCABLEDUCT1UHD uses the same procedure, but the cage nuts will be installed with 1U rack spaces between them rather than 2U. Both the 1U and 2U units can also be installed in a 2-post or 4-post rack in the same manner, but 12-24 hardware will be used for 2-post mounting.

1 Install the cage nuts in the desired location in the rack horizontally using a cage nut tool (user-supplied).

2 Attach the cable manager to the rack by tightening the included screws and washers into the cage nuts.

Diagram of a server rack with internal storage racks and a magnified inset showing a close-up of the rack (no text or symbols present)

Warranty & Warranty Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Warranty Registration

Visit www.triplite.com/warranty today to register the warranty for your new Tripp Lite product.You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

1111 W. 35th Street, Chicago, IL 60609 USA

www.tripplite.com/support

201105050·93-3109
