Product Type	DVD Player
Model	DM6944P
Brand	LG
Dimensions (approx.)	430 x 260 x 40 mm
Weight	2 kg
Power Supply	AC 100-240V, 50/60 Hz
Power Consumption	12 W (standby less than 1 W)
Playback Formats	DVD‑Video, DVD±R/RW, CD‑DA, CD‑R/RW, MP3, JPEG, DivX (optional)
Video Outputs	HDMI, Composite (RCA), Component (YPbPr)
Audio Outputs	Digital Optical, Analog Stereo (RCA)
USB Port	Yes (front panel) for MP3/JPEG playback
Region Code	2 (may be multi‑region modifiable)
Parental Control	Yes (rating levels)
OSD Languages	English, French, Spanish, German, Italian, etc.
Zoom Function	Yes
Screen Saver	Yes
Auto Power Off	Yes (after idle)
Cleaning	Wipe with a soft dry cloth. Do not use solvents.
Safety Class	Class 1 Laser Product
Spare Parts Available	Remote control, power cord, composite video cable

Frequently Asked Questions - DM6944P LG

How do I connect the DVD player to my TV?

Use an HDMI cable for best quality. If your TV does not have HDMI, use the composite (yellow/red/white) or component (YPbPr) outputs. Make sure the TV input is set correctly.

Why won't my DVD player play a disc?

Check if the disc is inserted label side up. Ensure the disc is clean and free of scratches. Try a different disc to verify the player is working. Also confirm the disc format is compatible (e.g., DVD±R/RW, CD, MP3).

How can I change the on-screen display language?

Press SETUP on the remote. Navigate to Language or OSD Language. Select your preferred language and confirm. Options typically include English, French, Spanish, etc.

Does this player support USB playback?

Yes, the LG DM6944P has a USB port on the front panel. It can play MP3 audio files and view JPEG photos. Insert a USB drive and press SOURCE to select USB mode.

How do I set parental controls?

Go to Setup > Parental > Rating. Enter a 4-digit password (default often 0000). Select a rating level (e.g., 8, 12, 16, 18). Discs with a higher rating will require the password.

My remote control is not working. What should I do?

First, check the batteries and replace if needed. Point the remote directly at the player. Remove any obstacles. If still not working, try resetting the player by unplugging it for 30 seconds.

How can I clean the laser lens?

Use a DVD lens cleaning disc available in electronics stores. Follow the disc instructions. Do not open the player or use liquids, as this may damage the laser.

What does 'No Disc' mean?

The player cannot detect a disc. Ensure a disc is loaded correctly. If the disc is dirty, clean it with a soft cloth from center outward. If the laser is faulty, professional repair may be needed.

How do I perform a factory reset?

Press SETUP, go to General or Others, select Reset or Default. Confirm with the remote. The player will restore original settings (language, parental code, etc.).

Is the DM6944P region-free?

As standard, it is Region 2 (Europe). Some units may be modified by sellers to be multi-region. To check, insert a disc from another region – if it plays, it's multi-region. Otherwise, you may need a region-free hack code.

USER MANUAL DM6944P LG

Before connecting, operating or adjusting this product, please read this instruction booklet carefully and completely.

Safety Precautions

WARNING

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING: Do not install this equipment in a confined space such as a book case or similar unit.

CAUTION:

This Digital Video Disc Player employs a Laser System.

To ensure proper use of this product, please read this owner's manual carefully and retain for future reference should the unit require maintenance, contact an authorized service location (see service procedure).

Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.

CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.

NOTES ON COPYRIGHTS:

It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission.

This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs on a VCR, picture noise will appear.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

SERIAL NUMBER: The serial number is found on the back of this unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.

Model No.

Serial No.

Table of Contents

Introduction

Safety Precautions 2

Table of Contents 3

Before Use 4-5

Playable Discs 4

Precautions 5

Notes on Discs 5

About Symbols 5

Front Panel and Display Window 6

Remote Control....7

Rear Panel 8

Preparation

Connections 9-10

Connecting to a TV 9

Connecting to Optional Equipment....10

Before Operation 11-14

General Explanation....11

On-Screen Display....11

Initial Settings 12-14

- Initial Settings General Operation....12

- Language 12

- Picture....12

- Sound 13

- Others 13

- Parental Control. 14

Operation

Operation with DVD, Video CD and Audio CD. 15-18

Playing a DVD, Video CD and Audio CD.....15

- Exchanging discs during playback ..... 15

- Skipping discs 15

- Exchanging the disc and starting playback. . 15

General Features....16

- Moving to another TITLE ..... 16

- Moving to another CHAPTER/TRACK ..... 16

- Still Picture and Frame-by-Frame Playback . 16

- Pause 16

- Slow Motion.... 16

- Search. 16

- Random 16

- Repeat 17

- Repeat A-B 17

• Time Search 17

- Selecting the sound enhancement ..... 17

- Zoom....17

- Marker Search.... 18

Special DVD Features 18

- Title Menu 18

- Disc Menu....18

- Camera Angle 18

- Changing the Audio Language.... 18

- Changing the Audio Channel .... 18

- Subtitles 18

Programmed Playback with Video CD

and Audio CD 19

Programmed Playback with Video CD

and Audio CD 19

- Repeat Programmed Tracks/All ..... 19

- Erasing a Track from Program List ..... 19

- Erasing the Complete Program List ..... 19

Operation with MP3 Disc. 20

Playing an MP3 Disc 20

- Pause 20

- Moving to another Track....20

- Repeat Track/All/Off 20

Notes on MP3 Discs 20

Operation with JPEG Disc....21

Viewing a JPEG disc 21

- Moving to another File 21

- Repeat All/Off 21

Programmed Playback with MP3 or JPEG Disc . . 22

Programmed Playback with MP3 or JPEG Disc . 22

- Repeat Programmed Tracks/All/Off. . . . . . . 22

- Repeat Programmed All/Off 22

- Erasing a Track/File from Program List.....22

- Erasing the Complete Program List ..... 22

Additional Information....23

Last Condition Memory 23

Screen Saver....23

Video Mode Setting 23

System Select 23

Controlling the TV 23

Reference

Troubleshooting 24

Speaker Settings 25

Language Code List 26

Area Code List....27

Specifications 28

About the symbols for instructions

⚠️ Indicates hazards likely to cause harm to the unit itself or other material damage.

N Indicates special operating features of this unit.

Indicates tips and hints for making the task easier.

Before Use

playable Discs

	DVD Video(8 cm / 12 cm disc)
	Video CD (VCD)(8 cm / 12 cm disc)
	Audio CD(8 cm / 12 cm disc)

In addition, this unit can play a SVCD, CD-R or CD-RW that contains audio titles, MP3 or JPEG files.

Notes

• Depending on the conditions of the recording equipment or the CD-R/RW disc itself, some CD-R/RW discs cannot be played on this unit.
• This unit cannot play CD-R/RW discs that do not contain any data, or contain different kinds of formatted data other than MP3 and CD-DA data.
• Do not attach any seal or label to either side (the labeled side or the recorded side) of a disc.
• Do not use irregularly shaped CDs (e.g., heart-shaped or octagonal). It may result in malfunctions.

Notes on DVDs and Video CDs

Some playback operations of DVDs and Video CDs may be intentionally fixed by software manufacturers. As this unit plays DVDs and Video CDs according to disc content designed by the software manufacturer, some playback features of the unit may not be available, or other functions may be added.

Refer also to the instructions supplied with the DVDs and Video CDs. Some DVDs made for business purposes may not be playable on this unit.

Regional code of the DVD player and DVDs

This DVD player is designed and manufactured for playback of region "3" encoded DVD software.

The region code on the labels of some DVD discs indicates which type of player can play those discs. This unit can play only DVD discs labeled "3" or "ALL". If you try to play any other discs, the message "Check Regional Code" will appear on the TV screen. Some DVD discs may not have a region code label even though their playback is prohibited by area limits.

Note on DTS-encoded CDs

To avoid possible damage to the audio system, turn down the volume before playing back such discs. Adjust the volume gradually to personal preference. To enjoy DTS Digital Surround™ playback, an external 5.1 channel DTS Digital Surround™ decoder system must be connected to the digital output of the player.

Disc-related terms

Title (DVD only)

The main film content or accompanying feature content or additional feature content, or music album.

Each title is assigned a title reference number enabling you to locate it easily.

Chapter (DVD only)

Sections of a picture or a musical piece that are smaller than titles.

A title is composed of one or several chapters. Each chapter is assigned a chapter number, enabling you to locate the chapter you want. Chapter numbers may not be recorded on all discs.

Track (Video CD and audio CD only)

Sections of a picture or a musical piece on a video CD or an audio CD. Each track is assigned a track number, enabling you to locate the track you want.

Scene

On a video CD with PBC (Playback control) functions, moving pictures and still pictures are divided into sections called "Scenes". Each scene is displayed in the menu screen and assigned a scene number, enabling you to locate the scene you want.

A scene is composed of one or several tracks.

Types of video CDs

There are two types of video CDs:

Video CDs equipped with PBC (Version 2.0)

PBC (Playback control) functions allow you to interact with the system via menus, search functions, or other typical computer-like operations. Moreover, still pictures of high resolution can be played if they are included in the disc.

Video CDs not equipped with PBC (Version 1.1)

Operated in the same way as audio CDs, these discs allow playback of video pictures as well as sound, but they are not equipped with PBC.

Before Use (Cont'd)

Precautions

Handling the unit

When shipping the unit

The original shipping carton and packing materials come in handy. For maximum protection, re-pack the unit as it was originally packed at the factory.

When setting up the unit

The picture and sound of a nearby TV, VCR, or radio may be distorted during playback. In this case, position the unit away from the TV, VCR, or radio, and turn off the unit after removing the disc.

To keep the exterior surfaces clean

Do not use volatile liquids, such as insecticide spray, near the unit. Do not allow rubber or plastic products to contact the unit for a long period of time. They will leave marks on the surface.

To move the unit

When you move the player, take out any discs. If you don't, the discs may be damaged or drop into the internal workings of the DVD player.

Cleaning the unit

To clean the cabinet

Use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents, such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

To obtain a clear picture

The DVD player is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn down, the picture quality will be poor. Regular inspection and maintenance are recommended after every 1,000 hours of use. (This depends on the operating environment.) For details, please contact your nearest dealer.

Notes on Discs

Handling discs

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface. Do not stick paper or tape on the disc.

Storing discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat, or leave it in a parked car exposed to direct sunlight, as there may be a considerable temperature build-up inside the car.

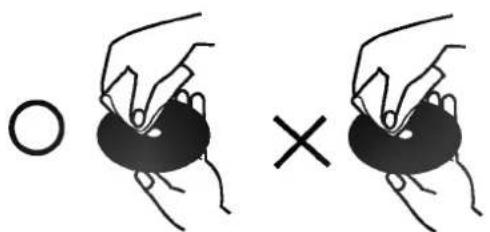

Cleaning discs

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center out.

Illustration of two hands holding a ring with a circle and an 'X' symbol (no text or labels)

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

About Symbols

About the Ⓧ symbol display

“ ⊗ ” may appear on the TV screen during operation. This icon means the function explained in this owner's manual is not available on that specific DVD video disc.

About the disc symbols for instructions

When a section in this manual includes the following icons, the data provided herein is applicable only to the software represented by that icon.

DVD

Video CDs with the PBC (playback control) function.

Video CDs without the PBC (playback control) function.

Audio CDs.

MP3 disc.

JPEG disc.

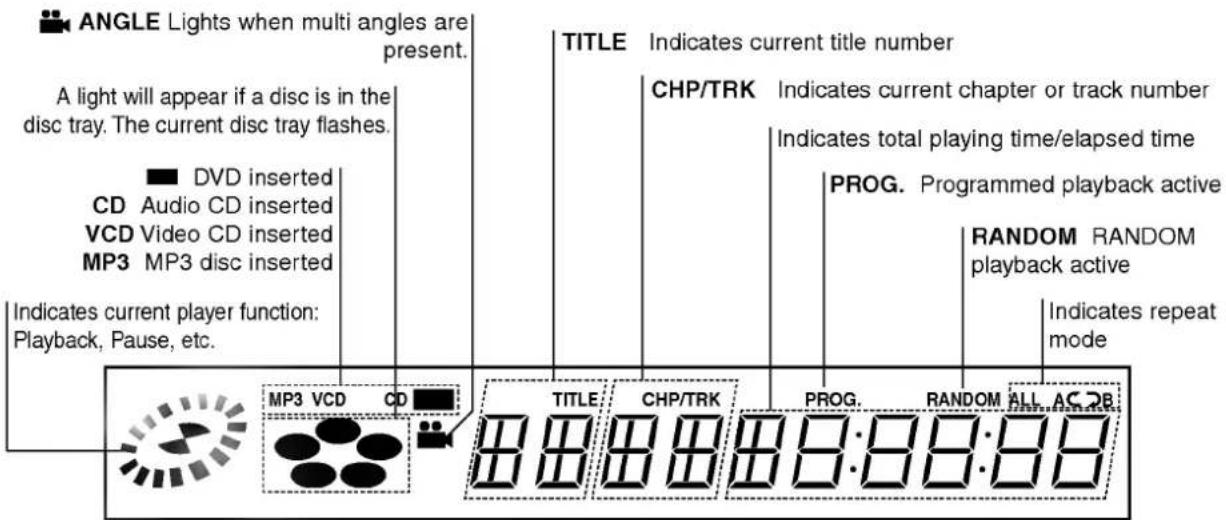

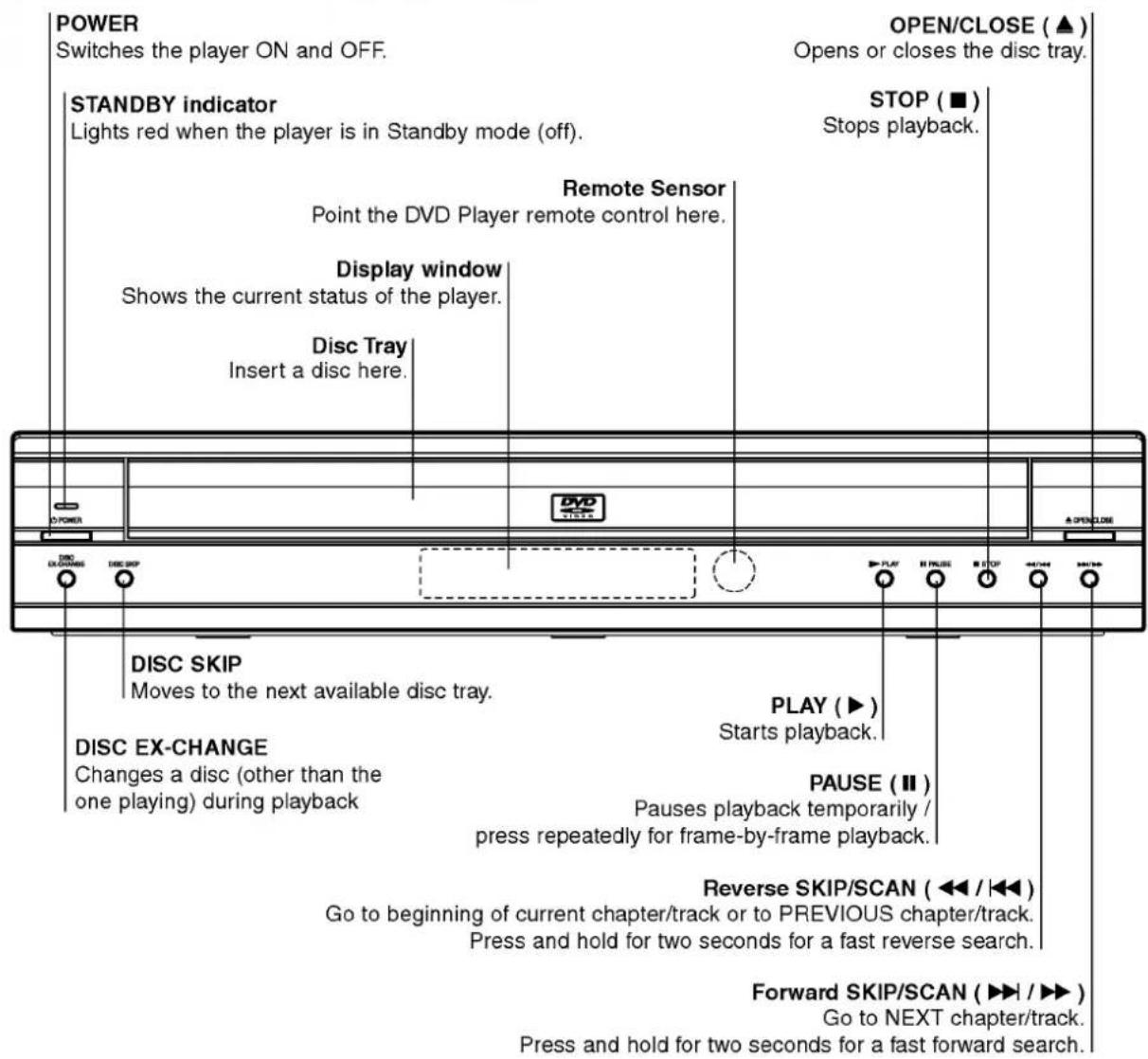

Front Panel and Display Window

POWER Switches the player ON and OFF. STANDBY indicator Lights red when the player is in Standby mode (off). Remote Sensor Point the DVD Player remote control here. Display window Shows the current status of the player. Disc Tray Insert a disc here. DISC SKIP Moves to the next available disc tray. DISC EX-CHANGE Changes a disc (other than the one playing) during playback. PLAY (▶) Starts playback. PAUSE (■) Pauses playback temporarily / press repeatedly for frame-by-frame playback. Reverse SKIP/SCAN (◀◀ / ◀◀) Go to beginning of current chapter/track or to PREVIOUS chapter/track. Press and hold for two seconds for a fast reverse search. Forward SKIP/SCAN (▶◀ / ▶◀) Go to NEXT chapter/track. Press and hold for two seconds for a fast forward search. OPEN/CLOSE (▲) Opens or closes the disc tray. STOP (■) Stops playback.

ANGLE Lights when multi angles are present. A light will appear if a disc is in the disc tray. The current disc tray flashes. DVD inserted CD Audio CD inserted VCD Video CD inserted MP3 MP3 disc inserted Indicates current player function: Playback, Pause, etc. TITLE Indicates current title number CHP/TRK Indicates current chapter or track number Indicates total playing time/elapsed time PROG. Programmed playback active RANDOM RANDOM playback active Indicates repeat mode MP3 VCD CD TITLE CHP/TRK PROG. RANDOM ALL AC OB

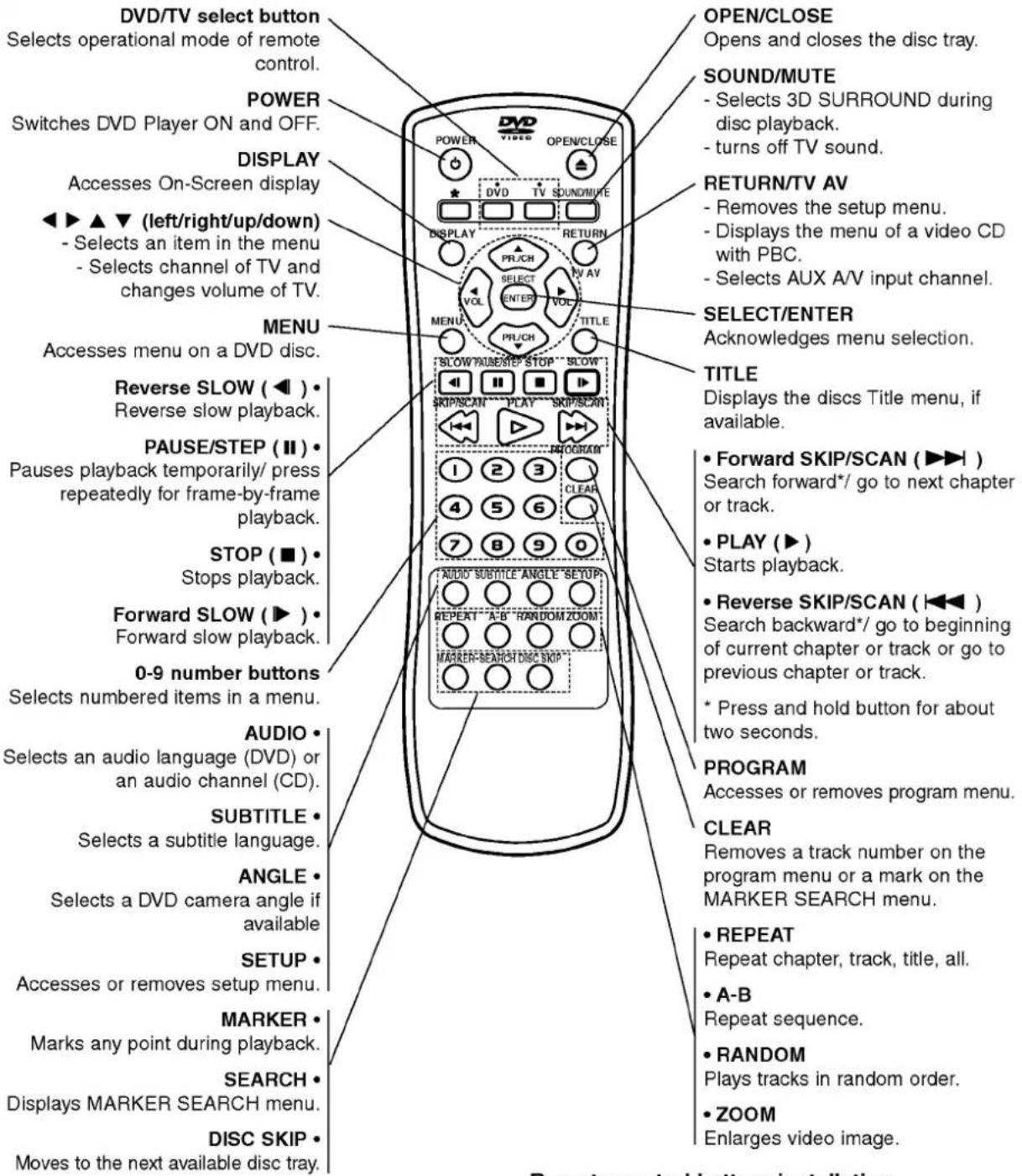

Remote Control

DVD/TV select button Selects operational mode of remote control. POWER Switches DVD Player ON and OFF. DISPLAY Accesses On-Screen display ◀ ▶ ▲ ▼ (left/right/up/down) - Selects an item in the menu - Selects channel of TV and changes volume of TV. MENU Accesses menu on a DVD disc. Reverse SLOW (◀ ) • Reverse slow playback. PAUSE/STEP (Ⅱ ) • Pauses playback temporarily/ press repeatedly for frame-by-frame playback. STOP (■ ) • Stops playback. Forward SLOW (▶ ) • Forward slow playback. 0-9 number buttons Selects numbered items in a menu. AUDIO • Selects an audio language (DVD) or an audio channel (CD). SUBTITLE • Selects a subtitle language. ANGLE • Selects a DVD camera angle if available SETUP • Accesses or removes setup menu. MARKER • Marks any point during playback. SEARCH • Displays MARKER SEARCH menu. DISC SKIP • Moves to the next available disc tray. OPEN/CLOSE Opens and closes the disc tray. SOUND/MUTE - Selects 3D SURROUND during disc playback. - turns off TV sound. RETURN/TV AV - Removes the setup menu. - Displays the menu of a video CD with PBC. - Selects AUX A/V input channel. SELECT/ENTER Acknowledges menu selection. TITLE Displays the discs Title menu, if available. • Forward SKIP/SCAN (▶▶) Search forward*/ go to next chapter or track. • PLAY (▶) Starts playback. • Reverse SKIP/SCAN (◀◀) Search backward*/ go to beginning of current chapter or track or go to previous chapter or track. * Press and hold button for about two seconds. PROGRAM Accesses or removes program menu. CLEAR Removes a track number on the program menu or a mark on the MARKER SEARCH menu. • REPEAT Repeat chapter, track, title, all. • A-B Repeat sequence. • RANDOM Plays tracks in random order. • ZOOM Enlarges video image.

Remote Control Operation Range

Point the remote control at the remote sensor and press the buttons.

• Distance: About 23 ft (7 m) from the front of the remote sensor.
• Angle: About 30^ in each direction of the front of the remote sensor.

Remote control battery installation

Detach the battery cover on the rear of the remote control, and insert two R03 (size AAA) batteries with + and - aligned correctly.

Caution

Do not mix old and new batteries. Never mix different types of batteries (standard, alkaline, etc.).

Rear Panel

OPTICAL (Digital audio out jack)

Connect to digital (optical) audio equipment.

COAXIAL (Digital audio out jack)

Connect to digital (coaxial) audio equipment.

5.1 CHANNEL AUDIO OUT

Connect to a 5.1 channel receiver

– center speaker connection

- subwoofer connection

– front speakers connections

- rear (surround) speakers connections

ANALOG AUDIO OUT (Left/Right)

Connect to an amplifier, receiver or stereo system.

OPTICAL DIGITAL OUT VOLUME OUTPUT B-VISION OUT 5.101 AUDIO OUT RADIO/AVIAL DISELIAL OUT FRONT CHARGE CORTES WINDS P1 P2 T RADIO/AVIAL RADIO/AVIAL RADIO/AVIAL RADIO/AVIAL RADIO/AVIAL RADIO/AVIAL

AC Power Cord

Plug into the power source.

VIDEO OUT

Connect to a TV with video inputs.

COMPONENT/PROGRESSIVE SCAN VIDEO OUT (Y Pb Pr)

Connect to a TV with Y Pb Pr inputs.

S-VIDEO OUT

Connect to a TV with S-Video inputs.

VIDEO OUTPUT Switch

Select either S-VIDEO OUT or COMPONENT VIDEO OUT/PROGRESSIVE SCAN, depending on how you connected the DVD Player to the TV.

Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit.

Connections

Tips

• Depending on your TV and other equipment you wish to connect, there are various ways you could connect the player. Use only one of the connections described below.
• Please refer to the manuals of your TV, VCR, Stereo System or other devices as necessary to make the best connections.
• For better sound reproduction, connect the player's AUDIO OUT jacks to the audio in jacks of your amplifier, receiver, stereo or audio/video equipment. See "Connecting to optional equipment" on page 10.

Caution

• Make sure the DVD Player is connected directly to the TV. Select the TV to the corresponding video input.
• Do not connect the DVD Player's AUDIO OUT jack to the phono in jack (Turntable) of your audio system.
• Do not connect your DVD Player via your VCR. The DVD image could be distorted by the copy protection system.

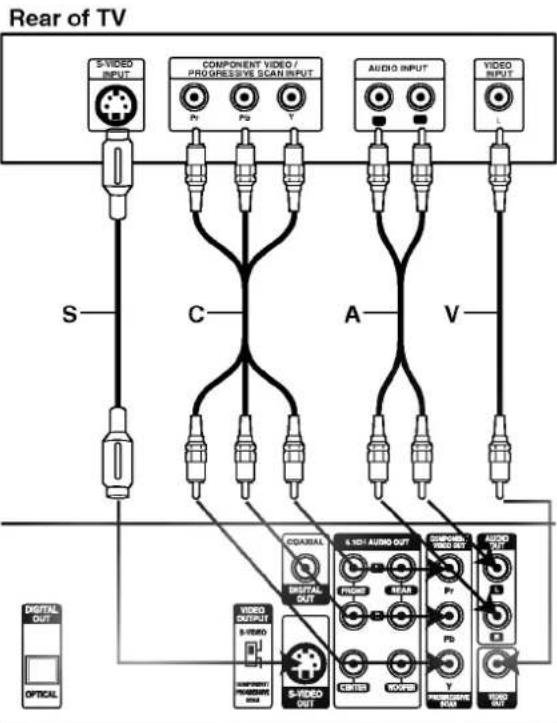

Connecting to a TV

• Make one of the following connections, depending on the capabilities of your existing equipment.
• When using the COMPONENT VIDEO OUT/PROGRESSIVE SCAN jacks, set the VIDEO OUTPUT switch to COMPONENT. When using the S-VIDEO OUT jack, set the VIDEO OUTPUT switch to S-VIDEO.

Video connection (Good)

1 Connect the VIDEO OUT jack on the DVD Player to the video in jack on the TV using the video cable supplied (V).
2 Connect the Left and Right AUDIO OUT jacks of the DVD Player to the audio left/right in jacks on the TV (A) using the supplied audio cables.

S-Video connection (Better)

1 Connect the S-VIDEO OUT jack on the DVD Player to the S-Video in jack on the TV using the supplied S-Video cable (S).
2 Connect the Left and Right AUDIO OUT jacks of the DVD Player to the audio left/right in jacks on the TV (A) using the supplied audio cables.

Component Video (Color Stream®) connection (Best)

1 Connect the COMPONENT VIDEO OUT/PROGRESSIVE SCAN jacks on the DVD Player to the corresponding in jacks on the TV using an optional Y Pb Pr cable (C).
2 Connect the Left and Right AUDIO OUT jacks of the DVD Player to the audio left/right in jacks on the TV (A) using the supplied audio cables.

Progressive Scan (ColorStream® pro) connection

• If your television is a high-definition or "digital ready" television, you may take advantage of the DVD Player's progressive scan output for the highest video resolution possible.
• If your TV does not accept the Progressive Scan format, the picture will appear scrambled if you try Progressive Scan on the DVD Player.

1 Connect the COMPONENT VIDEO OUT/PROGRESSIVE SCAN jacks on the DVD Player to the corresponding in jacks on the TV using an optional Y Pb Pr cable (C).

2 Connect the Left and Right AUDIO OUT jacks of the DVD Player to the audio left/right in jacks on the TV (A) using the supplied audio cables.

Notes

• Set the Progressive to "On" on the setup menu for progressive signal, see page 12.
• Progressive scan does not work with the analog video connections (yellow VIDEO OUT jack).

Rear of DVD player

Note

If the TV has an S-video input, connect the DVD player with the S-video cable. When using an S-video cable, do not connect the yellow video cable.

Connections (Cont'd)

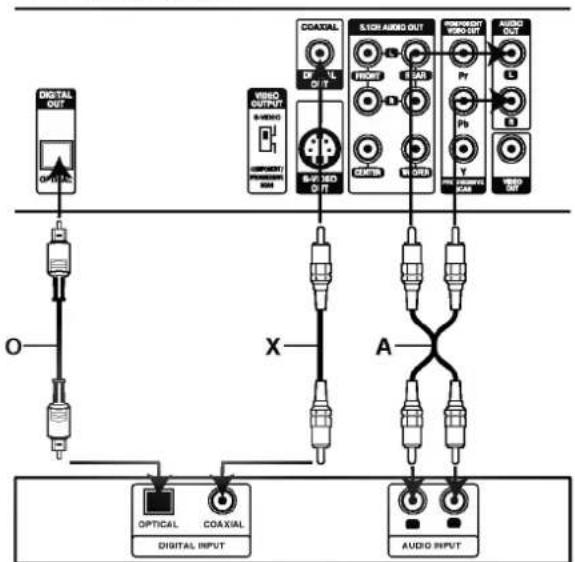

Connecting to Optional Equipment

Connecting to an amplifier equipped with two channel analog stereo or Dolby Surround

Connect the Left and Right AUDIO OUT jacks on the DVD Player to the audio left and right in jacks on your amplifier, receiver or stereo system, using the supplied audio cables (A).

Connecting to an amplifier equipped with two channel digital stereo (PCM) or to an Audio/Video receiver equipped with a multi-channel decoder (Dolby Digital™, MPEG 2 or DTS)

1 Connect one of the DVD Player's DIGITAL AUDIO OUT jacks (OPTICAL O or COAXIAL X) to the corresponding in jack on your amplifier. Use an optional digital (optical O or coaxial X) audio cable.

2 You will need to activate the player's digital output. (See "Digital Audio Output" on page 13).

Digital Multi-channel sound

A digital multi-channel connection provides the best sound quality. For this you need a multi-channel Audio/Video receiver that supports one or more of the audio formats supported by your DVD Player (MPEG 2, Dolby Digital and DTS). Check the receiver manual and the logos on the front of the receiver.

Note

This player does not perform internal (2 channel) decoding of a DTS sound track. To enjoy DTS multi channel surround, you must connect this player to a DTS compatible receiver via one of this player's digital audio outputs.

Rear of DVD player

Amplifier (Receiver)

Notes

• If the audio format of the digital output does not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all.
• Six Channel Digital Surround Sound can only be obtained if your receiver is equipped with a Digital Multi-channel surround sound decoder.
• To confirm the audio format of the current DVD selection display, press AUDIO.
• Repeated pressing of the AUDIO button may allow you to select between various audio formats available on the disc.

Analog connection to a multi-channel A/V receiver with 6 Channel connectors (Dolby Digital)

This DVD Player contains a multi-channel decoder. This enables playback of DVDs recorded in Multi-channel Surround without the need for an optional decoder.

1 Connect the CENTER and WOOFER jacks for the Center speaker and the Subwoofer (C) to the corresponding in jacks on your receiver.
2 Connect the Left and Right FRONT speaker jacks (F) to the corresponding in jacks on your receiver.
3 Connect the Left and Right REAR speaker jacks (R) to the corresponding in jacks on your receiver.
4 Make the appropriate Sound settings for Analog Output and Speaker Settings in the setup menu. See page 13.

Rear of DVD player

Amplifier (Receiver)

Before Operation

Caution:

Before using the remote control, press the DVD or TV button to select the device to be operated.

General Explanation

This manual gives basic instructions for operating the DVD Player. Some DVDs require specific operation or allow only limited operation during playback. When this occurs, the symbol ⊙ appears on the TV screen, indicating that the operation is not permitted by the DVD Player or is not available on the disc.

On-Screen Display

General playback status can be displayed on the TV screen. Some items can be changed on the menu.

On-screen display operation

Press DISPLAY during playback.

Press ▲ or ▼ to select an item. The selected item will be highlighted.

Press ◀ or ▶ to change the setting of an item. The number buttons can be also be used for setting numbers (e.g., title number). For some functions, press SELECT/ENTER to execute the setting.

Repeat mode Icons

Repeat Title

Repeat Chapter

Repeat Track (non-PBC Video CDs and Audio CD only)

Repeat Current Disc (non-PBC Video CDs and Audio CD only)

Repeat All Discs (non-PBC Video CDs and Audio CD only)

Repeat A-B

Repeat Off

Resume play from this point

Action prohibited or not available

Notes

• Some discs may not provide all of the features included on the on-screen display example shown below.
• If no button is pressed for 10 seconds, the on-screen display disappears.

Items		Function (Press ▲/▼ to select desired item)	Selection Method
Title Number	1/3	Displays the current title number and total number of available titles, and skips to a desired title number.	◀ / ▶, or Numbers, SELECT/ENTER
Chapter Number	1/12	Displays the current chapter number and total number of available chapters, and skips to a desired chapter number.	◀ / ▶, or Numbers, SELECT/ENTER
Time search	0:16:57	Displays the elapsed playing time, and searches a point identified by its elapsed time.	Numbers, SELECT/ENTER
Audio language and Digital Audio Output mode	1 ENG □□□D 6 CH	Displays the current audio soundtrack language, encoding method and channel number, and any changes you make to the setting.	◀ / ▶
Subtitle language		Displays the current subtitles language, and any changes you make to the setting.	◀ / ▶
Angle	1/1	Displays the current angle number and total number of angles, and any changes you make to the angle number.	◀ / ▶
Sound	NORM.	Displays the current sound mode, and any changes you make to the setting.	◀ / ▶

Items		Function (Press ▲▼ to select desired item)	Selection Method
Track Number		Displays the current track number, total number of tracks and PBC On mode, and skips to the desired track number.	◀ / ▶, or Numbers, SELECT/ENTER
Time		Displays the elapsed playing time (Display only)	-
Audio Channel		Displays the audio channel, and changes you make to the audio channel.	◀ / ▶
Sound		Displays the current sound mode, and any changes you make to the setting.	◀ / ▶

Before Operation (Cont'd)

Initial Settings

You can install your own Personal Preferences.

Initial Settings General Operation

1 Press SETUP. The setup menu appears.

Disc Subtitle Disc Menu Rating Country Code TV Aspect Menu Language Progressive Scan Digital Audio Output 5.1 Speaker Setup Others

2 Press ▲▼ to select the desired item. The screen will display the current setting for the selected item, as well as alternate setting(s).
3 While the desired item is displayed, press ▶, then ▲▼ to select the desired setting.
4 Press SELECT/ENTER to confirm your selection. Some items require additional steps.
5 Press SETUP, RETURN or PLAY to exit the setup menu.

If you press SETUP or RETURN to exit the setup menu, DVD Player will be in stop mode. So, you must press PLAY to play back.

Language

Disc Language

Select a language for the disc's Menu, Audio and Subtitle. Original : The original language included on the disc is selected. Other : To select another language, enter the 4-digit number corresponding to the language code list on page 26. If you enter the wrong language code, press CLEAR.

Disc Subtitle Disc Menu Rating Country Code TV Aspect Menu Language Progressive Scan Digital Audio Output 5.1 Speaker Setup Others

Menu Language

Select a language for the setup menu. This is the menu you see when you press SETUP.

Disc Audio Disc Subtitle Disc Menu Rating Country Code TV Aspect


TV Aspect

4:3 Letterbox: Select when a standard 4:3 TV is connected. Displays theatrical images with masking bars above and below the picture.
4:3 Panscan: Select when a standard 4:3 TV is connected. Displays pictures cropped to fill your TV screen. Both side of the original picture may be cut off.
16:9 Wide: Select when a 16:9 wide TV is connected.

Disc Audio Disc Subtitle Disc Menu Rating Country Code Menu Language Progressive Scan Digital Audio Output 5.1 Speaker Setup Others

Progressive Scan

Progressive Scan Video provides the highest quality pictures with less flickering.

If you are using the COMPONENT VIDEO OUT/PROGRESSIVE SCAN jacks, but are connecting the DVD Player to a standard (analog) television, set Progressive Scan to Off.

If you are using the Component Video jacks for connection to a TV or monitor that is compatible with a progressive scan signal, set Progressive Scan to On.

Disc Audio Disc Subtitle Disc Menu Rating Country TV Aspect Menu Language Digital Audio Output 5.1 Speaker Setup Others

Note

Progressive Scan only works when the VIDEO OUTPUT switch is set to COMPONENT/PROGRESSIVE SCAN and System mode is set to NTSC or AUTO. Also if System mode is set to AUTO, Progressive Scan only works during DVD of NTSC system is playing back.

Caution

Once the setting for progressive scan output is entered, an image will only be visible on a progressive scan compatible TV or monitor. If you set Progressive Scan to On in error, you must reset the unit. Press STOP to stop any disc that is playing. Next, press STOP again and hold it for five seconds before releasing it. The video output will be restored to the standard setting, and a picture will once again be visible on a conventional analog TV or monitor.

Before Operation (Cont'd)

Sound

Digital Audio Output

Each DVD disc may have a variety of audio output options. Set the player's Digital Audio Output according to the type of audio system you use.

DOLBY DIGITAL/PCM: Select "DOLBY DIGITAL/PCM" if you connect the DVD Player's DIGITAL OUT jack to a Dolby Digital decoder (or an amplifier or other equipment with a Dolby Digital decoder).

Stream/PCM: Select "Stream/PCM" if you connect the DVD Player's DIGITAL OUT jack to an amplifier or other equipment with a DTS decoder, Dolby Digital decoder or MPEG decoder.

PCM: Select when connected to a 2 channel digital stereo amplifier. The DVD player outputs sounds in the PCM 2ch format when you play a DVD video disc recorded on the Dolby Digital, MPEG1 or MPEG2 recording system.

Disc Audio Disc Subtitle Disc Menu Rating Country Code TV Aspect Menu Language Progressive Scan 5.1 Speaker Setup Others

Sample Frequency

To change the Sample Frequency setting, first select the desired Digital Audio Output as indicated above. If your receiver or amplifier is NOT capable of handling 96KHz signals, select 48KHz. When this choice is made, this unit will automatically convert any 96KHz signals to 48KHz so your system can decode them. If your receiver or amplifier is capable of handling 96KHz signals, select 96KHz. When this choice is made, this unit will pass all signals through without down conversion, or processing.

5.1 Speaker settings

Select speaker settings, including volume balance and delay time, or test the speaker settings.

Speaker settings are only active on the Analog Multi-Channel Output. (See "Speaker Settings", page 25.)

Disc Audio Disc Subtitle Disc Menu Rating Country Code TV Aspect Menu Language Progressive Scan Digital Audio Output Others

Others

The DRC, Vocal and PBC settings can be changed.

- Press ▲▼ to select the desired item and press SELECT/ENTER. The setting of the selected item is changed between On and Off.

Disc Audio Disc Subtitle Disc Menu Rating Country Code TV Aspect Menu Language Progressive Scan Digital Audio Output 5.1 Speaker Setup

Dynamic Range Control (DRC)

With the DVD format, you can hear a program's soundtrack in the most accurate and realistic presentation possible, thanks to digital audio technology. However, you may wish to compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones). Then, you may listen to a movie at a lower volume without losing clarity of sound. Set DRC to On for this effect.

Vocal

Set Vocal to On only when a multi-channel karaoke DVD is playing. The karaoke channels on the disc will mix into normal stereo sound.

PBC

Set Playback Control (PBC) to On or Off.

On: Video CDs with PBC are played according to the PBC.

Off: Video CDs with PBC are played the same way as Audio CDs.

Solid dark gray vertical bar with no visible text, symbols, or markings

Before Operation (Cont'd)

Parental Control

Rating

Movies on DVDs may contain scenes not suitable for children. Therefore, discs may contain Parental Control information that applies to the complete disc or to certain scenes on the disc. These scenes are rated from 1 to 8, and alternatively, more suitable scenes are available for selection on some discs. Ratings are country-dependent. The Parental Control feature allows you to prevent discs from being played by your children or to have certain discs played with alternative scenes.

Disc Audio Disc Subtitle Disc Menu Country Code TV Aspect Menu Language Progressive Sci Digital Audio Output 5.1 Speaker Setup Others

1 Select "Rating" on the Setup menu using the ▲ and ▼ buttons.
2 While "Rating" is displayed, press ▶.
3 When you have not entered a password yet; Install a 4-digit password using the number buttons to create a personal 4-digit security password, then press SELECT/ENTER. Enter the 4-digit password again and press SELECT/ENTER to verify. When you have already entered a password; Install your 4-digit password using the number buttons to confirm the personal 4-digit security password, then press SELECT/ENTER.

If you make a mistake before pressing SELECT/ENTER, press CLEAR and install your 4-digit security password again.

4 Select a rating from 1 to 8 using the ▲▼ buttons. One (1) has the least playback restrictions. Eight (8) has the most playback restrictions. Unlock: If you select Unlock, Parental Control is not active. The disc will play without restrictions. Ratings 1 to 8: Some discs contain scenes not suitable for children. If you set a rating for the player, all disc scenes with the same rating or lower will be played. Higher rated scenes will not be played unless an alternative scene is available on the disc. The alternative must have the same rating or a lower one. If no suitable alternative is found, playback will stop. You must enter your 4-digit password or change the rating level in order to play the disc.
5 Press SELECT/ENTER to confirm your rating selection, then press SETUP to exit the menu.

Area Code

Enter the code of a country/area whose standards were used to rate the DVD video disc, referring to the list (See "Area Code List", page 27.).

Disc Audio Disc Subtitle Disc Menu Rating TV Apps Menu Language Progressive Scan Digital Audio Output 5.1 Speaker 5 Others

1 Select Area Code using the ▲▼ buttons on the setup menu.
2 While Area Code is selected, press ▶.
3 Follow step 3 of "Rating" on left.
4 Select the first character using the ▲▼ buttons.
5 Shift the cursor using ◀▶ buttons and select the second character using ▲▼ buttons.
6 Press SELECT/ENTER to confirm your area code selection, then press SETUP to exit the menu.

Note

Confirmation of your 4-digit password is necessary when the password is changed (see "Changing the 4-digit password" below).

Changing the 4-digit password

1 Follow Steps 1-2 as shown above to the left (Rating).
2 Install your old code, then press SELECT/ENTER.
3 Select Change using the ▲▼ buttons then press SELECT/ENTER.
4 Install the new 4-digit password, then press SELECT/ENTER.
5 Install exactly the same code a second time and verify by pressing SELECT/ENTER.
6 Press SETUP to exit the menu.

If you forget your 4-digit password

If you forget your password, to clear the current password, follow the procedure below.

1 Press SETUP to display the setup menu.
2 Use the Number buttons to enter the 6-digit number "210499."
The 4-digit password is cleared.
3 Enter a new code as shown above to the left (Rating).

Operation with DVD, Video CD and Audio CD

Playing a DVD, Video CD and Audio CD

Playback Setup

• Turn on the TV and select the video input source corresponding to the DVD player.
• Audio system: Turn on the audio system and select the input source connected to the DVD player.

Press OPEN/CLOSE to open the disc tray.

Load your disc in the center position, with the label facing up.

Center position

Do not load a disc in the left and light side position.

When a double-sided DVD is inserted, make sure the side you want to play is facing up.

- Discs can be loaded one at a time by pressing DISC SKIP to rotate the carousel.

Press OPEN/CLOSE to close the tray.

READING appears on the TV screen, and playback starts automatically. If playback does not start, press PLAY.

In some cases, the disc menu may appear instead.

If a disc menu screen is displayed

The menu screen may be displayed first after loading a DVD or Video CD that contains a menu.

◀▶ ▲▼ buttons to select the title/chapter ditional selections you want, then press T/ENTER to start playback.

Press TITLE or MENU to return to the disc menu screen.

• Use the number buttons to select the track you want to view. Press RETURN to return to the disc menu screen.
• Menu setting and the exact operating procedures for using the disc menu may differ depending on the disc. Follow the instructions on each menu screen. You also may set PBC to Off under setup. See page 13.

Notes

• If Parental Control is set and the disc is not within the Rating settings (not authorized), the 4-digit password must be entered and/or the disc must be authorized (see "Parental Control", on page 14).
  – DVDs may have a region code.
• Your player will not play discs that have a region code different from your player. The region code for this player is 3 (three).

Exchanging discs during playback

• Press DISC EX-CHANGE on the front panel during playback to open the disc tray.
• Press DISC SKIP to rotate the disc trays to the desired position. The carousel will rotate clockwise by one disc increments.
• Exchange the discs and press DISC EX-CHANGE or OPEN/CLOSE to close the disc tray.

Note

- The disc tray presently loaded in the play position can not be exchanged.

Skipping discs

Press DISC SKIP during play or when playback is stopped.

Notes

• When DISC SKIP is pressed, the disc tray rotates and playback begins from the beginning of the next disc.
• If there is no disc on the next disc tray, the following disc tray will be selected.
• When DISC SKIP is pressed during playback of disc 5, playback of disc 1 will start.

Exchanging the disc and starting playback

1. Press OPEN/CLOSE during playback or when play-back is stopped.
   Play stops (if pressed during playback), the disc tray opens and the disc that was in the play position comes to the front.
2. Exchange the disc.
3. Press OPEN/CLOSE or PLAY again.
   The tray closes and playback begins (with the disc that was in front).

Operation with DVD, Video CD and Audio CD (Cont'd)

General Features

Note

Unless stated otherwise, all operations described use the remote control. Some features may also be available from the Setup menu.

Moving to another TITLE

When a disc has more than one title, you can select to another title as follows:

- Press DISPLAY when playback is stopped. From the title function, press the appropriate numbered button (0-9) to select a title number.

Moving to another CHAPTER/TRACK

When a title on a disc has more than one chapter or a disc has more than one track, you can move to another chapter/track as follows:

• Press SKIP ◄◀◀ or ▶▶◀ briefly during playback to select the next chapter/track or to return to the beginning of the current chapter/track.
• Press I◄◄ twice briefly to step back to the previous chapter/track.
• To go directly to any chapter during DVD playback, press DISPLAY. Then, press ▲▼ to select C (chapter) (or for a Video CD and Audio CD, select T for track). Then, enter the chapter/track number using the numbered buttons (0-9).

Note

For two-digit numbers, press the buttons in rapid succession.

Still Picture and Frame-by-frame playback

1 Press PAUSE/STEP during playback. The player will now go into PAUSE mode.
2 You can advance the picture frame by frame by pressing PAUSE/STEP repeatedly on the remote control.

Pause

1 Press PAUSE/STEP during playback.
2 To return to playback, press PLAY or press PAUSE/STEP again.

Slow Motion

1 Press SLOW ◀ or ▶ during playback. The player will enter SLOW mode.
2 Use the SLOW ◀ or ▶ to select the required speed: ◀ 1/16, ◀ 1/8, ◀ 1/4 or ◀ 1/2 (reverse), or ▶ 1/16, ▶ 1/8, ▶ 1/4 or ▶ 1/2 (forward).
3 To exit slow motion mode, press PLAY.

Note

Slow motion playback in reverse is not available from a Video CD.

Search

1 Press and hold SKIP/SCAN ◀◀◀ or ▶▶◀ for about two seconds during playback. The player will now go into SEARCH mode.
2 Press and hold SKIP/SCAN I◀◀ or ▶▶I repeatedly to select the required speed: ◀◀X2, ◀◀X4, ◀◀X16, ◀◀X100 (backward) or ▶▶X2, ▶▶X4, ▶▶X16, ▶▶X100 (forward). With a Video CD and Audio CD, the Search speed changes: ◀◀X2, ◀◀X4, ◀◀X8 (backward) or ▶▶X2, ▶▶X4, ▶▶X8 (forward).

3 To exit SEARCH mode, press PLAY.

Random

1 Press RANDOM during playback or in stop mode. The unit automatically begins Random Playback and "RANDOM (1-3)" appears on the TV screen.
- RANDOM1: Plays all the tracks on a single disc in random order and then stops.
- RANDOM2: Plays all the tracks on current disc in random order and then plays all the tracks on each succeeding disc in random order and then stops.
- RANDOM3: Plays 2 tracks randomly from a disc and then plays 2 tracks randomly from a different disc until all tracks on all discs have been played.

2 To return to normal playback, press RANDOM until "RANDOM" disappears on the display window.

Tip

By pressing SKIP ◀◀ or ▶▶ during Random play-back, the unit selects another title (track) and resumes Random playback.

Note

This function works only with Compact Discs, Karaoke discs and video CD without PBC.

Operation with DVD, Video CD and Audio CD (Cont'd)

General Features (cont'd)

Repeat CHAFT TITLE TRACK DISC ALL OFF

DVD Video Discs - Repeat Chapter/Title/Off

1 To repeat the chapter currently playing, press REPEAT. The Repeat Chapter icon appears on the TV screen.
2 To repeat the title currently playing, press REPEAT two times. The Repeat Title icon appears on the TV screen.
3 To cancel Repeat mode, press REPEAT repeatedly until the Repeat Off icon appears on the TV screen.

Video CDs and Audio CDs - Repeat Track/Disc/All/Off

1 To repeat the track currently playing, press REPEAT. The Repeat Track icon appears on the TV screen.
2 To repeat the disc currently playing, press REPEAT two times. The Repeat Disc icon appears on the TV screen.
3 To Repeat of entire all disc contents, press REPEAT three times. The Repeat All icon appears on the TV screen.
4 To cancel Repeat mode, press REPEAT repeatedly until the Repeat Off icon appears on the TV screen.

Note

• On a Video CD with PBC, you must set PBC to Off on the setup menu to use the Repeat function. See page 13.
• If you press SKIP ◀◀ twice or SKIP ▶▶ during Repeat Chapter/Track playback, the repeat playback cancels.

Repeat A-B

To repeat a sequence in a title:

1 Press A-B RPT at your chosen starting point. A- appears briefly on the TV screen.
2 Press A-B RPT again at your chosen end point. A-B appears briefly on the TV screen, and the repeat sequence begins (a-b repeat appears on the player's display).
3 To cancel the sequence, press A-B RPT.

Note

If you press SKIP ◀◀◀ or ▶▶▶ during repeat A-B, the A-B sequence are cleared.

Time Search

The Time Search function allows you to start playing at any elapsed time location on the disc.

1 Press DISPLAY during playback. The on-screen display appears on the screen. The Time Search box shows the elapsed playing time of the current disc.
2 Within 10 seconds, press ▲▼ to select the Time Search icon in the on-screen display. The “-:-:-” appears in the Time Search box.
3 Within 10 seconds, use the number buttons to enter the required start time. Enter hours, minutes and seconds from left to right in the box. If you enter the wrong numbers, press CLEAR to remove the numbers you entered. Then enter the correct numbers.
4 Within 10 seconds, press SELECT/ENTER to confirm the start time. Playback starts from the selected time on the disc. If you enter an invalid time, playback will continue from the current point.

3D Surround

This unit can produce a 3D Surround effect, which simulates multi-channel audio playback from two conventional stereo speakers, instead of the five or more speakers normally required to listen to multi-channel audio from a home theater system.

1 Press DISPLAY during playback.
2 Press ▲ or ▼ to select the sound option. The sound option will be highlighted.
3 Press ◀ or ▶ to to select "3D SUR". To turn off the 3D Surround effect, select "NORM".

Zoom

The Zoom function allows you to expand the video image and to move the focus point of zoomed image.

1 Press ZOOM during playback or still playback to activate the Zoom function. If you press ZOOM repeatedly, the magnification level increases up to six times.
2 Use the ◀/▲▼ buttons to move the focus point off the zoomed image.
3 Press CLEAR to resume normal playback or return to the paused image.

Notes

• The zoom function may not work for some DVDs.
• The zoom function may not work on multi-angle scenes.

Blank gray image with no visible content, text, or symbols

Operation with DVD, Video CD and Audio CD (Cont'd)

General Features (cont'd)

Marker Search

You can start playback from a memorized point. Up to nine points can be memorized. To enter a mark, follow these steps.

1 During disc playback, press MARKER at the location you want to memorize. The Marker icon will appear on the TV screen briefly.

2 Repeat step 1 to enter up to nine Marker points on a disc.

To Recall a Marked Scene

1 During disc playback, press SEARCH. The MARKER SEARCH menu will appear on the screen.
2 Within 10 seconds, press ◀ to select a Marker number that you want to recall.
3 Press SELECT/ENTER. Playback will start from the Marked scene.
4 To remove the MARKER SEARCH menu, press SEARCH.

To clear a Marked Scene

1 During disc playback, press SEARCH. The MARKER SEARCH menu will appear on the screen.
2 Press ◀ to select the Marker number that you want to erase.
3 Press CLEAR. The Marker number will be erased from the list.
4 Repeat steps 2 and 3 to erase additional Marker numbers.
5 To remove the MARKER SEARCH menu, press SEARCH.

Note

All disc markers are cleared when the power is turned off, the disc is removed, or DISC SKIP button is pressed.

Special DVD Features

Checking the contents of DVD Video discs: Menus

DVDs may contain menus that allow you to access special features. To access the disc menu, press MENU. Then, press the appropriate number button to select an option. Or, use the ◀/▲/▼ buttons to highlight your selection, then press SELECT/ENTER.

Title Menu

1 Press TITLE. If the current title has a menu, that menu will appear on the screen. Otherwise, the disc menu may appear.
2 The menu can list camera angles, spoken language and subtitle options, and chapters for the title.
3 To remove the title menu, press TITLE again.

Disc Menu

1 Press MENU.
The disc menu is displayed.
2 To exit the disc menu, press MENU again.

Camera Angle

If the disc contains scenes recorded at different camera angles, you can change to a different camera angle during playback.

• Press ANGLE repeatedly during playback to select a desired angle.
  The number of the current angle appears on the display.

Changing the Audio Language

Press AUDIO repeatedly during playback to hear different audio languages or audio tracks available on the disc.

Changing the Audio Channel

Press AUDIO repeatedly during playback to hear a different audio channel (STEREO, LEFT or RIGHT).

Subtitles

Press SUBTITLE repeatedly during playback to view the different subtitle languages available on the disc.

Note

If ⊗ appears, the feature is not available on the disc.

Programmed Playback with Video CD and Audio CD

Programmed Playback with Video CD and Audio CD

Note

On a Video CD with PBC, you must set PBC to Off on the setup menu to use the Program function. See page 13.

1 Insert a Video CD or Audio CD and close the tray.

2 Press PROGRAM while playback is stopped. The Program menu will appear.

Grid of circular icons with a 'Clear AB' button, no readable text or symbols present

Note

Press PROGRAM or RETURN to exit the Program menu.

3 Enter the disc number using the numerical keys (1-5) and then press SELECT/ENTER.
4 Enter the track number using the numerical keys (0-9) and then press SELECT/ENTER. The next area is selected.
5 Repeat steps 3 to 4. Up to 20 tracks can be programmed.
6 Press PLAY to exit the menu. The selected tracks are stored in the player memory and playback begins with the first programmed sequence.
7 After playback of all programmed tracks is completed, playback is stopped

Repeat Programmed Tracks/All

1 To repeat the track currently playing, press REPEAT. The Repeat Track icon appears on the TV screen.
2 To repeat all tracks on the program list, press REPEAT two times. The Repeat All icon appears on the TV screen.
3 To cancel Repeat mode, press REPEAT repeatedly until the Repeat Off icon appears on the TV screen.

Note

If you press SKIP ◀◀ twice or SKIP ▶▶ during Repeat Track playback, the repeat playback cancels.

To resume normal playback from programmed playback

Press PROGRAM until "PROG." indicator disappears in the display window.

Erasing a Track from Program List

1 Press PROGRAM while playback is stopped. The Program menu will appear.
2 Use ◀/▶/▲/▼ to select the track that you wish to erase from the Program list.
3 Press CLEAR. The track will be erased from the Program list.

Erasing the Complete Program List

1 Press PROGRAM while playback is stopped. The Program menu will appear.
2 Use ◀/▶/▲/▼ to select "Clear All", then press SELECT/ENTER.
The complete Program for the disc will be erased. The programs are also cleared when the disc is removed.

Operation with MP3 Disc

Playing an MP3 disc

The DVD Player can play MP3 formatted recordings on CD-ROM, CD-R or CD-RW discs.

Before playing MP3 recordings, read the notes on MP3 Recordings on right.

1 Insert a disc and close the tray.

The MP3/JPEG choice menu appears on the TV screen.

2 Press ▲▼ to select the MP3 then press SELECT/ENTER.

The MP3 menu appears on the TV screen.

MP3 Program TRACK 2.1MP3 TRACK 3.1MP3 TRACK 4.1MP3 TRACK 5.1MP3 TRACK 6.1MP3 TRACK 7.1MP3 TRACK 8.1MP3 Clear All 10.0% OFF

MP3 menu

3 Press ▲▼ to select a track then press PLAY. Playback starts.

During playback, the current track's elapsed playing time will appear on the display.

Playback will stop at the end of the disc.

Press TITLE to move to he next page.

Press MENU to move to the previous page.

4 To stop playback at any other time, press STOP.

Pause

1 Press PAUSE/STEP during playback.
2 To return to playback, press PLAY or press PAUSE/STEP again.

Moving to another Track

• Press SKIP I◄◄ or ►► once during playback to advance to the next track or to return to the beginning of the current track.
• Press SKIP ◀◀ twice briefly to step back to the previous track.

Repeat Track/All/Off

1 To repeat the track currently playing, press REPEAT. The Repeat Track icon appears on the menu screen.
2 To repeat all tracks on a disc, press REPEAT two times.

The Repeat All icon appears on the menu screen.

3 To cancel Repeat mode, press REPEAT repeatedly until the Repeat Off icon appears on the menu screen.

Note

• The REPEAT button is not available when the E mark appear. Press PROGRAM to disappear the E mark.
• If you press SKIP I◄◄ twice or SKIP ►► during Repeat Track playback, the repeat playback cancels.

Notes on MP3 Discs

About MP3

• An MP3 file is audio data compressed by using the MPEG1 audio layer-3 file-coding scheme. We call files that have the ".mp3" file extension "MP3 files".
• The player can not read an MP3 file that has a file extension other than ".mp3".
• The player can not read a non MP3 encoded file that has a file extension ".mp3".

MP3 Disc compatibility with this player is limited as follows:

1. Sampling Frequency / only at 44.1kHz
2. Bit rate / within 32 - 320kbps
3. CD-R physical format should be "ISO 9660"
4. If you record MP3 files using the software which cannot create a FILE SYSTEM, for example "Direct-CD" etc., it is impossible to playback MP3 files. We recommend that you use "Easy-CD Creator", which creates an ISO9660 file system.
5. A single session disc requires MP3 files in the first track. If there is no MP3 file in the 1st track, it cannot playback MP3 files. If you wish to playback MP3 files, format all the data in the disc or use a new one.
6. We do not recommend using CD-RW discs. Please use finished CD-R discs only.
7. File names should be named using 8 letters or less and must incorporate ".mp3" extension e.g. "*******.MP3".
8. Do not use special letters such as “_?!><+*}{‘[@]::V.,” etc.
9. Total number of files on the disc should be less than 200.
10. Use 74 minute CD-R discs (650M), Do not use 80 minute CD-R (700M) software

This DVD player requires discs/recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 files). That require certain pre-existing conditions (see above) to insure compatible playback.

Customers should also note that permission is required in order to download MP3 files and music from the Internet. Our company cannot grant such permission. Permission should always be sought from the copyright owner.

Operation with JPEG Disc

Viewing a JPEG disc

This DVD Player can play discs with JPEG files on it. Make sure the resolution of the JPEG files is less than 2 mega pixels (2M).

Notes

• Depending upon the size and number of the JPEG files, it could take a long time for the DVD player to read the disc's contents. If you don't see an on-screen display after several minutes, some of the files are too big — reduce the resolution of the JPEG files to less than 2 mega pixels and burn another disc.
• Total number of files on the disc should be less than 200.
• Some disc may be incompatible due to different recording format or condition of disc.

Insert a disc and close the tray.

The MP3/JPEG choice menu appears on the TV screen.

Press ▲▼ to select the JPEG then press SELECT/ENTER.

The JPEG menu appears on the TV screen. Press RETURN to move to the previous menu (MP3/JPEG choice menu).

JPEG Program Picture3.jpg Picture1.jpg Picture4.jpg Picture5.jpg Picture6.jpg Picture7.jpg Picture8.jpg 1/11 OFF Slide Speed Test

JPEG menu

If you want to view a particular file, press ▲/▼ to highlight a file and press SELECT/ENTER or PLAY.

Viewing the file proceeding starts. During viewing a file, press DISPLAY or RETURN to move to the previous menu (JPEG menu). Press TITLE to move to the next page. Press MENU to move to the previous page.

Tip

There are three viewing Slide Speed options: Fast, Normal, and Slow. Press ◀▶ to highlight the Slide Speed then press ▲/▼ to select the option you want to use, and press SELECT/ENTER.

To stop viewing at any other time, press STOP.

The JPEG menu appears.

Moving to another File

- Press SKIP ◀◀◀ or ▶▶▶ once during viewing to advance to the next file or to the previous file.

Repeat All/Off

1 To repeat all files on a disc, press REPEAT when JPEG menu appears.
The Repeat All icon appears on the menu screen.
2 Press PLAY or SELECT/ENTER to start repeat play-back.
3 To cancel Repeat mode, first press STOP to stop playback then press REPEAT when JPEG menu appears.
The Repeat Off icon appears on the menu screen.

Note

The REPEAT button is not available when the E mark appear. Press PROGRAM to disappear the E mark.

Programmed Playback with MP3 or JPEG Disc

Programmed Playback with MP3 or

JPEG Disc

Program allows you to store your favorite tracks/files (or files) for a particular disc in the player memory.

Program can contain 60 tracks/files.

1 Insert a disc and close the tray.

The MP3/JPEG choice menu appears on the TV screen.

2 Press ▲▼ to select the MP3 or JPEG then press SELECT/ENTER.

The MP3 or JPEG menu appears on the TV screen. Press RETURN to move to the previous menu (MP3/JPEG choice menu).

3 Press PROGRAM in the stop mode or during playback (MP3 only) to enter the Program Edit mode.

The E mark will appear to the right of the word Program on the right side of the menu screen.

Note

Press PROGRAM to exit the Program Edit mode; the ☐ mark will disappear.

4 Press ▲▼ to select a track/file then press SELECT/ENTER to place the selected track/file on the Program list.

5 Repeat step 4 to place additional tracks/files on the Program list.

MP3 TRACK 1.MP3 TRACK 2.MP3 TRACK 4.MP3 TRACK 5.MP3 TRACK 6.MP3 TRACK 7.MP3 TRACK 8.MP3 Program TRACK 8.MP3 TRACK 2.MP3 TRACK 4.MP3 TRACK 3.MP3 Clear Air OFF 56:25 1

MP3 menu

JPEG Program Picture2.jpg Picture3.jpg Picture4.jpg Picture5.jpg Picture6.jpg Picture7.jpg Picture8.jpg Picture1.jpg Picture2.jpg Picture3.jpg Picture4.jpg Picture5.jpg Picture6.jpg Clear All 1/31 OFF Slide Speed Fast

JPEG menu

6 Press ▶.

The programmed track/files you selected last is highlighted on the program list.

7 Press ▲▼ to select the track/file you want to start playing.

Press TITLE to move to the next page. Press MENU to move to the previous page.

Press SELECT/ENTER or PLAY to start.

Playback begins in the order in which you programmed the tracks/files and "PROG." appears in the display window. Playback stops after playing the last programmed track/file on the program list.

Note

The programmed tracks/files are cleared when the power is turned off or the disc is removed.

Repeat Programmed Tracks/All/Off

1 To repeat the track currently playing, press REPEAT. The Repeat Track icon appears on the menu screen.
2 To repeat all tracks on the program list, press REPEAT two times.

The Repeat All icon appears on the menu screen.

3 To cancel Repeat mode, press REPEAT repeatedly until the Repeat Off icon appears on the menu screen.

Note

If you press SKIP I◄◄ twice or SKIP ►► during Repeat Track playback, the repeat playback cancels.

Repeat Programmed All/Off

1 To repeat all files on the program list, press REPEAT when JPEG menu appears. The Repeat All icon appears on the menu screen.
2 Press PLAY or SELECT/ENTER to start repeat play-back.
3 To cancel Repeat mode, first press STOP to stop playback then press REPEAT when JPEG menu appears.

Note

The REPEAT button is not available when the E mark appear. Press PROGRAM to disappear the E mark.

Erasing a Track/File from Program List

1 Press PROGRAM during playback or in the stop mode to enter the Program Edit mode.

The E mark will appear.

Note

JPEG can be programmed only in stop mode (when menu screen is displayed.)

2 Press ▶ to move to the Program list.
3 Use ▲▼ to select the track/file that you wish to erase from the Program list.
4 Press CLEAR. The track/file will be erased from the Program list.

Erasing the Complete Program List

1 Follow steps 1-2 of "Erasing a Track/File from Program List" as above.
2 Use ▲▼ to select "Clear All", then press SELECT/ENTER. The complete Program for the disc will be erased. The programs are also cleared when the disc is removed.

To resume normal playback from programmed playback

Press and hold PROGRAM for 3 seconds until "PROG." indicator disappears in the display window.

Additional Information

Last Condition Memory

This player memorizes the last condition for the last disc you have watched. Settings remain in memory even if you remove the disc from the player or switch off the player. If you load a disc that has its settings memorized, the latest stop position is automatically recalled.

Notes

• Settings are stored in memory for use any time.
• This player does not memorize settings of a disc if you switch off the player before commencing playback.

Screen Saver

A screen saver image appears when you leave the DVD Player in stop mode for about five minutes.

After the Screen Saver has been engaged for about five minutes, the DVD Player will automatically turn itself off.

Video Mode Setting

• With certain discs, the playback picture may be flickering or Dot Crawl is shown on straight lines. That means Vertical interpolation or De-interlace is not perfectly matched with the disc. In this case, the picture quality may be improved by changing the video mode.
• To change the video mode, press and hold DISPLAY about 3 seconds during disc playback. The new video mode number selected is displayed on the TV screen. Check whether the video quality has improved. If not, repeat the above procedure until picture quality is improved.
• Video mode change sequence: MODE1 → MODE2 → MODE3 → MODE4 → MODE5 → MODE1
• If you turn off the power, the video mode will return to initial default state (MODE1).

System Select

You must select the appropriate system mode for your TV system. To select a system(PAL, NTSC, or AUTO), press and hold PAUSE for more than 3 second when NO DISC appears in the display window.

- When the selected system does not coincide with the system of your TV, normal color picture may not be displayed.

PAL: Select when DVD player is connected with PAL-TV.

NTSC: Select when DVD player is connected with NTSC-TV.

AUTO: Select when DVD player is connected with Multi system TV.

Controlling the TV

Your remote control is capable of operating your DVD player as well as limited functions of LG TV. Follow the instructions below to operate for your LG TV.

1 Before using the remote control, press the DVD or TV button to select the device to be operated. To switch the remote control mode (to operate a different device), be sure to press the DVD or TV button first.

2 The POWER, CH(▼/▲), VOL (◀), MUTE and TV AV buttons on remote control are used to operate the LG TV.

Setting Remote Control Codes for LG TV

• This remote control supports two remote control codes for LG TV: Code 1 and Code 2. Code 1 is for LG TV with NTSC or multi system. Code 2 is for LG TV with PAL system.
• When the unit is shipped from the factory, the remote control is set to Code 1.
• To set the remote control to Code 2, hold down both the TV button and "2" number button on the remote control. (If the batteries in the remote control are replaced while the remote control is set to Code 2, the setting will revert Code 1.)
• To set the remote control back to Code 1, hold down both the TV button and "1" number button on the remote control.

Note

If the remote control does not operate your particular TV, try one of the other code or use the remote control originally supplied with the LG TV.

Due to the variety of codes used by manufacturer, OUR COMPANY cannot guarantee that the remote control will operate every model of the LG TV.

Troubleshooting

Check the following guide for the possible cause of a problem before contacting service.

Symptom	Cause	Correction
No power.	The power cord is disconnected.	Plug the power cord into the wall outlet securely.
The power is on, but the DVD player does not work.	No disc is inserted.	Insert a disc. (Check that the DVD or, audio CD indicator in the display window is lit.)
No picture.	The TV is not set to receive DVD signal output.	Select the appropriate video input mode on the TV so the picture from the DVD player appears on the TV screen.
	The video cable is not connected securely.	Connect the video cable into the jacks securely.
	The connected TV power is turned off.	Turn on the TV.
No sound.	The equipment connected with the audio cable is not set to receive DVD signal output.	Select the correct input mode of the audio receiver so you can listen to the sound from the DVD player.
	The audio cables are not connected securely.	Connect the audio cable into the jacks securely.
	The power of the equipment connected with the audio cable is turned off.	Turn on the equipment connected with the audio cable.
	The Digital Audio Output is set to the wrong position.	Set the Digital Audio Output to the correct position, then turn on the DVD player again by pressing POWER.
The playback picture is poor.	The disc is dirty.	Clean the disc.
The DVD player does not start playback.	No disc is inserted.	Insert a disc. (Check that the DVD, or audio CD indicator in the DVD display is lit.)
	An unplayable disc is inserted.	Insert a playable disc. (Check the disc type, color system and Regional code.)
	The disc is placed upside down.	Place the disc with the playback side down.
	The disc is not placed within the guide.	Place the disc on the disc tray correctly inside the guide.
	The disc is dirty.	Clean the disc.
	The Rating level is set.	Cancel the Rating function or change the rating level.
The remote control does not work properly.	The remote control is not pointed at the remote sensor of the DVD player.	Point the remote control at the remote sensor of the DVD player.
	The remote control is too far from the DVD player.	Operate the remote control within about 23 ft (7 m).
	There is an obstacle in the path of the remote control and the DVD player.	Remove the obstacle.
	The batteries in the remote control are exhausted.	Replace the batteries with new ones.

Speaker Settings

Make the following settings for the built-in 5.1 channel surround decoder.

Disc Audio Disc Subtitle Disc Menu Rating Country Code TV Aspect Menu Language Digital Audio Options Others

1 Select "5.1 Speaker Setup" using the ▲▼ buttons on the setup menu.
2 While "5.1 Speaker Setup" is selected, press button.
3 Press ◀▶ buttons to select the desired speaker.
4 Adjust options by using ▲/▼/◄► buttons.

Speaker selection

Select a speaker that you want to adjust. (Front speakers (Left), Front speakers (Right), Center Speaker, Rear speakers (Left), Rear speakers (Right), or Subwoofer)

Note

Certain speaker settings are prohibited by the Dolby Digital licensing agreement.

Volume

Press ◀/▶ to adjust the output level of the selected speaker. (-10dB \~ 0dB)

Size

• Press ◀/▶ to set a mode. (Large, Small or None)
• If you have connected the system to a speaker with a low frequency of 100Hz or below, select "Large."
• If you have connected the system to a speaker without a low frequency of 100Hz or below, select "Small." If you have not connected a subwoofer, always select "Large" for Front speaker (L/R).
• When you do not have a certain speaker connected, select "None."
• Front L/R speaker's size can be set to "Large" or "Small."
• If Front L/R speaker's size is set to "Small," Rear and Center speaker's size can be set to "Small" or "None."
• Subwoofer's size can be set only to "Large" or "None.

Delay

• Press ◀/▶ to customize the sound to confirm to the acoustics of your room by adding a delay effect to the Center Speaker and Rear (Surround) Speakers.
• When 5.1 Channel Surround is played, you can enjoy the best sound if the distance between you and each speaker is the same. You can set the Delay time in the Center/Rear (Surround) Speakers to customize the sound to the acoustics of your room.

Setting the delay (Center Speaker)

If the distance of Dc is equal to or longer than the DF in the below figure, set the mode as 0ms. Otherwise, change the setting according to the table below.

(A) = DF - DC

Distance of (A)(cm)	Setting(ms)
34	1
68	2
102	3
136	4
170	5

Setting the delay (Rear (Surround) Speaker)

If the distance of Df is equal to the distance of Ds in the above, set the mode as 0ms. Otherwise, change the setting according to the table below.

(B) = DF - Ds

Distance of (B)(cm)	Setting(ms)
170	5
340	10
510	15

Test

Press SELECT/ENTER to test the signals of each speaker. Adjust the volume to match the volume of test signals memorized in the system.

• Front Left (L) → Front Right (R) → Center → Rear Left (L) → Rear Right (R)

Return

Press SELECT/ENTER to return to the previous menu.

Language Code List

Enter the appropriate code number for the initial settings "Disc Audio", "Disc Subtitle" and/or "Disc Menu" (See page 12).

Code	Language	Code	Language	Code	Language	Code	Language
6565	Afar	7079	Faroese	7678	Lingala	8375	Slovak
6566	Abkhazian	7082	French	7679	Laothian	8376	Slovenian
6570	Afrikaans	7089	Frisian	7684	Lithuanian	8377	Samoan
6577	Ameharic	7165	Irish	7686	Latvian, Lettish	8378	Shona
6582	Arabic	7168	Scots Gaelic	7771	Malagasy	8379	Somali
6583	Assamese	7176	Galician	7773	Maori	8381	Albanian
6588	Aymara	7178	Guarani	7775	Macedonian	8382	Serbian
6590	Azerbaijani	7185	Gujarati	7776	Malayalam	8385	Sudanese
6665	Bashkir	7265	Hausa	7778	Mongolian	8386	Swedish
6669	Byelorussian	7273	Hindi	7779	Moldavian	8387	Swahili
6671	Bulgarian	7282	Croatian	7782	Marathi	8465	Tamil
6672	Bihari	7285	Hungarian	7783	Malay	8469	Telugu
6678	Bengali; Bangla	7289	Armenian	7784	Maltese	8471	Tajik
6679	Tibetan	7365	Interlingua	7789	Burmese	8472	Thai
6682	Breton	7378	Indonesian	7865	Nauru	8473	Tigrinya
6765	Catalan	7383	Icelandic	7869	Nepali	8475	Turkmen
6779	Corsican	7384	Italian	7876	Dutch	8476	Tagalog
6783	Czech	7387	Hebrew	7879	Norwegian	8479	Tonga
6789	Welsh	7465	Japanese	7982	Oriya	8482	Turkish
6865	Danish	7473	Yiddish	8065	Panjabi	8484	Tatar
6869	German	7487	Javanese	8076	Polish	8487	Twi
6890	Bhutani	7565	Georgian	8083	Pashto, Pushto	8575	Ukrainian
6976	Greek	7575	Kazakh	8084	Portuguese	8582	Urdu
6978	English	7576	Greenlandic	8185	Quechua	8590	Uzbek
6979	Esperanto	7577	Cambodian	8277	Rhaeto-Romance	8673	Vietnamese
6983	Spanish	7578	Kannada	8279	Rumanian	8679	Volapük
6984	Estonian	7579	Korean	8285	Russian	8779	Wolof
6985	Basque	7583	Kashmiri	8365	Sanskrit	8872	Xhosa
7065	Persian	7585	Kurdish	8368	Sindhi	8979	Yoruba
7073	Finnish	7589	Kirghiz	8372	Serbo-Croatian	9072	Chinese
7074	Fiji	7665	Latin	8373	Singhalese	9085	Zulu

Area Code List

Enter the appropriate code number for the initial setting "Area Code" (See page 14).

Code	Area	Code	Area	Code	Area	Code	Area
AD	Andorra	ER	Eritrea	LC	Saint Lucia	SC	Seychelles
AE	United Arab Emirates	ES	Spain	LI	Liechtenstein	SD	Sudan
AF	Afghanistan	ET	Ethiopia	LK	Sri Lanka	SE	Sweden
AG	Antigua and Barbuda	FI	Finland	LR	Liberia	SG	Singapore
AI	Anguilla	FJ	Fiji	LS	Lesotho	SH	Saint Helena
AL	Albania	FK	Falkland Islands	LT	Lithuania	SI	Slovenia
AM	Armenia	FM	Micronesia	LU	Luxembourg	SJ	Svalbard and Jan Mayen Islands
AN	Netherlands Antilles	FO	Faroe Islands	LV	Latvia
AO	Angola	FR	France	LY	Libya	SK	Slovak Republic
AQ	Antarctica	FX	France (European Territory)	MA	Morocco	SL	Sierra Leone
AR	Argentina			MC	Monaco	SM	San Marino
AS	American Samoa	GA	Gabon	MD	Moldavia	SN	Senegal
AT	Austria	GB	Great Britain	MG	Madagascar	SO	Somalia
AU	Australia	GD	Grenada	MH	Marshall Islands	SR	Suriname
AW	Aruba	GE	Georgia	MK	Macedonia	ST	Saint Tome and Principe
AZ	Azerbaidjan	GF	French Guyana	ML	Mali	SU	Former USSR
BA	Bosnia-Herzegovina	GH	Ghana	MM	Myanmar	SV	El Salvador
BB	Barbados	GI	Gibraltar	MN	Mongolia	SY	Syria
BD	Bangladesh	GL	Greenland	MO	Macau	SZ	Swaziland
BE	Belgium	GM	Gambia	MP	Northern Mariana Islands	TC	Turks and Caicos Islands
BF	Burkina Faso	GN	Guinea	MQ	Martinique (French)	TD	Chad
BG	Bulgaria	GP	Guadeloupe (French)	MR	Mauritania	TF	French Southern Territories
BH	Bahrain	GQ	Equatorial Guinea	MS	Montserrat
BI	Burundi	GR	Greece	MT	Malta	TG	Togo
BJ	Benin	GS	S. Georgia & S. Sandwich Isls.	MU	Mauritius	TH	Thailand
BM	Bermuda			MV	Maldives	TJ	Tadjikistan
BN	Brunei Darussalam	GT	Guatemala	MW	Malawi	TK	Tokelau
BO	Bolivia	GU	Guam (USA)	MX	Mexico	TM	Turkmenistan
BR	Brazil	GW	Guinea Bissau	MY	Malaysia	TN	Tunisia
BS	Bahamas	GY	Guyana	MZ	Mozambique	TO	Tonga
BT	Bhutan	HK	Hong Kong	NA	Namibia	TP	East Timor
BV	Bouvet Island	HM	Heard and McDonald Islands	NC	New Caledonia (French)	TR	Turkey
BW	Botswana			NE	Niger	TT	Trinidad and Tobago
BY	Belarus	HN	Honduras	NF	Norfolk Island	TV	Tuvalu
BZ	Belize	HR	Croatia	NG	Nigeria	TW	Taiwan
CA	Canada	HT	Haiti	NI	Nicaragua	TZ	Tanzania
CC	Cocos (Keeling) Islands	HU	Hungary	NL	Netherlands	UA	Ukraine
CF	Central African Republic	ID	Indonesia	NO	Norway	UG	Uganda
CG	Congo	IE	Ireland	NP	Nepal	UK	United Kingdom
CH	Switzerland	IL	Israel	NR	Nauru	UM	USA Minor Outlying Islands
CI	Ivory Coast	IN	India	NU	Niue
CK	Cook Islands	IO	British Indian Ocean Territory	NZ	New Zealand	US	United States
CL	Chile			OM	Oman	UY	Uruguay
CM	Cameroon	IQ	Iraq	PA	Panama	UZ	Uzbekistan
CN	China	IR	Iran	PE	Peru	VA	Vatican City State
CO	Colombia	IS	Iceland	PF	Polynesia (French)	VC	Saint Vincent & Grenadines
CR	Costa Rica	IT	Italy	PG	Papua New Guinea
CS	Former Czechoslovakia	JM	Jamaica	PH	Philippines	VE	Venezuela
CU	Cuba	JO	Jordan	PK	Pakistan	VG	Virgin Islands (British)
CV	Cape Verde	JP	Japan	PL	Poland	VI	Virgin Islands (USA)
CX	Christmas Island	KE	Kenya	PM	Saint Pierre and Miquelon	VN	Vietnam
CY	Cyprus	KG	Kyrgyzstan	PN	Pitcairn Island	VU	Vanuatu
CZ	Czech Republic	KH	Cambodia6	PR	Puerto Rico	WF	Wallis and Futuna Islands
DE	Germany	KI	Kiribati	PT	Portugal	WS	Samoa
DJ	Djibouti	KM	Comoros	PW	Palau	YE	Yemen
DK	Denmark	KN	Saint Kitts & Nevis Anguilla	PY	Paraguay	YT	Mayotte
DM	Dominica	KP	North Korea	QA	Qatar	YU	Yugoslavia
DO	Dominican Republic	KR	South Korea	RE	Reunion (French)	ZA	South Africa
DZ	Algeria	KW	Kuwait	RO	Romania	ZM	Zambia
EC	Ecuador	KY	Cayman Islands	RU	Russian Federation	ZR	Zaire
EE	Estonia	KZ	Kazakhstan	RW	Rwanda	ZW	Zimbabwe
EG	Egypt	LA	Laos	SA	Saudi Arabia
EH	Western Sahara	LB	Lebanon	SB	Solomon Islands

Specifications

General

Power requirements	AC 110-240V, 50/60 Hz
Power consumption	14W
Dimensions (approx.)	430 X 79.9 X 410 mm (16.9 x 3.2 x 16.2 inches) (w x h x d)
Mass (approx.)	5.1 kg (12.3 lbs)
Operating temperature	5°C to 35°C (41°F to 95°F)
Operating humidity	5 % to 90 %

System

Laser	Semiconductor laser, wavelength 650 nm
Signal system	PAL/NTSC
Frequency response	DVD (PCM 96 kHz): 8 Hz to 44 kHzDVD (PCM 48 kHz): 8 Hz to 22 kHzCD: 8 Hz to 20 kHz
Signal-to-noise ratio	More than 100dB (ANALOG OUT connectors only)
Harmonic distortion	Less than 0.008%
Dynamic range	More than 100 dB (DVD)More than 95 dB (CD)

Outputs

VIDEO OUT	1 Vp-p 75 ohms, sync negative, RCA jack x 1
S-VIDEO OUT	(Y) 1.0 V (p-p), 75 Ω, negative sync., Mini DIN 4-pin x 1(C) 0.3 V (p-p) 75 ohms
COMPONENT VIDEO OUT	(Y) 1.0 V (p-p), 75 Ω, negative sync., RCA jack x 1(Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2
Audio output (digital audio)	0.5 V (p-p), 75 Ω, RCA jack x 1
Audio output (optical audio)	5 V (p-p), 75 Ω, Optical connector x 1
Audio output (analog audio)	2.0 Vrms (1 KHz, 0 dB), 330 Ω, RCA jack (L, R) x 1

Accessory

S-Video cable	1
Video cable	1
Audio cable	1
Remote control	1
Batteries	2

- Design and specifications are subject to change without notice.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. Copyright 1992-1997 Dolby Laboratories. All rights reserved.

"DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc.

LG Electronics Inc.
