1. Diagram

V-024U

1 10 9 2 3 4 5 8 7 6

17 15 16 11 12 13 14 18 ULTRA SOLUTION

Fig.1/1

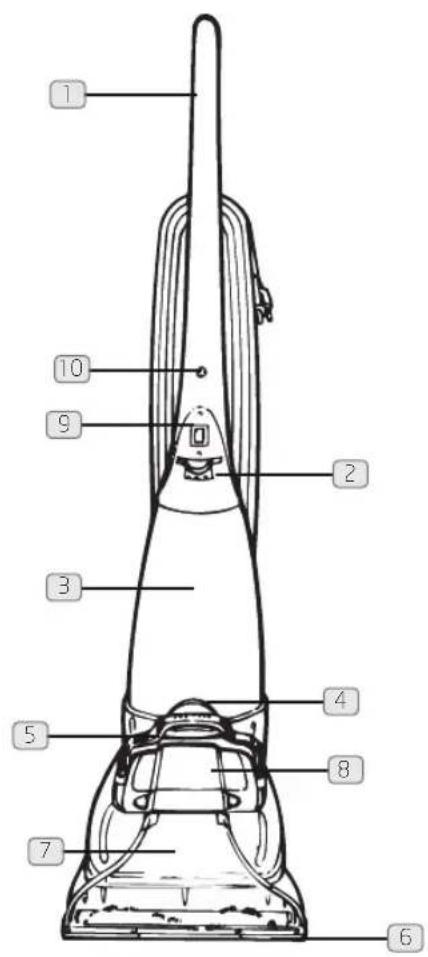

1 Handle
2 Clean solution reservoir latch
3 Clean solution reservoir
4 Dirty water tank latch
5 Dirty water tank handle
6 Floating brushbar
7 Dirty water tank
8 Dirty water tank lid
9 Power switch

10 Handle screw
11 Power cord
12 Carrying handle
13 Quick cord release
14 Handle release pedal
15 Cord hook
16 Cord clip
17 Solution release trigger
18 Vax Ultra Solution

2 parts overview

2. Safety Information

When using the vacuum cleaner, basic safety precautions should always be observed, including the following: 23

1. Do not leave the carpet washer unattended when plugged in. Unplug it from socket when not in use.
2. To prevent electric shock do not use outdoors.
3. Not to be used as a toy. Children should be superase Dot not carry appliance while motor is running, ensure that they do not play with the appliance.
4. This appliance is not intended for use by persons NOTE: Carpets should be dry vacuumed thoroughly (including children) with reduced physical, sensory before washing.

5. Use extra care when cleaning on stairs.
   25seDotnot carry appliance while motor is running.
   NOTE: Carpets should be dry vacuumed thoroughly before washing.

6. Using improper voltage may result in damage to the motor and possible injury to the user. The correct voltage is listed on the rating label.

7. A hazard may occur if the carpet washer runs over on the power supply cord.
8. To prevent dirty water from running into motor, do not hold the appliance upside-down or lay on its side. Use appliance in normal vacuuming position.

NOTE: The unit must be unplugged from the mains socket outlet after use, and before cleaning or maintaining the unit.

IMPORTANT: This unit is not intended for commercial use.

PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER USE.

1. Use only as described in this manual.
2. Do not use with a damaged cord or plug. If the supply cord and/or plug is damaged, they must be replaced by the manufacturer, a Vax Service Agent or similarly qualified persons in order to avoid hazard.
3. Do not pull or carry by the cord, use the cord as a handle, allow the cord to come into contact with hot or sharp surfaces or close a door on the cord.
4. Do not unplug by pulling on the cord.
5. Do not handle the plug or carpet washer with wet hands.
6. Do not put any objects into openings or operate with openings blocked, keep them free of anything that may reduce airflow.
7. Keep hair, loose clothing, fingers and all parts of the body away from openings and moving parts.
8. Do not use the carpet washer on any glowing, burning or smoking particles.
9. Do not use without the solution tank and dirty water tank in place.
10. Do not use the vacuum without the dust bag in place.
11. Turn off all controls before unplugging.
12. Do not use to pick up flammable or combustible liquids such as petrol, or use in areas where they may be present.
13. Keep the unit on the floor.
14. Do not use an extension cord.
15. Do not attempt to remove blockages with sharp objects as they may cause damage.
16. Store indoors put away after use to prevent tripping accidents.

www.vax.co.uk

3. Assembly

Putting your cleaner together

Stand the base in the upright position. Assemble the mid-section onto the base, taking care not to trap internal grasp the solution reservoir under the handle and press mains wire (Fig 3/1).

Diagram showing a hand holding a vacuum cleaner above a device, with an inset close-up of the device (no text or symbols present)

4. Operation

IMPORTANT: Turn off when emptying and filling the reservoir.

aErasp the solution reservoir under the handle and press the handle release lever upward (Fig 4/1).

Line drawing of a person's lower body and seat assembly (no text or symbols)

Insert the three nuts into the recesses located on the filte the solution reservoir away from the cleaner and and right sides of the base and into the recess located (Fig 4/2).

the middle of the back of the base.

While holding the nuts in place insert screws through front of the mid section and tighten (Fig 3/2).

NOTE: Phillips screwdriver required

Line drawing of a vacuum cleaner with labeled parts and motion indicators (no text or symbols on the device itself)

Line drawing of a human arm and wrist with a hand adjusting the wrist area (no text or symbols)

Unscrew the filler/ measure cap from the rear of the solution reservoir (Fig 4/3).

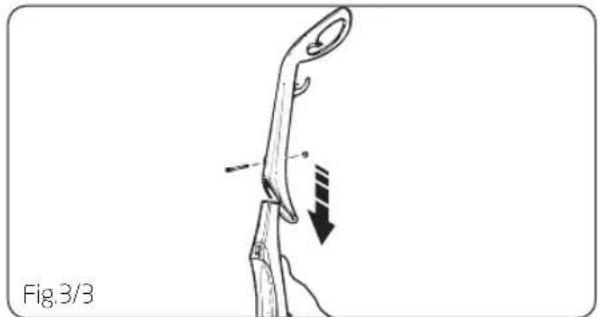

Slide the upper handle down onto the unit. Insert nut into the recess in the back of the upper handle. While holding the nut in place insert the screw through the front of the upper handle and tighten.

Run the mains wire above the upper cord hook and secure with the cord clip (Fig 3/3).

Diagram of a mechanical device with a curved handle and directional arrows indicating motion (no text or symbols)

into holding of the Fig.4/3

Fill the bottle cap or measure cap 4 times with Vax Ultra Solution and pour into the reservoir (Fig 4/4).

Illustration of hands performing a medical procedure on a bottle (no text or symbols visible)

IMPORTANT: Maximum water temperature 50°C.

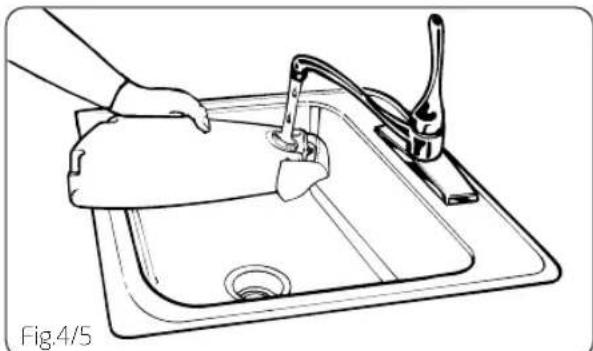

Fill the remaining space in the solution reservoir with warm tap water. Replace the measuring cap (Fig 4/5).

NOTE: use only Vax Ultra Solution, using other cleaning solutions may cause excessive foaming.

This may cause the float to shut of the cleaner prematurely. Using other cleaning solutions will invalidate your warranty.

Line drawing of a hand cleaning a kitchen sink with a faucet and sink (no text or symbols)

Place the bottom of the solution reservoir into the cleaner and push into place. There will be an audible when the reservoir is in the correct position (Fig 4/6)

Line drawing of a hand holding a small object near a vertical rod, labeled Fig.4/6 (no text or symbols on the diagram itself)

Plug the cord into a mains electricity socket.

Turn the power switch on (Fig 4/7).

The switch is located on the front of the cleaner, above the solution reservoir.

The power switch controls the vacuum motor. Press on

Illustration of a hand inserting a small object into a device on a mechanical joint (no text or symbols)

the handle release pedal and pull the cleaner back into a reclined position (Fig 4/8).

IMPORTANT: Never leave the cleaner unattended with the power on.

NOTE: Vacuum carpets thoroughly with dry vacuum cleaner before washing.

Line drawing of a person's foot and legs using a vacuum cleaner on a wheeled cart (no text or symbols)

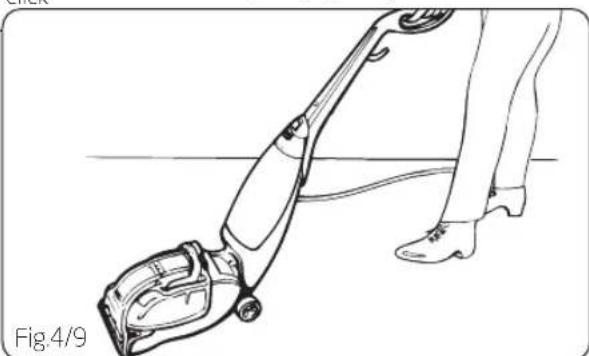

Whilst depressing solution spray trigger, push carpet washer in a forwards motion. Release trigger and pull unit backwards in same path to remove dirty water and solution from the carpet. (Fig 4/9).

Line drawing of a person using a handheld device, showing legs and foot (no text or symbols)

Repeat if necessary, when the dirty water reaches the max fill line on the dirty water tank empty the tank.

www.vax.co.uk

Emptying the dirty water tank

NOTE: The float in your Rapide Classic is the blue part in the dirty water tank lid, it will shut off the suction when the dirty water tank is full. For best results use a smooth steady motion keeping the nozzle flat against the carpet.

Tipping the cleaner and breaking the seal of the nozzle against the carpet will cause the float to rise cutting off suction. Once the float is activated, empty the dirty water tank. If the tank does not appear full turn off the power switch and wait for the float to settle. For best results use only Vax Ultra Solution.

part ion use e ty ull Fig.4/12

Fig.4/

You will hear a distinct change in the noise coming from your cleaner when the tank is full and needs emptying. To empty the water tank grasp the handle with one hand and nozzle with the other and empty into the sink (Fig 4/13).

IMPORTANT: Unplug your cleaner before emptying the dirty water tank.

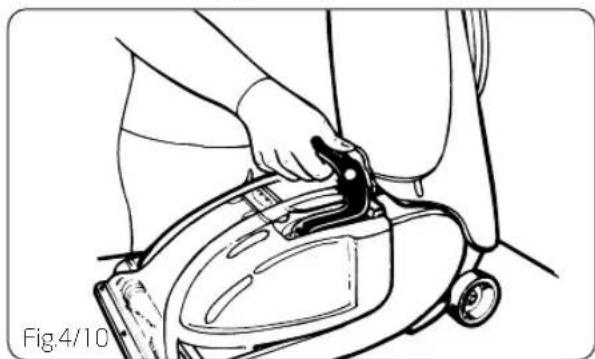

Grasp the top of the dirty water tank handle and press the release latch (Fig 4/10).

Line drawing of a person using a hairdryer machine (no text or symbols)

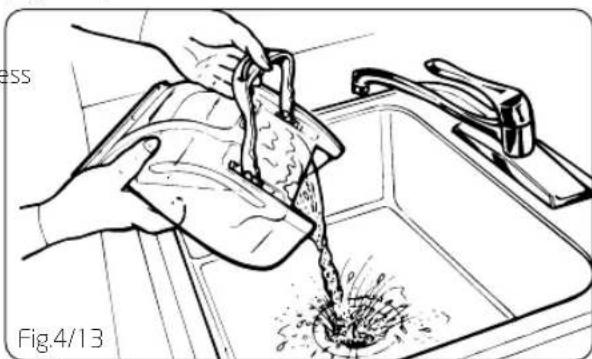

Grasp the handle and pull up out of the base, take ensure that no dirty water leaks from the front (Fig

Line drawing of hands washing a basin with water splashing from a sink (no text or symbols)

Cleaning the dirty water tank

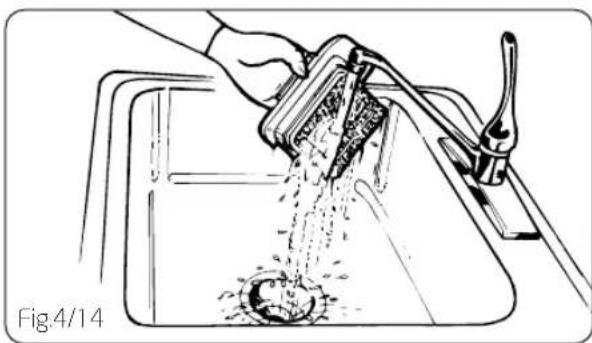

Rinse the dirty water tank and filter thoroughly, with warm water (Fig 4/14).

You should allow them to dry fully before replacing them for your cleaner to prevent mildew.

Do not use any chemicals in the cleaning process.

Line drawing of a hand operating a vacuum cleaner device (no text or symbols present)

Remove dirty water tank lid (Fig 4/12).

Line drawing of a hand washing a sink with a hand using a tool, showing liquid and steam (no text or symbols)

Fig.4/

Replacing the dirty water tank

Lift the front of the carpet cleaner base off the carpet with one hand (Fig 4/15).

Fig.4/

6 operation

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Emptying the dirty water tank

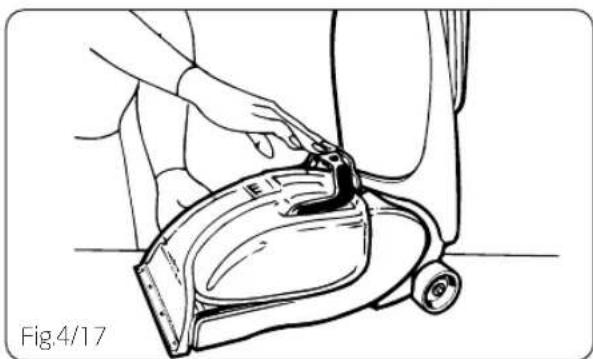

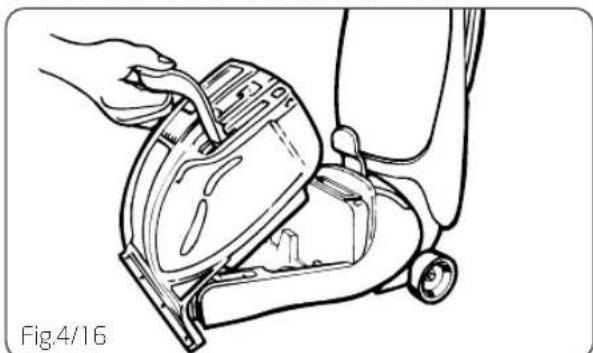

Grasp the handle and hook the front of the dirty water cleaner into the base, making sure that the front of the dirty water tank is resting on the base.

The dirty water tank has three tabs on the underside which MUST latch on to the underside of the base of the cleaner. The base must be lifted so that the nozzle is flush with the base of the cleaner.

Failure to install the dirty water tank correctly will result in poor dirty water pick up (Fig 4/16).

5. Maintenance

Brush removal and replacement

NOTE: Phillips screwdriver required

NOTE: The plug must be removed from socket outlet before cleaning or maintaining the appliance.

Remove the water tank switch off and unplug carpet washer.

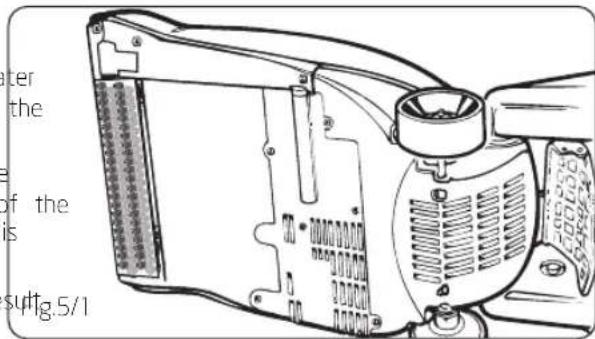

Flip the cleaner on its side to expose the nozzle base (Fig 5/1).

Technical line drawing of a mechanical component with no visible text or symbols

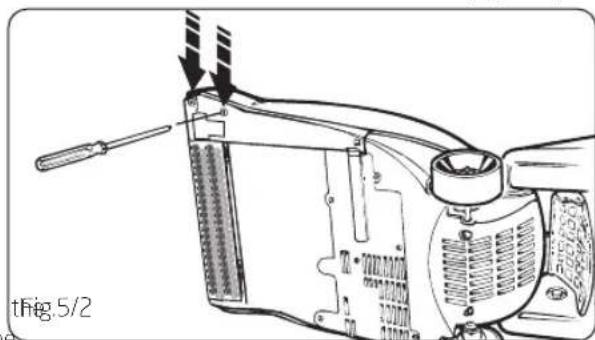

To remove the brush access cover, use a Phillips screwdriver to remove the two screws (Fig 5/2).

Line drawing of a hand operating a vacuum cleaner device (no text or symbols present)

While making sure the dirty water tank is resting on base, place the rear of the tank into the base of the cleaner, push down on the handle until it latches. Empty and rinse clean water tank after use (Fig 4/17)

Technical line drawing of a mechanical device with screwdriver and internal components (no text or symbols)

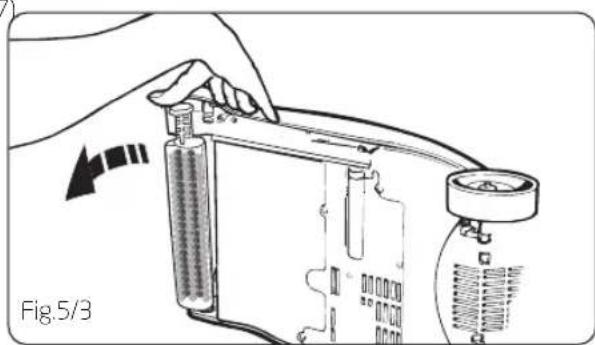

Lift out the floating brush bar (Fig 5/3).

Line drawing of a person using a vacuum cleaner device (no text or symbols present)

Diagram of a hand holding a device with a scroll wheel, showing internal components and a directional arrow (no text or symbols)

www.vax.co.uk

Replace floating brushbar (Fig 5/4).

Illustration of a hand holding a device with a cylindrical component inserted, labeled Fig.5/4 (no text or symbols on the diagram itself)

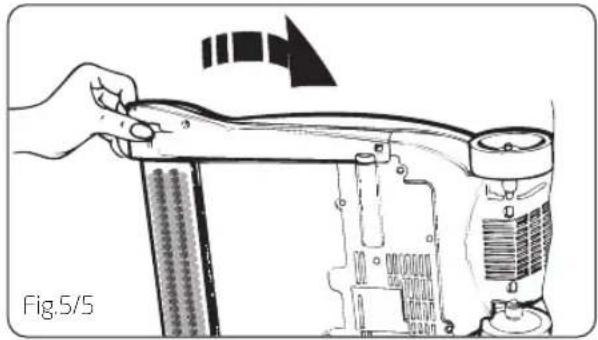

Replace the brush access cover by inserting the end furthest from the brush first. Then replace the front before securing in place with the two screws (Fig 5).

Diagram of a hand operating a mechanical device with a right-hand arrow indicating motion (no text or symbols present)

6. Troubleshooting

WARNING: To reduce the risk of personal injury, unplug the vacuum cleaner before performing maintenance or troubleshooting checks.

PROBLEM: The cleaner won't run.

Cause: Not properly plugged into electrical outlet.

Solution: Plug in firmly.

Cause: No electricity in electrical outlet.

Solution: Check fuse or breaker.

Cause: ON/off switch not turned on.

Solution: Push on/off switch to 'on'.

Cause: Blown fuse/tripped breaker.

Solution: Reset circuit breaker or replace fuse.

PROBLEM: Cleaner won't pick up/loss of suction.

Cause: Dirty water tank is full.

Solution: Switch off and unplug cleaner. Empty dirty water tank as shown in Section 4.

Cause: Dirty water tank not installed correctly.

Solution: Refer to page 9 for fitting information.

Cause: Obstruction in hose/nozzle.

Solution: Remove hose and clear obstruction.

Cause: Broken or worn belt.

Solution: Replace the belt. See page 10.

Cause: Brushbar is worn.

Solution: Replace the brush bar. See page 10.

PROBLEM: Liquid escaping from the carpet washer.

Cause: Dirty water tank is full.

Solution: Switch off and unplug cleaner. Empty dirty water tank as shown in Section 4.

Cause: Dirty water tank not installed correctly.

Solution: Refer to page 9 for fitting information.

Cause: Solution tank not installed correctly.

Solution: Make sure the tank is securely locked in place

PROBLEM: Clean solution won't dispense.

Cause: Solution tank not installed correctly.

Solution: Make sure the tank is securely locked in place.

Cause: Solution tank empty.

Solution: Refill tank. Refer to page 6 for instructions.

7. UK Service & Help

Vax Care 0870 6061248

Monday-Friday 8.00am to 6.00pm

Saturday-Sunday 9.00am to 5.00pm

8. Technical Specification

Voltage: 220-240V \~50Hz

Wattage: 600 W

Capacity: Clean water tank - 2.0 litres

Dirty water tank - 3.5 litres

An answerphone is available outside of these hours. Ford length: 7.5 metres

queries or concerns about using the Vax, call the VaxWeight: 5.75kg

Careline. Calls are charged at the UK national rate.

Please make a note of the serial number and model Subject to technical change without notice.

number of the carpet cleaner before calling. There are

over 400 approved Vax Service Agents in the UK. For

nearest Service Agent, please call the Vax Careline.
