Customers want choice today. As the industry leader in ON TAP solutions, we understand the importance of delivering reliable, high-quality yet cost-effective dispensing solutions for Everything On Tap including beer, wine, cocktails, coffee, teas or any beverage in various formats (Keg, BiB, Pre-Mix, Post-Mix)...THE POSSIBILITIES ARE ENDLESS!

Micro Matic thinks long-term when providing solutions and support services to help grow your business. From a single kegerator to large remote systems, our system designers work with you to provide a beverage experience that's profitable and on point.

TABLE OF CONTENTS

HIGHLIGHTS 4-9

DRAFT BEER

COMPONENTS 12

CLEANING

& SERVICING....38

CASK CONDITIONED

DISPENSE....52

DRAFT BEER

TOWER PORTFOLIO....56

GLYCOL COOLED BEER

DISPENSE SYSTEM 104

AIR COOLED BEER

DISPENSE SYSTEM 130

REFRIGERATION 134

SPECIAL EVENT

DISPENSE SYSTEM 152

WINE, COCKTAILS,

WATER & COFFEE

DISPENSING 160

KEG SPECIFICATIONS...... 172

INDEX 175

DISPENSE

INSTITUTE 176

THE MICRO MATIC

DIFFERENCE

SINCE 1953

Micro Matic has been helping breweries, retailers and beer lovers enjoy the fresh taste of keg beer for over 60 years. Established in 1953, Micro Matic is recognized as a leading global supplier of draft beer, cocktail, wine, coffee, and other beverage solutions in over 120 countries.

We have dedicated ourselves to improving the consumer's draft experience through outstanding quality, innovation, education and unparalleled service. That commitment remains intact today, and into the future.

Your customers require the best, you deserve the best, and our goal is to deliver the best.

WHY MICRO MATIC?

BEVERAGE DISPENSE SPECIALISTS

Micro Matic is the leader of On Tap Solutions for beer, wine, cocktails, coffee, teas or any beverage in various formats (Keg, BiB, Pre-Mix, Post-Mix). The possibilities are truly endless.

CUSTOMER FOCUSED

Our job as solutions provider is to understand your challenges. We can tailor any dispense solution to meet your operational goals with an understanding that not one size-fi ts-all. Our main goal is to be a valued partner from discovery through launch.

PROJECT MANAGEMENT

Whether you're coordinating a single-system install, designing a multi-level bar at a stadium, or overhauling a major chain account, our operations and logistics team has you covered to execute on time, every time. With our vast array of experience we have the confidence we can deliver for you!

RELIABILITY

With four strategically located warehouses throughout the US, 96% of orders are shipped in full the same day. 80% of orders are received in 48 hours. The people who rely on the dispense equipment to do what it says on the box, rely on Micro Matic.

RESPONSIVENESS

Micro Matic has the only national Certified Installer Network in the U.S. supported by a First Responder Protocol. With over 200 installers in our network, we can scale to any project no matter the size.

MERCEDES-BENZ STADIUM

6 MILES OF TRUNKLINE

60 MILES OF BEER LINE

1264 TAPS

316 TOWERS

83 POWER PACKS

LARGEST BEER SYSTEM IN THE WORLD

CERTIFIED INSTALLER NETWORK

BRINGING THE BEST FOR YOU

The Micro Matic Certifi ed Installers are a national network of hand-picked beverage dispensing experts. We have searched the country for the most reputable and reliable installation companies, who understand and implement our stringent requirements. Each Certifi ed Installer is required to attend an annual comprehensive training course at the Micro Matic Dispense Institute, and their installations are evaluated to ensure consistent quality.

No matter the size or location of the project, we will connect you with a team of technicians dedicated to your success. We offer technical services that are solution-focused and managed through a single point of contact.

Interior view of a modern hotel lobby with bar stools, seating area, and Delta Sk counter (no visible signage or text)

Industrial equipment setup with multiple black industrial motors mounted on metal shelves (no visible text or labels)

WEST

AZ, NV American Beverage Systems

CA Glacier Design Systems, Inc.

CA Gold Coast Draft Service

CA Nor-Cal Beverage

CA Pricketts Distributing

CA Tap'd Draft Solutions

CO Custom Draft Design

HI Bev Tech of Hawaii

NV Clark County Beverage Management

OR, WA Draft Doctor, LLC

BC, Canada BBS Systems

CENTRAL

IL Pro-Tap

IL Stuever & Sons, Inc.

IL T & G's Draught Service

KS KC Draft

KY Drinkswell Service Co.

MI Quality Draft Systems

MO EMCO Refrigeration

MN, ND, SD The Tap Guys

NE Draftex

OH Bier Pros, LLC

OH Buckeye Draft

NORTHEAST

MA Custom Beverage Services

MA Lenox-Martell, Inc.

MD AC Beverage

NJ Absecon Island Beverage

NJ North Jersey Bar Service

NY American Draft Systems

NY Fresh-Cents Quality Draft Services

PA Cameron Supply

PA Garrow's Draft Services

PA Kint Beverage Concepts

VA The Draft Doctor

SOUTHEAST

FL AC Beverage South FL

FL IBS Interbev, Inc.

FL J & J Beverage

FL Kane's Draft Service Professional Refrigeration & Beverage

GA Draft Beer Service of Atlanta

NC Crafty Beer Guys

SC A Head For Profi ts

TN Draft Doctors, LLC

TX Liquid Logistics

TX One Source Gas

TX Refrigerated Specialist, Inc.

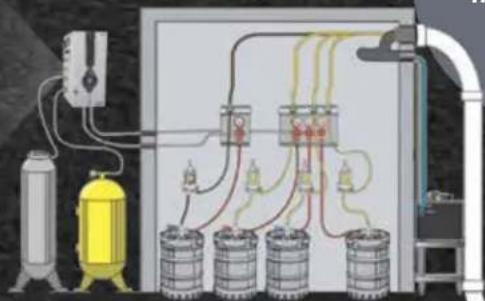

10 KEY ELEMENTS

OPTIMIZE QUALITY & INCREASE PROFITS

KEG STORAGE TEMPERATURE 38° F

Dedicate the Walk-In Cooler for Kegs

• Under 38 degrees: impacts taste and impedes "head of foam" formation.
  • Over 38 degrees: results in foamy beer and pouring profi ts down the drain.

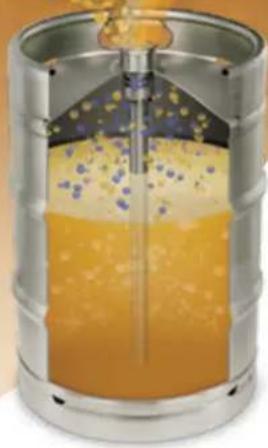

GAS BLENDER

Maintain Carbonation from the First to the Last Glass

• Optimizes quality and maximizes keg yield.
• On-site blending of CO_2 and nitrogen is less expensive than pre-mixed gas cylinders.

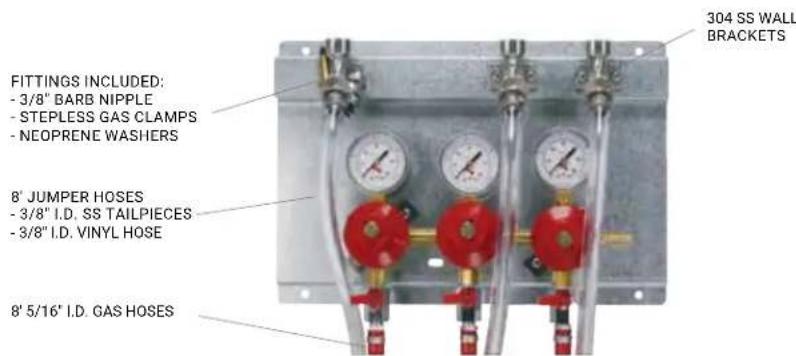

SECONDARY REGULATOR PANEL

Dedicated Keg Pressure Management

• Different beer styles may require dedicated keg pressure settings.
• Secondary regulator panels ensure the correct keg pressure is applied to each keg.

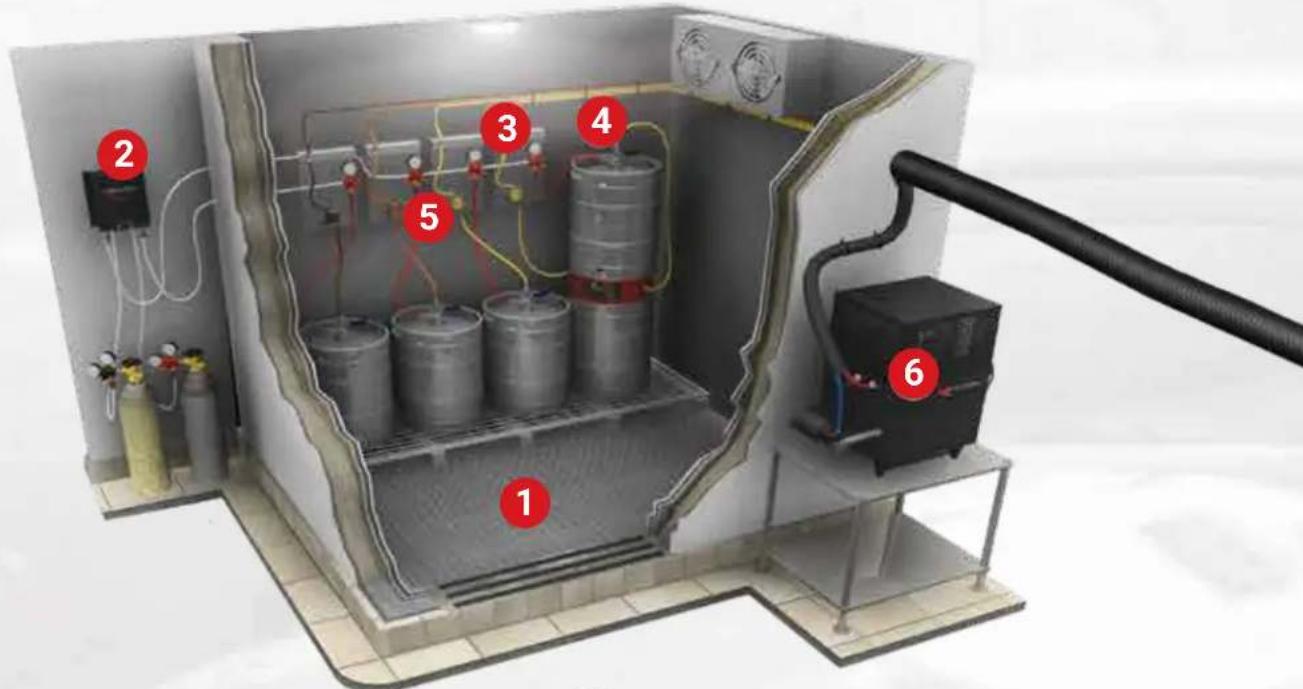

Modern stainless steel kitchen sink with two cylindrical buckets and a faucet (no text or symbols visible)

Technical diagram of an industrial furnace or reactor with numbered components and wiring connections

STAINLESS STEEL CONTACT

The Brewer's Choice

• Improves service life and hygiene.
• Ensures product integrity.

PROFIT MAXIMIZER (PRO-MAX ^™ )

Maximize Profits & Minimize Waste

• When keg empties, simply replace keg and reset the Profi t Maximizer™.
• Leaving filled beer lines reduces pour cost and maximizes keg yield.

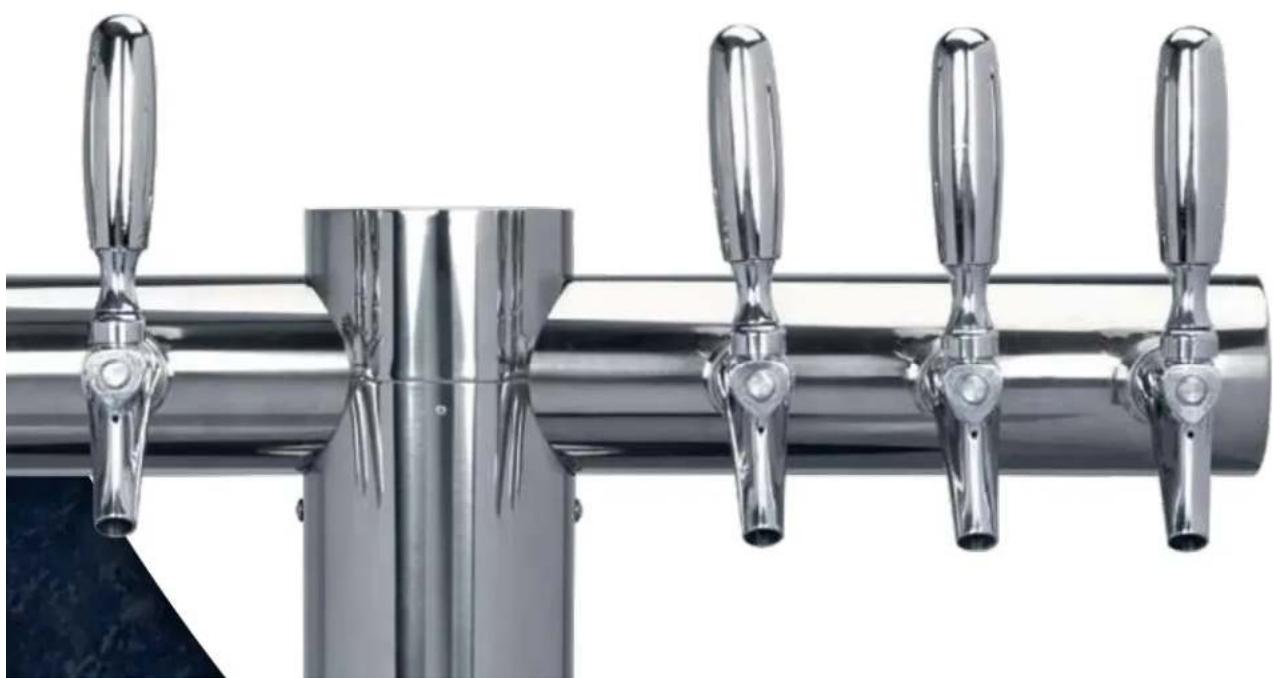

KOOL-RITE" TOWER WITH STAINLESS STEEL FAUCETS

Patented Cold Blocks Deliver Optimum Cooling

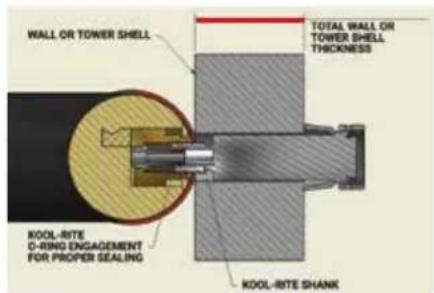

• Modular construction eliminates internal connections and possibility of leaks.

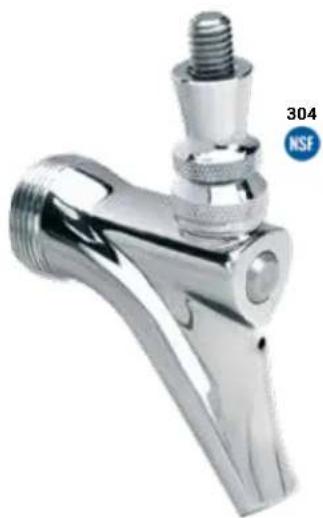

  • Equipped with stainless steel beer lines, shanks and faucets.

8 connections thanks

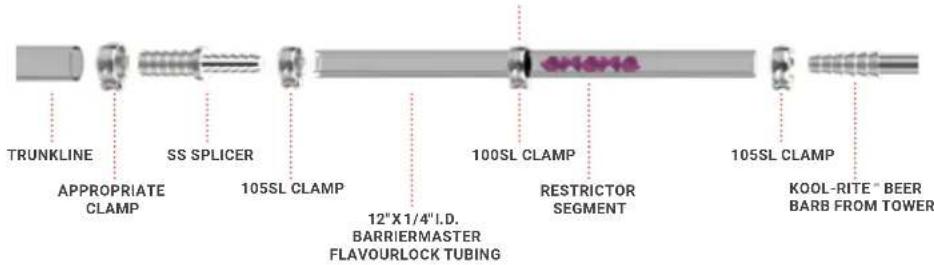

TRUNKLINE

Maintain Cooling, Beer Integrity & Prevent Flavor Migration

• Moisture barrier wrap prevents condensation.

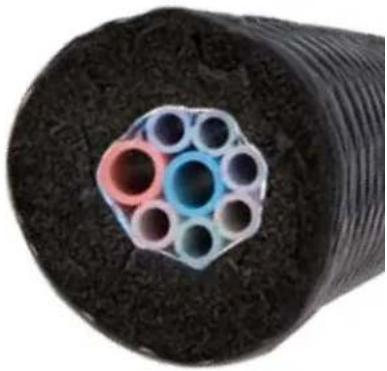

• BarrierMaster Flavourlock Tubing™ maintains beer integrity and prevents flavor migration.
• Black Diamond® outer jacket is 15% more thermally efficient and easy to install.

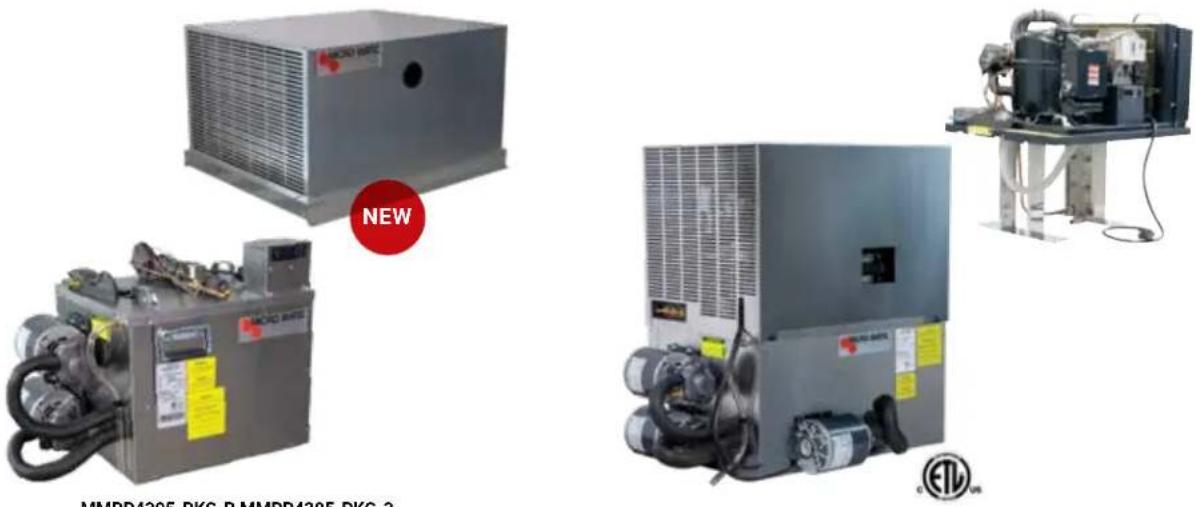

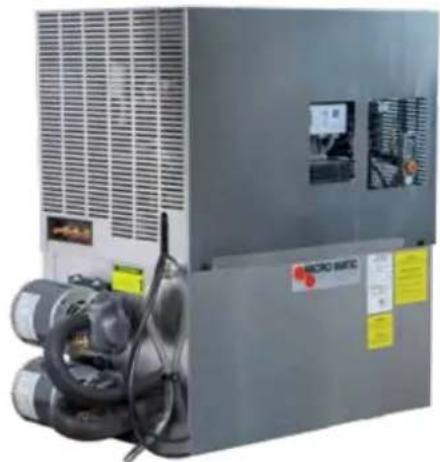

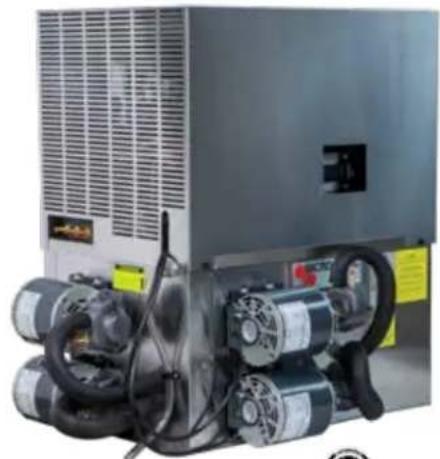

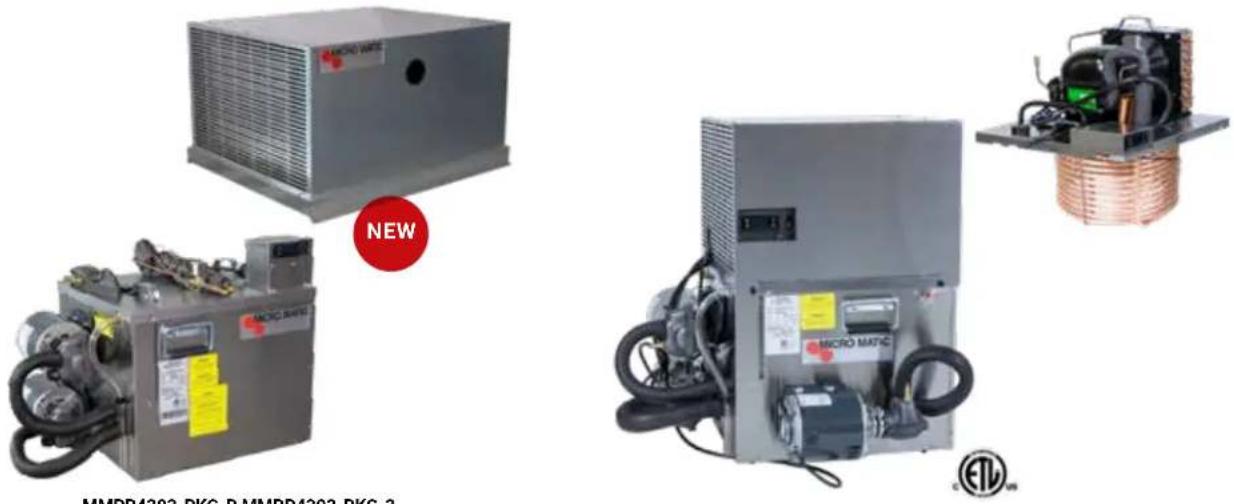

POWER PACK

Cooling from Keg to Glass

- Never locate the power pack on top of the walk-in cooler. Place in a well-ventilated, easily-serviced area. Use FDA-approved glycol and periodically check glycol mix.

7

GLASSWARE CONDITIONING It's All About the Image

• Glasses must be cleaned with beer-friendly detergents.
- Glasses should not be cleaned in a low temperature dishwasher using off-the-shelf soaps.
- Use a rinser before pouring, making it easier to pour the perfect pint.
- Educate bar staff – a properly trained bartender will deliver increased profits.

Product photo of a laboratory gas collection setup with red hoses and a labeled container (no visible text or symbols)

10

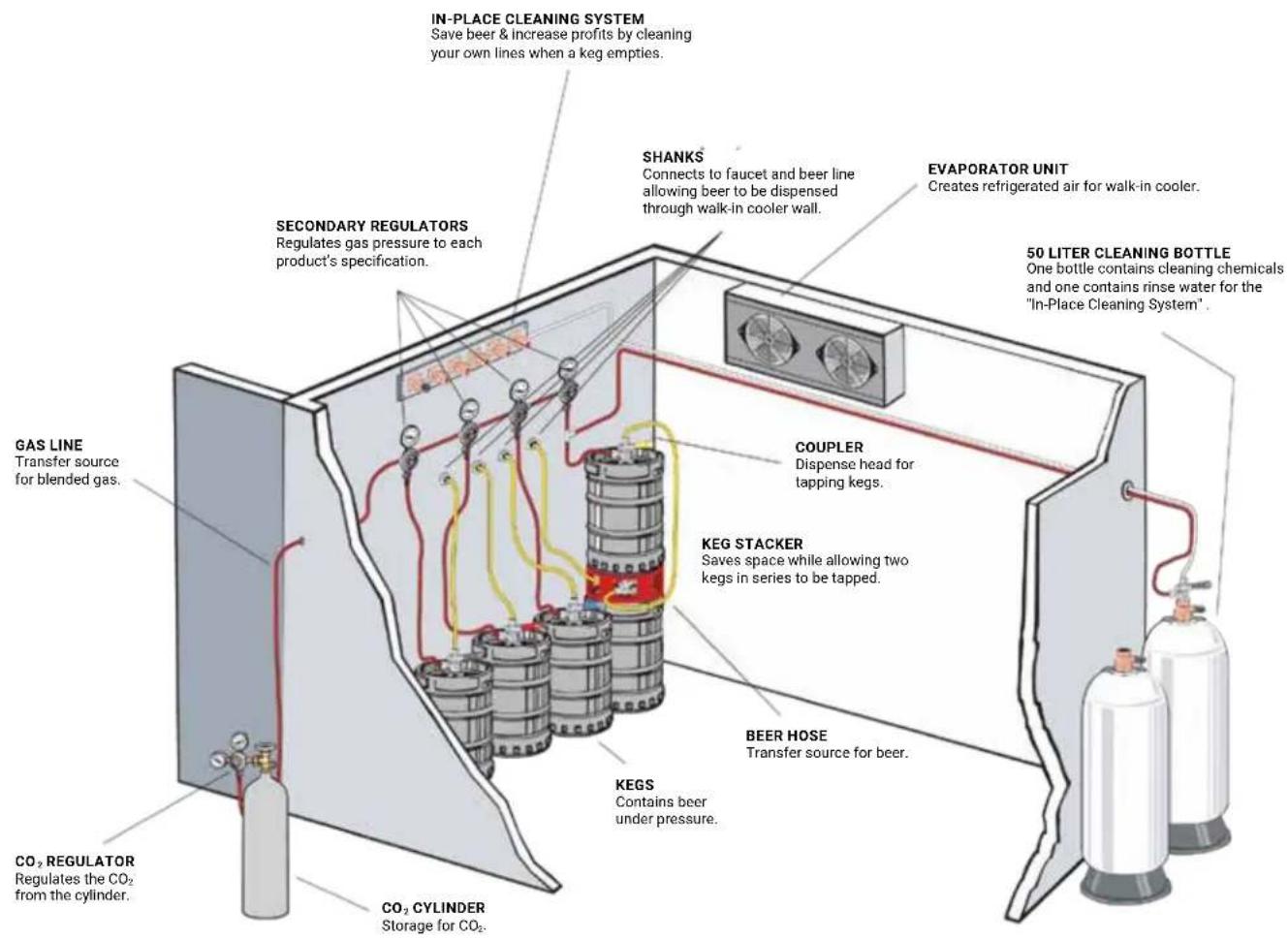

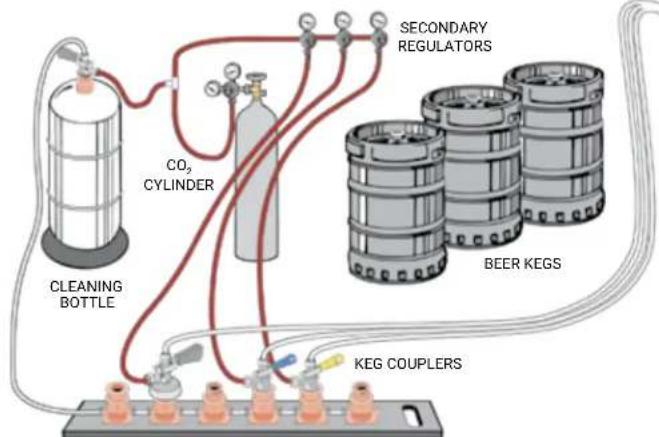

SYSTEM CLEANING & MAINTENANCE

Periodic System Cleaning Maintains Brewery Fresh Taste

• Beer is a food product and to maintain draft beer quality, periodic cleaning and servicing is required every two weeks.
• A three-step cleaning process using a re-circulating electric pump to create a turbulent flow.

2019

PRODUCT

HIGHLIGHT

REVOLUTIONIZING THE WORLD OF BEER.

FlexiDraft™

Since 2013, FlexiDraft™ has pioneered a unique solution to a new beer line with every new keg. FlexiDraft™ utilizes a one-way beer line which eliminates the problems common to conventional draft beer systems: hygiene issues and the labor and cost for cleaning and maintenance.

Because the beer line in FlexiDraft™ must be changed along with the keg, the risk of contamination is eliminated and thus cleaning can be reduced to a minimum. In addition, FlexiDraft™ saves on the consumption of water, cleaning detergents, travel time and labor of cleaning beer lines.

FlexiDraft™ is a global success and can be found in more than 5,000 outlets across the world - and growing! This widespread popularity is due to the FlexiDraft™ hygienic mission: ensuring fresh draft beer with every tapped keg. It is ideal for remote, hard-to-reach retailers and home users.

USE FLEXIDRAFT™ TO ENSURE DRAFT BEER QUALITY AND SATISFIED DRAFT CUSTOMERS!

A NEW BEER LINE WITH EVERY KEG CHANGE!

Diagram showing mechanical assembly with labeled parts and directional arrows (no text or symbols)

STEP 1

Open the FlexiDraft™ tower by pressing the two buttons (make sure the keg coupler is disconnected first). The upper part will move forward by itself, then lift.

STEP 2

Drop the keg coupler end of the one-way beer line into the tower column. Fix the beer outlet end to the faucet nozzle. Close the tower lid; it will snap securely into place.

Mechanical assembly diagram showing two stages of a device with red arrows indicating motion or force direction (no text or symbols present)

Four-step diagram showing a mechanical assembly with arrows indicating motion, no text or symbols present.

STEP 3

Push the beer end of the one-way line into the keg coupler. Place the keg coupler on the new keg and press the handle down to tap the keg.

TOWER
DETAILS ON
PG. 95
COUPLER
DETAILS ON
PG. 14
BEER LINE
DETAILS ON
PG. 33

Close-up of a stainless steel tap wrench against a dark background (no text or symbols visible)

Close-up of a metallic robotic arm mounted on a transparent cylindrical container (no text or symbols visible)

Coiled medical device with two connectors and a white cable, no visible text or symbols

FIT. PERFORMANCE. PRICE.

COUPLER SERIES

A Micro Matic valve is the choice in over 70% of the world's kegs. For confident performance, choose a keg coupler designed to fit the No.1 valve.

Close-up of a metallic mechanical component with a blue handle and metal fittings (no visible text or symbols)

7485SS

BREWERY-GRADE

LOW PRICE! Durable construction featuring 304 grade stainless steel body and probe, and stainless steel handle fork.

Close-up of a metallic mechanical lever handle with black and white components (no visible text or symbols)

7485BS

BEST

For all beers, wines and ciders. Featuring 304 grade stainless steel probe, chrome-plated forged brass body, and stainless steel handle fork.

7485BB

VALUE

For all beers. Rugged construction featuring chrome-plated forged brass body and probe, and stainless steel handle fork. Available in four handle colors for identification.

Close-up of a metallic mechanical valve assembly with internal components and a blue handle (no visible text or symbols)

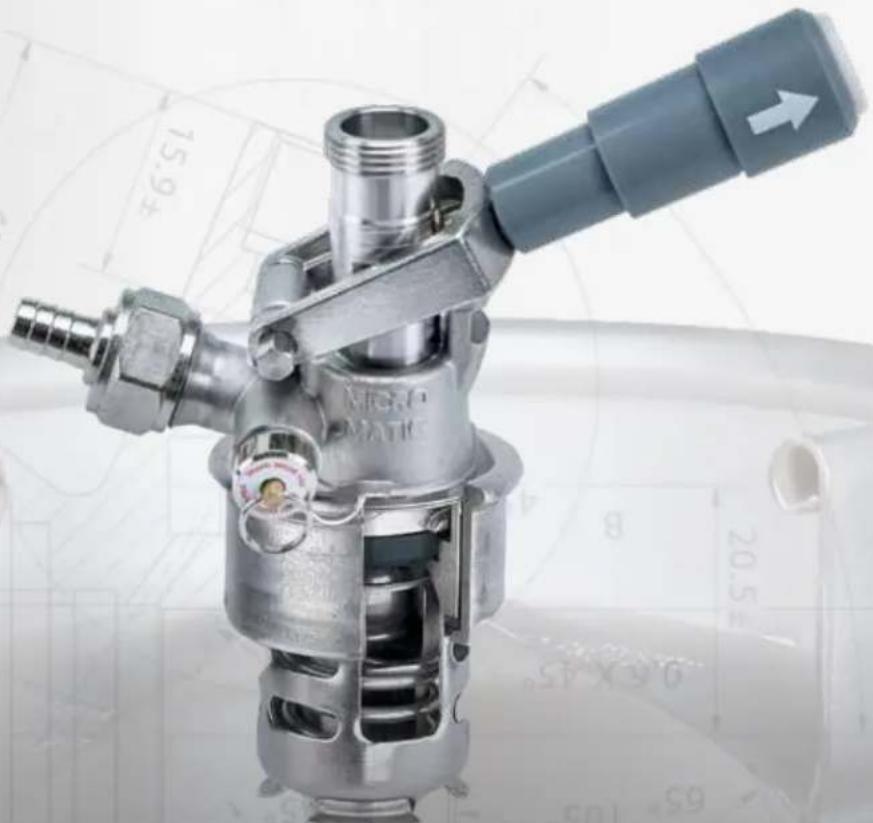

D SYSTEM

BREWERY-GRADE COUPLER

Durable construction featuring 304 grade stainless steel body, probe and handle fork.

Use for: Beer, wine, cider

PART NO. PROBE MATERIAL BODY MATERIAL HANDLE COLOR SYSTEM

7485SS 304 SS 304 SS Gray D

BEST COUPLER

Featuring 304 grade stainless steel probe, chrome-plated forged brass body and stainless steel handle fork.

Use for: Beer, wine, cider

PART NO. PROBE MATERIAL BODY MATERIAL HANDLE COLOR SYSTEM

7485BS 304 SS Brass Black D

VALUE COUPLER

Rugged construction featuring chrome-plated forged brass body, probe and stainless steel handle fork.

Use for: Beer

PART NO. PROBE MATERIAL BODY MATERIAL HANDLE COLOR SYSTEM

7485BB Brass Brass Black D

7485BB-B Brass Brass Blue D

7485BB-G Brass Brass Gold D

7485BB-R Brass Brass Red D

LOW PROFILE COUPLER

Stainless steel body and probe. Use for: All beers, wine, cider

PART NO.	DESCRIPTION	PROBE MATERIAL	SYSTEM
MM-LPC-D	Low-profile coupler	304 SS	D

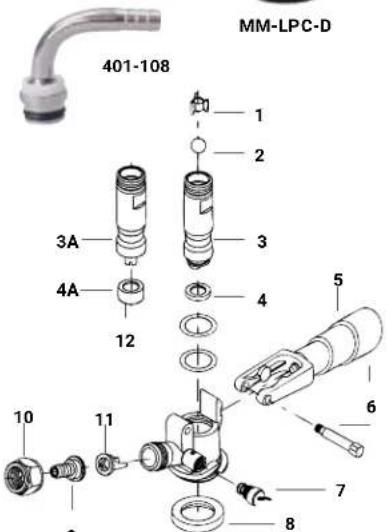

REPLACEMENT PARTS

ITEM	PART NO.	DESCRIPTION
	401-108 Swivel elbow 304 stainless steel
1	102-524 Check ball retainer
2	102-527 Check ball
3	733-382 Brass probe (D System)
3	3739-304	304 stainless steel probe (D System)
3A	733-383 Probe (S System)
4	102-376 Probe seal (D System)
4A	102-522 Probe seal (S System)
5	403-014 Black handle assembly
5	403-013 Yellow handle assembly
5	403-012 Red handle assembly
5A	403-011 Blue handle assembly
6	733-363 Hinge pin
7	733-040	Pressure relief valve assembly
8	102-521 Body washer
9	404-321 Hose nipple
11	102-530 Check valve
12	102-526 Body o-rings (two required)

D SYSTEM

Close-up of a metallic mechanical valve or fitting with a blue handle and threaded shaft (no visible text or symbols)

7485SS
304 stainless steel

Close-up of a metallic mechanical valve or connector with black and white fittings (no visible text or symbols)

7485BS
304 contact

Close-up of a metallic mechanical valve with yellow handle and black handle (no visible text or symbols)

Close-up of a metallic mechanical lever with red handle and black base (no text or symbols visible)

Close-up of a mechanical component with a red circular badge labeled 'NEW' (no other text or symbols visible)

401-108 MM-LPC-D 1 2 3 4 5 6 7 8 9 10 11 12 3A 4A

9
7485BB, 7485BS, 7485SS D System and
7486BB, 7486BS, 7486SS S System Couplers

COUPLERS

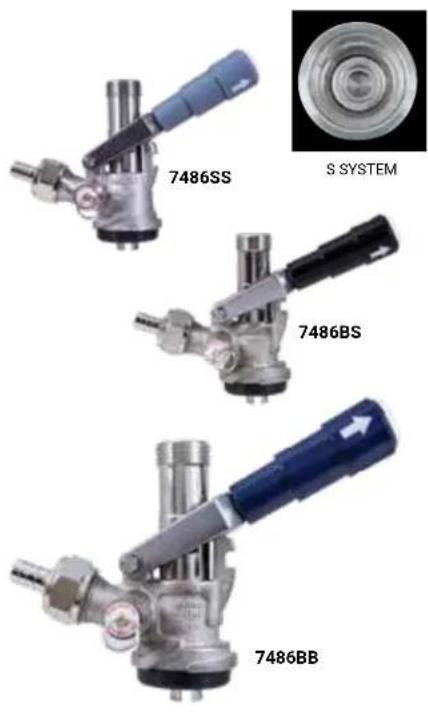

Three industrial valve components labeled 7486SS, 7486BS, and 7486BB, with a close-up inset of the S SYSTEM component (no text or symbols on the devices themselves)

Mechanical assembly component labeled FD-C-D, showing metallic parts and a cylindrical shaft (no text beyond label)

TC202N TWIN PROBE TC202-8 1776-8 NEW MPW-6 KEG-LS FT101L

S SYSTEM

BREWERY-GRADE COUPLER

Durable construction featuring 304 grade stainless steel body, probe and handle fork. Use for: All beers, wine, cider

PART NO.	PROBE MATERIAL	BODY MATERIAL	HANDLE COLOR	SYSTEM
7486SS	304 SS	304 SS	Gray	S

BEST COUPLER

Featuring 304 grade stainless steel probe, chrome-plated forged brass body and stainless steel handle fork. Use for: All beers, wine, cider

PART NO.	PROBE MATERIAL	BODY MATERIAL	HANDLE COLOR	SYSTEM
7486BS	304 SS	Brass	Black	S

VALUE COUPLER

Rugged construction featuring chrome-plated forged brass body, probe and stainless steel handle fork. Use for: beer

PART NO.	PROBE MATERIAL	BODY MATERIAL	HANDLE COLOR	SYSTEM
7486BB	Brass	Brass	Blue	S

Two mechanical device diagrams labeled FD-C-A and FD-C-G, showing different assembly configurations (no text or symbols on the devices themselves)

FLEXIDRAFT™

FlexiDraft ^™ is the revolutionary way to ensure draft beer quality. In minutes, the probe, beer line and faucet spout assembly is replaced with each keg change. More info on the system on page 10, see page 33 for beer line assembly, and page 95 for the tower assembly.

PART NO. DESCRIPTION SYSTEM COLOR CODE

FD-C-D U.S. Domestic / Craft D Green
FD-C-S	Heineken / Pilsner Urquell / Stella Artois	S	Blue
FD-C-A	Warsteiner / Spaten / Paulaner	A	Red
FD-C-G	Anchor Steam / Boddingtons	G	Red
FD-C-U	Guinness / Harp	U	Black

TWIN PROBE

PART NO. DESCRIPTION

TC202N Twin probe coupler with stainless steel probes

PART NO. DESCRIPTION

TC202-8 Check valve

PART NO. DESCRIPTION

1776-8 Figure 8 washer

ACCESSORIES

PART NO. DESCRIPTION

MPW-6 Combination wrench. Six tools in one: screwdriver, faucet wrench, regulator wrench, coupling nut wrench and a probe wrench.

KEG-LS Keg Doctor – straighten lugs on sankey type keg

FT101L Probe and o-ring lubricant. FDA listed. Odorless and tasteless. 1 oz can.

KEYKEG™

Dispense head for KeyKeg™ has innovative degassing feature for one-way kegs. Safer, easier and more convenient use. Degassing takes only 10 seconds and no special tools are required. Excellent for beer, wine, coffee, cider, and more.

PART NO. DESCRIPTION		PROBE MATERIAL
KK-713-058	KeyKeg		304 SS

U, G, A & M SYSTEM

IMPORT COUPLERS INCLUDING U.S. THREAD ADAPTERS

PART NO. DESCRIPTION SYSTEM PROBE MATERIAL

G408 Guinness / Harp U 304 SS
GTL425	Boddingtons	G	304 SS
DH1501	Warstelner / Spaten / Paulaner	A	304 SS
M1500	Veltins / Schneider / Aventinus	M	304 SS

REPLACEMENT PARTS

ITEM PART NO. DESCRIPTION

1 B409 Thread adapter

2 703-121 Non-return valve

3 762-101-F001 F-1 handle assembly

4 112-480 Hinge pin with black strap

5 733-040 Pressure relief valve assembly

6 102-906 U system main gasket

6A 102-539 G & A System main gasket

8 401-038 Non-return valve with Insert

8B 102-530 Check valve

12 102-911 U System probe o-ring

12A 102-566 G System probe o-rings (two required)

12B 102-542 A System probe o-rings (two required)

13 102-526 U System body o-ring

14 733-304 Check valve retainer

14B 102-524 Check valve retainer

KEYKEG

NEW KK-713-058

U SYSTEM

Close-up of a metallic mechanical component with no visible text or symbols

G SYSTEM

Close-up of a metallic mechanical device with a labeled component 'GTL425' (no other text or symbols visible)

A SYSTEM

Metal mechanical device with cylindrical ports and a base, labeled DH1501 (no other text or symbols visible)

M SYSTEM

Close-up of a metallic mechanical device labeled M1500, featuring a conical base and protruding arm (no readable text beyond label)

G408 U System Coupler

GTL425 G System Coupler

- Safety relief valve releases at 55 – 65 psi - Flow control inlet nipple filter

- Permanent quad-ring inlet seal - Enlarged CO_2 port for high volume

PART NO. DESCRIPTION

840 CO	_2 gauge-less / preset at 30 psi
841 CO	_2 single gauge
842 CO	_2 double gauge
842-15 CO	_2 double gauge - 15 psi low pressure gauge
842-2 CO	_2 double gauge - 2 shutoffs

842N Nitrogen double gauge

ECONOMY HIGH PRESSURE 0 - 120 PSI REGULATOR FEATURES:

- Adjust pressure from 10 to 110 psi - Flow control inlet nipple filter

- Permanent quad-ring inlet seal - Safety blow-off 115 – 125 psi

PART NO. DESCRIPTION

941 Soda – single gauge

942 Soda – double gauge

942B Beer – double gauge

942BN Beer – double gauge

ECONOMY SERIES COMPONENTS

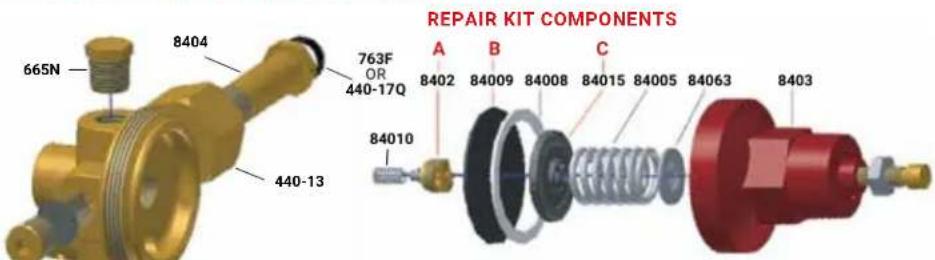

REPAIR KIT COMPONENTS 665N 8404 763F OR 440-17Q 440-13 A B C 8402 84009 84008 84015 84005 84063 8403 84010

PART NO. DESCRIPTION
840-15	Primary repair kit (includes: A,B,C, inlet seal)
8000-15	Secondary repair kit (includes: A,B,C)

PART NO. DESCRIPTION

84010 Seat spring
8402 Seat capsule assembly
84063 Button-spring retainer
84005 Bonnet spring
84015 Pressure plate
84008 Bonnet gasket
84009 Diaphragm
8403 Bonnet assembly
763F Fiber washer
763D Plastic washer
440-17Q	Rubber quad ring inlet seal
8404 L.H. Inlet nipple assembly
440-13	CO_2 nut
840-12N	Nitrogen regulator inlet nipple
840-13N	Nitrogen regulator inlet nut
FG-058	O-ring nitrogen inlet nipple

PREMIUM REGULATORS

PREMIUM REGULATOR FEATURES:

• Forged brass for durability, accurate machining, high-quality chrome-plated finish, built to last.
  • Built-in CO _2 resistant solid nylon inlet seal for consistent, perfect sealing.
• Nickel-plated valve seats for high corrosion resistance.
• Constant pressure supply at high-output flow rates.
• Safety relief valve releases at 55 – 65 psi.

PRIMARY CO _2

PART NO. DESCRIPTION

641 Single gauge

642 Double gauge

642HP Double gauge high pressure, 110 psi safety release

642-2 Double gauge - 2 shutoffs

641-ADDON Single with threads for additional primary regulator

NITROGEN

GN1773 Double gauge

SECONDARY

1161 1 Pressure / 1 product

1162 2 Pressure / 2 product

1163 3 Pressure / 3 product

1164 4 Pressure / 4 product

PREMIUM SERIES COMPONENTS

REPAIR KIT COMPONENTS

1319200 3100432 3902331 3200850 1302515E B A 3500144 DESCRIPTION 4201080 4201051 4382 3500138 3200086-N 4201075 4201080 4201051 3500138 3200086-N 4201075

PART NO. DESCRIPTION

1319200 Bonnet assembly

3100432 Button-spring retainer

3902331 Bonnet spring

3200850 Bonnet gasket

1302515E Diaphragm assembly

3500144 Seat spring

4201080 Chrome CO , nut

4201051 Chrome inlet nipple

4382 Chrome inlet nipple assembly

3500138 CO 2 filter

3200086-N Nylon washer

4201075 Nylon washer retainer

MM6400-P Primary repair kit (includes: A, B)

MM6400-S Secondary repair kit (includes: A, B)

TOOLS

PART NO. DESCRIPTION

741-083

Repair jig that holds regulator in place for servicing

Four identical mechanical gauges (dual pressure gauges) with red connectors, arranged in a grid for scale, shown without any text or symbols.

641-ADDON

Shown with 642 (sold separately)

Close-up of a pressure regulator with dual gauges and red connectors (no visible text or symbols)

Close-up of a pressure regulator with three gauges and a central valve, labeled GN1773 (no text or symbols on the device itself)

Two identical pressure gauges with red connectors and metal fittings, labeled 1162 (no text or symbols on the gauges themselves)

741-083

GAS EQUIPMENT

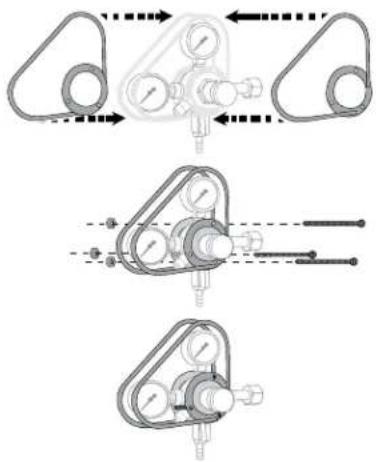

GAUGE CAGE

Protect your investment with a gauge cage.

Technical diagram showing three mechanical assembly configurations with no visible text or symbols

PART NO. DESCRIPTION

MM-12593 Complete kit – primary regulator gauge protector, economy, 1 piece, only for 840 series

JE-742GCN Complete kit – primary regulator gauge protector, 2 piece

MM-12593

Close-up of a red pressure regulator with two gauges and a central valve (no visible text or symbols)

MM-12593 (Shown on 842)

Close-up of a mechanical pressure regulator with three gauges and a central valve (no visible text or symbols)

JE-742GCN (Shown on 642)

JE-742GCN (Shown on 842)

Two gas pressure gauges and a coiled tubing device labeled 842WM6 and 421N, respectively (no text beyond labels)

WALL MOUNT REGULATOR

WALL MOUNT PRIMARY CO₂ DOUBLE GAUGE REGULATOR

PART NO.	DESCRIPTION
642WM6	Premium CO_2 double gauge regulator with 6 ft hose
842WM6	Economy CO_2 double gauge regulator with 6 ft hose
842WM6-2 Economy CO	_2 double gauge regulator with 6 ft hose and 2 shutoffs
8406	6 ft high pressure hose

NEW AVS-TC-2

CYLINDER CHANGEOVER

MANUAL

PART NO.	DESCRIPTION
421N	Integrated wall mount bracket, 5/16" O.D. barb fittingSimple to operate – flip switch to full tank, replace empty tank when convenient

AUTOMATIC

Automatic gas cylinder changeover system. Non-electric, foolproof and designed for easy installation and everlasting performance. Never run out of gas again! This patented system will eliminate unnecessary gas service calls to simply change a tank. Avoid employees performing cylinder changeouts.

PART NO.	DESCRIPTION
AVS-TC-2	For CQ cylinders
AVS-TC-2-N2	For Nitrogen cylinders

Three gas cylinders with different sizes and colors: a black safety bracket, a metallic cylinder labeled 430A-5E, and a metallic cylinder labeled 430A-20E (no visible text or symbols on the main objects)

CYLINDERS

All CO₂ cylinders can be shipped by UPS. 20 lb cylinders come complete with valve protector and carrying handle. All cylinders ship empty.

PART NO. TYPE CAPACITY DIAMETER HEIGHT EMPTY WEIGHT
430A-5E	Aluminum	5 lbs	5^	17 1/2^	12 1/2 lbs
430A-10E	Aluminum	10 lbs	7^	20^	15 lbs
430A-15E	Aluminum	15 lbs	6 1/2^	26^	22 lbs
430A-20E	Aluminum	20 lbs	8^	27 1/2^	24 3/4 lbs
5LBCH-1989		5 lb cylinder holder

MINI SECONDARY REGULATOR

MAXIMUM

PERFORMANCE

MINIMUM

SPACE

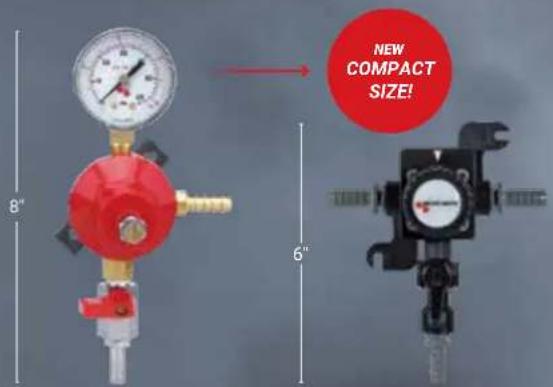

Use less wall space and group pressure regulators. Our new compact Secondary Gas Regulator requires no tools to adjust pressure.

— Compact size, less wall space
— Easy dial adjustment 5-45 psi
- Shutoff included
— 3/8" O.D. John Guest barb fittings
— Tamper evident dial cover available

PART NO. DESCRIPTION

1141-MINI

Mini secondary regulator,

1 pressure / 1 product

pass-thru barbs

1141-MINI

NEW COMPACT SIZE! 8" 6"

GAS EQUIPMENT

8011

Two red pressure gauges with black connectors and fittings, no visible text or symbols

8022

Three identical red pressure gauges with metal fittings and connectors, arranged horizontally (no text or symbols visible)

8033

Coiled red and transparent cables connected to a control panel labeled '83415-EAM' (no other text or symbols visible)

Electrical equipment with red and gray cables connected to a control panel (no visible text or symbols)

ECONOMY REGULATORS

ECONOMY LOW PRESSURE REGULATOR FEATURES:

• Safety relief valve releases at 55 – 65 psi
Flow control inlet nipple filter
- Enlarged CO_2 port for high-volume dispensing

PART NO. DESCRIPTION

8011X 1 pressure / 1 product pass-thru barbs

8011 1 pressure / 1 product

8011-15 1 pressure up to 15 psi / 1 product

8022 2 pressure / 2 product

8033 3 pressure / 3 product

8044 4 pressure / 4 product

PART NO. DESCRIPTION

9011B 75 - 90 psi high pressure secondary

SECONDARY PANELS

SECONDARY REGULATORS MOUNTED ON METAL PANELS

Includes 3/8" I.D. stainless steel wall brackets, one pre-taped pipe plug and two hose barbs. A shutoff can be added to isolate the panel by also ordering part number 751-107.

PART NO. DESCRIPTION

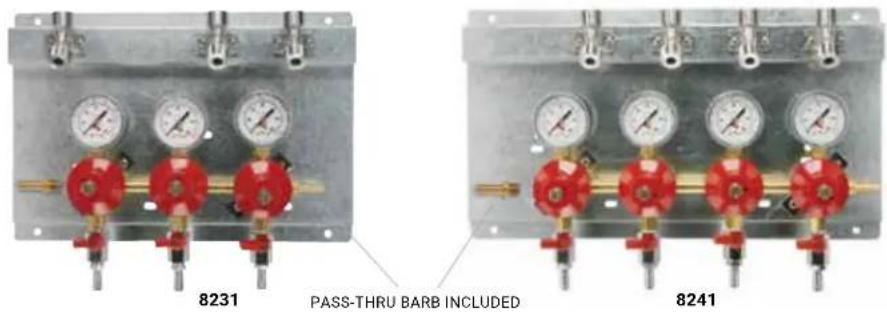

8211 1 pressure / 1 product
8221 2 pressure / 2 product
8231 3 pressure / 3 product
8241 4 pressure / 4 product

SECONDARY PANEL KITS: SINGLE PRESSURE

INSTALLATION READY - WALK-IN COOLER KITS

Single pressure secondary regulator with gas manifold, includes 304 SS wall brackets and hoses.

PART NO. DESCRIPTION 304 STAINLESS STEEL NIPPLE

83215-EAM 1 pressure / 2 product 3/8" I.D.

83315-EAM 1 pressure / 3 product 3/8" I.D.

83415-EAM 1 pressure / 4 product 3/8" I.D.

SECONDARY PANEL KITS

INSTALLATION READY - WALK-IN COOLER KITS

Includes 304 SS wall brackets and hoses.

PART NO. DESCRIPTION 304 STAINLESS STEEL NIPPLE

83115 1 pressure / 1 product 3/8" I.D.

83215 2 pressure / 2 product 3/8" I.D.

83315 3 pressure / 3 product 3/8" I.D.

83415 4 pressure / 4 product 3/8" I.D.

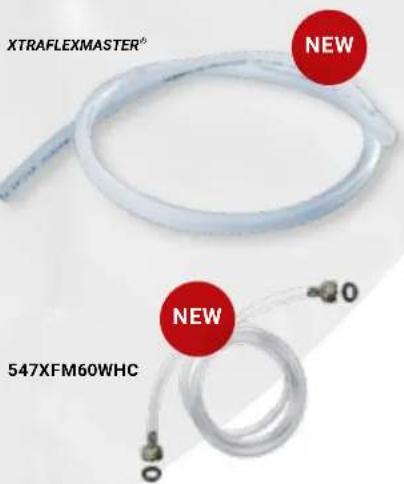

550XFM96WHC Replacement jumper line - 8' x 3/8" I.D. XtraFlexmaster™ with 304 SS contact

304 SS WALL BRACKETS FITTINGS INCLUDED: - 3/8" BARB NIPPLE - STEPLESS GAS CLAMPS - NEOPRENE WASHERS 8' JUMPER HOSES - 3/8" I.D. SS TAILPIECES - 3/8" I.D. VINYL HOSE 8' 5/16" I.D. GAS HOSES

Two identical electrical control panels labeled 83415 and 83315, each with red coiled tubing and pressure gauges (no text or symbols on the devices themselves)

PRO-MAX™ REGULATOR PANEL KITS

INTEGRATED PRO-MAX' KITS

Includes Profit Maximizer™ and drain lines. All stainless steel contact components.

PART NO. DESCRIPTION PANEL SIZE STAINLESS STEEL NIPPLE BEER PUMP

RPK-1-PM	1 pressure / 1 product	4 1/4"W x 10"H	3/8" I.D.	N/A
RPK-2-PM	2 pressure / 2 products	10"W x 10"H	3/8" I.D.	N/A
RPK-4-PM	4 pressure / 4 products	21 1/2"W x 10"H	3/8" I.D.	N/A
83115-PM1-BP-N	1 pressure / 1 product	12"W x 23"H	3/8" I.D.	Included
83215-PM1-BP-N	2 pressure / 2 products	23"W x 23"H	3/8" I.D.	Included
83415-PM1-BP-N	4 pressure / 4 products	24 3/4"W x 17 3/4"H	3/8" I.D.	Included
550XFM96WHC	Replacement jumper line - 8' x 3/8" I.D. XtraFlexmasterTM with 304 SS contact

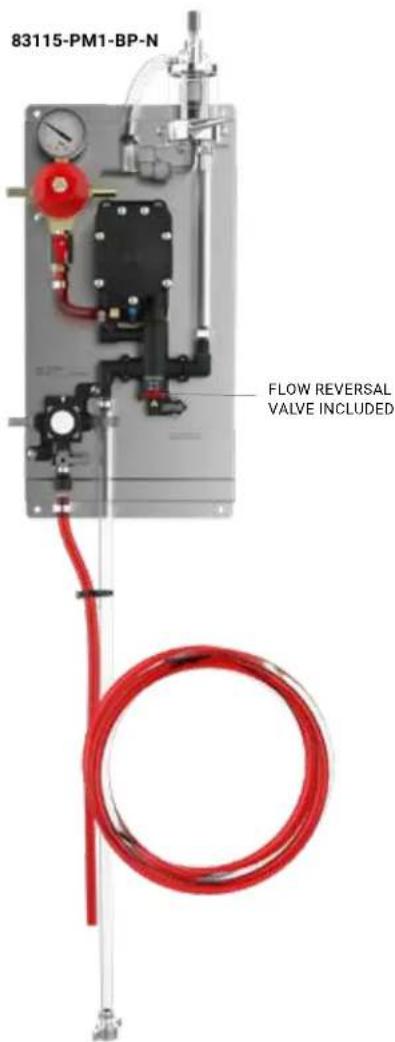

VENT PRE-PLUMBED TO DRAIN USE WITH PM1-2-DK PROFIT MAXIMIZER™ KEG PRESSURE REGULATOR RPK-2-PM 8' JUMPER HOSES - 3/8" I.D. SS TAILPIECES - 3/8" I.D. VINYL HOSE 8' 5/16" I.D. GAS HOSES MICROMATIC.COM

83115-PM1-BP-N FLOW REVERSAL VALVE INCLUDED

GAS EQUIPMENT

618B

618BL

617C

5144B

NA-1

665N

5460

1600AB

751-107

REPLACEMENT PARTS & TOOLS

REPLACEMENT GAUGES

PART NO. DESCRIPTION USE

624-1881 0 - 15 lbs - R.H. threads Output pressure

624-030 30 lbs - R.H. threads reset to zero adjustment Output pressure

624 60 lbs - R.H. threads Output pressure

84073 0 - 120 lbs - R.H. threads Output pressure

6603 3,000 lbs - L.H. threads Tank pressure

5603 3,000 lbs - R.H. threads Tank pressure

WRENCH

PART NO. DESCRIPTION

440-18 One end fits CO 2 nut and the other end fits the regulator bonnet (heavy duty)

MP-040 Tank mount wrench, 1" x 1/4" NPT

MPW-6 6-In-1 combination tool: screwdriver, faucet wrench, regulator connection nut, regulator pressure locknut wrench, coupling nut and probe holders

CONNECTOR NIPPLES

Use to connect secondary regulators.

PART NO. DESCRIPTION

618B 1" x 1/4" NPT, brass

618BL 2' x 1/4' NPT, brass

1319069 LHT 1" x 1/4" NPT, brass / chrome plated

REGULATOR NIPPLES

PART NO. DESCRIPTION

617C 3/8' barb, brass

1302990 3/8" barb, chrome

1319070 LHT 3/8" barb, chrome

5144B 1/4" barb, chrome

CYLINDER ADAPTER

PART NO. DESCRIPTION

NA-1 CO₂ regulator to nitrogen

PLUGS

PART NO. DESCRIPTION

665N R.H. threads

740-16 L.H. threads

CO_2"Y"

PART NO. DESCRIPTION

5460 Ideal fitting to add to any regulator when requiring two or more shutoffs

SHUTOFF VALVES

PART NO. DESCRIPTION

1600AB Shutoff less check valve

1600CAB Shutoff with check valve

SHUTOFF VALVES

PART NO. DESCRIPTION

751-107 Shutoff less check valve

45° angle one-piece aluminum manifold includes shutoffs.

PART NO. DESCRIPTION

751-017 Two-way

751-018 Three-way

751-019 Four-way

751-020 Five-way

751-021 Six-way

COMPONENTS

PART NO. DESCRIPTION

751-362 Aluminum manifolds only, two-way

751-364 Aluminum manifolds only, three-way

MP-032 Teflon tape, 1/2" x 260"

670CN Gas distributor safety, 60 psi

• No limit to number of shutoffs

• No sealant or tape required

- No need to remove the safety assembly

• Made of durable plastic

COMPLETE W/ SAFETY & SHUTOFFS

PART NO. DESCRIPTION

1241S One-way

1242S Two-way

1243S Three-way

1244S Four-way

1245S Five-way

COMPONENT PARTS

PART NO. 1 WAY MANIFOLD

1240SA With safety and shutoff

1238A With shutoff

PART NO. DESCRIPTION

FG-055 Modular o-ring

440-19L Safety assembly

1239N Inlet nipple

Two identical mechanical components labeled 751-017 and 751-018, each with red and white parts (no text or symbols on the components themselves)

Mechanical assembly with four red and white components, labeled '751-019' (no readable text or symbols beyond label)

Metal bracket with three mounting holes, labeled 751-364 (no other text or symbols)

Two mechanical components: a black valve with two side ports and a beige connector labeled 670CN, with no visible text or symbols on the devices themselves.

Close-up of a black mechanical component with three ports and a metallic connector, labeled '1243S' (no other text or symbols visible)

1240SA 1238A FG-055 1239N

PRESSURE TESTER

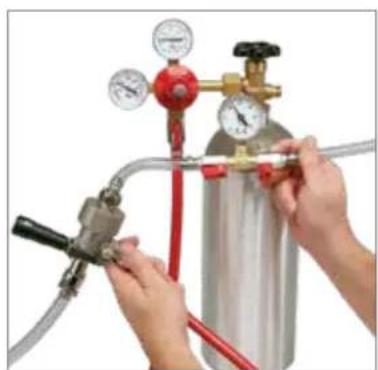

Ensure the accuracy of dispense system regulator gauges. The tool is used to calibrate 0 - 60 low pressure gauges and features a "zero adjusting" pointer for calibration of the tester's gauge. Test from either the regulator or the coupler!

PART NO. DESCRIPTION

PT1000 Pressure test for systems utilizing CO

2

Close-up of a pressure regulator with two connected tubing, one showing a valve and the other a dial indicator (no text or symbols on the device itself)

Person using a gas cylinder with red valves and pressure gauges, no visible text or symbols

BARRIER TUBING

OXYGEN IS BAD FOR YOUR BEVERAGE

Micro Matic continues to innovate Beer Line Technology through our sister company Valpar. We were the first to market with Gas Barrier Technology standard trunkline, and the first to develop a 5-layer tube. Vinyl tubing is the dirtiest part of any beer system because it is the most difficult to clean. The rough wall surfaces provide perfect pockets for bacteria to settle and grow.

Oxygen ingress into the beverage tubing can lead to off taste and encourage bacteria to grow.

TUBING TYPE SIZE (I.D. X O.D.)	CO2 PERMEATION RATE*	O2 PERMEATION RATE*
BarrierMaster Flavourlock 1/4" x 3/8" 0.018 0.0052
XtraFlexmaster3	3/16" x 7/16" 1.02 0.35
Poly Tubing 1/4" x 3/8" 1.30 0.44
Vinyl Tubing 3/16" x 7/16" 2.0	0.70
* From tube @ 70°F (in ^3 / 100ft / 24hrs / lb)

BARRIERMASTER FLAVOURLOCK - 0.052 OXYGEN PERMEATION

Best CO₂/N₂ loss and O₂ ingress.

PART NO.	DESCRIPTION
548BF6000	1/4" I.D. 500 ft coils
549BF6000	5/16" I.D. 500 ft coils
550BF6000	3/8" I.D. 500 ft coils

XTRAFLEXMASTER® - 0.35 OXYGEN PERMEATION

Reduced CO2 / N2 loss and O_2 ingress with excellent flexibility.

PART NO.	DESCRIPTION	RESTRICTION
547XFM1200	3/16" I.D. 100 ft coils	2.50 lbs/ft
547XFM6000	3/16" I.D. 500 ft coils	2.50 lbs/ft
550XFM1200	3/8" I.D. 100 ft coils	.06 lbs/ft
550XFM6000	3/8" I.D. 500 ft coils	.06 lbs/ft
547XFM60WHC	Beer hose assembly 5' x 3/16" I.D. XtraFlexmasterTM with 304 SS contact
550XFM96WHC	Beer hose assembly 8' x 3/8" I.D. XtraFlexmasterTM with 304 SS contact

All barrier tubing does not contain plasticizers. FDA compliant.

BarrierMaster Flavourlock

Barrier hose coil sold only in natural/translucent color

XTRAFLEXMASTER® NEW NEW 547XFM60WHC

ALL BARRIER TUBING FEATURES AN

ULTRA-SMOOTH INNER SURFACE TO SLOW

DOWN THE FORMATION OF BIOFILM RESULTING

IN THE TUBE STAYING CLEANER FOR LONGER.

HOSE

MICRO MATIC PRO-LINE™ VINYL HOSE

Pro-Line™ vinyl is performance-based Tygon™ S3 phthalate-free flexible tubing. The glass-like clarity allows the user to see the beer or other beverage flow through for easy visual monitoring. Pro-Line™ vinyl is FDA and NSF compliant.

I.D.	PART NO.	COLOR	O.D.	CLAMPS	LENGTH
3/16"	547B600	Black 7/16"	BE-1314 / 133SL 50'
	547B1200	Black 7/16"	BE-1314 / 133SL 100'
Restriction 3 lbs/ft	547C600	Clear 7/16"	BE-1314 / 133SL 50'
Volume 1/6 oz/ft	547C1200	Clear 7/16'	BE-1314 / 133SL 100'
	547C6000	Clear 7/16'	BE-1314 / 133SL 500'
1/4"	548B600	Black 1/2"	BE-1316 / 157SL 50'
	548B1200	Black 1/2"	BE-1316 / 157SL 100'
Restriction .85 lbs/ft	548C600	Clear 1/2"	BE-1316 / 157SL 50'
Volume 1/3 oz/ft	548C1200	Clear 1/2'	BE-1316 / 157SL 100'
	548C6000	Clear 1/2'	BE-1316 / 157SL 500'
5/16"	549C600	Clear 9/16"	BE-1317 / 170SL 50'
	549C1200	Clear 9/16'	BE-1317 / 170SL 100'
Restriction .40 lbs/ft	549C6000	Clear 9/16'	BE-1317 / 170SL 500'
Volume 1/2 oz/ft	553R600	Red 9/16"	BE-1317 / 170SL 50'
	553R1200	Red 9/16"	BE-1317 / 170SL 100'
	553R6000	Red 9/16"	BE-1317 / 170SL 500'
	553B600	Blue 9/16"	BE-1317 / 170SL 50'
	553B1200	Blue 9/16"	BE-1317 / 170SL 100'
3/8"	550B600	Black 5/8"	BE-1319 / 185SL 50'
	550B1200	Black 5/8"	BE-1319 / 185SL 100'
Restriction .20 lbs/ft	550C600	Clear 5/8"	BE-1319 / 185SL 50'
Volume 3/4 oz/ft	550C1200	Clear 5/8"	BE-1319 / 185SL 100'
	550C6000	Clear 5/8"	BE-1319 / 185SL 500'
1/2"	551C600	Clear 3/4"	BE-1320 50'
Restriction .025 lbs/ft	551C1200	Clear 3/4"	BE-1320 100'

Volume 1-1/3 oz/ft

BRAIDED VINYL BEVERAGE AND PRESSURE HOSE

I.D.	PART NO.	COLOR	O.D.	CLAMP	LENGTH
1/4"	548WD1200C	Clear	1/2"	BE-1314	100'
5/16"	549WD1200C	Clear	9/16"	BE-1316	100'
3/8"	550WD1200C	Clear	5/8"	BE-1317	100'
1/2"	551WD1200C	Clear	3/4"	BE-1320	100'

POLYETHYLENE HOSE

I.D.	PART NO.	COLOR	O.D.	CLAMP	LENGTH
1/4"	548NE1200	Translucent	3/8"	105SL	100'
	548NE6000	Translucent	3/8"	105SL	500'
5/16"	549NE1200	Translucent	7/16"	123SL	100'
	549NE6000	Translucent	7/16"	123SL	500'
3/8"	550NE1200	Translucent	1/2"	140SL	100'
	550NE6000	Translucent	1/2"	140SL	500'

Coiled red plastic cable or wire, no text or symbols visible

553R1200

Blue plastic coiled wire (no text or symbols visible)

553B1200

Close-up of multiple curved glass tubes with different colors (no text or symbols visible)

VINYL HOSE

BRAIDED VINYL HOSE Reinforced with a high strength braid to withstand up to 4x the pressure of vinyl hose.

Reinforced with a high strength braid to withstand up to 4x the pressure of vinyl hose.

POLYETHYLENE HOSE

PI0308S

PI211008S

PI201008S

PI0208S

PI251006S

PI301208S

PIUB16S

Close-up of three connected pipe fittings (no text or symbols visible)

PI491616S

PI0808S

Black metal wrench-shaped object with two curved ends, labeled 'SPAN-1' below (no other text or symbols)

JG-1201-066

JOHN GUEST FITTINGS

EQUAL ELBOW CONNECTORS

PART NO. STEM O.D.

PI0306S 3/16" x 3/16"

PI0308S 1/4" x 1/4"

PM0308S 5/16" x 5/16"

PI0312S 3/8" x 3/8"

PI0316S 1/2" x 1/2"

REDUCING ELBOW CONNECTORS

PART NO. STEM O.D.

PI211006S 5/16" x 3/16"

PI211008S 5/16" x 1/4"

PI211206S 3/8" x 3/16"

PI211208S 3/8" x 1/4"

PI211210S 3/8" x 5/16"

PI211610S 1/2" x 5/16"

PI211612S 1/2" x 3/8"

EQUAL "T"

PART NO. STEM O.D.

PI0206S 3/16" x 3/16" x 3/16"

PI0208S 1/4" x 1/4" x 1/4"

PM0208S 5/16" x 5/16" x 5/16"

PI0212S 3/8" x 3/8" x 3/8"

PI0216S 1/2" x 1/2" x 1/2"

REDUCING "T"

PART NO. STEM O.D.

PI301208S 3/8" x 3/8" x 1/4"

PI301612S 1/2" x 1/2" x 3/8"

3-WAY DIVIDER / MANIFOLD

PART NO. STEM O.D.

PI491616S 1/2" x 1/2" x 1/2"

PLUGS

PART NO. STEM O.D.

PI0806S 3/16"

PI0808S 1/4"

PM0808S 5/16"

PI0812S 3/8"

REMOVAL TOOL

PART NO.

SPAN-1 Fits 1/4", 5/16", 3/8"

LOCKING CLIPS

PART NO. TUBE O.D.

JG-1201-033 1/4"

JG-420-193852 5/16'

JG-1201-055 3/8"

JG-1201-066 1/2"

PM0408S 5/16' x 5/16'

PI0412S 3/8" x 3/8"

PI0416S 1/2" x 1/2"

REDUCING STRAIGHT CONNECTORS

PART NO. STEM O.D.

PI200806S 1/4' x 3/16'

PI201006S 5/16" x 3/16"

PI201008S 5/16" x 1/4"

PI201206S 3/8" x 3/16"

PI201208S 3/8' x 1/4'

PI201210S 3/8" x 5/16"

PI201610S 1/2" x 5/16"

PI201612S 1/2" x 3/8"

STRAIGHT STEM TO HOSE BARB

PART NO. STEM O.D. X BARB O.D.

PI250806S 1/4" x 3/16"

PI250808S 1/4' x 1/4'

PI250810S 1/4" x 5/16"

PI251006S 5/16" x 3/16"

PI251008S 5/16" x 1/4"

PM250808S 5/16' x 5/16'

PI251012S 5/16" x 3/8"

PI251208S 3/8" x 1/4"

PI251210S 3/8" x 5/16"

PI251212S 3/8' x 3/8'

PI251216S 3/8" x 1/2"

PI251612S 1/2" x 3/8"

PI251616S 1/2" x 1/2"

"U" BEND

PART NO. STEM O.D.

PIUB16S 1/2" x 1/2"

WALL BRACKET SHUTOFF

PART NO. STEM O.D.

808011KS 5/16" x 5/16"

HOSE FITTINGS

STAINLESS STEEL "T"

PART NO. GRADE HOSE I.D.
SST-B2	304 SS 1/4" All
SST-E2	304 SS 5/16" All
SST-C2	304 SS 3/8" All
SST-BC 304 SS 1/4" thru x 3/8" inlet

CROSS FITTINGS

PART NO. GRADE HOSE I.D.

SSC-B2 304 SS 1/4"

SSC-E2 304 SS 5/16"

SSC-C2 304 SS 3/8"

ELBOW FITTINGS

PART NO.	GRADE	HOSE I.D.
SSE-B2 304 SS 1/4" x 1/4"
SSE-BE 304 SS 1/4" x 5/16"
SSE-BC 304 SS	1/4" x 3/8"
SSE-E2 304 SS 5/16" x 5/16"
SSE-C2 304 SS 3/8" x 3/8"
SSE-D2 304 SS 1/2" x 1/2"
SSE-CD 304 SS	3/8" x 1/2"

BRASS AND PLASTIC HOSE "T" & "Y"

PART NO. DESCRIPTION
MP-060	5/16" brass "T"
WD-013	5/16" plastic "T"
WD-023	1/4" plastic "T"
WD-073	3/8" plastic "Y"

Metal pipe fitting with threaded ends, labeled SSC-B2 (no other text or symbols)

U BEND FITTINGS

PART NO. GRADE DESCRIPTION
SSU-C2-S	304 SS 1 1/16" I.D. x 2"L
SSU-C2	304 SS 1 7/8" I.D. x 3"L
SSU-C2-15	304 SS 3/4" I.D. x 15"L
SSU-d2 304 SS	1/2" x 1/2"
SSU-cd 304 SS	3/8" x 1/2"
SSY-B2	304 SS "Y" 1/4" I.D.
SSY-C2 304 SS "Y" 3/8" I.D.
SSY-E2 304 SS "Y" 5/16" I.D.

STRAIGHT SPLICERS

PART NO. GRADE VINYL HOSE	VINYL HOSE TO BARRIER HOSE	BARRIER HOSE SPLICER O.D. SIZE
SSS-B2 304 SS 3/16" x 3/16" 3/16" x 1/4" 1/4" x 1/4"
SSS-BE 304 SS 3/16" x 1/4" 3/16" x 5/16" 1/4" x 5/16"
SSS-BC 304 SS 3/16" x 5/16" 3/16" x 3/8" 1/4" x 3/8"
SSS-BD 304 SS 3/16" x 3/8" 3/16" x 1/2" 1/4" x 1/2"
SSS-E2 304 SS 1/4" x 1/4" 1/4" x 5/16" 5/16" x 5/16"
SSS-CE 304 SS 1/4" x 5/16" 1/4" x 3/8" 5/16" x 3/8"
SSS-ED 304 SS 1/4" x 3/8" 1/4" x 1/2" 5/16" x 1/2"
SSS-C2 304 SS 5/16" x 5/16" 5/16" x 3/8" 3/8" x 3/8"
SSS-CD 304 SS 5/16" x 3/8" 5/16" x 1/2" 3/8" x 1/2"
SSS-D2 304 SS 3/8" x 3/8" 3/8" x 1/2" 1/2" x 1/2"
SSS-DF 304 SS 3/8" x 1/2"
SSS-F2 304 SS 1/2" x 1/2"

LINE PLUGS

PART NO. HOSE I.D.
S19-4	1/4"
S19-5	5/16"
S19-6	3/8"

S19-4

S19-5

S19-6

SSS-B2

SSS-BE

SSS-BC

SSS-BD

SSS-E2

SSS-CE

SSS-ED

SSS-C2

SSS-CD

SSS-D2

SSS-DF

SSS-F2

Exterior view of a metallic cylindrical device with two mounting holes (no text or symbols visible)

2837

Metallic cylindrical component with two side ports and mounting flanges (no visible text or symbols)

2838

Metallic cylindrical device with three mounting connectors (no visible text or symbols)

2840

Exterior view of a metallic cylindrical industrial vessel with four side-mounted valves (no text or symbols visible)

2841

Close-up of a metallic pipe fitting with a curved end, labeled 'BE-212-3' (no other text or symbols visible)

759

874

525

BEER MANIFOLD

PART NO.	DESCRIPTION	STATIONS	INLET - PASS THRU - OUTLET		OUTLET
2837	Stainless steel	2	1/2" barb only	N/A	Beer thread
2838	Stainless steel 2 1/2" barb 1/2' barb Beer thread
2839	Stainless steel	3	1/2" barb only	N/A	Beer thread
2840	Stainless steel 3 1/2" barb 1/2' barb Beer thread
2841	Stainless steel	4	1/2" barb only	N/A	Beer thread
2842	Stainless steel 4 1/2" barb 1/2' barb Beer thread

Metal cylindrical device with three metallic connectors and mounting flanges, labeled '2842' at bottom (no other text or symbols visible)

TAILPIECES, NUTS & WASHERS

3/16" 526A 1/4" 526B 5/16" 526E 3/8" 526C 1/2" 526D

BRASS TAILPIECES

When ordering for barrier hose reduce size one step.

PART NO. FITS VINYL HOSE

526A 3/16" I.D.

526B 1/4" I.D.

526E 5/16" I.D.

526C 3/8" I.D.

526D 1/2" I.D.

BRASS BENT TAILPIECES

PART NO. FITS VINYL HOSE

BE-213-3 3/16' I.D

BE-212-3 1/4' I.D.

COUPLING WASHER

PART NO. DESCRIPTION

759 Neoprene washer

1/4' 526BS-304 5/16' 526ES-304 3/8' 526CS-304

304 STAINLESS STEEL TAILPIECES

When ordering for vinyl increase size one step.

PART NO. FITS BARRIER HOSE

526BS-304 1/4" I.D.

526ES-304 5/16" I.D.

526CS-304 3/8" I.D.

303 STAINLESS STEEL TAILPIECES

PART NO.	FITS BARRIER HOSE
526DS	1/2^st I.D.

COUPLING NUTS

PART NO.	DESCRIPTION
874	Hex nut
874SS	SS hex nut
525	Wing nut

WALL BRACKETS

PART NO. GRADE BORE

543BS 304 SS 3/8*

FF-020AB 304 SS 3/8"

543BS

FF-020AB

BEER "Y" & ELBOW

PART NO. GRADE DESCRIPTION

898B 303 SS 3/8" bore

FT872 303 SS Coupler elbow

PI491616S

Plastic

1/2" x 1/2" x 1/2"

898B

FT872

SHUTOFFS & SWITCHES

BEER SWITCH

PART NO. GRADE BORE

1894B 303 SS 3/8'

SHUTOFFS

PART NO. DESCRIPTION

WD-020 Inline with 1/4" barbs

WD-025 Inline with 3/8" barbs

7419-1 Straight, 304 SS

1721AB Straight, brass

808011KS Wall bracket

PM250808S 5/16" X 5/16"

PI251012S 5/16" X 3/8"

808011KS

PI2510012S

Y-shaped mechanical component with two metallic fittings and a central shaft (no text or symbols visible)

WD-020

WD-025

7419-1

1721AB

QUICK DISCONNECTS

Quick disconnect couplings incorporate built-in shutoff valves that prevent spillage (liquid or gas), and allow for multiple disconnections and faster servicing. Tubing can be disconnected without having to turn off the liquid or gas supply.

LIQUID FOR 3/8" I.D. HOSE

PART NO. DESCRIPTION

60600 Female

62700 Male

BRASS FOR 5/16" I.D. HOSE

PART NO. DESCRIPTION

954-1B Brass coupler

951N-2 Nipple

596E 5/16" Nipple

Three different types of industrial connectors or fittings, labeled 954-1B, 951N-2, and 596E (no additional text or symbols visible)

Poly Hose Stepless Clamp

Vinyl Stepless Clamp

O-clamp Single Ear

O-clamp Double Ear

Snap Clamp

Worm Clamp

MP-039 MP-039-STD NEW

MM-14100407

Yellow plating tool with black handle and label '1331-MC-A' (no other text or symbols visible)

1331-JE

1331-MC-A

NEW SC-100

Metal rod with stepped shaft, labeled TSR-1 (no other text or symbols visible)

TSR-1

CLAMPS

STEPLESS CLAMPS

For barrier hose.

PART NO. HOSE I.D.

95SL 1/4"

105SL 1/4"

113SL 1/4" (Not for BF tubing)

123SL 5/16"

133SL 3/8"

140SL 3/8"

O-CLAMPS

Single-ear style for vinyl hose.

PART NO. HOSE NO.

1314 547

1316 548

1317 549 / 553

1321 550

1320 551

SNAP CLAMPS

Reusable plastic.

PART NO. COLOR HOSE NO.

SNP-6 White 547

SNP-8 White 548

SNP-10 White 549 / 553

SNP-12 White 550

SNP-14 White 551

STEPLESS CLAMPS

For vinyl hose.

PART NO. HOSE I.D.

133SL 3/16"

145SL 1/4"

157SL 5/16'

162SL 5/16"

170SL 5/16"

185SL 3/8"

198SL 1/2"

210SL 1/2"

O-CLAMPS

Double-ear style for vinyl hose.

PART NO. HOSE NO.

BE-1314 547

BE-1316 548

BE-1317 549 / 553

BE-1319 550

BE-1321 551

BE-1320 551

WORM DRIVE CLAMPS

Stainless steel.

PART NO. USE ON HOSE NO.

705 550 / 551

705W 547 / 549 / 553

CLAMP TOOLS

PART NO. DESCRIPTION

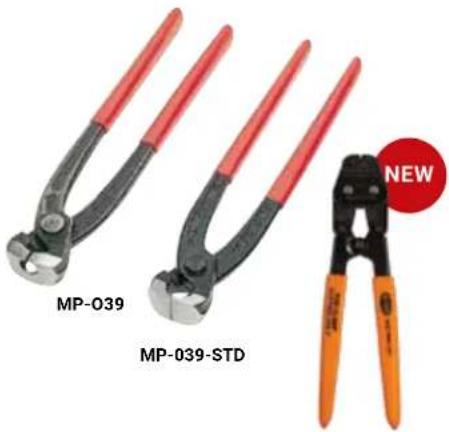

MP-039 Side cutter and o-clamp tool

MP-039-STD O-clamp tool

MM-14100407 Oetiker designed clamp cut-off tool

HOSE CUTTERS

PART NO. DESCRIPTION

1331-JE Finger pinch

1331-1-JE Replacement blade only

1331-MC-A Grip, spring loaded pliers

SC-100 Hose cutter

SC-1 Single replacement blade for SC-100

SC-10 10 pack replacement blades for SC-100

TUBE SIZING ROD

PART NO. DESCRIPTION

TSR-1 Verify hose I.D., excellent tool for holding splicers and tailpieces

BRAND ON DEMAND

Create Unique, Branded Tap Handles

Do-it-Yourself with style. Flexible, cost-effective and uniquely designed, the BOD Tap Handle delivers branding and real-time marketing. You can reuse the BOD Tap Handle to promote a seasonal or traditional beer or promote special venues or holidays. Simply re-print the branding label and reuse the BOD Tap Handle again and again.

360° SERIES

FEATURES:

• 360° branding
  • Graphics are sealed inside

• Water-resistant

• Choose from two heights

• Brushed metal top and caps

PART NO. HEIGHT DESCRIPTION

C100-4 4" Black acrylic top and bottom caps, acrylic lens
C100-4-M 4" Metal top and bottom caps, acrylic lens
C150-6 6" Black acrylic top and bottom caps, acrylic lens

SCULPTURED SERIES

FEATURES:

• Front and back branding
• Sculpted metal with clear acrylic insert
• Brilliant chrome finish

• Graphics are sealed inside
- Two styles to choose from

PART NO. HEIGHT DESCRIPTION

T180-7 7" Twist - chrome with acrylic lens
P180-7 7" Pebble - chrome with acrylic lens

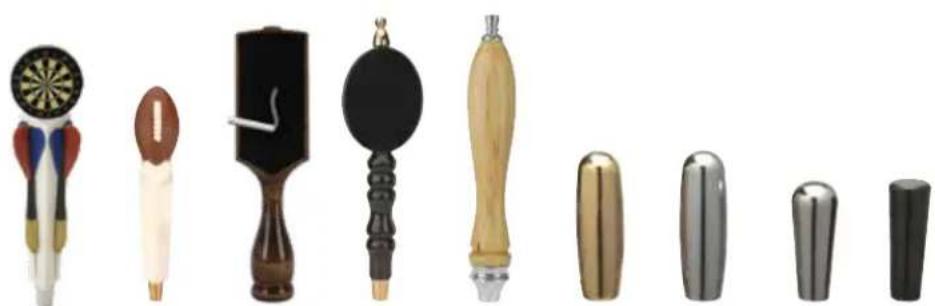

TAP HANDLES

5302 5420 5402 4301-GP 4301-CHP 4301-CH 43015026 5048

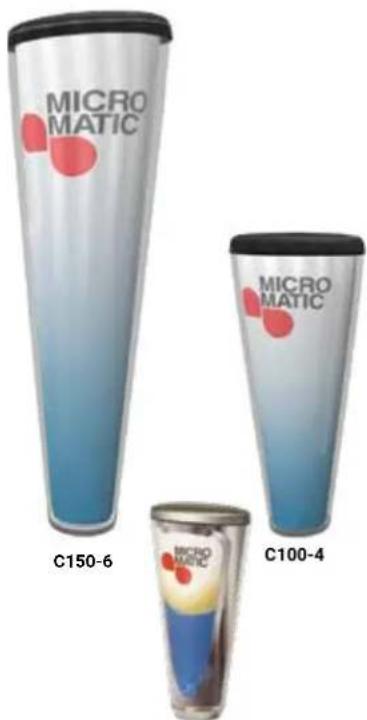

MICRO MATIC MICRO MATIC C150-6 C100-4

C100-4-M

Two metallic USB flash drives with 'MICRO MATIC' and 'USBCHIC MATIC' branding (no additional text or symbols)

T180-7
P180-7

CHECK OUT OUR COMPLETE TAP HANDLE PORTFOLIO MICROMATIC.COM

FAUCETS

Close-up of a metallic faucet handle with threaded port and screw cap (no text or symbols visible)

Golden faucet handle with threaded port and screw cap (no text or symbols visible)

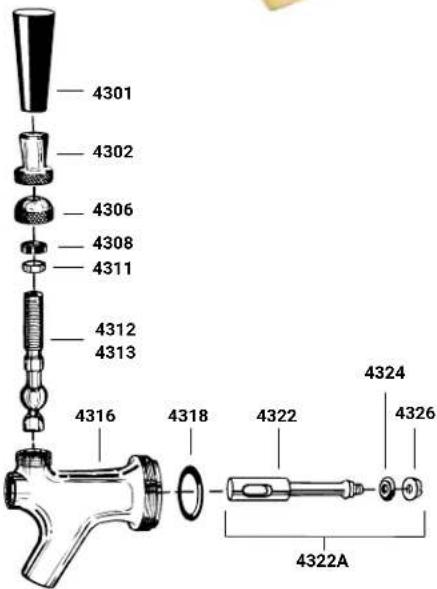

4301 4302 4306 4308 4311 4312 4313 4316 4318 4322 4324 4326 4322A

FAUCETS

304 BODY

PART NO. MATERIAL FINISH DESCRIPTION

304 304 stainless steel Polished With stainless steel lever

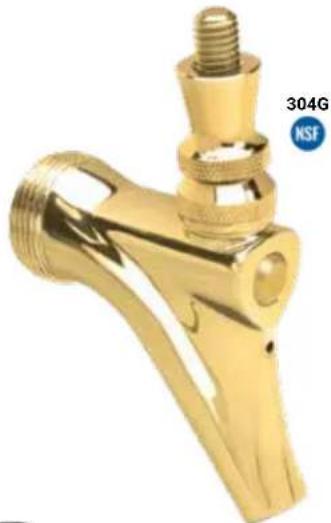

304G 304 stainless steel PVD brass With stainless steel lever

STANDARD BODY

PART NO. MATERIAL FINISH DESCRIPTION

4933SS	303 stainless steel	Polished	With stainless steel lever
4933GSS 303 stainless steel PVD brass			With stainless steel lever
4933K	Brass	Chrome	With brass lever
4933	Brass	Chrome	With stainless steel lever
4933KSC Brass		Chrome	Self-closing
4933KBR	Brass	Polished brass	With brass lever
4933BR	Brass	Polished brass	With stainless steel lever

Close-up of a metallic faucet with a brass fitting (no text or symbols visible)

4933K

Close-up of a metallic faucet with a threaded handle and flange (no text or symbols visible)

4933KBR

Close-up of a metallic faucet with a brass fitting (no text or symbols visible)

4933KSC

REPLACEMENT PARTS

PART NO. DESCRIPTION

4301 Black knob

4302 Lever collar

4306 Lever bonnet

4308 Friction washer

4311 Ball washer

4312 Brass lever

4313 Stainless lever

4316 Chrome body

4318 Coupling washer

4322 Shaft

4322A Shaft assembly chrome

4322A-304 Shaft assembly 304 stainless steel

4322A-304CR Creamer shaft assembly 304 stainless steel

304-18092 Trigger Tap ^™ shaft & lever kit

4324 Shaft seat

4326 Shaft nut

4326-304 Shaft nut 304 stainless steel

NOTE: Add BR to the end of part number for brass finish.

FAUCETS

PART NO.	DESCRIPTION
CMB-X2CH	Stainless steel lever, metal coupling threads and chrome trim
304-CR	304 grade stainless steel, note etched "C" on front end of shaft

TRIGGER TAP FAUCET

PART NO.	DESCRIPTION
304-TT	304 grade stainless steel, note etched "TT" on front end of shaft

Close-up of a metallic faucet with a screw and handle (no visible text or symbols)

Close-up of a black T-junction pipe fitting with metallic fittings (no text or symbols visible)

304-CR
NOTE: Etched 'C' on front end of shaft

Close-up of a metallic propeller or clamp device with a labeled part '304-FL' (no other text or symbols visible)

Close-up of a black mechanical clamp or tool with a metallic handle and metal bracket (no visible text or symbols)

Close-up of a black mechanical clamp or bracket with brass fittings and a handle (no text or symbols visible)

LOCKS

PART NO. DESCRIPTION

23-41-304 Fits 304 body

304-FL Fits 304 body and standard U.S. body

23-41 Fits standard U.S. body

ACCESSORIES

PART NO. DESCRIPTION

SP1000 Standard spout plug

SP1000-ROTO Debitap & Rototap spout plug

MM-KLP250 Faucet spout plug / brush

MP-055 2' knob extension

MP-064 Tap marker angler

MP-070 Faucet plug

FLEXIDRAFT™ HOSE ASSEMBLY

FlexiDraft ^™ is the revolutionary way to ensure draft beer quality. In minutes, the probe, beer line and faucet spout assembly is replaced with each keg change. More info on the system on page 10, see page 14 for keg couplers, and page 95 for the tower assembly.

PART NO. DESCRIPTION	COLOR CODE
FD-H-D	FlexiDraftTM hose assembly – D System	Green
FD-H-S	FlexiDraftTM hose assembly – S System	Blue
FD-H-AG	FlexiDraftTM hose assembly – A and G Systems	Red
FD-H-U	FlexiDraftTM hose assembly – U System	Black
FD-FL	FlexiDraftTM faucet lock with pad lock

Click ON OFF 304-TT NOTE: Etched T on front end of s NSF

NOTE: Etched "TT" on front end of shaft

SP1000MM-KLP250

MP-055MP-064 MP-070

Medical catheter devices labeled FD-H-D and FD-H-S, no additional text or symbols visible

FAUCETS

STOUT FAUCET & LOCK

STOUT FAUCET

A distinctive faucet for use only with stout beers. Features a unique dispensing motion: pull forward for pouring, push backward to finish with a creamy head.

PART NO. DESCRIPTION

JESF-3 Brass-plated stainless steel body

JESF-4 Stainless steel body

12543 Stainless steel body, short shank for mounting on towers

12543-SP-A Chrome spout assembly

100-268 Replacement Diaphragm

NEW 12543 NSF 17/8"

JESF-4 NSF 3"

STOUT FAUCET LOCK

Available exclusively from Micro Matic! This easy-to-use stout faucet lock utilizes built-in o-rings to seal the spout and prevent beer from being poured. Simply add your own padlock and know your investment is secure.

PART NO. DESCRIPTION

SFL-100 For use with JESF-3 and JESF-4 only

DEBITAP

Add European styling to any tower. DebiTap has a smooth, trouble-free pour style. 304 stainless steel is great for dispensing beer, wine, cider and cocktails. No need to disassemble for cleaning, simply use a brush and run through the shank and up the nozzle. Fits standard U.S. shanks and tap handle threads.

FLOW CONTROL FAUCET

DebiTap is also available in a flow-control version. Adjust the flow to the desired pour then lock down the integrated set screw to prevent tampering and provide a solid pouring experience.

PART NO. DESCRIPTION

4933DEBI Chrome, DebiTap

4933DEBI-FC Chrome, flow control DebiTap

Chrome faucet knob not included. Both models available in PVD gold 304 stainless steel.

SWING LEVER

Distinctive faucet can be used for beer, cider, wine, liquor, water, coffee, soda, and liquor.

FEATURES

- Polished 304 stainless steel

- 22.5 degree open position

- Flow control

- 337.5 degree closed position

- Standard thread for tap handle

- Vented nozzle

- Decorative finished acorn nut if no tap handle

- 45 degree lever swing

- Special order finishes: gold or copper

PART NO. DESCRIPTION

SLFCF50 Swing lever faucet

EUROSTYLE

Update the style of your existing draft tower.

PART NO. DESCRIPTION FINISH

MM901 304 stainless steel Polished

MM902 304 stainless steel PVD brass

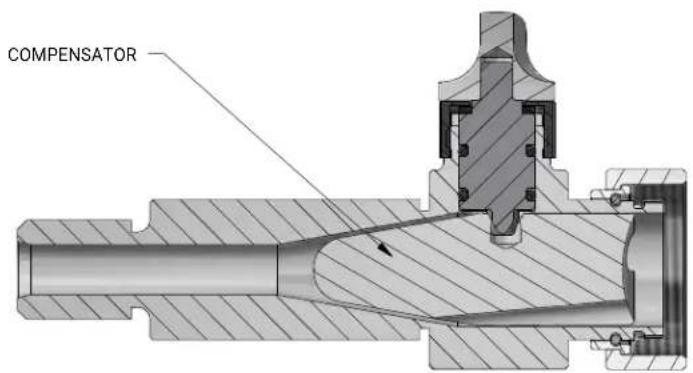

4933-FC-SS

Flow control faucet, all 304 stainless steel, self-closing creamer, great for filling growlers

Polished

GROWLER FILLER & FAUCET

The Micro Matic growler filler / faucet dual-purpose design allows the same shank fitting to either fill growlers or pour pints! There is no need for a dedicated growler filler. Our filler/faucet fits all U.S. tower and wall shanks. It's constructed from 316 grade stainless steel. The distinctive, attractive design draws attention to "what's on tap" and bolsters on-premise sales of beer to go. Attach a branded tap handle to the top threads to identify the product.

Turn the filler into a faucet for pouring pints by snapping in a spout. The spout is easily inserted into the growler filler opening. It takes just seconds to snap in the spout and pour a pint, and then remove the spout to fill growlers.

PART NO. TRIM

GR-FS Stainless steel

GROWLER FILLER & ADAPTER

The Micro Matic growler filler allows for equalizing pressure, and creating clean, complete fills with minimal oxidation. Growlers are a great way to transport keg beer home!

PART NO. TRIM

GR-F Stainless steel, fills PET bottles

GR-FA Adapter for filling glass bottles, use with GR-F

SIDE PULL FAUCET

PART NO. DESCRIPTION

5601-SP 304 polished stainless steel – for wine, cider, water, spirits

SPMH-60-5890 60mm medallion holder for 5601-SP

5601-THH Tap marker holder for 5601-SP

5601-SP NSF SPMH-60-5890 GR-F 5601-THH

MM901 NSF MM902 NSF 4933-FC-SS NSF GR-FS GR-F NEW GR-FA

SHANKS

Brass, chrome-plated, smooth surface

304 stainless steel, three etched rings

Old shank

SPINSTOP shank

4331AS-304 4334AS-304 4337AS-304

Mechanical assembly diagram showing a threaded bolt connected to a metal bracket (no text or symbols)

Technical diagram of a mechanical device with a grater and pipe fitting (no text or symbols)

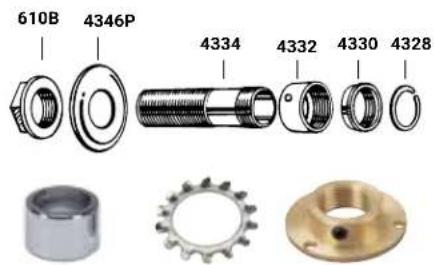

610B 4346P 4334 4332 4330 4328 Gears 4330

SHANKS

1/4" BORE

PART NO.	MATERIAL	LENGTH
4331A	Brass 2"
4331AS-304	304 SS	2"
4333A	Brass 3 1/8"
4333AS-304	304 SS	3 1/8"
4334A	Brass 4 1/8"
4334AS-304	304 SS	4 1/8"
4336A	Brass 5 1/8"
4337A	Brass 6 1/8"
4337AS-304	304 SS	6 1/8"
4338A	Brass 8 1/8"
4338AS-304	304 SS	8 1/8"
4340A	Brass 10"
4340AS-304	304 SS	10"
4341A	Brass 12"
4341AS-304	304 SS	12"
4342A	Brass 14"
4342AS-304	304 SS	14"

3/16" BORE

PART NO. MATERIAL LENGTH
4331A-3	Brass 2"
4333A-3	Brass 3 1/8"
4334A-3	Brass 4 1/8"
4336A-3	Brass 5 1/8"
4337A-3	Brass 6 1/8"
4338A-3	Brass 8 1/8"
4340A-3	Brass 10"
4341A-3	Brass 12"
4342A-3	Brass 14"

NEW 547XFM60WHC

BEER HOSE ASSEMBLY

PART NO.

DESCRIPTION

547XFM60WHC

Beer hose assembly - 5' x 3/16" I.D. XtraFlexmasterTM with 304 SS contact

D STRIPS

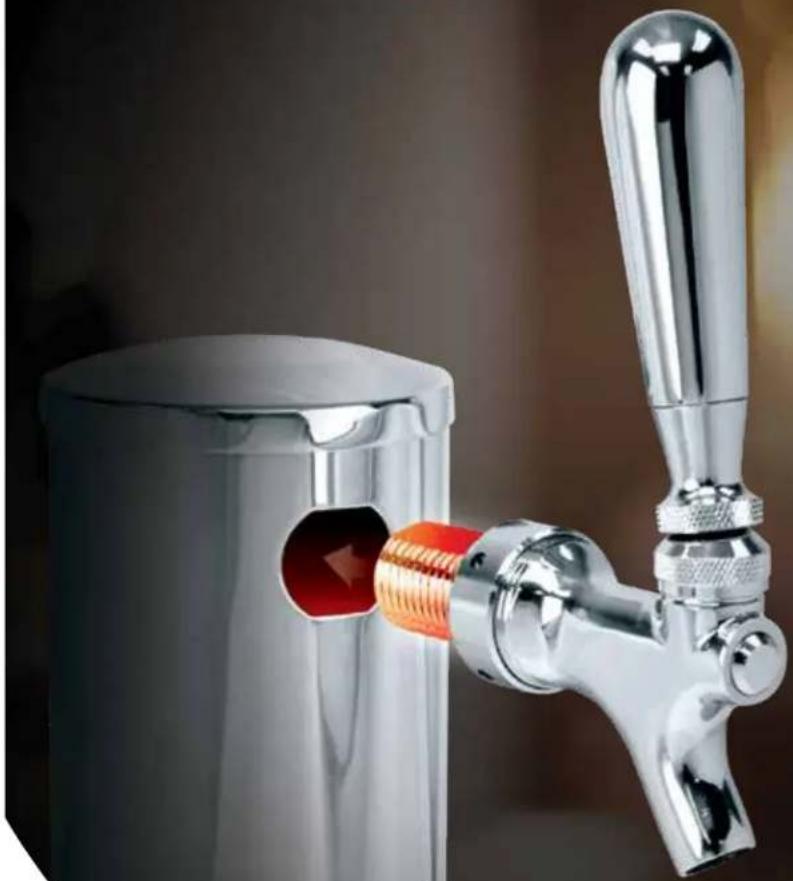

ELIMINATE ROTATING SHANKS

Secure thru-the-wall shanks from loosening and rotating. Micro Matic SPINSTOP™ D shanks lock into the patented D hole mounting strip. Easy to install. Effective way to eliminate service calls for loose shanks.

PART NO.	LENGTH	SHANK HOLES	HOLE CENTERS
DP-WM-MS4-3	11 3/4"	4	3"
DP-WM-MS4-3.5	13 3/4"	4	3 1/2"
DP-WM-MS4-4	15 5/8"	4	4"

REPLACEMENT PARTS

PART NO. DESCRIPTION

4328 Snap-ring

4330 Sleeve

4332 Chrome coupling nut

4332BR Brass coupling nut

4346P Black plastic flange

4346F Stainless flange

MM-1331FPS 3/4" chrome-plated spacer

610B Lock nut

TTLW-JE Lock washer

MP-065 Locking flange to prevent faucet and shank from rotating

MP-065TTLW-JEMM-1331FPS

DOUBLE FAUCET SHANKS

PART NO. NIPPLE SHANK LENGTH

BE-DF2-3 3/16" 2"

BE-DF4-3 3/16" 4"

BE-DF6-3 3/16" 6"

BE-DF8-3 3/16" 8"

BE-DF10-3 3/16" 10"

BE-DF12-3 3/16" 12"

NIPPLE SHANKS

NIPPLE SHANKS

Brass, length includes nipple.

PART NO. LENGTH FITS HOSE

4331NA 3 1/2" 1/4" I.D.

4331NA-3 3 1/2" 3/16" I.D.

4333NA 4 1/8" 1/4" I.D.

4333NA-3 4 1/8" 3/16" I.D.

4334NA 5 1/8" 1/4" I.D.

4334NA-3 5 1/8" 3/16" I.D.

4336NA 6 1/8" 1/4" I.D.

4336NA-3 6 1/8" 3/16" I.D.

Close-up of a metallic mechanical shaft with flange and bolt, labeled '4336NA' (no other text or symbols)

4336NA
Complete assembly

EXTENDED TUBE SHANK

PART NO.	DESCRIPTION
SH599F	Up to 24' wall thickness

ELBOW NIPPLES

Hex nut not included, order separately.

PART NO. DESCRIPTION

BE-212-3 1/4' barb

BE-212-3-304 304 SS, fits 1/4' poly

BE-213-3 3/16' barb

SHANKS

Soldered in stainless steel elbow.

PART NO.	DESCRIPTION	MATERIAL
4329-3E	1 3/4" x 3/16" I.D. barb	Brass
4329A-3E	Complete assembly	Brass
BE-SK2L	1 3/4" x 1/4" I.D. barb,	Brass
BE-SK2LA	Complete assembly	Brass
BE-SK2LA-304	Complete assembly	SS
D5N-ARF	SPINSTOP ^TM shank,complete assembly	SS
4333A-3E	3" x 3/16" I.D. barb,complete assembly	Brass

Close-up of a mechanical component with two metallic rods and a base, shown with an inset magnified view (no text or symbols visible)

BE-DF6-3

Metal plate with two circular holes, labeled '462 See page 162' (no other text or symbols)

FAUCET & SHANK TOOLS

PART NO. DESCRIPTION

4350-HD Faucet wrench

MP-042 Faucet and hex nut wrench

MP-042ES Heavy-duty faucet and hex nut wrench

MPW-6 6-In-1 combination tool: screwdriver, faucet wrench, regulator connection nut, regulator pressure locknut wrench, coupling nut and probe holders (heavy duty)

MM-AG1 Reach-in dual end wrench fits 874 hex nut and 610B shank nut

MP-080 1/4" reamer bit for shank bore diameter

MP-081 Drill guide: connects to all standard shank nuts for ease in drilling out shanks

MP-042MP-042ES

MPW-6

MP-081 MP-080 NEW MM-AG1

CRISP, CLEAN

BREWERY FRESH

MICRO MATIC LINE CLEANER

FEATURES:

INDUSTRY STANDARD PERFORMANCE

• Beer Line Cleaners: Brewers recommend 2 – 3% caustic in solution.
• Wine Line Cleaners: Vintners recommend 1% caustic in solution.

LATEST ADDITIVE TECHNOLOGY

• Optimum cleaning efficiency.
• Surfactants (wetting agent) reduce surface tension between the deposit and the cleaning agent.
• Surfactant agent enables fast, thorough rinsing – ensuring all the chemical is washed out of the line, leaving no residue.

EFFECTIVE IN ALL WATER CONDITIONS

• Hard to soft water is not an issue for delivering consistent cleaning performance.
• Effective in any water temperature.

LOWEST FOAMING CLEANER

• Less foam means less air bubbles, and greater contact with the line.
• Saves time and labor by reducing clean-up from excess foam.

COLOR INDICATOR

- Eliminate guesswork – color indicator lets you know when the chemical solution is in the line and when it has been safely rinsed out. Always verify with pH paper.

"Micro Matic line cleaning chemical meets all New Belgium and Brewers Association required specifications. I consider it to be one of the market leaders in the cleaning industry."

- Matt Meadows, National Director of Field Quality, New Belgium Brewing Company

LIQUID LINE CLEANERS - BEER

BEER LINE CLEANER - ALKALINE

Designed to attack and dissolve proteins, hop resins, biofilms, bacteria, molds, yeast and other organic soils.

BEER LINE CLEANER - ACID

Acid cleaner attacks and dissolves calcium oxalate (beer stone) and other harmful inorganic soils. It is recommended that this product be used after every four or five cleanings.

PART NO. DESCRIPTION VOLUME/PACKAGING

MM-B68 Beer line cleaner - alkaline 6 - 68 oz bottles per case

MM-A68 Beer line cleaner - acid 6 - 68 oz bottles per case

MM-B15G Beer line cleaner - alkaline 15 gallon drum

MM-B55G Beer line cleaner - alkaline 55 gallon drum

MM-A55G Beer line cleaner - acid 55 gallon drum

FREE FREIGHT: 9 – 15 gallon drums per pallet, 4 – 55 gallon drums per pallet, or 64 cases (384 bottles) per pallet. F.O.B. OH Individual cases shipped via UPS, a Hazardous Material Charge added to shipping charge.

POWDER LINE CLEANER - BEER

PART NO. DESCRIPTION

CFP-1 CleanFlo Powder (16 oz tub) - convenient package for home use

PART NO. DESCRIPTION

CFP-25 CleanFlo Powder (25 lb tub) – economical package for commercial use

CleanFlo is shipped via standard UPS rates.

LIQUID LINE CLEANERS - WINE

Always clean wine lines and equipment each time with Wine Line Cleaner and Wine Acid Line Cleaner.

WINE LINE CLEANER - ALKALINE

Attacks and dissolves tartrates, tannins and biofilm. Kills bacteria, molds and yeast.

WINE LINE CLEANER - ACID

Citric acid cleaner removes stubborn buildup, ensuring lines remain free of tartrates, tannins and biofilm.

PART NO. DESCRIPTION VOLUME/PACKAGING

MM-W68 Wine line cleaner - alkaline 6 - 68 oz bottles per case

MM-WA68

Wine line cleaner - acid

6 – 68 oz bottles per case

Individual cases shipped via UPS, a Hazardous Material Charge added to shipping charge.

DRUM PUMPS

Chemical in bulk containers needs to be moved to smaller, manageable containers. Ezi-action ^® Drum Pumps have excellent resistance to a wide range of chemicals due to robust polypropylene plastic and polyethylene plastic construction. This revolutionary, patented double-action pump includes no critical wearing parts.

PART NO. DESCRIPTION

DP-15G

Use with 15 gal containers

DP-55G

Use with 55 gal drums

Beer line cleaner is an odorless liquid containing sodium hydroxide.

1. ALWAYS follow directions.
2. ALWAYS wear safety glasses to protect eyes and rubber gloves for skin protection.
3. ALWAYS wash hands with soap and water after using chemical
4. ALWAYS flush chemical completely with water before re-tapping keg.
5. KEEP OUT of reach of children.
6. ALWAYS dispose of used chemical in accordance with federal and local regulations.
7. CALL physician if product is swallowed. If ingested, drink large quantities of water to dilute chemical.

MM-B68

MM-A68
Clean beer lines and equipment every 2 weeks and with change of product.

MERCARE CLEANFLU FREE TOMATO

CFP-1
CFP-25
Heavy-duty non-hazardous formulation contains no chlorine to leave an off-taste affecting the beer.

MM-W68

MM-WA68
Wine lines and equipment should be cleaned every 3 months and with change of product.

Two laboratory gas storage tanks labeled DP-15G and DP-55G, with no visible text or symbols on the tanks themselves.

• OVER 700,000 LINES MANAGED AND GROWING
• GLOBAL SUPPORT CENTERS
• BREWERY APPROVED REPORTING

Smartphone icon displaying a blue and green abstract logo (no text or symbols)

DRAFTLINE®

SMART SYSTEM

MERGING TECHNOLOGY WITH TRADITION

The DraftLine SmartSystem® is a user-friendly application designed specifically to allow for the seamless flow of information between the Service Manager and Technicians throughout all areas of draft maintenance and service. Coupled with advanced routing, system building and extensive reporting capabilities, the SmartSystem® will provide improved efficiency, lower costs and increased productivity.

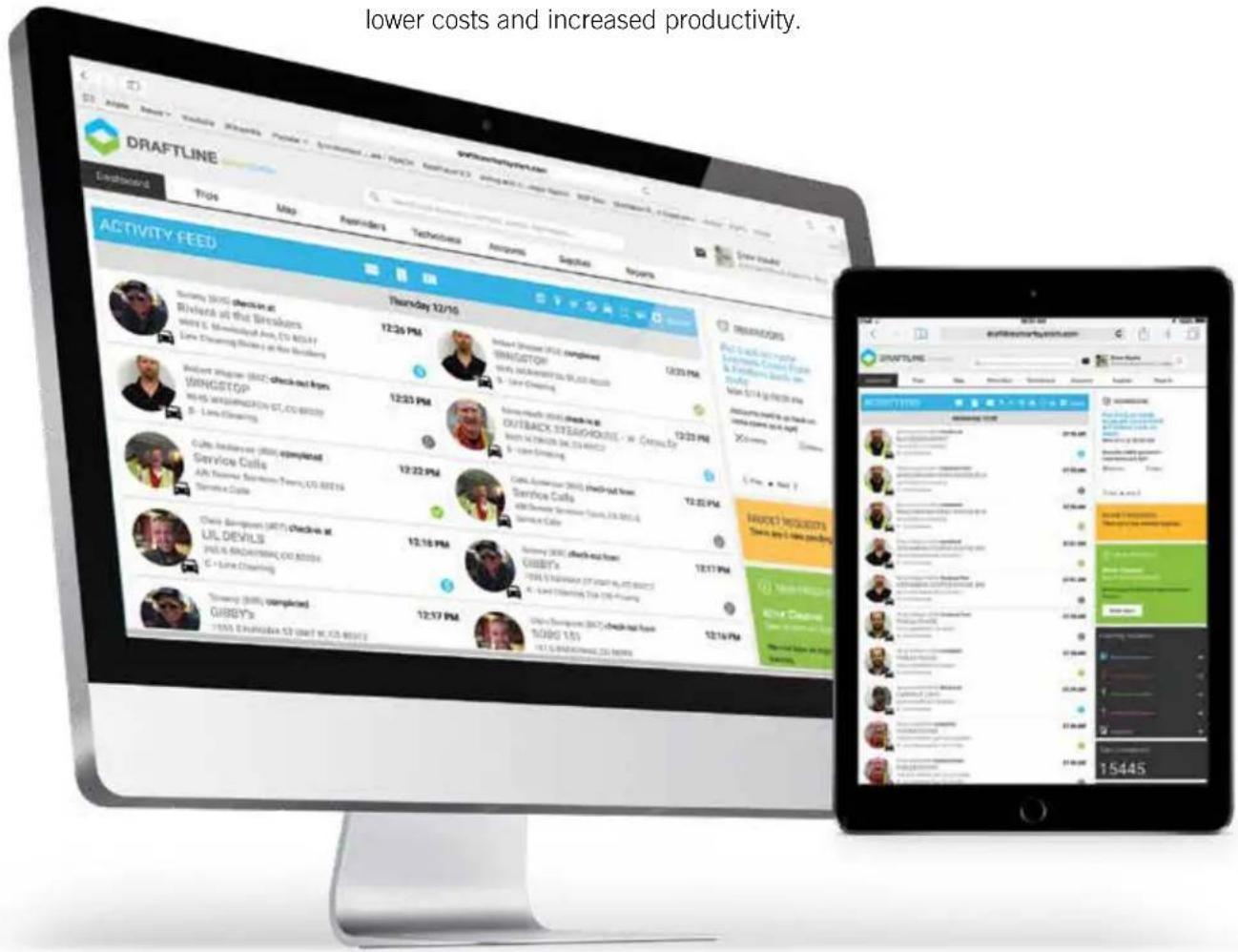

lower costs and increased productivity. DRAFTLINE ACTIVITY FEED Thursday 12/16 Sunday (SUS) checked at Briethat at the Showbers MINT'S. Showbersland Ave, CO BISAY Live Streaming Reels at New Biscollers Robert Higmer (RIZ) checked from BINGSTOP MS HS WASHINGTON ST, CO BISAY S - Live Streaming Cable Installed (RIZ) completed Service Calls A#t Newman Transportation Team, CO BISAY Shower's Cable Chris Gampstrom (SUT) checked at UIL DEVILS PALE & BRAKSHAWA CO BISAY G - Live Streaming Timancy (SUT) completed GIBBY's 1555 EHRAGUELA ST UNIT # CO BISAY Clayr Discount (SUS) completed BINGSTOP MINT'S. Showbersland Ave, CO BISAY S - Live Streaming Cable Installed (SUS) checked from Service Calls A#t Newman Transportation Team, CO BISAY Service Caller Chris Gampstrom (SUT) checked at UIL DEVILS PALE & BRAKSHAWA CO BISAY G - Live Streaming Timancy (SUT) completed GIBBY's 1555 EHRAGUELA ST UNIT # CO BISAY Clayr Discount (SUS) checked from 1090-151 MINT'S. Showbersland Ave, CO BISAY S - Live Streaming CREAMORS Put a stock market for Earnings, Cents and Sales by: 7.4M to8.3M on Market: 1.4M to2.0M on Market: 1.4M to2.0M on Market: 1.4M to2.0M on Market: 1.4M to2.0M on Market: 1.4M to2.0M on Market: 1.4M to2.0M on Market: 1.4M to2.0M on Market: 1.4 Mkt to2.0 Mkt on Market: 1.4 Mkt to2.0 Mkt on Market: 1.4 Mkt to2.0 Mkt on Market: 1.4 Mkt to2.0 Mkt on Market: 1.4 Mkt to2.0 Mkt on Market: 1.4 Mkt to2.0 Mkt on Market: 1.4 Mkt to2.1 Mkt on Market: 1.4 Mkt to2.0 Mkt on Market: 1.4 Mkt to2.1 Mkt on Market: 1.4 Mkt to2.0 Mkt on Market: 1.4 Mkt to2.1 Mkt on Market: 1.4 Mkt to2.0 Mkt on Market: 1.4 Mkt to15445

The Town Pump Tavern (vs. no) 100 W Mawichath St, Detroit, MI 2nd 11:9:00 am - 18:30 am Line Cleaning Use recirculation pump Carl Shaun for Akya 37-3-000-0000 Technician View

FOR THE TECHNICIAN

• Available for iOS & Android
• Customer Overview
• Account Information & Directions
• Daily Route List
• Line Cleaning & Service Checklist
• System Builder
• Service Trips
• Reminders

Man in work uniform using a tablet in a laboratory setting (no visible text or symbols)

DraftLine Technologies LLC "Merging Technology with Tradition"

DraftLine SmartSystem® is a unique Cloud-based integrated administrator and mobile application* developed to successfully manage your draft service and line cleaning tasks.

FOR THE SERVICE MANAGER

• Real Time Activity Feed Dashboard
• Time Stamping / GPS Tracking
• Line Cleaning Checklists
• Service Checklists

• Completion Reports

• Routing Trip Planner

• Brand Tracking
• Expense Tracking
• Detailed Reporting
• Note & Photos

FOR MORE INFORMATION, CALL 407-970-2567 OR VISIT DRAFTLINETECHNOLOGIES.COM

Download on the App Store

ANDROID APP ON Google play

*Patent pending

CLEANING EQUIPMENT

BEFORE COUPLING System D and U

Close-up of a mechanical device with red and black handles, labeled 'IN-USE System D and U' (no other text or symbols visible)

FLUSHERS

D AND S SYSTEM
PART NO. DESCRIPTION SYSTEM

FT108	Stainless steel series flusher – D and S, no ball lifter	D, S
FT108-BL	Stainless steel series flusher – D and S, integral ball lifter	D, S
2S2-005	Stainless steel series flusher – D and S, integral ball lifter	D, S
2S2-007	Stainless steel double flusher – D and S, no ball lifter	D, S
FT110AB-MM	Stainless steel double flusher – D and S, integral ball lifter	D, S

FT108

FT108-BL

2S2-005

2S2-007

FT110AB-MM

U SYSTEM / U TO D (OR) S SYSTEM

PART NO.	DESCRIPTION	SYSTEM
801467KGU	Plastic series flusher – U	U
U2U	Stainless steel double flusher – U to U	U
U2D-S	Stainless steel double flusher – U to D (or) S	U, D or S

801467KGU

U2U

U2D-S

Shown inside detail, system D and U

G SYSTEM / A SYSTEM

Three metallic pipe fittings and a circular seal (no visible text or symbols)

874-2

902

FT101L

Yellow tool with handle and label 'FT85-117' (no other text or symbols)

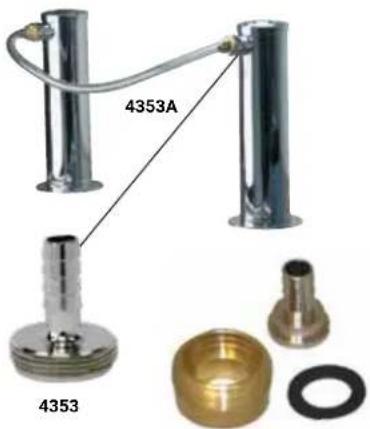

Technical diagram showing mechanical components including a 4353A pipe fitting and a brass component with black ring (no text or symbols)

4353-0C

PART NO. DESCRIPTION		SYSTEM
CC1301	Stainless steel series flusher – G	G
CC1301-SK	Single flusher – G	G
2A1-012	Stainless steel series flusher – A	A
CC2A1-SK	Single flusher – A	A

CC1301

CC1301-SK

2A1-012

CC2A1-SK

ACCESSORIES

PART NO. DESCRIPTION

874-2 Double-sided hex nut for connecting flushers

902 Duplex coupler - permits two lines to be cleaned at one time

FT101L 1 oz can of probe lubricant, odorless and tasteless

FT85-117 Ball lifter - permits cleaning from the faucet through the coupler

4353-OC 2-piece faucet cleaning attachment and 753 washer

4353 Faucet cleaning attachment and 4318 washer

4353A For cleaning 2 lines at the same time. Consists of 2-4353, 2 ft of 5/16" I.D. clear beer tubing and clamps.

RE-CIRCULATING BEER LINE CLEANING

THE BEST CLEANING METHOD

Electric line cleaning pumps provide turbulent circulation which is 80 times more effective than simply soaking a beer line.

TEMPERATURE RESISTANT HOSE -

Easy-to-use, fl exible in all weather conditions.

ROBUST – Stainless steel exterior case for durability.

BUILT-IN TIMER – Brewers Association cleaning standard is 15 minutes.

USER-FRIENDLY – Body mounted On/Off switch allows for easy control of cleaning unit

Exterior view of a metallic industrial device with red hoses and fittings (no visible text or symbols)

EBC300: 20' - 300' RUN

• Motor: 0.6 Amps, 115 volts, 60 Hz
• Automatic bypass at 50 psi to protect system
• 15 lbs / 5 1/4"H x 7"W x 14"L

CIRCULATE CLEANER FOR A MINIMUM OF 15 MINUTES PER LINE FOR BEST RESULTS.

EBC300PLUS: 300' + RUN

• Motor: 5.3 Amps, 115 volts, 60 Hz
• Manual bypass valve for control pressure and flow
• 160 psi gauge
• Stainless steel pump for long lift
• 37 lbs / 9"H x 10 3/4"W x 15"L

Exterior view of a stainless steel industrial gas handling unit with red hoses and pressure gauge (no text or symbols visible)

CLEANING EQUIPMENT

Metallic cylindrical container with black base and two handles, no visible text or symbols

201-420

Top-down view of a metallic cylindrical device with four ports and a handle (no visible text or symbols)

18L
Can top view

White plastic bottle with black cap and hose, labeled CK-1002 (no other text or symbols visible)

CK-1100

Product photo of a cleaning tool with a cylindrical container and attached tubing (no visible text or symbols)

ATP-100

PH-METER

PH-PAPER

FOUR HEAD CLEANING CAN

18 LITER STAINLESS STEEL CLEANING CAN

Create your own custom cleaning can with the valves you use. Stainless steel containers should never be used with cleaning chemicals containing chlorine. Always verify ingredients before use.

PART NO. DESCRIPTION

201-420 Complete with any four valves installed, specify valve part numbers

729-005
D SYSTEM
Anheuser-Busch
Beck's
Coors Miller
Yuengling

729-001
S SYSTEM
Heineken
Scottish and
Newcastle

729-003
A SYSTEM
Warsteiner
Paulaner
Spaten

729-004
G SYSTEM
Boddington

729-006
M SYSTEM
Schneider
Aventinus
Einbecker

729-002
U SYSTEM
Guinness
Harp

DIRECT DRAW CLEANER

This simple cleaner and sterilizer is ideal for cleaning direct draw systems. Includes a shatter-proof plastic bottle, HP-300 pump and faucet cleaning attachment. Complete kit includes a faucet brush, faucet wrench, chemical and instructions.

PART NO. DESCRIPTION

CK-1001 1 qt - cleaner only

CK-1002 2 qt - cleaner only

CK-1100 1 qt - complete kit

CK-1200 2 qt - complete kit

HYGIENE METER

The hand-held ATP Hygiene Meter measures the amount of bacteria on a surface. It only takes 15 seconds for a line cleaner to use this device to measure beer lines, faucets, etc. before and after cleaning.

PART NO. DESCRIPTION

ATP-100 ATP hygiene meter

ATP-SWAB Pack of 100 swabs (NOTE: Must be refrigerated)

F.O.B.CA

PH TESTING

Safety first! Always test rinse water to ensure a pH of 7–8.

PART NO. DESCRIPTION

PH-METER Digital pH meter with water temperature compensation

PH-PAPER 50' roll pH test paper

ECONOMICAL PRESSURIZED CLEANING

BOTTLE CAPS

PART NO. DESCRIPTION

M801147KS D System

M808033KS S System

M808041KS U System

M808053KS A System

M808051KS G System

M801135KS M System

801144KS Replacement PRV

BOTTLES / DIP TUBES

PART NO.	DESCRIPTION
M801321KS	50 L bottle
M110008S	50 L dip tube
M801246KS	30 L bottle
M110002 30 L dip tube
M801316KS	15 L bottle
M110003 15 L dip tube
M801222KS	5 L bottle
M110000S	5 L dip tube

CLEANING BOTTLES

Make it quick and easy to clean picnic pumps, direct draw boxes, and short run beer systems. Available with interchangeable bottle caps to fit most couplers.

COMPLETE ASSEMBLIES

Includes bottle, cap and dip tube.

PART NO. DESCRIPTION LITER / GAL

M5-801147 D System 5 / 1.3

M5-808033 S System 5 / 1.3

M5-808041 U System 5/1.3

M5-808053 A System 5/1.3

M5-808051 G System 5 / 1.3

M15-801147 D System 15 / 3.9

M15-808033 S System 15 / 3.9

M15-808041 U System 15 / 3.9

M15-808053 A System 15/3.9

M15-808051 G System 15 / 3.9

50 Liter 15 Liter 30 Liter

5 Liter

IN-PLACE PORTABLE CLEANING

MICRO MATIC SANITIZING SYSTEM

We make it quick, easy and cost effective for any establishment to clean their own draft beer lines. This system can be easily installed in any beer cooler and allows convenient cleaning of draft lines wherever, and as often as needed. To clean the lines, couplers are removed from the keg and attached to a ringmain socket. There is a ringmain socket available to fit any style keg coupler. With a few easy steps, your draft beer lines will be clean and pouring fresh tasting beer.

PART NO.	DESCRIPTION
M802912KS D System
M801184KS S System
M801174KS U System
M802064KS A System
M801180KS G System
M103414 Back plates
M801955KS End stop cap
M900101	Stainless steel mounting board
M900100	Stainless steel mounting board with handle

MOUNTING BOARD WITH SOCKETS

Two mechanical components: a gray cylindrical component with mounting flange and a red plastic fitting (no text or symbols visible)

M801180KSM801174KS03414 M801955KSM802912KS

Close-up of a metallic industrial component with multiple cylindrical components and a coiled cable (no visible text or symbols)

M801184KS
M802064KS
M900100
Shown with back plates and caps installed

A CLEAN GLASS

PROMISES

FRESH BEER TASTE!

BEER CLEAN GLASS RESULTS

• Enhanced aroma and taste.
• Retains a thick, creamy, foam head.
• Beer is sparkling clear and free of gas bubbles.
• Repeat business and added profits.

BEER CLEAN GLASS FACTS

• All glasses should be washed at least once a day.
• Odors and invisible film from smoke can occur in a matter of hours.
• Avoid petroleum-based detergents – they leave an oily residue, destroying a foam head.
• Special low-suds, non-petroleum based detergents are available.

GLASS WASHING TYPES

• For manual washing: Use a 3-tank sink and follow the six easy steps.
• For machine washing: Follow the manufacturer's instructions. Never run glassware with pots, pans, dishes and food utensils.

Lacing effect after every sip Head should remain intact Any bubbles will rise to the head (middle of the glass) No bubbles clinging to the side of the glass

CLEAN GLASS TEST: IS THE GLASS TRULY CLEAN?

Two transparent glass vases with green checkmark and red X mark, no text or symbols present

SHEETING TEST
Water sheets off glass without forming droplets.

Two glass vials with different colors and shapes, one green checkmark and one red X (no text or symbols on the vials themselves)

SALT TEST
Wet glass and shake salt into it. Anywhere there is a grease fi Im the salt will not adhere.

Two glass glasses with different liquid patterns, one marked with a green checkmark and the other with a red X (no text or symbols on the glasses themselves)

LACING TEST
Foam will adhere to the side of the glass after each drink creating rings or a "lacing" pattern. A random pattern will form in a dirty glass.

HEAD RETENTION
A dirty glass produces large coarse bubbles and a rapidly disappearing head. A clean glass will form a thick, creamy head and the beer will be clear of bubbles.

GLASS CLEANING CHEMICALS

A beer clean glass is essential for serving the best tasting beer and realizing the most profit from a keg.

POUCH PACKS

Sold only in packages of 100 pouches.

PART NO. DESCRIPTION PACKAGED

90221 Glass cleaner - manual 100 / 1/2 oz

90224 Glass cleaner - electric 100 / 1/2 oz

90223 Sanitizer 100 / 1/4 oz

BULK TUBS

Sold only as individual tubs.

PART NO. DESCRIPTION PACKAGED

90201 Glass cleaner - manual 2 / 4 lbs

90241 Glass cleaner - electric 2 / 4 lbs

90203 Sanitizer 2 / 25 oz

GLASS CLEANING BRUSHES

PART NO. DESCRIPTION

MP-028 Triple brush and base, 1 per case

MP-045 Replacement brushes only, 3 per case

KGW0813-2

KissKleenTM multi brush cleaner and base, clean the inside and outside of the glass

GLASS WASHERS

HIGH TEMPERATURE

Fagor glass washers utilize high-temperature wash and rinse cycles to produce sparkling results.

FEATURES:

• Built-in electric booster heater raises wash and rinse temperature to the NSF required temperature of 180^ F for sanitation.
- Interior and exterior constructed of heavy-duty 304 stainless steel for durability and long life.

• Stainless steel non-clogging wash arms.
• 100% serviceable from the front.
- High-temperature rinsing is both cost-effective and environmentally-friendly because sanitizing chemicals and chlorine agents are eliminated.
- Call for additional racks and accessories.

MODEL	GLASSES PER HOUR	RACK SIZE	MOTOR HP	OVERALL EXT DIMENSIONS			CRATED WEIGHT
				W D H
CO-402W	792	16" x 16"	1/3	18 1/2"	20 5/8"	29 1/8"	105
CO-502W	1080	20" x 20"	3/4	23 5/8"	23 5/8"	32 3/4"	170

F.O.B. PA

ROTARY

A rotary glass washer is an automatic three-sink washer; within the same compact unit, glassware is washed, rinsed and sanitized with cycles separated by curtains. Simply place glasses on the conveyor, where they begin the cleaning process that results in a sparkling shine. The 150°F water removes lipstick, dried-on fruit pulp and grease. The 75°F rinse ensures the glasses are ready for staff to grab. Replace hand washing and save valuable labor, increase volume and reduce glassware breakage with a rotary glass washer.

MODEL	GLASSES PER HOUR	WASH TANK CAPACITY	WASH PUMP MOTOR	OVERALL EXT DIMENSIONS			CRATED WEIGHT
				W D	H
D-1200	1200	3 gal	1/10 HP	24 1/4"	25 1/4"	39"	210

F.O.B. PA

90221

90224

90223

90201

90241

90203

MP-028

Close-up of black and white mechanical components with a red circular badge labeled 'NEW' (no readable text or symbols on components)

KGW0813-2
KissKleen

Exterior view of a stainless steel kitchen appliance with open door and control panel (no visible text or symbols)

CO-502W

Exterior view of a stainless steel industrial oven (no visible text or symbols)

CO-402W

Exterior view of a stainless steel industrial machine with blue internal components (no visible text or symbols)

D-1200

TOOLS & KEG EQUIPMENT

556 JE-3215 JE-3200 PDT300 C816FS ST1236-31 NSF 4350-HD MP-042 MP-042ES MM-1410040 NEW MP-039 MP-039-STD MP-050 ST-1 NEW SC-10 TSR-1 DSK-1000 3832 5757

THERMOMETERS

PART NO. DESCRIPTION

556	Spirit thermometer with case (0° to 120°F)
JE-3215 1" Dial thermometer with case (0 ° to 220°F)
JE-3200 Digital thermometer with pocket case 1" face (-40 ° to 120°F)
PDT300	Slim digital waterproof thermometer with pocket case (-58° to 300°F)
C816FS	Laser thermometer (0° to 400°F), measure temperature from a distance
ST1236-31	Walk-in cooler thermometer

TOOLS

PART NO. USE DESCRIPTION

4350-HD Faucet Faucet spanner only

MP-042 Faucet Combination faucet spanner & hex nut

MP-042ES Faucet Heavy-duty faucet spanner & hex nut

PART NO. USE DESCRIPTION

MP-039 O-clamp Combination side cutter crimper

MP-039-STD O-clamp Full face, straight jaw crimper

MM-14100407 O-clamp Oetiker designed clamp cut off tool

MP-050 Multi Combination pliers with faucet wrench and screwdriver

ST-1 Multi

Compact plier tool comes with ten features for a multitude of situations. Made of stainless steel, it folds down to 4 1/2" to fit in a leather sheath case on your belt.

DTW4136 Tower 1 1/16" Side opening

D8WP Tower Fits 1 1/16" nuts (limited space fits over elbow)
D8JE	Tower Single 1" opening
D8JE-1	Tower Single 1 1/16" opening
D8ES-CB	Tower	Combination 1' and 1 1/16' openings
SC-100	Hose cutter	Hose cutter
SC-1	Hose cutter	Single replacement blade for SC-100
SC-10	Hose cutter	10 pack replacement blades for SC-100
TSR-1	Hose	Tube sizing rod: verify hose I.D., tool for holding splicers, tailpieces
MPW-6	Multi	Heavy-duty 6-In-1 combination tool: screwdriver, faucet wrench,regulator connection nut, regulator pressure locknut wrench, couplingnut and probe holders
440-18	Regulator	Wrench: one end fits CO2 nut and the other end fits the regulator bonnet
MM-AG1	Reach-in dual end wrench fits 874 hex nut and 610B shank nut

Metal multi-tool with extended blades and a labeled 'ST-1' (no other text or symbols)

NEW SC-100 440-18 MM-AG1

Three adjustable wrenches labeled DTW4136 and D8WP, shown in grayscale (no additional text or symbols)

D8JE OR D8JE-1

D8ES-CB MPW-6 440-18

440-18

NEW MM-AG1

DRAFT SERVICE KIT & TOOL BOXES

PART NO. DESCRIPTION

DSK-1000	Easy-to-carry zipper bag with tools and parts for servicing or making minor repairs
3832	Dual-sided, easy view contents, separate tools and parts
5757	Four drawer, hinge lid with two viewable compartments

7000 & 8000 SERIES BRUSHES

7000 & 8000 Series brushes are designed specifically to clean faucets without causing damage or compromising the brush. Unlike similar brush styles, these bristles remain upright while scrubbing in both directions, rather than bending over and back. This results in less abrasion to the internal surface of your faucets for a longer life and consistent clean.

PART NO. USE BRISTLE MATERIAL BRUSH DIMENSIONS / DESCRIPTION

7350-US U.S. faucet Brass 1/2"D x 3" x 8 1/2"L
7347-SP Side pull Nylon 5/16"D x 3" x 8 1/2"L
7349-USN General Nylon			1/2"D x 3" x 8 1/2"L / standard U.S. faucet and 304
7348-G Stout faucet Nylon 5/16"D x 3" x 8 1/2"L
7346-RT RotoTap Nylon 3/8"D x 3" x 8 1/2"L
8232-58 General Stainless steel 1/2"D x 3" x 8 1/2"L

Medical device with metallic faucet and threaded rod, labeled 7350-US (no text or symbols on the device itself)

Medical or laboratory equipment image showing a syringe and a needle-like tool, labeled '7347-SP' (no other text or symbols visible)

Medical implant device with screw and pin, labeled 7349-USN (no other text or symbols)

Medical or laboratory equipment image showing a needle inserted into a cylindrical rod and a coiled spring-like tool, labeled 7348-G (no text on main subject)

Medical or dental tool with two metallic rods and a loop, labeled '7346-RT' (no other text or symbols visible)

Simple line drawing of a mechanical component with a central rod and circular end (no text or symbols)

BRUSHES

PART NO. USE		BRISTLE MATERIAL BRUSH DIMENSIONS / DESCRIPTION
905W	Faucet	Nylon	3/4" x 3' x 8 1/2"L
905WL	Faucet	Nylon	5/8" x 3 1/2" x 8 3/4"L, tuft end
905-MINI	Misc	Nylon	1/8" x 2' x 6 1/4"
PART NO. USE		BRISTLE MATERIAL BRUSH DIMENSIONS / DESCRIPTION
905W-3127	Misc	Nylon	1/2" x 3/4" x 9 3/4", double end
905-4SS	Misc	Stainless steel	1/4" x 1 1/2" x 7"L
905-3SS	Misc	Stainless steel	3/16" x 1 1/2" x 7"L
905WSS	Faucet	Stainless steel	3/8" x 2' x 8"L
905WESS	Faucet	Stainless steel	5/8" x 2 1/2" x 9"L
762JL	Twin probe	Nylon	Probe brush
1900671	Coupler	Nylon	For D / S Systems
1900670	Coupler	Nylon	For A / M / G Systems
904A	Hose	Nylon	3/16" O.D. x 66"L
904C	Hose	Nylon	3/8" O.D. x 66'L

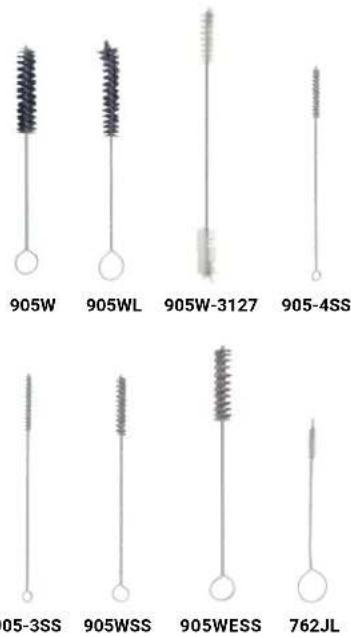

905W 905WL 905W-3127 905-4SS 05-3SS 905WSS 905WESS 762JL

904C

Two red and gray plastic tool holders with screw base, labeled 1900671 and 1900670 (no additional text or symbols)

TOOLS & KEG EQUIPMENT

KT10

Red cylindrical object with metal handles and a small metallic rod attached (no visible text or symbols)

KJ-01

Cylindrical brown object with metal fittings and a small protruding rod (no visible text or symbols)

MM-PKJ

Two objects: a blue circular object with a lid and a woven straw bag with a loop handle (no text or symbols visible)

JEKB-19
MM-RKB

Red rectangular electronic pallet jack with wheels, labeled CD-300 (no additional text or symbols visible)

KC-15-50

KEG HANDLING

KEG TAGS

Save walk-in cooler time and labor when making keg changes. Our easy-to-use keg tags are an efficiency must for every walk-in cooler.

PART NO.

DESCRIPTION

KT10 10 keg tags with zip ties

DURABLE KEG JACKETS

Insulate kegs keeping the cold in. 5 1/2" slot for easy party pump tapping.

PART NO. DESCRIPTION

KJ-01 Red vinyl

MM-PKJ Canvas

HEAVY-DUTY KEG MATS / BUMPERS

Guaranteed to be durable enough for your toughest needs.

PART NO. DESCRIPTION DIMENSIONS

JEKB-19 Rubber keg bumper 19' x 5" Thick

MM-RKB Rope keg bumper filled with a pillow-type cushion to help absorb large impacts

KEG STACKERS AND DOLLIES

PART NO. DESCRIPTION

KS100 Series stacker, save space while allowing two 1/2 barrels to be tapped in a series

KS200 Single stacker, for transport and storage of 1/2 barrels

KS600 Series stacker, allows two 1/6 barrels to be tapped in a series

KS700 Single stacker, for transport and storage of 1/6 barrels

KD-025 Slim 1/4 keg dolly

KD300 1/2 keg dolly

CD-300 Case dolly

KS100 KS200 KD300KD-025
KS600
KS700

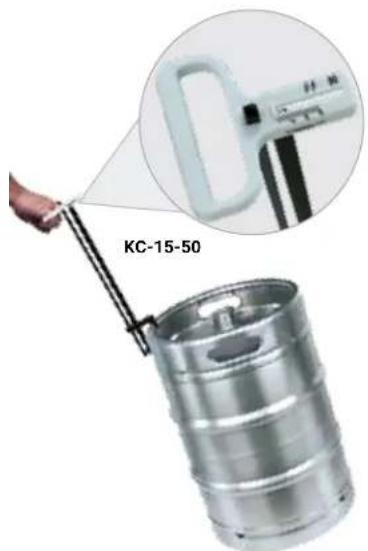

KEGCHECK™

PART NO. DESCRIPTION

KC-15-50

Measure and manage keg sales with Kegcheck ^™ . A simple way to check stock and verify remaining beer volume in the keg. Fits most keg sizes.

EMPTY KEG

HALF KEG

FULL KEG

KEG SHELVING

ALUMINUM KEG SHELVING

Organize a walk-in cooler with aluminum keg shelving.

FEATURES:

• Holds all keg sizes
  • Heavy-duty lightweight aluminum
• Easy load square-bar shelves
• Bullet feet adjust to 1 1/2 ^1
• Easy assembly, ships flat
  • Shelves bolt to posts with anti-slip clamps
• Optional U-frame for side containment
  • 3-shelf models available

Three transparent cylindrical containers on a metal rack, labeled MM-KR204760-2 (no other text or symbols visible)

PART NO. SHELVES DIMENSIONS

MM-KR204736-2 2 20"D x 48"H x 39 3/4"L

MM-KR204760-2 2 20"D x 48"H x 63 3/4"L

MM-KR204780-2 2 20"D x 48"H x 83 3/4"L

MM-KR204793-2 2 20"D x 48"H x 96 3/4"L

HAND TRUCKS

By grouping the desired component and accessory numbers together as shown, you have created your own custom Magliner® Hand Truck to meet your own special needs. An example is shown in the table.

Call your Micro Matic sales representative for replacement parts and custom hand trucks.

Exterior view of a silver and black manual lift truck (no text or symbols visible)

White aluminum half-lift truck with gray wheels (no text or symbols visible)

112-AM-815-C5PK

Exterior view of a silver hard truck with two wheels (no text or symbols visible)

512-AM-815-C5PK

Exterior view of a gray metal hard truck with black wheels and a red vertical rod (no text or symbols visible)

515-UA-1060-C5PK

Exterior view of a silver half-lane truck with two wheels (no text or symbols visible)

116-AM-825516-G1-1060-C5PK-KH

FRAME HANDLE NOSE WHEEL ACCESS 1 12 AM 815 C5 112-AM-815-C5

MAGLINER®
Aluminum/Magnesium Materials Handling Products

OUR MOST POPULAR KEG TRUCK PACKAGES

PART NO. DESCRIPTION

516-G1-1060-C5PK-KH Keg Truck – with stair climbers and keg hook

516-G1-1060-C5PK Keg Truck - with stair climbers

516-G1-1060 Keg Truck - basic model

112-AM-815-C5PK Route Man's - with stair climbers

112-AM-815 Route Man's - basic model

512-AM-815-C5PK Economy Keg Truck – with stair climbers

515-UA-1060-X5PK Loop Handle Keg Truck - with stair climbers

115-UA-1060 High Stack Handler - basic model

116-AM-825-C5PK-52 High Case Stacker - with stair climbers and 52' frame extension

116-AM-825 High Case Stacker - basic model

F.O.B. Factory. Allow two week lead time.

Two identical aluminum half-lane hulaes with black wheels, no text or symbols visible

116-AM-825-C5PK-52
115-UA-1060

DISPENSE SYSTEMS

CASK CONDITIONED

BASIC SYSTEM BASIC SYSTEM

SPILE SHIVE CASK TAP, GRAVITY KEystone

WITH BEER ENGINE

BEER ENGINE CASK TAP, THREADED

EXTENDED SHELF LIFE (CO₂ SYSTEM)

Illustration of a laboratory setup with a gas cylinder, pressure gauges, and a motor (no text or symbols)

LONG DRAW SYSTEM

CASK BREATHER CASK BREATHER SPIGOT SHIVE BEER PUMP BEER ENGINE CHECK VALVE KEystone TAP STILLAGE

BEER ENGINES

Cask conditioned beer is brewed from traditional ingredients and allowed to mature naturally. The unfiltered, unpasteurized beer still contains live yeast, which continues conditioning the beer in the cask (firkin); this process creates gentle, natural carbonation. Cask beers are dispensed without using CO _2 gas and instead by manually pulling it from the cask with a beer engine (hand pump). Pull the perfect pint with an Angram beer engine, the Rolls Royce of beer engines.

FEATURES:

- Fast installation

- Modular design for easy service

• Proven reliability and durability

- Removable drip tray

- Sparkler attachment

PART NO. DESCRIPTION

BE-A-CO Clamp-on Angram CO 1/4 pint, single pull

BE-A-CQ Clamp-on Angram CQ 1/4 pint, single pull with water cooling

BE-A-CM Counter-mount Angram CM 1/2 pint, single pull with water cooling, fits counters up to 2" thick

BE-A-CQ-E Clamp-on Angram CQ 1/4 pint, single pull with water cooling

F.O.B. IL

Two beer taps in a wooden stand, one with clear liquid and the other with white foam (no text or symbols visible)

PULL THE PERFECT PINT WITH AN ANGRAM BEER ENGINE! The Rolls Royce of beer engines. BE-A-CO BE-A-CQ BE-A-CM

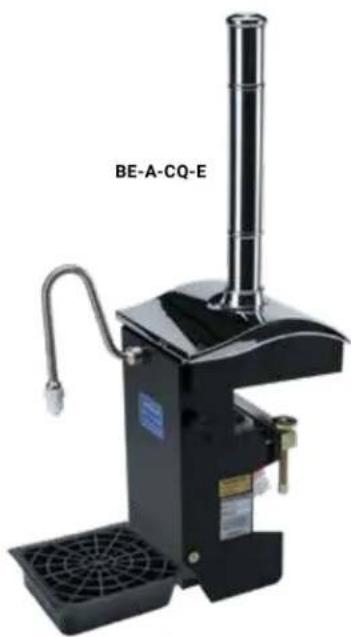

Black industrial machine labeled 'BE-A-CQ-E' with a vertical cylindrical top and side-mounted base (no other text or symbols visible)

ACCESSORIES

PART NO. DESCRIPTION

BE-SPARKLER Angram sparkler

CASK-CV Check valve for use in extreme gravity or gas pump installations

F.O.B. IL

Two mechanical components: a black hexagonal component labeled 'BE-SPARKLER' and a white CASK-CV device with blue handle (no text or symbols on the devices themselves)

CASK CONDITIONED DISPENSE SYSTEMS

CASK WIDGE

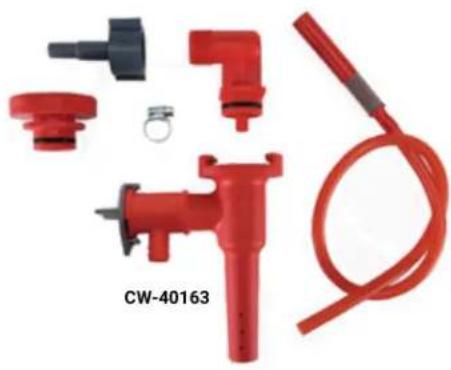

Product photo of red industrial pipe fittings and hoses, no visible text or symbols

The cask widge is an upright dispense system for casks; a flexible hose with a floating filter draws the beer from just below the beer surface in the cask. The floating filter follows the beer down until it reaches the bottom of the cask. By taking beer from below this surface layer, any oxygenation and contamination is prevented from spreading down into the beer below, keeping the beer in its best condition. The cask widge is easy to use and offers on-premise accounts the opportunity to offer real ales at the bar or even now under the counter.

PART NO. DESCRIPTION

CW-40163 Single cask widge, complete kit for firkin to tap, vent and connect beer line in 9 to 11 U.S. gal casks

NOTE: For a pin cut tubing to 17 1/2'. Purchase additional soft spiles (SPILE-S) to use with the cask widge. F.O.B. IL

Black fabric garment with crumpled texture, no visible text or symbols

CJ-30055

PS-30010

Close-up of a metallic wire strand with multiple loops and a loop handle (no text or symbols visible)

CASK TEMPERATURE

PART NO. DESCRIPTION

CJ-30055 Insulating jacket for firkin

PS-30010 Plain for firkin – stainless steel cooling loop for cooling of casks on the back bar (or almost any environment). Easily disconnected from cooling supply with press of a button.

F.O.B. IL

CASK SUPPLIES

CASK TAPPING

PART NO. DESCRIPTION

CASK-TAP-G Gravity dispense tap

CASK-TAP Cask tap 3/4" thread

CASK-NUT Cask tap nut 3/4"

CASK-TP Cask tap tail 3/4"

CASK-HF Hop filter 3/4"

CASK-S Wooden stillage

F.O.B. IL

Wooden frame structure with curved edges and a central square hole, labeled 'CASK-S' at the bottom (no other text or symbols)

CASK-NUT

CASK-TP

CASK-HF

Black mechanical device labeled CASK-TAP-G, no other visible text or symbols

Close-up of a black and white mechanical tool labeled 'CASK-TAP' (no other text or symbols visible)

ACCESSORIES

PART NO. DESCRIPTION

SPILE-H Spile - hard, for sealing cask

SPILE-S Spile - soft, for allowing cask to breathe

SHIVE-W Shive - wooden

SHIVE-P Shive - plastic

KEYSTONE-W Keystone - wooden

KEYSTONE-P Keystone - plastic

F.O.B. IL

SPILE-H SPILE-S

SHIVE-W

White plastic cup with a flat lid, no visible text or symbols

SHIVE-P

KEYSTONE-W

KEYSTONE-P

CASK BREATHER

A cask breather is utilized to extend the life of cask ale by replacing the head space with CO_2 at atmospheric pressure. Note: the use of CO_2 is simply a blanket to protect the ale from exposure to oxygen – not as a pressure source for dispensing. Attach the pressure hose from a CO_2 regulator which has been set at about 5 psi. One cask breather can be used for multiple casks. Order a CASK-B-S spigot for each cask.

PART NO. DESCRIPTION

CASK-B Cask breather only

CASK-B-S Cask breather spigot only

842-15 Double gauge CO _2 regulator with 15 psi gauge

8011-15 Economy secondary regulator, 1 pressure up to 15 psi / 1 product

Close-up of a white circular mechanical component with a central blue star and bolt holes (no text or symbols visible)

Close-up of a white plastic mechanical component with a protruding shaft and flange (no visible text or symbols)

CASK-B-S

Red and gold pressure regulator with dual gauges (no visible text or labels)

842-15

DESIGNER TOWERS

FROM MICRO MATIC

INCREASE DRAFT BEER SALES

The draft beer tower is not just a bar fixture, it is a marketing tool to help increase draft beer sales.

The different shapes, finishes and sizes of the draft beer tower are designed to complement your décor and enhance the point of sale.

Metropolis™ T

MICRO MATIC

Metal pipe fitting with multiple valves and fittings (no text or symbols visible)

Three golden cylindrical objects with handles placed on a base (no text or symbols visible)

Golden industrial valve or torch structure with multiple cylindrical components (no visible text or symbols)

Purple chessboard with black trowers and a central emblem (no visible text or symbols)

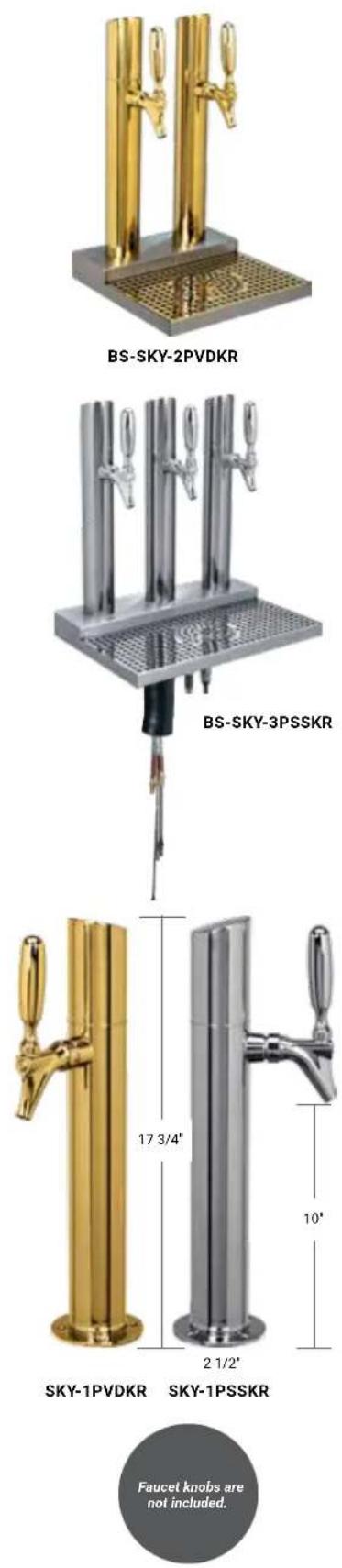

Double Pedestal / Double Service Single Column Skyline

EdgeMetropolis™ H Zenith

Pure electrical circuit lines without any symbols

Metal pipe joint with coiled spring and flange (no text or symbols visible)

Anaconda

Metallic support structure with multiple cylindrical elements arranged in a row (no text or symbols visible)

Close-up of a brass-colored industrial valve or drain stand with multiple black fittings (no visible text or symbols)

Exterior view of a modern office building (no signage)

Kronos™ Pass Thru Falco T-

Metal pipe fitting with multiple vertical connectors (no text or symbols visible)

Close-up of a metallic double-t faucet with four vertical arms and a sharp neck (no text or symbols visible)

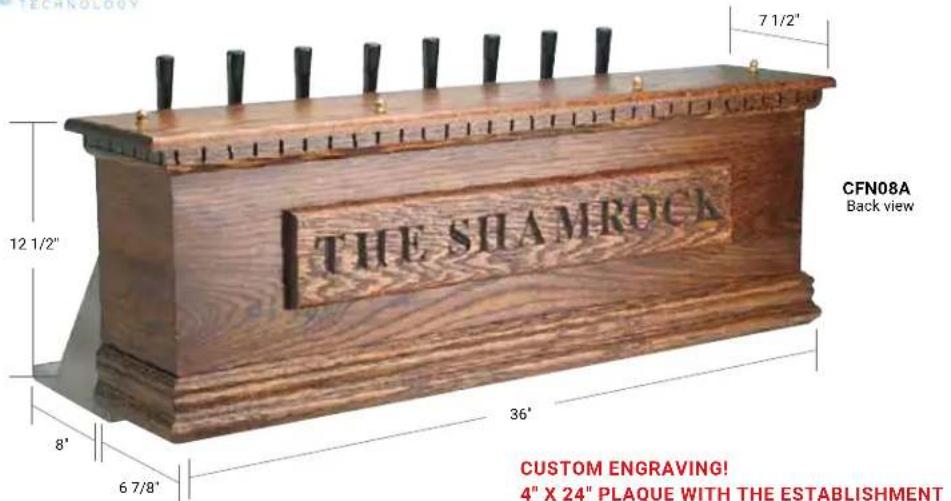

Wooden box labeled 'THE SHAMROCK' with no other visible text or symbols

Biergarten™ Zeus Paris Irish Coffi n Box

CHALLENGE US WITH YOUR VISION

CUSTOM TOWER SOLUTIONS

Micro Matic has established its reputation in the industry as a leading provider of draft dispensing equipment. Our Design Center has created uniquely crafted draft towers to fit the most discriminating bars of world-class hotels, restaurants, clubs, and venues. The draft beer experience begins at first glance.

In addition to producing custom components for your draft system, we offer a wide range of products to complete the installation. We are committed to providing maximum quality and value within the budget, technical and time requirements of your project.

Close-up of a metallic jet engine component with glossy finish (no visible text or symbols)

Exterior view of a brick wall with a red fire hydrant and several hanging objects (no visible text or symbols)

Close-up of industrial piping and valves in a factory setting (no visible text or symbols)

If you think it, we will build it

We work with you to build and design your dream

• One faucet or one hundred faucets
- Mounted from the ceiling
- Wrap around a bar top corner
• Color? Choose from hundreds

• Finish? Polished or brushed stainless steel and non-tarnish PVD
• One-off design, or production run for multi-chain concept

BEST-IN-CLASS LEAD TIME IN THE INDUSTRY ORDER TODAY!

DREAM IN COLOR

Custom colors for a crafted look

Choose a draft tower and a custom color to complement your bar top. We offer a variety of powdercoat finishes in solid colors, metallics and textures.

Trans Blue Little Red Wagon Metallic Bronze Gold Nugget Blue Streak II Copper O.B. Gold Golo Rush Vein P. Copper Vein Safety Yellow P. Vein Silver Quicksilver II Evergreen Safety Orange Dark Green

Powdercoat colors are ONLY shown to provide an overview of the color and finish selections available. For the full-line of color availability or if actual color chips are needed, please contact your Micro Matic sales representative. Due to variations in printing actual colors may vary.

"Draft is the focal point for our concept. We have a great relationship with Micro Matic to produce our unique tower for all our locations."

- On-Premise Manager, Regional Concept Chain

POURS COLD. EVERY TIME. NO LEAKS. EVER.

TOWER BODY HOUSING

THERMAL FOIL TAPE

Improves cooling transfer

between coolant and

product lines

FOAM INSULATION

TOWER INSERT

Is completely filled for

temperature control

TRIPLE LAYER

INSULATION SYSTEM

FOAM INSULATION

Maintains temperature

from trunkline to

Kool-Rite" module

STAINLESS STEEL

BARB END

For the best in product

purity. Barb end TIG

welded to ensure leak

proof joint. Barb fi ts1/4",

5/16" or 3/8" trunkline

COPPER COOLANT LINE Direct contact with cold block, held in place with secure tab 102-167 DOUBLE O-RING Eliminates leaks, if the shank is loo 304 SS All Kool-Rite™ to include 304 grade s steel components Kool-Rite™ equipped are NSF Certif

PATENTED DOUBLE

"D" COLD BLOCK

Locks into tower insert

to prevent rotation

PRODUCT PATH

Optimum cooling at

the point of dispense

LEAK PROOF

STAINLESS

STEEL SHANK

Screws directly

into cold block for

maximum cooling

102-167

DOUBLE O-RINGS

Eliminates leaks, even

if the shank is loose

304 SS

All Kool-Rite ^™ towers

include 304 grade stainless

steel components. Most

Kool-Rite ^™ equipped towers

are NSF Certifi ed.

Close-up of two metallic chrome faucet handles against a dark background (no text or symbols visible)

NEW INNOVATION

KOOL-RITE™ FLOW CONTROL SHANKS

CONTROL AT THE POINT OF DISPENSE.

COMPENSATOR

Everything that makes Kool-Rite™ technology the choice in glycol dispensing, now with flow adjustment at the faucet. It's easy to replace existing Kool-Rite™ shanks in the field. Simply unscrew and replace with a built-in flow control shank or order your Kool-Rite™ tower with flow control shanks installed.

PART NO. DESCRIPTION

751-500-304-FC 3" Kool-Rite™ flow control shank, 304 stainless steel

751-500-304-FCL 4' Kool-Rite™ flow control shank, 304 stainless steel

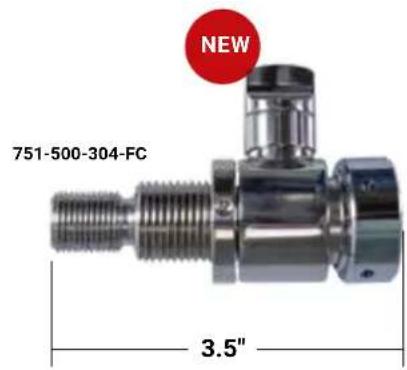

NEW 751-500-304-FC 3.5"

751-500-304-FCL NEW 4.5"

Close-up of a metallic mechanical component with threaded end and flange (no visible text or symbols)

Flow control adjustment knob

Close-up of four metallic pipe fittings attached to a metal curtain (no text or symbols visible)

KOOL-RITE™ MODULES

ENGINEERING

THE POUR

The foundation of dispensing draft beer is keeping it consistently cold, at every stage from keg to glass. Since its introduction, Kool-Rite™ technology revolutionized the dispense industry. Kool-Rite™ guarantees cold beer at the point of dispense – first pour, every pour – with leak-free performance.

Kool-Rite™ modules feature 304 grade stainless steel, ensuring the integrity of every beer poured. With its smooth surface and natural resistance to corrosion, you can depend on 304 grade stainless steel for the most hygienic dispense system. No pitting to harbor bacteria. No off-metallic tastes.

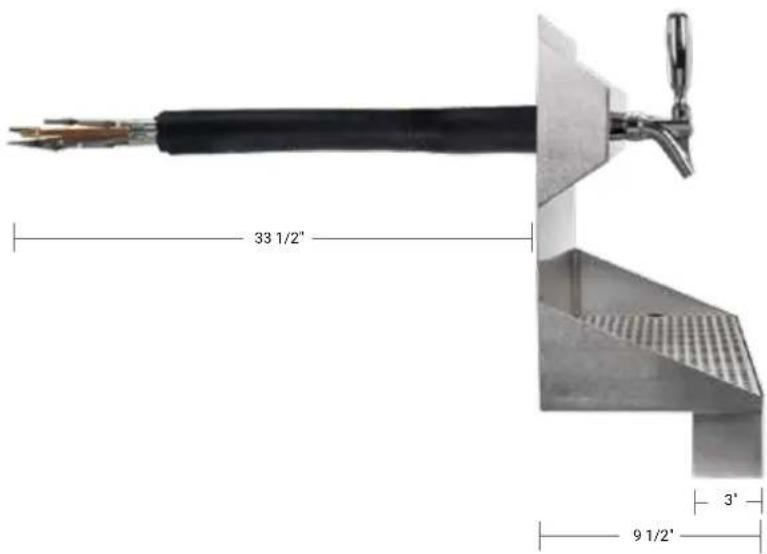

CUSTOM KOOL-RITE™ MODULES

Close-up of metallic mechanical components mounted on a cylindrical shaft against a grid-patterned ceiling (no visible text or symbols)

Exterior view of a vintage metal rack with curved metal components on a wooden table, overlooking water and greenery (no signage or text visible)

WITH OUR KOOL-RITE TECHNOLOGY YOUR IMAGINATION IS THE ONLY LIMIT.

The Kool-Rite™ system is designed as a stand-alone dispensing module; specific modules are crafted to fit Micro Matic standard or custom towers.

KOOL-RITE TECHNOLOGY

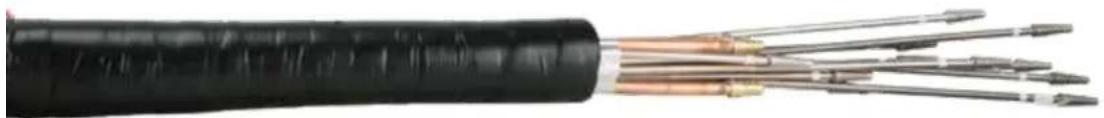

KOOL-RITE INSERT™

Kool-Rite™ technology is the foundation for most of our glycol-cooled towers. The Kool-Rite™ insert is available as an independent module, allowing for creative enclosures to surround it. Create a tower unique to the on-premise design or mount directly through a wall. The possibilities with a Kool-Rite™ insert are only limited by imagination.

Close-up of a metal tool with multiple spools and a black handle, labeled '1736-S Center outlet' (no other text or symbols visible)

Close-up of a black cable with exposed internal wires and copper insulation (no text or symbols visible)

Choose shank length depending on wall thickness between Kool-Rite™ insert and wall mount tray. Includes: 304 stainless steel faucet and shank with 1/4" O.D. tube and chrome flanges. NSFcertified.

PART NO.	FAUCETS CENTER		SHANK LENGTH	OUTLET/ DIRECTION	RESTRICTION DISPENSE SYSTEM
1734-S	6	3 1/2"	1 5/8"	Tube / CTR	7 1/2 lbs	Kool-RiteTM (Glycol)
1734-L	6	3 1/2"	2 5/8"	Tube / CTR	7 1/2 lbs	Kool-RiteTM (Glycol)
1740-S	6	3 1/2"	1 5/8"	Tube / Side	7 1/2 lbs	Kool-RiteTM (Glycol)
1740-L	6	3 1/2"	2 5/8"	Tube / Side	7 1/2 lbs	Kool-RiteTM (Glycol)
1735-S	8	3"	1 5/8"	Tube / CTR	7 1/2 lbs	Kool-RiteTM (Glycol)
1735-L	8	3"	2 5/8"	Tube / CTR	7 1/2 lbs	Kool-RiteTM (Glycol)
1741-S	8	3"	1 5/8"	Tube / Side	7 1/2 lbs	Kool-RiteTM (Glycol)
1741-L	8	3"	2 5/8"	Tube / Side	7 1/2 lbs	Kool-RiteTM (Glycol)
1736-S	10 3' 1 5/8" Tube / CTR 7 1/2 lbs Kool-RiteTM (Glycol)
1736-L	10	3"	2 5/8"	Tube / CTR	7 1/2 lbs	Kool-RiteTM (Glycol)
1737-S	12	3"	1 5/8"	Tube / CTR	7 1/2 lbs	Kool-RiteTM (Glycol)
1737-L	12 3' 2 5/8" Tube / CTR 7 1/2 lbs Kool-RiteTM (Glycol)
1738-S	14	3"	1 5/8"	Tube / CTR	7 1/2 lbs	Kool-RiteTM (Glycol)
1738-L	14	3"	2 5/8"	Tube / CTR	7 1/2 lbs	Kool-RiteTM (Glycol)
1739-S	16	3"	1 5/8"	Tube / CTR	7 1/2 lbs	Kool-RiteTM (Glycol)
1739-L	16	3"	2 5/8"	Tube / CTR	7 1/2 lbs	Kool-RiteTM (Glycol)

Max Wall Thickness 2 1/8" 3 5/8" 751-475-304L Extra long

Max Wall Thickness 1 1/8" 2 5/8" 751-475-CB-304 Long

Max Wall Thickness 1/8" 1 5/8" 751-475-304 Short

KOOL-RITE

Close-up of a multi-wire electrical connector with metal clamps and wires, labeled '1741-S' (no other text or symbols visible)

Side outlet, position of faucets
may be reversed

DRIP TRAY SELECTIONS

PART NO.	DIMENSIONS	SHANK HOLES	HOLE CENTERS	GLASS RINSER	GRILL
DP-322ELD-6	24"W x 6 3/8"D x 14"H	6	3 1/2"		Louver
DP-322ELD-6GR	24"W x 6 3/8"D x 14"H	6	3 1/2"	Included	Perforated
DP-322ELD-8	24"W x 6 3/8"D x 14"H	8	3'		Louver
DP-322ELD-8GR	24"W x 6 3/8"D x 14"H	8	3'	Included	Perforated
DP-332ELD-10-3	36"W x 6 3/8"D x 14"H	10	3'		Louver
DP-332ELD-12-3	36"W x 6 3/8"D x 14"H	12	3'		Louver
DP-332ELD-14-3	48"W x 6 3/8"D x 14"H	14	3'		Louver
DP-332ELD-16-3	48"W x 6 3/8"D x 14"H	16	3'		Louver

WALL OR TOWER SHELL TOTAL WALL OR TOWER SHELL THICKNESS KOOL-RITE O-RING ENGAGEMENT FOR PROPER SEALING KOOL-RITE SHANK

Metal plate with perforated edges and a side grout, labeled DP-322ELD-8 (no other text or symbols)

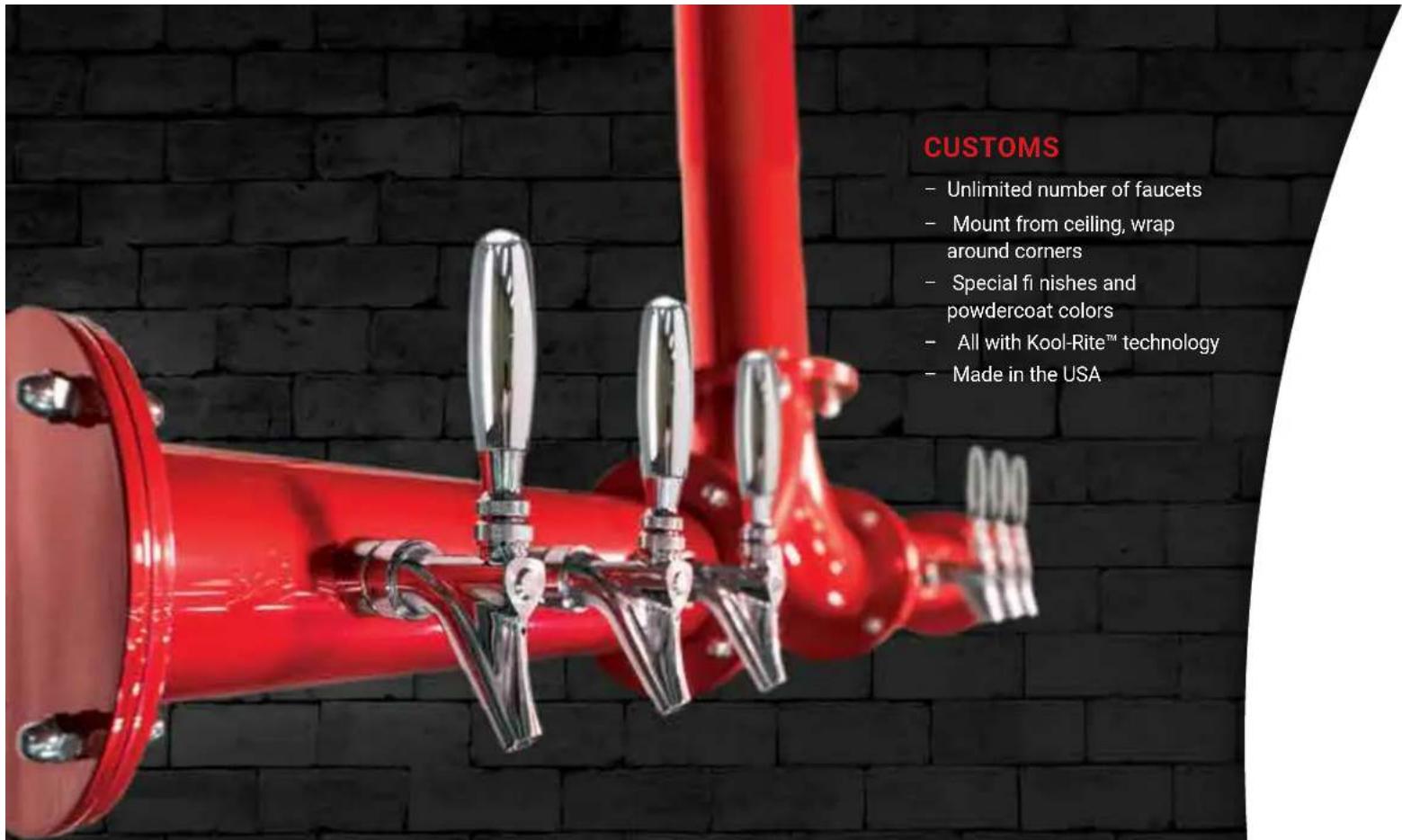

CUSTOMS - Unlimited number of faucets - Mount from ceiling, wrap around corners - Special fi nishes and powdercoat colors - All with Kool-Rite™ technology - Made in the USA

BREWERY PIPE

CRAFT THE BREWERY LOOK FOR YOUR BAR TOP

SERIES

BIERGARTEN™ - 3" diameter pipes - In stock - Value priced - Kool-Rite™ technology TITAN™ - 4" diameter pipes - In stock - Custom colors and multi configurations available - Kool-Rite™ technology

BIERGARTEN™

The Biergarten™ series offers a brewery-pipe style but with slimmed down proportions. The design features contrast between the 3" diameter uprights and crossbar and 6" flanges. Biergarten™ towers are constructed from stainless steel tubes finished to a high polish. Provide choice for draft beer customers: 8, 10, and 12 faucet towers in-stock! The Biergarten™ series 304 stainless steel faucets are all glycol cooled using Kool-Rite™ technology. F.O.B. CA, IL, PA, FL

39° BG-U-12KR 18 7/8" 3" 14 1/4" 52 3/4"

BIERGARTEN™ "U" - 3" COLUMN

Kool-Rite™ (glycol cooled) includes: 304 stainless steel faucet & shank with 1/4" O.D. tube. NSF certified.

PART NO.	FAUCETS	FINISH	LENGTH	OUTLET	RESTRICTION	DISPENSE SYSTEM
BG-U-8KR	8	Polished SS	40 3/4"	Tube	10 1/2 lbs	Kool-RiteTM (Glycol)
BG-U-10KR	10	Polished SS	46 3/4"	Tube	10 1/2 lbs	Kool-RiteTM (Glycol)
BG-U-12KR	12	Polished SS	52 3/4"	Tube	10 1/2 lbs	Kool-RiteTM (Glycol)

BIERGARTEN™ 3" DIAMETER PEDESTAL EXTENSIONS WITH FLANGES

Polished stainless steel, no hardware included, made to order.

KOOL-RITE

DRIP TRAY SELECTIONS

PART NO.	FAUCETS	SERIES TYPE	FINISH	DIMENSIONS	GLASS RINSER
DP-120D-30	8	Surface mount	SS	30"W x 5"D x 3/4"H
DP-120D-30GR	8	Surface mount	SS	30"W x 5"D x 3/4"H	Included
DP-820D-30	8	Surface mount	SS	30"W x 8"D x 3/4"H
DP-820D-30GR	8	Surface mount	SS	30"W x 8"D x 3/4"H	Included
DP-120D-33	10	Surface mount	SS	33"W x 5"D x 3/4"H
DP-820D-33	10	Surface mount	SS	33"W x 8"D x 3/4"H
DP-820D-33GR	10	Surface mount	SS	33"W x 8"D x 3/4"H	Included
DP-120D-39	12	Surface mount	SS	39"W x 5"D x 3/4"H
DP-820D-39	12	Surface mount	SS	39"W x 8"D x 3/4"H
DP-820D-39GR	12	Surface mount	SS	39"W x 8"D x 3/4"H	Included

Scanned text of a document with Chinese characters and a circular emblem, likely a formal or official record.

DP-120D-30GR

Rectangular metal grate with uniform grid pattern (no text or symbols)

DP-820D-30

18 7/8" 6" 3"

BG-U-12KR
Side view

Metal pipe connection with spiral connectors and flanges (no text or symbols visible)

Faucet knobs are not included.

DRAFT TOWER PORTFOLIO

19 3/4" 7" 4"

TT-U-8KR-11 Side view

TITAN™

Brewery-pipe style with heroic proportions characterizes the Titan™ series. Impressive, eye-catching 4" diameter uprights and crossbar are contrasted with 7" flanges. The Titan™ series body is constructed with heavy-duty stainless steel tubes and flanges polished to a tarnish-resistant, mirror-like finish. Titan™ series towers feature glycol cooled 304 stainless steel faucets using Kool-Rite™ Technology. Available in two styles: U-shape or Y-shape. In stock in five faucet configurations.

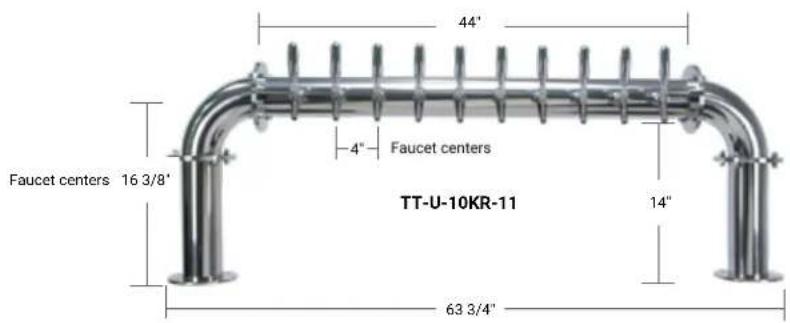

44" 4" Faucet centers 16 3/8" 14" 63 3/4" TT-U-10KR-11

Metallic industrial pipe support structure with no visible text or symbols

DP-120D-33

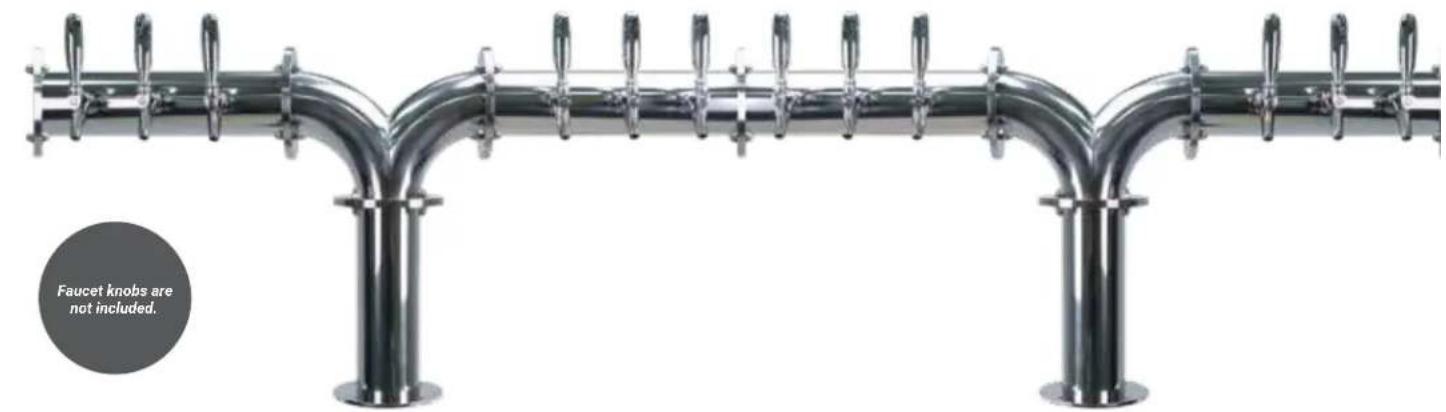

TITAN™ "U" - 4" COLUMN

Kool-Rite™ (glycol cooled) includes: 304 stainless steel faucet & shank with 1/4" O.D. tube. NSF certified.

PART NO.	FAUCETS	FINISH	LENGTH	OUTLET	RESTRICTION	DISPENSE SYSTEM
TT-U-8KR-11	8	Polished SS	55 3/4"	Tube	10 1/2 lbs	Kool-RiteTM (Glycol)
TT-U-10KR-11	10	Polished SS	63 3/4"	Tube	10 1/2 lbs	Kool-RiteTM (Glycol)
TT-U-12KR-11	12	Polished SS	71 3/4"	Tube	10 1/2 lbs	Kool-RiteTM (Glycol)

KOOL-RITE

DRIP TRAY SELECTIONS

PART NO.	FAUCETS	SERIES TYPE	FINISH	DIMENSIONS	GLASS RINSER
DP-120D-33	8-U	Surface mount	SS	33"W x 5"D x 3/4"H
DP-820D-33	8-U	Surface mount	SS	33"W x 8"D x 3/4"H
DP-820D-33GR	8-U	Surface mount	SS	33"W x 8"D x 3/4"H	Included
DP-120D-45	10-U / 6-Y	Surface mount	SS	45"W x 5"D x 3/4"H
DP-120D-45GR	10-U / 6-Y	Surface mount	SS	45"W x 5"D x 3/4"H	Included
DP-820D-45	10-U / 6-Y	Surface mount	SS	45"W x 8"D x 3/4"H
DP-820D-45GR	10-U / 6-Y	Surface mount	SS	45"W x 8"D x 3/4"H	Included
DP-120D-51	12-U / 8-Y	Surface mount	SS	51"W x 5"D x 3/4"H
DP-820D-51	12-U / 8-Y	Surface mount	SS	51"W x 8"D x 3/4"H
DP-820D-51GR	12-U / 8-Y	Surface mount	SS	51"W x 8"D x 3/4"H	Included

Grid-patterned surface with a circular hole in the center (no text or symbols)

Faucet knobs are not included.

TITAN™

TITAN™ "L" - 4" COLUMN
Kool-Rite™ (glycol cooled) includes: 304 stainless steel faucet & shank with 1/4" O.D. tube. NSF certified.

PART NO.	FAUCETS	FINISH	LENGTH	OUTLET	RESTRICTION	DISPENSE SYSTEM
TT-L-3KR-11	3	Polished SS	27 1/8"	Tube	10 1/2 lbs	Kool-Rite ^TM (Glycol)
TT-L-4KR-11	4	Polished SS	31 1/8"	Tube	10 1/2 lbs	Kool-Rite ^TM (Glycol)
TT-L-6KR-11	6	Polished SS	39 1/8"	Tube	10 1/2 lbs	Kool-Rite ^TM (Glycol)

KOOL-RITE

Metal pipe fitting with four vertical supports and a flanged end, labeled TT-L-4KR-11 (no other text or symbols visible)

Faucet centers 16 3/8" TT-L-6KR-11 14" 39 1/8"

TITAN™ "Y" - 4" COLUMN

Kool-Rite™ (glycol cooled) includes: 304 stainless steel faucet & shank with 1/4" O.D. tube. NSF certified.

PART NO.	FAUCETS	FINISH	LENGTH	OUTLET	RESTRICTION	DISPENSE SYSTEM
TT-Y-6KR-11	6	Polished SS	44 3/4"	Tube	10 1/2 lbs	Kool-RiteTM (Glycol)
TT-Y-8KR-11	8	Polished SS	52 1/2"	Tube	10 1/2 lbs	Kool-RiteTM (Glycol)
TT-Y-12KR-11	12	Polished SS	68 3/4"	Tube	10 1/2 lbs	Kool-RiteTM (Glycol)

KOOL-RITE

TITAN™ 4" DIAMETER PEDESTAL EXTENSIONS WITH FLANGES

Polished stainless steel, no hardware included, made to order.

44 3/4" TT-Y-6KR-11

Close-up of a metallic Y-shaped pipe fitting with bolted joints and flange (no text or symbols visible)

TT-Y-6KR-11

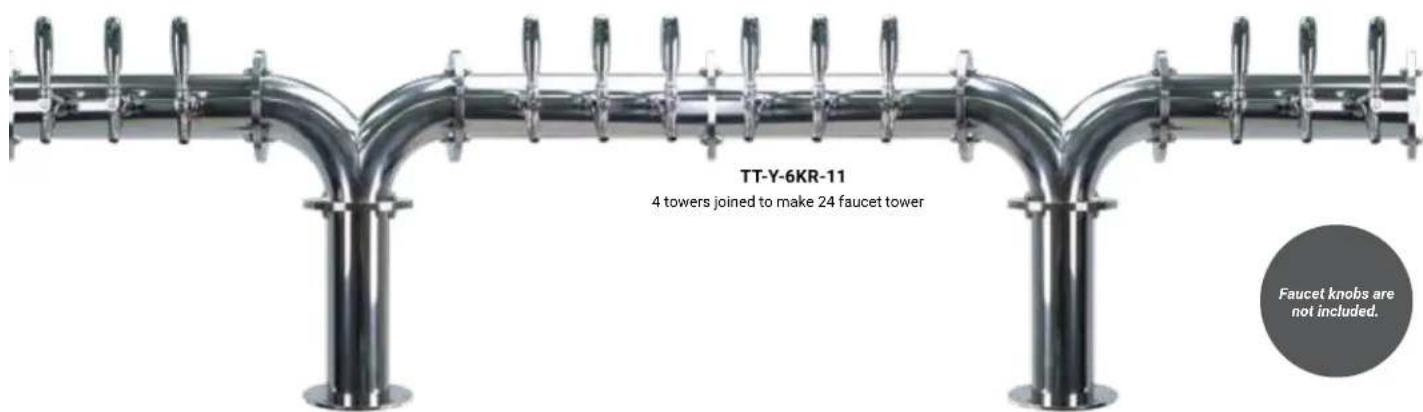

TT-Y-6KR-11 4 towers joined to make 24 faucet tower Faucet knobs are not included.

MICROMATIC.COM

Faucet knobs are not included.

OUR EXCLUSIVE TOWER DESIGN

METROPOLIS

Row of metallic industrial valves with flanged ends, no visible text or symbols

METROPOLIS "WM"

Save valuable counter space with this impressive wall mount tower.

METROPOLIS "T"

Our most popular tower!

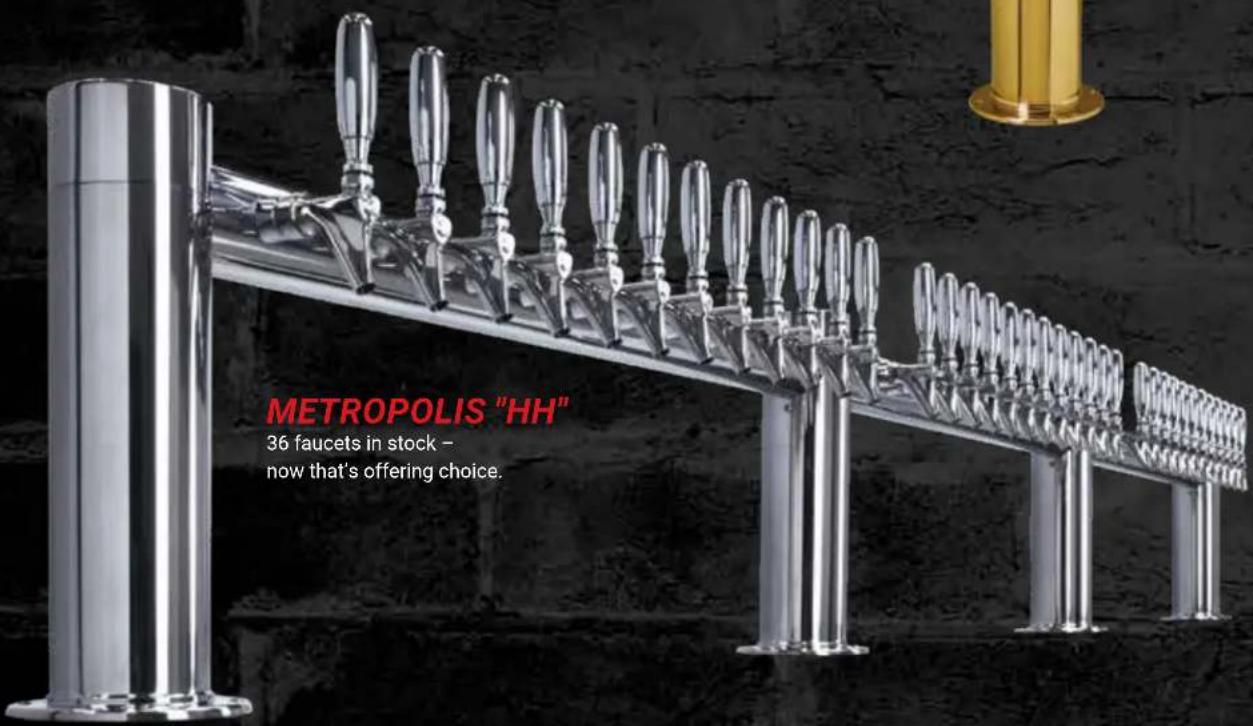

METROPOLIS "HH" 36 faucets in stock - now that's offering choice.

METROPOLIS "HH"

36 faucets in stock – now that's offering choice.

METROPOLIS™ "T"

"T" STYLE TOWERS

Our popular Metropolis ^™ series offers a dramatic art deco look. Choose either polished stainless steel or tarnish-free PVD brass finish for a durable draft tower.

4" COLUMN

Kool-Rite™ (glycol cooled) includes: 304 stainless steel faucet & shank with 1/4" O.D. tube. NSF certified.

PART NO.	FAUCETS	FINISH	LENGTH	OUTLET	RESTRICTION	DISPENSE SYSTEM
METRO-T-4PVDKR*	4	PVD brass	24"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
METRO-T-4PSSKR*	4	Polished SS	24"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
METRO-T-6PVDKR*	6	PVD brass	24"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
METRO-T-6PSSKR*	6	Polished SS	24"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
METRO-T-8PVDKR	8	PVD brass	24"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
METRO-T-8PSSKR	8	Polished SS	24"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
METRO-T-8PVDKR-4	8	PVD brass	34"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
METRO-T-8PSSKR-4	8	Polished SS	34"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
METRO-T-10PVDKR	10	PVD brass	34"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
METRO-T-10PSSKR	10	Polished SS	34"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)

*Medallion towers available, ask a sales associate for more information.

KOOL RITE

34" 4" METRO-T-8PSSKR-4

DRIP TRAY SELECTIONS

PART NO.	FAUCETS	SERIES TYPE	FINISH	DIMENSIONS
DP-MET-T-24-Z	4 - 8*	Surface mount	SS	24"W x 8 1/2"D x 3/4"H
DP-MET-T-24GR-Z	4 - 8*	Rinser	SS	24"W x 8 1/2"D x 3/4"H
DP-MET-T-PVD-24-Z	4 - 8*	Surface mount	PVD with SS	24"W x 8 1/2"D x 3/4"H
DP-MET-T-PVD-24GR-Z	4 - 8*	Rinser	PVD with SS	24"W x 8 1/2"D x 3/4"H
DP-MET-T-34-Z	8 - 10	Surface mount	SS	34"W x 8 1/2"D x 3/4"H
DP-MET-T-34GR-Z	8 - 10	Rinser	SS	34"W x 8 1/2"D x 3/4"H
DP-MET-T-PVD-34-Z	8 - 10	Surface mount	PVD with SS	34"W x 8 1/2"D x 3/4"H
DP-MET-T-PVD-34GR-Z	8 - 10	Rinser	PVD with SS	34"W x 8 1/2"D x 3/4"H
DP-1606	4 - 6	Rinser	SS	31 1/2"W x 15"D x 3/4"H
DP-1608	8 - 10	Rinser	SS	47 1/4"W x 19 3/4"D x 3/4"H

*8 faucet for 24" wide towers

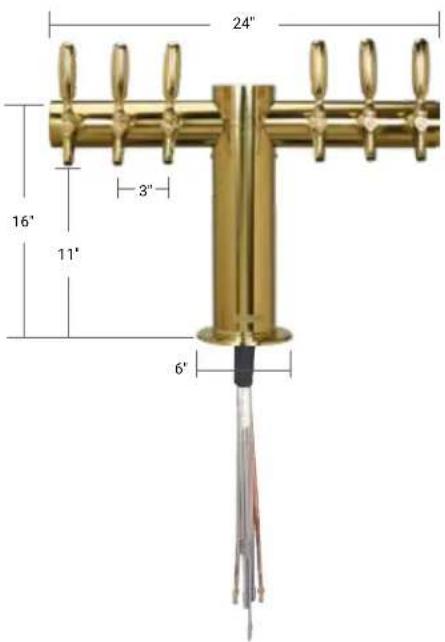

24" 16' 3" 11" 6"

METRO-T-6PVDKR

Grid-patterned object with a central curved shape, no visible text or symbols

DP-MET-T-24-Z

Grid-patterned object with a curved top edge and circular inset (no text or symbols)

DP-MET-T-24GR-Z

Transparent plastic tray with evenly spaced small dots, no visible text or symbols

DP-1606
Built-in rinser

DRAFT TOWER PORTFOLIO

Exterior view of a modern office building (no signage)

METROPOLIS™ "M"

"M" STYLE TOWERS

Our popular Metropolis™ series offers a dramatic art deco look. Choose either polished stainless steel or tarnish-free PVD brass finish for a durable draft tower.

3 PEDESTALS - 4" DIAMETER COLUMN

Kool-Rite™ (glycol cooled) includes: 304 stainless steel faucet & shank with 1/4" O.D. tube. NSF certified.

PART NO.	FAUCETS	FINISH	LENGTH	OUTLET	RESTRICTION	DISPENSE SYSTEM
METRO-M-20PVDKR	20	PVD brass	74"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
METRO-M-20PSSKR	20	Polished SS	74"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
METRO-M-24PVDKR	24	PVD brass	86"	Tube	8 1/2 lbs	Kool-RiteTM (Glycol)
METRO-M-24PSSKR	24	Polished SS	86"	Tube	8 1/2 lbs	Kool-RiteTM (Glycol)

KOOL-RITE

84" 3" 11" 6" 16" METRO-M-24PSSKR

Technical illustration of a metal pipe with helical connectors and a 6-inch base, labeled METRO-HH-36PSSKR (no text or symbols on the diagram itself)

Faucet knobs are not included.

Technical illustration of a metallic pipe fitting with multiple side slots and flanges, labeled METRO-WM-10PSSKR (no text or symbols on the diagram itself)

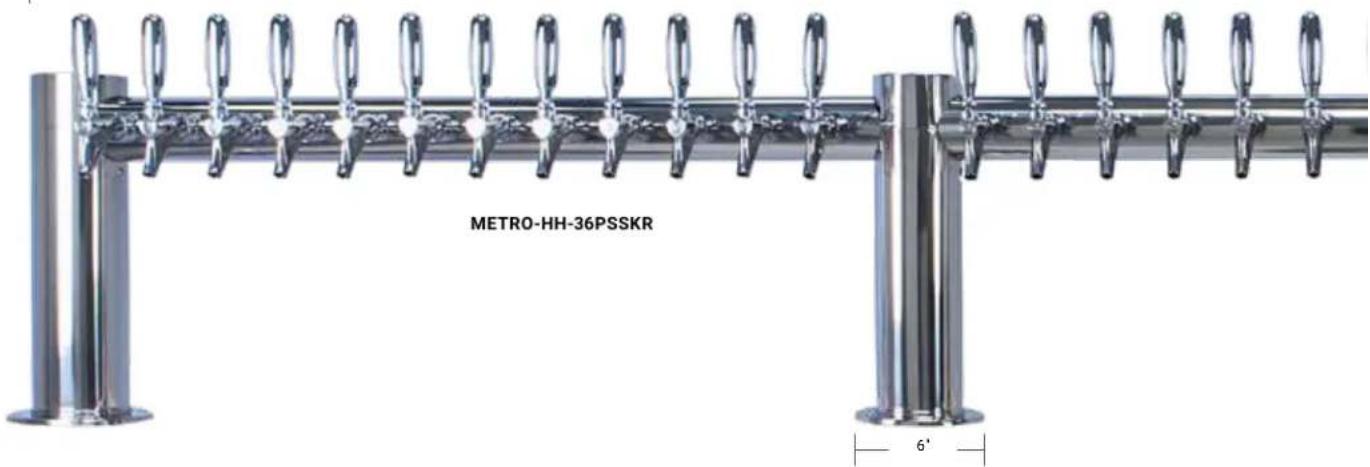

METROPOLIS™ "HH"

"HH" STYLE TOWERS

Metropolis ^™ now offers more choice on tap – up to 36 faucets! Clean design is a hallmark of our Metropolis ^™ series. The HH edition shows off the contrast of 4" upright diameter tubes with 3" diameter cross tubes.

4 PEDESTALS - 4" DIAMETER COLUMN

Kool-Rite™ (glycol cooled) includes: 304 stainless steel faucet & shank with 1/4" O.D. tube. NSF certified.

PART NO.	FAUCETS	FINISH	LENGTH	OUTLET	RESTRICTION	DISPENSE SYSTEM
METRO-HH-30PSSKR	30	Polished SS	108"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
METRO-HH-36PSSKR	36	Polished SS	126"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)

KOOL-RITE

DRIP TRAY SELECTIONS

PART NO.	FAUCETS	SERIES TYPE	FINISH	DIMENSIONS
DP-MET-H-34-Z	10*	Surface mount	SS	34"W x 8 1/2"D x 3/4"H
DP-MET-H-34GR-Z	10*	Rinser	SS	34"W x 8 1/2"D x 3/4"H
DP-MET-H-PVD-34-Z	10*	Surface mount	PVD with SS	34"W x 8 1/2"D x 3/4"H
DP-MET-H-40-Z	12*	Surface mount	SS	40"W x 8 1/2"D x 3/4"H
DP-MET-H-40GR-Z	12*	Rinser	SS	40"W x 8 1/2"D x 3/4"H
DP-MET-H-PVD-40-Z	12*	Surface mount	PVD with SS	40"W x 8 1/2"D x 3/4"H

*NOTE: Order three trays for Metropolis® HH towers. Order two trays for Metropolis® M towers.

Exterior view of a modern metal bridge structure with multiple vertical posts (no signage or text)

DP-MET-H-40-Z

Grid-patterned surface with uniform dark dots and a small circular mark at the bottom right (no text or symbols)

DP-MET-H-40GR-Z

124" 3" 11" 16"

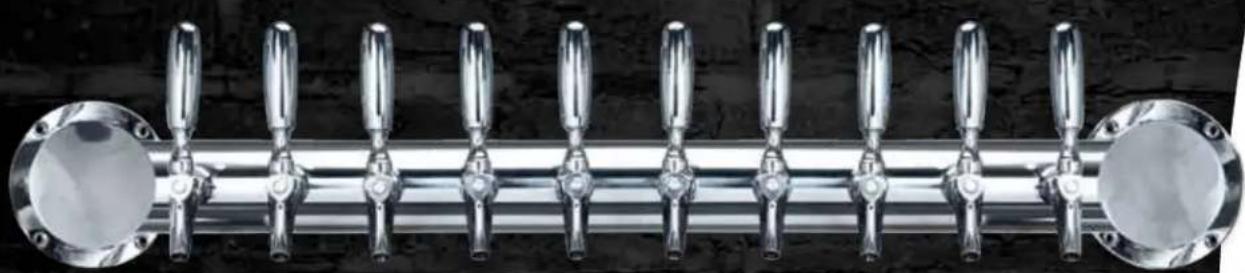

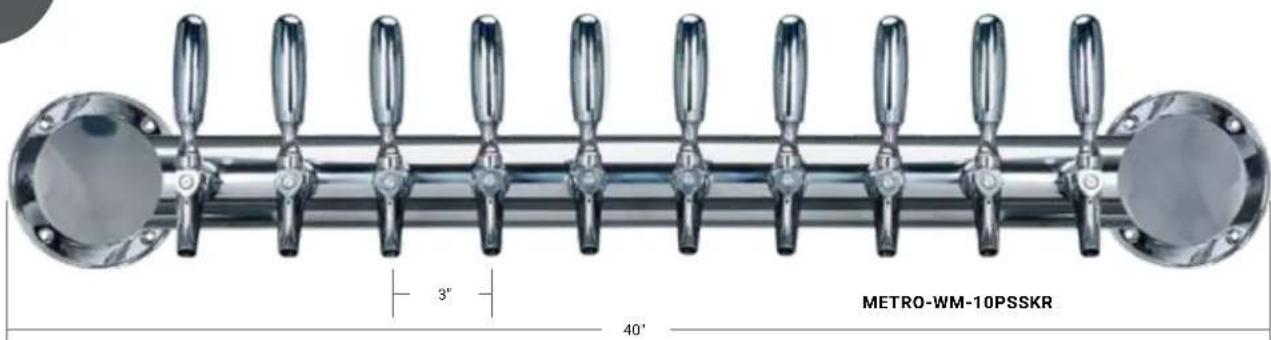

METROPOLIS™ "WM"

WALL MOUNT STYLE TOWERS

The clean style of our popular Metropolis ^™ series is available in a wall mount configuration. Many on-premise locations have limited counter space to mount a draft tower on top of the bar. Consider mounting the beer tower to the wall with the beer and coolant lines extending into the space behind the bar. Metropolis ^™ wall mount models are polished stainless steel for a durable mirror-like finish. Complete assembly includes interior wall-mounting flanges.

4" COLUMN

Kool-Rite™ (glycol cooled) includes: 304 stainless steel faucet & shank with 1/4" O.D. tube. NSF certified.

PART NO.	FAUCETS	FINISH	LENGTH	OUTLET	RESTRICTION	DISPENSE SYSTEM
METRO-WM-10PSSKR	10	Polished SS	40^	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
METRO-WM-12PSSKR	12	Polished SS	46^	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
METRO-WM-20PSSKR	20	Polished SS	74^	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
METRO-WM-24PSSKR	24	Polished SS	86^	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)

KOOL-RITE

MICROMATIC.COM

3D rendering of a metallic mechanical component with flanged ends and a central shaft, shown with dimension lines (no text or symbols)

Side view

DRAFT TOWER PORTFOLIO

METROPOLIS™ "H"

4" COLUMN

Kool-Rite™ (glycol cooled) includes: 304 stainless steel faucet & shank with 1/4" O.D. tube. NSF certified.

PART NO.	FAUCETS	FINISH	LENGTH	OUTLET	RESTRICTION	DISPENSE SYSTEM
METRO-H-8PVDKR	8	PVD brass	34"	Tube	8 1/2 lbs	Kool-RiteTM (Glycol)
METRO-H-8PSSKR	8	Polished SS	34"	Tube	8 1/2 lbs	Kool-RiteTM (Glycol)
METRO-H-10PVDKR	10	PVD brass	40"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
METRO-H-10PSSKR	10	Polished SS	40"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
METRO-H-12PVDKR	12	PVD brass	46"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
METRO-H-12PSSKR	12	Polished SS	46"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
METRO-H-14PVDKR	14	PVD brass	52"	Tube	8 1/2 lbs	Kool-RiteTM (Glycol)
METRO-H-14PSSKR	14	Polished SS	52"	Tube	8 1/2 lbs	Kool-RiteTM (Glycol)
METRO-H-16PVDKR	16	PVD brass	58"	Tube	8 1/2 lbs	Kool-RiteTM (Glycol)
METRO-H-16PSSKR	16	Polished SS	58"	Tube	8 1/2 lbs	Kool-RiteTM (Glycol)

KOOL-RITE

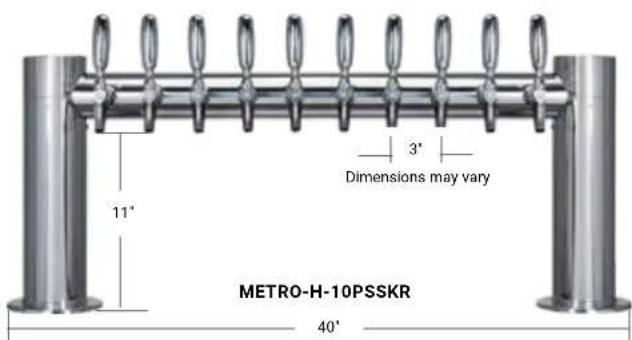

Metal pipe clamp structure with multiple looped ends, labeled METRO-H-8PVDKR (no other text or symbols)

11' 3' Dimensions may vary METRO-H-10PSSKR 40'

Pure grid pattern with no text, numbers, or symbols

DP-MET-H-34-Z

Metal perforated plate with a circular cutout on top (no text or symbols visible)

DP-MET-H-34GR-Z

Exterior view of a rectangular metal tray with perforated surface (no text or symbols visible)

DP-1608

DRIP TRAY SELECTIONS

PART NO.	FAUCETS	SERIES TYPE	FINISH	DIMENSIONS
DP-MET-H-28-Z	8	Surface mount	SS	28"W x 8 1/2"D x 3/4"H
DP-MET-H-28GR-Z	8	Rinser	SS	28"W x 8 1/2"D x 3/4"H
DP-MET-H-PVD-28-Z	8	Surface mount	PVD with SS	28"W x 8 1/2"D x 3/4"H
DP-MET-H-PVD-28GR-Z	8	Rinser	PVD with SS	28"W x 8 1/2"D x 3/4"H
DP-MET-H-34-Z	10	Surface mount	SS	34"W x 8 1/2"D x 3/4"H
DP-MET-H-34GR-Z	10	Rinser	SS	34"W x 8 1/2"D x 3/4"H
DP-MET-H-PVD-34-Z	10	Surface mount	PVD with SS	34"W x 8 1/2"D x 3/4"H
DP-MET-H-40-Z	12	Surface mount	SS	40"W x 8 1/2"D x 3/4"H
DP-MET-H-40GR-Z	12	Rinser	SS	40"W x 8 1/2"D x 3/4"H
DP-MET-H-PVD-40-Z	12	Surface mount	PVD with SS	40"W x 8 1/2"D x 3/4"H
DP-MET-H-46-Z	14	Surface mount	SS	46"W x 8 1/2"D x 3/4"H
DP-MET-H-46GR-Z	14	Rinser	SS	46"W x 8 1/2"D x 3/4"H
DP-MET-H-PVD-46-Z	14	Surface mount	PVD with SS	46"W x 8 1/2"D x 3/4"H
DP-MET-H-PVD-46GR-Z	14	Rinser	PVD with SS	46"W x 8 1/2"D x 3/4"H
DP-MET-H-52-Z	16	Surface mount	SS	52"W x 8 1/2"D x 3/4"H
DP-MET-H-52GR-Z	16	Rinser	SS	52"W x 8 1/2"D x 3/4"H
DP-1608	8 - 10	Rinser	SS	47 1/4"L x 19 3/4"W
DP-1608-SL	8 - 10	Platform	SS	47 1/4"L x 19 3/4"W
DP-1610	8 - 12	Rinser	SS	51"L x 19 3/4"W
DP-1611	12 - 14	Rinser	SS	59"L x 19 3/4"W

METROPOLIS™ "H" AIR COOLED

The popular Metropolis ^™ series is expanded to include air cooled models. These H-style towers are specially constructed for excellent flow-thru air cooling with larger diameter pedestals and crossbar. Metropolis ^™ towers are polished stainless steel for a durable mirror-like finish.

5" COLUMN

SPINSTOP™ (air cooled) includes: 304 stainless steel faucet & shank with 5 FT x 3/16" I.D. vinyl.

PART NO.	FAUCETS	FINISH	LENGTH	OUTLET	DISPENSE SYSTEM
METRO-H-6PSSA	6	Polished SS	30"	Hose	SPINSTOPTM (Air Cooled)
METRO-H-8PSSA	8	Polished SS	36"	Hose	SPINSTOPTM (Air Cooled)
METRO-H-10PSSA	10	Polished SS	42"	Hose	SPINSTOPTM (Air Cooled)
METRO-H-12PSSA	12	Polished SS	48"	Hose	SPINSTOPTM (Air Cooled)

METRO-H-12PSSA 11 3/4" 48" 17" NEW

Technical line drawing of a mechanical or electrical enclosure with vertical supports and a grid-patterned panel (no text or symbols)

Illustration: MBB94-E, METRO-H-8PSSA

DRIP TRAY SELECTIONS

PART NO.	FAUCETS	SERIES TYPE	FINISH	DIMENSIONS
DP-MET-H-23-PSSA	6	Surface mount	SS	23^ × 8 1/2^ × 3/4^
DP-MET-H-29-PSSA	8	Surface mount	SS	29^ × 8 1/2^ × 3/4^
DP-MET-H-35-PSSA	10	Surface mount	SS	35^ × 8 1/2^ × 3/4^
DP-MET-H-41-PSSA	12	Surface mount	SS	41^ × 8 1/2^ × 3/4^

CREATE STYLE FOR AIR COOLED Install suggestion: Mount on a back bar

Pure grid pattern with no text, numbers, or symbols

DP-MET-H-35-PSSA

SPINSTOP™

KEEPING BEER FAUCETS UPRIGHT

Close-up of a metallic tap wrench with a red valve inserted into a white cylindrical container (no text or symbols visible)

Close-up of a metallic object with a dropper inserted into a cylindrical container (no visible text or symbols)

TRADITIONAL VS.

Close-up of a metallic glass shower unit with a handle and central knob, enclosed in a red circular border (no text or symbols visible)

Integral "Anti-Rotation Flats" stops the spin!

• Improve system efficiency
• no down-time
• Saves time and money
• Reduces service calls
• Eliminate the possibility of kinks in the beer line

SPINSTOP™ NOW IN MANY AIR COOLED TOWERS

Three industrial cylindrical devices with metal fittings and yellow base (no visible text or symbols)

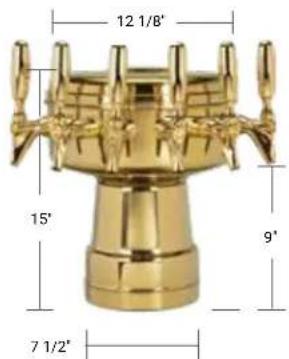

Mushroom "T" Tower Double Pedestal

PASS THRU

4" TUBE AIR COOLED

SPINSTOP™ (air cooled) includes: Standard U.S. faucet with brass body & shank with 5 ft x 3/16" I.D. vinyl hose.

PART NO.	FAUCETS	FINISH	LENGTH	OUTLET	DISPENSE SYSTEM
PT4A-8PSS	8	Polished SS	35"	Hose	SPINSTOPTM (Air Cooled)
PT4A-8PVD	8	PVD brass	35"	Hose	SPINSTOPTM (Air Cooled)
PT4A-10PSS	10	Polished SS	41"	Hose	SPINSTOPTM (Air Cooled)
PT4A-10PVD	10	PVD brass	41"	Hose	SPINSTOPTM (Air Cooled)
PT4A-12PSS	12	Polished SS	47"	Hose	SPINSTOPTM (Air Cooled)
PT4A-12PVD	12	PVD brass	47"	Hose	SPINSTOPTM (Air Cooled)

4" TUBE KOOL-RITE™ (GLYCOL)

Kool-Rite™ (glycol cooled) includes: 304 stainless steel faucet & shank with 1/4" O.D. tube. NSF certified.

PART NO.	FAUCETS	FINISH	LENGTH	OUTLET	RESTRICTION	DISPENSE SYSTEM
PT4A-8PSSKR	8	Polished SS	35"	Tube	8 1/2 lbs	Kool-RiteTM (Glycol)
PT4A-8PVDKR	8	PVD brass	35"	Tube	8 1/2 lbs	Kool-RiteTM (Glycol)
PT4A-10PSSKR	10	Polished SS	41"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
PT4A-10PVDKR	10	PVD brass	41"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
PT4A-12PSSKR	12	Polished SS	47"	Tube	8 1/2 lbs	Kool-RiteTM (Glycol)
PT4A-12PVDKR	12	PVD brass	47"	Tube	8 1/2 lbs	Kool-RiteTM (Glycol)
PT4A-14PSSKR	14	Polished SS	53"	Tube	8 1/2 lbs	Kool-RiteTM (Glycol)
PT4A-14PVDKR	14	PVD brass	53"	Tube	8 1/2 lbs	Kool-RiteTM (Glycol)

35" 9 1/2' 6' 3" 3" 14 1/2" PT4A-8PVDKR 37"

Metal structural frame with multiple circular supports and a central oval element, labeled PT4A-8PSSKR (no other text or symbols)

Golden metal bridge structure with multiple vertical supports and a label 'PT4A-12PVDKR' at the base (no other text or symbols)

KOOL-RITE

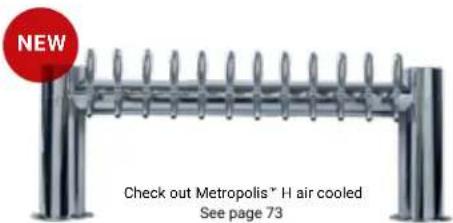

NEW Check out Metropolis® H air cooled See page 73

DRIP TRAY SELECTIONS

PART NO.	FAUCETS	SERIES TYPE	FINISH	DIMENSIONS
DP-120D-33	8	Surface mount	SS	33"W x 5"D x 3/4"H
DP-120DSSPVD-33	8	Surface mount	PVD with SS	33"W x 5"D x 3/4"H
DP-120D-36	8	Surface mount	SS	36"W x 5"D x 3/4"H
DP-120DSSPVD-36	8	Surface mount	PVD with SS	36"W x 5"D x 3/4"H
DP-120D-39	10	Surface mount	SS	39"W x 5"D x 3/4"H
DP-120DSSPVD-39	10	Surface mount	PVD with SS	39"W x 5"D x 3/4"H
DP-120D-45	12	Surface mount	SS	45"W x 5"D x 3/4"H
DP-120DSSPVD-45	12	Surface mount	PVD with SS	45"W x 5"D x 3/4"H
DP-120D-51	14	Surface mount	SS	51"W x 5"D x 3/4"H
DP-120DSSPVD-51	14	Surface mount	PVD with SS	51"W x 5"D x 3/4"H
DP-820D-33	8	Surface mount	SS	33"W x 8"D x 3/4"H
DP-820DSSPVD-33	8	Surface mount	PVD with SS	33"W x 8"D x 3/4"H
DP-820D-39	10	Surface mount	SS	39"W x 8"D x 3/4"H
DP-820DSSPVD-39	10	Surface mount	PVD with SS	39"W x 8"D x 3/4"H
DP-820D-45	12	Surface mount	SS	45"W x 8"D x 3/4"H
DP-820DSSPVD-45	12	Surface mount	PVD with SS	45"W x 8"D x 3/4"H
DP-820D-51	14	Surface mount	SS	51"W x 8"D x 3/4"H
DP-820DSSPVD-51	14	Surface mount	PVD with SS	51"W x 8"D x 3/4"H

DP-120D-33

DP-120DSSPVD-39

Scanned text of Chinese legal or regulatory document with numbered sections and a central circular emblem.

DP-120D-36GR

See page 99 for glass rinser trays

DRAFT TOWER PORTFOLIO

Exterior view of a metallic industrial structure with multiple vertical posts and flanges (no text or symbols visible)

Exterior view of a metallic industrial or electrical device with multiple vertical posts and a central rectangular block (no visible text or symbols)

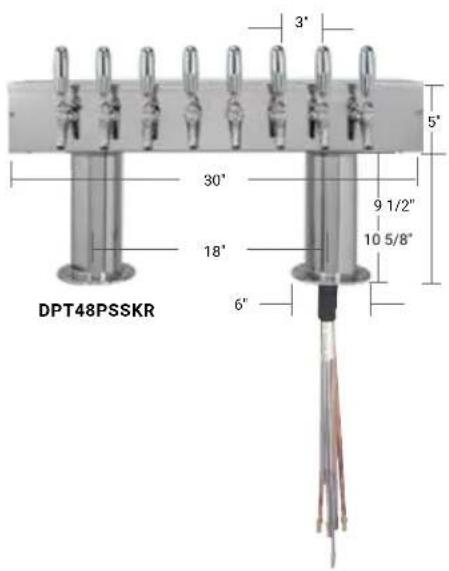

DPT48PSSKR 3° 5° 30° 9 1/2" 18° 10 5/8" 6"

DOUBLE PEDESTAL

4" COLUMN AIR COOLED

SPINSTOP ^™ (air cooled) includes: Standard U.S. faucet with brass body & shank with 5 ft x 3/16" I.D. vinyl hose.

PART NO.	FAUCETS	FINISH	LENGTH	OUTLET	DISPENSE SYSTEM
DPT48PVD	8	PVD brass	30"	Hose	SPINSTOPTM (Air Cooled)
DPT48PSS	8	Polished SS	30"	Hose	SPINSTOPTM (Air Cooled)
DPT410PVD	10	PVD brass	30"	Hose	SPINSTOPTM (Air Cooled)
DPT410PSS	10	Polished SS	30"	Hose	SPINSTOPTM (Air Cooled)
DPT412PVD-3	12	PVD brass	36"	Hose	SPINSTOPTM (Air Cooled)
DPT412PSS-3	12	Polished SS	36"	Hose	SPINSTOPTM (Air Cooled)

4" COLUMN KOOL-RITE (GLYCOL)

Kool-Rite™ (glycol cooled) includes: 304 stainless steel faucet & shank with 1/4" O.D. tube. NSF certified.

PART NO.	FAUCETS	FINISH	LENGTH	OUTLET	RESTRICTION	DISPENSE SYSTEM
DPT48PVDKR	8	PVD brass	30"	Tube	8 1/2 lbs	Kool-Rite ^ (Glycol)
DPT48PSSKR	8	Polished SS	30"	Tube	8 1/2 lbs	Kool-Rite ^ (Glycol)
DPT410PVDKR	10	PVD brass	30"	Tube	7 1/2 lbs	Kool-Rite ^ (Glycol)
DPT410PSSKR	10	Polished SS	30"	Tube	7 1/2 lbs	Kool-Rite ^ (Glycol)
DPT412PVDKR-3	12	PVD brass	36"	Tube	7 1/2 lbs	Kool-Rite ^ (Glycol)
DPT412PSSKR-3	12	Polished SS	36 ^	Tube	7 1/2 lbs	Kool-Rite ^ (Glycol)

KOOL-RITE

DRIP TRAY SELECTIONS

PART NO.	FAUCETS	SERIES TYPE	FINISH	DIMENSIONS
DP-120D-30	8 – 10	Surface mount	SS	30"W x 5"D x 3/4"H
DP-120D-30GR	8 – 10	Rinser	SS	30"W x 5"D x 3/4"H
DP-120DSSPVD-30	8 – 10	Surface mount	PVD with SS	30"W x 5"D x 3/4"H
DP-820D-30	8 – 10	Surface mount	SS	30"W x 8"D x 3/4"H
DP-820DSSPVD-30	8 – 10	Surface mount	PVD with SS	30"W x 8"D x 3/4"H
DP-120D-36	12	Surface mount	SS	36"W x 5"D x 3/4"H
DP-120D-36GR	12	Rinser	SS	36"W x 5"D x 3/4"H
DP-120DSSPVD-36	12	Surface mount	PVD with SS	36"W x 5"D x 3/4"H
DP-820D-36	12	Surface mount	SS	36"W x 8"D x 3/4"H
DP-820DSSPVD-36	12	Surface mount	PVD with SS	36"W x 8"D x 3/4"H

DP-120D-30

DP-120DSSPVD-30

DP-820D-30

DP-820DSSPVD-30

Faucet knobs are

not included.

DOUBLE SERVICE

Give your customers more choice! Draft variety and fast service from both sides of the tower.

DOUBLE SERVICE - 4" COLUMN
Kool-Rite™ (glycol cooled) includes: 304 stainless steel faucet & shank with 1/4" O.D. tube. NSF certified.

PART NO.	FAUCETS	FINISH	LENGTH	OUTLET	RESTRICTION	DISPENSE SYSTEM
DPT420PVDKR-3	20	PVD brass	36"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
DPT420PSSKR-3	20	Polished SS	36"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
DPT424PVDKR-3	24	PVD brass	36"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
DPT424PSSKR-3	24	Polished SS	36"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)

KOOL-RITE

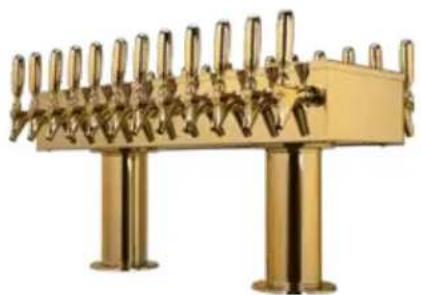

Golden industrial structure with multiple cylindrical supports and a central platform (no visible text or symbols)

DPT424PVDKR-3

Metallic industrial valve assembly with multiple cylindrical heads and a central base, labeled DPT424PSSKR-3 (no other text or symbols visible)

10" 11"

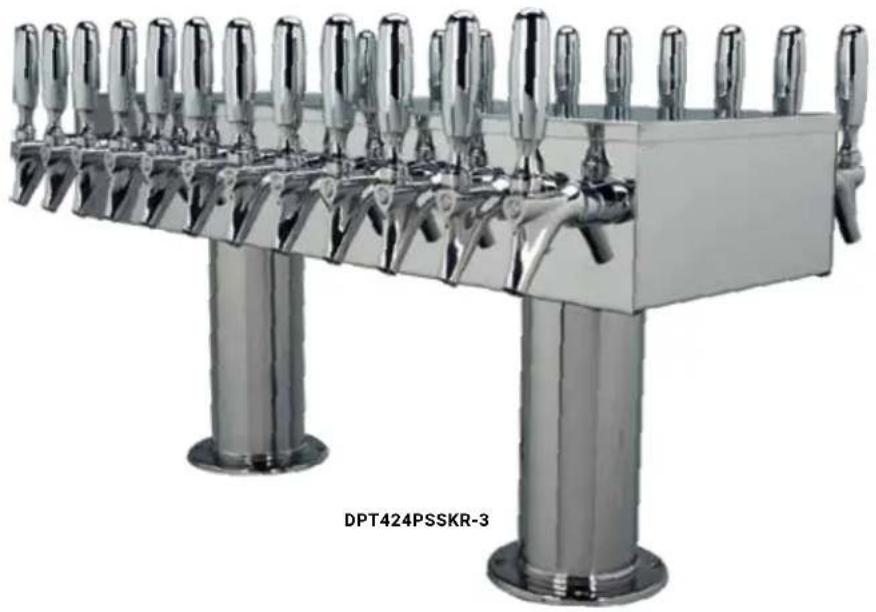

DPT424PSSKR-3
Side view

DRIP TRAY SELECTIONS

PART NO.	FAUCETS	SERIES TYPE	FINISH	DIMENSIONS
DP-120D-36	10 – 12	Surface mount	SS	36"W x 5"D x 3/4"H
DP-120D-36GR	10 – 12	Rinser	SS	36"W x 5"D x 3/4"H
DP-120DSSPVD-36	10 – 12	Surface mount	PVD with SS	36"W x 5"D x 3/4"H
DP-820D-36	10 – 12	Surface mount	SS	36"W x 8"D x 3/4"H
DP-820DSSPVD-36	10 – 12	Surface mount	PVD with SS	36"W x 8"D x 3/4"H

DP-120D-36

DP-120DSSPVD-36

DP-820D-36

DP-820DSSPVD-36

3D rendering of a metallic industrial structure with multiple vertical posts and flanges (no text or symbols visible)

Faucet knobs are not included.

DRAFT TOWER PORTFOLIO

Exterior view of a stainless steel vertical brink with three flanges (no text or symbols visible)

D7743PSS

Close-up of a brass-colored industrial tap shoulder with black valves (no text or symbols visible)

D7744PVD

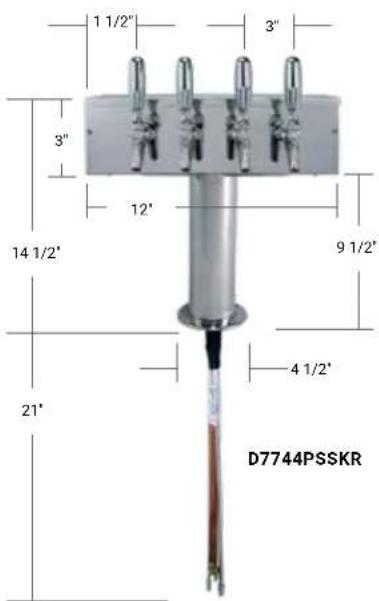

1 1/2" 3" 3" 12" 14 1/2" 9 1/2" 21" 4 1/2" D7744PSSKR

Faucet knobs are not included.

T-TOWER - 3" COLUMN

AIR COOLED

SPINSTOP™ (air cooled) includes: Standard U.S. faucet with brass body & shank with 5 ft x 3/16" I.D. vinyl hose.

PART NO.	FAUCETS	FINISH	OUTLET	DISPENSE SYSTEM
D7743PVD	3	PVD brass	Hose	SPINSTOP ^TM (Air Cooled)
D7743PSS	3	Polished SS	Hose	SPINSTOP ^TM (Air Cooled)
D7744PVD	4	PVD brass	Hose	SPINSTOP ^TM (Air Cooled)
D7744PSS	4	Polished SS	Hose	SPINSTOP ^TM (Air Cooled)

KOOL-RITE (GLYCOL)

Kool-Rite ^™ (glycol cooled) includes: 304 stainless steel faucet & shank with 1/4" O.D. tube. NSF certified.

PART NO.	FAUCETS	FINISH	OUTLET	RESTRICTION	DISPENSE SYSTEM
D7743PVDKR	3	PVD brass	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
D7743PSSKR	3	Polished SS	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
D7744PVDKR	4	PVD brass	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
D7744PSSKR	4	Polished SS	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)

KOOL-RITE TECHNOLOGIES

FLANGE TO FAUCET → 3 1/2' 3' 6' 2 3/4'

DRIP TRAY SELECTIONS

PART NO.	FAUCETS	SERIES TYPE	FINISH	DIMENSIONS
DP-420LD	2 – 4	Bevel edge	SS	16"L x 6 1/2"W
DP-420LDSSPVD	2 – 4	Bevel edge	PVD with SS	16"L x 6 1/2"W
DP-120D	2 – 4	Surface mount	SS	12"W x 5"D x 3/4"H
DP-120D-20*	4 – 8	Surface mount	SS	20"W x 5"D x 3/4"H
DP-120DSSPVD	2 – 4	Surface mount	PVD with SS	12"W x 5"D x 3/4"H
DP-120DSSPVD-20*	4 – 8	Surface mount	PVD with SS	20"W x 5"D x 3/4"H
DP-920D	2 – 4	With cutout	SS	12"W x 7"D x 3/4"H
DP-920DSSPVD	2 – 4	With cutout	PVD with SS	12"W x 7"D x 3/4"H
DP-220D	2 – 4	Flush mount	SS	1/2" flange, 12"W x 5"D x 3/4"H
DP-220DSSPVD	2 – 4	Flush mount	PVD with SS	1/2" flange, 12"W x 5"D x 3/4"H
DP-1605	3 – 4	Rinser	SS	23 3/4'L x 15 3/4"W
DP-1606	5 – 8	Rinser	SS	31 1/2'L x 15 3/4"W

*DP-120D-20 and DP-120DSSPVD-20 drip trays are for 3" column (with 20" cross tube) towers only.

DP-420LD

DP-120D

DP-220DSSPVD

DP-1605DP-920DSSPVD

T-TOWER - 4" COLUMN

AIR COOLED

SPINSTOP™ (air cooled) includes: Standard U.S. faucet with brass body & shank with 5 ft x 3/16" I.D. vinyl hose.

PART NO.	FAUCETS	FINISH	LENGTH	OUTLET	DISPENSE SYSTEM
DS-254-PVD	4	PVD brass	20'	Hose	SPINSTOPTM (Air Cooled)
DS-354-PSS	4	Polished SS	20'	Hose	SPINSTOPTM (Air Cooled)
DS-255-PVD	5	PVD brass	20'	Hose	SPINSTOPTM (Air Cooled)
DS-355-PSS	5	Polished SS	20'	Hose	SPINSTOPTM (Air Cooled)
DS-256-PVD	6	PVD brass	20'	Hose	SPINSTOPTM (Air Cooled)
DS-356-PSS	6	Polished SS	20'	Hose	SPINSTOPTM (Air Cooled)
DS-258-PVD-3	8	PVD brass	24'	Hose	SPINSTOPTM (Air Cooled)
DS-358-PSS-3	8	Polished SS	24'	Hose	SPINSTOPTM (Air Cooled)

KOOL-RITE' (GLYCOL)

Kool-Rite ^™ (Glycol Cooled) includes: 304 stainless steel faucet & shank with 1/4" O.D. tube. NSF certified.

PART NO.	FAUCETS	FINISH	LENGTH	OUTLET	RESTRICTION	DISPENSE SYSTEM
DS-254-PVDKR	4	PVD brass	20'	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
DS-354-PSSKR	4	Polished SS	20'	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
DS-255-PVDKR	5	PVD brass	20'	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
DS-355-PSSKR	5	Polished SS	20'	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
DS-256-PVDKR	6	PVD brass	20'	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
DS-356-PSSKR	6	Polished SS	20'	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
DS-258-PVDKR-3	8	PVD brass	24'	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
DS-358-PSSKR-3	8	Polished SS	24"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)

Metal T-junction valve assembly with three vertical ports (no text or symbols visible)

DS-354-PSS

Close-up of a brass-colored industrial tap with multiple handles (no visible text or symbols)

DS-258-PVD

KOOL-RITE

4" 7" 3" 2 3/4"

DRIP TRAY SELECTIONS

PART NO.	FAUCETS	SERIES TYPE	FINISH	DIMENSIONS
DP-120D-20	4 – 6	Surface mount	SS	20"W x 5"D x 3/4"H
DP-120DSSPVD-20	4 – 6	Surface mount PVD with SS	20"W x 5"D x 3/4"H
DP-820D-20	4 – 6	Surface mount	SS	20"W x 8"D x 3/4"H
DP-820DSSPVD-20	4 – 6	Surface mount PVD with SS	20"W x 8"D x 3/4"H
DP-120D-24	8	Surface mount	SS	24"W x 5"D x 3/4"H
DP-120DSSPVD-24	8	Surface mount	PVD with SS	24"W x 5"D x 3/4"H
DP-820D-24	8	Surface mount	SS	24"W x 8"D x 3/4"H
DP-820DSSPVD-24	8	Surface mount	PVD with SS	24"W x 8"D x 3/4"H
DP-1606	4 – 8	Rinser SS	31 1/2"L x 15 3/4"W

3" 5' 20' 15 1/2" 10 5/8" 6" DS-356-PSSKR DP-120D-20

Faucet knobs are not included.

DRAFT TOWER PORTFOLIO

Close-up of a metallic industrial valve or pump component with multiple arms (no visible text or symbols)

MTB-4PSSKR

12 1/8' 15' 7 1/2' 9'

MTB-6BRKR

Metal mechanical device with three vertical arms and a central cylindrical body (no visible text or symbols)

MTM-3PSSKR

7 3/8" 15" 9" 6"

MTM-4BRKR

DP-630DSSPVD-Z

DP-740DP

Metallic rectangular object with a circular hole and a grid pattern on its surface (no text or symbols visible)

DP-640DP

DP-734D

MUSHROOM

7 1/2" COLUMN AIR COOLED

SPINSTOP™ (air cooled) includes: Standard U.S. faucet with brass body & shank with 5 ft x 3/16" I.D. vinyl hose.

PART NO.	FAUCETS	FINISH	OUTLET	DISPENSE SYSTEM
MTB-4BR	4	PVD brass	Hose	SPINSTOPTM (Air Cooled)
MTB-4PSS	4	Polished SS	Hose	SPINSTOPTM (Air Cooled)
MTB-5BR	5	PVD brass	Hose	SPINSTOPTM (Air Cooled)
MTB-5PSS	5	Polished SS	Hose	SPINSTOPTM (Air Cooled)
MTB-6BR	6	PVD brass	Hose	SPINSTOPTM (Air Cooled)
MTB-6PSS	6	Polished SS	Hose	SPINSTOPTM (Air Cooled)

7 1/2" COLUMN KOOL-RITE (GLYCOL)

Kool-Rite™ (glycol cooled) includes: 304 stainless steel faucet & shank with 1/4" O.D. tube. NSF certified.

PART NO.	FAUCETS	FINISH	OUTLET	RESTRICTION	DISPENSE SYSTEM
MTB-4BRKR	4	PVD brass	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
MTB-4PSSKR	4	Polished SS	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
MTB-5BRKR	5	PVD brass	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
MTB-5PSSKR	5	Polished SS	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
MTB-6BRKR	6	PVD brass	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
MTB-6PSSKR	6	Polished SS	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)

72 KOOL-RITE

(二)交易价格及定价依据

4" COLUMN AIR COOLED

SPINSTOP™ (air cooled) includes: Standard U.S. faucet with brass body & shank with 5 ft x 3/16" I.D. vinyl hose.

PART NO.	FAUCETS	FINISH	OUTLET	DISPENSE SYSTEM
MTM-3BR	3	PVD brass	Hose	SPINSTOPTM (Air Cooled)
MTM-3PSS	3	Polished SS	Hose	SPINSTOPTM (Air Cooled)
MTM-4BR	4	PVD brass	Hose	SPINSTOPTM (Air Cooled)
MTM-4PSS	4	Polished SS	Hose	SPINSTOPTM (Air Cooled)

4" COLUMN KOOL-RITE™ (GLYCOL)

Kool-Rite™ (glycol cooled) includes: 304 stainless steel faucet & shank with 1/4" O.D. tube. NSF certified.

PART NO.	FAUCETS	FINISH	OUTLET	RESTRICTION	DISPENSE SYSTEM
MTM-3BRKR	3	PVD brass	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
MTM-3PSSKR	3	Polished SS	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
MTM-4BRKR	4	PVD brass	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
MTM-4PSSKR	4	Polished SS	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)

KOOL-RITE

DRIP TRAY SELECTIONS

PART NO.	FAUCETS	SERIES TYPE	FINISH	DIMENSIONS
DP-630DSSPVD-Z	4 – 5	Surface mount	PVD with SS	19" x 9' with 8" dia. x 1 1/2"
DP-630D-Z	4 – 5	Surface mount	SS	19" x 9' with 8' dia. x 1 1/2"
DP-630DSSPVD-24-Z	5 – 6	Surface mount	PVD with SS	24" x 11" with 8" dia. x 3 1/2"
DP-630D-24-Z	5 – 6	Surface mount	SS	24" x 11" with 8" dia. x 3 1/2"
DP-640DSSPVD	4 – 6	Wrap around	PVD with SS	21 1/2" x 8 1/4" with 8" back plate
DP-640DP	4 – 6	Wrap around	Polished SS	21 1/2" x 8 1/4" with 8" back plate
DP-734DSSPVD	3 – 4	Surface mount	PVD with SS	18" x 9" with 6 1/4" dia. x 2" cutout
DP-734D	3 – 4	Surface mount	SS	18" x 9" with 6 1/4" dia. x 2" cutout
DP-740DSSPVD	3	Wrap around	PVD with SS	16 5/8" x 8 1/4" with 6" back plate
DP-740DP	3	Wrap around	Polished SS	16 5/8" x 8 1/4" with 6" back plate

ZEUS CERAMIC

GREEN CERAMIC AIR COOLED

Hose Assembly: 5 ft x 3/16" I.D. vinyl hose.

PART NO. FAUCETS	FINISH		DISPENSE SYSTEM
CT900-3BR	3	Brass	Air Cooled
CT900-3CH	3	Chrome	Air Cooled
CT900-4BR	4	Brass	Air Cooled
CT900-4CH	4	Chrome	Air Cooled
CT900-5BR	5	Brass	Air Cooled
CT900-5CH	5	Chrome	Air Cooled

WHITE CERAMIC AIR COOLED

Hose Assembly: 5 ft x 3/16" I.D. vinyl hose.

PART NO. FAUCETS	FINISH		DISPENSE SYSTEM
CT901-3BR*	3	Brass	Air Cooled
CT901-3CH	3	Chrome	Air Cooled
CT901-4BR	4	Brass	Air Cooled
CT901-4CH	4	Chrome	Air Cooled
CT901-5BR	5	Brass	Air Cooled
CT901-5CH	5	Chrome	Air Cooled

BLACK CERAMIC AIR COOLED

Hose Assembly: 5 ft x 3/16" I.D. vinyl hose.

PART NO. FAUCETS	FINISH		DISPENSE SYSTEM
CT902-3BR	3	Brass	Air Cooled
CT902-3CH	3	Chrome	Air Cooled
CT902-4BR	4	Brass	Air Cooled
CT902-4CH	4	Chrome	Air Cooled
CT902-5BR	5	Brass	Air Cooled
CT902-5CH	5	Chrome	Air Cooled

NOTE: Zeus ceramic draft towers are not recommended for air systems; Requires insulation and sealing. F.O.B. factory.

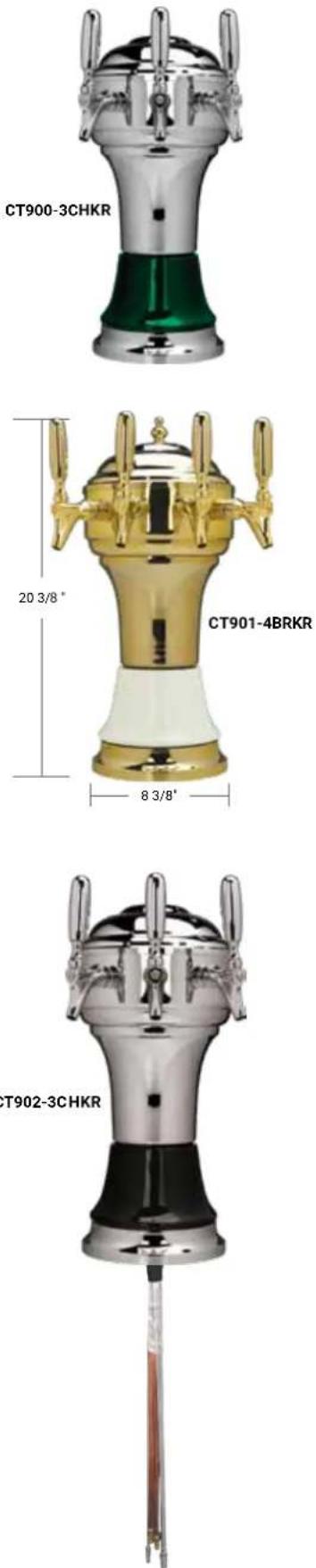

GREEN CERAMIC KOOL-RITE™ (GLYCOL)\*

Tube Assembly: 1/4" O.D. stainless steel, 7 1/2 lbs restriction.

PART NO.	FAUCETS	FINISH	DISPENSE SYSTEM
CT900-3BRKR	3	Brass	Kool-RiteTM
CT900-3CHKR	3	Chrome	Kool-RiteTM
CT900-4BRKR	4	Brass	Kool-RiteTM
CT900-4CHKR	4	Chrome	Kool-RiteTM
CT900-5BRKR	5	Brass	Kool-RiteTM
CT900-5CHKR	5	Chrome	Kool-RiteTM

WHITE CERAMIC KOOL-RITE™ (GLYCOL)\*

Tube Assembly: 1/4" O.D. stainless steel, 7 1/2 lbs restriction.

PART NO.	FAUCETS	FINISH	DISPENSE SYSTEM
CT901-3BRKR	3	Brass	Kool-RiteTM
CT901-3CHKR	3	Chrome	Kool-RiteTM
CT901-4BRKR	4	Brass	Kool-RiteTM
CT901-4CHKR	4	Chrome	Kool-RiteTM
CT901-5BRKR	5	Brass	Kool-RiteTM
CT901-5CHKR	5	Chrome	Kool-RiteTM

BLACK CERAMIC KOOL-RITE™ (GLYCOL)\*

Tube Assembly: 1/4" O.D. stainless steel, 7 1/2 lbs restriction.

PART NO.	FAUCETS	FINISH	DISPENSE SYSTEM
CT902-3BRKR	3	Brass	Kool-RiteTM
CT902-3CHKR	3	Chrome	Kool-RiteTM
CT902-4BRKR	4	Brass	Kool-RiteTM
CT902-4CHKR	4	Chrome	Kool-RiteTM
CT902-5BRKR	5	Brass	Kool-RiteTM
CT902-5CHKR	5	Chrome	Kool-RiteTM

* NSF Certified.

DRIP TRAY SELECTIONS

PART NO.	FAUCETS	SERIES TYPE	FINISH	DIMENSIONS
BVL-120LDSSPVD	3 – 5	Surface mount	PVD with SS	19 3/4" x 10' with 8 5/8" dia. x 3 1/2'
BVL-120LDCH	3 – 5	Surface mount	Polished SS	19 3/4" x 10' with 8 5/8" dia. x 3 1/2'

Close-up of a woven fabric or mesh structure with a curved top edge (no text or symbols visible)

Close-up of a perforated metal mesh structure with a curved cutout (no text or symbols)

BVL-120LDCHBVL-120LDSSPVD

Close-up of a glossy blue and gold decorative vessel with a black handle (no visible text or symbols)

Wooden industrial vessel with dual handles and a central shaft, shown with a dimension label (7 3/4") at the base.

CT500-3

Illustration of a 12-faceted stand with decorative legs and central hub, no text or symbols present.

CT500-12

24 3/8" 6 1/8"

CT100-3

VIENNA

Best selling body style, sleek lines complement transitional to modern designs.

BLACK FOREST

Traditional style, but slimmer body and smaller footprint.

CERAMIC TOWERS

EACH TOWER UNIQUE, EACH TOWER A WORK OF ART.

We present the finest quality ceramic beverage dispensing towers. Sculpted by hand and hardened by heat, with skillfully applied glazes for a long-lasting finish. This Old World craftsmanship is combined with contemporary dispense technology – glycol cooled towers* feature Kool-Rite™ Technology to ensure cooling at the point of dispense. The wide color range enables you to create a truly custom style.

Consider a single faucet tower for a signature beer or wine, or offer draft variety with up to eight faucets.

18" 6 1/8' 6-1/8" 6 1/8' 7 3/4"

CT300-4

Black ornate vase with gold handles and a small top, displayed on a stand (no text or symbols visible)

CT400-4 CT400-6

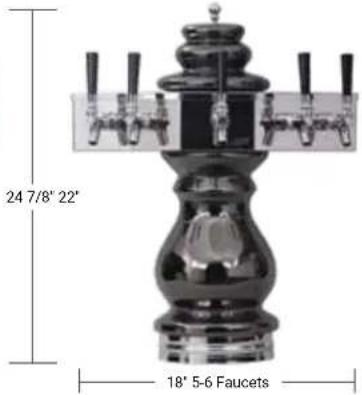

24 7/8" 22" 18" 5-6 Faucets

Close-up of a 18-inch 5-6 faucet with dual side handles (no text or symbols visible)

Blue and gold decorative lamp with a dome and central handle (no visible text or symbols)

CT200-1

Illustration of a vintage-style cylindrical vessel with brass handles and a central top, no visible text or symbols.

CT600-4

MONACO

The shortest overall height, with sleek, simple styling.

BRAUMEISTER

Popular body features traditional beer hall tower styling.

REMBRANDT

Original body style popular for its simplicity and charm.

ROMAN

Shorter height with strong lines for a modern, industrial style.

FAUCETS HARDWARE DISPENSE SYSTEM

1 Brass or chrome Air Cooled

2 Brass or chrome Air Cooled

3 Brass or chrome Air Cooled

4 Brass or chrome Air Cooled

5 Brass or chrome Air Cooled

6 Brass or chrome Air Cooled

8 Brass or chrome Air Cooled

Hose Assembly: 5 ft x 3/16" I.D. clear vinyl for air cooled.

FAUCETS HARDWARE DISPENSE SYSTEM

1 Brass or chrome Glycol*

2 Brass or chrome Kool-RiteTM (Glycol)

3 Brass or chrome Kool-RiteTM (Glycol)

4 Brass or chrome Kool-RiteTM (Glycol)

5 Brass or chrome Kool-RiteTM (Glycol)

6 Brass or chrome Kool-RiteTM (Glycol)

8 Brass or chrome Kool-RiteTM (Glycol)

12 Brass or chrome Kool-Rite ^™ (Glycol)
Tube Assembly: 1/4 * O.D. stainless steel for Kool-Rite™. *Single faucet not available with Kool-Rite™.

CHOICE OF BRASS OR CHROME HARDWARE / AVAILABLE GLAZE COLORS:

Clear (White)

Clear (White) with Mother of Pearl

Antique Crackle (White)

Heirloom Silver (Metallic)

Black with Liquid Copper (Metallic)

Copper Mine

Bright Yellow

Strawberry Red

Strawberry Red with Mother of Pearl

Potter's Coffee

Midnight Blue

Midnight Blue with Mother of Pearl

Blue Stardust (Metallic)

Burgundy

Emerald Green

Emerald Green with Mother of Pearl

Hunter Green

Black Stardust (Metallic)

Black Mirror (Metallic)

Black

Black with Mother of Pearl

DRIP TRAY SELECTIONS

REMBRANT, BLACK FOREST, MONACO AND ROMAN (6 1/8" BASE)

PART NO.	FAUCETS	SERIES TYPE	FINISH	DIMENSIONS
DP-734DSSPVD	1-3	Surface mount	PVD with SS	18^ × 9' with 6 1/4" dia. x 2' cutout
DP-734D	1-3	Surface mount	SS	18^ × 9' with 6 1/4" dia. x 2' cutout

BRAUMEISTER AND VIENNA (7 3/4" BASE)

PART NO.	FAUCETS	SERIES TYPE	FINISH	DIMENSIONS
DP-630DSSPVD-Z	1 - 4	Surface mount	PVD with SS	19' x 9' with 8" dia. x 1 1/2' cutout
DP-630D-Z	1 - 4	Surface mount	SS	19' x 9' with 8" dia. x 1 1/2' cutout
DP-630DSSPVD-24E	5 - 8	Surface mount	PVD with SS	24" x 11" with 8" dia. x 4" cutout
DP-630D-24E	5 - 8	Surface mount	SS	24' x 11" with 8" dia. x 4" cutout

DP-630DSSPVD-24E

DP-734D

DRAFT TOWER PORTFOLIO

Exterior view of a stainless steel beer tap with five black control knobs (no text or symbols visible)

SB520-KR

CABINET DISPENSER

This all-in-one deluxe stainless steel cabinet and drip tray features radius corners. The front panel is removable for servicing. Two 4" holes cut into the bottom are for beer and glycol lines.

COMPLETE (SET-UP FOR GLYCOL)
Kool-Rite™ (glycol cooled) includes: 304 stainless steel faucet and shank with 1/4" O.D. tube. NSF certified.

PART NO.	FAUCETS	CENTERS	FINISH	OUTLET	RESTRICTION	LENGTH	DISPENSE SYSTEM
SB420-KR	4	4^*	Brushed SS	Tube	7 1/2 lbs	20"	Kool-RiteTM (Glycol)
SB520-KR	5	3^*	Brushed SS	Tube	7 1/2 lbs	20"	Kool-RiteTM (Glycol)
SB620-KR	6	3^*	Brushed SS	Tube	7 1/2 lbs	20"	Kool-RiteTM (Glycol)
SB838-KR	8	4^*	Brushed SS	Tube	7 1/2 lbs	40"	Kool-RiteTM (Glycol)
SB1038-KR	10	3^*	Brushed SS	Tube	7 1/2 lbs	40"	Kool-RiteTM (Glycol)
SB1238-KR	12	3^*	Brushed SS	Tube	7 1/2 lbs	40"	Kool-RiteTM (Glycol)

KOOL-RITE

40" 16" SB1238-KR

SB420
Bottom view

Metal enclosure with mounting holes and a flat base (no text or symbols visible)

REMOVABLE FLANGES CHOOSE UNDERCOUNTER MOUNTING OR A BAR TOP INSTALLATION

SHELL ONLY
PART NO. HOLES CENTERS FINISH LENGTH

SB420 4 4" Brushed SS 20"

SB520 5 3" Brushed SS 20"

SB620 6 3" Brushed SS 20"

NOTE: Faucets and shanks are not included.

Wooden double bass stand with metal plates and a wooden base (no visible text or symbols)

CFD12A

Metallic stainless steel container with vertical stirrer and perforated base (no text or symbols visible)

CFN06A

IRISH COFFIN BOX

Complete the look of an Irish pub with this signature draft tower. Handcrafted in solid oak, it mounts on top of the bar to prominently display "what's on tap." A durable stainless steel fascia and drip tray hang behind the faucets. The tower is easily serviced by removing the solid wood top. F.O.B. factory.

KOOL-RITE

THE SHAMROCK CFN08A Back view 12 1/2" 8' 6 7/8" 36" 7 1/2" CUSTOM ENGRAVING! 4" X 24" PLAQUE WITH THE ESTABLISHMENT

NAME CAN BE ADDED FOR ADDITIONAL COST

UNDERCOUNTER MOUNT TOWER & DRAINER

UNDERCOUNTER MOUNT TOWER

Gain limited bar top space with our undercounter mounted tower series. The body features a brushed stainless steel finish and integrated mounting flanges. Complete with Kool-Rite™ glycol cooling.

Kool-Rite™ (glycol cooled) includes: 304 stainless steel faucet & shank with 1/4" O.D. tube. NSF certified.

PART NO.	FAUCETS	FINISH	LENGTH	OUTLET	RESTRICTION	DISPENSE SYSTEM
UCM-4-SSKR	4	Brushed SS	20"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
UCM-5-SSKR	5	Brushed SS	20"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
UCM-6-SSKR	6	Brushed SS	20"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
UCM-8-SSKR	8	Brushed SS	24"	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)

Close-up of a UCM-4-SSKR cable connector with four metallic clamps (no text or symbols on the device itself)

KOOL-RITE

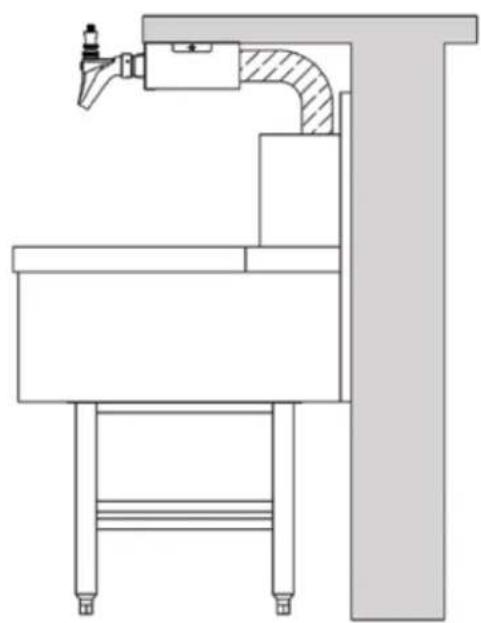

Technical line drawing of a mechanical assembly with no visible text or symbols

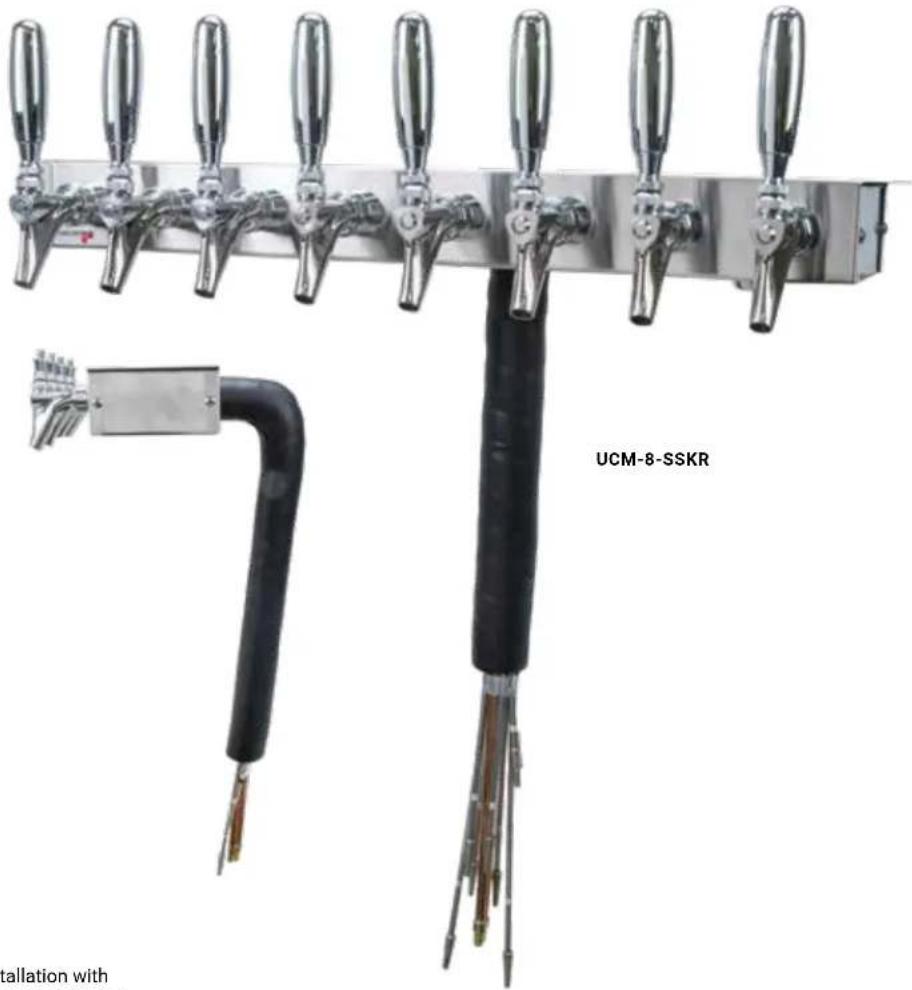

Close-up of UCM-8-SSKR showerhead with metal bristle and black cable, no text or symbols visible on the main subject.

Exterior view of a stainless steel kitchen appliance with control panel and side legs (no visible text or symbols)

Example of installation with underbar stainless steel drainer
Faucet knobs are not included.

DRAFT TOWER PORTFOLIO

Metallic stainless steel stand with multiple cylindrical fixtures and a mesh gridded base (no text or symbols visible)

KRONOS-10SSKRGR

KRONOS™

Save space and serve cold beer with our wall mount draft tower Kronos™. The brushed stainless steel finish with polished stainless steel faucets provide an eye-catching, hygienic stage for "what's on tap!" The drain is hidden behind a brushed stainless steel skirt for a clean appearance.

Kronos™ is excellent for modular multi-faucet installations. For example, combine two 10 faucet Kronos™ for a show-stopping 20 faucet draft beer station. Simply plumb the glycol from one station to the other and tie the plumbing together behind the hidden skirt.

INSTALLATION SUGGESTIONS:

Direct Draw – Through the Wall Dispensing

Beer will warm up in the wall space between the interior of the walk-in cooler and the exterior. Guarantee your first pour is cold by utilizing a power pack to circulate cold glycol around the shanks at the point of dispense.

Long Draw - Remote Dispensing

If there is limited space on the bartop or even the back bar – consider the Kronos ^™ wall mount dispenser.

RINSER MODEL

Kool-Rite™ (glycol cooled) includes: 304 stainless steel faucet & shank with 1/4" O.D. tube. NSF certified.

PART NO.	FAUCETS	FINISH	OUTLET	RESTRICTION	LENGTH	DISPENSE SYSTEM
KRONOS-6SSKRGR	6	Brushed SS	Tube	7 1/2 lbs	18"	Kool-Rite ^TM (Glycol)
KRONOS-8SSKRGR	8	Brushed SS	Tube	7 1/2 lbs	24"	Kool-Rite ^TM (Glycol)
KRONOS-10SSKRGR	10	Brushed SS	Tube	7 1/2 lbs	30"	Kool-Rite ^TM (Glycol)
KRONOS-12SSKRGR	12	Brushed SS	Tube	7 1/2 lbs	36"	Kool-Rite ^TM (Glycol)

KOOL-RITE

24" 17 1/4"

KRONOS-8SSKR

NON-RINSER MODEL

Kool-Rite™ (glycol cooled) includes: 304 stainless steel faucet & shank with 1/4" O.D. tube. NSF certified.

PART NO.	FAUCETS	FINISH	OUTLET	RESTRICTION	LENGTH	DISPENSE SYSTEM
KRONOS-6SSKR	6	Brushed SS	Tube	7 1/2 lbs	18"	Kool-Rite ^TM (Glycol)
KRONOS-8SSKR	8	Brushed SS	Tube	7 1/2 lbs	24"	Kool-Rite ^TM (Glycol)
KRONOS-10SSKR	10	Brushed SS	Tube	7 1/2 lbs	30"	Kool-Rite ^TM (Glycol)
KRONOS-12SSKR	12	Brushed SS	Tube	7 1/2 lbs	36"	Kool-Rite ^TM (Glycol)

KOOL-RITE

Exterior view of a metal storage tray with multiple trays and a textured base (no text or symbols visible)

KRONOS-12SSKR

33 1/2' 9 1/2' 3'

SKYLINE BEER STATION

Towering high above the bar top at almost 18" Skyline is true to its namesake. Rising across the bartop like skyscrapers on the city skyline, the Skyline tower makes a crisp silhouette with its angled cap.

Install Day Ready: Modular construction is pre-plumbed for easy installation.

Every Day Ready: Hygienic dispense point for draft beer.

FEATURES:

• European inspired style

• Proven Kool-Rite™ technology

• Approximately 18" high

• Integrated platform drip tray

• Single glycol connection for easy installation

• Choice of built-in rinser or not

GLASS RINSER INCLUDED

Overall height including platform: 19"

Kool-Rite™ (glycol cooled) includes: 304 stainless steel faucet & shank with 1/4" O.D. tube. 7 1/2 lbs restriction.

PART NO.	PLATFORM O.D.	FAUCETS	TOWER FINISH	OUTLET	DISPENSE SYSTEM
BS-SKY-2PVDKR	12' x 12 1/2"	2	PVD brass	Tube	Glycol Loop
BS-SKY-2PSSKR	12' x 12 1/2"	2	Polished SS	Tube	Glycol Loop
BS-SKY-3PVDKR	18' x 12 1/2"	3	PVD brass	Tube	Glycol Loop
BS-SKY-3PSSKR	18' x 12 1/2"	3	Polished SS	Tube	Glycol Loop

LESS RINSER

Overall height including platform: 19"

Kool-Rite™ (glycol cooled) includes: 304 stainless steel faucet & shank with 1/4" O.D. tube. 7 1/2 lbs restriction.

PART NO.	PLATFORM O.D.	FAUCETS	TOWER FINISH	OUTLET	DISPENSE SYSTEM
BS-SKY-2PVDKR-LR	12' x 12 1/2"	2	PVD brass	Tube	Glycol Loop
BS-SKY-2PSSKR-LR	12' x 12 1/2"	2	Polished SS	Tube	Glycol Loop
BS-SKY-3PVDKR-LR	18' x 12 1/2"	3	PVD brass	Tube	Glycol Loop
BS-SKY-3PSSKR-LR	18' x 12 1/2"	3	Polished SS	Tube	Glycol Loop

SKYLINE

Think of design possibilities for Skyline by grouping it in settings of 3, 6 or even 12 towers. Set the perfect stage by choosing a platform drip tray as the base. This impressive tower can also stand on its own as a single, individual tower.

Kool-Rite™ (glycol cooled) includes: 304 stainless steel faucet & shank with 1/4" O.D. tube. 7 1/2 lbs restriction.

PART NO.	FAUCETS	FINISH	OUTLET	DISPENSE SYSTEM
SKY-1PVDKR	1	PVD brass	Tube	Kool-RiteTM (Glycol)
SKY-1PSSKR	1	Polished SS	Tube	Kool-RiteTM (Glycol)

SKY-1PSSKR Shown with DP-160B with glass rinser drip tray

DRAFT TOWER PORTFOLIO

NEW 13 5/8" 17"

A-G5-3-C-G-M Anaconda

Close-up of a metallic tap wrench with a red circular badge labeled 'NEW' (no other text or symbols visible)

A-G5-1-C-G Anaconda

ANACONDA

Draw attention to "what's on tap" with the sexy curves and flowing lines of this tower. 304 Series stainless steel faucets are standard. See available options (pg. 91).

PART NO.	FAUCETS	FINISH	OUTLET	RESTRICTION	DISPENSE SYSTEM
A-G5-1-C-A	1	Chrome	Tube	3 lbs	Air Cooled
A-G5-2-C-A	2	Chrome	Tube	3 lbs	Air Cooled
A-G5-3-C-A	3	Chrome	Tube	3 lbs	Air Cooled
A-G5-1-C-G	1	Chrome	Tube	3 lbs	Glycol Loop
A-G5-2-C-G	2	Chrome	Tube	3 lbs	Glycol Loop
A-G5-3-C-G	3	Chrome	Tube	3 lbs	Glycol Loop
A-G5-4-C-G	4	Chrome	Tube	3 lbs	Glycol Loop
A-G5-1-C-G-M*	1	Chrome	Tube	3 lbs	Glycol Loop
A-G5-2-C-G-M*	2	Chrome	Tube	3 lbs	Glycol Loop
A-G5-3-C-G-M*	3	Chrome	Tube	3 lbs	Glycol Loop
A-G5-4-C-G-M*	4	Chrome	Tube	3 lbs	Glycol Loop

*NOTE: Order medallion inserts separately. NOT FOR USE WITH MDD23W

EDGE

The Edge tower draws its name from the crisp lines defining its shape. Featuring polished stainless steel exterior that creates mirror-like surfaces. Our 304 Series stainless steel faucets are standard. See available options (pg. 91).

PART NO.	FAUCETS	FINISH	OUTLET	RESTRICTION	DISPENSE SYSTEM
E-G5-1-C-A	1	Chrome	Tube	3 lbs	Air Cooled
E-G5-2-C-A	2	Chrome	Tube	3 lbs	Air Cooled
E-G5-3-C-A	3	Chrome	Tube	3 lbs	Air Cooled
E-G5-1-C-G	1	Chrome	Tube	3 lbs	Glycol Loop
E-G5-2-C-G	2	Chrome	Tube	3 lbs	Glycol Loop
E-G5-3-C-G	3	Chrome	Tube	3 lbs	Glycol Loop
E-G5-4-C-G	4	Chrome	Tube	3 lbs	Glycol Loop
E-G5-1-C-G-M*	1	Chrome	Tube	3 lbs	Glycol Loop
E-G5-2-C-G-M*	2	Chrome	Tube	3 lbs	Glycol Loop
E-G5-3-C-G-M*	3	Chrome	Tube	3 lbs	Glycol Loop
E-G5-4-C-G-M*	4	Chrome	Tube	3 lbs	Glycol Loop

*NOTE: Order medallion inserts separately. NOT FOR USE WITH MDD23W

Close-up of a modern stainless steel three-pronged hairbrush with a 'NEW' badge (no text or symbols on the object itself)

A-G5-4-C-G Anaconda

Metal faucet with a red circular badge labeled 'NEW' (no other text or symbols)

E-G5-1-C-G Edge

NEW 12" 15 1/8"

E-G5-2-C-G Edge

Close-up of a modern stainless steel stand with three handles and a 'NEW' badge (no text or symbols on the stand itself)

E-G5-3-C-G Edge

PLUS

The elegant arc of the Plus tower rises from the bar top. A chrome plated surface ensures mirror-like reflections to grab attention. Available with lighted LED medallions, 304 series stainless steel faucets are standard. See available options (pg. 91).

PART NO.	FAUCETS	FINISH	OUTLET	RESTRICTION	DISPENSE SYSTEM
P-G5-1-C-A	1	Chrome	Tube	3 lbs	Air cooled
P-G5-2-C-A	2	Chrome	Tube	3 lbs	Air cooled
P-G5-3-C-A	3	Chrome	Tube	3 lbs	Air cooled
P-G5-1-C-G	1	Chrome	Tube	3 lbs	Glycol Loop
P-G5-2-C-G	2	Chrome	Tube	3 lbs	Glycol Loop
P-G5-3-C-G	3	Chrome	Tube	3 lbs	Glycol Loop
P-G5-1-C-G-M*	1	Chrome	Tube	3 lbs	Glycol Loop
P-G5-2-C-G-M*	2	Chrome	Tube	3 lbs	Glycol Loop
P-G5-3-C-G-M*	3	Chrome	Tube	3 lbs	Glycol Loop

*NOTE: Order medallion inserts separately.
NOT FOR USE WITH MDD23W

PARIS

The City of Lights and its captivating nightlife is captured in the classically proportioned Paris draft font. A highly polished stainless steel exterior will provide years of beauty. Available with lighted medallions. 304 Series stainless steel faucets are standard. See available options (pg. 91).

PART NO.	FAUCETS	FINISH	OUTLET	RESTRICTION	DISPENSE SYSTEM
PA-G5-3-C-A	3	Chrome	Tube	3 lbs	Air Cooled
PA-G5-5-C-A	5	Chrome	Tube	3 lbs	Air Cooled
PA-G5-7-C-A	7	Chrome	Tube	3 lbs	Air Cooled
PA-G5-3-C-G	3	Chrome	Tube	3 lbs	Glycol Loop
PA-G5-5-C-G	5	Chrome	Tube	3 lbs	Glycol Loop
PA-G5-7-C-G	7	Chrome	Tube	3 lbs	Glycol Loop
PA-G5-3-C-G-M*	3	Chrome	Tube	3 lbs	Glycol Loop
PA-G5-5-C-G-M*	5	Chrome	Tube	3 lbs	Glycol Loop
PA-G5-7-C-G-M*	7	Chrome	Tube	3 lbs	Glycol Loop

*NOTE: Order medallion inserts separately.
NOT FOR USE WITH MDD23W

ZENITH

This unique tower features a cantilever tube suspending faucets out over the bar top. Zenith has a dramatic upright angled to draw attention to draft offerings. Available with lighted medallions. 304 Series stainless steel faucets are standard. See available options (pg. 91).

PART NO.	FAUCETS	FINISH	OUTLET	LENGTH	DISPENSE SYSTEM
Z03062-4	4	Chrome	Tube	27 1/4"	Glycol Loop
Z03066-5	5	Chrome	Tube	32 1/4"	Glycol Loop

Z03062-4 Zenith 14' 22'

Close-up of a metallic tool with multiple spools and a cylindrical base, labeled 'Z03066-5 Zenith' (no other text or symbols visible)

NEW P-G5-1-C-G Plus 18 1/2' 14 1/4' NEW P-G5-2-C-G Plus

NEW 16 3/4" 12' PA-G5-3-C-G Paris

DRAFT TOWER PORTFOLIO

3D rendered image of a stainless steel showerhead with three handles, labeled MM1093F shown as frosted (no text beyond label)

Metal double-tpper trower with two handles and two circular logo designs (no text or symbols on the device itself)

Modern stainless steel trowel with three handles and two circular labels (no readable text or symbols)

Faucet knobs are not included.

COBRA™

A sculpted classic, Cobra™ draft towers demand attention to "what's on tap." Equipped with Micro Matic 304 stainless steel faucets and available with either a smooth or ice frosted exterior.

ICE COBRA™ – ICE TOWERS REQUIRE SEPARATE POWER PACK.

PART NO.	FAUCETS	FINISH	OUTLET	DISPENSE SYSTEM
MM1091F	1	Polished SS	Tube	Glycol Flooded
MM1092F	2	Polished SS	Tube	Glycol Flooded
MM1093F	3	Polished SS	Tube	Glycol Flooded
MM1094F	4	Polished SS	Tube	Glycol Flooded

INSTALLATION NOTE:

Always tighten the glycol chamber screw under the tower after the tower is flooded with cold glycol.

COBRA ^™ – CLEAN EXTERIOR

PART NO.	FAUCETS	FINISH	OUTLET	DISPENSE SYSTEM
MM1091K	1	Polished SS	Tube	Glycol Loop
MM1092K*	2	Polished SS	Tube	Glycol Loop
MM1093K*	3	Polished SS	Tube	Glycol Loop
MM1094K*	4	Polished SS	Tube	Glycol Loop

*NOTE: NSF certified.

MM1094K 15 1/8"

Metallic showerhead with four handles and a base, labeled MM1094K (no other text or symbols visible)

COBRA™ - ILLUMINATED MEDALLION

ICE COBRA™ – Ice towers require separate power pack. Includes transformer, medallion holder shipped empty.

PART NO. FAUCETS FINISH OUTLET DISPENSE SYSTEM

MM1091F-M	1	Chrome	Tube	Glycol Flooded
MM1092F-M	2	Chrome	Tube	Glycol Flooded
MM1093F-M	3	Chrome	Tube	Glycol Flooded
MM1094F-M	4	Chrome	Tube	Glycol Flooded

INSTALLATION NOTE:

Always tighten the glycol chamber screw under the tower after the tower is flooded with cold glycol.

COBRA™ - CLEAN EXTERIOR - Includes transformer, medallion holder shipped empty.

PART NO. FAUCETS FINISH OUTLET DISPENSE SYSTEM

MM1091K-M 1 Chrome Tube Glycol Loop

MM1092K-M 2 Chrome Tube Glycol Loop

MM1093K-M 3 Chrome Tube Glycol Loop

MM1094K-M 4 Chrome Tube Glycol Loop

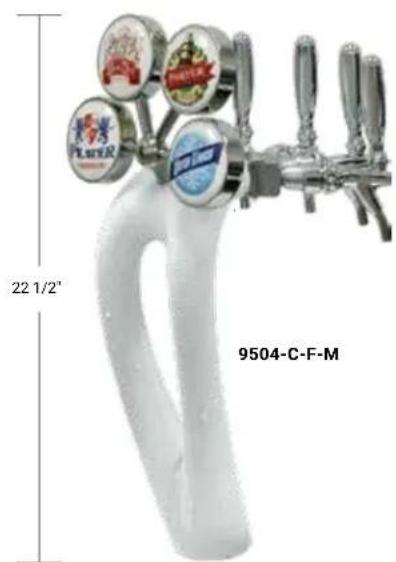

MYSTIQUE

Beautiful modern sculpture for the bar top. Mystique's unique spilt design has a sensuous elegance sure to draw admiration and sales for "what's on tap." Consider Mystique in a singular showcase setting or in groups for added excitement. Available in smooth exterior non-ice, ice and medallion versions. See available options listed below.

GLYCOL COOLED - CLEAN EXTERIOR

PART NO.	FAUCETS	FINISH	OUTLET	RESTRICTION	DISPENSE SYSTEM
9502-C	2	Chrome	Tube	3 lbs	Glycol Loop
9503-C	3	Chrome	Tube	3 lbs	Glycol Loop
9504-C	4	Chrome	Tube	3 lbs	Glycol Loop

INSTALLATION NOTE:

Always tighten the glycol chamber screw under the tower after the tower is flooded with cold glycol.

ICE FROSTED - Ice towers require separate power pack.

PART NO.	FAUCETS	FINISH	OUTLET	RESTRICTION	DISPENSE SYSTEM
9502-C-F	2	Chrome	Tube	3 lbs	Glycol Flooded
9503-C-F	3	Chrome	Tube	3 lbs	Glycol Flooded
9504-C-F	4	Chrome	Tube	3 lbs	Glycol Flooded

FALCO

Rising almost 19" above the bar, elegant Falco draws attention to "what's on tap." Brilliant chrome finish over cast brass. See available options listed below.

GLYCOL COOLED - CLEAN EXTERIOR

PART NO.	FAUCETS	FINISH	OUTLET	RESTRICTION	DISPENSE SYSTEM
FALCO1-C	1	Chrome	Tube	3 lbs	Glycol Loop
FALCO2-C	2	Chrome	Tube	3 lbs	Glycol Loop
FALCO3-C	3	Chrome	Tube	3 lbs	Glycol Loop

INSTALLATION NOTE:

Always tighten the glycol chamber screw under the tower after the tower is flooded with cold glycol.

ICE FROSTED - Ice towers require separate power pack.

PART NO.	FAUCETS	FINISH	OUTLET	RESTRICTION	DISPENSE SYSTEM
FALCO1-C-F	1	Chrome	Tube	3 lbs	Glycol Flooded
FALCO2-C-F	2	Chrome	Tube	3 lbs	Glycol Flooded
FALCO3-C-F	3	Chrome	Tube	3 lbs	Glycol Flooded

ANACONDA, EDGE, PLUS, PARIS, ZENITH, MYSTIQUE & FALCO

AVAILABLE OPTIONS:

• Gold exterior finish
- Custom powder coated finishes
• Different faucets for aesthetics & functionality
• Varying temperature pours using multiple cold kits
- Setup for air cooled systems
- Setup for dispensing water, wine, juice, cider, coffee and liquor

Close-up of a metallic mechanical component with a curved handle and two protruding rods, labeled '9502-C' and dimension '17'

Metallic mechanical component with three protruding rods and a central oval shape, labeled '9503-C' at bottom (no other text or symbols)

Close-up of a stainless steel water tap with three circular brand labels (Pfizer, Red Bull, Blue Box) and a 22.1/2" scale indicator (no text on the faucet itself)

18 3/4" FALCO2-C Faucet knobs are not included.

DRAFT TOWER PORTFOLIO

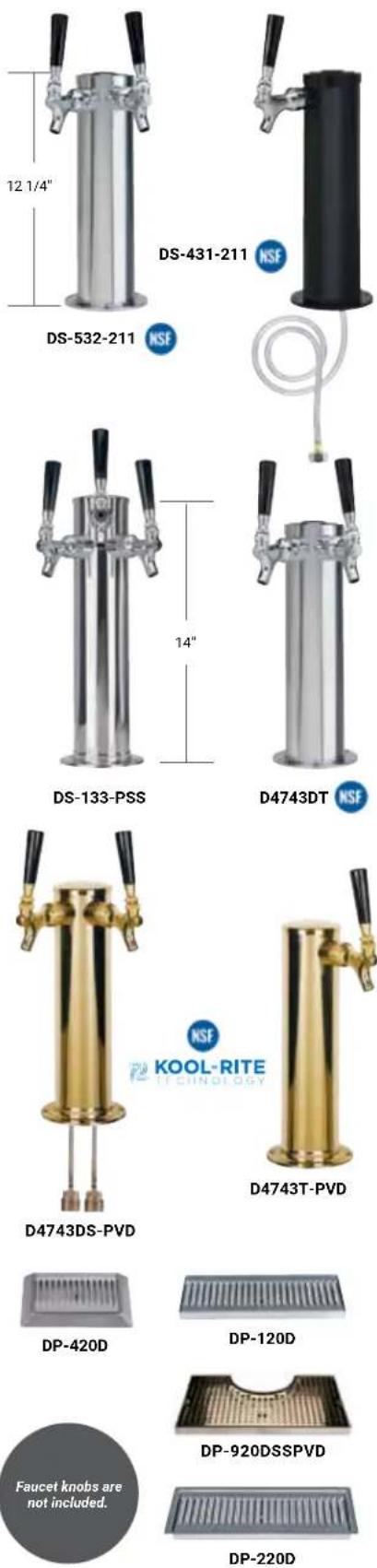

SINGLE 3" COLUMN

3" ABS PLASTIC

Plastic is a better insulator than metal. Air cooled only. NSF certified. Knobs included. Not SPINSTOP™ shanks.

PART NO. FAUCETS FINISH

DS-431-211 1 Black

DS-531-211 1 Chrome

DS-432-211 2 Black

DS-532-211 2 Chrome

3" SHOTGUN

Air cooled only.

PART NO. FINISH

D4743SGPSS Polished SS

D4743SGBR Brass

3" METAL COLUMN AIR COOLED

SPINSTOP™ (air cooled) includes: Standard U.S. faucet with brass body & shank with 5 ft x 3/16" I.D. vinyl hose. *NSF certified.

PART NO.	FAUCETS	FINISH	OUTLET	DISPENSE SYSTEM	303 SS
D4743T*	1	Polished SS	Hose	SPINSTOPTM (Air Cooled)
D4743S	1	Polished SS	Tube	SPINSTOPTM (Air Cooled)
1688*	1	Polished SS	Hose	SPINSTOPTM (Air Cooled)	Included
D4743T-PVD*	1	PVD brass	Hose	SPINSTOPTM (Air Cooled)
D4743S-PVD	1	PVD brass	Tube	SPINSTOPTM (Air Cooled)
D4743DT*	2	Polished SS	Hose	SPINSTOPTM (Air Cooled)
D4743DS	2	Polished SS	Tube	SPINSTOPTM (Air Cooled)
1689*	2	Polished SS	Hose	SPINSTOPTM (Air Cooled)	Included
D4743DT-PVD*	2	PVD brass	Hose	SPINSTOPTM (Air Cooled)
D4743DS-PVD	2	PVD brass	Tube	SPINSTOPTM (Air Cooled)
DS-133-PSS	3	Polished SS	Hose	SPINSTOPTM (Air Cooled)

3" METAL COLUMN KOOL-RITE™ (GLYCOL)

Kool-Rite™ (glycol cooled) includes: 304 stainless steel faucet & shank with 1/4" O.D. tube. NSF certified.

PART NO.	FAUCETS	FINISH	OUTLET	DISPENSE SYSTEM
D4743TKR	1	Polished SS	Tube	Kool-RiteTM (Glycol)
D4743T-PVDKR	1	PVD brass	Tube	Kool-RiteTM (Glycol)
D4743DTKR	2	Polished SS	Tube	Kool-RiteTM (Glycol)
D4743DT-PVDKR	2	PVD brass	Tube	Kool-RiteTM (Glycol)

DRIP TRAY SELECTIONS

PART NO. SERIES TYPE FINISH DIMENSIONS

DP-420D	Bevel edge	SS	9"L x 6 1/2"W
DP-420LD	Bevel edge	SS	16"L x 6 1/2"W
DP-420DSSPVD	Bevel edge	PVD with SS	9"L x 6 1/2"W
DP-420LDSSPVD	Bevel edge	PVD with SS	16"L x 6 1/2"W
DP-120D	Surface mount	SS	12"W x 5"D x 3/4"H
DP-120DSSPVD	Surface mount	PVD with SS	12"W x 5"D x 3/4"H
DP-920D	With cutout	SS	12"W x 7"D x 3/4"H
DP-920DSSPVD	With cutout	PVD with SS	12"W x 7"D x 3/4"H
DP-220D	Flush mount	SS	1/2" flange, 12"W x 5"D x 3/4"H
DP-220DSSPVD	Flush mount	PVD with SS	1/2" flange, 12"W x 5"D x 3/4"H

SINGLE 4" COLUMN

AIR COOLED

SPINSTOP™ (air cooled) includes: Standard U.S. faucet with brass body & shank with 5 ft x 3/16" I.D. vinyl hose.

PART NO.	FAUCETS	FINISH	OUTLET	DISPENSE SYSTEM
DS-243-PVD	3	PVD brass	Hose	SPINSTOPTM (Air Cooled)
DS-143-PSS	3	Polished SS	Hose	SPINSTOPTM (Air Cooled)
DS-244-PVD	4	PVD brass	Hose	SPINSTOPTM (Air Cooled)
DS-144-PSS	4	Polished SS	Hose	SPINSTOPTM (Air Cooled)

KOOL-RITE™ (GLYCOL)

Kool-Rite™ (glycol cooled) includes: 304 stainless steel faucet & shank with 1/4" O.D. tube. NSF certified.

PART NO.	FAUCETS	FINISH	OUTLET	RESTRICTION	DISPENSE SYSTEM
DS-243-PVDKR	3	PVD brass	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
DS-143-PSSKR	3	Polished SS	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
DS-244-PVDKR	4	PVD brass	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)
DS-144-PSSKR	4	Polished SS	Tube	7 1/2 lbs	Kool-RiteTM (Glycol)

KOOL-RITE

4" 2 1/2" 6 3/4"

DRIP TRAY SELECTIONS

PART NO.	FAUCETS	SERIES TYPE	FINISH	DIMENSIONS
DP-420LD	3	Bevel edge	SS	16"L x 6 1/2"W
DP-420LDSSPVD	3	Bevel edge	PVD with SS	16"L x 6 1/2"W
DP-120D	3	Surface mount	SS	12"W x 5"D x 3/4"H
DP-120DSSPVD	3	Surface mount	PVD with SS	12"W x 5"D x 3/4"H
DP-1020D	3 - 4	With cutout	SS	14"W x 8"D x 3/4"H
DP-1020DSSPVD	3 - 4	With cutout	PVD with SS	14"W x 8"D x 3/4"H
DP-220D	3	Flush mount	SS	1/2" flange, 12"W x 5"D x 3/4"H
DP-220DSSPVD	3	Flush mount	PVD with SS	1/2" flange, 12"W x 5"D x 3/4"H
DP-740DSSPVD	3	Wrap around	PVD with SS	16 5/8" x 8 1/4" with 6" back plate
DP-740DP	3	Wrap around	Polished SS	16 5/8" x 8 1/4" with 6" back plate
DP-1604	3 - 4	Rinser	Polished SS	15 3/4"L x 15 3/4"W

DP-1020DSSPVD DP-1604 DP-740DP

DP-420LD

DP-120D

DP-220DSSPVD

Exterior view of a stainless steel multi-tiered vertical stand (no text or symbols visible)

DS-144-PSS

Golden trowel with black handles and a central black vent (no text or symbols visible)

DS-244-PVD

Golden industrial stand with three black valves (no text or symbols visible)

DS-243-PVD

DS-143-PSSKR 14" 10 1/2" 11 1/8" 6" 23" Faucet knobs are not included.

DRAFT TOWER PORTFOLIO

Metallic cylindrical mechanical component with bolt holes and a red circular badge labeled 'NEW' (no text or symbols on the part itself)

MM-GTL-4

Technical line drawing of a mechanical flange component with bolt holes (no text or symbols)

TOWER RISERS

Filling growlers can be awkward due to the height of the beer faucet and countertop. Often there is not enough clearance for the growler jug. Our 2-piece growler risers are easy to install, with no need to remove the beer line. After unscrewing the tower from the countertop, simply lift the tower, place the riser under it, then using the supplied long bolts, re-attach the tower.

PART NO. DESCRIPTION

MM-GTL-3 Fits 3" column tower flange

MM-GTL-4 Fits 4" column tower flange

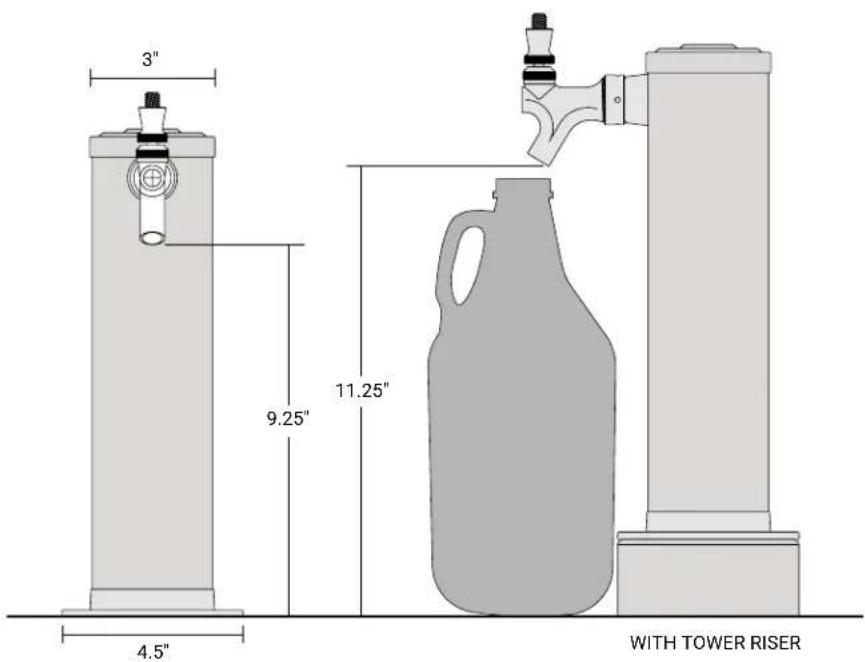

3" 9.25" 11.25" 4.5" WITH TOWER RISER

Close-up of a stainless steel faucet with handle and valve (no text or symbols visible)

4933-FC-SS
see page 35

GR-FS
see page 35

DTW4136 D8WP D8JE OR D8JE-1 D8ES-CB

TOWER SHANK WRENCHES

PART NO. DESCRIPTION

DTW4136 1 1/16" side opening

D8WP Fits 1 1/16" nuts (limited space fits over elbow)

D8JE Single 1" opening

D8JE-1 Single 1 1/16" opening

D8ES-CB Combination 1" and 1 1/16" openings

ADDITIONAL TOWERS

FLEXIDRAFT™ TOWER

FlexiDraft™ is the revolutionary way to ensure draft beer quality. In minutes, the probe, beer line and faucet spout assembly is replaced with each keg change. More info on the system on page 10, see page 14 for keg couplers, and page 33 for beer line assemblies.

PART NO.

FINISH

FD-T-1

FlexiDraftTM tower, 3" column

2 1/2" COLUMN

Hose assembly: 5 ft x 3/16" I.D. air cooled only. *NSF certified.

PART NO.

FINISH

D4740*

Polished SS

REPLACEMENT PARTS

TOWER PARTS

PART NO. DESCRIPTION

D5N-4 1/4' bore shank

OL9R Gland

OL10 Flare nut

OL11N SS elbow

4332 Chrome coupling nut

4329-3E 2" shank with SS elbow (3/16' I.D.)

BE-SK2L 2' shank with SS elbow (1/4" I.D.)

D5N-ARF SPINSTOP™ shank 304 SS with elbow

D5N-ARF-LE SPINSTOP ^™ shank 304 SS

D6P3B Brass outside flange (for 3")

D6P3C Chrome outside flange (for 3")

D6P4C Chrome outside flange (for 4")

D6PFB Brass "T" tower outside flange (flat)

D6PFC Chrome "T" tower outside flange (flat)

D7P Inside flange

S-22 Serrated lock washer

D8 Lock nut

D22AN 1 piece 1/4' O.D. tube

D12P-JE 3' black plastic top cap

D12PC-JE 3' chrome plastic top cap

D12-PVD 3' PVD brass top cap

D12-2PA 2 1/2" chrome top cap

D12-5 3' top cap insulation

D17-8-3 3" O.D. insulation

D16-3 Gasket, fits 3" O.D. column

D16-4 Gasket, fits 4" O.D. column

HOLE COVERS

PART NO.	HOLE SIZE	FINISH
DS-HCP	3"	SS
DS-HCPBR	3"	Brass
DS-HCPL	4"	SS
DS-HCPBRL	4"	Brass

Metal tap water dispenser with black handle and white base (no text or symbols visible)

FD-T-1

Metal stand shaker with handle and 12-inch height dimension label (no text or symbols on the object itself)

D4740

KNOB FAUCET 4329-3E OR BE-SK2L D5N-4 OL9R OL10 OL11N 4332 D6P3C D7P S22 D8 D22ANA-3 D12PC-JE D12-5 D32AN KNOB D6P3C 4332 4330 4328 FAUCET D14PC-JE D17-8-3 DS-HCPBR DS-HCPL Faucet knobs are not included.

SPINSTOP™ NOW IN ALL AIR COOLED TOWERS DT-1 HK Change a two faucet tower into a three faucet tower.

TOWER ADAPTERS

ADD A FAUCET, ADD PROFITS!

Tower Adapters allow you to easily add new products to your direct draw dispense systems.

DT-2 HK

Change a single faucet tower into a three faucet tower.

Close-up of a laboratory glass apparatus with three handles and a central cylindrical container (no visible text or symbols)

DT-2HLK

Change a single faucet tower into a two faucet tower. Reuse original shank in tower adapter.

Two metallic cylindrical containers with circular ports and a central connector (no visible text or symbols)

Close-up of a stainless steel water tap shoulder with black handles and a transparent cylindrical tank (no text or symbols visible)

PART NO. DESCRIPTION FINISH

DT-1HK 1 product add on Chrome

DT-1HKB 1 product add on Brass

DT-2HK 2 product add on Chrome

DT-2HKB 2 product add on Brass

DT-2HLK 2 hole / 1 product add on Chrome

DT-2HLKB 2 hole / 1 product add on Brass

NOTE: A drill bit and 3 screws are included with each adapter. Recommended for use only with 3' diameter metal towers. Order faucets and hose (547C60A) separately.

SINGLE GLASS RINSER

PORTABLE

InstaRinse® portable glass rinser is perfect for beer festivals, events and tastings! Features:

• Durable anti-microbial plastic components. PVC- and BPA-free tubing.
- Spring-activated switch sprays only when pressed, ensuring maximum battery life.
- Powered by 8 AA batteries (not included).
- Rinse capacity of 90 gallons of water per set of batteries.

PART NO. MOUNT OVERALL DIMENSIONS

PGR-1000 Portable 7 1/2"L x 7 1/2"W x 3"H

COUNTERMOUNT

Add the improved hygiene and dispense features of a glass rinser to any bar. The construction of the tray and mount features 18 gauge stainless steel for durable long-lasting performance. The water rinser and glass actuator feature robust metal and stainless construction.

PART NO. MOUNT OVERALL DIMENSIONS MOUNT AREA

GR-UCM	Undercounter	11 3/8"L x 6 3/8"W	5"L x 6 3/8"W
MM-5821	Counter top	6 3/8"L x 6 3/8"W	N/A

Rinser Only

RINSER FITTINGS

PART NO. DESCRIPTION

1750352C 15 PSI inline water regulator with check valve, 3/8" barb inlet and outlet

PI451214FS John Guest 3/8" x 1/2" BSP threads water inlet pipe

1238-055 John Guest 3/8" smooth x 3/8" barb elbow

DDN 1/2" BSP drain nipple fits 1/2" hose

WD-025 Inline shutoff with 3/8" barb inlet and outlet

RDT-KIT Installation kit: includes these highlighted parts*

Exterior view of a black rectangular electronic device with a circular vent and a red 'NEW' badge (no readable text or symbols on the device itself)

PGR-1000

Drain Line Inlet Line

GR-UCM

MM-5821

DRAIN PIPE WATER INLET PIPE PI451214FS* 1238-055* 1750352C* WD-025* WATER SOURCE

REPLACEMENT RINSERS

PART NO.	GRILL DIAMETER	GRILL PATTERN	USE	NSF
GR-1561	3 3/4"	Holes	Pro-LineTM direct draw	Y
GR-1581	4 1/2"	Holes	Stock and custom rinser trays	Y
GR-1581-2	4 1/2"	Plus stamp	Platform rinser trays	Y

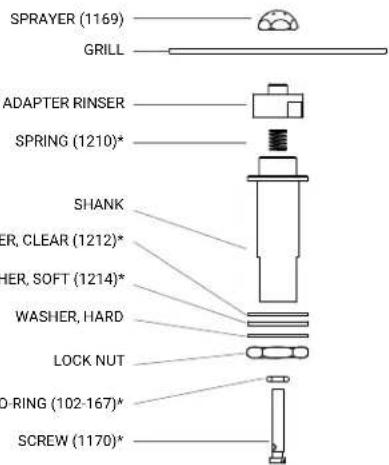

MM-DTRR-KIT Sprayer rebuild kit, includes these highlighted parts*

SPRAYER (1169) GRILL ADAPTER RINSER SPRING (1210)* SHANK HER, CLEAR (1212)* HER, SOFT (1214)* WASHER, HARD LOCK NUT O-RING (102-167)* SCREW (1170)*

3D rendering of a mechanical component with a circular top and cylindrical shaft (no text or symbols visible)

GR-1581

Close-up of a metallic mechanical component with a circular top and cylindrical shaft (no visible text or symbols)

GR-1581-2

CUSTOM DRIP TRAYS

MATCHING IN STYLE

We stock hundreds of drip trays that coordinate with our stock towers.

Can't find one to meet your need? – We will build one to your very own specifications!

MANY CHOICES TO CHOOSE FROM

• Grill type: louvered or perforated
• Built-in glass rinser
• Stainless steel or PVD brass fi nish
• Powdercoat color to match tower
• Specific drain(s) location(s)

Bar with three beer glasses on a metal grater, surrounded by hot drinks (no visible text or symbols)

ST MS OUND E TRY

LIVE

DRAFT TECHNOLOGY APP

ASK ABOUT CREATING CUSTOM DRIP TRAYS ON OUR NEW MOBILE APP.

FASTEST CUSTOMS TURNAROUND IN THE INDUSTRY

SURFACE MOUNT SERIES

Includes a threaded drain nipple with nut. 1/2" I.D. drain hose attaches to drain nipple (3 1/2" x 5/8"-18).

5" WIDE - CENTERED DRAIN

STAINLESS STEEL PART NO. LENGTH PVD WITH SS TRAY PART NO.
DP-120 12' no drain	DP-120SSPVD
DP-120D	12"	DP-120DSSPVD
DP-120D-16	16"	DP-120DSSPVD-16
DP-120D-18	18"	DP-120DSSPVD-18
DP-120D-20	20"	DP-120DSSPVD-20
DP-120D-24	24"	DP-120DSSPVD-24
DP-120D-30	30"	DP-120DSSPVD-30
DP-120D-33	33"	DP-120DSSPVD-33
DP-120D-36	36"	DP-120DSSPVD-36
DP-120D-39	39"	DP-120DSSPVD-39
DP-120D-45	45"	DP-120DSSPVD-45
DP-120D-51	51"	DP-120DSSPVD-51

Exterior view of a modern office building (no signage)

DP-120D-24

DP-120SSPVD

STAINLESS STEEL PART NO.	LENGTH	PVD WITH SS TRAY PART NO.
DP-820D-12	12"	DP-820DSSPVD-12
DP-820D-16	16"	N/A
DP-820D-18	18"	N/A
DP-820D-20	20"	DP-820DSSPVD-20
DP-820D-24	24"	DP-820DSSPVD-24
DP-820D-30	30"	DP-820DSSPVD-30
DP-820D-33	33"	DP-820DSSPVD-33
DP-820D-36	36"	DP-820DSSPVD-36
DP-820D-39	39"	DP-820DSSPVD-39
DP-820D-45	45"	DP-820DSSPVD-45
DP-820D-51	51"	DP-820DSSPVD-51
DP-820D-72	72"	N/A
DP-820D-84	84"	N/A

Rectangular metal plate with a grid pattern and central hole (no text or symbols)

DP-820DSSPVD-20

Rectangular metal plate with uniform grid pattern (no text or symbols)

DP-820D-20

SURFACE MOUNT WITH GLASS RINSER

Includes a threaded drain nipple with nut. 1/2" I.D. drain hose attaches to drain nipple (3 1/2" x 5/8"-18).

BRUSHED STAINLESS STEEL

PART NO. DIMENSIONS DRAIN GLASS RINSER GRILL
DP-120DGR	5"W x 12"L x 3/4"H	Centered	Included	Perforated
DP-120D-20GR	5"W x 20"L x 3/4"H	Centered	Included	Perforated
DP-120D-24GR	5"W x 24"L x 3/4"H	Centered	Included	Perforated
DP-120D-30GR	5"W x 30"L x 3/4"H	Centered	Included	Perforated
DP-120D-36GR	5"W x 36"L x 3/4"H	Centered	Included	Perforated
DP-120D-45GR	5"W x 45"L x 3/4"H	Centered	Included	Perforated
DP-820D-24GR	8"W x 24"L x 3/4"H	2 1/2" from length side	Included	Perforated
DP-820D-30GR	8"W x 30"L x 3/4"H	2 1/2" from length side	Included	Perforated
DP-820D-33GR	8"W x 33"L x 3/4"H	2 1/2" from length side	Included	Perforated
DP-820D-36GR	8"W x 36"L x 3/4"H	2 1/2" from length side	Included	Perforated
DP-820D-39GR	8"W x 39"L x 3/4"H	2 1/2" from length side	Included	Perforated
DP-820D-45GR	8"W x 45"L x 3/4"H	2 1/2" from length side	Included	Perforated
DP-820D-51GR	8"W x 51"L x 3/4"H	2 1/2" from length side	Included	Perforated

Scanned text of Chinese document with circular emblem and surrounding handwritten or printed characters

DP-120D-36GR

DP-820D-24GR

DRIP TRAYS

DP-420D

DP-420LD

DP-220D

DP-220D-GR

DP-220DSSPVD

DDN

P709-88 P306A P306

P306B

DP-DN8

DP-DN6

DP-DN3

BEVEL EDGE SERIES

Includes a threaded drain nipple with nut. 1/2" I.D. drain hose attaches to drain nipple (3 1/2" x 5/8"-18).

PART NO. DIMENSIONS FINISH

DP-420D 9"L x 6 1/2"W SS

DP-420LD 16"L x 6 1/2"W SS

DP-420DSSPVD 9"L x 6 1/2"W PVD with SS

DP-420LDSSPVD 16'L x 6 1/2"W PVD with SS

FLUSH MOUNT SERIES

Includes a pipe thread drain nipple (1 3/4" x 1/2" NPT). Order DDN adapter for use with a drain hose.

PART NO. CUT-OUT DIMENSIONS		FINISH
DP-220D	1/2" flange, 12" x 5" x 3/4"	SS
DP-220D-GR	1/2" flange, 12" x 5" x 3/4", with glass rinser	SS
DP-220DSSPVD	1/2" flange, 12" x 5" x 3/4"	PVD with SS

SURFACE MOUNT WITH TOWER PLATE

PART NO. DESCRIPTION

DP-620D-24 24' surface mount tray with integrated tower mounting plate. Excellent for retrofit installations.

Metallic electronic device with a circular top and grid of small circular components (no visible text or symbols)

DP-620D-24

DRAIN PARTS

PART NO. DESCRIPTION

DDA 2" drain nipple with lock nut x 1/2' NPT

DDN Drain nipple fits 1/2" I.D. hose

P709-88 Drain nut and nipple fits 1/2" I.D. hose

P306 Drain assembly (with 306A and 306B)

DRAIN NIPPLE REPLACEMENTS - SURFACE MOUNT SERIES

PART NO. LENGTH

DP-DN3 3 1/2"

DP-DN6 6'

DP-DN8 8'

PLATFORM

European style drip trays with a built-in glass rinser. Add some dispense excitement to each glass by simply inverting the beer glass and pushing down on the built-in sprayer. A wetted glass makes pouring the perfect glass of draught easier. Trays are constructed of heavy gauge stainless steel with a durable metal rinser. Cold water connection required.

PART NO.	FAUCETS	FINISH	O.D. DIMENSIONS	DRIP AREA
DP-1604 1 – 2 Polished SS 15 3/4" x 15 3/4" 13" x 7 1/4"
DP-1605 2 – 4 Polished SS 23 5/8" x 15 3/4" 20 7/8" x 7 1/4"
DP-1605-NR* 2 – 4 Polished SS 23 5/8" x 15 3/4" 20 7/8" x 7 1/4"
DP-1606 3 – 5 Polished SS 31 1/2" x 15 3/4" 28 3/4" x 7 1/4"
DP-1606-NR* 3 – 5 Polished SS 31 1/2" x 15 3/4" 28 3/4" x 7 1/4"
DP-1608 6 – 10 Polished SS 47 1/4" x 19 3/4" 41" x 9"
DP-1610	8 – 12	Polished SS	51" x 19 3/4"	47" x 9"
DP-1611	12 – 14	Polished SS	59" x 19 3/4"	47" x 9"
DP-1614 14 – 20 Polished SS 78 3/4" x 19 5/8" 74 3/4" x 9 1/4"
5524	Replacement drain assembly

*NR denotes trays without rinsers installed.

Exterior view of a perforated metal tray with a circular inset showing internal features (no text or symbols)

SUN LINE

Bright reflections draw attention to the draft tower. The radiating embossed texture creates the perfect stage for the beer station. Platform trays are a fast retrofit for a worn or damaged bar top. Protect your bar top with a hygienic platform tray – it's all about the beer! Drain nipple included.

PART NO.	FAUCETS	FINISH	O.D. DIMENSIONS	DRIP AREA
DP-1608-SL	6 – 10	Polished SS	47 1/4" x 19 3/4"	45" x 10 1/2"

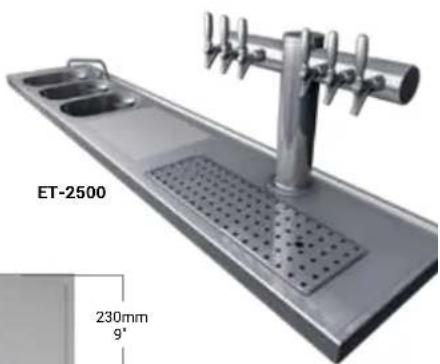

EUROTAP BEER STATION

PART NO. DESCRIPTION
ET-2500	Satin finish stainless steel, 3 sink compartments, embossed drain ridges, built-in glass rinser
F.O.B. IL

ET-2500

500mm 19 11/16' 290mm 11 3/8" 500mm 19 11/16" 720mm 28 3/8" 2500mm 98 7/16" 230mm 9"

CORNER DRIP

Create a custom look with our corner module! Use either DP-1608 or DP-1608-SL.

PART NO. FINISH O.D. DIMENSIONS

DP-1601 Polished SS 19 3/4" x 8 1/4"

DRIP TRAYS MICRO MATIC DP-1604

Metal tray with perforated metal surface, labeled DP-1606-NR (no other text or symbols visible)

Exterior view of a modern office building (no signage)

Exterior view of a stainless steel bar with water dropers and perforated base (no text or symbols)

Exterior view of a modern stainless steel laboratory apparatus labeled DP-1601, showing internal perforated surfaces and a central support (no text or symbols on the device itself)

DRIP TRAYS

WALL MOUNT SERIES

Includes a pipe thread drain nipple (1 3/4" x 3/4" NPT). Order: DDN or P709-88 for use with a drain hose. Brushed stainless steel with metal grill.

PART NO. DIMENSIONS SHANK HOLES HOLE CENTERS				GLASS RINSER	GRILL
DP-6X4	6"W x 4"D x 3"H	0	N/A		Louver
DP-321D-0	8"W x 6 3/8"D x 14"H	0	N/A		Louver
DP-321D-1	8"W x 6 3/8"D x 14"H	1	N/A		Louver
DP-321D-2	8"W x 6 3/8"D x 14"H	2	3"		Louver
DP-322D-0	12"W x 6 3/8"D x 14"H	0	N/A		Louver
DP-322D-1	12"W x 6 3/8"D x 14"H	1	N/A		Louver
DP-322D-2	12"W x 6 3/8"D x 14"H	2	6"		Louver
DP-322D-3	12"W x 6 3/8"D x 14"H	3	3"		Louver
DP-322LD-0	16"W x 6 3/8"D x 14"H	0	N/A		Louver
DP-322LD-4	16"W x 6 3/8"D x 14"H	4	4"		Louver
DP-322LD-4GR	16"W x 6 3/8"D x 14"H	4	4"	Included	Perforated
DP-322LD-5	16"W x 6 3/8"D x 14"H	5	3"		Louver
DP-322LD-5GR	16"W x 6 3/8"D x 14"H	5	3"	Included	Perforated
DP-322ELD-0	24"W x 6 3/8"D x 14"H	0	N/A		Louver
DP-322ELD-5	24"W x 6 3/8"D x 14"H	5	4"		Louver
DP-322ELD-6	24"W x 6 3/8"D x 14"H	6	3 1/2"		Louver
DP-322ELD-6-18	24"W x 8 3/8"D x 18"H	6	3 1/2"		Perforated
DP-322ELD-6GR	24"W x 6 3/8"D x 14"H	6	3 1/2"	Included	Perforated
DP-322ELD-8-18	24"W x 8 3/8"D x 18"H	8	3"		Perforated
DP-322ELD-8	24"W x 6 3/8"D x 14"H	8	3"		Louver
DP-322ELD-8GR	24"W x 6 3/8"D x 14"H	8	3"	Included	Perforated
DP-332ELD-10-3-18	36"W x 8 3/8"D x 18"H	10	3"		Perforated
DP-332ELD-10-3	36"W x 6 3/8"D x 14"H	10	3"		Louver
DP-332ELD-12-3-18	36"W x 8 3/8"D x 18"H	12	3"		Perforated
DP-332ELD-12-3	36"W x 6 3/8"D x 14"H	12	3"		Louver
DP-332ELD-14-3	48"W x 6 3/8"D x 14"H	14	3"		Louver
DP-332ELD-16-3	48"W x 6 3/8"D x 14"H	16	3"		Louver

Metal shelf support with four circular holes and a textured base (no text or symbols visible)

DP-322ELD-4GR

Metal wall-mounted drain or vent with a perforated drain and circular vent, no text or symbols visible.

DP-322ELD-8GR

Metal panel with perforated edges and a red circular 'NEW' badge (no text or symbols on the panel itself)

DP-322ELD-10-3-18
Trays with 18' backsplash

SPINSTOP™ D STRIP

ELIMINATE ROTATING SHANKS

Secure thru-the-wall shanks from loosening and rotating. Micro Matic SPINSTOP™ D Shanks lock into the patented D-hole mounting strip. Easy to install. Effective way to eliminate service calls for loose shanks. Available in three different hole center dimension configurations. Pair with corresponding wall mount drip tray.

D STRIPS
PART NO. LENGTH SHANK HOLES HOLE CENTERS

DP-WM-MS4-3	11 3/4"	4	3"
DP-WM-MS4-3.5	13 3/4"	4	3 1/2"
DP-WM-MS4-4	15 5/8"	4	4"

Metal plate with four circular holes, labeled DP-WM-MS4-3.5 (no other text or symbols)

OLD SHANK SPINSTOP™ SHANK

All Micro Matic shanks are machined with patented SPINSTOP™ D hole flats, see page 36.

Technical illustration of a mechanical assembly with threaded components and a side-view view (no text or symbols)

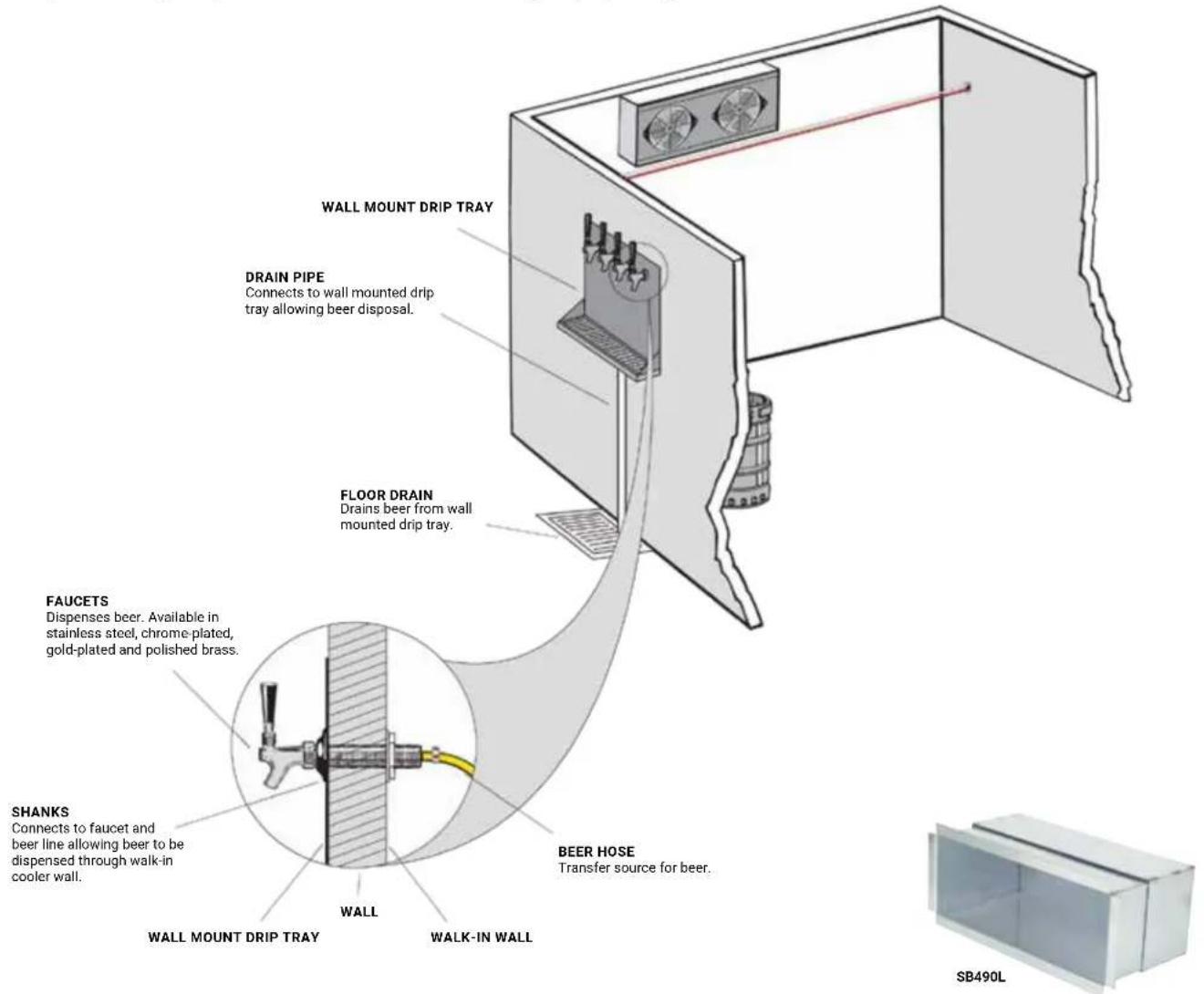

SHADOW BOXES

GALVANIZED METAL CONSTRUCTION

PART NO. DESCRIPTION

SB490S 14" x 5" I.D. short sleeve

SB490L 14" x 5" I.D. long sleeve

SB491S 20" x 5" I.D. short sleeve

SB491L 20" x 5" I.D. long sleeve

SB492S 23" x 5" I.D. short sleeve

SB492L 23" x 5" I.D. long sleeve

SHORT SLEEVE LONG SLEEVE

B A B A 4' 4' CLOSED 4" 4" 7" CLOSED 7"

Exterior view of a rectangular metal enclosure with a 14-inch top width and label 'SR400L' (no other text or symbols)

SB490L With long sleeve

WALL MOUNT BARREL HEAD

SOLID OAK BARREL HEAD

PART NO.	DESCRIPTION
JWOKE-JE	Cut from real wood barrels. 18' diameter unfinished surface with no holes. Foam insulation block to keep shanks cold and gasket seals barrel head to wall.

BARREL HEAD DRIP TRAYS WITH DRAIN

PART NO.	DESCRIPTION
DP-510D	15 1/2"W x 14 1/4"D x 9"H – plastic grid
DP-520D	15"W x 13 1/2"D x 9"H – stainless steel grid
DP-520LD	20"W x 13 1/2"D x 9"H – stainless steel grid

20" SB491S With short sleeve

Simple gray rectangular box with a blank center, no text or symbols visible

DP-510D

Exterior view of a gray metal enclosure with a perforated ventilation grille (no text or symbols visible)

DP-520D

Exterior view of a metallic ventilation grille (no text or symbols visible)

DP-520LD

Two wooden containers with a lid, one open showing a wooden block inside, labeled 'Bottom view' (no other text or symbols)

JWOKE-JE

DISPENSE SYSTEMS

GLYCOL COOLED

REMOTE BEER SYSTEM

The Power Pack is used to refrigerate a mix of water and glycol which is re-circulated at a temperature between 29 - 32°F. This maintains a brewery recommended keg storage temperature of 38°F. Glycol-cooled systems are not designed to lower beer dispensing temperatures. The system is designed to deliver beer at the same temperature as the walk-in-cooler.

Glycol-cooled systems are installed for long runs with a maximum length of 750 feet. Connecting multiple beer dispensing stations in a single system makes a glycol-cooled system highly functional and cost efficient.

IN-PLACE CLEANING SYSTEM Save beer and increase profits by cleaning your own lines when a keg empties. GAS BLEND LINE #2 70% CO₂ & 30% N used for lagers and ales. SECONDARY REGULATOR PANEL Regulates gas pressure to each products specification. EVAPORATOR UNIT Creates refrigerated air for walk-in cooler. COUPLER Dispense head for tapping kegs. GAS BLEND LINE #1 25% CO₂ and 75% N used for stouts. MICRO MATIC PRO-LINE™ BLENDER HIGH PRESSURE BRAIDED LINE N CYLINDER Storage for N. CO₂ CYLINDER Storage for CO₂. HIGH PRESSURE REGULATORS Regulates the CO₂ and N for the gas blend. KEG STACKER Saves space while allowing two kegs in series to be tapped. GLYCOL COOLANT LINES Transfer source for glycol (Must be fully wrapped inside cooler). BEER HOSE Transfer source for beer. KEGS Contains beer under pressure. WALK-IN COOLER PROFIT MAXIMIZER™ (PRO-MAX) Detects empty keg, closing beer line and keeping it filled. Eliminates wasted beer and lost profits. 50 LITRE CLEANING BOTTLE One bottle contains cleaning chemicals and one contains rinse water for the "In-Place Cleaning System". POWER PACK (70% water / 30% Polar Flo glycol) is refrigerated to maintain product temperature from walk-in cooler to tower. Capable of up to 750 ft.

CUT-AWAY VIEW, KOOL-RITE™ TECHNOLOGY DROP-IN MODULE FABRICATION COPPER COOLANT LINE Direct contact and held in place with cold block secure tabs THERMAL FOIL TAPE Improves cooling transfer between coolant and product lines. TRIPLE LAYER INSULATION SYSTEM FOAM INSULATION Tower insert is completely filled for temperature control. FOAM TAPE INSULATION Maintains temperature from trunkline to Kool-Rite™ module. STAINLESS STEEL PRODUCT LINES For the best in product purity. Barb end TIG welded to ensure leak proof joint. BARRIERMASTER FLAVOURLOCK TRUNKLINE PATENTED DOUBLE "D" COLD BLOCK Direct contact with copper coolant line and leak proof shank, supplying continuous transfer of coolant temperature to the point of dispense. KOOL-RITE™ TECHNOLOGY "T" STYLE DRAFT TOWER (Shown - 4 faucet, single pedestal) Available in polished stainless steel or PVD brass. BARRIER JACKET Protects insulation and makes installing in chase housing easier. 3/4" THICK FOAM INSULATION Maintains trunkline temperature. GLYCOL RETURN Returns glycol to power pack. GLYCOL SUPPLY Contains outgoing glycol from power pack and are in continuous contact with beer lines maintaining temperature from walk-in. MOISTURE BARRIER Contains condensation from hose bundle that would compromise insulation. BARRIER PRODUCT LINES Beer lines are permeation resistant to odor and taste transfer. These lines are in continuous contact with glycol lines maintaining temperature from walk-in.

PRO-LINE

POWER PACKS

POWERFUL PERFORMANCE. DELIVERING THE BEER COLD.

Exterior view of a MICRO MATIC industrial machine (no visible text or symbols on the device body)

Industrial HVAC unit with cooling fan and connected tubing, labeled 'MICRO MATIC' (no readable text beyond label)

SMALL FOOTPRINT PROVEN PERFORMERS UP TO 1 1/2HP AND 11,500 BTUs

FEATURES

• Continuous bath temperature display
• No-guess readability
• Adjustable temperature control

PUMP (2,600+ BTU MODELS)

- Vane pump

IMPELLER PUMP (UP TO 2,300 BTU MODELS)

- Compact design is ultra-reliable and energy efficient

THERMALLY-EFFICIENT BATH

• Expanded foam in walls & floor
• Lid insulation for tight bath seal
• Large capacity allows refrigeration to run less – saving energy and extending compressor life
• Service-friendly

DETERMINE POWER PACK SIZE

USE BTUs INSTEAD OF LENGTH OF RUN

Select the most efficient power pack for a beer system by calculating its total BTU (British Thermal Unit) load. Each power pack's BTU capacity is a numerical expression of the heat it can remove from a beer system as it circulates glycol. Each beer system has a unique BTU load that it exerts on the power pack chilling the glycol. If the exerted BTU load exceeds 60% of a power pack's BTU capacity, the compressor in the unit will need to run longer to maintain the glycol bath temperature. This will overwork the power pack compressor, and ultimately shorten its life. The goal is to have long compressor run times and equal rest times (or as equal as possible). Determining the right power pack to handle a beer system capacity is accomplished with a simple formula.

BTU FORMULA

Calculate using 100 BTUs per faucet. Add these totals together and multiply by 1.4 to find the total BTU capacity required.

EXAMPLE

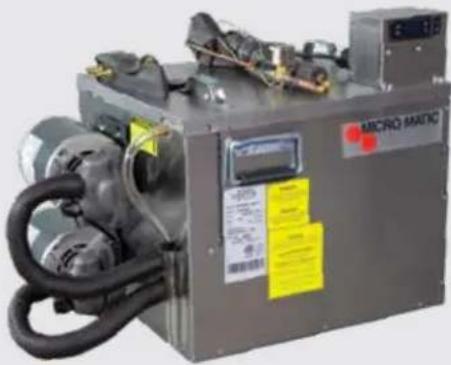

Industrial machine with visible wiring and control panel (no readable text or symbols)

REMOTE MODELS

LIFT OFF UPPER DECK LID (2,600+ BTU MODELS)

• Manufacturer-designed and assembled upper deck
• Ensures reliable performance

ALUMINUM / COPPER CONDENSER

- Optimum heat exchange

1/4" TRUNKLINE

SYSTEMS UP TO 50 FT

PART NO. BTUs		PRODUCT LINES
CDI242-BF	5.9	2
CDI442-BF	6.3	4
CDI542-BF	6.5	5
CDI642-BF	6.5	6
CDI842-BF	7.0	8
CDI1044-BF	7.9	10
CDI1244-BF	8.2	12
CDI1644-BF	9.0	16
CDI1042-BF	7.5	10

5/16" TRUNKLINE

SYSTEMS UP TO 125 FT

PART NO. BTUs		PRODUCT LINES
CDI252-BF	6.0	2
CDI452-BF	6.5	4
CDI552-BF	6.7	5
CDI652-BF	7.1	6
CDI852-BF	7.6	8
CDI1054-BF	8.3	10
CDI1254-BF	8.9	12
CDI1454-BF	9.5	14
CDI1654-BF	9.7	16
CDI2054-BF	10.3	20
CDI2454-BF	10.3	24
CDI1052-BF	8.4	10

3/8" TRUNKLINE

SYSTEMS UP TO 750 FT

PART NO. BTUs		PRODUCT LINES
CDI232-BF	6.3	2
CDI432-BF	6.8	4
CDI532-BF	7.2	5
CDI632-BF	7.5	6
CDI832-BF	8.0	8
CDI1034-BF	8.9	10
CDI1234-BF	9.5	12
CDI1434-BF	10.0	14
CDI1634-BF	10.5	16
CDI2034-BF	11.0	20
CDI1032-BF	8.8	10

PRO-LINE™ POWER PACKS

Industrial machine labeled 'MICRO MATIC' with control panel and sensor (no readable text beyond label)

Interior view of a rectangular electronic device with a coiled cable inside (no visible text or symbols)

Exterior view of a large industrial cooling unit with visible fan and cooling fins (no text or symbols)

c ETL us

Exterior view of a stainless steel industrial power unit with visible cooling fan and connected cables (no text or symbols)

Close-up of an electronic component with coiled copper coil and internal wiring (no visible text or symbols)

c ETL us
MMPP4300-35 MMPP4301-EP MMPP4301-PKG

	1,700 BTU 2,300 BTU 2,300 BTU
PART NO.	MMPP4300-35 MMPP4301-EP MMPP4301 MMPP4301-WC MMPP4301-PKG MMPP4301-PKG-WC
CONFIGURATION	Self-Contained Self-Contained Self-Contained Self-Contained Self-Contained Self-Contained
TYPE	Air Cooled Air Cooled Air Cooled Water Cooled Air Cooled Water Cooled
COMPRESSOR	1/4 HP 1/3 HP 1/3 HP
VOLTS	115	115	115
PLUG TYPE	5-15P	5-15P	5-15P	5-15P	L5-30P	L5-30P
BATH CAPACITY	4.5 Gallons 5 Gallons		11.5 Gallons
PUMP TYPE	Vertical	Vertical	Vane with 1/3 HP Motor
NO. OF PUMPS	1	1	1	1	2	2
DIMENSIONS	21.75" X 19 3/8" X 15 1/4"	26.12" X 17.12" X 21.56"	30" X 18" X 27.75"	30" X 18" X 28.75"	30" X 18" X 27.75"	30" X 18" X 28.75"
WEIGHT	77 LBS	90 LBS	120 LBS	120 LBS	128 LBS	128 LBS
APPROVAL	CE	ETL LISTED	ETL LISTED	ETL LISTED	ETL LISTED	ETL LISTED

	3,600 BTU
PART NO.	MMPP4302 MMPP4302-R MMPP4302-WC MMPP4302-PKG MMPP4302-PKG-R MMPP4302-PKG-WC
CONFIGURATION	Self-Contained Remote Self-Contained Self-Contained Remote Self-Contained
TYPE	Air Cooled Air Cooled Water Cooled Air Cooled Air Cooled Water Cooled
COMPRESSOR	1/2 HP
VOLTS	115
PLUG TYPE	5-20P 5-15P 5-20P L5-30P L5-30P
BATH CAPACITY	11.5 Gallons
PUMP TYPE	Vane with 1/3 HP Motor
NO. OF PUMPS	111222
DIMENSIONS	30" X 18" X 29.75"	30" X 18" X 20"(REMOTE BATH)	30' X 18" X 28.75*	30" X 18" X 29.75*	30" X 18" X 20"(REMOTE BATH)	30" X 18" X 28.75*
WEIGHT	157 LBS	157 LBS	157 LBS	157 LBS	157LBS	157 LBS
APPROVAL	ETL LISTED		ETL LISTED	ETL LISTED		ETL LISTED

PRO-LINE™ POWER PACKS

MMPP4303-PKG-R MMPP4303-PKG-3

	5,100 BTU
PART NO.	MMPP4303-PKG MMPP4303-PKG-R MMPP4303-PKG-WC MMPP4303-PKG-3 MMPP4303-PKG-3-R
CONFIGURATION	Self-Contained Remote Self-Contained Self-Contained Remote
TYPE	Air Cooled Air Cooled Water Cooled Water Cooled Air Cooled
COMPRESSOR	3/4 HP
VOLTS	208/230
PLUG TYPE	6-15P 6-15P 6-15P 6-20P 6-15P
BATH CAPACITY	11.5 Gallons
PUMP TYPE	Vane with 1/3 HP Motor
NO. OF PUMPS	2 2 2 3 3
DIMENSIONS	30" X 18" X 29.75"(REMOTE BATH)	30" X 18" X 20"(REMOTE BATH)	30" X 18" X 28.75" 30" X 28" X 29.75"		30" X 28" X 29.75"(REMOTE BATH)
WEIGHT	175 LBS 175 LBS 175 LBS 200 LBS 200 LBS
APPROVAL	ETL LISTED		ETL LISTED	ETL LISTED

MMPP4305-PKG-R MMPP4305-PKG-3

7,250 BTU

PART NO.	MMPP4305-PKG MMPP4305-PKG-R MMPP4305-PKG-WC MMPP4305-PKG-3 MMPP4305-PKG-3-R MMPP4305-PKG-WC3
CONFIGURATION	Self-Contained Remote Self-Contained Self-Contained Remote Self-Contained
TYPE	Air Cooled Air Cooled Water Cooled Air Cooled Air Cooled Water Cooled
COMPRESSOR	1 HP
VOLTS	208/230
PLUG TYPE	6-15P 6-15P 6-15P 6-20P 6-15P 6-15P
BATH CAPACITY	11.5 Gallons
PUMP TYPE	Vane with 1/3 HP Motor
NO. OF PUMPS	2 2 2 3 3 3
DIMENSIONS	37.12" X 18.75" X 31.15"	30" X 28" X 20"(REMOTE BATH)	37" X 18.75" X 31.5" 37" X 28" X 31.5"	30" X 28" X 20"(REMOTE BATH)	37" X 28.75" X 31.5"
WEIGHT	215 LBS	215 LBS	215 LBS	290 LBS	290 LBS	290 LBS
APPROVAL	ETL LISTED		ETL LISTED	ETL LISTED		ETL LISTED

PRO-LINE™ POWER PACKS

Exterior view of a large industrial machine with cooling fans and hoses (no visible text or symbols)

Industrial machine with control panel and piping (no visible text or symbols)

Exterior view of a large industrial machine with visible cooling fans and hoses (no readable text or symbols)

MMPP4307-PKG-WC MMPP4307-PKG

	11,500 BTU
PART NO.	MMPP4307-PKG MMPP4307-PKG-R MMPP4307-PKG-WC MMPP4307-PKG-3
CONFIGURATION	Self-Contained Remote Self-Contained Self-Contained
TYPE	Air Cooled Air Cooled Water Cooled Air Cooled
COMPRESSOR	1 1/2 HP
VOLTS	208/230
PLUG TYPE	6-20P 6-15P 6-20P 6-20P
BATH CAPACITY	11.5 Gallons
PUMP TYPE	Vane with 1/3 HP Motor
NO. OF PUMPS	2 2 2 3
DIMENSIONS	38" X 20" X 36"	30" X 28" X 20"(REMOTE BATH)	37" X 18.75" X 31.5" 38" X 30" X 36"
WEIGHT	295 LBS 295 LBS 295 LBS 295 LBS
APPROVAL	ETL LISTED ETL LISTED	ETL LISTED

Two industrial equipment units: a large metallic chamber with 'NEW' label and a smaller gray device with yellow labels (no readable text or symbols on main body)

MMPP4307-PKG-3-R MMPP4307-PKG-4

Industrial machine with coiled motors and ventilation grilles (no visible text or symbols)

	11,500 BTU
PART NO.	MMPP4307-PKG-3-R MMPP4307-PKG-3-WC MMPP4307-PKG-4 MMPP4307-PKG-4-WC
CONFIGURATION	Remote Self-Contained Self-Contained Self-Contained
TYPE	Air Cooled Water Cooled Air Cooled Water Cooled
COMPRESSOR	1 1/2 HP
VOLTS	208/230
PLUG TYPE	6-15P 6-15P 6-20P 6-20P
BATH CAPACITY	11.5 Gallons
PUMP TYPE	Vane with 1/3 HP Motor
NO. OF PUMPS	3 3 4 4
DIMENSIONS	30" X 28" X 20"(REMOTE BATH)	37" X 18.75" X 31.5" 38" X 30" X 36" 37" X 28.75" X 31.5"
WEIGHT	295 LBS 295 LBS 295 LBS 295 LBS
APPROVAL		ETL LISTED ETL LISTED	ETL LISTED

GLYCOL COOLED BEER DISPENSE SYSTEMS

POWER PACK REPLACEMENT PARTS

In order to identify the correct replacement parts, please note both the model number and serial number of the power pack.

PP4301-PAPP4301-KEY

PP4301-PPM

MMPP4301-PM

MM-3362-2

MMPP4301-M

PP4301-PPA

MMPP4301-EPVP

MMPP4301-PPC

PP4301-FTG

MMPP080G3206

	MANUFACTURED2007 – 2014					MANUFACTURED2015 – PRESENT
	MMPP4301-EP	MMPP4301	MMPP4302	MMPP4303	MMPP4305	MMPP4301-EP	MMPP4301	MMPP4302	MMPP4303	MMPP4305
PART NO.

GEAR PUMPS & MOTORS

NOTE: Pre-2015 power packs can be retrofitted with a Procon pump

PP4301-PPA

●●●●●●

MM-IPCPRO (INSULATION)

●●●●●●●●●

MM-3362-2

●●●●●●●●●

PP4301-PPM

●●●●●●●●●

MM-BC3-KIT (CONNECTORS)

●●●●●●●●●

MM-PP-KIT (CONVERT GEAR TO PROCON)

●●●●

MOTORS

PP4305-M

MMPP4301-M

• • • •

MMPP4305-M

• • • • •

VERTICAL PUMPS

MMPP4301-EPVP

•

•

POWER PACK COVER

617C Gear Replacement nipple 1/4" NPT with 3/8" I.D. barb

PP4301-FTG Procon Replacement nipple 3/8" NPT with 3/8 I.D. barb

617D Procon Replacement nipple 3/8" NPT with 1/2" I.D. barb

PI251612S Procon John Guest 1/2" stem x 3/8" barb

0020616B Procon John Guest 3/8" Male Pipe x 1/2" stem

GLYCOL

WHAT SIZE GLYCOL BATH ARE YOU FILLING?

POLAR-FLO (GALLONS)	WATER (GALLONS)	SOLUTION (GALLONS)
1/2 + 1 1/4 = 1 3/4
1 + 2 1/2 = 3 1/2
1 1/2 + 3 3/4 = 5 1/4
2 + 5 = 7
2 1/2 + 6 1/4 = 8 3/4
3 + 7 1/2 = 10 1/2
3 1/2 + 8 3/4 = 12 1/4

NOTE: Glycol bath mix for 1 HP and 1 1/2 HP models is 40% glycol mixed with distilled water.

• 100% USP grade propylene glycol
- Acts as a lubricant, prolonging pump life
- Flush and refill glycol baths annually
• Mix with 2 1/2 parts water

60703

Orange handheld device with red internal components, labeled '7084VP' (no other text or symbols visible)

Close-up of hands holding an orange object, possibly a tool or device, with no visible text or symbols.

Test your glycol

PART NO. DESCRIPTION

60703 1 gal propylene glycol, 4 bottles per case

60703-55 55 gal propylene glycol

7084VP

Glycol tester – this tool is a professional "must" that will easily give you an accurate reading of the glycol solution in a power pack bath. Having the right mix of glycol and water will result in optimum cooling performance.

CTS-311519

Glycol viscosity test strips, set of 50

POWER PACK RACKS

A power pack requires a proper location as the heart of the beer cooling system. It should never be located on top of a walk-in cooler.

PART NO.	MATERIAL	SHELVES	DIMENSIONS
PPR-362448	Aluminum	2 fixed	48^ × 36^ × 24^
PPR-2818	Stainless steel	2 fixed	24^ × 18^ × 28^
PPR-2848	Stainless steel	2 fixed	24^ × 28^ × 48^
MMPPWS	Stainless steel	1 fixed	10^ × 33^ × 21^

Coolant Test Strips Each Strip Use • Zincorgium Bulbopine • Coolant gel • 60% Slow Strip Part No. 134528

CTS-311519

Metallic side table with slatted base and top frame, dimension label indicates 48' (no text or symbols on the table itself)

NSF

Exterior view of a stainless steel industrial machine with a 24-inch base and side panel (no text or symbols visible)

PPR-2818PPR-362448

Exterior view of a gray metal enclosure or tray (no signage or text visible)

NOTE: Not for use with 1 HP and 1 1/2 HP models

Exterior view of a micro-matic industrial device with a 33-inch base (no visible text or symbols on the device itself)

TRUNKLINE

THE MOST TECHNOLOGICALLY ADVANCED BEER TRUNKLINE IN THE INDUSTRY. FACT.

With the exclusive BARRIERMASTER FLAVOURLOCK™ TUBING and patented BLACK DIAMOND® JACKET we have the best in class trunkline with best in class service:

• Delivered fast from 4 regional warehouses.
• More configurations than any competitor.
- Commonly cut and shipped the same business day.

• Ultra smooth inner co-polymer layer to reduce bacteria adhesion.
• Exceptional gas barrier reduces the ingress of oxygen and reduces CO2 and mixed gas loss - 80 times better than polyethelene tubing.
• Prevents cross-contamination of flavors within the trunk line.
• Excellent for use with most beverages including beer, wine, juice, cold coffee and tea, soda, liquor, water, etc.
• Compatible with barb and John Guest connections.
• Individual lines are color coded for easy identification.
  • NSF 51 and FDA listed.

INSULATION

^3/4 " thick insulation is engineered for exact fi t surrounding tubing bundle, eliminating air gaps.

PATENTED BLACK DIAMOND ^ JACKET

• 60% less effort to pull lines.
• Like pulling with ball bearings.
  • Rugged, able to resist punctures and tears.
  • One piece, extruded and glued to the insulation making the bundle waterproof.

GLYCOL LINES

Color coded for outbound and return line.

MOISTURE BARRIER WRAP

Moisture barrier wrap

prevents condensation.

FOIL WRAP

Wrapped with foil tape for even, cold transfer.

BARRIERMASTER FLAVOURLOCK

Beverages: Beer, wine, juice, cold coffee and tea, soda, liquor, water, etc.

1/4" TRUNKLINE

PART NO. BTUs		PRODUCT LINES	I.D.	GLYCOL LINES	I.D.	BLACK DIAMOND ^ JACKET	BUNDLE O.D.
CDI242-BF	5.9	2	1/4 ^*	2	3/8 ^*	Yes	2 3/4 ^*
CDI442-BF	6.3	4	1/4 ^*	2	3/8 ^*	Yes	2 3/4 ^*
CDI542-BF	6.5	5	1/4 ^*	2	3/8 ^*	Yes	2 3/4 ^*
CDI642-BF	6.5	6	1/4 ^*	2	3/8 ^*	Yes	2 3/4 ^*
CDI842-BF	7.0	8	1/4 ^*	2	3/8 ^*	Yes	2 3/4 ^*
CDI1044-BF	7.9	10	1/4 ^*	4	3/8 ^*	Yes	3 1/4 ^*
CDI1244-BF	8.2	12	1/4 ^*	4	3/8 ^*	Yes	3 1/4 ^*
CDI1644-BF	9.0	16	1/4 ^*	4	3/8 ^*	Yes	3 3/4 ^*
CDI1042-BF	7.5	10	1/4 ^*	2	1/2 ^*	Yes	3 1/4 ^*

BTU/HR/FT is based on an ambient temperature of 80°F and a glycol mix of 40% glycol / 60% water.

.30 RESTRICTION PER FOOT - 15 oz BEER PER 50 FT

Cross-sectional view of a black cable with multiple internal porous structures (no text or symbols visible)

CDI642-BF

BARRIERMASTER FLAVOURLOCK

Beverages: Beer, wine, juice, cold coffee and tea, soda, liquor, water, etc.

5/16" TRUNKLINE

PART NO. BTUs		PRODUCT LINES	I.D.	GLYCOL LINES	I.D.	BLACK DIAMOND ^2 JACKET	BUNDLE O.D.
CDI252-BF	6.0	2	5/16'	2	3/8'	Yes	2 3/4'
CDI452-BF	6.5	4	5/16'	2	3/8'	Yes	2 3/4'
CDI552-BF	6.7	5	5/16'	2	3/8'	Yes	2 3/4'
CDI652-BF	7.1	6	5/16'	2	3/8'	Yes	2 3/4'
CDI852-BF	7.6	8	5/16'	2	3/8'	Yes	3"
CDI1054-BF	8.3	10	5/16'	4	3/8"	Yes	3 1/2"
CDI1254-BF	8.9	12	5/16'	4	3/8"	Yes	3 1/2"
CDI1454-BF	9.5	14	5/16'	4	3/8"	NA	3 1/2'
CDI1654-BF	9.7	16	5/16'	4	3/8"	NA	4'
CDI2054-BF	10.3	20	5/16'	4	3/8"	NA	4 1/4"
CDI2454-BF	10.9	24	5/16'	4	3/8"	NA	4 1/2"
CDI1052-BF	8.4	10	5/16'	2	1/2"	Yes	3 1/2"

BTU/HR/FT is based on an ambient temperature of 80°F and a glycol mix of 40% glycol / 60% water.

.10 RESTRICTION PER FOOT - 25 oz BEER PER 50 FT

Cross-sectional view of a black cable with internal blue and red porous structures (no text or symbols)

CDI852-BF

BARRIERMASTER FLAVOURLOCK

Beverages: Beer, wine, juice, cold coffee and tea, soda, liquor, water, etc.

3/8" TRUNKLINE

PART NO. BTUs		PRODUCT LINES	I.D.	GLYCOL LINES	I.D.	BLACK DIAMOND ^* JACKET	BUNDLE O.D.
CDI232-BF	6.3	2	3/8"	2	3/8"	Yes	2 3/4"
CDI432-BF	6.8	4	3/8"	2	3/8"	Yes	2 3/4"
CDI532-BF	7.2	5	3/8"	2	3/8"	Yes	2 3/4"
CDI632-BF	7.5	6	3/8"	2	3/8"	Yes	2 3/4"
CDI832-BF	8.0	8	3/8"	2	3/8"	Yes	3"
CDI1034-BF	8.9	10	3/8"	4	3/8"	Yes	3 3/4"
CDI1234-BF	9.5	12	3/8"	4	3/8"	NA	3 3/4"
CDI1434-BF	10.0	14	3/8"	4	3/8"	NA	4"
CDI1634-BF	10.5	16	3/8"	4	3/8"	NA	4"
CDI2034-BF	11.0	20	3/8"	4	3/8"	NA	4 1/2"
CDI1032-BF	8.8	10	3/8"	2	1/2"	Yes	3 3/4"

BTU/HR/FT is based on an ambient temperature of 80°F and a glycol mix of 40% glycol / 60% water.

Seven identical beer glasses with orange liquid and white foam, arranged horizontally (no text or symbols visible)

.06 RESTRICTION PER FOOT - 37.5 oz BEER PER 50 FT

Cross-sectional view of a multi-core cable with visible internal structure (no text or symbols)

CDI632-BF

IN-LINE PROFIT MAXIMIZER™

WE GIVE YOU

CHOICE!

PRO-MAX-MM

• Manufactured of 304 Grade Stainless Steel & ABS Plastic
• Large beer chamber for easy viewing
• Stainless steel hose connections

• Removable, reversible mounting bracket

• Reverse inlet and outlet positions

• Instruction labels on both sides
• Bleed-off drain swivels 360°
• Easily disassembles in minutes for complete cleaning

NEW RE-ENGINEERED

PRO-MAX-MM

PART NO.

PRO-MAX-MM

Close-up of a metallic industrial reactor or filter unit with no visible text or symbols on the body.

PRO-MAX-1

PRO-MAX-1

• Large ABS plastic chamber
• Stainless steel construction
• Stainless steel inlet & outlet wit barbed ends
• Easy disassembly for cleaning

PART NO.

PRO-MAX-1

LOW PRICE

PRO-MAX-2

PRO-MAX-2

• 4 1/4 fl oz chamber volume
• Hex nut threaded inlet, and outlet
• Plastic, FDA Listed Material
• Up to 140 psi working pressure
• Easy disassembly for cleaning

PART NO.

PRO-MAX-2

Exterior view of a cylindrical mechanical device with mounting flanges and a central shaft (no visible text or symbols)

PRO-MAX-3

PRO-MAX-3

• 3 1/2 fl oz chamber volume
• Side inlet, bottom beer outlet
• Stainless steel fl oat release with integral lock
• ABS plastic construction
• Up to 100 psi working pressure
• 2 piece assembly for easy cleaning

PART NO.

PRO-MAX-3

Mechanical component with two cylindrical tanks and a central base, no visible text or symbols

PRO-MAX-2-J10

PRO-MAX-2-J10

• Double FOB
• Never stop pouring
• Automatically switches from empty to new keg
• Compact size 8.5"W x 11"H
• Same features as PRO-MAX-2

PART NO.

PRO-MAX-2-J10

MAXIMIZE PROFITS & MINIMIZE BEER LOSS

PRO-MAX ^™ reduces pour cost and pays for itself after as few as 6 keg changes. With PRO-MAX ^™ In-Line Profit Maximizer, the beer line remains full when the keg empties. There is no need to re-fi ll the beerline – this reduces waste and maximizes glasses per keg.

LET'S DO THE MATH! REDUCE POUR COST BY \$7.50 PER KEG CHANGE

The following table shows the amount of beer-loss each time a keg empties without a Profi t Maximizer installed.

BEER LOSS

SYSTEM LENGTH	1 KEG 3 KEGS
50' 38 oz 114 oz
100' 75 oz 225 oz
200' 150 oz 450 oz

400' 300 oz 750 oz
Assumption: ^3/4 I.D. tubing containing ^3/4 oz per foot. Example: 200' system - 150 oz of beer per keg (150 oz x 0.05 = 7.50 cost / per keg change)

Close-up of a beer glass filled with amber-colored liquid, showing bubbles and white top (no text or symbols visible)

EASY TO OPERATE:

TAP A NEW KEG AND

RESET PRO-MAX™ TO

START THE BEER FLOW.

Product photo of a water bottle with plastic tubing and accessories (no visible text or symbols)

PM3-DK

Product photo showing a transparent plastic tube, a bottle, and a small container with handwritten marks (no readable text or symbols)

PM1-2-DK

Use with PRO-MAX-1 and PRO-MAX-2

QTY DESCRIPTION

1 Pro-Max™ drain bottle and bracket

50' 1/4" I.D. clear vinyl hose

7 Plastic tee, 1/4" I.D. hose

1 SS elbow, 5/16' x 5/16'

20 8' eyelet cable ties

20 Short 3/4" screws

DRAIN BOTTLE

PART NO. DESCRIPTION

PRO-MAX-DB Drain bottle and wall bracket only

PM3-DK

Use with PRO-MAX-3

QTY DESCRIPTION

1 Pro-Max ^™ Drain Bottle and Bracket

30' 3/16" I.D. clear vinyl hose

7 John Guest equal T 3/16' O.D.

1 John Guest elbow 3/16' O.D.

20 8' eyelet cable ties

20 Short 3/4" screws

POLARplate™

ANSWERING THE CALL FOR EXTRA COLD BEER

Innovative In-Line Cooling Technology

POLARplate™ technology uses existing glycol cooling lines to reduce the pour temperature.

- Self-contained

• Install in existing long draw systems

• Available in 1, 4, 6 & 8 tap

• No electricity required

- Easy in-line installation

• Space-saving under counter installation

PART NO. PRODUCTS DIMENSIONS

PP-1 1 12 1/2"L x 5 3/4"W x 5 1/2"D

PP-4 4 22"L x 14"H x 5 1/2"D

PP-6 6 22"L x 14"H x 5 1/2"D

PP-8 8 16 1/2"L x 22 1/2"H x 7 3/4"D

Exterior view of a metallic industrial enclosure with a micro matic pressure vessel (no visible text or symbols)

Illustration of a metallic barrel with a yellow arrow indicating rotation or flow (no text or symbols)

Illustration of a water filtration device with a padlock and heat sink, showing fluid flow direction (no text or symbols)

POLARplate™ is designed to lower the pour temperature at the point of dispense. For maximum results, keg beer should be kept stored at 36 - 40° F.

BEERBLAST® ON-SITE NITROGEN GENERATION

PROTECT THE BEER & GENERATE PROFITS

BeerBlast® KPH nitrogen generator and mixed gas dispense system increases profits, eliminates over or under-carbonation and improves draft beer quality. Use state-of-the-art technology to reduce operating costs and yield premium beverage grade nitrogen. These lightweight and compact units are easy to install and are provided with turn-key blends applicable to beer, wine or coffee.

The patent pending dual bed PSA design BeerBlast® KPH generates its own nitrogen on demand. This technology yields higher flow rates, enhanced nitrogen purity and efficiency no other generator can deliver. Delivered with the patented BlastOff™ Leak Detection System, BeerBlast® is designed to detect beer gas leaks before they become catastrophic. In addition, this technology will reduce service calls and gas run-outs, while protecting the unit from unnecessary (excessive) operating hours.

KIT INCLUDES:

• Nitrogen Generator and Gas Blender (if applicable)
• Backup Nitrogen Regulator (except Nitrogen cylinder)
• Nitrogen Storage Tank
• All Fittings and Hardware (except wall bolts and beverage tubing)

White beer blast device with black handle and control panel, no visible text or symbols on the device itself.

BB-7KPH-MM

Industrial gas processing system diagram showing tanks, valves, and piping connections (no text or labels)

IMPROVE DRAFT BEER QUALITY WITH ON-SITE N₂ GENERATION!

WALL MOUNT MODELS - 85 LBS, 30"H X 13"W X 10"D

PART NO.	PEAK DEMAND1 HOUR SURGE	FLOW RATE	NITROGENPURITY	GASBLENDER	ELECTRICAL	COMPRESSOR
BB-7KPH-MM	7 Kegs	11 SCFH	99.80%	Included	110 VAC, 18 Amps	Included
N2-GEN-7KPH-MM	7 Kegs	11 SCFH	99.80%	N/A	110 VAC, 18 Amps	Included

FLOOR MOUNT MODELS - 275 LBS, 58"H X 26" W X 18"D

PART NO.	PEAK DEMAND 1 HOUR SURGE	FLOW RATE	NITROGEN PURITY	GAS BLENDER	ELECTRICAL	COMPRESSOR
BB-14KPH-MM	14 Kegs	27 SCFH	99.80%	Included	110 VAC, 18 Amps	Included
N2-GEN-14KPH-MM	14 Kegs	27 SCFH	99.80%	N/A	110 VAC, 18 Amps	Included

For applications where a blender is already installed, specify the N2-GEN® KPH model.

Exterior view of a mechanical device with a central valve and label 'SHEEL BLAST' (no other text or symbols visible)

N2-GEN-14KPH-MM

GAS BLENDERS

MAINTAIN CARBONATION

FROM THE FIRST GLASS TO THE LAST

• System performance is optimized and keg yield improved by maintaining recommended carbonation levels.
• Dispensing with a precise gas blend will deliver the "Brewery Fresh Taste" in each and every glass – consistent quality improves customer satisfaction!
• Reduce pour cost by eliminating waste as carbonation levels are maintained for the variety of draft beers on tap – a more reliable dispense process reduces the chances of overpours.

CO_2

MICRO MATIC 1-866-327-4159 Nu CO2 100 μm/100μL / 10 μm/100%

Available with a Built-In Leak Detector for extra safety and security

Cross-sectional view of a cylindrical container filled with orange liquid and yellow particles, no text or symbols visible

ENSURE PRODUCT QUALITY AND REDUCE POUR COSTS

GAS BLENDERS

MICRO MATIC PRO-LINE™

Outlet pressure is preset at 47 psi to eliminate operator tampering and minimize unnecessary service calls.

PART NO.	BLEND	LEAK DETECTOR	FLOW RATE	KEGS / HR	BLENDS*
					ALE AND LAGER	ALE AND LAGER	STOUT
MM100	Single		Standard	10	70% CO2 & 30% N*
MM100-LD	Single	Included	Standard	10	70% CO2 & 30% N*
MM100-60-40	Single		Standard	10		60% CO2 & 40% N
MM100-60-40-LD	Single	Included	Standard	10		60% CO2 & 40% N
MM100S	Single		Standard	10			25% CO2 & 75% N*
MM200	Double		Standard	20'	70% CO2 & 30% N*		25% CO2 & 75% N*
MM200-LD	Double	Included	Standard	20'	70% CO2 & 30% N*		25% CO2 & 75% N*
MM200-60-40	Double		Standard	20'		60% CO2 & 40% N	25% CO2 & 75% N
MM200-60-40-LD	Double	Included	Standard	20'		60% CO2 & 40% N	25% CO2 & 75% N
MM300	Triple		Standard	30'	70% CO2 & 30% N*	60% CO2 & 40% N	25% CO2 & 75% N*

*Micro Matic Pro-Line™ gas blenders meet blend standards established by major breweries and the Brewers Association. ^Up to 10 kegs per hour per blend.

TRUMIX®

Inlet pressure can be adjusted from 55 – 150 psi. Includes gauge(s) to adjust outlet pressure from 0 – 47 psi. If you need a custom gas blend, all Trumix ^ blenders are available in any blend from 5 – 95% CO _2 .

PART NO.	BLEND	LEAK DETECTOR	FLOW RATE	KEGS / HR	BLENDs*
					ALE AND LAGER	ALE AND LAGER	STOUT
TM100-60-40	Single		Standard	10		60% CO_2 & 40% N
TM100-70-30	Single		Standard	10	70% CO_2 & 30% N
TM100HF	Single		Standard	20**	Specify Gas Blend: from 5 - 95% CO_2 Balance N
TM200-60-40	Double		Standard	20*		60% CO_2 & 40% N	25% CO_2 & 75% N
TM200-70-30	Double		Standard	20*	70% CO_2 & 30% N		25% CO_2 & 75% N
TM200HF	Double		High-Flow	40**	Specify Gas Blend: from 5-95% CO_2 Balance N

^Up to 10 kegs per hour per blend. ^^Up to 20 kegs per hour per blend.

BLENDER ACCESSORIES

HIGH PRESSURE REGULATORS

Recommended use with Pro-Line™ and Trumix® gas blenders. Use with braided high pressure hose.

PART NO.	DESCRIPTION
642HP	Premium high pressure regulator double gauge CO_2 – 110 psi safety release
942B	High pressure regulator double gauge CO_2 – 120 psi safety release
942BN	High pressure regulator double gauge nitrogen – 120 psi safety release

IN-LINE CHECK VALVE TEES

Protect the gas blender from being filled with water when used in conjunction with bulk CO_2 or a soda carbonator. Use with braided high pressure hose. The Pro-Line™ and Trumix® gas blender warranty only covers against water damage if a tee was installed.

PART NO.	THRU	OUTLET
MV013	1/4" × 1/4"	1/4"
MV042	3/8" × 3/8"	3/8"
MV044	1/4" × 3/8"	1/4"

HIGH PRESSURE HOSES

PART NO.	COLOR	I.D.	O.D.	CLAMP	LENGTH
548WD1200C	Clear	1/4"	1/2"	BE-1314	100'
549WD1200C	Clear	5/16"	9/16"	BE-1316	100'
550WD1200C	Clear	3/8"	5/8"	BE-1317	100'

MICRO MATIC 1000-027-0198

MM100
(7 3/4" x 8 3/4" x 4 1/2")

MICRO MATIC 1-866-327-4159 NEW

MM100-LD

U800 MATIC 1400-327-4159 Drums: Duglar

TM100-70-30
(11"×15"×6")

Close-up of a pressure regulator with dual gauges and a central valve, labeled '642HP' (no other text or symbols visible)

MV013

Close-up of three transparent plastic tubes with coiled ends, no visible text or symbols

Braided vinyl tubing

GLYCOL COOLED BEER DISPENSE SYSTEMS

PRO-MAX ^™ REGULATOR PANEL KITS

INTEGRATED PRO-MAX™ KITS

Includes Profit Maximizer™ and pre-plumbed to drain. All stainless steel contact components.

PART NO. DESCRIPTION PANEL SIZE SS NIPPLE

RPK-1-PM	1 pressure / 1 product	4 1/4"W x 10"H	3/8" I.D.
RPK-2-PM	2 pressure / 2 products	10"W x 10"H	3/8" I.D.
RPK-4-PM	4 pressure / 4 products	21 1/2"W x 10"H	3/8" I.D.

550XFM96WHC Replacement jumper line - 8' x 3/8" I.D. XtraFlexmaster™ with 304 SS contact

VENT PRE PLUMBED TO DRAIN USE WITH PM1-2-DK PROFIT MAXIMIZER™ JOHN GUEST FITTING FOR 3/8" I.D. POLY TUBE KEG PRESSURE REGULATOR 304 SS WALL BRACKETS 8' JUMPER HOSES 3/8" I.D. SS TAILPIECES 3/8" I.D. VINYL HOSE 8' 5/16" I.D. GAS HOSES RPK-2-PM

SECONDARY REGULATOR PANEL KITS

PART NO. DESCRIPTION PANEL SIZE SS NIPPLE

83115 1 pressure / 1 product 5 1/2"W x 9 1/2"H 3/8" I.D.

83215 2 pressure / 2 products 11"W x 9 1/2"H 3/8" I.D.

83315 3 pressure / 3 products 14"W x 9 1/2"H 3/8" I.D.

83415 4 pressure / 4 products 17"W x 9 1/2"H 3/8"I.D.

A shutoff can be added to isolate the panel by also ordering part number 751-107.

3/8" I.D. SS TAILPIECES Fittings INCLUDED: - 3/8" BARB NIPPLE - STEPLESS GAS CLAMPS - NEOPRENE WASHERS 8' JUMPER HOSES 3/8" I.D. SS TAILPIECES 3/8" I.D. VINYL HOSE 8" 5/16" I.D. GAS HOSES SS WALL BRACKETS

BEER PUMPS

• Designed for long draw systems

• Maintain internal keg pressure with CO_2 at brewery recommendation

• Drive pumps using air or CO_2 pressure

• If CO_2 must plumb exhaust pressure outside of cooler into well ventilated area
• Great for use with low pressure serving vessels

PART NO. DESCRIPTION

MP-090 Shurflo	^a beer pump
MP-093 Flojet	^b beer pump
G56-100 Flojet	^c flow reversal valve

PRO-MAX™ BEER PUMP PANEL KITS

INTEGRATED PRO-MAX™ AND BEER PUMP KIT

Includes PRO-MAX-MM Profit Maximizer™ and Flojet® Beer Pumps pre-mounted and pre-plumbed. All stainless steel contact components.

PART NO. DESCRIPTION PANEL SIZE SS NIPPLE

83115-PM1-BP-N 1 pressure / 1 product 12"W x 23"H 3/8" I.D.

83215-PM1-BP-N 2 pressure / 2 products 23"W x 23"H 3/8" I.D.

MP-090 MP-093 G56-100 AIN 83215-PM1-BP-N

Close-up of a metallic cylindrical object with purple floral-like patterns on its surface (no text or symbols visible)

MICRO MATIC

FLOW RESTRICTORS

CONSISTENT FLOW RESTRICTING RIGHT AT THE TOWER

SAVE UNDERBAR SPACE

Have you wrapped 3' or more of 3/16'' vinyl restriction line and tried to find a place for it under the bar?

NO VINYL HOSE - USE ALL BARRIERMASTER FLAVOURLOCK

The integrity of our trunkline is based on the quality of our BarrierMaster Flavourlock Tubing; enhanced performance

and longevity by utilizing all BarrierMaster FlavourlockTubing.

CALCULATE THE PERFECT AMOUNT OF RESTRICTION

Do the math. Know the right amount of resistance to build into the line leading to the tower.

SIMPLE INSTALLATION

Calculate total system resistance. Example below in yellow.

BEERLINE (SIZE I.D.)

RESTRICTION (LBS/FT)

LENGTH OF RUN (FT)

LINE(Lbs) RESTRICTION

LIFT/DROP (.5 LBS/FT)

SYSTEM HARDWARE

TOTAL SYSTEM RESTRICTION (TSR)

TARGET PRESSURE

SUBTRACT TSR

RESTRICTION REQUIRED

DIVIDED BY 2 LBS PER SEGMENT

RESTRICTOR SEGMENTS

1/4" =

0.30

X

=

±

=

+

=

-

=

÷2 =

5/16" =

0.10

X

=

±

=

+

=

-

=

÷2 =

3/8" =

0.06

X

=

±

=

+

=

-

=

÷2 =

3/8" =

0.06

× 100

= 6

± 2.5

= 8.5

+ 7.5

= 16

22

- 16

= 6

÷2 =

3

INSTALLATION

TRUNKLINE APPROPRIATE CLAMP SS SPLICER 105SL CLAMP 12" X 1/4" I.D. BARRIERMASTER FLAVOURLOCK TUBING 100SL CLAMP RESTRICTOR SEGMENT 105SL CLAMP KOOL-RITE " BEER BARB FROM TOWER

Break off correct number of segments required to achieve desired system restriction. Insert segment(s) into supplied 12" x 1/4" I.D. BarrierMaster Flavourlock Tubing. Connect BarrierMaster Flavourlock Tubing with segment(s) directly onto Kool-Rite™ stainless steel barb fitting. Use a clamp to hold the restrictor in place in the tubing, just below the beer barb, DO NOT CLAMP ON THE RESTRICTOR. Install splicer into opposite end of 12" x 1/4" BarrierMaster Flavourlock Tubing and clamp. Complete connection to trunkline. After all connections are complete, finish wrapping the section with foil tape, moisture tape, 3/4" wall foam insulation and a fi nal wrap with vinyl tape.

RESTRICTION & SEGMENTS

RESTRICTION(PSIG)	FLOW RESTRICTOR SEGMENTS
2	1
4	2
6	3
8	4
10	5
12	6
14	7
16	8
18	9
20	10

Restrictor stick includes 12 segments

Kit Example

RESTRICTOR KITS

PART NO.	BEER LINES	DESCRIPTION
MM-RSK-14	6	Restrictor kit 1/4" I.D. trunkline
MM-RSK-516	6	Restrictor kit 5/16" I.D. trunkline
MM-RSK-38	6	Restrictor kit 3/8" I.D. trunkline
MM-RS		Restrictor stick (12 segments per stick)

GLYCOL SYSTEM INSTALLATION KITS

	TRUNKLINE I.D. 1/4" 1/4" 5/16" 5/16" 3/8" 3/8"
	KIT PART NUMBER IK-4 IK-4A IK-5 IK-5A IK-3 IK-3A
	PART NO. DESCRIPTION QTY QTY QTY QTY QTY
CLAMPS & SPLICERS	105SL Stepless clamp 30 20
	123SL Stepless clamp			30
	140SL	Stepless clamp	50	20	30	20	50	20
	1314	Single ear clamp	20	20	20	20	20	20
	1317	Single ear clamp	30	20	30	20	30	20
	526BS-304 1/4" SS tailpiece 10 10
	526ES-304	5/16" SS tailpiece			10	10
	SSS-BE	SS splicer 1/4" x 3/16"			10	10
	SSS-BC	SS splicer 1/4" x 3/8"					10	10
	SSS-C2	SS splicer 3/8" x 3/8"	8		8		8
	SSS-B2	SS splicer 1/4" x 1/4"	10	10
	SSE-C2	SS elbow 3/8" x 3/8"	2	2	2	2	2	2
	SSU-C2	SS u-bend 3'L	4		4		4
HOSES	547C600	Vinyl hose 3/16" I.D.	1		1		1
	550WD600C	Braided vinyl hose 3/8" I.D.	1		1		1
	CDI-GLY-2	Pre-wrapped glycol lines	12	12	12	12	12	12
TAPES	CDI-TAPE-2	2" barrier tape	1		1		1
	ES-2FT	2" foil tape	1		1		1
	ES-IT30	2" foam insulation tape	1	1	1	1	1	1
	ES-ST	2" moisture tape	1		1		1
INSULATION	ES-FRI178	17/8" I.D. x 1/2" wall	1		1		1
	ES-I1L	1/2" I.D. x 1/2" wall	1		1		1

Collection of automotive pipe fittings and connectors (no text or symbols visible)

Our glycol system installation kits combine convenience and cost savings of over \$40 instead of ordering parts individually! Each kit contains enough parts for a 10 line installation.

PT-3X150

SYSTEM INSTALLATION EQUIPMENT

INSULATION (6' LENGTHS)

Lightweight closed cell, flexible insulation.

PART NO.	DESCRIPTION
ES-I1L 1/2" I.D. x 1/2" wall
ES-I2L 7/8" I.D. x 1/2" wall
ES-FRI118	1 1/8" I.D. x 3/4" wall
ES-FRI138	1 3/8" I.D. x 3/4" wall
ES-FRI158	1 5/8" I.D. x 3/4" wall
ES-FRI178	1 7/8" I.D. x 3/4" wall
ES-FRI218	2 1/8" I.D. x 3/4" wall
ES-FRI258	2 5/8" I.D. x 3/4" wall
ES-FRI3 3 1/2" I.D. x 1/2" wall
ES-FRI4 4 1/2" I.D. x 1/2" wall

BARRIERMASTER FLAVOURLOCK TUBING

Rolls only available in natural.

PART NO. DESCRIPTION

548BF6000 1/4" I.D. 500 ft coils

549BF6000 5/16" I.D. 500 ft coils

550BF6000 3/8" I.D. 500 ft coils

VARIOUS TAPES

& MOUNTING CLIP

PART NO.	DESCRIPTION
ES-2FT 2" foil
ES-ST	2" moisture strap
ES-IT30	2" foam insulation
ES-DT180	2" black duct tape
CDI-TAPE-2	2" PVC barrier tape
PT-3X150	3" Plenum-rated tape
CDI-CLIP	Trunkline mounting clip, up to 8 products. Adjustable 2 1/2" - 3 1/2"
EZK-17	Safely cut and open trunk line jacket. Dual-sided surgically sharp blade.

PRE-WRAPPED

Glycol only trunkline.

PART NO. DESCRIPTION

CDI-GLY-2	2 glycol lines
CDI-GLY-4	4 glycol lines

ES-2FT

ES-ST

ES-IT30

ES-DT180

CDI-TAPE-2

EZK-17

CDI-GLY-2
CDI-GLY-4

Close-up of two black cylindrical electronic components with blue internal structures, labeled 'LY-2' (no other text or symbols visible)

LEAK DETECTORS

McDantim BYPASS LEAK DETECTOR

MM-BLIP

MV035

EL-720 Polar-ovra

MV020 Beer Check Gas Analyzer

MV022 Beer Check Bio-Analytogram

BYPASS LEAK DETECTOR

Leaks can occur 24 hours a day / seven days a week. Even a small leak of one-half cubic foot an hour wastes more gas each day than you would use to dispense two kegs of beer. The Bypass leak detector shows you in seconds if you have a leak. As leaks are repaired, it serves as your scorecard, letting you know how much of the problem is resolved and if all leaks are fixed.

PART NO. DESCRIPTION

MM-BLIP Bypass leak detector

NOTE: For use with systems where maximum usage is a flow rate to 600 SCFH or 70 lbs CO _2 per hour.

IN-LINE LEAK INDICATOR

Determine gas leaks – save costs and employees from exposure to hazards.

How it Works: Chamber containing a small plastic float. If gas flows through the chamber, the float will lift up. The larger the gas flow, the higher the float lifts up. If no beer is being poured, the float will remain at the bottom of the chamber. If floating, with no beer being poured, a leak is present.

PART NO. DESCRIPTION

MV035 Two gas lines

MV039 Single gas line

LEAK DETECTOR

AccuTools CO_2 leak detector is the most technologically advanced of its kind. This fully automatic detector's small size and high sensitivity combine to create an easy-to-handle tool that is ultra-effective at locating even the most minute leaks.

SPECIFICATIONS:

• Body: 8" x 2 1/2" x 2 1/4", Probe: 12"
• Weight: 15 oz with batteries (4 x AA)
• High Sensitivity: Less than 400 ppm over ambient
• Response Time: 1 second

PART NO. DESCRIPTION

EL-720 CO

2 leak detector

GAS ANALYZER & LEAK DETECTOR

Beer Check is a revolutionary tool the draught service technician or brewer will find indispensable. Beer Check is hand-held and easy to use, providing a fast, accurate reading.

CO₂ in N – Analyze the percentage of CO₂ in N. Accuracy: +1.0% CO₂ in Air – Analyze the percentage of CO₂ in air. Accuracy: +1.0% O₂ in N – Analyze the oxygen percentage in N. Accuracy: +0.5%

SPECIFICATIONS:

Dimensions: 3 7/8"W x 5 3/4"H x 1 3/4"D

Weight: 9 oz

Power: 9 volt battery

PART NO. DESCRIPTION

MV020 Beer Check with adapter kit

MV022

Beer Check with adapter kit and leak sensor wand. Use the sensing wand to "listen" for leaks. Able to locate leaks leeks down to .2 scfh or less.

CO _2 SAFETY SIMPLIFIED

Standards around the world mandate that employees and customers are not exposed to potentially dangerous levels of carbon dioxide ( CO_2 ) as it is a highly toxic gas even in small quantities. When an Analox instrument detects potentially dangerous levels of carbon dioxide in the air, it triggers an audible alarm and visual indicator at the walk-in cooler entrance. Analox uses and infrared detector system with state-of-the-art monitoring technology. Dependable protection made simple.

LOW LEVELS OF CO₂ ARE HAZARDOUS:

• 2% CO 2 LEVEL: Drowsy feeling
- 3% CO2 LEVEL: Blood pressure rises & hearing can be impaired
- 5% CO2 LEVEL: Breathing will become difficult resulting in feeling confused
• OVER 5% CO 2 LEVEL: Unconsciousness and possible death may occur

CARBON DIOXIDE GAS (CO2) IS HEAVIER THAN AIR AND SHOULD BE MONITORED FROM A LOW HEIGHT. INSTALL THE CO2 SENSOR AT A HEIGHT OF 12-18" ABOVE THE FLOOR LEVEL.

CO₂ LEAK DETECTOR & SENSOR

Ax60+ is a wall-mountable multi gas monitor for detecting carbon dioxide with an option for monitoring oxygen, providing a flexible and customizable solution. The CO₂ and O₂ sensors are interchangeable and can be fully integrated as part of a multi-point, multi-gas detection and alarm system.

AX60+

FEATURES & SPECIFICATIONS:

• User customizable alarm set-points
  • Percentage Range Present: 0.1 to 5% CO 2
  • Percentage Range Present: 0.1 to 25% O 2
  • Measuring Method CO _2 : Infrared
  • Response Time: Less than 30 seconds
  • Power Supply: 100-200V
  • Meets NFPA, IFC and OSHA requirements

PART NO. DESCRIPTION

MM-AX60-AP1 Single point detector complete kit, capable of expanding to 4 sensors and 8 CO _2 alarms

MM-AX60SQA Additional sensor for MM-AX60-AP1

MM-AX-60QB Additional alarm for MM-AX60-AP1

Optional accessories: protector bar, splash guard.

AX60+ KIOSK

The Ax60+ Kiosk is a smaller version of the popular Ax60+ carbon dioxide gas detector built especially for smaller restaurants. OSHA compliant.

PART NO. DESCRIPTION

MM-AX60-K-AP1 Sensor, alarm, quick connect

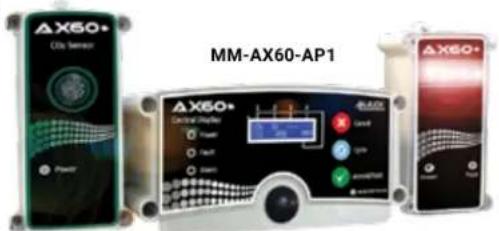

MM-AX60-AP1 AX60+ City Sensor Power Fuel Battery Control Panel CX20 CX20 CX20 CX20 CX20 CX20 CX20

PERSONAL CO₂ SAFETY MONITOR

The MM-SAN-10 Personal CO 2 Safety Monitor is designed for workers in enclosed areas where carbon dioxide buildup may cause personal harm. It is designed to alert the wearer and those around that they are in an area that contains an excessive amount of carbon dioxide gas (CO 2 ).

FEATURES & SPECIFICATIONS:

• Alarms: audible, visual strobe and vibrating
- Man down alarm - uses accelerometer technology
• Rugged design with protective rubber enclosure
- Heavy duty metal clip
- Rechargeable Li-Ion battery - 12+ hours per charge
• Large LCD display: CO₂, temperature, %RH
• Calibrate using nitrogen or ambient air
• IP54 housing protects against dust and rain
• Programmable alarm settings
• 110/240 VAC USB wall adapter

PART NO. DESCRIPTION

MM-SAN-10 CO

2 personal safety monitor

AX60+ KIOSK CDC Semiconductor Power Amax Accumpt Flux AX60+ COSK NEW

MM-AX60-K-AP1

CO2Meter® 4.70 CO2 T/°C NEW

MM-SAN-10

DISPENSE SYSTEMS

AIR COOLED

INSIDE VIEW

WALL MOUNTED DIRECT DRAW DISPENSING THROUGH A WALL

A walk-in cooler stores both the kegs and the beer lines for delivery of product to shanks mounted directly through a wall. A drip tray mounts to the outside wall to contain any spillage. Beer is dispensed at the same temperature as it is stored in the walk-in.

PERFORMANCE TIP: THE WALK-IN SHOULD BE DEDICATED TO KEG BEER, WITH A MINIMUM AMOUNT OF WALK-IN TRAFFIC IN ORDER TO MAINTAIN KEG TEMPERATURE.

IN-PLACE CLEANING SYSTEM Save beer & increase profits by cleaning your own lines when a keg empties. SECONDARY REGULATORS Regulates gas pressure to each product's specification. GAS LINE Transfer source for blended gas. CO2 REGULATOR Regulates the CO2 from the cylinder. CO2 CYLINDER Storage for CO2. SHANKS Connects to faucet and beer line allowing beer to be dispensed through walk-in cooler wall. COUPLER Dispense head for tapping kegs. KEG STACKER Saves space while allowing two kegs in series to be tapped. BEER HOSE Transfer source for beer. EVAPORATOR UNIT Creates refrigerated air for walk-in cooler. 50 LITER CLEANING BOTTLE One bottle contains cleaning chemicals and one contains rinse water for the "In-Place Cleaning System". CO2 CYPINDER

OUTSIDE VIEW

WALL MOUNTED DIRECT DRAW DISPENSING THROUGH A WALL

Straightforward dispensing: shanks and faucets are mounted through drip tray directly into walk-in.

WALL MOUNT DRIP TRAY DRAIN PIPE Connects to wall mounted drip tray allowing beer disposal. FLOOR DRAIN Drains beer from wall mounted drip tray. FAUCETS Dispenses beer. Available in stainless steel, chrome-plated, gold-plated and polished brass. SHANKS Connects to faucet and beer line allowing beer to be dispensed through walk-in cooler wall. WALL WALL MOUNT DRIP TRAY WALK-IN WALL BEER HOSE Transfer source for beer. SB490L

SIDE VIEW

WALL MOUNTED DIRECT DRAW DISPENSING THROUGH A WALL

Direct draw system offers the benefit of no hidden lines, making service and access easier.

PERFORMANCE TIP: KEEP WALL THICKNESS TO A MINIMUM SO THAT THE SHANK DOES NOT WARM UP IN THE UNINSULATED SPACE. ALSO, USE A LONGER SHANK EXPOSED ON THE INSIDE OF THE WALK-IN IN ORDER TO CONDUCT COLD AIR TO THE FAUCET. FOR THICK WALL INSTALLATIONS CONSIDER OUR SHADOW BOXES ON PAGE 103.

Thick Wall Installation? Shadow boxes are perfect for installations where there is a gap between the walk-in and drip tray.

Diagram illustrating gas flow and heating system with labeled components and airflow indicators

AIR COOLED BEER DISPENSE SYSTEMS

Product photo of an ES-12-1A electric shock absorber with attached hose and cable (no text or symbols visible)

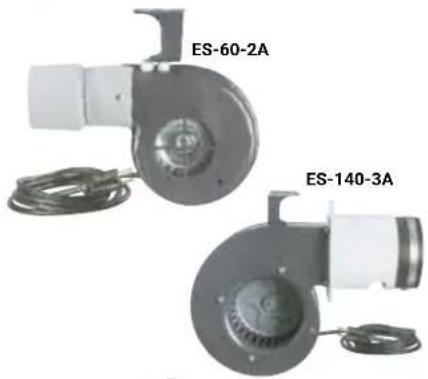

Two industrial motors labeled ES-60-2A and ES-140-3A, shown with coiled wires (no additional text or symbols visible)

BE-1630-2 BE-1630-2.5 BE-1630-3 BE-1630-4

Example of assembled air shaft

Close-up of a black cylindrical cable with threaded metal end (no text or symbols visible)

ES-FRI4

SINGLE AIR SHAFT SYSTEM

DISPENSING UP TO 15 FEET

Cold air from the walk-in cooler box is forced alongside beer lines to keep them cold as they travel to the dispense tower. A "shaft within a shaft" is created: one for the product and outgoing cold air, one for the return (warm) air. Together they form a continuous air loop.

BLOWERS

COMPLETE BLOWER ASSEMBLY

PART NO. CFM WITH VINYL ADAPTER LENGTH OF RUN

ES-12-1A 12 Fits 1" blower hose 5 ft max

ES-29-2A 29 Fits 1" blower hose 10 ft max

ES-60-2A 51 Fits 2" flex tubing 15 ft max

ES-140-3A	131	Fits 3" flex tubing	20 ft max
ES-265-3A	273	Fits 4" flex tubing	25 ft max

AIR SHAFTS & INSULATION

12 & 29 CFM BLOWER HOSE

PART NO.	DESCRIPTION
1651	4' x 1" hose for 12 & 29 CFM blower
1651-10	10' x 1" hose for 12 & 29 CFM blower

FLEXIBLE ALUMINUM TUBING (25' LENGTHS)

PART NO. DESCRIPTION

BE-1630-2 25' x 2" O.D. coils

BE-1630-2.5 25' x 2 1/2" O.D. coils

BE-1630-3 25'x 3" O.D. coils

BE-1630-4 25'x 4" O.D. coils

INSULATION (6' LENGTHS)

Lightweight, closed cell, flexible insulation. Complete listing page 127.

PART NO. DESCRIPTION

ES-FRI3 3 1/2" I.D. x 1/2" wall

ES-FRI4 4 1/2" I.D. x 1/2" wall

EVAPORATOR UNIT CONDENSER COOLING BLOWER WALK-IN COOLER

BLOWER FITTINGS & ACCESSORIES

PART NO. DESCRIPTION

ES-CT8 Cable tie - 8' straight

ES-CT11 Cable tie - 11 1/4" straight

ES-CT14 Cable tie - 14 1/2" straight

ES-CTE Cable tie - 16" with eyelet

MG-1300 Cable tie cutter

ES-FI14 12 oz can polyurethane foam sealant, fill gaps and bonds to any surface

ES-DT180 Duct tape, 2" wide x 60 yard roll

ES-IT30 Foam insulation tape, 1/8" thick x 2" wide x 30 ft

ES-4-MF Mounting flange, fits 3" or 4" flex tubing

CDI-CLIP Air duct mounting clip, adjustable from 2 1/2" to 3 1/2" I.D.

CABLE TIES MG-1300

ES-FI14

Close-up of a black bandage with label 'ES-DT180' next to a metal bracket (no other text or symbols visible)

CDI-CLIP

ES-4-MF

ES-IT30

AIR SEPARATOR KIT

PART NO. DESCRIPTION

Air separator kit for draft towers. Drill 3' hole in bar top. Slip mounting collar (2) over end of air shaft and tape in-place. Drop air separator (1) into place in mounting collar. Complete instructions included. C23907

C23896-1 Baffle plate only (3)

NOTE: See illustration to the right for numbered instructions.

C23896-1 OPTIONAL BAFFLE BEER HOSE AIR SEPARATOR C23907 AIR SEPARATOR KIT MOUNTING COLLAR RETURNING AIR 4" TUBING COLD AIR SUPPLY 3" TUBING 1/2" THICK INSULATION

NOTE: See air separator kit to the left to match products to illustration

AIR SUPPLY RETURN AIR BAFFLE PLATE MOUNTING FLANGE AIR SEPARATOR CUT-AWAY VIEW MUSHROOM TOWER & AIR SEPARATOR KIT AIR CIRCULATION INSULATION 4" I.D. FLEXIBLE ALUMINUM TUBING MAIN BAR 2" (OR) 3" I.D. FLEXIBLE ALUMINUM TUBING 1/2" THICK FOAM INSULATION 90° BEND 1/2" THICK FOAM INSULATION PRODUCT LINES AIR SHAFT FLOW RETURN AIR 4" I.D. FLEXIBLE ALUMINUM TUBING AIR SUPPLY 2" (OR) 3" I.D. FLEXIBLE ALUMINUM TUBING

MICRO MATIC

PRO-LINE™

DESIGNED BY BEER-INDUSTRY EXPERTS FOR PERFORMANCE AND VALUE!

E-SERIES

FUNCTIONAL FEATURES

• Space-saving side mounted evaporator maximizes interior space.
- Front-mounted controls for power, thermostat and lighting.
• Balanced refrigeration designed to operate on adjustable thermostat.
• Digital thermostat for precise temperature management.
• Double stainless steel floor, reinforced door frame at bottom.

ENGINEERED FOR PERFORMANCE

• Front breathing for cooling & exhaust.
  • Zero rear and side clearance.
• Slide out condenser for easy servicing.

ENERGY EFFICIENCY

• Designed for less run time of the compressor.
  • 2" insulation inside cabinet.
  • Heating elements around doors to eliminate sweating.
  • LED interior lighting on all models (optional on MDD23).
• Self-closing doors to ensure closure, every time. (except MDD23)

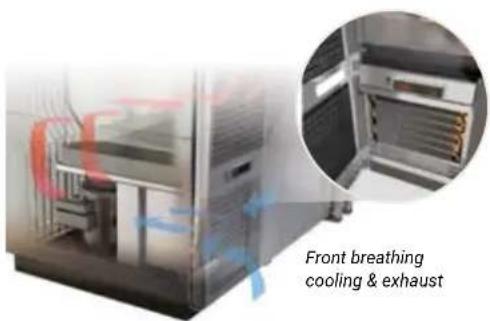

Front breathing cooling & exhaust

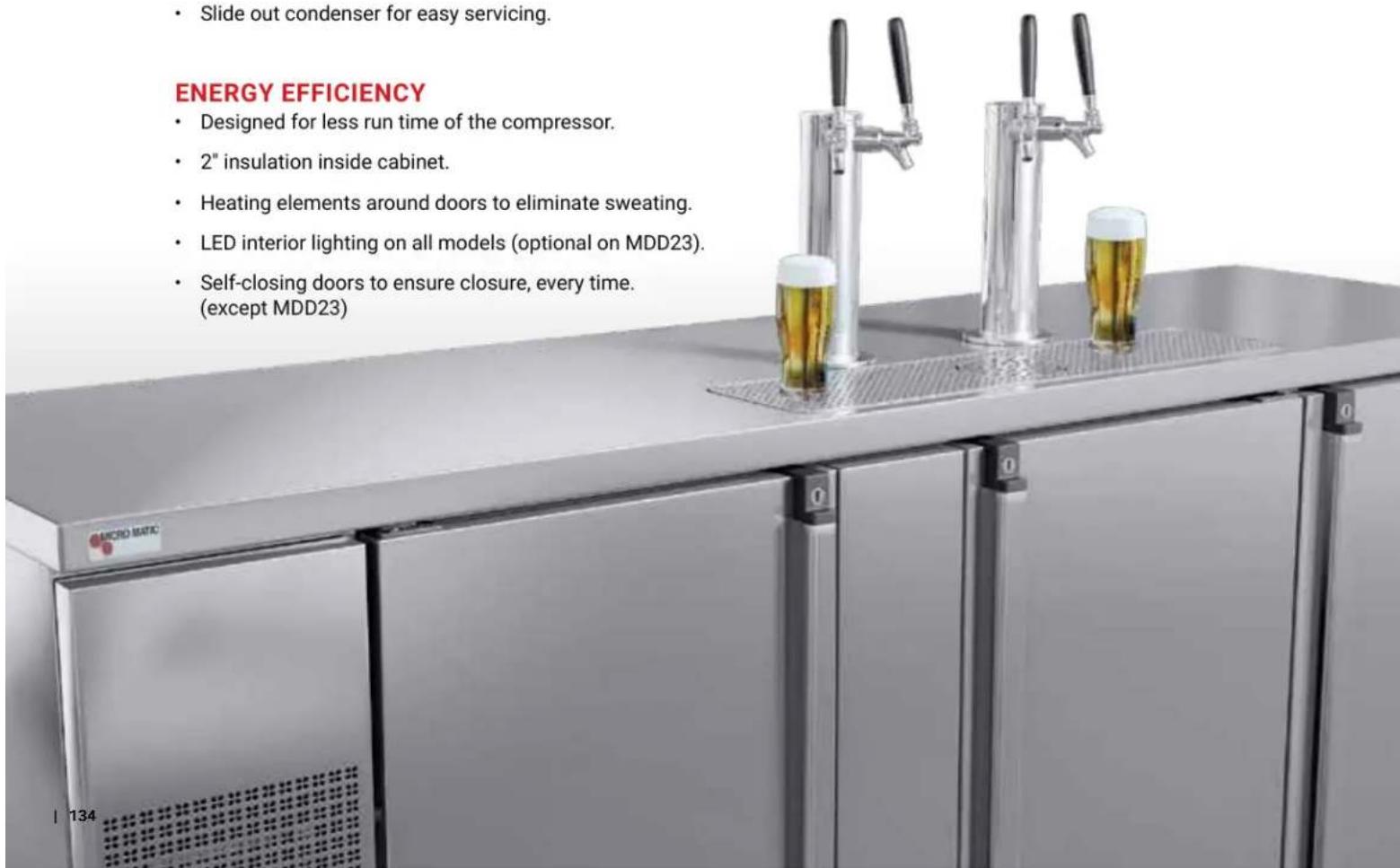

• Slide out condenser for easy servicing. ENERGY EFFICIENCY • Designed for less run time of the compressor. • 2" insulation inside cabinet. • Heating elements around doors to eliminate sweating. • LED interior lighting on all models (optional on MDD23). • Self-closing doors to ensure closure, every time. (except MDD23)

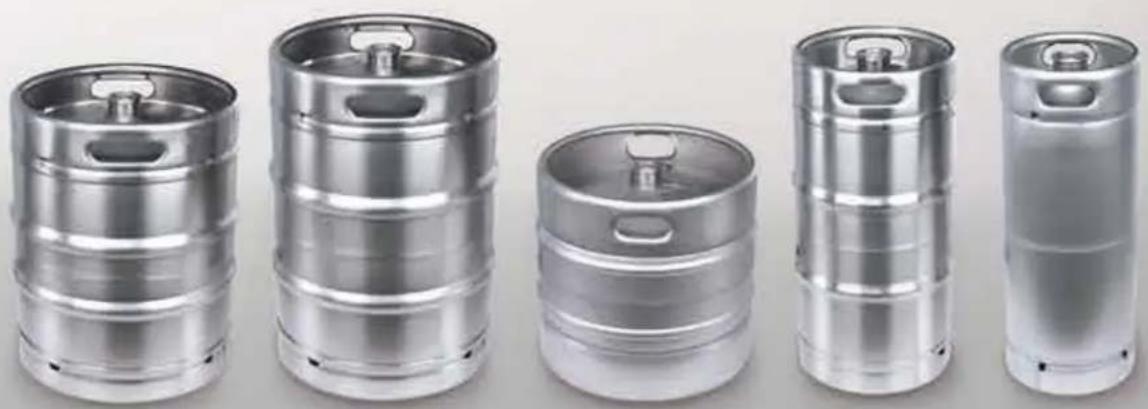

KEG FOOTPRINTS

Exterior view of a stainless steel industrial cabinet with two vertical pipes (no visible text or symbols)

| -9 1/4" - | 1/6 BARREL

| -11 1/8" - | 1/4 SLIM BARREL

1/4 BARREL

16 1/8" 1/2 BARREL

CUSTOMERS WANT CHOICE ON TAP!

Exterior view of a modern black industrial cabinet with two vertical supports (no visible text or symbols)

Exterior view of a modern office building (no signage)

Exterior view of a modern stainless steel industrial control cabinet with two side outlets (no visible text or symbols)

78 UNIT 1/2 1/2 1/2 1/2

78 UNIT 1/4 SLIM 1/4 SLIM 1/4 SLIM 1/4 SLIM 1/4 SLIM 1/4 SLIM 1/4 SLIM 1/4 SLIM 1/4 SLIM 1/4 SLIM

78 UNIT 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6

Exterior view of a modern black industrial water treatment cabinet with two vertical metal fixtures (no text or symbols visible)

94 UNIT 1/2 1/2 1/2 1/2 1/2

94 UNIT 1/4 SLIM 1/4 SLIM 1/4 SLIM 1/4 SLIM 1/4 SLIM 1/4 SLIM 1/4 SLIM 1/4 SLIM 1/4 SLIM 1/4 SLIM 1/4 SLIM 1/4 SLIM

94 UNIT 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6

GOT LIMITED

FLOOR SPACE?

THAT'S WHERE SLIM17 FITS IN

32% FOOTPRINT REDUCTION SLIM17 17" WIDTH 25" WIDTH

SIZE & VERSATILITY

IN ONE

Measuring under 18" wide, the SLIM17 is the is slimmest commercial kegerator on the market capable of dispensing up to two 1/6th kegs of beer, wine, coffee or kombucha.

SLIM17 is available in 1 and 2 faucet configurations!

FEATURES

• Space-saving 17-1/2" width
• Heavy-duty stainless steel top
• Pre-drilled for 3" diameter draft tower
  – Choice of available draft towers
• Drip tray with removable grill for easy cleaning
• Single door with key lock
• Reinforced stainless steel interior floor
• Integrated blower continually channels cold air through the tower
• Locate gas cylinder inside or outside*

*Rear knock out plug gas line inlet.

WHAT CAN SLIM17

POUR FOR YOU?

Glass of orange-colored beverage against a dark circular background (no text or symbols visible)

BEER

Close-up of a wine glass filled with golden liquid, set against a dark circular background (no text or symbols)

WHITE WINE

Close-up of a glass of brown beverage with a white top, set against a dark background (no text or symbols visible)

COLD BREW COFFEE

ASK YOUR SALES REPRESENTATIVE FOR VARIOUS BEVERAGE CONFIGURATIONS

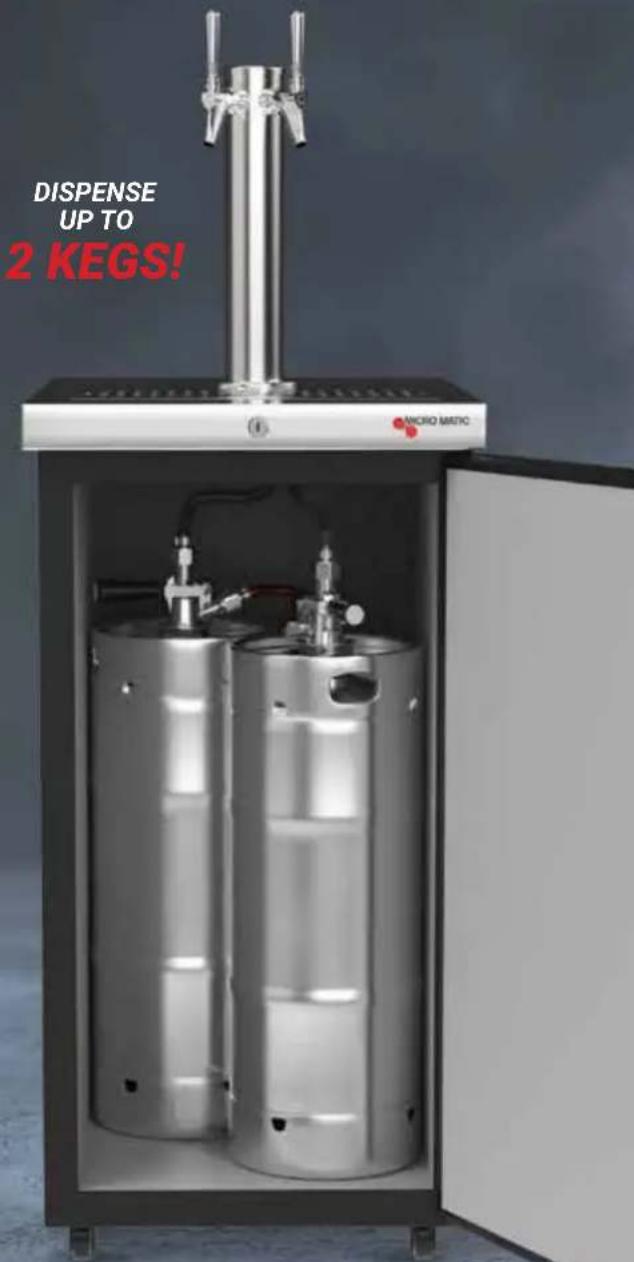

DISPENSE UP TO 2 KEGS!

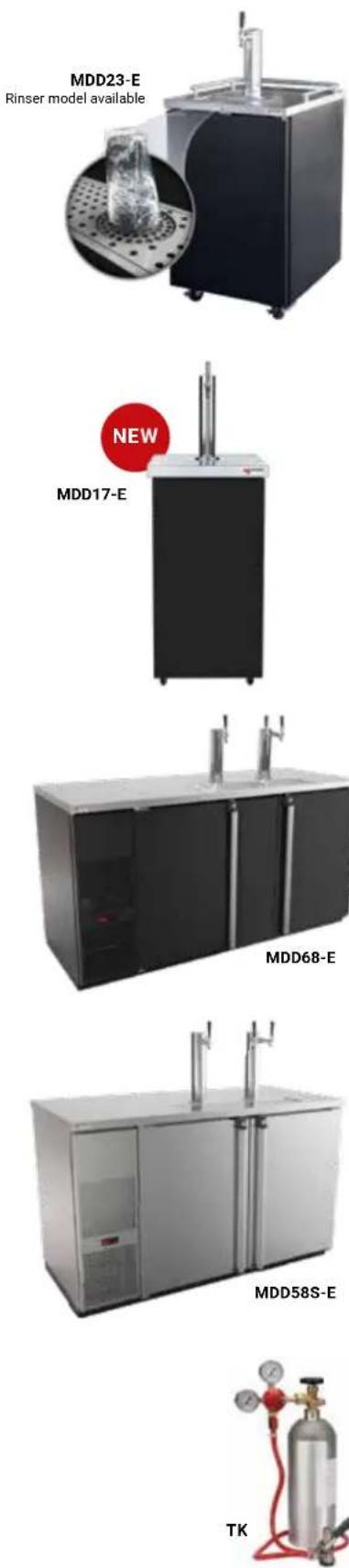

PRO-LINE™ E-SERIES DIRECT DRAW

FEATURES:

• Balanced refrigeration system designed to operate at 36 - 38° F.
  • Space-saving side mounted evaporator optimizes interior cabinet space.
  • Ozone-friendly refrigerant.
  • Digital, adjustable thermostat (most models).

• Choice of durable black vinyl or stainless steel exterior.

• Industry's first integrated glass rinser. Condition the glass before pouring for an easier pour (optional on MDD23).

• 3" diameter polished stainless steel draft towers.
  • Each draft tower is cooled by continuous cold air circulation.
• Doors with locks.
• Interior lighting on all models, LED lighting on multi-keg models (except MDD23).

MODEL KEGS FAUCETS	DRIP TRAY WIDTH	CRATED WEIGHT	DOORS FINISH	OVERALL EXT DIMENSIONS
				W"	D"	H"

ANALOG THERMOSTAT

MDD17-E^	1	1	14 3/4"	138	1	Black	17 1/2'	30 3/4'	40'
MDD23-E^	1	1	14 3/4"	172	1	Black	25'	30 3/4'	40'
MDD23GR-E	1	1	14 3/4"	172	1	Black	25'	30 3/4'	40'
MDD23S-E^	1	1	14 3/4"	172	1	SS	25'	30 3/4'	40'
MDD23SGR-E	1	1	14 3/4"	172	1	SS	25'	30 3/4'	40'

ANALOG THERMOSTAT - FLEXIDRAFT™

FlexiDraft™, the revolutionary way to ensure draft beer quality. Probe, beer line and faucet spout are replaced with each keg change. More info see page 10. Complete kegerator, includes tapping equipment, less gas cylinder.

MDD17-E-FD	1	1	14 3/4"	138	1	Black	17 1/2"	30 3/4"	40"
MDD23-E-FD	1	1	14 3/4"	172	1	Black	25"	30 3/4"	40"

DIGITAL THERMOSTAT

MDD23D-E^	1	1	14 3/4"	172	1	Black	25"	30 3/4"	40"
MDD23SD-E^	1	1	14 3/4"	172	1	SS	25"	30 3/4"	40"
MDD36-E	1	1	14 3/4"	250	1	Black	36 3/4"	29"	36 7/8"
MDD36S-E	1	1	14 3/4"	250	1	SS	36 3/4"	29"	36 7/8"
MDD58-E	3*	3	28'	302	2	Black	59 1/2"	29"	36 7/8"
MDD58S-E	3*	3	28'	302	2	SS	59 1/2"	29"	36 7/8"
MDD68-E	3	3	28"	364	2	Black	69 1/2"	29"	36 7/8"
MDD68S-E	3	3	28'	364	2	SS	69 1/2"	29"	36 7/8"
MDD78-E	4	4	28"	400	3	Black	80"	29"	36 7/8"
MDD78S-E	4	4	28"	400	3	SS	80"	29"	36 7/8"
MDD94-E	5	4	28"	426	3	Black	95 1/2"	29"	36 7/8"
MDD94S-E	5	4	28'	426	3	SS	95 1/2"	29"	36 7/8"

F.O.B. CA, FL, IL, PA "Glass rinser not included." Fits 2 half kegs plus a slim keg. Micro Matic Pro-Line™ limited warranty: Three (3) years parts and labor, an additional two (2) years on the compressor (parts only). All warranty work is handled through Micro Matic certified service agents. Units with glass rinsers should be installed by licensed plumbers.

Exterior view of a black industrial stainless steel counter with metal fittings (no signage or text visible)

38°

Adjustable Digital Thermostat! Easy-to-read exterior mounted

CO₂ GAS KITS FOR DIRECT DRAW BEER DISPENSER

Includes 5 lb empty cylinder, double gauge regulator, gas line with two snap clamps.

PART NO. KEG COUPLER

TK-LC Less coupler

TK "D" System for 1 keg

TK-2 "D" System for 2 kegs

F.O.B. CA, FL, IL, PA

PRO-LINE™ E-SERIES DIRECT DRAW

CHOOSE A KEGERATOR

TOWER OPTIONS

Front view of a black rectangular electronic device with a white top and small wheels (no visible text or symbols)

MDD17-E-LT

Exterior view of a black rectangular electronic device with two vertical slots and a red indicator light (no visible text or symbols)

MDD58-E-LT

Exterior view of a stainless steel industrial enclosure with multiple doors and ventilation grilles (no visible text or symbols)

MDD94-E-LT

Metal stand with a black handle and cylindrical body, no visible text or symbols

FD-T-1

D4743T

D4743DT

DS-133-PSS

Industrial control valve assembly with three vertical ports and a central column (no visible text or labels)

D7743PSS D7744PSS

Metallic cylindrical object with four vertical supports, no visible text or symbols

Two black industrial pipe fittings with flanged ends and metal fittings (no text or symbols visible)

CP-U-8

CHOOSE TOWER(S)

PART NO.	FAUCETS	FINISH	FAUCET & SHANK	OUTLET	DISPENSE SYSTEM
FD-T-1*	1	Polished SS	Brass / Chrome	Hose	FlexiDraftTM (Air Cooled)
D4743T	1	Polished SS	Brass / Chrome	Hose	SPINSTOPTM (Air Cooled)
D4743DT	2	Polished SS	Brass / Chrome	Hose	SPINSTOPTM (Air Cooled)
DS-133-PSS	3	Polished SS	Brass / Chrome	Hose	SPINSTOPTM (Air Cooled)
D7743PSS	3	Polished SS	Brass / Chrome	Hose	SPINSTOPTM (Air Cooled)
D7744PSS	4	Polished SS	Brass / Chrome	Hose	SPINSTOPTM (Air Cooled)
DPT36PSS-PL	6	Polished SS	Brass / Chrome	Hose	SPINSTOPTM (Air Cooled)
DPT36PSS-PL-304	6	Polished SS	304 SS	Hose	SPINSTOPTM (Air Cooled)
DPT38PSS-PL	8	Polished SS	Brass / Chrome	Hose	SPINSTOPTM (Air Cooled)
DPT38PSS-PL-304	8	Polished SS	304 SS	Hose	SPINSTOPTM (Air Cooled)
CP-U-8	8	Cerakote / Pipe	304 SS	Hose	SPINSTOPTM (Air Cooled)

Pure electrical circuit lines without any symbols

DPT38PSS-PL
NOTE: Double pedestal mounting holes ONLY align with Micro Matic Pro-Line™ Direct Draw keg boxes.
*FD-T-1 order hose assembly separate, see page 33.

TAPPING INTO NEW PRODUCTS & PROFITS

BEVERAGE STATION

Exterior view of a swimming pool with a bar set and umbrella, no visible text or signage

The Beverage Station™ is a two-zone refrigeration unit that allows the operator to offer a vast array of beverages at the ideal temperature all from a single, MOBILE unit.

Wheel it into place, plug it in and start pouring. Serve red and white wine, beer, custom cocktails, cold brew and nitro coffee – you name it, all at the perfect temperature without the hassle of bottles! Ideal for hotel lobbies, theater bars, happy hour, events, poolside and remote bars.

Modern stainless steel bar with multiple beer pans and water bottles, placed on a concrete wall (no text or symbols visible)

CUSTOMIZE

• Many distinctive towers
- Coordinate drip tray(s)
- Various casters
- Solid or glass doors
- Wrap the exterior with venue or beverage POS
- Add Berg Equipment for liquor dispensing

DISPENSE DRAFT CHOICE!

• Keg Beer, Keg Wines, Keg Cocktails
- Cold Brew Coffee
• Storage for bottles, cans and mixers

DEDICATED TEMPERATURE ZONES

• 38 – 45° F for beers, white wines and cocktails
• 55^ F for red wines

PRO-LINE™ E-SERIES FEATURES

• Front breathing for cooling & exhaust
- Walls with 2" insulation
• 201 grade stainless steel 18-gauge top

CHOOSE A KIT

• Pre-selected towers & trays
- All tapping equipment

MBB78BC-E-A

MBB78BC-E-B

MBB58BC-E-A

MBB58BC-E-B

MBB58BC-E

MBB78BC-E

SPACE FOR

8 TAPPED KEGS

+4 BACK UP KEGS

78 UNIT 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6

"78" BEVERAGE STATION KITS

MODEL	PRODUCTS	MAX KEGS	FAUCETS	TOWER STYLE	DRIP TRAY
MBB78BC-E-A	4 Beers & 4 Wines / Cocktails	12	8	Metro-H	Surface mount
MBB78BC-E-B	4 Beers & 4 Wines / Cocktails	12	8	Mini Mushroom	Wrap around

NOTE: Assembly Required

SPACE FOR

6 TAPPED KEGS

+ 2 BACK UP KEGS

"58" BEVERAGE STATION KITS

MODEL	PRODUCTS	MAX KEGS	FAUCETS	TOWER STYLE	DRIP TRAY
MBB58BC-E-A	2 Beers & 4 Wines / Cocktails	8	6	Double Pedestal	Surface mount
MBB58BC-E-B	2 Beers & 4 Wines / Cocktails	8	6	Mini Mushroom	Wrap around

NOTE: Assembly Required

78 UNIT 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 58 UNIT 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6 1/6

At Pizzeria – Take home hot baked pizza and fresh from the tap beer.

At C-Store – Instead of grabbing bottles or cans, beer fresh from the tap.

At Market – One stop, pick up prepared fresh foods and fresh tap beer.

At Breweries – Fill growlers with fresh keg beer instead of filling bottles or cans.

MBB36-E with GF-14515-G2

THE MICRO MATIC GROWLER FILLER PUTS TECHNOLOGY TO WORK:

• Fill from your choice of up to four kegs.
• Place the empty growler on the pad, close the cover and press the prompts on the touchscreen pad.
• Bottle raises and automated counter pressure takes over to purge the bottle.
• Beer gently fills down the inside wall of growler with no turbulence.
• Filling is completed, growler lowers to start position.
• Open the cover and cap growler.

PART NO. DESCRIPTION DIMENSIONS

GF-14515-G2	Growler filler for up to 4 kegs. Factory pre-set for 64 oz growlers. Additional charge for custom programming for different growler sizes, requires factory setup prior to shipping.	15 1/2"L x 8 1/4"D x 24 7/8"H
GF-IK	Installation Kit: includes high pressure primary regulator, triple secondary regulators, couplers, hoses and fittings.

Hand interacting with a smartphone displaying a small screen (no visible text or symbols)

Simple touchscreen control.

Loading Sto

Easy-to-follow screen prompts.

Interior view of a dimly lit room with a bright ceiling light illuminating the wall and a dark tripod-mounted device (no visible text or symbols)

Operation lighting - draws attention.

Product photo of a 3D printer with green light source and digital display, next to a glass bottle (no visible text or symbols)

FILLING A GROWLER IS AS EASY AS THE TOUCH OF A BUTTON. SIMPLE...
AND SO IS RINSING AND CLEANING.

Technical line drawing of a mechanical or electrical enclosure with vertical supports and internal components (no text or symbols)

Illustration: MBB94-E, METRO-H-8PSSA, with two GF-14515-G2

REFRIGERATION

Exterior view of a black and silver industrial cabinet labeled MBB36-E (no other text or symbols visible)

Exterior view of a black industrial refrigerator unit with glass doors and side panels (no visible text or symbols)

Exterior view of a modern stainless steel industrial refrigerator unit (no signage or text visible on the cabinet itself)

Adjustable Digital Thermostat! Easy-to-read exterior mounted.

Exterior view of a black industrial cabinet with metallic panels and a label 'MBB94-E' (no other text or symbols visible)

PRO-LINE™ E-SERIES BACK BARS

FEATURES:

• Refrigeration system is a free-flowing air system to ensure "ice cold" products at all times.
• Heavy-duty 18-gauge stainless steel top with raised glass rails creating a convenient storage area.
• Black finish models: wear-resistant black vinyl front and sides.

• Stainless steel finish models: stainless front and sides.
- Slide-out compressor for easy cleaning & maintenance.
• Environmentally-friendly CFC-free refrigerant.
- Interior LED lighting on all models.

SINGLE TEMPERATURE

For a custom look, right hand compressor available on most models.

MODEL SHELVES	KEGS		CRATED WEIGHT	DOORS	FINISH	OVERALL EXT DIMENSIONS
						W D H
MBB36-E	1	1	250	1	Black	36 3/4"	29"	36 7/8"
MBB36G-E	1	1	250	1	Blk / Glass	36 3/4"	29"	36 7/8"
MBB36S-E	1	1	250	1	SS	36 3/4"	29"	36 7/8"
MBB36GS-E	1	1	250	1	SS / Glass	36 3/4"	29"	36 7/8"
MBB58-E*	4	3	315	2	Black	59 1/2"	29"	36 7/8"
MBB58G-E*	4	3	315	2	Blk / Glass	59 1/2"	29"	36 7/8"
MBB58S-E*	4	3	315	2	SS	59 1/2"	29"	36 7/8"
MBB58GS-E*	4	3	315	2	SS / Glass	59 1/2"	29"	36 7/8"
MBB68-E	4	3	372	2	Black	69 1/2"	29"	36 7/8"
MBB68G-E	4	3	372	2	Blk / Glass	69 1/2"	29"	36 7/8"
MBB68S-E	4	3	372	2	SS	69 1/2"	29"	36 7/8"
MBB68GS-E	4	3	372	2	SS / Glass	69 1/2"	29"	36 7/8"
MBB78-E	6	4	405	3	Black	80"	29"	36 7/8"
MBB78G-E	6	4	405	3	Blk / Glass	80"	29"	36 7/8"
MBB78S-E	6	4	405	3	SS	80"	29"	36 7/8"
MBB78GS-E	6	4	405	3	SS / Glass	80"	29"	36 7/8"
MBB94-E	6	5	465	3	Black	95 1/2"	29"	36 7/8"
MBB94G-E	6	5	465	3	Blk / Glass	95 1/2"	29"	36 7/8"
MBB94S-E	6	5	465	3	SS	95 1/2"	29"	36 7/8"
MBB94GS-E	6	5	465	3	SS / Glass	95 1/2"	29"	36 7/8"

F.O.B. CA, FL, IL, PA *Fits 2 half kegs plus a slim keg. Micro Matic Pro-Line™ limited warranty: Three (3) years parts and labor, an additional two (2) years on the compressor (parts only). All warranty work is handled through Micro Matic certified service agents.

DUAL-TEMPERATURE

Store 45° F on one side and 55° F on the other or set your own temperatures.

MODEL SHELVES		12 oz CANS	WINE BOTTLES	CRATED WEIGHT	DOORS FINISH		OVERALL EXT DIMENSIONS
							W D H
MBB58DT-E	4	852	42	315	2	Black	59 1/2"	29"	36 7/8"
MBB58GDT-E	4	852	42	315	2	Blk / Glass	59 1/2"	29"	36 7/8"
MBB58SDT-E	4	852	42	315	2	SS	59 1/2"	29"	36 7/8"
MBB58GSDT-E	4	852	42	315	2	SS / Glass	59 1/2"	29"	36 7/8"

F.O.B. CA, FL, IL, PA. Micro Matic Pro-Line™ limited warranty: Three (3) years parts and labor, an additional two (2) years on the compressor (parts only). All warranty work is handled through Micro Matic certified service agents.

PRO-LINE™ ACCESSORIES

PART NO.	DESCRIPTION
PL-HCDB	Extra capacity corner waste receptacle
PL-LEG-6 6" Stainless steel legs – set of 4
PL-LEG-66 6" Stainless steel legs – set of 6
AS-3CH	Heavy-duty, set of 2 channel bars with 4 casters for models up to MDD68
CAS-36CH	Heavy-duty, set of 3 channel bars with 6 casters for MDD78 and MDD94
CAS-3X	Low profile, set of 2 channel bars with 4 casters for models up to MDD68
CAS-36X	Low profile, set of 3 channel bars with 6 casters for MDD78 and MDD94
GR-1561	Replacement rinser
RR-KIT	Full grill kit – remove and plug glass rinser
1750352C	15 psi inline water regulator

6" stainless steel legs

Raises height 4' Heavy-duty channel bar caster set. Add mobility to refrigeration units.

Raises height 2.5 ^* Low profile channel bar caster set. Designed to pull a unit away from wall for cleaning.

PRO-LINE™ BOTTLE COOLERS

FEATURES:

• Standard lid locks.

• Heavy-duty, epoxy-coated adjustable bin dividers.

• Durable galvanized interior. NSF approved for pre-packaged and bottled products.
  • Standard bottle cap opener and catcher.

MODEL LIDS DIVIDERS			12 oz CANS	12 oz BOTTLES	CRATED WEIGHT	FINISH	OVERALL EXT DIMENSIONS
							W	D H
MDW50	2	3	804	456	236	Black	50 3/8"	26 1/4"	33 3/8"
MDW50S	2	3	804	456	236	SS	50 3/8"	26 1/4"	33 3/8"
MDW65	2	4	864	624	275	Black	65"	26 1/4"	33 3/8"
MDW65S	2	4	864	624	275	SS	65"	26 1/4"	33 3/8"
MDW79	3	6	1092	804	315	Black	80"	26 1/4"	33 3/8"
MDW79S	3	6	1092	804	315	SS	80"	26 1/4"	33 3/8"
MDW95	3	7	1368	1008	379	Black	95 3/8"	26 1/4"	33 3/8"
MDW95S	3	7	1368	1008	379	SS	95 3/8"	26 1/4"	33 3/8"

F.O.B. CA, FL, IL, PA. Micro Matic Pro-Line™ limited warranty: Three (3) years parts and labor, an additional two (2) years on the compressor (parts only). All warranty work is handled through Micro Matic certified service agents.

ECONOMY KEG DISPENSERS

Value-priced kegerator accommodates 1 half keg. Equipped with four swivel casters, it's easy to move the party. Model comes complete with tapping and cleaning kit! Just fill the CQ tank and add a keg of beer. This refrigerator is designed for freestanding and indoor use. Tapping equipment included. 35" height without casters.

MODEL	FINISH	WEIGHT	OVERALL DIMENSIONS
			W D	H
BC-1206	Black	137	23 3/4"	25"	38"
BC-1206S	SS front	137	23 3/4"	25"	38"

F.O.B. PA

RR-KIT

Black industrial refrigerator labeled MDW50, no visible text or symbols on the device itself

Black rectangular electronic device labeled MDW65, showing internal compartments and casing (no visible text beyond label)

Black industrial water dispenser with a vertical inlet and control lever (no visible text or symbols)

BC-1206

REFRIGERATION

Exterior view of a modern stainless steel water dispenser with two glasses on top (no visible text or symbols)

MDD23W-E-B

PRO-LINE™ E-SERIES WINE

FEATURES:

• E-Series.
- Adjustable, dual-temperature zones.
- Whites 45° F
- Reds 55° F
• Color-coded digital thermostat for each zone.
- Rear knock-out plugs for gas lines.

• Black vinyl exterior. Stainless steel exterior available.
  • Heavy-duty stainless steel top.
• Pre-cut holes for towers with bolt holes.
• Door with key lock.
• Reinforced stainless steel interior floor.

4-KEG DISPENSER - MOBILE. INCLUDES HEAVY-DUTY CASTERS.

Holds up to 4 - 20 L kegs. Order tapping kit separately.

PACKAGE	FINISH	FONTS	FONT STYLE	FAUCETS	DRIP TRAY
MDD23W-E-A Black 1 Finesse 2 1
MDD23W-E-B Black 1 Finesse 3 1
MDD23W-E-C Black 1 Finesse 4 1
MDD23W-E-D Black 1 Sommelier 3 1
MDD23W-E-E Black 1 Sommelier 4 1

Micro Matic Pro-Line ^™ limited warranty: Three (3) years parts and labor, an additional two (2) years on the compressor (parts only). All warranty work is handled through Micro Matic certified service agents.

4-KEG DISPENSER - UNDERCOUNTER. FOR THAT BUILT-IN LOOK.

Holds up to 4 - 20 L kegs. Order tapping kit separately.

PACKAGE	FINISH	FONTS	FONT STYLE	FAUCETS	DRIP TRAY
MDD36W-E-A	Black	1	Finesse	2	1
MDD36W-E-B	Black	1	Finesse	3	1
MDD36W-E-C	Black	1	Finesse	4	1
MDD36W-E-D	Black	1	Sommelier	3	1
MDD36W-E-E	Black	1	Sommelier	4	1

Micro Matic Pro-Line™ limited warranty: Three (3) years parts and labor, an additional two (2) years on the compressor (parts only). All warranty work is handled through Micro Matic certified service agents.

Finesse font style

Metal cylindrical industrial component with flanged ends and central hub (no visible text or symbols)

Sommelier font style

Exterior view of a black and silver industrial water heater with a metallic top (no visible text or symbols)

Exterior view of a modern stainless steel water control cabinet with two cylindrical tanks and a vertical stand (no visible text or symbols)

PRO-LINE™ E-SERIES WINE

FEATURES:

• E-Series.

- Adjustable, dual-temperature zones.

- Whites 45° F

- Reds 55° F

• Color-coded digital thermostat for each zone.
- Rear knock-out plugs for gas lines.

• Black vinyl exterior. Stainless steel exterior available.
  • Heavy-duty stainless steel top.
• Pre-cut holes for towers with bolt holes.
• Door with key lock.
• Reinforced stainless steel interior floor.

8-KEG DISPENSER

Holds up to 8 - 20 L kegs. Order tapping kit separately.

PACKAGE	FINISH	FONTS	FONT STYLE	FAUCETS	DRIP TRAY
MDD58W-E-A	Black	2	Finesse	4	2
MDD58W-E-B	Black	2	Finesse	6	2
MDD58W-E-C	Black	2	Finesse	8	2
MDD58W-E-D	Black	2	Sommelier	6	2
MDD58W-E-E	Black	2	Sommelier	8	2

Micro Matic Pro-Line™ limited warranty: Three (3) years parts and labor, an additional two (2) years on the compressor (parts only). All warranty work is handled through Micro Matic certified service agents.

PRO-LINE™ WINE - BOX ONLY

MDD23W FEATURES:

• Standard casters for mobility.
• Space-conserving minimal footprint.
- Fits up to four (4) 20 L stainless steel kegs (two kegs per zone).

Exterior view of a black industrial refrigerator unit with visible door and front panel (no text or symbols)

MDD36W-E & MDD58W-E FEATURES:

• New E-Series.
• Sleek style with vertical handles.
  • Self-closing doors with key lock.
• Rear knock out for gas lines.
  • Pre-cut hole(s) for towers & bolts.
• Space-saving side mounted evaporator optimizes interior cabinet space.

MDD36W-E

PART NO.	KEG CAPACITY	DOORS	FONT MOUNTING HOLES	EXTERIOR FINISH	OVERALL EXT DIMENSIONS
					W D H
MDD23WLT-E	4	1	1	Black	24 7/8"	30 1/4"	37 1/8"
MDD23SW-E	4	1	1	SS	24 7/8"	30 1/4"	37 1/8"
MDD36W-E	4	1	1	Black	36 3/4"	29"	36 7/8"
MDD36SW-E	4	1	1	SS	36 3/4"	29"	36 7/8"
MDD58WLT-E	8	2	2	Black	59 1/2"	29"	36 7/8"
MDD58SW-E	8	2	2	SS	59 1/2"	29"	36 7/8"

Micro Matic Pro-Line™ limited warranty: Three (3) years parts and labor, an additional two (2) years on the compressor (parts only). All warranty work is handled through Micro Matic certified service agents.

WINE TAPPING KITS

Kits includes wine keg couplers, 15 psi nitrogen regulator, gas hose, hose tee and clamps.

PART NO.	DESCRIPTION
PL-WTK-2	Wine tapping kit for 2 kegs
PL-WTK-3	Wine tapping kit for 3 kegs
PL-WTK-4	Wine tapping kit for 4 kegs
PL-WTK-8	Wine tapping kit for 8 kegs
5LBCH-1989	5 lb gas cylinder holder for exterior mounting

Exterior view of a black industrial control cabinet with two metallic fixtures and a glass jar (no visible text or symbols)

Black rectangular electronic device with metallic top and wheels (no visible text or symbols)

MDD23WLT-E

Exterior view of a dark rectangular industrial cabinet or enclosure unit (no visible text or symbols)

MDD58WLT-E

REFRIGERATION

Crescent ice cubes

Increase profit! Hoshizaki crescent ice cubes have excellent liquid displacement because of their unique shape. Better displacement can result in higher profits.

No splashing! The uniquely-shaped crescent ice cube allows liquid to flow over it more easily, whether pouring from bottles or dispensers. Reduce waste from splashing.

FEATURES:

• Exclusive stainless steel evaporator.
- Evaporator design freezes the purest water, resulting in crystal clear cubes.
- No plating to peel or flake off and evaporator has no plastic to crack.
- Simplest ice making system in the industry which means dependability, longer machine life, and energy savings.

Exterior view of a modern stainless steel industrial appliance with a black lid (no visible text or symbols)

KM-340MAH Shown with B-300PF

Exterior view of a modern white refrigerator with black control panel (no visible text or symbols)

AM-50BAE KM-101BAH

Exterior view of a stainless steel industrial refrigerator with ventilation grilles and control panel (no visible text or symbols)

Modern kitchen appliance with a white and black casing, featuring a monitor and side legs (no visible text or symbols)

Two identical cylindrical water pressure regulators with blue liquid and a black valve, no visible text or symbols.

H9320-51 H-9655-11

ICE MACHINES

MODEL CAPACITY		OVERALL EXT DIMENSIONS
		W D H
AM-50BAE	Up to 55 lbs per 24 hours, built-in 27 lbs of ice storage	14 7/8" 22 5/8" 33 1/2"
KM-61BAH	Up to 71 lbs per 24 hours, built-in 38 lbs of ice storage	17 3/4" 24"	39" with 6" legs
KM-101BAH	Up to 115 lbs per 24 hours, built-in 56 lbs of ice storage	23 3/4" 24"	39" with 6" legs
KM-151BAH	Up to 146 lbs per 24 hours, built-in 93 lbs of ice storage	23 3/4" 28"	39" with 6" legs
KM-260BAH	Up to 235 lbs per 24 hours, built-in 120 lbs of ice storage	30" 26 7/8" 32 7/8"
KM-340MAH	Up to 387 lbs per 24 hours (order ice storage separately)	22" 27 3/8" 30 5/16"
B-300PF	Up to 260 lbs of ice storage (use with KM-340MAH)	22" 32 1/2" 46"

WATER FILTERS

PART NO. DESCRIPTION
H9320-51	Single (2 GPM) water filter and regulator assembly, rated NSF class 1, STD 42, for taste, odor and chlorine reduction and for mechanical filtration (99.9+% removal of particles 1/2 micron and larger in size)

H-9655-11 Replacement filter only

MERCHANDISERS

FEATURES:

• Glass door merchandisers designed with unmatched quality and durability.
• No-chip exterior with durable black vinyl finish, also available in white.
• Easy-to-clean NSF approved white coated steel interior with stainless steel floor.
  • Electronic controller maintains set temperature throughout the interior.
• LED interior lighting provides "Low-E" energy consumption with excellent shadow-free illumination.
  • Factory balanced and environmentally-friendly refrigeration system with R-134A.

• Exterior mounted power switch.
  • High density, CFC-free polyurethane insulation.

• "Low-E" double pane thermal insulated door glass with durable extruded aluminum frames.
  • High / low temperature alarm and automatic defrost.

• Adjustable epoxy-coated wire shelves (4 per door – standard).
• Bottom mount compressor system with service-friendly slide-out system.
• NSF-7 listed for storage and/or display of packaged or bottle products.
• Illuminated exterior sign panel (except FM-16 and FM-10-SL54).

Exterior view of a black and white beverage refrigerator with three glass doors (no visible text or symbols)

FMD-72

MODEL DOORS		CU. FT.	TYPE SHELVES HP			CRATED WEIGHT	OVERALL EXT DIMENSIONS
							W D H
FM-16	1	16	Swlng	4	1/4	216	27"	28"	72 5/8"
FMD-23	1	23	Swlng	4	1/4	262	27"	33 1/2"	78 5/8"
FM-10-SL54	2	10	Swing	4	1/4	203	36"	21 3/4"	54"
FMD-35-SD	2	35	Slide	8	1/3	347	43"	32"	78 5/8"
FMD-47-SD	2	47	Slide	8	1/3	393	54"	32"	78 5/8"
FMD-49	2	49	Swing	4	1/3	424	54"	33 1/2"	78 5/8"
FMD-72	3	72	Swing	8	1/2	690	83"	33 1/2"	78 5/8"

All models are 115 volts, equipped with a 5 - 15P NEMA plug on an 8' cord. F.O.B. PA

Conforms to UL & NSF-7 standards

Black refrigerator with clear glass doors, no visible text or symbols

FM-16

Black and white photo of a two-decker refrigerator with glass doors (no visible text or symbols)

FM-10-SL54

Black and white photo of a modern beverage refrigerator with two glass doors (no visible text or symbols)

FMD-49

Black and white photo of a modern beverage refrigerator with two glass doors (no visible text or symbols)

FM-35-SD

SERVICE. VALUE. CUSTOMS.

PRO-LINE™ WALK-IN COOLERS

For over 30 years our coolers have been leading the industry with the most reliable walk-ins for the everyday foodservice and retail business because of our quality construction, the most efficient insulation, the highest quality cooling units, expedited customer service and the longest running warranties in the industry.

INDUSTRY'S LONGEST THERMAL WARRANTY 50 YEAR DOW

THE MOST RELIABLE, WELL CONSTRUCTED WALK-IN COOLERS FOR EVERYDAY BUSINESSES.

SERVICE

Our commitment to customer service starts with understanding the customer's expectations. From the quote to engineering to delivery and arranging installation, it's all about meeting expectations.

VALUE

We use only the best U.L. Class 1 Non-CFC Extruded Polystyrene Insulation. Our Extruded Polystyrene Insulation bonds with the panels to provide strength and durability. Depend on excellent insulation to ensure operating costs are at a minimum.

DESIGN FLEXIBILITY

Our industry leading modular panels are custom designed for each installation. We can confi gure any angle or footprint to maximize available square footage. Don't settle for pre-fab and wasting space.

U.S. MANUFACTURING

Depend on low freight costs and fast-to-market delivery from our plant located in Florida.

CERTIFICATIONS

• NSF Certified
• UL, Class 1 Listed Urethane Insulation
- UL Electric
- Many Local Codes

SUPERIOR FEATURES

• Custom designs – exact size and shape to fit the space.
  • Insulation values that meet and exceed DOE requirements.
• Doors are a full 4" thick with reinforced frames.
  • Four choices in exterior finishes.
  • Engineered and built for ease of installation.
• Refrigeration sized to meet the square footage.

MICRO MATIC

THERMAL PERFORMANCE REDEFINED

KEY HIGHLIGHTS	AK-XPS4 INSULATION	AK-XPS4 ULTRA INSULATION	FOAMED-IN-PLACE URETHANE INSULATION
4" thick insulation for coolers & freezers R-value DOE compliant	YES YES NO
Hydrophobic (water-resistant)	YES YES NO
Void-free insulation YES YES NO
Non-deteriorating, structurally sound	YES YES NO
Precise controls of density, cell size and orientation	YES YES NO
Maintains a consistent R-value for long-term performance	YES YES NO
50 year thermal warranty on insulation	YES YES NO
Insulation is visually inspected prior to becoming a finished panel	YES YES NO
Extends the life of the refrigeration system	YES YES NO

LIMITED PANEL WARRANTY

• 50 Year Thermal (R-Value) Warranty on insulation
• 15 Year original panel warranty on walls and ceilings
- 5 Year original panel warranty on doors and floors
• 1 Year original parts warranty
• 1 Year original panel labor warranty

WALLS AND CEILINGS PANEL FINISHES

PORTABLE DISPENSERS

Red portable water dispenser with white handle and square front panel (no text or symbols visible)

CB481R-304

Red portable electronic device with handle and label 'CB281R (28 qt)' (no other text or symbols visible)

Blue and white portable ice cream organizer with coiled insulation (no text or symbols visible)

Coiled transparent cable with two connectors and a label '550C72WHC' below (no other text or symbols)

550C72WC

JOCKEY BOX COOLERS

304 STAINLESS STEEL CONTACT COIL COOLERS

Brewers demand the best when dispensing their craft. The purity and durability of 304 stainless steel is now available in a portable jockey box. Every component that touches the beer is made with 304 stainless steel: inlet shank, coil, outlet shank and faucet. Includes faucets, shanks and ice box coupler assemblies. Faucet knobs included.

PART NO.	NUMBER OF PRODUCTS	COIL LENGTH	COIL I.D.	COOLER SIZE	COLOR
CB481R-304 1		100 ft20 ft	3/8" with 1/4" choke	48 qt	Red
CB482R-304 2		100 ft20 ft	3/8" with 1/4" choke	48 qt	Red

COIL COOLERS

Includes faucets, shanks and ice box coupler assemblies. Faucet knobs included.

PART NO.	NUMBER OF PRODUCTS	COIL LENGTH	COIL I.D.	COOLER SIZE	COLOR
CB281R	1	50 ft	5/16'	28 qt	Red
CB282R	2	50 ft	5/16'	28 qt	Red
CB281R-70	1	70 ft	5/16'	28 qt	Red
CB282R-5070	2	50 ft / 70 ft	5/16'	28 qt	Red
CB481R 1		100 ft20 ft	3/8" with1/4" Choke	48 qt Red
CB481B 1		100 ft20 ft	3/8" with1/4" choke	48 qt Blue
CB482R 2		100 ft20 ft	3/8" with1/4" choke	48 qt Red
CB482B 2		100 ft20 ft	3/8" with1/4" choke	48 qt Blue
CB68B 2		100 ft20 ft	3/8" with1/4" choke	68 qt Blue
CB103W 3		100 ft20 ft	3/8" with1/4" choke	100 qt White

Red and white portable ice cream organizer with metal handles (no text or symbols visible)

CB482R
(48 qt)

Blue and white portable ice cream organizer with handles and a small logo (no visible text or symbols)

CB68B
(68 qt)

Open white plastic medical device with internal compartments and handles (no visible text or symbols)

CB103W
(100 qt)

JUMPER LINES

From the coil box to the keg coupler.

PART NO. DESCRIPTION
550C72WC Jumper - 6' x 3/8" I.D. clear tubing with wing nuts on both ends
550C72WHC Jumper - 6' x 3/8" I.D. clear tubing with hex nuts on both ends
550C72WC-304	Jumper - 6' x 3/8" I.D. clear tubing with hex nuts on both ends and 304 SS 3/8" I.D. tailpieces
550XFM96WHC	Jumper - 8' x 3/8" I.D. XtraFlexmasterTM tubing with hex nuts on both ends and 304 SS 3/8" I.D. tailpieces

Keg couplers, CO_2 cylinders and regulators are not included. Please order separately.

JOCKEY BOX COOLERS

COLD PLATE COOLERS

Includes jumper lines, faucets, shanks and beer line assemblies. Faucet knobs included.

PART NO.	NUMBER OF PRODUCTS	COLD PLATE SIZE	COOLER SIZE	COLOR
HDCP-D1-48B	1	10' × 15'	48 qt	Blue
HDCP-D1-48R	1	10' × 15'	48 qt	Red
HDCP-D2-48B	2	10' × 15'	48 qt	Blue
HDCP-D2-48R	2	10' × 15'	48 qt	Red

NOTE: Rack included on all cold plate coolers. A cold plate should never sit in water.

Simple line drawing of a cylindrical object with two protruding arms (no text or symbols)

Cold plate racks included

Blue and white portable water heater with black handles (no text or symbols visible)

HDCP-D2-48B
(48 qt)

Red and white laboratory equipment with tubing and a transparent lid, labeled HDCP-D2-48R (48 qt) (no other text or symbols visible)

TRAYS

Drip trays for jockey boxes are perfect for keeping a neat workspace at special events. The undermount drip tray is held in place by the weight of the jockey box, making a stable platform for filled glasses. Also included is a convenient inlet hole for the cooler box drain. Simply connect a hose to the cooler box drain and all runoff from the ice water and the beer empties into one container.

PART NO. DESCRIPTION DIMENSIONS

DP-J-12	Undermount	12"W x 6 3/8"D x 3 1/2"H x 10 1/2"D
DP-J-24	Undermount	24"W x 6 3/8"D x 3 1/2"H x 10 1/2"D
DP-721D Hanging 6"W x 6"D x 11"H

Blue industrial container with attached piping and valve slots, mounted on a metal base (no visible text or symbols)

Shown with
HDCP-D2-48B

DP-721D

Red portable water dispenser with bucket and water drop, labeled 'Shown with CB281R' (no other text or symbols)

Metallic tray or bracket with a gridded base and top opening, labeled DP-J-24 (no other text or symbols visible)

Metallic industrial device with a slatted base and open top, labeled DP-J-12 (no other text or symbols visible)

DP-J-12

PORTABLE DISPENSERS

Exterior view of a white rectangular electronic component with three metallic pins (no text or symbols visible)

CP-1015-2
Shown with fittings #CP-BTF

CP-BTF

WD-008

4331NA

609CA

755N

Coiled metal wire with a small protrusion at the top (no text or symbols visible)

C050R

C120L
Stainless Coils - 3/8' O.D.

C050X

C070X
Stainless Coils - 5/16" O.D.

COMPONENTS & ACCESSORIES

ALUMINUM COLD PLATES WITHOUT FITTINGS

Inlet and outlet fittings need to be ordered to complete cold plate. Please specify when ordering.

PART NO. PRODUCTS SIZE SS TUBING

CP-0812-1 18" x 12' 1/4" x 12'

CP-0812-2 2 8" x 12" 1/4" x 12"

CP-0814-2 2 8" x 14" 1/4" x 12"

CP-0814-3 3 8" x 14" 1/4" x 12"

CP-0814-4 4 8" x 14" 1/4" x 12'

CP-1015-1 1 10' x 15' 1/4" x 18'

CP-1015-2 2 10' x 15' 1/4" x 18'

COLD PLATE FITTINGS

For beer and wine

PART NO. DESCRIPTION

CP-BTF Beer thread fitting – brass

WD-008 1/4" hose barb - stainless steel

WD-012 3/8" hose barb - stainless steel

FAUCET SHANK ASSEMBLY

Cold plate

PART NO. NIPPLE

4331NA 1/4" I.D.

4331NA-3 3/16" I.D.

FAUCET SHANK ASSEMBLY

Coil coolers

PART NO. DESCRIPTION

4334A 4" x 1/4" bore

4333A-516 3" x 1/4" bore with recess for 5/16" coil

ICE BOX COUPLERS

Coil coolers

PART NO. DESCRIPTION

609CA Coupler assembly 4" x 3/8" I.D. coupler

605A-5 Coupler assembly 3" x 5/16" I.D. coupler

755N Washer seal

WALL SLEEVE

PART NO. DESCRIPTION

CPC-100 Plastic sleeve for hose cold plate box

CPC-100

COLD PLATE RACK

A rack is recommended with all cold plate coolers to prevent the plate from ever sitting in water. The rack has a tough plastic coating to eliminate rust.

PART NO. FITS PLATE

WRCP 10" x 15"

STAINLESS COILS

120 ft (100' x 3/8" O.D. and 20' x 1/4" O.D.)

100 ft (3/8" O.D.)

50 ft (5/16" O.D.)

PART NO. SIZE

C050 50' - Left / Right

C100 100° - Left / Right

C120L 120' - Left

C120R 120' - Right

STAINLESS COILS

Tightly wrapped to fit in smaller coolers.

PART NO. SIZE

C050X 50' x 5/16" O.D.

C070X 70' x 5/16" O.D.

COIL FITTINGS

PART NO. DESCRIPTION

787F 3/8' metal ferrule

787G 3/8" rubber grommet

785F 1/4' metal ferrule

785G 1/4" rubber grommet

786F 5/16" metal ferrule

786G 5/16" rubber grommet

787F 787G

FLASH CHILLER

FEATURES:

• Great for pasteurized imports in limited refrigeration situations.
• Use at special events to dispense any beer ice cold.
• Uses 30' of coil submerged in a 20 lb ice bank.
• Double loop coil for additional cooling of 1 keg.

PART NO. DESCRIPTION

FC-8000 Flash chiller

• Compact size fits on under-counter shelf.
• Plugs into standard outlet.
  • Space requirement: 27"W x 16"H x 16"D
• Dispense 2 kegs.
  • 1/5 HP compressor.

PRODUCT LINES RECIRCULATING WATER TO LINES AND / OR TOWER NEW FC-8000

DS532CL 2 PRODUCT CLAMP ON TO COOL WATER CHILLED PRODUCT OUT ROOM TEMPERATURE PRODUCT IN

CLAMP-ON TOWERS

3" COLUMN ABS PLASTIC WITH STAINLESS STEEL BASE

A durable and inexpensive way to have draft beer in a temporary location. Includes C-clamp for easy mounting and a removable drip tray for easy cleaning.

PART NO	FAUCETS	TOWER FINISH	DRIP TRAY FINISH	OUTLET
DS431CL	1	ABS black	Brushed SS	Hose
DS432CL 2	ABS black Brushed SS Hose
DS531CL 1	ABS chrome Brushed SS Hose
DS532CL	2	ABS chrome	Brushed SS	Hose

CLAMP-ON BASE - KOOL-RITE TOWERS

PART NO.	DESCRIPTION
DP-106-SS	Fits 3" column towers, 10" x 6" removable drip tray

COIL COOLER

An ideal method for adding pasteurized draft beers to a bar or restaurant without the expense of installing a cold air or long draw system. Simply put the keg under a counter and dispense through a coil cooler to a clamp-on draft tower. Fill daily with cubed ice. Add water until coils are completely covered with ice and water.

8 QT COOLER

PART NO.	DESCRIPTION
CWC50	Includes 50' x 5/16" O.D. stainless steel coil and two ice box couplers

DS531CL CWC50 550C72WC GAS LINE

Black vertical stand with a handle and mesh base, no visible text or symbols

Laboratory stand with glass tubing and a vertical cylindrical device (no visible text or symbols)

DS531CL

5"W x 6"D NEW DP-106-SS DS532CL Drip Tray 10"W x 6"D 12 1/4"

Two red and white thermosink thermos (no text or symbols visible)

CWC50
(8 qt)

PARTY PUMPS

iPUMP™

The basic bargain! The lowest priced pump.

PART NO. DESCRIPTION SYSTEM

3167 Plastic base and pump D

LEGEND

A price that is hard to beat! The Micro Matic Legend picnic pump will outperform and outlast any similar party pump on the market.

FEATURES:

• Forged brass body for durability.
  • Available in chrome-plated or gold-plated body for brand identification.
• 3 pump choices.

old-plated body for brand identification. BEST SELLER 7509E

The Grabber ^® does just what the name implies: it grabs the neck of the keg by the outside and clamps below the top ring, assuring a tight seal and eliminating any wear and tear on the inner lugs or neck.

BJ-100A-3

PART NO.	SYSTEM	DESCRIPTION
EZ-TAP D	Complete
EZ-TAP-LC	D	Less CO_2 cylinder
EZ-TAP-S	S	Complete
EZ-TAP-S-LC	S	Less CO_2 cylinder

PARTY PUMPS

MM-B68
See page 39 for cleaning solution

M5-801147
Re-lube probe and body o-rings after cleaning for optimum performance

Two metal buckets: a cylindrical barrel and a red bucket, shown against a white background (no text or symbols visible)

TT-75R

R4219

Two plastic buckets, one red and one blue, labeled B2632 (no text or symbols on the buckets themselves)

R2632

2640

H6B-100 JERR-7

7977H6 7977H6B

FN-013HP-111

PARTY PUMP CLEANING

COMPLETE KITS

PART NO.	DESCRIPTION	SYSTEM
M5-801147	5 L bottle, cap and dip tube	D
M5-808033	5 L bottle, cap and dip tube	S
M5-808041	5 L bottle, cap and dip tube	U
M5-808053	5 L bottle, cap and dip tube	A
M5-808051	5 L bottle, cap and dip tube	G

EASY PARTY PUMP CLEANING PROCEDURES

1. Remove cleaning bottle cap. Mix cleaning chemical with water per manufacturer's instructions.
2. Screw cap back on to bottle and engage picnic pump as if tapping a keg.
3. Pressurize cleaning bottle with party pump and release cleaning solution by squeezing faucet, allowing approximately 1 liter to flow out.
4. Remove cleaning bottle cap. Rinse bottle and cleaning cap. Pour fresh water into cleaning bottle. Screw bottle cap back on and engage party pump.
5. Pressurize cleaning bottle with party pump and release fresh water by squeezing faucet, allowing approximately 1 liter to flow out.

1 FRESH WATER CLEANING CHEMICAL CLEANING BOTTLE CLEANING CAP

2 3 CLEANING SOLUTION

4 FRESH WATER 5 WATER

KEG CONTAINERS

PART NO. DESCRIPTION

TT-75R Tubtrug - super-flexible, integrated handles

R4219 Shorty 19 gal (with rope handles)

R2632 Rubbermaid 32 gal – red

B2632 Rubbermaid 32 gal - blue

W2631 White lid 19 and 32 gal

2640 Brute dolly

SUB ASSEMBLIES

RESTRICTED ROD ASSEMBLY

PART NO. PUMP INCLUDED

JERR-7 HP-700

JERR-9 HP-900

VERTICAL CONVERTER ASSEMBLY

PART NO. DESCRIPTION

H6B-300 Includes HP-300

H6B-100 Includes HP-100

H6B-700 Includes HP-700

7977H6 Vertical converter

7977H6B Vertical converter with beer line, faucet, air line and clamps

HP-111 Pump to coupler adapter with hose barb

FN-013 Pump to coupler adapter, dual threaded

REPLACEMENT PARTS

PUMPS

PART NO.	DESCRIPTION
HP-300	3" low profile plastic pump with plastic piston
HP-700	4" chrome pump with chrome plated brass piston
HP-900	8" chrome pump with chrome plated brass piston
HP-100	8" plastic pump with stainless steel piston

PARTS FOR HP-100

PART NO. DESCRIPTION
HP-109	Knob
HP-103	SS piston rod
HP-108-1	Cap
HP-106	Spring
FG-022	O-ring
FS-019	Screw (2 required)

PARTS FOR HP-700 AND HP-900

PART NO. DESCRIPTION

431J Knob

431D Top cap

431I Spring

431R Quad ring

102-117 Check valve (hidden)

759 Washer

PARTS FOR HP-300 PUMP

PART NO. DESCRIPTION
1087 Cap
FG-011	O-ring
HP-307	Spring
1086 Barrel assembly
753	Nipple washer

COUPLER PROBE

PART NO.	DESCRIPTION
FT40-15	Fits FT44 & FT45

BODY WASHER

PART NO.	DESCRIPTION
FT84-2A	Fits 7500, FT44 & FT45
BJ-108N Grabber	^a body & probe seal

CHECK VALVE

Not for use with Legend series picnic pumps.

PART NO.

752

HP-300 HP-900 HP-100HP-700

1087 HP-305G FG-011 HP-307 1086 102-117 (Hidden) Check Valve Nipple Washer 753

HP-300

PICNIC FAUCET

PART NO.

JEPTF-1

547B24WF With picnic faucet

PROBE AND O-RING LUBRICANT

PART NO. DESCRIPTION

FT101L 1 oz FDA listed, odorless, tasteless

TWIN PROBE

PART NO. DESCRIPTION

TC202-8 Check valve

PART NO.

1776-8 Figure 8 washer

TC202-8

1776-8

PARTS FOR JERR

PART NO. DESCRIPTION
4301	Faucet knob
4933K	Chrome faucet
JERR	Rod assembly only
JEPC-30 Clamp set

547B24WF FT101L

FT84-2A

FT40-15

752

BJ-108N

4301 4933K JERR JEPC-30

WINE FONTS

Metal mechanical device labeled MTM-3PSS-W, mounted on a perforated base (no other text or symbols visible)

DP-1020

Exterior view of a cylindrical industrial device labeled DS-143-PSS-W, mounted on a perforated base (no other text or symbols visible)

DP-1020

Metal pipe fitting with a curved handle and flange (no text or symbols visible)

HOLLAND1-C-W

Mechanical device with a vertical stand and base, no visible text or symbols

DS532CL-W

Laboratory setup with a glass of yellow wine being heated by a vertical stand (no text or symbols visible)

DS531CL-W

SOMMELIER

Choices. That's what this Sommelier offers. Wine certified and compact in space, it features up to four side pull faucets. The 4" diameter column is highlighted by stamped beading. The Sommelier font is solid stainless steel polished to a mirror-like finish – it will keep its shine for years of dispensing wine on tap. NSF certified.

PART NO. FAUCETS FINISH

MTM-3PSS-W 3 Polished stainless steel

MTM-4PSS-W 4 Polished stainless steel

FINESSE

Finesse is a distinctive 4" diameter column font that rises over 16" from the bar top. The two beaded lines offer subtle highlights to the polished stainless steel surface. Finesse fonts are wine certified; featuring the exclusive Micro Matic Side Pull faucet of 304 grade stainless steel. *NSF certified.

PART NO. FAUCETS FINISH

DS-141-PSS-W 1 Polished stainless steel

DS-142-PSS-W* 2 Polished stainless steel

DS-143-PSS-W* 3 Polished stainless steel

DS-144-PSS-W 4 Polished stainless steel

HOLLAND

Elegant, flowing lines define the Holland series wine font. Striking as a single pedestal with one or two faucets, or choose double pedestals to create a beautiful bridge with up to six faucets. Beautiful chrome-plated finish over a cast brass body. Each Holland is equipped with wine certified components including our exclusive Side Pull faucet.

PART NO.	FAUCETS	FINISH	DESCRIPTION
HOLLAND1-C-W	1	Chrome	Single pedestal
HOLLAND2-C-W	2	Chrome	Single pedestal
HOLLAND3-C-W	3	Chrome	Dual pedestal – bridge
HOLLAND4-C-W	4	Chrome	Dual pedestal – bridge
HOLLAND5-C-W	5	Chrome	Dual pedestal – bridge
HOLLAND6-C-W	6	Chrome	Dual pedestal – bridge

NOTE: 1, 2, 3, and 4 faucet configurations available with front mount LED medallions. See available options page 91. NOT FOR USE WITH MDD23W

HOLLAND4-C-W Shown with medallions

Black rectangular battery with a metal rack and a red wine glass on top (no visible text or symbols)

HOLLAND4-C-W
Shown on a MDD58W

CLAMP-ON FONTS

3" column chrome finish ABS plastic with stainless steel base. Includes our exclusive side pull faucet. A durable and inexpensive way to add keg wine in a temporary location. Includes C-clamp for secure mounting and a removable drip tray for easy cleaning.

PART NO. DESCRIPTION

C050X 304 stainless steel 50' x 5/16" O.D.

EDGE

The Edge tower draws its name from the crisp lines defining it's shape. Featuring polished stainless steel exterior that creates mirror-like surfaces. Our 304 Series stainless steel faucets are standard. See available options (pg. 91).

PART NO.	FAUCETS	FINISH	OUTLET	RESTRICTION	DISPENSE SYSTEM
E-G5-1-C-W	1	Chrome	Tube	3 lbs	Air Cooled
E-G5-2-C-W	2	Chrome	Tube	3 lbs	Air Cooled

NOT FOR USE WITH MDD23W

ANACONDA

Draw attention to "what's on tap" with the sexy curves and flowing lines of this tower. 304 Series stainless steel faucets are standard. See available options (pg. 91).

PART NO.	FAUCETS	FINISH	OUTLET	RESTRICTION	DISPENSE SYSTEM
A-G5-1-C-W	1	Chrome	Tube	3 lbs	Air Cooled
A-G5-2-C-W	2	Chrome	Tube	3 lbs	Air Cooled

NOT FOR USE WITH MDD23W

CELINE

Celine steps out of time with a vintage turned wood style. A heavy chrome-plated finish over the cast brass body allows Celine to draw attention to wine on tap. Dispense wine with confidence, knowing that all the components are wine certified. Includes our exclusive Side Pull faucet.

PART NO.	FAUCETS	FINISH
CELINE-1-W	1	Chrome
CELINE-3-W	3	Chrome

NOT FOR USE WITH MDD23W

HAVANA

Havana is striking in its simplicity. A tapered column upholds a slim 2 3/4" crossbar with faucets. This tower is chrome-plated over a cast brass body. Font mounts from under the counter for a clean bar top finish. Wine certified, featuring the exclusive Micro Matic Side Pull faucet of 304 Series stainless steel.

PART NO.	FAUCETS	FINISH
HAVANA3-C-W	3	Chrome
HAVANA3-C-M-W	3 with medallions	Chrome
HAVANA4-C-W	4	Chrome
HAVANA4-C-M-W	4 with medallions	Chrome
HAVANA5-C-W	5	Chrome
HAVANA5-C-M-W	5 with medallions	Chrome
HAVANA6-C-W	6	Chrome
HAVANA6-C-M-W	6 with medallions	Chrome

NOT FOR USE WITH MDD23W

PRO-LINE™ WINE HOLE COVER FOR CELINE & HAVANA FONTS

PART NO.	DESCRIPTION
CPW-100	Hole cover adapter kit, one (1) single disc

NEW NEW E-G5-1-C-W Edge Shown with optional 304 faucet, standard faucet is 5601-SP

A-G5-1-C-W
Anaconda

Two ornate silver trestles with decorative legs and side railings, no text or symbols visible

CELINE-3-WCELINE-1-W

HAVANA5-C-W CPW-100

WINE CERTIFIED EQUIPMENT

Two metallic mechanical components labeled 7485BS and 7485SS, shown side by side without any text or symbols on the parts themselves.

842-15 842N-15

Two metallic mechanical devices labeled 5601-SP and SPMH-60-5890, shown from different angles (no text or symbols on the devices themselves)

Metal plate with two circular holes, labeled '462' below (no other text or symbols)

Two metallic mechanical components labeled BE-SK2LA-304 and 4334AS-304, shown without any text or symbols on the parts themselves.

KEG COUPLER

PART NO. DESCRIPTION

7485BS 304 stainless steel probe with chrome-plated brass body

7485SS 304 stainless steel probe and body

GAS REGULATORS

PART NO. DESCRIPTION

842-15 Economy double gauge C0 regulator with 15 psi gauge

842N-15 Economy double gauge N regulator with 15 psi gauge

8011-15 Economy secondary regulator, 1 pressure up to 15 psi product

FAUCETS

PART NO. DESCRIPTION

4933DEBI 304 polished stainless steel Rototap faucet

304 304 polished stainless steel faucet

4933BOS BOS faucet counter has two pour sizes: features 304 stainless steel, battery-powered, tamper-resistant programming and erase functions

5601-SP 304 polished stainless steel Side Pull faucet

SPMH-60-5890 60mm medallion holder for 5601-SP

5601-THH Tap marker holder for 5601-SP

(1)

UNDERBAR BRACKETS

PART NO. DESCRIPTION LENGTH HOLES

461 Brushed stainless steel 4" 1

462 Brushed stainless steel 7" 2

463 Brushed stainless steel 10" 3

464 Brushed stainless steel 13" 4

SHANKS

PART NO.	DESCRIPTION
D5N-ARF	SPINSTOP ^IV shank 304 stainless steel with elbow
D5N-ARF-LE	SPINSTOP ^IV Shank 304 stainless steel
BE-SK2LA-304	304 stainless steel elbow shank assembly, 1/4" O.D. elbow
4331AS-304	304 stainless steel 2" shank assembly, 1/4" bore
4333AS-304	304 stainless steel 3 1/8" shank assembly, 1/4" bore
4334AS-304	304 stainless steel 4 1/8" shank assembly, 1/4" bore
4337AS-304	304 stainless steel 6 1/8" shank assembly, 1/4" bore
4338AS-304	304 stainless steel 8 1/8" shank assembly, 1/4" bore

FITTINGS & ACCESORIES

PART NO. DESCRIPTION

543BS 304 stainless steel wall bracket, 3/8" bore

526BS-304 304 stainless steel hose nipple, fits 1/4' poly tubing

BE-212-3-304 304 stainless steel elbow hose nipple, fits 1/4" poly tubing

SSS-B2 304 stainless steel hose splicer, fits 1/4* poly tubing

SST-B2 304 stainless steel tee, fits 1/4" I.D. poly tubing

WD-023 Plastic tee, 1/4" I.D. hose

WD-020 1/4' O.D. inline flow control shutoff

7419-1 304 stainless steel straight shutoff

PI0312S John Guest equal elbow connector 3/8" x 3/8"

PI201210S John Guest reducing straight connector 3/8" x 5/16"

SSS-B2

WD-020

7419-1

PI0312S

PI201210S

WINE TUBING & GAS HOSE

PART NO. DESCRIPTION

548BF1200 BarrierMaster Flavourlock tubing, 1/4" I.D. x 100'

549BF1200 BarrierMaster Flavourlock tubing, 5/16* I.D. x 100'

550BF1200 BarrierMaster Flavourlock tubing, 3/8" I.D. x 100'

553B1200 Vinyl gas hose, blue, 5/16" I.D. x 100"

549C1200 Vinyl gas hose, clear, 5/16" I.D. x 100'

BARRIERMASTER FLAVOURLOCK TRUNKLINE

Micro Matic Black Diamond ^® trunkline is engineered with BarrierMaster Flavourlock tubing for excellent delivery of wine.

PART NO.	DESCRIPTION
CDI242-BF	Trunkline: 2 product 1/4" I.D. BarrierMaster Flavourlock tubing, 2 3/8" I.D. glycol lines
CDI442-BF	Trunkline: 4 product 1/4" I.D. BarrierMaster Flavourlock tubing, 2 3/8" I.D. glycol lines
CDI432-BF	Trunkline: 4 product 3/8" I.D. BarrierMaster Flavourlock tubing, 2 3/8" I.D. glycol lines
CDI832-BF	Trunkline: 8 product 3/8" I.D. BarrierMaster Flavourlock tubing, 2 3/8" I.D. glycol lines

GAS PUMPS (CO₂ - NITROGEN - AIR)

Not to be used for beer.

PART NO. DESCRIPTION

WD-034 Flojet » pump with plastic in and out fittings

WD-035 Flojet ^8 pump with stainless steel outlet fitting, plastic inlet fitting

WD-033 Shurflo ^® pump with plastic fittings

WD-039 Flojet ^29 - automatic bag change-over valve

BAG-IN-BOX FITTINGS

PART NO. DESCRIPTION

WD-046 Dispense pulpy liquids from bag-in-box containers including wines, juices and syrups

WD-032 "L" fitting - Scholle

WD-041 "T" fitting - Scholle

WD-043 Adapter assembly – Scholle

WUNDERBAR GUN

PART NO. DESCRIPTION

WD-010 Wunderbar Gun - Four product mechanical gun with drip-cup and hanger bracket. 28" flexible hose with 1/4" 303 stainless steel inlet fittings.

COCKTAILS ON TAP

DH1501

MICRO BANETIC Beverage Tank

B-18-2

7485SS

B-9-D-2

BEVERAGE TANK™

LIKE TAPPING A KEG

The Beverage Tank™ is a robust stainless steel vessel with an integrated valve. The large opening makes it easy to clean and fill the tank. Use a keg coupler to pressurize the tank and then to dispense the contents. Use a Beverage Tank™ for still beverages or combine with a SpinStick™ mixer base for continuous blending.

PART NO. DESCRIPTION VALVE SYSTEM

B-18-2 18L Beverage TankTM A

B-9-2 9L Beverage TankTM A

DH1501 Coupler A

B-18-D-2 18L Beverage TankTM D

B-9-D-2 9L Beverage TankTM D

7485SS Coupler D

SPINSTICK™

STIRRED NOT SHAKEN USING VORTEX TECHNOLOGY

Use "Vortex Technology" to ensure the continuous blending of pre-mixed cocktails. Drop the SpinStick™ stirrer into a filled Beverage Tank™ (sold separately) and set on top of the proprietary motor base – technology takes over from there! Within minutes a gentle vortex forms inside the tank resulting in continuous mixing of the cocktail.

PART NO.	DESCRIPTION
SS-7780	SpinStickTM mixer base for Beverage TankTM, includes SpinStickTM with 9.12" diameter tank holder
SS-7780-2	SpinStickTM mixer base for Beverage TankTM, Includes SpinStickTM with 9.28" diameter tank holder
SS-12298	Additional SpinStickTM – magnet encapsulated in FDA grade, USP class VI teflon PTFE low friction coating, durable and inert. SpinStickTM is autoclavable.

Exterior view of a stainless steel cylindrical device with red liquid and blue base, connected by cable (no text or symbols visible)

SS-7780

Simple illustration of a white cylindrical object inside a pink circular background (no text or symbols)

Modern laboratory setup with three vertical bars, each containing a cylindrical container filled with liquid and two water bottles on top (no visible text or symbols)

Beverage Tank™ installed in a MBB78BC-E-B.
For more Beverage Station™ info see page 157.

POUR YOUR OWN

SELF-SERVE

DRAFT SYSTEMS

Beer and Wine Systems

where the customer can choose and pour their own beverage are becoming extremely popular.

Call for details

866-327-4159

Micro Matic is proud to partner with two Best-in-Class companies, iPourlt and PourMyBeer, who specialize in the technology that allows consumers to pour their own beer and wine.

The consumer has the freedom to pour as little or as much as they wish and they pay by the ounce. The benefits to the retailer are tremendous since it allows them the freedom to set pricing by the ounce and most importantly get paid for EVERY ounce served. Zero waste, 100% yield!

I POUR IT Buy the ounce! pour MY BEER

LIQUOR MANAGEMENT SYSTEMS

INTEGRATED BAR SOLUTIONS

Realize True Profits with Berg

• Complete liquor control, monitoring, management and reporting
• Make data-based decisions, control costs and improve profi tability!
• Fast ROI! Realize savings in as little as 4 weeks
• Inventory control with purchases reduced by 25-40%
• 10-20% increase in gross sales due to accounting for all drinks

Industrial bottling machine with rows of bottles and coiled tubing (no visible text or labels)

Interior view of a modern kitchen or processing facility with stainless steel appliances and conveyor systems (no visible text or symbols)

1 IN 5 DRINKS NEVER MAKE IT TO THE REGISTER!

1 IN 5 DRINKS NEVER MAKE IT TO THE REGISTER!

The Industry Leader

• For over 40 years, the most respected and advanced liquor controls and dispensing equipment available in the market
• A complete line of controls for liquor and other beverages
• Experienced installations for a wide range of venues
• Systems meet US/Canadian requirements for NSF/ANSI Standard 18
• Laser gun systems meet legal UK weight/measures standards for accuracy
• Most Berg liquor controls are certified to NSF/ANSI sanitation & CE standards

BERG

MICRO MATIC

BERG MERLIN

WIRELESS SYSTEMS

Technology that fi ts all venues seamlessly

• Unique Bartender ID linked via touch screen wrist "watch" to POS/ECR
• Perfect cocktails poured with up to 5 liquors per recipe every time
• Single PLU to POS/ECR for multiple liquor cocktails
• RF communication bandwidths adjustable to harsh electronic environments
• Exclusive software for reporting, price level and portions changes, custom events

Affordable cash and cost control by brand ID.

• Reports by brand
• Four programmable pour sizes by brand
• Software controls scheduled events and price shifts
• Cocktailing Upgrade with up to 200 cocktails and up to fi ve liquors per recipe

Product display featuring a microchip, alcohol lamp, and various bottles with droplets (no visible text or symbols)

BERG ALL BOTTLE BRAND ID™ SYSTEM

BERG BASICS (704 & 1504)

Budget-friendly, compact, durable and easy to use. Quick turnaround on investment.

• 7 or 15 price codes with 4 portions per code
• Standard POS/ECR interface
• Quick reporting via thermal receipt printer

Laser-fast pouring for popular brands & cocktails. Simple, affordable for accountability and control.

• Controls 6-96 brands with unlimited bottles of remote inventory backup
• 16-96 programmable cocktails
• Remote inventory to over 1,000 feet, with secure back room after-hours lock out
• Includes software for POS/ECR integration

BERG REMOTE LASER GUN SYSTEMS

CALL FOR A QUOTE! [phone]

WATER ON TAP

ON-DEMAND

FRESH, FILTERED & CHILLED

"TAP" WATER

AMOUNT CHILLED CHILLED FINANCE READY IMMEDIATELY, NO NEED TO STORE AND CARRY INVENTORY.

READY IMMEDIATELY, NO NEED TO STORE AND CARRY INVENTORY.

WATER SYSTEM KITS

On-demand fresh, filtered, chilled "tap" water. Consider the savings and sustainability versus bottled water. Ready immediately, no need to store and carry inventory.

QUALITY AND PURITY

• Start with available tap water, then microfilter and purify, leaving the water better tasting and balanced with natural mineral salts.
• No prolonged exposure to plastic, which may leach harmful chemicals when exposed to high temperatures or sunlight.
• Enjoy the purity of 304 stainless steel faucets.

SUSTAINABLE SAVINGS

• Tap water costs less than bottled water.
• Eliminate packaging, transportation, and disposal / recycling of plastic bottles.
• Higher employee productivity due to time saved from stocking fridges and disposing of plastic bottles.
• Eliminate storage and free up valuable refrigerated space.

PART NO. DESCRIPTION

H20-CM-KIT	Water chiller / carbonator with 3 faucets (counter mount)Kit includes: 30' insulated barrier braided 1/4" I.D. tubing, water regulator and filter, high-pressure CO2regulator.
H20-UCM-X-KIT	Water chiller / carbonator (under counter mount) with Xenia chrome towerKit includes: single faucet with 3 choices, chrome tower, 12" dump / drip tray, 30' insulated barrier braided 1/4" I.D. tubing, water regulator and filter, high-pressure CO2regulator and 10' trunkline bundle.
H20-UCM-M-KIT	Water chiller / carbonator (under counter mount) with Magic white ceramic towerKit includes: 3 faucet white ceramic tower, 12" dump / drip tray, 30' insulated barrier braided 1/4" I.D. tubing, water regulator and filter, high-pressure CO2regulator and 10' trunkline bundle.

COMPONENTS

PART NO. DESCRIPTION

H20-500 Water chiller / carbonator (counter mount)

H20-R-F Water regulator with filter

H20-REG Water regulator

H20-FIL Water filter, replace every 4-6 months, depending on volume

H20-804 Maxi water boost system, 1/2' barb fittings

18 3/4" 12 1/2" H2O-UCM-M-KIT H2O-UCM-X-KIT

23 1/4" 13 1/4" H2O-CM-KIT 20 7/8" ETV NSF

FLOW CONTROL FAUCET FOR CHILLED/SPARKLING OUTLET CHILLER / CARBONATER 120V POWER OUTLET CO2 REGULATOR & CYLINDER Set @ 68 psi WATER REGULATOR Set @ 60 psi CO2 SUPPLY LINE FILTERED WATER SUPPLY LINE WATER FILTER (Change every 6 months) WATER SOURCE Always include shutoff

Two industrial equipment components: a motor labeled H20-804 and a gas cylinder labeled H20-R-F, with no visible text or symbols on the devices themselves.

COFFEE EQUIPMENT

Interior view of a modern café with patrons at bar stools and glassware (no visible text or signage)

Two metallic cylindrical storage tanks with labels and a decorative trophy nearby (no visible text or symbols on the main objects)

Beverage Tanks™ with coupler

AMERICANO

The Americano model mobility makes it versatile for use in either a semi-permanent install behind the bar or wheel to the patio or special events. Americano is a self-contained refrigerator and dispenser for consistent nitro cold brew coffee. Use with ready-to-drink kegs or brew your own and store it in a Beverage Tank ^™ or Corny keg.

PART NO. NITROGEN SOURCE PACKAGE WEIGHT DIMENSIONS

MDD17-E-AMER

Gas cylinder or

138 lbs 40"H x 17 1/2"W x 30 3/4"D

MDD23-E-AMER 227 IBS 40/1x25 W x 30 3/4"D

Keg

Black vinyl exterior standard, brushed stainless steel finish available. Branding wraps can be designed and applied. Ask sales person for reference.

Listed by Ediacin-Tening Laboratories Conform to U.K. KNSI Standards.

TAPPING KITS

PART NO. DESCRIPTION

AMER-BT Includes 2 Beverage Tanks™, A System coupler and fittings

AMER-CK Includes 2 Corny kegs, ball lock liquid & gas fittings and fittings

Product photo of stainless steel cylindrical containers with a circular inset showing a mechanical component (no visible text or symbols)

Corny kegs with ball lock fittings

MDD17-E-AMER

-AMER NEW

MDD23-E-AMER

D23-E-AMER NEW

STILL COLD BREW

NITRO COLD BREW

NIM MODULE

COLD BREW

CONTAINER

NITROGEN GAS

REGULATOR

Interior view of a gas washing machine with two cylindrical tanks and tubing (no visible text or labels)

Solid gray rectangle with black border (no text or symbols)

Diagram of a gas cylinder connected to two identical gas cylinders via tubing, with no visible text or symbols.

Example of MININIMV1 setup

NITROGEN INFUSION MODULE (NIM)

Create a nitro cold brew dispenser; retrofit an existing kegerator with our NIM module in less than 15 minutes. Achieve consistent nitro cold brew coffee pours, glass after glass. Utilizes an external nitrogen gas source. Use with ready-to-drink kegs or brew your own and store it in a Beverage Tank™ or Corny keg.

PART NO. NITROGEN SOURCE PACKAGE WEIGHT DIMENSIONS

MININIMV1

Gas cylinder

or nitrogen generator

Any 1 lb 5 1/4"H x 4 3/4"W x 2"D

Exterior view of a stainless steel industrial device with pipes and valves, labeled 'NEW' in red circle (no other text or symbols)

MININIMV1

TAPPING KITS

PART NO. DESCRIPTION

NIM-BT

Includes 2 Beverage Tanks™, A System coupler and fittings

NIM-CK

Includes 2 Corny kegs, ball lock liquid & gas fittings and fittings

COMPONENTS

PART NO. DESCRIPTION

TOWERS

D4743T-C 3' column with single stout faucet

D4743DT-C 3* column with dual stout faucets

DS-132-PSS-C 3" column, 16' height, with dual stout faucets

FAUCETS

JESF-4 Stout faucet, polished stainless steel, standard shank length

12543 Stout faucet, polished stainless steel, short shank length

CONTAINERS & TAPPING

B-18-2 18 L Beverage Tank™ with A System valve

B-18-D-2 18 L Beverage Tank™ with D System valve

B-9-2 9 L Beverage Tank™ with A System valve

B-9-D-2 9 L Beverage Tank™ with D System valve

7485SS D System keg coupler with 304 stainless steel probe and body

BR-CKN5DRHINX 5 gal, Corny keg

HBF100L Ball lock quick disconnect - liquid, out

HBF100G Ball lock quick disconnect - gas, in

TUBING

548BF 1/4" I.D. BarrierMaster Flavourlock tubing, product hose, per foot

550WD1200C 3/8" I.D. braided vinyl gas tubing (100 ft)

GAS EQUIPMENT

942BN High pressure double gauge nitrogen regulator

BB-040PPH Brewblast® nitrogen generator, 40 pints/hr, 99.80% purity, side-mounted 3 gal storage tank

BB-040PPH-NT Brewblast® nitrogen generator, 40 pints/hr, 99.80% purity, separate floor 28 gal storage tank

BB-225PPH Brewblast® nitrogen generator, 225 pints/hr, 99.80% purity, separate floor 28 gal storage tank

CLEANER

MM-C128 Coffee line cleaner, 1 gal

Metal stand with two black handles and a central vertical shaft (no text or symbols visible)

D4743DT-C

BREW-BLAST NEW BB225

BB225PPH

BB-040PPH

Exterior view of a modern industrial water heater unit with a red circular badge labeled 'NEW' (no visible text or symbols on the device itself)

BR-CKN5DRHINX

Beverage Tank Beverage Tank

B-18-2

MM-C128

HBF100L

Close-up of a metallic mechanical device with blue handle and black connector (no visible text or symbols)

KEG

SPECIFICATIONS

50 LITER 1/2 1/4 SHORT 1/4 SLIM 1/6
CAPACITY

GALLONS 13.2 15.5 7.75 7.75 5.23
OUNCES 1690 1984 992	992	640
LITERS	50	60	30	30	20
CASES	5.86	6.8	3.44	3.44	2.2
12 OZ BEERS	140	165	82	82	53
355 ML BEERS	140	165	82	82	53

DIMENSIONS

HEIGHT	20.2	23.3	14.8	23.3	23.3
DIAMETER	17	17		17	11	9.25

WEIGHT

FULL	133 lbs	161 lbs 84 lbs	82 lbs	56 lbs
EMPTY	29 lbs	30 lbs	17 lbs	16 lbs	14 lbs

NOTE: Capacities, dimensions and weights may vary as a result of differences between manufactures and breweries. Not all beers are available in all keg configurations.

KEG VALVE SYSTEMS

BEERS

D

Close-up of a metallic circular object with concentric rings and central bore (no text or symbols visible)

Close-up of a metallic mechanical component with a black handle and threaded shaft (no visible text or symbols)

Bass Ale

Budweiser

Coors

Labatt

Miller

Molson

Samuel Adams

Yuengling

S

Close-up of a metallic circular component with concentric rings (no text or symbols visible)

Close-up of a metallic mechanical device with blue handle and black base, labeled '7486SS' (no other text or symbols visible)

Amstel Light

Becks

Heineken

Pilsner Urquell

A

Close-up of a circular mechanical component with central hole and flanges (no visible text or symbols)

Close-up of a metallic mechanical device with no visible text or symbols on its body

Hoegaarden

Paulaner

Spaten

Warsteiner

G

Close-up of a metallic mechanical component with a central circular feature and three radial holes (no visible text or symbols)

Close-up of a metallic laboratory glassware device labeled GTL425, with no visible text or symbols on the device itself.

Anchor Steam

Boddingtons

Caffrey's

Watney's

U

Close-up of a circular mechanical component with concentric rings and central bore (no visible text or symbols)

Close-up of a mechanical device with metallic components and a labeled part G408 (no readable text or symbols beyond label)

Guinness

Harp

M

Close-up of a metallic circular mechanical component with concentric rings and central hole (no text or symbols visible)

Close-up of a metallic mechanical device labeled M1500, featuring a conical tip and base mount (no readable text beyond label)

Veltins

Schneider

Aventinus

Close-up of a beer glass filled with golden liquid, no visible text or symbols on the glass itself.

WARRANTY INFORMATION

Blue industrial pipe fitting with metallic fittings and flanged ends (no visible text or symbols)

Specifications, CAD & Revit

AutoQuotes

Proud Member

N B W A National Beer Wholesalers Association FCSI NAFEM North American Association of Food Equipment Manufacturers uwm IBDEA BA BREWERS ASSOCIATION RFMA Restaurant Facility Management Association

MICRO MATIC LIMITED WARRANTY

(Does not apply to Micro Matic Brand Refrigeration Units, which are covered under the Micro Matic Brand Refrigeration Units Limited Warranty.)

WHAT DOES THIS WARRANTY COVER?

Micro Matic USA, Inc. ("Micro Matic") warrants that its products will be free from defects in material and workmanship, under normal use and regular service, and preventative maintenance for the Warranty Period (defined below). As specified on the website, some products which are not made by Micro Matic are warranted by their respective manufacturer; therefore, this Limited Warranty does not apply to such products.

HOW LONG DOES COVERAGE LAST?

Unless otherwise specified, the Warranty Period is one (1) year from the date of sale.

HOW DO I MAKE A WARRANTY CLAIM?

If any defect is discovered in the product during the Warranty Period, the purchaser must notify Micro Matic's customer service department to obtain a return authorization number, and further instructions on how to return the product for service. Purchaser must follow Micro Matic's instruction. Micro Matic will have no responsibility to honor claims received after the date the applicable Warranty Period expires.

WHAT WILL MICRO MATIC DO?

After receipt of a Product which Micro Matic determines is defective, Micro Matic will, at its option, either (1) repair (or authorize the repair of) the Product, (2) replace the Product, or (3) refund the purchase price for the Products. Micro Matic's determination of defects is final. Failure by Purchaser to give notice of claims of breach of warranty within the Warranty Period shall be deemed an absolute and unconditional waiver of purchaser's claim for such defects. Products repaired or replaced during the Warranty Period shall be covered by the foregoing warranties for the remainder of the original Warranty Period or ninety (90) days from the date of delivery of the repaired or replaced Products, whichever is longer.

All shipments will be shipped standard service. Special or expedited shipping service is available upon request and will be at the Buyer's expense.

WHAT IS NOT COVERED BY THIS WARRANTY? ALL REPAIRS MUST BE FIRST AUTHORIZED BY MICRO MATIC PER THE ABOVE PROCEDURE. UNAUTHORIZED REPAIRS WILL NOT BE REIMBURSED BY MICRO MATIC UNDER ANY CIRCUMSTANCES.

Micro Matic is not responsible for parts damaged from factors including, but not limited to: any part that has been subject to misuse, neglect, alteration, accident, unauthorized service, abuse, or to any damage caused by transportation. This Warranty does not cover items subject to normal wear and tear (gaskets, seals, o-rings, etc.).

TO THE MAXIMUM EXTENT PERMITTED BY LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESSED OR IMPLIED. MICRO MATIC SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT. IF MICRO MATIC CANNOT LAWFULLY DISCLAIM OR EXCLUDE IMPLIED WARRANTIES UNDER APPLICABLE LAW, THEN TO THE EXTENT POSSIBLE ANY CLAIMS UNDER SUCH IMPLIED WARRANTIES SHALL EXPIRE ON EXPIRATION OF THE WARRANTY PERIOD. NO MICRO MATIC RESELLER, AGENT, OR EMPLOYEE IS AUTHORIZED TO MAKE ANY MODIFICATION, EXTENSION, OR ADDITION TO THIS WARRANTY.

To the maximum extent permitted by law, Micro Matic's liability hereunder in any case is expressly limited, at Micro Matic's election, to repair or replacement of the Product or to the repayment of, or crediting the user with, an amount equal to the purchase price of such goods.

To the maximum extent permitted by law, Micro Matic is not responsible for, and purchaser releases Micro Matic from, direct, special, incidental or consequential damages resulting from any breach of warranty or condition, or related in any way to the equipment, or under any other legal or equitable theory, including without limitation loss of beer, loss of gas or loss of sales. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

HOW DOES STATE LAW APPLY?

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

RETURN POLICY

Authorization is required for any merchandise return. Contact us for a return authorization number; describe the items being returned and the reason. All returned items must be shipped within fi fteen (15) days of receipt. Items must be unused and in original condition including the original packaging, documentation, warranty cards, manuals, and accessories. All orders filled correctly are subject to a minimum 20% handling and restocking charge (\$10.00 minimum charge).

Customers are responsible for all shipping charges unless the cause for the return is a Micro Matic error. FREIGHT MUST BE PREPAID ON ALL RETURNED PARTS. Insure all returned packages; Micro Matic is not responsible for returned shipments that are lost, pilfered, or damaged.

NON-RETURNABLE PRODUCTS

Custom made, manufactured to order, or clearance products cannot be returned for credit unless it is a Micro Matic or vendor error.

A

Adapters, Tower 96

Air (Gas) Distributors 23

Air Cooled Systems....130-133

Anaconda Tower 88

Analox CO2 Leak Detectors .....129

B

Back Bars 144

Bag-in-Box Systems 163

Barrier Tubing....24

BeerBlast ^® 121

BeerCheck 128

Beer Clean Glass Cleaning 47

Beer Engines 53

Beer Manifolds 28

Beer Pumps 125

Beer Switch 29

Berg Liquor Management......166-167

Beverage Station™ 140-141

Beverage Tank™ 164

Biergarten ^™ Towers 65

Black Diamond® Trunkline.... 116-117

Blenders....123

Blowers – Air Cooled Systems ..... 132

BOS Faucet 162

Bottle Coolers....145

Bracket - Underbar 162

Braided Beer Tubing 25

Brushes 49

Brute Containers 158

C

Cabinet Dispensers 84

Cask Conditioned Dispensing ..... 52-55

Celine Wine Fonts 161

Ceramic Towers 81-83

Chemicals, Line Cleaning 39

Chemicals, Glass Washing 47

Clamp On Towers - Beer 155

Clamps....30

Cleaning Equipment 42-45

Cleaning Kits 44-45

Coffee 170-171

Cobra™ Towers 90

Cleaner, Electric 43

Coil Box Coolers 152

- Parts 154

Cold Plate Coolers 153

- Parts 154

Cold Plates 154

Coolers, Walk-In 151

Couplers / Taps 13-15

- A System 15

- D System....13

- FlexiDraft ^™ .....14

- G System....15

- M System....15

- S System 14

– Twin Probe 14

- U System 15

– Wine D System.... 162

CO2 Leak Detectors 128, 129

Custom Towers 58-59

Cylinders - CO _2 18

D

D-Strips ^™ 36, 103

Direct Draw Dispensers 138-139

Dispense Institute ^™ 176-177

Double Service Towers 77

Drip Trays 99-103

DraftLine Smart System® App ..... 40

Dual Tap Shanks 37

E

Elbows 27,37

Edge Towers 88

EZ-Tap 157

F

Falco Towers....91

Faucets

- Bag-in-Box 163

- Beer 32-35

- Locks 33

- Parts 32

- Wine 162

- Wrench 37

Finesse Wine Fonts 160

Flash Chiller 155

Flex Duct - Air Cooled Systems ...132

FlexiDraft™ 11, 14, 33, 95

Flow Control

- Faucets 34, 35

Shanks, Kool-Rite™ 6

Flushers 42

Foam Control Detectors 118-119

G

Gas Blenders 123

Gauge Cage 18

Glass Rinsers....97, 99, 101, 102

Glass Washers 47

Glycol, Polar Flo....115

Glycol Tester 115

Growler Filler

- Automated 142-143

Filler/Faucet 35

H

Havana Wine Fonts 161

Hex Nuts 28

High Pressure Regulators 16, 17

Hose Nipples, Brass / Stainless....28

Hose Splicers, Stainless 27

Hygiene Meter 44

|

Ice Makers 148

Ice Towers 88-91

Insulation 127

iPump™ 156

Irish Coffin Box 84

J

Jockey Boxes 152-153

John Guest Fittings 26

K

Keg

- Bumpers 50

- Jackets 50

- Stackers 50

- Tags....50

KegCheck....50

Keg Footprints 135

Keg Pumps 156-157

Kool-Rite™

- Flow Control Shanks ......61

- Module/Insert 63

- Technology 60

Kronos™ Towers 86

L

Lock - Faucet 33

Long Draw Systems 104-127

Lube, Probe 14

M

Magliner® Hand Trucks 51

Manifolds - Gas 23

Merchandisers 149

Metropolis™ Towers 69-73

MiniNIM 170

Mushroom Towers 80

Mystique Towers 91

N

Nipple, Hose 28

Nipple Shanks 37

Nitro Infusion Module 170

Nitrogen Generators 121, 171

P

Paris Tower 89

Parts Carriers 48

Party Pumps 156-159

pH Testers 44

Platform Trays....101

Plus Tower 89

POLARplate™ 120

Poly Tubing 25

Portable Glass Rinser 97

Power Packs 106-113

Power Pack Racks 115

Profit Maximizers™ (FOBs)......118

Q

Quick Disconnects 29

R

Re-Circulating Line Cleaner 43

Regulators 16-21

Rinser Trays 97, 99, 101, 102

Risers,Tower 94

\$

Self-Service Systems 165

Shadow Boxes 103

Shaft Boxes 84

Shanks

- Beer 36,37

- Flow Control....61

- Wine 162

Shelving, Kegs 51

Shutoffs 29

Skyline Beer Station 87

Slim 17 137

Soda Regulators....16

Sommelier Wine Tower 160

Splicers Stainless....27

Spout Plug 33

Stout Faucets 34

T

Tap Handles 31

Thermometers 48

Titan™ Towers 66-67

Tools / Pliers 48

Tower Parts 95

Tower Risers....94

Trigger Tap ^™ 33

Trunklines (Long Draw) 117

Tubing

- Beer Hose....25

- Wine Hose 163

U

Underbar Refrigeration 138-145

W

Wall Brackets 29

Walk-In Coolers 151

Washers - Hex Nut 28

Water Dispensing Systems .....169

Water Regulator, Glass Rinser ..... 97

Wine Equipment 160-163

Wrench - Faucet, Draft Towers ....94

X

XtraFlexmaster ^™ Hose 24

Z

Zenith Towers 89

Zeus Towers 81

Black-and-white photo of a person in a lab coat holding a glass, with numbered annotations (1 and 2) overlaid on the right side.

MICRO MATIC

TRAINING FOR THE DRAFT PROFESSIONAL

DISPENSE INSTITUTE

As a major supplier of keg dispensing equipment in over 120 countries worldwide, Micro Matic is committed to the delivery of quality draft beer. This commitment has led to the development of the Micro Matic Dispense Institute Learning and Training Center to improve draft beer knowledge and technical skills.

3 options to increase dispensing knowledge:

1

ONLINE TRAINING

24/7 access at micromatic.com Includes: Interactive Videos, Articles and a Community Dispense Forum

24/7 ACCESS

2

• Keg Package
  • Temperature and Storage
  • Dispense System Components: Keg Coupler, Regulator and Faucet
• Dispense Systems
• Troubleshooting

• Basic Workshop
• Special Events
• Temporary Dispensing with Trailer or Jockey Box Systems
• Party Pumps

WORKSHOP III SPECIAL EVENTS AND LINE CLEANING

Duration: 4 hours

• Basic Workshop
• Special Events
• Temporary Dispensing with Trailer or Jockey Box Systems
• Party Pumps

- Line Cleaning

3

ADVANCED 3 DAYS COURSE TRAINING

Keep your competitive edge with 3 days of hands-on training.

Includes: Training Manual, Supplies and Meals

TUITION: \$595.00

TOPICS

- Expanded Workshop Information

- Dispense Systems Designs

- Direct Draw Systems

- Glycol Cooled Systems

- Air Cooled Systems

- Line Cleaning

FEATURES

• State-of-the-art Installation Techniques
- Hands-On Classroom Training
• World-Class Training Manual
- Certified Results

CLASSROOM INSTRUCTION

Classroom scene with instructor pointing at a presentation screen displaying diagram and text

HANDS-C TECHNIC TRAINING

CERTIFIED RESULTS

Person pouring beer from a metal stand into a glass of liquid (no visible text or symbols)

MAKE YOUR RESERVATION TODAY!

Advanced Course Dates 2019

2019 NORTHEAST SOUTHEAST CENTRAL WEST

JANUARY	29-31		8-10
FEBRUARY		12-14		26-28
MARCH	26-28		5-7
APRIL		2-4		23-25
MAY	14-16		7-9
JUNE		25-27		11-13
JULY	9-11		16-18
AUGUST		13-15		20-22
SEPTEMBER	17-19		10-12
OCTOBER		15-17		1-3
NOVEMBER	12-14		5-7
DECEMBER		10-12		3-5

NOTES

NUTRO

COFFEE & TEA SERVED RIGHT.

EVERY TIME.

EVERYTHING

ON TAP

Customers want choice today. As the industry leader in ON TAP solutions, we understand the importance of delivering reliable, high-quality yet cost-effective dispensing solutions for Everything On Tap including beer, wine, cocktails, coffee, teas or any beverage in various formats (Keg, BiB, Pre-Mix, Post-Mix)... THE POSSIBILITIES ARE ENDLESS!

MICROMATIC.COM

in f y G y P
