USER MANUAL 95-7418 Metra

INSTALLATION INSTRUCTIONS FOR PART 95-7418

APPLICATIONS

2002-2004 Nissan Altima

95-7418

KIT FEATURES

• DDIN Head Unit Provision
• STACKED ISO DIN Head Unit Provision

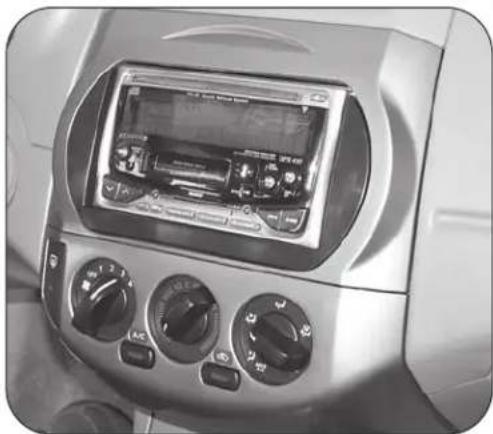

KIT COMPONENTS

Close-up of a car air conditioning control panel with digital display and rotary knobs (no visible text or symbols)

A) Trim Plate

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

TOOLS REQUIRED:

Flat Blade Screwdriver I Phillips Screwdriver

Two identical screwdriver illustrations shown in side profile (no text or symbols)

1-800-221-0932

www.metraonline.com

© COPYRIGHT 2004 METRA ELECTRONICS CORPORATION

TABLE OF CONTENTS

Dash Disassembly .... 1

Kit Assembly 2-3

Final Assembly 4

2002-2004 NISSAN ALTIMA

1 Disconnect the negative battery terminal to prevent an accidental short circuit.
2 Unclip and remove the trim panel surrounding the climate controls. (Figure A)

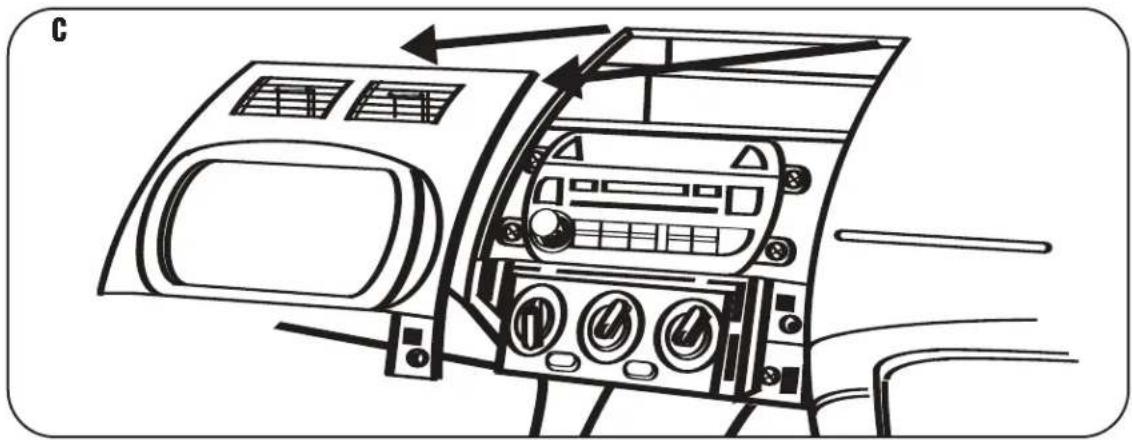

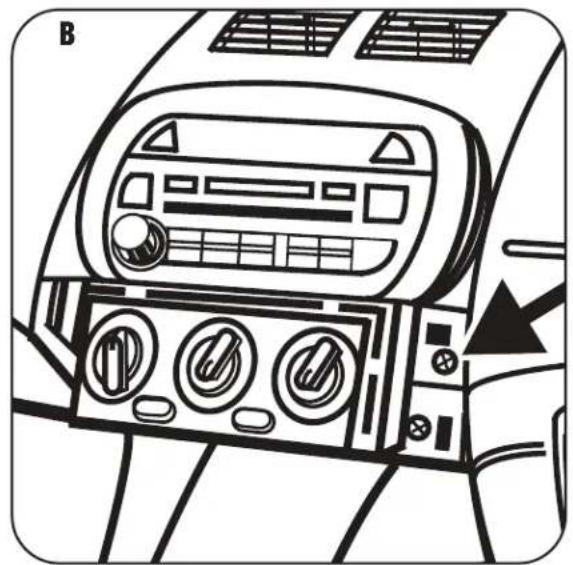

3 Remove (1) Phillips screw (bottom right side of panel) securing the panel surrounding the radio then unclip and remove the panel. (Figure B,C)

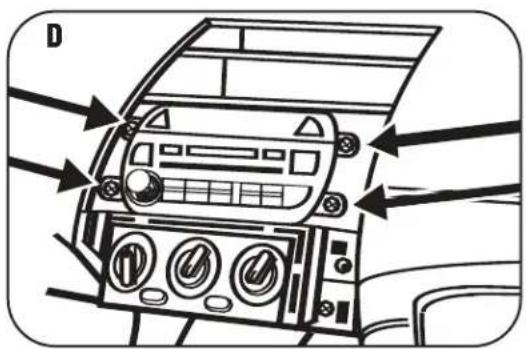

4 Remove (4) Phillips screws securing radio to remove. (Figure D)
5 Remove the screws securing the factory brackets to the radio and remove brackets. (Retain brackets for re-use during kit assembly.)

D

A

Line drawing of an automotive air conditioning unit with control panels and fan (no text or symbols)

Line drawing of a car dashboard with air vent, fan, and control panel (no text or symbols)

DOUBLE DIN HEAD UNIT PROVISION

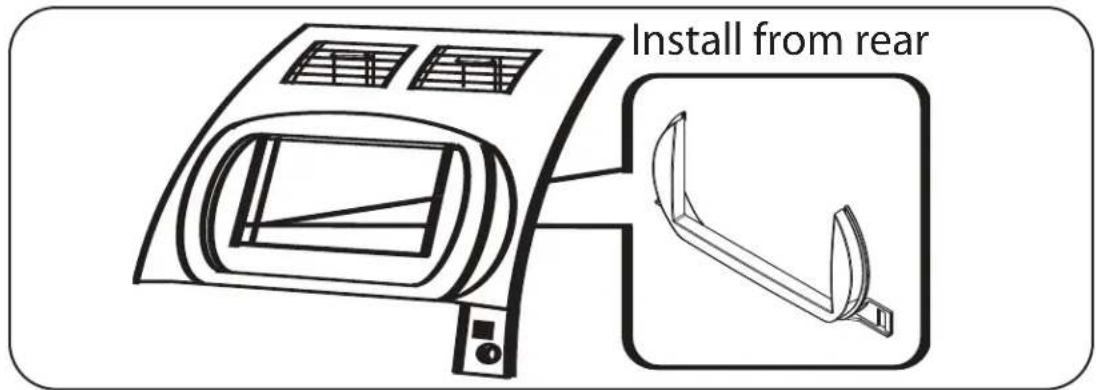

1 Snap the 95-7418 trim plate into the radio trim panel. (Figure A)

A

Install from rear

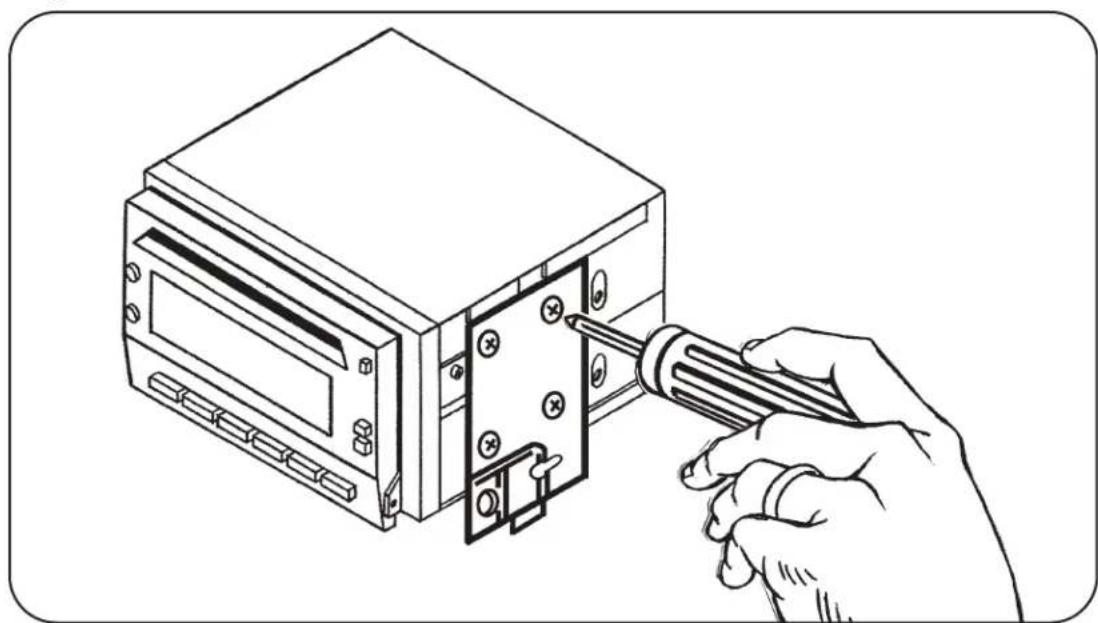

2 Slide the DDIN radio unit into the factory brackets and secure the unit to the brackets using the screws supplied with the head unit. (Figure B)

B

Line drawing of a hand using a screwdriver to adjust or install an electronic device into a rectangular block (no text or symbols visible)

STACKED ISO DIN HEAD UNIT PROVISION

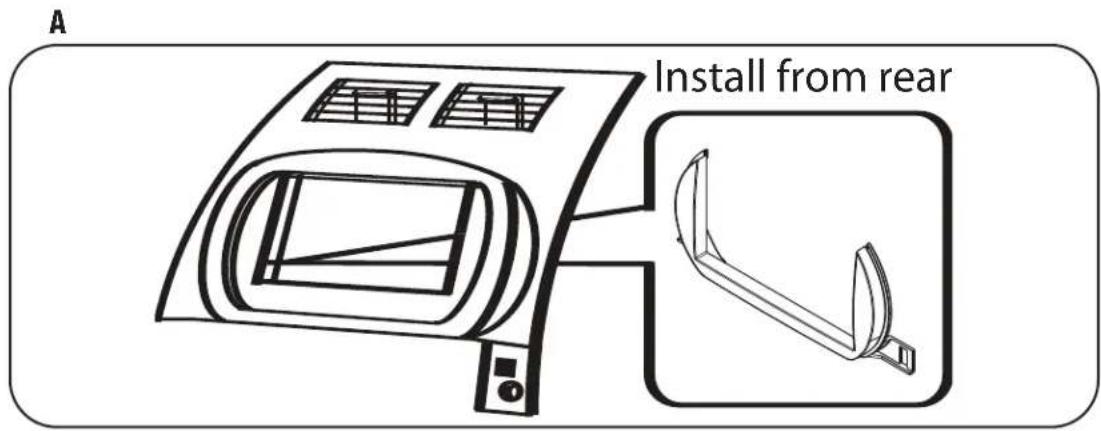

1 Snap the 95-7418 trim plate into the radio trim panel. (Figure A)

A Install from rear

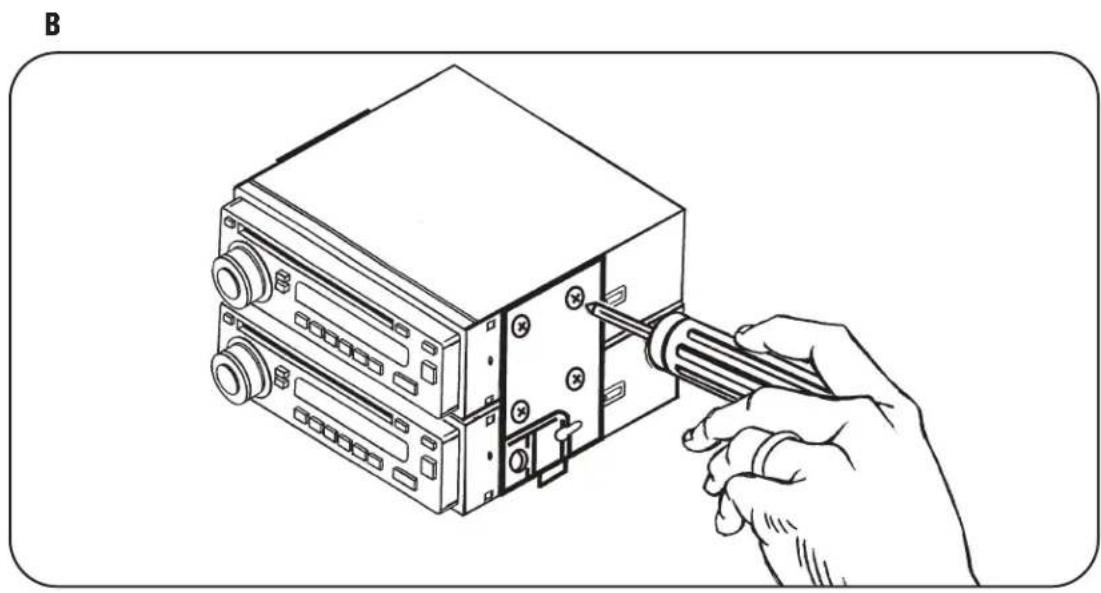

2 Slide the stacked ISO DIN units into the factory brackets and secure the units to the brackets using the screws supplied with the head unit. (Figure B)

Line drawing of a hand using a screwdriver to adjust or install an electronic device into a multi-chamber unit (no text or symbols visible)

FINAL ASSEMBLY

1 Locate the factory wiring harness in the dash and make the connection as shown. Metra recommends using the proper mating adapter and making the connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
2 Re-connect the negative battery terminal and test the unit for proper operation.
3 Reassemble radio and dash assemblies in reverse order of disassembly.

FINAL WIRING CONNECTIONS

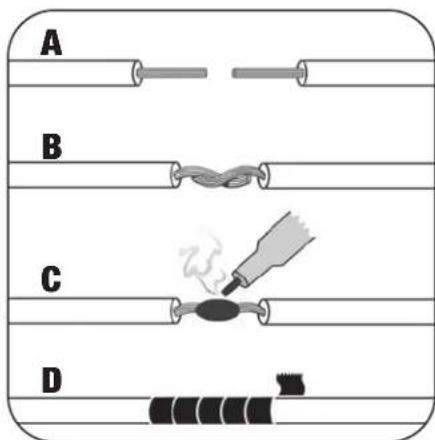

Make wiring connections using the EIA color code chart shown below and the instructions included with the head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually tape off ends of any unused wires to prevent electrical short circuit.

A B C D

12V Ignition / Acc ... Red

12V Batt / Memory .. Yellow

Ground .... Black*

Power Antenna ..... Blue

Amp Turn-On ..... Blue / White

Amp Ground ..... Black / White

Illumination.....Orange

Dimmer ..... Orange / White

Right Front (+) ..... Gray

Right Front (-) ..... Gray / Black

Left Front (+) ..... White

Left Front (-) ..... White / Black

Right Rear (+).....Violet

Right Rear (-) ..... Violet / Black

Left Rear (+).... Green

Left Rear (-) ..... Green / Black

*NOTE: When Black a wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer's specifications.

95-7418 INSTRUCTIONS
