USER MANUAL 95-7810B Metra

Installation instructions for part 95-78108

Honda HR-V 2016-up 95-7810B

Interior view of a car dashboard with a digital display and control panel (no visible text or symbols)

KIT FEATURES

• ISO DDIN radio provision
- Painted matte black

KIT COMPONENTS

- A) Radio trim panel • B) Radio trim panel brackets • C) Rear support bracket • D (8) #6 x 3/8" Phillips screws

Technical line drawing of a rectangular electronic component with mounting brackets (no text or symbols)

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • 70-1729 Antenna Adapter: • 40-HD11

Table of Contents

Dash Disassembly 2

Kit Assembly

- ISO DDIN radio provision .... 3

TOOLS REQUIRED

• Panel removal tool
• Phillips screwdriver
• 8 mm socket wrench

CAUTION: Metra recommends disconnecting the negative battery terminal before beginning any installation, unless the vehicle manufacturer recommends against so. Please check with your local Dealership for more information. All accessories, switches, climate controls panels, and especially air bag indicator lights must be connected before reconnecting the battery or cycling the ignition. Also, do not remove the factory radio with the key in the on position, or the vehicle running. It would be best to remove the key from the ignition and then wait a few seconds before removing the factory radio.

95-7810B

Dash Disassembly

1. Open the glove box door.

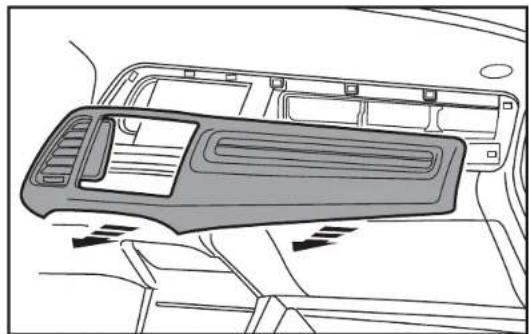

2. Unclip and remove the trim panel surrounding the radio and a/c vent located to the left of the radio. (Figure A)

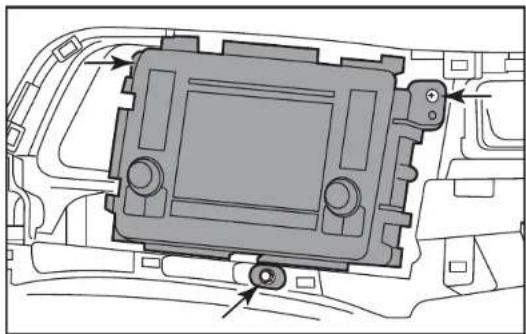

3. Remove (2) Phillips screws and (1) 8mm screw securing the factory radio, and then unplug and remove the radio. (Figure B)

Continue to kit assembly

Interior view of a car showing the backrest door and side-mounted air vent (no text or symbols visible)

(Figure A) (Figure B)

Technical line drawing of a mechanical component with mounting holes and internal features (no text or symbols)

95-7810B

Kit Assembly

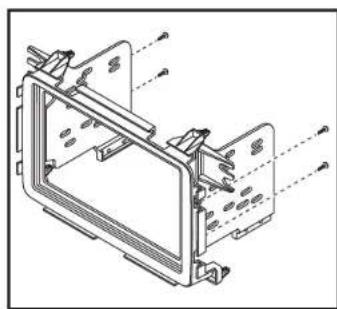

1. Attach the radio trim panel brackets to the radio trim panel using (4) #6 x 3/8" Phillips screws supplied. (Figure A)
2. Attach the rear support bracket to the radio trim panel brackets using (4) #6 x 3/8" Phillips screws supplied. (Figure B)
3. Slide the radio into the completed assembly, and then secure it to the assembly using the screws supplied with the radio. (Figure C)

Technical line drawing of a mechanical housing or enclosure with mounting brackets and internal components (no text or symbols)

(Figure A)

1. Locate the factory wiring harness and antenna connector in the dash, and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or AXXESS. Re-connect the negative battery terminal and test the radio for proper operation.
2. Reassemble the dash in reverse order of disassembly.

Technical diagram of an electronic device with labeled ports and components, including a screen and indicator lights.

(Figure C)

Technical line drawing of a mechanical assembly with no visible text or symbols

(Figure B)

Installation instructions for part 99-78108

IMPORTANT

If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated. Please have the vehicle apart and ready to perform troubleshooting steps before calling.
