USER MANUAL 95-8152 Metra
INSTALLATION INSTRUCTIONS FOR PART 95-8152
APPLICATIONS

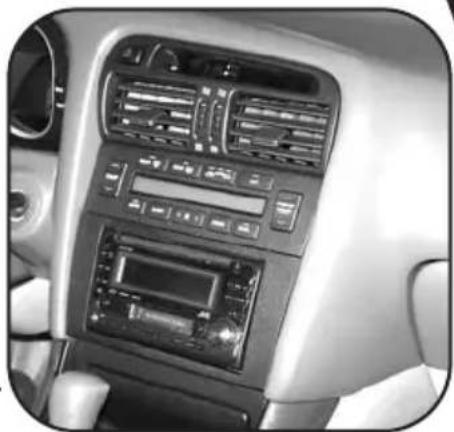

LEXUS GS 300/400
1998-2005
Not For Use In Vehicles With Factory Navigation
95-8152
KIT FEATURES
• Double DIN Radio Provision
- Stacked ISO Mount Units Provision
KIT COMPONENTS

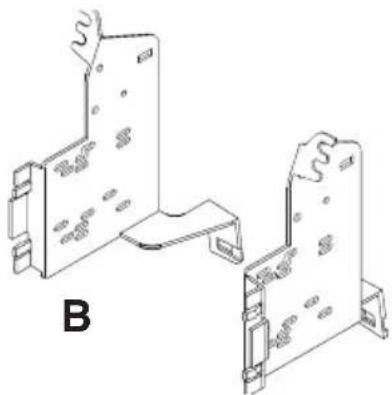

A) Double DIN Radio Housing B) Double DIN Brackets
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver
1-800-221-0932
www.metraonline.com
TABLE OF CONTENTS
Dash Disassembly
- Lexus GS 300/400 1998-2005 ..... 1,2
Kit Assembly
- Double DIN Radio Provision .... 3
- Stacked ISO Mount Units Provision .... 3
Final Assembly 4
*Note:
Refer also to the instructions included with the aftermarket radio.
LEXUS GS 300/400 1998-2005
1 Disconnect the negative battery terminal to prevent an accidental short circuit.

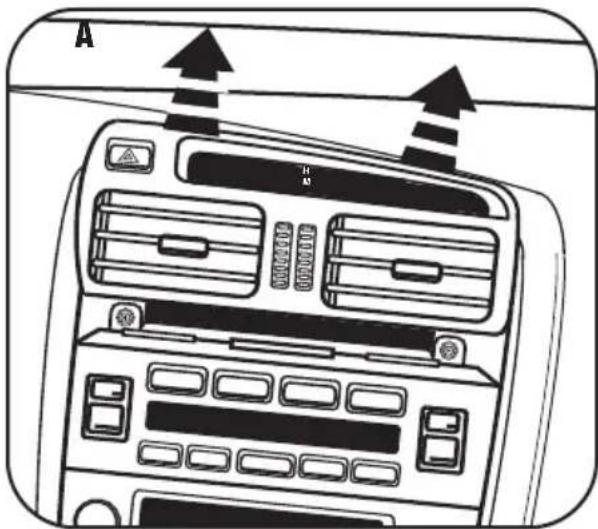

2 Unsnap and remove vent/clock assembly from above climate controls. (Figure A)
3 Remove two screws from behind vent/clock assembly. (Figure B)
4 Unsnap and remove ashtray assembly from below radio. (Figure C)
Continued on next page.


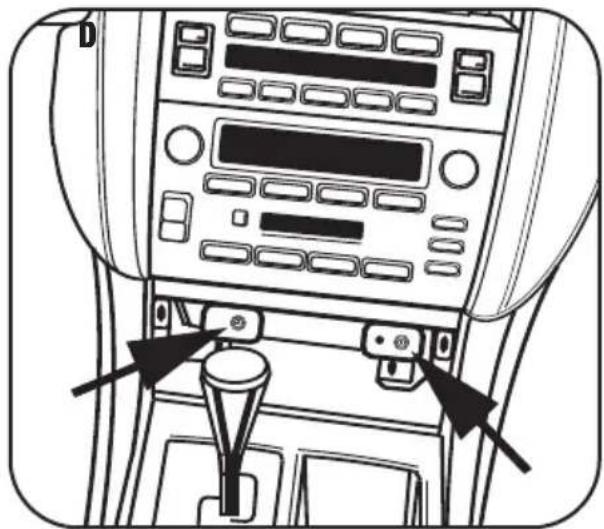

5 Remove (2) screws from behind ash-tray assembly. (Figure D)
6 Unplug and remove radio/climate controls assembly. (Figure E)
7 Remove side brackets to separate the radio from the climate controls. (Retain the climate controls for reuse during kit assembly.) (Figure F)
Continue to kit assembly.
DOUBLE DIN RADIO
STACKED ISO MOUNT UNITS PROVISION
Note: Refer also to the instructions included with the aftermarket radio.
1 Snap the Double DIN Brackets onto the Double DIN Radio Housing. (Figure A)
2 Slide the factory climate controls into the Bracket/Radio Housing assembly aligning the top of the assembly with alignment pins in the bottom of the climate controls and secure using the factory hardware. (Figure B)
3 Slide the Double DIN or stacked ISO mount units into the bracket/radio housing assembly and secure the Double DIN or stacked ISO mount units to the assembly using the screws supplied with the Double DIN or stacked ISO mount units. (Figure C)
Continue to final assembly.


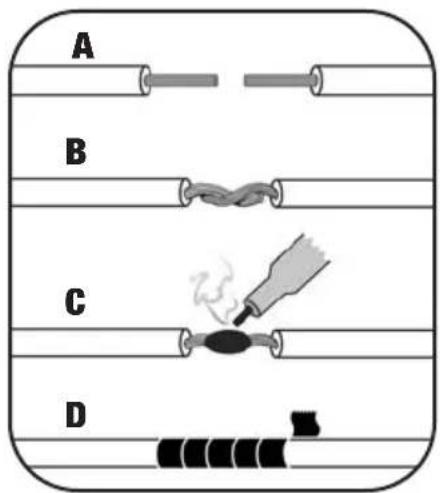

A B C D(A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
1 Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
2 Re-connect the negative battery terminal and test the unit for proper operation.
3 Reassemble radio and dash assemblies in reverse order of disassembly.
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
| 12V Ignition / Acc. .... . Red | Right Front (+) .... Gray |
| 12V Batt / Memory.... Yellow | Right Front (-). Gray/ Black |
| Ground.... Black* | Left Front (+) .... White |
| Power Antenna.... Blue | Left Front (-). White / Black |
| Amp Turn-On.... Blue / White | Right Rear (+) .... Violet |
| Amp Ground.... Black / White | Right Rear (-) .... Violet / Black |
| Illumination.... Orange | Left Rear (+) .... Green |
| Dimmer.... Orange / White | Left Rear (-) .... Green / Black |
*NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer's specifications.
