USER MANUAL 99-6545B Metra
*Visit MetraOnline.com for up-to-date vehicle specific applications.
KIT FEATURES
- ISO DIN radio provision with pocket
- Painted matte black
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8" Phillips screws • E) (7) Panel clips
A
[Non-Text]
The image is too blurry to recognize any text content.
TABLE OF CONTENTS
Dash Disassembly 2
Kit Preparation 2
Kit Assembly 3
WIRING & ANTENNA CONNECTIONS(sold separately)
Wire harness: • XSVI-6523-NAV
Antenna adapter: • 40-EU10
Steering wheel control interface: ASWC-1
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
CAUTION! All accessories, switches, climate controls panels, and especially air bag indicator lights must be connected before cycling the ignition. Also, do not remove the factory radio with the key in the on position, or while the vehicle is running.
DASH DISASSEMBLY
- Unclip and remove the a/c vent panel surrounding the radio.
- Remove (4) 9/32" screws securing the radio, then unplug and remove the radio.
Continue to Kit Preparation
Please visit Metraonline.com for Dash Disassembly illustrations.
KIT PREPARATION
- Attach the panel clips to the radio trim panel. (Figure A)
Continue to Kit Assembly
KIT ASSEMBLY
ISO DIN radio provision with pocket
- Attach the racket to the radio brackets using the (4) #8 x 3/8" Phillips screws provided. (Figure A)
- Remove the metal DIN sleeve and trim ring from the aftermarket radio.

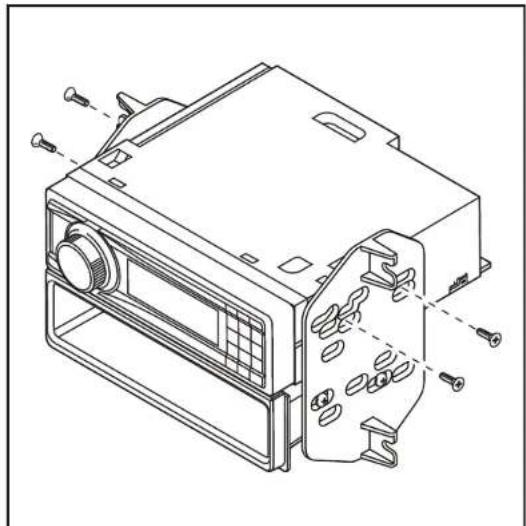

- Slide the radio into the bracket/pocket assembly, and then secure it using the screws supplied with the radio. (Figure B)
- Locate the factory wiring harness and antenna connector in the dash and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or Axxess.
- Test the radio for proper operation.
- Secure the radio assembly to the dash using the factory screws.
- Snap thedio trim panel over the radio assembly to complete the installation.
If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated. Please have the vehicle apart and ready to perform troubleshooting steps before calling.
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry.
Log onto www.installenstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.
Metra recommends MECP certified technicians
