USER MANUAL 99-7360B Metra

INSTALLATION INSTRUCTIONS FOR PART 99-73608

APPLICATIONS

Kia Soul 2014-up

(Models without Navigation only)

99-7360B

KIT FEATURES

• ISO DIN radio provision with pocket
• Painted matte black to match factory finish

Interior view of a car dashboard with digital display and control knobs (no visible text or symbols)

KIT COMPONENTS

- A) Radio housing trim panel • B) Brackets • C) Pocket • D) (2) #8 x 3/8" pan-head Phillips screws

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • 70-7304 harness or HYBL-04 interface

Antenna Adapter: • Not required

Table of Contents

Dash Disassembly

- Kia Soul 2014-up .... 2

Kit Assembly

- ISO DIN radio provision with pocket 3

TOOLS REQUIRED

- Panel removal tool - Phillips screwdriver

CAUTION: Metra recommends disconnecting the negative battery terminal before beginning any installation. All accessories, switches, and especially air bag indicator lights must be plugged in before reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the aftermarket radio.

99-7360B

Dash Disassembly

1. Unsnap and remove the panel from around the factory radio. (Figure A)

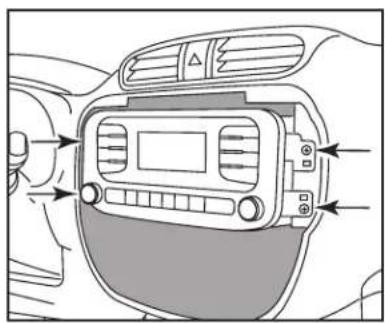

2. Remove four screws and remove radio. (Figure B)

Continue to kit assembly

Interior view of a car dashboard with air conditioner and control panel (no text or symbols visible)

(Figure A) (Figure B)

Diagram of car dashboard and air conditioner panel with labeled buttons and indicators

99-7360B

Kit Assembly

ISO DIN radio provision

1. Mount the pocket to the brackets with the (2) #8 x 3/8" Phillips screws supplied. Note: Pins on brackets will align with front mounting hole of pocket. (Figure A)
2. Slide the radio into the assembly and secure with screws supplied with the radio. (Figure B)
3. Locate the factory wiring harness and antenna plug in the dash. Metra recommends using the proper mating adapters from Metra and/or AXXESS.
4. Mount the new radio assembly into the dash, snap the Metra radio trim panel over the radio assembly, and reassemble dash in reverse order of disassembly.

Technical line drawing of a mechanical component with mounting brackets and internal slots (no text or symbols)

(Figure A) (Figure B)

Technical line drawing of a mechanical device housing with mounting brackets and internal components (no text or symbols)

INSTALLATION INSTRUCTIONS FOR PART 99-73608

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by paralling in the most recognized and supported

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

608-354-6182 for more information and take steps toward a better tomorrow.

Metra recommends MECP

certified technicians
