USER MANUAL 99-9230G Metra

INSTALLATION INSTRUCTIONS FOR PART 99-92306

Volvo 580 1999-2006 99-9230G

KIT FEATURES

• ISO DIN radio provision with pocket
• ISO DDIN radio provision
- Painted gray to match factory finish

Interior view of a car dashboard with a digital display and control buttons (no visible text or symbols)

KIT COMPONENTS

• A) Radio trim panel • B) Radio housing • C) Pocket • D) (4) #8 x 3/8" Phillips screws • E) (4) Panel clips

A

B

C

D

E

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • 70-9221 • 70-9223 (amplified models)

Antenna Adapter: • 40-VL10

Table of Contents

Dash Disassembly 2

Kit Assembly

• ISO DIN radio provision with pocket .... 3
• ISO DDIN radio provision .... 3

TOOLS REQUIRED

• Panel removal tool
• Phillips screwdriver
  • T-25 Torx driver

CAUTION! All accessories, switches, climate controls panels, and especially air bag indicator lights must be connected before cycling the ignition. Also, do not remove the factory radio with the key in the on position, or while the vehicle is running.

99-92306

Dash Disassembly

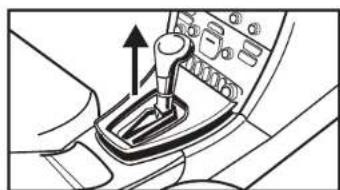

1. Unsnap the gear shifter trim panel. (Figure A)
2. Unsnap the gear shifter boot to separate it from the gear shifter trim panel and remove the trim panel. (Figure B)

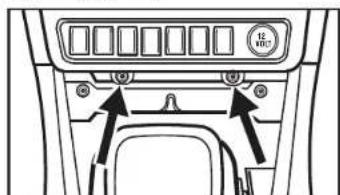

3. Remove (2) T-25 Torx head screws from bottom of the climate controls. (Figure C)

Mechanical gear shift lever diagram showing upward motion (no text or symbols)

(Figure A) (Figure D)

Mechanical gear shift lever assembly diagram (no text or labels)

(Figure B) (Figure E)

Diagram of a vehicle rear panel with labeled buttons and directional arrows indicating movement or positioning.

(Figure C)

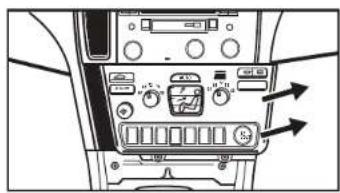

1. Unsnap the climate controls from bottom edge of the radio. Unplug and remove the climate controls. (Figure D)
2. Remove (2) T-25 Torx head screws from bottom of the radio. Unplug and remove the radio. (Figure E)
   Continue to Kit Assembly

Interior view of a car dashboard with air conditioners and control buttons (no text or symbols visible)

Interior view of a vehicle dashboard with control panel and buttons (no text or symbols visible)

99-9230G

Kit Assembly

ISO DIN radio provision with pocket

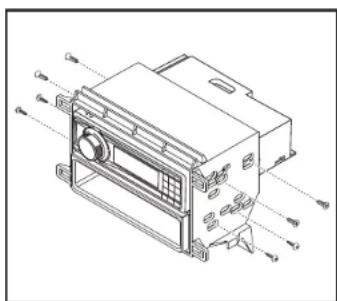

1. Secure the pocket to the radio housing using (4) #8 x 3/8" Phillips screws provided. (Figure A)
   Note: Rounded edge of pocket faces towards the bottom.
2. Remove the metal DIN sleeve and trim ring from the aftermarket radio.
3. Slide the radio into the completed assembly, and then secure it to the assembly using screws supplied with the radio. (Figure A)
4. Locate the factory wiring harness and antenna connector in the dash, and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or AXXESS. Test the radio for proper operation.
5. Reassemble the dash in reverse order of disassembly.
6. Attach (4) panel clips supplied to the radio trim panel, and then snap the panel over the radio.

Technical line drawing of a mechanical device with no visible text or symbols

(Figure A) (Figure A)

ISO DDIN radio provision

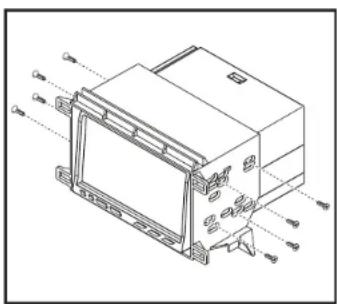

1. Slide the radio into the radio housing and secure it using screws supplied with the radio. (Figure A)
2. Locate the factory wiring harness and antenna connector in the dash, and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or AXXESS. Test the radio for proper operation.
3. Reassemble the dash in reverse order of disassembly.
4. Attach (4) panel clips supplied to the radio trim panel, and then snap the panel over the radio.

Technical line drawing of a mechanical or electronic component with mounting brackets and internal components (no text or symbols)

INSTALLATION INSTRUCTIONS FOR PART 99-92306
