USER MANUAL 99-7817HG Metra

Interior view of a modern car dashboard with digital display and steering wheel (no visible text or symbols)

Honda CR-V LX trim 2017-up\*

*Visit MetraOnline.com for up-to-date vehicle specific applications.

KIT FEATURES

• ISO DIN radio provision with pocket
• Painted high-gloss black and silver

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (8) #8 x 3/8" Phillips screws • E) (4) White panel clips • F) (2) Black metal panel clips

A

Technical line drawing of a rectangular mechanical housing or enclosure with internal compartments (no text or symbols)

[Non-Text]

•

D

E

F

TABLE OF CONTENTS

Dash Disassembly 2

Kit Preparation 2

Kit Assembly 3

WIRING & ANTENNA CONNECTIONS(sold separately)

Wiring Harness: 70-1731

Antenna Adapter: 40-HD11

Steering wheel control retention: ASWC-1

TOOLS REQUIRED

- Panel removal tool • Phillips screwdriver

CAUTION! All accessories, switches, climate controls panels, and especially air bag indicator lights must be connected before cycling the ignition. Also, do not remove the factory radio with the key in the on position, or while the vehicle is running.

DASH DISASSEMBLY KIT PREPA

1. Unclip and remove the climate control panel. (Figure A)

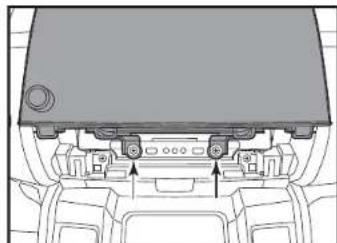

2. Remove (2) Phillips screws securing the radio, then unclip, unplug, and remove the radio. (Figure B)

Continue to Kit Preparation

Interior view of a car showing the dashboard, rearview mirror, and internal air vent (no text or symbols visible)

(Figure A) (Figure A)

ATION

1. Attach th(€) white plastic panel clips, and (2) black metal clips to the radio trim panel. (Figure A)

Continue to Kit Assembly

Technical line drawing of a door frame with mounting brackets and internal components (no text or symbols)

Diagram of a vehicle rear panel showing engine compartment and mounting points (no text or labels)

(Figure B)

KIT ASSEMBLY

ISO DIN radio provision with pocket

1. Attach the radio brackets to the radio trim panel using the (4) #8 x 3/8" Phillips screws provided. (Figure A)
2. Secure the pocket to the radio brackets using the (4) #8 x 3/8" Phillips screws provided. (Figure B)
3. Remove the metal DIN sleeve and trim ring from the aftermarket radio.
4. Slide the radio into the bracket/panel assembly from the back, and secure it using the screws supplied with the radio. (Figure C)

Technical line drawing of a mechanical housing or enclosure component (no text or symbols visible)

Technical line drawing of a mechanical housing component with no visible text or symbols

(Figure B)

1. Locate the factory wiring harness and antenna connector in the dash and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or Axxess. Test the radio for proper operation.
2. Secure the completed assembly into the dash using the factory screws.
3. Reassemble the dash in the reverse order of disassembly.

Technical line drawing of a device casing with ventilation grilles and control panel (no text or symbols)

(Figure C)(Figure A)

IMPORTANT

If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated. Please have the vehicle apart and ready to perform troubleshooting steps before calling.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry.

Log onto www.installenstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians
