USER MANUAL 99-7504 Metra

INSTALLATION INSTRUCTIONS FOR PART 99-7504

APPLICATIONS

Mazda 3

2004-2009

99-7504

KIT FEATURES

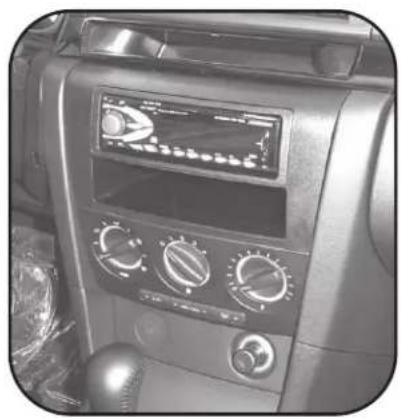

• DIN Mount Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
• Bonus Display Replacement Pocket
- Retains Factory Display For Automatic Climate Controls

Interior view of a car dashboard with digital display and rotary controls (no visible text or symbols)

KIT COMPONENTS

A) Radio Housing • B) ISO Brackets • C) Trim Plate • D) Display Replacement Pocket • E) Display Retention Brackets • F) (2) 3/8" #10 Bolts and (2) #10 Nuts • G) (2) PC-7503 Panel Clips

Technical line drawing of a mechanical component with no visible text or symbols

WIRING AND ANTENNA CONNECTIONS (Sold Separately)

Harness:

• 70-7903 - Mazda harness 2001-up
Antenna Adapter:
- Not required

TOOLS REQUIRED:

Small Flat Blade Screwdriver/ Panel Removal Tool

• Phillips Screwdriver

1-800-221-0932

www.metraonline.com

© COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION

TABLE OF CONTENTS

Dash Disassembly

- Mazda 3 2004-2009....1

Kit Assembly

• Display Brackets/Pocket Assembly .... 2
• DIN Mount Radio Provision with Pocket....3
• ISO DIN Mount Radio Provision with Pocket .... 4

Final Assembly 5,6

*Note:

Refer also to the instructions included with the aftermarket radio.

INSTALLER INSTITUTE

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills

by enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com

or call 800-354-6782 for more information

and take steps toward a better tomorrow.

MAZDA 3 2004-2009

1 Disconnect the negative battery terminal to prevent an accidental short circuit.

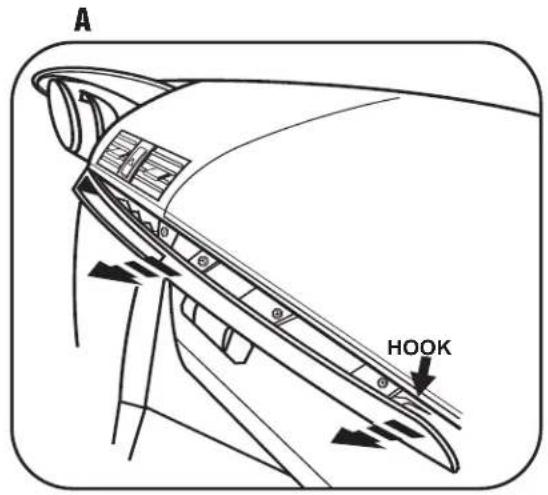

2 Unclip and remove display trim panel above radio. Tip: Open glove box and start in middle of panel working towards drivers side first because last connection on far passenger side is a hook. (Figure A)
3 Remove (2) Phillips screws exposed at top of radio then unclip and remove radio. Note: Display is attached to radio brackets and will be removed at same time as radio. (Figure B)
4 Remove (2) Phillips screws on back of display trim panel securing display trim then unclip and remove. (Figure B)

Continue to display pocket assembly.

A HOOK

B

C REAR VIEW - DISPLAY TRIM PANEL

DISPLAY BRACKETS/POCKET ASSEMBLY MAZDA 3 2004-2009

AUTOMATIC CLIMATE CONTROL VEHICLES

1 Using the (2) 3/8" #10 bolts and (2) #10 nuts attach the display retention brackets to the display unit.

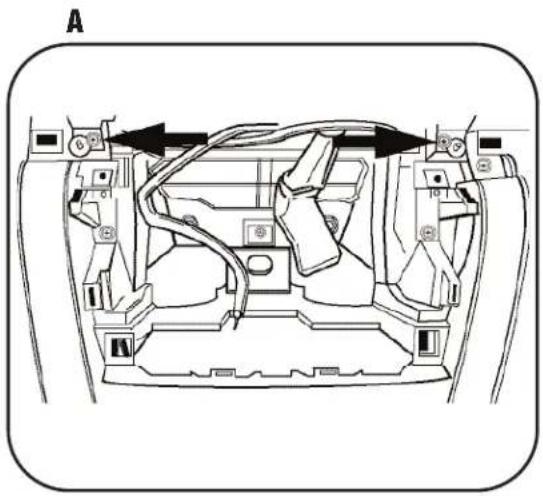

2 Remove the (2) Phillips screws in the sub dash. (Figure A)
3 Secure the display unit into the sub dash using the screws removed in the previous step.

Technical line drawing of a car interior showing structural components and wiring (no text or symbols)

MANUAL CLIMATE CONTROL VEHICLES

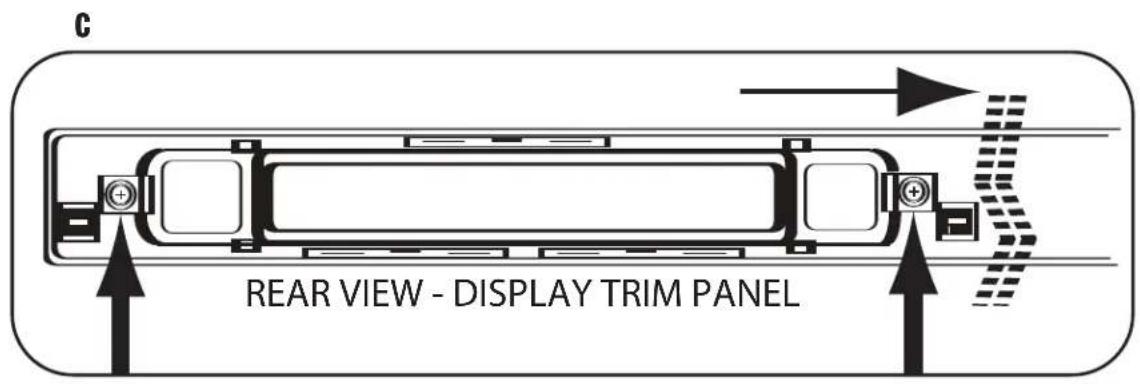

1 Using the (2) Phillips screws removed in step 4 of Dash Disassembly secure the display replacement pocket to the back of the display trim panel. (Figure B)

Continue to kit assembly.

Technical diagram of a car interior showing structural components and wiring (no text or labels)

Error in Installation Instructions, This is the wrong image.

DIN MOUNT RADIO PROVISION

*Note: Refer also to the instructions included with the aftermarket radio.

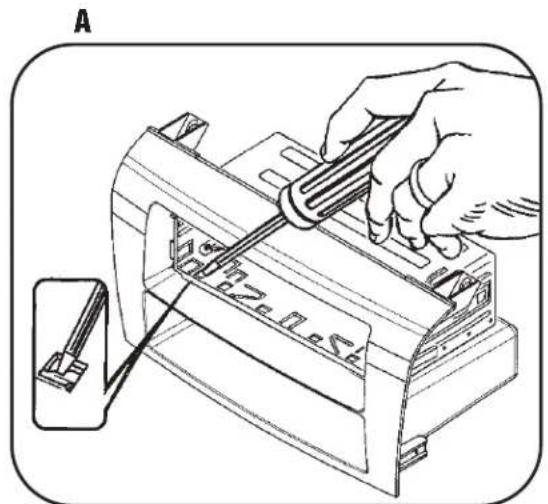

1 Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs down. (Figure A)
2 Slide the aftermarket radio unit into the cage and secure. (Figure B)

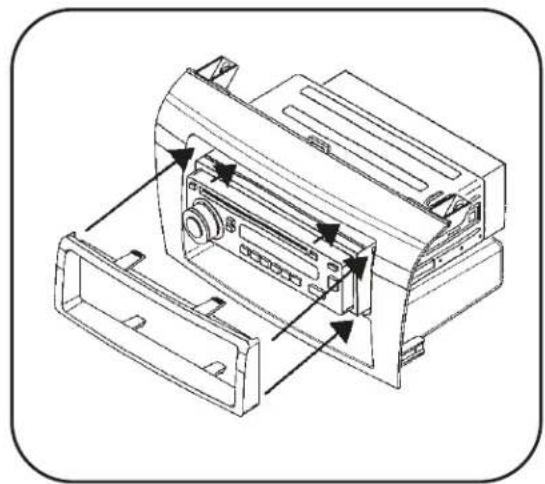

3 Snap the Trim plate into the Radio Housing. (Figure B)
4 Attach the (2) PC-7503 panel clips to the rear of the radio housing. (Figure C)

Continue to final assembly.

A

B

Technical line drawing of a mechanical device with internal components and mounting brackets (no text or symbols)

C

Technical line drawing of a mechanical component with two connectors and dashed lines indicating alignment (no text or symbols)

3

ISO DIN MOUNT RADIO PROVISION

*Note: Refer also to the instructions included with the aftermarket radio.

1 Mount the ISO Brackets to the aftermarket radio using the screws supplied with the radio. (Figure A)

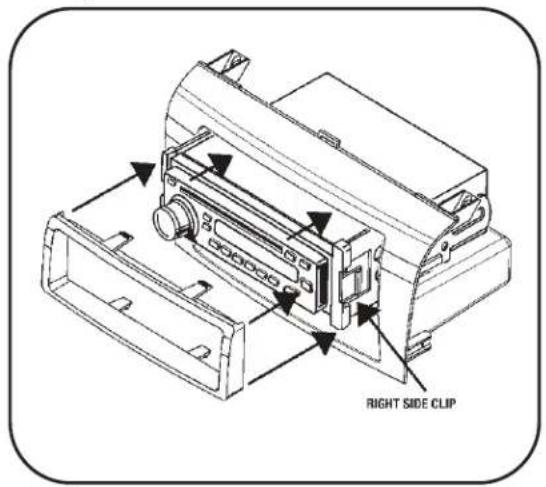

2 Slide the radio into the radio housing until it snaps into place. (Figure B)
3 Attach the trim plate supplied with the kit to the front of the radio housing assembly. (Figure B)
4 Attach the (2) PC-7503 panel clips to the rear of the radio housing. (Figure C)

Continue to final assembly.

A

Line drawing of a hand using a screwdriver to adjust or install an electronic device (no text or symbols visible)

B

RIGHT SIDE CLIP

C

Diagram of a device with two connectors and a central panel, connected by dashed lines (no text or symbols)

FINAL ASSEMBLY

A B C D

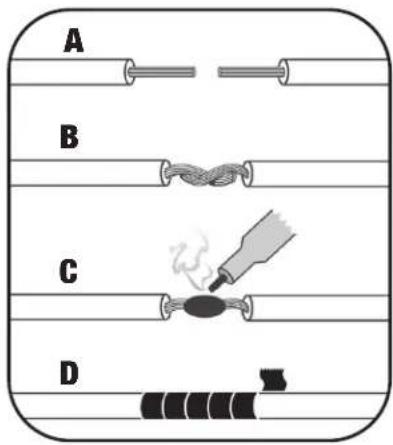

(A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape

1 Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
2 Re-connect the negative battery terminal and test the unit for proper operation.
3 Reassemble radio and dash assemblies in reverse order of disassembly.

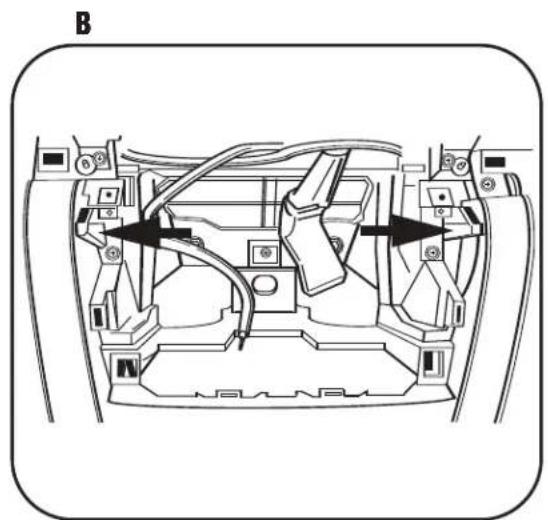

Note: When inserting the 99-7504 into the sub dash be aware of the locations pointed out in Figure B.

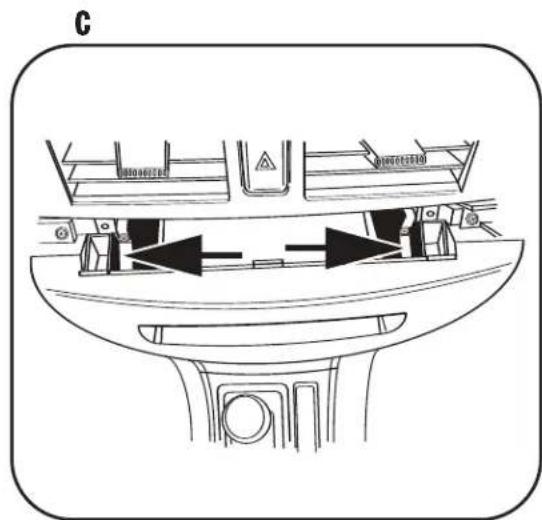

If the 99-7504 does not snap in correctly the result will be a noticeable gap on each side of the installation kit. (Figure C)

Technical line drawing of a vehicle chassis frame with visible wiring and components (no text or symbols)

C

FINAL WIRING CONNECTIONS

Make wiring connections using the EIA color code chart shown below and the instructions included with the head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually tape off ends of any unused wires to prevent electrical short circuit.

METRA / EIA WIRING CODE

12V Ignition / Acc. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	Red	Right Front (+) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12V Batt / Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	Yellow	Right Front (-). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ground. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Power Antenna. . . . . . . . . . . . . . . . . . . . Blue Power Antenna. . . . . . . . . . . . . . . . . . . . . Amp Turn-On. . . . . . . . . . . . . . Blue / White Amp Ground. . . . . . . . . . . . . Black / White Illumination. . . . . . Orange Dimmer. . . . . . . . . . . Orange / White	Black* Blue Left Front (-). White / Black Right Rear (+). Violet Right Rear (-). Violet / Black Left Rear (+). Green Left Rear (-). Green / Black

*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer's specifications.
