USER MANUAL 99-9306B Metra

INSTALLATION INSTRUCTIONS FOR PART 99-9306B

APPLICATIONS

BMW 1-Series 2008-10

3-Series 2006-10

(Without Factory Navigation)

99-9306B

KIT FEATURES

• DIN Head Unit Provisions
• ISO DIN Head Unit Provision
- Painted Matte Black to Match Factory Dash

Interior view of a car dashboard with air filters and control panels (no visible text or symbols)

KIT COMPONENTS

• A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate

Technical line drawing of a mechanical bracket or enclosure with mounting feet and internal components (no text or symbols)

B

Technical line drawing of a rectangular frame with mounting holes (no text or symbols)

C

TOOLS REQUIRED:

Phillips Screwdriver • Panel Removal Tool • Small Flat Blade Screwdriver

TABLE OF CONTENTS

Dash Disassembly

- BMW 1-Series 2008-10, 3-Series 2006-10

(Without factory NAV)....1

Kit Assembly

- Kit Preparation

DIN Head Unit Provision 2

ISO DIN Head Unit Provision .... 3

Note:

Refer also to the instructions included with the aftermarket radio.

ME CPO In this image is an old 2014.00.08.08

Metra recommends MECP certified technicians.

INSTALLER INSTITUTE

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.

BMW 1-Series 2008-10/3-Series 2006-10 [WITHOUT FACTORY NAV]

1 Disconnect the negative battery terminal to prevent an accidental short circuit.

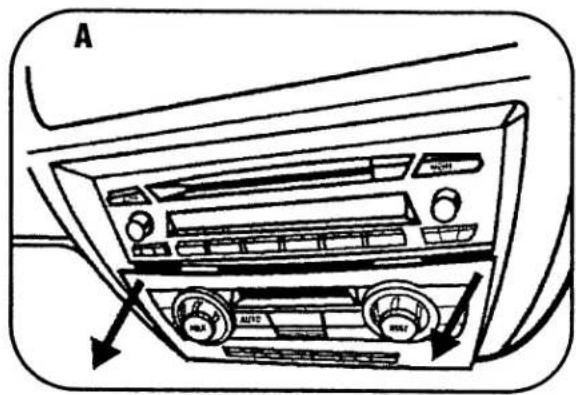

2 Carefully unclip and remove climate controls. (Figure A)

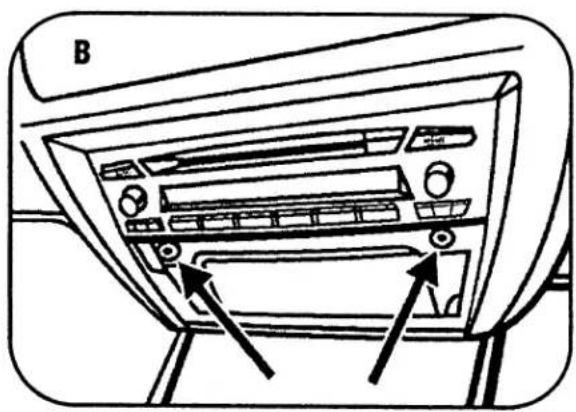

3 Remove (2) Phillips screws exposed at bottom of radio and remove. (Figure B)

A AUTO2

B

BMW 1-Series 2008-10/3-Series 2006-10

[WITHOUT FACTORY NAV]

DIN Head Unit Provision

1 Screw the 99-9306B housing into the dash opening instead of the factory radio. (Figure A)
2 Slide the DIN cage into the space in the 99-9306B and secure by bending the metal locking tabs outward. (Figure B)
3 Slide the aftermarket head unit into the DIN cage until secure. (Figure C)
4 Re-connect the negative battery terminal and test the unit for proper operation.
5 Reassemble radio and dash assemblies in reverse order of disassembly.

Line drawing of a vintage electronic device with a front panel and control panel (no text or symbols)

C

Diagram of a car front panel with arrows indicating movement or force (no text or symbols present)

A

Line drawing of a hand using a screwdriver to adjust or install a car interior panel (no text or symbols visible)

B

BMW 1-Series 2008-10/3-Series 2006-10

[WITHOUT FACTORY NAV]

ISO DIN Head Unit Provision

1 Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.
2 Mount the ISO Brackets to the head unit with the screws supplied with the unit. (Figure A)
3 Slide the head unit into the radio opening until the side clips engage. (Figure B)
4 Snap the Trim plate into the Radio Housing. (Figure B)
5 Reassemble dash in reverse order of disassembly.

Line drawing of a hand using a screwdriver to adjust or install an electronic device (no text or symbols present)

Technical line drawing of a device with multiple compartments and mounting holes, labeled B (no text or symbols on the diagram itself)

99-9306B INSTRUCTIONS

NOTES
