USER MANUAL 99-8731 Metra

Interior view of a car dashboard with air filters and a central touchscreen display (no visible text or symbols)

Mercedes Sprinter ^† 2019-Up

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle specific applications

* Excluding models with a touchscreen radio

KIT FEATURES

• ISO DIN radio provision with pocket
- Polished gloss black to match the factory finish

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) #8 x 3/8" Phillips pan-head screws (4) • E) #8 x 3/8" Phillips flat-head screws (4)

A

Pure 3D wireframe diagram of a rectangular frame with mounting holes (no text or symbols)

•

The image is too blurry to recognize any text content.

[Non-Text]

•

TABLE OF CONTENTS

Dash Disassembly 2

Kit Assembly 3

WIRING & ANTENNA CONNECTIONS (sold separately)

Wire Harness: See metraonline for harness and interfacing solutions

Antenna Adapter: 40-EU10

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver
• Torx T-20 screwdriver

Attention! Let the vehicle sit with the key out of the ignition for a few minutes before removing the factory radio. When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition.

DASH DISASSEMBLY

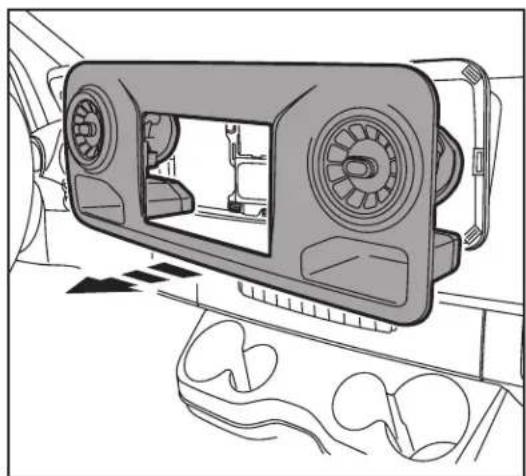

1. Unclip and remove the radio trim panel. (Figure A)

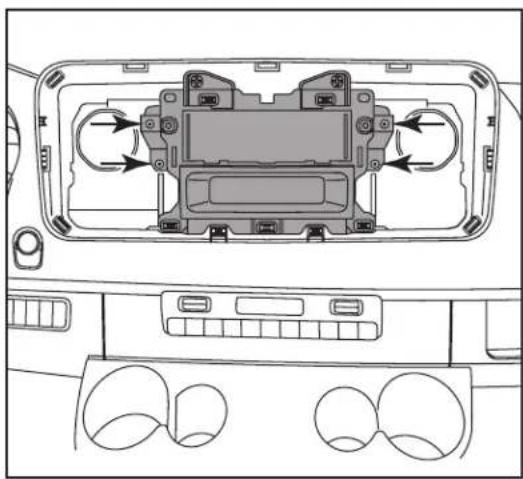

2. Remove (4) Torx T-20 screws securing the radio and pocket assembly. Slide the assembly out, then unplug and remove. (Figure B)

Continue to Kit Assembly

Technical line drawing of a car interior frame with visible fan and gear components (no text or symbols)

(Figure A) (Figure B)

Top-down line drawing of a car interior showing dashboard, air vent, and camera seat (no text or symbols)

KIT ASSEMBLY

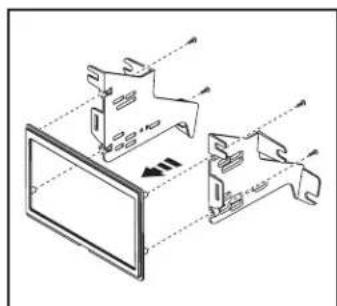

1. Secure the radio brackets to the radio trim panel using (4) #8 x 3/8" Phillips pan-head screws provided. (Figure A)

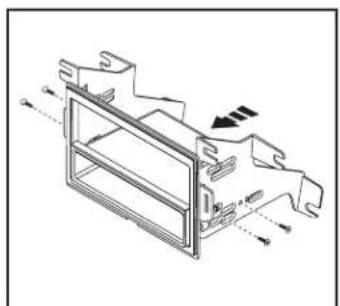

2. Slide the pocket into the bracket/panel assembly, then secure using (4) #8 x 3/8" Phillips flat-head screws provided. (Figure B)

3. Remove the metal DIN sleeve and trim ring from the aftermarket radio.

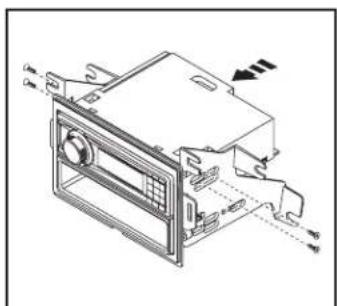

4. Slide the radio into the bracket/panel assembly, then secure using screws supplied with the radio. (Figure C)

5. Locate the factory wiring harness and antenna connector in the dash and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or Axxess. Test the radio for proper operation.

6. Slide the radio assembly into the dash, then secure using the factory screws.

7. Attach the factory radio trim panel to complete the installation.

Diagram showing two views of a monitor with internal components, no text or symbols present

Technical line drawing of a mechanical housing or enclosure with directional arrows indicating movement (no text or symbols)

(Figure B) (Figure C)(Figure A)

Technical line drawing of a mechanical device with no visible text or symbols

If you are having difficulties with the installation of this product, contact our Tech Support line either by phone at 386-257-1186 ext. 8300, or email at [e-mail]. Before doing so, look over the instruction booklet a second time and ensure that the installation was performed exactly as the instruction booklet is stated. Have the vehicle apart and ready to perform troubleshooting steps before contacting Metra/Axxess Tech Support.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians
