USER MANUAL ORH-82 Orima

Black-and-white photo of a young woman holding a small object with a glowing smoke (no text or symbols visible)

Black-and-white portrait of a person with short hair and flowing hair accessories (no text or symbols visible)

Woman in white shirt pointing to a steam emerging from her hand, with blurred background (no text or symbols)

Black-and-white photo of a smiling woman holding a cup, no visible text or symbols

Black-and-white close-up of a smiling person with hands near their face, surrounded by soft white foam-like foam (no text or symbols visible)

desde 1970 A Crescer Consigo!

Black-and-white photo of a woman meditating outdoors under a cloudy sky (no text or symbols visible)

Orima®

electrodomésticos

MANUAL DE INSTRUÇÕES INSTRUCTION MANUAL

Batedeira

Hand Mixer

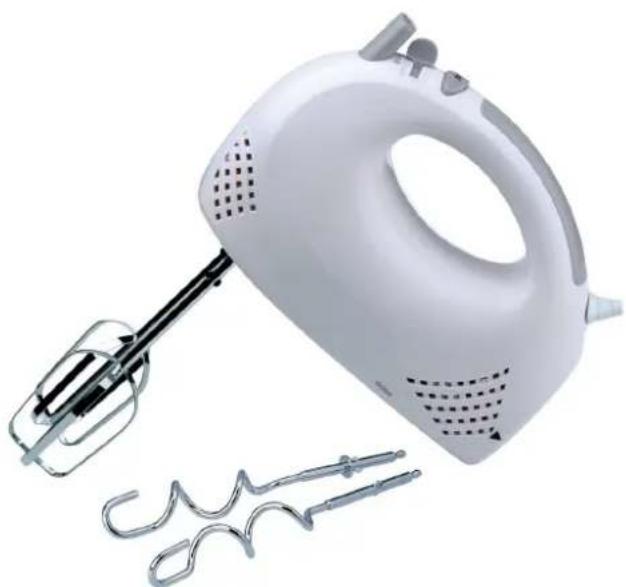

White electric mixer with handels and a coiled cord, no visible text or symbols

ORH 82

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions carefully before you use the appliance.
2. This appliance is designed for domestic use only. No responsibility is accepted for damage resulting from use non-compatible with the instructions.
3. To protect against risk of electrical shock do not put the HAND MIXER in water or other liquid.
4. Do not operate the hand mixer with wet hands.
5. Close supervision is necessary when any appliance is used by or near children. Keep children away from the appliance.
6. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
7. Avoid contacting moving parts.
8. Keep hands, hair, clothing, as well as spatulas and other utensils away from the beaters during operation to reduce the risk of injury to persons, and/or damaged to the mixer.
9. Remove beaters from the HAND MIXER before washing them.
10. Do not continuously operate the mixer too long. The motor may overheat. For 1\~5 Speed, continuously operate time must be less than 5 minutes. For turbo speed, continuously operate time must be less than 1 minute.
11. Do not use the beaters to mix too hard ingredients.
12. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
13. Do not let cord contact hot surface, including the stove.
14. Do not let cord hang over edge of table or counter.
15. Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
16. Do not put it in water.
17. Do not use outdoors.
18. Household use only.

19. Switch off the appliance before changing accessories or approaching parts which move in use.

20. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

21. Children should be supervised to ensure that they do not play with the appliance.

22. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

SAVE THESE INSTRUCTIONS

PRODUCT: HAND MIXER ORIMA ORH 82

INSTRUCTION:

1. Speed control

2. Turbo control

3. Ejector knob

4. Main housing

5. Fork

6. Muddler

7. Cord

8. Holes

Technical diagram of a hand mixer with labeled parts including handle, socket, and spring

Fig 1

SPECIFICATION:

Model: ORH 82;

Rating: 230V\~, 50/60Hz, 300W;

Work time: 1-5 speed, KB 5 minutes;

Turbo: not more than 1 minute continuous use;

MIXING GUIDE

SPEED DESCRIPTION
1FOLD	This is a good starting speed for bulk and dry foods such as flour. butter and potatoes.
2BLEND	Best speed to start liquid ingredients for mixing salad dressings.
3MIX	For mixing cakes. cookies and quick breads.
4CREAM	For creaming butter and sugar. Beating uncooked candy. desserts. etc.
5WHIP	For beating eggs. cooked icings. Whipping potatoes. whipping cream. etc.

Note: Use hooks if mix thick sticky flour. Use beaters if beat eggs.

USING YOUR HAND MIXER

1. Fit the Fork (5) or Muddle (6) to the beater holes (Fig 2).

2. Plug in the appliance.

3. Hold the mixer handle. Lower the beaters or hooks into ingredients.

4. Switch on (1) and select the speed desired. The mixer begins to mix the ingredients in the bowl.

5. When you have finished mixing, stop the mixer by pushing the

8

Fig 2

speed button to "0" immediately.

1. Wait until the beaters/hooks have stopped revolving, press the ejector knob (3) to remove the beaters/hook. "Switch off the appliance before changing accessories or approaching which move in use."
2. You can press "turbo" button to accelerate the speed during mixing.
3. Unplug the appliance when you have finished mixing. Clean the beaters/hooks with water. Make them dry, store in the box together with the main body.

CLEANING

1. Wash the bowl, beaters and hooks with water after using.
2. Make them dry with cloth, store in the box.

WARNING:

Any other servicing should be performed by an authorized service representative.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
