USER MANUAL AR-7025UmA Edimax

EDIMAX NETWORKING PEOPLE TOGETHER

AR-7025Um

ADSL USB Modem

User's Manual

December 2006

ΣDIMAX NETWORKING PEOPLE TOGETHER

Copyright© by Edimax Technology Co, LTD. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic,optical, chemical, manual or otherwise, without the prior written permission of this company

This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as i programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, this company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

The product you have purchased and the setup screen may appear slightly different from those shown in this QIG. For more detailed information about this product, please refer to the User's Manual on the CD-ROM. The software and specifications subject to change without notice. Please visit our web site www.edimax.com for the update. All right reserved including all brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders.

Linux Open Source Code

Certain Edimax products include software code developed by third parties, including software code subject to the GNU General Public License ("GPL") or GNU Lesser General Public License ("LGPL"). Please see the GNU (www.gnu.org) and LPGL (www.gnu.org) Web sites to view the terms of each license.

The GPL Code and LGPL Code used in Edimax products are distributed without any warranty and are subject to the copyrights of their authors. For details, see the GPL Code and LGPL Code licenses. You can download the firmware-files at http://www.edimax.com under "Download" page.

※ The product you have purchased and the setup screen may appear slightly different from those shown in this QIG. For more detailed information about this product, please refer to the User's Manual on the CD-ROM.
※ Software and specifications subject to change without notice. Please visit our web site for the update.
※ All rights reserved. Trademarks or registered trademarks are the property of their respective

CONTENTS

1. Introduction ....5

1.1 System Requirements .... 5
1.2 Package Contents.... 5

2. Product Features......6

2.1 Features and Benefits .... 6
2.2 Applications 6
2.3 ADSL Compliant....6
2.4 ATM and PPP Protocols....6
2.5 Encapsulation Mode....6
2.6 Supported OS....7
2.7 Interface.... 7

3. Hardware Indicators and Connectors ....8

3.1 LED Descriptions....8
3.2 Front Panel 8
3.3 Rear Panel 8
3.4 Connect the Related Devices....8

4. Hardware Installation....9

4.1 Before You Start....9
4.2 Hardware Installation....9

5. Software Installation ....10

5.1 Before You Start.... 10
5.2 Windows Installation.... 11
5.3 Linux Installation 21

5.3.1 Directory Structure....21

5.3.2 Compiling the Driver 21
5.3.3 Loading Modem Driver 22
5.3.4 Verification of driver loading successfully.... 23

6. Customizing Communication Settings ....24

6.1 Accessing Communication Settings on Windows 24

7. The DSL Status Application....26

7.1 Windows DSL Status Application 26

8. Software Uninstall....28

8.1 Windows Uninstall....28

9. Modifying TCP/IP Networking Option....30

9.1 WAN USB Driver 30

9.1.1 Microsoft Windows XP 30
9.1.2 Microsoft Windows 2000....32
9.1.3 Microsoft Windows ME 35
9.1.4 Microsoft Windows 98SE....38

9.2 LAN USB Driver.... 40

9.2.1 Microsoft Windows XP.... 40
9.2.2 Microsoft Windows 2000....42
9.2.3 Microsoft Windows ME 44
9.2.4 Microsoft Windows 98SE...... 46

1. Introduction

This USB ADSL Modem is an external ADSL modem that connecting broadband ADSL line to USB connector of PC system. The USB ADSL Modem uses advanced ADSL chipset solution with complete set of industry standard features for high-speed Internet access. The USB ADSL Modem offers easy installation and cost-effective connection for SOHO and residential users. USB bus powered modem without external power is convenient for using. This product complies with FCC part15 regulations and CE approval.

1.1 System Requirements

● Pentium II 233MHz processor or above
- At lease 32MB RAM (64MB recommended)
● 20MB available hard disk or more
● Windows 98SE/2000/ME/XP

● Available USB port

- CD-ROM drive

● ADSL service enabled on your telephone line

● Windows 98SE installation CD, which will be prompted for during installation

1.2 Package Contents

• ADSL Modem
• RJ-11 phone cable
• USB cable
• Software driver CD
• EZ setup guide

If any of above items is missing or damaged, please contact your local dealer immediately.

2. Product Features

2.1 Features and Benefits

• USB specifications v1.1 compliant
• USB bus power. Additional power adapter is unnecessary.
  ● Full rate operation with up to 8 Mbps downstream data rate and up to 1 Mbps upstream data rate enables high-speed Internet access.
  ● Friendly GUI configuration and management software
• Firmware downloadable feature provides performance and feature enhancements in the future release
  ● Enables end-to-end ATM support, which allows traffic management and QoS.

2.2 Applications

● High-speed Internet access
- Video-On-Demand
- Telecommuting
E-Commerce
- On-line gaming
- Video conferencing

2.3 ADSL Compliant

• ANSI T1.413 issue 2
- ITU-T G.992.1 (G.dmt)
- ITU-T G.992.2 (G.lite)
● G.994.1 (G.hs, Multimode)

2.4 ATM and PPP Protocols

● RFC 2516 (PPP over Ethernet)
● RFC 2364 (PPP over ATM)
● RFC 1577 (Classical IP over ATM)
● Multi Protocol over AAL5 (RFC1483 / 2684)
• VC and LLC multiplexing

2.5 Encapsulation Mode

For WAN Connection

• PPP over ATM LLC (RFC 2364)
• PPP over ATM NULL (RFC 2364)
• PPP over Ethernet (RFC 2516)

For LAN Connection

● Classical IP over ATM (RFC 1577)
● IP over ATM Bridged LLC (RFC 2684)
● IP over ATM Bridged VC (RFC 2684)
● IP over ATM Routed LLC (RFC 2684)
● IP over ATM Routed VC (RFC 2684)

VPI / VCI Settings

● VPI value: 0\~255
- VCI value: 32\~65535

2.6 Supported OS

● Windows 98SE, ME, 2000, XP
- Mac / Linux (optional)

2.7 Interface

● One USB port compliant with USB v1.1, full speed (12Mbps)
● One RJ11 port for ADSL connection

3. Hardware Indicators and Connectors

3.1 LED Descriptions

• When modem is establishing the connection, the LED will be blinking.
• When modem is connected, the LED will be on steadily.

3.2 Front Panel

Connect this connector with Type-B end of USB cable.

Simple geometric diagram with nested rectangles inside a rounded rectangle (no text or symbols)

3.3 Rear Panel

Connect this connector with RJ-11 cable.

Pure geometric diagram with a central cross-shaped outline inside a rounded rectangle (no text or symbols)

3.4 Connect the Related Devices

1) Connect the provided RJ-11 cable into LINE port on the real panel of the modem and insert the other end to splitter.
2) Connect the Type-A end of USB cable to your PC.

The diagram below illustrates a connection example,

4. Hardware Installation

4.1 Before You Start...

In MAC operating systems, you need to install the device drivers first (see next chapter) and then perform the hardware installation steps below

4.2 Hardware Installation

Install the USB ADSL Modem by following these steps with the PC running:

1. Insert the rectangular end of a USB cable into the USB port of your PC.
2. Insert the square end of the USB cable into the USB port pf the USB ADSL Modem.

In Windows operating systems, the USB ADSL Modem will be detected and the "Found New Hardware Wizard" will be displayed on the PC's screen. Proceed with the software installation in the next section, using the operating system appropriate to you.

Found New Hardware Wizard This wizard helps you install software for: USB-ADSL Modem If your hardware came with an installation CD or floppy disk, insert it now. What do you want the wizard to do? Install the software automatically (Recommended) Install from a list or specific location (Advanced) Click Next to continue. < Back Next > Cancel

5. Software Installation

The software installation procedures vary depending upon the operating system of your PC. Be sure to follow the instructions provided for the operating system appropriate for you.

5.1 Before You Start...

The following information may be required for software installation. Contact your DSL service provider before proceeding with software installation.

- IP Address Settings – the software installation process allows the server to dynamically assign IP Address settings. If your application requires static setting of specific address information you will need to know:

IP Address

Subnet Mask (for Bridged Ethernet applications only)

Default Gateway (for Bridged Ethernet applications only)

- Name Server Information – the software installation process allows the server to dynamically assign Name Server Address settings. If your application requires static setting of specific address information you will need to know:

Primary DNS Address

Secondary DNS Address

Primary WINS Address

Secondary WINS Address

- Type of Driver to be installed – WAN and LAN software drivers are supported.

Note: Required if not using default value

• ATM Virtual Path ID (VPI)

Note: Required if not using default value

• ATM Virtual Circuit ID (VCI)

Note: Required if not using default value

• Encapsulation type

Note: Required if not using default value

- Modulation type

Note: Required if not using default value

- User Name (for PPP applications only)

- Password (for PPP applications only)

5.2 Windows Installation

The software setup process for Microsoft Windows applications (XP, 2000, Me, and 98SE) is described below with operating system specific differences noted. The USB ADSL Modem should be connected to your PC prior to installing the driver software. No other Windows programs should be running on your PC during the software install process

Step 1: The Microsoft Windows "Found New Hardware Wizard" will be displayed, click "Cancel".

Found New Hardware Wizard This wizard helps you install software for: USB-ADSL Modem If your hardware came with an installation CD or floppy disk, insert it now. What do you want the wizard to do? ○ Install the software automatically (Recommended) ○ Install from a list or specific location (Advanced) Click Next to continue. < Back Next > Cancel

Step 2: Insert "ADSL MODEM Driver CD", the front page of Easy Setup window will be appeared,

Install Picture Easy Setup Install Driver USER MANUAL - Conexant AccessRunner USB ADSL Adobe Panda Exit

Install Driver: Click here to install USB ADSL modem driver.

User Manual "Conexant AccessRunner USB ADSL": Click here to read user's manual.

Acrobat: Click here to install Acrobat Reader.

Panda: Click here to start Anti Virus program.

Step 3: Click "Install Driver", and then select the country you are at,

Easy Setup - Hungary - Iceland - India - Ireland - Israel - Italy - Lithuania - Mauritius - Morocco - Malaysia - Netherlands - New Zealand - Poland - Portugal - Russia - Singapore

PS. If your country is not on the list, please click “#” to next page. Select “Other”. Please see page 17.

Easy Setup - Slovenia - Spain - Sri Lanka - Sweden - Switzerland - Taiwan - Thailand - Tunisia - Türkiye - United Arab Emirates - UK - US - Other

Step 4: After country selection, the window below will appear. Select the ISP, and then click “▶” to next page.

Easy Setup - ALICE-TELECOM - ARUBA - CHEAPNET - EUTELIA - FASTWEB - KATAWEB - LIBERO ADSL-WIND - MCLINK

Step 5: Enter your account "User Name, Password and Password Confirm" then click "▶▶" to next page,

Easy Setup User Name( ISP Account ) Password( ISP Account ) Password Confirm

Step 6: Confirm modem settings and click “▶” to next page,

Easy Setup ADSL WILL BE APPLIED FOR - ALICE-TELECOM Encapsulation: RFC 2364 PPPOA VC-MUX Handshake Protocol: Autosense-G.dmt first VPI: 8 VCI: 35

Step 7: Software kit searches available USB modem,

Install Picture Easy Setup Search available Device. Please Wait.

Step 8: Please wait for while during the device driver is installing.

Easy Setup Installing device in progress. Please Wait.

[For Windows XP and 2000]

Step 9: After the device driver is installed completed, you will see the window as below, click "X" to exit the wizard.

Easy Setup Device already be Installed Complete!!

[For Windows ME]

Step 9: After the device driver is installed completed, you will see the window as below.

Easy Setup Device already be installed Complete!! Please Wait.

Step 10: Follow the previous appeared window, DSL Modem Setup Wizard will appear and remind you the system will automatically reboot within 10 seconds.

DSL Modem Setup Wizard The system will automatically reboot in 4 seconds Cancel

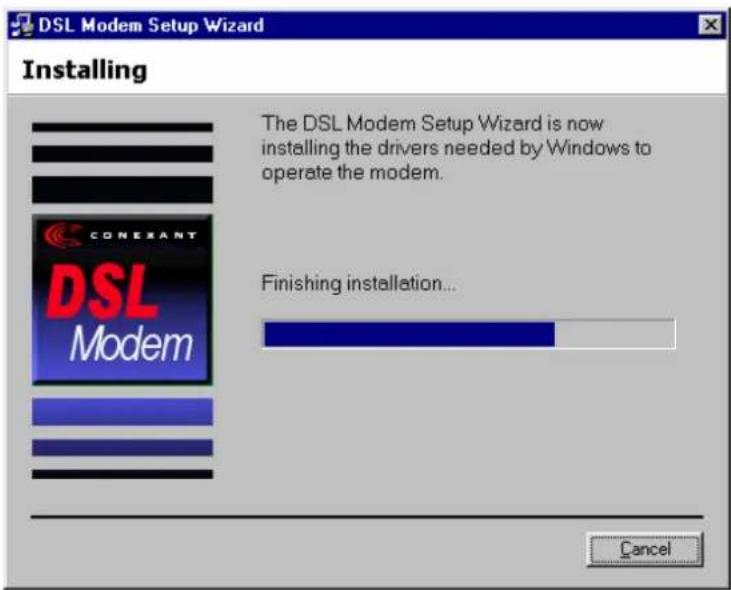

Step 11: After reboot your system, please wait for DSL Modem Setup wizard complete the device configuration process; then, your ADSL USB Modem will be installed properly.

DSL Modem Setup Wizard Installing The DSL Modem Setup Wizard is now installing the drivers needed by Windows to operate the modem. Finishing installation... Cancel

[For Windows 98SE]

Step 9: For Widows 98SE, during the installation process, the system will ask you to insert Windows 98SE installation CD, please insert the CD and click "OK".

Insert Disk Please insert the disk labeled 'Windows 98 Second Edition CD-ROM', and then click OK. OK

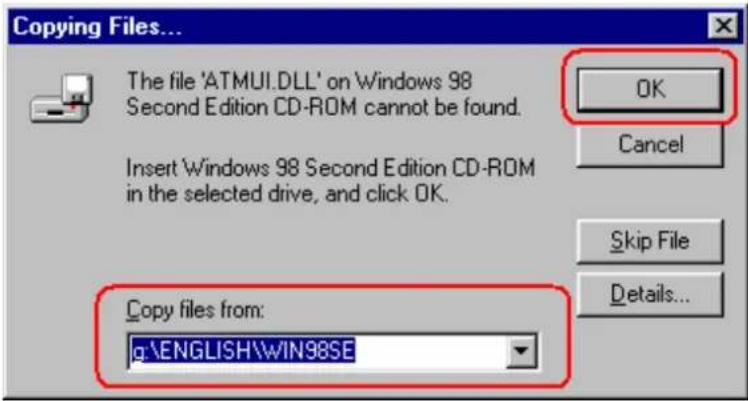

Step 10: Insert Windows 98SE CD-ROM in the selected driver and click OK.

Copying Files... The file 'ATMUI.DLL' on Windows 98 Second Edition CD-ROM cannot be found. Insert Windows 98 Second Edition CD-ROM in the selected drive, and click OK. Copy files from: q:\ENGLISH\WIN98SE OK Cancel Skip File Details...

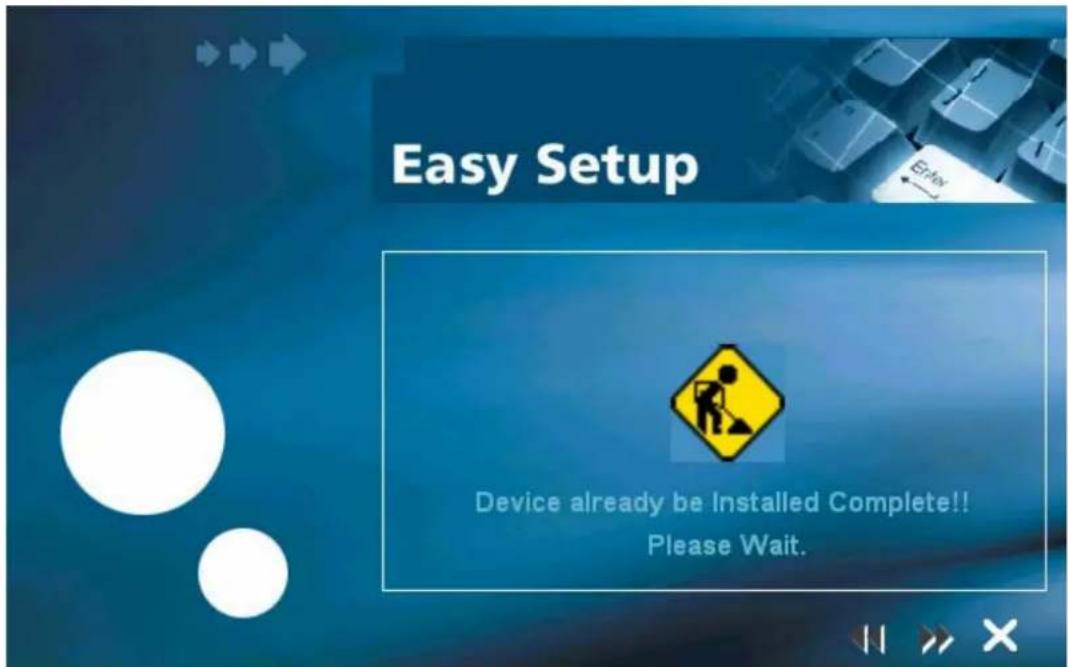

Step 11: After the device driver is installed completely, you will see the window as below.

Easy Setup Device already be Installed Complete!! Please Wait.

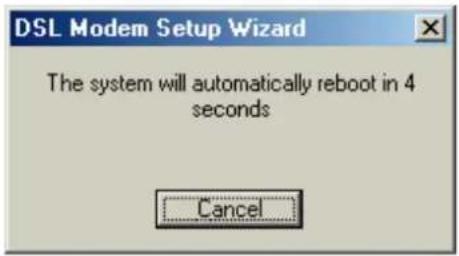

Step 12: Follow the previous appeared window, DSL Modem Setup Wizard will appear and remind you the system will automatically reboot within 10 seconds.

DSL Modem Setup Wizard The system will automatically reboot in 4 seconds Cancel

Step 13: After system reboot, please wait for DSL Modem Setup wizard complete the device configuration process and then your ADSL USB Modem will be installed properly.

DSL Modem Setup Wizard Installing The DSL Modem Setup Wizard is now installing the drivers needed by Windows to operate the modem. Finishing installation... Cancel

Note: If your country ISP Setting is not in the ISP list,

If your country is not on the list, please click “” to next page and select “Other”,

Easy Setup - Slovenia - Spain - Sri Lanka - Sweden - Switzerland - Taiwan - Thailand - Tunisia - Türkiye - United Arab Emirates - UK - US - Other

a) After you select "Other", the window below will appear,

PS. Please refer to the following table before you select "Typical Default WAN Setting" or "Typical Default LAN Setting".

Connection Type	Encapsulation and Multiplexing method Network Information
WAN	PPP over ATM LLC (RFC 2364)PPP over ATM NULL (RFC 2364)PPP over Ethernet (RFC 2516)	Internet Account information:User namePassword
LAN	Classical IP over ATM (RFC 1577)IP over ATM Bridged LLC (RFC 2684)IP over ATM Bridged VC (RFC 2684)IP over ATM Routed LLC (RFC 2684)IP over ATM Routed VC (RFC 2684)	TCP/IP information:IP addressSubnet maskDNSGateway

Install Picture Easy Setup - Typical Default WAN Setting - Typical Default LAN Setting

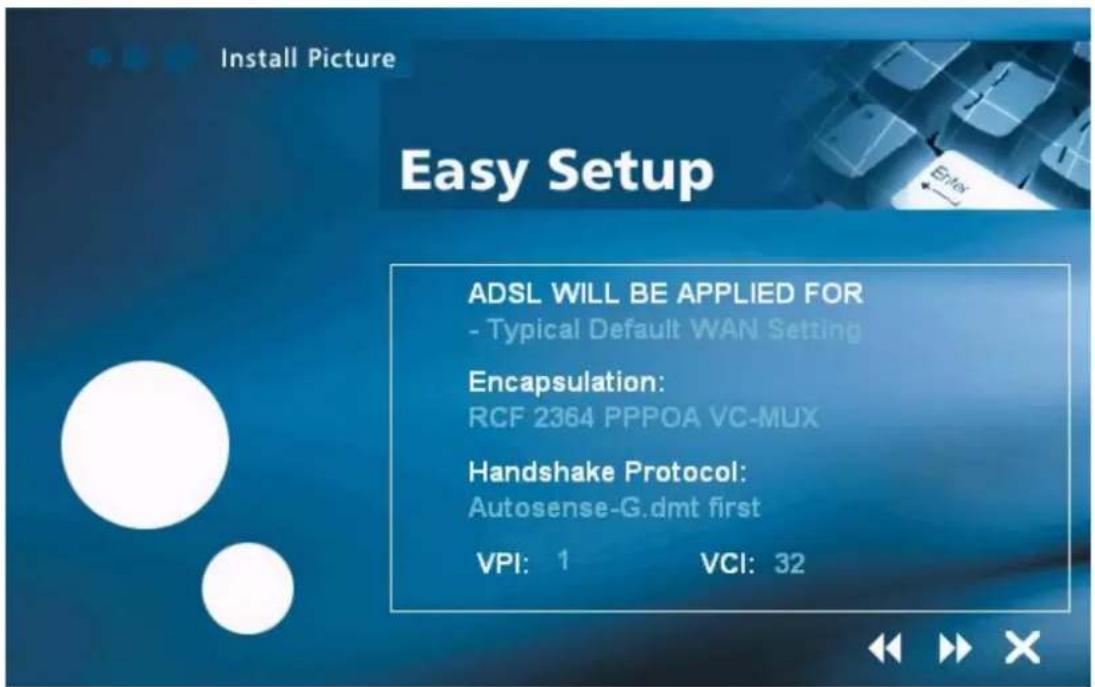

b) After connection type selection, the window below will appear, and then confirm modem settings. All settings here are default, it might not correct settings for your connection, double check settings for your ISP and go to “Accessing Communication Settings on Windows” for the detail settings. (See Chapter 6)

Install Picture Easy Setup ADSL WILL BE APPLIED FOR - Typical Default WAN Setting Encapsulation: RCF 2364 PPPOA VC-MUX Handshake Protocol: Autosense-G.dmt first VPI: 1 VCI: 32

<>

After your device driver is installed properly, the

"Conexant Dial-up PPP Connection" icon will be created on the desktop. Please Do Not change the default settings In the Phone Number section. If the setting is changed by accident, please do the following steps:

(1) Close the "Conexant Dial-up PPP Connection" tool first.
(2) Remove your ADSL USB Modem from the computer.
(3) Plug the ADSL USB Modem again to the computer for re-initialing.
(4) Then, the section will back to default settings.

Connect To Conexant Dial-U... User name: admin Password: xxxxxx ✓ Save password Phone number: 8,35 Dialing from: New Location Dial Properties... Connect Cancel

5.3 Linux Installation

This chapter describes the Linux LAN/WAN driver for this USB ADSL modem.

This driver supports Linux-2.6 kernels. The Linux kernel sources can be downloaded from: http://www.kernel.org/pub/linux/kernel/v2.6/.

The installed system should already have the kernel sources installed in the /usr/src/linux or /lib/modules directory. If they are not there, try to get them off the installation disks for your distribution, or download the latest Linux-2.6 kernel, and configure and build that. One common problem while compiling modules on a new kernel is not to create link /usr/src/linux which should point to the relevant kernel source directory. On a freshly installed system this link might not be present and needs to be created before the kernel or any driver module can be compiled. There are lots of books and documents available describing how to extract, configure and build the kernel from it's sources...

The driver is compiled and tested for:

• Fedora Core 3 : kernel 2.6.9-1.667 using gcc 3.4.2
• SuseLinux 9.2 : kernel 2.6.8.8-24.10 using gcc 3.3.4
• Mandrake 10.1 : kernel 2.6.8.1-12mdk using gcc 3.4.1

5.3.1 Directory Structure

The directory Structure is as follows.

monaco_linux
|
| --- ModemDrv
|
| --- gpatm
|
| --- Gti
|
| --- cpl

5.3.2 Compiling the Driver

Step 1: Run make in the folder monaco_linux/ModemDrv/src to compile the driver.

Step 2: The Makefile contains following important options:

DEBUG - Output driver debug messages [n]
LAN - Create LAN interface [y]
WAN - Create WAN interfaces [y]

Step 3: Compiling the Control Panel Application. The Makefile understands following

target(s).

% make - This is to create the Control panel application.

(Command to be executed from directory monaco_linux/cpl.)

5.3.3 Loading Modem Driver

The module accepts several parameters that can be set when the module is loaded.

[Syntax]

insmod ./GUModem.ko {Module Options}

(Command to be executed from directory monaco_linux/ModemDrv/src)

[Module Options]

Rfc1483Mode default: 0 (Bridged LLC)

Rfc1483VciX default: 85+X (X would be 1,2,3,4)

Rfc1483VpiX default: X (X would be 1,2,3,4)

Rfc2364Mode default: 0 (VC)

Rfc2364VciX default: X (X would be 1,2,3,4)

Rfc2364VpiX default: 116+X (X would be 1,2,3,4)

PVCCount default: 4 (Maximum Ethernet interfaces)

PPPOACount default: 4 (Maximum PPPOA Interfaces)

VPI and VCI settings to be used according to what's configured.

For example to load the module and to create 4 interfaces using different set of VCI/VPI the command would be as follows:

% insmod ./GUModem.ko Rfc1483Mode=0 Rfc1483Vci1=35 Rfc1483Vpi1=0

Rfc1483Vci2=36 Rfc1483Vpi2=1 Rfc1483Vci3=37 Rfc1483Vpi3=2 Rfc1483Vci4=38

Rfc1483Vpi4=3 PVCCount=4 Rfc2364Mode=2 Rfc2364Vpi1=0 Rfc2364Vci1=116

Rfc2364Vpi2=0 Rfc2364Vci2=117

Issuing this command will create 4 ethernet interfaces and 2 PVC for PPPOA

interfaces. ( Combination of Rfc1483Vpi1 and Rfc1483Vci1 will be the first

interface, Rfc1483Vpi2 and Rfc1483Vci2 will be 2nd interface and so on.)

The details of various options used in command above is as below

1). PVCCount - This indicates the number of PVCs user wants to configure for ethernet interfaces. Maximum value for this variable in this release is 4 and hence can have any value between 1 and 4, any value above 4 and below 1 is invalid and driver loading will fail.

2). PPPOACount - This indicates the number of PVCs user wants to configure for

PPPOA interfaces. Maximum value for this variable in this release is 4 and hence can have any value between 1 and 4, any value above 4 and below 1 is invalid and driver loading will fail.

3). Rfc1483Vpi1, Rfc1483Vpi2, Rfc1483Vpi3, Rfc1483Vpi4 -- These are 4 different values of the VPIs that user wants to configure.
4). Rfc1483Vci1, Rfc1483Vci2, Rfc1483Vci3, Rfc1483Vci4 -- These are 4 different values of the VCIIs that user wants to configure.
5). Rfc1483Mode defines the mode for which the PVC is operating. In this release this value of Rfc1483Mode remains same for all the PVCs which are being created. Thus all VCs using rfc1483 encapsulation will be created using same encapsulation type.
6). Rfc2364Vpi1, Rfc2364Vpi2 -- These are different values of the VPIs that user wants to configure for PPP interfaces.
7). Rfc2364Vci1, Rfc2364Vci2 -- These are different values of the VCIIs that user wants to configure for PPP interfaces corresponding to above mentioned VPIs.

Note: Please note that the VPIs/VCIs of the PVCs should not be conflicting with each other else the driver loading will fail.

5.3.4 Verification of driver loading successfully

To determine if the driver has loaded:

% dmesg (or file /var/log/messages)

gp: USB Modem Driver Build

To determine if driver is in data mode.

% dmesg (or file /var/log/messages)

gp: Link established (8000/892)

^^^ ^ ^ ^ Upstream rate Downstream rate

Alternatively the control panel application can also be used to get Modem Status as given below.

% gsi_cfg eth2 -s (The ethernet device depends on what has been configured on the system)

(Command to be executed from monaco_linux/cpl)

6. Customizing Communication Settings

6.1 Accessing Communication Settings on Windows

Once the USB ADSL Modem and software have been installed, the communication settings may be easily updated by performing the following steps:

Step 1: From your PC desktop, click Start → Program → Conexant DSL Modem → Configure.

Admin Internet Internet Explorer E-mail Outlook Express Paint Set Program Access Defaults MSN Explorer Windows Media Play Windows Messenger Tour Windows XP All Programs My Documents Set Program Access and Defaults Windows Catalog Windows Update Accessories Conexant DSL Modem Games Intel Application Accelerator Realtek Sound Manager Startup Internet Explorer MSN Explorer Outlook Express Remote Assistance Windows Media Player Windows Messenger Configure DSL Status Uninstall Log Off Turn Off Computer start

Step 2: The "Communication Settings" Window will be displayed.

Make the necessary changes to the VPI, VCI, Encapsulation type and/or Modulation type and click Next>.

DSL Modem Setup Wizard Communication Settings Enter your communication settings below. These settings are supplied by your service provider. VPI: 8 VCI: 35 Encapsulation: RFC 2364 PPPoATM NULL Encapsulation Modulation: Multimode Next > Cancel

Step 3: The system must be rebooted to have the new settings take effect, therefore the "Reboot" window will appear. Remove all disks from their drives, select Yes, reboot the computer now, and click Close to reboot.

DSL Modem Setup Wizard Reboot The DSL Modem Setup Wizard now requires that you reboot your computer to complete the uninstallation. Would you like to reboot now or later? Yes, reboot the computer now. No, I will reboot the computer later. Close

7. The DSL Status Application

The USB ADSL Status Application program provides a quick and easy way to check the performance of the modem and the ADSL connection in Windows operating systems. When open, the monitor window updates every 2 seconds.

7.1 Windows DSL Status Application

1. There are 3 methods to access the DSL Status Application:

- From the Start → Programs → Conexant DSL Modem → DSL Status.

Admin Internet Internet Explorer E-mail Outlook Express Paint Set Program Access Defaults MSN Explorer Windows Media Player Windows Messenger Tour Windows XP All Programs My Documents Set Program Access and Defaults Windows Catalog Windows Update Accessories Conexant DSL Modem Games Intel Application Accelerator Realtek Sound Manager Startup Internet Explorer MSN Explorer Outlook Express Remote Assistance Windows Media Player Windows Messenger Configure DSL Status Uninstall Log Off Turn Off Computer start

- Form the PC desktop, double click the DSL Modem icon in the system tray.

- From the PC desktop, double click the DSL Modem icon.

Note: To access the DSL Status Application, the device driver must be running. Also, make sure the USB cable is plugged into the modem.

1. The DSL Status Application allows you to review the current status of this ADSL

Modem and connection. The green indicator for LINK STATUS signifies that a connection has been made. This indicator blinks while a connection is being established.

CONEXANT Physical Link. Page 1/2 State: No Signal Modulation: Multimode Rx Data Rate: 0 kbps Tx Data Rate: 0 kbps Accelerated by Conexant Systems, Inc.

1. The system information can be displayed by clicking on the arrow button.

This screen displays the release number of the Package Version, DSL Modem driver version, Control Panel Version and the Firmware version you are currently using.

CONEXANT System Info Page 2/2 Package Version: CGU 1.07Q A Package 004 Driver Version: 1.07.0003Q-A Control Panel Version: 4.2.2 Firmware Version: Y.1.28.209 Accelerated by Conexant Systems, Inc.

8. Software Uninstall

8.1 Windows Uninstall

Remove the USB ADSL Modem software drivers by performing the following steps:

Note: The USB cable should NOT be unplugged until you are prompted to do so.

Step 1: From your PC desktop, click Start → Programs → Conexant DSL Modem → Uninstall.

Admin Internet Internet Explorer E-mail Outlook Express Set Program Access Defaults MSN Explorer Paint Windows Media Plays Windows Messenger Tour Windows XP All Programs My Documents Set Program Access and Defaults Windows Catalog Windows Update Accessories Conexant DSL Modem Games Intel Application Accelerator Realtek Sound Manager Startup Internet Explorer MSN Explorer Outlook Express Remote Assistance Windows Media Player Windows Messenger Configure DSL Status Uninstall Log Off Turn Off Computer start

Step 2: A message will be displayed and asking you to confirm the removal of the USB ADSL modem software. Click Yes.

DSL Modem Setup Wizard Are you sure you want to remove the software? Yes No

Step 3: You will be reminded not to unplug the USB cable until the uninstall process has been completed. Click OK.

DSL Modem Setup Wizard Please don't unplug the USB cable until after the Setup Wizard has finished. OK

Step 4: A message will be displayed indicating the software is being removed.

DSL Modem Setup Wizard Uninstalling The DSL Setup Wizard is now uninstalling the drivers from your system. CONERANT DSL Modem

Step 5: You will be prompted to unplug your modem. Unplug the USB cable from the PC and click OK.

DSL Modem Setup Wizard Please unplug your modem from the computer now OK

Step 6: The DSL Modem Setup Wizard window will appear as below. The system will automatically reboot within 10 seconds.

Note: The USB cable must be unplugged BEFORE the system is rebooted.

DSL Modem Setup Wizard The system will automatically reboot in 9 seconds Cancel

9. Modifying TCP/IP Networking Option

9.1 WAN USB Driver

9.1.1 Microsoft Windows XP

TCP/IP settings are set up automatically during the software installation process. The following procedure may be used to change TCP/IP settings, if necessary.

Step 1: From your PC desktop, open the "Control Panel" window

(Start → Control Panel). Double click the Network Connections icon.

Control Panel File Edit View Favorites Tools Help Back Search Folders Address Control Panel Control Panel Switch to Category View See Also Windows Update Help and Support Accessibility Options Add Hardware Add or Remove... Administrative Tools Automatic Updates Date and Time Display Folder Options Fonts Game Controllers Intel(R) Extro... Internet Options Keyboard Mouse Network Connectors Network Setup Wizard Phone and Modem ... Power Options Printers and Faxes Regional and Language ... Scanners and Cameras Scheduled Tasks Security Center Sound Effect Manager Sounds and Audio Devices Speech System Tasibay and Start Menu User Accounts Windows Firewall Wireless Network Set...

Step 2: From the “Network Connections” window, right click the Conexant Dial-Up PPP Connection icon and click Properties.

Network Connections File Edit View Favorites Tools Advanced Help Back Search Folders Address Network Connections Network Tasks Create a new connection Set up a home or small office network Change Windows Firewall settings Start this connection Rename this connection Delete this connection Change settings of this connection Other Places Dial-up Conexant Dial-Up PPP Connection Disconnected, Firewalled LAN or High-Sp Connect Status Set as Default Connection Create Copy Create Shortcut Delete Rename Properties

Step 3: The “General” tab of the “Conexant Dial-Up PPP Connection Properties” window allows you to specify a different VPI and VCI, if needed. Contact your DSL service provider before altering this connection information. Enter the VPI and VCI in the Phone Number field (For example: 8,35)

Conexant Dial-Up PPP Connection Properties General Options Security Networking Advanced Connect using: ISDN channel - Conexant USB ADSL WAN Modem Configure... Phone number Area code: Phone number: 8.35 Alternates Country/region code: Use dialing rules Dialing Rules Show icon in notification area when connected OK Cancel

Step 4: From the “Networking” tab of the “Conexant Dial-Up PPP Connection Properties” Window, select Internet Protocol (TCP/IP) and click Properties.

Conexant Dial-Up PPP Connection Properties General Options Security Networking Advanced Type of dial-up server I am calling: PPP: Windows 95/98/NT4/2000. Internet Settings This connection uses the following items: Internet Protocol (TCP/IP) QoS Packet Scheduler File and Printer Sharing for Microsoft Networks Client for Microsoft Networks Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. OK Cancel

Step 5: Use the "Internet Protocol (TCP/IP) Properties" window to modify the IP address and DNS Server addresses as follows:

Internet Protocol (TCP/IP) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 100 . 100 . 59 Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Advanced... OK Cancel

• Change the IP address to a user defined address by selecting Use the following IP address (click inside the radio button to the left of it) and typing the address in the space provided
• Change the DNS Server addresses to user defined addresses by selecting Use the following DNS server addresses (click inside the radio button to the left of it) and typing the addresses in the spaces provided.
• The "Advanced" button of the "Internet Protocol (TCP/IP) Properties" window may be used to alter DNS addresses, WINS addresses and IP security settings.

Step 6: Click OK to apply your changes and exit from the "Internet Protocol (TCP/IP) Properties" window.

Step 7: The "Conexant Dial-Up PPP Connection Properties" window will reappear. Click OK to end the TCP/IP options modification session

9.1.2 Microsoft Windows 2000

TCP/IP settings are set up automatically during the software installation process. The following procedure may be used to change TCP/IP settings, if necessary.

Step 1: From your PC desktop, open the "Control Panel" window

(Start → Settings → Control Panel). Double click the Network and Dial-up icon.

Control Panel File Edit View Favorites Tools Help Back Search Folders History Go Address Control Panel Control Panel Accessibility Options Add/Remove Hardware Add/Remove Programs Administrative Tools Automatic Updates Date/Time Display Folder Options Fonts Game Controllers Windows Update Windows 2000 Support Intel(R) Extre... Internet Options Keyboard Mouse Network and Dial-up Connections Phone and Modem ... Power Options Printers Regional Options Scanners and Cameras Scheduled Tasks Sound Effect Manager Sounds and Multimedia System Users and Passwords Connects to other computers, networks, and the Internet My Computer

Step 2: From the “Network and Dial-up” window, right click the Conexant Dial-Up PPP Connection icon and click Properties.

Network and Dial-up Connections File Edit View Favorites Tools Advanced Help Back Search Folders History Address Network and Dial-up Connections Go Network and Dial- up Connections Make New Connection Conexant Dial-Up PPP Connection Local Area Connection Connect Status Create Copy Create Shortcut Delete Rename Properties Conexant Dial-Up PPP Connection Type: Dial-up Connection Status: Disconnected Displays the properties of the selected connection.

Step 3: The “General” tab of the “Conexant Dial-Up PPP Connection Properties” window allows you to specify a different VPI and VCI, if needed. Contact your DSL service provider before altering this connection information. Enter the VPI and VCI in the Phone Number field (For example: 8,35)

Conexant Dial-Up PPP Connection Properties General Options Security Networking Sharing Connect using: ISDN channel - Conexant USB ADSL WAN Modem Configure... Phone number After code: Phone number: 8.35 Alternates Country/region code: Use dialing rules Rules Show icon in taskbar when connected OK Cancel

Step 4: From the "Networking" tab of the "Conexant Dial-Up PPP Connection Properties" window, select Internet Protocol (TCP/IP) and click Properties

Conexant Dial-Up PPP Connection Properties General Options Security Networking Sharing Type of dial-up server I am calling: PPP: Windows 95/98/NT4/2000, Internet Settings Components checked are used by this connection: Internet Protocol (TCP/IP) File and Printer Sharing for Microsoft Networks Client for Microsoft Networks Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. OK Cancel

Step 5: Use the "Internet Protocol (TCP/IP) Properties" window to modify the IP address and DNS Server addresses as follows:

Internet Protocol (TCP/IP) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192, 100, 100, 59 Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Advanced... OK Cancel

• Change the IP address to a user defined address by selecting Use the following IP address (click inside the radio button to the left of it) and typing the address in the space provided
• Change the DNS Server addresses to user defined addresses by selecting Use the following DNS server addresses (click inside the radio button to the left of it) and typing the addresses in the spaces provided.
• The "Advanced" button of the "Internet Protocol (TCP/IP) Properties" window may be used to alter DNS addresses, WINS addresses and IP security settings.

Step 6: Click OK to apply your changes and exit from the "Internet Protocol (TCP/IP) Properties" window.

Step 7: The “Conexant Dial-Up PPP Connection Properties” window will reappear. Click OK to end the TCP/IP options modification session

9.1.3 Microsoft Windows ME

TCP/IP settings are set up automatically during the software installation process. The following procedure may be used to change TCP/IP settings, if necessary.

Step 1: From your PC desktop, open the "Dial-up Networking" window

(Start → Settings → Control Panel → Dial-up Networking).

Double click the Dial-up Networking icon.

Control Panel File Edit View Favorites Tools Help Back Search Folders History Address Control Panel Dial-Up Networking Connects your computer to shared information on other computers by using a modem. Windows Update Technical Support Accessibility Options Add New Hardware Add/Remove Programs Automatic Updates Date/Time Dial-Up Networking Display Folder Options Fonts Gaming Options Intel(R) Extrem... Internet Options Keyboard Modems Mouse Network ODBC Data Sources (32bit) Passwords Power Options Printers Regional Settings Scanners and Cameras Scheduled Tasks Sound Effect Manager Sounds and Multimedia System Taskbar and Start Menu Telephony Users Connects your computer to shared information on other computers by using a modem. My Computer

Step 2: From the "Dial-up Networking" window, right click the Conexant Dial-Up PPP Connection icon and click Properties.

Dial-Up Networking File Edit View Favorites Tools Connections Help Back Search Folders History Address Dial-Up Networking Go Dial-Up Networking Make New Connection Conexant Dial-Up PPP Connection Connect Set as Default Create Shortcut Delete Rename Properties Conexant Dial-Up PPP Connection DSLWanUsb-Line0 Phone # or Host: 8,35 Opens the property sheet of selected items.

Step 3: From the "Networking" tab of the Conexant Dial-up PPP Connection Window, select TCP/IP (marked with a check in the check-box to the left) and click TCP/IP Settings button.

Conexant Dial-Up PPP Connection General Networking Security Scripting Multilink Dialing Type of Dial-Up Server: PPP: Internet, Windows 2000/NT, Windows ME Advanced options: Enable software compression Record a log file for this connection Allowed network protocols: NetBEUI IPX/SPX Compatible TCP/IP TCP/IP Settings... OK Cancel

Step 4: Use the "TCP/IP Settings" window to modify the IP address, Name Server address and/or default gateway as follows:

TCP/IP Settings Server assigned IP address Specify an IP address IP address: 192 . 100 . 100 . 59 Server assigned name server addresses Specify name server addresses Primary DNS: 0 . 0 . 0 . 0 Secondary DNS: 0 . 0 . 0 . 0 Primary WINS: 0 . 0 . 0 . 0 Secondary WINS: 0 . 0 . 0 . 0 Use IP header compression Use default gateway on remote network OK Cancel

• Change the IP address to a user defined address by selecting Specify an IP address (click inside the circle to the left of it) and typing the address in the space provided
• Change the Name Server addresses to user defined addresses by selecting

Specify name server addresses (click inside the circle to the left of it) and typing the addresses in the spaces provided

- Change the default gateway by leaving the box blank to the left of Use default gateway on remote network.

Step 5: Click OK to apply your changes and exit from the "TCP/IP Settings" window.

Step 6: The "Conexant Dial-Up PPP Connection" window will reappear. Click OK to end the TCP/IP options session

9.1.4 Microsoft Windows 98SE

TCP/IP settings are set up automatically during the software installation process. The following procedure may be used to change TCP/IP settings, if necessary.

Step 1: From your PC desktop, open the "Control Panel" window

(Start → Settings → Control Panel). Double click the Dial-up Connections icon.

My Computer File Edit View Go Favorites Help Back Forward Up Cut Copy Paste Undo Delete Address My Computer 3½ Floppy (A:) (C:) (D:) Data15 (E:) Ghost (F:) My Computer Select an item to view its description. (G:) Printers Control Panel Dial-Up Networking Scheduled Tasks Web Folders My Computer

Step 2: From the "Dial-up Connections" window, right click the Conexant Dial-Up PPP Connection icon and click Properties.

Dial-Up Networking File Edit View Go Favorites Connections Help Back Forward Up Create Dial Cut Copy Paste Address Dial-Up Networking Make New Connection Conexant Dial-Up PPP Connection Connect Create Shortcut Delete Rename Properties Conexant Dial- Up PPP Connection Phone # or Host: 8,35 Opens the property sheet of selected items.

Step 3: From the “Server Types” tab of the “Conexant Dial-up PPP Connection” Window, select TCP/IP by checking the check to the left and click TCP/IP settings button.

Conexant Dial-Up PPP Connection General Server Types Scripting Multilink Type of Dial-Up Server: PPP: Internet, Windows NT Server, Windows 98 Advanced options: Log on to network Enable software compression Require encrypted password Require data encryption Record a log file for this connection Allowed network protocols: NetBEUI JPX/SPX Compatible TCP/IP TCP/IP Settings... OK Cancel

Step 4: Use the "TCP/IP Settings" window to modify the IP address, Name Server address and/or default gateway as follows:

TCP/IP Settings Server assigned IP address Specify an IP address IP address: 192 . 100 . 100 . 59 Server assigned name server addresses Specify name server addresses Primary DNS: 0 . 0 . 0 . 0 Secondary DNS: 0 . 0 . 0 . 0 Primary WINS: 0 . 0 . 0 . 0 Secondary WINS: 0 . 0 . 0 . 0 Use IP header compression Use default gateway on remote network OK Cancel

• Change the IP address to a user defined address by selecting Specify an IP address (click inside the circle to the left of it) and typing the address in the space provided
• Change the Name Server addresses to user defined addresses by selecting Specify name server addresses (click inside the circle to the left of it) and typing the addresses in the spaces provided
• Change the default gateway by leaving the box blank to the left of Use default gateway on remote network.

Step 5: Click OK to apply your changes and exit from the "TCP/IP Settings" window.

Step 6: The "Conexant Dial-Up PPP Connection" window will reappear. Click OK to end the TCP/IP options session

9.2 LAN USB Driver

9.2.1 Microsoft Windows XP

TCP/IP settings are automatically set up during the software installation process. The following procedure may be used to change TCP/IP settings, if necessary.

Step 1: From your PC desktop, open the "Control Panel" windows (Start → Control) Double click the Network Connections icon.

Step 2: Double click the Local Area connection icon from the "Network Connections" window.

Step 3: Select Internet Protocol (TCP/IP) from the "General" tab of the "Local Area Connection Properties" windows. Click Properties.

Local Area Connection Properties General Authentication Advanced Connect using: GlobespanVirata USB ADSL LAN Modem #27 Configure... This connection uses the following items: ✓ Client for Microsoft Networks ✓ File and Printer Sharing for Microsoft Networks ✓ QoS Packet Scheduler ✓ Internet Protocol (TCP/IP) Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. Show icon in notification area when connected OK Cancel

Step 4: The "Internet Protocol(TCP/IP) Properties" window is used to modify the IP address and DNS Server address as follows.

Internet Protocol (TCP/IP) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 100 . 100 . 59 Subnet mask: 255 . 255 . 255 . 0 Default gateway: 192 . 100 . 100 . 15 Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Advanced... OK Cancel

- Change the IP address to a user defined address by selecting Use the following IP

address option (click inside the circle to the left of it) and typing the addresses in the spaces provided

• Change the DNS Server addresses to user defined addresses by selecting Use the following DNS server addresses (click inside the circle to the left of it) and typing the addresses in the spaces provided.
• The Advanced button of the "Internet Protocol (TCP/IP) Properties" window may be used to alter IP settings, DNS server addresses, WINS addresses, IP security options, and TCP/IP filtering options.

Step 5: Click OK to apply your changes and exit from the "Internet Protocol (TCP/IP) Properties"

Step 6: The "Local Area Connection Properties" window will reappear. Click OK to end the TCP/IP options modification session.

9.2.2 Microsoft Windows 2000

TCP/IP settings are automatically set up during the software installation process. The following procedure may be used to change TCP/IP settings, if necessary.

Step 1: From your PC desktop, open the "Control Panel" windows (Start → Settings → Control). Double click the Network and Dial-up Connection icon.

Step 2: Double click the Local Area connection icon from the "Network and Dial-up Connection" window.

Step 3: Select Internet Protocol (TCP/IP) from the "General" tab of the "Local Area Connection Properties" windows. Click Properties.

Local Area Connection 2 Properties General Sharing Connect using: GlobespanVirata USB ADSL LAN Modem Configure Components checked are used by this connection: ✓ Client for Microsoft Networks ✓ File and Printer Sharing for Microsoft Networks ✓ Internet Protocol [TCP/IP] Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. Show icon in taskbar when connected OK Cancel

Step 4: The "Internet Protocol(TCP/IP) Properties" window is used to modify the IP address and DNS Server address as follows.

Internet Protocol (TCP/IP) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 100 . 100 . 59 Subnet mask: 255 . 255 . 255 . 0 Default gateway: 192 . 100 . 100 . 15 Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Advanced... OK Cancel

• Change the IP address to a user defined address by selecting Use the following IP address option (click inside the circle to the left of it) and typing the addresses in the spaces provided
• Change the DNS Server addresses to user defined addresses by selecting Use the following DNS server addresses (click inside the circle to the left of it) and typing the addresses in the spaces provided.

- The Advanced button of the "Internet Protocol (TCP/IP) Properties" window may be used to alter IP settings, DNS server addresses, WINS addresses, IP security options, and TCP/IP filtering options.

Step 5: Click OK to apply your changes and exit from the "Internet Protocol (TCP/IP) Properties"

Step 6: The "Local Area Connection Properties" window will reappear. Click OK to end the TCP/IP options modification session.

9.2.3 Microsoft Windows ME

TCP/IP settings are automatically set up during the software installation process. The following procedure may be used to change TCP/IP settings, if necessary.

Step 1: From your PC desktop, open the "Control Panel" windows (Start → Settings → Control). Double click the Network icon.

Step 2: Select TCP/IP → Conexant USB ADSL LAN Modem from the "Configuration" tab of the "Network" window. Click Properties.

Network Configuration | Identification | Access Control | The following network components are installed: Dial-Up Adapter GlobespanVirata USB ADSL LAN Modem TCP/IP -> 3Com EtherLink 10/100 PCI For Complete PC > TCP/IP -> Dial-Up Adapter TCP/IP -> GlobespanVirata USB ADSL LAN Modem Add... Remove Properties Primary Network Logon: Client for Microsoft Networks File and Print Sharing... Description TCP/IP is the protocol you use to connect to the Internet and wide-area networks. OK Cancel

Step 3: From the "IP Address" tab of the "TCP/IP Properties" window, select either the Obtain an IP address Automatically or Specify an IP Address option, depending on your network setup. If you select Specify an IP Address, type the IP Address and Subnet Mask in the spaces provided. Consult with your network administrator to determine which option best suit your individual needs.

TCP/IP Properties Bindings Advanced NetsBIOS DNS Configuration Gateway WINS Configuration IP Address An IP address can be automatically assigned to this computer. If your network does not automatically assign IP addresses, ask your network administrator for an address, and then type it in the space below. Obtain an IP address automatically Specify an IP address: IP Address: .... Subnet Mask: .... Detect connection to network media OK Cancel

Step 4: The "Gateway" tab allows you to add or remove gateways. Consult with your network administrator to determine the appropriate address for your individual needs.

TCP/IP Properties Bindings Advanced NetsBIOS DNS Configuration Gateway WINS Configuration IP Address The first gateway in the Installed Gateway list will be the default. The address order in the list will be the order in which these machines are used. New gateway: Add Installed gateways: 192.100.100.15 Remove OK Cancel

• To add a new gateway, type the address in the New gateway field and click Add. The new gateway will appear in the Installed gateway list.
• To remove a previously installed gateway, highlight the entry to be removed in the Installed gateway list and click Remove. The gateway will no longer appear in the Installed gateways list.

Step 5: Click OK to apply your changes and exit from the "TCP/IP Properties" windows.

Step 6: The "Network" window will reappear. Click OK to end the TCP/IP options modification session.

Step 7: If you have made changes to TCP/IP properties, you will be asked to restart/reboot your PC. Click Yes, and your PC will restart.

9.2.4 Microsoft Windows 98SE

TCP/IP settings are automatically set up during the software installation process. The following procedure may be used to change TCP/IP settings, if necessary.

Step 1: From your PC desktop, open the "Control Panel" windows (Start → Settings → Control). Double click the Network icon.

Step 2: Highlight TCP/IP → Conexant USB ADSL LAN Modem from the list of installed network components in the “Configuration” tab of the “Network” window. Click Properties.

Step 3: From the “IP Address” tab of the “TCP/IP Properties” window, select either the Obtain an IP address Automatically or Specify an IP Address option, depending on your network setup. If you select Specify an IP Address, type the IP Address and Subnet Mask in the spaces provided. Consult with your network administrator to determine which option best suit your individual needs.

Step 4: The "Gateway" tab allows you to add or remove gateways. Consult with your network administrator to determine the appropriate address for your individual needs.

TCP/IP Properties Bindings Advanced NetsBIOS DNS Configuration Gateway WINS Configuration IP Address The first gateway in the Installed Gateway list will be the default. The address order in the list will be the order in which these machines are used. New gateway: ... Add Installed gateways: 192.100.100.15 Remove OK Cancel

• To add a new gateway, type the address in the New gateway field and click Add. The new gateway will appear in the Installed gateway list.
• To remove a previously installed gateway, highlight the entry to be removed in the Installed gateway list and click Remove. The gateway will no longer appear in the Installed gateways list.

Step 5: Click OK to apply your changes and exit from the "TCP/IP Properties" windows.

Step 6: The "Network" window will reappear. Click OK to end the TCP/IP options modification session.

Step 7: If you have made changes to TCP/IP properties, you will be asked to restart/reboot your PC. Click Yes, and your PC will restart.

If you have any troubles to configure or setup this ADSL USB Modem, please contact us. Before contacting us, make sure collect following information. Submit complete detailed information of your problem will help us to provide you accurate answers.

Model Name:

Serial Number:

PC Settings:

Other:
