QR5B - Loudspeaker Qtx - Free user manual and instructions

Product Type	Active Stereo Speaker Set
Model	QR5B (Black)
Colour	Black
Power Supply	230Vac, 50Hz
Power Output	2 x 20W
Controls	Bass, Treble, Volume (rotary)
Input Connections	L+R RCA sockets
Frequency Response	32Hz - 22kHz
Sensitivity	89dB
Input Level	290mV, 7k Ohms
Dimensions	255 x 180 x 150mm
Total Weight	6.8kg (active + satellite)
Included Accessories	Passive satellite speaker, 2 wall-mount brackets with screw caps, satellite speaker wire
Mounting	Wall-mountable using included brackets
Safety Features	Do not expose to rain or moisture; no user serviceable parts; allow adequate cooling
Cleaning	Use soft cloth with neutral detergent; do not use solvents
Built-in Amplifier	Yes (in active speaker)

Frequently Asked Questions - QR5B Qtx

How do I connect the satellite speaker to the active speaker?

Use the supplied speaker wire. Connect the red terminal to red and black to black on the spring terminals labelled 'Satellite speaker connection' on the active speaker.

What power supply does the QR5B require?

It requires a 230Vac, 50Hz mains supply. Use the attached mains lead and ensure the voltage is correct before connecting.

How can I adjust the sound output?

Use the Volume control for overall level. Adjust Bass and Treble controls for tonal response. Center position is flat, left cut, right boost.

Why is there no output and the power LED is not lit?

Check that the power switch is set to 'On', the mains lead is in good condition, and the mains outlet is working.

Why does sound only come from one speaker?

Verify the wire connecting the active to satellite speaker is properly inserted into the spring terminals. Also check the signal lead is connected correctly.

How do I mount the speakers on a wall?

Attach the supplied wall-mount brackets to a solid surface with suitable fixings. Fix the speaker units to the brackets using the screw caps at top and bottom. Ensure the active speaker is near a mains outlet.

What safety precautions should I take?

Do not expose the unit to rain or moisture. Do not remove the rear cover as there are no user serviceable parts. Allow adequate space for cooling at the rear of the active speaker.

How should I clean the speakers?

Use a soft cloth with a neutral detergent to clean the cabinet, panel, and controls. Do not use solvents or abrasive cleaners.

What should I do if the output is distorted?

Turn down the Volume control. Also check that the sound source output level is not too high for the input (max 290mV). Adjust the source volume accordingly.

Can I use the QR5B with a computer?

Yes, connect your computer's audio output (headphone or line out) to the L+R RCA inputs using a suitable 3.5mm to RCA cable.

USER MANUAL QR5B Qtx

5.25" ACTIVE STEREO SPEAKER SET

Item ref: 178.200UK, 178.201UK

User Manual

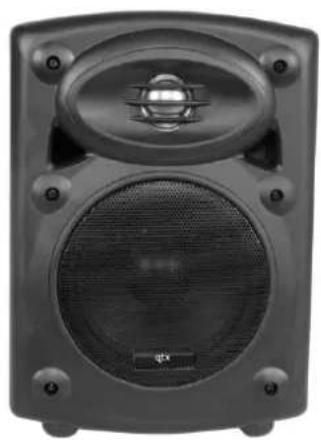

Front view of a black audio amplifier speaker with visible sound waves and a central grille (no text or symbols)

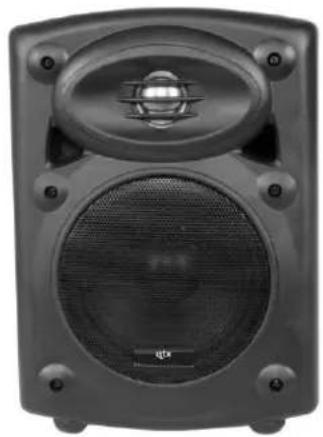

Close-up of a black audio speaker with visible sound waves and buttons (no text or symbols)

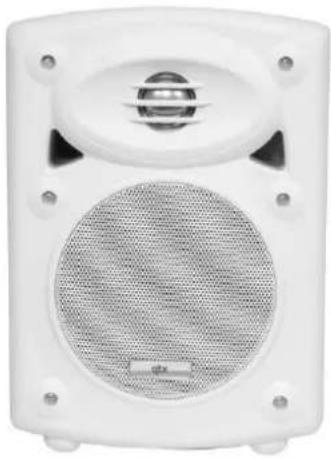

White speaker with mesh grille and speaker grille (no visible text or symbols)

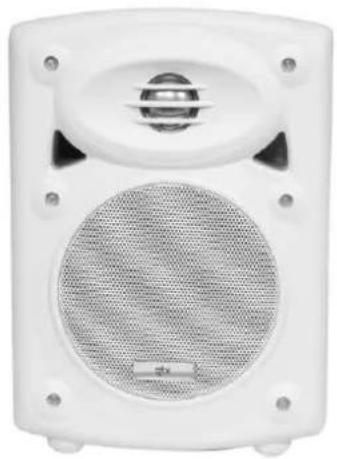

White speaker with mesh grille and circular vent, no visible text or symbols

Version 2.1

Caution: Please read this manual carefully before operating

Damage caused by misuse is not covered by the warranty

Introduction

Thank you for choosing the QR5 active speaker set. Please read this manual prior to use to avoid damage to the item. These compact, self-contained stereo speaker sets are designed to deliver high quality near-field or perimeter coverage for various monitoring and installed sound applications.

Contents

Please take care when unpacking this product. Inspect for any damage and ensure you have the following components:

• QR5 active speaker with built-in amplifier
• QR5 passive satellite speaker
- 2 x wall-mounting brackets with screw caps
- Satellite speaker wire

Safety Conventions

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

AVIS RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

Warning

To prevent the risk of fire or electric shock, do not expose this appliance to rain or moisture.

To prevent electric shock do not remove the rear cover.

No user serviceable parts inside. Refer servicing to qualified service personnel.

Safety

• Prior to connecting to the mains, ensure that the supply voltage is correct.
• Avoid ingress of water or particles into the enclosure.

Placement

• Keep the unit out of direct sunlight and away from heat sources.
• Keep the unit away from moisture or dusty environments.
• Allow adequate space for cooling at the rear of the active speaker unit

Cleaning

Use a soft cloth with a neutral detergent to clean the cabinet, panel and controls. Do not use solvents.

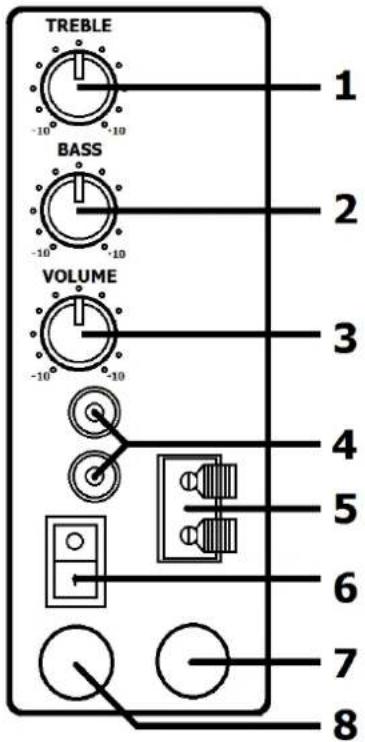

Panel layout

1 TREBLE EQ control
2 BASS EQ control
3 VOLUME control
4 Signal input (L+R RCA)
5 Satellite speaker connection (spring terminals)
6 Power on/off switch
7 Mains power lead
8 Mains fuse holder

Setting up

For near-field or desktop use, space speakers apart for adequate stereo separation depending on proximity to the listener. For installations using the supplied wall-mount brackets, attach the brackets to a solid surface using fixings which are sufficient to hold the weight of the active speaker. Take care to mount the active unit close enough to a mains outlet for the supplied adaptor to reach. Fix the speaker units to the brackets at top and bottom using the supplied screw caps. Each can be rotated to aim the general direction of sound output.

If the speakers are mounted at height or where falling objects may be hazardous, it is advised to attach a secondary means of support (e.g. drop-wire or chain)

Operation

Link the satellite speaker to the spring terminals on the powered speaker (5) using the supplied speaker lead (connecting red to red and black to black)

With the rotary VOLUME (3) control set to minimum and TREBLE and BASS controls (1, 2) set to the vertical (12 o'clock) position, connect the attached mains lead (7) to a suitable mains outlet. Connect the source signal into the active unit via the L+R RCA connectors (4). Switch the power on (6) and gradually turn the rotary VOLUME control clockwise and increase volume level to the required amount.

Adjust TREBLE (2) and BASS (1) controls to provide the desired tonal response. The centre position is unaffected, to the left is cut and to the right is boost.

Turn down the rotary VOLUME control before switching off.

Specifications

Stock code	178.200UK	178.201UK
Model	QR5B	QR5W
Colour	Black	White
Power supply	230Vac, 50Hz
Power output	2 x 20W
Controls	Bass, Treble, Volume
Input connections	L+R RCA sockets
Frequency response	32Hz - 22kHz
Sensitivity	89dB
Input level	290mV, 7k Ohms
Dimensions	255 x 180 x 150mm
Weight (total)	6.8kg

Troubleshooting

No output and Power LED not lit	Check power switch is not set to “Off”
	Check mains lead is in good condition
	Check mains outlet is on
Power LED lit but no output	Turn up rotary VOLUME, TREBLE and BASS controls
	Check signal lead is connected properly
	Check sound source is playing
Sound output only from one speaker	Check wire is connected from active to satellite properly
	Check signal lead is connected properly
Output is very low	Turn up rotary VOLUME control
	Check sound source is turned up
Output is too loud or distorted	Turn down rotary VOLUME control
	Check sound source output is not too high for input
