USER MANUAL FSV-B Adastra

White rectangular electronic device with mesh grille and side panel (no visible text or symbols)

65W rms

Background Music Speakers

Operation Manual

High quality 2 way background music speakers for indoor outdoor use. Strong moulded plastic cabinet with metal speaker grille contains a high quality full response 5.25" driver, a 0.5" dome tweeter and an integrated crossover network. Fitted with a 100 volt line matching transformer tapped at 5 / 10 / 20 / 40 watts and 8 ohm all selectable by a rotary switch housed in a weatherproof compartment on the rear of the speaker cabinet which also contains two high quality gold plated binding posts. An indoor / outdoor equalisation switch is fitted for maximum performance in all locations. Supplied complete with sturdy mounting bracket and available in white or black cabinets.

Speaker size	.5.25"
Power rms (8 ohm)	.65 watts
Power max (8 ohm)	.190 watts
Frequency range	.50Hz - 20kHz
Dimensions	.250 x 180 x 145mm

INDOOR/OUTDOOR BASS BOOST SWITCH:

Audio experts have known for years that sound and bass frequencies in particular, lose impact in outdoor environments. To compensate, many people will turn up the volume, overdriving the system, and damaging the speakers components.

INDOOR DOVRDOUR

In response, Adastra has designed a unique switch that increases bass when in the 'outdoor' position. At the same time, it protects the speaker from overdrive damage in exterior applications. The result is dramatically improved sound reproduction, more reliable operation, and longer life. In the 'indoor' position, performance is automatically adjusted to produce optimum results for indoor use.

ALL WEATHER DESIGN:

The materials used in the manufacture of Adastra speakers have been carefully selected to stand up to extremes of temperature (from -50°F to 200°F), rain, snow, heat, salty, water and the suns UV rays. Adastra speakers are ruggedly constructed with a combination of a low-resonance mineral-filled polypropylene cabinet, brass stainless steel and aluminium hardware, and gold-plated binding posts.

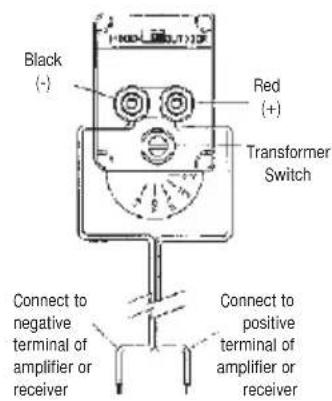

CONNECTING THE INDIVIDUAL SPEAKERS TO YOUR AMPLIFIER OR RECEIVER:

First turn your amplifier or receiver off to avoid damage which may result from accidental shorting of the speaker leads.

Correct phase polarity is critical for proper stereo imaging and bass performance. The red (+) terminal on your amplifier or receiver must be connected to the red (+) terminal on your speaker. The same applies for the black (-) terminal. Connect one loudspeaker at a time to ensure proper connection of left and right channels. Make sure all wires are firmly fastened.

Black (-) Red (+) Transformer Switch Connect to negative terminal of amplifier or receiver Connect to positive terminal of amplifier or receiver

If you notice a great lack of bass and/or central imaging focus, double check your connections for proper polarity.

MOUNTING THE BRACKET:

Remove the bracket knobs and the bracket from the speaker.

Hold the bracket up to the mounting surface. The speaker can be mounted either horizontally or vertically. Hold the bracket so that the speaker wire fits

±66°

through the large, circular in the bracket. Align the bracket to be square with the surroundings (use level for accuracy). Mark the locations of the three shaped screw holes. Use all of the holes

Drill pilot holes into the mounting surface.

Gently pull the speaker wire through the wire hole in the centre of the mounting bracket. Align the bracket so that the holes all line up.

Securely fasten the bracket to the mounting surface.

FINAL ADJUSTMENTS

After checking that the speaker is in-phase and works correctly, angle the speaker for the best sound.

Hand tighten the bracket knobs only. Power tools may over-tighten the knob, and strip the threads of the insert.

Check that the entire installation is safe and secure.

Weatherproofed to IP35 & UV protected to standard ASTM D4329

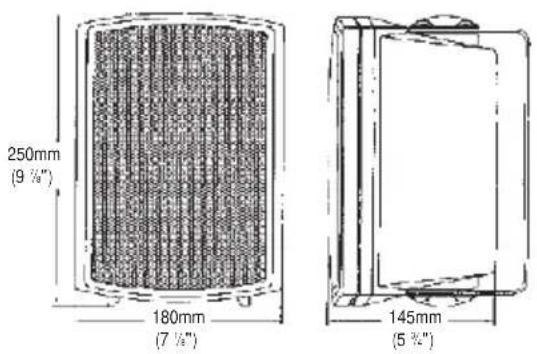

250mm (9 1/8") 180mm (7 1/8)

145mm (5 ¾)

High quality 2 way background music speakers for indoor outdoor use. Strong moulded plastic cabinet with metal speaker grille contains a high quality full response 5.25" driver, a 0.5" dome tweeter and an integrated crossover network. Fitted with a 100 volt line matching transformer tapped at 5 / 10 / 20 / 40 watts and 8 ohm all selectable by a rotary switch housed in a weatherproof compartment on the rear of the speaker cabinet which also contains two high quality gold plated binding posts. An indoor / outdoor equalisation switch is fitted for maximum performance in all locations. Supplied complete with sturdy mounting bracket and available in white or black cabinets.

Speaker size	5.25"
Power rms (8 ohm)	65 watts
Power max (8 ohm)	190 watts
Frequency range	.50Hz - 20kHz
Dimensions	.250 x 180 x 145mm

INDOOR/OUTDOOR BASS BOOST SWITCH:

Audio experts have known for years that sound and bass frequencies in particular, lose impact in outdoor environments. To compensate, many people will turn up the volume, overdriving the system, and damaging the speakers components.

Front view of a device casing with two circular components and a button, no visible text or symbols.

In response, Adastra has designed a unique switch that increases bass when in the 'outdoor' position. At the same time, it protects the speaker from overdrive damage in exterior applications. The result is dramatically improved sound reproduction, more reliable operation, and longer life. In the 'indoor' position, performance is automatically adjusted to produce optimum results for indoor use.

ALL WEATHER DESIGN:

The materials used in the manufacture of Adastra speakers have been carefully selected to stand up to extremes of temperature (from -50°F to 200°F), rain, snow, heat, salty, water and the suns UV rays. Adastra speakers are ruggedly constructed with a combination of a low-resonance mineral-filled polypropylene cabinet, brass stainless steel and aluminium hardware, and gold-plated binding posts.

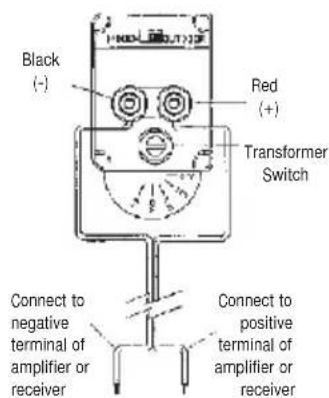

CONNECTING THE INDIVIDUAL SPEAKERS TO YOUR AMPLIFIER OR RECEIVER:

First turn your amplifier or receiver off to avoid damage which may result from accidental shorting of the speaker leads.

Correct phase polarity is critical for proper stereo imaging and bass performance. The red (+) terminal on your amplifier or receiver must be connected to the red (+) terminal on your speaker. The same applies for the black (-) terminal. Connect one loudspeaker at a time to ensure proper connection of left and right channels. Make sure all wires are firmly fastened.

Black (-) Red (+) Transformer Switch Connect to negative terminal of amplifier or receiver Connect to positive terminal of amplifier or receiver

If you notice a great lack of bass and/or central imaging focus, double check your connections for proper polarity.

MOUNTING THE BRACKET:

Remove the bracket knobs and the bracket from the speaker.

Hold the bracket up to the mounting surface. The speaker can be mounted either horizontally or vertically. Hold the bracket so that the speaker wire fits

±66°

through the large, circular in the bracket. Align the bracket to be square with the surroundings (use level for accuracy). Mark the locations of the three shaped screw holes. Use all of the holes

Drill pilot holes into the mounting surface.

Gently pull the speaker wire through the wire hole in the centre of the mounting bracket. Align the bracket so that the holes all line up.

Securely fasten the bracket to the mounting surface.

FINAL ADJUSTMENTS

After checking that the speaker is in-phase and works correctly, angle the speaker for the best sound.

Hand tighten the bracket knobs only. Power tools may over-tighten the knob, and strip the threads of the insert.

Check that the entire installation is safe and secure.

Weatherproofed to IP35 & UV protected to standard ASTM D4329

250mm (9 1/8") 180mm (7 1/8") 145mm (5 3/8")

INDONE OUTDOUR

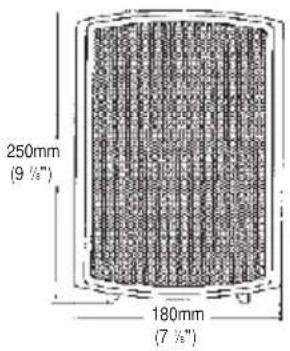

250mm (9 ½") 180mm (7 ½)

145mm (5 ¾)

High quality 2 way background music speakers for indoor outdoor use. Strong moulded plastic cabinet with metal speaker grille contains a high quality full response 5.25" driver, a 0.5" dome tweeter and an integrated crossover network. Fitted with a 100 volt line matching transformer tapped at 5 / 10 / 20 / 40 watts and 8 ohm all selectable by a rotary switch housed in a weatherproof compartment on the rear of the speaker cabinet which also contains two high quality gold plated binding posts. An indoor / outdoor equalisation switch is fitted for maximum performance in all locations. Supplied complete with sturdy mounting bracket and available in white or black cabinets.

Speaker size	5.25"
Power rms (8 ohm)	65 watts
Power max (8 ohm)	190 watts
Frequency range	.50Hz - 20kHz
Dimensions	.250 x 180 x 145mm

INDOOR/OUTDOOR BASS BOOST SWITCH:

Audio experts have known for years that sound and bass frequencies in particular, lose impact in outdoor environments. To compensate, many people will turn up the volume, overdriving the system, and damaging the speakers components.

Front view of a device casing with two circular components and a button, no visible text or symbols.

In response, Adastra has designed a unique switch that increases bass when in the 'outdoor' position. At the same time, it protects the speaker from overdrive damage in exterior applications. The result is dramatically improved sound reproduction, more reliable operation, and longer life. In the 'indoor' position, performance is automatically adjusted to produce optimum results for indoor use.

ALL WEATHER DESIGN:

The materials used in the manufacture of Adastra speakers have been carefully selected to stand up to extremes of temperature (from -50°F to 200°F), rain, snow, heat, salty, water and the suns UV rays. Adastra speakers are ruggedly constructed with a combination of a low-resonance mineral-filled polypropylene cabinet, brass stainless steel and aluminium hardware, and gold-plated binding posts.

CONNECTING THE INDIVIDUAL SPEAKERS TO YOUR AMPLIFIER OR RECEIVER:

First turn your amplifier or receiver off to avoid damage which may result from accidental shorting of the speaker leads.

Correct phase polarity is critical for proper stereo imaging and bass performance. The red (+) terminal on your amplifier or receiver must be connected to the red (+) terminal on your speaker. The same applies for the black (-) terminal. Connect one loudspeaker at a time to ensure proper connection of left and right channels. Make sure all wires are firmly fastened.

Black (-) Red (+) Transformer Switch Connect to negative terminal of amplifier or receiver Connect to positive terminal of amplifier or receiver

If you notice a great lack of bass and/or central imaging focus, double check your connections for proper polarity.

MOUNTING THE BRACKET:

Remove the bracket knobs and the bracket from the speaker.

Hold the bracket up to the mounting surface. The speaker can be mounted either horizontally or vertically. Hold the bracket so that the speaker wire fits

±66°

through the large, circular in the bracket. Align the bracket to be square with the surroundings (use level for accuracy). Mark the locations of the three shaped screw holes. Use all of the holes

Drill pilot holes into the mounting surface.

Gently pull the speaker wire through the wire hole in the centre of the mounting bracket. Align the bracket so that the holes all line up.

Securely fasten the bracket to the mounting surface.

FINAL ADJUSTMENTS

After checking that the speaker is in-phase and works correctly, angle the speaker for the best sound.

Hand tighten the bracket knobs only. Power tools may over-tighten the knob, and strip the threads of the insert.

Check that the entire installation is safe and secure.

Weatherproofed to IP35 & UV protected to standard ASTM D4329

250mm (9 1/8") 180mm (7 1/8") 145mm (5 3/8")

High quality 2 way background music speakers for indoor outdoor use. Strong moulded plastic cabinet with metal speaker grille contains a high quality full response 5.25" driver, a 0.5" dome tweeter and an integrated crossover network. Fitted with a 100 volt line matching transformer tapped at 5 / 10 / 20 / 40 watts and 8 ohm all selectable by a rotary switch housed in a weatherproof compartment on the rear of the speaker cabinet which also contains two high quality gold plated binding posts. An indoor / outdoor equalisation switch is fitted for maximum performance in all locations. Supplied complete with sturdy mounting bracket and available in white or black cabinets.

Speaker size	5.25"
Power rms (8 ohm)	65 watts
Power max (8 ohm)	190 watts
Frequency range	.50Hz - 20kHz
Dimensions	.250 x 180 x 145mm

INDOOR/OUTDOOR BASS BOOST SWITCH:

Audio experts have known for years that sound and bass frequencies in particular, lose impact in outdoor environments. To compensate, many people will turn up the volume, overdriving the system, and damaging the speakers components.

I-INDO I-INDO Outdoor

In response, Adastra has designed a unique switch that increases bass when in the 'outdoor' position. At the same time, it protects the speaker from overdrive damage in exterior applications. The result is dramatically improved sound reproduction, more reliable operation, and longer life. In the 'indoor' position, performance is automatically adjusted to produce optimum results for indoor use.

ALL WEATHER DESIGN:

The materials used in the manufacture of Adastra speakers have been carefully selected to stand up to extremes of temperature (from -50°F to 200°F), rain, snow, heat, salty, water and the suns UV rays. Adastra speakers are ruggedly constructed with a combination of a low-resonance mineral-filled polypropylene cabinet, brass stainless steel and aluminium hardware, and gold-plated binding posts.

CONNECTING THE INDIVIDUAL SPEAKERS TO YOUR AMPLIFIER OR RECEIVER:

First turn your amplifier or receiver off to avoid damage which may result from accidental shorting of the speaker leads.

Correct phase polarity is critical for proper stereo imaging and bass performance. The red (+) terminal on your amplifier or receiver must be connected to the red (+) terminal on your speaker. The same applies for the black (-) terminal. Connect one loudspeaker at a time to ensure proper connection of left and right channels. Make sure all wires are firmly fastened.

Black (-) Red (+) Transformer Switch Connect to negative terminal of amplifier or receiver Connect to positive terminal of amplifier or receiver

If you notice a great lack of bass and/or central imaging focus, double check your connections for proper polarity.

MOUNTING THE BRACKET:

Remove the bracket knobs and the bracket from the speaker.

Hold the bracket up to the mounting surface. The speaker can be mounted either horizontally or vertically. Hold the bracket so that the speaker wire fits

±66°

through the large, circular in the bracket. Align the bracket to be square with the surroundings (use level for accuracy). Mark the locations of the three shaped screw holes. Use all of the holes

Drill pilot holes into the mounting surface.

Gently pull the speaker wire through the wire hole in the centre of the mounting bracket. Align the bracket so that the holes all line up.

Securely fasten the bracket to the mounting surface.

FINAL ADJUSTMENTS

After checking that the speaker is in-phase and works correctly, angle the speaker for the best sound.

Hand tighten the bracket knobs only. Power tools may over-tighten the knob, and strip the threads of the insert.

Check that the entire installation is safe and secure.

Weatherproofed to IP35 & UV protected to standard ASTM D4329
