USER MANUAL 302-1409BW-W LA CROSSE TECHNOLOGY

P 12:34 0/28 72°F NOW 1 Hz 24 Hz MONTH YEAR TOTAL 12.6 48% DRT COMOUNT ME TEMP | SET HUMIDITY | LA CROSSE® TECHNOLOGY

SETUP GUIDE

MODEL: 302-1408

Initial Setup

1. Insert 2-AAA battery into the Comfort Meter.
2. Use the Settings Menu to set your time and date.

Settings Menu

1. Hold the TEMP | SET button to enter the Settings Menu.
2. Use the HUMIDITY I + button to adjust values.
3. Press the TEMP | SET button to confirm.

Settings Menu order:

• 12/24 Hour Time
• Hour
- Minutes
- Year
- Month
- Date
• Month/Date or Date/Month
• Fahrenheit/Celsius

Indoor Comfort Indicator

The Indoor Comfort Indicator is based on your Indoor Humidity. The Arrow will indicate comfort level.

DRY COMFORT WET 47%

Buttons TEMP | SET HUMIDITY | +

Too Dry	1% to 25%
Dry	26% to 39%
Comfort	40% to 75%
Wet	76% to 83%
Too Wet	84% to 99%

Comfort Meter 302-1409BW-W

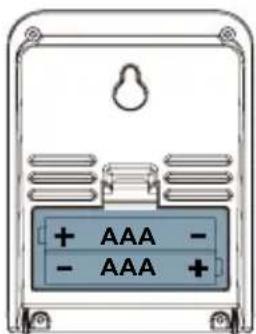

+ AAA - - AAA +

Temperature/Humidity Records

1. Press the TEMP I SET button to view HI and LO Temperature Records with time and date.
2. Press the HUMIDITY I + button to view HI and LO Humidity Records with time and date.

- NOW: Current temperature & humidity readings. Display will default back to these values.

• 1 Hr: 1 Hour records, update at the top of each hour.

• 24Hr: Daily records, update daily at 12am midnight.

- MONTH: Current month records, update at 12am each day. Reset on the first day of each new calendar month.

- YEAR: Current year records, update at 12 am each day. Reset at the start of each new calendar year.

- TOTAL: Records since the unit was first power on or last reset. These update at the top of each hour.

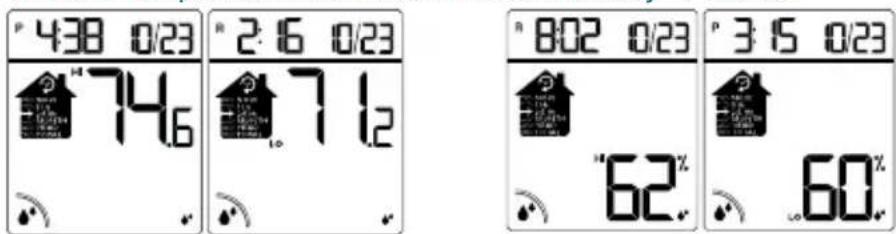

24 Hour Temperature HI and LO 24 Hour Humidity HI and LO

4:30 0/23 74.6 2:6 0/23 71.2 8:02 0/23 62% 3:15 0/23 60%

Reset Temperature/Humidity Records

Reset HI | LO Records:

1. Press the TEMP | SET or HUMIDITY | + button to view records.
2. While viewing records, hold the TEMP | SET or HUMIDITY | + button to reset all Temperature or all Humidity records to current values.

Temperature/Humidity Trend Arrows

The Temperature (2°F/1°C) and Humidity (3%) Trend Arrows update every 15 minutes and reflect changes over the past 3 hours.

Temperature or humidity has risen

Temperature or humidity has fallen

Specifications

Comfort Meter (302-1409BW-W)

• Temperature Range: 32°F to 99°F (0°C to 37°C)
• Humidity Range: 10% to 99% RH
• Power: 2-AAA, IEC, LR3 Battery (Not Included)
• Battery Life: 24+ months

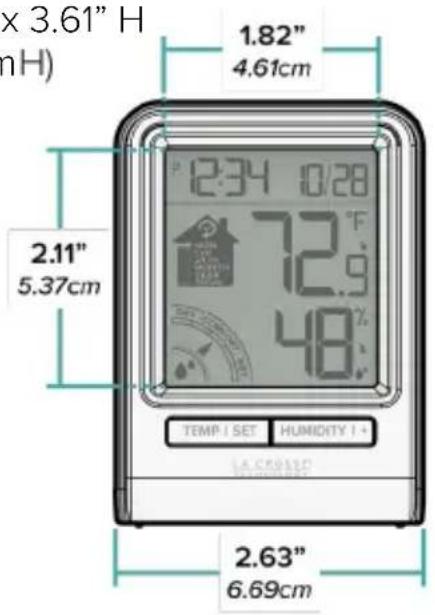

- Dimensions: 2.63" L × 1.22" W × 3.61" H (6.69cm L × 3.37cm W × 9.18cm H)

x 3.61" H (H) 1.82" 4.61cm 2.11" 5.37cm 12:34 0:28 72.9 48 TEMP | SET HUMIDITY | LA CABBRE LA CHINA 2.63" 6.69cm

3.61" 9.18cm 1.22" 3.37cm 4

Care & Maintenance

When batteries of different brand or type are used together, or new and old batteries are used together, some batteries may be over-discharged due to a difference of voltage or capacity. This can result in venting, leakage, and rupture and may cause personal injury.

• Do not mix Alkaline, Lithium, standard, or rechargeable batteries.
  • Always purchase the correct size and grade of battery most suitable for the intended use.
• Always replace the whole set of batteries at one time, taking care not to mix old and new ones, or batteries of different types.
• Clean the battery contacts and also those of the device prior to battery installation.
• Ensure the batteries are installed correctly with regard to polarity (+ and -).
• Remove batteries from product during periods of non-use. Battery leakage can cause corrosion and damage to this product.
• Remove used batteries promptly.

- For recycling and disposal of batteries, and to protect the environment, please check the internet or your local phone directory for local recycling centers and/or follow local government regulations.

WARNING: This product can expose you to chemicals including acrylonitrile, 1, 3-butadiene, and styrene, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information g to: www.P65Warnings.ca.gov

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Caution!

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

All rights reserved. This manual may not be reproduced in any form, even in part, or duplicated or processed using electronic, mechanical or chemical process without the written permission of the publisher. This booklet may contain errors or misprints.

The information it contains is regularly checked and corrections are included in subsequent editions. We disclaim any responsibility for any technical error or printing error, or their consequences. All trademarks and patents are recognized.

The manufacturer is not responsible for any radio or TV interference caused by unauthorized changes or modifications to this equipment. Such changes or modifications could void the user authority to operate the equipment.

Stay in Touch

Ask questions, watch set up videos, and provide feedback on our social media outlets. Follow La Crosse Technology on Youtube, Facebook, Instagram, and X (Twitter).

Row of five social media and video platform icons (YouTube, Facebook, Instagram, X) in distinct colors with no text or symbols.

We're Here to Help

If you require additional assistance, get in touch with our friendly customer support team based in La Crosse, WI.

Self Help: bit.ly/302-1409bw-w_support

Online: bit.ly/contact_techsupport

Phone: [phone]

Our knowledgeable customer support team is available: Mon-Fri 8am-6pm CST

SCAN HERE Additional Info and Support ▼

QR code image with a teal border, no visible text or symbols beyond the matrix pattern

Warranty & Patents

La Crosse Technology Ltd. provides a 1-year limited-time warranty on this product relating to manufacturing defects in materials & workmanship. Per the Song-Beverly Act, in the state of California, the warranty on this item becomes effective on the date of delivery.

La Crosse Technology, Ltd, 2830 S. 26th St., La Crosse, WI 54601

For Full Warranty Details, Visit: www.lacrossetechnology.com/pages/warranty Patents: www.lacrossetechnology.com/pages/patents

Designed in La Crosse, Wisconsin • Made in China • Printed in China • DC 100324
