WARNING

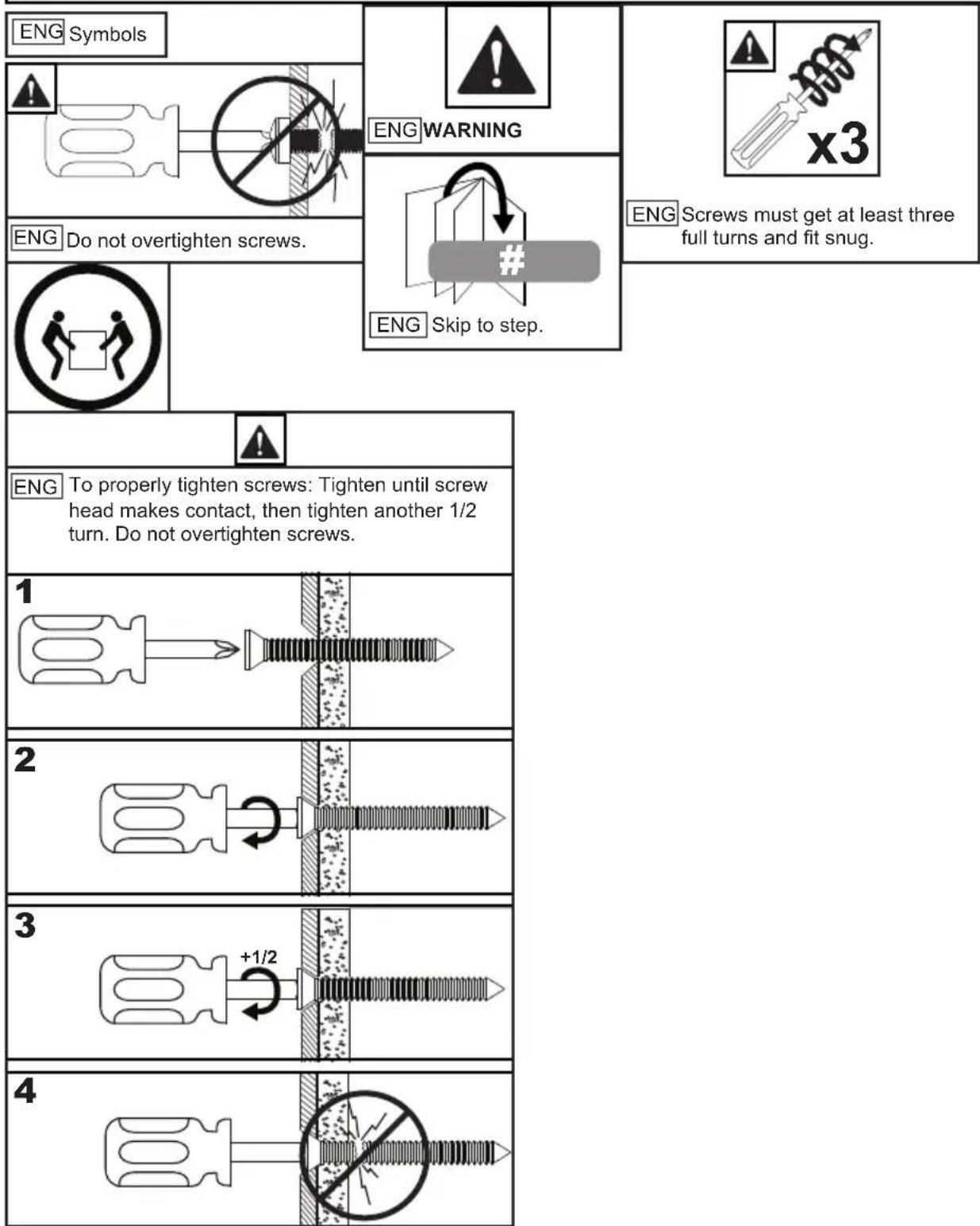

ENG - Do not begin to install product until you have read and understood the instructions and warnings contained in this user guide. This product is designed to be installed on wood stud, solid concrete or cinder block walls. Hardware is included for wood stud, solid concrete and cinder block installation. Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail. Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to safely lift and position equipment. This product is intended for indoor use only. Use of this product outdoors could lead to product failure or personal injury. To reduce the risk of electric shock or fire, do not expose product to water or moisture. Be sure power cord is routed so that it will not be tripped on, stepped on, or pinched by heavy items. Avoid overloading electrical outlets or extension cords. Always disconnect the power cord from the power outlet when installing, servicing, or not using the product for an extended period of time. Do not block ventilation slots or fan exhaust on product. Blocking airflow could damage product. Arrange product to allow air to flow freely around product. Keep product away from direct sunlight or any source of heat. For support please call 800-4-SIGNAGE.

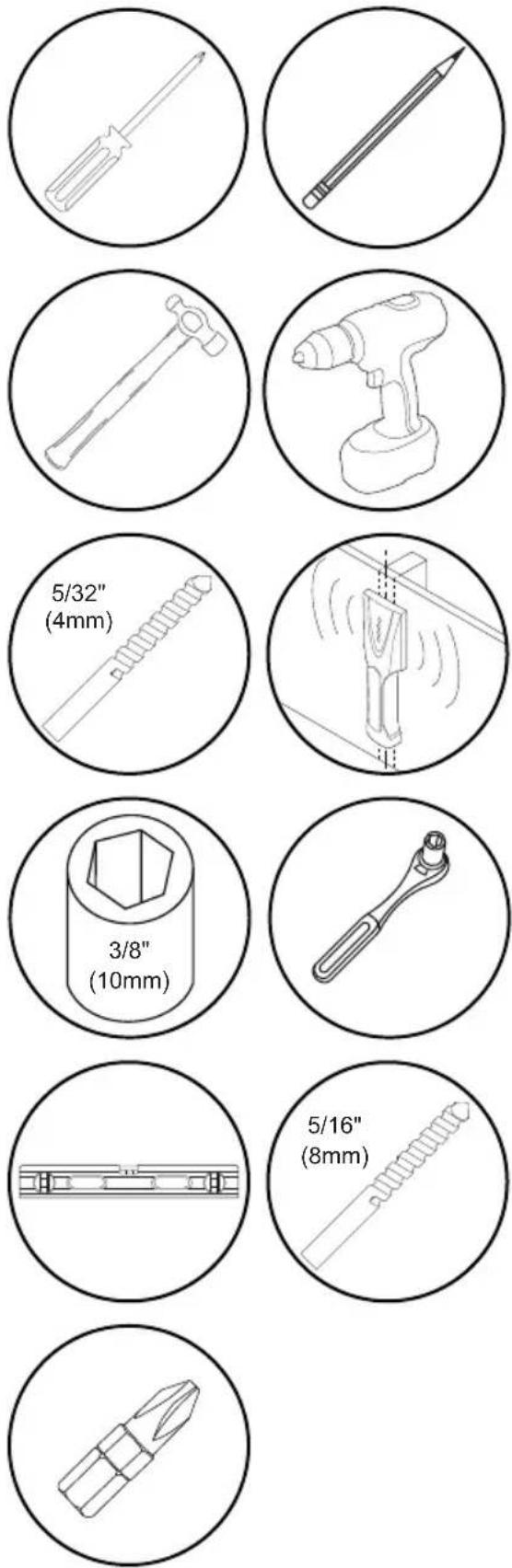

ENG Tools Needed for Assembly.

Parts List		KIL640	KIL642	KIL646	KIL647
Description Qty		KIL640S	KIL642S	KIL646S	KIL647S
		Part #	Part #	Part #	Part #
A Kiosk BLK		1 xxx-xxxx xxx-xxxx xxx-xxxx xxx-xxxx
Kiosk SLV
B M5 x 12mm		4 520-1027 520-1027 520-1027 520-1027
C M5 X 25mm		4 520-9543 520-9543 520-9543 520-9543
D M6 x 12mm		4 520-1128 520-1128 520-1128 520-1128
E M6 x 25mm		4 520-1208 520-1208 520-1208 520-1208

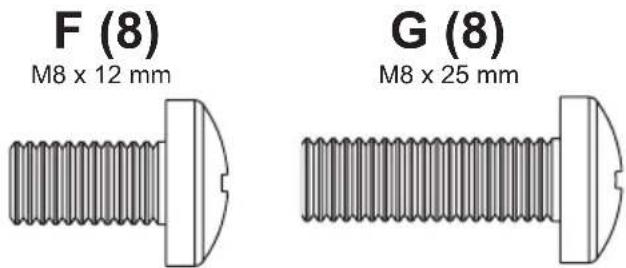

F M8 x 12mm		4 520-9571 520-9571 520-9571 520-9571
G M8 x 25mm		4 520-1031 520-1031 520-1031 520-1031
H M5/M4/M6 multi washer 4 580-1398 580-1398 580-1398 580-1398
I Spacer 4 540-1059 540-1059 540-1059 540-1059
J Key		2 565-0049A	565-0049A	565-0049A	565-0049A
K T-Wrench		1 560-1718 560-1718 560-1718 560-1718
L concrete anchor		4 590-0320	590-0320	590-0320	590-0320
M wood screw		4 5S1-015-C04	5S1-015-C04	5S1-015-C04	5S1-015-C04

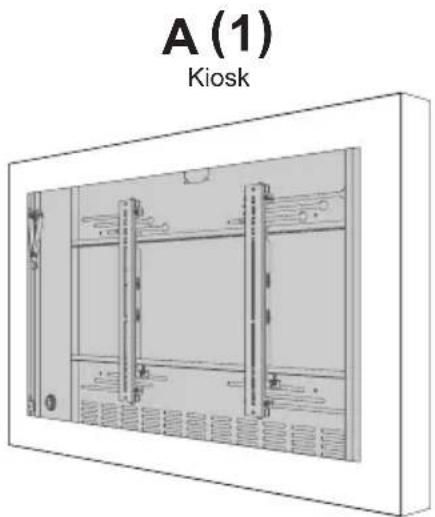

A (1) Kiosk

B (8) M5 x 12 mm C (8) M5 x 25 mm

D (8) M6 x 12 mm E (8) M6 x 25 mm

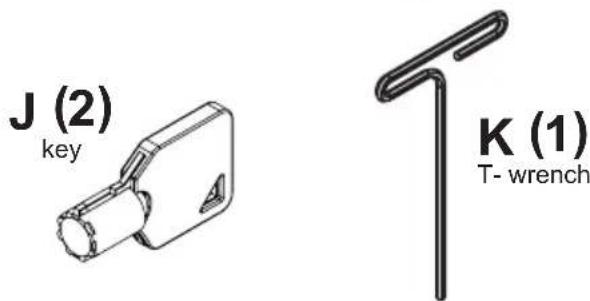

J (2) key K (1) T- wrench

F (8) M8 x 12 mm G (8) M8 x 25 mm

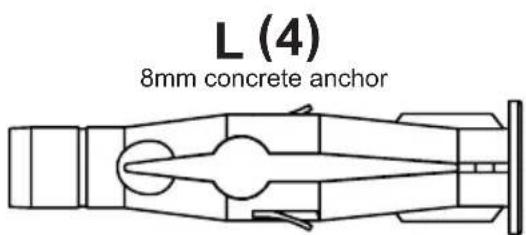

L (4) 8mm concrete anchor

H (8) M5/M4/M6 washer

I (8) spacer

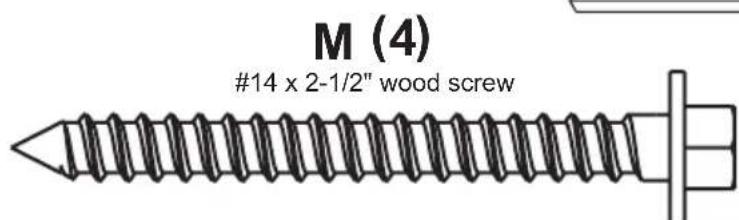

M (4) #14 x 2-1/2" wood screw

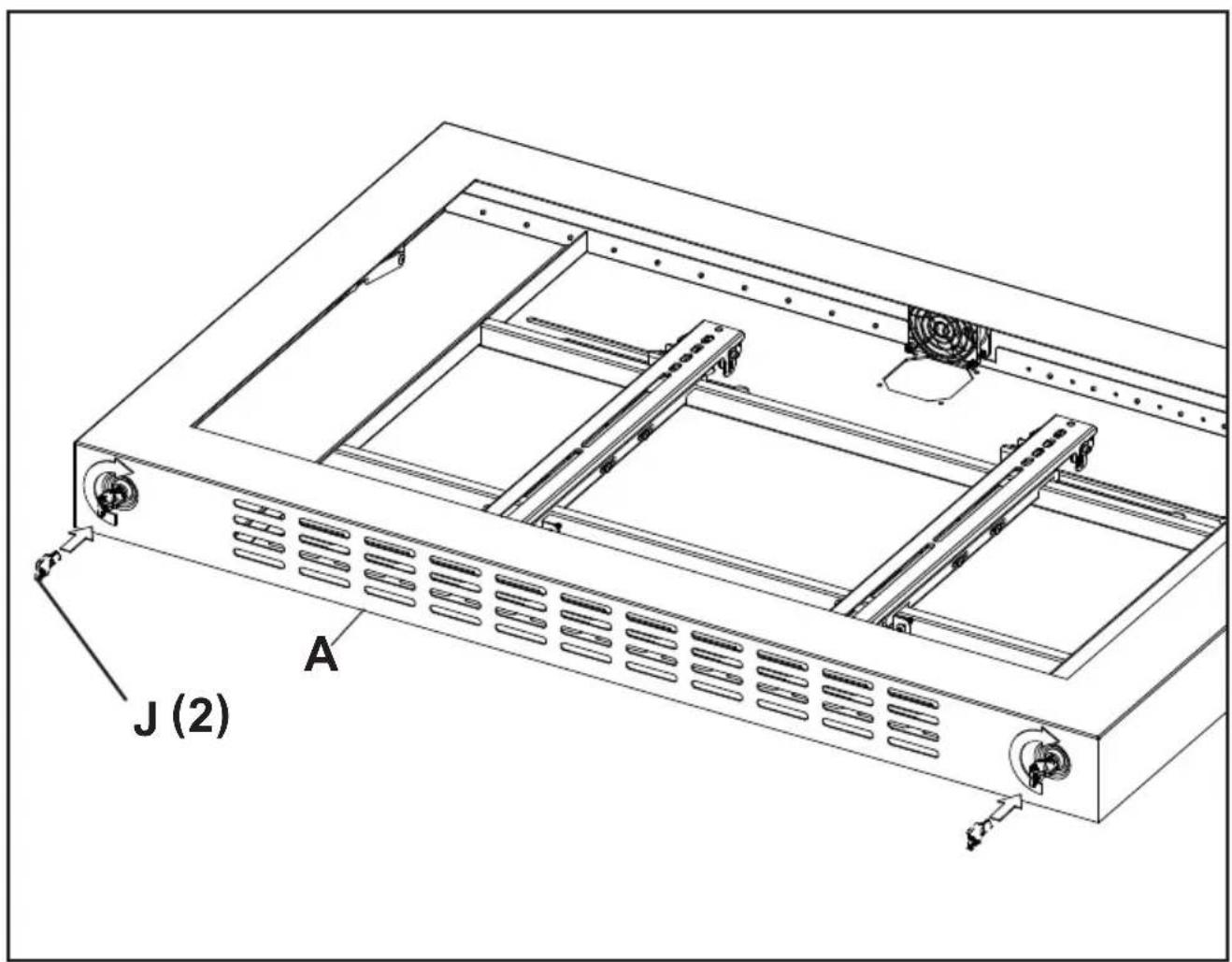

J (2) A

2

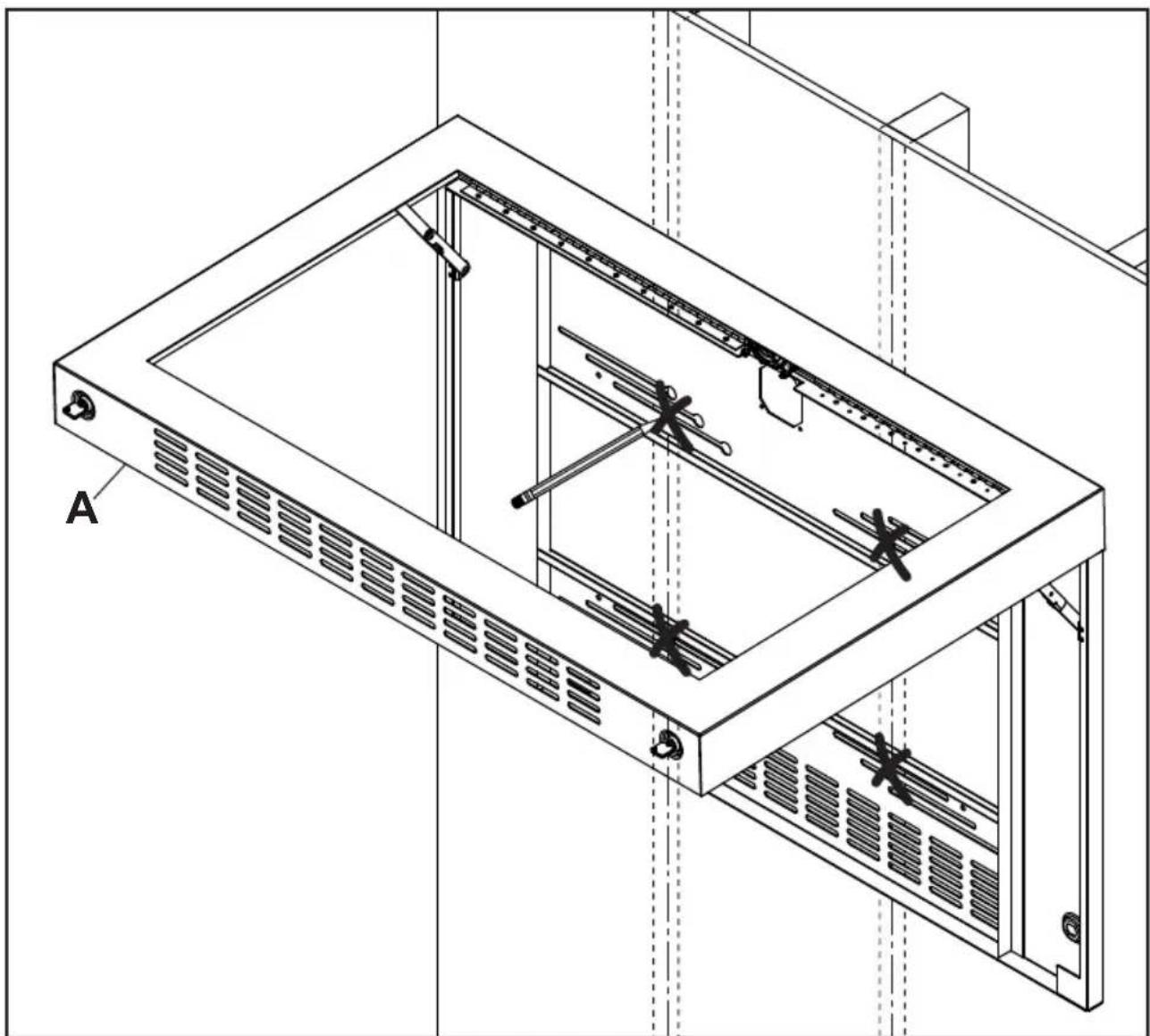

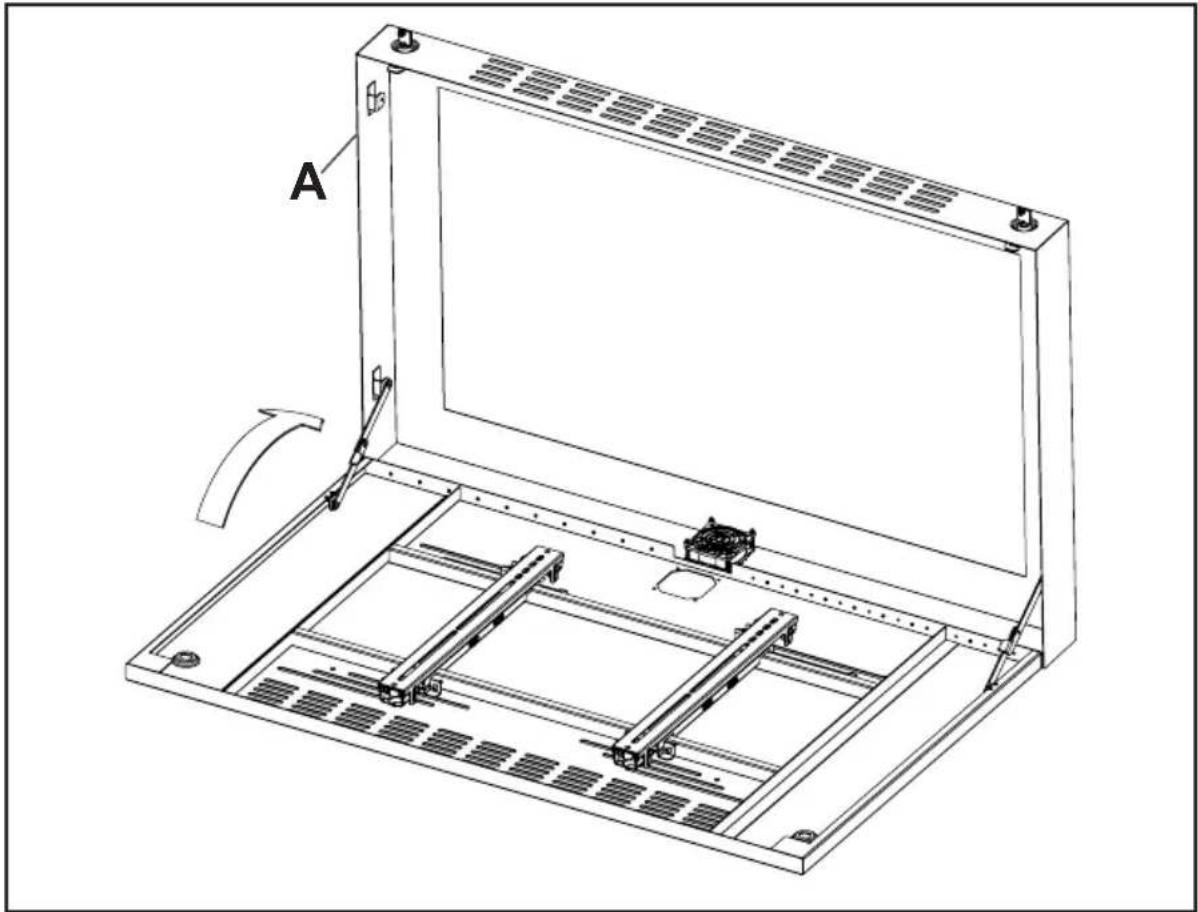

Technical line drawing of a mechanical device with labeled component A, showing internal components and mounting points (no text or symbols beyond label)

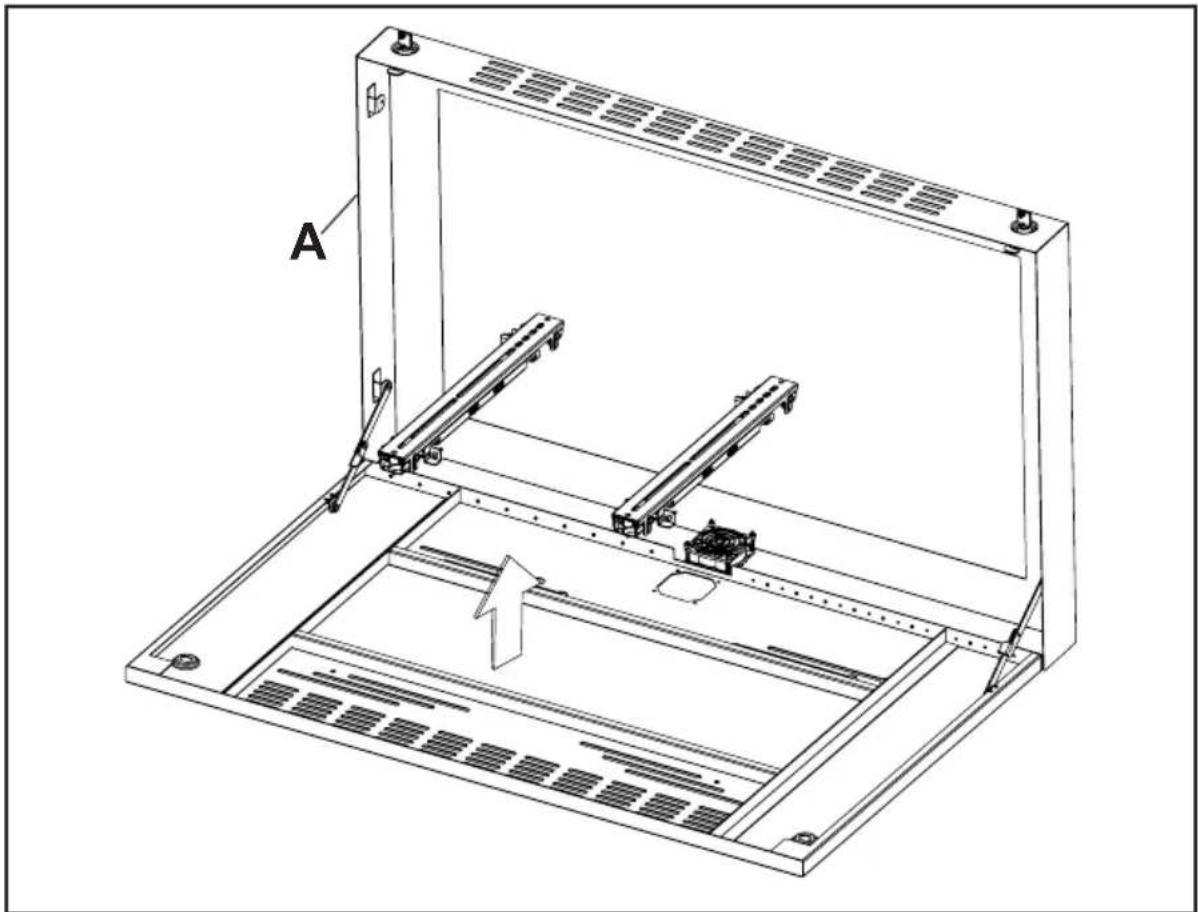

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

3

Isometric line drawing of a 3D rectangular prism with X and Y axis lines (no text or symbols)

ENG

Simple line drawing of a mechanical component with an arrow indicating rotation or force (no text or symbols)

ENG
Concrete/Cinder block.

Isometric line drawing of a 3D block structure with internal cavities (no text or symbols)

3b3a

3a-1

Simple line drawing of a mechanical component with motion lines, enclosed in a circle (no text or symbols)

Simple line drawing of a horizontal beam with supports, enclosed in a circle (no text or symbols)

Simple line drawing of a pencil inside a circle (no text or symbols)

ENG

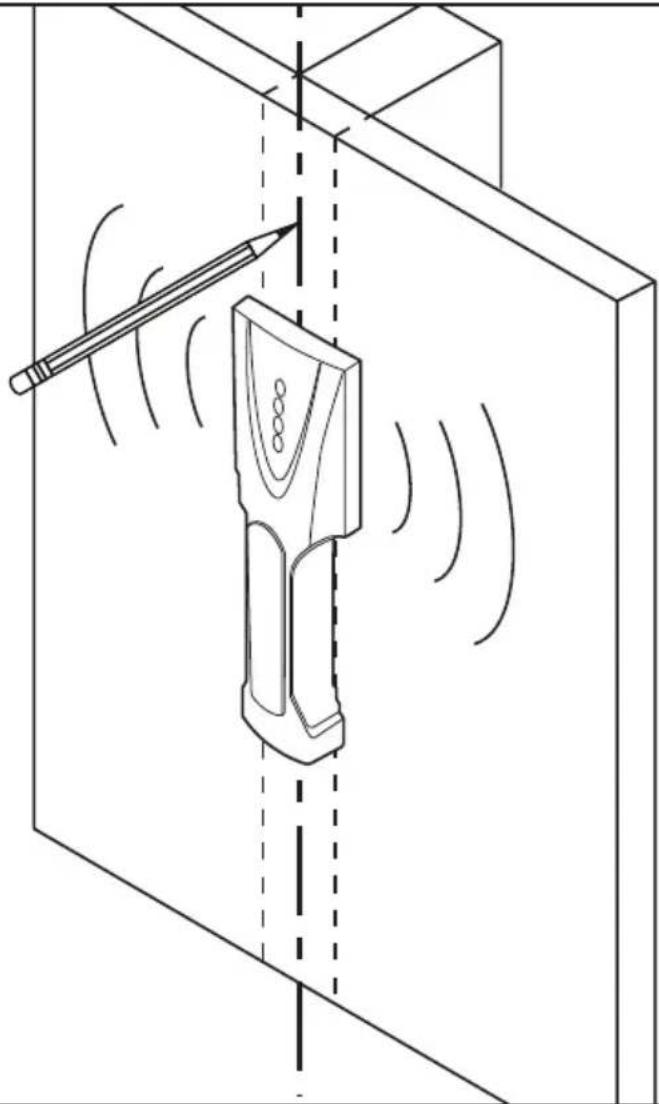

Use stud finder to locate and mark stud center lines.

Technical line drawing of a mechanical device with motion lines indicating movement, no text or symbols present

3a-2

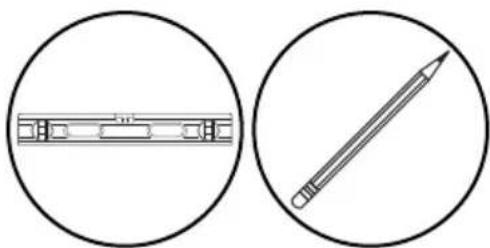

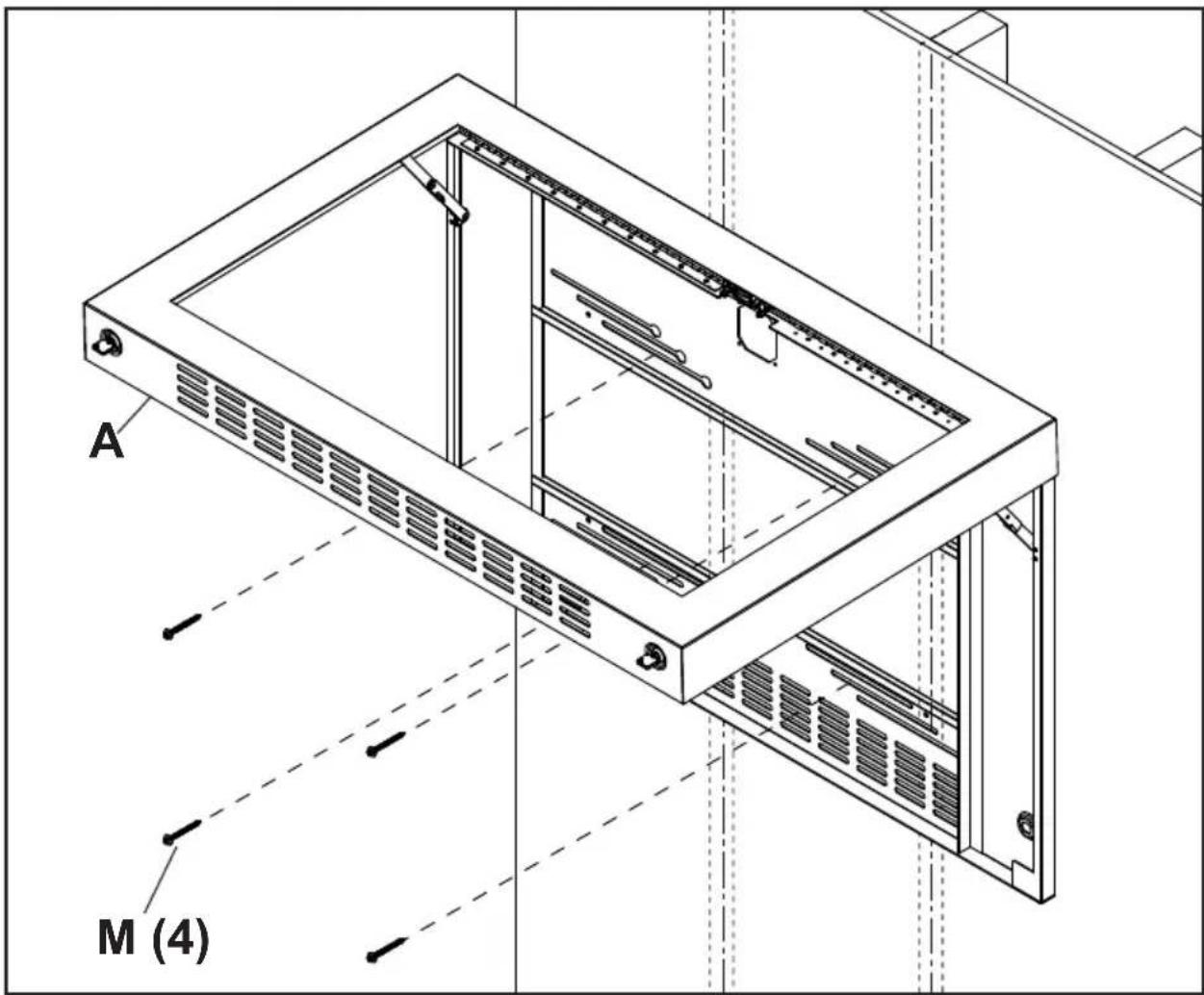

ENG Level wallplate. Mark mounting holes on stud center lines.

Two circular diagrams: one showing a mechanical component with a rectangular slot, the other showing a pencil inserted into a pencil (no text or symbols)

Technical line drawing of a server rack unit with ventilation grilles and mounting brackets (no text or symbols)

3a-3

Line drawing of a handheld electric drill bit inside a circle (no text or symbols)

5/32" (4mm)

ENG

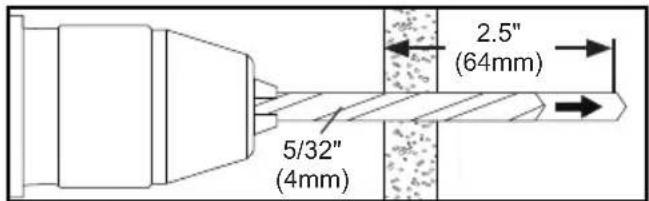

Drill mounting holes into supporting surface (2.5" (64 mm) minimum depth required).

5/32" (4mm) 2.5" (64mm)

ENG
Mounting hole must center on stud.

3a-4

Line drawing of a wrench inside a circle (no text or symbols)

3/8" (10mm)

Simple line drawing of a rectangular object inside a circle (no text or symbols)

A M (4)

Safety warning symbol and diagram showing a pipe joint with a circular hazard symbol indicating no hazard.

WARNING

ENG • When installing Peerless wall mounts on a concrete wall, the wall must be at least 8" thick with a minimum compressive strength of 2000 psi.

- When installing Peerless wall mounts on a cinder block wall, the cinder blocks must meet ASTM C-90 specifications and have a minimum nominal width of 8". Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1" (25 mm) minimum from the side of the block. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to avoid breaking out the back of the hole when entering a void or cavity.

- Never attach expansion anchors to concrete or cinder block covered with plaster, drywall or other finishing material.

3b-1

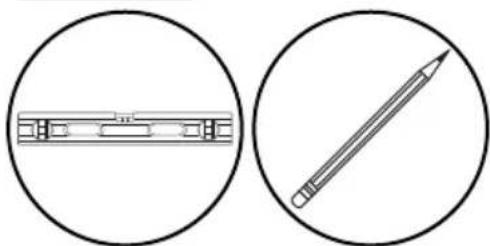

Two circular diagrams: one showing a rectangular object with internal components, the other showing a pencil (no text or symbols)

ENG Level wallplate. Mark mounting holes. Make sure mounting holes are 1" off motor joints.

A 1" (25mm)

3b-2

Line drawing of a handheld electric drill (no text or symbols)

5/16" (8mm)

ENG
Drill mounting holes into supporting surface (2.5" (64 mm) minimum depth required).

5/16" (8mm) 2.5" (64mm)

Do not drill into mortar joints.

3b-3

Simple line drawing of a hammer inside a circle (no text or symbols)

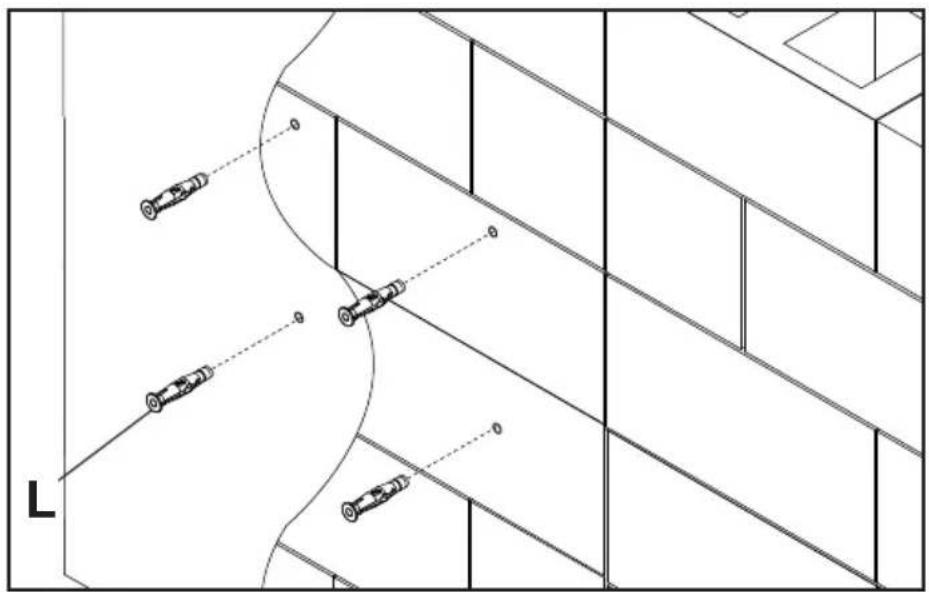

Diagram showing a mechanical component with an arrow pointing to a cross-section of a cylindrical structure (no text or symbols present)

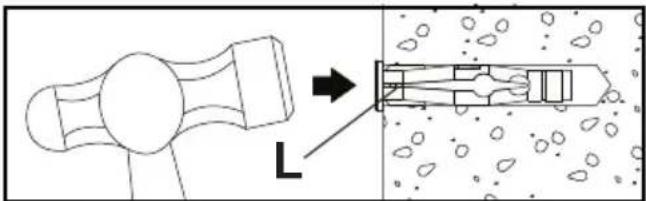

Insert anchor flush to concrete.

Technical line drawing of a mechanical assembly with multiple components and alignment lines (no text or symbols)

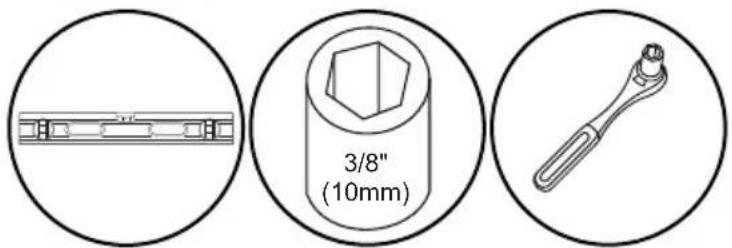

3b-4

3/8" (10mm)

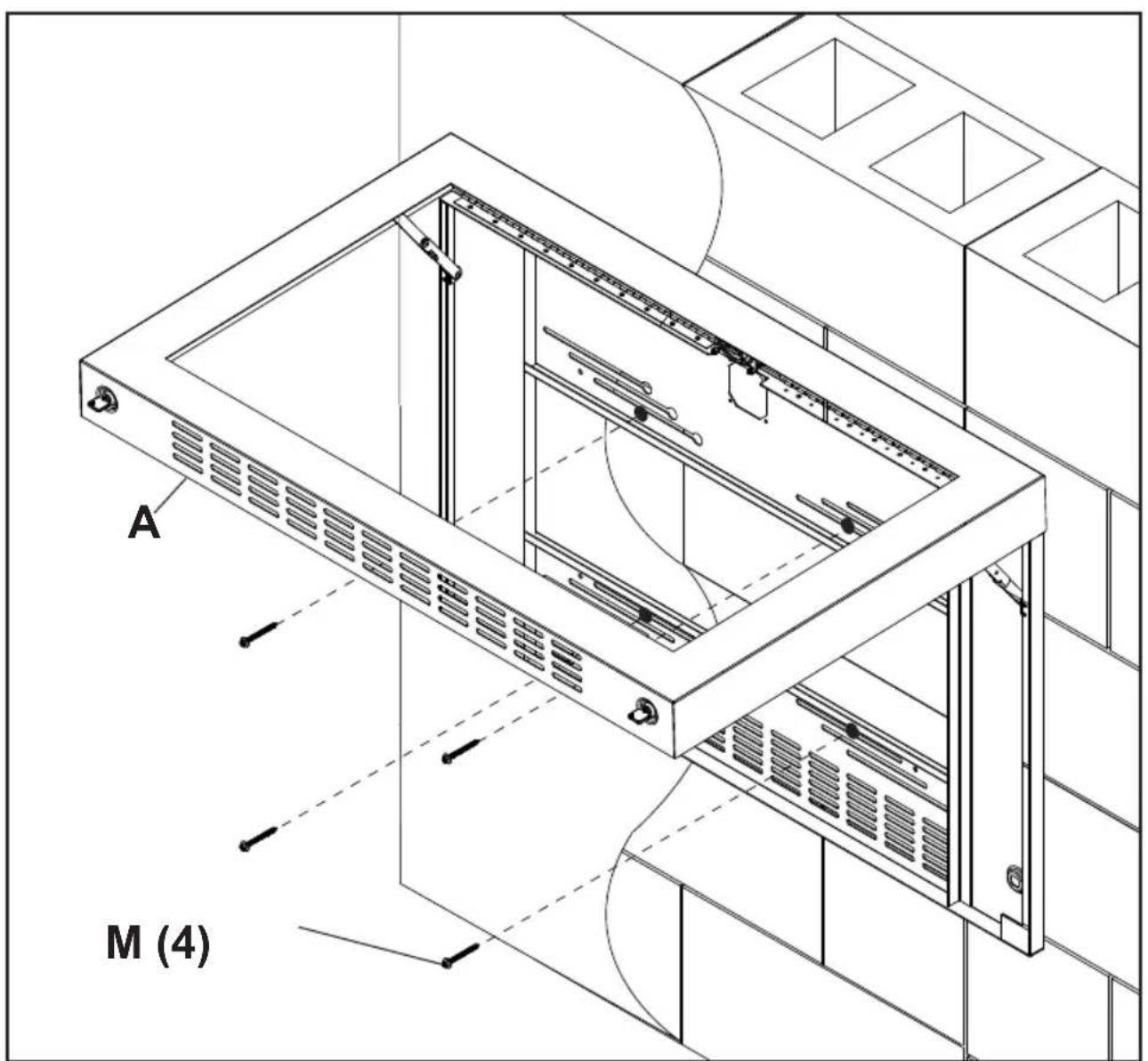

ENG Level wallplate. Install using concrete anchors and wood screws provided.

ENG Maximum 80 in. • lb (9 N.M.)

A M (4)

4

Simple line drawing of a screwdriver inside a circle (no text or symbols)

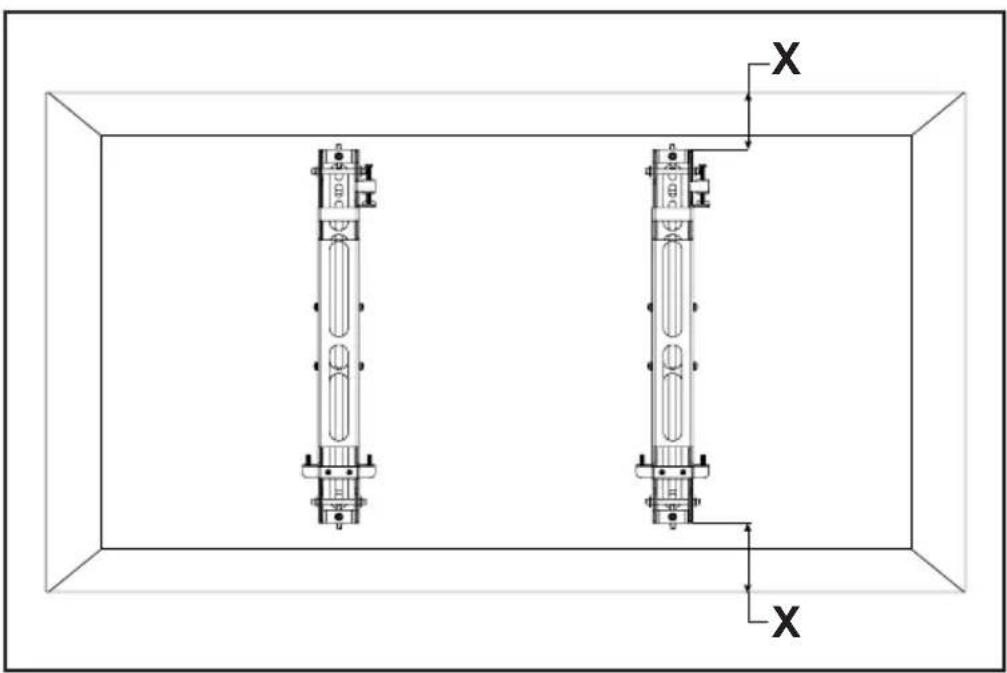

Technical line drawing of two vertical cylindrical structures with labeled X-axis indicators (no text or symbols on the structures themselves)

Isometric diagram of two mechanical components mounted on a base plate, with directional arrows indicating movement or force (no text or symbols present)

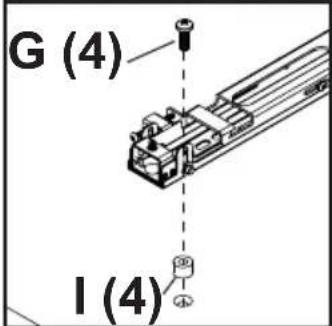

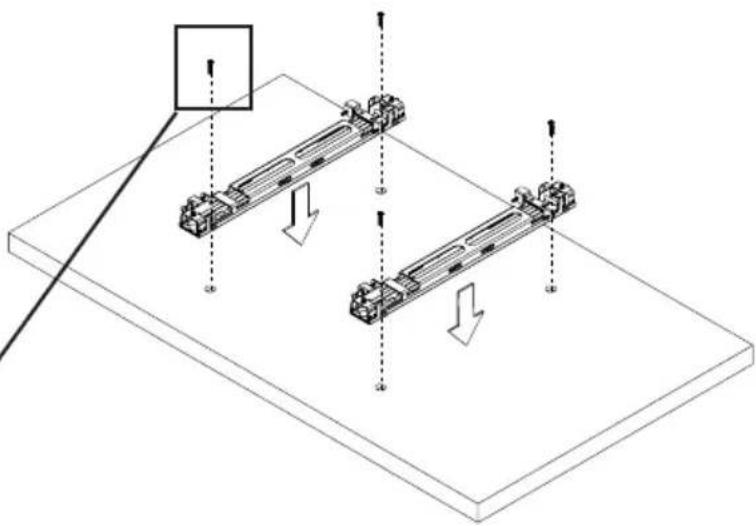

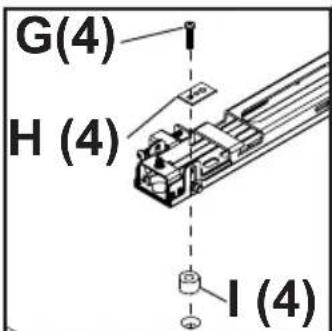

G(4) H (4) I (4)

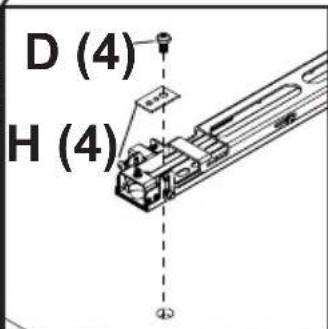

D (4) H (4)

B (4) H (4)

x3

G (4) I (4)

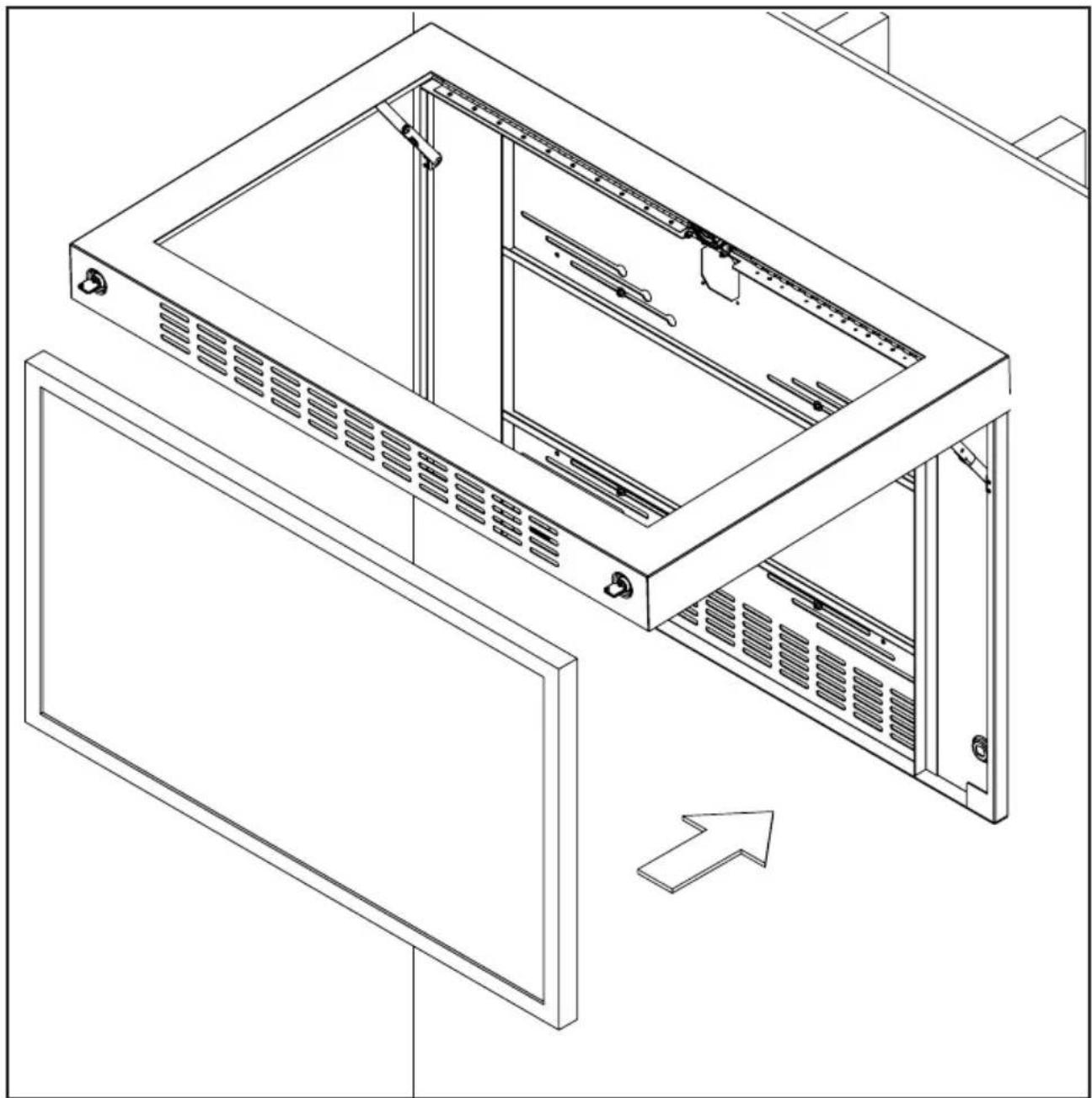

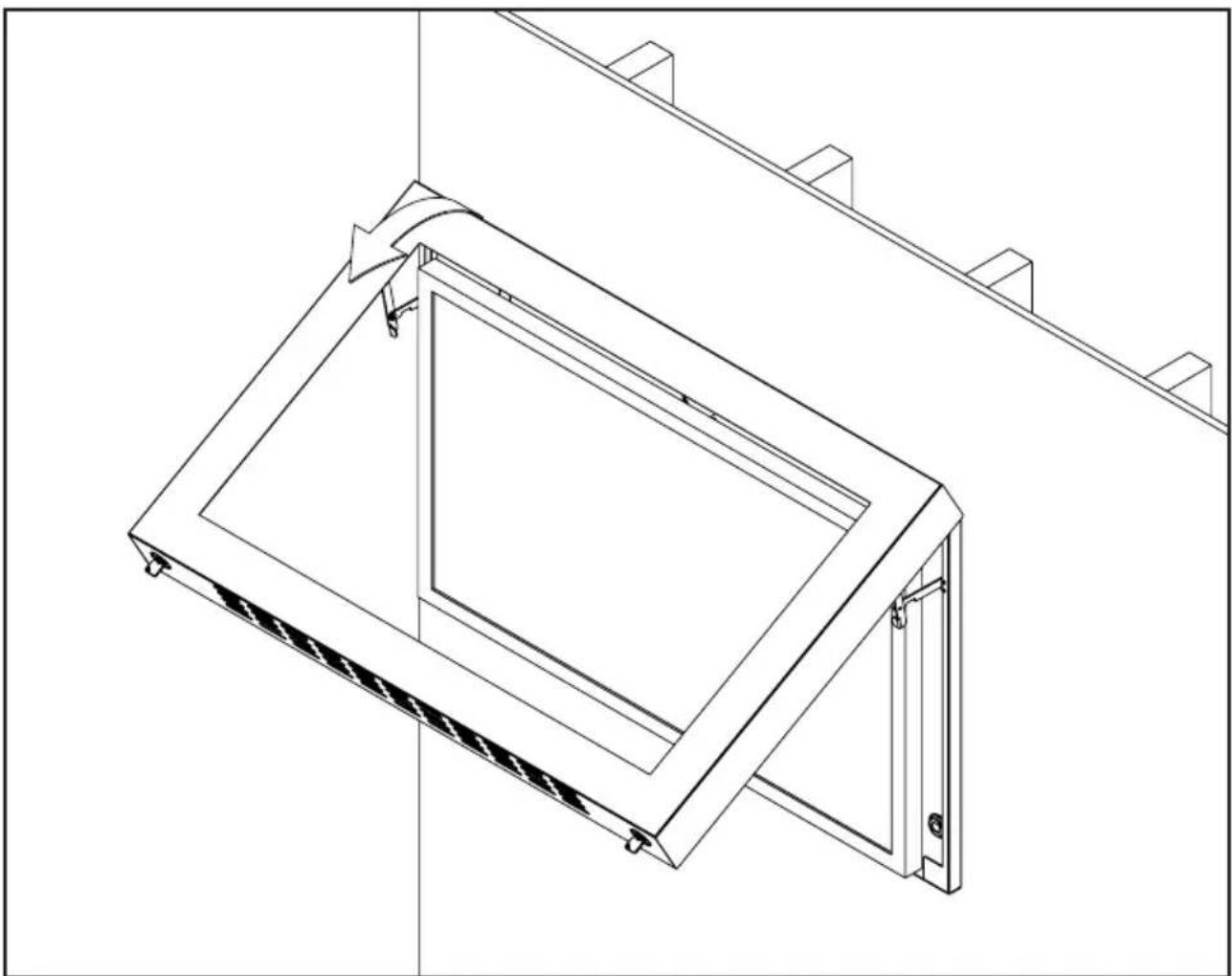

E (4) H (4) I (4)

F (4)

Technical line drawing of a server rack cabinet with ventilation grilles and mounting bracket (no text or symbols)

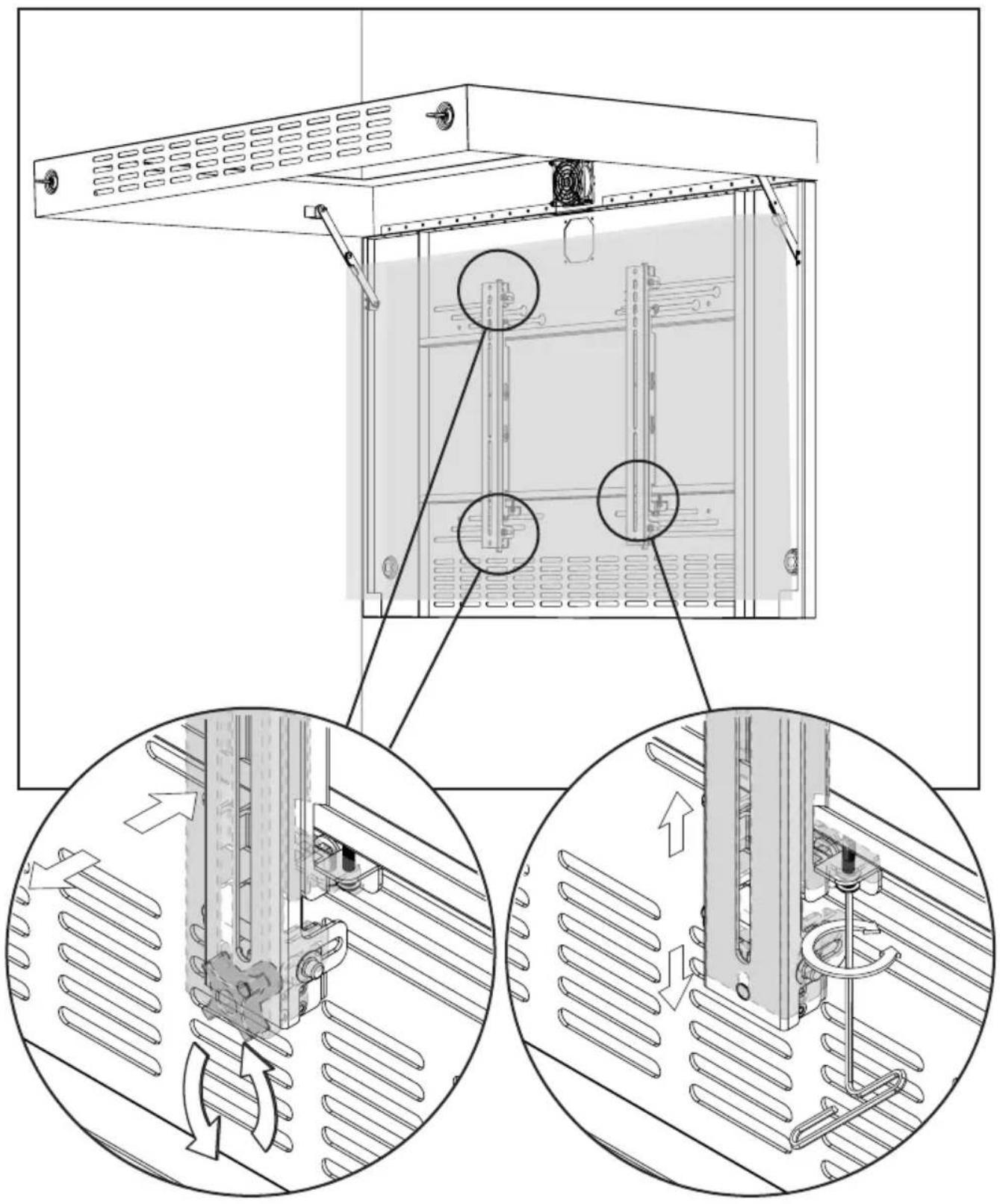

Technical diagram showing internal components of a server rack with labeled parts and directional arrows indicating assembly or movement.

Technical line drawing of a mechanical frame assembly with mounting brackets and a curved arrow indicating motion (no text or symbols)

Technical line drawing of a rectangular panel with a perforated side and mounting holes (no text or symbols)
