USER MANUAL 5DW66750AU BLAUPUNKT

AU Warning! Before proceeding with installation, read the Recommendations and Suggestions in the User Manual.

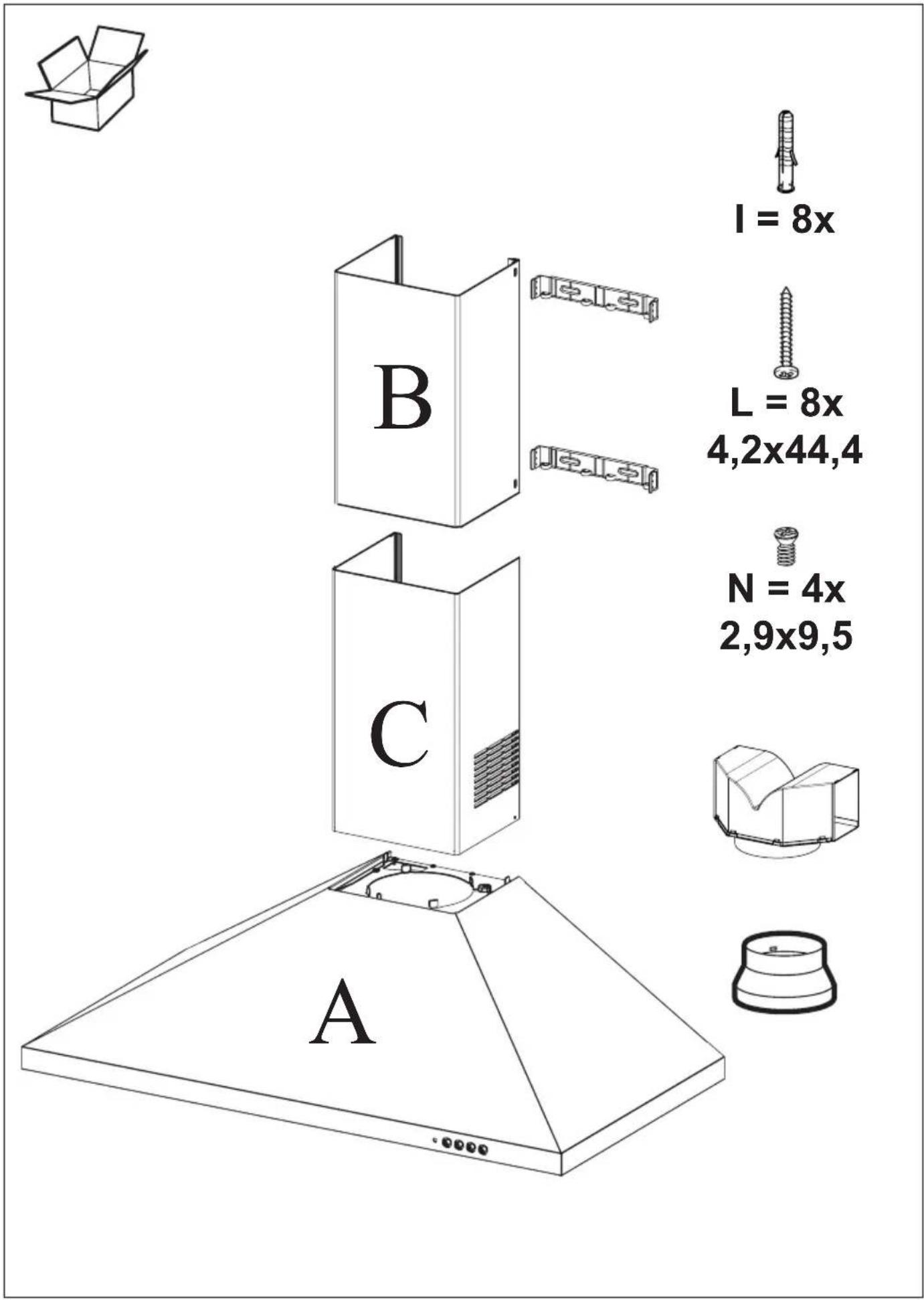

B C A I = 8x L = 8x 4,2x44,4 N = 4x 2,9x9,5

2x Ø 120 mm Ø 150 mm

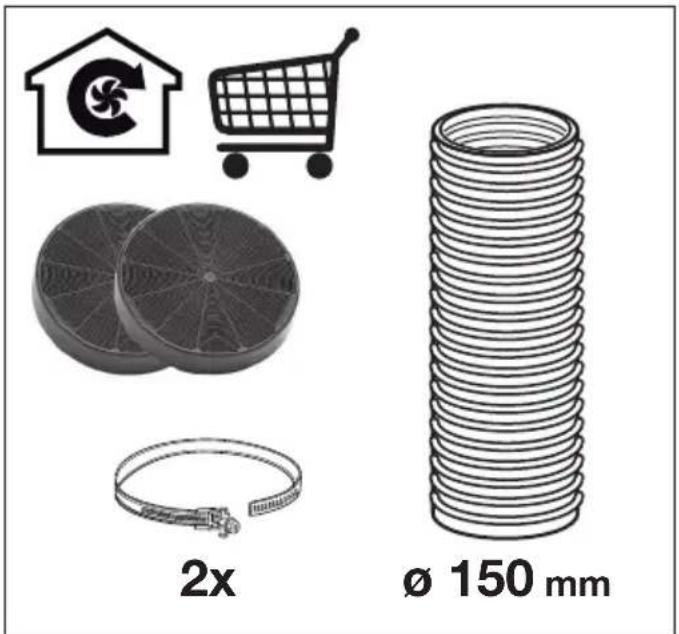

2x Ø 150 mm

! OK!

Warning symbol image showing a hand with an exclamation mark and a pair of gloves, likely indicating hazard or safety warning.

Technical diagram illustrating airflow and angle specifications for a building ventilation system, including airflow direction and 2° angle.

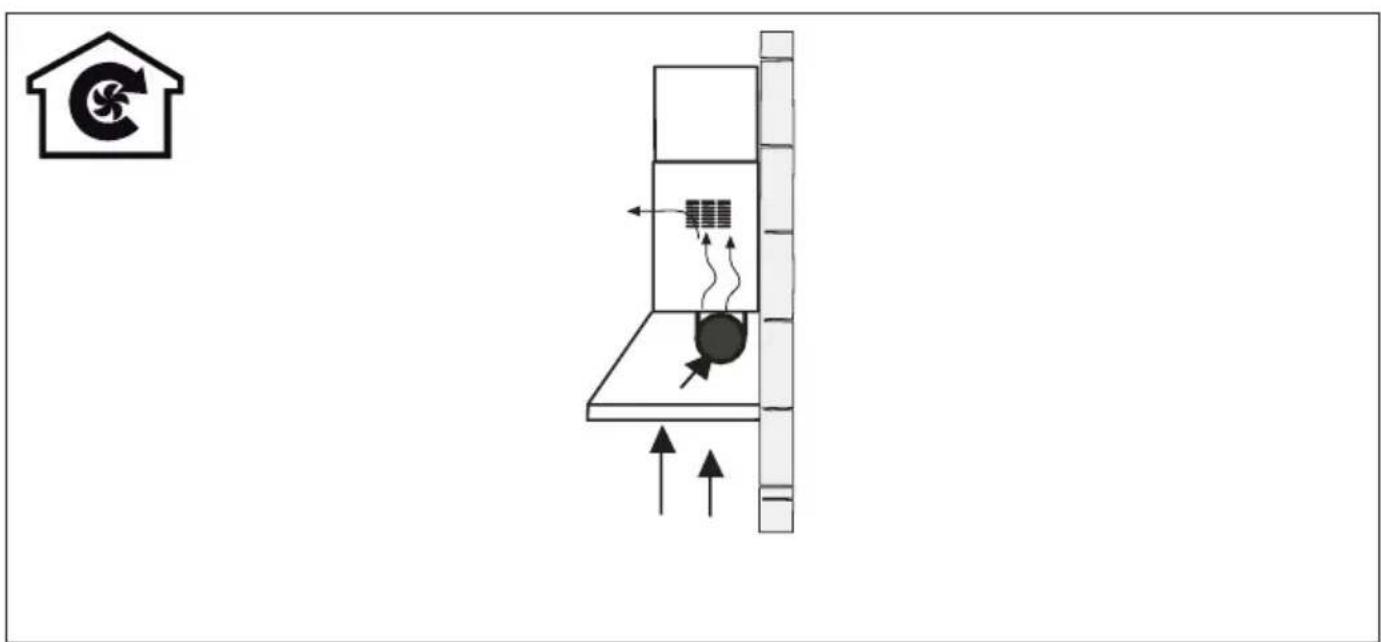

Diagram illustrating airflow or ventilation system with a house icon and directional arrows, showing components like solar panels and air flow.

1 ↑ € = =

2

210 598-898

180 6 126 81 47 390 Min 790- Max 1015 250 470

3 B 50 6 B 1-2 mm 78 56 34 12 Ø8 mm 650 min. 500 min.

4 I = 8x

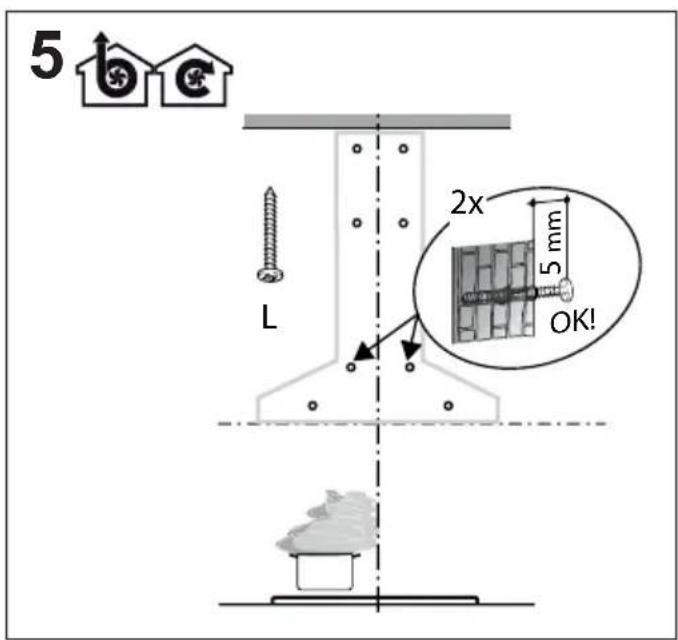

5 L 2x 5 mm OK!

7 2x

8 2x

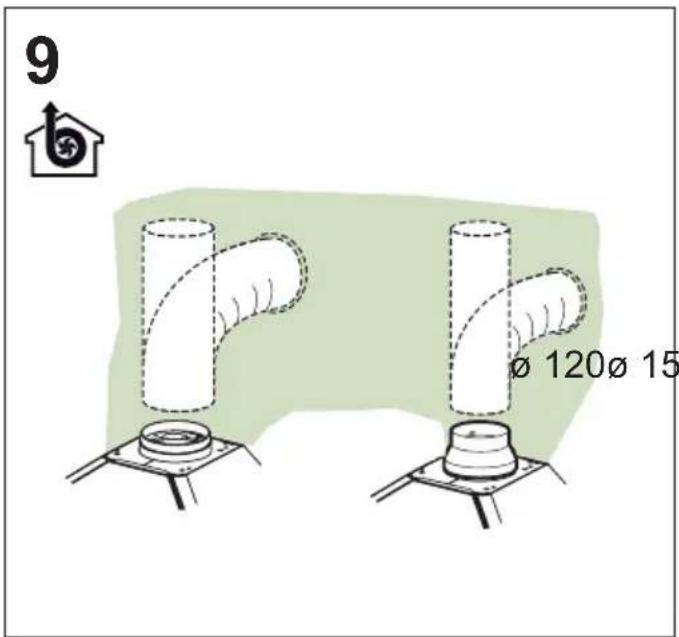

9 ø 120ø 15

10 L = 4x

11 €

Diagram showing a ceiling-mounted device with a door and a hand inserting a clip into a panel, accompanied by a house icon labeled 'C' in the top-left corner.

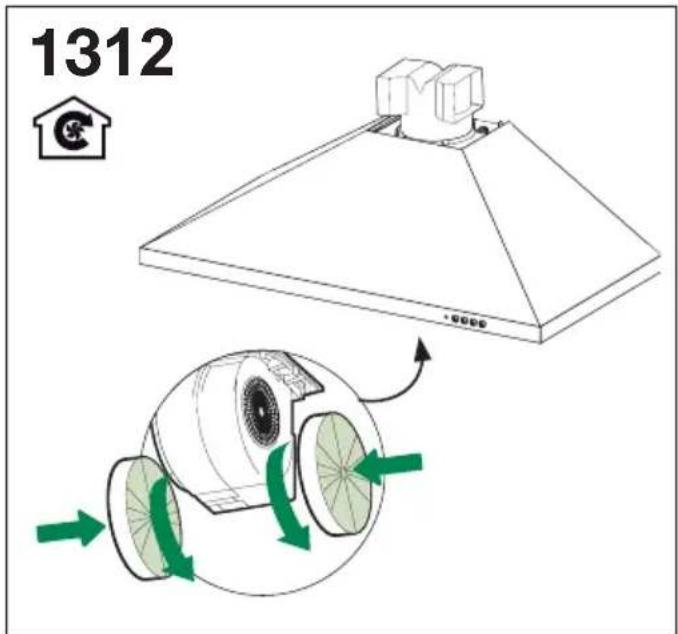

1312 €

L = 4x

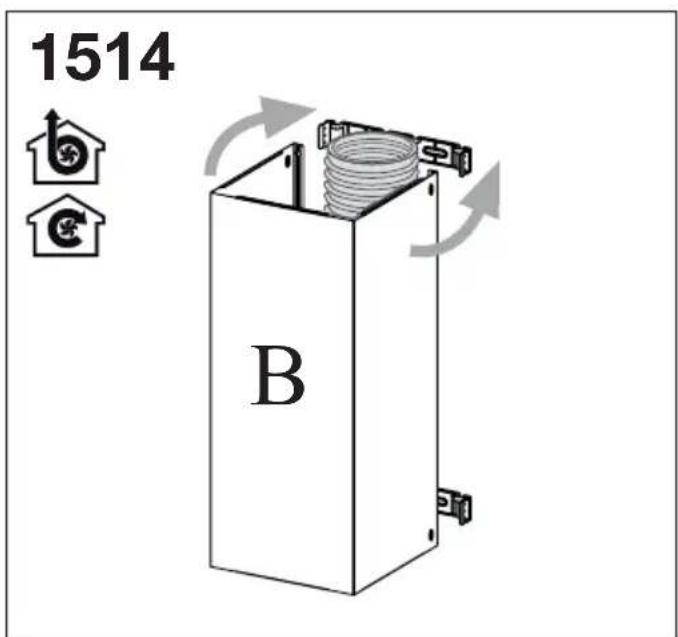

1514 B

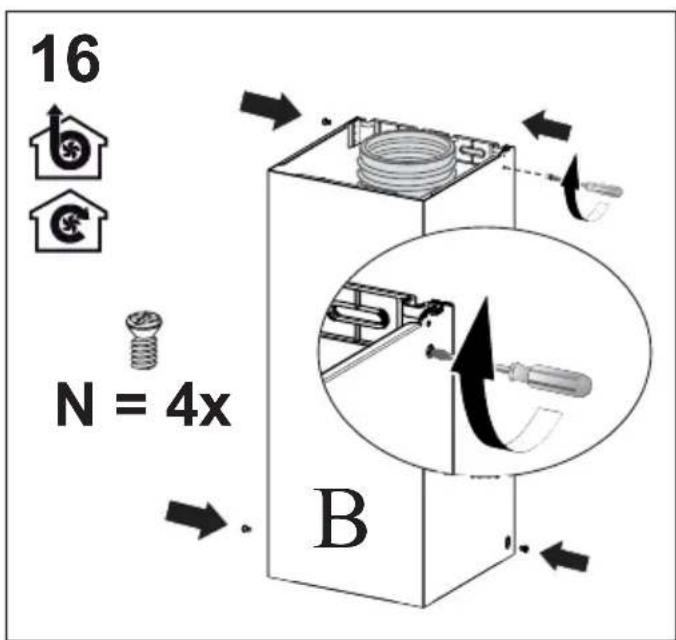

16 N = 4x B

17 B C

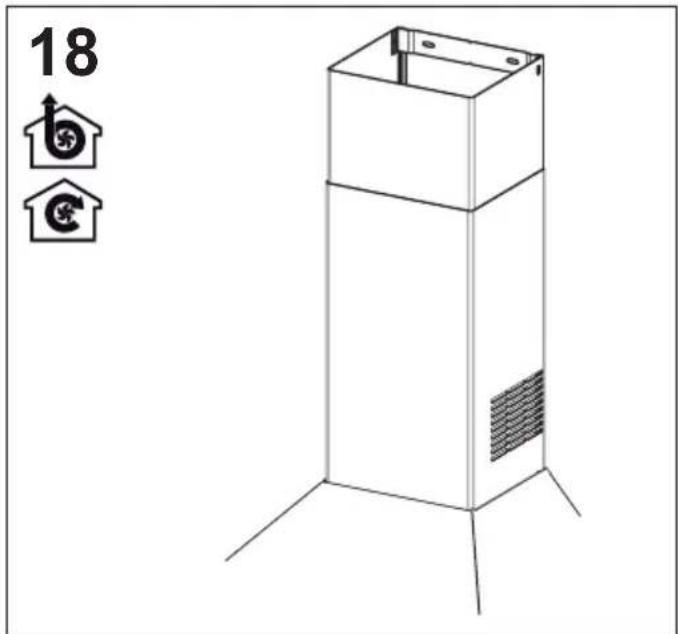

18 ↑ €

19

Technical illustration of a high-rise kitchen chimney with a close-up of its door panel and a hand adjusting the base panel (no text or symbols present)

20

3D diagram of a mechanical component with a rotating arrow and label 'W' (no text or symbols on the object itself)

Diagram of two identical mechanical components with green arrows indicating rotational motion (no text or symbols)

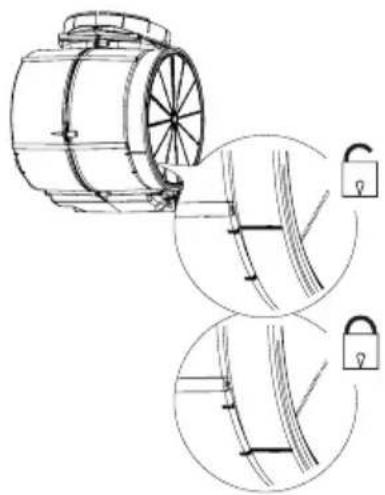

Technical line drawing of a wooden barrel with two views of its side profile showing internal structure and lock mechanism (no text or symbols)

21 ↑ → ← ← ← ← ←

AU

1. SAFETY INFORMATION

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

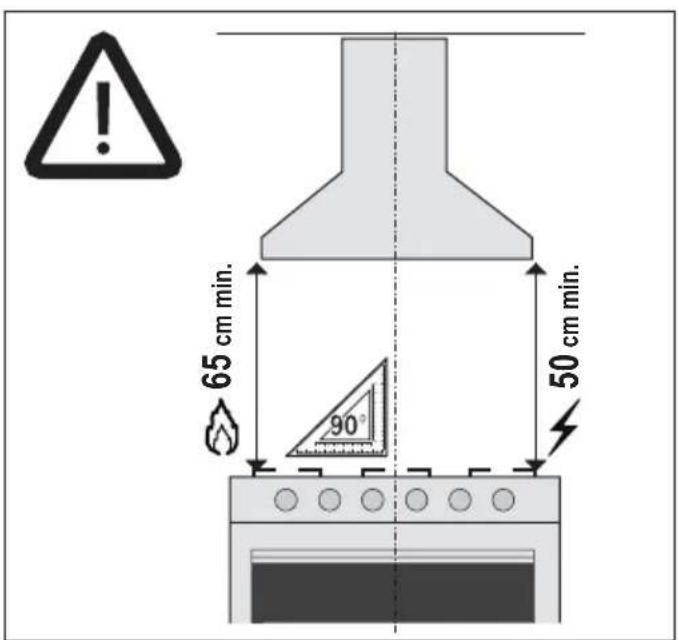

• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

• Regulations concerning the discharge of air have to be fulfilled.
- Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

- If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.

- Connect the plug to a socket d complying with current regulations, located in an accessible place.

- With regards to the technical and safety measures to be adopted for fume discharging

it is important to closely follow the regulations provided by the local authorities.

unless they have been given supervision or instruction.

WARNING: Before installing the Hood, remove the protective films.

Accessible parts may become hot when used with cooking appliances.

- Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambè under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and use maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.

- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge,

Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- The symbol ✉ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

Diagram illustrating shopping order with a shopping cart icon and two circular insets showing mechanical components with arrows indicating rotation or movement.

- The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

Illustration of a hand interacting with a device on a screen, labeled 'Z' (no text or symbols on the diagram itself)

- Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

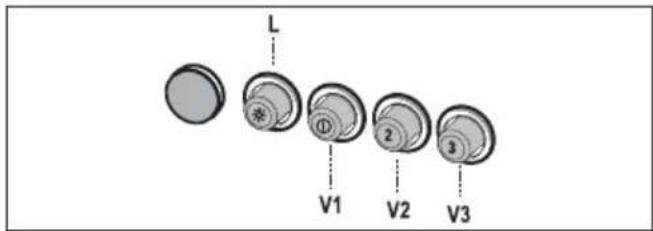

L V1 V2 V3

BUTTON FUNCTIONS

L Light Turns the Lighting System on and off.

V1 Speed Turns the Motor on at Speed one.

V2 Speed Turns the Motor on at Speed two.

V3 Speed Turns the Motor on at Speed three.

5. LIGHTING

Three-step illustration showing hand positioning and lock mechanism (no text or symbols)

Lamp Power (W) Socket	Voltage (V)	Dimension (mm) ILCOS Code
	5 GU10 230 50x50			DRPAR-5/840-220/240-GU10-35/36DRPAR-5/830-220/240-GU10-35/36
